USER MANUAL MTD 205 GSS ECG

POTATO (Brambor) (230 g/ks) A-7 BACON (Speck) (g) A-5 MICROWAVE OVEN Read carefully and save for future use! accumulated grease can overheat and could result in smoke or fire. Do not use abrasive cleaning agents.

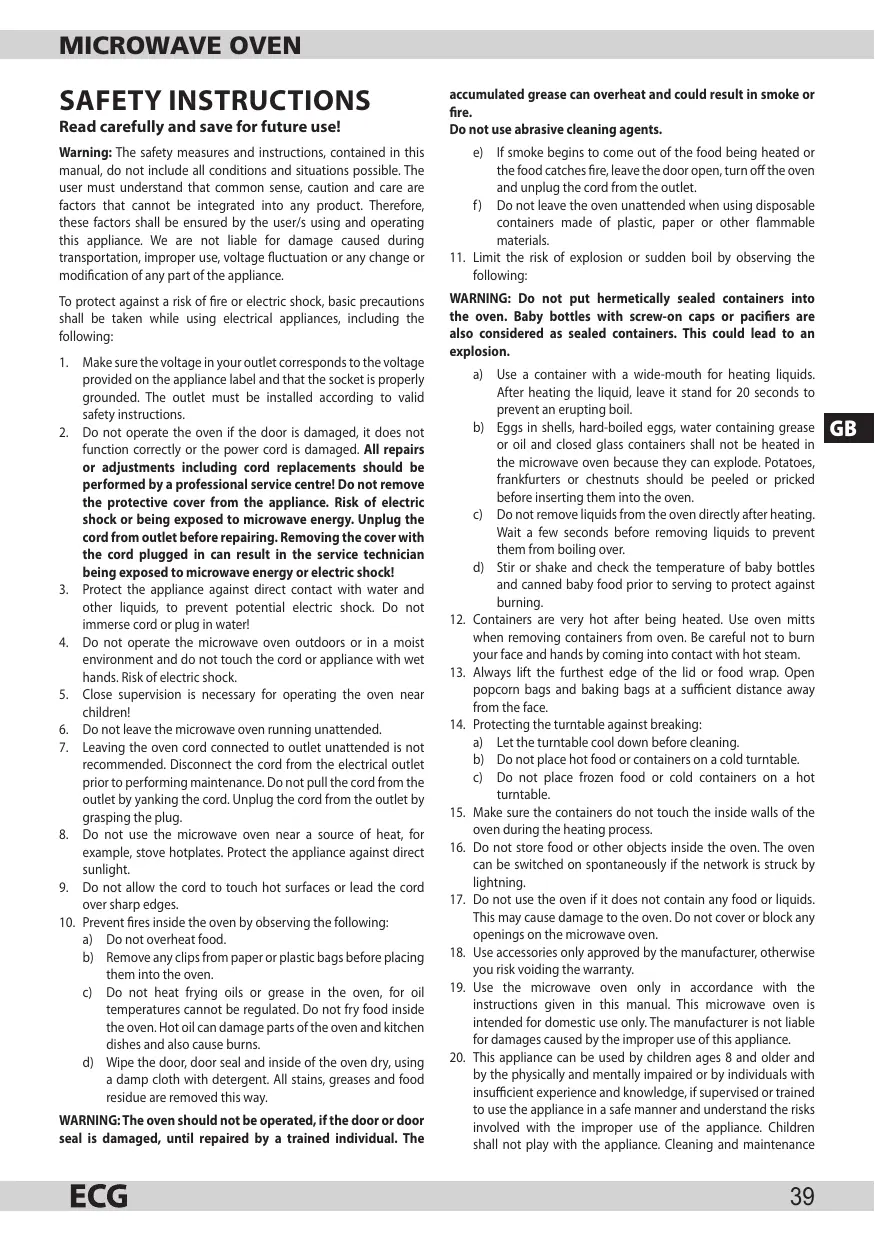

Warning: The safety measures and instructions, contained in this

manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damage caused during transportation, improper use, voltage fluctuation or any change or modification of any part of the appliance. e) If smoke begins to come out of the food being heated or the food catches fire, leave the door open, turn off the oven and unplug the cord from the outlet. f) Do not leave the oven unattended when using disposable containers made of plastic, paper or other flammable materials.

11. Limit the risk of explosion or sudden boil by observing the

following: To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

WARNING: Do not put hermetically sealed containers into

the oven. Baby bottles with screw-on caps or pacifiers are also considered as sealed containers. This could lead to an explosion. SAFETY INSTRUCTIONS

1. Make sure the voltage in your outlet corresponds to the voltage

provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.

2. Do not operate the oven if the door is damaged, it does not

function correctly or the power cord is damaged. All repairs or adjustments including cord replacements should be performed by a professional service centre! Do not remove the protective cover from the appliance. Risk of electric shock or being exposed to microwave energy. Unplug the cord from outlet before repairing. Removing the cover with the cord plugged in can result in the service technician being exposed to microwave energy or electric shock!

3. Protect the appliance against direct contact with water and

other liquids, to prevent potential electric shock. Do not immerse cord or plug in water!

4. Do not operate the microwave oven outdoors or in a moist

environment and do not touch the cord or appliance with wet hands. Risk of electric shock.

5. Close supervision is necessary for operating the oven near

6. Do not leave the microwave oven running unattended.

7. Leaving the oven cord connected to outlet unattended is not

recommended. Disconnect the cord from the electrical outlet prior to performing maintenance. Do not pull the cord from the outlet by yanking the cord. Unplug the cord from the outlet by grasping the plug.

8. Do not use the microwave oven near a source of heat, for

example, stove hotplates. Protect the appliance against direct sunlight.

9. Do not allow the cord to touch hot surfaces or lead the cord

10. Prevent fires inside the oven by observing the following:

a) Do not overheat food. b) Remove any clips from paper or plastic bags before placing them into the oven. c) Do not heat frying oils or grease in the oven, for oil temperatures cannot be regulated. Do not fry food inside the oven. Hot oil can damage parts of the oven and kitchen dishes and also cause burns. d) Wipe the door, door seal and inside of the oven dry, using a damp cloth with detergent. All stains, greases and food residue are removed this way.

WARNING: The oven should not be operated, if the door or door

seal is damaged, until repaired by a trained individual. The

a) Use a container with a wide-mouth for heating liquids. After heating the liquid, leave it stand for 20 seconds to prevent an erupting boil. b) Eggs in shells, hard-boiled eggs, water containing grease or oil and closed glass containers shall not be heated in the microwave oven because they can explode. Potatoes, frankfurters or chestnuts should be peeled or pricked before inserting them into the oven. c) Do not remove liquids from the oven directly after heating. Wait a few seconds before removing liquids to prevent them from boiling over. d) Stir or shake and check the temperature of baby bottles and canned baby food prior to serving to protect against burning. Containers are very hot after being heated. Use oven mitts when removing containers from oven. Be careful not to burn your face and hands by coming into contact with hot steam. Always lift the furthest edge of the lid or food wrap. Open popcorn bags and baking bags at a sufficient distance away from the face. Protecting the turntable against breaking: a) Let the turntable cool down before cleaning. b) Do not place hot food or containers on a cold turntable. c) Do not place frozen food or cold containers on a hot turntable. Make sure the containers do not touch the inside walls of the oven during the heating process. Do not store food or other objects inside the oven. The oven can be switched on spontaneously if the network is struck by lightning. Do not use the oven if it does not contain any food or liquids. This may cause damage to the oven. Do not cover or block any openings on the microwave oven. Use accessories only approved by the manufacturer, otherwise you risk voiding the warranty. Use the microwave oven only in accordance with the instructions given in this manual. This microwave oven is intended for domestic use only. The manufacturer is not liable for damages caused by the improper use of this appliance. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand the risks involved with the improper use of the appliance. Children shall not play with the appliance. Cleaning and maintenance

operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision.

21. The microwave oven is designed to heat food and beverages.

Drying food or clothing and heating cushions, slippers, sponges, wet fabric and similar items may lead to injury, explosion or fire.

22. This appliance is intended for household use and similar areas,

including: - kitchen corners in stores, offices and other work environments - appliances used in the agricultural industry - appliances used by guests in hotels, motels and other residential environments - appliances used in bed and breakfast establishments. Do not expose yourself microwave energy excessively.

1. Do not attempt to operate the microwave oven if the door

is open. By doing so, you can become exposed to harmful microwave energy. Do not attempt to break or hold safety locks on the oven door.

2. Do not insert foreign objects between the oven door. Make

sure dirt or residue from cleaning agents are not left on the door seal or sealing elements of the oven.

3. Do not use the oven if damaged. The oven door should be

perfectly tight upon closing and should not be damaged. Examples of damage caused to the oven door: a) DENTING the oven door. b) Loose or broken door HINGES or SAFEGUARDS. c) OVEN DOOR SEAL OR SEALING AREAS ON THE FRAME HEAD. Adjustments or repairs to the microwave oven should only be performed by a qualified person.

4. As with the majority of appliances intended for baking, strict

supervision is necessary to reduce the risk fire around the oven. In case of fire:

1. Do not open oven door.

2. Turn off the oven and unplug cord from socket.

3. Turn off the master power switch.

CLEANING Make sure you unplugged the oven from the outlet by disconnecting the plug from the outlet.

1. Use a damp cloth and clean the inside of the oven.

2. Clean accessories as usual in soap water.

3. Clean the door frame, seal and neighbouring parts carefully

using a damp cloth dipped into dishwashing detergent and wipe dry. The microwave oven must be grounded. The plug should be connected only to a properly grounded outlet. Refer to a qualified electrician or service technician if you have any doubts regarding proper wiring or experience malfunctioning.

1. The microwave oven is equipped with a short cord to reduce

the risk of tripping or tangling.

2. Long extension cords must meet the following requirements:

a) With respect to electric load, the rated values of the extension cord and outlet should comply with the rated values of the microwave oven. b) The extension cord must be three-wire and the plug must be equipped with a grounding pin. c) The cord must be sufficiently hidden, not hanging over the kitchen counter, to prevent against tripping over the cord or being pulled out by children.

UTENSILS AND DISHES

CAUTION Risk of injury Tightly closed containers can explode when heated. Closed containers must be opened prior to cooking and plastic containers shall be pierced, see Materials to find out what material can and can not be used in the microwave oven. Some non-metal material may not be safely used for oven heating. If you are not sure whether or not the material is safe for oven heating, proceed as follows: Test the container:

1. Fill the container, to be heated in the microwave oven, with

cold water (250 ml).

2. Heat for 1 minute at maximum cooking power.

3. Check the temperature of the tested container carefully. If the

tested container is warm, do not use it for oven heating.

4. Do not cook more than 1 minute.

Material that can be used in the microwave oven Containers Notes Aluminium foil Only to cover small parts of food. Covering small amounts of meat or poultry with foil prevents overcooking or burning the food. The foil must be at least 2.5 cm away from the inner oven surface (the foil can bend if too close). Baking trays Follow the instructions of the manufacturer. The bottom of the baking container must be at least 5 mm above the turntable. Improper handling can lead to cracking the turntable. Plates Use only plates and dishes specified for microwave oven use. Follow the instructions of the manufacturer. Do not use cracked or otherwise damaged bowls. Glass jars and jugs Always remove the cover. Only heat the food. Do not cook! Most glass jugs and jars are not resistant to high temperatures and can crack. Glass baking dishes Use only those glass baking dishes resistant to high temperatures. Make sure the bowl does not have a metal border or other metal parts. Do not use cracked or otherwise damaged bowls.

Baking bags Follow the instructions of the manufacturer. Do not close using metal clips. Leave the bag slightly opened enabling the free release of hot steam. Paper trays Suitable only for heating or short cooking. Do not leave the oven unattended while cooking. Paper towels Use these to cover food or remove melted grease. Use for short-term cooking only. Do not leave the oven unattended while cooking. Parchment paper Use for covering food, packing food for stewing and as protection against spattering. Plastic material Use only plates and dishes specified for microwave oven use. Follow the instructions of the manufacturer. Plastic material, suitable for microwave oven use, should be equipped with a specific label: “Suitable for microwave ovens.” Some plastics become softer as a result of long-term exposure to high temperatures. “Boiling bags” and baking sacks must be cut, pierced or otherwise vented according to the food manufacturer's instructions. Plastic packing foil Use only plates and dishes specified for microwave oven use. Use them for covering food and to maintain food moist while cooking. Make sure the plastic foil does not touch the food being prepared. Thermometers Use only thermometers suitable for microwave oven use. (Thermometers for meat, bread products and candy.) Wax paper Use for covering food, as protection against spattering and to maintain food moist while cooking. Material, which may not be used for oven heating Utensils and dishes

Notes Aluminium platters and trays Risk of bending. Move the food to a container suitable for microwave oven use. Food and cardboard boxes with metal holders Risk of bending. Move the food to a container suitable for microwave oven use. Metal dishes and dishes with metal objects Metal prevents the penetration of microwave energy. Metal borders can bend. Wired closing rings Risk of bending and fire inside the oven. Paper bags Risk of catching fire. Risk of fire inside the oven. Foam material Plastic foam can melt at high temperatures and spoil food. Wood Wood dries and can crack when cooked.

INSTALLING THE TURNTABLE

Charge (bottom side)

1. Do not lay the turntable face down. The turntable must always rotate

2. Do not use the oven without the support and turntable.

3. All food and containers must always be placed on the turntable.

4. Contact your nearest authorized service if the turntable cracks or the

support is damaged. Plate Support axis Assembled support

INSTALLING THE MICROWAVE OVEN

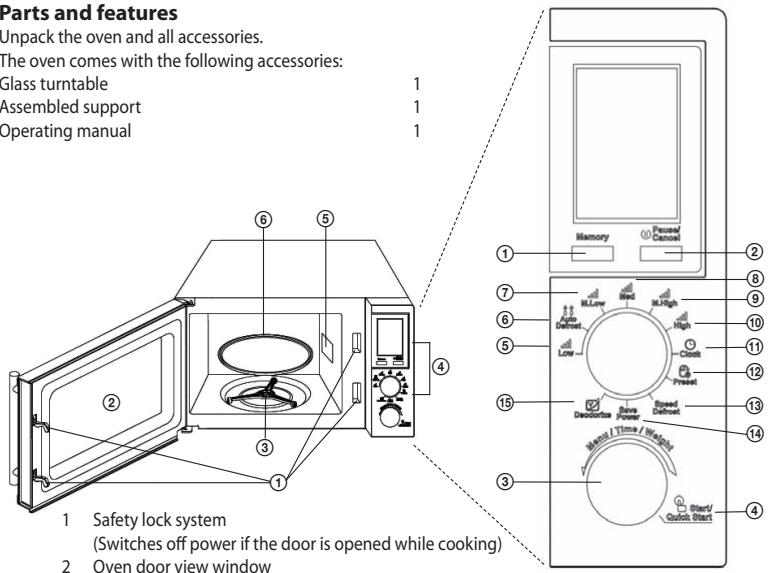

Parts and features Unpack the oven and all accessories. The oven comes with the following accessories: Glass turntable Assembled support Operating manual

Safety lock system (Switches off power if the door is opened while cooking) Oven door view window Assembled support Control panel Waveguide Glass turntable

Memory Pause/Cancel Menu/Time/Weight Start/Quick start Low Auto Defrost Medium Low Medium Medium High High Clock Preset Speed Defrost Save Power Deodorization INSTALLATION Remove all packaging material and take out all accessories. Make sure the oven is not damaged in any way (dented or damaged door etc.). Do not install the microwave oven if damaged. Kitchen worktop Oven body: Remove all protective foil from the oven surface. Do not remove the light brown foil, screwed to the inside of the oven. This foil protects the oven magnetron. 30 cm

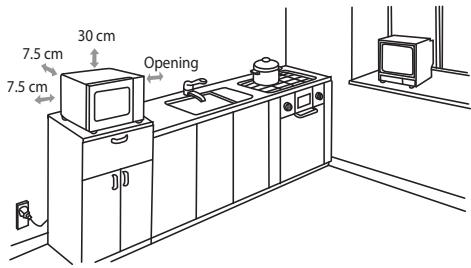

7.5 cm

7.5 cm

1. Place the oven on a flat surface with a sufficient amount of space

around the appliance to ensure the proper function of exhaust vents. The minimum distance between the oven and the closest wall must be 7.5 cm. At least one side must be open space. a) Leave at east 30 cm of free space above the oven. b) Do not remove oven legs. c) Do not block exhaust vents. Blocking the exhaust vents could cause damage. d) Place the oven as far away from the radio or television as possible. The microwave oven can interfere with the television and radio signal. 2. Connect the oven to a standard electricity network. Make sure the voltage and frequency on the oven label corresponds with the network voltage and frequency. ATTENTION: Do not install the oven above or near the kitchen stove, or near another source of heat. Placing the oven by a heat source could damage the oven and result in losing the warranty. The microwave oven should be used in an open space and should not be placed in a cabinet. The surface of the microwave oven can become hot during operation. Hot surface!

OVEN FUNCTIONS Operating instructions This microwave oven uses modern electronic controlling to configure cooking parameters to better meet your needs.

1. Memory

Press the button Memory to select cooking program.

2. Pause/Cancel settings

Press the Pause/Cancel button to pause a running program, press twice to cancel the program. Also used for setting the Child lock function.

3. Setting the time

Turn the dial to position Clock, turn the second dial Menu/Time/Weight to the right, press repeatedly and select 24 hour mode (Hr 24) or 12 hour mode (Hr 12). When you select the mode, set the clock by turning the dial Menu/Time/Weight and press Start/Quick Start to confirm. Use the same procedure to set the minutes.

4. Cooking in the microwave oven

1) Turn the dial to the desired power level.

2) Using the dial Menu/Time/Weight set the required cooking time.

3) Confirm by pressing the Start/Quick Start button and the oven will begin cooking.

Cooking power table Functions

Microwave power Low 20% M. Low 40% Med (Medium) 60% M. High 80% High 100%

5. Quick start

Press repeatedly the button Start/Quick Start to set the cooking time, the oven starts working at full power level. The longest possible duration that can be set in this mode is 10 minutes. After the cooking time has elapsed, you will hear a beep and the display will show END.

6. Defrosting according to weight

Defrosting time and power are set automatically after programming the weight. Weight of frozen foods range: 100–1800 g. Example: Defrosting 600 g of shrimps.

1) Set the dial to Auto Defrost.

2) Turn the dial Menu/Time/Weight to select the weight of the food.

3) Start the defrosting process by pressing the Start/Quick Start button.

Note: During the defrosting, the cycle is paused and you hear an audio signal – rotate the food and press Start/Quick Start to continue.

7. Defrosting according to time

1) Set the dial to Speed Defrost.

2) Turn the Menu/Time/Weight wheel and set the defrost duration (maximum setting is 95 minutes).

3) Start the defrosting process by pressing the Start/Quick Start button.

8. Cooking in phases

3 different preparation phases at most can be set for cooking. Example: 1 phase S1: a cooking time of 10 minutes for a cooking of High power. 2 phase S2: a cooking time of 8 minutes for a cooking of Medium power. 3 phase S3: a cooking time of 5 minutes for a cooking of Medium power.

Select 1 program phase (identical to setting the cooking options on the microwave). Press the button Memory. Enter 2 program phases. Press the button Memory. Enter 3 program phases. Press the Start/Quick Start button. Note: You cannot use the functions Quick start, Auto and Quick Defrost, Deodorization and Auto cooking during phase cooking.

9. Preset

This function enables running one of the pre-programmed oven cycles.

Example: It is 8:00 and at 11:30 you want to cook for 20 minutes at 80% power level

1) Turn the dial to M. High position.

2) Turn the dial Menu/Time/Weight to set the cooking time to 20:00.

3) Turn the dial to Preset position.

4) Turn the dial Menu/Time/Weight to set the time 11:00 and confirm by pressing Start/Quick Start.

5) Turn the dial Menu/Time/Weight to set the time 11:30 and confirm by pressing Start/Quick Start.

6) Press the Start/Quick Start button to start the program.

Note: When using presets, you cannot use the Quick Start, Deodorization, Auto a Quick Defrost, Auto Cooking functions.

10. Automatic cooking

The cooking power and duration do not have to be set for the following types of food. Simply enter the type of food and its weight/quantity. Example: cooking 2 potatoes

1) Turn the dial Menu/Time/Weight counterclockwise until the display shows A-6.

2) Press the Start/Quick Start button.

3) Turn the dial Menu/Time/Weight to select the quantity of potatoes – 2 pcs.

4) Press the Start/Quick Start button.

Automatic cooking menu A-1

POPCORN (99 g) A-2 Note: The result of automatic cooking depends on factors like voltage fluctuation, shape and size of the food, your personal preference of doneness, etc. If you do not find the result of the cooking satisfactory, adjust suitably the cooking time.

11. Child lock

LOCK: Hold the Pause/Cancel button down for 3 seconds, a sound will signal the child lock has been activated and the Child Lock indicator will appear on the display. UNLOCK: Hold the Pause/Cancel button for 3 seconds, a sound will notify you that the child lock has been deactivated and the time setting will appear on the display. The lock indicator on the display will go off.

12. Deodorization

1) Set the dial to the Deodorize position.

2) Turn the dial Menu/Time Weight clockwise immediately when the display shows default time 5:00 and the indicator of deodorization.

3) Press the Start/Quick Start button to activate the function.

13. Save Power

Set the dial to Save Power position. If you do not use any of the oven controls within 3 seconds, the oven switches to energy saving mode and the oven display switches off. When you turn the dial to a different position, the energy saving mode is switched off. TROUBLESHOOTING Common The microwave oven interferes with the television reception. The microwave oven can interfere with the radio and television when operating. It is similar to the interference of small electrical appliances such as the blender, vacuum cleaner and electrical ventilator. The light in the oven dims. The light in the oven cavity can dim when a lower cooking power is set. Steam is accumulated on the door, hot air is coming from vents. Steam can be released from food while cooking. Most of the steam is released through the exhaust vents, though some can accumulate in a cooler place, such as the door. This effect is normal. The oven was started empty by accident. The oven should not be operated empty. It is very dangerous.

Problem Possible cause Correction (1) The cord is not firmly plugged into the outlet. Unplug the cord from the outlet. Plug the cord back into the outlet after approximately 10 seconds. (2) Blown fuse or switched off circuit breaker. Replace the fuse or reset the circuit breaker (repaired by a service technician from our company). (3) Problem with the outlet. Try connecting another electrical appliance into the outlet. The oven does not heat. (4) Door is not closed correctly. Close the door properly. The turntable makes noises when the microwave oven is operating. (5) The turntable or bottom of oven are dirty. Clean the oven according to the instructions stated in chapter “Cleaning.” The oven will not start. TECHNICAL INFORMATION 20 l capacity Microwave power output 700 W Stainless steel design including interior Timer 95 minutes Auto Menu 8 options Defrosting time/weight Power settings 5 levels Turntable 245 mm Weight 10.5 kg Dimensions: 452 × 262 × 352 mm (w × h × d)

Nominal voltage: 230–240 V~ 50 Hz Nominal input power: 1,200 W Operating frequency: 2,450 MHz Noise level: 57 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers. DISPOSAL OF PRODUCTS AT THE END OF LIFETIME Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system) The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product. 08/05 This product complies with EU directive requirements on electromagnetic compatibility and electrical safety. Changes in text and technical parameters reserved.
