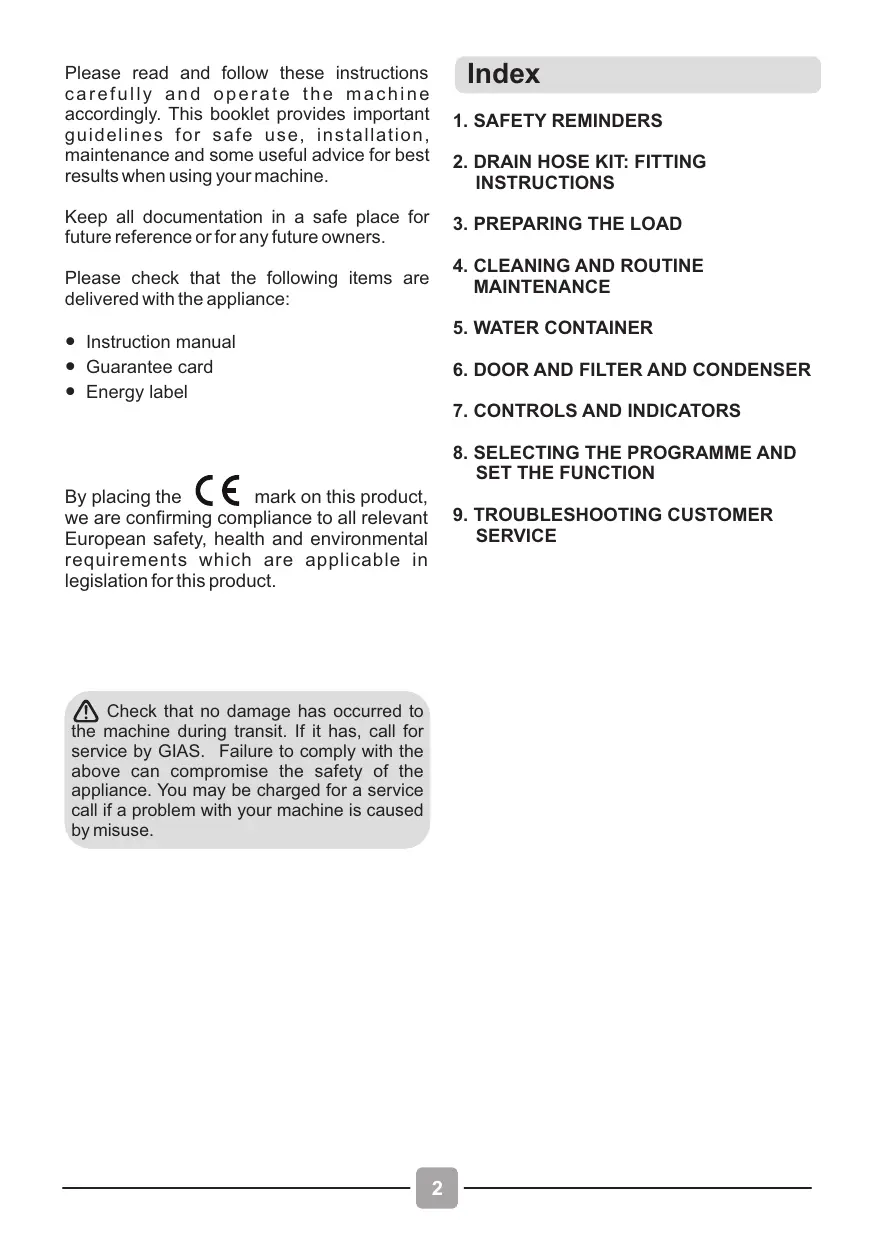

USER MANUAL ETD C8LG-S ZEROWATT

Please read and follow these nstruct ons carefully and operate the mach ne accord ngly. Th s booklet prov des mportant gu del nes for safe use, nstallat on, ma ntenance and some useful adv ce for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

3. PREPARING THE LOAD

2. DRAIN HOSE KIT: FITTING INSTRUCTIONS Please check that the follow ng tems are del vered w th the appl ance:

● Instruction manual

● Guarantee card ● Energy label

6. DOOR AND FILTER AND CONDENSER

7. CONTROLS AND INDICATORS

8. SELECTING THE PROGRAMME AND SET THE FUNCTION By plac ng the mark on th s product, we are conf rm ng compl ance to all relevant

European safety, health and env ronmental requ rements wh ch are appl cable n leg slat on for th s product.

9. TROUBLESHOOTING CUSTOMER SERVICE Check that no damage has occurred to the machine during transit. If it has, call for service by GIAS. Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse.

may reduce the l fe of the appl ance and may vo d the manufacturer’s warranty.

Any damage to the appl ance or other damage or loss ar s ng through use that s not cons stent w th domest c or household use ( even f located n a domest c or household env ronment) shall not be accepted by the manufacturer to the fullest extent perm tted by law.

● Th s appl ance can be used by ch ldren aged from 8 years and above and persons w th reduced phys cal,sensory or mental capab l t es or lack of exper ence and knowledge f they have been g ven superv s on or nstruct on concern ng use of the appl ance n a safe way and understand the hazards nvolved.Ch ldren shall not play w th the appl ance. Clean ng and user ma ntenance should not be made by ch ldren w thout superv s on.Ch ldren of less than

3 years should be kept away unless cont nuously superv sed. ● WARNING Misuse of a tumble dryer may create a fire hazard. ● Th s appl ances s ntended to be used n household and s m lar appl cat ons such as: - Staff k tchen areas n shops , off ces and other work ng env ronments; - Farm houses - By cl ents n hotels, motels and other res dent al type env ronments; - Bed and breakfast type env ronments" A d fferent use of th s appl ance from house hold env ronment or from typ cal housekeep ng funct ons,as commerc al use by expert or tra ned users, s excluded even n the above appl cat ons. If the appl ance s used n a manner ncons stent w th th s t

● This machine should only be used for its intended purpose as described in this manual.

Ensure that the nstruct ons for nstallat on and use are fully understood before operat ng the appl ance. ● Do not touch the appliance when hands or feet are damp or wet. ● Do not lean on the door when loading the machine or use the door to lift or move the mach ne. Do not allow children to play ● with the machine or its controls.

● WA R N I N G D o n o t u s e t h e

Installat on product if the fluff filter is not in position or is damaged; fluff ● Do not use adapters, multiple could be gn ted. connectors and/or extensions. ● ● WARNING Where the hot Never install the dryer against surface symbol is located curtains and be sure to prevent the temperature rise dur ng items from falling or collecting operat on of the tumble dryer behind the dryer. may be n excess of 60 degrees ● The appliance must not be C. installed behind a lockable door, ● Remove the plug from the a sliding door or a door with a e l e c t r i c i ty s u p p l y. A l w a y s hinge on the opposite side to remove the plug before clean ng that of the tumble dryer. the appl ance. ● Do not continue to use this machine if it appears to be faulty. ● Lint and fluff must not be allowed to collect on the floor around the o u t s i d e o f t h e mach ne. ● The f nal part of a tumble dryer cycle occurs w thout heat (cool down cycle) to ensure that the tems are left at a temperature that ensures that the tems w ll not be damaged. ● The tumble dryer s not to be used f ndustr al chem cals have been used for clean ng. ● WARNING: Never stop a tumble dryer before the end of the dry ng cycle unless all tems are qu ckly removed and spread out so that the heat s d ss pated. ● Maximum load drying weight: see energy label.

● Do not dry unwashed items in the tumble dryer.

● WARNING Do not tumble dry fabrics treated with dry cleaning fluids. ● WA R N I N G F o a m r u b b e r materials can, under certain circumstances, when heated become gn ted by spontaneous combust on. Items such as foam rubber (latex foam), shower caps, waterproof text les, rubber backed art cles and clothes or p llows f tted w th foam rubber pads MUST NOT be dr ed n the tumble dryer. ● Always refer to the laundry care labels for directions on suitability for drying. ● Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. ● Clothes that are dr pp ng wet should not be put nto the dryer. Lighters and matches must not be left in pockets and NEVER use flammable l qu ds near the mach ne. ● Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur f other garments are contam nated w th the glass f bres. ● Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpent ne, waxes and wax removers should be

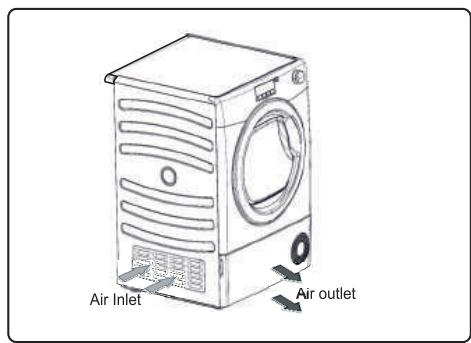

● Adequate vent lat on must be prov ded n the room where the tumble dryer s located to prevent gases from appl ances burn ng other fuels, nclud ng open f res, be ng drawn nto the room dur ng operat on of the tumble dryer. ● Install ng the rear of the appl ance close to a wall or vert cal surface. ● There should be a gap of at least 12 mm between the mach ne and any obstrubt ons.The nlet and outlet should be kept clear of o b s t r u c t o n . To e n s u r e adequate vent lat on the space between the bottom of the mach ne and the floor must not be obstructed. ● Check regularly that the a r flow ng through the dryer s not restr cted. ● Check frequently the fluff f lter after use, and clean, f necessary. ● Prevent tems from fall ng or collect ng beh nd the dryer as 5

washed n hot water w th an extra amount of detergent before be ng dr ed n the tumble dryer.

● Fabric softeners, or similar products, should be used as specified by the fabric softener nstruct ons.

these may obstruct the a r nlet and outlet

● NEVER nstall the dryer up aga nst curta ns. ● In cases where the dryer s nstalled on top of a wash ng mach ne, a su table stack ng k t must be used accord ng to the follow conf gurat on.

the appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

Do not nstall the product n a low temperature room or n a room where there s a r sk of frost occurr ng. At temperature around freez ng po nt the product may not be able to operate properly: there s a r sk of damage f the water s allowed to freeze n the hydraul c c rcu t (valves, hoses, pumps). For a better product performance the amb ent room temperature must be between 5-35°C. Please note that operat ng n cold cond t on (between +2 and +5°C) m ght s mply some water condensat on and water drops on floor.

- Stack ng k t Mod 35100019: for m n mum wash ng mach ne depth 49 cm

- Stack ng k t Mod 35900120: for m n mum wash ng mach ne depth 51 cm The stack ng k t shall be one of that above, obta nable from our spare serv ce. The nstruct ons for nstallat on and any f x ng attachments, are prov ded w th the stacking k t.

● All packaging materials used are environmentally-friendly and recyclable.

Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal. ● To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

Tumble dryers are suppl ed to operate at a voltage of 220-240V, 50 Hz s ngle phase.

Check that the supply c rcu t s rated to at least 10 A. Electricity can be extremely dangerous. This appliance must be earthed. The socket outlet and the plug on the appliance must be of the same type. Do not use multiple adapters and/or extension leads. The plug should be accessible for disconnection after the appliance has been installed.

European Directive 2012/19/EU Th s appl ance s marked accord ng to the European d rect ve 2012/19/EU on Waste Electr cal and Electron c

You may be charged for a service call if a problem with your machine is caused by incorrect installation.

If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person.

WEEE conta ns both pollut ng substances

(wh ch can cause negat ve consequences for the env ronment) and bas c components (wh ch can be re-used). It s mportant to have WEEE subjected to spec f c treatments, n order to remove and d spose properly all pollutants, and recover and recycle all mater als. Ind v duals can play an mportant role n ensur ng that WEEE does not become an env ronmental ssue; t s essent al to follow some bas c rules:

Do not plug the machine in and switch it on at the mains until the installation is completed.For your safety, this dryer must be correctly installed. If there is any doubt about installation, call

GIAS Service for advice.

- WEEE should not be treated as household waste.

- WEEE should be handed over to the relevant collect on po nts managed by the mun c pal ty or by reg stered compan es. In many countr es, for large WEEE, home collect on could be present.

Once the machine is in place the feet should be adjusted to ensure that the machine is level.

In many countr es, when you buy a new appl ance, the old one may be returned to the reta ler who has to collect t free of charge on a one-to-one bas s, as long as the equ pment s of equ valent type and has the same funct ons as the suppl ed equ pment.

● To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS service engineer.

EN Electr cal Requ rements

Env ronmental Issues

4. Attach the black hose from the kit,

(using the connector and pipe clips supplied), to the hose removed from the bridge connection.

To avo d empty ng the water conta ner after each dry ng cycle, the water can be d scharged d rectly to a waste water dra n p pe (the same dra nage system as household s nks). Water

Bye-Laws proh b t connect on to a surface water dra n. The waste water dra n p pe should be located adjacent to the tumble dryer.

5.Place the tap suppl ed by the k t to close the rema ng hose.

Connect the new drain hose to the waste black water pipe .

The k t cons sts of:1 hose and 1 tap.

WARNING! Switch off and remove the tumble dryer plug from the electricity supply before carrying out any work.

Fit the Hose as Follows:

1.T lt the mach ne backwards.

6. Once the mach ne s n place, check the bottom to ensure that the new hose does not kink when pushing the tumble dryer into position.

2. The waste water p pe is situated at the right-hand side of the machine (see the p cture). A grey hose connects to the bridge at the left hand s de of the mach ne. Using pliers, remove the pipe retaining clip from the bridge.

3. Pull the hose off the bridge connection.

Connect to the mains electricity supply.

NOTE : The d rect dra n condensed water k t s su table only on models w th the water tank on the door

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

● By amount and thickness Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear). ● By type of fabric Cottons/l nen: Towels, cotton jersey, bed and table linen. Synthet cs: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

Before us ng the tumble dryer for the f rst t me:

● Please read this instruction book thoroughly. ● Remove all items packed inside drum. ● Wipe the inside of the drum and door with a damp cloth to remove any dust wh ch may have settled n trans t.

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item. Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do not overload the drum, large tems when wet exceed the max mum adm ss ble clothes load (for example: sleep ng bags, duvets).

Silk, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

● Clean the filter and empty the water conta ner after every dry ng cycle. ● Regularly clean the condenser. ● After each period of use, wipe the inside of the drum and leave the door open for a wh le to allow c rculat on of a r to dry t. ● Wipe the outside of the machine and the door w th a soft cloth. ● DO NOT use abrasive pads or cleaning agents. ● To prevent the door sticking or the build up of fluff clean the nner door and gasket w th a damp cloth after every dry ng cycle.

During the last 15 minutes the load is always tumbled in cool air.

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity. ALWAYS ● Check that the filter is clean before every drying cycle. NEVER ● Put dripping wet items into the tumble dryer, this may damage the appliance.

WARNING! The Drum, door and load may be very hot.

Sort the Load as Follows

IMPORTANT Always switch off and remove the plug from the electricity supply before cleaning this appliance.

These can be found on the collar or inside seam: Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

3. PREPARING THE LOAD

5. WATER CONTAINER The water removed from the laundry dur ng the dry ng cycle s collected n a conta ner ns de the door of the dryer. When the conta ner s full the nd cator on the control panel w ll l ght, and the conta ner MUST be empt ed. However, we recommend that the conta ner s empt ed after each dry ng cycle.

NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

To remove the conta ner tank n door drawer

To remove the conta ner bottom water drawer

1. Gently pull out the water conta ner hold ng the handle. (A)

When t s full the water conta ner w ll we gh about 6 kg. 2. T l t t h e w a t e r conta ner to empty the water out through the spout. (B)

1.Gently pull the bottom of the kickplate so that it unclips from the dryer.

The top section can then be unhinged allowing the kickplate to be completely removed. (A)

2.Pull firmly on the handgrip and slide the water container out of the dryer. (B)

Support the container with both hands. (C)When full, the water container will weigh about 4kg.

When empty, replace the water conta ner back as shown; (C) first insert the base of the container into position as shown (1) then gentle push the top into position (2).

4. Refit the lid and slide the water container back into position. (D)

PUSH FIRMLY INTO PLACE. 1

3. Open the lid located on the top of the container and empty the water.(D)

Button to restart the cycle. NOTE: If you have the opt on of dra nage near to the dryer you can use the d scharge k t to prov de a permanent dra nage for the water collected n the conta ner of the dryer. Th s means that you don't have to empty the water container.

5. Refit the kickplate by engaging the hinges at the top and 'snapping' the lower clips into place.

D WARNING! When the tumble dryer is in use the drum and door may be VERY HOT.

EN To Remove the Condenser

Pull on handle to open the door.

To restart the dryer, close the door and press Start / Pause button.

1.Remove the kickplate.

2.Turn the two locking levers anti-clockwise and pull out the condenser.

IMPORTANT: To ma nta n the eff c ency of the dryer check that the fluff f lter s clean before each dry ng cycle.

3.Pull out the condenser unit.

4.Gently remove any dust or fluff with a cloth, then wash the unit by holding it under a running tap turning it so that water flows between the plates, to remove any dust or fluff.

1. P u l l t h e f i l t e r upwards.

2. Open filter as shown.

3. Gently remove lint using a soft brush or your fingertips.

5.Check the gasket pos t on after clean ng.F t the gasket n to the groove f t s m sal gned.

F lter Care Ind cator

L ghts when the f lter needs clean ng.

If the laundry is not drying check that the filter is not clogged. IF YOU CLEAN FILTER UNDER WATER, REMEMBER TO DRY IT. WARNING! If you open the door mid cycle, before the cool-down cycle has completed,the handle may be hot. Please use extreme caution when attempting to empty the water reservoir during the cycle.

6.Refit the condenser ensuring it is in the correct way (as indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise.Be sure that condenser un t f xed to the basement t ghtly.

7. Refit the kickplate.

4. S n a p t h e f i l t e r together and push back into place.

Th s appl ances s equ pped w th Dry ng

Manager Funct on. On automat c cycles, each level of ntermed ate dry ng, pr or to the reach ng the selected one, s nd cated by flash ng the l ght nd cator correspond ng to the degree of dry ng reached.In case of ncompat b l ty, all LEDs flash qu ckly for 3 t mes.

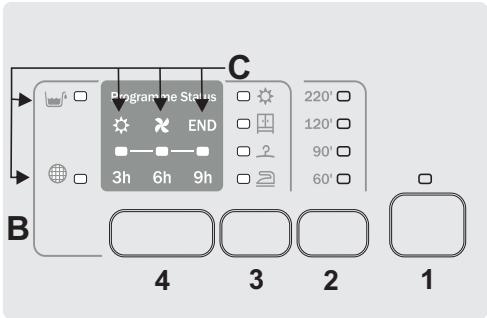

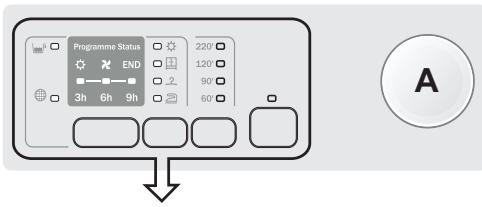

7. CONTROLS AND INDICATORS A

4.Delay Start Button

To postpone the start of the programm for 3h, 6h, or 9h. Open ng of the porthole w th delayed start set, after re-clos ng the porthole, press start aga n to resume the count ng.

Water tank - It l ghts up when t's necessary to empty the condensate water tank. F lter clean ng - It l ghts up when the clean ng of the f lters s requested (the door and the lower f lter.)

A-Programme Selector - Rotat ng the knob n both d rect ons t's poss ble to select the des red dry ng program. To cancel the select ons or sw tch off the dryer rotate the knob on OFF.

These control l ghts, l ght up for nd cate the dry ng phase:

It l ghts up when the dry ng cycle s

It l ght up when the cycle s n the cool ng phase.

1.Start/Pause Button

To start the selected program and/or suspend t.

-END: It l ght up when the cycle s done.

2.T me cycle select on

It's poss ble sw tch a cycle from automat c to t med , up to 3 m nutes after the start of the cycle. After th s select on to reset the automat c dryng funct on ng s necessary to sw tch off the dryer.In case of ncompat b l ty, all LEDs flash qu ckly for 3 t mes. 3.Dry ng Select on Button It allows to set the des red dryness level ed table opt on up to 5 m nutes after the start ng of the cycle: - Ready to Iron : It leaves the garments sl ghtly wet to fac l tate ron ng. - Dry Hanger : To get garment ready to be hang - Dry wardrobe : For laundry that can be d rectly stored -Extra-dry : To get completely dry garments, deal for full load.

In UK, E re, Hong Kong and Ind a the

Woolmark trade mark s a Cert f cat on trade mark.

The real durat on of dry ng cycle depends by the start ng hum d ty level of the laundry due to sp n speed, type and amount of load, cleanl ness of f lters and amb ent temperature.

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door. 2. Gently close the door pushing it slowly until you hear the door 'click' shut. 3. Turn the Programme Selector dial to select the required drying programme (see Programme Guide).

Max mum Dry ng We ght

Max.capac ty declared

Synthet cs or Del cates

4. Press the button. The dryer will start automatically and the indicator above the button will be continuously lit.

The standard cycle COTTON DRY ( ) s the most energy eff c ent and best su ted for dry ng normal wet cotton laundry.

5. If the door is opened during the programme to check the laundry, it is necessary to press to recommence drying after the door has been closed.

The table n last page shows the approx mate t me and energy consumpt on of the ma n dry ng programmes.

6. W h e n t h e c y c l e i s n e a r i n g completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.

Power consumpt on of off-mode

0,40 W Power consumpt on of on-mode

0,75 W Capac ty (as energy label)

7. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched

OFF or the door is opened.

Technical Specifications

Max mum load He ght W dth Depth Energy class

8.When the programme is complete the END indicator will light.

Do not open the door dur ng the automat c programs n order to obta n a proper dry ng.

-COTTON OR WHITES -DELICATES OR SYNTHETIC

EN The wool dry ng cycle of th s mach ne has been approved by The

Woolmark Company for the dry ng of mach ne washable wool products prov ded that the products are washed and dr ed accord ng to the nstruct ons on the garment label and those ssues by the manufacturer of th s mach ne. M1524.

8. SELECTING THE PROGRAMME AND SET THE FUNCTION PROGRAM PROGRAM DESCRIPTION Cotton

Program Eco normative (hang dry) drying. The most efficient program in energy consumption. Suitable for cottons and linens.

The right cycle to dry cottons, sponges and towels.

To dry synthetic fabrics that need an accurate and specific treatment.

Dedicated to get an even drying for extremely small loads without the overdry risking.

To dry all together different kind of fabrics as cotton ,linen, mix, synthetics.

Dedicated to dry uniformly fabrics like jeans or denim. It's recommended flip over the garments before drying.

Perfect to dry quickly up to 1 kg load. It's recommended to sp n at h gh speed before dry ng.

Perfect cycle to dry uniformly duvets and quilts, revitalizing the smoothness of the feathers.

A delicate and specific cycle to dry dark or colour cotton or synthetics garments.

This specifics cycle has been conceived to dry shirts minimizing tangles and folds thanks specific movements of the drum. It's recommended to take out the linens immediately after drying cycle.

One specifics cycle that dry and in the same time helps to reduce the main allergens as dustmites, pet hair, pollens and residual of powder detergents.

This is a warm cycle that in only 12 minutes helps to relax folds and creases.

The perfect cycle to remove the bad smells from the linens smoothing creases.

To dry delicate fabrics that need an accurate and specific treatment.

Woolen clothes: the program can be used to dry up to 1 kg of laundry (around 3 jumpers). It is recommended to reverse all clothes before drying. Timing can change due to dimensions and thickness of load and to spinning chosen during washing. At the end of the cycle, clothes are ready to be worn, but if they are heavier, edges can be a bit wet: it is suggested to dry them naturally. It is recommended to unload clothes at the very end of the cycle. Attention: felting process of wool is irreversible; please dry exclusively clothes with symbol (symbol "ok tumble"); this program is not indicated for acrylic clothes.

* The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

What M ght be the Cause of...

Defects you can remedy yourself Before call ng serv ce for techn cal adv ce please run through the follow ng checkl st. A charge w ll be made f the mach ne s found to be work ng or has been nstalled ncorrectly or used ncorrectly. If the problem pers sts after complet ng the recommended checks, please call Serv ce, they may be able to ass st you over the telephone. T me d splay to end could change dur ng dry ng cycle. The t me to end s cont nuously checked dur ng the dry ng cycle and the t me s adjusted to g ve the best est mat on t me. The d splayed t me may ncrease or decrease dur ng the cycle and th s s normal. Dry ng t me s too long/clothes are not dry enough… ● Have you selected the correct drying time/programme? ● Were the clothes too wet? Were the clothes thoroughly wrung or spindried? ● Does the filter need cleaning? ● Is the dryer overloaded? The dryer does not operate… ● Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp. ● Is the plug properly connected to the mains supply? ● Is there a power failure? ● Has the fuse blown? ● Is the door fully closed? ● Is the dryer switched on, both at the mains supply and at the machine? ● Has the drying time or the programme been selected? ● Has the machine been switched on again after opening the door?

● Switch off the dryer and contact GIAS Service for advice. The Ind cator s on… ● Does the filter need cleaning? The Ind cator s on… ● Does the water container need emptying?

CUSTOMER SERVICE Should there st ll be a problem w th your dryer after complet ng all the recommended checks, please call serv ce for adv ce.

They may be able to ass st you over the telephone or arrange for a su table appo ntment for an eng neer to call under the terms of your guarantee. However, a charge may be made f any of the follow ng appl es to your mach ne: ● Is found to be in working order. ● Has not been installed in accordance with the nstallat on nstruct ons. ● Has been used incorrectly. Spares Always use genuine spares, available direct from service. Serv ce For service and repairs call your local service engineer. The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
