BEE431011M - Built-in oven AEG-ELECTROLUX - Free user manual and instructions

Product type	Built-in oven
Brand	AEG-ELECTROLUX
Model	BEE431011M
Volume	72 L
Appliance height (front)	594 mm
Appliance width (front)	595 mm
Appliance depth	569 mm
Built-in depth	548 mm
Weight	30.2 kg
Energy efficiency class	A
Energy consumption (conventional)	0.93 kWh/cycle
Energy consumption (fan assisted)	0.81 kWh/cycle
Number of cavities	1
Cooking modes	Fan forced, humid fan forced, bottom heat, grill, rapid grill, turbo grill, pizza function, top/bottom heat, light
Clock functions	Current time, duration, timer
Included accessories	Metal grid, baking tray, roasting pan
Care and cleaning	Removable shelf supports, door with 3 removable glass panels for cleaning
Lighting	Replaceable halogen bulb, resistant to 300 °C
Safety	Cooling fan, safety thermostat, child safety device (recommended)
Power supply	Electric, 1500 mm cable, mains plug
Minimum built-in cabinet dimensions	Minimum height 590 mm, width 560 mm, depth 550 mm

Frequently Asked Questions - BEE431011M AEG-ELECTROLUX

How to set the time on the oven?

After the first power-on or a power cut, the display flashes. Press the + or - buttons to set the time. After about 5 seconds, the symbol stops flashing and the time is saved.

How to use the Humid fan forced function?

Select the Humid fan forced mode using the cooking mode knob. Set the desired temperature. This function saves energy and is suitable for cooking on a single level. The door must remain closed during cooking.

What to do if the oven does not heat up?

First check if the circuit breaker fuse has tripped. If the problem persists, contact an authorized after-sales service. Do not attempt to repair it yourself.

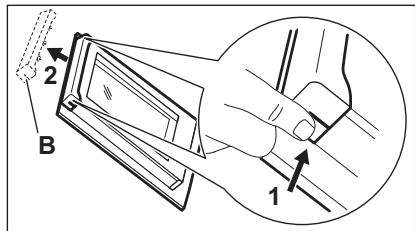

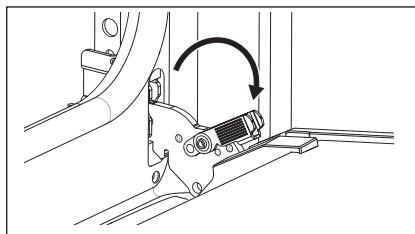

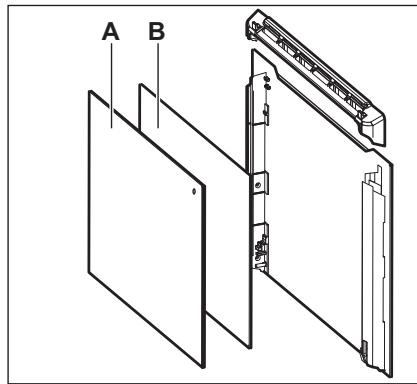

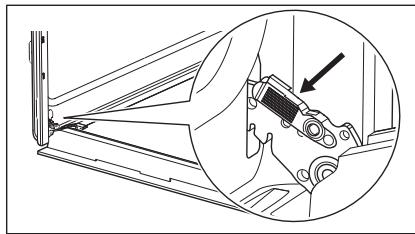

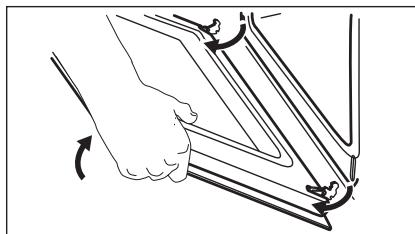

How to clean the oven door?

The door can be disassembled to clean the glass. Open the door, lift the levers, remove the door from its hinges. Then remove the top trim and take out the glass panels one by one. Clean them with soapy water and wipe thoroughly. Reassemble in reverse order.

How to replace the oven light bulb?

Before replacing the bulb, turn off the oven, let it cool down and unplug it. Turn the glass diffuser to remove it. Replace the bulb with a suitable halogen bulb resistant to 300 °C. Use a cloth to handle the bulb. Put the diffuser back in place.

What accessories are supplied with the oven?

The oven is supplied with a metal grid, a baking tray and a roasting pan. These accessories can be inserted on the different levels of the shelf supports.

How to set the timer?

Press the ➊ key several times until the symbol flashes. Use the + or - keys to set the duration. The function starts automatically after 5 seconds. An audible signal sounds when the time is up.

What does the display '12.00' mean?

The display '12.00' indicates that a power cut occurred. You must set the current time again by pressing the + and - keys.

How to remove the shelf supports for cleaning?

Turn off the oven and wait for it to cool down. Pull the front of the shelf support away from the side wall, then the back, and remove it. To put them back, proceed in reverse order. This makes it easier to clean the walls.

Can I use oven sprays?

Yes, but follow the safety instructions on the spray packaging. Do not use steam cleaners or abrasive products. For metal surfaces, use a soft cloth and mild detergent.

USER MANUAL BEE431011M AEG-ELECTROLUX

Simple line drawing of a kitchen oven (no text or symbols)

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information:

www.aeg.com/support

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

i General information and tips

Environmental information

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......3
2. SAFETY INSTRUCTIONS......4
3. INSTALLATION....7
4. PRODUCT DESCRIPTION....9
5. CONTROL PANEL....9
6. BEFORE FIRST USE....10
7. DAILY USE....10
8. CLOCK FUNCTIONS....11
9. USING THE ACCESSORIES....13
10. ADDITIONAL FUNCTIONS....14
11. HINTS AND TIPS.... 14
12. CARE AND CLEANING.... 17
13. TROUBLESHOOTING....20
14. ENERGY EFFICIENCY....20
15. ENVIRONMENTAL CONCERNS......21

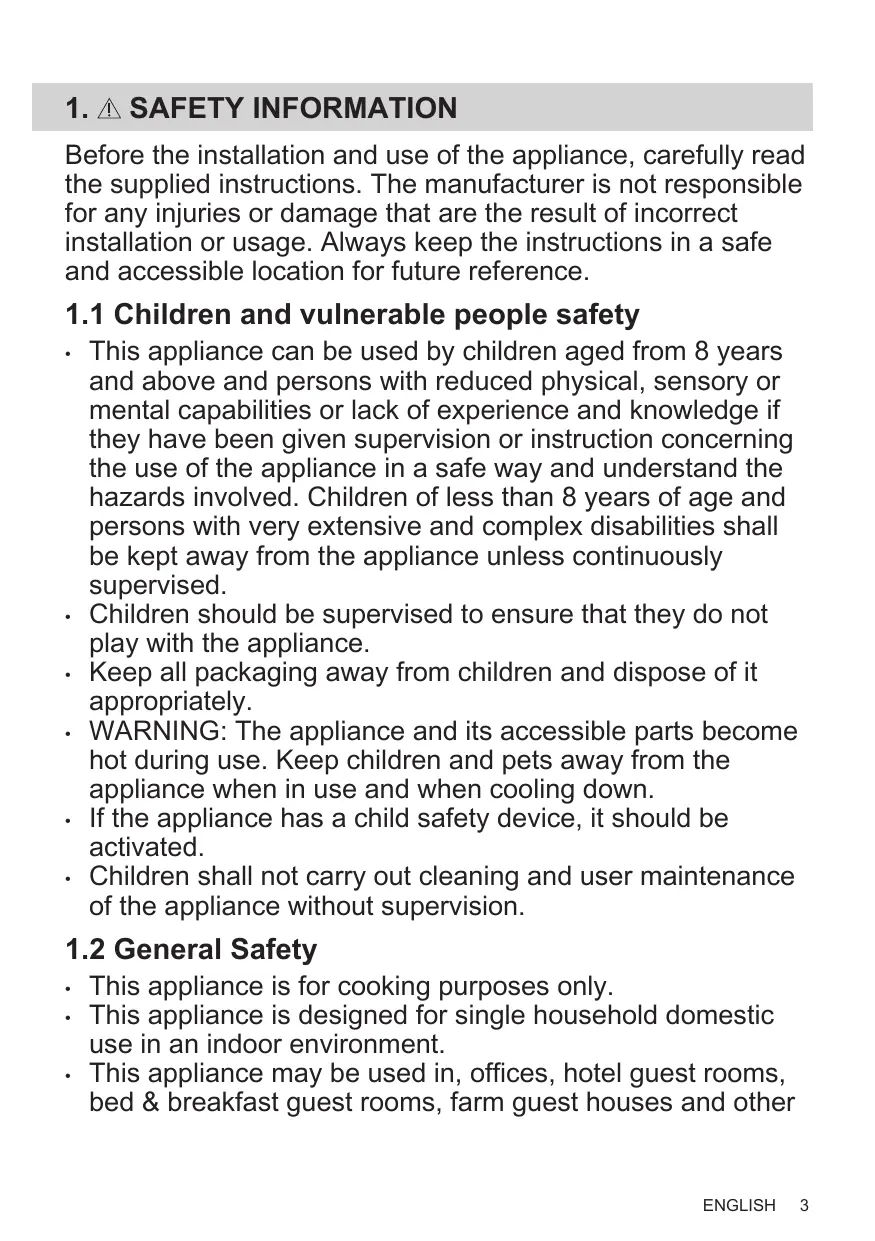

1. ⚠️ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for cooking purposes only.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other

similar accommodation where such use does not exceed (average) domestic usage levels.

• Only a qualified person must install this appliance and replace the cable.
• Do not use the appliance before installing it in the built-in structure.
• Disconnect the appliance from the power supply before carrying out any maintenance.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements or the surface of the appliance cavity.
• Always use oven gloves to remove or insert accessories or ovenware.

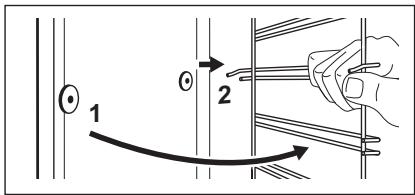

• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.

• Follow the installation instructions supplied with the appliance.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Do not pull the appliance by the handle.
  • Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the appliance door opens without restraint.

- The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.

Cabinet minimum height (Cabinet under the worktop minimum height)	590 (600) mm
Cabinet width	560 mm
Cabinet depth	550 (550) mm
Height of the front of the appliance	594 mm
Height of the back of the appliance	576 mm
Width of the front of the appliance	595 mm
Width of the back of the appliance	559 mm
Depth of the appliance	569 mm
Built in depth of the appliance	548 mm
Depth with open door	1022 mm
Ventilation opening minimum size. Opening placed on the bottom rear side	560x20 mm
Mains supply cable length. Cable is placed in the right corner of the back side	1500 mm
Mounting screws	4x25 mm

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
  • Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be

replaced, this must be carried out by our Authorised Service Centre.

• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• This appliance is supplied with a main plug and a main cable.

Cable types applicable for installation or replacement for Europe:

H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F

For the section of the cable refer to the total power on the rating plate. You can also refer to the table:

Total power (W)	Section of the cable (mm2)
maximum 1380	3x0.75
maximum 2300	3x1
maximum 3680	3x1.5

The earth cord (green / yellow cable) must be 2 cm longer than phase and neutral cables (blue and brown cables).

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

- To prevent damage or discoloration to the enamel:

• do not put ovenware or other objects in the appliance directly on the bottom.
• do not put aluminium foil directly on the bottom of cavity of the appliance.
• do not put water directly into the hot appliance.
• do not keep moist dishes and food in the appliance after you finish the cooking.
• be careful when you remove or install the accessories.

- Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.

- Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.

• Always cook with the appliance door closed.
- If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety instructions on its packaging.

2.5 Internal lighting

WARNING!

Risk of electric shock.

- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

• This product contains a light source of energy efficiency class G.
• Use only lamps with the same specifications.

2.6 Service

• To repair the appliance contact the Authorised Service Centre.
• Use original spare parts only.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the appliance.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

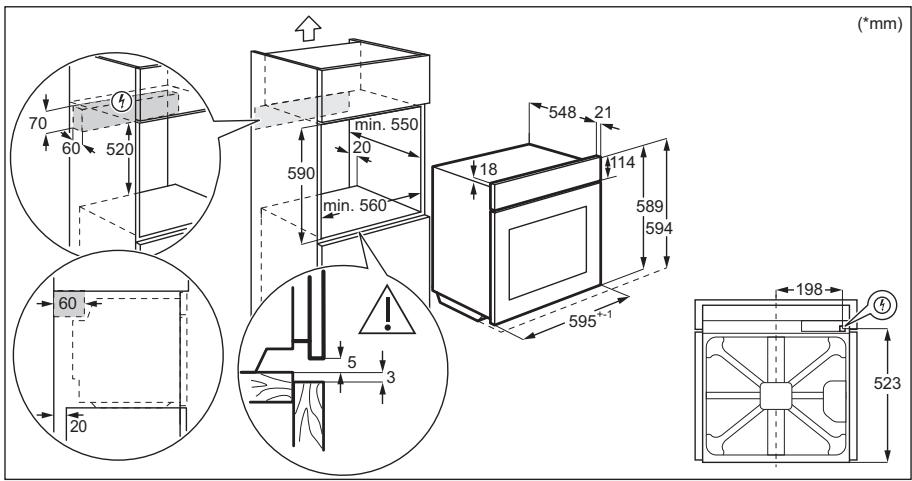

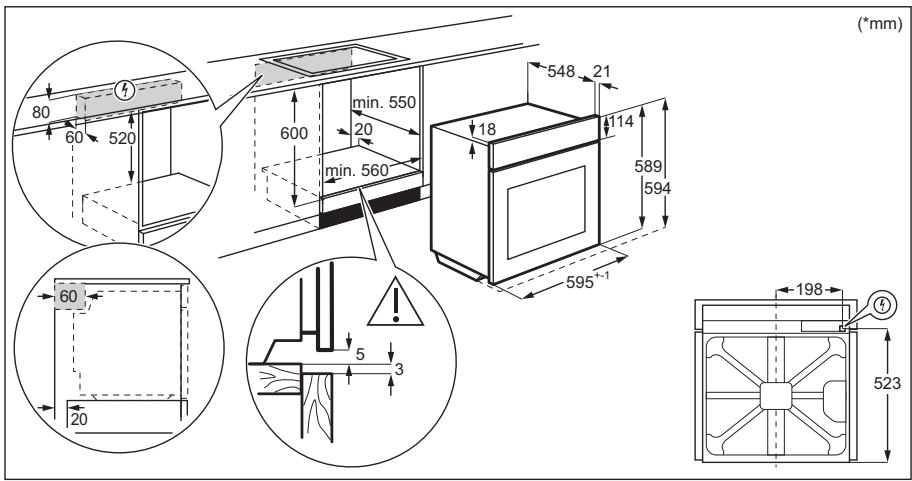

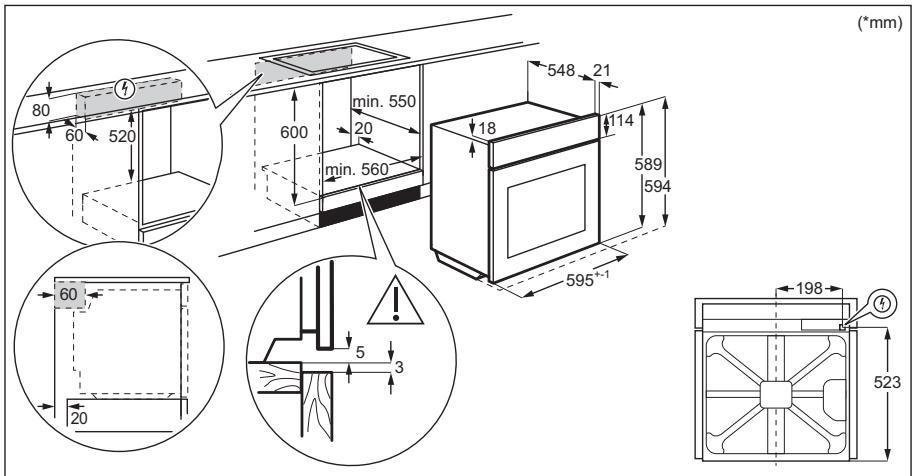

3.1 Building in

YouTube

www.youtube.com/electrolux www.youtube.com/aeg

How to install your AEG/Electrolux Oven - Column installation

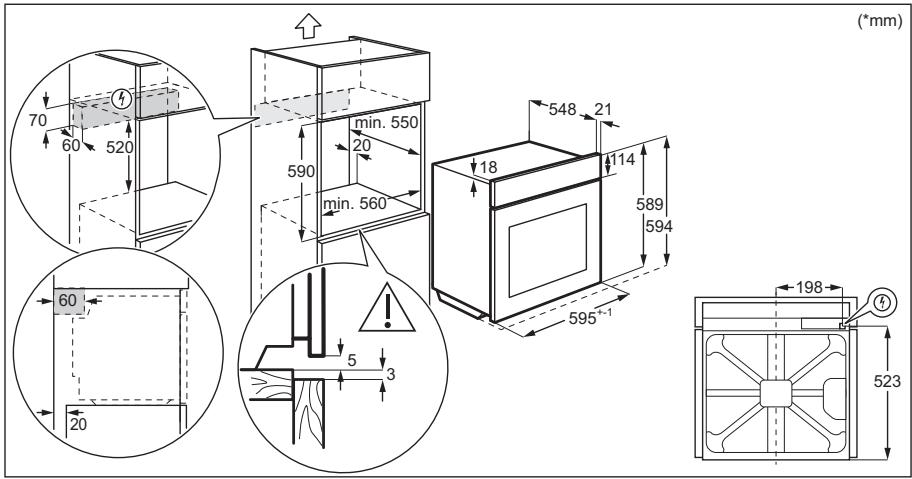

(*mm) 80 60 520 min. 550 20 600 min. 560 18 548 21 114 589 594 595+1 60 20 5 3 198 523

(*mm) 70 60 520 min. 550 20 590 min. 560 18 548 21 114 589 594 595 60 20 5 3 198 523

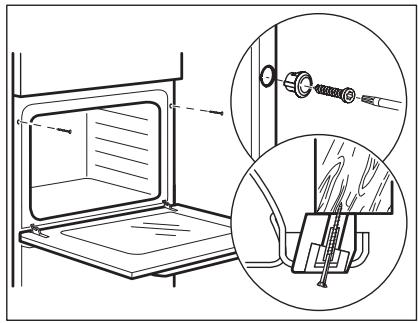

3.2 Securing the oven to the cabinet

Line drawing of a cabinet interior with an inset close-up showing a mechanical component (no text or symbols)

4. PRODUCT DESCRIPTION

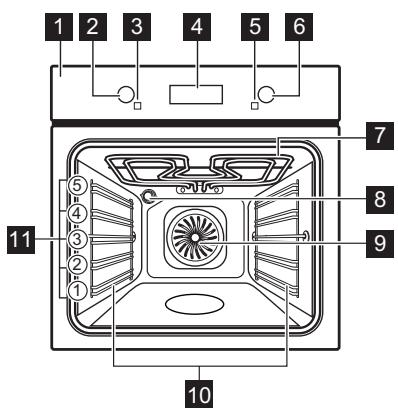

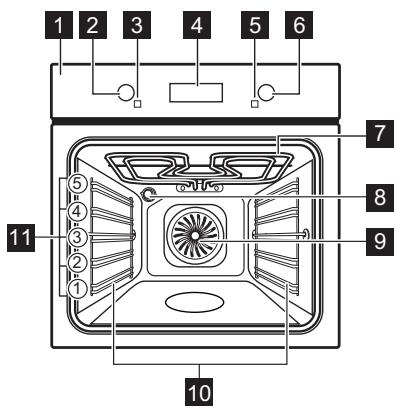

4.1 General overview

1 2 3 4 5 6 ⑤ ④ ③ ② ① 11 7 8 9 10

4.2 Accessories

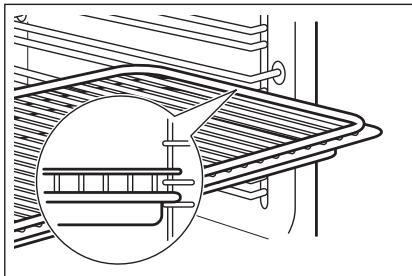

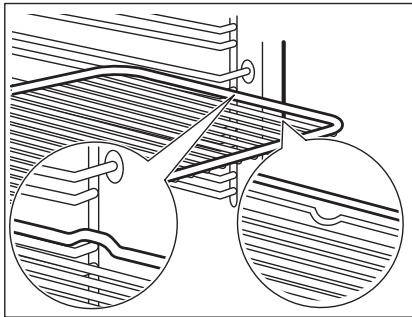

• Wire shelf
  For cookware, cake tins, roasts.

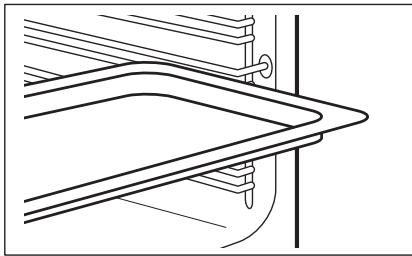

• Baking tray

1 Control panel
2 Knob for the heating functions
3 Power lamp / symbol
4 Display
5 Temperature indicator / symbol
6 Control knob (for the temperature)
7 Heating element
8 Lamp
9 Fan
10 Shelf support, removable
11 Shelf positions

For cakes and biscuits.

- Grill- / Roasting pan

To bake and roast or as pan to collect fat.

5. CONTROL PANEL

5.1 Retractable knobs

To use the appliance press the knob. The knob comes out.

5.2 Sensor fields / Buttons

—	To set the time.
1	To set a clock function.
+	To set the time.

5.3 Display

A B 88:00 →

A. Clock functions
B. Timer

6. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

6.1 Before first use

The oven can emit an odour and smoke during preheating. Make sure that the room is ventilated.

Step 1

Step 2

Step 3

Set the clock		Clean the oven		Preheat the empty oven
1.	+,— press to set the time. After approximately 5 sec., the flashing stops and the display shows the time.	1.	Remove all accessories and removable shelf supports from the oven.2. Clean the oven and the accessories with a microfibre cloth, warm water and a mild detergent.	1. Set the maximum temperature for the function:Time: 1 h.2. Set the maximum temperature for the function:Time: 15 min.3. Set the maximum temperature for the function:Time: 15 min.

Turn off the oven and wait until it is cold. Place the accessories and the removable shelf supports in the oven.

7. DAILY USE

WARNING!

Refer to Safety chapters.

7.1 How to set: Heating function

Step 1

Turn the knob for the heating functions to select a heating function.

Step 2	Turn the control knob to select the temperature.
Step 3	When the cooking ends, turn the knobs to the off position to turn off the oven.

7.2 Heating functions

Heating function	Application
	The oven is off.
Off position
	To turn on the lamp.
Light
	To bake on up to three shelf positions at the same time and to dry food.
True Fan Cooking	Set the temperature 20 - 40 °C lower than for Conventional Cooking.
	This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The heating power may be reduced. For more information refer to "Daily Use" chapter, Notes on: Moist Fan Baking.
Moist Fan Baking
	To bake cakes with crispy bottom and to preserve food.
Bottom Heat
	To grill thin pieces of food and to toast bread.
Grill

Heating func-tion	Application
Fast Grilling	To grill thin pieces of food in large quantities and to toast bread.
Turbo Grilling	To roast large meat joints or poultry with bones on one shelf position. To make gratins and to brown.
Pizza Function	To bake pizza. To make intensive browning and a crispy bot-tom.
Conventional Cooking	To bake and roast food on one shelf position.

7.3 Notes on: Moist Fan Baking

This function was used to comply with the energy efficiency class and ecodesign requirements according to EU 65/2014 and EU 66/2014. Tests according to EN 60350-1.

The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.

For the cooking instructions refer to "Hints and tips" chapter, Moist Fan Baking. For general energy saving recommendations refer to "Energy Efficiency" chapter, Energy Saving.

8. CLOCK FUNCTIONS

8.1 Clock functions

Clock function	Application
Time of Day	To set, change or check the time of day.
|→|Duration	To set how long the oven works.
Minute Minder	To set a countdown. This function has no effect on the operation of the oven. You can set this function at any time, also when the oven is off.

8.2 How to set: Clock functions

How to set: Time of Day

- flashes when you connect the oven to the electrical supply, when there was a power cut or when the timer is not set.

+ , - - press to set the time.

After approximately 5 sec., the flashing stops and the display shows the time.

How to change: Time of Day

Step 1 ⏻ - press repeatedly to change the time of day. ⏻ - starts to flash.

Step 2 +, - - press to set the time.

After approximately 5 sec., the flashing stops and the display shows the time.

How to set: Duration

Step 1 Set an oven function and the temperature.

Step 2 ⚠️ - press repeatedly. |→| - starts to flash.

Step 3 +, - press to set the duration.

The display shows: || .

|| - flashes when the set time ends. The signal sounds and the oven turns off.

Step 4 Press any button to stop the signal.

Step 5 Turn the knobs to the off position.

How to set: Minute Minder

Step 1 ⚠️ - press repeatedly. ⏱ - starts to flash.

Step 2 +, — - press to set the time. The function starts automatically after 5 sec. When the set time ends, the signal sounds.

Step 3 Press any button to stop the signal.

Step 4 Turn the knobs to the off position.

How to cancel: Clock functions

Step 1 ⚠️ - press repeatedly until the clock function symbol starts to flash.

Step 2 Press and hold: —. The clock function turns off after few seconds.

9. USING THE ACCESSORIES

WARNING!

Refer to Safety chapters.

9.1 Inserting accessories

A small indentation at the top increases safety. The indentations are also anti-tip

devices. The high rim around the shelf prevents cookware from slipping of the shelf.

Wire shelf:

Push the shelf between the guide bars of the shelf support and make sure that the feet point down.

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Baking tray / Deep pan:

Push the tray between the guide bars of the shelf support.

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Wire shelf, Baking tray / Deep pan:

Push the tray between the guide bars of the shelf support and the wire shelf on the guide bars above.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

10. ADDITIONAL FUNCTIONS

10.1 Cooling fan

When the appliance operates, the cooling fan turns on automatically to keep the surfaces of the appliance cool. If you turn off the appliance, the cooling fan can continue to operate until the appliance cools down.

10.2 Safety thermostat

Incorrect operation of the oven or defective components can cause dangerous overheating. To prevent this, the oven has a safety thermostat which interrupts the power supply. The oven turns on again automatically when the temperature drops.

11. HINTS AND TIPS

Refer to Safety chapters.

11.1 Cooking recommendations

The oven has five shelf positions.

Count the shelf positions from the bottom of the oven floor.

Your oven may bake or roast differently to the oven you had before.

Baking cakes

Do not open the oven door before 3/4 of the set cooking time is up.

If you use two baking trays at the same time, keep one empty level between them.

Cooking meat and fish

Use a deep pan for very fatty food to prevent the oven from stains that can be permanent.

Leave the meat for approximately 15 minutes before carving so that the juice does not seep out.

To prevent too much smoke in the oven during roasting, add some water into the deep pan. To prevent the smoke condensation, add water each time after it dries up.

Cooking times

Cooking times depend on the type of food, its consistency, and volume.

Initially, monitor the performance when you cook. Find the best settings (heat setting, cooking time, etc.) for your cookware, recipes and quantities when you use this appliance.

11.2 Moist Fan Baking - recommended accessories

Use the dark and non-reflective tins and containers. They have better heat absorption than the light colour and reflective dishes.

Simple line drawing of an oval-shaped object with no text or symbols

Pizza pan

Dark, non-reflective 28 cm diameter

Simple line drawing of a circular sieve or pan with a handle (no text or symbols)

Baking dish

Dark, non-reflective 26 cm diameter

Ramekins

Ceramic 8 cm diameter, 5 cm height

Simple line drawing of a bowl or container with no text, numbers, or symbols

Flan base tin

Dark, non-reflective 28 cm diameter

11.3 Moist Fan Baking

For the best results follow suggestions listed in the table below.

		(°C)		(min)
Sweet rolls, 12 pieces	baking tray or dripping pan	175	3	40 - 50
Rolls, 9 pieces	baking tray or dripping pan	180	2	35 - 45
Pizza, frozen, 0.35 kg	wire shelf	180	2	45 - 55
Swiss roll	baking tray or dripping pan	170	2	30 - 40
Brownie	baking tray or dripping pan	170	2	45 - 50
Soufflè, 6 pieces	ceramic ramekins on wire shelf	190	3	45 - 55
Sponge flan base	flan base tin on wire shelf	180	2	35 - 45
Victoria sandwich	baking dish on wire shelf	170	2	35 - 50
Poached fish, 0.3 kg	baking tray or dripping pan	180	2	35 - 45
Whole fish, 0.2 kg	baking tray or dripping pan	180	3	25 - 35
Fish fillet, 0.3 kg	pizza pan on wire shelf	170	3	30 - 40
Poached meat, 0.25 kg	baking tray or dripping pan	180	3	35 - 45
Shashlik, 0.5 kg	baking tray or dripping pan	180	3	40 - 50
Cookies, 16 pieces	baking tray or dripping pan	150	2	30 - 45
Macaroons, 20 pieces	baking tray or dripping pan	180	2	45 - 55
Muffins, 12 pieces	baking tray or dripping pan	170	2	30 - 40
Savory pastry, 16 pieces	baking tray or dripping pan	170	2	35 - 45
Short crust biscuits, 20 pieces	baking tray or dripping pan	150	2	40 - 50
Tartlets, 8 pieces	baking tray or dripping pan	170	2	30 - 40
Vegetables, poached, 0.4 kg	baking tray or dripping pan	180	2	35 - 45
Vegetarian omelette	pizza pan on wire shelf	180	3	35 - 45
Mediterranean vegetables, 0.7 kg	baking tray or dripping pan	180	4	35 - 45

11.4 Information for test institutes

Tests according to IEC 60350-1.

				(°C)	(min)
Small cakes, 20 per tray	Conventional Cooking	Baking tray	3	170	20 - 30	-
Small cakes, 20 per tray	True Fan Cooking	Baking tray	3	150 - 160	20 - 35	-
Small cakes, 20 per tray	True Fan Cooking	Baking tray	2 and 4	150 - 160	20 - 35	-
Apple pie, 2 tins ∅20 cm	Conventional Cooking	Wire shelf	2	180	70 - 90	-
Apple pie, 2 tins ∅20 cm	True Fan Cooking	Wire shelf	2	160	70 - 90	-
Sponge cake, cake mould ∅26 cm	Conventional Cooking	Wire shelf	2	170	40 - 50	Preheat the oven for 10 minutes.
Sponge cake, cake mould ∅26 cm	True Fan Cooking	Wire shelf	2	160	40 - 50	Preheat the oven for 10 minutes.
Sponge cake, cake mould ∅26 cm	True Fan Cooking	Wire shelf	2 and 4	160	40 - 60	Preheat the oven for 10 minutes.
Short bread	True Fan Cooking	Baking tray	3	140 - 150	20 - 40	-
Short bread	True Fan Cooking	Baking tray	2 and 4	140 - 150	25 - 45	-
Short bread	Conventional Cooking	Baking tray	3	140 - 150	25 - 45	-
Toast, 4 - 6 pieces	Grill	Wire shelf	4	max.	2 - 3 minutes first side; 2 - 3 minutes second side	Preheat the oven for 3 minutes.
Beef burger, 6 pieces, 0.6 kg	Grill	Wire shelf and dripping pan	4	max.	20 - 30	Put the wire shelf on the fourth level and the dripping pan on the third level of the oven. Turn the food halfway through the cooking time. Preheat the oven for 3 minutes.

12. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

12.1 Notes on cleaning

Cleaning Agents

Clean the front of the appliance with a microfibre cloth with warm water and a mild detergent. Clean and check the door gasket around the frame of the cavity.

Use a cleaning solution to clean metal surfaces.

Clean stains with a mild detergent.

Everyday Use

Clean the cavity after each use. Fat accumulation or other residue may cause fire.

Moisture can condense in the appliance or on the door glass panels. To decrease the condensation, let the appliance work for 10 minutes before cooking. Do not store the food in the appliance for longer than 20 minutes. Dry the cavity with a microfibre cloth after each use.

Accessories

Clean all accessories after each use and let them dry. Use a microfibre cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.

Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

12.2 How to remove: Shelf supports

Remove the shelf supports to clean the oven.

Step 1 Turn off the oven and wait until it is cold.

Step 2 Pull the front of the shelf support away from the side wall.

Line drawing of a hand gripping a metal frame (no text or symbols)

Step 3 Pull the rear end of the shelf support away from the side wall and remove it.

Step 4 Install the shelf supports in the opposite sequence.

1 2

12.3 How to remove and install: Door

The oven door has three glass panels. You can remove the oven door and the internal glass panels to clean them. Read the whole "Removing and installing door" instruction before you remove the glass panels.

CAUTION!

Do not use the oven without the glass panels.

Step 1 Open the door fully and hold both hinges.

Technical diagram showing a hand operating a mechanical component, with an inset magnified view highlighting the component (no text or symbols present)

Step 2 Lift and pull the latches until they click.

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or symbols)

Step 3 Close the oven door halfway to the first opening position. Then lift and pull to remove the door from its seat.

Line drawing of a hand gripping a car window with directional arrows indicating rotation (no text or symbols)

Step 4 Put the door on a soft cloth on a stable surface.

Step 5 Hold the door trim (B) on the top edge of the door at the two sides and push inwards to release the clip seal.

2 B 1

Step 6 Pull the door trim to the front to remove it.

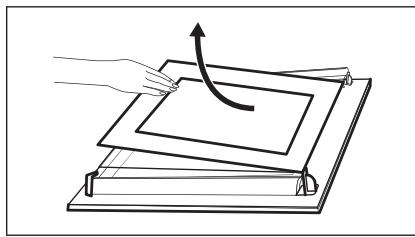

Step 7

Hold the door glass panels by their top edge and carefully pull them out one by one. Start from the top panel. Make sure the glass slides out of the supports completely.

Diagram of a hand pressing down on a tilted rectangular sheet with an arrow indicating rotation (no text or symbols)

Step 8

Clean the glass panels with water and soap. Dry the glass panels carefully. Do not clean the glass panels in the dishwasher.

Step 9

After cleaning, install the glass panels and the oven door.

If the door is installed correctly, you will hear a click when closing the latches.

Make sure that you put the glass panels (A and B) back in the correct sequence. Check for the symbol / printing on the side of the glass panel, each of the glass panels looks different to make the disassembly and assembly easier.

When installed correctly the door trim clicks.

Make sure that you install the middle panel of glass in the seats correctly.

A B

A B

12.4 How to replace: Lamp

WARNING!

Risk of electric shock.

The lamp can be hot.

Always hold the halogen lamp with a cloth to prevent grease residue from burning on the lamp.

Before you replace the lamp:

Step 1	Step 2	Step 3
Turn off the oven. Wait until the oven is cold.	Disconnect the oven from the mains.	Put a cloth on the bottom of the cavity.

Step 1	Turn the glass cover to remove it.
Step 2	Clean the glass cover.
Step 3	Replace the lamp with a suitable 300 °C heat-resistant lamp.
Step 4	Install the glass cover.

13. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

13.1 What to do if...

In any cases not included in this table please contact with an Authorised Service Centre.

Problem	Check if...
The oven does not heat up.	The fuse is blown.

Problem	Check if...
The door gasket is damaged.	Do not use the oven.Contact an Authorised Service Centre.
The display shows "12.00".	There was a power cut.Set the time of day.
The lamp does not work.	The lamp is burnt out.

13.2 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the appliance cavity. Do not remove the rating plate from the appliance cavity.

We recommend that you write the data here:
Model (MOD.)	......
Product number (PNC)	......
Serial number (S.N.)	......

14. ENERGY EFFICIENCY

14.1 Product Information and Product Information Sheet\*

* For European Union according to EU Regulations 65/2014 and 66/2014.
For Republic of Belarus according to STB 2478-2017, Appendix G; STB 2477-2017, Annexes A and B.
For Ukraine according to 568/32020.
Energy efficiency class is not applicable for Russia.
EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.

Supplier's name	AEG
Model identification	BEE431011M 949496317
Energy Efficiency Index	95.3
Energy efficiency class	A
Energy consumption with a standard load, conventional mode	0.93 kWh/cycle
Energy consumption with a standard load, fan-forced mode	0.81 kWh/cycle
Number of cavities	1
Heat source	Electricity
Volume	72 l
Type of oven	Built-In Oven
Mass	30.2 kg

14.2 Energy saving

The appliance has features which help you save energy during everyday cooking.

Make sure that the appliance door is closed when the appliance operates. Do not open the appliance door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

Use metal cookware to improve energy saving.

When possible, do not preheat the appliance before cooking.

Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with fan

When possible, use the cooking functions with fan to save energy.

Residual heat

When the cooking duration is longer than 30 min, reduce the appliance temperature to minimum 3 - 10 min before the end of cooking. The residual heat inside the appliance will continue to cook.

Use the residual heat to warm up other dishes.

Keep food warm

Choose the lowest possible temperature setting to use residual heat and keep a meal warm.

Moist Fan Baking

Function designed to save energy during cooking.

15. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol 📋. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol 📄 with the household waste. Return the product to your local recycling facility or contact your municipal office.

POUR DES RÉSULTATS PARFAITS

How to install your AEG/Electrolux Oven - Column installation

(*mm) 80 60 520 min. 550 20 600 min. 560 18 548 21 114 589 594 595⁺¹ 60 20 5 3 198 ① 523

(*mm) 70 60 520 min. 550 20 590 min. 560 18 548 21 114 589 594 595+1 60 20 5 3 198 523

Technical illustration of a window with a close-up inset showing mechanical components (no text or symbols)

4. DESCRIPTION DE L'APPAREIL

4.1 Vue d'ensemble

1 2 3 4 5 6 ⑤ ④ ③ ② ① 11 7 8 9 10

4.2 Accessoires

5.2 Touches sensitives

A B 8:00:00 →

Technical line drawing of a structural component with two circular inset views showing internal details (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

10. FONCTIONS SUPPLÉMENTAIRES

Simple line drawing of an oval-shaped object with no text or symbols

Plaque à pizza

Simple line drawing of a circular sieve or pan with a handle (no text or symbols)

Plat de cuisson

Ramequins

Simple line drawing of a bowl or container with no text, numbers, or symbols

Line drawing of a hand gripping a metal frame (no text or symbols)

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows indicating motion or flow.

Technical line drawing of a mechanical assembly with an inset showing a hand holding a component (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with motion arrow (no text or symbols)

How to install your AEG/Electrolux

Oven - Column installation

(*mm) 80 60 520 min. 550 20 600 min. 560 18 548 21 114 589 594 595°-1 60 20 5 3 198 523

(*mm) 70 60 520 min. 550 20 590 min. 560 18 548 21 114 589 594 595°¹ 60 20 5 3 198 523

Line drawing of a kitchen appliance with an inset close-up showing a screw being inserted into a rack (no text or symbols)

A B 8:00:00 →

Technical line drawing of a structural component with two circular insets showing internal details (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

10. ZUSATZFUNKTIONEN

10.1 Kühlgebläse

Simple line drawing of an oval-shaped object with no text or symbols

Pizzapfanne

Simple line drawing of a circular sieve or pan with a handle (no text or symbols)

Backform

Simple line drawing of a bowl or container with no text, numbers, or symbols

Tortenbodenform

Line drawing of a hand holding a tool near a mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a hand holding a tool (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with rotational arrow (no text or symbols)

Line drawing of a hand holding a tool, with curved arrows indicating motion or movement (no text or symbols)

How to install your AEG/Electrolux Oven - Column installation

(*mm) 80 60 520 min. 550 20 600 min. 560 18 548 21 114 589 594 595°-1 60 20 5 3 198 523

(*mm) 70 60 520 min. 550 20 590 min. 560 18 548 21 114 589 594 595°¹ 60 20 5 3 198 523

Technical illustration of a window with a screw and mechanical components, showing close-up views (no text or symbols)

A B 8:00:00 →

Technical line drawing of a structural component with two circular insets showing internal details (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Simple line drawing of an oval-shaped object with no text or symbols

Teglia da pizza

Simple line drawing of a circular container with a handle and lid (no text or symbols)

Pirofila

Simple line drawing of a bowl or container with no text, numbers, or symbols

Tortiera per flan

Line drawing of a hand holding a metal frame (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a hand holding a component (no text or symbols present)

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or symbols)

Line drawing of a hand holding a curved object with directional arrows indicating rotation (no text or symbols)

How to install your AEG/Electrolux Oven - Column installation

(*mm) 80 60 520 min. 550 20 600 min. 560 18 548 21 114 589 594 595⁺¹ 60 20 5 3 198 523

(*mm) 70 60 520 min. 550 20 590 min. 560 18 548 21 114 589 594 595+1 60 20 5 3 198 523

Technical line drawing showing a window with a magnified inset of a mechanical component (no text or symbols)

A B 88:88 →

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Bandeja / Bandeja honda:

Pure technical line drawing of a mechanical component or bracket assembly without any text, numbers, or symbols

Parrilla, Bandeja / Bandeja honda:

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Simple line drawing of an oval-shaped object with no text or symbols

Bandeja para pizza

Line drawing of a circular sieve or pan with a handle (no text or symbols)

Bandeja para hornear

Ramequines

Simple line drawing of a bowl or container with no text, numbers, or symbols

Molde para base

Line drawing of a hand holding a tool near a metal frame (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a hand holding a component (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with motion arrows (no text or symbols)

Line drawing of a hand holding a tool interacting with a mechanical component, showing rotational motion (no text or symbols)

Diagram of a hand pressing a curved arrow on a tilted rectangular object (no text or symbols)
