USER MANUAL MBE2658SB AEG-ELECTROLUX

WE’RE THINKING OF YOU

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. Visit our website for: Get usage advice, brochures, trouble shooter, service information: www.aeg.com Register your product for better service: www.registeraeg.com Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number. Warning/Caution-Safety information General information and tips Environmental information Subject to change without notice. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 3 ENGLISH

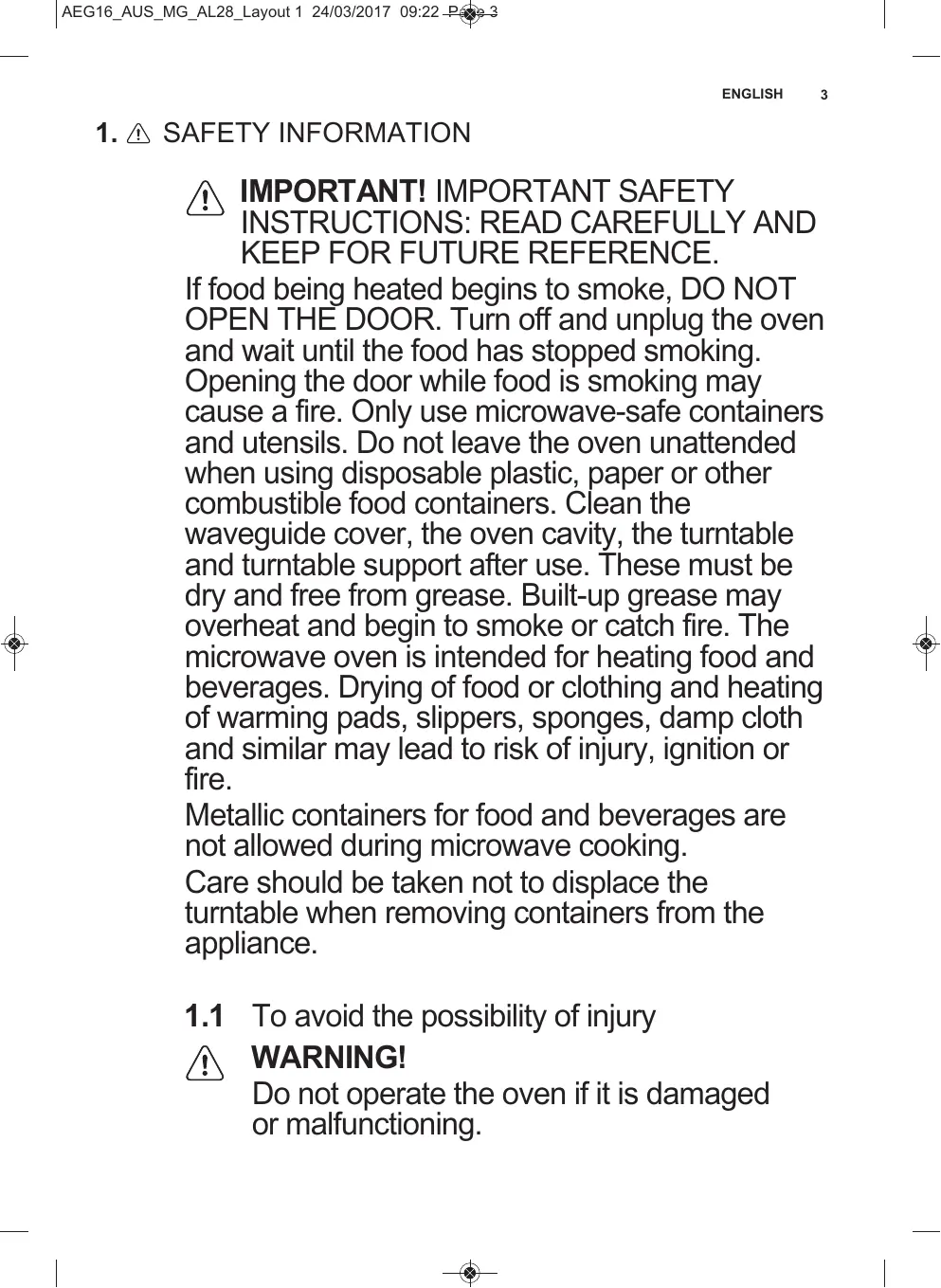

IMPORTANT! IMPORTANT SAFETY

INSTRUCTIONS: READ CAREFULLY AND

KEEP FOR FUTURE REFERENCE. If food being heated begins to smoke, DO NOT OPEN THE DOOR. Turn off and unplug the oven and wait until the food has stopped smoking. Opening the door while food is smoking may cause a fire. Only use microwave-safe containers and utensils. Do not leave the oven unattended when using disposable plastic, paper or other combustible food containers. Clean the waveguide cover, the oven cavity, the turntable and turntable support after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. Metallic containers for food and beverages are not allowed during microwave cooking. Care should be taken not to displace the turntable when removing containers from the appliance.

1.1 To avoid the possibility of injury

WARNING! Do not operate the oven if it is damaged or malfunctioning. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 4

www.aeg.com Check the following before use: a) The door; make sure the door closes properly and ensure it is not misaligned or warped. b) The hinges and door safety latches; check to make sure they are not broken or loose. c) The door seals and sealing surfaces; ensure that they have not been damaged. d) Inside the oven cavity or on the door; make sure there are no dents. e) The power supply cord and plug; ensure that they are not damaged. Never adjust, repair or modify the oven yourself. It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy. Do not allow grease or dirt to build up on the door seals and adjacent parts. Follow the instructions for ‘Care and cleaning’. Clean the oven at regular intervals and remove any food deposits. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Do not attempt to replace the oven light yourself or allow anyone who is not authorised by ELECTROLUX to do so. If the oven light fails, please consult your dealer or call an authorised ELECTROLUX service agent. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 5 ENGLISH

1.2 To avoid the possibility of explosion and

sudden boiling WARNING! Liquids and other foods must not be heated in sealed containers since they are liable to explode. Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container. Do not cook eggs in their shells and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites, or the eggs may explode. Shell and slice hard boiled eggs before reheating them in the microwave oven. To avoid burns, always test food temperature and stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly. Keep children away from the door and accessible parts that may become hot when the grill is in use. Children should be kept away to prevent them burning themselves. Do not touch the oven door, outer cabinet, rear cabinet, oven cavity, ventilation openings, accessories and dishes during GRILL mode and DUAL GRILL mode as they will become hot. Before cleaning make sure they are not hot. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 6

1.3 To avoid the misuse by children

WARNING! The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential environments; bed and breakfast type environments. This appliance is not intended for use at altitudes above 2000m. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 7 ENGLISH

1.4 To avoid the danger of fire

The microwave oven should not be left unattended during operation. Power levels that are too high or cooking times that are too long may overheat foods resulting in a fire. The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emergency. The AC power supply must be 240 V, 50 Hz, with a minimum 15 A distribution line fuse, or a minimum 15 A distribution circuit breaker. It is recommended that a separate circuit serving only this appliance be provided. Do not store or use the oven outdoors. Do not place flammable materials near the oven or ventilation openings. Do not block the ventilation openings. Remove all metallic seals, wire twists, etc., from food and food packages. Arcing on metallic surfaces may cause a fire. Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire. To make popcorn, only use special microwave popcorn makers. Do not store food or any other items inside the oven. Check the settings after you start the oven to ensure the oven is operating as desired. Do not operate the oven with the door open or alter the door safety latches in any way. Do not operate the oven if there is an object between the door seals and sealing surfaces. Individuals with PACEMAKERS should check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens.

1.5 To avoid the possibility of

electric shock Under no circumstances should you remove the outer cabinet. Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately and call an authorised ELECTROLUX service agent. Do not immerse the power supply cord or plug in water or any other liquid. Do not allow the power supply cord to run over any hot or sharp surfaces, such as the hot air vent area at the top rear of the oven.

If the power supply cord of this appliance is damaged, it must be replaced with a special cord. The exchange must be made by an authorised ELECTROLUX service agent.

1.6 To avoid the possibility of

explosion and sudden boiling Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a build up of pressure even after the oven has been turned off. Take care when microwaving liquids. Use a wide-mouthed container to allow bubbles to escape. To prevent sudden eruption of boiling liquid and possible scalding:

• Stir liquid prior to heating/reheating.
• It is advisable to insert a glass rod or similar utensil into the liquid whilst reheating.
• Let liquid stand for at least 20 seconds in the oven at the end of cooking time to prevent delayed eruptive boiling. Pierce the skin of such foods as potatoes, sausages and fruit before cooking, or they may explode.

1.7 To avoid the possibility of

burns Use pot holders or oven gloves when removing food from the oven to prevent burns. Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid steam burns. Temperature of the container is not a true indication of the temperature of the food or drink; always check the food temperature. Always stand back from the oven door when opening to avoid burns from escaping steam and heat. Slice stuffed baked foods after heating to release steam and avoid burns. Do not lean or swing on the oven door. Do not play with the oven or use it as a toy. Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings; paying special attention to packaging (e.g. selfheating materials) designed to make food crisp, as they may be extra hot. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 8

Never modify the oven in any way. This oven is for home food preparation only and may only be used for cooking food. It is not suitable for commercial or laboratory use.

1.9 To promote trouble-free use

of your oven and avoid damage Never operate the oven when it is empty except where recommended in the operation manual. Doing so may damage the oven. When using a browning dish or self-heating material, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and turntable support due to heat stress. The preheating time specified in the dish’s instructions must not be exceeded. Do not use metal utensils, which reflect microwaves and may cause electrical arcing. Do not put cans in the oven. Only use the turntable and the turntable support designed for this oven. Do not operate the oven without the turntable. To prevent the turntable from breaking:

• Before cleaning the turntable with water, leave the turntable to cool.
• Do not put hot foods or hot utensils on a cold turntable.
• Do not put cold foods or cold utensils on a hot turntable. Do not place anything on the outer cabinet during operation. Do not use plastic containers for microwaving if the oven is still hot from using the GRILL mode and DUAL GRILL mode because they may melt. Plastic containers must not be used during above modes unless the container manufacturer says they are suitable. IMPORTANT! If you are unsure how to connect your oven, please consult an authorised, qualified electrician. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure. Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 9 ENGLISH

Grill heating element Front trim Oven light Control panel Door opening button Waveguide cover Oven cavity Seal packing Door seals and sealing surfaces

Check to make sure the following accessories are provided: 1 Turntable 2 Turntable support 3 High rack 4 Low rack

• Place the turntable support on the floor of the cavity.
• Then place the turntable on the turntable support.
• To avoid turntable damage, ensure dishes or containers are lifted clear of the turntable rim when removing them from the oven. When you order accessories, please mention two items: part name and model name to your dealer or an authorised ELECTROLUX service agent.

Auto defrost Grill Dual grill Microwave Stop/Cancel Child safety lock

Display segments Weight

When the oven is plugged in for the first time it will ask if you want to set the clock.

1. The oven will beep and all of the display

icons will be switched on for half a second. The oven will ask if you want to turn on the clock.

2. Press the START key to confirm.

(See ‘Setting the clock’ for instruction.) To turn the clock off, turn the knob until the display shows ‘oFF’.

3. Press the START key to confirm, or

press STOP key to cancel.

3.2 Standby (Economy mode)

The oven will automatically enter standby mode if it is not used within a 5 min period.

1. If the clock has been set it will display

the time for 3 min, then it will display ‘Econ’ for 3 seconds. The display will switch off.

2. If the clock has not been set:

The display will switch off.

3. To exit standby mode you can:

Open the door, press any key or rotate the knob.

3.3 Setting the clock

The oven has a 24hr clock. Example: To set the clock to 18:45.

1. Press the TIMER key twice, the clock

symbol will be displayed.

2. Rotate the knob until ‘on’ is displayed.

3. Press the START key to confirm.

4. Rotate the knob to adjust the hour.

5. Press the START key to confirm.

6. Rotate the knob to adjust the minutes.

7. Press the START key to confirm.

3.4 Adjusting the clock when set

You can adjust the clock after the time has been set. Example: To change from 18.45 to 19.50.

1. Press the START key. The hours will

2. Rotate the knob till 19 is displayed.

3. Press the START key.

4. Rotate the knob till 50 is displayed.

5. Press the START key.

3.5 To cancel the clock and set

standby (Economy mode)

1. Press the TIMER key twice.

2. Rotate the knob until ‘oFF’ is displayed.

3. Press the START key to confirm.

3.6 Child safety lock

The oven has a safety feature which prevents the accidental running of the oven by a child. When the lock has been set, no part of the microwave will operate until the lock feature has been turned off. Switching the lock on or off is only possible when the oven is not running. Example: To switch the lock on. Press and hold the STOP key until the ‘child lock’ symbol switches on. Example: To switch the lock off. Press and hold the STOP key until the ‘child lock’ symbol switches off. When child lock is switched on, all keys are disabled except the STOP key. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 12

4.1 Microwave cooking

Example: To heat soup for 2 minutes and 30 seconds on 630 W microwave power.

1. Press the POWER LEVEL key to the

right of the triangle until 630 W is displayed.

2. Rotate the knob to enter the time.

3. Press the START key.

In microwave cooking mode, you can adjust the power level of the oven by pressing the key directly below the required setting. If 900 W is selected then the maximum microwave time that can be input is 20 minutes. If the oven runs in any mode for 3 minutes or longer, the fan will stay on for 2 minutes after the cooking ends. Open the door and it will stop, close the door it will start again until 2 minutes is finished (including door open time). If the oven runs for less than 3 minutes the fan will not come on. You can set the power level when the oven is running by pressing and holding the required POWER LEVEL key until the new power setting is highlighted on the display.

Power Suggested use setting 900 W/HIGH Used for fast cooking or reheating (e.g. soup, casseroles, canned food, hot beverages, vegetables, fish). 630 W Used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive dishes such as cheese sauce and sponge cakes. At this reduced setting, the sauce will not boil over and food will cook evenly without over cooking at the sides. 450 W For dense foods which require a long cooking time when cooked conventionally (e.g. beef dishes) it is advisable to use this power setting to ensure the meat will be tender. 270 W/ DEFROST 90 W To defrost, select this power setting, to ensure that the dish defrosts evenly. This setting is also ideal for simmering rice, pasta, dumplings and cooking egg custard. For gentle defrosting (e.g. cream gateaux or pastry).

For standing/kitchen timer. W = WATT

4.3 Reduced power level

Cooking mode Microwave 900 W Standard time 20 minutes Reduced power level Microwave 630 W Grill 10 minutes Grill 500 W Dual Grill 10 minutes Grill 500 W AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 13 ENGLISH

4.4 Adjusting the cooking time

during cooking You can adjust the cooking time during cooking. Example: To add 2 minutes (120 seconds) using the START key.

1. Press the START key four times.

The cooking time will increase by 120 seconds.

4.5 Using the stop key

Press the STOP key once to enter Pause mode. Press the STOP key again to cancel the cooking time.

To set the kitchen timer.

1. Press the TIMER key.

2. Rotate the knob to enter the time.

3. Press the START key. The timer will

automatically start. The time can be extended when the timer is running by rotating the knob or pressing the START key. The timer function can only be used when the oven is not running.

You can directly start cooking on 900 W/HIGH for 30 seconds by pressing the START key. To add more time press the START key.

To pause whilst the microwave is running.

1. Press the STOP key or open the door.

2. The oven will pause for up to 5 minutes.

3. Press START to continue cooking.

4.10 Grill and dual grill

This microwave oven has two grill cooking modes: Grill only Dual grill (grill with microwave) IMPORTANT! The high or the low rack is recommended for grilling. You may detect smoke or a burning smell when using the grill for the first time, this is normal and does not indicate a fault with the oven. To avoid this problem, when using the grill for the first time, operate the grill without food for 20 minutes.

1. Rotate the knob to enter the cooking

2. Press the GRILL key once for Dual Grill

mode (Grill + Microwave) and press the START key. Press the GRILL key again to select Grill only mode.

3. Press the START key.

In Dual Grill mode the 90 W and 900 W microwave power levels are not available. To exit Dual Grill or Grill mode press the GRILL key until the microwave only symbol is illuminated on the display.

To turn the sound off.

1. Press the TIMER key 3 times until

‘Soun’ is displayed.

2. Rotate the knob until ‘oFF’ is displayed.

3. Press the START key.

The oven has 3 Favourite recipes. To turn the sound on.

1. Press the TIMER key 3 times until

‘Soun’ is displayed.

2. Rotate the knob until ‘on’ is displayed.

3. Press the START key.

Soften Butter Melt Chocolate Mug Cake Example: To soften butter.

1. Press the FAVOURITE 1 key once.

2. Rotate the knob to enter the weight.

3. Press the START key.

AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 14

www.aeg.com If display segments exhibit a rotating pattern this indicates that the food needs to be stirred or turned over. To continue cooking, press the START key. At the end of the auto defrost time, the programme will automatically stop. The power levels for the pre-set Favourite recipes cannot be adjusted. 1-4 Mug cakes can be cooked. WARNING! Chocolate may become very hot! If the chocolate needs longer cooking time then add 10 seconds. Take care with chocolate as it may overheat and burn. To overwrite Favourites for your own recipes.

1. Press the POWER level key to select

2. Rotate knob to enter the required

3. Press and hold the FAVOURITE key

you want to set until you hear a single beep and the favourite star is visible. To re-set Favourites to the factory settings.

1. Press the STOP key.

2. Press and hold POWER LEVEL 450 W

for 3 seconds. The oven will reset Favourites to the factory settings.

Auto defrost automatically works out the correct cooking mode and cooking time based on the weight of the food. You can choose from 2 auto defrost menus.

2. Auto Defrost: Bread

1. Select the auto defrost menu by

pressing the AUTO DEFROST key once.

2. Rotate the knob to select the weight.

3. Press the START key.

If display segments exhibit a rotating pattern this indicates that the food needs to be stirred or turned over. To continue cooking, press the START key. At the end of the auto defrost time, the programme will automatically stop. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 15 ENGLISH

Procedure Place the butter into a pyrex dish. Stir well after cooking. Break up the chocolate into small pieces. Place the chocolate into a pyrex dish. Stir when audible bell sounds. Stir well after cooking.

WARNING: Chocolate may

become very hot! If the chocolate needs longer then add 10 seconds cooking time. Take care with chocolate as it may overheat and burn. Make the cake as the recipe. Place the mug towards the edge of the turntable. Stand for 30 seconds after cooking.

5.2 Mug cake recipes

1. Put all of the dry ingredients into a mug,

mix well with a fork.

2. Add the Vegetable oil, vanilla extract

3. Place the mug off centre on the

. The cake will rise out of the mug during cooking. After cooking, stand for 30 seconds.

1. Put all of the dry ingredients into a mug,

mix well with a fork.

2. Add the Vegetable oil, vanilla extract

3. Fold in the jam using a spoon so that it

streaks the mixture.

4. Place the mug off centre on the

. The cake will rise out of the mug during cooking. After cooking, stand for 30 seconds. Decorate with a swirl of chocolate buttercream. Tip: To make Chocolate Orange Mug Cake replace the vanilla extract with ½ tsp orange extract. Decorate with a swirl of vanilla buttercream. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 16

www.aeg.com Apple Crumble Mug Cake Ingredients for 1 Mug: 2½ tbsp (25 g) 2 tbsp (30 g) ¼ tsp ¼ tsp 1½ tbsp (15 g) 1½ tbsp (30 g) half (7 g) Peanut Butter Mug Cake Ingredients for 1 Mug: Plain Flour Soft Brown Sugar Baking Powder Ground Cinnamon Vegetable Oil Medium Egg Apple Sauce Digestive Biscuit, crushed Method:

1. Put all of the dry ingredients (except for

the biscuit) into a mug, mix well with a fork.

2. Add the Vegetable oil and egg, mix

3. Gently fold in the apple sauce using a

spoon so that it streaks the mixture.

4. Top with the crushed digestive biscuit

5. Place the mug off centre on the

. The cake will rise out of the mug during cooking. After cooking, stand for 30 seconds. Top with a scoop of vanilla ice cream. WARNING! The apple sauce will be hot. 2½ tbsp (25 g) 2 tbsp (30 g) ¼ tsp 1½ tbsp (15 g) ¼ tsp 2 tbsp (30 g)

Plain Flour Soft Brown Sugar Baking Powder Vegetable Oil Vanilla Extract Smooth Peanut Butter Medium Egg Method:

1. Put all of the dry ingredients into a mug,

mix well with a fork.

2. Add the Vegetable oil, vanilla extract,

peanut butter, and egg mix well.

3. Place the mug off centre on the

. The cake will rise out of the mug during cooking. After cooking, stand for 30 seconds. Top with chocolate spread. Tip: Use crunchy peanut butter if you prefer. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 17 ENGLISH Lemon Drizzle Mug Cake Ingredients for 1 Mug: 2½ tbsp (25 g) 2½ tbsp (30 g) ¼ tsp 1½ tbsp (15 g) 1 tsp Topping: Plain Flour Castor Sugar Baking Powder Vegetable Oil Lemon Zest Medium Egg 1 tbsp Lemon Juice mixed with 2 tbsp Castor Sugar Method:

1. Put all of the dry ingredients into a mug,

mix well with a fork.

2. Add the Vegetable oil, lemon zest and

3. Place the mug off centre on the

. The cake will rise out of the mug during cooking.

5. Make the drizzle topping by mixing the

lemon juice with the castor sugar.

6. After cooking, loosen the cake, pierce

the top all over with a skewer, then drizzle the topping over the cake, stand for 30 seconds.

Carrot Mug Cake Ingredients for 1 Mug: 2 tbsp (20 g) 2½ tbsp (30 g) ¼ tsp ¼ tsp ¼ tsp 1 tbsp 1½ tbsp (15 g) Plain Flour Light Brown Sugar Baking Powder Ground Cinnamon Ground Nutmeg Ground Almonds Sunflower Oil zest from ½ Orange 30 g Grated Carrot Medium Egg Cream Topping: 15 g Butter, Softened 40 g Icing Sugar 40 g Full-fat Cream Cheese ½ tsp Orange Juice Method:

1. Put all of the dry ingredients into a mug,

mix well with a fork.

2. Add the sunflower oil, orange zest,

grated carrot and egg, mix well.

3. Place the mug off centre on the

. The cake will rise out of the mug during cooking.

5. Make the topping by mixing the butter,

icing sugar, cream cheese and orange juice together. After cooking, stand for 30 seconds. Allow the cake to cool, then add the topping. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 18

(Whole fish, fish steaks, fish fillets, chicken legs, chicken breast, minced meat, steak, chops, burgers, sausages)

Procedure Place the food in a flan dish in the centre of the turntable. When the audible bell sounds, turn the food over, rearrange and separate. Shield thin parts and warm spots with aluminium foil. After defrosting, wrap in aluminium foil for 15-45 min, until thoroughly defrosted. Minced meat: When the audible bell sounds, turn the food over. Remove the defrosted parts if possible. Not suitable for whole poultry. Bread 0.1-1.0 kg

Distribute in a flan dish in the centre of the turntable. For 1.0 kg, distribute directly on the turntable. When the audible bell sounds, turn over, rearrange and remove defrosted slices. After defrosting cover in aluminium foil and stand for 5-15 min until thoroughly defrosted. Enter the weight of the food only. Do not include the weight of the container. For food weighing more or less than weights/quantities given in the chart, use manual operation. The final temperature will vary according to the initial temperature. Steaks and chops should be frozen in one layer. Minced meat should be frozen in a thin shape. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 19 ENGLISH

5.4 Heating food and drink

Quantity Setting -g/ml150 Micro Micro Micro Micro Micro Food/drink Milk, Water, 1 cup 1 cup 6 cups 1 bowl One plate meal (vegetables, meat and trimmings) Soup/stew Vegetables Power Level 900 W 900 W 900 W 900 W 900 W Time -Min1 8-10 9-11 4-6 Method do not cover do not cover do not cover do not cover cover, stir halfway through cooking

place in a flan dish transfer into a suitable microwaveable container, after heating stir well and test the temperature cover

Micro 450 W 3-4 stir occasionally

cover, stir after heating cover, stir halfway through cooking thinly spread sauce over the top, cover cover from chilled

Micro 270 W 8-9 Cake, 1 slice Fruit (e.g. cherries, strawberries, raspberries, plums)

Micro Micro 90 W 270 W 1-3 3-5 Food Method stir halfway through defrosting place in a flan dish spread out evenly, turn over halfway through defrosting Standing time -Min10-30

5.6 Cooking from frozen

Micro Micro 900 W 900 W 9-11 8-10 Method cover cover, stir after 6 minutes Standing time -Min2

5.7 Cooking and grilling

Micro 900 W 9-11 Roasts

Food Browning of gratin dishes Cheese toastie Frozen pizza Micro 450 W Dual Grill 450 W Micro 450 W Grill Grill Grill Grill 1 piece

Grill Grill Method add 4-5 tbsps water, cover, stir halfway through cooking cut into rings, add 4-5 tbsps water, cover, stir halfway through cooking season to taste, place on the low rack, turn over after 1) 16-17 9-101) 9-10 9-10 10-111) place on the high rack, 10-11 turn over after1), season after grilling 11-15 place dish on the low rack 450 W 4-51) 3-42) Micro 450 W Dual Grill 450 W 4-5 5-6 Standing time -Min-

place 2 slices of bread on the high rack, cover one slice with cheese, cook1), place toasted slice on top of the cheese on toast, turnover and cook2) place on the low rack If the oven runs in any mode for 3 minutes or longer, the fan will stay on for 2 minutes after the cooking ends. Open the door and it will stop, close the door it will start again until 2 minutes is finished (including door open time). If the oven runs for less than 3 minutes the fan will not come on. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 21 ENGLISH

6.1 Microwave safe cookware

Cookware Aluminium foil/ containers China and ceramics Glassware e.g. Pyrex ® Metal Plastic/polystyrene e.g. fast food containers Freezer/roasting bags Paper-plates, cups and kitchen paper Straw and wooden containers Recycled paper and newspaper Microwave safe 3/7 3/7

Comments Small pieces of aluminium foil can be used to shield food from overheating. Keep foil at least 2 cm from the oven walls, as arcing may occur. Foil containers are not recommended unless specified by the manufacturer. Follow instructions carefully. Porcelain, pottery, glazed earthenware and bone china are usually suitable, except for those with metallic decoration. Care should be taken if using fine glassware as it can break or crack if heated suddenly. It is not recommended to use metal cookware when using microwave power as it will arc, which can lead to fire. Care must be taken as some containers warp, melt or discolour at high temperatures. Must be pierced to let steam escape. Ensure bags are suitable for microwave use. Do not use plastic or metal ties, as they may melt or catch fire due to the metal arcing. Only use for warming or to absorb moisture. Care must be taken as overheating may cause fire. Always attend the oven when using these materials as overheating may cause fire. May contain extracts of metal which will cause arcing and may lead to fire. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 22

6.2 Microwave cooking advice

Microwave cooking advice Composition Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less heating time. Care should be taken as overheating can lead to fire. Size For even cooking make all the pieces the same size. Temperature of The initial temperature of food affects the amount of cooking time needed. food Cut into foods with fillings (e.g. jam doughnuts) to release heat or steam. Arrange Place the thickest parts of food towards the outside of the dish (e.g. chicken drumsticks). Cover Use vented microwave cling film or a suitable lid. Pierce Foods with a shell, skin or membrane must be pierced in several places before cooking or reheating as steam will build up and may cause food to explode (e.g. potatoes, fish, chicken, sausages). IMPORTANT! Eggs should not be heated using microwave power as they may explode, even after cooking has ended (e.g. poached, hard boiled). Stir, turn and For even cooking it is essential to stir, turn and rearrange food during cooking. rearrange Always stir and rearrange from the outside towards the centre. Stand Standing time is necessary after cooking to enable the heat to disperse equally throughout the food. Shield Warm areas can be shielded with small pieces of foil, which reflect microwaves (e.g. legs and wings on a chicken). AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 23 ENGLISH

7. CARE AND CLEANING

OR SCOURING PADS ON ANY PART

OF YOUR MICROWAVE OVEN.

CLEAN THE OVEN AT REGULAR

INTERVALS AND REMOVE ANY FOOD

DEPOSITS. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Oven exterior The outside of your oven can be cleaned easily with mild soap and water. Make sure the soap is wiped off with a moist cloth, and dry the exterior with a soft towel. Control panel Open the door before cleaning to de-activate the control panel. Care should be taken when cleaning the control panel. Using a cloth dampened with water only, gently wipe the panel until it becomes clean. Avoid using excessive amounts of water. Do not use any sort of chemical or abrasive cleaner. Oven interior For cleaning, wipe any splatters or spills with a soft damp cloth or sponge after each use while the oven is still warm. For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed. Do not remove the waveguide cover. Make sure that mild soap or water does not penetrate the small vents in the walls which may cause damage to the oven. Do not use spray type cleaners on the oven interior. Heat up your oven regularly by using the grill. Remaining food or fat splashed can cause smoke or a bad smell. Turntable and turntable support Remove the turntable and turntable support from the oven. Wash the turntable and turntable support in mild soapy water. Dry with a soft cloth. Both the turntable and the turntable support are dishwasher safe. Door To remove all trace of dirt, regularly clean both sides of the door, the door seals and sealing surfaces with a soft, damp cloth. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. Racks These should be washed in a mild washing up liquid solution and dried. The racks are dishwasher safe. IMPORTANT! A steam cleaner should not be used. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 24

Problem The microwave appliance is not working properly? The microwave mode is not working? The turntable is not turning? The microwave will not switch off? The interior light is not working?

The food is taking longer • to heat through and cook • than before?

Check if . . . The fuses in the fuse box are working. There has not been a power outage. If the fuses continue to blow, please contact a qualified electrician. The door is properly closed. The door seals and their surfaces are clean. The START key has been pressed. The turntable support is correctly connected to the drive. The ovenware does not extend beyond the turntable. Food does not extend beyond the edge of the turntable preventing it from rotating. There is nothing in the well beneath the turntable. Isolate the appliance from the fuse box. Call an authorised ELECTROLUX service agent. Call your authorised ELECTROLUX service agent. The interior light can be exchanged only by a trained authorised ELECTROLUX service agent. Set a longer cooking time (double quantity = nearly double time) or If the food is colder than usual, rotate or turn from time to time or Set a higher power setting. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 25 ENGLISH

The microwave can be fitted in position A or B:

9.1 Installing the appliance

1. Remove all packaging and check

carefully for any signs of damage.

2. Fit the fixing hooks to the kitchen

cupboard using the instruction sheet and template supplied.

3. Fit the appliance into the kitchen

cupboard slowly, and without force. The appliance should be lifted onto the fixing hooks and then lowered into place. In the case of interference during fitting, this hook is reversible. The front frame of the oven should seal against the front opening of the cupboard.

4. Ensure the appliance is stable and not

leaning. Ensure that a 4 mm gap is kept between the cupboard door above and the top of the frame (see diagram). AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 26

www.aeg.com IMPORTANT! Ensure the bottom of the oven is 85 cm or more above the floor. It is important to ensure that the installation of this product conforms to the instructions in this operation manual and the conventional oven manufacturer’s installation instructions.

9.2 Connecting the appliance to

the power supply (A)

• The electrical outlet should be readily accessible so that the unit can be unplugged easily in an emergency. Or it should be possible to isolate the oven from the supply by incorporating a switch in the fixed wiring in accordance with the wiring rules.
• The socket should not be positioned behind the cupboard.
• The best position is above the cupboard, see (A).
• Connect the appliance to a single phase 240 V/50 Hz alternating current via a correctly installed earth socket.
• The power supply cord may only be replaced by an electrician.
• Before installing, tie a piece of string to the power supply cord to facilitate connection to point (A) when the appliance is being installed.
• When inserting the appliance into the high-sided cupboard, DO NOT crush the power supply cord.
• Do not immerse the power supply cord or plug in water or any other liquid.

9.3 Electrical connections

THIS APPLIANCE MUST BE

EARTHED The manufacturer declines any liability should this safety measure not be observed. If the plug that is fitted to your appliance is not suitable for your socket outlet, you must call a qualified electrician to install the required socket and wiring. AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 27 ENGLISH

AC Line Voltage 240 V, 50 Hz, single phase Distribution line fuse/circuit breaker AC Power required: Microwave Grill Microwave/Grill Output power: Microwave Grill Microwave Frequency Outside Dimensions: MBE2658D Cavity Dimensions Minimum 15 A

This Product fulfils the requirement of the European standard EN55011. In conformity with this standard, this product is classified as group 2 class B equipment. Group 2 means that the equipment intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food. Class B equipment means that the equipment is suitable to be used in domestic establishments. Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less.

11. ENVIRONMENT CONCERNS

Recycle materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and recycle waste electrical and electronic appliances. Do not dispose of appliances marked with the symbol with household waste. Return the product to your local recycling facility or contact your municipal office.

Warranty FOR SALES IN AUSTRALIA AND NEW ZEALAND

ALL AEG BRANDED APPLIANCES

damage which does not affect the operation of the Appliance; (c) cosmetic This document sets out the terms and conditions of the product warranties for AEG Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should there be a manufacturing defect in your Appliance. This warranty is in addition to other rights you may have under the Australian Consumer Law.

(d) damage to the Appliance caused by: (i) negligence or accident; (ii) misuse or abuse, including failure to properly maintain or service; (iii) improper, negligent or faulty servicing or repair works done by anyone other than an Electrolux authorised repairer or ASC; In this warranty: (a) ‘ ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the Competition and Consumer Act 2010; (iv) normal wear and tear; (b) ‘ Appliance’ means any Electrolux product purchased by you and accompanied by this document; (vi) incomplete or improper installation; (v) power surges, electrical storm damage or incorrect power supply; (vii) incorrect, improper or inappropriate operation; (c) ‘ASC’ means Electrolux’s authorised serviced centres; (viii) insect or vermin infestation; (d) ‘ AEG’ is the brand controlled by Electrolux Home Products Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand; (ix) failure to comply with any additional instructions supplied with the Appliance; In addition, Electrolux is not liable under this warranty if: (a) the Appliance has been, or Electrolux reasonably believes that the Appliance has been, used for purposes other than those for which the Appliance was intended, including where the Appliance has been used for any non-domestic purpose; (e) ‘Warranty Period’ means the period specified in clause 3 of this warranty; means the purchaser of the Appliance not having purchased the (f) ‘you’ Appliance for re-sale, and ‘your’ has a corresponding meaning.

2. Application: This warranty only applies to new Appliances, purchased and used

in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) other rights and remedies under a law to which the Appliances or services relate, including any non-excludable statutory guarantees in Australia and New Zealand. (b) the Appliance is modified without authority from Electrolux in writing; (c) the Appliance’s serial number or warranty seal has been removed or defaced.

8. How to claim under this warranty: To enquire about claiming under this warranty,

please follow these steps: check the operating instructions, user manual and the terms of (a) carefully this warranty;

3. Warranty Period: Subject to these terms and conditions, this warranty continues

for in Australia for a period of 60 months and in New Zealand for a period of 60 months, following the date of original purchase of the Appliance.

4. Repair or replace warranty: During the Warranty Period, Electrolux or its ASC

will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux may, in its absolute discretion, choose whether the remedy offered for a valid warranty claim is repair or replacement. Electrolux or its ASC may use refurbished parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux.

5. Travel and transportation costs: Subject to clause 7, Electrolux will bear the

reasonable cost of transportation, travel and delivery of the Appliance to and from Electrolux or its ASC. Travel and transportation will be arranged by Electrolux as part of any valid warranty claim.

6. Proof of purchase is required before you can make a claim under this warranty.

7. Exclusions: You may not make a claim under this warranty unless the defect claimed

is due to faulty or defective parts or workmanship. This warranty does not cover: (a) light globes, batteries, filters or similar perishable parts; (b) parts and Appliances not supplied by Electrolux; (b) have the model and serial number of the Appliance available; (c) have the proof of purchase (e.g. an invoice) available; (d) telephone the numbers shown below.

9. Australia: For Appliances and services provided by Electrolux in Australia: Electrolux

goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. ‘Acceptable quality’ and ‘major failure’ have the same meaning as referred to in the ACL.

10. New Zealand: For Appliances and services provided by Electrolux in New

Zealand, the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act. Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply.

11. Confidentiality: You accept that if you make a warranty claim, Electrolux and

its agents including ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty. Important Notice Before calling for service, please ensure that the steps listed in clause 8 above have been followed. FOR SERVICE or to find the address of your nearest authorised service centre in Australia PLEASE CALL 1300 363 664 OR EMAIL [e-mail] SERVICE AUSTRALIA For the cost of a local call (Australia only) aeg.com/au FOR SERVICE or to find the address of your nearest authorised service centre in New Zealand PLEASE CALL 0800 234 234 OR EMAIL [e-mail]

(New Zealand only) AEG_Warr_May17 aegnewzealand.co.nz

or to find the address of your nearest spare parts centre in Australia PLEASE CALL 13 13 50 OR EMAIL [e-mail] For the cost of a local call (Australia only)

or to find the address of your nearest spare parts centre in New Zealand PLEASE CALL 0800 10 66 20 OR EMAIL [e-mail] (New Zealand only) TINS-B192URR0 AEG16_AUS_MG_AL28_Layout 1 24/03/2017 09:22 Page 32
