MBE2658SB - Micro-ondes AEG-ELECTROLUX - Notice d'utilisation et mode d'emploi gratuit

Marque	AEG-ELECTROLUX
Modèle	MBE2658SB
Type de produit	Micro-ondes combiné avec grill
Dimensions extérieures (L x H x P)	594 x 459 x 404 mm
Dimensions de la cavité (L x H x P)	342 x 207 x 368 mm
Capacité	26 litres
Poids net	Environ 19,5 kg
Alimentation électrique	240 V ~ 50 Hz, monophasé, fusible 15 A min.
Puissance micro-ondes	900 W (IEC 60705)
Puissance grill	800 W
Fréquence micro-ondes	2450 MHz (Groupe 2/Classe B)
Diamètre du plateau tournant	325 mm, en verre
Fonctions principales	Micro-ondes, Grill, Double grill (grill+micro-ondes), Décongélation automatique (viande/poisson/pain), 3 recettes favorites (beurre, chocolat, mug cake), Minuterie, Mise en veille
Niveaux de puissance micro-ondes	5 niveaux : 90 W, 270 W, 450 W, 630 W, 900 W
Contrôles	Tactiles, bouton rotatif, affichage numérique
Sécurité	Verrouillage enfant, arrêt automatique en cas de porte ouverte, coupure en cas de surchauffe, protection contre les micro-ondes en excès
Entretien et nettoyage	Nettoyer l'extérieur avec de l'eau savonneuse douce et un chiffon humide. L'intérieur avec un chiffon doux après chaque usage. Ne pas utiliser de nettoyants abrasifs, vapeur ou contenant de la soude caustique. Le plateau et le support vont au lave-vaisselle.
Accessoires fournis	Plateau tournant, support de plateau, grille haute, grille basse
Pièces détachées et réparabilité	Utiliser exclusivement des pièces d'origine. Ne pas démonter soi-même. Contacter un service agréé ELECTROLUX pour toute réparation (y compris remplacement de l'ampoule intérieure).
Garantie	Garantie légale de conformité (2 ans en France) + garantie constructeur (selon pays).

FOIRE AUX QUESTIONS - MBE2658SB AEG-ELECTROLUX

Comment régler l'horloge ?

Appuyez deux fois sur la touche TIMER, tournez le bouton jusqu'à afficher 'on', validez avec START, puis réglez les heures et minutes avec le bouton, validez chaque étape avec START.

Comment utiliser le verrouillage enfant ?

Pour activer, maintenez la touche STOP enfoncée jusqu'à ce que le symbole du verrou apparaisse. Pour désactiver, faites de même jusqu'à ce qu'il disparaisse.

Puis-je utiliser des récipients métalliques ?

Non, les récipients métalliques sont interdits en mode micro-ondes car ils peuvent provoquer des arcs électriques. Utilisez des plats allant au micro-ondes (verre, porcelaine sans décor métallique, plastique adapté).

Comment décongeler un steak de 200 g ?

Appuyez une fois sur AUTO DEFROST pour sélectionner le menu viande/poisson/poulet, tournez le bouton pour afficher 0.2 kg, puis appuyez sur START. Retournez la viande lorsque le signal sonore retentit.

Que faire si le four ne chauffe pas en mode micro-ondes ?

Vérifiez que la porte est bien fermée, que les joints sont propres et que vous avez appuyé sur START. Si le problème persiste, vérifiez les fusibles (15 A min.) et contactez un service agréé.

Comment nettoyer le micro-ondes ?

Utilisez un chiffon doux humide avec de l'eau savonneuse pour l'extérieur et l'intérieur. Ne pas utiliser de nettoyants abrasifs ni de nettoyeur vapeur. Le plateau tournant et son support passent au lave-vaisselle.

Pourquoi le plateau tournant ne tourne-t-il pas ?

Assurez-vous que le support de plateau est correctement enclenché sur l'axe d'entraînement, que le plateau est bien posé et qu'aucun aliment ne dépasse du bord. Nettoyez également l'encoche sous le plateau.

Comment utiliser la fonction grill ?

Appuyez une fois sur GRILL pour le mode Double grill (grill+micro-ondes), une deuxième fois pour Grill seul. Réglez le temps avec le bouton, puis appuyez sur START. Utilisez la grille haute ou basse fournie.

Comment personnaliser les recettes favorites ?

Sélectionnez un niveau de puissance et un temps de cuisson, puis maintenez enfoncée la touche FAVORITE de votre choix jusqu'à un bip. Pour réinitialiser, maintenez POWER LEVEL 450 W enfoncé 3 secondes en position STOP.

Que faire si de la fumée sort du four pendant la cuisson ?

N'ouvrez pas la porte. Éteignez et débranchez l'appareil. Attendez que la fumée cesse. Nettoyez ensuite les résidus de graisse. Si le problème persiste, contactez le service après-vente.

MODE D'EMPLOI MBE2658SB AEG-ELECTROLUX

USER

MANUAL

Simple line drawing of a microwave oven with two circular buttons (no text or symbols)

CONTENTS

1. SAFETY INFORMATION......3
2. PRODUCT DESCRIPTION....9
3. BEFORE FIRST USE....11
4. OPERATION....12
5. COOKING CHARTS......15
6. HINTS AND TIPS ......21
7. CARE AND CLEANING ....23
8. TROUBLESHOOTING....24
9. INSTALLATION 25
10. TECHNICAL INFORMATION ......27
11. ENVIRONMENT CONCERNS ......27
12. WARRANTY 28

WE'RE THINKING OF YOU

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com

Register your product for better service: www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning/Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. ⚠️ SAFETY INFORMATION

IMPORTANT! IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

If food being heated begins to smoke, DO NOT OPEN THE DOOR. Turn off and unplug the oven and wait until the food has stopped smoking. Opening the door while food is smoking may cause a fire. Only use microwave-safe containers and utensils. Do not leave the oven unattended when using disposable plastic, paper or other combustible food containers. Clean the waveguide cover, the oven cavity, the turntable and turntable support after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

Metallic containers for food and beverages are not allowed during microwave cooking.

Care should be taken not to displace the turntable when removing containers from the appliance.

1.1 To avoid the possibility of injury

WARNING!

Do not operate the oven if it is damaged or malfunctioning.

Check the following before use:

a) The door; make sure the door closes properly and ensure it is not misaligned or warped.
b) The hinges and door safety latches; check to make sure they are not broken or loose.
c) The door seals and sealing surfaces; ensure that they have not been damaged.
d) Inside the oven cavity or on the door; make sure there are no dents.
e) The power supply cord and plug; ensure that they are not damaged.

Never adjust, repair or modify the oven yourself. It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

Do not allow grease or dirt to build up on the door seals and adjacent parts. Follow the instructions for ‘Care and cleaning’. Clean the oven at regular intervals and remove any food deposits. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Do not attempt to replace the oven light yourself or allow anyone who is not authorised by ELECTROLUX to do so. If the oven light fails, please consult your dealer or call an authorised ELECTROLUX service agent.

1.2 To avoid the possibility of explosion and sudden boiling

WARNING!

Liquids and other foods must not be heated in sealed containers since they are liable to explode.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.

Do not cook eggs in their shells and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites, or the eggs may explode. Shell and slice hard boiled eggs before reheating them in the microwave oven.

To avoid burns, always test food temperature and stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly.

Keep children away from the door and accessible parts that may become hot when the grill is in use. Children should be kept away to prevent them burning themselves. Do not touch the oven door, outer cabinet, rear cabinet, oven cavity, ventilation openings, accessories and dishes during GRILL mode and DUAL GRILL mode as they will become hot. Before cleaning make sure they are not hot.

1.3 To avoid the misuse by children

WARNING!

The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential environments; bed and breakfast type environments.

This appliance is not intended for use at altitudes above 2000m.

1.4 To avoid the danger of fire

The microwave oven should not be left unattended during operation. Power levels that are too high or cooking times that are too long may overheat foods resulting in a fire. The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emergency. The AC power supply must be 240 V, 50 Hz, with a minimum 15 A distribution line fuse, or a minimum 15 A distribution circuit breaker. It is recommended that a separate circuit serving only this appliance be provided. Do not store or use the oven outdoors.

Do not place flammable materials near the oven or ventilation openings. Do not block the ventilation openings. Remove all metallic seals, wire twists, etc., from food and food packages. Arcing on metallic surfaces may cause a fire. Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire. To make popcorn, only use special microwave popcorn makers. Do not store food or any other items inside the oven. Check the settings after you start the oven to ensure the oven is operating as desired. Do not operate the oven with the door open or alter the door safety latches in any way. Do not operate the oven if there is an object between the door seals and sealing surfaces.

Individuals with PACEMAKERS should check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens.

1.5 To avoid the possibility of electric shock

Under no circumstances should you remove the outer cabinet. Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately and call an authorised ELECTROLUX service agent. Do not immerse the power supply cord or plug in water or any other liquid. Do not allow the power supply cord to run over any hot or sharp surfaces, such as the hot air vent area at the top rear of the oven. If the power supply cord of this appliance is damaged, it must be replaced with a special cord. The exchange must be made by an authorised ELECTROLUX service agent.

1.6 To avoid the possibility of explosion and sudden boiling

Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a build up of pressure even after the oven has been turned off. Take care when microwaving liquids. Use a wide-mouthed container to allow bubbles to escape.

To prevent sudden eruption of boiling liquid and possible scalding:

• Stir liquid prior to heating/reheating.
- It is advisable to insert a glass rod or similar utensil into the liquid whilst reheating.
- Let liquid stand for at least 20 seconds in the oven at the end of cooking time to prevent delayed eruptive boiling.

Pierce the skin of such foods as potatoes, sausages and fruit before cooking, or they may explode.

1.7 To avoid the possibility of burns

Use pot holders or oven gloves when removing food from the oven to prevent burns. Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid steam burns.

Temperature of the container is not a true indication of the temperature of the food or drink; always check the food temperature. Always stand back from the oven door when opening to avoid burns from escaping steam and heat. Slice stuffed baked foods after heating to release steam and avoid burns.

Do not lean or swing on the oven door. Do not play with the oven or use it as a toy. Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings; paying special attention to packaging (e.g. self-heating materials) designed to make food crisp, as they may be extra hot.

1.8 Other warnings

Never modify the oven in any way. This oven is for home food preparation only and may only be used for cooking food. It is not suitable for commercial or laboratory use.

1.9 To promote trouble-free use of your oven and avoid damage

Never operate the oven when it is empty except where recommended in the operation manual. Doing so may damage the oven. When using a browning dish or self-heating material, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and turntable support due to heat stress. The preheating time specified in the dish's instructions must not be exceeded. Do not use metal utensils, which reflect microwaves and may cause electrical arcing. Do not put cans in the oven. Only use the turntable and the turntable support designed for this oven. Do not operate the oven without the turntable.

To prevent the turntable from breaking:

• Before cleaning the turntable with water, leave the turntable to cool.
• Do not put hot foods or hot utensils on a cold turntable.
• Do not put cold foods or cold utensils on a hot turntable.

Do not place anything on the outer cabinet during operation. Do not use plastic containers for microwaving if the oven is still hot from using the GRILL mode and DUAL GRILL mode because they may melt. Plastic containers must not be used during above modes unless the container manufacturer says they are suitable.

IMPORTANT! If you are unsure how to connect your oven, please consult an authorised, qualified electrician.

Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure. Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction.

2. PRODUCT DESCRIPTION

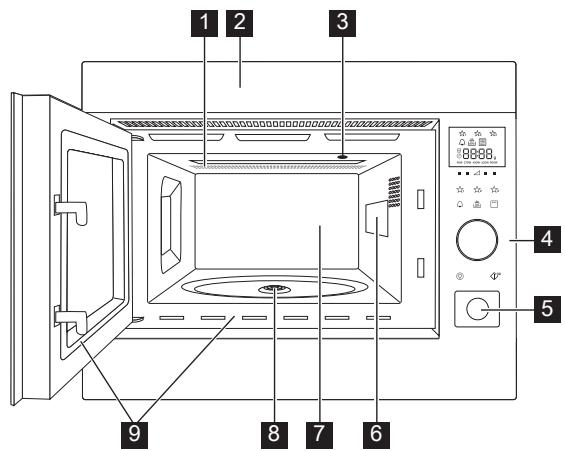

2.1 Microwave oven

1 2 3 8888 4 5 6 7 8 9

1 Grill heating element
2 Front trim
3 Oven light
4 Control panel
5 Door opening button
6 Waveguide cover
7 Oven cavity
8 Seal packing
9 Door seals and sealing surfaces

2.2 Accessories

Diagram of a device with labeled parts, showing top and bottom views of a lid and rings on a base platform.

3 4

Check to make sure the following accessories are provided:

1 Turntable
2 Turntable support
3 High rack
4 Low rack

• Place the turntable support on the floor of the cavity.
• Then place the turntable on the turntable support.
• To avoid turntable damage, ensure dishes or containers are lifted clear of the turntable rim when removing them from the oven.

When you order accessories, please mention two items: part name and model name to your dealer or an authorised ELECTROLUX service agent.

2.3 Control panel

1 2 3 4 5 6 7 8 9 10 90W 270W 450W 630W 900W 88:88 g AUTO AUTO +30

1 Digital display indicators:

Favourites

Kitchen timer

Auto defrost

Grill

Dual grill

Microwave

Stop/Cancel

Child safety lock

Set clock

Display segments

Weight

90W 270W 450W 630W 900W

Power levels

2 Power level keys
3 Favourites keys
4 Grill key
5 Auto defrost key
6 Kitchen timer key
7 Timer/Weight knob
8 Start/Confirm/Quick start key
9 Stop key
10 Door open button

3. BEFORE FIRST USE

3.1 Plug in

When the oven is plugged in for the first time it will ask if you want to set the clock.

1. The oven will beep and all of the display icons will be switched on for half a second. The oven will ask if you want to turn on the clock.
2. Press the START key to confirm. (See ‘Setting the clock’ for instruction.) To turn the clock off, turn the knob until the display shows ‘oFF’.
3. Press the START key to confirm, or press STOP key to cancel.

3.2 Standby (Economy mode)

The oven will automatically enter standby mode if it is not used within a 5 min period.

1. If the clock has been set it will display the time for 3 min, then it will display 'Econ' for 3 seconds. The display will switch off.
2. If the clock has not been set: The display will switch off.
3. To exit standby mode you can: Open the door, press any key or rotate the knob.

3.3 Setting the clock

The oven has a 24hr clock.

Example: To set the clock to 18:45.

1. Press the TIMER key twice, the clock symbol will be displayed.
2. Rotate the knob until 'on' is displayed.
3. Press the START key to confirm.
4. Rotate the knob to adjust the hour.
5. Press the START key to confirm.
6. Rotate the knob to adjust the minutes.
7. Press the START key to confirm.

3.4 Adjusting the clock when set

You can adjust the clock after the time has been set.

Example: To change from 18.45 to 19.50.

1. Press the START key. The hours will flash.
2. Rotate the knob till 19 is displayed.

3. Press the START key.

4. Rotate the knob till 50 is displayed.

5. Press the START key.

3.5 To cancel the clock and set standby (Economy mode)

1. Press the TIMER key twice.
2. Rotate the knob until 'oFF' is displayed.
3. Press the START key to confirm.

3.6 Child safety lock

The oven has a safety feature which prevents the accidental running of the oven by a child. When the lock has been set, no part of the microwave will operate until the lock feature has been turned off.

Switching the lock on or off is only possible when the oven is not running.

Example: To switch the lock on.

Press and hold the STOP key until the ‘child lock’ symbol switches on.

Example: To switch the lock off.

Press and hold the STOP key until the ‘child lock’ symbol switches off.

When child lock is switched on, all keys are disabled except the STOP key.

4. OPERATION

4.1 Microwave cooking

Example: To heat soup for 2 minutes and 30 seconds on 630 W microwave power.

1. Press the POWER LEVEL key to the right of the triangle until 630 W is displayed.
2. Rotate the knob to enter the time.
3. Press the START key.

In microwave cooking mode, you can adjust the power level of the oven by pressing the key directly below the required setting.

You can set the power level when the oven is running by pressing and holding the required POWER LEVEL key until the new power setting is highlighted on the display.

If 900 W is selected then the maximum microwave time that can be input is 20 minutes.

If the oven runs in any mode for 3 minutes or longer, the fan will stay on for 2 minutes after the cooking ends. Open the door and it will stop, close the door it will start again until 2 minutes is finished (including door open time). If the oven runs for less than 3 minutes the fan will not come on.

4.2 Power levels

Power setting	Suggested use
900 W/HIGH	Used for fast cooking or reheating (e.g. soup, casseroles, canned food, hot beverages, vegetables, fish).
630 W	Used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive dishes such as cheese sauce and sponge cakes. At this reduced setting, the sauce will not boil over and food will cook evenly without over cooking at the sides.
450 W	For dense foods which require a long cooking time when cooked conventionally (e.g. beef dishes) it is advisable to use this power setting to ensure the meat will be tender.
270 W/DEFROST	To defrost, select this power setting, to ensure that the dish defrosts evenly. This setting is also ideal for simmering rice, pasta, dumplings and cooking egg custard.
90 W	For gentle defrosting (e.g. cream gateaux or pastry).
0 W	For standing/kitchen timer.

W = WATT

4.3 Reduced power level

Cooking mode	Standard time	Reduced power level
Microwave 900 W	20 minutes	Microwave 630 W
Grill	10 minutes	Grill 500 W
Dual Grill	10 minutes	Grill 500 W

4.4 Adjusting the cooking time during cooking

You can adjust the cooking time during cooking.

Example: To add 2 minutes (120 seconds) using the START key.

1. Press the START key four times. The cooking time will increase by 120 seconds.

4.5 Using the stop key

Press the STOP key once to enter Pause mode.

Press the STOP key again to cancel the cooking time.

4.6 Kitchen timer

To set the kitchen timer.

1. Press the TIMER key.
2. Rotate the knob to enter the time.
3. Press the START key. The timer will automatically start.

The time can be extended when the timer is running by rotating the knob or pressing the START key. The timer function can only be used when the oven is not running.

4.7 Add 30 seconds

You can directly start cooking on 900 W/HIGH for 30 seconds by pressing the START key.

To add more time press the START key.

4.8 Mute

To turn the sound off.

1. Press the TIMER key 3 times until 'Soun' is displayed.
2. Rotate the knob until 'oFF' is displayed.
3. Press the START key.

To turn the sound on.

1. Press the TIMER key 3 times until 'Soun' is displayed.
2. Rotate the knob until 'on' is displayed.
3. Press the START key.

4.9 Pause

To pause whilst the microwave is running.
1. Press the STOP key or open the door.
2. The oven will pause for up to 5 minutes.
3. Press START to continue cooking.

4.10 Grill and dual grill

This microwave oven has two grill cooking modes:

Grill only Dual grill (grill with microwave)

IMPORTANT! The high or the low rack is recommended for grilling. You may detect smoke or a burning smell when using the grill for the first time, this is normal and does not indicate a fault with the oven. To avoid this problem, when using the grill for the first time, operate the grill without food for 20 minutes.

1. Rotate the knob to enter the cooking time.
2. Press the GRILL key once for Dual Grill mode (Grill + Microwave) and press the START key.
   Press the GRILL key again to select Grill only mode.
3. Press the START key.

In Dual Grill mode the 90 W and 900 W microwave power levels are not available. To exit Dual Grill or Grill mode press the GRILL key until the microwave only symbol is illuminated on the display.

4.11 Favourites

The oven has 3 Favourite recipes.

☆1 Soften Butter
☆2 Melt Chocolate
☆3 Mug Cake

Example: To soften butter.

1. Press the FAVOURITE 1 key once.
2. Rotate the knob to enter the weight.
3. Press the START key.

If display segments exhibit a rotating pattern this indicates that the food needs to be stirred or turned over. To continue cooking, press the START key. At the end of the auto defrost time, the programme will automatically stop. The power levels for the pre-set Favourite recipes cannot be adjusted. 1-4 Mug cakes can be cooked.

WARNING! Chocolate may become very hot! If the chocolate needs longer cooking time then add 10 seconds. Take care with chocolate as it may overheat and burn.

To overwrite Favourites for your own recipes.

1. Press the POWER level key to select the power.
2. Rotate knob to enter the required cooking time.
3. Press and hold the FAVOURITE key you want to set until you hear a single beep and the favourite star is visible.

To re-set Favourites to the factory settings.

1. Press the STOP key.
2. Press and hold POWER LEVEL 450 W for 3 seconds.
   The oven will reset Favourites to the factory settings.

4.12 Auto defrost

Auto defrost automatically works out the correct cooking mode and cooking time based on the weight of the food.

You can choose from 2 auto defrost menus.

1. Auto Defrost: Meat/Fish/Poultry
2. Auto Defrost: Bread

Example: To defrost 0.2 kg steak.

1. Select the auto defrost menu by pressing the AUTO DEFROST key once.
2. Rotate the knob to select the weight.
3. Press the START key.

If display segments exhibit a rotating pattern this indicates that the food needs to be stirred or turned over.

To continue cooking, press the START key. At the end of the auto defrost time, the programme will automatically stop.

5. COOKING CHARTS

5.1 Favourites

Favourites	Weight	Key	Procedure
Soften Butter	0.05-0.25 kg	[HXX6]	Place the butter into a pyrex dish. Stir well after cooking.
Melt Chocolate	0.1-0.2 kg		Break up the chocolate into small pieces. Place the chocolate into a pyrex dish. Stir when audible bell sounds. Stir well after cooking.[SYWW]WARNING: Chocolate may become very hot! If the chocolate needs longer then add 10 seconds cooking time. Take care with chocolate as it may overheat and burn.
Mug Cake	1-4 mugs		Make the cake as the recipe. Place the mug towards the edge of the turntable. Stand for 30 seconds after cooking.

5.2 Mug cake recipes

Rich Chocolate Mug Cake
Ingredientsfor 1 Mug:
212 tbsp (25 g)	Plain Flour
2 tbsp (12 g)	Cocoa Powder
212 tbsp (30 g)	Castor Sugar
14 tsp	Baking Powder
112 tbsp (15 g)	Vegetable Oil
14 tsp	Vanilla Extract
1	Medium Egg

Method:

1. Put all of the dry ingredients into a mug, mix well with a fork.
2. Add the Vegetable oil, vanilla extract and egg, mix well.
3. Place the mug off centre on the turntable.
4. Cook using ☆ _3 . The cake will rise out of the mug during cooking.
   After cooking, stand for 30 seconds.

Decorate with a swirl of chocolate buttercream.

Tip: To make Chocolate Orange Mug Cake replace the vanilla extract with 12 tsp orange extract.

Raspberry Ripple Mug Cake
Ingredientsfor 1 Mug:
212 tbsp (25 g)	Plain Flour
212 tbsp (30 g)	Castor Sugar
14 tsp	Baking Powder
112 tbsp (15 g)	Vegetable Oil
12 tsp	Vanilla Extract
1	Medium Egg
112 tbsp	Seedless Raspberry Jam

Method:

1. Put all of the dry ingredients into a mug, mix well with a fork.
2. Add the Vegetable oil, vanilla extract and egg, mix well.
3. Fold in the jam using a spoon so that it streaks the mixture.
4. Place the mug off centre on the turntable.
5. Cook using ☆ _3 . The cake will rise out of the mug during cooking.
   After cooking, stand for 30 seconds.

Decorate with a swirl of vanilla buttercream.

Apple Crumble Mug Cake
Ingredientsfor 1 Mug:
212 tbsp (25 g)	Plain Flour
2 tbsp (30 g)	Soft Brown Sugar
14 tsp	Baking Powder
14 tsp	Ground Cinnamon
112 tbsp (15 g)	Vegetable Oil
1	Medium Egg
112 tbsp (30 g)	Apple Sauce
half (7 g)	Digestive Biscuit, crushed

Method:

1. Put all of the dry ingredients (except for the biscuit) into a mug, mix well with a fork.
2. Add the Vegetable oil and egg, mix well.
3. Gently fold in the apple sauce using a spoon so that it streaks the mixture.
4. Top with the crushed digestive biscuit
5. Place the mug off centre on the turntable.
6. Cook using ☆ _3 . The cake will rise out of the mug during cooking.
   After cooking, stand for 30 seconds.

Top with a scoop of vanilla ice cream.

WARNING! The apple sauce will be hot.

Peanut Butter Mug Cake
Ingredientsfor 1 Mug:
212 tbsp (25 g)	Plain Flour
2 tbsp (30 g)	Soft Brown Sugar
14 tsp	Baking Powder
112 tbsp (15 g)	Vegetable Oil
14 tsp	Vanilla Extract
2 tbsp (30 g)	Smooth Peanut Butter
1	Medium Egg

Method:

1. Put all of the dry ingredients into a mug, mix well with a fork.
2. Add the Vegetable oil, vanilla extract, peanut butter, and egg mix well.
3. Place the mug off centre on the turntable.
4. Cook using ☆ _3 . The cake will rise out of the mug during cooking.
   After cooking, stand for 30 seconds.

Top with chocolate spread.

Tip: Use crunchy peanut butter if you prefer.

Lemon Drizzle Mug Cake
Ingredientsfor 1 Mug:
212 tbsp (25 g)	Plain Flour
212 tbsp (30 g)	Castor Sugar
14 tsp	Baking Powder
112 tbsp (15 g)	Vegetable Oil
1 tsp	Lemon Zest
1	Medium Egg
Topping:	1 tbsp Lemon Juice mixed with 2 tbsp Castor Sugar

Method:

1. Put all of the dry ingredients into a mug, mix well with a fork.
2. Add the Vegetable oil, lemon zest and egg, mix well.
3. Place the mug off centre on the turntable.
4. Cook using ☆ ^3 . The cake will rise out of the mug during cooking.
5. Make the drizzle topping by mixing the lemon juice with the castor sugar.
6. After cooking, loosen the cake, pierce the top all over with a skewer, then drizzle the topping over the cake, stand for 30 seconds.

Carrot Mug Cake
Ingredientsfor 1 Mug:
2 tbsp (20 g)	Plain Flour
212 tbsp (30 g)	Light Brown Sugar
14 tsp	Baking Powder
14 tsp	Ground Cinnamon
14 tsp	Ground Nutmeg
1 tbsp	Ground Almonds
112 tbsp (15 g)	Sunflower Oil
	zest from 12 Orange
30 g	Grated Carrot
1	Medium Egg
Cream Topping: 15 g Butter, Softened40 g Icing Sugar40 g Full-fat Cream Cheese 12 tsp Orange Juice

Method:

1. Put all of the dry ingredients into a mug, mix well with a fork.
2. Add the sunflower oil, orange zest, grated carrot and egg, mix well.
3. Place the mug off centre on the turntable.
4. Cook using ☆ ^3 . The cake will rise out of the mug during cooking.
5. Make the topping by mixing the butter, icing sugar, cream cheese and orange juice together.
   After cooking, stand for 30 seconds.

Allow the cake to cool, then add the topping.

5.3 Auto defrost

Auto defrost	Weight	Key	Procedure
Meat/fish/poultry(Whole fish, fishsteaks, fish fillets,chicken legs,chicken breast,minced meat,steak, chops,burgers, sausages)	0.2-1.0 kg	[H607] x1	Place the food in a flan dish in the centre of the turntable.When the audible bell sounds, turn the food over, rearrange and separate.Shield thin parts and warm spots with aluminium foil.After defrosting, wrap in aluminium foil for 15-45 min, until thoroughly defrosted.Minced meat: When the audible bell sounds, turn the food over. Remove the defrosted parts if possible. Not suitable for whole poultry.
Bread	0.1-1.0 kg	x2	Distribute in a flan dish in the centre of the turntable. For 1.0 kg, distribute directly on the turntable.When the audible bell sounds, turn over, rearrange and remove defrosted slices.After defrosting cover in aluminium foil and stand for 5-15 min until thoroughly defrosted.

Enter the weight of the food only. Do not include the weight of the container.

For food weighing more or less than weights/quantities given in the chart, use manual operation.

The final temperature will vary according to the initial temperature.

Steaks and chops should be frozen in one layer.

Minced meat should be frozen in a thin shape.

5.4 Heating food and drink

Food/drink		Quantity -g/ml-	Setting	Power Level	Time -Min-	Method
Milk,	1 cup	150	Micro	900 W	1	do not cover
Water,	1 cup	150	Micro	900 W	2	do not cover
	6 cups	900	Micro	900 W	8-10	do not cover
	1 bowl	1000	Micro	900 W	9-11	do not cover
One plate meal (vegetables, meat and trimmings)		400	Micro	900 W	4-6	cover, stir halfway through cooking
Soup/stew		200	Micro	900 W	1-2	cover, stir after heating
Vegetables		500	Micro	900 W	3-5	cover, stir halfway through cooking
Meat, 1 slice ^1)		200	Micro	900 W	3	thinly spread sauce over the top, cover
Fish fillet ^1)		200	Micro	900 W	3-5	cover
Cake, 1 slice		150	Micro	450 W	12-1	place in a flan dish
Baby food, 1 jar		190	Micro	450 W	12-1	transfer into a suitable microwaveable container, after heating stir well and test the temperature
Melting margarine or butter ^1)		50	Micro	900 W	12	cover
Melting chocolate		100	Micro	450 W	3-4	stir occasionally

^1) from chilled

5.5 Defrosting

Food	Quantity -g-	Setting	Power Level	Time -Min-	Method	Standing time -Min-
Goulash	500	Micro	270 W	8-9	stir halfway through defrosting	10-30
Cake, 1 slice	150	Micro	90 W	1-3	place in a flan dish	5
Fruit (e.g. cherries, strawberries, raspberries, plums)	250	Micro	270 W	3-5	spread out evenly, turn over halfway through defrosting	5

5.6 Cooking from frozen

Food	Quantity -g-	Setting	Power Level	Time -Min-	Method	Standing time -Min-
Fish fillet	300	Micro	900 W	9-11	cover	2
One plate meal	400	Micro	900 W	8-10	cover, stir after 6 minutes	2

5.7 Cooking and grilling

Food	Quantity -g-	Setting	Power Level	Time -Min-	Method	Standing time -Min-
Broccoli/ Peas	500	Micro	900 W	6-8	add 4-5 tbsps water, cover, stir halfway through cooking	-
Carrots	500	Micro	900 W	9-11	cut into rings, add 4-5 tbsps water, cover, stir halfway through cooking	-
Roasts	1000	Micro Dual Grill Micro Grill	450 W 450 W 450 W	16-17 9-10^1) 9-109-10	season to taste, place on the low rack, turn over after ^1)	10
Rump steaks 2 pieces	400	Grill Grill		10-11^1) 10-11	place on the high rack, turn over after ^1) , season after grilling
Browning of gratin dishes		Grill		11-15	place dish on the low rack
Cheese toastie	1 piece	Grill Grill	450 W	4-5^1) 3-4 ^2)	place 2 slices of bread on the high rack, cover one slice with cheese, cook ^1) , place toasted slice on top of the cheese on toast, turnover and cook ^2)
Frozen pizza	400	Micro Dual Grill	450 W 450 W	4-55-6	place on the low rack

If the oven runs in any mode for 3 minutes or longer, the fan will stay on for 2 minutes after the cooking ends. Open the door and it will stop, close the door it will start again until 2 minutes is finished (including door open time). If the oven runs for less than 3 minutes the fan will not come on.

6. HINTS AND TIPS

6.1 Microwave safe cookware

Cookware	Microwave safe	Comments
Aluminium foil/containers	√/✗	Small pieces of aluminium foil can be used to shield food from overheating. Keep foil at least 2 cm from the oven walls, as arcing may occur. Foil containers are not recommended unless specified by the manufacturer. Follow instructions carefully.
China and ceramics	√/✗	Porcelain, pottery, glazed earthenware and bone china are usually suitable, except for those with metallic decoration.
Glassware e.g. Pyrex®	√	Care should be taken if using fine glassware as it can break or crack if heated suddenly.
Metal	✗	It is not recommended to use metal cookware when using microwave power as it will arc, which can lead to fire.
Plastic/polystyrene e.g. fast food containers	√	Care must be taken as some containers warp, melt or discolour at high temperatures.
Freezer/roasting bags	√	Must be pierced to let steam escape. Ensure bags are suitable for microwave use. Do not use plastic or metal ties, as they may melt or catch fire due to the metal arcing.
Paper-plates, cups and kitchen paper	√	Only use for warming or to absorb moisture. Care must be taken as overheating may cause fire.
Straw and wooden containers	√	Always attend the oven when using these materials as overheating may cause fire.
Recycled paper and newspaper	✗	May contain extracts of metal which will cause arcing and may lead to fire.

6.2 Microwave cooking advice

Microwave cooking advice
Composition	Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less heating time. Care should be taken as overheating can lead to fire.
Size	For even cooking make all the pieces the same size.
Temperature of food	The initial temperature of food affects the amount of cooking time needed.Cut into foods with fillings (e.g. jam doughnuts) to release heat or steam.
Arrange	Place the thickest parts of food towards the outside of the dish (e.g. chicken drumsticks).
Cover	Use vented microwave cling film or a suitable lid.
Pierce	Foods with a shell, skin or membrane must be pierced in several places before cooking or reheating as steam will build up and may cause food to explode (e.g. potatoes, fish, chicken, sausages).[XTRSZ]IMPORTANT! Eggs should not be heated using microwave power as they may explode, even after cooking has ended (e.g. poached, hard boiled).
Stir, turn and rearrange	For even cooking it is essential to stir, turn and rearrange food during cooking.Always stir and rearrange from the outside towards the centre.
Stand	Standing time is necessary after cooking to enable the heat to disperse equally throughout the food.
Shield	Warm areas can be shielded with small pieces of foil, which reflect microwaves (e.g. legs and wings on a chicken).

7. CARE AND CLEANING

CAUTION!

DO NOT USE COMMERCIAL OVEN CLEANERS, STEAM CLEANERS, ABRASIVE, HARSH CLEANERS, ANY THAT CONTAIN SODIUM HYDROXIDE OR SCOURING PADS ON ANY PART OF YOUR MICROWAVE OVEN.

CLEAN THE OVEN AT REGULAR INTERVALS AND REMOVE ANY FOOD DEPOSITS. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Oven exterior

The outside of your oven can be cleaned easily with mild soap and water. Make sure the soap is wiped off with a moist cloth, and dry the exterior with a soft towel.

Control panel

Open the door before cleaning to de-activate the control panel. Care should be taken when cleaning the control panel. Using a cloth dampened with water only, gently wipe the panel until it becomes clean. Avoid using excessive amounts of water. Do not use any sort of chemical or abrasive cleaner.

Oven interior

For cleaning, wipe any splatters or spills with a soft damp cloth or sponge after each use while the oven is still warm. For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed. Do not remove the waveguide cover.

Make sure that mild soap or water does not penetrate the small vents in the walls which may cause damage to the oven.

Do not use spray type cleaners on the oven interior.

Heat up your oven regularly by using the grill. Remaining food or fat splashed can cause smoke or a bad smell.

Turntable and turntable support

Remove the turntable and turntable support from the oven. Wash the turntable and turntable support in mild soapy water. Dry with a soft cloth. Both the turntable and the turntable support are dishwasher safe.

Door

To remove all trace of dirt, regularly clean both sides of the door, the door seals and sealing surfaces with a soft, damp cloth. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Racks

These should be washed in a mild washing up liquid solution and dried. The racks are dishwasher safe.

IMPORTANT!

A steam cleaner should not be used.

8. TROUBLESHOOTING

Problem	Check if . . .
The microwave appliance is not working properly?	The fuses in the fuse box are working.There has not been a power outage.If the fuses continue to blow, please contact a qualified electrician.
The microwave mode is not working?	The door is properly closed.The door seals and their surfaces are clean.The START key has been pressed.
The turntable is not turning?	The turntable support is correctly connected to the drive.The ovenware does not extend beyond the turntable.Food does not extend beyond the edge of the turntable preventing it from rotating.There is nothing in the well beneath the turntable.
The microwave will not switch off?	Isolate the appliance from the fuse box.Call an authorised ELECTROLUX service agent.
The interior light is not working?	Call your authorised ELECTROLUX service agent. The interior light can be exchanged only by a trained authorised ELECTROLUX service agent.
The food is taking longer to heat through and cook than before?	Set a longer cooking time (double quantity = nearly double time) orIf the food is colder than usual, rotate or turn from time to time orSet a higher power setting.

9. INSTALLATION

The microwave can be fitted in position A or B:

A Conventional oven B

Position	Niche size
	W	D	H
A	562 x 550 x 450
B	562 x 500 x 450

Measurements in (mm)

9.1 Installing the appliance

4 mm 4 mm 4 mm

1. Remove all packaging and check carefully for any signs of damage.
2. Fit the fixing hooks to the kitchen cupboard using the instruction sheet and template supplied.
3. Fit the appliance into the kitchen cupboard slowly, and without force. The appliance should be lifted onto the fixing hooks and then lowered into place. In the case of interference during fitting, this hook is reversible. The front frame of the oven should seal against the front opening of the cupboard.
4. Ensure the appliance is stable and not leaning. Ensure that a 4 mm gap is kept between the cupboard door above and the top of the frame (see diagram).

Line drawing of a door frame with mounting holes and a small inset panel (no text or symbols)

Technical line drawing of a bracket with mounting holes and a hinge (no text or symbols)

IMPORTANT! Ensure the bottom of the oven is 85 cm or more above the floor. It is important to ensure that the installation of this product conforms to the instructions in this operation

9.2 Connecting the appliance to the power supply

Illustration of a microwave oven with two outlets and a handle, labeled (A), no text or symbols present.

manual and the conventional oven manufacturer's installation instructions.

• The electrical outlet should be readily accessible so that the unit can be unplugged easily in an emergency. Or it should be possible to isolate the oven from the supply by incorporating a switch in the fixed wiring in accordance with the wiring rules.
• The socket should not be positioned behind the cupboard.
• The best position is above the cupboard, see (A).
• Connect the appliance to a single phase 240 V/50 Hz alternating current via a correctly installed earth socket.
• The power supply cord may only be replaced by an electrician.
• Before installing, tie a piece of string to the power supply cord to facilitate connection to point (A) when the appliance is being installed.
• When inserting the appliance into the high-sided cupboard, DO NOT crush the power supply cord.
• Do not immerse the power supply cord or plug in water or any other liquid.

9.3 Electrical connections

WARNING! THIS APPLIANCE MUST BE EARTHED

The manufacturer declines any liability should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for your socket outlet, you must call a qualified electrician to install the required socket and wiring.

10. TECHNICAL INFORMATION

AC Line Voltage		240 V, 50 Hz, single phase
Distribution line fuse/circuit breaker		Minimum 15 A
AC Power required:	Microwave	1.4 kW
	Grill	0.85 kW
	Microwave/Grill	2.20 kW
Output power:	Microwave	900 W (IEC 60705)
	Grill	800 W
Microwave Frequency		2450 MHz ^1) (Group 2/Class B)
Outside Dimensions:	MBE2658D	594 mm (W) x 459 mm (H) x 404 mm (D)
Cavity Dimensions		342 mm (W) x 207 mm (H) x 368 mm (D) ^2)
Oven Capacity		26 litres ^2)
Turntable		ø 325 mm, glass
Weight		approx. 19.5 kg

1) This Product fulfils the requirement of the European standard EN55011.

In conformity with this standard, this product is classified as group 2 class B equipment.

Group 2 means that the equipment intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food.

Class B equipment means that the equipment is suitable to be used in domestic establishments.

2) Internal capacity is calculated by measuring maximum width, depth and height.

Actual capacity for holding food is less.

11. ENVIRONMENT CONCERNS

Recycle materials with the symbol ⚙. Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and recycle waste electrical and electronic appliances.

Do not dispose of appliances marked with the symbol 📋 with household waste.

Return the product to your local recycling facility or contact your municipal office.

12. WARRANTY

AEG Warranty

FOR SALES IN AUSTRALIA AND NEW ZEALAND

ALL AEG BRANDED APPLIANCES

This document sets out the terms and conditions of the product warranties for AEG Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should there be a manufacturing defect in your Appliance. This warranty is in addition to other rights you may have under the Australian Consumer Law.

1. In this warranty:

(a) 'ACL' or 'Australian Consumer Law' means Schedule 2 to the Competition and Consumer Act 2010;
(b) 'Appliance' means any Electrolux product purchased by you and accompanied by this document;
(c) 'ASC' means Electrolux's authorised serviced centres;
(d) 'AEG' is the brand controlled by Electrolux Home Products Pty Ltd of 163 O'Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited (collectively "Electrolux") of 3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand;
(e) 'Warranty Period' means the period specified in clause 3 of this warranty;
(f) ‘you’ means the purchaser of the Appliance not having purchased the Appliance for re-sale, and ‘your’ has a corresponding meaning.

1. Application: This warranty only applies to new Appliances, purchased and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) other rights and remedies under a law to which the Appliances or services relate, including any non-excludable statutory guarantees in Australia and New Zealand.

2. Warranty Period: Subject to these terms and conditions, this warranty continues for in Australia for a period of 60 months and in New Zealand for a period of 60 months, following the date of original purchase of the Appliance.

3. Repair or replace warranty: During the Warranty Period, Electrolux or its ASC will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux may, in its absolute discretion, choose whether the remedy offered for a valid warranty claim is repair or replacement. Electrolux or its ASC may use refurbished parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux.

4. Travel and transportation costs: Subject to clause 7, Electrolux will bear the reasonable cost of transportation, travel and delivery of the Appliance to and from Electrolux or its ASC. Travel and transportation will be arranged by Electrolux as part of any valid warranty claim.

5. Proof of purchase is required before you can make a claim under this warranty.

6. Exclusions: You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. This warranty does not cover:

(a) light globes, batteries, filters or similar perishable parts;

(b) parts and Appliances not supplied by Electrolux;

(c) cosmetic damage which does not affect the operation of the Appliance;
(d) damage to the Appliance caused by:
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by anyone other than an Electrolux authorised repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions supplied with the Appliance;

In addition, Electrolux is not liable under this warranty if:

(a) the Appliance has been, or Electrolux reasonably believes that the Appliance has been, used for purposes other than those for which the Appliance was intended, including where the Appliance has been used for any non-domestic purpose;
(b) the Appliance is modified without authority from Electrolux in writing;
(c) the Appliance's serial number or warranty seal has been removed or defaced.

1. How to claim under this warranty: To enquire about claiming under this warranty, please follow these steps:

(a) carefully check the operating instructions, user manual and the terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.

1. Australia: For Appliances and services provided by Electrolux in Australia: Electrolux goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. 'Acceptable quality' and 'major failure' have the same meaning as referred to in the ACL.

2. New Zealand: For Appliances and services provided by Electrolux in New Zealand, the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act. Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply.

3. Confidentiality: You accept that if you make a warranty claim, Electrolux and its agents including ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.

FOR SERVICEor to find the address of your nearestauthorised service centre in AustraliaPLEASE CALL 1300 363 664OR [e-mail] the cost of a local call (Australia only)	SERVICE AUSTRALIAAEGAeg.com/au	FOR SPARE PARTSor to find the address of your nearestspare parts centre in AustraliaPLEASE CALL 13 13 50OR [e-mail] the cost of a local call (Australia only)
FOR SERVICEor to find the address of your nearestauthorised service centre in New ZealandPLEASE CALL 0800 234 234OR [e-mail](New Zealand only)	SERVICE NEW ZEALANDAEGAegnewzealand.co.nz	FOR SPARE PARTSor to find the address of your nearestspare parts centre in New ZealandPLEASE CALL 0800 10 66 20OR [e-mail](New Zealand only)

CE
