USER MANUAL PROSPER+ KHC29.H0WH - PROSPERO+ KHC29.A0SI - PROSPERO+ KHC29.P0BK - PROSPERO+ KHC29.W0SI KENWOOD

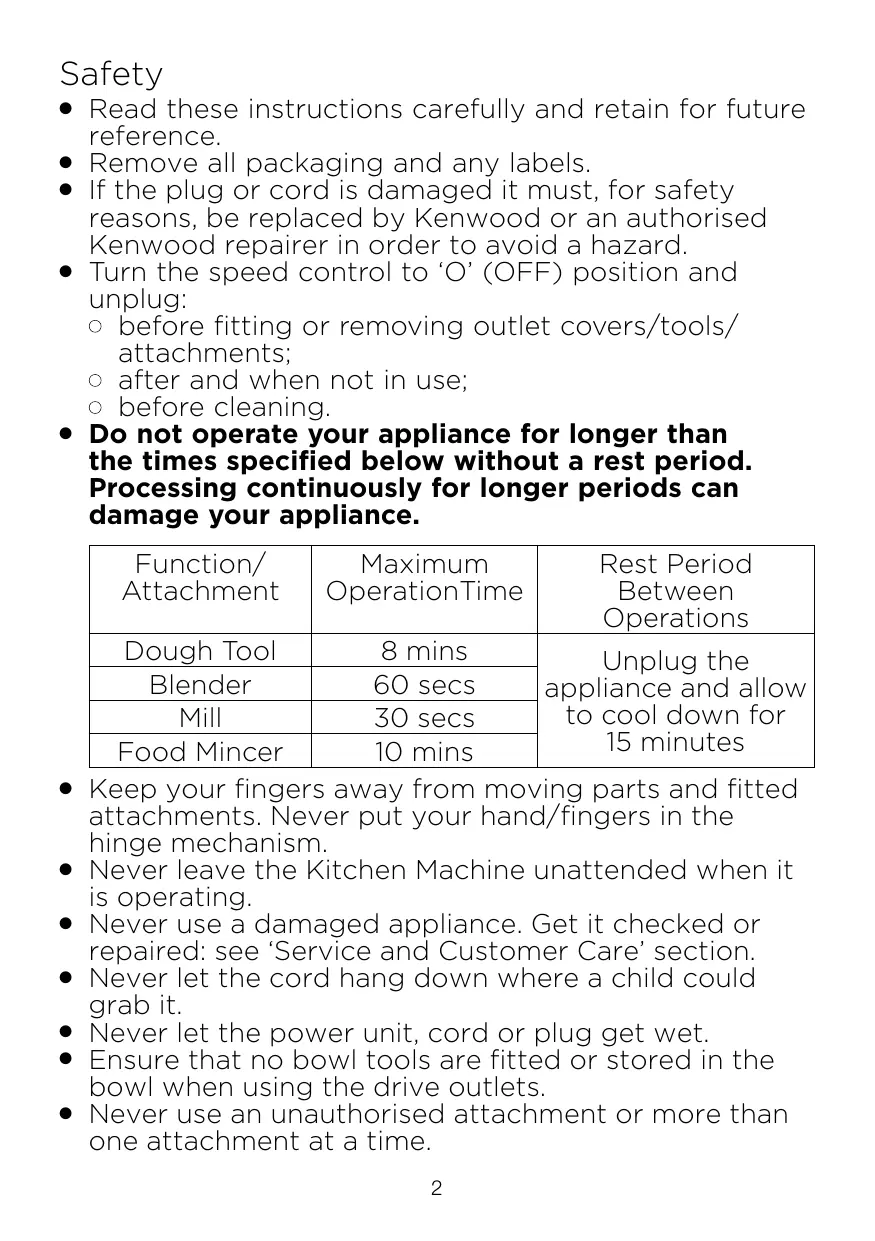

Safety Read these instructions carefully and retain for future reference. O Remove all packaging and any labels. O If the plug or cord is damaged it must, for safety reasons, be replaced by Kenwood or an authorised Kenwood repairer in order to avoid a hazard. O Turn the speed control to ‘O’ (OFF) position and unplug: O before fitting or removing outlet covers/tools/ attachments; O after and when not in use; O before cleaning. O Do not operate your appliance for longer than the times specified below without a rest period. Processing continuously for longer periods can damage your appliance.

O O O O O O O Maximum

8 mins Unplug the Blender 60 secs appliance and allow to cool down for Mill 30 secs 15 minutes Food Mincer 10 mins Keep your fingers away from moving parts and fitted attachments. Never put your hand/fingers in the hinge mechanism. Never leave the Kitchen Machine unattended when it is operating. Never use a damaged appliance. Get it checked or repaired: see ‘Service and Customer Care’ section. Never let the cord hang down where a child could grab it. Never let the power unit, cord or plug get wet. Ensure that no bowl tools are fitted or stored in the bowl when using the drive outlets. Never use an unauthorised attachment or more than one attachment at a time. 2

Never exceed the quantities stated in the recommended usage chart.

O Take care when lifting this appliance. Ensure the head is correctly latched in the down position and that the bowl, tools, outlet covers and cord are secure before lifting. O Children should be supervised to ensure that they do not play with the appliance. O Do not move or raise the mixer head with an attachment fitted as the Kitchen Machine could become unstable. O Do not operate your appliance near the edge of a work surface. O Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. O Misuse of your appliance can result in injury. O This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. O Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

O Attachment General Safety

O Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to sudden steaming. O Keep hands and utensils out of the blender and food processor bowl whilst connected to the power supply. O The appliance will not operate if the attachments are not correctly fitted. O The processing of spices is not recommended as they may damage the plastic parts. O The rated power is based on the Compact Chopper/Mill attachment. Other attachments may draw less power. O Should excessive vibration occur when using an attachment, either reduce the speed or stop the 3

machine and remove some of the contents.

Attachments will be damaged and may cause injury if the interlock mechanism is subjected to excessive force. O DO NOT process hot ingredients. O SCALD RISK: Hot ingredients must be allowed to cool to room temperature before placing in the food processor bowl, mill, goblet or before blending.

O Blender attachment

O Never fit the blade unit to the power unit without the blender goblet fitted. O AT282 Important - The skirt on the bottom of the goblet is fitted during manufacture and no attempt should be made to remove it. O Only operate the blender with the lid in place. O Only use the goblet with the blade assembly supplied. O Never run the blender empty. O Smoothie recipes – never blend frozen ingredients that have formed a solid mass during freezing; break it up before adding to the goblet. O Do not process spices such as cloves, dill and cumin seeds as they may damage the plastic parts. O Do not use the blender as a storage container. Keep it empty before and after use. O Never blend more than the maximum marked on the goblet - less for frothy liquids such as milk shakes. Food Processor O The knife blade and discs are extremely sharp, handle with care. Always hold by the finger grip at the top, away from the cutting edge, both when handling and cleaning. O When slicing/grating do not let the bowl fill up as far as the cutting disc: empty it regularly. O Do not exceed the ‘MAX’ capacity level on the bowl. O Always remove the knife blade before pouring contents from the bowl. 4

Never use your fingers to push food down the feed tube. Always use the pusher supplied.

O Before removing the lid from the food processor bowl switch off and wait until the blade or discs have completely stopped. O Do not use the lid to operate the food processor, always use the speed control.

O Always ensure bones and rind etc. are removed from the meat before mincing. O When mincing nuts, only feed a few down at a time and allow the scroll to pick them up before adding any more. O Always use the mincer pusher supplied. Never put your fingers or utensils in the feed tube. O Warning – the cutting blade is sharp, handle with care both in use and when cleaning. O Ensure the attachment is secured in position before switching on. O Do not wash any part in the dishwasher. Never use a soda solution. O Wipe the screens with vegetable oil, then wrap in greaseproof paper to prevent discolouring/rusting. Juice Extractor O Do not use the juicer if the filter, juicer lid or bowl are damaged or has visible cracks. O The cutting blades on the base of the filter are very sharp, take care when handling and cleaning the filter. O Before removing the lid, switch off and wait for the filter to stop. O Only use the pusher supplied. Never put your fingers in the feed tube. Unplug before unblocking the feed tube. O Should excessive vibration occur when using this attachment, either adjust the speed or stop the machine, unplug and clear any pulp from the drum (the juicer vibrates if the pulp becomes unevenly distributed). 5

Compact Chopper Mill

O Do not touch sharp blades. Keep the blade assembly away from children. O Before removing the mill from the machine: O switch off; O wait until the blades have completely stopped; O take care not to unscrew the jar from the blade assembly. O Only use the jar and blade assembly with the base supplied. O Never fit the blade assembly to the machine without the jar fitted. O Do not process hard spices such as dried Turmeric root as they may damage the blade. Cleaning O Always switch off and unplug before cleaning. O Dismantle attachments fully before cleaning. O For easier cleaning always wash the parts immediately after use. O Some foods, e.g. carrot, will discolour the plastic. Rubbing with a cloth dipped in vegetable oil helps remove discolouring. O Handle the blades and discs with care – they are extremely sharp. Power Unit O Wipe with a damp cloth, then dry. O Never use abrasives or immerse in water. O Ensure the feet on the base of the mixer are kept clean. Bowl O Never use a wire brush, steel wool or bleach to clean your stainless steel bowl. Use vinegar to remove limescale. O Keep away from heat (cooker tops, ovens, microwaves). Before plugging in O Make sure your electricity supply is the same as the one shown on the underside of your appliance. O This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

Before using for the first time

O Wash the parts: see ‘Cleaning’.

To Use Your Bowl and Tools

A Press down on the head release

Refer to Illustrations A – F lever and gently raise the mixer head.

B Fit the bowl – turn clockwise to lock. C Push the selected tool into the tool socket – you will hear a ‘click’ when fitted securely. O To prevent food ingress - always ensure the guard is fitted onto the shaft of the dough hook before inserting into the outlet. D Press down on the head release lever and lower the head gently down. Plug into the power supply. E Slide the splashguard onto the bowl to fit. O During mixing, ingredients can be added directly to the bowl via the chute. F Turn the speed control to the desired setting, Use pulse (P) for short bursts of speed.

1 2 3 4 5 6 7 8 9 10 11

Medium speed outlet cover High speed outlet cover High Speed Outlet Power unit On/Off and speed control Bowl Tool Socket Mixer head Head release lever Splashguard

Dough hook with removable guard Whisk

Not all of the attachments listed will necessarily be included with your kitchen machine. Attachments are dependent upon the model variant.

After processing turn the speed control to ‘O’ and unplug from the power supply.

Raise the mixer head and whilst holding it steady, pull the tool from the outlet.

For more information or to order optional attachments not included in your pack visit the Kenwood website www.kenwoodworld.com.

15 16 17 18 19 20 21

Beater O When creaming fat and sugar for cake mixes, always use the fat at room temperature or soften it first. O Switch off and scrape the bowl with a spatula when necessary. O Use cold ingredients for pastry unless your recipe states otherwise. Dough hook O The ingredients mix best if you put the liquid in first. O At intervals stop the machine and scrape the mixture off the dough hook.

Plastic blender (AT282)

Glass blender (AT283) Food processor (AT284) Citrus juicer (Requires AT284) Food mincer (AT281) Juice extractor (AT285) Compact chopper/mill (AT286)

O Different batches of flour vary in the amount of liquid required. The stickiness of the dough has a direct effect on the load on the machine. Keep the machine under observation whilst the dough is mixing. Whisk Important O Do not use the whisk for heavy mixtures e.g. creaming fat and sugar as you will damage it. O Best results achieved when eggs are at room temperature. O Before whisking egg whites, make sure there is no grease or egg yolk on the whisk or the bowl.

- for best results scrape down the bowl after the addition of the oil and run for a further 10 secs at max speed.

Mixes - add the flour to the bowl first, then liquid and mix on minimum speed to incorporate the ingredients.

O O O O O If the mixer head is raised during operation, the machine will continue to operate. Always switch off before raising the head.

The machine will not operate unless all the outlet covers are correctly fitted. If you hear the machine labouring either switch off and remove some of the mixture or increase the speed. Your mixer has been fitted with a ‘soft start’ feature to minimise spillage. However if the machine is switched on with a heavy mixture in the bowl such as bread dough, you may notice that the mixer takes a few seconds to reach the selected speed. Always remove attachments fitted to the outlets before raising the mixer head.

Using the Drive Outlets

High Speed Outlet attachments

Lift off the high speed outlet cover Ensure the medium outlet cover is in place otherwise the appliance will not operate.

Electronic Speed Sensor

Your mixer is fitted with an electronic speed sensor control that is designed to maintain the speed under different load conditions, such as when kneading bread dough or when eggs are added to a cake mix.

You may therefore hear some variation in speed during the operation as the mixer adjusts to the load and speed selected - this is normal.

Medium Speed Outlet Lift off the medium speed outlet cover . Ensure the high speed outlet cover is in place otherwise the appliance will not operate.

O Never exceed the maximum capacities stated – you may overload the machine. O Some movement of the mixer head is normal when mixing heavy loads such as bread dough.

To Use your Attachments

17 Food Processor a Small pusher b Large pusher c Feed tube d Lid e Bowl f Drive shaft g Knife blade

Refer to the relevant illustrations for each attachment and see hint and tips under each attachment section.

15 Plastic Blender a Blade unit b Sealing ring c Goblet d Filler cap e Lid

Thick slicing/grating disc Thin slicing/grating disc Extra fine grating disc Thin julienne style chipper disc Standard chipper disc Extra thick grating disc

Assemble the Food Processor as shown in illustration 17

1 Place the drive shaft onto the outlet. 2 Fit the bowl over the drive shaft with the handle above the speed control and turn clockwise until it locks into position. 3 Fit either the knife blade, one of the discs or the citrus juicer. The knife blade and cutting section of the discs are sharp so always handle with care.

Assemble the Blender as shown In illustration 15 and 16

Note: ensure the sealing ring is fitted correctly or leaking will occur. Lid Fitting 15

Plastic blender – turn clockwise to lock.

Glass blender – push down to secure.

O Cut meat, bread and vegetables into 2cm cubes before processing. O Herbs are best chopped when clean and dry. O Take care not to over process when using the knife blade. O Do not use knife blade to chop ice cubes or other hard foods such as spices, they may damage the attachment. O If adding almond essence or flavouring avoid contact with plastic as this may stain.

Do not process hot ingredients O When making mayonnaise, put all the ingredients, except the oil, into the blender. Then, with the machine running, remove the filler cap and add the oil slowly and evenly. O Thick mixtures, e.g. pates and dips, may need scraping down. If the mixture is difficult to process, add more liquid. O To blend dry ingredients - cut into pieces, remove the filler cap, then with the appliance running, drop the pieces down one by one.

1 Choose which feed tube you want to use. The pusher contains a smaller feed tube for processing individual items or thin ingredients.

Put the food into the feed tube.

Switch on and push down evenly with the pusher - never put your fingers in the feed tube. To use the small feed tube - put the large pusher inside the feed tube first. To use the large feed tube - use both pushers together. O Do not let the bowl fill up as far as the cutting disc: empty it regularly. O Do not exceed the ‘MAX’ capacity level on the bowl.

O For best results store and juice the fruit at room temperature and hand roll on a worktop before juicing. O To help with juice extraction move the fruit from side to side when juicing. O When juicing large quantities, empty the sieve regularly to prevent the build up of pulp and seeds.

O When using the reversible discs ensure that the required cutting side is uppermost. O Use fresh ingredients. O Do not cut food up too small. To stop food slipping over during processing fill the width of the large feed tube or use the small feed tube. O When slicing or grating: food placed upright comes out shorter than food placed horizontally. O After use there will always be a small amount of waste on the disc or in with the food.

19 Food Mincer a Ring nut b Screens: medium or coarse

18 Citrus Juicer a Cone b Sieve

Note: This attachment can only be used in conjunction with the food processor AT284. Assemble the Citrus Juicer as shown in illustration 18 1 Fit the sieve into the bowl ensuring that the tab on the rim locks into the bowl handle. 2 Fit the cone over the drive shaft turning until it drops all the way down. 3 Cut the fruit in half. Switch to speed 3 and press the fruit onto the cone.

(depends on model variant)

Cutter Scroll Body Tray Pusher

Assemble the Food Mincer as shown in illustration 19

1 Fit the scroll inside the body. 2 Fit the cutter – ensure it is located correctly with the cutting side outermost. 3 Fit a screen – align the pin with the notch. 4 Loosely fit the ring nut. To use the Food Mincer 1 Raise the mixer head. Ensure both outlet covers are fitted. 2 With the attachment in the position shown - align the drive tabs on the end of the scroll with the corresponding slots in the drive outlet. 3 Push the attachment into the outlet and turn clockwise until it locks into place. 4 Tighten the ring nut manually. 5 Fit the tray 6 Cut meat into 2.5cm (1”) -wide strips. 7 Select Max speed. Using the pusher gently push the food through, one piece at a time. Do not push hard you could damage your machine.

O Thaw frozen food thoroughly before mincing. O Always ensure bones and rind etc are removed from the meat before mincing.

Cut the food to fit the food tube.

Turn to Max speed, then place the food into the feed tub. Push down evenly with the pusher – never put your fingers in the feed tube.

O If the juicer starts to vibrate, switch off and empty the pulp from the filter. (The juicer vibrates if the pulp becomes unevenly distributed). O Some very hard foods may make your attachment slow down or stop. If this happens switch off and unblock the filter. O Switch off and empty the pulp and juice containers regularly during use.

20 Juice Extractor a Pusher b Lid c Lid interlock tab d Filter e Pulp container f Juice outlet (spout) g Base unit h Pulp container release lever i Beaker j Beaker holder

O Citrus Fruit - For best result use the Citrus juicer which is available separately. O Insert soft food slowly to get the most juice. O Remove stones (plums, peaches, cherries etc). O Remove tough skins (melons, pineapples, cucumbers, etc). O Soft-skinned and other foods just need washing (apples, pears, carrots, spinach, grapes, strawberries, celery etc).

Assemble the Juicer as shown in illustration 20

1 Place the pulp container onto the base unit and turn clockwise until it locks into position. When correctly fitted the juice outlet should be located over the pulp container release lever. 2 Fit the filter and push firmly into position. 3 Fit the lid onto the pulp container turn clockwise to align the arrow on the lid tab with the mark on the base unit. 4 Place the beaker holder onto the underside of the attachment – the arrow on the beaker holder should be pointing upwards and aligned with the juice outlet. 5 Whilst supporting the beaker holder, fit the attachment to the outlet by aligning the spout over the corner of the machine and then turn clockwise to lock into position. 6 To fit the beaker, rotate the holder away from the spout and then place the beaker in the holder. Rotate the beaker so that it is located underneath the juice outlet.

Health recommendations

O To retain the vitamins drink the juice as soon as possible. O If you need to store the juice for a few hours put it in the fridge and add a few drops of lemon juice to keep it fresh. O Do not drink more than three 230ml (8 fl.oz.) glasses of juice a day unless you’re used to it. O Dilute juice for children with an equal amount of water.

O O Juice from dark green (broccoli, spinach etc.) or dark red (beetroot, red cabbage etc.) vegetables is extremely strong, so always dilute it.

Fruit juice is high in fructose (fruit sugar), so people with diabetes or low blood sugar should avoid drinking too much.

O The processing of spices is not recommended as they may damage the plastic parts. O Do not process hot ingredients allow to cool before processing.

To dismantle the Juicer

Reverse the assembly procedure. To remove the pulp container from base unit - press the release lever on the base unit and rotate the pulp container anticlockwise. Then lift off. Juice Outlet (spout) The spout is designed to be removable for cleaning. Pull the spout to remove. O To refit after cleaning - push the spout fully on. O

21 Compact Chopper/Mill

Blade unit Sealing ring Jar Assemble the Mill as shown in illustration 21 1 Put your ingredients into the jar. 2 Ensure the sealing ring is correctly fitted on the blade unit. Leaking will occur if the seal is not fitted correctly. 3 Turn the blade unit upside down. Lower it into the jar, blades down. 4 Screw the base onto the jar until it is finger-tight. 5 Place the mill onto the outlet with the arrow on the mill base towards the back of the machine. Turn the mill clockwise to lock firmly into place until the two arrows align . 6 Switch on to maximum speed.

Recommended Usage Chart

Eggs sizes used = medium sized (Weight 53 – 63g). * This is for guidance only and will vary depending on the exact recipe and ingredients being processed. Bowl Tool

(Mins) Creaming butter/ margarine and sugar

1.8kg total (6 egg mix)

Beating eggs into cake mixes

Folding in flour, fruit etc Pastry & Biscuits – rubbing fat into flour

All in one cake mixes

Flour Weight Dough (stiff yeasted) Total Weight Soft yeasted dough (enriched with butter and eggs)

Mayonnaise Egg yolks

Recommended Usage Chart

Eggs sizes used = medium sized (Weight 53 – 63g). * This is for guidance only and will vary depending on the exact recipe and ingredients being processed. Bowl Tool/ Attachments

(Mins) Cold liquids, Plastic AT282 Drinks and Glass AT283 Smoothies

Pastry - rubbing fat into flour.

Adding water to combine pastry ingredients

All in one cake mixes

Mayonnaise Egg yolks

Slice and grate cheese, carrot, potato, cabbage, courgette, beetroot

Slice softer items such as cucumbers and tomatoes

Potatoes for fries and

firm ingredients for salads casseroles and dips (e.g. carrot, swede, courgette and cucumber)

Parmesan cheese and potatoes

Do not exceed maximum Mark on the bowl.

Grate carrots and cheeses

Recommended Usage Chart

Eggs sizes used = medium sized (Weight 53 – 63g). * This is for guidance only and will vary depending on the exact recipe and ingredients being processed. Attachments

(Mins) All citrus fruit

Juice fruit and vegetables e.g. carrots, apples, pineapple, tomatoes and grapes.

Soft fruits and vegetables e.g. tomatoes and grapes

Spicy Honey & Nut Marinade

Honey (room temp) Crunchy peanut butter Small Chilli

Meat, poultry and fish.

Cleaning Instructions - Refer to the relevant Illustration 22

Service and Customer Care

O O O If you experience any problems with the operation of your appliance, before requesting assistance refer to the ‘Troubleshooting Guide’ section in the manual or visit www.kenwoodworld.com.

Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased. If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service Centre. To find up to date details of your nearest authorised KENWOOD Service centre visit www.kenwoodworld.com or the website specific to your Country.

O O Designed and engineered by Kenwood in the UK.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE EUROPEAN DIRECTIVE ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Appliance stopped during operation.

Check appliance is plugged in.

Machine overloaded/ maximum capacities exceeded.

Turn the speed switch to the off position, wait a few seconds and then re-select the speed. The appliance should resume operating straight away.

Check maximum capacities in the ‘Recommended Usage Chart’.

Outlet covers not fitted or unlocked.

Check that the outlet cover/s are

Medium or High speed attachments not operating.

Attachment not fitted and locked on correctly.

Check attachment locked on correctly.

Other outlet cover not

Check other outlet cover fitted correctly.

Movement on the worksurface.

Feet on the underside of the unit are wet or dirty.

Regularly check the feet are clean and dry.

Blender, or mill attachment leaking from blade unit.

Seal incorrectly fitted. Seal damaged.

Check seal is fitted correctly and not damaged. To obtain a replacement seal see ‘Service and

Poor performance of tools/attachments.

Refer to hints in relevant ‘Using The Attachments’ section.

Check attachments are assembled correctly.

Hachoir a b c d e f g

Hachoir/Moulin compact a b c d

Appareil hors tension.

with the (graphic) on the power unit

(graphic) on the bottom of the bowl

)lock graphic / Fit the lid onto the unit and click into place (x

)filter holder assembly into the juicing bowl and align the (graphic

(graphic) on the juicing bowl

switch graphic, on, off & reverse

New Lane Havant Hampshire PO9 2NH kenwoodworld.com © Copyright 2020 Kenwood Limited. All rights reserved
