USER MANUAL CERP800 CONTINENTAL EDISON

MISE AU REBUT APPROPRIÉE

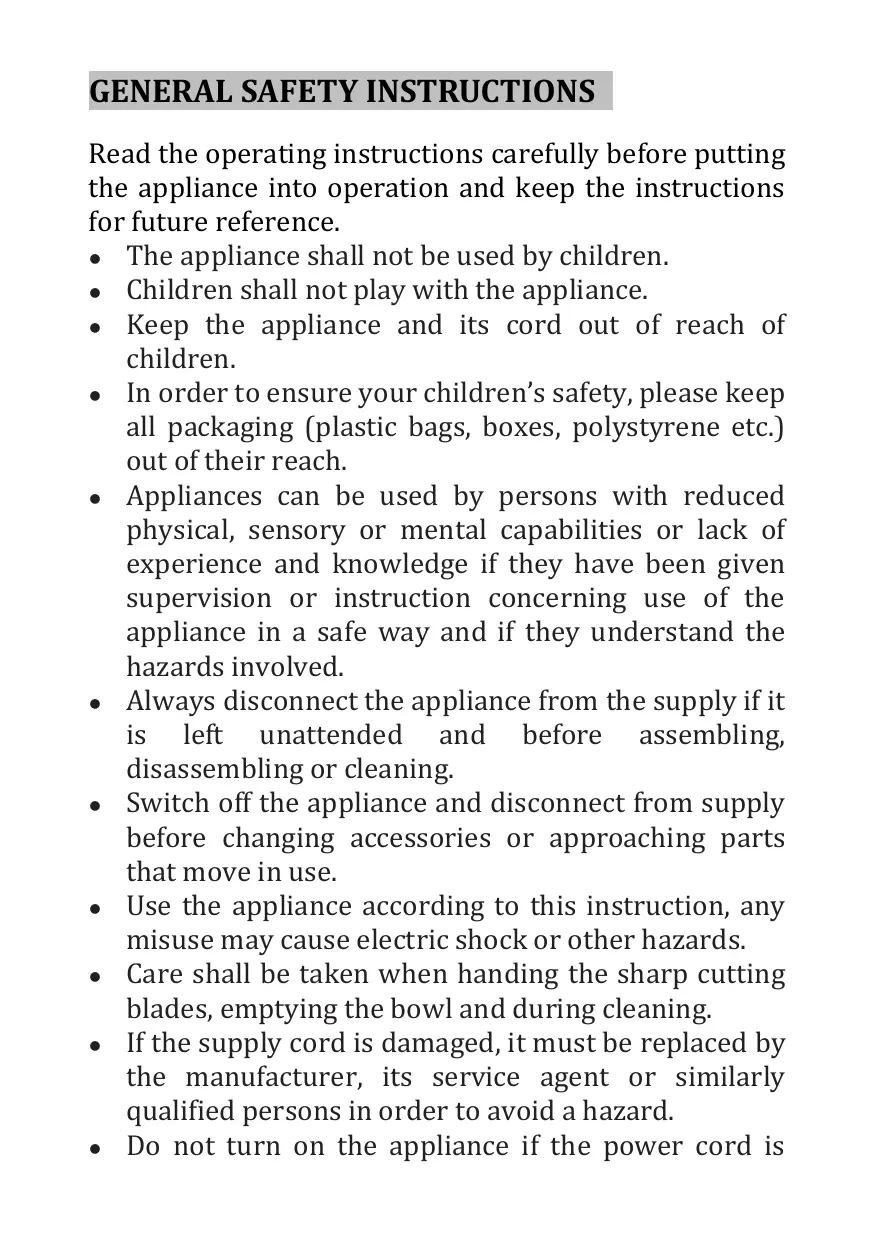

Read the operating instructions carefully before putting the appliance into operation and keep the instructions for future reference. The appliance shall not be used by children. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children. In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use. Use the appliance according to this instruction, any misuse may cause electric shock or other hazards. Care shall be taken when handing the sharp cutting blades, emptying the bowl and during cleaning. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not turn on the appliance if the power cord is

damaged. The appliance is for household use only. Do not use outdoors. Never immerse the machine into any liquid. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Keep your finger away from moving parts and fitted tools. Never put your fingers in hinge mechanism. Use only original spare parts. Do not insert anything into the rotating hooks while the machine is working. Place the machine on a smooth, flat and stable working surface. Make sure the appliance is completely stopped before raising its arm. Take care when rise up the arm of this appliance in case any strikes. Be careful if hot liquid is poured into machine as it can be ejected out of the appliance due to a sudden steaming. About how to clean surfaces in contact with food, please refer to the section “CLEANING”. Instructions for operating times and speed setting for each accessory are described in the following pages.

BEFORE CONNECTING TO POWER

Before connecting to the power, please check whether the type of supply and the mains voltage match with the details given on the rating label on the appliance. Using for the first time, rip off all wrapping paper and plastic bags, then clean the accessories.

Outlet for accessories

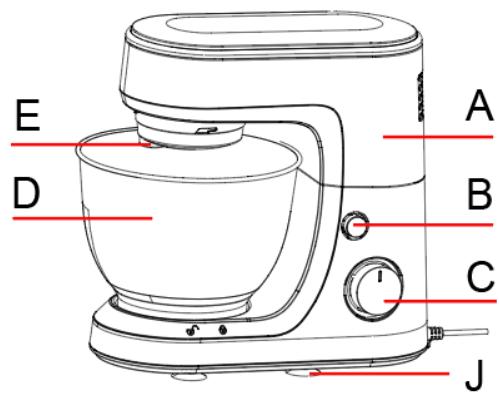

Press Locking knob (B) down to lift the arm.

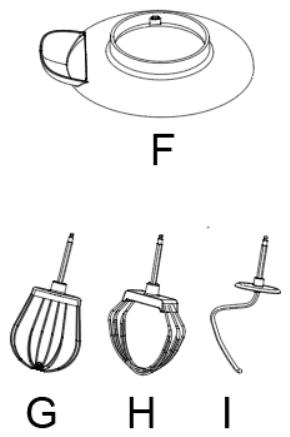

Lock Bowl Lid(F) into the arm, then insert the whisk (G) or Beater (H) or Hook (I) into outlet(E) (as pic A) till “click” sound (as pic B) to ensure the accessory is inserted well.

Insert mixing bowl (D) into the housing and turn the bowl until it locks into place.

Fill your ingredients into mixing bowl (D). Must follow the max. weight / time for each accessory. Cannot over fill ingredients and over time use, or the machine will be destroyed or its performance is not good.

Press Locking knob (B) down again and in the same time press down the arm for lock.

Plug in then turn Speeds Selector(C) to start the machine and set the right speed. Follow speeds of each accessory as manual suggested.

After usage, turn the Speeds Selector(C) back to the “0” to stop machine. Then remove the plug. Press Locking knob (B) again for taking off the accessory.

CHOOSING THE RIGHT ACCESSORY

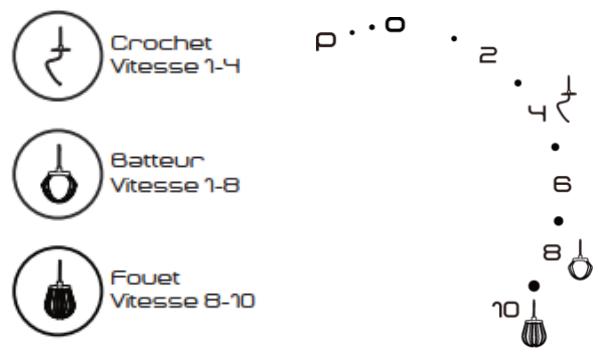

SPEED CONTROLS This machine has “0-10 speed”, “0”, “P” controls. (0-10 variable speed controls): from Min speed to Max speed (“0” level): OFF, stop the machine (“P” mode level): Pulse function After install the accessory you need, before plug in, make sure the knob is switched to “0” level. Then turn the knob to the speed you need. “0-10 speed” function: Slow speed: turn the knob to the beginning. Fast speed: turn the knob till the end.

If using Hook (I), the selected speed cannot more than speed 4. If using Beater (H), the selected speed cannot more than speed If using Whisk (G), recommend using the speed 8-10. “Pulse” function: Turn the knob anticlockwise to “P”, the machine will start to work under max speed. Once loosen your hand, the knob will turn back to “0” position automatically and stop the machine. Speed Hook Max Speeds Accessory Max. Time Hook; Thick mixture (e.g. bread, pasta) 2-3min Beater Max Speeds Beater Ingredients cannot more than 1/3 bowl. Whisk 3-4min Pulse Do not put more than 500g of flour with 325g of water. Medium thick mixture (e.g. with pancakes or cakes) 3-4min Whisk Max Speeds Types of processing All 1 min Creams (250ml max); whites in snow (4 eggs max) Short time mixing BASIC RECIPES TIPS: Whipped Cream

• 220ml cold heavy whipping cream
• 40g (2 tbsp) sugar, honey, or maple syrup
• 2.5 g (½ tsp) vanilla or other flavorings Cool mixer bowl and whisks in the freezer for at least 20 minutes. Place all Ingredients into the bowl. Keep whisking until stiff peaks form with max speeds Basic Sponge Cake
• 4 eggs ( room temperature)
• 225 g self-raising flour
• 10 g (2 tsp) baking powder
• 225 g baking spread, margarine or soft butter at room temperature. Mix eggs, caster sugar, baking powder and baking spread together with slow speed. Add the flour into the mixture and beat it until the flour is fully incorporated with slow speed till to Hook Max Speeds. Basic Pizza Dough
• 200 ml lukewarm water
• Splash of extra virgin olive oil Place all Ingredients into the bowl and knead them at low speed together. Keep kneading until the flour is fully incorporated with slow speed till to Hook Max Speeds. CLEANING

WARNING:Risk of injury:

Unplug the power cable before touching the mixer or other accessories. Otherwise,it could result in injury. Always unplug the power cable from the wall socket before cleaning the robot. Do not immerse the robot in water. The outer surface of the appliance should only be cleaned with a soft,moist cloth. NOTE:Do not use abrasive cleaning products or scour pads when cleaning your robot. Never immerse the robot is case in water or any other liquid. Remove the mixing bowl, the flat mixer, the whisk, the kneading hook before washing them. Wash all accessories by hand with clear water with washing-up liquid. Rinse and dry thoroughly before reassembling. Accessories and bowl should be washed immediately after use to prevent food from drying on. Before first use,clean the bowl and all accessories with clear water with dishwashing liquid.Rinse and let dry. SPECIFICATIONS Item reference: CERP800B/CERP800R/CERP800W Model: CY-613A Rated voltage: 220-240V~, 50Hz Power consumption: 800W Protection class: II Manual version: V1 PROPER DISPOSAL This product contains recyclable materials. Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point. Continental Edison 120-126 Quai de Bacalan CS 11584 33000 Bordeaux IMPORT BY: A.M.C.
