Product type	Microwave oven
Brand	OCEANIC
Model	OCEAMO20RV
Capacity	20 liters
Microwave power	800 W (estimated)
Grill power	1000 W (estimated)
Dimensions (W x H x D)	455 x 260 x 330 mm (estimated)
Net weight	10.5 kg (estimated)
Power supply	230 V / 50 Hz, earthed plug
Main functions	Microwave, Grill, Microwave+Grill combination, Defrost
Microwave power levels	5 (Very Low to Very High) + combinations
Timer	Up to 35 minutes, auto stop with beep
Control type	Mechanical (timer knob)
Turntable	Yes, glass
Door locking system	Yes, child safety lock
Interior light	Yes
Cavity material	Enamelled steel
Recommended cleaning	Soft damp cloth, do not use abrasives, clean regularly
Included accessories	Glass turntable, rotating ring, cooking grid
Repairability	Repair by qualified technician only, authorized after-sales service
Environmental instructions	Do not dispose with household waste, recycle

Frequently Asked Questions - OCEAMO20RV OCEANIC

How to set the timer on the OCEAMO20RV oven?

Turn the timer knob clockwise to the desired time (maximum 35 minutes). A beep sounds at the end of cooking and the knob returns to the '0' position. If you open the door, the timer stops; close it to resume.

What utensils can I use in this microwave oven?

Use heat-resistant ceramic (no metallic trim), heat-resistant glass, or suitable plastic containers. Never use metal (it causes sparks). For grill alone or combined, only ceramic and glass are suitable.

How to clean the OCEANIC OCEAMO20RV microwave oven?

Unplug the appliance. Wipe the exterior, door, and interior walls with a soft damp cloth. Do not use abrasive products or metal scrapers. Wash the turntable and rotating ring in soapy water, rinse, and dry completely.

What to do if the oven does not heat?

Check that the plug is properly inserted and the circuit breaker fuse has not tripped. Place a cup of water (150 ml) in the oven and run it for 1 minute. If the light does not come on, the fan does not turn, or the water does not heat, contact an authorized repair center.

Can I heat hermetically sealed containers?

No, it is dangerous. Liquids and foods in hermetically sealed containers (including baby bottles with nipples) may explode. Always remove lids or pierce packaging before heating.

How to defrost food with this oven?

Select the lowest power (17% power). The defrosting table provides guidelines: 200g about 4 minutes, 400g about 8 minutes, 600g about 12 minutes. Turn or stir food during defrosting for even results.

The door is hard to open or does not open?

Never force it. Make sure the oven is unplugged. If the door is warped, hinges loose, or seals damaged, do not use the appliance and have it repaired by a professional.

What is the meaning of the crossed-out wheelie bin symbol on the packaging?

This symbol indicates that the appliance must not be disposed of with household waste. It should be recycled through appropriate channels or returned to the seller for environmentally friendly treatment.

Can I run the oven empty?

No, never run the oven empty. This could seriously damage it. If you remove food before the end, set the timer to '0'.

How to correctly install the microwave oven?

Place the oven on a flat, stable, heat-resistant surface. Leave at least 20 cm of free space above for ventilation. Do not install it in a closed cabinet. Ensure the voltage matches the socket (230 V) and that it is earthed.

USER MANUAL OCEAMO20RV OCEANIC

INSTRUCTIONS PRODUIT

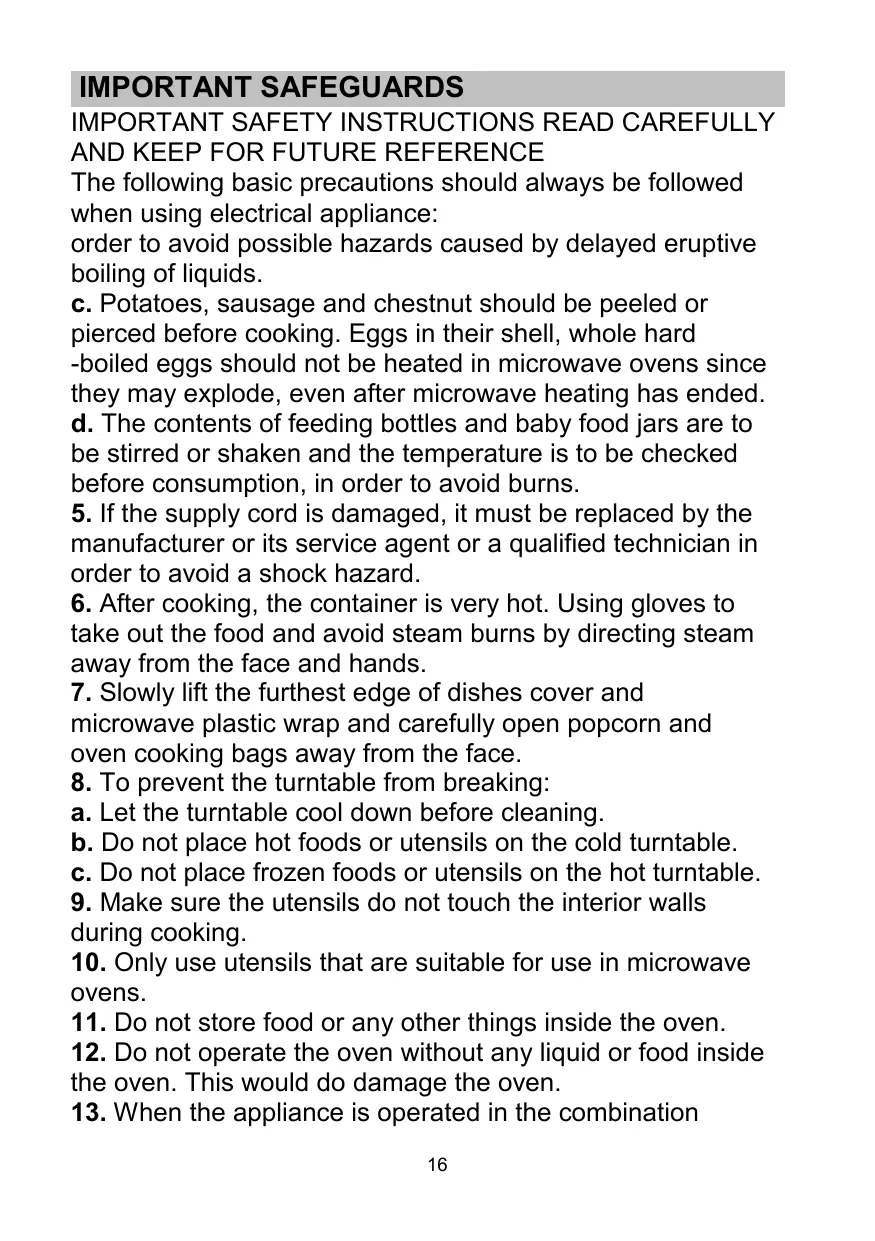

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The following basic precautions should always be followed when using electrical appliance:

order to avoid possible hazards caused by delayed eruptive boiling of liquids.

c. Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard -boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
d. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard.
6. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.
7. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face.
8. To prevent the turntable from breaking:
a. Let the turntable cool down before cleaning.
b. Do not place hot foods or utensils on the cold turntable.
c. Do not place frozen foods or utensils on the hot turntable.
9. Make sure the utensils do not touch the interior walls during cooking.
10. Only use utensils that are suitable for use in microwave ovens.
11. Do not store food or any other things inside the oven.
12. Do not operate the oven without any liquid or food inside the oven. This would do damage the oven.
13. When the appliance is operated in the combination

mode, children should only use the oven under adult supervision due to the temperatures generated.

1. Any accessories not recommended by the manufacturer may cause injuries to persons.
2. Do not use outdoors.
3. Save these instructions.
4. WARNING: If the door or door seals are damaged or the oven is malfunctioned, the oven must not be operated until it has been repaired by a competent person.
5. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
6. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
7. Microwave heating of beverages can result in delayed eruptive boiling; therefore care must be taken when handling the container.
8. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
9. The lamp of microwave oven is not intended for other purposes.
10. The appliances are not intended to be operated by means of an external timer or separate remote -control system.

11. This appliance is intended to be used in household and similar applications, except for the following:

12. Staff kitchen areas in shops, offices and other working environments;

13. Farm houses;
14. By clients in hotels, motels and other residential environments;

15. Bed and breakfast type environments.

16. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of

warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
26. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.
27. Children should be supervised to ensure that they do not play with the appliance.
28. A steam cleaner is not to be used.
29. The door or the outer surface may get hot when the appliance is operating.
30. WARNING: Accessible parts may become hot during use. Young children should be kept away.
31. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
32. Les recipients métalliques pour aliments et boissons ne sont
pas admis lors de la cuisson par micro-ondes.
33. The surfaces are liable to get hot during use.

CAUTION: HOT SURFACE

Household use only

1. Group 2 Class B appliance

Group 2 ISM equipment: group 2 contains all ISM equipment in which radio-frequency energy is intentionally generated

and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment. Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

1. Be careful not to move rotate the tray when removing the container from the device.

INSTALLATION

1. Take out all the packing. If there is a safe film over the oven, tear it off before use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer's service center.
2. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.
3. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10~cm , the side to the wall should be at least 5~cm , the free distance above the top surface at least 20~cm . The distance of the microwave to the ground should be at least 85~cm .
4. The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance, or noise may occur. The distance should be more than 5m.
5. The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.
6. The microwave oven must be operated with the door closed.
7. The microwave oven must not be placed in a cabinet. The microwave oven is intended to be used freestanding.
8. As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after

several times use, keep the door or window open to ensure good ventilation. So it is strongly recommended to place a cup of water in the cavity, setting at high power and operate for several times.

CLEANING

MICROWAVE OVEN CARE

CAUTION

The oven should be cleaned regularly and any food deposits removed.

WARNING

a. Remove the power cord from the wall outlet before cleaning. After cooling products. Don't immerse the appliance in water or other fluids when cleaning.
b. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
c. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance.
d. Do not remove the waveguide cover.
e. When the microwave oven has been used for a long time, there may be some strange odors exist in oven, Following 3 methods can get rid of them:

1) Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.
2) Place a cup of red tea in oven, then heat with high micro power.
3) Put some orange peel into oven, and then heat them with high Micro Power for 1 minute.

f. When the product is not used, it should be placed in try and ventilated areas as well as possible.

WARNING

Details how to clean surfaces in contact with food:

After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built -up grease may overheat and begin to cause smoke or catch fire.

TIPS FOR CLEANING

Details for cleaning door seals, cavity and adjacent parts:

Exterior:

Wipe the enclosure with a dampened soft cloth.

Door:

Using a dampened soft cloth, wipe clean the door and window.

Wipe the door seals and adjacent parts to remove any spill or spatter.

Wipe the control panel with a slightly dampened soft cloth.

Interior walls:

Wipe clean the interior surfaces with a dampened soft cloth.

Wipe clean the waveguide cover to remove any food splashed.

Turntable / Rotation ring / Rotation axis:

Wash with mild soap water.

Rinse with clean water and allow drying thoroughly.

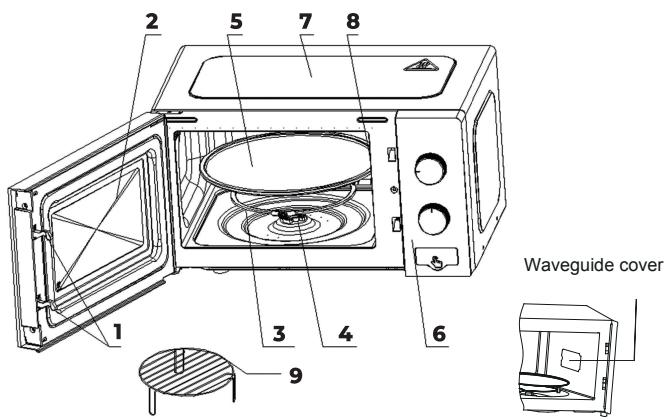

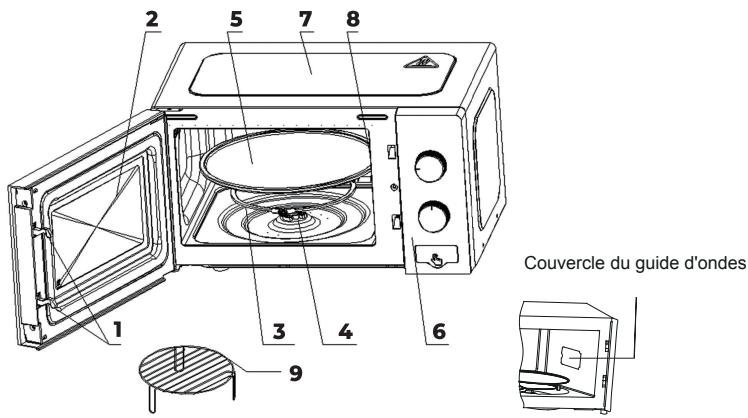

PRODUCT INSTRUCTION

1) Door lock

Microwave oven door must be properly closed in order for it to operate

2) Viewing window

Allow user to see the cooking status

3) Rotating ring

The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating

4) Rotating axis

The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate

5) Turntable

The food sits on the turntable, its rotation during operation helps to cook food evenly

CAUTION

• Place the rotating ring first
• Fit the turntable onto the rotating axis and make sure that it is geared in properly

6) Control panel

See below in details (the control panel is subject to change without prior notice)

7) Outer cover

Used for wrapping and protecting the internal structural parts and electrical components of the whole machine

8) Waveguide cover

It is inside the microwave oven, next to the wall of control panel.

WARNING

Never remove the waveguide cover

9) Grill rack

Use to place the roasting food.

Puissance

Minuterie

1. CLOCK SETTING

The maximum setting is 35 minutes, there is a ringtone at the end, and the knob returns to the "0" position.
2. MICROWAVE and GRILL COMBINATION FUNCTION

There are five firepower levels:

FIREPOWER	Microwave output ratio	Grill output ratio
LOW	17% power output	/
M.Low	30% power output	/
Med	55% power output	/
M.High	80% power output	/
HIGH	100% power output	/
M2+G8	20% power output	80% power output
M3+G7	30% power output	70% power output
M4+G6	40% power output	60% power output
GRILL	/	100% power output

Below is some food defrosting time advice:

No.	Weight	Defrost time
1	200g	About 4 minutes
2	400g	About 8 minutes
3	600g	About 12 minutes

OPERATION

1) Connect the cord

• Before connecting the cord, make sure the timer is set to "0" position.
• Do not block the ventilation.

2) Place the food on the glass turntable and close the door

• Food must be contained in a utensil

3) Select the desired power level

4) Once the desired time is set, the cooking begins. If pausing in between is needed, just open the door at any time, and close it to resume operation.
5) When it times out and cooking ends, the microwave oven produces a bell ring, the inside lamp will also be automatically turned off.

If food is removed before time out, make sure to set back the timer to "0" position, this avoids the microwave oven from operating in empty load.

6) When handling or turning food over, it is strongly recommended to use gloves and be careful not to touch the cavity wall.

UTENSILS GUIDELINE

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Material of container	Microwave	grill	Combi	Notes
Heat-resistant ceramic	Yes	Yes	Yes	Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant plastic	Yes	No	No	Can not be used for long time microwave cooking
Heat-resistant glass	Yes	Yes	Yes
Plastic film	Yes	No	No	It should not be used when cooking meat or chops as the over-temperature may do damage to the film
Grill rack	No	Yes	Yes
Metal container	No	No	No	It should not be used in microwave oven. Microwave can not penetrate through metal.
Iacquer	No	No	No	Poor heat-resistant. Can not be used for High-temperature cooking
Bamboo wood and paper	No	No	No	Poor heat-resistant. Can not be used for High-temperature cooking

COOKING TIPS

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking

cycle and cooling it down in a gradual manner

Whether the food is done

Color and hardness of food help to determine if it is done, these include:

• Steam coming out from all parts of food, not just the edge
• Joints of poultry can be moved easily
• Pork or poultry shows no signs of blood
• Fish is opaque and can be sliced easily with a fork

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

MAINTENANCE

SERVICING

Please check the following before calling for services.

1. Place one cup of water (approx. 150ml ) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min.
2. Does the oven lamp light?
3. Does the cooling fan work? (Put your hand over the rear ventilation openings.)
4. Does the turntable rotate? (The turntable can rotate clockwise or counter clockwise. This

is quite normal.)

1. Is the water inside the oven hot?

If “NO” is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.

If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.

SERVICING SAFEGUARDS

Caution: MICROWAVE RADIATION

1. The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching.

2. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.

3. Magnetron
   High voltage transformer
   High voltage capacitor
   High voltage diode
   High voltage fuse

4. The following conditions may cause undue microwave exposure during servicing.

5. Improper fitting of magnetron;

6. Improper matching of door interlock, door hinge and door;
7. Improper fitting of switch support;
8. Door, door seal or enclosure has been damaged.

Correct disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

oceanic

www.oceanic.eu
