Electrical Connection (UK only)

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below.

WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard.

With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug.

B) If your appliance is not fitted with a plug, please follow the instructions provided below:

WARNING - THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Green and yellow:

Blue:

Brown:

Earth

Neutral

Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol ± or coloured green or green and yellow.

The blue wire must be connected to the terminal marked with the letter N or coloured black.

The brown wire must be connected to the terminal marked with the letter L or coloured red.

A B L M C I H E F G

(*) N delongti D

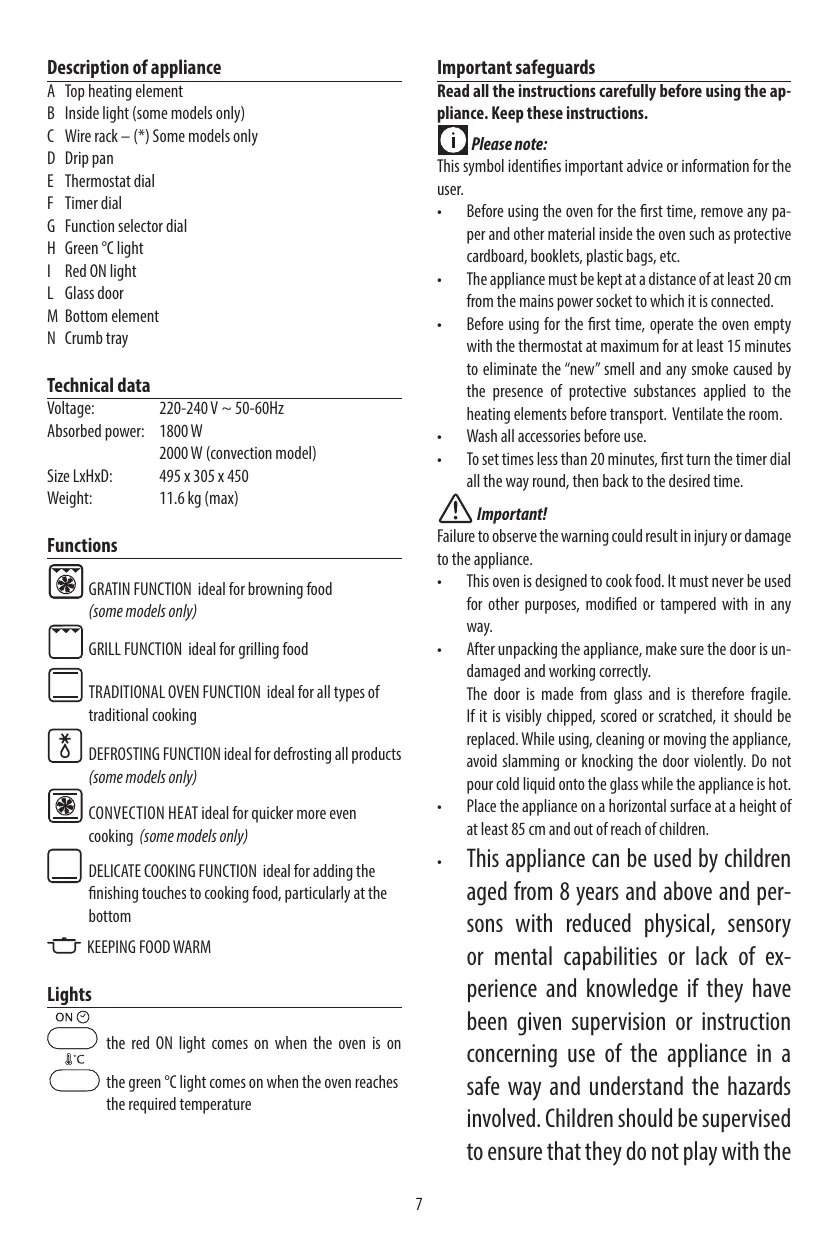

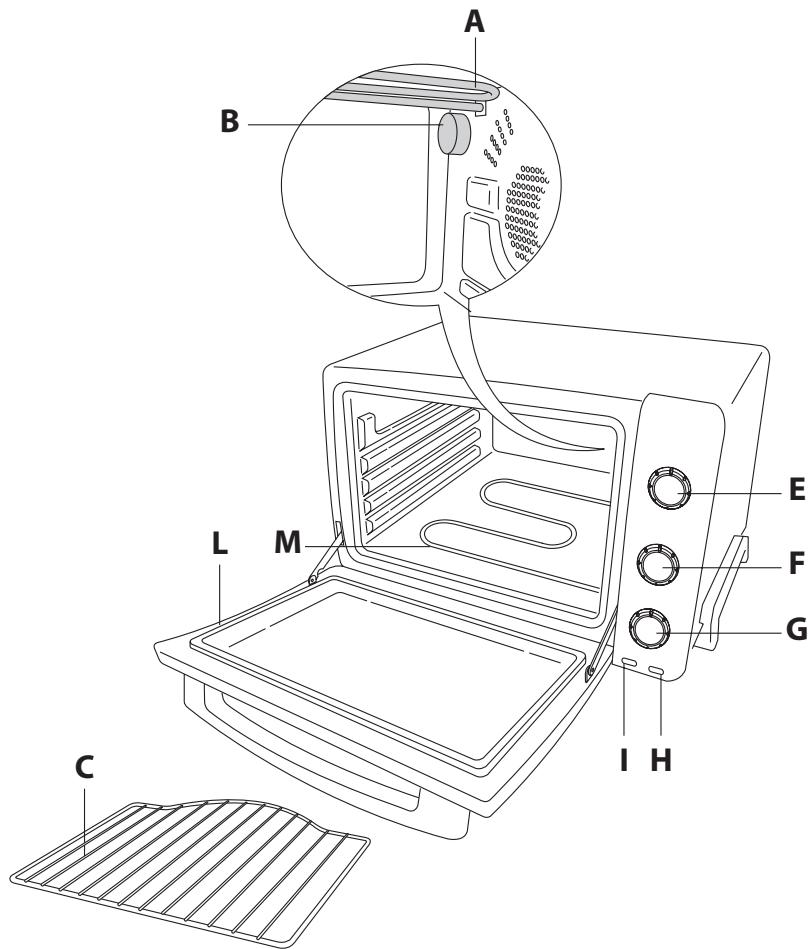

Description of appliance

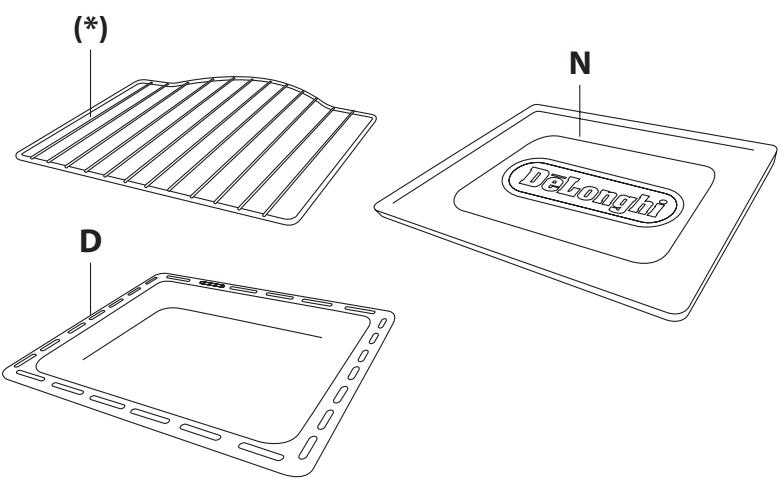

A Top heating element
B Inside light (some models only)
C Wire rack – (*) Some models only
D Drip pan
E Thermostat dial
F Timer dial

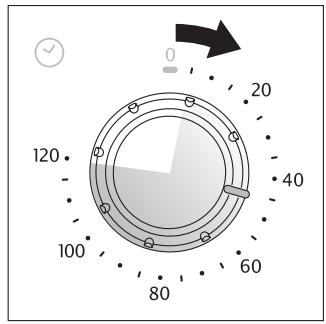

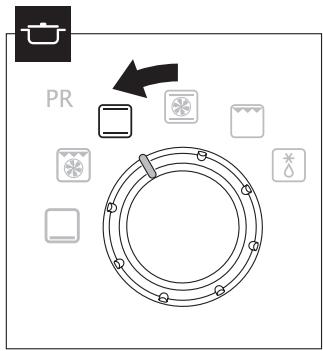

G Function selector dial
H Green °C light
I Red ON light
L Glass door
M Bottom element
N Crumb tray

Technical data

Voltage: 220-240 V \~ 50-60Hz

Absorbed power: 1800 W 2000 W (convection model)

Size LxHxD: 495 x 305 x 450

Weight: 11.6 kg (max)

Functions

GRATIN FUNCTION ideal for browning food (some models only)

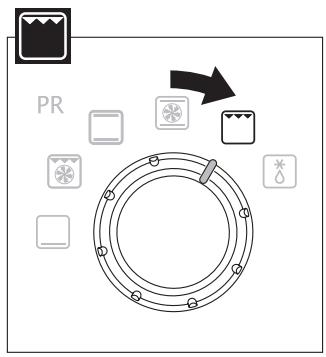

GRILL FUNCTION ideal for grilling food

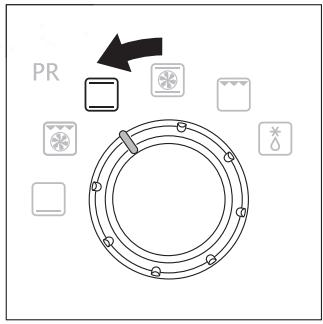

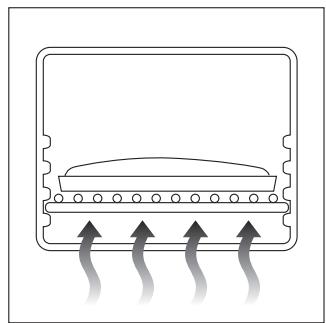

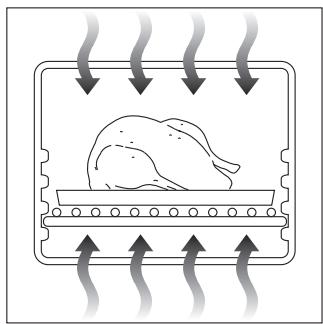

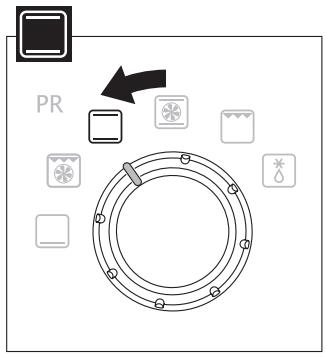

TRADITIONAL OVEN FUNCTION ideal for all types of traditional cooking

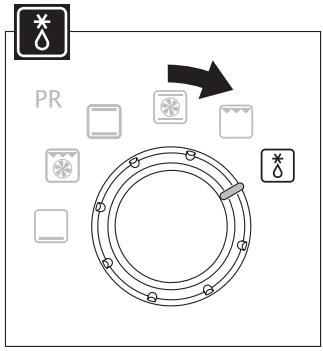

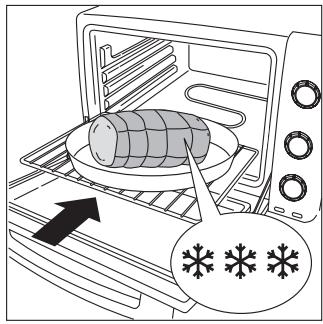

DEFROSTING FUNCTION ideal for defrosting all products (some models only)

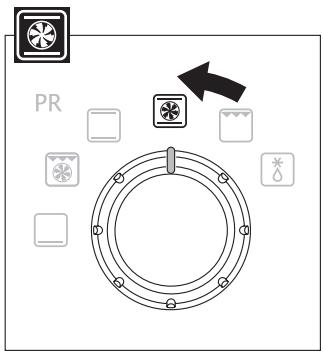

CONVECTION HEAT ideal for quicker more even cooking (some models only)

DELICATE COOKING FUNCTION ideal for adding the finishing touches to cooking food, particularly at the bottom

KEEPING FOOD WARM

Lights

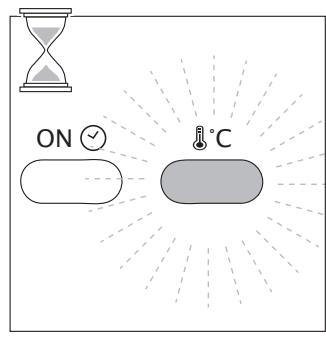

the red ON light comes on when the oven is on

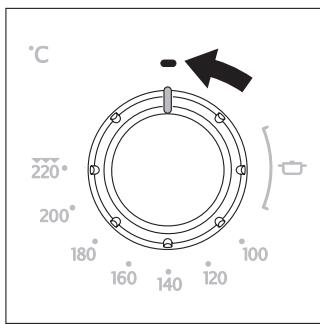

the green °C light comes on when the oven reaches the required temperature

Important safeguards

Read all the instructions carefully before using the appliance. Keep these instructions.

Please note:

This symbol identifies important advice or information for the user.

• Before using the oven for the first time, remove any paper and other material inside the oven such as protective cardboard, booklets, plastic bags, etc.

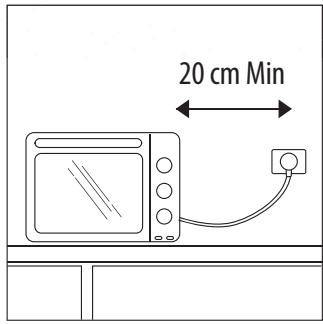

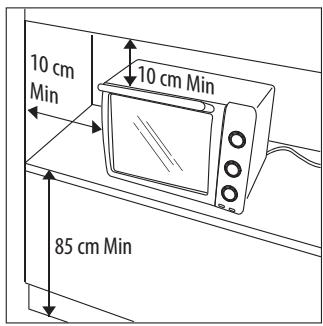

• The appliance must be kept at a distance of at least 20 cm from the mains power socket to which it is connected.

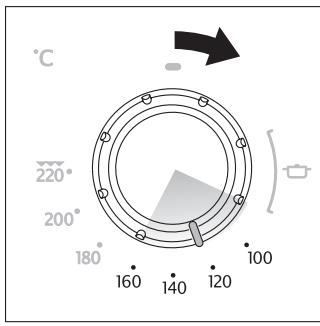

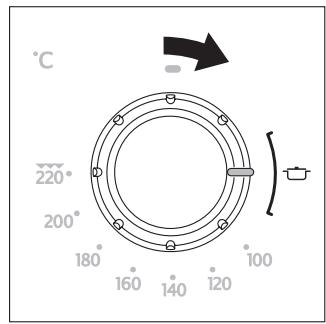

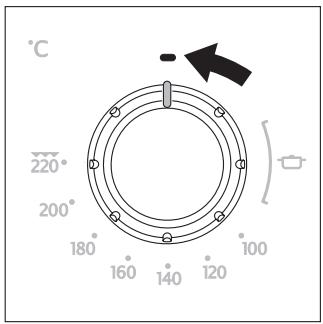

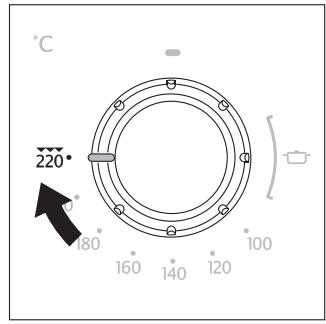

• Before using for the first time, operate the oven empty with the thermostat at maximum for at least 15 minutes to eliminate the "new" smell and any smoke caused by the presence of protective substances applied to the heating elements before transport. Ventilate the room.

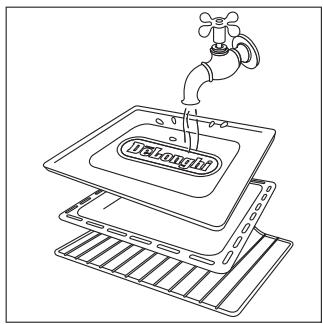

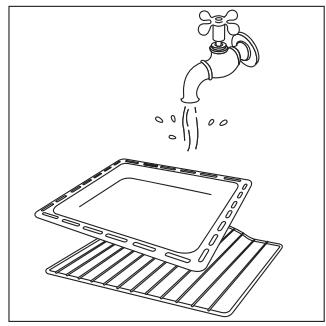

  • Wash all accessories before use.

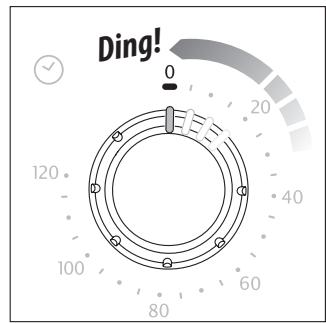

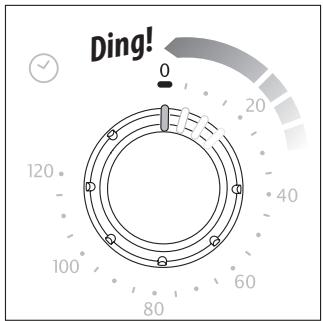

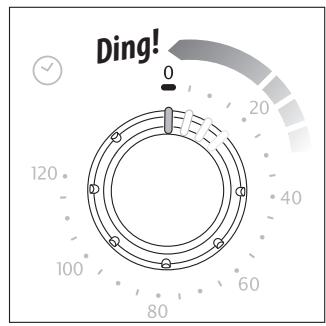

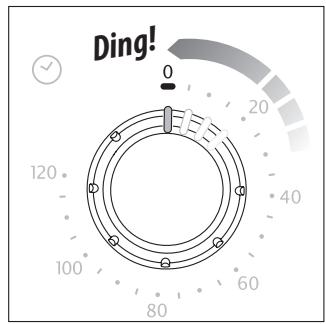

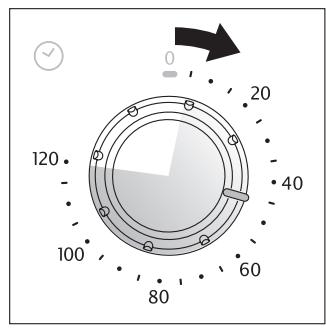

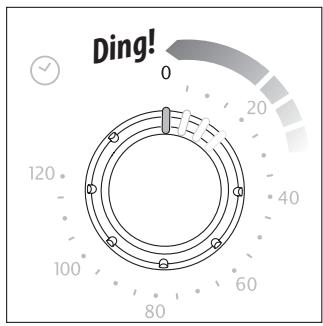

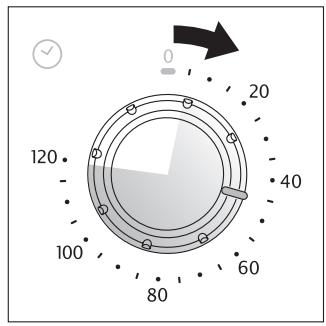

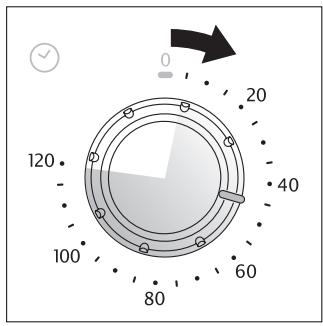

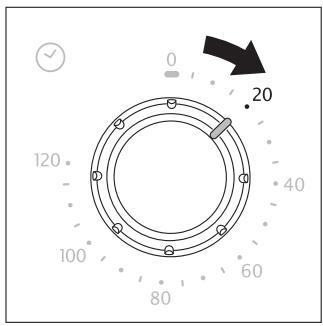

• To set times less than 20 minutes, first turn the timer dial all the way round, then back to the desired time.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

• This oven is designed to cook food. It must never be used for other purposes, modified or tampered with in any way.

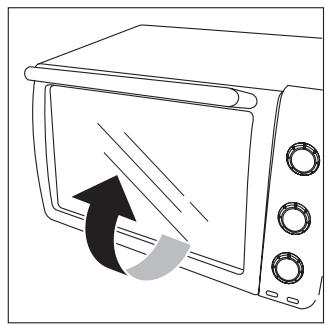

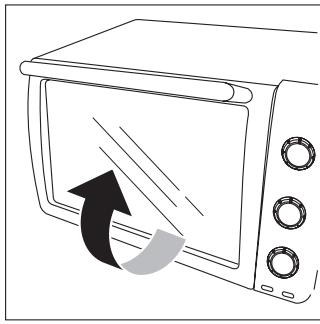

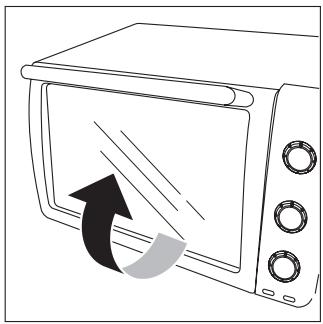

  • After unpacking the appliance, make sure the door is undamaged and working correctly.
  The door is made from glass and is therefore fragile. If it is visibly chipped, scored or scratched, it should be replaced. While using, cleaning or moving the appliance, avoid slamming or knocking the door violently. Do not pour cold liquid onto the glass while the appliance is hot.
• Place the appliance on a horizontal surface at a height of at least 85 cm and out of reach of children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the

appliance.

Cleaning and user maintenance shall not be made by children, unless they are more than eight years old and under constant supervision.

• Keep the appliance and power cable away from children under eight years of age.
  • Do not move the appliance while in use.
  • Do not use the appliance if:
• The power cable is faulty
• The appliance has been dropped, is visibly damaged or malfunctioning.

In these cases, to avoid all risk take the appliance to your nearest authorised customer services.

• Never position the appliance near heat sources.
• Do not use the appliance as a heat source.
- Never place paper, cardboard or plastic inside the oven and never rest anything on top of the appliance (utensils, wire racks, other objects).
- Never insert anything into the ventilation openings. Make sure they are unobstructed.
• This oven is not designed for built-in installation.
- Do not rest heavy objects, boiling pans or containers on the open door.

Do not pull the handle downwards.

• Professional or inappropriate use, or failure to observe the instruction for use absolves the manufacturer from all responsibility and invalidates the guarantee.
• This is a household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments, farm houses, hotels, motels and other residential type environments, bed and breakfast type environments.

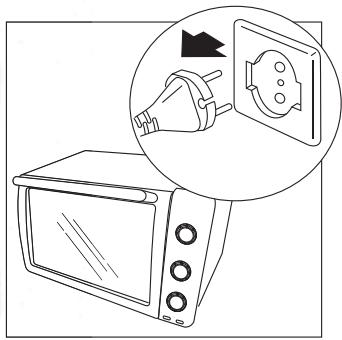

• When not in use and before cleaning, always unplug the appliance.
  • This appliance must not be operated

by a timer or a separate remote control system.

• The appliance must be placed and operated with the back next to the wall.

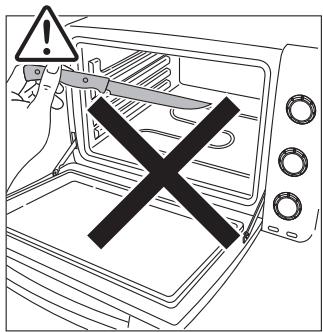

• Do not use pointed or sharp metal objects to clean the bread pan.
• Before cleaning, always turn the appliance off by setting the timer to "0" and unplugging it from the mains socket.
• This product is not intended and engineered for food preservation.

Accessories for cooking are not suitable for acid food preservation. Avoid leaving for prolonged time acid substances as lemon juice or vinegar on surface of accessories. If left on surface of accessories for prolonged time, acid substances as lemon juice, tomato, vinegar and similar, may damage and impair the coating.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

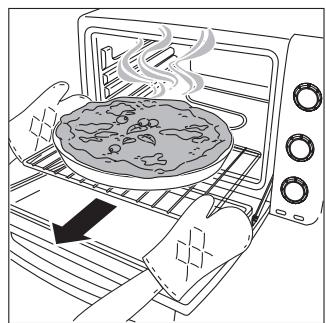

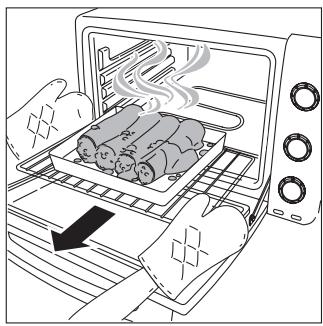

• When in operation, the door and accessible external surfaces could become very hot. Always use the knobs, handles and buttons. Never touch metal parts or the glass. Use oven gloves if necessary.
• This electrical appliance operates at high temperatures which could cause burns.
• Do not leave inflammable products near the oven or under the work surface where it is located.
• Never operate the appliance under a wall cupboard or shelf or near inflammable materials such as curtains, blinds, etc.
• If food or other parts of the oven catch fire, never try and put out the flames with water.

Close the door, unplug from the mains and smother the flames with a damp cloth.

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

• Before plugging into the mains, make sure that:
- The mains voltage corresponds to the voltage indi-

cated on the rating plate.

- the mains socket is earthed and has a minimum rating of 16A.

The manufacturer declines all liability in the event that this important accident-prevention rule is not respected.

- Do not let the power cable dangle and avoid touching hot parts of the oven.

Never unplug the appliance by pulling on the power cable.

• If you intend to use an extension, make sure it is in good condition, that the plug is earthed and that the cross section of the wires is at least equal to that of the power cable provided with the appliance.
• To avoid all risk of electric shock, never immerse the power cable, plug or appliance itself in water.
• If the power cable is damaged, it must be replaced by the manufacturer, the manufacturer's customer services or a qualified electrician in order to eliminate all risk.
• For your personal safety, never take the appliance to pieces on your own. Always contact customer services.

This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

Disposal

The appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

For more information regarding the various functions and cooking tables, refer to the images on page 79-89.

Description appareil

A mental fortifications

Illustration of an open box with a download arrow and an information icon (no text or symbols)

Line drawing of a microwave oven with an oven on top and a baking tray open (no text or symbols)

Line drawing of a faucet pouring liquid into a tablet device (no text or symbols)

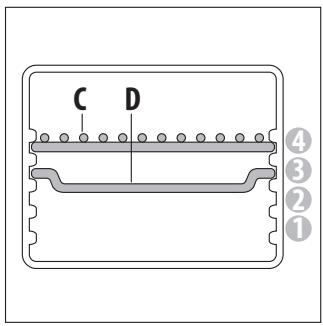

20 cm Min


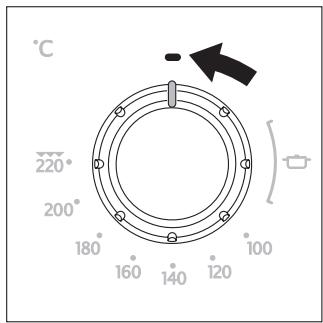

°C 220° 180° 160° 140° 120° 100°

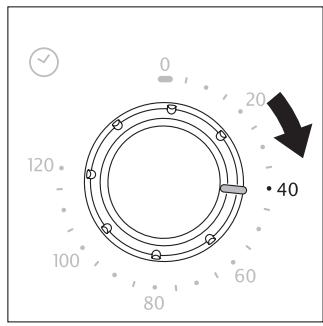

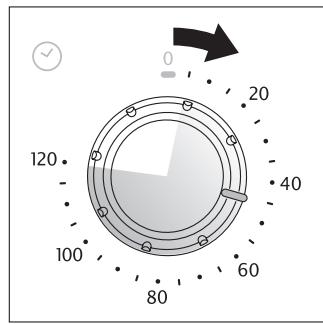

0 20 120 40 100 60 80

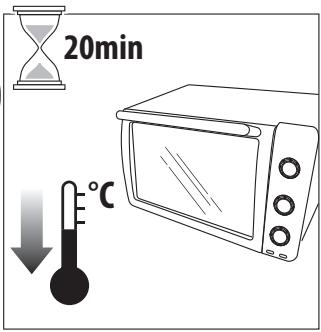

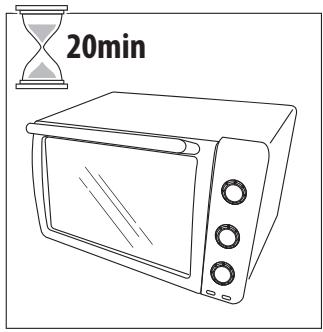

Line drawing of a microwave oven with an hourglass icon and '20min' label (no other text or symbols)

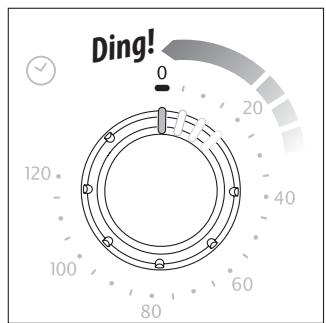

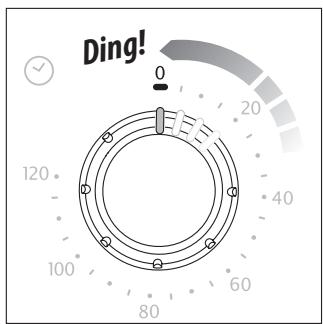

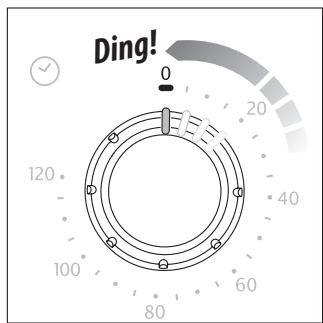

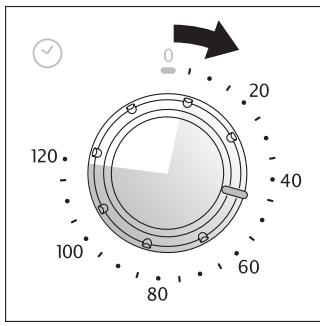

Ding! 0 20 40 60 80 100 120

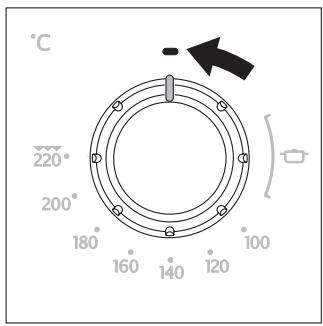

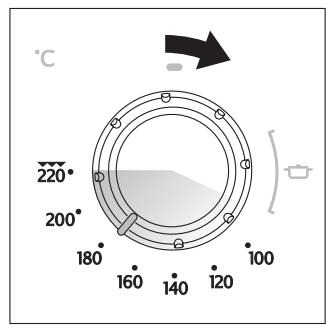

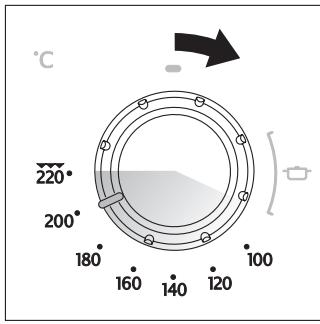

°C 220° 200° 180° 160° 140° 120° 100°

10 cm Min 10 cm Min 85 cm Min

20min °C

PR

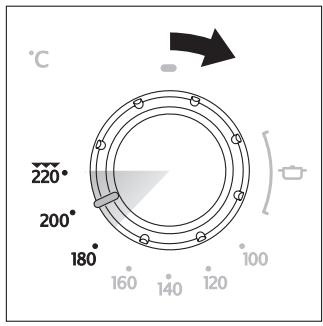

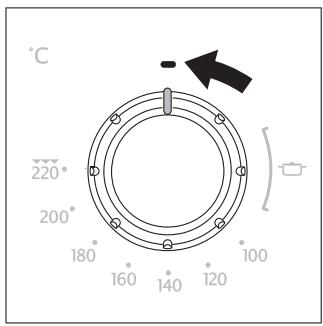

°C 220° 200° 180° 160° 140° 120° 100°

120 100 80 60 40 20 0

ON ✓ °C

ON ✓ °C

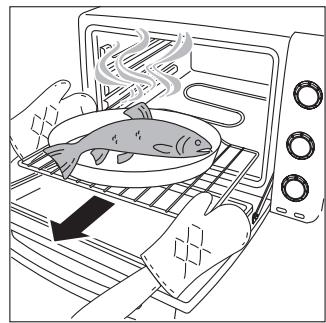

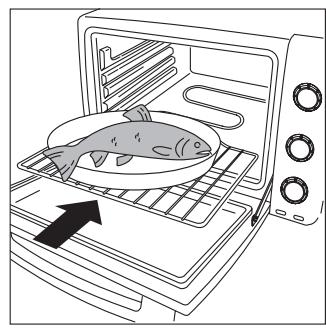

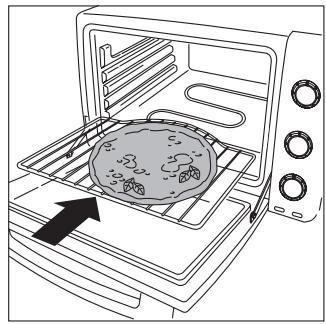

Line drawing of a fish inside an oven with a pan on the stove, showing no text or symbols.

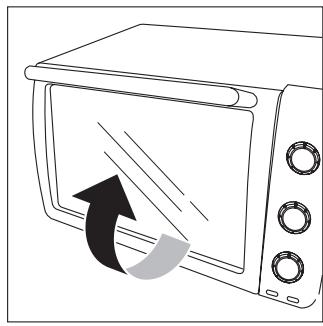

Line drawing of a microwave oven with a curved arrow indicating rotation (no text or symbols)

Line drawing of a person observing a kitchen oven with a fish inside (no text or symbols)

Ding! 0 20 40 60 80 100 120

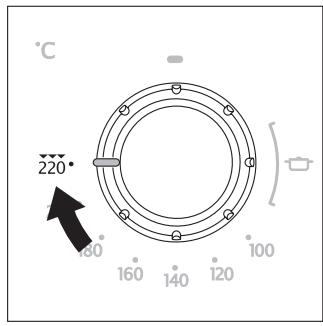

°C 220° 200° 180° 160° 140° 120° 100°

Illustration of a fish being cooked inside an oven with steam rising from the tray (no text or symbols)

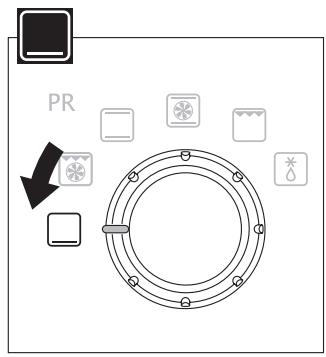

PR

°C 220° 200° 180° 160° 140° 120° 100°

120 100 80 60 40 20 0

ON °C

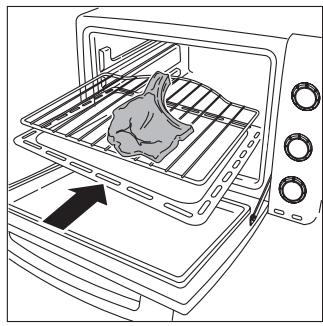

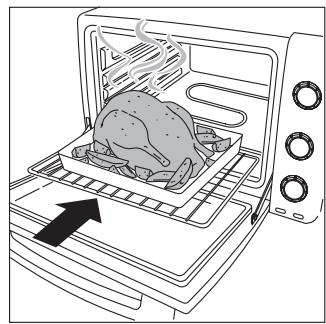

Line drawing of a toaster oven with a roasted chicken inside, showing steam rising from the tray (no text or symbols)

① ② ③ ④ C

Line drawing of a microwave oven with a curved arrow indicating airflow or motion (no text or symbols)

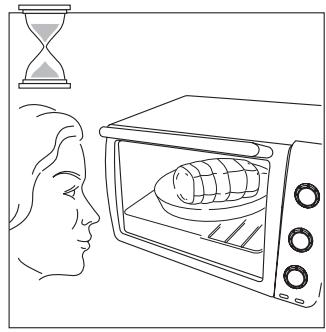

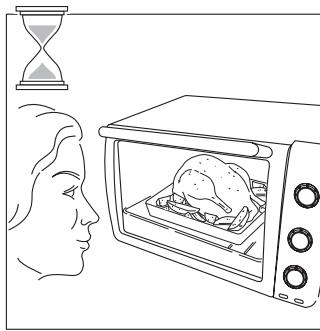

Line drawing of a person facing away from an open kitchen appliance with an hourglass symbol in the background (no text or symbols present)

Diagram of a chicken inside a conveyor belt with directional arrows indicating flow or movement (no text or symbols)

Ding! 0 20 40 60 80 100 120

°C 220° 200° 180° 160° 140° 120° 100°

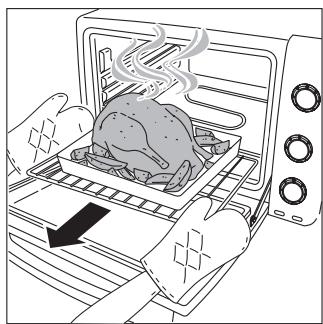

Illustration of a toaster oven with a roasted chicken being heated, hands holding the tray (no text or symbols)

PR →

°C 220° 180° 160° 140° 120° 100°

Line drawing of an oven with a tray holding a dish, showing internal structure and airflow direction (no text or symbols)

C D 4 3 2 1

Line drawing of a microwave oven with a curved arrow indicating motion (no text or symbols)

0 20 120 40 100 60 80

ON ✓ °C

Line drawing of a person facing a microwave oven with an hourglass symbol above (no text or symbols present)

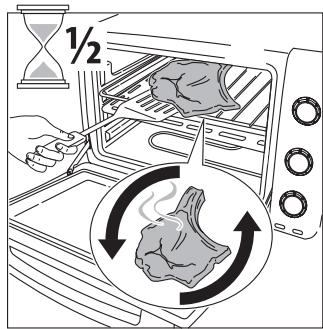

1/2

Ding! 0 20 40 60 80 100 120

°C 220° 200° 180° 160° 140° 120° 100°

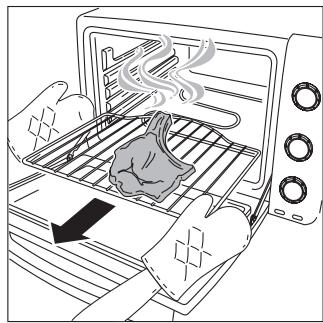

Line drawing of a toaster oven with a steaming dish inside, showing hands holding the tray (no text or symbols)

PR F F F F

°C 220° 200° 180° 160 140 120 100

120° 100° 80° 60° 40° 20° 0°

ON °C

Line drawing of a toaster oven with a steaming dish on top, showing heat transfer from the lid (no text or symbols)

C ① ② ③ ④

Line drawing of a microwave oven with a curved arrow indicating rotation (no text or symbols)

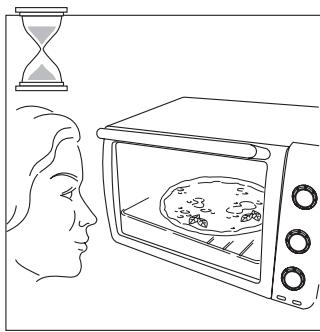

Line drawing of a person observing a microwave oven with food inside (no text or symbols)

Diagram of a mechanical component with upward arrows indicating motion or force (no text or symbols)

Ding! 0 20 40 60 80 100 120

°C 220° 200° 180° 160° 140° 120° 100°

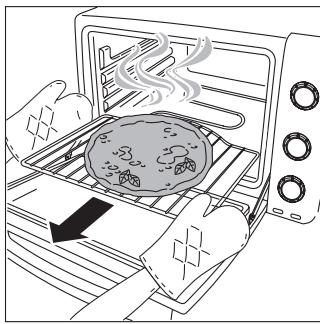

Illustration of a person cooking on an oven with a steaming dish and a pan (no text or symbols)

PR 风扇 风扇 风扇 风扇

°C 220° 200° 180° 160 140 120 100

Line drawing of an oven with two chickens inside, one being opened and the other placed on the tray (no text or symbols)

① ② ③ ④ C

Line drawing of a microwave oven with a black arrow indicating rotation (no text or symbols)

0 20 40 60 80 100 120

ON ✓ °C

Illustration of a person facing a microwave oven with sleeping infants, accompanied by an hourglass icon (no text or symbols)

Ding! 0 20 40 60 80 100 120

°C 220° 200° 180° 160° 140° 120° 100°

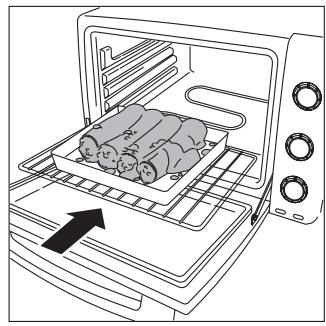

Illustration of a toaster oven with three cured meats being cooked (no text or symbols)

PR ←

°C 220° 200° 180° 160° 140° 120° 100°

0 20 40 60 80 100 120

ON ✓ °C

ON °C

Line drawing of an oven with a baked die inside, showing no text or symbols

Line drawing of a microwave oven with a curved arrow indicating rotation (no text or symbols)

Line drawing of a person facing a microwave oven with an hourglass above (no text or symbols)

Ding! 0 20 40 60 80 100 120

°C 220° 200° 180° 160° 140° 120° 100°

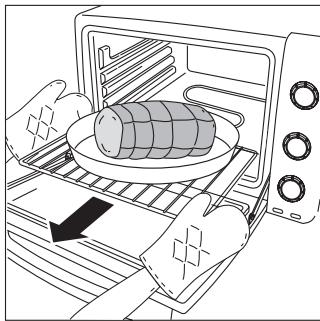

Illustration of hands placing a steaming hot dog on an oven with a tray (no text or symbols)

0 20 40 60 80 100 120

ON °C

Illustration of a toaster oven with a rolled cake and snowflake symbols (no text or labels)

Line drawing of a microwave oven with a curved arrow indicating rotation (no text or symbols)

Line drawing of a person facing a microwave oven with an hourglass above (no text or symbols)

Ding! 0 20 40 60 80 100 120

Line drawing of a toaster oven with a rolled food item on the tray (no text or symbols)

Illustration of a hand cleaning a cloth (no text or symbols)

Diagram showing a microwave oven connected to an electrical outlet with a magnified view highlighting the plug-in socket.

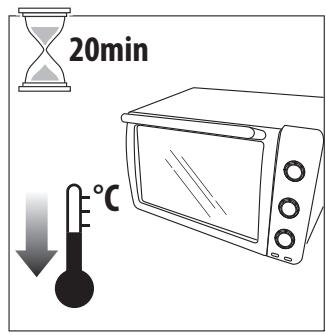

20min °C

Line drawing of an open microwave oven with a bread roll inside (no text or symbols)

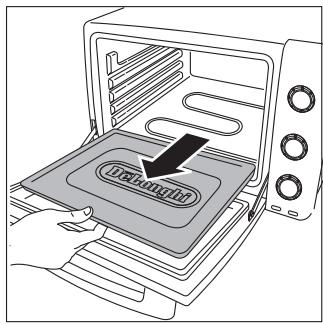

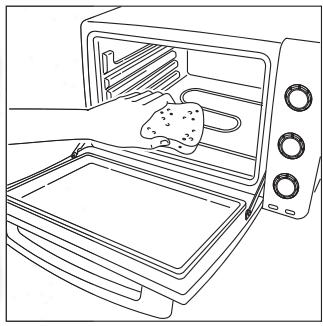

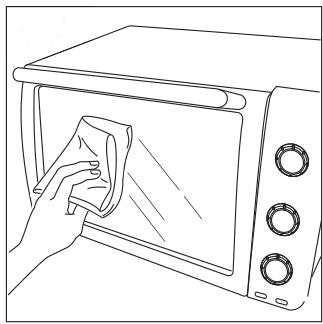

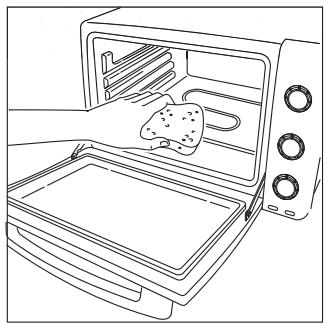

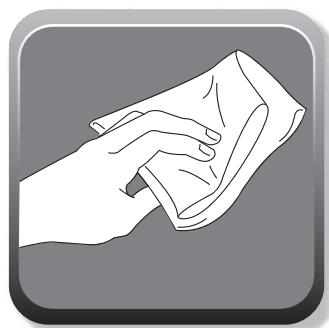

Line drawing of a hand cleaning a microwave oven with a cloth (no text or symbols)

Dexingiri

Dengang

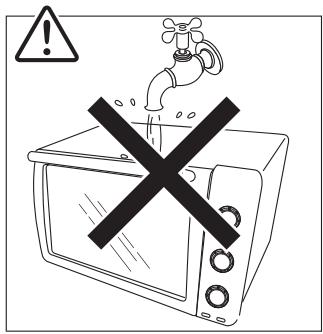

Warning sign showing a microwave with a water tap and a crossed-out X symbol, indicating no warning or caution.

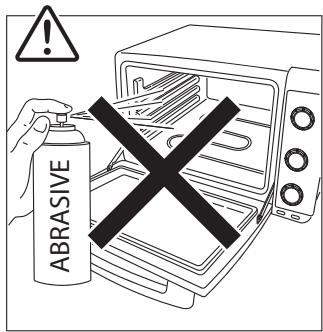

ABRASIVE

Diagram showing a kitchen with a knife and a large 'X' symbol crossed out, indicating a warning or prohibition.

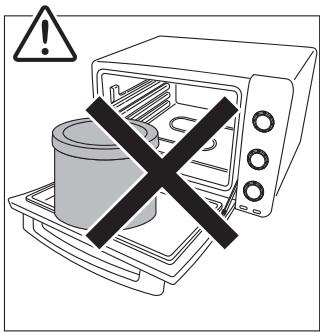

Warning symbol showing a microwave oven with a crossed-out box and warning sign

					[BY7C]
	700g	[42C8]	[5WX9]	180°C	45-50 min
			[Y20C]		30-35 min
	750g		[KBX5]	200°C	25-30 min
***	450g			200°C	20-22 min
			[Z8H0]		15-17 min
[4057]	500g		[64W6]	180°C	35-40 min
	1500g			180°C	35-40 min
				200°C	30-35 min
	1300g			190°C	100-105 min
					80-85 min
	700g			190°C	65-70 min
					50-55 min
[TTK0]	1000g	[C840]		190°C	90-95 min
			[XXG]		75-80 min
	1200g		[OXYY]	180°C	55-60 min
	750g			220°C	25-30 min
	1000g			200°C	25-30 min
	1000g			200°C	65-70 min
***					45-50 min
	1000g			200°C	55-60 min
			[2430]		45-50 min
	1000g			220°C	15-20 min
	300g		[4COK]	180°C	15-20 min
	6		[WXKB]	180°C	20-22 min
***			[GYWB]		13-15 min
	850g			180°C	40-45 min
			[3T0D]		30-35 min
	850g			180°C	40-45 min
					30-35 min
	900g		[∅04C]	180°C	35-40 min
					25-30 min
	12			170°C	20-25 min
	900g			160°C	85-90 min
