USER MANUAL DBI2348IB.S ASKO

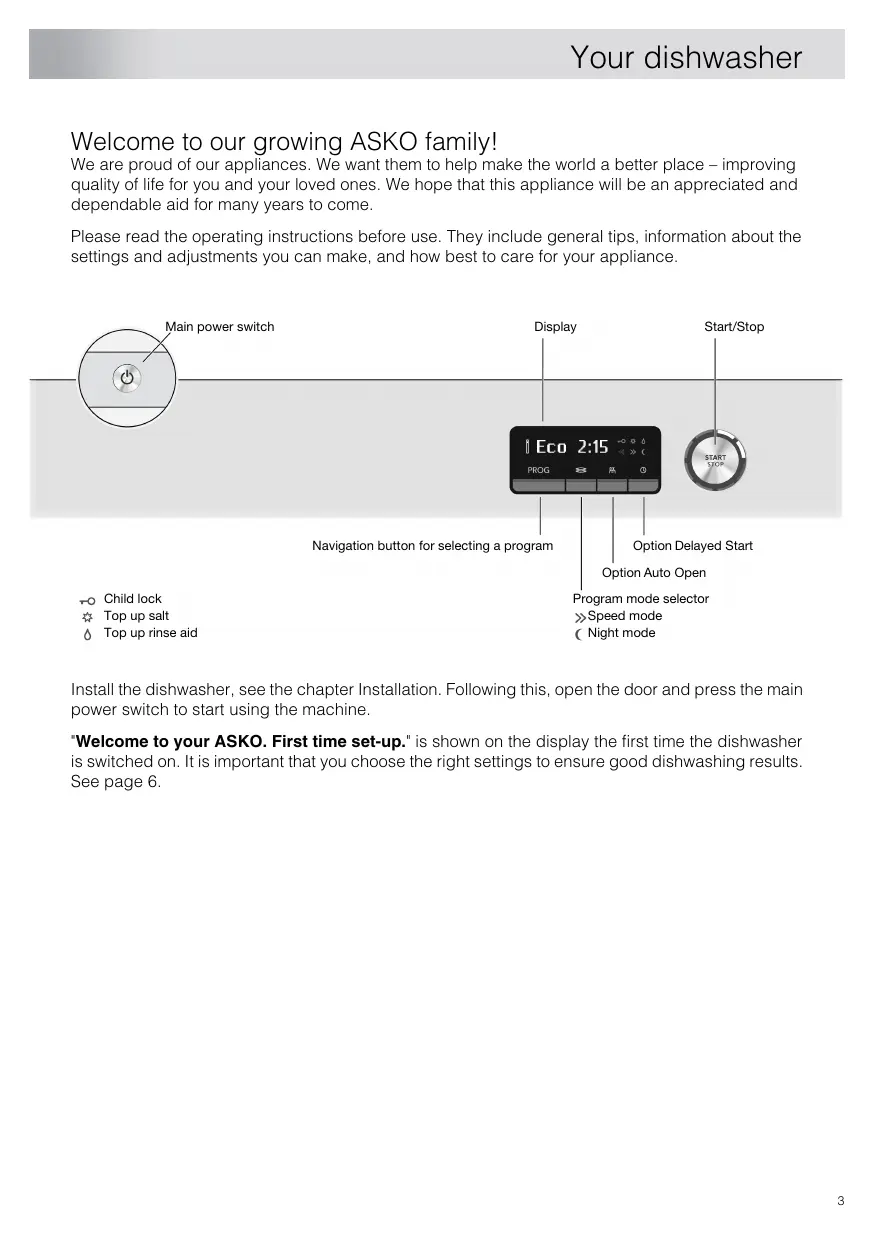

Your dishwasher Welcome to our growing ASKO family! We are proud of our appliances. We want them to help make the world a better place – improving quality of life for you and your loved ones. We hope that this appliance will be an appreciated and dependable aid for many years to come. Please read the operating instructions before use. They include general tips, information about the settings and adjustments you can make, and how best to care for your appliance. Main power switch Display Navigation button for selecting a program Start/Stop Option Delayed Start Option Auto Open Child lock Top up salt Top up rinse aid Program mode selector Speed mode Night mode Install the dishwasher, see the chapter Installation. Following this, open the door and press the main power switch to start using the machine. "Welcome to your ASKO. First time set-up." is shown on the display the first time the dishwasher is switched on. It is important that you choose the right settings to ensure good dishwashing results. See page 6.

• Read the operating instructions and keep them in a safe place!
• Number of standard place settings: 13
• Never use the dishwasher for any purpose other than that specified in these operating instructions.
• Do not load the dishwasher door or dishwasher baskets with anything other than dishes.
• Never leave the dishwasher door open as someone may trip on it.
• Use only dishwasher detergent!
• This machine can be used by children aged 8 and upwards, and by people with reduced physical capacity, mental ability, memory loss or lacking experience and knowledge. These individuals must be supervised when using the machine or have instructions on how to use the machine and understand the risks that can occur. Cleaning of the machine must not be carried out by children without supervision.
• Damaged mains cables must only be replaced by a qualified electrician.
• Only use the dishwasher in household-type environments for dishwashing household dishes. All other use is prohibited.
• Never place dishes with solvent residues in the dishwasher due to the risk of explosion. Nor may dishes that contain ash, wax or lubricants be washed in the dishwasher.
• Children must be watched. Do not allow children to use or play with the dishwasher. Be especially vigilant when the door is open. Some detergent may remain inside! After adding detergent, always start the dishwasher immediately. WARNING! Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets.

Safety instructions WARNING! Children must be supervised – dishwasher detergent is corrosive! Activate child lock (Kid Safe™) You can activate the child lock (button lock) to prevent children from starting the dishwasher. See the chapter Settings. Installation See the chapter Installation. Winter storage/Transport Store the dishwasher above freezing and avoid long transport distances in very cold weather. Transport the dishwasher upright or laying on its back. Overflow guard function The overflow protection starts pumping out the machine and turns off the water supply if the water level in the dishwasher exceeds the normal level. If the overflow protection is triggered, F54 appears on the display. Turn off the water supply and contact your nearest service centre. Packaging The outer packaging protects the product during transport. The packaging material is recyclable. Separate the different packaging materials to help reduce raw material use and waste. Your dealer can take the packaging for recycling or direct you to the nearest recycling centre. The packaging is comprised of:

Corrugated cardboard made from up to 100% recycled material.

Expanded polystyrene (EPS) with no added chlorine or fluorine.

Supports made from untreated wood.

Protective plastic made from polyethylene (PE). Disposal The dishwasher is manufactured and labelled for recycling. When the dishwasher has reached the end of its service life and is to be disposed of, it should immediately be made unusable. Pull out the power cable and cut it as short as possible. Contact your local authority for information about where and how your dishwasher should be correctly recycled.

Before washing for the first time

In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral content). Hard water leaves a white coating on dishes and the dishwasher. Checking water hardness Water hardness is specified using the German water hardness scale (°dH) or the French water hardness scale (°fH). A water supply with a water hardness in excess of 6°dH (9°fH) must be softened. This is done automatically with the aid of the built-in water softener. In order for the water softener to function optimally, it must be adjusted to the hardness of the water supply. Once you have adjusted the water softener, use detergent and rinse aid doses suitable for soft water. Contact the local waterworks to check the water hardness in your area. Make a note of the water hardness:____________ German water hardness scale French water hardness scale Recommended setting 0-5°dH 0-9°fH

If the water hardness exceeds 50°dH (89°fH), we recommend connecting an external water softener. Increased consumption during regeneration The dishwasher's built-in water softener is regularly regenerated to maintain its function. Regeneration extends the dishwashing program and increases energy and water consumption. Just how often the dishwasher's water softener is regenerated depends on the selected setting. Example: If the Ecoprogram is run with a water hardness of 14 °dH (25 °fH), the water softener is regenerated at regular intervals (after 7 dishwashing cycles), energy consumption increases by

0.015 kWh and water consumption increases by 2.3 litres while the program time is extended by 3

minutes. Regeneration occurs during the program's main wash. WARNING! Hard water leaves a white coating on dishes and inside the dishwasher. It is therefore important that you select the right setting for the water softener! See Water hardness. Never run the dishwasher with an empty salt compartment if the water supply has a water hardness in excess of 6°dH (9°fH).

Before washing for the first time

Open the door and press the main power switch. "Welcome to your ASKO. First time set-up." is shown on the display. It is important that you choose the right settings to ensure good dishwashing results. Main power switch Select setting Confirm setting Settings

Language Select the language to be shown on the display.

Set level of rinse aid 0/1/2/3/4/5/TAB Drying is faster and a better result is achieved if you use rinse aid. You will also achieve a better dishwashing result with clear and spotless dishes. Select rinse aid dosage. The rinse aid dispenser can be adjusted between 0 (Off) and 5 (High dosage). When using an all-in-one detergent that contains rinse aid, you can activate the setting TAB. Read more about all-in-one detergent in the chapter Using the dishwasher. Pre-selected at factory: 5 Top up rinse aid Press to open

1. Open the rinse aid compartment lid.

2. Carefully top up with rinse aid to the level marked max.

3. Wipe up any splashes of rinse aid around the compartment.

4. Close the lid firmly.

Before washing for the first time

Set water hardness 0/1/2/3/4/5/6/7/8/9 Adjusting the water softener. Select a setting depending on the hardness of the water supply. It is important that this setting is correct! Do not forget to put salt in the salt compartment after you have set the water softener to 1 - 9. For a water supply with a hardness under 6°dH (9°fH), select 0. The water softener is deactivated and no salt is needed. Pre-selected at factory: 4 Top up salt Salt compartment lid

1. Unscrew the salt compartment lid.

2. Place the funnel supplied with the dishwasher in the salt compartment top-up hole. First, pour

in about 1 l of water.

3. Then add salt, a maximum of 630 gram, until the compartment is full. Use large grain salt or

special dishwasher salt.

4. Wipe up any excess salt so that the lid can be screwed on firmly.

In order to avoid rust stains a dishwashing program must be started immediately after adding salt. To change the selected setting, see the chapter Settings.

Greener dishwashing The dishwasher saves energy and water When using a dishwasher in a residential setting, less energy and water are generally used compared to washing the dishes by hand. Do not rinse under running water Do not rinse the dishes under running water as this will lead to increased energy and water consumption. Simply scrape off large food particles before loading the dishwasher. Choose a green detergent Read the environmental declaration on the packaging! Too much detergent, rinse aid and salt can result in less effective dishwashing and also entail greater environmental impact. Run a fully loaded dishwasher Save energy and water by waiting until the dishwasher is full before running a program (see number of standard place settings). Use the Rinse & hold program to rinse the dishes if there are any unpleasant odours. Run programs at a lower temperature If the dishes are only slightly dirty, you can select a program with a low temperature. Select dishwashing program – Eco This program is suitable for washing normally dirty dishes and is the most effective program in terms of combined energy and water consumption. This program is used to assess compliance with EU legislation on ecodesign. The dishwashing program is designed for an effective wash using as little energy and water as possible. The program washes at a low temperature for a long time. Select option – Auto Open A shorter dishwashing program and better drying results are achieved if you use the Auto Open option, which automatically opens the dishwasher door. Wait until the dishwasher indicates that the program has ended and the dishes have cooled before unloading the dishwasher. Connect to cold water Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas. Connection to hot water supply Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot water connection cuts dishwashing times and reduces the dishwasher's energy consumption. NOTE! Do not exceed the permitted water supply temperature. Certain materials used in some cookware cannot withstand strong heat.

Loading the dishwasher Fragile dishes Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand strong heat, others can be damaged by dishwashing detergent. Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver, copper, tin, aluminium, wood and plastic. Look for the "Dishwasher safe" marking. Fragile decoration Porcelain with decoration on top of the glazing (the items feel rough) should not be washed in a dishwasher. Crystal/Glass Drying is faster and a better result is achieved if you use rinse aid. You will also achieve a better dishwashing result with clear and spotless dishes. Hand-painted glassware, as well as antique and very fragile items, should not be washed in a dishwasher. Silver Silver and stainless steel items should not come into contact, as the silver can become discoloured. Aluminium Aluminium can lose its shine if washed in a dishwasher. However, good quality aluminium pans can be washed in a dishwasher, even if some of the shine will be lost. Cutlery with glued handles Some types of glue are not dishwasher safe. In such cases, the handles may loosen. Loading affects the results Load the dishes carefully to ensure the best washing and drying results with the lowest possible energy and water consumption. Give your dishwasher the best chance to reach and clean all surfaces, as well as to dry the dishes as thoroughly as possible.

All dirty surfaces should face inwards and downwards!

Dishes should not be placed in or on each other.

Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for plastic items.

Make sure small items cannot fall through the dishwasher basket; place them in the cutlery basket. NOTE! Check that the spray arms can rotate freely. The dishwasher's baskets The dishwasher is equipped with an upper basket and a lower basket with a cutlery basket. The appearance of the baskets may differ depending on the dishwasher setup.

Loading the dishwasher Upper basket Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face inwards and downwards! Wine glasses are placed on the wine glass shelf and knives are placed in the knife stand on the right. Lower basket Place plates, side plates, serving dishes, pots and cutlery (in the cutlery basket) in the lower basket. Place pots and pans in the rear right of the lower basket to best utilise dishwashing performance from the rear spray nozzle (WideSpray™), which is intended for these types of dishes.

Loading the dishwasher Foldable tines Lower the foldable tines (plate supports) when washing pots. Release the foldable tines by pressing the catch inwards before adjusting their position. Washing large plates Move foldable tines and their mounts to widen the distance between the tine rows to adapt the lower basket to plates with a diameter greater than 25 cm.

Loading the dishwasher Accessory Buy a wine glass shelf with space for six tall 1) wine glasses. The wine glass shelf is designed to ensure optimal washing and drying results with tall wine glasses. The wine glass shelf is placed in the rear section of the lower basket. This accessory is available where you bought the dishwasher. Cutlery basket Place cutlery with the handles facing down, except for knives, and spread them out as much as possible. Ensure that spoons do not stack inside each other. The cutlery basket is best placed in the middle at the front of the lower basket to best utilise dishwashing performance from the unique spray nozzle (Power Zone Cutlery™), which is intended for the cutlery basket. WARNING! Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets. Fold-down section for small items The cutlery basket has a fold-down section in the middle for small items, or small shafts, such as electric whisk attachments.

1) Height: max. 25 cm, Diameter: max. 7.5 cm

Loading the dishwasher Cutlery basket with lid Accessory Buy an extra cutlery basket. The extra cutlery basket is flexible and can be dismantled and attached to the lower basket or the large cutlery basket to make an extra large cutlery basket. This accessory is available where you bought the dishwasher.

Using the dishwasher Add detergent Press to open

1. Prewash detergent compartment

2. Main wash detergent compartment

Detergent is added according to water hardness. Follow the instructions on the detergent packaging. This dishwasher is fitted with a water softener, so use detergent and rinse aid doses suitable for soft water. Too much detergent can result in less effective dishwashing and also entails greater environmental impact. The detergent compartment must be dry when adding detergent. There is one compartment for the prewash and one for the main wash. If powder or liquid dishwasher detergent is used, add a small amount of the detergent to the prewash compartment. Contact the detergent manufacturer if you have questions about the detergent. NOTE! Use only dishwasher detergent! Washing up liquid must not be used as the foam that forms prevents the dishwasher from operating effectively. Dishwasher tablets Halve the tablet if it is difficult to close the dispenser lid. There is a risk that the detergent will not be released properly if the lid is tight and will not open correctly. NOTE! Dishwasher tablets are not recommended for short programs (less than 75 minutes). Use powder or liquid dishwasher detergent instead. All-in-one detergent There are many types of all-in-one detergents on the market. Read through the directions for these products carefully. When using an all-in-one detergent that contains rinse aid, you can activate the setting TAB. Note that the salt compartment must be filled with salt. NOTE! Optimal washing and drying results are achieved by using normal detergent together with separately dispensed rinse aid and salt.

Using the dishwasher Open the door and press the main power switch. Starting the dishwasher Select program Select option Select program mode The main power switch Open the door and press the main power switch. Close the door. Also turn on the water tap if it is turned off. Select program Eco is always pre-selected. To select another program, press the navigation button desired program is shown on the display. until the Select a program to suit the type of dishes and how dirty they are. Eco This program is suitable for washing normally dirty dishes and is the most effective program in terms of combined energy and water consumption. This program is used to assess compliance with EU legislation on ecodesign. You can read more about greener dishwashing in the chapter Greener dishwashing. Auto The dishwasher can measure how dirty the dishes are and adjust water consumption and temperature accordingly. When newly installed, the program needs to be run five times before it is fully adapted and can provide the best results. Time program The program adapts to the specified running time or finish time. With this program it is important to choose a time suited to how dirty the dishes are. 0:15-0:45 Slightly dirty dishes 1:00-1:30 Normally dirty dishes 2:00-2:30 Very dirty dishes Press the

option button to set the desired program time. Using the dishwasher Rinse & hold Used to rinse dishes while you wait for the dishwasher to become fully loaded. Hygiene This program is ideal to use where demands on hygiene are extra high, e.g. for baby bottles and cutting boards. The temperature is high both in the main wash and in the final rinse. Quick A fast and powerful program for daily use for slightly dried leftovers. (This program is not intended for burnt food, such as on oven dishes.) Intensive A program with a high temperature to dissolve grease on very dirty dishes, such as pans, casserole dishes and oven dishes. If these dishes do not completely fill the dishwasher, you can add plates and the like. Select program mode To select a program mode, press the program mode selector until the desired mode is shown on the display. The available program modes vary between programs. Speed mode The program time is shortened, but the dishwasher uses more energy. Night mode Lower noise level during the dishwashing program. The program time is extended. Select option To select an option, press the option button until the desired option is shown on the display. The available options vary between programs. Auto Open 2) The dishwasher door opens automatically, which shortens the program time and improves the drying results. Wait until the dishwasher indicates that the program has ended and the dishes have cooled before unloading the dishwasher. The drying time for the Auto Open option varies between programs. NOTE! For the best drying results, do not close the door before the drying phase has finished and the machine has automatically switched off. WARNING! The dishwasher door must not be blocked or closed when opened automatically. Doing so may damage the door lock mechanism. Wait at least 5 minutes before closing the door.

2) The Auto Open option is pre-selected for some programs.

Using the dishwasher Delayed Start When you select Delayed Start, the dishwasher will start 1-24 hours after you have pressed the button Start/Stop and closed the door.

1. Press the button once to activate Delayed Start. Press the button several times – or hold it in –

to set the desired number of hours.

2. Press Start/Stop and close the door. The timer counts down and the dishwasher starts after the

selected delay. If you want to cancel the Delayed Start option, open the door then press and hold Start/Stop for three seconds. Starting the dishwasher Close the door properly, otherwise the dishwasher will not start. Press Start/Stop until the display shows "Program started". If the dishwasher is not started within 2 minutes of the last button press, the machine switches off. Remaining time Once you have selected a program, program mode and options, the time the program took when last used is displayed. Once you have started the dishwasher the display shows the remaining program time. The remaining time is updated after the water for the final rinse has been heated. This may differ somewhat from time to time depending on the temperature of the water supply, the amount of dishes, the ambient temperature and other factors. During the first run of each program, the remaining time displayed can be slightly misleading, as the dishwasher is estimating the time. When you run the program a second time, the dishwasher will calculate the remaining time based on the previous duration of the program. Stopping or changing a program In order not to accidently press a button and cancel the current program, you must press and hold Start/Stop for five seconds if you want to change programs after starting the dishwasher. Add more detergent if the lid of the detergent dispenser has opened. Then select a new program and press Start/Stop. If you want to load more dishes Open the door. The dishwasher stops automatically. Add the dishes and close the door. After a while, the dishwasher continues the program. If the dishwasher is turned off due to a power failure If the dishwashing program was not finished, the interrupted program continues when power is restored. NOTE! During drying, the program is interrupted if the power is cut or the door is open for more than 2 minutes.

Using the dishwasher Once the program has finished Once the program has finished, "END" appears on the display. At the end of the program one short signal will sound. Chapter Settings describes how to change this function. The dishwasher switches off automatically after the program ends. Shut off the water tap after each use. How to get the best drying results

Fully load the dishwasher.

Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for plastic items.

Top up with rinse aid or increase the rinse aid dosage level.

Activate the Extra Dry setting. See the chapter Settings.

Allow the dishes to cool before unloading the dishwasher. Unloading the dishwasher Hot porcelain is more fragile. Leave the dishes to cool in the dishwasher before unloading them. Unload the lower basket first to avoid any water drops from the upper basket falling onto the dishes in the lower basket.

Auto Time program Intensive Hygiene Quick

Dishwashing Energy time (approx. (approx. kWh) hrs:min) Consumption values 1) Hot water 3)

Water cons. (liter) 4) This program is suitable for washing normally dirty dishes and is the most effective program in terms of combined energy and water consumption. This program is used to assess compliance with EU legislation on ecodesign.

1) Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more. The values for the Eco program are accurate, others are indicative only.

2) Connection to cold water, approx. 15 °C.

3) Connection to hot water, approx. 60 °C.

Detergent, Program compartment mode / Option (ml) Eco 4) Program Program chart Using the dishwasher Settings Open the dishwasher's Settings menu To open the dishwasher's Settings menu, press the navigation button until Settings menu is shown on the display and confirm your selection with the mode selector To exit the dishwasher's Settings menu, select Exit and confirm your selection with the mode selector

Setting Current setting Navigation button for selecting a setting Mode selector to confirm current setting Settings Options

On/Off You can activate the child lock (button lock) to prevent children from starting the dishwasher. To temporarily deactivate and activate the child lock, press and hold the mode selector and the option button for Delayed Start for 3 seconds.

Logotype On/Off Setting to hide the logo shown on the display. Contrast 1/2/3/4 For adjusting the contrast of the display. Prog. info screen T/S You can select which information is shown on the display. T-Text (Text) S-Symbol (Symbol)

Settings Table continued from last page Settings Options

Feedback 0/1/2/3 This sound is used to confirm each button press. Volume 0/1/2/3 The buzzer indicates when a dishwashing program has ended. Error messages are always indicated by a loud buzzer. 0/1/2/3/4/5/TAB Setting for rinse aid dosage. The rinse aid dispenser can be adjusted between 0 (Off) and 5 (High dosage). Increase the rinse aid dosage:

• If the dishes have water marks.

Decrease the rinse aid dosage:

• If the dishes have a sticky white/blue film.

If the dishes are streaked.

Build-up of foam. If you have very soft water, the rinse aid can be diluted 50:50 with water. When using an all-in-one detergent that contains rinse aid, you can activate the setting TAB.

On/Off Super rinse adds two extra rinses. Activated in the following programs: Intensive Quick

On/Off Activate the setting Extra Dry to improve the drying results. Energy consumption is slightly increased. Activated in the following programs (although not if the Auto Open option is selected): Eco Auto Intensive Quick Settings Table continued from last page Settings Options

8. Water hardness 0/1/2/3/4/5/6/7/8/9

Adjusting the water softener. Select a setting depending on the hardness of the water supply. It is important that this setting is correct! German water French water Recommended hardness hardness setting scale scale 0-5°dH 0-9°fH

Do not forget to put salt in the salt compartment after you have set the water softener to 1 - 9. For a water supply with a hardness under 6°dH (9°fH), select 0. The water softener is deactivated and no salt is needed. Exit To exit the dishwasher's Settings menu, select Exit and confirm your selection with the mode selector

Care and cleaning Top up rinse aid When the rinse aid needs topping up, the above symbol lights on the display. Press to open

1. Open the rinse aid compartment lid.

2. Carefully top up with rinse aid to the level marked max.

3. Wipe up any splashes of rinse aid around the compartment.

4. Close the lid firmly.

After topping up, it may take a while before the symbol goes out. Top up salt When the salt needs topping up, the above symbol lights on the display. Salt compartment lid

1. Unscrew the salt compartment lid.

2. Place the funnel supplied with the dishwasher in the salt compartment top-up hole. (Water is

only needed the first time.)

3. Then add salt, a maximum of 630 gram, until the compartment is full. Use large grain salt or

special dishwasher salt.

4. Wipe up any excess salt so that the lid can be screwed on firmly.

After topping up, it may take a while before the symbol goes out. WARNING! In order to avoid rust stains a dishwashing program must be started immediately after adding salt. Never pour dishwasher detergent into the salt compartment. This destroys the water softener!

Care and cleaning Cleaning the filters Coarse filter The coarse filter traps larger food particles, which cannot get past the drainage pump. Empty the coarse filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used. Coarse filter

1. Lift the coarse filter by the handle.

2. Empty the coarse filter.

3. Refit the coarse filter. Press it down until it clicks into place.

Fine filter Debris that collects on the fine filter is automatically rinsed away during each wash. Clean the fine filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used. Fine filter

1. Turn the locking ring anticlockwise and lift the fine filter straight up.

2. Clean the fine filter.

3. Refit the fine filter and turn the locking ring clockwise to its stop position. Check that the edges

seal properly. Remember to refit the coarse filter!

Care and cleaning Check that the coloured stop on the right in the bottom drain is in place. NOTE! Dishwashing results may be affected if the coarse and fine filters are incorrectly fitted. The dishwasher must not be used without the filters in place! Cleaning the spray arms Holes and bearings can sometimes become blocked. Remove any debris using a pin or the like. The spray arms also have holes underneath. To facilitate cleaning you can remove the spray arms. Remember to fit them firmly back into place afterwards. Upper spray arm

• The upper basket must be removed before the upper spray arm can be released. Pull out the upper basket and turn the basket catch on each runner outwards (see illustration). The basket can now be removed.

Pull the upper spray arm straight up to release it. Care and cleaning Lower spray arm

• Pull the lower spray arm straight up to release it. Clean the dishwasher inside and out Door and door seal Open the door. Clean the sides of the door and the door seal regularly with a slightly damp cloth. Clean the door seal at the lower front edge of the dishwasher with a washing-up brush. Display and buttons Keep the display and the buttons clean. If necessary, wipe them with a dry or slightly damp cloth. Never use cleaning products – they may scratch the surface. Use the main power switch to switch off the dishwasher when cleaning the buttons to avoid activating them inadvertently. Dishwasher tub The dishwasher tub is made of stainless steel and is kept clean through normal use (when used regularly). If you have hard water, limescale deposits may build up in the dishwasher. If this happens, run the Intensive program with two tablespoons of citric acid in the detergent compartment (with no dishes in the machine). Special dishwasher cleaners are also available on the market. Remove blockages Unblocking the drainage pump If the dishwasher still contains water after the program has finished, something may be blocking the drainage pump. Such blockages are easily removed.

1. Turn off the machine using the main power switch and unplug it from the wall socket.

2. Remove the coarse filter and the fine filter.

3. Scoop out the water from the dishwasher tub.

4. In order to inspect the drainage pump, remove the coloured stop on the right in the bottom drain.

5. Turn the pump wheel located behind the drainage pump stop by hand. Carefully remove any

6. Refit the drainage pump stop along with the fine and coarse filters.

7. Plug the machine in again.

If the dishwasher still does not start and a whirring sound is heard, the overflow protection has been activated.

Remove the plug from the wall socket.

Call the service department. Drainage pump stop NOTE! Do not forget to refit the drainage pump stop. Unblocking the inlet hose filter If the water supply contains small particles, the outer filter on the inlet hose may become blocked, which results in Water inlet fault.

1. Turn off the machine using the main power switch and unplug it from the wall socket.

2. Turn off the water tap.

3. Unscrew the inlet hose.

4. Carefully remove the outer filter from the inlet hose and clean it.

5. Refit the filter and check that the gasket is correctly positioned.

6. Screw the inlet hose firmly into place.

7. Plug the machine into the wall socket and turn on the water tap. Allow the pressure to settle for

a while and check that the connection is watertight. Outer filter on inlet hose Gasket

Troubleshooting Type of fault on the display Action F10 Overfilling water 1 Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the service department. F11 Water outlet fault See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call the service department. F12 Water inlet fault Check that the water tap is on. Check that the outer filter on the inlet hose is not blocked. See Unblocking the inlet hose filter in the chapter Care and cleaning. If the problem persists, call the service department. F40 Inlet valve leakage Turn off the water tap and call the service department. F52 Water level fault Clean the coarse and fine filters. Check that the outer filter on the inlet hose is not blocked. If the problem persists, call the service department. F54 Overfilling water 2 Turn off the water tap and call the service department. F56 Circ. pump fault Call the service department. F67 Water inlet fault Check that the water tap is on. Check that the outer filter on the inlet hose is not blocked. See Unblocking the inlet hose filter in the chapter Care and cleaning. If the problem persists, call the service department. Press any button to clear the error message. Problem Possible causes Pressing the main power switch The door is closed. has no effect. The buttons do not react when pressed. Action Open the door. The main power switch only works when the door is open. You have pressed the buttons Wait a moment then try again. too soon after opening the door. Child lock (button lock) activated. See the chapter Settings. The buttons are dirty. Clean with a dry or slightly damp cloth.

Troubleshooting Table continued from last page Problem Possible causes Action Cannot close door. The baskets are not correctly positioned. Check that the baskets are correctly positioned horizontally. Check that the dishes are not blocking the baskets from sliding properly into place. The door lock does not click into Check the door lock. If it does place and lock. not click into place and lock, open the door. Press and hold the navigation button and the Auto Open option button until the display starts flashing. Wait until it stops flashing (60 seconds). Close the door. Check that the door lock clicks into place and locks.

Troubleshooting Table continued from last page Problem Possible causes The dishwasher does not start. The Start/Stop start button has been pressed for too short a time. Action Press and hold Start/Stop until the display shows "Program started". The door is not properly closed. Check. You have opened the Close the door and wait. After a dishwasher to add more dishes while, the dishwasher continues while a program is in progress. the program. The door lock has not clicked into place and locked. Check the door lock. If it has not clicked into place and locked, open the door. Press and hold the navigation button and the Auto Open option button until the display starts flashing. Wait until it stops flashing (60 seconds). Close the door. Check that the door lock clicks into place and locks and that the dishwasher starts. A fuse/circuit breaker has been Check. tripped. The plug is not plugged into the Check. wall socket. The water tap is turned off. Check. Overflow/leaks. Check. A whirring sound (the drainage Turn off the water tap. Pull out pump) is heard from the the plug and call the service dishwasher and does not stop department. when the main power switch is turned off. Check that the Delayed Start option has not been selected. Press and hold Start/Stop for three seconds if you want to cancel the Delayed Start option.

Troubleshooting Table continued from last page Problem Possible causes Action The dishes are not clean. The spray arms do not rotate. Check that the dishes are not blocking the spray arms. Spray arm holes or bearings blocked. Clean the spray arms. See the chapter Care and cleaning. Unsuitable dishwashing program. Select a program with a high temperature to dissolve grease on very dirty dishes, such as Intensive. Incorrect detergent dosage. Dose according to water hardness. Far too much or far too little detergent results in poorer dishwashing results. Old detergent. Detergent is a perishable product. Avoid large packages. Dishes loaded incorrectly. Do not cover porcelain with large bowls or the like. Avoid placing very tall glasses in the corners of the baskets. Glasses and cups have toppled Place dishes to sit steady. over during the program. The filters are not fitted correctly. Check that the filter handle is locked in the stop position. Drainage pump stop missing.

Check that the coloured stop on the right in the bottom drain is in place. See the chapter Care and cleaning. Spots on stainless steel or silver. Some foodstuffs, such as mustard, mayonnaise, lemon, vinegar, salt and dressings, can cause spots on stainless steel if left for too long. Rinse off these types of foodstuffs if not starting the dishwasher immediately. Use the Rinse & hold program. All stainless steel can cause spots on silver if they come into contact during dishwashing. Aluminium can also cause spots on dishes. In order to avoid marks and tarnishing, separate dishes made from different metals, such as silver, stainless steel and aluminium. Troubleshooting Table continued from last page Problem Possible causes Action Spots or films on the dishes. Incorrect rinse aid dosage setting. See the chapter Settings. The setting TAB is activated and all-in-one detergent with insufficient drying effect is being used. Switch all-in-one detergents or deactivate the setting TAB and top up with salt and separate rinse aid. See Rinse aid in the chapter Settings. Salt compartment empty. Top up with salt. See the chapter Care and cleaning. Incorrect water softener setting. See Water hardness in the chapter Settings. The water softener is leaking salt. Check that the salt compartment lid is properly tightened. Otherwise call the service department. Too high temperature and/or too much detergent can cause etching on crystal. Unfortunately, this cannot be repaired, only prevented. Wash crystal at a low temperature and with a conservative amount of detergent. Contact the detergent manufacturer. The dishes have a sticky white/blue film. Rinse aid dosage setting too high. Reduce the dosage. See the chapter Settings. If you have very soft water, you may want to dilute the rinse aid 50:50 with water. Spots left after washing. Lipstick and tea can be difficult Use a detergent with a to wash off. bleaching agent. Detergent residue in the detergent compartment after dishwashing. The detergent compartment was The detergent compartment damp when adding detergent. must be dry when adding detergent. The detergent compartment has Check that the dishes are not been blocked. preventing the detergent compartment from opening. Rattling sound when dishwashing. The dishes are not correctly Check that the dishes are placed or the spray arms are not placed securely. Spin the spray rotating. arms to make sure they can rotate. 1 minute appears in the display. The program is taking longer than estimated. No action. The program time is stored and next time the program is run the corrected time will be displayed.

Troubleshooting Table continued from last page Problem Possible causes Action Water remains in the dishwasher. The filters are blocked. Clean the coarse and fine filters. Bad odour in dishwasher. The filters are not fitted correctly. Check that the filter handle is locked in the stop position. Debris in the drainage pump. Clean the drainage pump. See the chapter Care and cleaning. Drainage pump stop missing. Check that the coloured stop on the right in the bottom drain is in place. See the chapter Care and cleaning. Kink in drainage hose. Check that the hose is free from kinks and sharp bends. Blocked drainage hose. Disconnect the drainage hose where it connects to the sink unit's water trap. Check that no debris has fastened and that the connection has an inner diameter of at least 14 mm. Dirt around the seals and in corners. Clean with washing-up brush and low foaming cleaner. Low temperature programs have Run a program with a high been selected for a prolonged temperature once or twice a period. month. Grease deposits in the dishwasher. Low temperature programs have Select a program with a high been selected for a prolonged temperature to dissolve grease period. on very dirty dishes, such as Intensive. The dishes are not dry enough. The Auto Open option is not activated.

Activate the Auto Open option. The dishwasher is not fully loaded. Fully load the dishwasher. Rinse aid needs topping up or dosage is set too low. Top up with rinse aid or increase the rinse aid dosage level. See the chapter Settings. The setting TAB is activated and all-in-one detergent with insufficient drying effect is being used. Switch all-in-one detergents or deactivate the setting TAB and top up with salt and separate rinse aid. See Rinse aid in the chapter Settings. Installation [mm] *Remove the locking nuts when installing in a recess measuring 820-821 mm. Nominal dimensions. Actual measurements may vary. Safety instructions

Connections to electricity, water and drainage must be performed by a qualified professional.

Always follow applicable regulations for water, drainage and electricity.

Take care during installation! Wear protective gloves! There must always be two people!

Place a drip tray on the floor beneath the dishwasher to prevent damage from any water leaks.

Before screwing the dishwasher into place, test the dishwasher by running the Rinse & hold program. Check that the dishwasher fills with water and drains. Check also that none of the connections leak. WARNING! Turn off the water supply when installing the dishwasher! The plug must be disconnected or power to the socket turned off while the work is carried out!

Installation Transport protection for the door Do not forget to remove the transport protection for the door when unpacking the dishwasher. Placing the dishwasher The dishwasher can be installed built-in, completely freestanding or partially built-in. Make sure the area on which the dishwasher is to be installed is firm. A. Built-in The dishwasher is intended for installation under a worktop. The recess dimensions are illustrated. Holes for wires/cables need not be larger than 38 mm in diameter. Make sure the edges of such holes are even to prevent damage to the drainage and inlet hoses and the power cable. [mm] If the dishwasher is built-in the surrounding furnishings must be resistant to any condensation from the dishwasher. B. Freestanding A freestanding dishwasher must be fitted with anti-tip brackets. This comprises two brackets, which are screwed into place as illustrated. The dishwasher is then pushed in so that the brackets engage the rear feet. Now the dishwasher will not topple if pressure is put on the open door. If the dishwasher is installed completely on its own, side panels and a worktop must both be fitted. Accessories can be purchased where you bought the dishwasher.

Installation WARNING! A completely freestanding dishwasher must be fitted with anti-tip brackets. C. Partially built-in If the dishwasher is located so that one of its sides is visible, a side panel must be fitted. Accessories can be purchased where you bought the dishwasher. Affix the protective film Affix the protective film (packed in the document bag). The protective film is to protect the worktop from moisture. NOTE! The surface to which the protective film is affixed must be clean and dry. Adjust the height and slide the dishwasher into place

1. Start by measuring the height from the floor to the bottom edge of the worktop.

2. Measure the height from the floor to the top edge of the dishwasher.

3. Lean the dishwasher forwards a little and adjust the rear foot with the screw at the front of the

dishwasher. Turn clockwise to lower or anticlockwise to raise.

4. Adjust the front feet by turning them clockwise to raise and anticlockwise to lower the dishwasher.

5. Check that there is an air gap of at least 3 mm between the underside of the worktop and the

top edge of the dishwasher.

6. Slide the dishwasher into place.

Pull the supply and drainage hoses when sliding the dishwasher into place.

Check that the hoses have no kinks or sharp bends, and check that there is nothing that can damage the hoses.

Check that the machine is installed such that the door opens freely, otherwise door lock functionality may be disrupted.

7. Make any final adjustments to the feet (the dishwasher may lean no more than 5 mm) and tighten

the lock nuts on the front feet.

Installation Drainage connection This dishwasher is suitable for installing in a raised recess (to attain an ergonomic working height). This means that the dishwasher can be placed so that the drainage hose runs to a lower level than the bottom of the dishwasher, such as by routing it directly to a floor drain. The dishwasher is fitted with an integrated anti-siphon device to prevent the machine from being emptied of water during the wash cycle. min. 14 mm Max. 950 mm The drainage hose can also be connected to a connection nipple on the sink unit's water trap. The connection nipple must have an internal diameter of at least 14 mm. The drainage hose may be extended by a maximum of 2.5 m (the total length of the drainage hose must not exceed 4.5 m). Any joins and connecting pipes must have an internal diameter of at least 14 mm. However, the drainage hose should ideally be replaced with a new hose without joins. No part of the drainage hose may be more than 950 mm above the bottom of the dishwasher. Attach the drainage hose with a hose clamp. Ensure that the drainage hose has no kinks.

Installation Connection to water supply Use only the inlet hose supplied with the dishwasher. Do not re-use old or other spare hoses. The supply pipe must be fitted with a water tap (stopcock). The water tap must be easily accessible, so that the water can be shut off if the dishwasher has to be moved. Once the installation is complete, turn on the water tap and allow the pressure to settle for a while. Check that all connections are watertight. Connection to cold water supply Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas. Connection to hot water supply Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot water connection cuts dishwashing times and reduces the dishwasher's energy consumption. NOTE! Do not exceed the permitted water supply temperature. Certain materials used in some cookware cannot withstand strong heat. See Fragile dishes in the chapter Loading the dishwasher. Electrical connection Information about the electrical connection can be found on the serial number plate. This specification must match the electricity supply. The dishwasher must be connected to an earthed socket. The electric wall socket must be placed outside of the installation area to be easily accessible after installing the dishwasher. Do not use an extension cord! NOTE! Any repair and maintenance pertaining to safety or performance should be done by trained experts. Screwing the dishwasher into place (Applicable only to built-in dishwashers.) After fastening the machine, check that the front feet still touch the floor.

Installation Screw the dishwasher into place with two extra screws If there is an air gap of more than 3 mm between the underside of the worktop and the top edge of the dishwasher, the dishwasher ought to be screwed into place with two extra screws.

Installation Dishwasher toe kick The dishwasher is supplied with a toe kick. Fit the sound insulation (only certain models) Fit the toe kick

Service Information about your product There is a QR code on the serial number plate. Scan the code to view information about your product. (only certain models) Contact the service department Read the chapter Troubleshooting before contacting the service centre. If you have encountered a problem that you cannot resolve, please contact your nearest service centre for professional help, see www.asko.com. Our website also has information about spare part availability and what you can repair yourself. When making contact, provide the details on the serial number plate. Include the article number (1) and the serial number (2). Please note that non-professional repairs may risk user safety and affect the warranty. QR code

Technical data and energy labelling Technical data Height: Width: Depth: Weight: Number of standard place settings: Water pressure: Electrical connection: Rated power: 819-872 mm 596 mm 559 mm 50 kg 1) 13 2) 0.03–1.0 MPa See serial number plate See serial number plate

1) Weight can vary due to different specifications.

2) In accordance with the EN 50242 / EN 60436 standard.

Information for consumers Information about your product can be found at www.asko.com/energylabel, where you will also find a link to the European Product Database for Energy Labelling, EPREL. Or else visit https://eprel.ec.europa.eu directly. Follow the instructions to search by model name. See the information on the serial number plate. Make a note of the model name (3). Information for test institute Information about this product can be found in the European Product Database for Energy Labelling, EPREL, and can also be ordered by e-mail dishwashers@appliance-development.com. The request should include the details on the serial number plate. Include the article number (1), the serial number (2) and the model name (3).
