USER MANUAL EVM6E46X ELECTROLUX

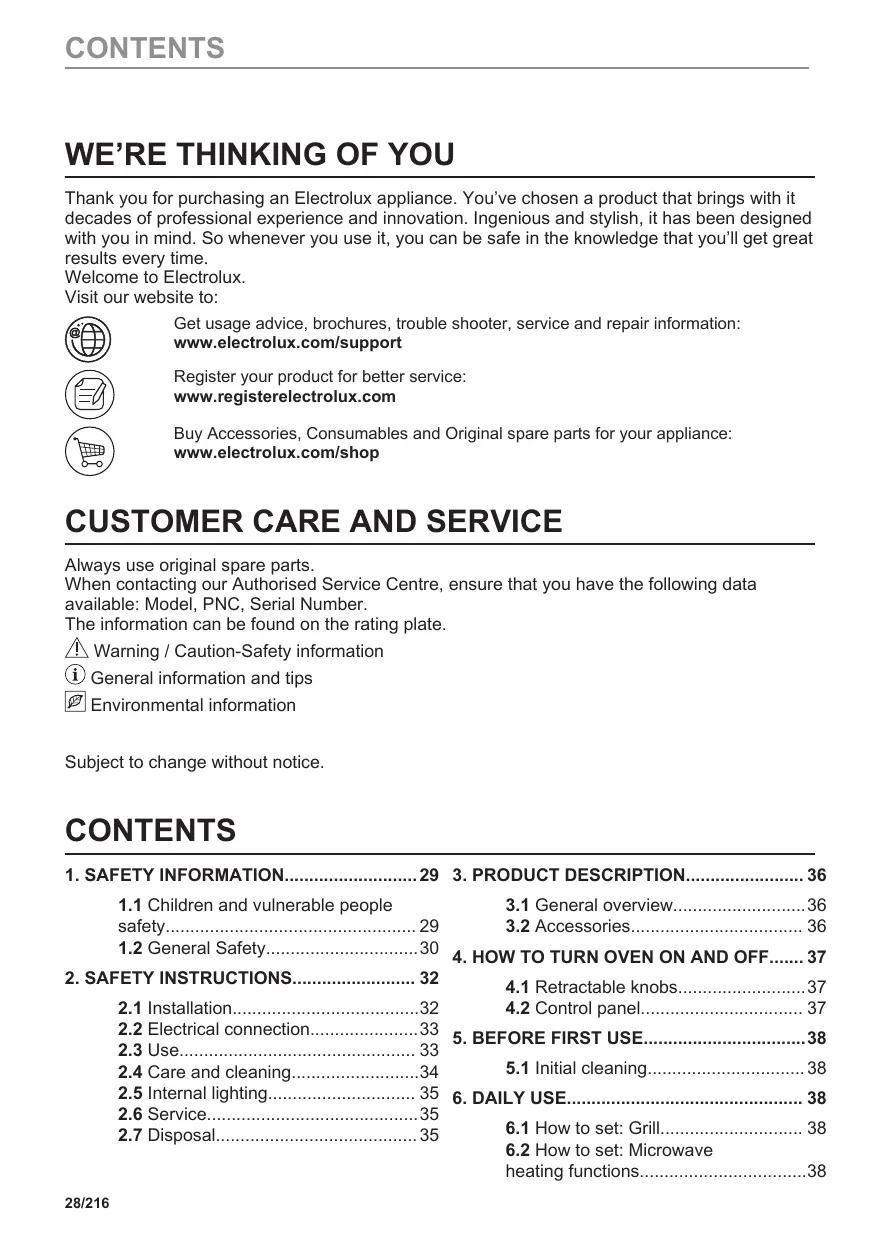

EVM6E46X EVM6E46Z KOMFE46X CS EN FR DE IT PL SK ES KVMDE46X WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux. Visit our website to: Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support Register your product for better service: www.registerelectrolux.com Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate. Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice.

1. SAFETY INFORMATION 29 3. PRODUCT DESCRIPTION 36 1.1 Children and vulnerable people safety 29 1.2 General Safety30 2. SAFETY INSTRUCTIONS 32

3.1 General overview36

3.2 Accessories 36 4. HOW TO TURN OVEN ON AND OFF 37

6.3 Heating functions 39 6.4 How to set: Assisted Cooking 40 6.5 Assisted Cooking 41

10.3 Recommended power settings for different kinds of food 47

10.4 Cooking tables for test institutes..48

7. CLOCK FUNCTIONS42 11. CARE AND CLEANING49

7.1 Clock functions 42 7.2 How to set: Clock functions 42 8. HOW TO USE: ACCESSORIES 44

11.1 Notes on cleaning 49

12. TROUBLESHOOTING 50

8.1 Inserting accessories 44

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

Children should be supervised to ensure that they do not play with the appliance. 29/216

Keep all packaging away from children and dispose of it appropriately.

WARNING: Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts become hot during use. If the appliance has a child safety device, it should be activated. Children shall not carry out cleaning and user maintenance of the appliance without supervision.

Only a qualified person must install this appliance and replace the cable.

Do not use the appliance before installing it in the built-in structure. Disconnect the appliance from the power supply before carrying out any maintenance. If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Always use oven gloves to remove or put in accessories or ovenware. Use only the turntable and the turntable support designed for this appliance. Do not activate the microwave function when the appliance is empty. Metal parts inside the cavity can create electric arcing. Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not

applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.

WARNING: If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a qualified person. WARNING: Only a qualified person can carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. WARNING: Do not heat liquids and other foods in sealed containers. They are liable to explode. Use only utensils that are suitable for use in microwave ovens. When heating food in plastic or paper containers, observe the appliance due to the possibility of ignition. The appliance is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. Microwave heating of beverages can result in delayed eruptive boiling. Care must be taken when handling the container. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode, even after microwave heating has ended. The appliance should be cleaned regularly and any food deposits removed. Do not use a steam cleaner to clean the appliance.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

2. SAFETY INSTRUCTIONS

2.1 Installation WARNING! Only a qualified person must install this appliance. • • • • • • • • • •

Remove all the packaging.

Do not install or use a damaged appliance. Follow the installation instructions supplied with the appliance. Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear. Do not pull the appliance by the handle. Install the appliance in a safe and suitable place that meets installation requirements. Keep the minimum distance from other appliances and units. Before mounting the appliance, check if the oven door opens without restraint. The appliance is equipped with an electric cooling system. It must be operated with the electric power supply. The built-in unit must meet the stability requirements of DIN 68930. Cabinet minimum height (Cabinet under the work‐ top minimum height)

Height of the front of the appliance

Height of the back of the appliance

Width of the front of the appliance

Width of the back of the appliance

Depth of the appliance

SAFETY INSTRUCTIONS Built in depth of the appliance

Depth with open door

Ventilation opening minimum size. Opening placed on the bottom rear side

Mains supply cable length. Cable is placed in the right corner of the back side Mounting screws

2.2 Electrical connection

WARNING! Risk of fire and electric shock. • • • • • • • • • • • • • •

All electrical connections should be made by a qualified electrician.

The appliance must be earthed. Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply. Always use a correctly installed shockproof socket. Do not use multi-plug adapters and extension cables. Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre. Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot. The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools. Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation. If the mains socket is loose, do not connect the mains plug. Do not pull the mains cable to disconnect the appliance. Always pull the mains plug. Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors. The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm. This appliance is supplied with a main plug and a main cable.

WARNING! Risk of injury, burns and electric shock or explosion. • • •

This appliance is for household (indoors) use only.

Do not change the specification of this appliance. Make sure that the ventilation openings are not blocked. 33/216

Do not let the appliance stay unattended during operation.

Deactivate the appliance after each use. Be careful when you open the appliance door while the appliance is in operation. Hot air can release. Do not operate the appliance with wet hands or when it has contact with water. Do not apply pressure on the open door. Do not use the appliance as a work surface or as a storage surface. Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air. Do not let sparks or open flames to come in contact with the appliance when you open the door. Do not put flammable products or items that are wet with flammable products in, near or on the appliance. Do not use microwave function to preheat the oven. WARNING! Risk of damage to the appliance.

To prevent damage or discoloration to the enamel:

– do not put aluminium foil directly on the bottom of cavity of the appliance. – do not put water directly into the hot appliance. – do not keep moist dishes and food in the appliance after you finish the cooking. – be careful when you remove or install the accessories. Discoloration of the enamel or stainless steel has no effect on the performance of the appliance. This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating. Always cook with the oven door closed. If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING! Risk of injury, fire, or damage to the appliance. • • • • • • •

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

Make sure the appliance is cold. There is the risk that the glass panels can break. Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre. Be careful when you remove the door from the appliance. The door is heavy! Make sure the cavity, the turntable and the door are wiped dry after each use. Steam produced during the operation of the appliance condensates on cavity walls and can cause corrosion. Clean regularly the appliance to prevent the deterioration of the surface material. Fat and food remaining in the appliance can cause fire and electric arcing when the microwave function operates.

Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

If you use an oven spray, follow the safety instructions on its packaging.

2.5 Internal lighting

WARNING! Risk of electric shock. •

Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

Use only lamps with the same specifications.

To repair the appliance contact the Authorised Service Centre.

Use original spare parts only.

WARNING! Risk of injury or suffocation. • • • •

Contact your municipal authority for information on how to dispose of the appliance.

Disconnect the appliance from the mains supply. Cut off the mains electrical cable close to the appliance and dispose of it. Remove the door catch to prevent children or pets from becoming trapped in the appliance.

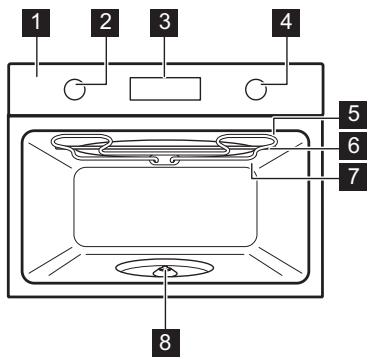

3. PRODUCT DESCRIPTION 3.1 General overview 1

2 Knob for the heating functions 3 Display 4 Control knob 5 Heating element 6 Microwave generator 7 Lamp 8 Turntable shaft

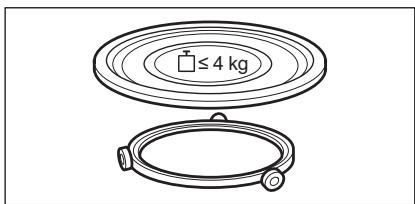

Turntable set To prepare food.

HOW TO TURN OVEN ON AND OFF

4. HOW TO TURN OVEN ON AND OFF 4.1 Retractable knobs To use the appliance press the knob. The knob comes out.

Control panel sensor fields

Select a heating function to turn on the oven.

Turn the knob for the heating functions to the off position to turn the oven off. When the knob for the heating functions is in the off position, the display goes to standby.

Display with key functions.

Display in‐ dicators:

Progress bar - for temperature or time. The bar is fully red when the oven reaches the set tempera‐ ture.

5. BEFORE FIRST USE WARNING! Refer to Safety chapters.

5.1 Initial cleaning

Before the first use clean the empty oven and set the time:

6. DAILY USE WARNING!

Refer to Safety chapters.

6.1 How to set: Grill

Start cooking Step 1

Select the function: Grill.

6.2 How to set: Microwave heating functions

Select a microwave heating function and press: to start with default settings.

The display shows: duration and microwave power.

Turn the knob for the heating functions to the off position to turn off the oven.

DAILY USE You can adjust settings while cooking.

Turn the control knob to adjust duration. Press: Press WATT and turn the control knob to adjust microwave power. Press:

The maximum time of microwave functions depends on microwave power you set:

MICROWAVE POWER MAXIMUM TIME

If you open the door, the microwave function stops. To start it again, close the door. Press

6.3 Heating functions

Standard heating functions Heating function

Heating up drinks and soups, power range: 800 - 1000 W Liquid

Heating up pre-prepared meals and delicate food, power range: 300 - 700 W Reheat Defrosting meat, fish, cakes, power range: 100 - 200 W Defrost Melting chocolate and butter, power range: 100 - 400 W Melting Preparing popcorn, power range: 700 - 1000 W Popcorn

DAILY USE Heating function

To grill thin pieces of food and to toast bread.

To cook food in short time and brown it with high grill intensity. Power range: 100 - 500 W. Grill High To cook food in short time and brown it with low grill intensity. For casser‐ oles such as potato gratin, lasagne. Power range: 100 - 500 W. Grill Low Heating up, cooking, power range: 100 - 1000 W Microwave To enter the Menu: Assisted Cooking, Settings. Menu

6.4 How to set: Assisted Cooking

Every dish in this submenu has a recommended function. You can adjust the time during cooking. Assisted Cooking - use it to prepare a dish quickly with default settings: Step 1

Select the dish. Press

Insert the dish to the oven. Confirm setting.

6.5 Assisted Cooking Legend Function with microwave power. Use microwave safe accessory. Shelf level.

Shelf level / Accessory

low wire rack; ceramic or glass casserole dish

Use your favourite spices.

turntable glass plate; ceramic or glass casserole dish

Cover the food with a microwave safe lid with some holes.

turntable glass plate; ceramic or glass casserole dish

Cover the food with a microwave safe lid with some holes.

Vegetable / Side dishes

Potatoes in their jacket

turntable glass plate; ceramic or glass casserole dish

Add 50 ml of water. Cover the food with a microwave safe lid with some holes.

CLOCK FUNCTIONS Dish

Shelf level / Accessory

turntable glass plate; ceramic or glass casserole dish

Add 400 ml of water. Cover the food with a microwave safe lid with some holes.

Lasagna with dry noodle plates

low wire rack; ceramic or glass casserole dish

7.1 Clock functions Clock Function

Minute minder. When the timer ends, the signal sounds. Cooking time. When the timer ends, the signal sounds and the heating function stops. Time Delay. To postpone the start and / or end of cooking. Uptimer. Maximum is 23 h 59 min. This function has no effect on the operation of the oven. To turn on and off the Uptimer select: Menu, Settings.

7.2 How to set: Clock functions

How to set: Time of day Step 1

CLOCK FUNCTIONS How to set: Time of day

To change the time of day enter the menu and select Settings, Time of day.

How to set: Minute minder

Timer starts counting down immediately.

This function is available only for: Grill, Grill Low, Grill High. How to set: Cooking time Step 1

0:00 Choose a heating function and set the temperature.

Set the cooking time.

Timer starts counting down immediately.

This function is available only for: Grill, Grill Low, Grill High.

HOW TO USE: ACCESSORIES How to set: Time Delay

The dis‐ play shows: the time of day Press re‐ peatedly:

The dis‐ play shows:

--:-Set the start time.

Timer starts counting down at a set start time.

This function is available only for: Grill.

8. HOW TO USE: ACCESSORIES

8.1 Inserting accessories Use only suitable cookware and material. Refer to "Hints and tips" chapter, Microwave suitable cookware and materials. Turntable set: Always cook food on the turntable set. Place the roller guide around the turntable shaft. Place the turntable glass on the roll‐ er guide. Use only the turntable set supplied with the oven.

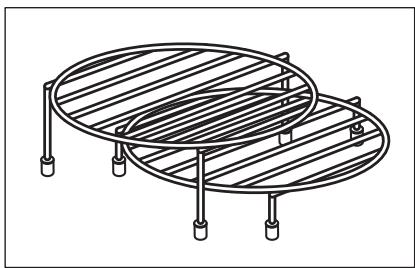

Place the grill rack with the silicon caps down on the turntable set.

ADDITIONAL FUNCTIONS

9. ADDITIONAL FUNCTIONS 9.1 Lock This function prevents an accidental change of the oven function. Turn it on when the oven works - the set cooking continues, the control panel is locked. Turn it on when the oven is off - the oven cannot be turned on, the control panel is locked. - press and hold to turn on the function. A signal sounds.

- press and hold to turn it off.

- flashes when the lock is turned on.

9.2 Automatic switch-off

For safety reasons the oven turns off after some time, if a heating function works and you do not change any settings.

The Automatic switch-off does not work with the functions: Light, Time Delay.

When the oven operates, the cooling fan turns on automatically to keep the surfaces of the oven cool. If you turn off the oven, the cooling fan can continue to operate until the oven cools down.

10.1 Microwave recommendations Let's cook! Do not place the food directly on the turntable. Always use the microwave suitable cookware. Place the cookware in the middle of the turntable. Make sure that the food and cookware placed on the turntable is at the room temperature. Contact with too hot or too cold items can break the turntable. Turn or stir the food halfway through the defrosting and cooking time. 45/216

HINTS AND TIPS Stir liquid dishes from time to time.

Stir the food before serving. Cover the food for cooking and reheating. Put the spoon to the bottle or glass when heating drinks to ensure better heat distribution. Put the food into the oven without packaging. The packaged ready meals can be put into the oven only when the packaging is microwave safe (check information on the packaging). Microwave cooking Cook food covered. If you want to keep a crust cook food without a cover. Do not overcook the dishes by setting the power and time too high. The food can dry out, burn or cause fire. Do not use the oven to cook eggs or snails in their shells, because they can burst. Pierce the yolk of fried egg before reheating it. Pierce food with skin or peel several times before cooking. Cut vegetables into similar-sized pieces. After you turn off the oven, take the food out and let it stand for a few minutes to allow the heat distribute evenly. Microwave defrosting Put the frozen, unwrapped food on a small upturned plate with a container below it, or on a defrosting rack or plastic sieve so that the defrosting liquid can leak out. Remove defrosted pieces subsequently. To cook fruit and vegetables without defrosting them first, you can use a higher microwave power.

10.2 Microwave suitable cookware and materials

For the microwave use only suitable cookware and materials. Use below table as a reference. Check the cookware / material specification before use. Cookware / Material

Ovenproof glass and porce‐ lain with no metal compo‐ nents, e.g. heat-proof glass

Non-ovenproof glass and porcelain without any silver, gold, platinum or other metal decorations Glass and glass ceramic made of ovenproof / frostproof material

X X X HINTS AND TIPS Ceramic and earthenware without any quartz or metal components and glazes which contain metal

Ceramic, porcelain and earth‐ enware with unglazed bottom or with small holes, e.g. on handles

X X Heat-resistant plastic up to

200 °C X X X X X X Cardboard, paper

X X X Microwave clingfilm

X X X X X Roasting film with microwave safe closure

Roasting dishes made of metal, e.g. enamel, cast iron

X X X Baking tins, black lacquer or silicon-coated

X X X Cookware for microwave use, e.g. crisp pan

10.3 Recommended power settings for different kinds of food

The data in the table is for guidance only.

800 - 1000 W Searing at the start of the cooking process

500 - 700 W Cooking egg dishes

Heating oneplate meals

Defrosting and heating frozen meals

300 - 400 W Melting cheese, chocolate, but‐ ter

Cooking / Heating delicate food

100 - 200 W Heating baby food

Defrosting fruit and cakes

Defrosting cheese, cream, butter

10.4 Cooking tables for test institutes

Information for test institutes Tests according to IEC 60705.

MICROWAVE FUNCTION Sponge cake

Defrosting meat, fish

CARE AND CLEANING Use the function: Microwave grilling.

Use the low grill rack. MICROWAVE COMBI FUNCTION (W)

Grill intensity level

Put the meat in round glass con‐ tainer.

11. CARE AND CLEANING WARNING!

Refer to Safety chapters.

11.1 Notes on cleaning

Clean the front of the oven with a soft cloth with warm water and a mild deter‐ gent. Use a cleaning solution to clean metal surfaces. Cleaning Agents

Clean stains with a mild detergent.

TROUBLESHOOTING Clean the cavity after each use. Fat accumulation or other residue may cause fire.

Clean the oven ceiling carefully from residue and fat. Everyday Use

Do not store the food in the oven for longer than 20 minutes. Dry the cavity with a soft cloth after each use.

Clean all accessories after each use and let them dry. Before cleaning, wait un‐ til the turntable is cold. There is a risk that the turntable can break. Use a soft cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.

Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

12. TROUBLESHOOTING WARNING!

Refer to Safety chapters.

12.1 What to do if...

In any cases not included in this table please contact with an Authorised Service Centre.

The oven does not turn on or does not heat up

You cannot activate or operate the oven.

The oven is correctly connected to an electrical supply.

The oven does not heat up.

The automatic switch-off is deactivated.

The oven does not heat up.

The fuse is not blown.

The oven does not heat up.

ENERGY EFFICIENCY Components

The lamp does not work.

The lamp is burnt out. Contact an Authorised

The turntable set makes noise.

There is food residue below the turntable set.

There was a power cut. Set the time of day.

If the display shows an error code that is not in this table turn the house fuse off and on to restart the oven. If the error code recurs contact an Authorised Service Centre.

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the oven cavity. Do not remove the rating plate from the oven cavity. We recommend that you write the data here: Model (MOD.)

Product number (PNC)

Serial number (S.N.)

13. ENERGY EFFICIENCY

13.1 Energy saving Make sure that the oven door is closed when the oven operates. Do not open the oven door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position. When possible, do not preheat the oven before cooking. Keep breaks between baking as short as possible when you prepare a few dishes at one time. Cooking with the lamp off Turn off the lamp during cooking. Turn it on only when you need it.

Assisted Cooking Step 1

Select the Menu, Settings.

Select the set‐ ting.

Adjust the value and press

2 - Click 3 - Sound off

Activation code: 2468

15. ENVIRONMENTAL CONCERNS Recycle materials with the symbol . Put the packaging in relevant containers to recycle it.

Help protect the environment and human health by recycling waste of electrical and electronic 52/216

MENU STRUCTURE appliances. Do not dispose of appliances marked with the symbol with the household waste.

Return the product to your local recycling facility or contact your municipal office.

Confirmez la configuration.

Confirmez la configuration.

Piselli, surge‐ lati

Teglie laccate in nero o rive‐ stite in silicone

X X X Patate gratinate, 1,1 kg

Ziemniaki w mundurkach

Fundir queso, chocolate, man‐ tequilla
