USER MANUAL NZ64M3707AK/UR - NZ64M3707AK/UR SAMSUNG

safety instructions _3

4_ safety instructions

safety instructions _5

6_ safety instructions

safety instructions _7

8_ safety instructions

safeTy INsTruCTIoNs safety instructions _9

over without warning

10_ safety instructions

safety instructions _11

the lid (Model which has lid only).

12_ safety instructions

WARNING Caution signs for cleaning

safety instructions _13

WARNING WARNING Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

warranty and service technical data

WARNING Safety instructions for the installer •

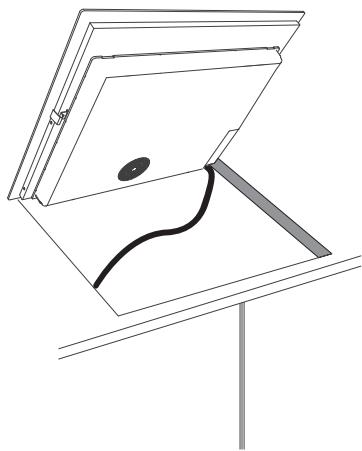

WARNING Shut off power to circuit before connecting wires to circuit.

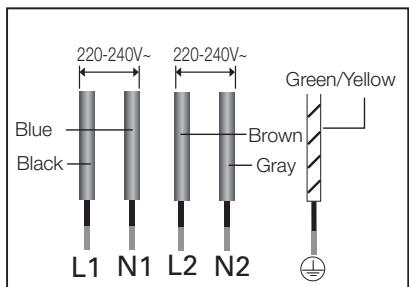

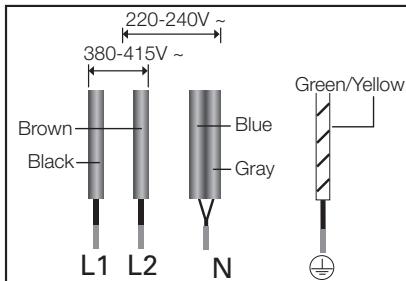

• 2N ~ : Separate the 2-phase wires (L1 and L2) before connection. 220-240V ~

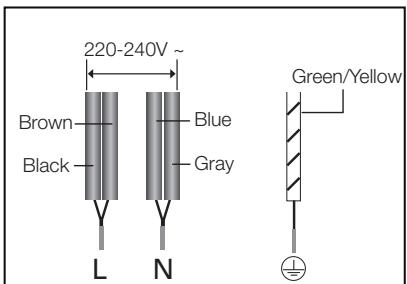

L Green/Yellow Brown

WARNING For correct supply connection, follow the wiring diagram attached near the terminals.

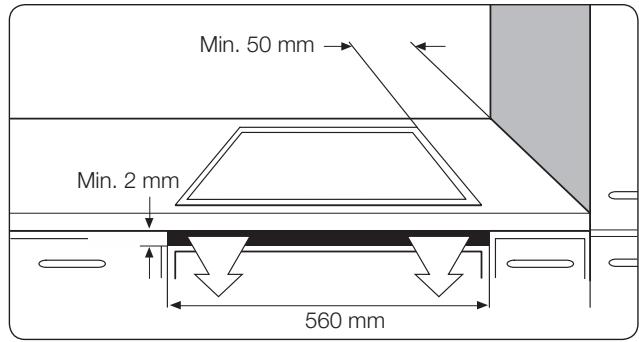

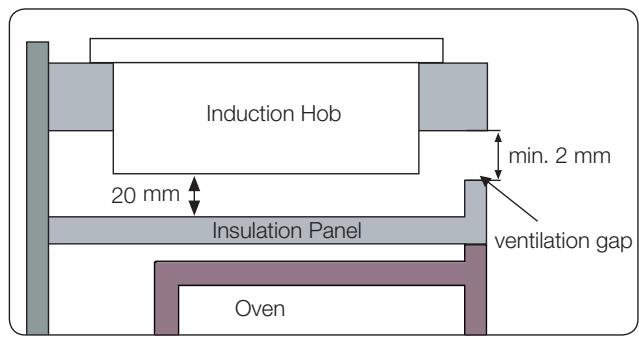

before installation. Min. 50 mm

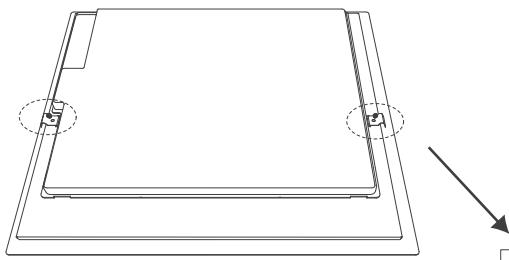

Install the two brackets

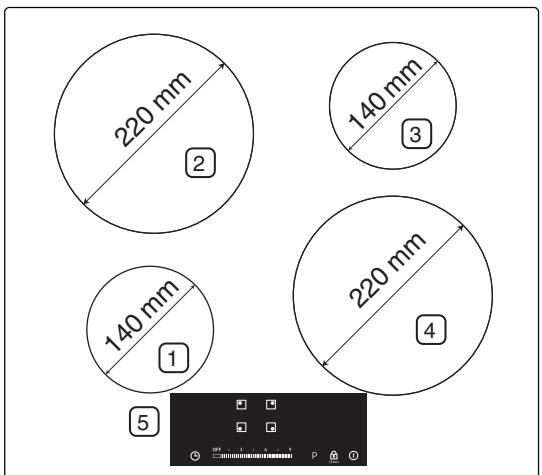

parts and features Cooking zones

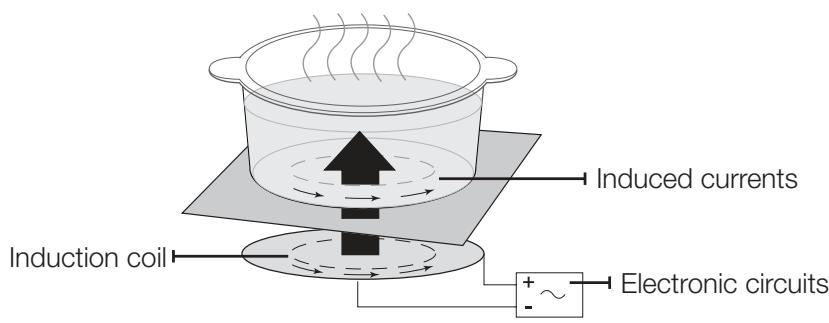

Induced currents Induction coil

22_ parts and features

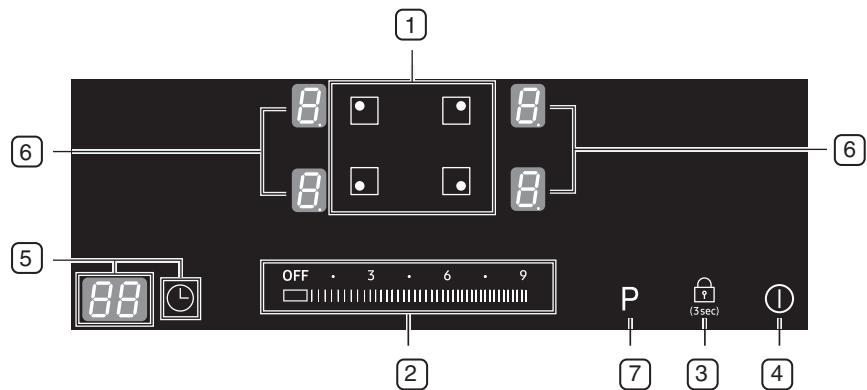

parts and features _23

If cookware is unsuitable or too small or no cookware has

24_ parts and features

Other reasons why a cooking zone can switch itself off

the appliance will need to be switched on again using the main On/Off control sensor after the liquid or the cloth has been removed .

Residual heat indicator presence of residual heat is shown with an

WARNING WARNING If the power supply is interrupted, the

parts and features _25

Initial cleaning Wipe the ceramic glass surface with a damp cloth and ceramic hob glass cleaner. Do not use caustic or abrasive cleaners. The surface could be damaged.

WARNING Cookware for induction cooking zones The induction hob can only be turned on when a cookware with a magnetic base is placed on one of the cooking zones. You can use the following suitable cookware.

Cookware material Cookware material

Steel, Enamelled steel

If appropriately labelled by the manufacturer

Aluminium, Copper, Brass

Glass, Ceramic, Porcelain

Cookware for induction hob is labelled as suitable by the manufacturer. Certain cookware can make noise when being used on induction cooking zones. These noise are not a fault in the appliance and do not affect operation in any way.

26_ before you begin

Minimum diameter of the bottom of the cookware

sensor for approximately 1 seconds.

2. The digital displays will show

After the On/Off control sensor has been actuated to switch on your appliance, a heat setting must be selected within approximately 1 minutes. Otherwise, the appliance will switch itself off for safety reasons.

Select cooking zone and heat setting 1. For selecting the cooking zone, touch the corresponding cooking zone’s key.

2. For setting and adjusting the power level, touch the Heat setting selectors.

If more than one sensor except the slide touch key is pressed for longer than 10 seconds, An acoustic signal will sound and the appliance is switched off. To reset, touch the On/Off sensor. control

swITChINg The applIaNCe off To completely switch off the appliance, use the On/Off control sensor.

Touch the On/Off sensor for approximately 1 second. After switching off a single cooking zone or the entire cooking surface, the presence of residual heat will be indicated in the digital displays of the corresponding cooking zones in the form of an (for “hot”).

swITChINg a CooKINg zoNe off To switch off a cooking zone, return the setting to by using the control panel’s control sensor.

usINg The ChIld safeTy loCK You can use the child safety lock to safeguard against unintentionally turning on a cooking zone and activating the cooking surface. Also the control panel, with the exception of the On/Off control sensor, can be locked in order to prevent the settings from being changed unintentionally, for example, by wiping over the panel with a cloth. 30_ hob use

Switching the child safety lock on / off

1. Touch the Lock control sensor for approximately 3 seconds. An acoustic signal will sound as confirmation. will appear in the displays, indicating the child safety lock has been activated.

3. For switching the child safety lock off, touch the Lock control sensor again for 3 seconds. An acoustic signal will sound as confirmation.

Timer There are two ways to use the timer: Using the timer as a safety shutoff: If a specific time is set for a cooking zone, the cooking zone will shut itself off once this period of time has elapsed. This function can be used for multiple cooking zones simultaneously. Using the timer to count down: The countdown timer cannot be used if a cooking zone has been switched on.

Setting the safety shutoff The cooking zone(s) for which you want to apply the safety shutoff must be switched on. 1. Touching the heating zone selection control

2. Touch the sensor, the '10' will show in the timer display,and the '1' flashes.

3. Set the time by touching the slide touch control. (can set 10 min, 20 min, 90 min)

4. Touch the "timer control" sensor again. The "0" will flashes.

5. Set the time by touching the slide touch control. (can set 1 min, 2 min, 9 min)

Dot(.) symbol will flash on the right side of power level during safety shutoff timer. To cancel the timer setting, make time to zero. The timer display will show " "

For the countdown timer to be used, the appliance must be switched on but all the cooking zones do not be selected. 1. Touch the Timer control sensor. will appear in the timer display. 2. Set the desired period of time using the slide touch control sensor. The countdown timer function is now activated and the remaining time appears in the timer display. To adjust the remaining time, touch the Timer control sensor. and change the setting using the slide touch control sensor. 32_ hob use

3. Buzzer will beeps for 30 seconds when the setting timer is finished.

Power boost control hob use

The power boost function makes additional power available to the each cooking zones. (example : bring a large volume of water to the boil) The power boost function is activated for maximum 5 minutes for each cooking zones. After these times, the cooking zones automatically return to power level In certain circumstances, the Power boost function may be deactivated automatically to protect the internal electronic components of the hob.

power maNagemeNT The cooking zones have a maximum power available to them. If this power range is exceeded by switching on the power boost function , Power Management automatically reduced the heat setting of paired another cooking zone. • Left side : No.1 and No.2 is paired cooking zone • Right side : No.3 and No.4 is paired cooking zone The indicator for this cooking zone changes from the heat setting set to maximum possible heat setting. • Example paired another cooking zone’s heat setting (No.4) last heat setting of cooking zone automatically (No.3) changed heat riginal heat setting o setting Power Boost 6 level 2 level

Suggested settings for cooking specific foods The figures in the table below are guidelines. The heat settings required for various cooking methods depend on a number of variables, including the quality of the cookware being used and the type and amount of food being cooked. Switch Setting

Warming large amounts of liquid, boiling noodles, searing meat, (browning goulash,braising meat)

Steak, Srloin, Hash Brown, Sausages

Schnitzel / chops, Liver, Fish, Rissoles, Fried egg pancakes/Griddle cakes

Steaming and stewing of small amount of vegetables, Boiling rice and milk dishes

The heat settings indicated in the table above are provided only as guidelines for your reference. You will need to adjust the heat settings according to specific cookware and foods.

cleaning and care hob

WARNING Clean the ceramic glass surface after each use when it is still warm to the touch. This will prevent spillage from becoming burnt onto the surface. Remove scales, watermarks, fat drippings and metallic discolouration with the use of a commercially available ceramic glass or stainless steel cleaner.

Cleaning agents must not come into contact with a heated ceramic glass surface: All cleaning agents must be removed with adequate amounts of clean water after cleaning because they can have a caustic effect when the surface becomes hot. Do not use any aggressive cleaners such as grill or oven sprays, scouring pads or abrasive pan cleaners.

light soiling 1. Wipe the ceramic glass surface with a damp cloth. 2. Rub dry with a clean cloth. Remnants of cleaning agent must not be left on the surface. 3. Thoroughly clean the entire ceramic glass cooking surface once a week with a commercially available ceramic glass or stainless steel cleaner. 4. Wipe the ceramic glass surface using adequate amounts of clean water and rub dry with a clean lint - free cloth.

stubborn soiling 1. To remove food that has boiled over and stubborn splashes, use a glass scraper. 2. Place the glass scraper at an angle to the ceramic glass surface. 3. Remove soiling by scraping with the blade. Glass scrapers and ceramic glass cleaners are available from specialty retailers.

cleaning and care _35

problem dirt 1. Remove burnt-on sugar, melted plastic, aluminium foil or other materials with a glass scraper immediately and while still hot. There is a risk of burning yourself when the glass scraper is used on a hot cooking zone: WARNING

2. Clean the hob as normal when it has cooled down. If the cooking zone on which something has melted has been allowed to cool, warm it up again for cleaning. Scratches or dark blemishes on the ceramic glass surface, caused, for example, by a pan with sharp edges, cannot be removed. However, they do not impair the function of the hob.

hob frame (opTIoN) Do not use vinegar, lemon juice or scale remover on the hob frame; otherwise dull blemishes will appear. 1. Wipe the frame with a damp cloth. 2. Moisten dried debris with a wet cloth. Wipe and rub dry.

WARNING To avoId damagINg your applIaNCe • Do not use the hob as a work surface or for storage. • Do not operate a cooking zone if there is no pan on the hob or if the pan is empty. • Ceramic glass is very tough and resistant to temperature shock, but it is not unbreakable. It can be damaged by a particularly sharp or hard object dropping onto the hob. • Do not place pans on the hob frame. Scratching and damage to the finish may occur. • Avoid spilling acidic liquids, for example, vinegar, lemon juice and descaling agents, onto the hob frame, since such liquids can cause dull spots. 36 _cleaning and care 2016-12-20

• If sugar or a preparation containing sugar comes into contact with a hot cooking zone and melts, it should be cleaned off immediately with a kitchen scraper while it is still hot. If allowed to cool, it may damage the surface when removed. • Keep all items and materials that could melt, for example, plastics, aluminium foil and oven foils, away from the ceramic glass surface. If something of this nature melts onto the hob, it must be removed immediately with a scraper.

cleaning and care _37

warranty and service FAQs and troubleshooting A fault may result from a minor error that you can correct yourself with the help of the following instructions. Do not attempt any further repairs if the following instructions do not help in each specific case. Repairs to the appliance are to be performed only by a qualified service technician. Improperly effected repairs may result in considerable risk to the user. If your appliance needs repair, please contact your customer service centre.

WARNING What should I do if the cooking zones are not functioning? Check for the following possibilities: • The fuse in the house wiring (fuse box) is intact. If the fuses trip a number of times, call an authorised electrician. • The appliance is properly switched on. • The control indicators in the control panel are illuminated. • The cooking zone is switched on. • The cooking zones are set at the desired heat settings.

What should I do if the cooking zones will not switch on? Check for the following possibilities: • A period of more than 1 minute has elapsed between when the On/Off button was actuated and the desired cooking zone switches on (see the section “Switching the appliance on”). • The control panel is partially covered by a damp cloth or liquid.

What should I do if the display except for warmth indicator suddenly disappears?

This could be a result of one of two possibilities: • The On/Off sensor was accidentally actuated. • The control panel is partially covered by a damp cloth or liquid.

38_ warranty and service

What should I do if, after the cooking zones have been switched off, residual warmth is not indicated in the display?

What should I do if the cooking zone will not switch on or off? This could be due to one of the following possibilities: • The control panel is partially covered by a damp cloth or liquid. • The child safety lock is on.

What should I do if the

display is illuminated?

Check for the following: • The hob is overheated because of abnormal operation. • After hob is cooled down, press the “On/Off” control

sensor for resetting. What should I do if the

warranty and service

Check for the following possibility: • The cooking zone was only briefly used and therefore did not become hot enough. If the cooking zone is hot, please call the customer service centre.

display is illuminated?

Check for the following: • Cookware is unsuitable or too small or no cookware has been placed on the cooking zone • If you use suitable cookware, displayed message will automatically

disapear. What should I do if the cooling fan runs after the hob is turned off?

Check for the following: • When you have fnished using the hob, the cooling fan will continue to run 1 minute by itself for cooling down. If you request a service call because of an error made in operating the appliance, the visit from the customer service technician may incur a charge even during the warranty period.

warranty and service _39

Service Before calling for assistance or service, please check the section “Troubleshooting.” If you still need help, follow the instructions below.

Is it a technical fault? If so, please contact your customer service centre. Always prepare in advance for the discussion. This will ease the process of diagnosing the problem and also make it easier to decide if a customer service visit is necessary. Please take note of the following information. • What form does the problem take? • Under what circumstances does the problem occur? When calling, please know the model and serial number of your appliance. This information is provided on the rating plate as follows: • Model description • S/N code (15 digits) We recommend that you record the information here for easy reference. Model: Serial number:

When do you incur costs even during the warranty period? • lf you could have remedied the problem yourself by applying one of the solutions provided in the section “Troubleshooting”. • lf the customer service technician has to make several service calls because he was not provided with all of the relevant information before his visit and as a result, for example, has to make additional trips for parts. Preparing for your phone call as described above will save you the cost of these trips.

40_ warranty and service

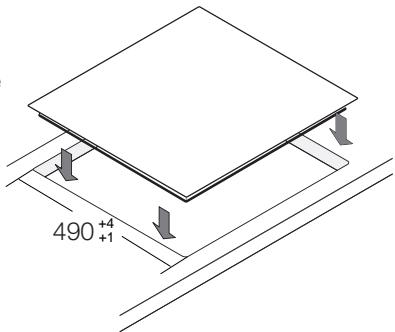

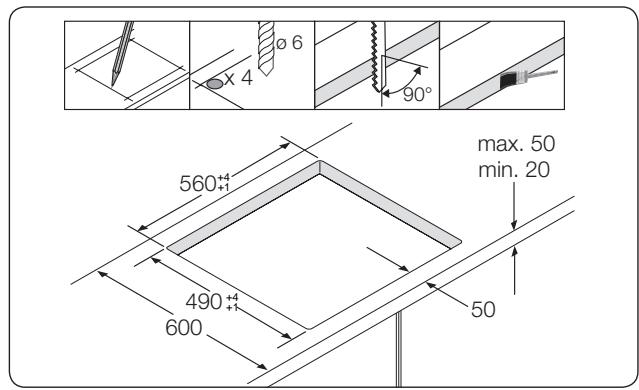

Worktop cut - out dimensions

220 - 240 V/400V ~ 50 / 60 Hz

Connection voltage Maximum connected load power Weight (NZ64M3707AK)

Cooking zones Position Rear left Front left Front right Rear right
