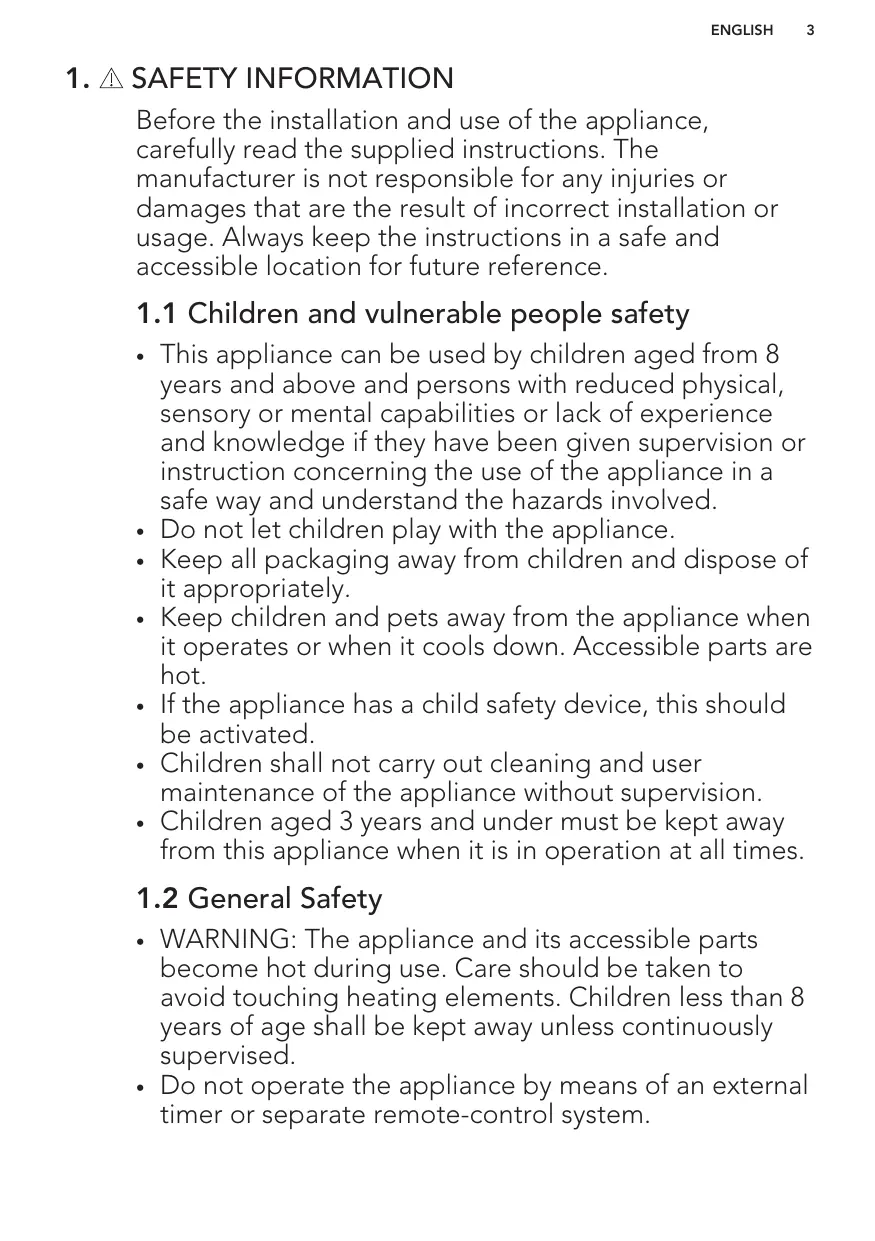

SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Do not let children play with the appliance. Keep all packaging away from children and dispose of it appropriately. Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot. If the appliance has a child safety device, this should be activated. Children shall not carry out cleaning and user maintenance of the appliance without supervision. Children aged 3 years and under must be kept away from this appliance when it is in operation at all times.

WARNING: The appliance and its accessible parts

become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. Do not operate the appliance by means of an external timer or separate remote-control system.

WARNING: Unattended cooking on a hob with fat or

oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket. CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

WARNING: Danger of fire: Do not store items on the

cooking surfaces. Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. Do not use a steam cleaner to clean the appliance. After use, switch off the hob element by its control and do not rely on the pan detector. If the glass ceramic surface / glass surface is cracked, switch off the appliance to avoid the possibility of electric shock. If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.

WARNING: Use only hob guards designed by the

manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

2. SAFETY INSTRUCTIONS

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied with the appliance.

• Keep the minimum distance from the other appliances and units.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance adjacent to a door or under a window. This ENGLISH prevents hot cookware to fall from the appliance when the door or the window is opened.
• If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is sufficient for air circulation.
• The bottom of the appliance can get hot. Make sure to install a noncombustible separation panel under the appliance to prevent access to the bottom.
• Make sure that the ventilation space of 2 mm, between the worktop and the front of the below unit, is free. The warranty does not cover damages caused by the lack of an adequate ventilation space.

2.2 Electrical Connection

WARNING! Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make sure that the appliance is disconnected from the power supply.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets
• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

WARNING! Risk of injury, burns and electrical shock.

• Remove all the packaging, labelling and protective film (if applicable) before first use.
• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Set the cooking zone to “off” after each use.
• Do not rely on the pan detector.
• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
• Do not operate the appliance with wet hands or when it has contact with water.

• Do not use the appliance as a work surface or as a storage surface.
• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.
• Users with a pacemaker must keep a distance of minimum 30 cm from the induction cooking zones when the appliance is in operation.
• When you place food into hot oil, it may splash. WARNING! Risk of fire and explosion
• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance. WARNING! Risk of damage to the appliance.
• Do not keep hot cookware on the control panel.
• Do not put a hot pan cover on the glass surface of the hob.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass / glass ceramic. Always lift these objects up when you have to move them on the cooking surface.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

2.4 Care and cleaning

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Deactivate the appliance and let it cool down before you clean it.
• Disconnect the appliance from the electrical supply before maintenance.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use any abrasive products, abrasive cleaning pads, solvents or metal objects.

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

• To repair the appliance contact an Authorised Service Centre.
• Use original spare parts only.

3. PRODUCT DESCRIPTION

3.1 The most important

features of your hob

• The cooking surface has 2 layers of stainless steel with a layer of aluminium between them. It has a high thermal capacity, which prevents temperatures from quickly decreasing (e.g. when you prepare meat directly from the refrigerator). ENGLISH

• Each Teppan Yaki grill surface is unique because they are made by hand and grounded by grinding specialists. Differences in the grinding pattern are normal and do not cause problems in how the hob operates. The more you use your grill, the more valuable it looks.
• The groove around the edge: – Decreases the temperature of the installation surfaces, which lets you install the cooking surface into different types of kitchen worktops. – Absorbs some of the expansion of the heated cooking surface through its indentation. – Collects small food remnants and liquids which you can easily remove after cooking.

• The necessary temperature can be kept constant by the thermostat with a readable temperature setting. This prevents overheating of the food and permits low-fat cooking that keeps the nutritional values of the food.
• The food is heated directly on the cooking surface, with or without oil. There is also the option of cooking with pots or pans.
• The grill surface heats to a temperature of 180 °C in approximately 4 minutes. The temperature of the grill surface decreases from 180 °C to 100 °C in approximately 25 minutes, and to 60 °C in approximately 60 minutes.
• Always preheat the cooking surface before cooking.

3.2 Cooking surface layout

1 Roasting zone 2 Control panel

Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate.

ON / OFF To activate and deactivate the hob.

Lock / The Child Safety Device To lock / unlock the control panel.

Cleaning To activate and deactivate the function.

Timer indicators of roasting zones To show for which zone you set the time.

CountUp Timer To show that the function operates.

Count Down Timer / Minute Minder To show that the function operates.

To select the roasting zone.

To increase or decrease the time. Control bar To set the temperature.

Display Description The roasting zone is deactivated. The roasting zone operates. + digit There is a malfunction.

OptiHeat Control (3 step Residual heat indicator) : continue cooking / keep warm / residual heat.

3.5 OptiHeat Control (3 step

Residual heat indicator) WARNING!

There is a risk of burns from residual heat. The indicator shows the level of the residual heat.

The induction cooking zones make the heat necessary for cooking process directly in the bottom of the cookware. The glass ceramic is heated by the heat of the cookware.

WARNING! Refer to Safety chapters.

deactivating Touch for 1 second to activate or deactivate the hob.

4.2 Automatic Switch Off

The function deactivates the hob automatically if:

• All roasting zones are deactivated.
• You do not set the temperature after you activate the hob.
• You spill something or put something on the control panel for more than 10 seconds, (a pan, a cloth, etc.). An acoustic signal sounds and the hob deactivates. Remove the object or clean the control panel.
• You do not deactivate a roasting zone or change the temperature. After 90 minutes comes on and the hob deactivates. Before next use, set the roasting zone to

4.3 The heat setting

To set or change the heat setting: Touch the control bar at the correct heat setting or move your finger along the control bar until you reach the correct heat setting. The display flashes until the roasting zone reaches the temperature. Then a signal sounds and the display shows the temperature.

Count Down Timer You can use this function to set how long the roasting zone should operate for a single cooking session. First set the roasting zone then set the function. The selection of the Timer function is possible for roasting zones that are active and after the temperature is set. To set the roasting zone: touch again and again until the indicator of a necessary roasting zone comes on. When this function is active, comes on.

To activate the function: touch the timer to set the time (00 - 99 minutes). When the indicator of the roasting zone starts to flash slowly the time counts down. To see the remaining time: set the roasting zone with . The indicator of the roasting zone starts to flash quickly. The display shows the remaining time. To change the time: set the roasting zone with . Touch

To deactivate the function: set the roasting zone with and touch

www.aeg.com The remaining time counts back to 00. The indicator of the roasting zone goes out. When the time comes to an end, the sound operates and 00 flashes. The roasting zone deactivates. To stop the sound: touch To set the roasting zone (if more than 1 roasting zone operates): touch again and again until the indicator of a necessary roasting zone comes on. When comes on. To activate the function: touch symbol goes out and To stop the sound: touch

The function has no effect on the operation of the roasting zones.

CountUp Timer (The count up timer) You can use this function to monitor how long the roasting zone operates. this function is active, time. When the time comes to an end, the sound operates and 00 flashes. You can lock the control panel while cooking zones operate. It prevents an accidental change of the heat setting. Set the heat setting first. To activate the function: touch . comes on for 4 seconds. The Timer stays on. To deactivate the function: touch . The previous heat setting comes on. . The When you deactivate the hob, you also deactivate this function. comes on. To see how long the roasting zone operates: set the roasting zone with The indicator of the roasting zone starts to flash quickly. The display shows how long the zone operates. During the first minute the display shows the time in seconds. After the first minute the display shows the time in minutes. This function prevents an accidental operation of the hob. To deactivate the function: set the Touch roasting zone with The symbol on. and touch goes out and

comes . The hob with Deactivate the hob with To deactivate the function: activate the Touch . Do not set the heat setting. for 4 seconds. comes on.

cooking time: activate the hob with

To activate the function: touch comes on.

To override the function for only one Minute Minder You can use this function as a Minute Minder when the hob is activated and the roasting zones do not operate (the temperature display shows . Do not set the heat setting. for 4 seconds. Deactivate the hob with If two functions operate at the same time, the display shows the CountUp Timer function first.

To activate the function: activate the hob with To reset the function: touch time counts back to 00. Touch

4.6 The Child Safety Device

of the timer to set the

comes on. Touch for 4 seconds. Set the heat setting in 10 seconds. You can operate the hob. When you deactivate the hob with operates again. the function ENGLISH

4.7 OffSound Control

(Deactivating and activating the sounds) Deactivate the hob. Touch for 3 seconds. The display comes on and goes out. Touch for 3 seconds.

comes on. Touch of the timer to choose one of the following:

- the sounds are off

- the sounds are on To confirm your selection wait until the hob deactivates automatically. When the function is set to hear the sounds only when:

you can you touch Minute Minder comes down Count Down Timer comes down you put something on the control panel.

WARNING! Refer to Safety chapters. The manufacturer does not recommend that you boil large quantities of water on the roasting surface (e.g. for spaghetti). The noises are normal and do not refer to hob malfunction.

5.1 Öko Timer (Eco Timer)

To save energy, the heater of the roasting zone deactivates before the count down timer sounds. The difference in the operation time depends on the temperature setting and the length of the roasting.

5.2 Preparing food with the

Teppan Yaki You prepare the food directly on the roasting surface, with or without oil. You can also use pots or pans, but the cookware does not heat up as quickly as it does on a glass-ceramic hob or a gas hob. You can cook or keep warm side dishes or sauces in pots or pans. Put them directly on the cooking surface. Do not put cookware in the middle of the cooking surface between the zones, as the unevenness can make them unsteady. Frying on the surface, where the zones touch, can cause in uneven browning (e. g. with pancakes).

5.3 Examples of cooking

applications Using fats and oils When the temperature is too high, the fat begins to produce smoke. This temperature is called the smoke point. Fats / Oils Max. temperature (°C) Smoke point (°C) Butter

8 minutes, turn after 4 minutes. King prawns (without shell)

6 minutes, turn after 3 minutes. Shark steaks, approximately

10 minutes, turn after 5 minutes. Sole, Müllerin Art (fried in butter)

8 minutes, turn after 4 minutes, light side first. Plaice filets

6 minutes, turn after 3 minutes. Veal 140 – 180 Preheat the hob. Veal chop

10 minutes, turn after 5 minutes. Veal medallions, 4 cm thick

10 minutes, turn after 5 minutes. Veal steaks, 3 - 4 cm thick

5 minutes, turn after 2,5 minutes. Veal fricasee in cream sauce

6 minutes, turn after 3 minutes. The meat strips must not be stuck to each other. Beef 160 – 180 Preheat the hob. Beef steak blau, very raw

6 minutes, turn after 3 minutes. Beef steak rosa, medium

8 minutes, turn after 2 minutes. Beef steak durch, well done

8 minutes, turn after 4 minutes. Without fatty substances, the roasting time increases by approximately 20%. ENGLISH

6 - 8 minutes, turn after 3 - 4

minutes. Châteaubriand 160 then 100 Sauté the meat in oil on all sides (turn only when the meat does not stick to the pan). Finish off on one side for 10 minutes (100 °C). Pork 160 – 180 Preheat the hob. Pork medallions

8 minutes, turn after 4 minutes (depending on the thickness). Pork steaks

6 minutes, turn after 3 minutes. Spare ribs

8 - 10 minutes, turn several

6 - 8 minutes, sauté well on

10 minutes, turn after 5 minutes. Filet of lamb

10 minutes, turn after 5 minutes. The filet must be fried on both sides. Lamb steaks

6 - 8 minutes, turn after 3 - 4

8 - 10 minutes, turn after 4 5 minutes.

Turkey breast strips

6 minutes, turn several times. Sausages

Preheat the hob. Fried egg

10 - 20 minutes, turn several

10 - 15 minutes, under a

cooking lid (turn halfway through). Cooking precooked rice

10 - 15 minutes, turn several

times. Cooking precooked noodles 140 - 160

6. CARE AND CLEANING

WARNING! Refer to Safety chapters.

6.1 General information

Clean the hob after each use. Always use cookware with clean bottom. WARNING! Sharp objects and abrasive cleaning agents will damage the appliance.

6.2 Cleaning function

1. Touch . Each zone is set to 80°C.

The display flashes until the temperature is 80°C. The function locks the control panel, but not .

2. When the temperature reaches 80°C

an acoustic signal sounds, and the control panel becomes unlocked.

WARNING! Refer to Safety chapters.

3. Put ice cubes one by one on the

roasting zone (you can use also cold water). At the same time, use a spatula to remove the remaining roasting pieces and push all pieces into the trough.

4. Dry the hob with a clean cloth.

6.3 Cleaning when the hob is

1. Apply a usual cleaning agent to the

roasting surface and let it set for 5 minutes.

2. Remove the cooking residue with a

3. Clean the hob with a moist cloth.

4. Dry the hob with a clean cloth.

5. When the hob is dry, rub the roasting

surface with some cooking oil. ENGLISH

7.1 What to do if...

Problem Possible cause You cannot activate or oper- The hob is not connected to ate the hob. an electrical supply or it is connected incorrectly. The fuse is blown. Remedy Check if the hob is correctly connected to the electrical supply. Refer to the connection diagram. Make sure that the fuse is the cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician. Activate the hob again and set the heat setting in less than 10 seconds. You touched 2 or more sensor fields at the same time. Touch only one sensor field. There is water or fat stains on the control panel. Clean the control panel. An acoustic signal sounds You put something on one and the hob deactivates. or more sensor fields. An acoustic signal sounds when the hob is deactivated. Remove the object from the sensor fields. The hob deactivates. Remove the object from the sensor field. You put something on the sensor field

Residual heat indicator does not come on. The zone is not hot because If the zone operated suffiit operated only for a short ciently long to be hot, speak time. to an Authorised Service Centre. Automatic Heat Up function does not operate. The zone is hot. Let the zone become sufficiently cool. The highest heat setting is set. The highest heat setting has the same power as the function. The signals are deactivated. Activate the signals. Refer to "Daily use" chapter. comes on. Automatic Switch Off operates. Deactivate the hob and activate it again. comes on. The Child Safety Device or the Lock function operates. Refer to "Daily use" chapter. There is no signal when you touch the panel sensor fields.

www.aeg.com Problem and a number come on. Possible cause Remedy There is an error in the hob. Disconnect the hob from the electrical supply for some time. Disconnect the fuse from the electrical system of the house. Connect it again. comes on again, speak to an Authorised Service Centre. comes on. The electrical connection is Speak to a qualified electriincorrect. The supply voltage cian to check the installation. is out of range. comes on. There is an error in the hob because a cookware boiled dry. Automatic Switch Off and the overheating protection for the zones operate. Deactivate the hob. Remove the hot cookware. After approximately 30 seconds, activate the zone again. If the cookware was the problem, the error message goes out. Residual heat indicator can stay on. Let the cookware become sufficiently cool. Check if your cookware is compatible with the hob. Refer to “Hints and tips” chapter. comes on. The cooling fan is blocked. Check if objects block the cooling fan. If comes on again, speak to an Authorised Service Centre.

7.2 If you cannot find a

solution... If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Give also three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an error message that comes on. Make sure, you operated the hob correctly. If not the servicing by a service technician or dealer will not be free of charge, also during the warranty period. The instructions about the Service Centre and conditions of guarantee are in the guarantee booklet.

WARNING! Refer to Safety chapters.

8.1 Before the installation

Before you install the hob, write down the information bellow from the rating plate. The rating plate is on the bottom of the hob. Serial number ........................... ENGLISH

8.4 Attaching the seal

Only use the built-in hobs after you assemble the hob into correct built-in units and work surfaces that align to the standards.

1. Clean the worktop around the cut

2. Attach the supplied seal stripe to the

lower edge of the hob along the outer edge of the glass ceramic. Do not extend it. Make sure that the ends of the seal stripe are located in the middle of one side of the hob.

3. Add some mm when you cut the seal

stripe to the length.

4. Push the two ends of seal stripe

8.3 Connection cable

• The hob is supplied with a connection cable.
• To replace the damaged mains cable use the following (or higher) mains cable type: H05V2V2-F T min 90°C. Speak to your local Service Centre.

8.6 Installation of more than

one hob Supplied accessories: connection bar, heat-resistant silicone, rubber shape, sealing stripe. Use only a special heatresistant silicone. The worktop cutout Distance from the wall minimum 50 mm Depth 490 mm Width sum of all widths of hobs that you install minus 20 mm Example: 580 mm

• Seal the gap between the worktop and glass ceramic with silicone.
• Put some soapy water on the silicone.
• Pull off the excess silicone with the scraper. 520 mm

1. Calculate correct cutout dimensions.

2. Prepare cutout in the worktop.

3. One by one place the hobs on a soft

surface (for example on a blanket) with the bottom side up.

4. Attach the supplied seal stripe to the

lower edge of the hob along the outer edge of the glass ceramic.

5. Loosely screw the fixing plates into

the correct holes in the protective casing.

6. Insert first hob into the worktop

cutout. Than insert the connection bar into the worktop cutout. Push it half of its width under the hob. ENGLISH

7. Loosely screw in the fixing plates

from below to the worktop and to the connection bar.

8. Insert next hob into the worktop

cutout. Make sure that the front edges of the hobs are on the same level.

9. Tighten the fixing plates / retaining

10. Use silicone to seal the gaps

between the hobs and between the hobs and the worktop.

11. Put some soapy water on the

12. Press the rubber shape with some

strength against the glass ceramic and move it slowly along the space.

13. Do not touch the silicone until it

becomes hard, it can last about a day.

14. Carefully remove the silicone that

came out with a shaving blade.

15. Clean the glass surface.

Roasting zone Nominal power (maximum heat setting) [W] Front

The power of the roasting zones can be different in some small range from the data in the table. It changes with the

material and dimensions of the cookware.

Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office. FRANÇAIS
