Product Type	Built-in microwave oven
Brand	Beko
Model	MCB25433BG / MCB25433X
External dimensions (W x D x H)	595 x 470 x 388 mm
Internal oven dimensions	266 x 328 x 346 mm
Capacity	25 liters
Net weight	21.0 kg
Power supply	230 V ~ 50 Hz, 1450 W (microwave) / 2500 W (convection) / 1100 W (grill)
Microwave power	900 W
Amperage	11.5 A
Operating frequency	2450 MHz
Main functions	Microwave, Grill, Combination, Convection, Defrost (by weight and time), Auto menu (10 programs), Timer, Quick start
Microwave power levels	5 (100%, 80%, 50%, 30%, 10%)
Child lock	Yes, long key lock
Included accessories	Glass turntable, turntable support, grill rack
Cleaning and maintenance	Glass turntable dishwasher safe; surfaces cleaned with a damp cloth; do not use abrasive cleaners
Installation	Built-in, niche 600 mm wide, min. depth 500 mm, height 380+2 mm; installation kit included
Repairability	Original parts recommended; contact an authorized service for bulb replacement and internal repairs

Frequently Asked Questions - MCB25433BG - MCB25433X BEKO

How to set the microwave clock?

Press the Ⓤ key (Timer/Clock) twice. The hours flash. Turn the knob to set the hour (0-23). Press Ⓤ again to confirm the hours. The minutes flash. Turn the knob to set the minutes (0-59). Press Ⓤ to finish.

What utensils can I use in the microwave?

Use containers made of heat-resistant glass, ceramic, microwave-safe plastic, or paper. Avoid metal, aluminum foil, and non-certified porcelain. To test a utensil, place it empty with a glass of water and heat for 1 minute at max power. If it heats up, it is unsuitable.

How to defrost food by weight?

Press ⚙️ (Defrost) once. Turn the knob to select the weight (100 to 2000 g). Press ▷ (Start) to start defrosting. The oven adjusts the time automatically.

How to clean the inside of the microwave?

Unplug the appliance and let it cool. Wipe the walls with a damp cloth and mild detergent if necessary. Never use abrasive cleaners or steam. The glass turntable can be washed in the dishwasher.

What to do if the oven does not start?

Check that the power cord is properly plugged in. If the fuse has blown or the circuit breaker has tripped, replace the fuse or reset the circuit breaker. If the problem persists, test another outlet. Make sure the door is properly closed.

How to activate the child lock?

In standby mode, press the key (Stop/Cancel) for 3 seconds. A beep sounds and the display shows '0:00'. To deactivate, repeat the operation.

Can I use the microwave empty?

No, never operate the oven empty, except for the utensil test (maximum duration 1 minute). This could damage the appliance.

What are the available automatic programs?

The automatic menus range from AC01 to AC10: Pizza, Meat, Vegetables, Pasta, Cake, Potatoes, Fish, Beverage, Popcorn and Chicken. Select the menu, then the default weight.

How to use the convection function with preheating?

Press ⚙️ (Convection). Select the temperature (130-220°C). Press ▷ to preheat. A signal alerts you when the temperature is reached. Place the food, close the door, set the cooking time (max 95 min) and press ▷.

How to remove odors from the microwave?

Place a deep bowl containing a glass of water and the juice and zest of a lemon. Heat for 5 minutes in microwave mode. Then clean with a soft cloth and dry.

USER MANUAL MCB25433BG - MCB25433X BEKO

Simple line drawing of a microwave oven with control panel (no text or symbols)

MCB 25433 BG MCB 25433 X

EN

DE

FR

ES

PL

SL

CS

NL

TR

01M-8849573200-2016-08

beko

Please read this manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this user manual:

Important information and useful hints about usage.

Warnings for dangerous situations concerning the safety of life and property.

Warning for hot surfaces.

This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.

1 Important safety and environmental instructions 4

1.1 General safety......4
1.1.1 Electrical safety....6
1.1.2 Product safety....7
1.2 Intended use 8
1.3 Children's safety....9
1.4 Compliance with the WEEE Directive and disposal of waste products ....10
1.5 Package information ....10

2 Your microwave oven 11

2.1 Overview....11
2.2 Technical data....11
2.3 Installing the turntable 12

3 Installation and connection 13

3.1 Installation and connection....13
3.2 Built-in installation....14
3.2.1 Furniture dimensions for built-in installation ....14
3.2.2 Preparing the cabinet....15
3.2.3 Fixing the oven....16
3.3 Radio interference....17
3.4 Microwave cooking principles......17
3.5 Grounding instructions....17
3.6 Utensil test....17

4 Operation 19

4.1 Control panel....19
4.2 Operating instructions....19
4.2.1 Setting the time....19
4.2.2 Cooking with microwave oven....19
4.2.3 Microwave keypad instructions....20
4. 3 Cooking with grill or combination mode.....20
4.3.1 (Grill/Combination) Keypad instructions ..21
4.4 Convection 21
4.4.1 Convection Cooking(With preheating funtion)....21
4.4.2 Convection Cooking( Without pre-heating function)....21
4.5 Quick start 22

4.6 Defrost....22
4.6.1 Defrost by weight 22
4.6.2 Defrost by time....22
4.7 Kitchen timer (counter)......22
4.8 Auto menu....23
4.8.1 Auto cooking menu 24
4.9 Multi-step cooking....25
4.10 Query function....25
4.11 Child lock....25
4.12 Opening the oven door 25

5 Cleaning and maintenance 26

5.1 Cleaning....26
5.2 Storage....26

6 Troubleshooting 27

1

Important safety and environmental instructions

Important Safety Instructions Read Carefully And Keep For Future Reference

This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

1.1 General safety

- The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses
• By clients in hotels, motels and other residential type environments;

• Bed and Breakfast type environments.

• Do not attempt to start the oven when its door is open; otherwise you may be exposed to harmful microwave energy. Safety locks should not be disabled or tampered with.

• Do not place any object between the front side and the door of the oven. Do not allow dirt or cleaning agent remnants built-up on the closure surfaces.
• Any service works involving removal of the cover that provides protection against exposure to microwave energy must be performed by authorized persons/service. Any other approach is dangerous.
• Your product is intended for cooking, heating and defrost food at home. It must not be used for commercial purposes. Manufacturer shall not be held liable for damages that have arisen from misuse.
• Do not use this appliance outdoors, bathrooms, humid environments or in places where the it can get wet.

1

Important safety and environmental instructions

• No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance.
• Never attempt to dismantle the appliance. No warranty claims are accepted for damage caused by improper handling.
• Only use the original parts or parts recommended by the manufacturer.
• Do not leave this appliance unattended while it is in use.
• Always use the appliance on a stable, flat, clean dry, and non-slip surface.
• The appliance should not be operated with an external clock timer or separate remote control system.
• Before using the appliance for the first time, clean all parts. Please see the details given in the "Cleaning and Maintenance" section.
• Operate the appliance for its intended purpose only as described in this manual. Do not use abrasive chemicals or steam on this appliance. This oven is particularly intended for heating and cooking the food.

It is not intended for industrial or laboratory use.

• Do not use your appliance to dry clothes or kitchen towels.
• Appliance becomes very hot while it is in use. Pay attention not to touch the hot parts inside the oven.
• Your oven is not designed to dry any living being.
• Do not operate the oven empty.
• Only use utensils that are suitable for use in microwave ovens.
• Cooking utensil may get hot due to the heat transferred from the heated food to the utensil. You may need oven gloves to hold the utensil.
• Utensils shall be checked to ensure that they are suitable for use in microwave ovens.
• Do not place the oven on stoves or other heat generating appliances. Otherwise, it may be damaged and the warranty becomes void.
• Microwave oven must not be placed in a cabinet that is not in compliance with the installation instructions.

1

Important safety and environmental instructions

• Steam may come out while opening the covers or the foil after cooking the food.
• Use gloves while taking any kind of heated food out.
• The appliance and its accessible surfaces may be very hot when the appliance is in use.
• Door and outer glass may be very hot when the appliance is in use.

1.1.1 Electrical safety

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Beko Microwave Ovens comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.
• Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.

The only way to disconnect the appliance from the power supply is to remove the power plug from the power outlet.

• Use the appliance with a grounded outlet only.
• Never use the appliance if the power cable or the appliance itself is damaged.
• Do not use this appliance with an extension cord.
• Never touch the appliance or its plug with damp or wet hands.
• Place the appliance in a way so that the plug is always accessible.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.
• Make sure that there is no danger that the power cable could be accidentally pulled or that someone could trip over it when the appliance is in use.
• Unplug the appliance before each cleaning and when the appliance is not in use.
• Do not pull the power cable of the appliance to disconnect it from its power supply and never wrap its power cable around the appliance.

1

Important safety and environmental instructions

• Do not immerse the appliance, power cable, or power plug in water or any other liquids. Do not hold it under running water.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• Remove the wire strings and/or metal handles of paper or plastic bags before placing bags suitable for use in microwave oven to the oven.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Do not use inside of the oven to store something. Do not leave paper items, cooking material or food inside the oven when it is not being used.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature shall be checked before consumption, in order to avoid burns.

- This appliance is a Group 2 Class B ISM equipment. Group 2 contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment.

- Class B equipment is suitable for use in domestic establishments and establishments directly connected to a low voltage power supply network.

- Door or outer surface of the appliance may become hot when it is in use.

1.1.2 Product safety

• Heating the beverages with microwave may cause them to boil by splashing around after they have been taken out of the oven; so be careful when you are holding the containers.
• Do not roast anything in the oven. Hot oil may damage the components and materials of the oven, and it may even cause skin burns.
• Pierce food with thick crust such as potatoes, zucchini, apples and chestnuts.

1

Important safety and environmental instructions

• Appliance must be placed so that the rear side is facing the wall.
- Before moving the appliance, please secure the turntable to prevent damage to it.
- Eggs in their shell and whole hard-boiled eggs must not be heated in microwave ovens since they may explode, even after microwave heating has ended.
- Never remove the parts at the rear and sides of the appliance, which protect the minimum distances between the cabinet walls and the appliance in order to allow for the required air circulation.

1.2 Intended use

• The oven should be cleaned regularly and any food deposits removed.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

• Cleaning the door seals and adjacent parts: Use hot soapy water. Clean with a dish cloth, do not scour. Do not use a metal or glass scraper for cleaning.

• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.
• WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
• Microwave oven is intended for built-in use only.
• Do not use the appliance for anything other than its intended use.
• Do not use the appliance as a heat source.
• Microwave oven is intended to thaw, cook and stew food only.
• Do not over-cook foods; otherwise, you may cause a fire.
• Do not use steam assisted cleaners to clean the appliance.

1

Important safety and environmental instructions

1.3 Children's safety

• Extreme caution is advised when being used near children and persons who are restricted in their physical, sensory or mental abilities.
• This appliance can be used by the children who are at the age of 8 or over and by the people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, as long as they are supervised with regard to safe use of the product or they are instructed accordingly or understand the risks of using the product. Children should not play with the appliance. Cleaning and user maintenance procedures should not be performed by children unless they are controlled by their elders.
• Danger of choking! Keep all the packaging materials away from children.

• Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the microwave oven in a safe way and understands the hazards of improper use.

• Due to excessive heat that arises in grill and combination modes, children should only be allowed to use these modes under supervision of an adult.

• Keep the product and its power cable so that they are inaccessible by children under 8 years old.
• The appliance and its accessible surfaces may be very hot when the appliance is in use. Keep children away.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervised or instruction concerning use of the appliance by a responsible person for their safely.
• Young children should be supervised to ensure that they do not play with the appliance.
• WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

1

Important safety and environmental instructions

1.4 Compliance with the WEEE Directive and disposal of waste products

This product does not include harmful and prohibited materials specified in the "Regulation for Supervision of the Waste Electric and Electronic Appliances" issued by the Ministry of

Environment and Urban Planning. Complies with the WEEE Directive. This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling.

Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Ask the local authority in your area for these collection points. Help protect the environment and natural resources by recycling used products.

1.5 Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials to-

gether with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your microwave oven

2.1 Overview

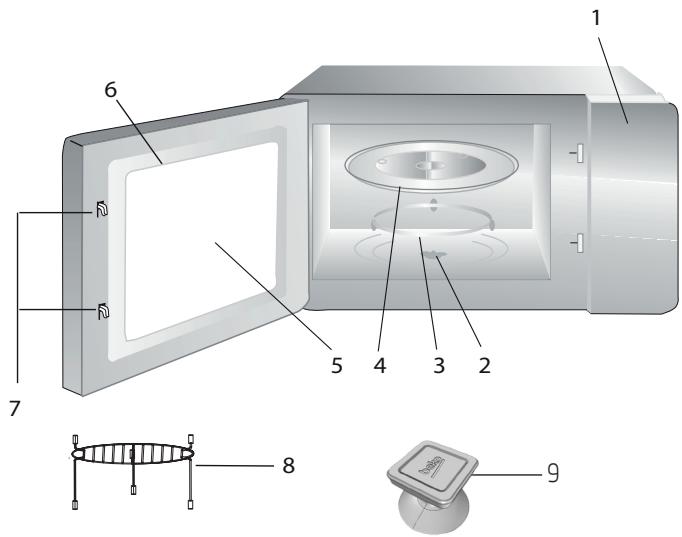

1 2 3 4 5 6 7 8 9

1. Control panel
2. Turntable shaft
3. Turntable support
4. Glass tray
5. Oven window
6. Door group
7. Door safety interlock system
8. Grill rack (only to be used in grill function and placed on the glass tray)
9. Vacuum lifter for manual door opening

2.2 Technical data

Power consumption	230 V~50 Hz,1450 W (Microwave)2500 W (Convection)1100 W (Grill)
Output	900 W
Operating frequency	2450 MHz
Ampere value	11.5 A
External dimensions	595 x 470 x 388 mm
Internal dimensions of the oven	266 x 328 x 346 mm
Oven Capacity	25 Liters
Net weight	21.0 kg

Markings on the product or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the appliance and ambient conditions. Power values are tested at 230V.

2 Your microwave oven

2.3 Installing the turntable

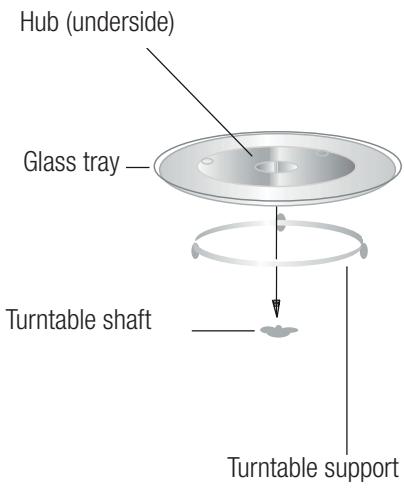

Hub (underside) Glass tray Turntable shaft Turntable support

• Never place the glass tray upside down. The glass tray should never be restricted.
• Both glass tray and turntable support must always be used during cooking.
• All food and containers of food must always place on the glass tray for cooking.
• If glass tray or turntable support crack or break, contact your nearest authorized service center.

3.1 Installation and connection

• Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.
• Remove any protective film found on the microwave oven cabinet surface.
• Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.
• This appliance has been designed for domestic use only.
• This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cabinet.
• Please observe the special installation instructions.
• The appliance can be installed in a 60cm wide wall-mounted cabinet (at least 55 cm deep and 85 cm off the floor).
• The appliance is fitted with a plug and must only be connected to a properly installed grounded socket.
• The mains voltage must correspond to the voltage specified on the rating plate.
• If the plug is no longer accessible after installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3 mm.
• Adapters, multi-way sockets and extension cords must not be used. Overloading can result with a risk of fire.

The accessible surface may be hot during operation.

Do not trap or bend the power cable.

B Installation and connection

3.2 Built-in installation

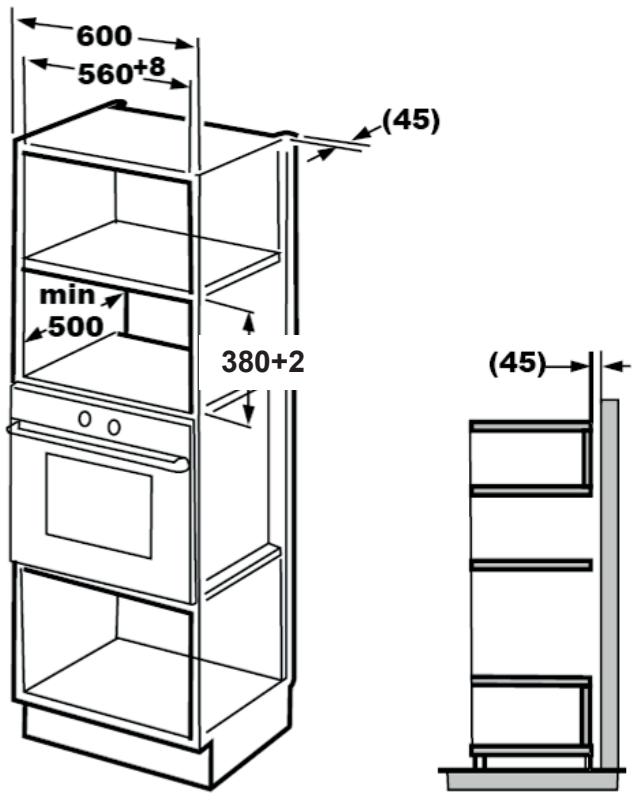

3.2.1 Furniture dimensions for built-in installation

600 560+8 min 500 380+2 (45) (45)

3 Installation and connection

3.2.2 Preparing the cabinet

1. Read the instruction on the bottom cabinet template and put the template on the bottom plane of cabinet.

Simple line drawing of a 3D rectangular box (no text or symbols)

ROTUM CABLES TEMPLATE Φ100mm x 25mm x 30mm x 35mm x 40mm x 45mm x 50mm x 55mm x 60mm x 65mm x 70mm x 75mm x 80mm x 85mm x 90mm x 95mm x 100mm x 105mm x 110mm x 115mm x 120mm x 125mm x 130mm x 135mm x 140mm x 145mm x 150mm x 155mm x 160mm x 165mm x 170mm x 175mm x 180mm x 185mm x 190mm x 195mm x 200mm x 205mm x 210mm x 215mm x 220mm x 225mm x 230mm x 235mm x 240mm x 245mm x 250mm x 255mm x 260mm x 265mm x 270mm x 275mm x 280mm x 285mm x 290mm x 295mm x 300mm x 305mm x 310mm x 315mm x 320mm x 325mm x 330mm x 335mm x 340mm x 345mm x 350mm x 355mm x 360mm x 365mm x 370mm x 375mm x 380mm x 385mm x 390mm x 395mm x 400mm x 405mm x 410mm x 415mm x 420mm x 425mm x 430mm x 435mm x 440mm x 445mm x 450mm x 455mm x 460mm x 465mm x 470mm x 475mm x 480mm x 485mm x 490mm x 495mm x 500mm x

1. Make the marks on the bottom plane of cabinet according to marks "a" of the template.

Simple line drawing of a 3D box with a vertical rod and arrow inside, no text or symbols present

Screw A

Bracket

Centre line

1. Remove the bottom cabinet template and fix the bracket with screw A.

Screw A

Bracket

3 Installation and connection

3.2.3 Fixing the oven

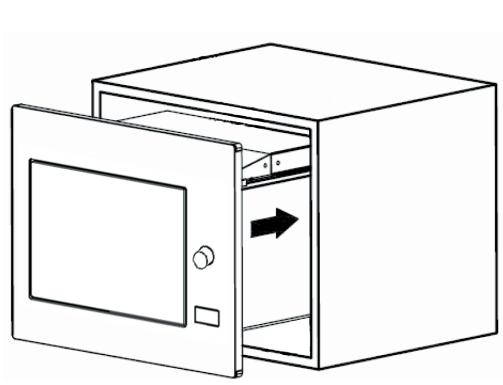

1. Install the oven into the cabinet.

2. Make sure the back of the oven is locked by bracket.

3. Do not trap or bend the power cable.

Line drawing of a closed storage cabinet with an open door and directional arrow indicating internal movement (no text or symbols)

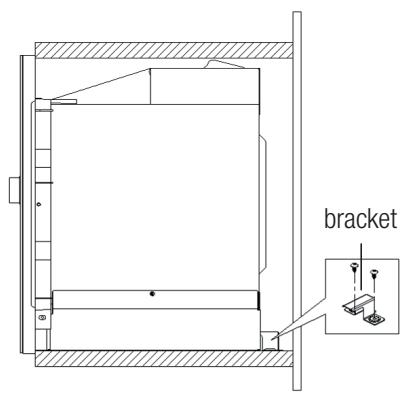

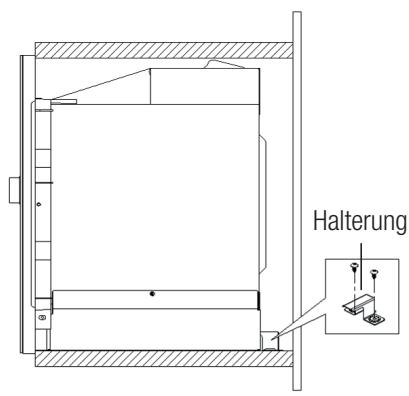

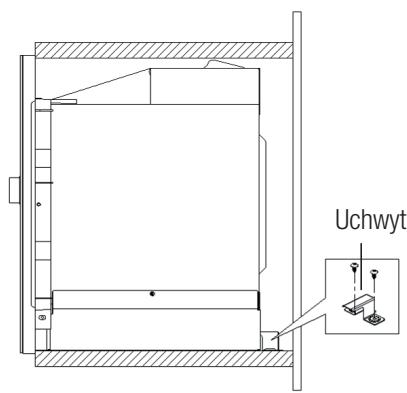

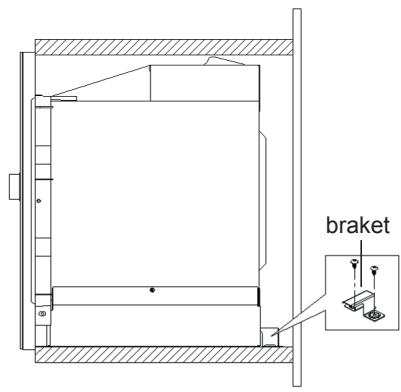

bracket

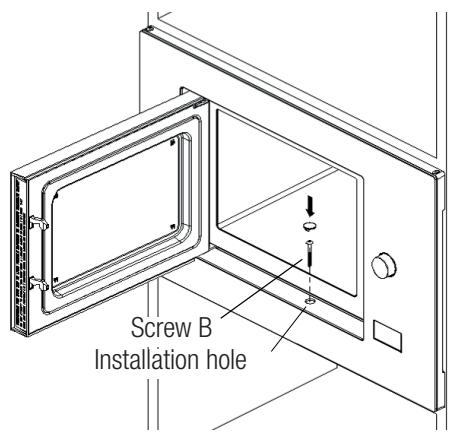

1. Open the door, fix the oven to the cabinet with Screw B through the installation hole. Then fix the trim-kit plastic cover to the installation hole.

Screw B Installation hole

3 Installation and connection

3.3 Radio interference

Operation of the microwave oven may cause interference on radios, TVs and similar appliances.

• Place the oven as far away from radios and TVs as possible. Operation of microwave oven may cause interference to your radio or TV reception. 2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating plate.
• In case of interference, it may be reduced or eliminated by taking the precautions given below:
• Clean the door and sealing surface of the oven.
• Set the antenna direction of the radio or TV again.
• Reposition the oven based on the location of the receiver.
• Place microwave oven away from the receiver.
• Plug the microwave oven to another outlet, thus microwave oven and receiver shall be on different lines.

3.4 Microwave cooking principles

• Prepare the food carefully. Place the remaining parts to the outside of the dish.
• Pay attention to the cooking time. Cook in the shortest time specified and add some more time if required. Overcooked food may cause smoke or may be burnt.
• Cover the food while cooking. Covering the food prevents any splashing and helps to ensure that food is cooked evenly.
• Turn over food such as poultry and hamburgers while cooking them in a microwave oven in order to accelerate cooking of this kind of food. Larger food such as roast must be turned over at least once.

- Turn food such as meatballs upside down in the middle of the cooking and replace them with each other from the center of the dish to the outside.

3.5 Grounding instructions

This appliance must be grounded. This oven has a grounding cable with a grounded plug. Appliance must be plugged to a wall outlet installed and grounded correctly. Grounding system allows a leak wire for the electrical current in case of a short circuit and reduces the risk of electric shock. We recommend using an electrical circuit dedicated to the oven. Operating with high voltage is dangerous and may cause fire or other accidents that would cause damage to the oven.

WARNING: Misuse of grounding plug may cause electric shock.

If you have any questions on grounding and electrical instructions, please consult a qualified electric technician or service personnel.

Manufacturer and/or dealer would not accept any responsibility for injuries or damages on the oven that may occur when electrical connection procedures are not followed.

3.6 Utensil test

Never operate the microwave oven empty. The only exception is the utensil test described in the following section. Some certain non-metal utensils may not be suitable for using in microwave. If you are not sure whether your utensil is suitable for microwave, you can perform the following test.

1. Place the empty utensil to be tested into the microwave oven together with a microwave-compatible glass filled with 250 ml water.

B Installation and connection

1. Operate the microwave oven at max power for 1 minute.
2. Check carefully the temperature of the utensil being tested. If it is warmed up, it is not suitable for use in microwave.
3. Never exceed the operating time limit of 1 minute. If you notice arcing during 1 minute of operation, stop the microwave. Utensils causing arcing are not suitable for use in microwave.

Following list is a general guide that would help you in selecting the right utensil.

Cooking utensil	Microwave	Grill	Combination
Heat-resistant glass	Yes	Yes	Yes
Non-heat-resistant glass	No	No	No
Heat-resistant ceramics	Yes	Yes	Yes
Plastic dish suitable for microwave oven	Yes	No	No
Paper kitchenware	Yes	No	No
Metal tray	No	Yes	No
Metal rack	No	Yes	No
Aluminum foil and foil covers	No	Yes	No
Foam materials	No	No	No

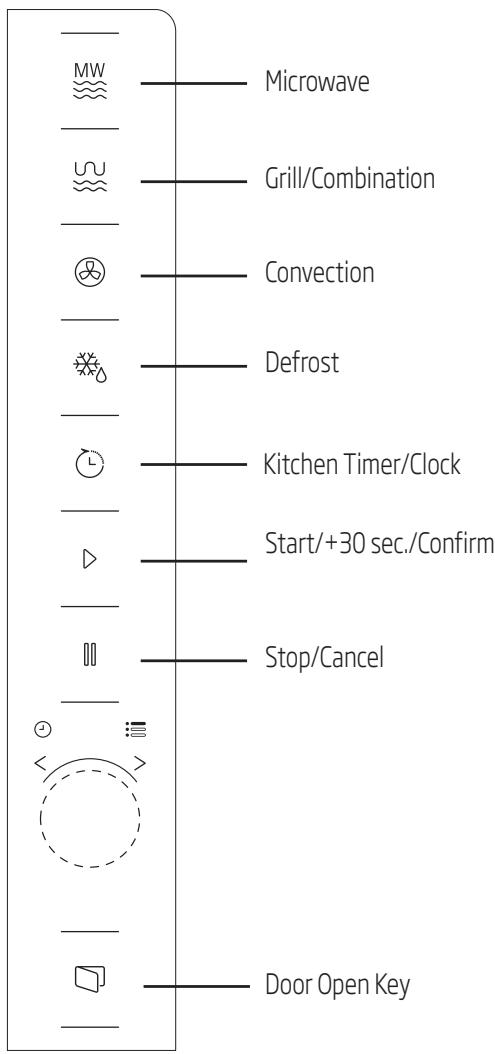

4.1 Control panel

MW Microwave U Grill/Combination Convection Defrost Kitchen Timer/Clock Start/+30 sec./Confirm Stop/Cancel Door Open Key

4.2 Operating instructions

4.2.1 Setting the time

When the microwave oven is energized, "0:00" will be displayed in LED screen and buzzer will ring once.

1. Press ⏻ (Kitchen Timer/Clock) twice and the figures for hours will start flashing.
2. Turn 🔔 to adjust the hour; the input value should be between 0 and 23.
3. Press Ⓤ (Kitchen Timer/Clock) and the figures for minutes will start flashing.
4. Turn 🔍 to adjust the minutes; the input value should be between 0 and 59.
5. Press 📊 (Kitchen Timer/Clock) to finish time setting. ":" symbol will flash, and the time will light.

If you press ⌘ (Stop/Cancel) during time setting, oven will automatically return back to previous mode.

4.2.2 Cooking with microwave oven

1. Press MW (Microwave) and "P10" will be displayed in LED screen.
2. Press MW (Microwave) again to select the desired power. Each time you press the key, "PL10", "PL8", "PL5", "PL3" or "PL1" will be displayed respectively.
3. Turn 🔑 to set the cooking time to a value between 0:05 and 95:00.
4. Press ▷ (Start/+30 Sec./Confirm) again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven with the following steps.

1. Press MW (Microwave) once and "P10" will be displayed in the screen.
2. Press MW (Microwave) once again to set 80% microwave power.
3. Press ▷ (Start/+30Sec./Confirm) to confirm and "P 80" will be displayed in the screen.
4. Turn 🔍 to adjust the cooking time until the oven displays "20:00".
5. Press ▷ (Start/+30 Sec./Confirm) to start cooking.

The steps for adjusting the time in coding button are as below:

Setting the duration	Increment amount
0-1 minute	5 seconds
1-5 minutes	10 seconds
5-10 minutes	30 seconds
10-30 minutes	1 minute
30-95 minutes	5 minutes

4.2.3 Microwave keypad instructions

Order	Screen	Microwave Power
1	PL10	100%
2	PL8	80%
3	PL5	50%
4	PL3	30%
5	PL1	10%

4. 3 Cooking with grill or combination mode

1. Press ≈ (Grill/Combination) and "G" will be displayed in LED screen. Press ≈ (Grill/Combination) repeatedly to select the desired power. Each time you press the key, "C-1", "C-2", "C-3" and "C-4" will be displayed respectively.
2. Turn 🔒 to set the cooking time to a value between 0:05 and 95:00.
3. Press ▷ (Start/+30 Sec./Confirm) again to start cooking.

Example: If you want to use Combi (MWO+Grill) (C-2) to cook for 10 minutes, you can operate the oven with the following steps.

1. Press ≈ (Grill/Combination) once and "G" will be displayed in the screen.
2. Press ≈ (Grill/Combination) twice again select the Combination 2 mode.
3. Turn 🔔 to adjust the cooking time until the oven displays "10:00".
4. Press ▷ (Start/+30 Sec./Confirm) to start cooking.

4 Operation

4.3.1 (Grill/Combination) Keypad instructions

Instructions	Display	Microwave	Grill	Convection
1	C-1	●		●
2	C-2	●	●
3	C-3		●	●
4	C-4	●	●	●

When half the grill time passes, the oven sounds twice, and this is normal. In order to have a better grilling effect, you should turn the food over, close the door, and then press (Start/+30Sec./Confirm) to continue cooking. If no operation is performed, the oven will continue cooking.

4.4 Convection

4.4.1 Convection Cooking(With preheating funtion)

The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven.

1. Press the “(Convection)” key once, and “130°C” displays.

2. Press “☒ (Convection)” repeatedly to select the convection function. When convection temperature displays, it indicates convection function. The temperature can be chosen from 130 degrees to 220 degrees.

3. Press the ▷ (Start/+30 Sec./Confirm) to start preheating.When the preheating temperature arrives, the buzzer rings to remind you to put the food into the oven. And the preheated temperature is displayed and flash.

4. Put the food into the oven and close the door. Turn 📋 to adjust the cooking time. (The maximum setting time is 95 minutes.)
5. Press the “▷ (Start/+30 Sec./Confirm)” key to start cooking.

Cooking time cannot be adjusted until the preheating temperature arrives. If the temperature arrives, door must be opened to adjust the cooking time.

If the time not adjusted in 5 minutes, the oven will stop preheating. The buzzer sound five times and turn back to waiting states.

4.4.2 Convection Cooking( Without pre-heating function)

1. Press the “(Convection)” key once, and “130°C” displays.

4 Operation

1. Press “ ⚙ (Convection) ” repeatedly or turn “ ⚙ ” to select the convection function. When convection temperature displays, it indicates convection function. The temperature can be chosen from 130 degrees to 220 degrees.
2. Turn 🔔 to adjust the cooking time. (The maximum setting time is 95 minutes.)
3. Press the ▷ (Start/+30 Sec./Confirm) key to start cooking.

4.5 Quick start

1. In standby mode, press ▷ (Start/+30Sec./Confirm) to start cooking with 100% microwave power. Each time you press the key, cooking time will increase until 95 minutes with steps of 30 seconds.
2. In microwave oven cooking, grill and combination cooking or defrost by time modes, the cooking time will increase by 30 seconds each time you press ▷ (Start/+30 Sec/Confirm).
3. In standby mode, turn 🔍 counterclockwise to set the cooking time in order to start cooking with 100% microwave power and press ▷ (Start/+30Sec./Confirm) to start cooking.

In auto menu and defrost by weight modes, pressing ▷ (Start/+30Sec/Confirm) will not increase the cooking time.

4.6 Defrost

4.6.1 Defrost by weight

1. (Defrost by weight) for press ✿ once.

2. Turn 📋 to select the weight of food from 100 to 2000 g.

3. Press ▷ (Start/+30 Sec./Confirm) to start defrost.

4.6.2 Defrost by time

1. Press ⚙️ (Defrost by time) for twice.
2. Turn 🔑 to select the defrost time. The maximum time is 95 minutes.
3. Press ▷ (Start/+30 Sec./Confirm) to start defrost. Defrost power is P30 and cannot be changed.

4.7 Kitchen timer (counter)

Your oven is equipped with an automatic counter which is not linked with the oven functions and can be used separately at the kitchen ( it can be set to max. 95 minutes.)

1. Press ⏻ (Kitchen Timer/Clock) for once and 00:00 will be displayed in LED screen.
2. Turn 🔥 to enter the correct time.
3. Press ▷ (Start/+30Sec./Confirm) to confirm the setting.
4. When the countdown from the entered time reaches to 00:00, the buzzer will ring for 5 times. If the time is set (24-hour system), current time will be displayed in LED screen.

Press III (Stop/Cancel) to abort the timer at any-time.

Kitchen timer functions different than 24-hours system. Kitchen timer is just a timer.

4 Operation

4.8 Auto menu

1. Turn clockwise to select the desired menu. Menus between "AC01" and "AC10".
2. Press ▷ (Start/+30Sec./Confirm) to confirm.
3. Turn 🔔 to choose the default weight in accordance with the menu chart.
4. Press ▷ (Start/+30 Sec./Confirm) to start cooking.

4 Operation

4.8.1 Auto cooking menu

Menu	Weight	Display	Power
AC01 Pizza	200 g	200 g	C-4 / Grill
	300 g	300 g
	400 g	400 g
AC02 Meat	150 g	150 g	100%
	300 g	300 g
	450 g	450
	600 g	600 g
AC03 Vegetable	150 g	150 g	100%
	350 g	350 g
	500 g	500 g
AC04 Pasta	50 g (with 450 g cold water)	50 g	80%
	100 g (with 800 g cold water)	100 g
	150g (with 1200 g cold water)	150 g
AC05 Cake	475 g	475 g	Preheat to 160 °C
AC06 Potato	1 (about 230 g)	1	100%
	2 (about 460 g)	2
	2 (about 690 g)	3
AC07 Fish	150 g	150 g	80%
	250 g	250 g
	350 g	350 g
	450 g	450 g
	650 g	650 g
AC08 Beverage	1 cup (about 240 g)	1	100%
	2 cup (about 480 g)	2
	3 cup (about 720 g)	3
AC09 Popcorn	50 g	50	100% microwave
	100 g	100
AC10 CHICKEN	500g	500g	C-4/ Preheat to 200°C
	750g	750g
	1000g	1000g
	1200g	1200g

4 Operation

4.9 Multi-step cooking

At most 2 steps can be set for cooking. In multi-step cooking, if one step is defrosting, then defrosting must be placed in the first step.

If you want to thaw food for 5 minutes and then cook with 80% microwave power for 7 minutes, perform the following steps:

1. Press ⚙️ (Defrost by time) for twice.
2. Turn 🔔 to select the defrost time until "5:00" is displayed in the screen.
3. Press MW (Microwave) once and "PL10" will be displayed in the screen.
4. Press MW (Microwave) once again or turn 📋 to set 80% microwave power.
5. Turn 🔒 to adjust the cooking time until the oven displays "7:00".
6. Press ▷ (Start/+30Sec./Confirm) to start cooking. Buzzer will sound once for the first step and defrost time countdown will start. Buzzer will sound once again when entering the second cooking step. Buzzer will sound for 5 times at the end of cooking.

4.10 Query function

1. In microwave, grill and combination modes, press MW (Microwave) or ∪ (Grill/Combination) and the current power level will be displayed for 3 seconds. After 3 seconds, the oven will return to the previous mode.
2. While cooking, press Ⓛ (Kitchen Timer/Clock) and the current time will be displayed for 3 seconds.

4.11 Child lock

1. Locking: In standby mode, press ☐ (Stop/Cancel) for 3 seconds and a buzzer will sound indicating that the child lock is activated. If the time is already set, current time will also be displayed; otherwise 0:00 will be displayed in the LED screen.
2. Unlocking: To disable the child lock, press ☐ (Stop/Cancel) for 3 seconds and a long "beep" will sound indicating that the child lock is disabled.

4.12 Opening the oven door

Press 📋 (Open door) and the oven door will be opened.

5 Cleaning and maintenance

5.1 Cleaning

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

WARNING: Never immerse the appliance or its power cable in water or in any other liquid.

1. Turn the appliance off and disconnect it from wall socket.
2. Wait for the appliance to completely cool down.
3. Keep the inside of the oven clean. Wipe with a damp cloth when splashed food or spilled liquids stick on the walls of the oven. A mild detergent may be used if the oven gets very dirty. Avoid using sprays and other harsh cleaning agents as they may cause stains, marks, and opaqueness on the door surface.
4. Outer surfaces of the oven must be cleaned with a damp cloth. Do not allow water ingress from ventilation openings to prevent damage to the operating parts in the oven.
5. Wipe both sides of the door and the glass, door gaskets and parts near the gaskets frequently with a damp cloth in order to remove the overflowing and splashing stains. Do not use abrasive cleaning agents.
6. Do not allow control panel to get wet. Clean with a soft damp cloth. Leave the door of the oven open to prevent inadvertent operation while cleaning the control panel.
7. If steam accumulates inside or around the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions. It is normal.

8. In some cases, you may need to remove the glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.

9. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. It would be sufficient to wipe the lower surface of the oven with a mild detergent. Roller ring may be washed in warm soapy water or in a dishwasher. When you remove the roller ring from oven internal floor for cleaning, ensure that you install it in the correct position while replacing it.

10. In order to remove bad odors in your oven, put a glass of water and juice and peel of a lemon to a deep bowl suitable for use in microwave and operate the oven for 5 minutes in microwave mode. Wipe thoroughly and dry with a soft cloth.
11. Please contact the authorized service when the oven lamp needs to be replaced.
12. The oven should be cleaned regularly and any food deposits should be removed. If the oven is not kept clean, this may cause surface defects that would affect the lifecycle of the appliance negatively and that would possibly cause risks.
13. Please do not dispose this appliance with household waste; old ovens shall be disposed to special waste centers provided by the municipalities.
14. When the microwave oven is used in grill function, a small amount of smoke and odor may occur which will disappear after a certain time of usage.

5.2 Storage

• If you do not intend to use the appliance for a long time, please store it carefully.
• Please make sure that the appliance is unplugged, cooled down and totally dry.
• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children.

Normal
Microwave oven interferes with TV reception	Radio and TV reception may be interfered when microwave oven is operating. It is similar to the interference caused by small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Oven light is dimmed	In low power microwave cooking, oven light may be dimmed. It is normal.
Steam accumulating on door, hot air coming out of vents	During cooking, steam may arise from the food. Most of this steam will get out from vents. But some may accumulate on a cool place like oven door. It is normal.
Oven started accidentally with no food in it.	It is not allowed to run the appliance without any food inside. It is very dangerous.

Problem	Possible Reason	Solution
Oven cannot be started.	(1) Power cable is not plugged in properly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse is blown or circuit breaker is activated.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company).
	(3) Trouble with outlet.	Test the outlet with other electrical appliances.
Oven does not heat.	(4) Door is not closed properly.	Close the door properly.
Glass turntable makes noise when microwave oven operates	(5) Turntable and bottom of the oven is dirty.	Refer to “Cleaning and Maintenance” section to clean dirty parts.
Oven displays E-3 error and does not function	(6) Oven door does not open (due to an obstruction in front of the door, low voltage and etc.)	Unplug. Then plug again after 10 seconds.

Technical diagram of a microwave oven with labeled parts and exploded view, showing internal components and part numbers.

Simple line drawing of a 3D rectangular prism (no text or symbols)

BOTXAL CABLES TEMPLATE 100 mm x 200 mm x 300 mm x 400 mm x 500 mm x 600 mm x 700 mm x 800 mm x 900 mm x 1000 mm x 1100 mm x 1200 mm x 1300 mm x 1400 mm x 1500 mm x 1600 mm x 1700 mm x 1800 mm x 1900 mm x 2000 mm x 2100 mm x 2200 mm x 2300 mm x 2400 mm x 2500 mm x 2600 mm x 2700 mm x 2800 mm x 2900 mm x 3000 mm x 3100 mm x 3200 mm x 3300 mm x 3400 mm x 3500 mm x 3600 mm x 3700 mm x 3800 mm x 3900 mm x 4000 mm x 4100 mm x 4200 mm x 4300 mm x 4400 mm x 4500 mm x 4600 mm x 4700 mm x 4800 mm x 4900 mm x 5000 mm x 5100 mm x 5200 mm x 5300 mm x 5400 mm x 5500 mm x 5600 mm x 5700 mm x 5800 mm x 5900 mm x 6000 mm x 6100 mm x 6200 mm x 6300 mm x 6400 mm x 6500 mm x 6600 mm x 6700 mm x 6800 mm x 6900 mm x 7000 mm x 7100 mm x 7200 mm x 7300 mm x 7400 mm x 7500 mm x 7600 mm x 7700 mm x 7800 mm x 7900 mm x 8000 mm x 8100 mm x 8200 mm x 8300 mm x 8400 mm x 8500 mm x 8600 mm x 8700 mm x 8800 mm x 8900 mm x 9000 mm x 9100 mm x 9200 mm x 9300 mm x 9400 mm x 9500 mm x 9600 mm x 9700 mm x 9800 mm x 9900 mm x 1,1,2,3,4,5,6,7,8,9,1,2,3,4,5,6,7,8,9,1,2,3,4,5,6,7,8,9,1,2,3,4,5,6,7,8,9,1,2,3,4,5,6,7,8,9,1,2,3,4,5,6,7,8,9,1,2,3,4,4,5,6,7,8,9,1,2,3,4,5,6,7,8,9,1,2,3,4,5,6,7,8,9,1,2,3,4,5,6,7,8,9,1,2,3,4,5,6,7,8,9,1,2,3,4,5,6,7,

Simple line drawing of a 3D box with a vertical rod inserted into the interior (no text or symbols)

Schraube A

Halterung

Mittellinie

Line drawing of a closed storage cabinet with an open door and directional arrow indicating internal movement (no text or symbols)

Halterung

Installation et raccordement

3.1 Installation et raccordement

Simple line drawing of a 3D rectangular box (no text or symbols)

INTON/CAMER/TEMPLATE 100mm x 200mm x 300mm x 400mm x 500mm x 600mm x 700mm x 800mm x 900mm x 1000mm x 1100mm x 1200mm x 1300mm x 1400mm x 1500mm x 1600mm x 1700mm x 1800mm x 1900mm x 2000mm x 2100mm x 2200mm x 2300mm x 2400mm x 2500mm x 2600mm x 2700mm x 2800mm x 2900mm x 3000mm x 3100mm x 3200mm x 3300mm x 3400mm x 3500mm x 3600mm x 3700mm x 3800mm x 3900mm x 4000mm x 4100mm x 4200mm x 4300mm x 4400mm x 4500mm x 4600mm x 4700mm x 4800mm x 4900mm x 5000mm x 5100mm x 5200mm x 5300mm x 5400mm x 5500mm x 5600mm x 5700mm x 5800mm x 5900mm x 6000mm x 6100mm x 6200mm x 6300mm x 6400mm x 6500mm x 6600mm x 6700mm x 6800mm x 6900mm x 7000mm x 7100mm x 7200mm x 7300mm x 7400mm x 7500mm x 7600mm x 7700mm x 7800mm x 7900mm x 8000mm x 8100mm x 8200mm x 8300mm x 8400mm x 8500mm x 8600mm x 8700mm x 8800mm x 8900mm x 9000mm x 9100mm x 9200mm x 9300mm x 9400mm x 9500mm x 9600mm x 9700mm x 9800mm x 9900mm x1

Simple line drawing of a 3D rectangular box with a vertical rod and a small arrow inside, no text or symbols present.

Vis A

Support

Ligne du centre

Line drawing of a closed storage cabinet with an open door and directional arrow indicating flow or movement (no text or symbols)

support

Simple line drawing of a 3D rectangular box (no text or symbols)

RICHOLIC CABBEG EASELATE 100 mm x 200 mm 50 mm x 100 mm 30 mm x 50 mm 20 mm x 100 mm 50 mm x 100 mm 50 mm x 100 mm 50 mm x 100 mm 50 mm x 100 mm 50 mm x 100 mm 50 mm x 100 mm 50 mm x 100 mm 50 mm x 100 mm 50 mm x 100 mm 50 mm x 100 mm PREF Φ1.5

Simple line drawing of a 3D box with a vertical rod and a small arrow inside, no text or symbols present.

Tornillo A

Soporte

Línea central

Line drawing of a closed storage cabinet with an open door and directional arrow indicating internal movement (no text or symbols)

soporte

Simple line drawing of a 3D rectangular box with no text or symbols

BUTTON CABLE TEMPLATE 100mm x 200mm 50mm x 300mm 50mm x 400mm 50mm x 500mm FRONT

Simple line drawing of a 3D rectangular box with internal lines and a small arrow pointing to the bottom section (no text or symbols)

Śruba A

Uchwyt

Linia środkowa

Line drawing of a closed storage cabinet with an open door and directional arrow indicating internal movement (no text or symbols)

Uchwyt

Simple line drawing of a 3D rectangular box (no text or symbols)

ROTICAL CABLES TEMPLATE Φ100mm x 20mm x 30mm x 40mm x 50mm x 60mm x 70mm x 80mm x 90mm x 100mm x 110mm x 120mm x 130mm x 140mm x 150mm x 160mm x 170mm x 180mm x 190mm x 200mm x 210mm x 220mm x 230mm x 240mm x 250mm x 260mm x 270mm x 280mm x 290mm x 300mm x 310mm x 320mm x 330mm x 340mm x 350mm x 360mm x 370mm x 380mm x 390mm x 400mm x 410mm x 420mm x 430mm x 440mm x 450mm x 460mm x 470mm x 480mm x 490mm x 500mm x 510mm x 520mm x 530mm x 540mm x 550mm x 560mm x 570mm x 580mm x 590mm x 600mm x 610mm x 620mm x 630mm x 640mm x 650mm x 660mm x 670mm x 680mm x 690mm x 700mm x 710mm x 720mm x 730mm x 740mm x 750mm x 760mm x 770mm x 780mm x 790mm x 800mm x 810mm x 820mm x 830mm x 840mm x 850mm x 860mm x 870mm x 880mm x 890mm x 900mm x 910mm x 920mm x 930mm x 940mm x 950mm x 960mm x 970mm x 980mm x 990mm x100 Φ12 Φ13 Φ14 Φ15 Φ16 Φ17 Φ18 Φ19 Φ20 Φ21 Φ22 Φ23 Φ24 Φ25 Φ26 Φ27 Φ28 Φ29 Φ30 Φ31 Φ32 Φ33 Φ34 Φ35 Φ36 Φ37 Φ38 Φ39 Φ40 Φ41 Φ42 Φ43 Φ44 Φ45 Φ46 Φ47 Φ48 Φ49 Φ50 Φ51 Φ52 Φ53 Φ54 Φ55 Φ56 Φ57 Φ58 Φ59 Φ60 Φ61 Φ62 Φ63 Φ64 Φ65 Φ66 Φ67 Φ68 Φ69 Φ70 Φ71 Φ72 Φ73 Φ74 Φ75 Φ76 Φ77 Φ78 Φ79 Φ80 Φ81 Φ82 Φ83 Φ84 Φ85 Φ86 Φ87 Φ88 Φ89 Φ90 Φ91 Φ92 Φ93 Φ94 Φ95 Φ96 Φ97 Φ98 Φ99 Φ100

Simple line drawing of a 3D rectangular box with a vertical rod and a small arrow, labeled 'Osa' at the bottom (no text or symbols on the diagram itself)

Skrutka A

Zátvorka

Line drawing of a closed storage cabinet with an open door and directional arrow indicating internal movement (no text or symbols)

Vzpera

Simple line drawing of a 3D rectangular box (no text or symbols)

MOBOLY CABINET EPLIATE 100mm x 200mm x 300mm x 400mm x 500mm x 600mm x 700mm x 800mm x 900mm x 1000mm x 1100mm x 1200mm x 1300mm x 1400mm x 1500mm x 1600mm x 1700mm x 1800mm x 1900mm x 2000mm x 2100mm x 2200mm x 2300mm x 2400mm x 2500mm x 2600mm x 2700mm x 2800mm x 2900mm x 3000mm x 3100mm x 3200mm x 3300mm x 3400mm x 3500mm x 3600mm x 3700mm x 3800mm x 3900mm x 4000mm x 4100mm x 4200mm x 4300mm x 4400mm x 4500mm x 4600mm x 4700mm x 4800mm x 4900mm x 5000mm x 5100mm x 5200mm x 5300mm x 5400mm x 5500mm x 5600mm x 5700mm x 5800mm x 5900mm x 6000mm x 6100mm x 6200mm x 6300mm x 6400mm x 6500mm x 6600mm x 6700mm x 6800mm x 6900mm x 7000mm x 7100mm x 7200mm x 7300mm x 7400mm x 7500mm x 7600mm x 7700mm x 7800mm x 7900mm x 8000mm x 8100mm x 8200mm x 8300mm x 8400mm x 8500mm x 8600mm x 8700mm x 8800mm x 8900mm x 9000mm x 9100mm x 9200mm x 9300mm x 9400mm x 9500mm x 9600mm x 9700mm x 9800mm x 9900mm x1

Simple line drawing of a 3D rectangular box with internal components and a dashed line indicating a reference axis (no text or symbols)

Šroub A

Vzpěra

Line drawing of a closed storage cabinet with an open door and directional arrow indicating flow or movement (no text or symbols)

vzpěra

4.2 Pokyny k obsluze

Simple line drawing of a 3D rectangular box with no text or symbols

RICAL CABLE TEMPLATE 30mm x 100mm x 100mm x 100mm x 100mm x 100mm x 100mm x 100mm x 100mm x 100mm x 100mm x 100mm x 100mm x 100mm x 100mm x 100mm x 100mm x 100mm x

Line drawing of a closed storage cabinet with an open door and directional arrow indicating internal movement (no text or symbols)

beugel

Simple line drawing of a 3D rectangular box with no text or symbols

MOBOLIC ARCHEM TEMPLATE FRUIT

Simple line drawing of a 3D rectangular box with internal structure and dashed lines indicating hidden edges (no text or symbols)

Vida A

Braket

Line drawing of a closed storage cabinet with an open door and directional arrow indicating internal movement (no text or symbols)

braket
