SÉCURITÉ DU PRODUIT SÉCURITÉ DU PRODUIT CONTENTS PRODUCT SAFETY SAFETY PRECAUTIONS EN-2

BEFORE OPERATING THIS PRODUCT,

READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.

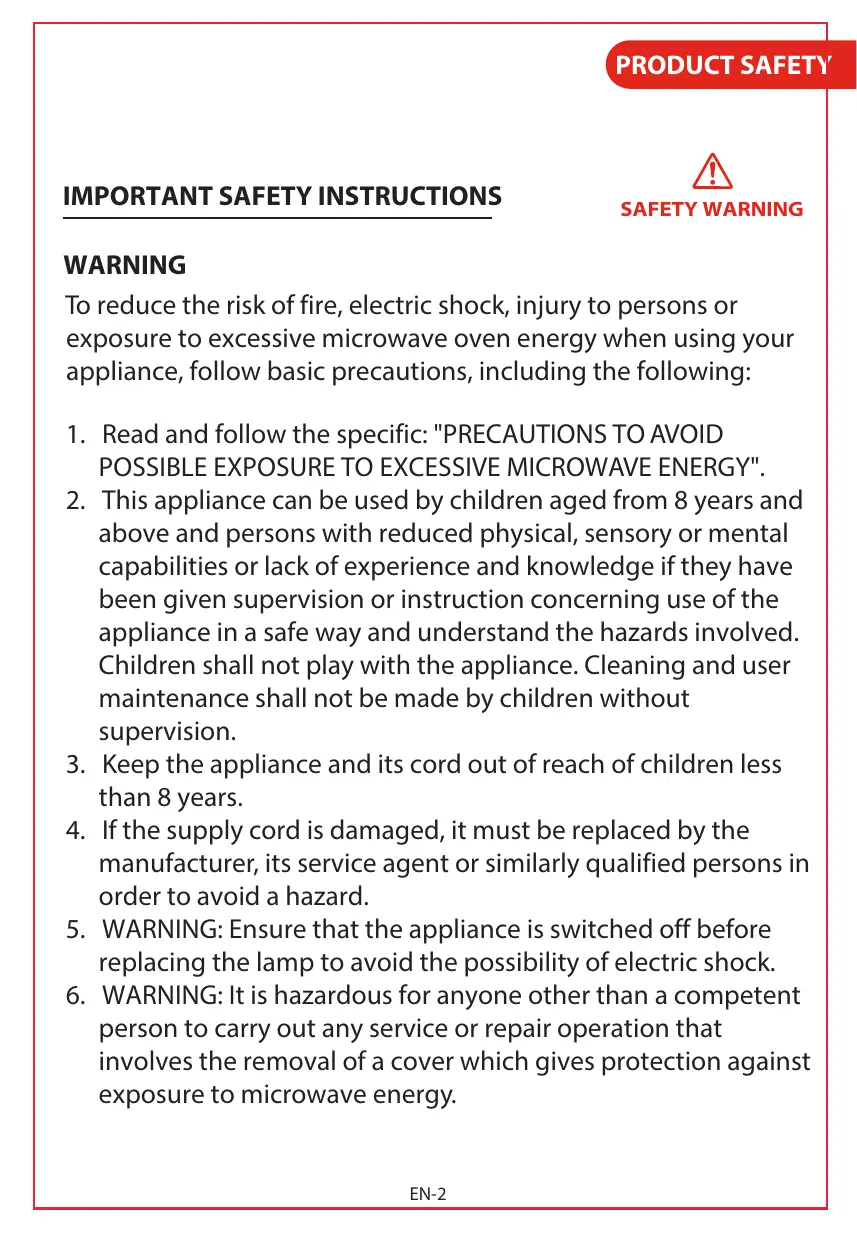

BE SURE TO SAVE THIS BOOKLIST FOR FUTURE REFERENCE PRODUCT SAFETY IMPORTANT SAFETY INSTRUCTIONS SAFETY WARNING WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY". 2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. 3. Keep the appliance and its cord out of reach of children less than 8 years. 4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. 6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

IMPORTANT SAFETY INSTRUCTIONS SAFETY WARNING

7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. 9. Only use utensils that are suitable for use in microwave ovens. 10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. 11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. 12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. 13. The oven should be cleaned regularly and any food deposits removed. 14. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. 15. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperaturesensing probe.) 16. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

PRODUCT SAFETY IMPORTANT SAFETY INSTRUCTIONS SAFETY WARNING

17.This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments; - by clients in hotels, motels and other residential type environments; - farm houses; - bed and breakfast type environments. 18.The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. 19.The appliance is intended to be used freestanding. 20.The rear surface of appliances shall be placed against a wall. 21.Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. 22.The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.) 23.The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet. 24.Metallic containers for food and beverages are not allowed during microwave cooking. 25.The appliance shall not be cleaned with a steam cleaner. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE EN-4

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. Specifications Model:

Rated Input Power(Microwave):

1200-1250W Rated Output Power(Microwave):

PRODUCT INTRODUCTION TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord. 1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. 2. If a long cord set or extension cord is used: • The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. • The extension cord must be a grounding-type 3-wire cord. • The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. EN-6

CLEANING Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water. 3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty. 4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. 5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS CAUTION Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. Utensil Test: 1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question. 2. Cook on maximum power for 1 minute. 3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking. 4. Do not exceed 1 minute cooking time.

PRODUCT INTRODUCTION MATERIALS YOU CAN USE IN MICROWAVE OVEN UTENSILS REMARKS Browning dish

Follow manufacturer’s instructions.The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.

Microwave-safe only. Follow manufacturer’s instructions.Do not use cracked or chipped dishes.

Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.

Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.

Follow manufacturer’s instructions. Do not close with metal tie.

Make slits to allow steam to escape.

Paper plates and cups

Use for short–term cooking/warming only. Do not leave oven unattended while cooking.

Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.

Use as a cover to prevent splattering or a wrap for steaming.

Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.

Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.

Microwave-safe only ( meat and candy thermometers).

Use as a cover to prevent splattering and retain moisture.

May cause arcing. Transfer food into microwave-safe dish.

Food carton with metal handle

May cause arcing. Transfer food into microwave-safe dish.

Metal shields the food from microwave energy. Metal trim may cause arcing.

May cause arcing and could cause a fire in the oven.

May cause a fire in the oven.

Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.

Wood will dry out when used in the microwave oven and may split or crack.

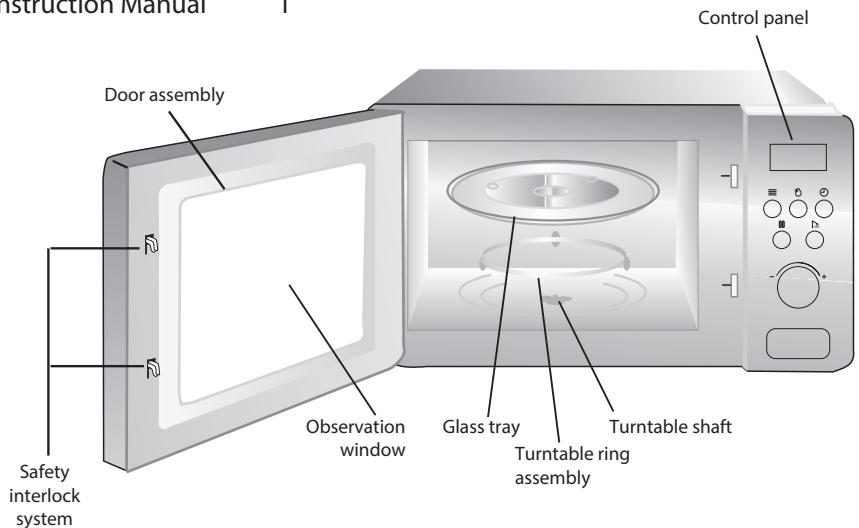

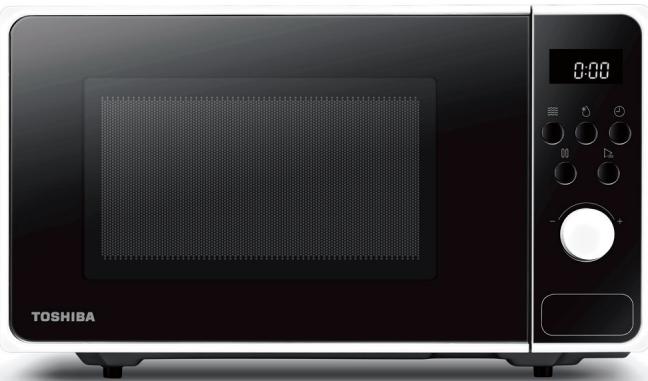

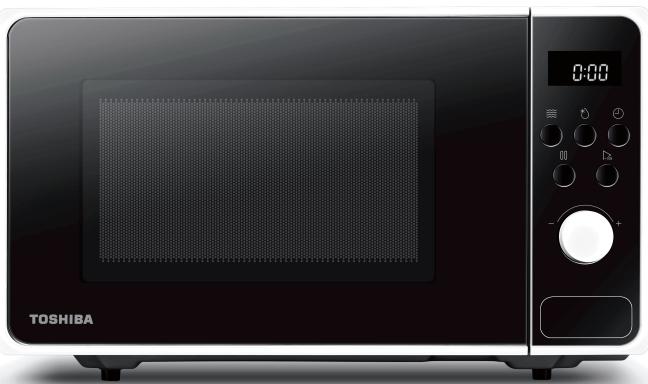

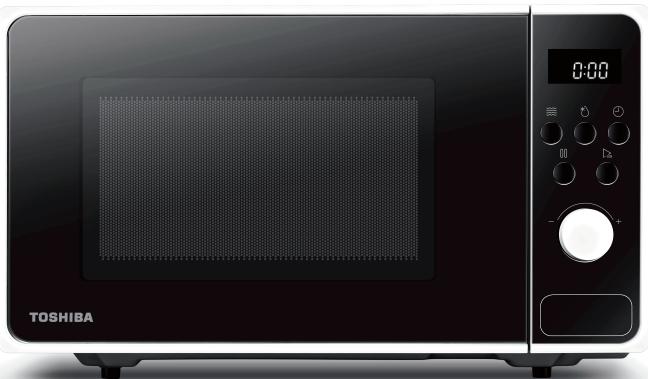

INSTRUCTION FOR USE SETTING UP YOUR OVEN Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray 1 Turntable ring assembly 1 Instruction Manual 1 Control panel Door assembly

Safety interlock system

Turntable shaft Turntable ring assembly

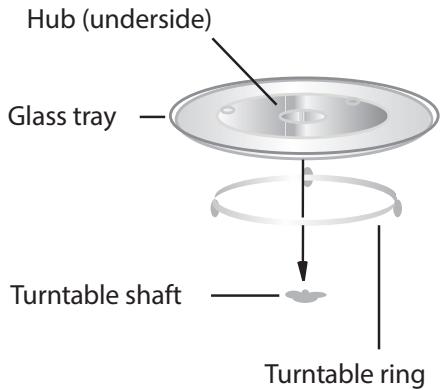

Turntable Installation

Hub (underside) Glass tray

a. Never place the glass tray upside down.

The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center. EN-10

SETTING UP YOUR OVEN Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron. INSTALLATION 1. Select a level surface that provide enough open space for the intake and/or outlet vents. 0cm

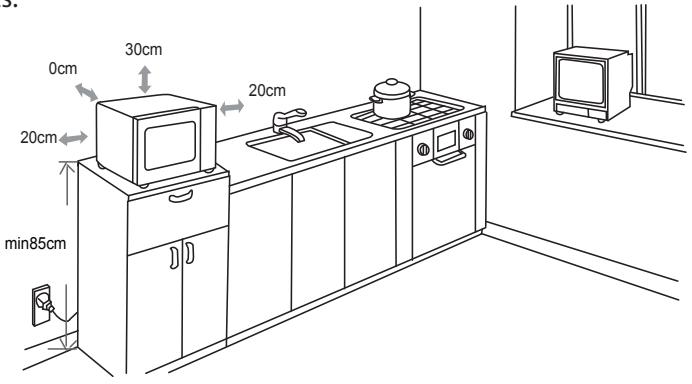

a. The minimum installation height is 85cm. b. The rear surface of appliance shall be placed against a wall.

Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls. c. Do not remove the legs from the bottom of the oven. d. Blocking the intake and/or outlet openings can damage the oven. e. Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

INSTRUCTION FOR USE SETTING UP YOUR OVEN

2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

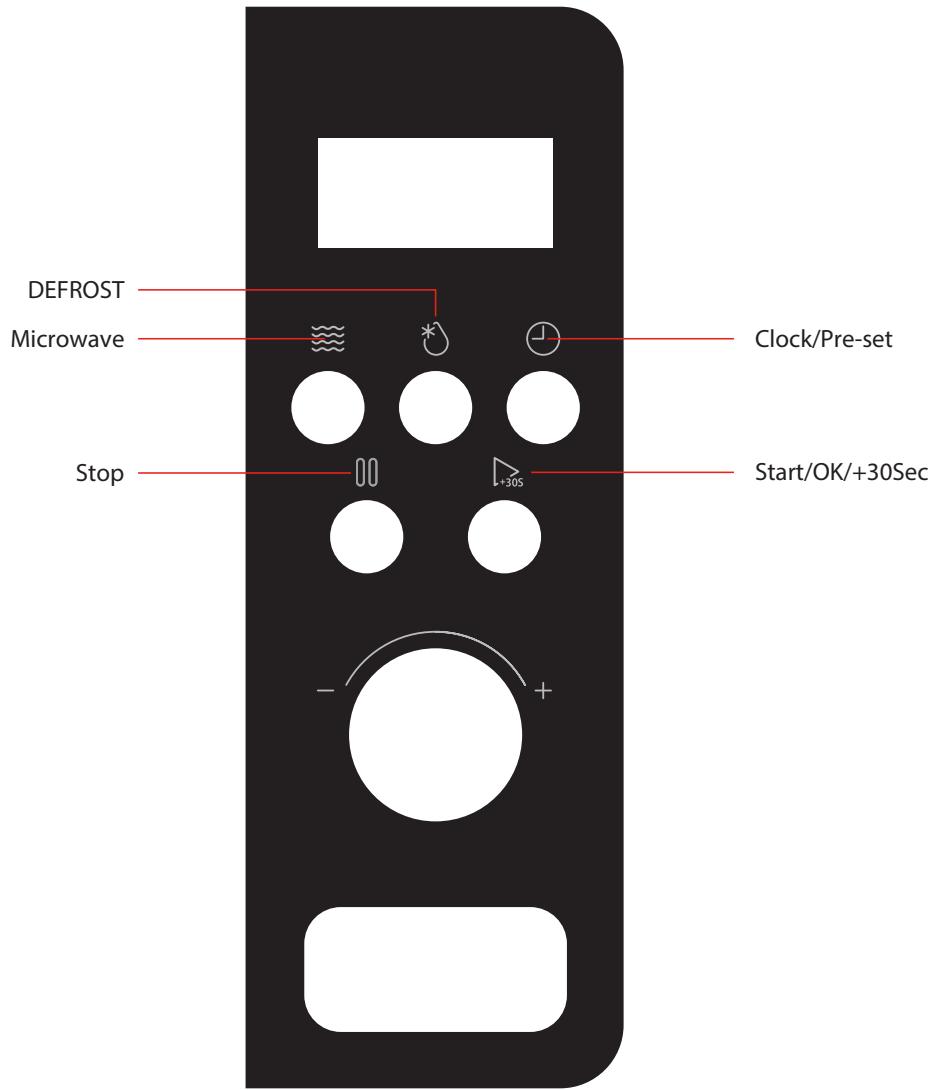

INSTRUCTION FOR USE OPERATION This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

At the initial power on, buzzer sound once, The LED will display "0:00" ,oven enter waiting state. There are three types of conditions into waiting state: a. At the initial power on, press any key. b. In the process of setting, press " Stop " to enter. c. If there is no operation within 1 minute, enter waiting state.

When the microwave oven is electrified,the oven will display "0:00", buzzer will ring once. a. In waiting state, Press " Clock/Pre-set ", the hour figure flash. b. Turn " " to adjust the hour figures, the input time should be within 0--23 . c. Press " Clock/Pre-set " twice, the minute figures will flash. d. Turn " " to adjust the minute figures, the input time should be within 0--59. e. Press " Clock/Pre-set " to finish clock setting. ":" will flash. NOTE

• If the clock is not set, it would not function during the process of clock setting.

• During the process of clock setting, if no oppreation in 1 minute, the oven will go back to the previous status automatically.

3. Microwave Cooking a. In waiting state , Press the " Microwave " key once, and "P100" display. b. Press " Microwave " key several times or turn " " to select the microwave power

"P100", "P80", "P50", "P30", "P10" will display in order. c. Press " Start/OK/+30Sec " to confirm. d. Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.) e. Press " Start/OK/+30Sec " to start cooking.

• In the process of setting, if the " stop " button is pressed or if there is no operation within 1 minute, the oven will go back to the former setting automatically. The Settings made are invalid.

• the step quantities for the adjustment time of the coding switch are as follow:

0---1 min : 5 seconds 1---5 min : 10 seconds 5---10 min : 30 seconds 10---30 min : 1 min ute 30---95 min : 5 minutes

Microwave Power Chart

4. Speedy Cooking a. In waiting state, press " Start/OK/+30Sec " key to cook with 100% power level for

30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes. b. During the microwave and time defrost process, press " Start/OK/+30Sec " to increase the cooking time. c. In waiting states, turn " " left to choose the cooking time directly. After choosing the time, press " Start/OK/+30Sec " to start cooking. The microwave power is 100%. d. Under the states of auto menu and weight defrost, cooking time cannot be increased by pressing " Start/OK/+30Sec ".

5. Defrost By Weight a. In waiting state, Press " DEFROST " once, the screen will display "dEF1". b. Turn "

" to select the food weight. The range of weight is 100-2000g. c. Press " Start/OK/+30Sec " key to start defrosting.

6. Defrost By Time a. In waiting state, Press " DEFROST " twice, the screen will display "dEF2". b. Turn "

" to select the cooking time. c. Press " Start/OK/+30Sec " key to start defrosting.

INSTRUCTION FOR USE OPERATION

7. Multi-Stage Cooking Two stages can be maximumly set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin. Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following: a. Press " DEFROST " twice, the screen will display "dEF2"; b. Turn " " to adjust the defrost time of 5 minutes; c. Press " Microwave " once; d. Turn " " to choose 80% microwave power till "P80" display; e. Press " Start/OK/+30Sec " to confirm; f. Turn " " to adjust the cooking time of 7 minutes; g. Press " Start/OK/+30Sec " to start cooking.

8. Pre-set Function a. Set the clock first. (Consult the instruction of clock setting.) b. Input the cooking program. Two stages can be set at most. Defrosting should not be set in preset function.

Example: if you want to cook with 80% microwave power for 7 minutes. • Press " Microwave " once; • Turn " " to choose 80% microwave power till "P80" display; • Press " Start/OK/+30Sec " to confirm; • Turn " " to adjust the cooking time of 7 minutes; After the above steps, please do not press " Start/OK/+30Sec " Then do as following: c. Press " Clock/Pre-set ". The hour figures flash; d. Turn " " to adjust the hour figures, the input time should be within 0--23. e. Press " Clock/Pre-set ", the minute figures will flash. f. Turn " " to adjust the minute figures, the input time should be within 0--59. (Press" Clock/Pre-set " again, then return to hour figures flash.) g. Press " Start/OK/+30Sec " to finish setting. ":" will light and back to clock display. (Current setting can be cancelled by " Stop "key) Buzzer will ring twice when the time arrives, then cooking will start automatically. NOTE

• clock must be set first. Otherwise,pre-set function will not work.

9. Auto Menu a. In waiting states, turn " " right to choose the menu from "A-1" to "A-8"; b. Press " Start/OK/+30Sec " to confirm the menu you choose; c. Turn " " to choose th food weight; d. Press " Start/OK/+30Sec " to start cooking; e. After cooking finish, the buzzer sounds five times.

50g(with water 450 g)

100g(with water 800 g)

INSTRUCTION FOR USE OPERATION

10. Lock-out Function for Children Lock: In waiting state, press " STOP " for 3 seconds, there will be a long "beep" denoting entering the children-lock state and screen will display " ". Lock quitting: In locked state, press " STOP " for 3 seconds, there will be a long "beep" denoting that the lock is released.

11. Inquiring Function a. In cooking states of microwave, press " Microwave ", the current power will be displayed for 3 seconds. b. In pre-set state, press " Clock/Pre-set " to inquire the time for delay start cooking.

The pre-set time will flash for 3 seconds, then the oven will turn back to the clock display. c. During cooking state, press " Clock/Pre-set " to check the current time. It will be displayed for 3 seconds.

12. Specification a. The buzzer will sound once when turning the knob at the beginning; b. " Start/OK/+30Sec " must be pressed to continue cooking if the door is opened during cooking; c. Once the cooking programme has been set , " Start/OK/+30Sec " is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled. d. The buzzer sounds once by efficient press, inefficient press will be no responce. e. The buzzer will sound five times to remind you when cooking is finished. f. When oven door is open, Cooking cannot begin, after 10 minutes the lamp will always on and you can't turn it off. If the oven door is opened during cooking,

The relay will stop immediately and clock stop timing, cooking time will still be displayed, it flashes after restarting. When cooking is over, open the oven door, other keys are are invalid. g. In Pause state," Stop " key, " Start/OK/+30Sec " key and function key of current cooking are valid. Buzzer will sound if the working process is paused for 5 minutes, oven will return to waiting state.

13. Turntable Reset Function When cooking finished, if the turntable is not at the initial position, it will enter the turntable reset function. At this time, the lamp, fan and turntable are working," " will dynamic display. After the turntable has reset, the oven stops cooking and reminding cooking is finished.

• This function only works for one completed cooking. If pause or open the oven door during cooking, the current cooking cannot enter the turntable reset function.

• Under the reset state, opening the door or " Stop " key is pressed, the oven will go back to waiting state.

Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.

In low power microwave cooking, oven light may become dim. It is normal.

Steam accumulating on door, hot air out of vents

In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.

Oven started accidentally with no food in.

It is forbidden to run the unit without any food inside.

It is very dangerous.

Microwave oven interfering

Oven can not be started.

(1) Power cord not plugged in tightly.

Unplug. Then plug again after 10 seconds.

(2) Fuse blowing or circuit breaker works.

Replace fuse or reset circuit breaker (repaired by professional personnel of our company)

(3) Trouble with outlet.

Test outlet with other electrical appliances.

(4) Door not closed well.

According to Waste of Electrical and Electronic Equipment

(WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available. EN-20

WARRANTY CONDITIONS / SERVICE We congratulate you on the new device and hope you enjoy it.

Should you find a problem for the product, please contact our customer service: Midea Europe GmbH Tel.: 06196 90 20 0 Ludwig-Erhard-Straße 14 Fax: Tel.: 06196 90 20120 65760 Eschborn E-Mail: info-meg@midea.com Homepage: www.midea-home.com

Tel.: 06196 90 200 Fax: 06196 90 20120 Email: service-meg@midea.com [DE] service-es@midea.com [ES] service-fr@midea.com [FR] assistenza@midea.com [IT]

In case of a malfunction, enter your exact address, telephone number, sales contract number and device type (from the rating plate of the device).

A precise description of the error saves you and us time and money. If you have any special questions, please contact the customer service center. Before you contact the service: Please check whether it is not an operating error or a cause that has nothing to do with the function of your device. Please note the information in the operating instructions and check whether: - The power plug is connected - The power plug may be damaged - The door (s) of the device is / are firmly closed Guarantee conditions This device was manufactured and tested using the most modern methods. The manufacturer fulfills independently of the statutory warranty obligation of the seller / dealer for a period of 24 months, valid from the day of purchase, 12 months for commercial use, guarantee of flawless material and flawless manufacturing. The warranty claim expires if the buyer or a third party intervenes. Damage caused by improper handling or operation through incorrect installation or storage, through improper installation or connection, as well as due to force majeure or other external influences, are not covered by the guarantee. We reserve the right to repair, replace the defective parts or exchange the device in the event of a complaint. Replaced parts and devices become our property. Only when the manufacturer's intended use through rework or replacement of the device cannot be achieved, can the buyer within 6 months of warranty period, apply from the day of purchase, get a reduction in the purchase price or extension of the purchase contract.

MAINTENANCE WARRANTY CONDITIONS / SERVICE Claims for damages, also with regard to consequential damage, are excluded, if they are intentional or based on gross negligence.

If the customer service is used unnecessarily or without authorization, we will charge this for our customer services usual time and reward. Complaints are closed immediately after detection. The buyer must prove the warranty claim by presenting the purchase receipt. This guarantee promise is valid within the Federal Republic of Germany.

Midea Europe GmbH Ludwig-Erhard-Str. 14 65760 Eschborn, Germany
