USER MANUAL 3VF6660SA BALAY

Depending on the appliance specifications

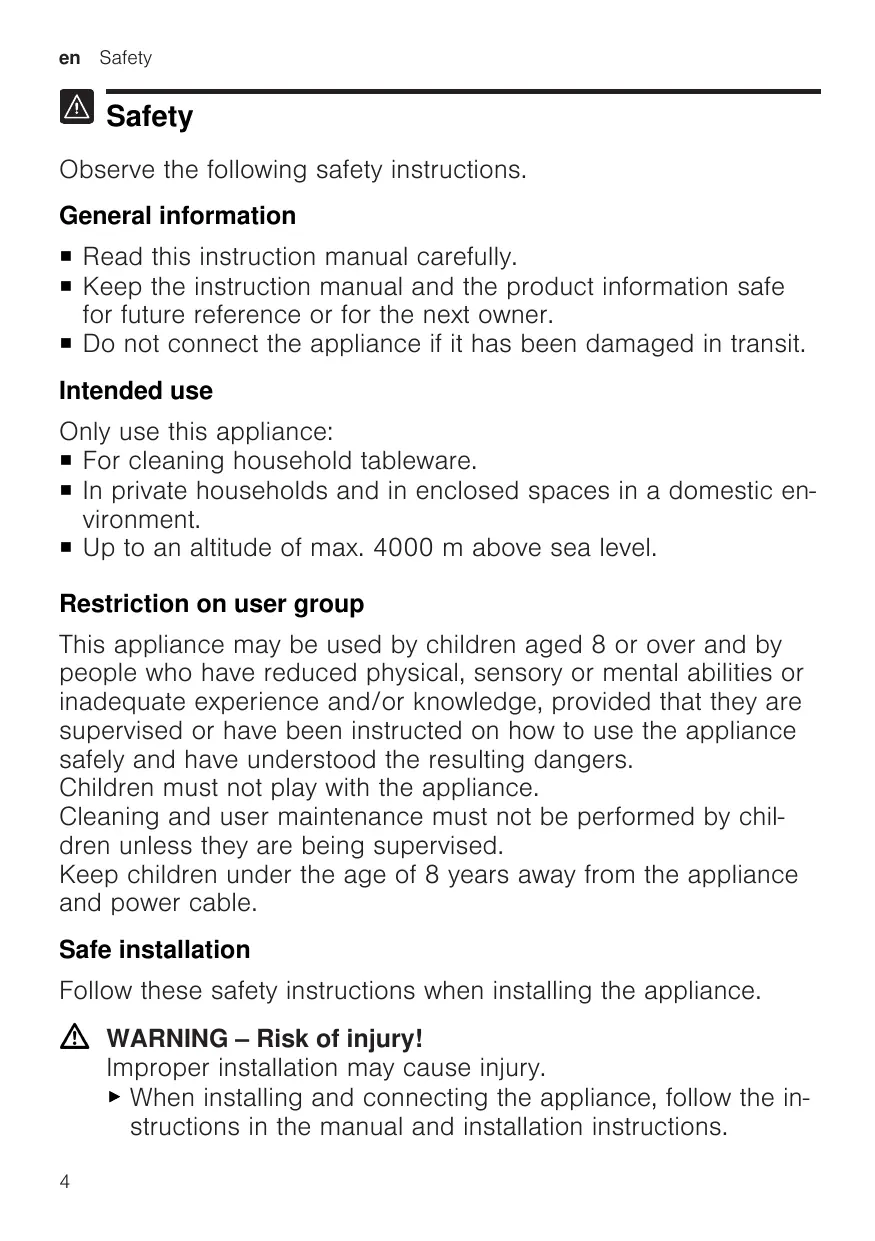

en Safety Safety Observe the following safety instructions. General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. Intended use Only use this appliance: ¡ For cleaning household tableware. ¡ In private households and in enclosed spaces in a domestic environment. ¡ Up to an altitude of max. 4000 m above sea level. Restriction on user group This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children unless they are being supervised. Keep children under the age of 8 years away from the appliance and power cable. Safe installation Follow these safety instructions when installing the appliance. WARNING ‒ Risk of injury! Improper installation may cause injury. ▶ When installing and connecting the appliance, follow the instructions in the manual and installation instructions.

WARNING ‒ Risk of electric shock! ¡ Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing. ▶ The protective conductor system of the domestic electrical installation must be properly installed. ▶ Never equip the appliance with an external switching device, e.g. a timer or remote control. ▶ When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the installation regulations. ▶ When installing the appliance, check that the power cable is not trapped or damaged. ¡ Cutting through the supply hose or immersing the Aqua-Stop valve in water is dangerous. ▶ Never immerse the plastic housing in water. The plastic housing on the supply hose contains an electric valve. ▶ Never cut through the supply hose. The supply hose contains electric power cables. WARNING ‒ Risk of fire! It is dangerous to use an extended power cord and non-approved adapters. ▶ Do not use extension cables or multiple socket strips. ▶ If the power cord is too short, contact Customer Service. ▶ Only use adapters approved by the manufacturer.

en Safety WARNING ‒ Risk of injury! Hinges move when opening and closing the appliance door and can cause injury. ▶ If built-under or integrable appliances are not in a cavity so that one side is accessible, the hinge area must be covered at the side. Covers are available from Customer Service or specialist outlets. WARNING ‒ Risk of tipping! Improper installation may cause the appliance to tip up. ▶ Only install built-under or integrable appliances under a continuous worktop that is securely connected to adjacent cabinets. Safe use WARNING ‒ Risk of serious harm to health! Failure to comply with safety instructions and directions for use on packagings of detergent and rinse aid products may cause serious harm to health. ▶ Follow the safety instructions and directions for use on the packagings of detergent and rinse aid products. WARNING ‒ Risk of explosion! ¡ Adding solvents to the interior of the appliance may cause explosions. ▶ Never add solvents to the interior of the appliance. ¡ Highly caustic alkaline or highly acidic cleaning agents in conjunction with aluminium parts in the interior of the appliance may cause explosions. ▶ Never use highly caustic alkaline or highly acidic cleaning agents, in particular commercial or industrial products, in conjunction with aluminium parts (e.g. grease filters of extractor hoods or aluminium pans), e.g. for the Machine Care programme.

WARNING ‒ Risk of injury! ¡ Leaving the appliance door open may result in injury. ▶ Only open the appliance door to load or unload tableware in order to prevent accidents, e.g. through tripping. ▶ Do not sit or stand on the appliance door when open. ¡ Knives and utensils with sharp points can cause injuries. ▶ Arrange knives and utensils with sharp points in the cutlery basket with the points downwards, on the knife shelf or in the cutlery drawer. WARNING ‒ Risk of scalding! If you open the appliance door while the programme is running, hot water may splash out of the appliance. ▶ Open the appliance door carefully if the programme is still running. WARNING ‒ Risk of electric shock! ¡ An ingress of moisture can cause an electric shock. ▶ Only use the appliance in enclosed spaces. ▶ Never expose the appliance to intense heat or humidity. ▶ Do not use steam- or high-pressure cleaners to clean the appliance. ¡ If the insulation of the power cord is damaged, this is dangerous. ▶ Never let the power cord come into contact with hot appliance parts or heat sources. ▶ Never let the power cord come into contact with sharp points or edges. ▶ Never kink, crush or modify the power cord. Damaged appliance Follow the safety instructions if the appliance is damaged. WARNING ‒ Risk of electric shock! ¡ If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance.

en Safety ▶ Never operate an appliance with a cracked or fractured surface. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. ▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box and turn off the water tap. ▶ "Call Customer Service." → Page 55 ▶ Repairs to the appliance should only be carried out by trained specialist staff. ¡ Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced with a special connection cable, which is available from the manufacturer or his Customer Service. Risk to children Follow the safety instructions if there are children in your home. WARNING ‒ Risk of suffocation! ¡ Children may put packaging material over their heads or wrap themselves up in it and suffocate. ▶ Keep packaging material away from children. ▶ Do not let children play with packaging material. ¡ Children may breathe in or swallow small parts, causing them to suffocate. ▶ Keep small parts away from children. ▶ Do not let children play with small parts.

WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. ▶ With redundant appliances, unplug the power cord. Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close. WARNING ‒ Risk of crushing! With higher-level appliances, children can become crushed between the appliance door and cabinet doors underneath. ▶ Keep an eye on children when opening and closing the appliance door. WARNING ‒ Risk of chemical burns! Rinse aid and detergent may cause chemical burns to the mouth, throat and eyes. ▶ Keep children away from detergent and rinse aid products. ▶ Keep children away from the appliance when open. The water in the interior of the dishwasher is not drinking water. It may contain residues of detergents and rinse aid. WARNING ‒ Risk of injury! Children may get their fingers caught in the slots of the tablet collecting tray and injure themselves. ▶ Keep children away from the appliance when open. WARNING ‒ Risk of suffocation! Children may become trapped in the appliance and suffocate. ▶ Use the childproof lock if fitted. ▶ Never let children play with or operate the appliance.

en Preventing material damage Preventing material damage Preventing material damage Preventing material damage Safe installation Follow the instructions when installing the appliance. ATTENTION! ¡ Improper installation of the appliance may cause damage. ▶ If the dishwasher is installed above or below other domestic appliances, follow the information on installation in combination with a dishwasher in the installation instructions for the individual appliances. ▶ If there is no information or if the installation instructions do not include the relevant information, contact the manufacturer of these appliances to check that the dishwasher can be installed above or below these appliances. ▶ If no information is available from the manufacturer, the dishwasher should not be installed above or below such appliances. ▶ To ensure the safe operation of all domestic appliances, continue following the installation instructions for the dishwasher. ▶ Do not install the dishwasher under a hob. ▶ Do not install the dishwasher near heat sources, e.g. radiators, heat storage tanks, ovens or other appliances that generate heat. ¡ Modified or damaged water hoses may result in material damage and damage to the appliance. ▶ Never kink, crush, modify or cut through water hoses.

▶ Only use the water hoses sup- plied with the appliance or genuine spare hoses. ▶ Never re-use water hoses that have been used before. ¡ If the water pressure is too high or too low, the appliance may not be able to operate properly. ▶ Make sure that the water pressure in the water supply system is min. 50 kPa (0.5 bar) and max. 1000 kPa (10 bar). ▶ If the water pressure exceeds the maximum value specified, a pressure-reducing valve must be installed between the drinking water connection and the hose set of the appliance. Safe use Follow the instructions when using the appliance. ATTENTION! ¡ Escaping water vapour can damage fitted units. ▶ When the programme ends, leave the appliance to cool down for a while before opening the door. ¡ Special salt for dishwashers can damage the tub due to corrosion. ▶ To make sure that any special salt that escapes is washed out of the tub, add the special salt to the dispenser for special salt immediately before the programme starts. ¡ Detergent may damage the water softening system. ▶ Only fill the dispenser of the water softening system with special dishwasher salt. ¡ Unsuitable cleaning agents may damage the appliance. ▶ Do not use a steam cleaner. Environmental protection and saving energy ▶ So as not to scratch the finish on the appliance, do not use sponges with a rough surface or abrasive cleaning agents. ▶ To prevent corrosion, do not use sponge cloths on dishwashers with a stainless steel front or rinse such cloths thoroughly several times before using them for the first time. Environmental protection and saving energy Environmental protection and saving energy Environmental protection and saving energy Disposing of packaging The packaging materials are environmentally compatible and can be recycled. ▶ Sort the individual components by type and dispose of them separately. Saving energy If you follow these instructions, your appliance will use less electricity and less water. Use the Eco 50 ° programme. The Eco 50 ° programme is energy-efficient and environmentally friendly.

• "Programmes", Page 17 If you do not have much tableware to wash, use the additional Half Load function.1 The programme will adjust to a lower load and consumption will be reduced.
• "Additional functions", Page 18

AquaSensor The AquaSensor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water. You can save water with the AquaSensor. Use of the AquaSensor depends on the programme. If the soiling level is high, the rinsing water is drained off and replaced with fresh water. If the soiling level is lower, the rinsing water is used in the next wash cycle, so reducing water consumption by 3-6 litres. In the automatic programmes the temperature and run time are additionally adjusted to the level of soiling. Installation and connection Installation and connection Installation and connection Scope of supply After unpacking all parts, check for any damage in transit and completeness of the delivery. If you have any complaints, contact the dealer who sold you the appliance or our Customer Service. Note: The appliance has been tested at the factory to check it is in working order. It is possible that water has left marks on the appliance. These marks will disappear after the first wash cycle. The delivery consists of the following: ¡ Dishwasher ¡ Operating instructions ¡ Installation Instructions ¡ Warranty ¡ Installation material ¡ Steam guard plate Depending on the appliance specifications

en Installation and connection ¡ Salt filling aid funnel ¡ Mains cable ¡ Quick reference guide Installing and connecting the appliance You can position your built-under or integrable appliance in a fitted kitchen between wooden and plastic walls. If you subsequently install your dishwasher as a free-standing appliance, you must stop it from tipping over, e.g. by screwing it to the wall or installing it under a continuous worktop that is securely connected to adjacent cabinets.

1. "Follow the safety instructions."

2. "Follow the instructions for electrical connection." → Page 12

3. Check the Scope of supply and

the condition of the appliance.

4. Consult the installation instructions

for the installation dimensions required.

5. Make the appliance level using the

height-adjustable feet. Make sure that the appliance is standing on the floor securely.

6. "Install the drainage connection."

7. "Install the drinking water connection." → Page 12

8. Connect the appliance to the

power supply. Drainage connection Connect your appliance to drainage connection so dirty water is discharged via the wash cycle. Installing the drainage connection

1. Consult the installation instructions

supplied for the steps required here.

2. Connect the wastewater hose to

the outlet connection of the siphon using the enclosed parts.

3. When doing so, check that the

wastewater hose is not kinked, crushed or twisted.

4. Also check that there is no cover

in the drainage system preventing the wastewater from being discharged. Drinking water connection Connect your appliance to a drinking water connection. Installing the drinking water connection Note ¡ If you are replacing the appliance, you must use a new water supply hose.

1. Consult the installation instructions

supplied for the steps required here.

2. Connect the appliance to the drinking water connection using the enclosed parts.

Observe the "Technical data"

3. When doing so, check that the

drinking water connection is not kinked, crushed or twisted. Electrical connection Connect your appliance to the power supply. Connecting the appliance to the electricity supply Notes ¡ Please follow the "Safety instructions" → Page 4. ¡ Connect the appliance to alternating current only, in the range of

220 - 240 V and 50 Hz or 60 Hz.

Installation and connection en ¡ Please note that the water safety system is only functional if there is a power supply.

1. Insert the non-heating appliance

plug of the power cable into the appliance.

2. Insert the mains plug of the appliance into a nearby socket.

The connection data for the appliance can be found on the rating plate.

3. Check that the mains plug is inserted properly.

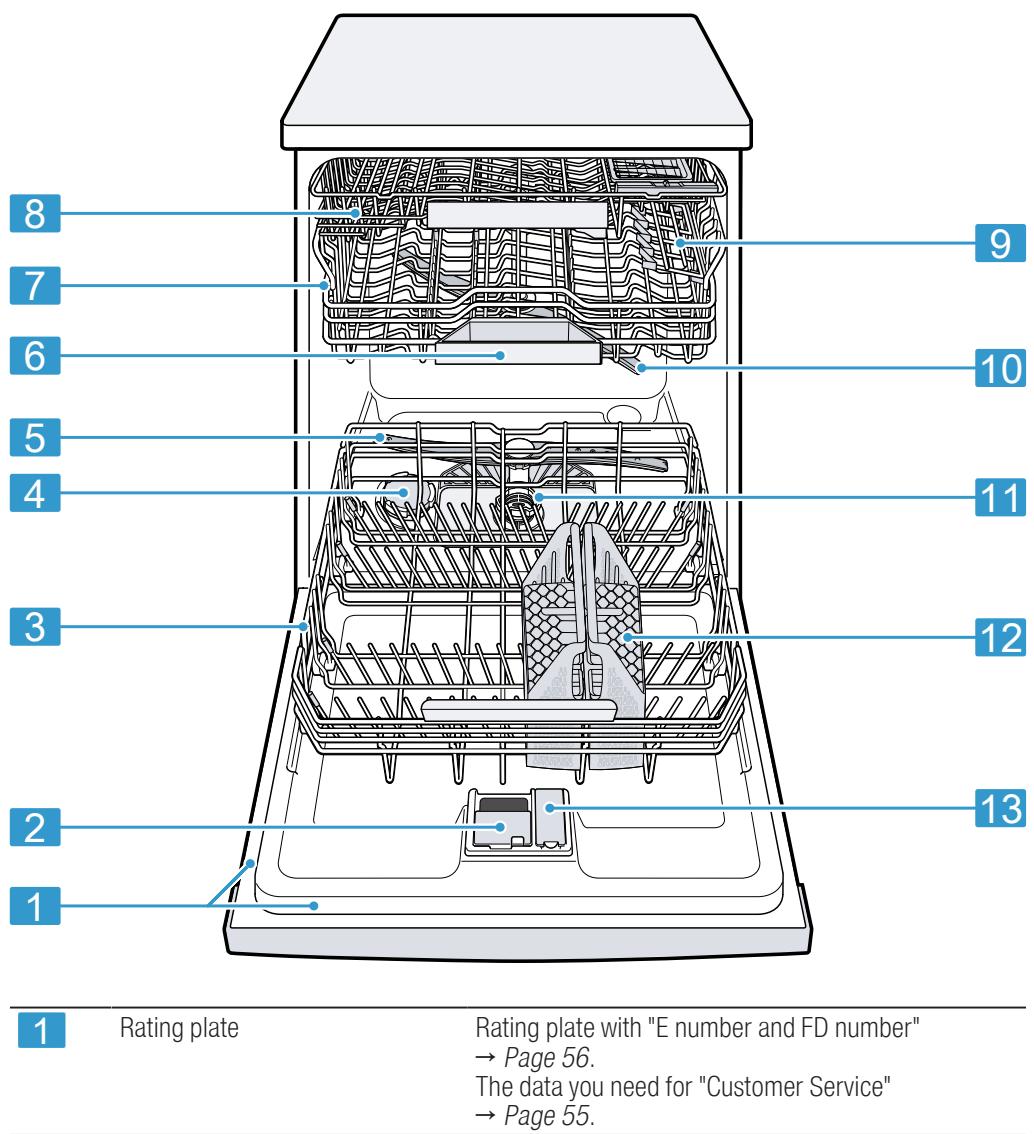

en Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarising yourself with your appliance Appliance You can find an overview of the parts of your appliance here.

Rating plate Depending on the appliance specifications Rating plate with "E number and FD number"

• Page 56. The data you need for "Customer Service"
• Page 55. Familiarising yourself with your appliance

Tablet collecting tray Dispenser for special salt

"Detergent" → Page 28 is added to the detergent dispenser. "Bottom basket" → Page 20 Add the special salt to the dispenser for special salt.

• "Water softening system", Page 24 The lower spray arm washes the tableware in the bottom basket. If the tableware has not been washed properly, clean the spray arms.

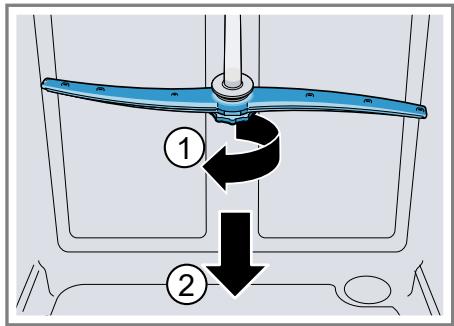

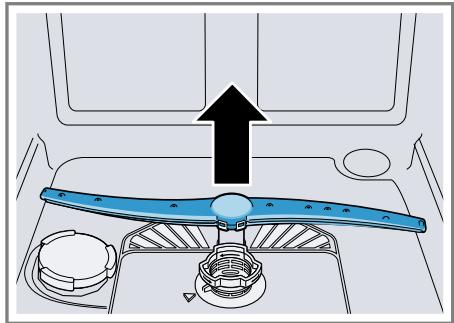

• "Cleaning spray arms", Page 42 During the wash cycle tablets automatically fall out of the detergent dispenser into the tablet collecting tray where they can fully dissolve. "Top basket" → Page 19 "3rd basket" → Page 21 3rd basket

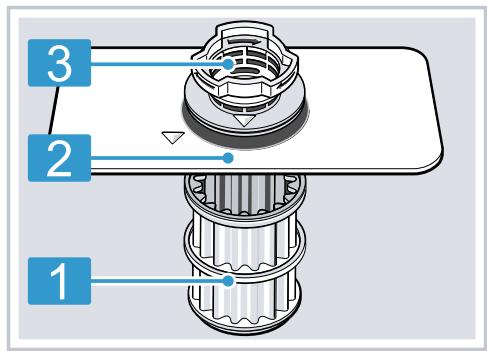

Cutlery shelf "Cutlery shelf" → Page 21 Upper spray arm Filter system The upper spray arm washes the tableware in the top basket. If the tableware has not been washed properly, clean the spray arms.

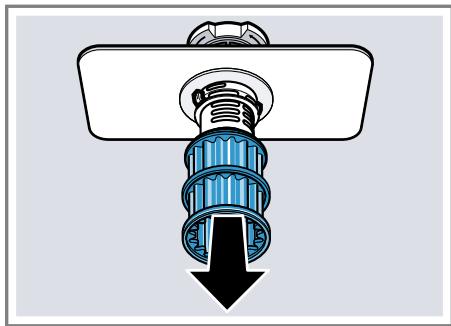

• "Cleaning spray arms", Page 42 "Filter system" → Page 41 Cutlery basket "Cutlery basket" → Page 21 Dispenser for rinse aid Add rinse aid to the dispenser for rinse aid.
• "Rinse aid system", Page 27 Depending on the appliance specifications Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions.

en Familiarising yourself with your appliance

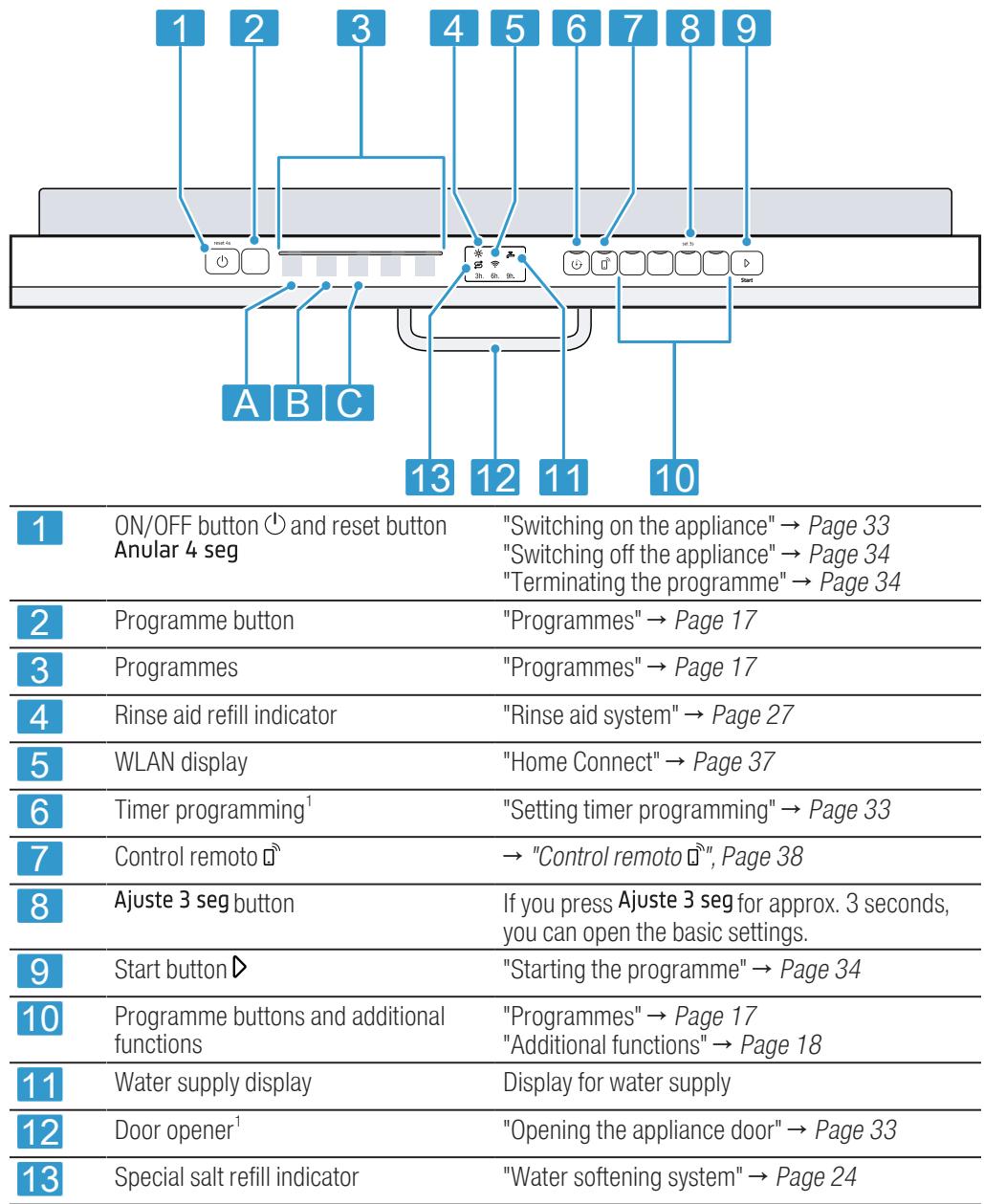

Timer programming "Setting timer programming" → Page 33 Control remoto

• "Control remoto ", Page 38 button Start button If you press for approx. 3 seconds, you can open the basic settings. "Starting the programme" → Page 34 Programme buttons and additional functions Water supply display "Programmes" → Page 17 "Additional functions" → Page 18 Display for water supply Door opener1 "Opening the appliance door" → Page 33 Special salt refill indicator "Water softening system" → Page 24 Depending on the appliance specifications Programmes

Programmes Programmes You can find an overview of the programmes that can be selected here. Different programmes, which can be found on the control panel of your appliance, are available depending on the appliance configuration. The running time may vary depending on the programme selected. The running time depends on the water temperature, the quantity of tableware, the level of soiling and the additional function selected. The runProgrammes Programme Intensivo 70° Auto 45-65° Eco 50° ning time will change if the rinse aid system is switched off or rinse aid needs to be added. The consumption values can be found in the quick reference guide. The consumption values relate to normal conditions and a water hardness of 9 - 20 °E. Different influencing factors such as water temperature or pipe pressure may result in deviations. Use Programme sequence Tableware: ¡ Washing pots and pans, non-fragile tableware and cutlery. Level of soiling: ¡ Removing stubborn burned or dried-on food remnants containing starch and protein. Tableware: ¡ Cleaning mixed tableware and cutlery. Level of soiling: ¡ Removing common household food remnants lightly dried-on. Tableware: ¡ Cleaning mixed tableware and cutlery. Level of soiling: ¡ Removing common household food remnants lightly dried-on. Intensive: ¡ Pre-Rinse ¡ Cleaning 70 °C ¡ Intermediate rinse ¡ Final rinse 69 °C ¡ Drying Additional functions All

• "Additional functions", Page 18 Sensor-controlled: ¡ Optimised by sensors depending on the soiling of the rinsing water. All
• "Additional functions", Page 18 Most economical programme: ¡ Pre-Rinse ¡ Cleaning 50 °C ¡ Intermediate rinse ¡ Final rinse 61 °C ¡ Drying All
• "Additional functions", Page 18

Favorito Prelav. Note: The relatively long running time in the Eco 50 ° programme is due to longer soaking and drying times. This results in optimal consumption values. Information for test institutes Test institutes are provided with information for comparability tests, e.g. according to EN60436. These are the conditions for conducting the tests, however they are not the results or consumption values. E-mail enquiries to: dishwasher@testappliances.com The product number (E-Nr.) and the production number (FD) are required here. They can be found on the rating plate on the appliance door. Favorito Prelav. You can save a combination of a programme and an additional function to the button. You can save the programme via the Home Connect app.

The pre-rinse program is saved to this button at the factory. Pre-rinse is suitable for all types of tableware. The tableware undergoes intermediate cleaning via cold rinsing. Tip: You can use the Home Connect app to download additional programmes and save them to the button.1 Additional functions Additional functions You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. Additional functions Additional func- Use tion ¡ The run time is shortened by 15% to +turbo 75% depending on the rinse programme. Depending on the appliance specifications Features Additional func- Use tion ¡ The additional function can be activated before the start of the programme and at any time when the programme is running. ¡ Energy and water consumption are increased. ¡ Switch on with small loads. Media carga ¡ It is recommended adding less detergent to the detergent dispenser than for a full machine load. ¡ The run time is shortened. ¡ Energy and water consumption are reduced. Features Features You can find an overview of the possible features of your appliance and how to use them here. These features depend on the model of your appliance. Features

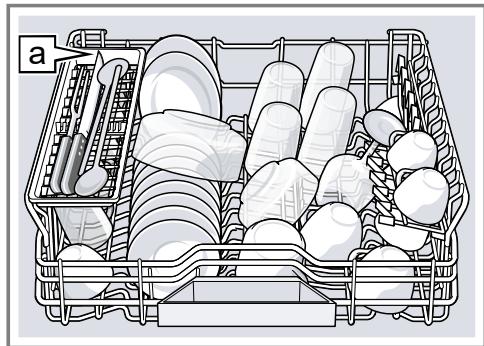

Top basket Arrange cups and glasses in the top basket.

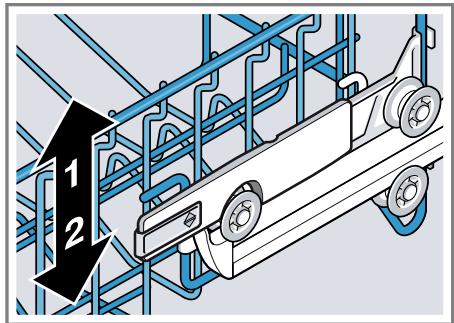

Knife shelf 1 You can adjust the height of the top basket to make room for larger items of tableware. Adjusting top basket with side levers To wash large items of tableware in the baskets, adjust the shelf position of the top basket.

1. Pull out the top basket.

2. To prevent the basket from suddenly dropping down, hold the

side of the basket by the top edge. Depending on the appliance specifications

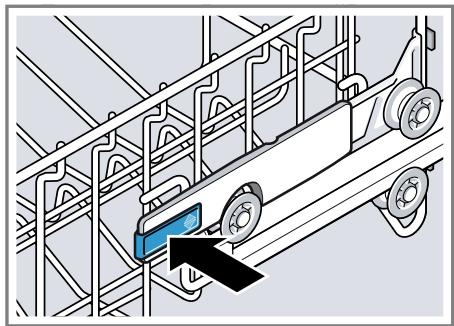

3. Press in the levers on the right and

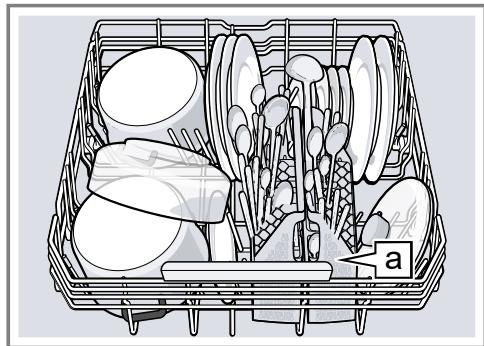

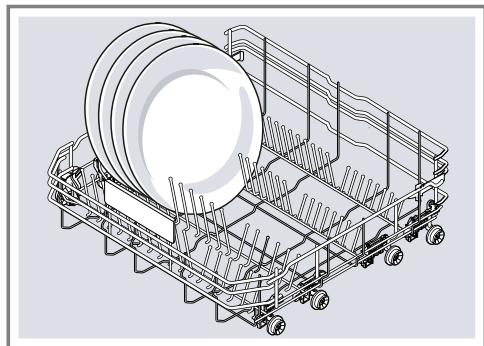

left on the outside of the basket. Bottom basket Arrange pans and plates in the bottom basket.

The basket can then slip down slightly.

4. Raise or lower the basket evenly to

• "Basket heights", Page 23 Cutlery basket 1 Large plates up to a diameter of 31 cm can be arranged in the bottom basket as shown. Check that the basket is level on both sides.

5. Slide the basket back in.

Depending on the appliance specifications Features

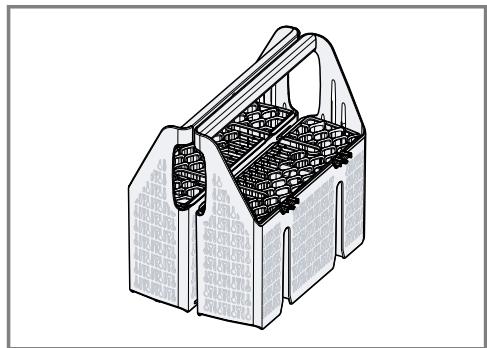

Cutlery basket Arrange cutlery in the cutlery basket, always without sorting it and with the sharp points downwards. Etagere 3rd basket Use the cutlery shelf and space underneath for small cups and glasses or for large items of cutlery, e.g. cooking spoons or serving cutlery. Use the 3rd basket to wash large items of cutlery that are lightly soiled as well as small items of tableware, e.g. small cups, bowls or cooking spoons. If you do not need the cutlery shelf, you can fold it up. Moving the side shelf in the 3rd basket You can move the side shelf in the 3rd basket to wash stemware in the top basket.

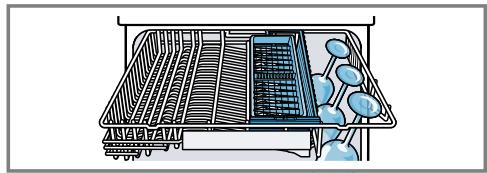

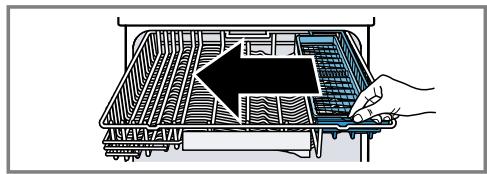

1. Move the side shelf to the left.

2. Arrange the stemware in the top

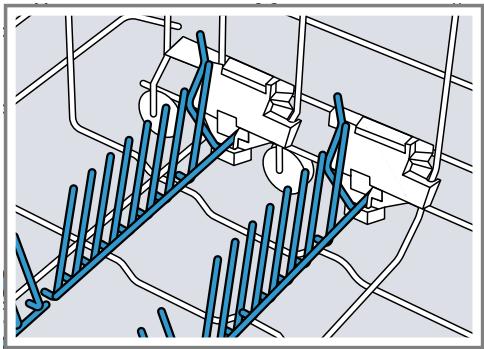

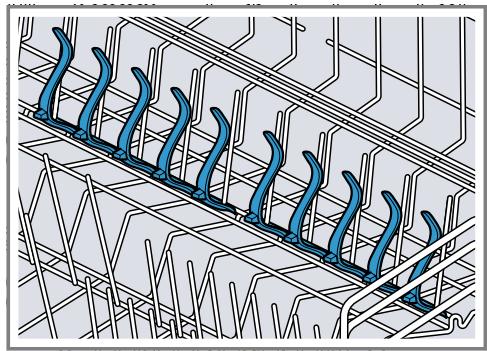

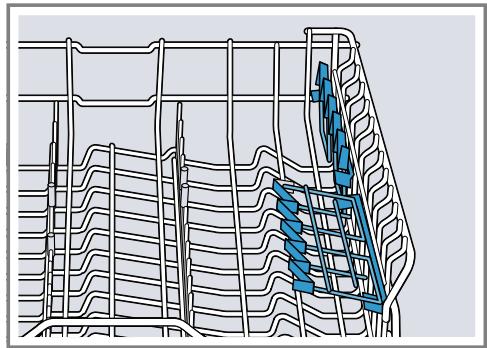

en Features Folding prongs Small items holder Use the folding prongs to position tableware securely, e.g. plates. Use the small items holder to position small items of tableware, e.g. light plastic parts. You can fold the prongs down to position pans, bowls and glasses better.1 Folding down prongs1 If you do not need the prongs, fold them down.

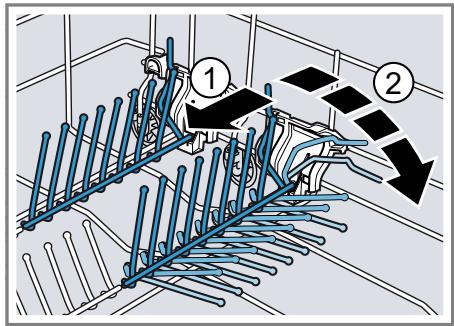

1. Push the lever forwards

and fold down the prongs .

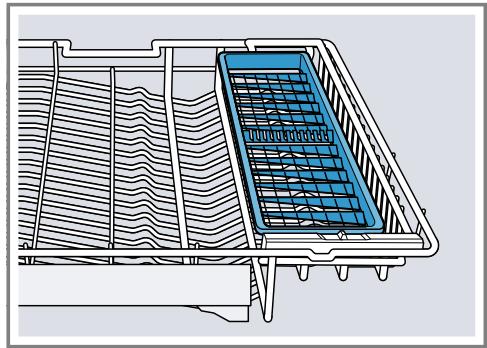

Knife shelf Use the shelf for knives and long items of cutlery.

2. To use the prongs again, fold them

back up. a The prongs audibly click into position.

Depending on the appliance specifications Features

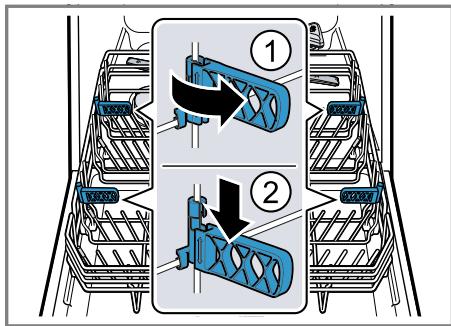

2. Fold out the baking tray holder

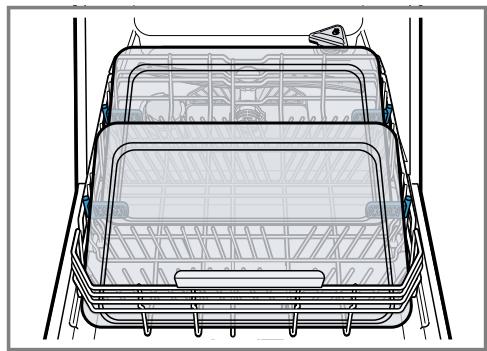

Baking tray holder Use the baking tray holder to position trays securely. and push it down

Bottle holder Using the baking tray holder Requirement: The top basket is set to the highest shelf position.

1. Pull the bottom basket out.

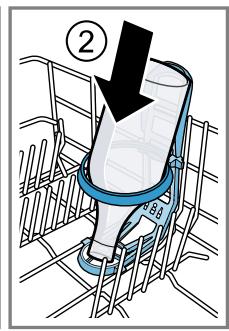

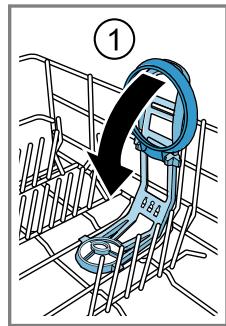

Use the bottle holder to position bottles securely. Using the bottle holder ▶ Fold down the holder the bottle . and insert Basket heights Set the baskets at the right height. Level 1 max. ø 2 max. ø Top basket

en Before using for the first time

5. "Set the amount of rinse aid to be

Before using for the first time Before using for the first time dispensed." → Page 27 Configure the settings for initial startup. Before using for the first time

6. "Add detergent" → Page 28.

7. Start the Programme with the

highest cleaning temperature without tableware. To remove any marks from water or other residues, we recommend you operate the appliance without tableware before using it for the first time. Performing the initial configuration On initial start-up or after a reset to the factory settings, you will need to make settings. Tip: Connect your appliance to a mobile device. You can conveniently change all settings via the Home Connect app.

• "Home Connect quick start", Page 37 Requirement: "The appliance has been installed and connected."

1. "Add special salt." → Page 25

3. "Switch on the appliance."

4. "Setting the water softening system." → Page 25

Tip: You can change these settings and other "Basic settings"

• Page 35 at any time. Water softening system Water softening system Hard water leaves limescale on the tableware as well as the washing tank and parts of the appliance may become blocked. To ensure good dishwashing results, you can treat the water with special salt and the water softening system. To avoid damage to the appliance, water with a hardness above 9 °E must be softened. Water softening system Overview of water hardness settings You can find an overview of the water hardness values that can be selected here. You can find out how hard your water is from your local water company or by using a water hardness tester. Water hardness value 0-8

• Page 15 Water softening system Note: Set the water hardness determined on your appliance.
• "Setting the water softening system", Page 25 With a water hardness of 0 - 8 °E you can dispense with special salt for dishwashers and switch off the water softening system.
• "Switching off the water softening system", Page 26 Setting the water softening system Set the water hardness on your appliance.

1. Determine the water hardness and

the appropriate setting value.

• "Overview of water hardness settings", Page 24

3. To open the appliance settings,

press for 3 seconds. a is flashing on the display.

4. Press repeatedly until the right

water hardness has been set. 0, 1, 2 or 3 LEDs will light up accordingly.

• "Overview of water hardness settings", Page 24 The factory setting is level 1 ("LED A" → Page 15).

5. To save the settings, press

ter hardness: the higher the water hardness, the greater the amount of special salt required. ATTENTION! ¡ Detergent may damage the water softening system. ▶ Only fill the dispenser of the water softening system with special dishwasher salt. ¡ Special salt for dishwashers can damage the tub due to corrosion. ▶ To make sure that any special salt that escapes is washed out of the tub, add the special salt to the dispenser for special salt immediately before the programme starts.

1. Unscrew the lid of the dispenser

for special salt and remove.

2. On initial start-up: Fill the dispenser

right up with water. Special salt You can use special salt to soften water. Adding special salt If the special salt refill indicator lights up, add special salt to the dispenser for special salt just before the programme starts. The amount of special salt required depends on the wa25 en Water softening system

3. Note: Only use special salt for

dishwashers. Do not use salt tablets. Do not use table salt. Add the special salt to the dispenser.

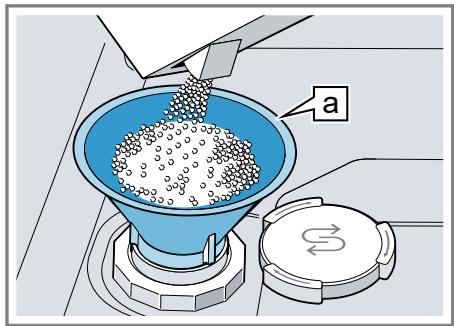

Funnel 1 Fill the dispenser right up with special salt. The water in the dispenser is displaced and forced out.

4. Place the lid back on the dispenser and turn to close.

Switching off the water softening system If you find the special salt refill indicator irritating, e.g. when using combined detergents with salt replacement substances, you can switch the salt refill indicator off. Note To avoid damage to the appliance, only switch off the water softening system in the following cases: ¡ The water hardness is max. 26 °E and you are using combined detergents with salt replacement substances. According to manufacturers, combined detergents with salt replacement substances can gen-

erally only be used up to a water hardness of 26 °E without adding special salt. ¡ The water hardness is 0 - 8 °E. You do not need to use special salt.

2. To open the appliance settings,

press for 3 seconds. a is flashing on the display.

3. Press repeatedly until no LED

lights up (level 0).

• "Overview of water hardness settings", Page 24

for 3 seconds. a The water softening system is switched off and the salt refill indicator is deactivated. Regeneration of the water softening system In order to obtain fault-free function of the water softening system, the appliance performs regeneration of the water softening system at regular intervals. Regeneration of the water softening system takes place before the end of the main rinse cycle in all programmes. It will increase the run time and consumption values, e.g. water and electricity. Overview of consumption values with regeneration the water softening system Here you can find an overview of the maximum additional run time and consumption values during regeneration of the water softening system. Regeneration of the water softening 6 system after x rinse cycles Depending on the appliance specifications Rinse aid system Additional run time in minutes Additional water consumption in litres Additional power consumption in kWh

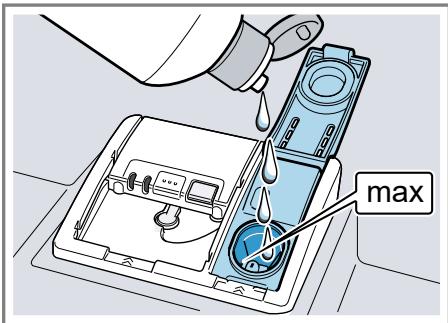

2. Add rinse aid up to the max mark.

The consumption values specified are laboratory measurements determined in accordance with the currently applicable standard and using the Eco 50° programme and the factory value of the water hardness is set to

Rinse aid system Rinse aid system You can use the rinse aid system and rinse aid to get tableware and glasses rinsed perfectly without marks. Rinse aid system Rinse aid For optimum drying results, use rinse aid. Only use rinse aid for domestic dishwashers. Adding rinse aid If the rinse aid refill indicator lights up, top up with rinse aid. Only use rinse aid for domestic dishwashers.

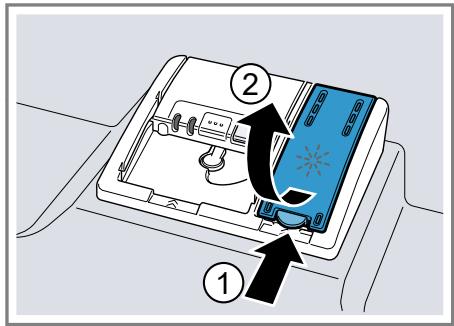

1. Press the catch on the lid of the

dispenser for rinse aid and lift

3. If rinse aid spills out, remove it

from the tub. Spilled rinse aid can cause excessive frothing during the wash cycle.

4. Close the lid of the dispenser for

rinse aid. a The lid clicks into position. Setting the amount of rinse aid If there are streaks or water marks on tableware, change the amount of rinse aid.

2. To open the appliance settings,

press for 3 seconds. a is flashing on the display.

repeatedly until flashes.

4. Press repeatedly until the right

amount of rinse aid has been set. 0, 1, 2 or 3 LEDs will light up accordingly. The factory setting is level 2 ("LED A and LED B" → Page 15). – A low setting adds less rinse aid during the wash cycle and reduces streaking on tableware.

en Detergent – A higher setting adds more rinse aid during the wash cycle, reduces water marks and improves the drying result.

5. To save the settings, press

for 3 seconds. Switching the rinse aid system off If you find the rinse aid refill indicator irritating, e.g. when using combined detergents with a rinse aid component, you can switch the rinse aid system off. Tip: The function of rinse aid is limited with combined detergents. You will generally get better results using rinse aid.

2. To open the appliance settings,

press for 3 seconds. a is flashing on the display.

repeatedly until flashes.

4. Press repeatedly until no "LED"

• Page 15 lights up (level 0).

5. To save the settings, press

for 3 seconds. a The rinse aid system is switched off and the rinse aid refill indicator is deactivated. Detergent Detergent Find out which detergents are suitable for your appliance. Detergent Suitable detergents Only use detergents that are suitable for dishwashers. Both separate and combined detergents are suitable. For optimum washing and drying results, use separate detergent, adding "Special salt" → Page 25 and "Rinse aid" → Page 27 separately. Modern, powerful detergents mainly use a low-alkaline formulation with enzymes. Enzymes break down starch and remove protein. Oxygenbased bleaching agents are generally used to remove coloured marks, e.g. tea or ketchup. Note: Follow the manufacturer's instructions for each detergent. Detergent Tabs Powder detergent

Description Tabs are suitable for all cleaning functions and do not need to be measured out. With shorter "Programmes" → Page 17 tabs sometimes do not dissolve entirely and leave residues of detergent. This may impair the cleaning effect. Powder detergent is recommended for shorter "Programmes" → Page 17. The dosage can be adjusted to the level of soiling. Detergent Detergent Liquid detergent Description Liquid detergent works faster and is recommended for shorter "Programmes" → Page 17 without PreRinse. Sometimes liquid detergent may leak out despite the detergent dispenser being closed. This is not a fault and is non-critical if you remember the following: ¡ Only choose a programme without PreRinse. ¡ Do not select timer programming for starting the programme. The dosage can be adjusted to the level of soiling. Tip: Suitable detergents are available online via our website or from "Customer Service" → Page 55. Separate detergents Separate detergents are products that do not contain components other than detergent, e.g. powder detergent or liquid detergent. With powder and liquid detergent the dosage can be individually adjusted to the level of soiling of the tableware. For better washing and drying results and to avoid damage to the appliance, please additionally use "Special salt" → Page 25 and "Rinse aid"

• Page 27. Combined detergent Besides conventional separate detergents, a number of products are available with additional functions. These products contain not only detergent but also rinse aid and salt replacement substances (3in1) and,

depending on the combination (4in1, 5in1, ...), additional components such as glass protection or stainless steel cleaner. According to manufacturers, combined detergents generally only function up to a water hardness of 26 °E. With a water hardness above 26 °E you will need to add special salt and rinse aid. For the best washing and drying results we recommend using special salt and rinse aid from a water hardness of 17 °E. If you are using combined detergent, the washing programme is adjusted automatically to ensure the best possible washing and drying result. Unsuitable detergents Do not use detergent which could cause damage to the appliance or present a risk to health. Detergent Description Hand washing-up Hand washing-up liquid liquid can cause increased frothing and damage the appliance. Detergent conChlorine residue on tabletaining chlorine ware may present a risk to health. Information on detergents Follow the instructions on detergents in everyday use. ¡ Detergents marked as "organic" or "ecological" (environmentally friendly) generally contain lower levels of active agents or completely dispense with certain substances. The cleaning effect may be restricted here. ¡ Set the rinse aid and the water softening system to the separate detergent or combined detergent in use.

en Detergent ¡ According to manufacturers, combined detergents with salt replacement substances can only be used up to a certain water hardness, usually 26 °E, without adding special salt. For the best washing and drying results we recommend using special salt from a water hardness of 17 °E. ¡ To prevent sticking, only touch detergents in a water-soluble pouch with dry hands and only ever place them in a dry detergent dispenser. ¡ Even if the rinse aid and special salt refill indicators light up, washing programmes will run properly with combined detergents. ¡ The function of rinse aid is limited with combined detergents. You will generally get better results using rinse aid. ¡ Use tablets with a special drying performance. Adding detergent

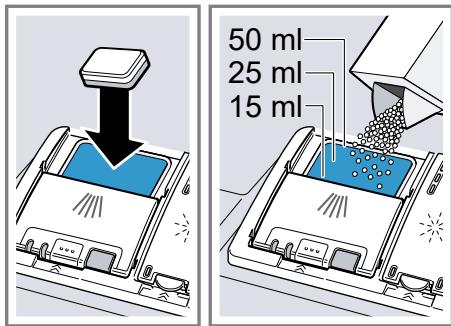

1. To open the detergent dispenser,

press the locking latch.

2. Add the detergent to the dry deter-

gent dispenser. 50 ml 25 ml 15 ml If you are using tablets, one is enough. Insert the tablets in a horizontal position. If you are using powder or liquid detergent, follow the manufacturer's instructions and quantities for dosage in the detergent dispenser. 20 ml – 25 ml detergent is sufficient for normal soiling. If tableware is only lightly soiled, slightly less than the amount of detergent specified is usually sufficient. Tableware

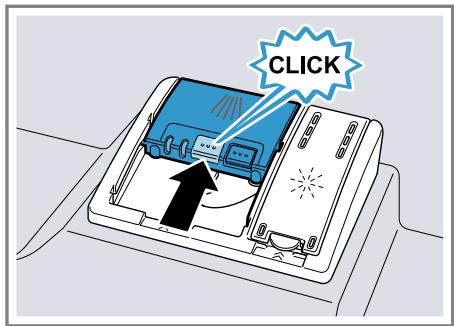

3. Close the lid of the detergent dis-

Damage to glass and tableware Avoid damage to glass and tableware. a The lid clicks into position. a The detergent dispenser will open automatically at the optimum time during the programme. Powder or liquid detergent will spread around the washing tank and dissolve there. Tablets will fall into the tablet collecting tray and dissolve in the right dosage. In order to ensure that tablets can dissolve evenly, do not place any other objects in the tablet collecting tray. Tip: If you use powder detergent and select a program with pre-rinse, you can also add a little detergent to the interior door of the appliance. Cause The following tableware is not dishwasher-safe: ¡ Items of cutlery and tableware made from wood ¡ Decorated glassware, antique and hand-crafted tableware ¡ Plastic parts not resistant to heat ¡ Tableware made from copper or tin ¡ Tableware soiled with ash, wax, lubricating grease or paint ¡ Very small items of tableware Glass and tableware was not dishwashersafe. Tableware Tableware Only clean tableware that is suitable for dishwashers. Note: Decorated glassware and parts made of aluminium or silver may fade or discolour with dishwashing. Delicate types of glass may turn cloudy after a few washing cycles. Tableware The chemical composition of the detergent causes damage. Highly caustic alkaline or highly acidic cleaning agents, in particular commercial or industrial cleaning agents, are not suitable for dishwashers in conjunction with aluminium. Recommendation Only put tableware in the dishwasher if it is marked as dishwasher-safe by the manufacturer. Only put glasses and china in the dishwasher if it is marked as dishwasher-safe by the manufacturer. Use a detergent marked as gentle on tableware by the manufacturer. If you are using highly caustic alkaline or highly acidic cleaning agents, in particular commercial or industrial cleaning agents, do not put aluminium parts in the dishwasher interior.

en Tableware Cause The water temperature of the programme is too high. Recommendation Select a programme with lower temperatures. After the programme has ended, take glassware and cutlery out of the appliance without delay. Arrange tableware Arrange tableware correctly to optimise the dishwashing result and prevent damage to both the appliance and tableware. Tips ¡ Using the appliance allows you to save energy and water compared to washing-up by hand. ¡ See our website for examples of how to load your appliance efficiently, free of charge. ¡ To save energy and water, load the machine with the number of place settings specified.

• "Technical specifications", Page 56 ¡ For better washing and drying results, position items with curves or recesses at an angle so water can run off.

1. Remove large remnants of food

from your tableware.

To save resources, do not prerinse tableware under running water.

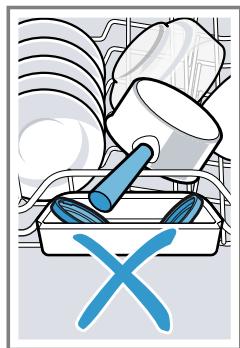

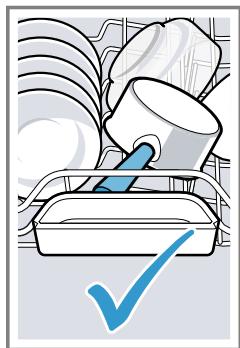

2. Observe the following when arranging tableware:

– Put heavily soiled tableware in the bottom basket, e.g. pans. The more powerful the spray jet, the better the dishwashing result will be. – To prevent damage to tableware, arrange it so it is stable and cannot tip over. – To prevent injury, arrange cutlery with the points and sharp edges facing down. – Position containers with the openings facing down so no water can collect in them. – Do not block the spray arms make sure that they can turn freely. – Do not place small parts in the tablet collecting tray and do not block it with tableware so as not to obstruct the lid of the detergent dispenser. Basic operation Removing tableware WARNING Risk of injury! Hot tableware can cause burns to the skin. When hot, tableware is sensitive to shock, may crack and can result in injury. ▶ When the programme has ended, do not empty the appliance until the tableware has cooled down for a while.

1. To prevent water dripping on the

tableware, unload it starting at the bottom and working up.

2. Check the washing tank and accessories for soiling and clean if

• "Cleaning and servicing", Page 39 Basic operation Basic operation Basic operation Opening appliance door ▶ Open the appliance door. Switching on the appliance ▶ Press

The Eco 50° programme is set by default. The Eco 50° programme is an especially environmentally friendly programme and ideal for normally soiled tableware. It is the most efficient programme for the combination of energy/water consumption for this type of tableware and evidences conformity with the EU Ecodesign Directive.

If you do not perform any actions on the appliance for 10 minutes, the appliance will automatically switch off. Setting a programme To adjust the wash cycle to the soiling level of the tableware, select a suitable programme. ▶ Press the programme button repeatedly until the right programme has been selected.

• "Programmes", Page 17 a The programme is set and the LED flashes. Setting additional functions You can set additional functions to complete the washing programme selected. Note: The additional functions which can be used depend on the programme selected.
• "Programmes", Page 17 ▶ Press the button for the relevant additional function.
• "Additional functions", Page 18 a The additional function is set and the additional function button flashes. Setting timer programming1 You can delay the start of the programme by 3, 6 or 9 hours.

repeatedly until the relevant display lights up.

2. To activate timer programming,

press . Note: To deactivate timer programming, press repeatedly until none of the displays 3h, 6h or 9h light up. Depending on the appliance specifications

en Basic operation Starting the programme ▶ Press . a While the programme is running, a spot of light is projected onto the floor below the appliance door. This light will not be visible if the appliance is installed at eye level with the cabinet front fitted flush. a The programme has ended when no indicators on the controls light up. a The programme has ended when the spot of light is no longer visible on the floor. Notes ¡ If you want to add more tableware while the appliance is running, do not use the tablet collecting tray as a handle for the top basket. You might touch the partially dissolved tablet. ¡ You can only change a programme when running if you cancel it.

• "Terminate programme", Page 34 ¡ The appliance switches off automatically 1 minute after the end of the programme to save energy. If you open the appliance door immediately after the programme has ended, the appliance will switch off after 4 seconds. Interrupting programme Note: When you open the appliance door once the appliance has heated up, leave the door slightly ajar for a few minutes and then close it. This will help prevent excess pressure building up in the appliance and stop the appliance door bursting open.

a The programme is saved and the appliance switches off.

to resume the programme. Terminate programme To end a programme early or to switch from a programme that has already started, you will need to cancel it first.

1. Open the appliance door.

for approx. 4 seconds.

3. Close the appliance door.

a All displays light up. a As soon as the displays are off, the residual water is pumped out. a The programme is cancelled and ends after approx. 1 minute. Switching off appliance

1. Please note the information on

"Safe use" → Page 10.

Tip: If you press during the wash cycle, the programme currently running will be interrupted. When you switch the appliance back on, the programme continues automatically. Basic settings en Basic settings Basic settings You can configure the appliance to meet your needs. Basic settings Overview of basic settings The basic settings depend on the features of your appliance. Basic setting Water hardness Selection Scale with 4 levels Rinse aid disp. Scale with 4 levels Extra Dry

Off 1 Tone volume Scale with 4 levels Wi-Fi

Off 1 Control remoto Scale with 3 levels Factory setting Reset

Description Set the water hardness.

• "Setting the water softening system", Page 25 Set the amount of rinse aid to be dispensed or switch off.
• "Setting the amount of rinse aid", Page 27 Switch Extra Dry on or off for each operation. For a better drying result the temperature in the final rinse is increased. This may increase the running time slightly. Note: Please take care with delicate tableware.
• "Setting Extra Dry", Page 36 Adjustment of tone volume.
• "Setting signal volume", Page 36 Switch the wireless network connection on or off.
• "Set Wi-Fi", Page 36 Activate or deactivate the function.
• "Activating Control remoto ", Page 36 Restore changed settings to the factory settings. The settings for initial start-up must be configured.
• "Restoring factory settings", Page 36 Factory setting (may vary according to model)

2. To open the appliance settings,

press for 3 seconds. a is flashing on the display.

repeatedly until and flash in the display.

4. Press repeatedly until the LEDs

show the right value. If "LED A" → Page 15 is not lit, Extra Dry is switched off. If "LED A" → Page 15 is lit, Extra Dry is switched on.

5. To save the settings, press

for 3 seconds. Setting signal volume

2. To open the appliance settings,

press for 3 seconds. a is flashing on the display.

repeatedly until and flash in the display.

4. Press repeatedly until the right

signal volume has been set. 0, 1, 2 or 3 LEDs will light up accordingly. The signal tone selected will be heard. The factory setting is level 2 ("LED A and LED B" → Page 15).

5. To save the settings, press

for 3 seconds. Set Wi-Fi

2. To open the appliance settings,

press for 3 seconds. a is flashing on the display.

repeatedly until and flash in the display.

4. Press repeatedly until the LEDs

show the right value.

If "LED A" → Page 15 is not lit, the wireless network connection is switched off. If "LED A" → Page 15 is lit, the wireless network connection is switched on.

5. To save the settings, press

for 3 seconds. Activating Control remoto

2. To open the appliance settings,

press for 3 seconds. a is flashing on the display.

repeatedly until flashes on the display.

4. Press repeatedly until the LEDs

show the right value. If LED A lights up, the function is permanently deactivated. If LED A and LED B light up, the function can be selected using the button. If LED A, LED B and LED C light up, the function is permanently activated. The factory setting is level 2 ("LED A and LED B" → Page 15).

5. To save the settings, press

for 3 seconds. Restoring factory settings

2. To open the appliance settings,

press for 3 seconds. a is flashing on the display.

repeatedly until , and flash in the display.

4. Press to set the appliance back

to the factory settings. a The appliance is reset. Home Connect Home Connect Home Connect This appliance is network-capable. Connect your appliance to a mobile device to control its functions via the Home Connect app. The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of Home Connect services in your country. You can find information about this at: www.home-connect.com. To be able to use Home Connect, you must first set up the connection to the WLAN home network (Wi-Fi1) and to the Home Connect app. ¡ → "Connecting the appliance to WLAN home network (Wi-Fi)", Page 37 The Home Connect app guides you through the entire login process. Follow the instructions in the Home Connect app to configure the settings. Tips ¡ Please consult the documents supplied by Home Connect. ¡ Please also follow the instructions in the Home Connect app. Note: Please note the safety precautions in this instruction manual and make sure that they are also observed when operating the appliance via the Home Connect app.

• "Safety", Page 4 Home Connect

Home Connect quick start Connect your appliance to a mobile device quickly and easily. Installing app

1. Install the Home Connect app on

2. Start the app and set up access

for Home Connect. The Home Connect app guides you through the entire login process. Connecting the appliance to WLAN home network (Wi-Fi) Requirements ¡ Home Connect app is installed on your mobile device. ¡ Wi-Fi on the router is activated. ¡ The appliance receives signals from the WLAN home network (WiFi) at its installation location.

1. With the help of the Home Connect

App scan the QR code.

2. Follow the instructions in the

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

en Home Connect Home Connect settings Remote Diagnostics Adapt Home Connect to your needs. You can find the Home Connect settings in the basic settings for your appliance. Which settings the display shows will depend on whether Home Connect has been set up and whether the appliance is connected to your home network. Customer Service can use Remote Diagnostics to access your appliance if you contact them, have your appliance connected to the Home Connect server and if Remote Diagnostics is available in the country in which you are using the appliance. Tip: For further information and details about the availability of Remote Diagnostics in your country, please visit the service/support section of your local website: www.home-connect.com Control remoto You can use the Home Connect app to start the appliance with your mobile device. Tip: If you permanently activate this function in the "Basic settings "

• Page 36, you can start your appliance with a mobile device at any time. Activating Control remoto When you have selected level 2 in the basic settings of this function, activate the function on your appliance. Requirements ¡ The appliance is connected to your WLAN home network. ¡ The appliance is connected to the Home Connect app. ¡ Level 2 is selected in the "Basic settings " → Page 35 of this function. ¡ A programme is selected. ▶ Press . If you open the appliance door, the function is automatically deactivated. a button lights up. Tip: To deactivate the function, press

Software update You can use this function to update the software of your appliance, e.g. for optimisation, troubleshooting or safety-relevant updating. The Home Connect app informs you about available software updates. Data protection Please see the information on data protection. The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration): ¡ Unique appliance identification (consisting of appliance codes as well as the MAC address of the Wi-Fi communication module installed). ¡ Security certificate of the Wi-Fi communication module (to ensure a secure data connection). ¡ The current software and hardware version of your appliance. ¡ Status of any previous reset to factory settings. Cleaning and servicing This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time. Note: Please note that the Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be retrieved in the Home Connect app. Cleaning and servicing Cleaning and servicing To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. Cleaning and servicing Cleaning the tub WARNING Risk of harm to health! Using detergents containing chlorine may result in harm to health. ▶ Never use detergents containing chlorine.

1. Remove any coarse soiling in the

interior with a damp cloth.

3. Select the programme with the

highest temperature.

• "Programmes", Page 17

4. "Start the programme without

tableware." → Page 34 Cleaning products Only use suitable cleaning products to clean your appliance.

• "Safe use", Page 10 Tips on appliance care Follow the tips on appliance care to make sure your appliance functions properly at all times. Action Wipe the door seals, the front of the dishwasher and the control panel regularly using a damp cloth and washing-up liquid. If the appliance is not going to be used for a while, leave the door slightly ajar. Benefit This ensures the parts of the appliance will remain clean and hygienic. This will prevent unpleasant odours. Limpieza Limpeza Deposits, e.g. from remnants of food and limescale, can cause your appliance to malfunction. To avoid such faults and reduce odours, we recommend cleaning your appliance at regular intervals. Limpieza Limpeza combined with machine care products and machine cleaners is the right programme for the care of your appliance. Limpieza Limpeza is a programme which removes various deposits in one washing cycle. Cleaning takes place in two phases:

Removal of Grease and limescale

Food remnants and deposits Detergent Liquid machine care product or machine descaler in powder form. Machine cleaner To ensure optimum cleaning performance, the programme doses the detergents independently of each another during the relevant cleaning phase. Correct placement of the detergents is necessary here. Run Limpieza Limpeza without tableware if the indicator for Limpieza Limpeza lights up on the control panel or if advised to do so by the display. The indicator will go out after you have run Limpieza Limpeza. If your appliance does not have a reminder function, we recommend performing Machine Care every 2 months. Running Limpieza Limpeza Run the Limpieza Limpeza programme if the indicator for Limpieza Limpeza lights up on the control panel or if advised to do so by the display. Notes ¡ Run the Limpieza Limpeza programme without any tableware in the dishwasher. ¡ Only use machine care products and machine cleaners specially designed for dishwashers. ¡ Make sure that there are no aluminium parts, e.g. extractor hood grease filters or aluminium pans, in the interior of the appliance. ¡ If you have not run Limpieza Limpeza after 3 washing cycles, the indicator for Limpieza Limpeza will go out automatically.

Placement Appliance interior, e.g. bottle hung in the cutlery basket or powder in the interior. Detergent dispenser ¡ For optimum cleaning performance, ensure the correct placement of cleaners. ¡ Follow the safety instructions given on the packagings of the machine care products and machine cleaners.

1. Remove any coarse soiling in the

interior with a damp cloth.

2. Clean the filters.

3. Place the machine care product in

the appliance interior. Only use machine care products specially designed for dishwashers.

4. Pour the machine cleaner into the

detergent dispenser until it is filled completely. Do not place any additional machine cleaner in the appliance interior.

a Limpieza Limpeza is run. a Once the programme has ended, the indicator for Limpieza Limpeza goes out. Cleaning and servicing

3. Pull down the micro filter to re-

Filter system The filter system removes coarse soiling from the dishwashing cycle. move.

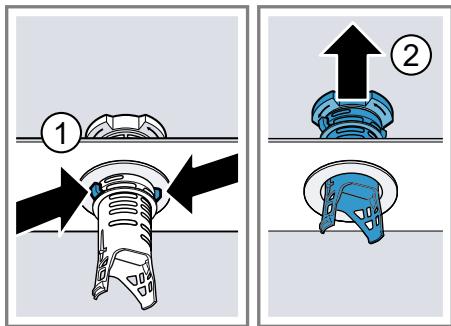

4. Press the locking catches

together and lift the coarse filter out

Micro filter Fine filter

Coarse filter Cleaning filters Soiling in the dishwashing water may block the filters.

1. After each wash check the filters

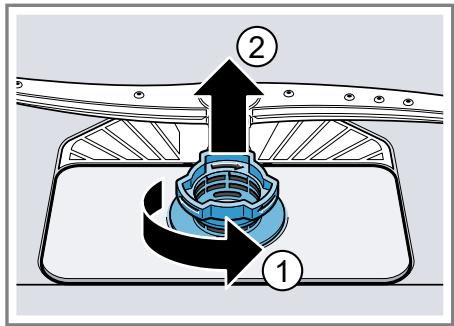

2. Turn the coarse filter anticlockwise

and remove the filter system . ‒ Check that no foreign objects fall into the sump.

5. Clean the filter elements under run-

ning water. Carefully clean the rim of dirt between the coarse and the fine filter.

6. Re-assemble the filter system.

Make sure that the locking catches on the coarse filter click into position.

7. Insert the filter system into the appliance and turn the coarse filter

clockwise. Make sure that the arrow markings match up.

en Cleaning and servicing Cleaning spray arms Limescale and soiling in the dishwashing water may block the nozzles and bearings on the spray arms. Clean the spray arms regularly.

1. Unscrew the upper spray arm

and pull down to remove .

2. Pull up the lower spray arm to re-

spray arms for blockages under running water and remove any foreign bodies.

4. Insert the lower spray arm.

a The spray arm clicks into position.

5. Insert the upper spray arm and

screw it firmly in place.

Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs. Troubleshooting WARNING Risk of electric shock! Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced with a special connection cable, which is available from the manufacturer or his Customer Service. Error code / Fault display / Signal Fault Display for water supply lights up Cause Supply hose is kinked. Troubleshooting ▶ Install the supply hose without kinks. Water tap is turned off. ▶ Turn on the water tap. Water tap is jammed or furred up. The filters in the water connection of the supply or AquaStop hose are blocked. ▶ Turn on the water tap.

Switch off the appliance. Pull out the mains plug. Turn off the water tap. Unscrew the water connection. Remove the filter from the supply hose

6. Clean the filter.

7. Re-insert the filter in the supply

8. Screw the water connection back

9. Check the water connection for

10. Restore the power supply.

11. Switch the appliance on.

Wastewater hose is blocked 1. Reposition the wastewater hose or kinked. without kinks.

Display "Check water supply" flashes Siphon connection is still sealed. ▶ Check the connection to the siphon Cover of the wastewater pump is loose. ▶ Secure the cover of the "Wastewa- A technical fault is present.

2. Unplug the appliance or switch off

and open if necessary. ter pump " → Page 54 so it clicks into position. the fuse.

3. Wait at least 2 minutes.

4. Insert the mains plug of the appli-

ance in a socket or switch on the fuse.

5. Switch the appliance on.

6. If the problem occurs again:

‒ Press . ‒ Turn off the water tap. ‒ Pull out the mains plug. ‒ Contact "Customer Service"

• Page 55 and give the error code. Displays flash Appliance door is not closed ▶ Close the appliance door. properly. ‒ Arrange the tableware so that no parts project beyond the basket and prevent the appliance door from closing properly. Washing results Fault Tableware is not dry.

2. Set the amount of rinse aid to be

• "Setting the amount of rinse aid", Page 27 Troubleshooting Fault Tableware is not dry. Cause Programme or programme option has no drying phase, or the drying phase is too brief.

Troubleshooting ▶ "Select a programme with drying, e.g. intensive, strong or ECO programme." → Page 17 Some option buttons decrease the drying result, e.g varioSpeed. Water collects in recesses of ▶ Position tableware at an angle the tableware or cutlery. where possible. The combined detergent used has a poor drying performance.

1. Use rinse aid to improve drying per-

2. Use a different combined detergent

with a better drying performance. Extra Dry not activated to im- ▶ Activate Extra Dry. prove drying performance. Tableware removed too

1. Wait until the programme ends.

early or drying process not 2. Only remove tableware 30 minutes yet ended. after the programme has ended. Rinse aid used has a limited ▶ Use a name-brand rinse aid. drying performance. Eco products may have limited effectiveness. Plastic tableware is not dry. Cutlery is not dry. Not a fault. As plastic does not store heat so well, it also does not dry as well. Cutlery not arranged properly in the cutlery basket or cutlery drawer. ▶ No remedial action possible. Droplets can form on the cutlery contact points.

1. "Arrange cutlery individually where

possible." → Page 32

2. Avoid points of contact.

en Troubleshooting Fault Appliance interior still wet after wash cycle. Food remnants are left on tableware in the top basket. Remnants of food on tableware. Cause Troubleshooting Not a fault. The condensaNo action required. tion drying principle causes water droplets in the tub – they are indeed desirable here. The moisture in the air condenses on the inside walls, runs off and is pumped out. Tableware in the top basket ▶ Arrange tableware in the top basket was placed too close towith sufficient space in between. gether or top basket is overPosition large items of tableware at filled. an angle, e.g. pans and ovenproof dishes. Tableware is placed too close together or basket is overfilled.

1. Arrange tableware with sufficient

Spray arm rotation is blocked. ▶ Arrange tableware so that it does Spray arm nozzles are blocked. Filters are soiled. ▶ Clean the "Spray arms" → Page 42. Filters are inserted incorrectly and/or not engaged.

1. Insert the filters properly.

space in between. The spray jets must reach the surfaces of the tableware.

2. Avoid points of contact.

not obstruct spray arm rotation. ▶ Clean the filters.

• "Cleaning filters", Page 41
• "Filter system", Page 41

2. Engage the filters.

Washing programme selected too weak. ▶ Select a more intensive washing programme.

• "Programmes", Page 17 ▶ Only remove large remnants of food Tableware has been precleaned too intensely. The and do not prerinse tableware. sensors chose a weaker programme. Stubborn soiling cannot be entirely removed. ▶ Do not position tall narrow receptTall narrow receptacles in corner areas are not rinsed acles at too great an angle or in adequately. corner areas. Top baskets on right and left ▶ Set the top baskets on the left and are not set to same height. right to the same level.
• "Top basket", Page 19

Troubleshooting Fault Detergent residue in the appliance Water marks on plastic parts.

Cause Lid of the detergent dispenser is blocked by items of tableware parts and will not open. Troubleshooting

1. Arrange tableware in the top basket

tableware so the tab collecting tray is not obstructed by tableware.

• "Arrange tableware", Page 32 Items of tableware are blocking the dispenser lid.

2. Do not place tableware or fragrance dispensers in the tablet collecting tray.

The lid of the detergent dispenser is blocked by the tab and will not open. Tabs are used in the quick or short programme. Dissolving time of the tab is not attained. Washing effect and dissolving performance are reduced after a prolonged storage time or detergent is very lumpy. Due to laws of physics droplet formation on plastic surfaces is unavoidable. After drying water marks are visible. ▶ Position the tab in the detergent dis- penser crosswise, not vertically. ▶ Select a more intensive "Pro- gramme" → Page 17 or use "Powder detergent" → Page 28. ▶ Change your "detergent"

• "Rinse aid", Page 27 ▶ Set the water softening system higher. ▶ Change your "detergent" Wipeable or water-soluble Detergent substances are coatings are present inside deposited there. These coat→ Page 28. the appliance or on the door. ings cannot generally be re▶ Clean the appliance mechanically. moved with chemicals. White coating is deposited in 1. Set the water softening system corthe appliance interior. rectly. In most cases you will need to increase the setting.

2. Change your detergent if required.

Special salt dispenser is not ▶ Screw the special salt dispenser screwed tight. tight.

en Troubleshooting Fault Stubborn white coatings are present on tableware, inside the appliance or the door. Cause Detergent substances are deposited there. These coatings cannot generally be removed with chemicals. The hardness range is set incorrectly or the water hardness is greater than 44 °E (6,2 mmol/l). 3in1/organic/eco detergent is not effective enough. Troubleshooting ▶ Change your "detergent"

• Page 28. Too little detergent is being used. ▶ Increase the amount of detergent Washing programme selected too weak. ▶ Select a more intensive washing Tea residue or lipstick marks Washing temperature is too on tableware. low. Too little detergent is being used or is unsuitable. ▶ Clean the appliance mechanically. ▶ Set the Water softening system to the water hardness or add special salt. ▶ Set the Water softening system to the water hardness and use separate detergents (proprietary detergent, special salt, rinse aid). used or change "Detergent "
• "Programmes", Page 17 ▶ Select a programme with a higher washing temperature.
• "Programmes", Page 17 ▶ Use a suitable "Detergent "

• Page 28 and follow the manufacturer's instructions for the amount to be used. ▶ Only remove large remnants of food Tableware has been precleaned too intensely. The and do not prerinse tableware. sensors chose a weaker programme. Stubborn soiling cannot be entirely removed. Coloured coatings (blue, yel- The formation of films is due ▶ Clean the appliance. low, brown) that are difficult to substances contained in You can remove deposits with or impossible to remove are vegetables (cabbage, celery, "Mechanical cleaning" → Page 39 present inside the appliance potatoes, noodles, etc.) or or a machine cleaning product. It or on stainless steel tabletap water (manganese). may not always be possible to comware. pletely remove deposits but they are harmless to health. The formation of films is due ▶ Clean the appliance. to metal components on silYou can remove deposits with ver or aluminium tableware. "Mechanical cleaning" → Page 39 or a machine cleaning product. It

Troubleshooting Fault Coloured coatings (blue, yellow, brown) that are difficult or impossible to remove are present inside the appliance or on stainless steel tableware. Coloured deposits (yellow, orange, brown) that are easy to remove are present inside the appliance (mainly at the bottom). Cause

Troubleshooting may not always be possible to completely remove deposits but they are harmless to health. The formation of films is due 1. Check the setting of the water to ingredients of food remsoftening system. nants and tap water (limes- 2. Add special salt. cale) "soaplike".

• "Adding special salt", Page 25

3. If you are using combined detergents (tabs), activate the water

softening system. Follow the information about detergents.

• "Information on detergents", Page 29 Plastic parts inside the appli- Plastic parts inside the appli- ▶ Discolouration can come about and ance are discoloured. ance may become discolwill not impair functioning of the apoured during the life of the pliance. dishwasher. Plastic parts are discolWashing temperature is too ▶ Select a programme with a higher oured. low. washing temperature.
• "Programmes", Page 17 ▶ Only remove large remnants of food Tableware has been precleaned too intensely. The and do not prerinse tableware. sensors chose a weaker programme. Stubborn soiling cannot be entirely removed. ▶ Set the rinse aid system to a lower Amount of rinse aid to be dispensed is set too high. setting. Removable streaks are present on glasses, glassware with a metallic appear- No rinse aid has been ad▶ → "Adding rinse aid", Page 27 ance and cutlery. ded. Detergent residue is present 1. Arrange tableware in the top basket in the final rinse. Lid of the tableware so the tab collecting tray detergent dispenser is is not obstructed by tableware. blocked by tableware items
• "Arrange tableware", Page 32 and will not open fully. Items of tableware are blocking the dispenser lid.

2. Do not place tableware or fragrance dispensers in the tablet collecting tray.

en Troubleshooting Fault Removable streaks are present on glasses, glassware with a metallic appearance and cutlery. Irreversible clouding of glassware. Cause Troubleshooting ▶ Only remove large remnants of food Tableware has been precleaned too intensely. The and do not prerinse tableware. sensors chose a weaker programme. Stubborn soiling cannot be entirely removed. Glasses are not dishwasher- ▶ Use dishwasher-proof glasses. proof, only suitable for dishGlasses are usually only suitable for washers. use in a dishwasher, i.e. long-term wear or long-term changes must be expected. ▶ Avoid a lengthy steam phase (standing time after wash cycle ends). ▶ Use a programme with a lower tem- perature.

• "Programmes", Page 17 ▶ Set the softening system to the wa- ter hardness. ▶ Use detergent with a glass protec- tion component. Rust spots on cutlery. Cutlery is not sufficiently rust-resistant. Knife blades are often more severely affected. Cutlery may also rust if washed together with rusting items. Salt content in washing water is too high. ▶ Use rust-resistant tableware. ▶ Do not wash rusting items.

1. Remove any spilled special salt

2. Screw the cap of the special salt

dispenser on tight. Detergent residue is present Spray arms were blocked by ▶ Check that the spray arms are not in the detergent dispenser tableware so detergent was blocked and can rotate freely. or the tablet collecting tray. not rinsed out. ▶ Only add detergent to a detergent Detergent dispenser was damp when detergent was dispenser when dry. added. ▶ Immediately add rinse aid to the Excessive formation of foam Hand washing-up liquid is occurs. present in dispenser for dispenser. rinse aid.

• "Adding rinse aid", Page 27 Rinse aid has been spilled.

▶ Remove the rinse aid with a cloth. Troubleshooting

Fault Cause Troubleshooting Excessive formation of foam Detergent or appliance care ▶ Change the brand of detergent. occurs. product used causes excessive foaming. Home Connect problem Fault Connection to home network is not established. Cause WLAN on router is not active. Troubleshooting ▶ Check the wireless network connection of your router. WLAN display is flashing. Connection to home network is not available. ▶ Activate the wireless network con- Home Connect set incorrectly. ▶ Please consult the documents sup- Technical fault is present. ▶ Please consult the information Home Connect cannot be implemented correctly. nection on your router. plied for Home Connect. about support in the documents supplied for Home Connect. Information on display panel Fault Special salt refill indicator lights up. Cause Insufficient special salt. Troubleshooting ▶ Add "Special salt" → Page 25. Refill indicator for special salt does not light up. Refill indicator for rinse aid lights up. Sensor does not detect spe- ▶ Do not use special salt tablets. cial salt tablets. ▶ Setting the water softening system Water softening system is switched off. Insufficient rinse aid.

1. Add "Rinse aid" → Page 27.

2. Set the amount of rinse aid to be

• "Setting the amount of rinse aid", Page 27 Refill indicator for rinse aid does not light up. Rinse aid system is switched ▶ Set the amount of rinse aid to be off. dispensed. Malfunctions Fault Cause Water is left in the appliance Filter system or area under at the end of the prothe filters is blocked. gramme. Programme has not yet ended. Troubleshooting

1. Clean the "Filters" → Page 41.

2. Clean the "Wastewater pump"

• Page 54. ▶ Wait until the programme ends or cancel the programme with Reset.

en Troubleshooting Fault Cause Water is left in the appliance at the end of the programme. Appliance cannot be Software update is taking switched on or operated. place. Appliance functions have failed. Troubleshooting ▶ → "Terminate programme", Page 34 ▶ Wait until the software update has finished.

1. Pull out the mains plug or switch off

2. Wait at least 2 minutes.

3. Connect the appliance to the power

4. Switch the appliance on.

Appliance does not start. The mains fuse has tripped. ▶ Check the relevant fuse. Mains cable is not inserted.

1. Check whether the socket works.

2. Check whether the mains cable is

properly inserted in the socket and on the rear of the appliance. Programme starts automatically. Appliance stops during the programme or cuts out. Appliance door is not closed ▶ Close the appliance door. properly. ▶ → "Terminate programme", You did not wait until programme ended. Page 34 Appliance door is not closed ▶ Close the appliance door. properly. Power and/or water supply 1. Check the power supply. has been interrupted.

2. Check the water supply.

▶ Check whether the rear panel of the Top basket is pressing against inner door and preappliance is being pressed in by a venting appliance door from socket or hose holder that has not being closed securely. been removed. ▶ Arrange the tableware so that no parts project beyond the basket and prevent the appliance door from closing properly. Mechanical damage Fault Appliance door cannot be closed.

Cause Door lock has been activated. Troubleshooting ▶ Close the appliance door with greater force. Door cannot be closed due to installation method. ▶ Check whether the appliance has been installed properly. Troubleshooting Fault Appliance door cannot be closed. Cause Troubleshooting When closed, the appliance door, its decor or attached parts should not knock against adjacent cabinets or the worktop. Lid on the detergent dispenser cannot be closed. Detergent dispenser or lid are blocked by sticky detergent residue. ▶ Remove detergent residue.

Noise Fault Cause Troubleshooting Filling valves making knock- Caused by the domestic in- ▶ Can only be remedied in the doing noises. stallation. No appliance fault mestic installation. present. Does not affect functioning of the appliance. Knocking or rattling noise. Spray arm is striking table- ▶ Arrange tableware so that the spray ware. arms do not strike tableware. With a small load the water jets directly strike against the tub. ▶ Distribute the tableware evenly. ▶ Load the appliance with more table- ware. ▶ Position light items of tableware seLight items of tableware move about during the wash curely. cycle.

en Transportation, storage and disposal Clean wastewater pump

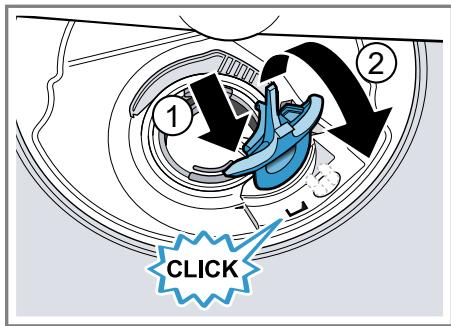

8. Insert the pump cover

down Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. WARNING Risk of injury! Sharp and pointed objects or fragments of glass may block the waste water pump and cause injury. ▶ Remove any foreign bodies carefully.

1. Disconnect the appliance from the

a The pump cover clicks into position.

9. Install the filter system.

10. Insert the top and bottom basket.

3. Remove the filter system.

4. Scoop out any water.

Use a sponge if necessary.

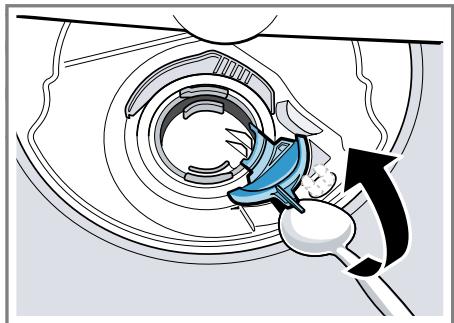

5. Prise off the pump cover using a

spoon and grip it by the crosspiece. Transportation, storage and disposal Transportation, storage and disposal You can find out here how to prepare your appliance for transportation and storage. You will also find out how to dispose of old appliances. Transportation, storage and disposal Removing the appliance

1. Disconnect the appliance from the

2. Turn off the water tap.

3. Detach the drainage connection.

4. Detach the drinking water connec-

5. Loosen any screws fastening the

6. Lift the pump cover inwards at an

7. Remove any remnants of food and

foreign bodies in the area of the impeller.

appliance to cabinet parts.

6. Remove the base panel if fitted.

7. Pull the appliance out carefully,

along with the hose behind it. Customer Service Protect appliance from frost Disposing of old appliance If there is a risk of frost where the appliance will be standing, e.g. in a holiday home, empty the appliance completely. ▶ "Empty the appliance."

• Page 55 Valuable raw materials can be reused by recycling. Transporting the appliance To avoid damage to the appliance, empty it before transporting. Note: Always transport the dishwasher upright to prevent residual water getting into the machine's controls and damaging the appliance.

1. Remove tableware from the appliance.

2. Secure loose parts.

3. "Switch on appliance." → Page 33

4. Select the programme with the

highest temperature.

• "Programmes", Page 17

5. "Start the programme." → Page 34

6. To drain the appliance, terminate

the programme after approx. 4 minutes.

• "Terminate programme", Page 34

7. "Switch off the appliance."

8. Turn off the water tap.

9. To empty the residual water out of

the appliance, detach the supply hose and let the water drain out.

WARNING Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. ▶ With redundant appliances, unplug the power cord. Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.

1. Unplug the appliance from the

2. Cut through the power cord.

3. Dispose of the appliance in an en-

vironmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Customer Service Customer Service If you have any queries, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at Customer Service

en Technical specifications least 10 years from the date on which your appliance was placed on the market within the European Economic Area. Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge. Detailed information on the warranty period and terms of warranty in your country is available from our aftersales service, your retailer or on our website. If you contact Customer Service, you will require the product number (ENr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance. The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website. Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.) You can find the product number (ENr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate. The rating plate is located inside the appliance door. Make a note of your appliance's details and the Customer Service telephone number to find them again quickly. AQUA-STOP guarantee In addition to warranty claims against the seller under the purchase agreement and in addition to our manufacturer's warranty, we offer compensation under the following conditions. ¡ If our Aqua-Stop system is defective and causes water damage, we will make good the damage for private users. To ensure protection

from water damage, the appliance must be connected to the power supply. ¡ The liability guarantee is valid for the service life of the appliance. ¡ A claim can only be made under the guarantee if the appliance has been correctly installed and connected with Aqua-Stop according to our instructions; this also includes correctly fitting the AquaStop extension (genuine accessory). Our guarantee does not cover defective supply lines or fittings up to the Aqua-Stop connection on the tap. ¡ If your appliance is fitted with Aqua-Stop, you can in principle leave your appliance unattended during operation and the tap turned on afterwards. The tap only needs to be turned off if you are away from home for a long period, e.g. on holiday for several weeks. Technical specifications Technical specifications Technical specifications Weight Voltage Power rating Fuse Max.: 60 kg

Technical specifications en Power consumption Water pressure Inlet rate Water temperature Capacity Off mode/standby mode: 0.50 W Left-on mode: 0.50 W Networked standby:

Time in left-on mode: 0 min Time after which appliance is switched to networked standby mode: 10 min Complies with the latest regulations (EU) for energy labels and ecodesign at the time of placing on the market. Additional functions and settings may increase power consumption and times. ¡ Min. 0.05 MPa (0.5 bar) ¡ Max. 1 MPa (10 bar) Min. 10 l/min Cold water. Hot water max.: 60 °C 13 place settings You can find more information about your model online at https:// eprel.ec.europa.eu/1. This web address is linked to the official EU EPREL product database. Please then follow the instructions on searching for models. The model identifier is made up of the characters before the slash in the product number (E-Nr.) on the rating plate. Alternatively, you can also find the model identifier in the first line of the EU energy label.

Information regarding Free and Open Source Software This product includes software components that are licensed by the copyright holders as free software or open source software. The applicable licence information is stored on your home appliance. You can also access the applicable licence information via your Home Connect App: "Profile -> Legal information -> Licence Information". You can download the licence information on the brand product website (search for your appliance model on the product website and check additional documents). Alternatively, you can send a request to ossrequest@bshg.com or to BSH Hausgeräte GmbH GmbH, Carl-Wery-Str. 34, D-81739 München, Germany. The source code will be made available to you on request. To file a request, please email to ossrequest@bshg.com or send a written request to BSH Hausgeräte GmbH, Carl-Wery-Str. 34, D-81739 München, Germany. Reference "OSSREQUEST" The cost of performing your request will be charged to you. This offer is valid three years from the date of purchase or at least as long as we offer support and spare parts for the respective appliance. Declaration of Conformity BSH Electrodomésticos España, S.A. hereby declares that the appliance with Home Connect functionality Only applies to countries in the European Economic Area

en Technical specifications meets the essential requirements and other relevant provisions of the Directive 2014/53/EU. A detailed RED Declaration of Conformity can be found online at www.balay.es among the additional documents on the product page for your appliance.
