USER MANUAL 3VS5011BA BALAY

Diagram showing steps to install a kitchen appliance, with labeled parts and directional arrows indicating assembly or cleaning instructions.

1. Повдигнете леко работния плот отпред. (3).
2. Избутайте работния плот назад (4).
3. Свалете работния плот.

Diagram showing three views of a kitchen appliance with numbered components and a magnified detail view.

Isometric line drawing of a mechanical structure with ladder-like elements and a curved arrow indicating motion (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

1. Сгънете фиксатора.

Diagram of a pipe connection with a clamping tool and rotation arrow (no text or symbols)

2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Страница 9 от 989

Ремонт

1. Поставете предметите за миене.

Two diagrams showing a mechanical device with a curved arrow indicating rotation, mounted on a stand (no text or symbols present)

Technical diagram illustrating a multi-step installation or maintenance procedure with labeled steps and directional arrows indicating flow or movement.

Ремонт

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up inset of a blue door detail (no text or symbols)

Two blue industrial metal grating structures with directional arrows indicating motion, no text or symbols present.

Ремонт

3D architectural diagram of a steel structure with labeled components (no text or symbols present)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

Diagram showing a mechanical or electrical component with labeled parts ① and ②, likely illustrating a gear or valve mechanism.

Diagram of a mechanical component with a blue threaded shaft and black downward arrow (no text or symbols)

Diagram of a mechanical or electrical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing cable routing and connector connections (no text or symbols)

Technical diagram of a device interior with numbered components and labeled parts

Illustration of a hand using a blue tool to adjust or install a circular component (no text or symbols visible)

① ② CLICK

Technical diagram of a refrigerator with numbered components and directional arrows indicating parts of the interior.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps.

Technical diagram showing a 3D mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Diagram of a device with a screw and two arrows pointing to it, no text or symbols present

3.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its internal components.

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the door.

Diagram showing a hand operating a screwdriver inside a device tray, with a magnified view of the screw and its direction indicated by arrows.

Diagram of a mechanical component with a screwdriver inserted, showing internal structure and a magnified inset (no text or symbols)

2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Страница 22 от 989

Ремонт

Diagram of a device interior with numbered components and colored wiring, likely illustrating a mechanical or electrical component layout.

Diagram of a mechanical device with a screw and control panel, no text or symbols present

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

Technical diagram showing mechanical assembly steps with numbered annotations indicating sequence of components

Technical diagram showing mechanical assembly steps with numbered annotations indicating different states or components.

Technical diagram showing a red mechanical component with numbered callouts and directional arrows indicating motion or assembly.

1. Повдигнете панела.

2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Страница 26 от 989

3D mechanical assembly diagram showing a bracket with red components and directional arrows indicating motion (no text or symbols)

Technical diagram showing a red mechanical component with numbered parts and directional arrows indicating flow or movement.

Ремонт

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D technical illustration of a mechanical assembly with a red component inserted into a channel (no visible text or symbols)

Ремонт

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D technical diagram of a mechanical assembly with red components and a central hub (no visible text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Ремонт

Mechanical assembly diagram showing a red component with arrows pointing to a specific part, no visible text or symbols.

3D mechanical assembly diagram showing red and black arrows indicating directional flow or movement (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a rod and pipe (no text or symbols visible)

Ремонт

Mechanical assembly diagram showing two views of a red component with labeled parts (no text or symbols present)

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Mechanical assembly diagram showing red clamping bracket and green cable connection (no text or symbols)

Ремонт

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D mechanical assembly diagram showing a component with a red highlighted section and surrounding parts (no visible text or symbols)

3D technical diagram of a mechanical assembly with red components and a central hub (no visible text or symbols)

Ремонт

3D mechanical assembly diagram showing a red structural component with arrows indicating motion or flow (no text or symbols present)

Technical illustration of a mechanical bracket assembly (no text or symbols visible)

Diagram of a mechanical joint or clamping mechanism with no visible text or symbols

4.

Pure technical line drawing of curved structural elements without any text or symbols

Ремонт

4.21 Смяна на EmotionLight

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and parts of the device.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

1. Свалете EmotionLight от уреда.

Technical diagram showing a mechanical assembly with labeled parts, including numbered annotations ① and ②.

Ремонт

Close-up of a mechanical component with a red vertical line and black arrow pointing to a detail (no text or symbols visible)

Ремонт

Close-up of a mechanical component with a red highlighted section and a black arrow indicating a specific area (no text or symbols visible)

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view highlighting two components.

Technical diagram showing a red structural component with numbered annotations and an inset magnified view of a component.

Technical diagram showing a device's internal structure with labeled components and wiring, including numbered annotations.

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Ремонт

Technical diagram of a mechanical assembly with numbered components, likely illustrating a machining or assembly process.

3D mechanical assembly diagram showing internal components with red component (no text or symbols visible)

3D mechanical assembly diagram showing internal components with a highlighted 'CLICK' button (no text or symbols beyond the label)

Diagram showing a kitchen appliance with labeled parts including front, side, and interior views with numbered annotations.

1. Malo podignite radnu ploču s prednje strane (3).
2. Gurnite radnu ploču prema stražnjoj strani (4).
3. Uklonite radnu ploču.

4.1.2 Postavljanje radne ploče

1. Uklopite stražnji dio radne ploče u vodilice s pomoću pričvrsnih spojnica (1).

Diagram showing three views of a kitchen appliance with numbered parts and an inset view highlighting a cabinet interior.

1. Gurnite radnu ploču prema naprijed (2).
2. Pritisnite prednji dio radne ploče prema dolje dok se obje zahvatne poluge čujno ne uklope na mjesto (3).
3. Ponovno zavmite dva vijka (4) (opcionalno).

Popravak

4.2 Postavljanje sustava košare

Zahtjev:

Košara je uklonjena iz uredaja.

4.2.1 Postavljanje vodilice za tablete za model od 86 cm Specijalni alati:

Vodilica za tablete [00614935]

Držač za šalice [00618565]

Isometric line drawing of a structural framework with ladder and frame structure, no text or symbols present

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

2021-03-22_9001630792 Autorska prava BSH Hausgeräte GmbH Stranica 50 od 989

Popravak

1. Postavite predmete za pranje.

Two diagrams showing a mechanical device with a curved arrow indicating rotation, mounted on a stand (no text or symbols present)

4.2.3 Postavljanje umetka za parnu pećnicu Specijalni alati:

Vodilica za tablete [00614935]
Držač za šalice [00618565]

- Pričvrstite umetak za parnu pećnicu s krajnjim dijelovima ispod sustava košare.

Technical diagram illustrating a multi-step installation or maintenance procedure with labeled steps and structural diagrams.

Popravak

4.3 Zamjena ladice varioDrawer

4.3.1 Uklanjanje ladice varioDrawer

1. Savijte preklope ručice prema unutra.

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up of a blue door detail (no text or symbols)

1. Uklonite ručicu prema gore.

2. Pritisnite plastične bočne umetke prema van i izvadite ih prema gore iz okvira.

Two blue industrial metal grating structures with directional arrows indicating motion, no text or symbols present.

Popravak

1. Pažljivo savijte jezičce vodilice prema van.

3D architectural diagram showing structural grid and rebar layout with labeled components (no text or symbols present)

1. Izvucite sklopive nosače iz jezičaca.

2. Pritisnite i izvadite metalni okvir s prednje strane iz držača.

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

1. Gurnite i izvadite metalni okvir sa stražnje strane iz vodilice.

4.3.2 Postavljanje ladice varioDrawer

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Top-down view of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

4.4.2 Postavljanje prskalice

1. Umetnite donju prskalicu.
   Prskalica se uklapa u položaj.
2. Umetnite gornju prskalicu i pričvrstite je.

Popravak

4.5 Zamjena filtara

4.5.1 Uklanjanje filtra

Diagram showing a mechanical assembly with labeled parts ① and ②, likely illustrating a gear or cam mechanism.

Pazite da u sifon ne dospiju strana tijela.

1. Povucite mikrofilter prema dolje da biste ga uklonili.

Diagram of a mechanical component with a blue threaded shaft and black downward arrow (no text or symbols)

4.5.2 Postavljanje filtara

1. Ponovno sastavite sustav filtra.

Diagram showing a mechanical or electrical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing cable routing and connector connections (no text or symbols)

4.7.2 Priključivanje kabela za napajanje

POZOR!

Technical diagram of a device interior with numbered components and airflow indicators

1. Umetnite kratki kraj opruge u otvor za postavljanje poklopca za deterdžent (2).
2. Pritisnite poklopac na dozator (3).

Illustration of a hand holding a blue tool interacting with a mechanical component (no text or symbols visible)

1. Podignite poklopac pumpe prema unutra pod kutom i uklonite ga.

4.9.2 Postavljanje poklopca pumpe za otpadnu vodu

▶ Umetnite poklopac pumpe (1) i pritisnite ga (2).

① ② CLICK

Poklopac pumpe uklapa se u položaj.

Popravak

4.10 Zamjena bočne ploče

Zahtjev:

Technical diagram of a refrigerator with numbered parts and directional arrows indicating components

Sl. 1: Potpuno integrirano

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

1. Nagnite bočnu ploču malo prema van pri vrhu (2).
2. Spustite bočnu ploču i izvucite je iz kanala postolja (3).

Popravak

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps.

Sl. 2: Potpuno integrirano

Technical diagram showing a 3D mechanical assembly with labeled components and directional arrows indicating motion or assembly.

1. Pritisnite bočnu ploču na uređaj (2).
2. Pričvrstite bočnu ploču vijcima (3).

Popravak

Diagram of a device with a screw and two arrows pointing to it, no text or symbols present

3.

Osigurajte vrata tako da ih držite s jedne strane.

Uklonite dva vijka.

Diagram showing a hand operating a screwdriver inside a device tray with a magnified circular component highlighting the screw.

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the door.

Diagram showing a hand operating a screwdriver inside a device tray, with a magnified view of the screw and its internal components.

Diagram of a mechanical component with a screwdriver inserted, showing internal structure and a magnified inset (no text or symbols)

Popravak

Diagram of a device interior with numbered components and colored wiring, likely illustrating a mechanical or electrical component layout.

Diagram of a mechanical device with a screw and control panel, no text or symbols present

1. Uklonite kontrolnu ploču.

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

1. 1. Lagano otvorite vrata (1).

2. Pričvrstite u utor kanala postolja (2).

3. Polako zatvorite vrata (3).

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating sequence.

Sustav kabela automatski se pričvršćuje na zglob vrata.

Popravak

1. 1. Lagano zatvorite vrata (4).

2. Pomaknite utor prema natrag i otpustite zglob vrata (5).

3. Otvorite vrata (6).

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating different states or features.

Technical diagram showing a red mechanical component with numbered parts and directional arrows indicating motion or movement.

1. Podignite i skinite ploču.

2. Uklonite nogicu prema naprijed (1).

Mechanical assembly diagram showing a bracket with red components and directional arrows indicating motion (no text or symbols present)

4.14.2 Postavljanje donje ploče

Technical diagram showing a red mechanical component with numbered callouts indicating flow or movement directions.

Popravak

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Ovisno o seriji modela, utikač za EmotionLight još je pričvršćen na postolje.

Deblokirajte utikač na zahvatnom podizaču i gurnite ga prema natrag (opcionalno) (2).

4.15.2 Postavljanje ploče postolja

Mechanical assembly diagram showing a red pipe connection with labeled parts (no text or symbols present)

1. Otpustite zahvatni element na vrhu.

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

1. 1. Umetnite odvijač ispod metalne stezaljke (1).

2. Nježno otpustite metalnu kopču (2).

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

Popravak

1. Podignite i skinite preljevnu cijev.

3D mechanical assembly diagram showing a red component with arrows indicating motion or assembly (no text or symbols present)

4.16.2 Postavljanje preljevne cijevi

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or flow

Popravak

Mechanical assembly diagram showing a red component with arrows pointing to a specific part, no visible text or symbols.

3D mechanical assembly diagram showing red and black arrows indicating directional flow or movement (no text or symbols)

1. Pričvrstite metalnu kopču s lijeve i desne strane.

Mechanical assembly diagram showing a tool interacting with a component, no visible text or symbols

Popravak

Mechanical assembly diagram showing two views of a red component with labeled parts (no text or symbols present)

1. Pričvrstite zglob vrata vijcima.
2. Postavite unutarnja vrata na zglob vrata.
3. Pričvrstite unutarnja vrata vijcima.

4.17.2 Postavljanje unutarnjih vrata

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

3D mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

4.18.2 Postavljanje zgloba vrata

OPASNOST Opasnost od strujnog udara zbe U slučaju nepravilnog popravka mno nog udara ► Električne dijelove mora po ► Nakon popravka provedite nacionalnim propisima.

Popravak

1. 1. Postavite zglob na uređaj (1).

2. Pomaknite zglob prema dolje (2) dok se ne pričvrsti na uređaj.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Uzemljenje koje nedostaje može dovesti do električnog potencijala na vratima.

Uspostavite uzemljenje.

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

Popravak

4.19 Zamjena (donje) brtve vrata

Zahtjev:

Uredaj je isključen iz napajanja.
Uređaj je isključen iz priključka za dovod vode.
Vanjska su vrata uklonjena.
Ploča postolja je uklonjena.→68
Donja ploča je uklonjena (opcionalno).→67
√ Opruge vrata su uklonjene.
Kontrolna je ploča uklonjena.
Držač kabelskog snopa na donjoj desnoj strani je uklonjen.

4.19.1 Uklanjanje brtve vrata

Mechanical assembly diagram showing a tool inserted into a component, labeled with numbers 1 and 2 (no text or symbols beyond labels)

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

1. Podignite i skinite preljevni slivnik.

3D technical diagram of a mechanical assembly with red components and a central hub (no visible text or symbols)

Popravak

3D mechanical assembly diagram showing a red structural component with arrows indicating motion or force direction (no text or symbols present)

4.19.2 Postavljanje brtve vrata

Technical illustration of a mechanical component with a bracket and mounting bracket (no text or symbols)

Diagram of a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

4.

Brtva ne smije biti valovita ili rastegnuta u kutovima. Brtva se prekida dijagonalno na krajevima i sužava se na dnu spremnika s prednje strane.

Pure technical line drawing of curved structural elements without any text or symbols

Popravak

4.21 Zamjena modula EmotionLight

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and adjustment.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

1. Uklonite EmotionLight iz uređaja.

4.21.2 Postavljanje modula EmotionLight

1. Umetnite držač u okvir spremnika sredstva za ispiranje (1).

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement

Popravak

1. Postavite zahvatnu kuku (2).

Postavite kabel na donjoj desnoj strani.

3.

Close-up of a mechanical component with a red vertical stripe and black arrow indicating a section (no text or symbols visible)

Sl. 3: Ravni kabel

1. Ukopčajte utikač.

Popravak

4.22 Zamjena modula TimeLight

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view labeled 1, 2.

1. Povucite modul TimeLight prema gore i izvucite ga iz vodilice (2).

4.22.2 Postavljanje modula TimeLight

1. Savijte zahvatne elemente (1) ponovno prema natrag.

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view of a component.

1. Gurnite modul TimeLight u vodilicu (2).
2. Priključite električni priključak.

Popravak

4.23 Zamjena Gap illumination

Zahtjev:

Uredaj je isključen iz napajanja.
Uređaj je isključen iz priključka za dovod vode.
Vanjska vrata su demontirana.
Radna je ploča uklonjena.

4.23.1 Uklanjanje Gap illumination

1. 1. Odvojite zahvatni element (1).
2. Uklonite električni priključak s radnog modula (2).

Technical diagram showing a device's internal structure with labeled components and wiring, including numbered annotations.

1. 1. Odvojite zahvatnu kuku sa stražnje strane (1).
2. Uklonite vlakno (2).

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Popravak

1. 1. Odvojite zahvatnu kuku (1).

2. Podignite PCB s držačem i uklonite ga iz okvira radnog modula (2).

Technical diagram of a mechanical assembly with numbered components, likely illustrating a machining or assembly process.

4.23.2 Postavljanje Gap illumination

1. Umetnite PCB držač u okvir radnog modula.

3D mechanical assembly diagram showing a red component inserted into a housing (no text or symbols visible)

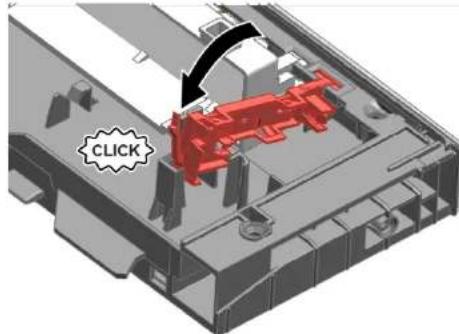

1. Pritegnite ga dok ne začujete škljocaj.

CLICK

1. Postavite optičko vlakno i pritegnite ga dok ne čujete škljocaj.

3D mechanical assembly diagram showing internal components with no visible text or symbols

Diagram showing steps to install a kitchen appliance, with labeled parts and directional arrows indicating assembly or cleaning instructions.

Diagram showing three views of a kitchen appliance with numbered components and a magnified detail view.

Isometric line drawing of a mechanical structure with ladder and frame components (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

1. Vyklopte držák.

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Two diagrams showing a mechanical device with a curved arrow indicating rotation, mounted on a stand (no text or symbols present)

Technical diagram illustrating a multi-step installation or maintenance procedure with labeled steps and structural diagrams.

Oprava

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up of a blue door panel (no text or symbols visible)

Two blue industrial equipment components with metal railings and directional arrows indicating motion (no text or symbols)

Oprava

3D architectural diagram showing structural grid and rebar layout with labeled components (no text or symbols present)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with labeled parts ① and ②, indicating a rotating component.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

4.5.2 Montáž filtrů

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Technical diagram of a device interior with numbered components and airflow indicators

Illustration of a hand holding a blue tool interacting with a mechanical component (no text or symbols visible)

① ② CLICK

Technical diagram of a refrigerator with numbered parts and directional arrows indicating components

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps.

Technical diagram showing a 3D mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Diagram of a device with a screw and two arrows pointing to it, no text or symbols present

3.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its internal components.

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the door.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its direction of motion.

Technical diagram of a mechanical component with a screwdriver inserted, showing internal structure and alignment (no text or symbols)

Oprava

Diagram of a device interior with numbered components and colored wiring, likely illustrating a mechanical or electrical component layout.

Diagram of a mechanical device with a screw and control panel, no text or symbols present

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating sequence.

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating different states or phases.

Technical diagram showing a red mechanical component with numbered callouts and directional arrows indicating motion or assembly.

Mechanical assembly diagram showing a bracket with red components and directional arrows indicating motion (no text or symbols present)

Technical diagram showing a red mechanical component with numbered callouts indicating flow or movement directions.

Oprava

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red pipe connection with labeled parts (no text or symbols present)

3D mechanical assembly diagram showing a sliding conveyor belt system with a red component (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

Oprava

3D mechanical assembly diagram showing a red component with mounting holes and a central hub (no text or symbols visible)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Oprava

Mechanical assembly diagram showing a red component with alignment arrows and an inset close-up of a camera (no text or symbols)

3D mechanical assembly diagram showing red and black arrows indicating directional flow or force (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a red component inside a mechanical frame (no text or symbols visible)

Oprava

Mechanical assembly diagram showing two views of a red component with labeled parts (no text or symbols present)

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force vectors.

Close-up of a red mechanical bracket with green wiring, mounted on a metal frame (no visible text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Mechanical assembly diagram showing red clamping bracket and green cable connection (no text or symbols)

Oprava

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

3D technical diagram of a mechanical assembly with red components and a central hub (no visible text or symbols)

Oprava

3D mechanical assembly diagram showing internal components with red structural elements and arrows indicating flow or movement (no text or symbols)

3D mechanical assembly diagram showing a bracket with mounting bracket and mounting bracket (no text or symbols)

Diagram of a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

4.

Pure technical line drawing of curved pipe or channel sections without any text, numbers, or symbols

Oprava

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and adjustment.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

Technical diagram showing a device's internal components with numbered annotations indicating parts of the main body and parts of the chassis.

Oprava

Close-up of a mechanical component with a red vertical line and black arrow pointing to a detail (no text or symbols visible)

Oprava

Close-up of a mechanical component with a red highlighted section and a black arrow indicating a specific area (no text or symbols visible)

Obr. 3: Plochý kabel
4. Zasuňte zástrčku.

Oprava

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view highlighting a section labeled '2'.

Technical diagram showing a red mechanical component with labeled parts 1 and 2, including an inset magnified view of the component.

Technical diagram showing a device's internal structure with labeled components and wiring, including numbered annotations.

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Oprava

Technical diagram of a mechanical assembly with numbered components, likely illustrating a machining or assembly process.

4.23.2 Montáž Gap Illumination

3D mechanical assembly diagram showing internal components with red component (no text or symbols visible)

3D mechanical assembly diagram showing a red component inside a housing with an arrow and 'CLICK' label (no readable text or symbols beyond the label)

3D mechanical assembly diagram showing internal components with a highlighted 'CLICK' button (no text or symbols beyond the label)

Diagram illustrating the step-by-step installation of a kitchen appliance, showing front, side, and interior views with numbered annotations.

Diagram showing three views of a kitchen appliance with numbered parts and an inset view highlighting a component.

3D wireframe diagram of a mechanical assembly with ladder-like components and an arrow indicating motion (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

1. Klap clipsen op.

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Side 132 af 989

Reparation

1. Placér genstandene, der skal vaskes.

Two diagrams showing a mechanical device with a curved arrow indicating rotation, no text or symbols present.

Technical diagram illustrating a multi-step installation or maintenance procedure with labeled steps and component illustrations.

Reparation

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up of a blue door detail (no text or symbols visible)

Two blue industrial metal grating structures with directional arrows indicating motion, no text or symbols present.

Reparation

3D architectural diagram showing structural grid and pipe connections, with an inset magnified view of a mechanical component (no text or symbols)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a blue propeller with two directional arrows labeled ① and ②, indicating motion or force directions.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

4.4.2 Montering af spulearm

Diagram showing a mechanical assembly with labeled parts ① and ②, indicating a rotating component.

Diagram of a mechanical component with a blue spring and black downward arrow (no text or symbols)

4.5.2 Montering af filtre

Diagram showing a mechanical or electrical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing cable routing and a mechanical component with directional arrows (no text or symbols)

Technical diagram of a device interior with numbered components and airflow indicators

Diagram of a mechanical assembly with a blue tool interacting with a circular component (no text or symbols visible)

① ② CLICK

Technical diagram of a refrigerator with numbered components and directional arrows indicating motion or assembly.

Fig. 1: Fuldintegreret

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps.

Fig. 2: Fuldintegreret

Technical diagram showing a 3D printer or printer assembly with labeled parts and directional arrows indicating assembly steps.

1. Tryk sidepanelet på apparatet (2).
2. Fastgør sidepanelet med skruer (3).

Reparation

Diagram of a device with a screw and two arrows pointing to it, no text or symbols present

3.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its internal components.

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the door.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its direction of motion.

Technical diagram of a mechanical component with a magnified inset showing a red tool interacting with a key (no text or symbols present)

Reparation

Diagram of a device interior with numbered components and colored wires, likely illustrating wiring or wiring paths.

1. Afbryd jordkablet (3) (valgfrit).
2. Åbn apparatets dør.

3. Hold betjeningspanelet fast for at forhindre det i at falde ned (hold på det).

4. Fjern de seks skruer.

Diagram of a device with a magnified inset showing a red screw and labeled ports (A, B, C, D, E, F, G) in Chinese.

1. Fjern betjeningspanelet.

4.12.2 Montering af betjeningspanel

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating sequence.

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating different states or features.

Technical diagram showing a red mechanical component with numbered callouts and directional arrows indicating motion or assembly.

Mechanical assembly diagram showing a bracket with red components and directional arrows indicating motion (no text or symbols present)

Technical diagram showing a red mechanical component with numbered callouts indicating flow or movement directions.

Reparation

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red component being inserted into a housing (no text or symbols visible)

3D mechanical assembly diagram showing a component with a red highlighted section (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

Reparation

3D mechanical assembly diagram showing a red component with arrows indicating motion or assembly (no text or symbols present)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Reparation

Mechanical assembly diagram showing a red component with arrows indicating assembly direction (no text or symbols present)

3D mechanical assembly diagram showing red and black arrows indicating directional flow or force (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, no visible text or symbols

Reparation

Mechanical assembly diagram showing two views of a red component with labeled parts (① and ②), no readable text or symbols present.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force vectors.

Close-up of a red mechanical bracket with green wiring, mounted on a metal frame (no visible text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

Reparation

Mechanical assembly diagram showing a tool inserted into a component, labeled with numbers 1 and 2 (no text or symbols beyond labels)

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

3D technical diagram of a mechanical assembly with red and gray components (no visible text or symbols)

Reparation

3D mechanical assembly diagram showing internal components with red structural elements and arrows indicating flow or movement (no text or symbols)

3D mechanical assembly diagram showing a bracket with mounting holes and a highlighted section (no text or symbols)

Diagram of a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

4.

Pure technical line drawing of curved structural components without any text or symbols

Reparation

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and adjustment.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating parts of a device.

Reparation

1. Aktivér läsekrogen (2).

3.

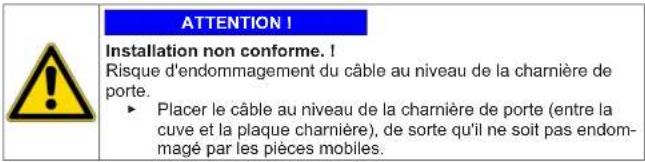

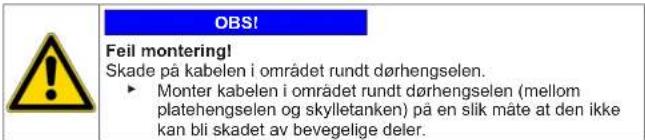

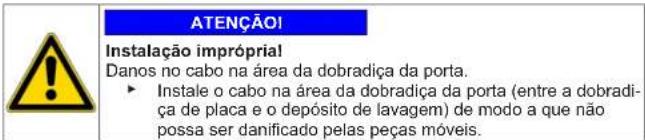

BEMAERKI

Ukorrekt montering!

Close-up of a mechanical component with a red vertical line and black arrow pointing to a detail (no text or symbols visible)

Reparation

Close-up of a mechanical component with a red highlighted section and black arrow indicating a specific area (no text or symbols visible)

Fig. 3: Fladkabel

1. Sæt stikket i.

Reparation

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view highlighting a section labeled '2'.

Technical diagram showing a red mechanical component with labeled parts and an inset magnified view of a component.

1. Skub timeLight-modulet ind i føringen (2).
2. Forbind den elektriske tilslutning.

Reparation

Technical diagram showing a device's internal structure with labeled components and wiring, including numbered annotations.

1. 1. Frigør låsekrogen på bagsiden (1).

2. Fjern lysfiberen (2).

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Reparation

Technical diagram of a mechanical assembly with numbered components, likely illustrating a machining or assembly process.

4.23.2 Montering of Gap illumination

1. Sæt printkortholderen i betjeningsmodules ramme.

3D mechanical assembly diagram showing internal components with red and black parts (no text or symbols)

3D mechanical assembly diagram showing internal components with no visible text or symbols

Diagram illustrating the step-by-step installation of a kitchen appliance, showing front, side, and interior views with numbered annotations.

Diagram showing three views of a kitchen appliance with numbered components and a magnified detail view.

Isometric technical diagram of a mechanical structure with ladder and frame components (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols present)

Reparatie

Two diagrams showing a mechanical device with a curved arrow indicating rotation, no text or symbols present.

4.2.3 Steamerinzet monteren

Speciale hulpmiddelen:

Geleider [00614935]
Kopjeshouder [00618565]

Technical diagram illustrating a multi-step installation or construction process with labeled steps and structural diagrams.

Reparatie

4.3 varioDrawer vervangen

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up of a blue door detail (no text or symbols)

Two blue industrial equipment components with metal railings and directional arrows indicating motion (no text or symbols)

Reparatie

3D architectural diagram showing structural grid and rebar layout with labeled components (no text or symbols present)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

4.4.2 Sproeiarm monteren

Diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

4.5.2 Filters monteren

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram showing cable routing and connector connections (no text or symbols)

Technical diagram of a device interior with numbered components and airflow indicators

Illustration of a hand using a blue tool to adjust or install a mechanical component (no text or symbols visible)

① ② CLICK

Technical diagram of a refrigerator with numbered components and directional arrows indicating internal mechanism

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps.

Technical diagram showing a 3D printer or printer assembly with labeled parts and directional arrows indicating assembly steps.

Diagram showing a device with a screwdriver inserted into a tray, highlighting the component with red and black arrows.

3.

Diagram showing a hand operating a device with a screwdriver inserted into a circular component, labeled with arrows and text.

Reparatie

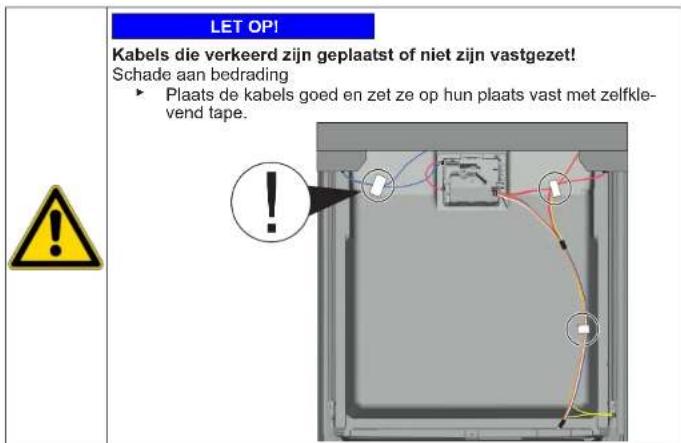

4.11.2 Buitendeur monteren

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the door.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its application in the main panel.

Diagram of a mechanical component with a screw and pin, showing internal structure and alignment (no text or symbols)

Diagram of a device interior with numbered components and colored wires, likely illustrating wiring or wiring paths.

Diagram of a device with a magnified inset showing a red screw and labeled ports (A, B, C, D, E, F, G) in Chinese.

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating different states or phases.

Technical diagram showing a red mechanical component with numbered callouts and directional arrows indicating motion or assembly.

3D mechanical assembly diagram showing a bracket with red components and directional arrows indicating motion (no text or symbols)

4.14.2 Plint monteren

Technical diagram showing a red mechanical component with numbered parts and directional arrows indicating flow or movement.

Reparatie

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red component being inserted into a housing (no text or symbols visible)

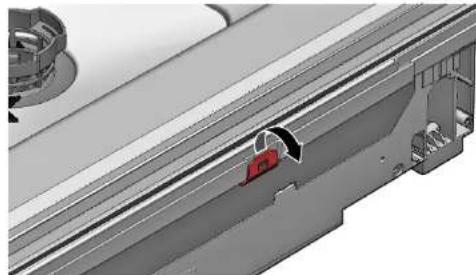

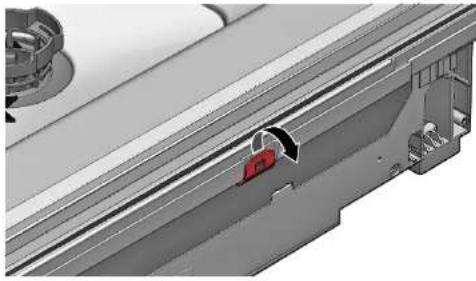

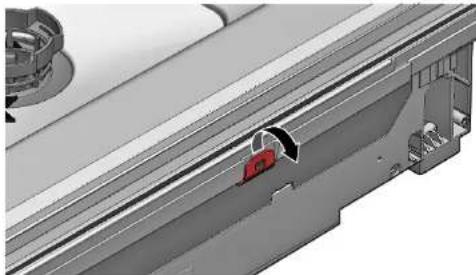

1. Maak vergrendelingselement bovenaan los.

3D mechanical assembly diagram showing a component with a red arrow and circular feature, no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

Reparatie

3D mechanical assembly diagram showing a red component with arrows pointing to a specific part, no visible text or symbols.

3D mechanical assembly diagram showing red and black arrows indicating directional flow or movement (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a rod and pipe (no text or symbols visible)

Reparatie

4.17 Binnendeur vervangen

Voorwaarde:

Mechanical assembly diagram showing two views of a red component with labeled parts (① and ②), no readable text or symbols present.

Mechanical assembly diagram showing two labeled parts (① and ②) with directional arrows indicating movement or force, no readable text or symbols present.

Close-up of a red mechanical bracket with green wiring, mounted on a metal frame (no visible text or symbols)

4.18.2 Deurscharnier monteren

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Mechanical assembly diagram showing red clamping bracket and green cable connection (no text or symbols)

Reparatie

4.19 (Onderste) deurafdichting vervangen

Voorwaarde:

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

3D technical diagram of a mechanical assembly with red components and a central hub (no visible text or symbols)

Reparatie

3D mechanical assembly diagram showing internal components with red structural elements (no text or symbols visible)

4.19.2 De deurafdichting monteren

Technical illustration of a mechanical bracket assembly with a highlighted part (no text or symbols)

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and adjustment.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or assembly.

Reparatie

1. Koppel de vergrendelingshaak vast (2).

3.

LET OPI

Verkeerde montage!

Close-up of a mechanical component with a red vertical line and black arrow pointing to a feature (no text or symbols visible)

Reparatie

Close-up of a mechanical component with a red vertical stripe and black arrow indicating a section (no text or symbols visible)

Afb. 3: Platte kabel

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view highlighting two components.

Technical diagram showing a red structural component with numbered annotations and an inset magnified view of a component.

1. Duw de TimeLight-module in de geleiding (2).
2. Verbind de elektrische aansluiting.

Reparatie

Technical diagram showing a battery internal structure with labeled components and wiring, including numbered annotations.

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Reparatie

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

3D mechanical assembly diagram showing a red component inserted into a gray housing (no text or symbols visible)

3D mechanical assembly diagram showing internal components with a highlighted 'CLICK' button (no text or symbols beyond the label)

1.2 Explanation of symbols 210

1.2.1 Danger levels.... 210

1.2.2 Hazard symbols 210

1.2.3 Structure of the warnings.... 211

1.2.4 General symbols.... 211

Safety 212

2.1 General Safety instructions 212

2.1.1 All domestic appliances 212

Tools and aids.... 213

Repair 214

4.1 Replacing worktop.... 214

4.1.1 Removing worktop 214

4.1.2 Installing worktop 214

4.2 Installing basket system.... 215

4.2.1 Installing a tab slide for the 86 cm model 215

4.2.2 Installing cup support clip 215

4.2.3 Installing steamer insert 216

4.3 Replacing varioDrawer....217

4.3.1 Removing varioDrawer.... 217

4.3.2 Installing varioDrawer.... 218

4.4 Replacing spray arms 219

4.4.1 Removing spray arm 219

4.4.2 Installing spray arm.... 219

4.5 Replacing filters.... 220

4.5.1 Removing filter.... 220

4.5.2 Installing filters.... 220

4.6 Installing baking sheet spray head 221

4.7 Replacing power cord 222

4.7.1 Unplugging power cord.... 222

4.7.2 Plugging in power cord.... 222

4.8 Replacing detergent cover 223

4.8.1 Removing detergent cover 223

4.8.2 Inserting spring.... 223

4.8.3 Installing detergent cover 223

4.9 Replacing wastewater pump cover 224

4.9.1 Removing wastewater pump cover 224

4.9.2 Installing wastewater pump cover 224

4.10 Replacing side panel.... 225

4.10.1 Removing side panel 225

4.10.2 Installing side panel 226

4.11 Replacing outer door 227

4.12 Replacing control panel 229

4.12.1 Removing control panel 229

4.12.2 Installing control panel 229

4.15.1 Removing base socket plate 233

4.15.2 Installing base socket plate 233

4.16 Replacing overflow conduit 234

4.16.1 Removing overflow channel 234

4.16.2 Installing overflow conduit 235

4.17 Replacing inner door 237

4.17.1 Removing inner door 237

4.17.2 Installing inner door 237

4.19 Replacing (lower) door seal 240

4.19.1 Removing the door seal 240

4.19.2 Installing the door seal 241

4.20 Replacing (upper) door seal.... 242

4.20.1 Removing door seal.... 242

4.20.2 Installing door seal.... 242

Repair hints - Dishwasher

4.21 Replacing EmotionLight 243

4.21.1 Removing EmotionLight 243
4.21.2 Installing EmotionLight 243

4.22 Replacing TimeLight 246

4.22.1 Removing TimeLight 246
4.22.2 Installing TimeLight 246

4.23 Replacing Gap illumination.... 247

4.23.1 Removing Gap illumination 247
4.23.2 Installing Gap illumination.... 248

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start]Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!
■ Only use original spare parts.
Risk of damage to electrostatically sensitive components (ESDs)!
- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Screwdriver Torx T20 with bore hole [00340764]	100 mm, for screws with safety pin
Insulated Screw-driver Torx T15 with bore hole [15000626]	Blade length 125 mm, for screws with safety pin
Slotted screwdriver	Blade 10 mm x 1.6 mm x 200 mm
Needle nose pliers [00340871]	Length: 200 mm, straight

Repair

4.1 Replacing worktop

Prerequisite:

√ Appliance is disconnected from the power supply.
√ Appliance is freely accessible.

4.1.1 Removing worktop

1. Remove the two screws at the back (1) (optional).
2. Press both catch levers under the worktop upwards (2).

Diagram illustrating the step-by-step installation of a kitchen appliance, showing front, side, and interior views with numbered annotations.

1. Lift the worktop slightly at the front (3).
2. Push worktop away towards the rear (4).
3. Remove worktop.

4.1.2 Installing worktop

1. Lock the rear of the worktop into the guides using the retaining collars (1).

Diagram showing three views of a kitchen appliance with numbered parts and an inset view highlighting a cabinet interior.

1. Push worktop forwards (2).
2. Press the front of the worktop downwards until both catch levers click audibly into place (3).
3. Screw in the two screws again (4) (optional).

Repair

4.2 Installing basket system

Prerequisite:

√ The relevant basket has been removed from the appliance.

4.2.1 Installing a tab slide for the 86 cm model

Required tools:

Tabguide [00614935]

Cup support clip [00618565]

1. Insert the tab slide diagonally at the front of the basket.

2. Centre and click the tab chute into place.

4.2.2 Installing cup support clip

Required tools:

Tabguide [00614935]
Cup support clip [00618565]

When washing cups, the cup support clip can be folded up. The additional angle reduces the collection of water on the bottom of cups. In the case of tall glasses we recommended leaving the cup support clip folded down. If upper baskets have an optional plastic insert, they must first be removed.

1. Remove the plastic insert.

Isometric line drawing of a mechanical structure with ladder and frame components (no text or symbols)

1. Click the cup support clip into place.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

1. Fold up the clip.

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

1. Position the items to be washed.

Two diagrams showing a mechanical device with a curved arrow indicating rotation, mounted on a stand (no text or symbols present)

4.2.3 Installing steamer insert Required tools:

Tabguide [00614935]
Cup support clip [00618565]

▶ Wedge the steamer insert with the end pieces under the basket system.

Technical diagram illustrating a multi-step installation or maintenance procedure with labeled steps and structural diagrams.

Repair

4.3 Replacing varioDrawer

4.3.1 Removing varioDrawer

1. Bend the handle flaps inwards.

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up of a blue door detail (no text or symbols)

1. Remove the handle upwards.

2. Press plastic side inserts outwards and press them upwards out of the frame.

Two blue industrial conveyor systems with directional arrows indicating flow or movement (no text or symbols present)

Repair

1. Carefully bend the guide tabs outwards.

3D architectural diagram of a steel structure with labeled components (no text or symbols present)

1. Pull the folding spines out of the tabs.

2. Press metal frame at the front out of the holders.

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

1. Push metal frame back out of the guide.

4.3.2 Installing varioDrawer

▶ Install in reverse order.

Repair

4.4 Replacing spray arms

4.4.1 Removing spray arm

1. Unscrew the upper spray arm (1) and pull down to remove (2).

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

1. Pull down the lower spray arm to remove,

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

4.4.2 Installing spray arm

1. Insert the lower spray arm.
   The spray arm clicks into position.
2. Insert the upper spray arm and screw it firmly in place.

Repair

4.5 Replacing filters

4.5.1 Removing filter

1. Turn the coarse filter anticlockwise (1) and remove the filter system (2).

Diagram showing a mechanical assembly with labeled parts ① and ②, indicating a rotating component.

Check that no foreign objects fall into the sump.

1. Pull down the micro filter to remove.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

4.5.2 Installing filters

1. Re-assemble the filter system.
   Make sure that the locking catches on the coarse filter click into position.
2. Insert the filter system into the appliance and turn the coarse filter clockwise.
   Make sure that the arrow markings match up.

Repair

4.6 Installing baking sheet spray head

1. Remove top basket.
2. Insert the baking sheet spray head in the holder (1) and turn to the right (2).

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

The baking sheet spray head clicks into position.

Repair

4.7 Replacing power cord

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.

4.7.1 Unplugging power cord

- Move the plug of the power cord carefully up and down and pull it out of the mains socket.

Diagram showing cable routing and connector assembly (no text or symbols)

4.7.2 Plugging in power cord

Notice

Overheating of main connection!

Risk of fire

▶ Firmly insert the power cord until it clicks.

- Insert the plug of the power cord into the mains socket until the plug clicks audibly into place.

klick

Repair

4.8 Replacing detergent cover

A small screwdriver can be used as a levering tool.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Door has been opened.
√ Detergent cover has been opened.

4.8.1 Removing detergent cover

1. Slide the detergent cover in 5 mm.
2. Lever the detergent cover on the lower side out of the guide rails and take the detergent cover on the upper side out of the guide rails.
3. Remove the spring.

4.8.2 Inserting spring

1. Insert the long end of the spring into the mounting hole of the dispenser device (1).

Technical diagram of a device interior with numbered components and airflow indicators

1. Insert the short end of the spring into the mounting hole of the detergent cover (2).
2. Press cover into the dispenser device (3).

4.8.3 Installing detergent cover

1. Insert the detergent cover 5 mm before the completely open position into the guide rails on one side. Applying gentle force, press the opposite side into the guide rails.
2. Check the function of the detergent cover.

Repair

4.9 Replacing wastewater pump cover

Prerequisite:

√ Basket has been removed.
√ Filters has been removed.→ Page 220

4.9.1 Removing wastewater pump cover

1. Scoop out any water.
   Use a sponge if necessary.
2. Prise off the pump cover using a spoon and grip it by the crosspiece.

Illustration of a hand holding a blue tool interacting with a circular mechanical component (no text or symbols visible)

1. Lift the pump cover inwards at an angle and remove.

4.9.2 Installing wastewater pump cover

- Insert the pump cover (1) and press down (2).

① ② CLICK

The pump cover clicks into position.

Repair

4.10 Replacing side panel

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
√ Free-standing appliances: Worktop has been removed.→ Page 214

4.10.1 Removing side panel

1. Remove screws from the side panel (1).

Technical diagram of a washing machine with numbered components and directional arrows indicating motion or assembly.

Fig. 1: Fully integrated

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

1. Tilt the side panel slightly outwards at the top (2).
2. Lower the side panel and pull it out of the base trough (3).

Repair

4.10.2 Installing side panel

1. Insert the side panel into the base trough (1).

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps.

Fig. 2: Fully integrated

Technical diagram showing a 3D mechanical assembly with labeled components and directional arrows indicating motion or assembly.

1. Press the side panel onto the appliance (2).
2. Secure the side panel with screws (3).

Repair

4.11 Replacing outer door

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

Just remove the screws which are described in the following steps.

1. Open door.
2. Remove four screws.

Diagram of a device with a screw and two arrows pointing to it, no text or symbols present

3.

Secure the door by holding it on one side.

Remove two screws.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the component and directional arrows indicating motion.

Notice Cables which are incorrectly positioned or not secured! Damage to cabling ► Position the cables and secure in place with adhesive tape.

Repair

Prerequisite:

√ Insulating fleece has been correctly positioned and fixed on the inside of the outer door.

√ Hinges are inserted into the outer door.

1. Close the inner door without snapping it shut.

2. Push the outer door upwards underneath the control panel (1).

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the door.

1. Press the outer door against the inner door and hold (2).

4.

Secure the door by holding it on one side.

Open the door and secure it with two screws (4 x 11 mm metal screws).

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its internal components.

1. Secure the outer door with four screws (4 x 11 mm metal screws).

Diagram of a mechanical component with a screwdriver inserted, showing internal structure and a magnified inset (no text or symbols)

Repair

4.12 Replacing control panel

If an operating module is defective, the entire control panel must be replaced.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Outer door has been removed.
√ Outer door has been removed (fully integrated/integrated).

4.12.1 Removing control panel

1. Disconnect electrical connections from the control panel and the low rinse-aid sensor (1, 2).

Diagram of a device interior with numbered components and colored wiring, likely illustrating a mechanical or electrical component layout.

1. Disconnect the earth cable (3) (optional).
2. Open the appliance door.

3. Secure the control panel to prevent it from falling down (hold on to it).

4. Remove six screws.

Diagram of a mechanical device with a screw and control panel, no text or symbols present

1. Remove the control panel.

4.12.2 Installing control panel

Use screws 4 x 16 mm.

▶ Install in reverse order.

Repair

1. Remove cord guide cover out.

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

1. 1. Open door slightly (1).

2. Fix in the groove of the base trough (2).

3. Slowly close the door (3).

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

The cord system attaches itself automatically to the door hinge.

Repair

1. 1. Slightly close the door (4).

2. Move the groove to the back and release the door hinge (5).

3. Open the door (6).

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating different states or phases.

1. Repeat the process again on other side of appliance.

Repair

4.14 Replacing toe panel

The feet are identical and can be swapped over.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Outer door has been removed.
√ Outer door has been removed (fully integrated/integrated).

4.14.1 Removing toe panel

1.

Incorrect removal. If the toe panel is loosened at the side and removed, the two brackets may break away. If only one bracket is damaged, the side can be changed as the brackets are identical. It is advisable to place something under the appliance at the front on the side to relieve the load on the toe panel with the feet.

1. Reach into the guides (1) with a screwdriver and release the catch by pushing downwards.

Technical diagram showing a red mechanical component with numbered callouts and directional arrows indicating motion or assembly.

1. Lift the panel off.

2. Remove the feet forwards (1).

Mechanical assembly diagram showing a bracket with red components and directional arrows indicating motion (no text or symbols present)

4.14.2 Installing toe panel

1. Insert the feet.
2. Attach the toe panel at the top (1) and press it down until it audibly clicks into place (2).

Technical diagram showing a red mechanical component with numbered parts and directional arrows indicating flow or movement.

Repair

4.15 Replacing base socket plate

The base socket plate is located in the lower area at the front.

Prerequisite:

√ Appliance is disconnected from power supply. √ Appliance is disconnected from water supply.
√ Furniture panel (optional) has been removed.
√ Outer door has been removed.
√ Outer door has been removed (fully integrated/integrated).
√ Toe panel has been removed (optional).→ Page 232

4.15.1 Removing base socket plate

1. Remove two screws (1).

1 2 2 1

1. Disengage catch elements (2).

2. Tilt the base socket plate carefully forwards (1).

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Depending on the model series, the plug to the EmotionLight is still secured to the base.

Unlock the plug on the catch tappet and pull to the rear (optional) (2).

4.15.2 Installing base socket plate

▶ Install the base socket plate in reverse order.

Repair

4.16 Replacing overflow conduit

The overflow conduit is located in the front lower area of the appliance.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Furniture panel has been removed (optional).
√ Outer door has been removed.
√ Toe panel has been removed (optional).→ Page 232
√ Base socket plate has been removed.→ Page 233

4.16.1 Removing overflow channel

Residual water

■ When the drainage hose is removed, residual water may run out.

- Catch water or remove from the base pan with suction syringe.

1. Lever out of the catch mechanism at the top (1, 2).

Mechanical assembly diagram showing a red lever mechanism with labeled parts (no text or symbols present)

1. Release catch element at top.

3D mechanical assembly diagram showing a sliding mechanism with a red component (no text or symbols visible)

1. 1. Insert screwdriver below metal brake (1).

2. Gently release metal clip (2).

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

Repair

1. Lift overflow conduit off.

3D mechanical assembly diagram showing a red component with mounting holes and a central hub (no text or symbols visible)

4.16.2 Installing overflow conduit

Water damage due to incorrect installation of the overflow conduit! Correctly insert the overflow conduit at the bottom into the guide of the base trough. Click the overflow conduit correctly into place at the top.

1. 1. Place overflow conduit (1).

2. Move overflow conduit into seal (2).

3. Press overflow conduit in guide of seal (3).
4. Insert overflow conduit concisely (4).
5. Clip in overflow conduit (5).

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Repair

1. Check installation left and right. 3. Check firm seat.

3D mechanical assembly diagram showing a red component with arrows pointing to a specific part, no visible text or symbols.

3D mechanical assembly diagram showing red and black arrows indicating directional flow or movement (no text or symbols)

1. Clip in metal clip on left and right side.

Mechanical assembly diagram showing a tool interacting with a red component inside a mechanical frame (no text or symbols visible)

Repair

4.17 Replacing inner door

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

1. Secure door hinge with screws.
2. Place inner door on door hinge.
3. Secure inner door with screws.

4.17.1 Removing inner door

1. Remove screws (1).
2. Remove inner door upwards (2).

Mechanical assembly diagram showing two views of a red component with labeled parts (no text or symbols present)

4.17.2 Installing inner door

1. Flap door seal to front.
2. Move inner door behind door seal.
3. Close inner door.
4. Flap door seal upwards. Sideparts show upwards.
5. Move door hinge upwards.

Repair

4.18 Replacing door hinge

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
Side panel has been removed.→ Page 225
√ Outer door has been removed.
√ Inner door has been removed.
√ Control panel has been removed.→ Page 229
√ Door spings has been fixed. → Page 230
√ Toe panel has been removed.→ Page 232
√ Base socket plate has been removed.→ Page 233
√ Overflow channel has been removed.→ Page 234

1. 1. Release catch hook with a screwdriver(1).
2. Pull door hinge forwards (2).

Mechanical assembly diagram showing two labeled parts (① and ②) with directional arrows indicating movement or force (no text or symbols beyond labels)

1. Release ground connection on door hinge.

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

1. 1. Place hinge on appliance (1).

2. Move hinge downwards (2) till it is latched to the appliance.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

A missing ground connection can lead to mains potential on door.

Establish ground connection.

Mechanical assembly diagram showing red clamping mechanism with green wiring (no text or symbols)

Repair

4.19 Replacing (lower) door seal

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Outer door has been removed.
√ Base socket plate has been removed.→ Page 233
√ Toe panel has been removed (optional).→ Page 232
√ Door springs have been removed.
√ Control panel has been removed.
√ Cable harness holder on bottom right has been removed.

4.19.1 Removing the door seal

1. Remove the two retaining clips on the lower door seal (1, 2).

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

1. Detach the overflow channel.

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

1. Lift the overflow gutter off.

3D technical diagram of a mechanical assembly with red components and a central hub (no visible text or symbols)

Repair

1. Remove the lower door seal from the inner door.

3D mechanical assembly diagram showing internal components with red structural elements and arrows indicating motion (no text or symbols)

4.19.2 Installing the door seal

1. Fit the sealing caps on the left and right to the sealing rail with the door seal.

3D mechanical assembly diagram showing a bracket with mounting bracket and mounting bracket (no text or symbols)

1. Insert the door seal with the sealing flap in the inner door.

2. Secure the door seal with two retaining clips.

Repair

4.20 Replacing (upper) door seal

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

4.20.1 Removing door seal

Remove door seal from inner frame.

4.20.2 Installing door seal

The door seal must be cut to the correct length before installation. This is 1750 mm for appliances of 81 cm in height and 1850 mm for appliances of 86 cm in height.

1. Prepare appropriate door seal.
2. Ensure correct installation position of sealing profile.

1. White dot must be on level with sealing bed strip.

Diagram of a hand holding a device with a black arrow pointing to a shaded area (no text or symbols present)

4.

Sealing must not be wavy or stretched at corners. Seal is cut off diagonally at ends and tapers away into bottom of container at front.

Position end of seal straight to front underneath inner door. Seal should lie against side of container as far as possible.

Correctly installed door seal:

Pure technical line drawing of curved pipe or channel sections without any text, numbers, or symbols

Repair

4.21 Replacing EmotionLight

The EmotionLight is situated in the upper front exterior area of the rinsing tank.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
√ Worktop has been removed (optional).
The right-hand side panel has been removed (optional).→ Page 225

4.21.1 Removing EmotionLight

1. Detach catch hook at the rear (1).

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and adjustment.

1. Remove the holder upwards (2).
2. Pull plug out of connector (bottom right at front of appliance).

1. Remove electrical connection from the power module.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

1. Remove EmotionLight from the appliance.

4.21.2 Installing EmotionLight

1. Insert the holder into the rinsing tank frame (1).

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating movement or assembly.

Repair

1. Engage the catch hook (2).

3.

Notice Improper installation! Damage to the cable in the area of the door hinge. ► Install the cable in the area of the door hinge (between the plate hinge and the rinsing tank) so that it cannot be damaged by moving parts.

Install the cable on the right lower side.

Close-up of a mechanical component with a red vertical line and black arrow pointing to a feature (no text or symbols visible)

Repair

Close-up of a mechanical component with a red highlighted section and a black arrow pointing to a specific area (no text or symbols visible)

Fig. 3: Flat cable

1. Insert the plug.

Repair

4.22 Replacing TimeLight

Replace the TimeLight only as a complete part. The TimeLight module is fixed to the rear of the base socket plate.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Toe panel has been removed.→ Page 232
√ Base socket plate has been removed and turned.→ Page 233

4.22.1 Removing TimeLight

1. Bend the catch elements (1) slightly outwards.

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view labeled 1, 2.

1. Pull the TimeLight module upwards out of the guide (2).

4.22.2 Installing TimeLight

1. Bend the catch elements (1) back again.

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view of a component.

1. Push the TimeLight module into the guide (2).
2. Connect the electrical connection.

Repair

4.23 Replacing Gap illumination

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Outer door is disassembled.
√ Operation panel has been removed.

4.23.1 Removing Gap illumination

1. 1. Detach catch (1).
2. Remove electrical connection from the operation module (2).

Technical diagram showing a battery internal structure with labeled components and wiring, including numbered annotations.

1. 1. Detach catch hook at rear (1).

2. Remove light fibre (2).

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Repair

1. 1. Detach catch hook (1).

2. Lift up PCB with holder and remove it from operation module frame (2).

Technical diagram of a mechanical assembly with numbered components, likely illustrating a machining or assembly process.

4.23.2 Installing Gap illumination

1. Insert PCB holder to operation module frame.

3D mechanical assembly diagram showing a red component inserted into a housing (no text or symbols visible)

1. Tighten it with a "click" sound.

3D mechanical assembly diagram showing a red component inside a housing with an arrow and 'CLICK' label (no readable text or symbols beyond the label)

1. Install light fibre and tighten it with a "click" sound.

3D mechanical assembly diagram showing internal components with no visible text or symbols

1. Connect wire to operation module.

Remonditeave - Nõudepesumasin

i Selle dokumendiga seoses 251

1.1 Tähtis teave 251

1.1.1 Eesmärk 251

1.2 Sümbolite selgitus 251

1.2.1 Ohutasemed.... 251

Diagram illustrating the step-by-step installation of a kitchen appliance, showing front, side, and interior views with numbered annotations.

Diagram showing three views of a kitchen appliance with numbered parts and an inset view highlighting a component.

Isometric line drawing of a mechanical structure with ladder and frame components (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

Diagram of a pipe connection with a clamping tool and rotation arrow (no text or symbols)

Remont

1. Pange pestavad esemed paika.

Two diagrams showing a mechanical device with a curved arrow indicating rotation, no text or symbols present.

4.2.3 Auruti vahetüki paigaldamine

Eritööriistad:

Tabletisahtli juhik [00614935]
Tassitoe klamber [00618565]

Technical diagram illustrating a multi-step installation or maintenance procedure with labeled steps and component illustrations.

Remont

4.3 Sahtli varioDrawer vahetamine

4.3.1 Sahtli varioDrawer eemaldamine

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up of a blue door detail (no text or symbols visible)

Two blue industrial metal grating structures with directional arrows indicating motion, no text or symbols present.

Remont

3D architectural diagram of a steel structure with labeled components (no text or symbols present)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a blue propeller with two directional arrows labeled ① and ②, indicating motion or force directions.

1. Eemaldamiseks tömmake alumist pihustit alla.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

4.4.2 Pihusti paigaldamine

Diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

4.5.2 Filtrite paigaldamine

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Küpsetusresti pihustipea klöpsab paigale.

Remont

Diagram showing cable routing and connector connections (no text or symbols)

Technical diagram of a device interior with numbered components and airflow indicators

1. Paigaldage vedru lühike ots pesuaine sahtli katte paigaldusavasse (2).
2. Lükake kate jaoturisse (3).

4.8.3 Pesuaine sahtli katte paigaldamine

Diagram of a mechanical component with a blue tool inserted, showing internal components and motion direction (no text or symbols)

① ② CLICK

Technical diagram of a refrigerator with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps.

Technical diagram showing a 3D mechanical assembly with labeled components and directional arrows indicating motion or assembly.

1. Vajutage küljepaneel seadme peale (2).
2. Kinnitage küljepaneel kruvidega (3).

Remont

Diagram of a device with a screw and two arrows pointing to it, no text or symbols present

3.

Diagram showing a hand operating a screwdriver inside a device tray with a magnified view of the screw and directional arrows.

4.11.2 Välimise ukse paigaldamine

TÄHELEPANU!

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating movement or flow.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its direction of motion.

1. Kinnitage välimine uks nelja kruviga (4 × 11 mm metallkruvid).

Diagram of a mechanical component with a highlighted screw and arrow, no text or symbols present

Remont

Diagram of a device interior with numbered components and colored wiring, likely illustrating a mechanical or electrical layout.

Diagram of a device interior with screw and control panel, no text or symbols present

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating sequence.

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating different states or features.

Technical diagram showing a red mechanical component with numbered parts and directional arrows indicating motion or movement.

Mechanical assembly diagram showing a bracket with red components and directional arrows indicating motion (no text or symbols present)

4.14.2 Aluspaneeli paigaldamine

Technical diagram showing a red mechanical component with numbered parts and directional arrows indicating flow or movement.

Remont

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D mechanical assembly diagram showing a component with a red seal or lock, no visible text or symbols

1. 1. Pange kruvikeeraja metallpiduri alla (1).

2. Vabastage ettevaatlikult metallklamber (2).

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

Remont

3D mechanical assembly diagram showing a red component with arrows indicating motion or assembly (no text or symbols)

4.16.2 Ülevoolutoru paigaldamine

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Remont

3D mechanical assembly diagram showing a red component with alignment arrows and an inset close-up of a camera (no text or symbols)

3D mechanical assembly diagram showing red and black arrows indicating directional flow or movement (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, no visible text or symbols

Remont

Mechanical assembly diagram showing a red component being inserted into a housing, with two views of the component (① and ②) highlighting internal components.

1. Kinnitage uksehing kruvidega.
2. Paigutage sisemine uks uksehingele.
3. Kinnitage sisemine uks kruvidega.

4.17.2 Sisemise ukse paigaldamine

Mechanical assembly diagram showing a bracket with labeled parts (① and ②), no readable text or symbols present.

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

4.18.2 Uksehinge paigaldamine

Remont

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Mechanical assembly diagram showing red clamping mechanism with green wiring (no text or symbols)

Remont

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

3D technical diagram of a mechanical assembly with red and gray components (no visible text or symbols)

Remont

3D mechanical assembly diagram showing internal components with red structural elements and arrows indicating flow or movement (no text or symbols)

Technical illustration of a mechanical component with a bracket and mounting bracket (no text or symbols)

Diagram of a mechanical joint or bracket with a black arrow pointing to a specific area (no text or symbols present)

4.

Pure technical line drawing of curved pipe or channel sections without any text, numbers, or symbols

Remont

4.21 Tule EmotionLight vahetamine

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and adjustment.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

1. Eemaldage EmotionLight seadmest.

4.21.2 Tule EmotionLight paigaldamine

1. Pange hoidik loputuspaagi raamile (1).

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating movement or assembly.

Remont

1. Kinnitage haak (2).

3.

TÄHELEPANUI

Vale paigaldus!

Close-up of a mechanical component with a red vertical line and black arrow pointing to a feature (no text or symbols visible)

Remont

Close-up of a mechanical component with a red highlighted section and a black arrow indicating a specific area (no text or symbols visible)

Joonis 3: Lame kaabel
4. Paigaldage pistik.

Remont

4.22 Tule TimeLight vahetamine

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view highlighting a section labeled '2'.

Technical diagram showing a red mechanical component with labeled parts 1 and 2, including an inset magnified view of the component.

Technical diagram showing a battery pack assembly with labeled components and wiring connections

1. 1. Vötke tagaküljel haak lahti (1).

2. Eemaldage valguskiud (2).

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Remont

Technical diagram of a mechanical assembly with numbered components, likely illustrating a machining or assembly process.

4.23.2 Süvendivalgustuse Gap Illumination paigaldamine

3D mechanical assembly diagram showing internal components with red and black parts (no text or symbols)

3D mechanical assembly diagram showing a red component inside a housing with an arrow and 'CLICK' label (no readable text or symbols beyond the label)

3D mechanical assembly diagram showing internal components with no visible text or symbols

Diagram illustrating the steps of cleaning a kitchen appliance, showing front, side, and interior views with numbered annotations.

Diagram showing three views of a kitchen appliance with numbered parts and an inset view highlighting a cabinet interior.

Isometric line drawing of a mechanical structure with ladder-like elements and an arrow indicating motion (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

1. Käännä klipsi ylös.

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Two diagrams showing a mechanical device with a curved arrow indicating rotation, no text or symbols present.

Technical diagram illustrating a multi-step installation or maintenance procedure with labeled steps and component illustrations.

Korjaus

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up inset of a blue door detail (no text or symbols)

Two blue industrial metal grating structures with directional arrows indicating motion, no text or symbols present.

Korjaus

3D architectural diagram of a steel structure with labeled components (no text or symbols present)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with labeled parts ① and ②, indicating a rotating component.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram showing cable routing and connection to a wall-mounted device (no text or symbols present)

Technical diagram of a device interior with numbered components and airflow indicators

Illustration of a hand using a blue tool to adjust or install a mechanical component (no text or symbols visible)

① ② CLICK

Technical diagram of a washing machine with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps.

Technical diagram showing a 3D mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Diagram of a device with a screwdriver inserted into a tray, showing internal components and a magnified view of the component (no text or symbols present)

3.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its internal components.

Diagram of a device interior with numbered components and colored wiring, likely illustrating a mechanical or electrical component layout.

Diagram of a mechanical device with a screw and control panel, no text or symbols present

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

Technical diagram showing mechanical assembly steps with numbered annotations indicating sequence of components

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating different states or features.

Technical diagram showing a red mechanical component with numbered callouts and directional arrows indicating motion or assembly.

Mechanical assembly diagram showing a bracket with red components and directional arrows indicating motion (no text or symbols present)

4.14.2 Alapaneelin asentaminen

Technical diagram showing a red mechanical component with numbered callouts indicating flow or movement directions.

Korjaus

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red component being inserted into a housing (no text or symbols visible)

3D mechanical assembly diagram showing a component with a red highlighted section (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

Korjaus

3D mechanical assembly diagram showing a red and gray component with no visible text or symbols

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Korjaus

Mechanical assembly diagram showing a red component with alignment arrows and an inset close-up of a red vehicle's eye (no text or symbols)

3D mechanical assembly diagram showing red and black arrows indicating directional flow or force (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, no visible text or symbols

Korjaus

Mechanical assembly diagram showing two views of a red component with labeled parts (① and ②), no readable text or symbols present.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Close-up of a mechanical assembly with red components and green wiring (no visible text or symbols)

4.18.2 Luukun saranan asennus

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Mechanical assembly diagram showing red clamping mechanism with green wiring (no text or symbols)

Korjaus

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

3D technical diagram of a mechanical assembly with red components and a central hub (no visible text or symbols)

Korjaus

3D mechanical assembly diagram showing a red structural component with arrows indicating flow or movement (no text or symbols present)

3D mechanical assembly diagram showing a bracket with mounting bracket and mounting hole (no text or symbols)

Diagram of a mechanical joint or bracket with a black arrow pointing to a specific area (no text or symbols present)

4.

Pure technical line drawing of curved pipe or channel sections without any text, numbers, or symbols

Korjaus

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and adjustment.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts, including numbered annotations (① and ②) indicating specific components.

Korjaus

Close-up of a mechanical component with a red vertical line and black arrow pointing to a feature (no text or symbols visible)

Korjaus

Close-up of a mechanical component with a red vertical stripe and a black rectangular cutout (no text or symbols visible)

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view highlighting a section labeled '2'.

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view of a component.

Technical diagram showing a device's internal structure with labeled components and wiring, including numbered annotations.

1. 1. Irrota kiinnitin takaa (1).
2. Poista valokuitu (2).

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Korjaus

Technical diagram of a mechanical assembly with numbered components, likely illustrating a machining or assembly process.

3D mechanical assembly diagram showing a red component inserted into a housing (no text or symbols visible)

3D mechanical assembly diagram showing a red component inside a housing with an arrow and 'CLICK' label (no readable text or symbols beyond the label)

3D mechanical assembly diagram showing internal components with no visible text or symbols

Diagram illustrating the step-by-step installation of a kitchen appliance, showing front, side, and interior views with numbered annotations.

Diagram showing three views of a kitchen appliance with numbered parts and an inset view highlighting a component.

Isometric line drawing of a mechanical structure with ladder-like elements and a curved arrow indicating motion (no text or symbols)

2021-03-22_9001630792 Copyright par BSH Hausgeräte GmbH Pages 338 à 989

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Réparation

Two diagrams showing a mechanical device with a curved arrow indicating rotation, mounted on a stand (no text or symbols present)

Technical diagram illustrating a multi-step installation or maintenance procedure with labeled steps and structural diagrams.

Réparation

4.3 Changer le tiroir Vario

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up inset of a blue door detail (no text or symbols)

Two blue industrial metal grating structures with directional arrows indicating motion, no text or symbols present.

Réparation

3D architectural diagram showing structural grid and pipe connections, with an inset magnified view of a mechanical component (no text or symbols)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with labeled parts ① and ②, likely illustrating a gear or cam mechanism.

Diagram of a mechanical component with a blue threaded base and black downward arrow (no text or symbols)

Diagram of a mechanical or electrical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing cable routing and connector connections (no text or symbols)

4.7.2 Connecter câble de raccordement

ATTENTION!

Technical diagram of a device interior with numbered components and airflow indicators

Illustration of a hand holding a blue tool interacting with a mechanical component (no text or symbols visible)

① ② CLICK

Technical diagram of a refrigerator with numbered components and directional arrows indicating parts of the casing.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Diagram of a mechanical component with a magnified inset showing two red tool tips (no text or symbols)

3.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its internal components.

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the door.

Diagram showing a hand operating a screwdriver on a device's tray, with a magnified view of the screw and its direction indicated by arrows.

Diagram of a mechanical component with a screwdriver inserted, showing internal structure and a magnified view of the component (no text or symbols)

Réparation

Diagram of a device interior with numbered components and colored wires, likely illustrating wiring or wiring paths.

Diagram of a 3D printer front panel with screw spool, showing internal components and mounting points (no text or symbols)

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating different states or features.

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating different states or features.

Technical diagram showing a red mechanical component with numbered callouts and directional arrows indicating motion or movement.

Mechanical assembly diagram showing a bracket with red components and directional arrows indicating motion (no text or symbols present)

Technical diagram showing a red mechanical component with numbered callouts indicating flow or movement directions.

Réparation

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red component being inserted into a housing (no text or symbols visible)

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

Réparation

3D mechanical assembly diagram showing a red component with mounting holes and a central hub (no text or symbols visible)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Réparation

Mechanical assembly diagram showing a red component with alignment arrows and an inset close-up of a red vehicle's eye (no text or symbols present)

3D mechanical assembly diagram showing red and black arrows indicating directional flow or movement (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, no visible text or symbols

Réparation

Mechanical assembly diagram showing two views of a red component with labeled parts (① and ②), no readable text or symbols present.

Mechanical assembly diagram showing two labeled parts (① and ②) with directional arrows indicating movement or force (no text or symbols beyond labels)

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Mechanical assembly diagram showing red clamping mechanism with green wiring (no text or symbols)

Réparation

Mechanical assembly diagram showing a tool inserted into a component, labeled with numbers 1 and 2 (no text or symbols beyond labels)

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

3D technical diagram of a mechanical assembly with red components and a central hub (no visible text or symbols)

Réparation

3D mechanical assembly diagram showing internal components with red structural elements (no text or symbols visible)

Technical illustration of a mechanical bracket assembly with a highlighted part (no text or symbols)

Diagram of a mechanical joint or clamping mechanism with no visible text or symbols

4.

Pure technical line drawing of curved pipe or channel sections without any text, numbers, or symbols

Réparation

4.21 Changer l'EmotionLight

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and adjustment.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating movement or assembly steps.

Réparation

1. Encliqueter l'ergot (2).

3.

Close-up of a mechanical component with a red vertical line and black arrow pointing to a detail (no visible text or symbols)

Réparation

Close-up of a mechanical component with a red highlighted section and black arrow indicating a specific area (no text or symbols visible)

Fig. 3: Câble plat

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view highlighting a specific feature.

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view of a component.

Technical diagram showing a device's internal structure with labeled components and wiring, including numbered annotations.

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Réparation

Diagram showing a kitchen appliance with labeled parts including cleaning, assembly, and cleaning steps

Diagram showing three views of a kitchen appliance with numbered parts and an inset view highlighting a cabinet interior.

Isometric technical diagram of a mechanical structure with ladder and frame components (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Two diagrams showing a mechanical device with a curved arrow indicating rotation, no text or symbols present.

Technical diagram illustrating a multi-step installation or maintenance procedure with labeled steps and structural diagrams.

Instandsetzen

3D architectural diagram of a steel-framed building grid with a magnified inset showing a blue door detail (no text or symbols)

Two blue industrial metal grating structures with directional arrows indicating motion, no text or symbols present.

Instandsetzen

3D architectural diagram showing structural grid and pipe connections, with an inset magnified view of a mechanical component (no text or symbols)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Top-down view of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with labeled parts ① and ②, indicating directional movement or assembly.

Diagram of a mechanical component with a blue threaded shaft and black downward arrow (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram showing cable routing and connector assembly (no text or symbols)

Technical diagram of a device interior with numbered components and labeled parts

Illustration of a hand holding a blue tool interacting with a mechanical component (no text or symbols visible)

① ② CLICK

Technical diagram of a refrigerator with numbered parts and directional arrows indicating components

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Diagram of a device with a screw and two arrows pointing to it, no text or symbols present

3.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its internal components.

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the door.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its direction of motion.

Technical diagram of a mechanical component with a screwdriver inserted, showing internal structure and alignment (no text or symbols)

Instandsetzen

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating sequence.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red pipe connection with labeled parts (no text or symbols present)

3D mechanical assembly diagram showing a conveyor belt system with a red component (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

Instandsetzen

3D mechanical assembly diagram showing a red component with mounting holes and a central hub (no text or symbols visible)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Instandsetzen

Mechanical assembly diagram showing a red component with alignment arrows and an inset close-up of a sensor or camera (no text or symbols present)

3D mechanical assembly diagram showing red and black arrows indicating directional flow or force (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a red component inside a mechanical frame (no text or symbols visible)

Instandsetzen

Mechanical assembly diagram showing two views of a red component with labeled parts (① and ②), no readable text or symbols present.

Mechanical assembly diagram showing two labeled parts (① and ②) with directional arrows indicating movement or force (no text or symbols beyond labels)

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

3D technical diagram of a mechanical assembly with red and gray components (no visible text or symbols)

Instandsetzen

3D mechanical assembly diagram showing internal components with red structural elements and arrows indicating flow or movement (no text or symbols)

Technical illustration of a mechanical component with a bracket and mounting bracket (no text or symbols)

Diagram of a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

4.

Pure technical line drawing of curved pipe or channel sections without any text, numbers, or symbols

Instandsetzen

4.21 EmotionLight tauschen

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and adjustment.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts, including numbered annotations for component identification.

Instandsetzen

Close-up of a mechanical component with a red vertical line and black arrow pointing to a feature (no text or symbols visible)

Instandsetzen

Close-up of a mechanical component with a red vertical stripe and a black rectangular cutout (no text or symbols visible)

Abb. 3: Flaches Kabel

1. Stecker einstecken.

Instandsetzen

4.22 TimeLight tauschen

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view highlighting a specific feature.

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view of a component.

Technical diagram showing a device's internal structure with labeled components and wiring, including numbered annotations.

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Instandsetzen

Technical diagram of a mechanical assembly with numbered components, likely illustrating a machining or assembly process.

4.23.2 Gap Illumination montieren

3D mechanical assembly diagram showing a red component inserted into a housing (no text or symbols visible)

3D mechanical assembly diagram showing a red component inside a housing with an arrow and 'CLICK' label (no readable text or symbols beyond the label)

3D mechanical assembly diagram showing internal components with no visible text or symbols

Diagram showing steps to adjust or install a kitchen appliance, with numbered instructions for cleaning and adjustment.

Diagram showing three views of a kitchen appliance with numbered components and a magnified detail view.

3D wireframe diagram of a mechanical assembly with ladder and frame structure (no text or symbols)

Technical diagram showing a structural assembly with labeled components and directional arrows indicating motion or force vectors.

Επισκευή

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Two diagrams showing a device being adjusted to form a rectangular object, with no visible text or symbols.

Technical diagram illustrating a mechanical assembly with labeled components and motion indicators

Επισκευή

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up inset of a blue door detail (no text or symbols)

Two blue industrial metal grating structures with directional arrows indicating motion, no text or symbols present.

Επισκευή

3D architectural diagram of a steel structure with labeled components (no text or symbols present)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with labeled parts ① and ②, likely illustrating a gear or cam mechanism.

Diagram of a mechanical component with a blue threaded shaft and black downward arrow (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram showing cable routing and connector connections (no text or symbols)

Technical diagram of a device interior with numbered components and airflow indicators

Illustration of a hand using a blue tool to adjust or install a mechanical component (no text or symbols visible)

① ② CLICK

Technical diagram of a refrigerator with numbered parts and directional arrows indicating components

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps

Technical diagram showing a 3D printer or printer assembly with labeled parts and directional arrows indicating assembly steps.

Diagram showing a device with screw and indicator lights, highlighting the component's direction of movement.

3.

Diagram showing a hand holding a screwdriver inserted into a device with a magnified circular component highlighting the screw and arrow.

Επισκευή

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the door.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and directional arrows indicating movement.

Diagram showing a screwdriver inserted into a tray with a magnified inset highlighting the tip and arrow direction.

2021-03-22_9001630792 Copyright by BSH Hausgeräte GmbH Σελίδα 434 από 989

Επισκευή

Diagram of a device interior with numbered components and colored wiring, likely illustrating a mechanical or electrical component layout.

Diagram of a mechanical device with a screw and control panel, no text or symbols present

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating different states or features.

Technical diagram showing a red mechanical component with numbered callouts and directional arrows indicating motion or assembly.

Mechanical assembly diagram showing a bracket with red components and directional arrows indicating motion (no text or symbols present)

Technical diagram showing a red mechanical component with numbered parts and directional arrows indicating flow or movement.

Επισκευή

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red component being inserted into a housing (no text or symbols visible)

3D mechanical assembly diagram showing a red component inserted into a channel, with no visible text or symbols

Επισκευή

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D technical diagram of a mechanical assembly with red components and a central hub (no visible text or symbols)

Technical diagram of a vehicle chassis with numbered components and directional arrows indicating assembly or maintenance steps.

Επισκευή

3D mechanical assembly diagram showing a red component with arrows pointing to a specific part, no visible text or symbols.

3D mechanical assembly diagram showing red and black arrows indicating directional flow or movement (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a red component inside a mechanical frame (no text or symbols visible)

Επισκευή

Mechanical assembly diagram showing two views of a red component with labeled parts (no text or symbols present)

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force vectors.

Close-up of a red mechanical bracket with green wiring, mounted on a metal frame (no visible text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

Επισκευή

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D mechanical assembly diagram showing a sliding mechanism with a red component (no text or symbols visible)

3D technical diagram of a mechanical assembly with red components and a central knob (no text or symbols visible)

Επισκευή

3D mechanical assembly diagram showing a red structural component with arrows indicating motion or flow (no text or symbols present)

Technical illustration of a mechanical bracket assembly (no text or symbols visible)

Diagram of a hand holding a device with a black arrow pointing to a shaded area (no text or symbols present)

4.

Pure technical line drawing of curved pipe extensions without any text, numbers, or symbols

Επισκευή

Close-up of a mechanical component with a red vertical line and black arrow pointing to a feature (no text or symbols visible)

Επισκευή

Close-up of a mechanical component with a red highlighted section and a black arrow indicating a specific area (no text or symbols visible)

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view highlighting a section labeled '2'.

Technical diagram showing a red structural component with numbered annotations and an inset magnified view of a component.

Technical diagram of an electronic device showing internal components and wiring, with labeled parts 1 and 2.

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Επισκευή

Technical diagram of a mechanical assembly with numbered components, likely illustrating a machining or assembly process.

3D mechanical assembly diagram showing internal components with red highlighted parts (no text or symbols)

3D mechanical assembly diagram showing internal components with a highlighted red component and an arrow labeled 'CLICK' (no readable text or symbols beyond the label)

Diagram illustrating the step-by-step installation of a kitchen appliance, showing front, side, and interior views with numbered annotations.

Diagram showing three views of a kitchen appliance with numbered components and a magnified detail view.

Isometric line drawing of a structural framework with ladder and frame structure, no text or symbols present

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

1. Hajtsa fel a fület.

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Two diagrams showing a mechanical device with a curved arrow indicating rotation, mounted on a stand (no text or symbols present)

Technical diagram illustrating a multi-step installation or maintenance procedure with labeled steps and structural diagrams.

Javítás

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up of a blue door detail (no text or symbols)

Two blue industrial lockers with metal railings and directional arrows indicating motion (no text or symbols)

Javítás

3D architectural diagram showing structural grid and rebar layout with labeled components (no text or symbols present)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a blue propeller with two directional arrows labeled ① and ②, indicating motion or force directions.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with labeled parts ① and ②, likely illustrating a gear or cam mechanism.

Diagram of a mechanical component with a blue threaded shaft and black downward arrow (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram showing cable routing and connection to a wall-mounted device (no text or symbols present)

Technical diagram of a device interior with numbered components and airflow indicators

Illustration of a hand holding a blue tool interacting with a circular mechanical component (no text or symbols visible)

① ② CLICK

Technical diagram of a washing machine with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps.

Technical diagram showing a 3D mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Diagram showing a device with screw and indicator lights, highlighting the component's direction of movement.

3.

Diagram showing a hand operating a device with a screwdriver inserted into a circular component, labeled with arrows and text.

Javítás

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the door.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and directional arrows indicating movement.

Diagram showing a screwdriver inserted into a tray with a magnified view highlighting the tip and arrow direction.

Diagram of a device interior with numbered components and colored wiring, likely illustrating a mechanical or electrical component layout.

Diagram of a mechanical device with a screw and control panel, no text or symbols present

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

Technical diagram showing mechanical assembly steps with numbered annotations indicating sequence of components

Technical diagram showing mechanical assembly steps with numbered annotations indicating different states or components.

Technical diagram showing a red mechanical component with numbered callouts and directional arrows indicating motion or assembly.

Mechanical assembly diagram showing a bracket with red components and directional arrows indicating motion (no text or symbols present)

Technical diagram showing a red mechanical component with numbered parts and directional arrows indicating flow or movement.

Javítás

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red component being inserted into a housing (no text or symbols visible)

3D mechanical assembly diagram showing a component with a red arrow and circular motion path (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

Javítás

3D mechanical assembly diagram showing a red component mounted on a gray base, with no visible text or symbols.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or flow

Javítás

3D mechanical assembly diagram showing a red component with arrows pointing to a specific part, no visible text or symbols.

3D mechanical assembly diagram showing red and black arrows indicating directional flow or movement (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, no visible text or symbols

Javítás

Mechanical assembly diagram showing two views of a red component with arrows indicating parts (no text or symbols present)

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force directions.

Close-up of a red mechanical bracket with green wiring and a black arrow pointing to a component (no visible text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Mechanical assembly diagram showing red clamping bracket and green cable connection (no text or symbols)

Javítás

Mechanical assembly diagram showing a tool inserted into a component, labeled with numbers 1 and 2 (no text or symbols beyond labels)

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

3D technical diagram of a mechanical assembly with red and gray components (no visible text or symbols)

Javítás

3D mechanical assembly diagram showing a red structural component with arrows indicating motion or flow (no text or symbols present)

Technical illustration of a mechanical bracket assembly (no text or symbols visible)

Diagram of a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

4.

Pure technical line drawing of curved pipe or channel sections without any text, numbers, or symbols

Javítás

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and adjustment.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating movement or assembly steps

Javítás

Close-up of a mechanical component with a red vertical line and black arrow pointing to a feature (no text or symbols visible)

Javítás

Close-up of a mechanical component with a red highlighted section and a white strip (no text or symbols visible)

Ábra 3: Lapos kábel

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view highlighting a section labeled '2'.

Technical diagram showing a red mechanical component with labeled parts 1 and 2, including an inset magnified view of the component.

Technical diagram of an electronic device showing internal components and wiring, with labeled parts 1 and 2.

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Javítás

Technical diagram of a mechanical assembly with numbered components, likely illustrating a machining or assembly process.

3D mechanical assembly diagram showing a red component inserted into a housing (no text or symbols visible)

3D mechanical assembly diagram showing internal components with no visible text or symbols

Diagram showing steps to adjust or install a kitchen appliance, with numbered instructions for cleaning and adjustment.

Diagram showing three views of a kitchen appliance with numbered components and a magnified detail view.

3D wireframe diagram of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

Technical diagram showing a structural assembly with labeled components and directional arrows indicating motion or force vectors.

Riparazione

Mechanical diagram showing a pipe connection with a clamp and rotational arrow (no text or symbols)

Two diagrams showing a mechanical device with a curved arrow indicating rotation, no text or symbols present.

Technical diagram illustrating three stages of a mechanical or structural assembly with labeled components and directional arrows indicating motion.

Riparazione

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up inset of a blue door detail (no text or symbols)

Two blue industrial metal grating structures with directional arrows indicating motion, no text or symbols present.

Riparazione

3D architectural diagram showing structural grid and pipe connections, with an inset magnified view of a blue pipe assembly (no text or symbols)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

Diagram showing a mechanical component with labeled parts and directional arrows, likely illustrating a motion or assembly process.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Technical diagram of a device interior with numbered components and labeled parts

Illustration of a hand using a blue tool to adjust or install a mechanical component (no text or symbols visible)

① ② CLICK

Technical diagram of a refrigerator with numbered parts and directional arrows indicating components

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps.

Technical diagram showing a 3D printer or printer assembly with labeled parts and directional arrows indicating assembly steps.

Diagram of a device with a magnified inset showing a red tool interacting with a component (no text or symbols present)

3.

Diagram showing a hand operating a device with a screwdriver inserted into a circular component, labeled with arrows and symbols.

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the door.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its internal components.

Diagram of a mechanical component with a screwdriver inserted, showing internal structure and a magnified inset (no text or symbols)

Riparazione

Diagram of a device interior with numbered components and colored wiring, likely illustrating a mechanical or electrical component layout.

Diagram of a mechanical device with a screw and control panel, no text or symbols present

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating process flow.

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating process flow.

Technical diagram showing a red component with numbered callouts and directional arrows indicating movement or flow, labeled with numbers 1 and 2.

Mechanical assembly diagram showing a bracket with red components and directional arrows indicating motion (no text or symbols present)

Technical diagram showing a red mechanical component with numbered parts and directional arrows indicating flow or movement.

Riparazione

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red pipe connection with numbered components (no text or symbols)

3D mechanical assembly diagram showing a sliding mechanism with a red lock and housing (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

Riparazione

3D mechanical assembly diagram showing a red component mounted on a gray base, with no visible text or symbols.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or flow

Riparazione

Mechanical assembly diagram showing a red component with alignment arrows and an inset close-up of a sensor or camera (no text or symbols present)

3D diagram of a vehicle door with red structural elements and black arrows indicating flow or movement (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a red component inside a mechanical frame (no text or symbols visible)

Riparazione

Mechanical assembly diagram showing two views of a red metal bracket with labeled parts (no text or symbols present)

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Close-up of a red mechanical bracket with green wiring, mounted on a metal frame (no visible text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Mechanical assembly diagram showing red clamping mechanism with green wiring (no text or symbols)

Riparazione

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D mechanical assembly diagram showing a component with a red arrow indicating a specific part (no text or symbols present)

3D technical diagram of a mechanical assembly with red and gray components (no visible text or symbols)

Riparazione

3D mechanical assembly diagram showing a red structural component with arrows indicating motion or flow direction (no text or symbols present)

Technical illustration of a mechanical bracket assembly with a highlighted part (no text or symbols)

Diagram of a mechanical joint or pipe connection with a black arrow indicating direction (no text or symbols present)

4.

Pure technical line drawing of curved pipe or channel sections without any text, numbers, or symbols

Riparazione

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and adjustment.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts, including numbered annotations (① and ②) pointing to specific components.

Riparazione

Close-up of a mechanical component with a red vertical line and black arrow pointing to a feature (no text or symbols visible)

Riparazione

Close-up of a mechanical component with a red highlighted section and a black arrow indicating a specific area (no text or symbols visible)

Fig. 3: Cavo piatto

1. Inserire la spina.

Riparazione

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view highlighting a specific feature.

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view of a component.

Technical diagram showing a battery internal structure with labeled components and wiring, including numbered annotations.

Technical diagram showing two views of a device's internal structure with labeled components and directional arrows indicating movement or flow.

Riparazione

Technical diagram of a mechanical assembly with numbered components, likely illustrating a machining or assembly process.

3D mechanical assembly diagram showing a red component inserted into a gray housing (no text or symbols visible)

3D mechanical assembly diagram showing a red component inside a gray housing, with a black arrow and 'CLICK' label pointing to a specific area (no readable text or symbols beyond the label)

3D mechanical assembly diagram showing internal components with a highlighted 'CLICK' button (no text or symbols beyond the label)

Diagram showing steps to adjust or install a kitchen appliance, with labeled parts and instructions in Chinese.

Diagram showing three views of a kitchen appliance with numbered parts and an inset view highlighting a cabinet interior.

Isometric line drawing of a mechanical structure with ladder and frame components (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

1. Uzlokiet balstu.

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Two diagrams showing a mechanical device with a curved arrow indicating rotation, no text or symbols present.

Technical diagram illustrating three stages of a mechanical or electrical component with labeled components and directional arrows indicating flow or movement.

Remonts

4.3 Atvilktnes varioDrawer nomaiņa

4.3.1 Atvilktnes varioDrawer nonemšana

1. lespiediet roktura plāksnes.

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up inset of a blue door detail (no text or symbols)

Two blue industrial metal grating structures with directional arrows indicating motion, no text or symbols present.

Remonts

3D architectural diagram of a steel structure with labeled components (no text or symbols present)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with labeled parts ① and ②, likely illustrating a gear or cam mechanism.

Diagram of a mechanical component with a blue threaded shaft and black downward arrow (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram showing cable routing and connector connections (no text or symbols)

Technical diagram of a device interior with numbered components and airflow indicators

Illustration of a hand holding a blue tool interacting with a mechanical component (no text or symbols visible)

① ② CLICK

Technical diagram of a refrigerator with numbered components and directional arrows indicating internal mechanism

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps.

Technical diagram showing a 3D mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Diagram of a device with a screwdriver inserted into a tray, showing internal components and a magnified view of the component (no text or symbols present)

3.

Pieturiet durvis aiz sāniem.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its internal components.

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the door.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its internal components.

Technical diagram of a mechanical component with a screwdriver inserted, showing internal structure and mounting holes (no text or symbols)

Remonts

Diagram of a device interior with numbered components and colored wiring, likely illustrating a mechanical or electrical component layout.

Diagram of a mechanical device with a screw and control panel, no text or symbols present

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

1. 1. Paveriet durvis (1).

2. Nostipriniet pamatnes iedobes rievā (2).

3. Lēni aizveriet durvis (3).

Technical diagram showing mechanical assembly steps with numbered annotations indicating sequence of components

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating process flow.

Technical diagram showing a red mechanical component with numbered callouts and directional arrows indicating motion or movement.

Mechanical assembly diagram showing a bracket with red components and directional arrows indicating motion (no text or symbols present)

Technical diagram showing a red mechanical component with numbered parts and directional arrows indicating flow or movement.

Remonts

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red pipe connection with labeled parts (no text or symbols present)

3D mechanical assembly diagram showing a sliding conveyor belt system with a red component (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

Remonts

3D mechanical assembly diagram showing a red component with mounting holes and a central hub (no text or symbols visible)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Remonts

Mechanical assembly diagram showing a red component with arrows pointing to a specific part, no visible text or symbols.

3D mechanical assembly diagram showing red and black arrows indicating directional flow or force (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, no visible text or symbols

Remonts

Mechanical assembly diagram showing two views of a red component with labeled parts (① and ②), no readable text or symbols present.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

Remonts

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

3D technical diagram of a mechanical assembly with red components and a central hub (no visible text or symbols)

Remonts

3D mechanical assembly diagram showing internal components with red structural elements and arrows indicating flow or movement (no text or symbols)

Technical illustration of a mechanical component with a bracket and mounting bracket (no text or symbols)

Diagram of a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

4.

Pure technical line drawing of curved pipe or channel sections without any text, numbers, or symbols

Remonts

4.21 Gaismekla EmotionLight nomaiña

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and adjustment.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

1. Nonemiet gaismekli EmotionLight no ierices.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating movement or assembly steps

Remonts

Close-up of a mechanical component with a red vertical line and black arrow pointing to a feature (no text or symbols visible)

Remonts

Close-up of a mechanical component with a red vertical stripe and a black rectangular cutout (no text or symbols visible)

Att. 3: Lentveida kabelis

1. lespraudiet spraudni.

Remonts

4.22 Gaismekla TimeLight nomaiņa

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view highlighting a specific feature.

1. Izvelciet gaismekla TimeLight moduli no vadotnes uz augšu (2).

Technical diagram showing a red structural component with numbered annotations and an inset magnified view of a component.

Technical diagram showing a battery internal structure with labeled components and wiring, including numbered annotations.

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Remonts

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

3D mechanical assembly diagram showing internal components with red component (no text or symbols visible)

3D mechanical assembly diagram showing a red component inside a gray housing, with a black arrow and 'CLICK' label pointing to a specific area (no readable text or symbols beyond the label)

3D mechanical assembly diagram showing internal components with a highlighted 'CLICK' button (no text or symbols beyond the label)

Diagram showing a kitchen appliance with labeled parts and a close-up of the interior, likely illustrating a cleaning or assembly process.

Diagram showing three views of a kitchen appliance with numbered parts and an inset view highlighting a cabinet interior.

Isometric line drawing of a mechanical structure with ladder-like elements and a curved arrow indicating motion (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

Diagram of a pipe connection with a clamping tool and rotation arrow (no text or symbols)

Two diagrams showing a mechanical device with a curved arrow indicating rotation, no text or symbols present.

Technical diagram illustrating a multi-step installation or maintenance procedure with labeled steps and component illustrations.

Remontas

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up inset of a blue door detail (no text or symbols)

Two blue industrial metal grating structures with directional arrows indicating motion, no text or symbols present.

Remontas

3D architectural diagram of a steel structure with labeled components (no text or symbols present)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a blue propeller with two directional arrows labeled ① and ②, indicating motion or force directions.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with labeled parts ① and ②, indicating a step in the process.

Diagram of a mechanical component with a blue threaded base and black downward arrow indicating force or direction (no text or symbols)

Diagram showing a mechanical or electrical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing cable routing and connector connections (no text or symbols)

4.7.2 Maitinimo laido prijungimas

DÉMESIO!

Technical diagram of a device interior with numbered components and airflow indicators

Diagram of a mechanical component with a blue tool inserted, showing internal components and motion direction (no text or symbols)

1. Pakelkite siurblio dangtelj kampu vidaus link ir nuimkite.

① ② CLICK

Technical diagram of a washing machine with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps

Technical diagram showing a 3D mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Diagram of a mechanical component with a magnified inset showing two red tool tips (no text or symbols)

3.

Diagram showing a hand operating a device with a screwdriver inserted into a circular component, labeled with arrows and symbols.

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating movement or flow.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its direction of motion.

Diagram of a device interior with a screwdriver inserted, showing a magnified view of the component (no text or symbols present)

Remontas

Diagram of a device interior with numbered components and colored wiring, likely illustrating a mechanical or electrical component layout.

Diagram of a mechanical device with a screw and control panel, no text or symbols present

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating different states or features.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

3D mechanical assembly diagram showing a red component mounted on a gray base, with no visible text or symbols.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating assembly steps

Remontas

Mechanical assembly diagram showing a red component with alignment arrows and an inset close-up of a sensor or camera (no text or symbols present)

3D diagram of a vehicle door with red structural elements and black arrows indicating flow or movement (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, no visible text or symbols

Remontas

Mechanical assembly diagram showing two views of a red component with labeled parts (no text or symbols present)

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Mechanical assembly diagram showing red clamping bracket and green cable connection (no text or symbols)

Remontas

Mechanical assembly diagram showing a tool inserted into a component, labeled with numbers 1 and 2 (no text or symbols beyond labels)

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

3D technical diagram of a mechanical assembly with red and gray components (no visible text or symbols)

Remontas

3D mechanical assembly diagram showing internal components with red structural elements (no text or symbols visible)

Technical illustration of a mechanical bracket assembly with a highlighted part (no text or symbols)

Diagram of a mechanical joint or bracket with a black arrow indicating a specific area (no text or symbols present)

4.

Pure technical line drawing of curved pipe or channel sections without any text, numbers, or symbols

Remontas

4.21 „EmotionLight“ keitimas

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and adjustment.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating movement or assembly steps.

Remontas

Close-up of a mechanical component with a red vertical line and black arrow pointing to a detail (no text or symbols visible)

Remontas

Close-up of a mechanical component with a red highlighted section and a black arrow indicating a specific area (no text or symbols visible)

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view labeled 1, 2.

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view of a component.

1. [stumkite „TimeLight“ modulj j kreipiklj (2).
2. Prijunkite elektros jungti.

Remontas

4.23 „Gap illumination“ keitimas

Reikalavimas.

Technical diagram showing a device's internal structure with labeled components and wiring, including numbered annotations.

Technical diagram showing two views of a device's internal structure with labeled components and directional arrows indicating movement or flow.

Remontas

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or mechanism assembly.

4.23.2 „Gap illumination“ montavimas

3D mechanical assembly diagram showing a red component inserted into a housing (no text or symbols visible)

3D mechanical assembly diagram showing a red component inside a gray housing, with a black arrow and 'CLICK' label pointing to a specific area (no readable text or symbols beyond the label)

3D mechanical assembly diagram showing internal components with a highlighted red button labeled 'CLICK' (no readable text or symbols beyond the label)

Diagram illustrating the step-by-step installation of a kitchen appliance, showing front, side, and interior views with numbered annotations.

Diagram showing three views of a kitchen appliance with numbered parts and an inset view highlighting a cabinet interior.

Isometric line drawing of a mechanical structure with ladder-like elements and a curved arrow indicating motion (no text or symbols)

2021-03-22_9001630792 Copyright BSH Hausgeräte GmbH Side 627 av 989

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

1. Fell opp klemmen.

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Reparasjon

Two diagrams showing a mechanical device with a curved arrow indicating rotation, mounted on a stand (no text or symbols present)

Technical diagram illustrating a multi-step installation or maintenance procedure with labeled steps and structural diagrams.

Reparasjon

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up inset of a blue door detail (no text or symbols)

Two blue industrial metal grating structures with directional arrows indicating motion, no text or symbols present.

Reparasjon

3D architectural diagram of a steel structure with labeled components (no text or symbols present)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a blue propeller with two directional arrows labeled ① and ②, indicating motion or force directions.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

4.4.2 Montering av spylearm

Diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force

Kontroller at det ikke faller uvedkommende gjenstander ned i bunnpannen.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

4.5.2 Montering av filtre

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram showing cable routing and installation components (no text or symbols)

Technical diagram of a device interior with numbered components and airflow indicators

Illustration of a hand holding a blue tool interacting with a mechanical component (no text or symbols visible)

① ② CLICK

Technical diagram of a refrigerator with numbered components and directional arrows indicating parts of the interior.

Bilde 1: Helintegrert

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a device's internal structure with numbered annotations and directional arrows indicating assembly or movement.

Bilde 2: Helintegrert

Technical diagram showing a 3D mechanical assembly with labeled components and directional arrows indicating motion or assembly.

1. Trykk sidepanelet inn på apparatet (2).
2. Sikre sidepanelet med skruene (3).

Reparasjon

Diagram of a mechanical component with a magnified inset showing two red tool tips (no text or symbols present)

3.

Sikre døren ved å holde den fast på en side.

Fjem to skruer.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its internal components.

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the door.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its direction of motion.

Technical diagram of a mechanical component with a screwdriver inserted, showing internal structure and alignment (no text or symbols)

Reparasjon

Diagram of a device interior with numbered components and colored wiring, likely illustrating a mechanical or electrical component layout.

Diagram of a mechanical device with a screw and control panel, no text or symbols present

1. Demonter betjeningspanelet.

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

1. 1. Åpne døren litt (1).

2. Fest den i sporet i bunnkaret (2).

3. Lukk døren sakte (3).

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating different states or phases.

Technical diagram showing a red mechanical component with numbered callouts and directional arrows indicating motion or assembly.

Mechanical assembly diagram showing red components and directional arrows (no text or symbols)

Technical diagram showing a red mechanical component with numbered callouts indicating flow or movement directions.

Reparasjon

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red pipe connection with labeled parts (no text or symbols present)

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

Reparasjon

3D mechanical assembly diagram showing a red component with arrows indicating motion or assembly (no text or symbols present)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Reparasjon

Mechanical assembly diagram showing two views of a red component with labeled parts (no text or symbols present)

Mechanical assembly diagram showing two labeled parts (① and ②) with directional arrows indicating movement or force (no text or symbols beyond labels)

2021-03-22_9001630792 Copyright BSH Hausgeräte GmbH Side 650 av 989

1. Løsne jordkoblingen på dørhengselen.

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Opprett jordkohling.

Mechanical assembly diagram showing red clamping mechanism with green wiring (no text or symbols)

Reparasjon

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

3D technical diagram of a mechanical assembly with red and gray components (no visible text or symbols)

Reparasjon

3D mechanical assembly diagram showing a red structural component with arrows indicating direction (no text or symbols present)

4.19.2 Montering av dørpakningen

3D mechanical assembly diagram showing a bracket with mounting bracket and mounting hole (no text or symbols)

Diagram of a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

4.

Pure technical line drawing of curved structural components without any text or symbols

Reparasjon

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or assembly.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

Technical diagram showing a device's internal components with numbered annotations indicating parts of the main body and parts of the chassis.

Reparasjon

1. Fest festekroken (2).

3.

OBS! Feil montering! Skade på kabelen i området rundt dørhengselen. ► Monter kabelen i området rundt dørhengselen (mellom platehengselen og skylletanken) på en slik måte at den ikke kan bli skadet av bevegelige deler.

Close-up of a mechanical component with a red vertical line and black arrow pointing to a detail (no text or symbols visible)

Reparasjon

Close-up of a mechanical component with a red vertical stripe and black arrow indicating a section (no text or symbols visible)

Bilde 3: Flat kabel

1. Sett i pluggen.

Reparasjon

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view of a component.

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view of a component.

1. Skyv TimeLight-modulen inn i føringen (2).
2. Koble til den elektriske tilkoblingen.

Reparasjon

Technical diagram showing a device's internal structure with labeled components and wiring, including numbered annotations.

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Reparasjon

1. 1. Løsne låsekroken (1).

2. Løft opp kretskortet med holderen og fjern det fra betjeningsmodulrammen (2).

Technical diagram of a mechanical assembly with numbered components, likely illustrating a machining or assembly process.

3D mechanical assembly diagram showing a red component inserted into a housing (no text or symbols visible)

3D mechanical assembly diagram showing a red component inside a housing, with a black arrow and 'CLICK' label pointing to a specific area (no readable text or symbols beyond the label)

3D mechanical assembly diagram showing internal components with no visible text or symbols

Diagram showing steps to adjust or install a kitchen appliance, with numbered instructions for cleaning and adjustment.

Diagram showing three views of a kitchen appliance with numbered parts and an inset view highlighting a component.

Isometric line drawing of a structural framework with ladder and frame structure, no text or symbols present

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

1. Złożyć klips.

Diagram of a pipe connection with a clamping tool and rotation arrow (no text or symbols)

Two diagrams showing a mechanical device with a curved arrow indicating rotation, mounted on a stand (no text or symbols present)

Technical diagram illustrating a multi-step installation or construction process with labeled steps and structural diagrams.

Naprawy

4.3 Wymiana szuflady varioDrawer

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up inset of a blue door detail (no text or symbols)

Two blue industrial metal grating structures with directional arrows indicating motion, no text or symbols present.

Naprawy

3D architectural diagram showing structural grid and rebar layout with labeled components (no text or symbols present)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a blue propeller with two directional arrows labeled ① and ②, indicating motion or rotation.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with labeled parts ① and ②, likely illustrating a gear or cam mechanism.

Diagram of a mechanical component with a blue threaded shaft and black downward arrow (no text or symbols)

Diagram showing cable routing and connection to a wall-mounted device (no text or symbols present)

Technical diagram of a device interior with numbered components and labeled parts

Technical diagram of a refrigerator with numbered components and directional arrows indicating motion or assembly.

Rys. 1: Do zabudowy

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps.

Rys. 2: Do zabudowy

Technical diagram showing a 3D mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Diagram of a mechanical component with a magnified inset showing two red tool tips (no text or symbols)

3.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its internal components.

Diagram of a device interior with numbered components and colored wiring, likely illustrating a mechanical or electrical component layout.

Diagram of a mechanical device with a screw and control panel, no text or symbols present

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Technical diagram showing a red mechanical component with numbered callouts and directional arrows indicating motion or movement.

Mechanical assembly diagram showing red components and directional arrows (no text or symbols)

Technical diagram showing a red mechanical component with numbered parts and directional arrows indicating flow or movement.

Naprawy

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red component being inserted into a housing (no text or symbols visible)

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

Naprawy

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D technical diagram of a mechanical assembly with red components and a central hub (no visible text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Naprawy

Mechanical assembly diagram showing a red component with alignment arrows and an inset close-up of a sensor or camera (no text or symbols present)

3D mechanical assembly diagram showing red and black arrows indicating directional flow or movement (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, no visible text or symbols

Naprawy

Mechanical assembly diagram showing two views of a red component with labeled parts (no text or symbols present)

Mechanical assembly diagram showing two labeled parts (① and ②) with directional arrows indicating movement or force (no text or symbols beyond labels)

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement

2.

Mechanical assembly diagram showing red clamping bracket and green cable connection (no text or symbols)

Naprawy

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

3D technical diagram of a mechanical assembly with red and gray components (no visible text or symbols)

Naprawy

3D mechanical assembly diagram showing a red structural component with arrows indicating motion or flow direction (no text or symbols present)

3D mechanical assembly diagram showing a bracket with mounting holes and a highlighted section (no text or symbols)

Diagram of a mechanical joint or bracket with a black arrow indicating a specific part (no text or symbols present)

4.

Pure technical line drawing of curved structural elements without any text, numbers, or symbols

Naprawy

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and adjustment.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

Technical diagram showing a device's internal structure with labeled parts and directional arrows indicating assembly or inspection.

Naprawy

Close-up of a mechanical component with a red vertical line and black arrow pointing to a feature (no text or symbols visible)

Naprawy

Close-up of a mechanical component with a red highlighted section and a black arrow pointing to a feature (no text or symbols visible)

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view highlighting a section labeled '2'.

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view of a component.

Technical diagram showing a device's internal structure with labeled components and wiring, including numbered annotations.

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Naprawy

Technical diagram of a mechanical assembly with numbered components, likely illustrating a machining or assembly process.

3D mechanical assembly diagram showing a red component inserted into a gray housing (no text or symbols visible)

3D mechanical assembly diagram showing internal components with a highlighted red component and an arrow labeled 'CLICK' (no readable text or symbols beyond the label)

4.17.1 Remover a porta interior 731

4.17.2 Instalar a porta interior 731

4.18 Substituir a dobradiça da porta 732

4.18.1 Remover a dobradiça da porta 732

4.18.2 Instalar a dobradiça da porta....732

Diagram illustrating the step-by-step installation of a kitchen appliance, showing front, side, and interior views with numbered annotations.

Diagram showing three views of a kitchen appliance with numbered components and a magnified detail view.

Isometric line drawing of a mechanical structure with ladder and frame components (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Two diagrams showing a mechanical device with a curved arrow indicating rotation, mounted on a stand (no text or symbols present)

4.2.3 Instalar o inserto de vaporeira

Technical diagram illustrating a multi-step installation or construction process with labeled steps and structural diagrams.

Reparação

4.3 Substituir a gaveta vario

4.3.1 Remover a gaveta vario

3D architectural diagram of a steel-framed building facade with structural grid and window grilles, showing a close-up inset of a blue door detail (no text or symbols)

Two blue industrial metal grating structures with directional arrows indicating motion, no text or symbols present.

Reparação

3D architectural diagram showing structural grid and pipe connections, with an inset magnified view of a mechanical component (no text or symbols)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a blue propeller with two directional arrows labeled ① and ②, indicating motion or force directions.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

4.4.2 Instalar o braço aspersor

Diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

4.5.2 Instalar os filtros

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram showing cable routing and connector connections (no text or symbols)

Technical diagram of a device interior with numbered components and labeled parts

Illustration of a hand holding a blue tool interacting with a mechanical component (no text or symbols visible)

① ② CLICK

Technical diagram of a refrigerator with numbered components and directional arrows indicating internal mechanism

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps

Technical diagram showing a 3D mechanical assembly with labeled components and directional arrows indicating motion or assembly.

1. Pressione o painel lateral sobre o aparelho (2).
2. Fixe o painel lateral com parafusos (3).

Reparação

4.11 Substituir a porta exterior

Pré-requisito:

Diagram of a device with a screw and two arrows pointing to it, no text or symbols present

3.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its internal components.

4.11.2 Instalar a porta exterior

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the door.

1. Pressione a porta exterior contra a porta interior e segure (2).

4.

Diagram showing a hand operating a screwdriver inside a device tray, with a magnified view of the screw and its internal components.

1. Fixe a porta exterior com quatro parafusos (4 parafusos de metal de 11 mm).

Diagram of a mechanical component with a screwdriver inserted, showing internal structure and a magnified view of the component (no text or symbols)

Reparação

4.12 Substituir o painel de comandos

Diagram of a device interior with numbered components and colored wiring, likely illustrating a mechanical or electrical component layout.

Diagram of a mechanical device with a screw and control panel, no text or symbols present

1. Remova o painel de comandos.

4.12.2 Instalar o painel de comandos

Use os parafusos 4 x 16 mm.

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating sequence.

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating process flow.

Technical diagram showing a red mechanical component with numbered callouts and directional arrows indicating motion or assembly.

Mechanical assembly diagram showing red components and directional arrows (no text or symbols)

4.14.2 Instalar o painel inferior

Technical diagram showing a red mechanical component with numbered parts and directional arrows indicating flow or movement.

Reparação

4.15 Substituir a placa da tomada de base

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red component being inserted into a housing (no text or symbols visible)

3D mechanical assembly diagram showing a red component inserted into a channel, with no visible text or symbols

Reparação

1. 1. Insira a chave de parafusos sob o grampo de metal (1).
2. Solte o clipe de metal suavemente (2).

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

3D technical diagram of a mechanical assembly with red components and a central hub (no visible text or symbols)

4.16.2 Instalar a calha de transbordamento.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Reparação

Mechanical assembly diagram showing a red component with alignment arrows and an inset close-up of a sensor or camera (no text or symbols present)

3D mechanical assembly diagram showing red and black arrows indicating directional flow or force (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, no visible text or symbols

Reparação

4.17 Substituir a porta interior

Pré-requisito:

4.17.1 Remover a porta interior

Mechanical assembly diagram showing two views of a red component with labeled parts (no text or symbols present)

4.17.2 Instalar a porta interior

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

4.18.2 Instalar a dobradiça da porta

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Mechanical assembly diagram showing red bracket and green cable connection (no text or symbols)

Reparação

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

1. Desprenda a calha de transbordamento.

3D mechanical assembly diagram showing a red component inserted into a channel (no text or symbols visible)

3D technical diagram of a mechanical assembly with red components and a central hub (no visible text or symbols)

Reparação

3D mechanical assembly diagram showing internal components with red structural elements and arrows indicating flow or movement (no text or symbols)

Technical illustration of a mechanical bracket assembly with a highlighted part (no text or symbols)

Diagram of a mechanical joint or clamping mechanism with no visible text or symbols

4.

Pure technical line drawing of curved pipe or channel sections without any text, numbers, or symbols

Reparação

4.21 Substituir o EmotionLight

Diagram showing a device's internal components with numbered annotations indicating parts of the main body and adjustment.

Technical line drawing of a mechanical assembly with wires and a red component (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating movement or assembly steps

Reparação

1. Engate o gancho de encaixe (2).

3.

Close-up of a mechanical component with a red vertical line and black arrow pointing to a detail (no text or symbols visible)

Reparação

Close-up of a mechanical component with a red highlighted section and a black arrow pointing to a feature (no text or symbols visible)

Fig. 3: Cabo plano

1. Insira a ficha.

Reparação

4.22 Substituir o TimeLight

Technical diagram showing a red mechanical component with numbered annotations and an inset magnified view highlighting a specific area.

Technical diagram showing a red structural component with numbered annotations and an inset magnified view of a component.

4.23.1 Remover a Gap Illumination

Technical diagram showing a device's internal structure with labeled components and wiring, including numbered annotations.

1. 1. Desprenda o gancho de encaixe atrás (1).
2. Remova a fibra ótica (2).

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Reparação

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.23.2 Instalar a Gap Illumination

3D mechanical assembly diagram showing internal components with red highlighted parts (no text or symbols)

3D mechanical assembly diagram showing internal components with a highlighted 'CLICK' button (no text or symbols beyond the label)

Diagram showing a kitchen appliance with labeled parts including cleaning, assembly, and cleaning steps

Diagram showing three views of a kitchen appliance with numbered parts and an inset view highlighting a cabinet interior.

Isometric line drawing of a mechanical structure with ladder and frame components (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Repararea

Two diagrams showing a mechanical device with a curved arrow indicating rotation, mounted on a stand (no text or symbols present)

Technical diagram illustrating a multi-step installation or maintenance procedure with labeled steps and structural diagrams.

Repararea

3D architectural diagram of a steel-framed building grid with a magnified inset showing a blue door detail (no text or symbols)

Two blue industrial metal grating structures with directional arrows indicating motion, no text or symbols present.

Repararea

3D architectural diagram showing structural grid and pipe connections, with an inset magnified view of a mechanical component (no text or symbols)

3D diagram of a mechanical assembly with blue structural elements and directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram of a blue propeller inside a vehicle cabin with an upward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with labeled parts ① and ②, indicating a rotating component.

Diagram of a mechanical component with a blue spring and black downward arrow (no text or symbols)

4.5.2 Montarea filtrelor

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram showing cable routing and connector connections (no text or symbols)

Technical diagram of a device interior with numbered components and airflow indicators

Illustration of a hand using a blue tool to adjust or install a mechanical component (no text or symbols visible)

① ② CLICK

Technical diagram of a refrigerator with numbered components and directional arrows indicating internal mechanism

Technical diagram of a multi-chamber refrigerator with numbered components and directional arrows indicating internal flow.

Technical diagram showing a device's internal structure with numbered annotations indicating assembly steps

Technical diagram showing a 3D printer or printer assembly with labeled parts and directional arrows indicating assembly steps.

Diagram of a device with a screw and two arrows pointing to it, no text or symbols present

3.

Diagram showing a hand operating a screwdriver inside a device with a magnified circular component highlighting two red screw tips.

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the door.

Diagram showing a hand operating a screwdriver inside a device with a magnified view of the screw and its direction.

Diagram of a mechanical component with a highlighted screw and arrow, no text or symbols present

Repararea

Diagram of a device interior with numbered components and colored wiring, likely illustrating a mechanical or electrical component layout.

Diagram of a mechanical device with a screw and control panel, no text or symbols present

Mechanical assembly diagram showing a red component with a numbered arrow pointing to a specific part (no text or symbols present)

Technical diagram showing mechanical assembly steps with numbered annotations indicating sequence of components

Technical diagram showing assembly steps of a mechanical component with numbered annotations indicating process flow.

Technical diagram showing a red component with numbered callouts and directional arrows indicating movement or flow, labeled with numbers 1 and 2.

1. Ridicati panoul.

Mechanical assembly diagram showing red components and directional arrows (no text or symbols)

Technical diagram showing a red mechanical component with numbered callouts indicating flow or movement directions.

Repararea

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4.

Mechanical assembly diagram showing a red pipe connection with labeled parts (no text or symbols present)

3D mechanical assembly diagram showing a sliding mechanism with a red lock and housing (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

Repararea

3D mechanical assembly diagram showing a red component mounted on a gray base with no visible text or symbols

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or flow

Repararea

3D mechanical assembly diagram showing a red component with arrows pointing to a specific part, no visible text or symbols.

3D mechanical assembly diagram showing red and black arrows indicating directional flow or movement (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, no visible text or symbols

Repararea

Mechanical assembly diagram showing two views of a red component with labeled parts (no text or symbols present)

Mechanical assembly diagram showing a bracket with labeled parts (① and ②), no readable text or symbols present.

Close-up of a red mechanical bracket with green wiring and a black arrow pointing to a component (no visible text or symbols)

4.18.2 Montarea balamalei uşii

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

2.

Mechanical assembly diagram showing red clamping bracket and green cable connection (no text or symbols)

Repararea

Mechanical assembly diagram showing a lever mechanism with labeled parts (1 and 2), no readable text or symbols present.

1. Detaşati jgheabul de preaplin.

3D mechanical assembly diagram showing a sliding mechanism with a red component and mounting bracket (no text or symbols)

1. Ridicati jgheabul de preaplin.

3D technical diagram of a mechanical assembly with red components and a central hub (no visible text or symbols)

Repararea

3D mechanical assembly diagram showing internal components with red structural elements and arrows indicating flow or movement (no text or symbols)

4.19.2 Montarea garniturii uşii

Technical illustration of a mechanical bracket assembly with a highlighted part (no text or symbols)
