USER MANUAL CDI 6000 SONANCE

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched,

particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when

unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Use the mains plug to disconnect the apparatus from the

16. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for complicance could void the user’s authority to operate the euqipment. WATCH FOR THESE SYMBOLS: The lightning bolt triangle is used to alert the user to the risk of electric shock. The exclamation point triangle is used to alert the user to important operating or maintenance instructions. REGARDEZ CES SYMBOLES: La triangle avec le sigle ‘’foudre’’ est employée pour alerter l’utilisateur au risque de décharge électrique. Le triangle avec un point d’exclamation est employée pour alerter l’utilisateur d’instruction importantes pour lors opérations de maintenance. ATENCION CON ESTOS SÍMBOLOS: El triángulo con el símbolo de rayo eléctrico es usado para alertar al usuario de el riesgo de un choque eléctrico. El triángulo con el signo de admiración es usado para alertar al usuario de instrucciones importantes de operación o mantenimiento. Operation Manual NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Mode d’emploi Bedienungsanleitung Manual de Operación CDi Series Power Amplifiers Leistungsendstufen Amplificateurs de puissance Amplificadores de potencia DECLARATION of CONFORMITY Crown Audio, Inc. COMPLIANCE QUESTIONS ONLY: Issued By: Crown Audio, Inc. 1718 W. Mishawaka Road Elkhart, Indiana 46517 U.S.A. Sue Whitfield 574-294-8289 [e-mail] European Representative’s Name and Address: David Budge 10 Harvest Close Yateley GU46 6YS United Kingdom Equipment Type: Commercial Audio Power Amplifiers Family Name: CDi Model Names: CDi 1000, CDi 2000, CDi 4000, CDi 6000 EMC Standards: EN 55103-1:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions EN 55103-1:1997 Magnetic Field Emissions-Annex A @ 10 cm and 20 cm EN 61000-3-2:2001 Limits for Harmonic Current Emissions (equipment input current less than or equal to 16 A per phase) EN 61000-3-3:2002 Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems Rated Current less than or equal to16A EN 55022:2003 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE: Radiated, Class B Limits; Conducted, Class A EN 55103-2:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 2: Immunity EN 61000-4-2:2001 Electrostatic Discharge Immunity (Environment E2-Criteria B, 4k V Contact, 8k V Air Discharge) EN 61000-4-3:2001 Radiated, Radio-Frequency, Electromagnetic Immunity (Environment E2, criteria A) EN 61000-4-4:2001 Electrical Fast Transient/Burst Immunity (Criteria B) EN 61000-4-5:2001 Surge Immunity (Criteria B) EN 61000-4-6:2003 Immunity to Conducted Disturbances Induced by Radio-Frequency Fields (Criteria A) EN 61000-4-11:2001 Voltage Dips, Short Interruptions and Voltage Variation Safety Standard: IEC 60065: 2001 7th Ed. Safety Requirements - Audio Video and Similar Electronic Apparatus I certify that the product identified above conforms to the requirements of the EMC Council Directive 89/336/EEC as amended by 92/31/EEC, and the Low Voltage Directive 73/23/EES as amended by 93/68/EEC. Due to line current harmonics, we recommend that you contact your supply authority before connection. Signed En raison des harmoniques du courant, nous vous recommandons de contacter votre compagnie d’électricité avant connexion. Date of Issue: April 1, 2006 Andrew Stump Title: Director of Manufacturing Operation Manual Mode d’emploi Bedienungsanleitung Manual de Operación page 3 CDi Series Power Amplifiers Table of Contents Table des matières Amplificateurs de puissance Leistungsendstufen Amplificadores de potencia Inhaltsverzeichnis Indice Important Safety Instructions........................................ 2 Instructions de sécurité importantes ........................................2 Wichtige Sicherheitshinweise .......................................................2 Instrucciones de seguridad importantes .................................................. 2 Declaration of Conformity ............................................ 3 Déclaration de conformité........................................................3 Herstellerbescheinigung ...............................................................3 Declaración de conformidad .................................................................... 3 1 Welcome ...........................................5 1 Bienvenue.................................................5 1 Einleitung ....................................................5 1 Bienvenida ...........................................................5

2.5 Choose Output Wire and Connectors ............. 10

• Accurate, uncolored sound with very low distortion for the best in music and voice reproduction
• Advanced protection circuitry guards against: shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults
• Extremely versatile; rated for 2, 4, 8 ohms loads and 70V and 140V outputs
• Intuitive front-panel LCD screen for quick, easy configuration
• Switch-mode universal power supply
• Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting
• All products fill 2U rack spaces and weigh under 19 pounds
• Barrier strip outputs for low-Z or 70V/140V loads, removable Phoenix-style inputs
• Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications.

1.2 How to Use This Manual

This manual provides you with the necessary information to safely and correctly setup and operate your amplifier. It does not cover every aspect of installation, setup or operation that might occur under every condition. For additional information, please consult Crown’s Amplifier Application Guide (available online at www.crownaudio.com), Crown Technical Support, your system installer or retailer. We strongly recommend you read all instructions, warnings and cautions contained in this manual. Also, for your protection, please send in your warranty registration card today. And save your bill of sale — it’s your official proof of purchase. page 6

Please unpack and inspect your amplifier for any damage that may have occurred during transit. If damage is found, notify the transportation company immediately. Only you can initiate a claim for shipping damage. Crown will be happy to help as needed. Save the shipping carton as evidence of damage for the shipper’s inspection. We also recommend that you save all packing materials so you will have them if you ever need to transport the unit. Never ship the unit without the factory pack.

• Rack for mounting amplifier (or a stable surface for stacking)

WARNING: Before you start to set up

your amplifier, make sure you read and observe the Important Safety Instructions found at the beginning of this manual. Operation Manual

CAUTION: Before you begin, make sure your amplifier is disconnected from the power source, with the power switch in the “off” position and all level controls turned completely down (counterclockwise). Use a standard 19-inch (48.3 cm) equipment rack (EIA RS-310B). See Figure 2.1 for amplifier dimensions. You may also stack amps without using a cabinet. NOTE: When transporting, amplifiers should be supported at both front and back.

2.3 Ensure Proper Cooling

When using an equipment rack, mount units directly on top of each other. Close any open spaces in rack with blank panels. DO NOT block front or rear air vents. The back of the rack should be open. Figure 2.2 illustrates standard amplifier airflow.

and Connectors Crown recommends using pre-built or professionally wired balanced line (two-conductor plus shield), 22-24 gauge cables and connectors. At the amplifier inputs, use Phoenix-style connectors (see Figure 2.3). Unbalanced lines may be used, but may result in hum or RF noise over long cable runs. NOTE: Custom wiring should only be performed by qualified personnel.

2.5 Choose Output Wire and Connectors

Crown recommends using pre-built or professionally wired, high-quality, two-conductor, heavy gauge speaker wire and connectors. You can use spade lugs or bare wire for your output connectors (Figure 2.4). To prevent the possibility of short-circuits, wrap or otherwise insulate exposed loudspeaker cable connectors. Using the guidelines below, select the appropriate size of wire based on the distance from amplifier to speaker. Distance Wire Size

Typical input and output wiring is shown in Figure

Typical input and output wiring is shown in Figure 2.6.

2.7 Connect to AC Mains

Connect your amplifier to the AC mains power source (power outlet) with the supplied AC power cordset. First, connect the IEC end of the cordset to the IEC connector on the amplifier; then, plug the other end of the cordset to the AC mains.

WARNING: The third prong of this connector

(ground) is an important safety feature. Do not attempt to disable this ground connection by using an adapter or other methods.

It’s wise to avoid clipping the amplifier signal. Not only does clipping sound bad, it can damage high-frequency drivers. The built-in clip limiter prevents clipping. Also, avoid sending strong subsonic signals to the amplifier. High-level, low-frequency signals from breath pops or dropped microphones can blow out drivers. To prevent subsonic signals, use the amplifier’s DSP to insert a highpass filter (see Section 4.1.6). Alternatively, switch in highpass filters at your mixer. Set the filter to as high a frequency as possible that does not affect your program. For example, try 35 Hz for music and 75 Hz for speech. On each mixer input channel, set the filter frequency just below the lowest fundamental frequency of that channel’s instrument. Operation Manual Mode d’emploi

Use the following procedure when first turning on your amplifier:

1. Turn down the level of your audio source.

2. Turn down the level controls of the amplifier.

3. Turn on the “Power” switch. The Power

indicator should glow.

4. Turn up the level of your audio source to an

5. Turn up the Level controls on the amplifier until

the desired loudness or power level is achieved. NOTE: In Bridge-Mono mode, only the Channel 1 Level control is functional (except for CH1 + CH2 Input Y mode).

6. Turn down the level of your audio source to its

normal range. If you ever need to make any wiring or installation changes, don’t forget to disconnect the power cord. For help with determining your system’s optimum gain structure (signal levels) please refer to the Crown Amplifier Application Guide, available online at www.crownaudio.com. page 14

Your amplifier is protected from internal and external faults, but you should still take the following precautions for optimum performance and safety:

1. Before use, your amplifier first must be configured

for proper operation, including input and output wiring hookup. Improper wiring can result in serious operating difficulties. For information on wiring and configuration, please consult the Setup section of this manual or, for advanced setup techniques, consult Crown’s Amplifier Application Guide available online at www.crownaudio.com.

2. Use care when making connections, selecting

signal sources and controlling the output level. The load you save may be your own!

3. Do not short the ground lead of an output cable to

the input signal ground. This may form a ground loop and cause oscillations.

4. WARNING: Never connect the output to a

power supply, battery or power main. Electrical shock may result.

5. Tampering with the circuitry, or making

unauthorized circuit changes may be hazardous and invalidates all agency listings.

6. Do not operate the amplifier with the red Clip LEDs

constantly flashing.

7. Do not overdrive the mixer, which will cause

clipped signal to be sent to the amplifier. Such signals will be reproduced with extreme accuracy, and loudspeaker damage may result.

8. Do not operate the amplifier with less than the

rated load impedance. Due to the amplifier’s output protection, such a configuration may result in premature clipping and speaker damage. Remember: Crown is not liable for damage that results from overdriving other system components.

9. Crown CDi amplifiers can directly drive 70V/highZ loads. To configure your amplifier for this mode of

operation, see Section 4.1.6.

3.2 Front Panel Controls and Indicators

On/off switch applies AC power to the amplifier.

3.2 Front Panel Controls and Indicators

Connectors J. AC Line Connector NEMA 5-15P (15A).

Your Crown amplifier provides extensive protection and diagnostic capabilities, including output current limiting, microprocessor-controlled DC protection, and special thermal protection for the unit’s transformers and output devices.

Output Current Limiting circuitry protects the amplifier output stage from damage caused by short-circuit loads.

DC Protection shuts down the amplifier in the event of an output DC offset exceeding 2V. In the majority of cases, DC protection is indicative of a faulty amplifier channel, and will be accompanied by an illuminated red Clip LED, even with no input connected and level controls set at minimum (Figure 4.1). If this is the case, contact your dealer or service center.

The Thermal Protection circuit will activate if the internal heatsink temperature exceeds proper operating temperatures (176°F, 80°C). When the heatsink temperature has fallen to a safe level, this protection circuit will automatically be reset. Principal causes of thermal protection are:

1) Inadequate ventilation of the equipment rack

3) Output cable short circuit

5) Heatsinks in need of cleaning

6) Cooling fan failure.

The cause of your amplifier’s thermal protection state should be determined and corrected as soon as possible. Without correction, the Thermal Protection circuit will typically reactivate. Figure 4.1 Figure 4.1 DC Protection Protection CC Abb. 4.1 Gleichstromschutz page 20

4.1.4 Non-Touch Cover

Located over the amplifier output terminals, this included accessory provides a shock-proof cover for the output terminals.

1. Remove the screw holding the cover onto the amplifier

back panel, and remove the cover. Keep the screw.

2. The cover has two tabs A and B (Figure 4.2). Insert tab A

into the slot just to the left of the output terminals (Figure 4.3).

3. Put the screw through tab B, and screw it into the hole

just to the right of the output terminals (Figure 4.3).

4.1.5 Attenuator Security Covers

The included attenuator security covers (Figure 4.4) can replace the existing level-control knobs so that the amplifier output level cannot be changed. The knobs snap into the front panel.

OVERVIEW Figure 4.5 shows the LCD screen and the three Menu navigation buttons: Sel/Enter, Prev/Up and Next/ Down. These buttons let you step through the menu items displayed on the screen. You can configure USER PRESETS with your own settings. When you power off and back on, your settings will be as they were when you shut off the amplifier. However, if you recall a user preset, all its DSP will be off– unless you had saved the preset using System Architect software (a free download from www. harmanpro.com). Any custom settings can’t be saved by the front panel display, only by System Architect software. The ICONS in the display illuminate to show which DSP functions are currently in use for each preset. You can select the presets with the LCD screen and Menu navigation buttons.

Sel Next 70V Ch. 1 Prev Next Sel 70V Ch. 2 PRESETS (TEXT on screen) Prev DSP OFF Next USER PRESETS 2-20 Next Sel Next

To step through the Menu options, press the Sel, Next or Prev buttons as described in the table later in this manual. ICONS illuminated at the top of the screen show which DSP functions are active with the current preset. When you are modifying a preset, its ICON flashes. You can scroll through its settings with the Prev and Next buttons. When you see the desired setting, select it by pressing Sel. Doing nothing returns you to the CURRENT PRESET after ten seconds. In the LCD screen, if the PRESET icon is lit, the current preset is unchanged from its stored settings. If the CUSTOM icon is lit, the current preset has been changed from its stored settings. Leistungsendstufen Amplificadores de potencia NAVIGUER DANS LE MENU DE L’ECRAN LCD :

• 70V (70V/high-Z mode for Ch. 1 or Ch. 2)
• High Z – Channel is configured for 70V/high-Z loads. (A 70Hz high-pass filter is automatically enabled whenever 70V is on.) It is a 24 dB/octave Linkwitz-Riley filter in the crossover section.
• Low Z – Channel is configured for low-Z loads. Input Mode: The options are
• CH1+CH2 (Ch.1 input signal and Ch. 2 input signal are summed and fed to both output channels.) This provides a 6 dB level boost.
• INPUT Y (Ch. 1 input signal goes to Ch. 1 and Ch. 2 output. Ch. 2 input signal is ignored.)

2. Press Next until you see the desired preset. Press Sel to select it.

4. Press Sel until you see the DSP process you want to apply to that preset.

5. Press Next to see the processing options, then press Sel to select an option.

6. Repeat Steps 1–5 for all the processes you wish to apply to that preset. The CUSTOM ICON

will light if a factory preset has been modified.

• This is normal operation for your amp. CONDITION: Fonctionnement normal.

• Input signal level is too high. Turn down your amplifier Level controls. NOTE: Your amplifier should never be operated at a level which causes the Clip LEDS to illuminate constantly. CONDITION: Distorsion du son.
• Der Eingangssignalpegel ist zu hoch. Regeln Sie die Pegelsteller der Endstufe zurück. ACHTUNG: Betreiben Sie Ihre Endstufe nie mit Pegeln, bei denen die Übersteuerungs-LEDS permanent aufleuchten. CONDICION: Sonido distorsionado.
• The amplifier has just turned on and is still in the 4-second turn-on delay.

• The amplifier is in “fault” mode. A Fault status can be triggered when one of the amplifier’s protection circuits is activated. First disconnect your speakers from the affected channels(s) one by one to determine if one of the loads is shorted. If the indicators return to normal status, then try a different speaker or cable to determine where the short is occurring. If no short can be found, turn off the amp and allow the amp to cool. If indicators do not return to normal after restarting your amp, check the fuse and replace if necessary, or return amp to Crown or an authorized Crown Service Center for servicing.

• Input signal level is very low.
• Level controls are turned down.

5. Record the SRA number for future reference. The

SRA number can be used to check the repair status.

2. Carefully place your product with the product’s front

panel facing the same direction as arrows indicate.

7.2.4 Packing Instructions

Important: These instructions must be followed. If they are not followed, Crown Audio, Inc. assumes no responsibility for damaged goods and/or accessories that are sent with your unit. CAUTION: To prevent electric shock, do not remove covers. No user serviceable parts inside. Refer servicing to a qualified technician.

7.2.2 Factory Service

Crown accepts no responsibility for non-serviceable product that is sent to us for factory repair. It is the owner’s responsibility to ensure that their product is serviceable prior to sending it to the factory. Serviceable product list is available at http://crownweb.crownintl.com/crownrma/. For more information, please contact us direct.

3. Reset center cushion down over top of product’s

chassis. The foam-in-place packing was molded to accommodate different chassis depth sizes. If your product’s chassis does not completely fill the foamin-place cavity, you may use a soft but solid packing material (such as paper or bubble wrap) behind the chassis. Complete the Crown Audio Factory Service Information form, in the back of this manual, when returning a Crown product to the factory or authorized service center. The form must be included with your product inside the box or in a packing slip envelope securely attached to the outside of the shipping carton. Do not send this form separately. A Service Return Authorization (SRA) is required for product being sent to the factory for repair. An SRA can be completed online at www.crownaudio.com/support/ factserv.htm. If you do not have access to the web, please call Crown’s Customer Service at 574.294.8200 or

800.342.6939 extension 8205.

2. Do not ship any accessories (manuals, cords,

hardware, etc.) with your unit. These items are not needed to service your product. We will not be responsibility for these items. Warranty is only valid within the country in which the product is purchased. For warranty service, we will pay for ground shipping both ways in the United States. Contact Crown Customer Service to obtain prepaid shipping labels prior to sending the unit. Or, if you prefer, you may prepay the cost of shipping, and Crown will reimburse you. Send copies of the shipping receipts to Crown to receive reimbursement. Your repaired unit will be returned via UPS ground. Please contact us if other arrangements are required. This unit has very sophisticated circuitry which should only be serviced by a fully trained technician. This is one reason why each unit bears the following label:

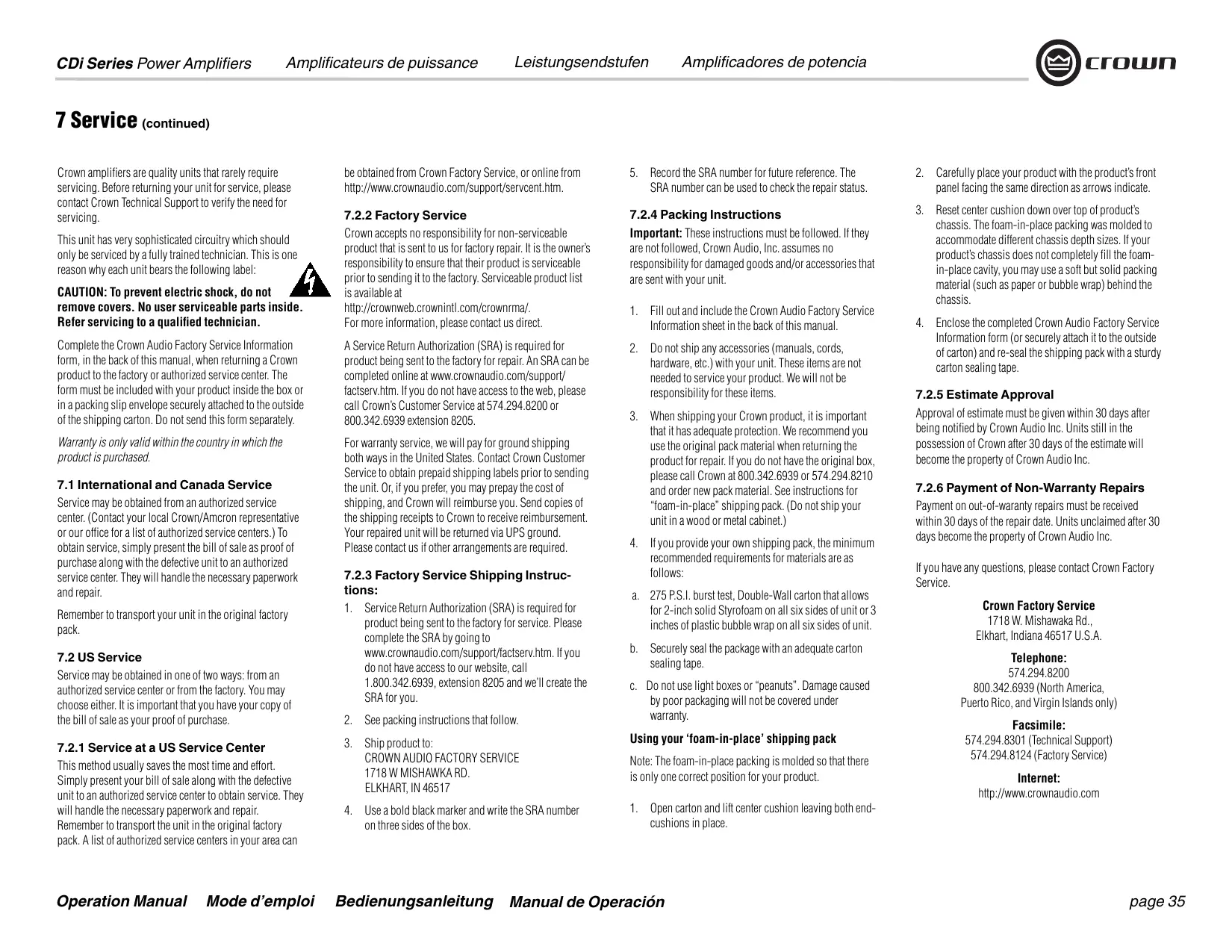

7.1 International and Canada Service

Service may be obtained from an authorized service center. (Contact your local Crown/Amcron representative or our office for a list of authorized service centers.) To obtain service, simply present the bill of sale as proof of purchase along with the defective unit to an authorized service center. They will handle the necessary paperwork and repair. Remember to transport your unit in the original factory pack.

Service may be obtained in one of two ways: from an authorized service center or from the factory. You may choose either. It is important that you have your copy of the bill of sale as your proof of purchase.

7.2.1 Service at a US Service Center

This method usually saves the most time and effort. Simply present your bill of sale along with the defective unit to an authorized service center to obtain service. They will handle the necessary paperwork and repair. Remember to transport the unit in the original factory pack. A list of authorized service centers in your area can Operation Manual Mode d’emploi

7.2.3 Factory Service Shipping Instructions:

1. Service Return Authorization (SRA) is required for

product being sent to the factory for service. Please complete the SRA by going to www.crownaudio.com/support/factserv.htm. If you do not have access to our website, call

1.800.342.6939, extension 8205 and we’ll create the

2. See packing instructions that follow.

1. Fill out and include the Crown Audio Factory Service

Information sheet in the back of this manual.

3. When shipping your Crown product, it is important

that it has adequate protection. We recommend you use the original pack material when returning the product for repair. If you do not have the original box, please call Crown at 800.342.6939 or 574.294.8210 and order new pack material. See instructions for “foam-in-place” shipping pack. (Do not ship your unit in a wood or metal cabinet.)

4. If you provide your own shipping pack, the minimum

recommended requirements for materials are as follows: a. 275 P.S.I. burst test, Double-Wall carton that allows for 2-inch solid Styrofoam on all six sides of unit or 3 inches of plastic bubble wrap on all six sides of unit. b. Securely seal the package with an adequate carton sealing tape. c. Do not use light boxes or “peanuts”. Damage caused by poor packaging will not be covered under warranty.

1718 W MISHAWKA RD. ELKHART, IN 46517 Using your ‘foam-in-place’ shipping pack

4. Use a bold black marker and write the SRA number

on three sides of the box.

1. Open carton and lift center cushion leaving both endcushions in place.

Bedienungsanleitung Note: The foam-in-place packing is molded so that there is only one correct position for your product. Manual de Operación

4. Enclose the completed Crown Audio Factory Service

Information form (or securely attach it to the outside of carton) and re-seal the shipping pack with a sturdy carton sealing tape.

7.2.5 Estimate Approval

Approval of estimate must be given within 30 days after being notified by Crown Audio Inc. Units still in the possession of Crown after 30 days of the estimate will become the property of Crown Audio Inc.

7.2.6 Payment of Non-Warranty Repairs

Payment on out-of-waranty repairs must be received within 30 days of the repair date. Units unclaimed after 30 days become the property of Crown Audio Inc. If you have any questions, please contact Crown Factory Service. Crown Factory Service 1718 W. Mishawaka Rd., Elkhart, Indiana 46517 U.S.A. Telephone:

800.342.6939 (North America,

Puerto Rico, and Virgin Islands only) Facsimile:

574.294.8301 (Technical Support)

574.294.8124 (Factory Service)

Crown International, 1718 West Mishawaka Road, Elkhart, Indiana 46517-4095 U.S.A. warrants to you, the ORIGINAL PURCHASER and ANY SUBSEQUENT OWNER of each NEW Crown product, for a period of three (3) years from the date of purchase by the original purchaser (the “warranty period”) that the new Crown product is free of defects in materials and workmanship. We further warrant the new Crown product regardless of the reason for failure, except as excluded in this Warranty. Warranty is only valid within the country in which the product was purchased.

ITEMS EXCLUDED FROM THIS

CROWN WARRANTY This Crown Warranty is in effect only for failure of a new Crown product which occurred within the Warranty Period. It does not cover any product which has been damaged because of any intentional misuse, accident, negligence, or loss which is covered under any of your insurance contracts. This Crown Warranty also does not extend to the new Crown product if the serial number has been defaced, altered, or removed.

WHAT THE WARRANTOR WILL DO

We will remedy any defect, regardless of the reason for failure (except as excluded), by repair, replacement, or refund. We may not elect refund unless you agree, or unless we are unable to provide replacement, and repair is not practical or cannot be timely made. If a refund is elected, then you must make the defective or malfunctioning product available to us free and clear of all liens or other encumbrances. The refund will be equal to page 36 Amplificateurs de puissance the actual purchase price, not including interest, insurance, closing costs, and other finance charges less a reasonable depreciation on the product from the date of original purchase. Warranty work can only be performed at our authorized service centers or at the factory. Warranty work for some products can only be performed at our factory. We will remedy the defect and ship the product from the service center or our factory within a reasonable time after receipt of the defective product at our authorized service center or our factory. All expenses in remedying the defect, including surface shipping costs in the United States, will be borne by us. (You must bear the expense of shipping the product between any foreign country and the port of entry in the United States including the return shipment, and all taxes, duties, and other customs fees for such foreign shipments.)

HOW TO OBTAIN WARRANTY

SERVICE You must notify us of your need for warranty service within the warranty period. All components must be shipped in a factory pack, which, if needed, may be obtained from us free of charge. Corrective action will be taken within a reasonable time of the date of receipt of the defective product by us or our authorized service center. If the repairs made by us or our authorized service center are not satisfactory, notify us or our authorized service center immediately.

DISCLAIMER OF CONSEQUENTIAL

AND INCIDENTAL DAMAGES

THIS INCLUDES ANY DAMAGE TO ANOTHER

PRODUCT OR PRODUCTS RESULTING FROM

SUCH A DEFECT. SOME STATES DO NOT ALLOW

THE EXCLUSION OR LIMITATIONS OF

INCIDENTAL OR CONSEQUENTIAL DAMAGES,

SO THE ABOVE LIMITATION OR EXCLUSION

MAY NOT APPLY TO YOU. WARRANTY ALTERATIONS No person has the authority to enlarge, amend, or modify this Crown Warranty. This Crown Warranty is not extended by the length of time which you are deprived of the use of the new Crown product. Repairs and replacement parts provided under the terms of this Crown Warranty shall carry only the unexpired portion of this Crown Warranty. DESIGN CHANGES We reserve the right to change the design of any product from time to time without notice and with no obligation to make corresponding changes in products previously manufactured.

LEGAL REMEDIES OF PURCHASER

THIS CROWN WARRANTY GIVES YOU SPECIFIC

LEGAL RIGHTS, YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. No action to enforce this Crown Warranty shall be commenced after expiration of the warranty period.

THIS STATEMENT OF WARRANTY SUPERSEDES

ANY OTHERS CONTAINED IN THIS MANUAL FOR CROWN PRODUCTS. 9/07 YOU ARE NOT ENTITLED TO RECOVER FROM US

ANY INCIDENTAL DAMAGES RESULTING FROM

Crown International, 1718 West Mishawaka Road, Elkhart, Indiana 46517-4095 U.S.A. warrants to you, the ORIGINAL PURCHASER and ANY SUBSEQUENT OWNER of each NEW Crown1 product, for a period of three (3) years from the date of purchase by the original purchaser (the “warranty period”) that the new Crown product is free of defects in materials and workmanship, and we further warrant the new Crown product regardless of the reason for failure, except as excluded in this Warranty. We will remedy any defect, regardless of the reason for failure (except as excluded), by repair, replacement, or refund. We may not elect refund unless you agree, or unless we are unable to provide replacement, and repair is not practical or cannot be timely made. If a refund is elected, then you must make the defective or malfunctioning product available to us free and clear of all liens or other encumbrances. The refund will be equal to the actual purchase price, not including interest, insurance, closing costs, and other finance charges less a reasonable depreciation on the product from the date of original purchase. Warranty work can only be performed at our authorized service centers. We will remedy the defect and ship the product from the service center within a reasonable time after receipt of the defective product at our authorized service center. Warranty is only valid within the country in which the product is purchased. 1 Note: If your unit bears the name “Amcron,” please substitute it for the name “Crown” in this warranty.

ITEMS EXCLUDED FROM THIS CROWNWARRANTY

This Crown Warranty is in effect only for failure of a new Crown product which occurred within the Warranty Period. It does not cover any product which has been damaged because of any intentional misuse, accident, negligence, or loss which is covered under any of your insurance contracts. This Crown Warranty also does not extend to the new Crown product if the serial number has been defaced, altered, or removed. Operation Manual Amplificadores de potencia Mode d’emploi Bedienungsanleitung

HOW TO OBTAIN WARRANTY SERVICE

You must notify your local Crown importer of your need for warranty service within the warranty period. All components must be shipped in the original box. Corrective action will be taken within a reasonable time of the date of receipt of the defective product by our authorized service center. If the repairs made by our authorized service center are not satisfactory, notify our authorized service center immediately. Manual de Operación

DISCLAIMER OF CONSEQUENTIAL AND

ANY INCIDENTAL DAMAGES RESULTING FROM

ANY DEFECT IN THE NEW CROWN PRODUCT.

THIS INCLUDES ANY DAMAGE TO ANOTHER

PRODUCT OR PRODUCTS RESULTING FROM

SUCH A DEFECT. WARRANTY ALTERATIONS No person has the authority to enlarge, amend, or modify this Crown Warranty. This Crown Warranty is not extended by the length of time which you are deprived of the use of the new Crown product. Repairs and replacement parts provided under the terms of this Crown Warranty shall carry only the unexpired portion of this Crown Warranty. DESIGN CHANGES We reserve the right to change the design of any product from time to time without notice and with no obligation to make corresponding changes in products previously manufactured.

LEGAL REMEDIES OF PURCHASER

No action to enforce this Crown Warranty shall be commenced after expiration of the warranty period.

PRODUCTO CROWN NUEVO. ESTO INCLUYE

MANUAL PARA PRODUCTOS CROWN. 9/07 page 41 CDi Series Power Amplifiers Amplificateurs de puissance Leistungsendstufen Amplificadores de potencia PRODUCT REGISTRATION Crown Audio, Inc. 1718 W. Mishawaka Rd. Elkhart, IN 46517-9439 Phone: [phone] Fax: [phone] www.crownaudio.com Online registration is also available at http://crownweb.crownintl.com/webregistration. Warranty is only valid within the country in which the product is purchased. When this form is used to register your product, it may be mailed or faxed. Crown Audio, Inc. 1718 W Mishawaka Rd Elkhart IN 46517 Fax: [phone]

Please note that some information is required. Incomplete registrations will not be processed. * Indicates required information.

PRODUCT RETURN INFORMATION

Individual or Business Name: ____________________________________________________________________________________________________________________________________________________________ Phone #: __________________________________________________ Fax #: ________________________________________ E-Mail: _______________________________________________________ Street Address (please, no P.O. Boxes): _____________________________________________________________________________________________________________________________________________________ City: __________________________________________ State/Prov: ________________________________ Postal Code: _________________ Country: _________________________ Nature of problem: ___________________________________________________________________________________________________________________________________________________________________

Other equipment in your system: _________________________________________________________________________________________________________________________________________________________ If warranty is expired, please provide method of payment. Proof of purchase may be required to validate warranty. PAYMENT OPTIONS I have open account payment terms. Purchase order required. PO#: __________________________________ COD Credit Card (Information below is required; however if you do not want to provide this information at this time, we will contact you when your unit is repaired for the information.) Credit card information: Type of credit card: MasterCard Type of credit card account: Personal/Consumer Visa American Express Discover Business/Corporate Card # ______________________________________________ Exp. date: _____________ * Card ID #: __________________________

• Card ID # is located on the back of the card following the credit card #, in the signature area. On American Express, it may be located on the front of the card. This number is required to process the charge to your account. If you do not want to provide it at this time, we will call you to obtain this number when the repair of your unit is complete. Name on credit card:
