USER MANUAL HMBM-686SNF HAIER

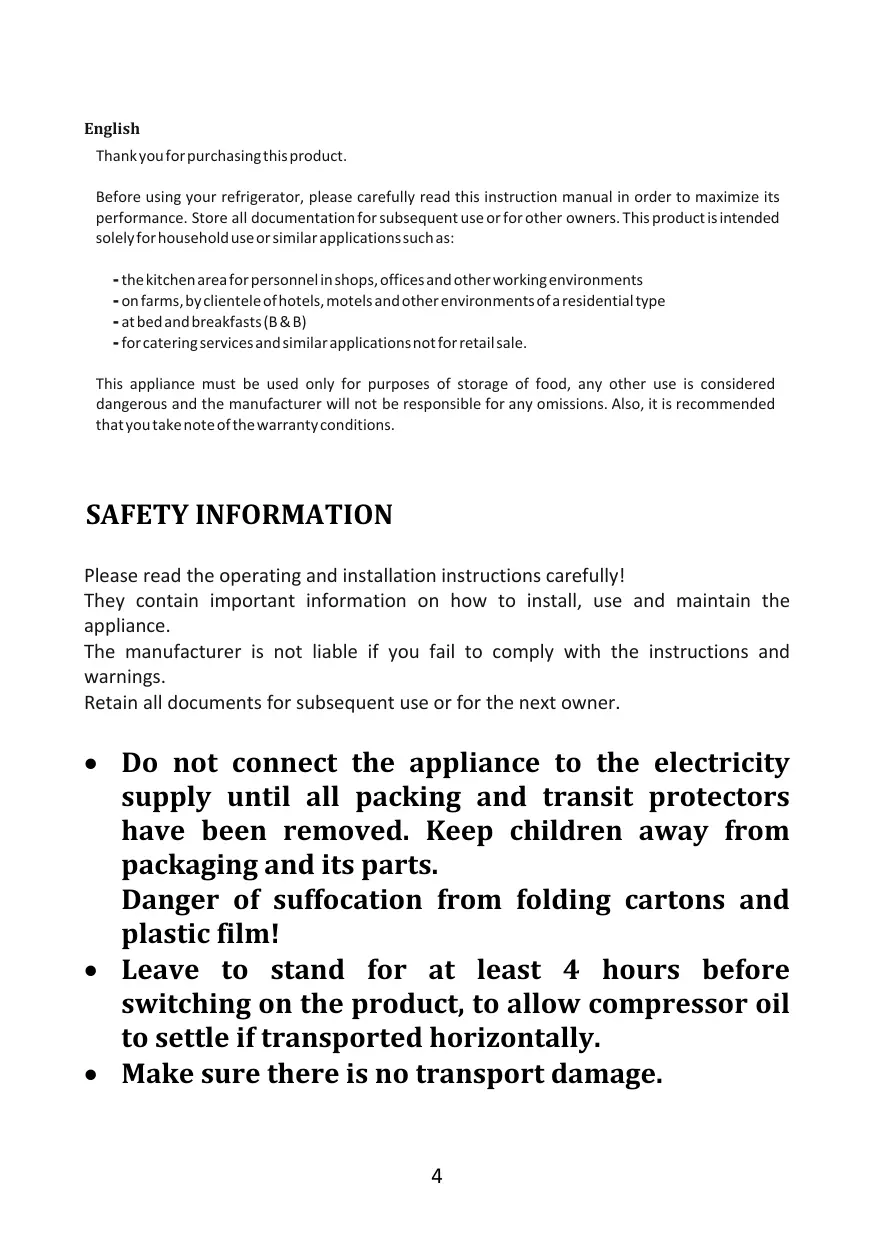

English Thank you for purchasing this product. Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as: - the kitchen area for personnel in shops, offices and other working environments - on farms, by clientele of hotels, motels and other environments of a residential type - at bed and breakfasts (B & B) - for catering services and similar applications not for retail sale. This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions. SAFETY INFORMATION Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance. The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.

• Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film!
• Leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle if transported horizontally.
• Make sure there is no transport damage.

• Do not damage the refrigerant circuit.
• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
• Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.
• Handle the appliance always with at least two persons because it is heavy.
• Install and level the appliance in an area suitable for its size and use.
• Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
• The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
• Only for UK: The appliance’s power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
• Make sure that mains cable is not caught under the appliance during and after carrying/moving

the appliance, to avoid the mains cable becoming cut or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard. Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water. Do not install the appliance near heaters or inflammable materials. FOR appliances with a freezer compartment: if there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than the hours indicated on the rating label (Temperature rise time). If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen. If you find that the lid of the appliance is difficult to open just after you have closed it, don’t worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes. Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance, it is not recommended to store materials that require strict temperatures. Do not excessively pull or fold the power cord or touch the plug with wet hands. Do not store products which contain flammable

propellant (e.g. spray cans) or explosive substances in the appliance. Risk of explosion! Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water. Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer. Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries. At risk here are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance. Check that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance. Only children aged 8 years and above may use the appliance. Children should not play with the appliance. Children aged from 3 to 8 years are allowed to load and unload this appliance. FOR appliances with a freezer compartment: do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment.

Bottles and cans may burst! FOR appliances with a freezer compartment: never put frozen food straight from the freezer compartment in your mouth. Risk of lowtemperature burns! Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous. Before performing any operation, unplug the power cord from the power socket. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use pointed or sharp-edged objects such as knives or forks to remove the frost. Never use hairdryers, electrical heaters or other such electrical appliances for defrosting. It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire. Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact always our customer service. Supervise children while the appliance is being cleaned or maintained. Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

• WARNING: The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a) and insulating gas (cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.
• If the refrigerant circuit should be damaged: - Switch off the appliance and pull out the mains plug, - Keep naked flames and/or ignition sources away from the appliance, - Thoroughly ventilate the room for several minutes, - Inform customer service.
• WARNING: Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.
• WARNING: Do not use multiple portable socketoutlets or portable power supplies. We do not recommend the use of extension leads and multiway adapters.
• Do not attempt to sit or stand on the top of the appliance. You could injure yourself or damage it. This appliance is not designed for stacking with any other ones.
• The product is designed and built for domestic household use only.
• Only original parts supplied by the manufacturer

may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems. - Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days. - Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. - Two-star frozen-food compartments(if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making icecream and making ice cubes. - One-, two- and three -star compartments, if present in the appliance, are not suitable for the freezing of fresh food. - If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.
• FOR Wine Coolers: this appliance is intended to be used exclusively for the storage of wine
• FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance

• FOR appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs Scrapping old appliances This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules: - WEEE should not be treated as household waste; - WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present. In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product. Guarantee Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required. Energy Saving For better energy saving we suggest :

Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated roo. Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuos functionaliting of the compressor. Do not excessively stuff foods so as to ensure proper air circulation. Defrost the appliance in case there is ice to facilitate the transfer of cold. In case of absence of electrical energy, it is advisable to keep the refrigerator door closed. Open or keep the doors of the appliance open as little as possible Avoid adjusting the setting to temperatures too cold. Remove dust present on the rear of the appliance Environmental conditions

This appliance should be installed in a room that is dry and well ventilated. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation or exposed to direct sungliht. If this appliance is situated in a cold environment (such as a shed, outhouse or garage), the performance will be affacted and this may damage the food. The result of the total space of the room in which the refrigerator is installed being divided by the refrigerant charge amount of the refrigerator shall not be less than 8 g/ M3. Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance!

extended temperate (SN): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’; temperate (N): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’; subtropical (ST): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’; tropical (T): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’;

Space requirements Width: 595mm Depth: 635mm Height: 1855mm A: 966mm B: 1176mm C: 130° E: 50mm F:100mm Note：Figure 1, Figure 2 only illustrate the space demand of the product. Leveling the appliance The appliance should be placed on a flat and solid surface

1. Tilt the appliance slightly backwards

2. Turn the feet clockwise to raise the refrigerator;

3. Turn the feet counterclockwise to lower the refrigerator;

Moving the appliance

Remove all food and unplug the appliance Secure shelves and other moveable parts in the fridge and in the freezer with adhesive tape Do not tilt the refrigerator more than 45° to avoid damaging the refrigerating system Preparations for use

Standing time After the refrigerator is properly installed and well cleaned, do not switch it on immediately. Make sure to energize the refrigerator after more than 1 hour's standing, so as to ensure its normal operation. Cleaning Confirm the accessory parts inside the refrigerator and wipe the inside with a soft cloth. Power-on Insert the plug into the solid socket to start the compressor. After 1 hour, open the refrigerator door, if the temperature inside the refrigerator compartment drops obviously, it indicates the refrigeration system is working normally. Storage of food After the refrigerator runs for a period of time, the internal temperature of the refrigerator will be automatically controlled according to the user's temperature setting. After the refrigerator is fully cooled, put in foods, which usually need 2~3 hours to be fully cooled. In summer, when the temperature is high, it takes more than 4 hours for the foods to be fully cooled (Try to open the refrigerator door as less as possible before the internal temperature cools down).

Description Fridge glass shelf Salad crisper Upper freezer drawer Bottom freezer drawer Bottle rack I Bottle rack II Bottle rack III Bottle rack IV *Due to technological innovations, the product descriptions in this manual may not be completely consistent with your refrigerator. Detailed information is in accordance with the final product. **The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures. USE Temperature setting Temperature can be adjusted by pressing the ‘SET' key, and if no key operation within 3s after temperature setting, the said setting will be validated, with the temperature immediately controlled as per the setting; and the mode indicator light will go off after 3 seconds. The coldest setting is 2, while the warmest is 8.

By adjusting the air regulating lever from left to right, without changing the temperature setting, the temperature in the fridge drops, while rising in the freezer

By adjusting the air regulating lever from right to left, the temperature in the fridge rises, while dropping in the freezer It is recommended to adjust the air regulating lever in the middle position. When the ambient temperature around the refrigerator is higher than 35°C, do not set the thermostat at Mode 2 and adjust the air regulating rod to the leftmost position, so as not to affect the normal refrigeration of the refrigerator. Do not set the thermostat at Mode 2 and adjust the air regulating rod to the rightmost position, in order to avoid the fridge compartment undercooling. If the fridge temperature is not cool or undercooled, set the thermostat at the middle mode and adjust the air regulating rod in the middle position. In case the ‘Fastcool’ function is enabled, adjust the air regulating rod to the middle position. “Fast cool” By activating the “fast cool” function, the temperature inside the fridge will decrease rapidly, this is beneficial to the prevention of food nutritional properties losses and preservation of freshness. To activate the “fast cool” function press the set button until the “fast cool” icon is turned on. After a cumulative running period of 3 hours, the fast cooling function will exit automatically, with the temperature mode restored to that set before the fast cooling function is enabled. Recommended mode setting The fridge thermostat and the air regulating rod should be used in combination. Environment Temperature Recommended mode setting on the display panel Higher than 35℃

Recommended air regulating rod position Door open alarm If the fridge door is open for more than 3 minutes, an alarm will be continuously issued. It can be stopped when the set key is pressed, but will be restored after 3 minutes if the door keeps open. The alarms will not be lifted until the door is closed. Power cut memory In case of power failure, the refrigerator will maintain the operating state before power failure when power supply is restored. Fault alarm When the indicator light of Mode 2 or Mode 5 keeps flashing, it indicates fault with the refrigerator. Please contact the aftersales person for visiting service in such case.

INSTRUCTIONS FOR FOOD STORAGE

Set the temperature of the fresh food storage compartment between 2°C- 8°C, and store the foods that are intended for short-term storage, or to be eaten at any time in the fresh food compartment. Position different food in different compartments according to be below table Refrigerator compartment Door or balconies of fridge compartment Crisper drawers (salad drawer) Fridge shelf – middle Fridge shelf – top Freezer drawer(s)/tray

Type of food Foods with natural preservatives, such as jams, juices, drinks, condiments. Do not store perishable foods Fruits, herbs and vegetables should be placed separately in the crisper bin Do not store bananas, onions, potatoes, garlic in the refrigerator Dairy products, eggs Foods that do no need coocking, such as ready-to-eat foods, deli meats, leftovers. Foods for long-term storage Bottom drawer for raw meet, poultry, fish Middle drawer for frozen vegetables, chips. Top tray for ice cream, frozen fruit, frozen baked goods. It’s suggested to set the temperature at 4°C in the fridge compartment, and, whether possible, at -18°C in the freezer compartment. For most food categories, the longest storage time in the fridge compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crisper drawers, whenever present. If not present, maintain an average setting of the thermostat. For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6°C, two stars -12°C, three stars -18°)

Crisper humidity regulating lever The humidity regulating lever of the crisper box is design to maintain the humidity and freshness of the vegetables stored inside. When the humidity regulating lever is moved to the right, with more holes exposed, lower humidity will be kept inside the crisper box. When the humidity regulating lever is moved to the left, with less holes exposed, higher humidity will be kept inside the crisper box. Tips for freezing food

The freezer compartment is suitable for freezing fresh food and storing frozen and deepfrozen food for a long time Place the fresh food to be frozen cut in small portions (less than 2.5 kg) in the freezer compartment The maximum amount of food that can be frozen in 24 hours is specified on the rating plate The freezing process lasts 24 hours: during this period do not add other food to be frozen Let warm food cool down to room temperature before putting it in the freezer Wrap the food carefully before freezing it so as to prevent cross-contamination and transfer of odor Tips for Water dispenser The water dispenser includes one tank of 2 lt of water which has to be filled. To use water dispenser, follow the instructions below:

Open the refrigerator door to ensure the water dispenser is fixed well Open the filler cover of the water tank, slowly fill the water tank, then close the filler. See image C Once the water tank is full, set the thermostat at the lowest mode or at Fast Cool mode, and wait for one hour. After that, you can use the water dispenser. See image D When using the water dispenser, some water may drip and accumulate at the bottom of the water dispenser, wipe it with a cloth NOTE: Do not take away the cup until water stops dripping. Non-use for long period

If the appliance is not used for several months, turn it off first, and then unplug it. Take out all foods. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open Keep the cleaned appliance in a dry, ventilated place and away from the heat source, place the appliance smoothly, and do not place heavy objects on top of it. The unit should not be accessible to child's play.

MAINTENANCE AND CLEANING

The refrigerator must be cleaned regularly. The fresh food compartment is usually cleaned once a month. Remove all shelves, crisper box, bottle racks, cover board, and drawers etc., and clean them with a soft towel or sponge dipped in warm water or neutral detergent. Clear off the dusts accumulated on the rear panel and side plates of the refrigerator often. After using detergent, be sure to rinse it with clean water, and then wipe it dry. Carefully wipe dry the door gasket, clean the groove using a wooden chopstick wrapped with cotton string. After the cleaning, fix the four corners of the door gasket first, and then embed it segment by segment into the door groove. Power interruption

• Take care of the frozen foods in the event of an extended non-running of the refrigerating appliance (such as interruption of power supply or failure of the refrigerating system).
• Try to open the refrigerator door as less as possible, in this way can food safely and freshly kept for hours even in hot summer.
• If you get the power outage notice in advance： Adjust the thermostat knob to the high mode an hour in advance, so that foods get fully frozen (Do not store new food during this time!). Restore the temperature mode to the original setting when power supply becomes normal in a timely manner. You can also make ice with a watertight container, and put it in the upper part of the freezer, so as to extend the time for fresh food to be stored. Defrosting This appliance is designed with automatic defrosting function, thus no need to defrost it manually. Changing the lamp In case of any abnormality, please contact the after-sales personnel for visiting service. Lamp type: LED light. Energy efficiency level: F Door reversibility

Remove the screw hole cover from the top left side of the cabinet. Remove the upper hinge cover and the upper hinge from the top right side of the cabinet. Remove the freezer door from the cabinet.

Remove the central hinge from the right side of the cabinet and the screw hole covers from the left side of the cabinet. Remove the refrigerator door from the cabinet.

Remove the lower hinge from the bottom right side of the cabinet

Change the position of the pin shaft

Install the lower hinge onto the lower left side of the cabinet

Remove the freezer door stop from the lower right side to the left side of the door. Install the left door stop on the bottom left side of the door

Move the door bushing from the top right side of the refrigerator door and remove the hinge hole cover from the top left side of the door. Exchange their position

Install the freezer door onto the cabinet

Install the refrigerator door onto the cabinet Availability of spare parts

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

TROUBLESHOOTING Before calling the assistance, you can try to solve the problem following below table Problem Possible cause Solutions Completely nonrefrigeration

Is power plug off? Are breakers and fuses a broken? No electricity or line trip?

Is refrigerator stable? Does refrigerator reach the wall?

Poor refrigerating efficiency

Do you put hot food or too much food? Do you open the door frequently? Do you clip food bag to the seal of door? Direct sunlight or near a furnace or stove? Is it well-ventilated? Temperature setting in too high? Peculiar smell in refrigerator

Any spoiled food? Do you need to clean refrigerator? Do you pack food of strong flavors?

Is the door open for more than 10 minutes while the door open alarm warning?

Re-plug. Opening the door and checking whether the lamp is lit. Adjusting brefrigerator's adjustable feet. Off the wall. Putting food into refrigerator when hot food becomes cool. Checking and closing the door. Removing the refrigerator from the heat source. Emptying the distance to maintain good ventilation. Setting to the appropriate temperature. Throwing away spoiled food. Cleaning refrigerator. Packing food of strong flavors. Close the fridge door, open it again in 2s, checking whether the LED lamp lights up. To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/ Under the section “website”, choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance
