Product type	Cordless vacuum cleaner
Brand	Bosch
Model	BCS711XXL
Power source	18 V lithium-ion battery (Power for ALL series)
Runtime	Approx. 40 minutes (depending on mode)
Charging time	Approx. 4 hours
Dust bin capacity	0.5 L
Filter type	Lamella filter and plush filter
Included accessories	Universal floor brush, angled suction hose, base station
Main functions	Power selector, dry suction, rotating brush
Noise level	Approx. 75 dB(A)
Dimensions (H x W x D)	115 x 25 x 20 cm
Weight	4.5 kg
Warranty	2 years (according to distributor conditions)
After-sales service	Consumer Service: 0892698010 (€0.40/min)
Safety	Overheating protection, secure battery, do not vacuum liquids
Maintenance	Regular filter cleaning, emptying dust bin
Recommended use	Hard floors, carpets, household use
Maximum operating altitude	2000 m above sea level

Frequently Asked Questions - BCS711XXL BOSCH

How to charge the BCS711XXL vacuum cleaner?

Place the vacuum on the base station and plug in the charger. The battery recharges automatically. Use only the original Bosch charger.

What to do if the vacuum does not turn on?

Check that the battery is correctly inserted and charged. If the error display is red, wait for the device to cool down. Refer to the troubleshooting table in the manual.

How to clean the vacuum filter?

Remove the filter unit and tap it to remove dust. Never wash the filters with water. Replace them if worn. Follow the diagrams in the manual Fig. 34-40.

How to empty the dust bin?

Press the release button to remove the bin. Empty it over a trash can. For complete cleaning, use a dry cloth. See Fig. 30-33.

Can I vacuum liquids with this vacuum?

No, this vacuum is designed only for dry vacuuming. Vacuuming liquids can damage the appliance and void the warranty.

How to assemble the vacuum for the first time?

Connect the angled suction hose to the appliance, then mount the base station on the wall according to the instructions. Insert the charged battery. Follow Fig. 2-5.

Which battery to use with the BCS711XXL?

Use exclusively batteries from the Power for ALL 18 V series by Bosch. Using other batteries may pose a safety risk.

Why is the suction power decreasing?

Check if the filter is clogged or the nozzle is blocked. Clean the filter unit and air duct. Empty the dust bin. Refer to the Troubleshooting section of the manual.

How to maintain the floor brush?

Clean the rotating brush regularly to prevent hair and fiber buildup. Remove obstructions with a pair of scissors. See Fig. 41.

Where to find spare parts or accessories?

Contact the Spare Parts Service at 0892698009 (€0.40/min) or visit the Bosch website. Use only original parts to preserve the warranty.

USER MANUAL BCS711XXL BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/welcome

Cordless handstick vacuum cleaner

BBS71

BCS71

BKS71

BSS71

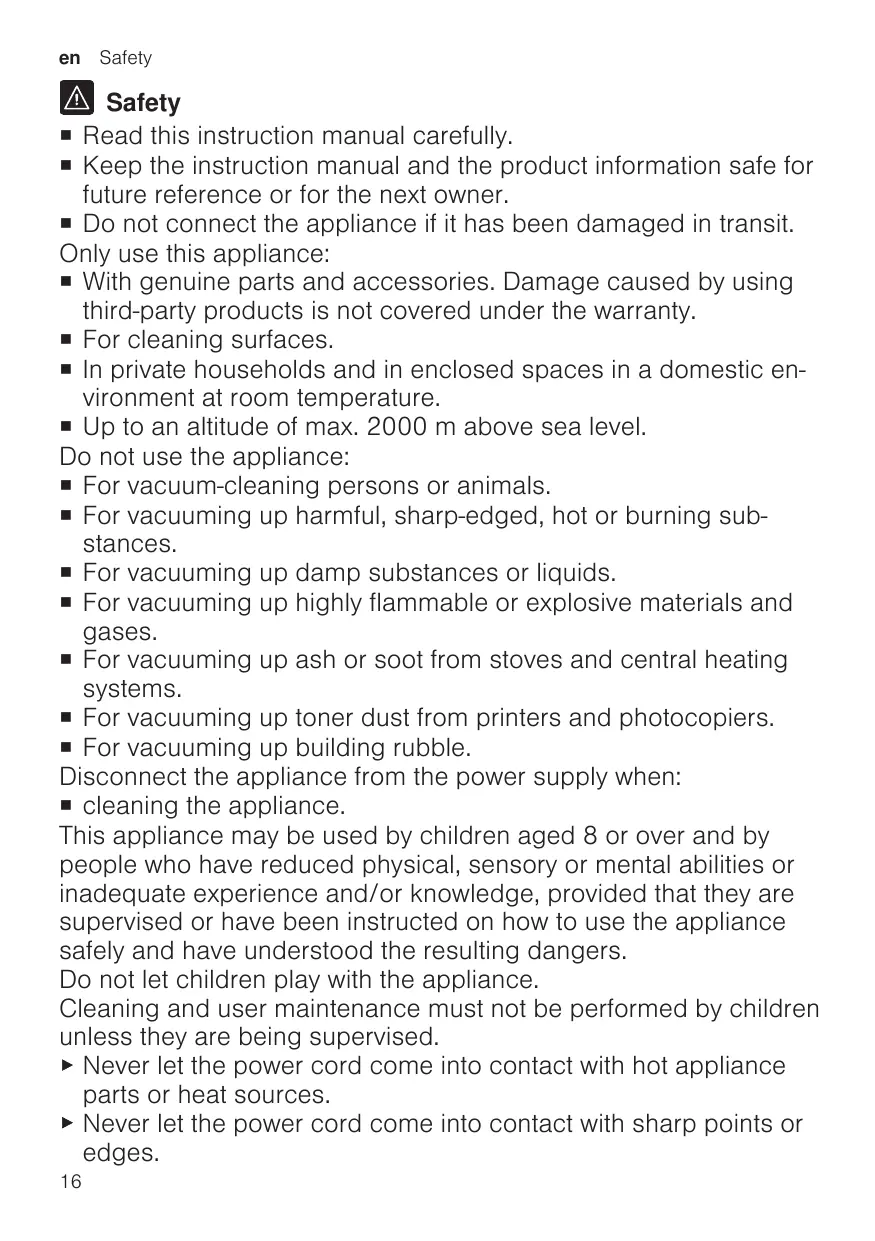

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

• With genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty. For cleaning surfaces.
• In private households and in enclosed spaces in a domestic environment at room temperature. Up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

For vacuum-cleaning persons or animals. - For vacuuming up harmful, sharp-edged, hot or burning substances. For vacuuming up damp substances or liquids. - For vacuuming up highly flammable or explosive materials and gases. - For vacuuming up ash or soot from stoves and central heating systems. - For vacuuming up toner dust from printers and photocopiers. For vacuuming up building rubble.

Disconnect the appliance from the power supply when:

• cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

• Never let the power cord come into contact with hot appliance parts or heat sources.
• Never let the power cord come into contact with sharp points or edges.
• Never kink, crush or modify the power cord.
• Connect and operate the charging cable 1 and the quick charger 1 only in accordance with the specifications on the rating plate.
• Connect the charging cable 1 and the quick charger 1 to a power supply with alternating current only via a properly installed socket with earthing.
• When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
• Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
• Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
• Ensure that children do not play with the appliance, even when it is in the base station 1 .
• Persons with electronic implants must stand at least 10 cm away from the appliance.
• Keep packaging material away from children. Do not let children play with packaging material. Protect the battery against fire, heat and constant sunlight. Protect the battery against water and penetrating moisture.
• Never open the battery.
• When not in use, keep the battery away from metal objects, e.g. paper clips, coins, keys, nails or screws. Supply fresh air. If there are any problems, seek medical advice from a doctor.
• If these come into contact with the skin, wash immediately with cold water. If these come into contact with the eyes, seek medical help.

Preventing material damage

Check and clean any wet objects. Replace damaged objects. Regularly check the running surfaces of the nozzles for wear. Replace worn nozzles. - Never use the nozzle without the brush roller in place.

• Never operate the appliance without the filter unit.

Overview

You can find an overview of the parts of your appliance here.

Fig. 1

1

Dust container

2	Fluff filter
3	Cartridge filter
4	Power control and on/off switch
5	Status display
6	Dust container release button
7	Storage hook
8	Flexible suction pipe
9	Foot release
10	Universal floor nozzle with free-standing function

Operating the appliance

Follow the illustrated instructions.

Installing the base station

• Check whether any household wiring could be damaged in the installation area.
• Do not install the base station horizontally or vertically above, below, or next to a socket.

→ Fig. 2–3

Installing the appliance

→ Fig. 4–5

Charging the appliance

Only charge the battery in chargers that are recommended by the manufacturer. Only use the battery in connection with the Bosch appliance. Charge the battery using the original charging cable¹ or the original quick charger¹. Only use batteries from the Power for ALL 18 V series. Ensure that children do not play with the appliance, even when it is in the base station.

→ Fig. 6–10

Operating the appliance

→ Fig. 11–25

Removing the appliance

→ Fig. 26–28

Cleaning and servicing

Follow the illustrated instructions.

Note: It is recommended to clean the filter of the dust container whenever you empty the container. However, this should be done at least once a month.

Cleaning the appliance

See Fig. 29-29

Emptying the dust container

See Fig. 30-33

Cleaning the filter unit

• Never allow the filters to come into contact with liquids.

See Fig. 34-40

Cleaning the floor nozzle

See Fig. 41-41

Troubleshooting

Fault	Cause and troubleshooting
The appliance is not working.	The battery has not been inserted correctly.
The battery status display does not show any status.	Insert the battery correctly. Inserting and charging the battery
The red fault indicator lights up for 10 seconds.	The battery has not been charged. Charge the battery.
	The battery has overheated or overcooled. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Wait until battery has reached room temperature.
	The appliance has overheated or overcooled. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Wait until the appliance has reached room temperature.
No charging function.	Incorrect charger was used. Only use the charger that is included.
The dust container cannot be inserted.	The filter unit is not complete. Check whether the filter unit is complete.
	The filter unit or dust container is not positioned correctly. Check whether the filter unit and dust container are inserted correctly.
Suction is reduced.	The filter is blocked. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Clean the filter unit.
	The nozzle is blocked. 1. Switch off the appliance and disconnect the appliance from the power supply. 2. Check whether the air channel from the nozzle to the appliance is blocked. 3. Empty the dust container. 4. Clean the filter unit. 5. Once the appliance has cooled down, switch the appliance back on.

Disposing of old appliance

• Dispose of the appliance in an environmentally friendly manner.

Information about current disposal methods is available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Disposing of batteries

Batteries should be recycled in an environmentally friendly manner. Do not dispose of the batteries in the household rubbish.

• Dispose of batteries in an environmentally friendly manner.

According to the European Guideline 2006/66/EC, defective or used battery packs/batteries must be collected separately and disposed of in an environmentally correct manner.

Warranty conditions

You can make warranty claims for your appliance under the following conditions. The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Safety

Dispose of batteries

Note: It is recommended to empty the dust container every time the container is emptied, but at least once a month.

Cleaning the appliance

→Fig. 29-29

Emptying the dust container

→Fig. 30-33

Cleaning the filter block

Do not allow the filter to come into contact with liquids. →Fig. 34-40

Cleaning the nozzle and tube

→Fig. 41-41

Troubleshooting

Round-the-clock telephone service*:

8 [phone]

Official website on the Internet:

www.bosch-home.ru

A list of authorized service centers, as well as all information on service maintenance, is available on the official website on the Internet: www.bosch-home.ru.

We recommend using the services only of authorized service centers.

Original accessories and care products for Bosch household appliances can be purchased at our online store: www.bosch-home.ru/store. You can familiarize yourself with the terms of payment and delivery on the website. You can also purchase original accessories and care products at authorized service centers.

1. Model

1. Model

Fill in the blanks 1-2 in the text, if they are in the purchase documents (cash receipt and/or product warranty card).

The specified information is contained in the operating instructions and can be found in the municipal authorities of the executive branch.

For products sold by the seller within the warranty period, the warranty is valid from the date of delivery, sale, and use (application) within the service life established in accordance with Article 18 of the Law on Protection of Consumer Rights. The service life of the product is indicated in the accompanying documentation (warranty and service maintenance).

Products are identified by model designation (according to E-Nr.) and production number (according to "FD" number) and product code Bosch, applied to the product, packaging, and (or) contained in the operating documents. In accordance with the internal standard, manufactured products are identified according to the following scheme:

E-Nr. /

The material number is an alphanumeric designation of the product, no more than 10 characters, used in production (instead of the model designation for household appliances) of the Bosch trademark. The material number (model) is indicated next to the code word "E-Nr" and the FD number.

Index of service - a digital alphanumeric designation assigned to each product in the production process and used by the service.

Operating documents are developed in a unified form for a wide range of products. Therefore, the manufacturer provides for the indication of the trade designation of the product in the operating documents both fully and partially, provided that this allows the user to attribute this operating document to a specific product accompanying these operating documents. The indication in the process of identification is carried out according to the product designation, in accordance with the accompanying operating documents. Identification is carried out by analyzing the information contained in the operating documents.

The composition of the operating documents provided by the manufacturer for the product may include this information, instructions (manual) for operation, information about the warranty and service maintenance.

The marking of the appliance is carried out on the rating plate, on the packaging label, directly on the appliance packaging, and may also be made by other means that provide accessible and clear information about the appliance and its electrical data.

The product, which has passed conformity assessment in accordance with the requirements of the technical regulations of the Customs Union and the Eurasian Economic Union, is marked with a single mark of circulation of products on the market of the member states of the Eurasian Economic Union.

The product complies with the following technical regulations of the Customs Union:

TR CU 020/2011 Electromagnetic compatibility of technical equipment

• TR CU 004/2011 On the safety of low-voltage equipment

TR EAEU 037/2016 On the restriction of the use of hazardous substances in electrical and electronic products

The operating manual is available in Russian as well. The operating manual in the official languages of the member states of the Eurasian Economic Union, in addition to Russian, can be obtained from the manufacturer or the importer of the corresponding member state of the Eurasian Economic Union, in accordance with the requirements of the legislation.

Information about the complete set of the product, as well as about spare parts, can be obtained by phone (hotline) (800-290-261A, as well as on the website of the manufacturer. http://www.bosch-home.ru.

Topbvoce obsohunne		Anonsochonnien TNI	Cermpdiknkat cootbetctbn			Ctprana- KHTOTOMBIL	HH*, B	H**, Γι	HM***, Br
			Pert. homep	Дага вдддд	Доставл'tуdo
060087000	GLASVAC	C-DE A46 B 06100/19	18.07 2019	17.07 2024	KUTI	3.6	50/60	0
060087100	GLASVAC	C-DE A46 B 06100/19	18.07 2019	17.07 2024	KUTI	3.6	50/60	0
060087200	CLS VAC	C-DE A46 B 06100/19	18.07 2019	17.07 2024	KUTI	3.6	50/60	0
060087300	VXAS11V	C-DE A46 B 06100/19	03.01 2017	04.02 2022	KUTI	200-240	50/60	0
BBH216CR	VXAS013V	C-DE A46 B 0.8270	03.11 2017	02.11 2022	KUTI	200-240	50/60	0
BBH216RIA	VXAS013V	C-DE A46 B 0.8270	03.11 2017	02.11 2022	KUTI	200-240	50/60	0
BBH216RIB	VXAS013V	C-DE A46 B 0.8270	03.11 2017	02.11 2022	KUTI	200-240	50/60	0
BBH21830L	VXAS012V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BBH218LD	VXAS012V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BBH625M1	VCAS012V	C-DE A46 B 0.7311	20.01 2016	19.01 2021	KUTI	100-240	50/60	0
BBHL21435	VXAS012V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BBHL21841	VXAS012V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BBS1114	VCAS020V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BBS1U224	VCAS020V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BBS1ZOO	VCAS020V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BBS811PCK	VCAS020V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BBS812AM	VCAS020V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BBS812PCF	VCAS020V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BBS81PET	VCAS020V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BCH3545	VCAS014V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BCH3555	VCAS014V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BCH3555 BCH625FN1	VCAS010V	C-DE A46 B 0.7311	20.01 2016	19.01 2021	KUTI	100-240	50/60	0
BCH65POWER	VCAS010V	C-DE A46 B 0.7311	20.01 2016	19.01 2021	KUTI	100-240	50/60	0
BCH65RT25K	VCAS010V	C-DE A46 B 0.7311	20.01 2016	19.01 2021	KUTI	100-240	50/60	0
BCH65ATH18	VCAS010V	C-DE A46 B 0.7311	20.01 2016	19.01 2021	KUTI	100-240	50/60	0
BCH65ATH25	VCAS010V	C-DE A46 B 0.7311	20.01 2016	19.01 2021	KUTI	100-240	50/60	0
BCH65AL2561	VCAS010V	C-DE A46 B 0.7311	20.01 2016	19.01 2021	KUTI	100-240	50/60	0
BCH67ZOOO	VCAS010V	C-DE A46 B 0.7311	20.01 2016	19.01 2021	KUTI	100-240	50/60	0
BCH7AT3K2	VCAS010V	C-DE A46 B 0.8270	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BCR1ACG	VBSRXSR_0	C-DE A46 B 0.075218	28.12 2018	27.12 2023	Германья	100-240	50/60	0
BCS1ALL	VCAS020V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BCS1ULTD	VCAS020V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BCS18EXC	VCAS020V	C-DE A46 B 0.8682	03.11 2017	02.11 2022	KUTI	100-240	50/60	0
BCS1JCAH	VCAS072VQ	C-DE A46 B 0.8682	18.07 2018	17.07 2023	ПOTИЗМ	220-240	50/60	200
BGS35AA2	VXAS182F	C-DE A46 B 0.8682	03.11 2017	04.04 2023	КUTI	220-240	50/60	700
BGC1U550	VXAS2X2VQ	C-DE A46 B 0.82166	22.09 2017	21.09 2022	ПOTИЗМ	220-240	50/60	1550
BGL25200	VXAS252VQ	C-DE A46 B 0.76070	18.08 2018	17.08 2021	Германья	220-240	50	200
BGL252101	VXAS252VQ	C-DE A46 B 0.76070	18.08 2018	17.08 2021	Герmанья	220-240	50/60	200
BGL252103	VXAS252VQ	C-DE A46 B 0.76070	18.08 2018	17.08 2021	Герmанья	220-240	50/60	200
BGL35MOV	VXAS253M	C-DE A46 B 0.73215	22.01 2016	21.01 2021	Герmанья	220-240	50/60	220
BGL35MOV	VXAS253M	C-DE A46 B 0.73215	22.01 2016	21.01 2021	Герmанья	220-240	50/60	220
BGL35MOV	VXAS253N	C-DE A46 B 0.73215	22.01 2016	21.01 2021	Герmанья	220-240	50/60	220
BGL35MOV	VXAS253M	C-DE A46 B 0.73215	23.01 2016	21.01 2021	Герmанья	220-240	50/60	220
BGL35MOV	VXAS253M	C-DE A46 B 0.73215	23.01 2016	21.01 2022	Герmанья	220-240	50/60	220
BGL35MOV	VXAS253M	C-DE A46 B 0.73215	23.01 2016	21.01 2022	Герmанья	220-240	50	240
BGN1702	VCAS182VQ	C-DE A46 B 0.8682	22.09 2017	21.09 2022	Герmанья	220-240	50/60	140
BGN21800	VCAS182VQ	C-DE A46 B 0.8682	25.04 2019	24.04 2024	Герmанья	220-240	50/60	140
BGN22200	VCAS182VQ	C-DE A46 B 0.8682	22.08 2017	21.08 2022	Герmанья	220-240	50/60	200
BGS542200	VCAS182VQ	C-DE A46 B 0.8682	25.04 2019	24.04 2024	Герmанья	220-240	50/60	200
BGS484220	VCAS182VQ	C-DE A46 B 0.8682	25.04 2019	24.04 2024	Герmанья	220-240	50/60	200
BGS484354	VCAS182VQ	C-DE A46 B 0.8682	25.04 2019	24.04 2024	Герmанья	220-240	50/60	200
BGS484354V1	VCAS182VQ	C-DE A46 B 0.8682	25.04 2019	24.04 2024	Герmанья	220-240	50/60	700
BGS542255	VCAS182VQ	C-DE A46 B 0.8682	25.04 2019	24.04 2024	Герmанья	220-240	50/60	700
BGS542345	VCAS182VQ	C-DE A46 B 0.8682	25.04 2019	24.04 2024	ПOTИЗМ	220-240	50/60	180
BGS542345V1	VCAS182VQ	C-DE A46 B 0.8682	25.04 2019	24.04 2024	ПOTИЗМ	220-240	50/60	180
BGS542345V1V1	VCAS182VQ	C-DE A46 B 0.8682	25.04 2019	24.04 2024	ПOTИЗМ	220-240	50/60	180
BGS542345V1V1V1	VCAS182VQ	C-DE A46 B 0.8682	25.04 2019	24.04 2024	ПOTИЗМ	220-240	50/60	180
BGS542345V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V1V BGS543545	VCAS182VQ	C-DE A46 B 0.8682	25.04 2019	24.04 2024	ПOTИЗМ	220-240	50/60	180

* Rated voltage range of the AC mains supply in volts

** Rated frequency range of the AC mains supply in hertz

*** Rated power consumption range in watts

FB5858 / August 2019

Safety

Central Service Contacts

AE United Arab Emirates, A BSH Home Appliances FZE Round About 13, Plot Nr M0-0532A Jebel Ali Free Zone-Dubai Tel.:[phone]* mailto:[e-mail] www.bosch-home.com/ae *Sun-Thu 8am to 5pm (exclude public holidays)

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.com.au

*Mon-Fri 24 hours

BE Belgium

BSH Home Appliances S.A.-N.V.

Rue Picard 7, box 400, Picardstraße 7, box 400

1000 Brussels

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.be

BH Bahrain,

Khalaifat Est.

BLD 898, R533, TASHAN 405

Manama

Tel.: [phone]*

mailto:[e-mail]

*Sat-Thu 7am to 5pm (exclude public holidays)

BY Belarus, Bénilapycb

000"BCXbIToBaTeXnika"

Tel.: [phone]

mailto:[e-mail]

Argas Limited Company

Grand Union House, Old Wolverton Road,

Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order

spare parts and accessories or for

For product advice, please visit www.bosch

home.co.uk or call Tel.: [phone]*

*Calls are charged at the basic rate,

please check with your telephone service

provider for exact charges.

GR Greece, EMAdC

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias & Potamou 20

14564 Kifisia

Tel.: [phone], -701

mailto: [e-mail]

www.bosch-home.gr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park, Ballymount Road Upper, Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for product advice please call Tel.: [phone]*

www.bosch-home.ie

*Calls are charged at the basic rate, please

check with your telephone service provider for exact charges

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.:[phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

JO Jordan,

Diab Qawasmi & Sons Co.

Khaled Ben Al-Waleed Street, Jabal Al Hussein (11121)

P.O. Box 212292, Amman

Tel.: [phone], -2650

Tel.: [phone]

mailto:[e-mail]

LB Lebanon,

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth, P.O. Box 90449

Jdeideh 1202 2040

Tel.: [phone]

mailto:[e-mail]

LU Luxembourg

Level 3, Air NZ Building, Smales Farm Busi

ness Park, 74 Taharoto Road, Takapuna

Auckland 0622

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.co.nz

*Mon-Fri 8.30am to 5pm (exclude public

holic

PL Polska, Poland

SA Kingdom Saudi Arabia, a b d a Sd

Abdul Latif Jameel Electronics and Airconditioning Co. Ltd.

BOSCH Service centre, Kilo 5 Old Makkah

Road (Next to Toyota), Jamiah Dist., P.O. Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljazeera.com.sa

*Sat-Thu 8am to 11pm (exclude public holidays)

SE Sverige, Sweden

BSH Home Appliances AB

Landsvagen 32

169 29 Solna

Tel.:[phone]

mailto:[e-mail]

www.bosch-home.se

SG Singapore, Singapore

BSH Home Appliances Pte. Ltd.

38C Jalan Pemimpin, #01-01

Singapore 577180

Tel.:[phone]*

mailto:[e-mail]

www.bosch-home.com.sg

*Mon-Fri 9am to 6pm, Sat: 9am to 1pm (exclude public holidays)

TR Türkiye, Turkey

BSH Ev Aletleri Sanayive Ticaret A.S.

Fatih Sultan Mehmet Mahallesli, Balkan

Caddesi No:51

34771 Umraniye, Istanbul

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.com/tr

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones: www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you: www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

www.bosch-home.com

A Bosch Company

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom
