Product Type	Cordless Stick Vacuum ERGORAPIDO®
Brand	Electrolux
Model	EER73DB
Reference	NV180L20BCP
Power Supply	Li-ion battery 18 V, 36.5 Wh
Charger	25 V - 500 mA
Charging Time	Approximately 4 hours (first charge 24 hours)
Dustbin Capacity	Not specified
Main Functions	Powerful suction, power control, removable handheld suction, front LED lighting
Special Function	BRUSHROLLCLEAN® (on some models)
Filter Type	Inner fine filter + outer pre-filter, washable with water
Included Accessories	Furniture brush, crevice tool, rotating brush, wall-mounted and standable charging dock
Noise Level	Not specified
Operating Temperature	5 °C to 35 °C
Ambient Humidity	20% to 80% (without condensation)
Usage	Indoor only, hard floors and carpets
Maintenance	Regular filter cleaning (lukewarm water, drying 12 hours), emptying dustbin, cleaning rotating brush
Safety	Do not vacuum liquids, hot objects, fine construction dust. Automatic shut-off if brush is blocked
Warranty	Manufacturer's warranty (excluding battery capacity loss)
Weight	Not specified

Frequently Asked Questions - EER73DB ELECTROLUX

How to charge the ERGORAPIDO® vacuum?

Place the vacuum on the connected charging dock. The indicator lights up. Full charge takes about 4 hours. For first use, charge for 24 hours to optimize the battery.

What to do if the rotating brush does not turn?

Check that no object is blocking the brush. Open the flap, remove the brush and clean it. If the problem persists, the appliance may shut off automatically. Reactivate by charging for 15 minutes.

How to clean the vacuum filters?

Remove the dustbin, take out the filters. Separate the inner filter from the pre-filter. Rinse them in lukewarm water without detergent, shake off excess water and let dry for at least 12 hours before reassembling. Never wash them in the dishwasher.

Can I use the vacuum on rugs or carpets?

Yes, the vacuum is designed for hard floors and carpets. For the BRUSHROLLCLEAN® function, use it only on a hard, flat surface, not on carpet.

How to empty the dustbin?

Press the dustbin release buttons, remove it, then take out the filters by pressing their buttons. Empty the contents into a trash bin. Never wash the dustbin in the dishwasher.

What does the flashing of the indicators mean?

When charging: slow flashing = 100% charged. In use: 3 lights = 75-100% capacity, 2 = 50-75%, 1 = 25-50%, 1 flashing = needs recharging.

Can the vacuum be used to vacuum ashes or liquids?

No, never use it on ashes (hot or cold), liquids, sharp objects, or very fine dust like plaster. This would damage the appliance.

How to maintain the rotating brush?

Regularly remove tangled hair or threads with scissors. For models equipped with BRUSHROLLCLEAN®, press the pedal for 5 seconds while the vacuum is running to cut fibers. If the brush is blocked, the appliance stops.

Where to find spare parts?

Use only original Electrolux accessories and parts. You can order them at www.electrolux.com/shop. For battery replacement, contact an authorized service center.

How to recycle the vacuum at end of life?

Do not dispose of the appliance with household waste. The battery must be removed by a professional. Take the appliance to a collection point for recycling of electrical and electronic equipment.

USER MANUAL EER73DB ELECTROLUX

electrolux.com/shop

Electrolux Appliances AB

S:t Göransgatan 143

S-105 45 Stockholm

Sweden

www.electrolux.com

Electrolux

Ergorapido®

Cordless vacuum cleaner

GB INSTRUCTION BOOK....4 | GR EΓXEIPIΔIO OΔΗΓΙΩΝ....34 | RO MANUAL DE INSTRUCTIUNI....64 FR MODE D'EMPLOI....7 HR KNJIŽICA S UPUTAMA....37 RU ИНСТРУКЦИЯ....67 AR دليل المستخدم 10 HU HASZNÁLATI ÚTMUTATÓ 40 SK NÁVOD NA POUŽITIE 70 BG БРОШУРА С ИНСТРУКЦИИ.... 13 IT ISTRUZIONI.... 43 SL NAVODILA.... 73 CZ NÁVOD K POUŽITÍ....16 LT INSTRUKCIJU KNYGA....46 SR UPUTSTVO....76 DE GEBRAUCHSANWEISUNG....19 LV LIETOŠANAS INSTRUKCIJA....49 SV BRUKSANVISNING....79 DK VEJLEDNING....22 NL INSTRUCTIE BOEK....52 TR EL KITABI....82 EE KASUTUSJUHEND....25 | NO BRUKSANVISNING....55 | UA ПОСІБНИК КОРИСТУВАЧА....85 ES LIBRO DE INSTRUCCIONES....28 PL INSTRUKCJA OBSŁUGI....58 FI OHJEKIRJA....31 PT LIVRO DE INSTRUÇÕES....61

ENGLISH

GB Thank you for choosing an Electrolux ERGORAPIDO® vacuum cleaner. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your vacuum cleaner. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

AR

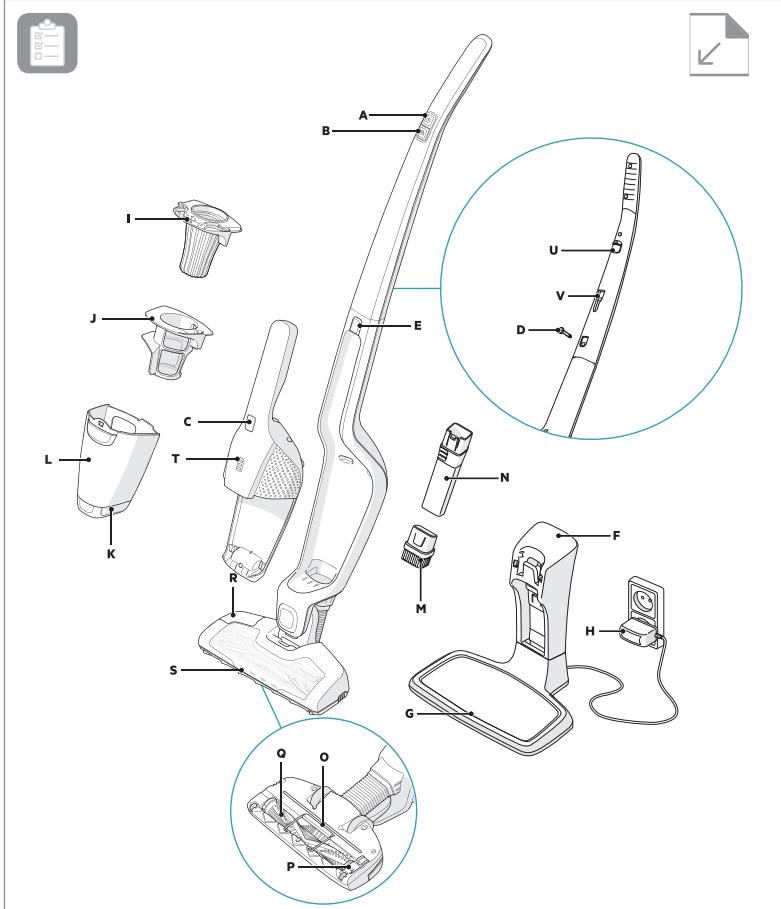

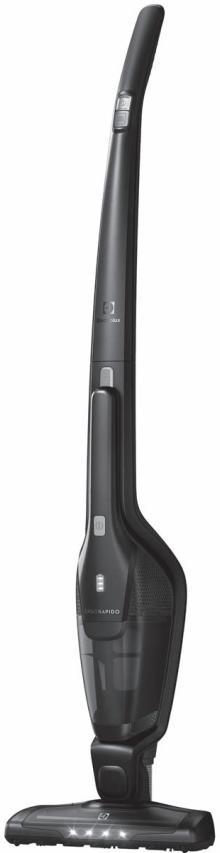

DESCRIPTION OF ERGORAPIDO®

BG

A. ON/OFF button M. Dusting brush

B. Power regulation button N. Crevice nozzle

C. ON/OFF button, hand unit O. Cable protector grill

D. Locking screw P. Hatch cover for brush roll

E. Release button, hand unit Q. Brush roll

F. Charging station, wall unit R. BRUSHROLLCLEAN® pedal®

G. Charging station, floor unit S. Nozzle front lights

H. Charging adapter T. Charging indicator

I. Fine filter (inner filter) U. Cliff hanger

J. Pre filter (outer filter) V. Slot for accessory storage

K. Release button, dust container

L. Dust container * Not on models EER71xxx,

E

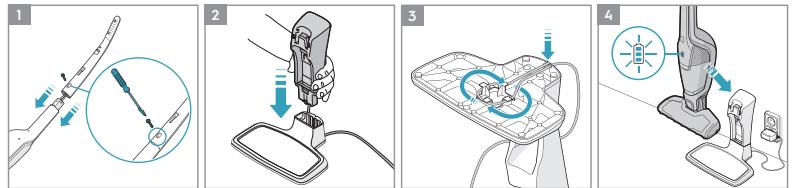

BEFORE STARTING

Check that the package includes all parts described in this instruction manual and read this manual carefully. Pay special attention to the safety precautions chapter. Save these instructions.

1 Assemble the handle.

2 Assemble the charge stand.

3 There is a hollow space in the bottom of the charging station where unused cable can be wound. Insert the adaptor into the mains and position the charging station on a stable and horizontal surface away from heat sources, direct sunlight or wet places.

4 The charging indicator will be lit when ERGORAPIDO® is placed in the charging station.

CHARGING ERGORAPIDO®

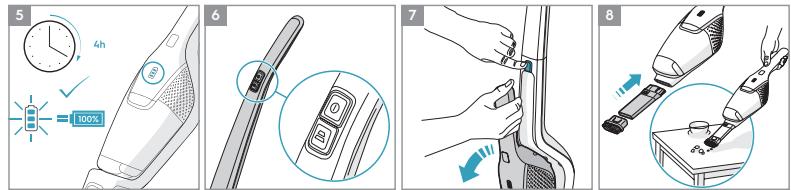

5 When fully charged, the charging indicator will blink slowly. The numbers of LED lamps will indicate the level of charge. Full charging time is around 4 hours. For better battery performance, charge ERGORAPIDO® for 24 hours before first use and always keep it on charge when not used.

VACUUMING WITH ERGORAPIDO®

Before vacuuming, check that the nozzle wheels and the brush roll are clean from sharp objects in order to avoid scratching sensitive floors and to ensure full cleaning performance.

6 Start and stop ERGORAPIDO® by pushing the ON/OFF button. ERGORAPIDO® will start on the high power mode.

For more silent cleaning and longer runtime, press the power regulation button.

VACUUMING FURNITURE, CAR SEATS ETC.

7 Press the button to release the hand unit from the main body.

8 Attach the crevice nozzle to facilitate cleaning of areas difficult to reach. Attach the brush on the crevice nozzle for dusting. 9 The crevice nozzle and small brush can be stored in the charging station or in the slot on the back side of the handle.

BRUSHROLLCLEAN® FUNCTION (CERTAIN MODELS ONLY)

Use the BRUSHROLLCLEAN® function to keep the brush roll clean and free from hair and fibres. For best results use the BRUSHROLLCLEAN® function when ERGORAPIDO® is fully charged.

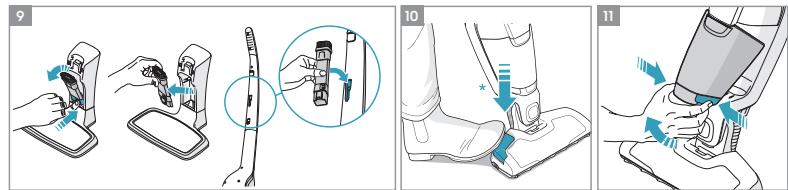

10 Place ERGORAPIDO® on a hard and flat surface. Do not use the BRUSHROLLCLEAN® function on carpets.

Press the BRUSHROLLCLEAN® pedal with your foot while the cleaner is on. Hold for 5 seconds until hairs and fibres are removed. There will be a cutting noise during this process, this is normal. If hairs remain on the brush roll, repeat the process.

The BRUSHROLLCLEAN® function is equipped with an overheating protection. If the BRUSHROLLCLEAN® function has been used for more than 30 seconds (constant or interrupted) it will deactivate the brush roll and turn off the nozzle front lights. The vacuum cleaner can still be used, even when the BRUSHROLLCLEAN® function is deactivated. To reactivate the BRUSHROLLCLEAN® function, place ERGORAPIDO® on

charge and charge for 15 minutes.

Please note that the BRUSHROLLCLEAN® function might not be able to remove thicker threads or wires that are caught in the brush roll.

EMPTYING OF THE DUST CONTAINER

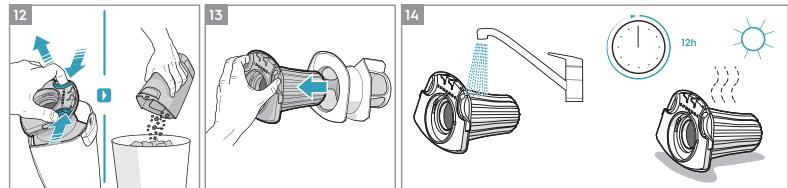

11 Remove the dust container by pressing the buttons. 12 Take out the filters from the dust container by pressing the release buttons. Empty the contents into a dustbin. Never wash the dust container or filters in a dishwasher.

IMPORTANT - FILTER CLEANING!

13 The filters must be cleaned at regular intervals to ensure a high cleaning performance. Take out the filters by pressing the release buttons. Separate the inner filter from the outer filter. 14 Rinse the filter parts carefully under lukewarm water without using any detergents. (Never use the dishwasher or washing machine.) Shake to remove excess water and leave to dry minimum 12h before putting them back into the cleaner.

CLEANING THE HOSE AND NOZZLE WHEELS

15 Loosen the hose behind the nozzle from its upper connection. Remove any object or debris that can be blocking the airflow in the hose or in the air channel to the dust cup, and put the hose back. 16 If the wheels need to be cleaned or get jammed, remove them carefully by using a flat screwdriver.

REMOVING AND CLEANING THE BRUSH ROLL

17 If the brushroll gets blocked ERGORAPIDO® will stop. Open the cable protector grill and the brush roll hatch cover and remove the brush roll 18 Use a pair of scissors to remove threads etc. Reassemble the brush roll, making sure it can spin freely.

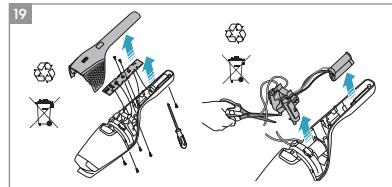

REMOVING THE BATTERIES FOR RECYCLING

Warning; Battery removal must only be done by an Electrolux service center or official collection point!

19 Only remove batteries if the product is to be scrapped. Improper handling of the batteries may be hazardous. Batteries should always be completely discharged before removal. Take your product to an Electrolux service center or official collection point for recycling. They can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for collection of rechargeable batteries and electrical products.

Enjoy a great cleaning experience with ERGORAPIDO®!

SAFETY PRECAUTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and maintenance shall not be made by children without supervision.

Batteries must be removed from the appliance before it is scrapped.

The battery is to be disposed of safely.

Only use the charging adapter that was provided with the product.

ERGORAPIDO® should only be used for normal vacuuming indoors and in a domestic environment. Make sure it is stored in a dry place.

Packaging material, e.g. plastic bags should not be accessible to children to avoid suffocation.

Never use the vacuum cleaner:

• In wet areas.
• Close to flammable gases, etc.
• When the product shows visible signs of damage.
• On sharp objects or liquids.
• On hot or cold cinders, lighted cigarette butts, etc.
• On fine dust, for instance from plaster, concrete, flour, hot or cold ashes.

Caution:

• Do not leave the vacuum cleaner in direct sunlight.
• Avoid exposing the vacuum cleaner to strong heat.
• The battery cells within must not be dismantled, short circuited or placed against a metal surface.
• Never use the vacuum cleaner without its filters.
• Do not try to touch the brush roll while the cleaner is switched on and the brush roll is turning.
• Mind your fingers if cleaning the inside of the floor nozzle. The metal blade of the BRUSHROLLCLEAN® function is sharp and could cause injury.

Using the vacuum cleaner in the above circumstances may cause serious personal injury or damage to the product. Such injury or damage is not covered by the warranty or by Electrolux.

SERVICING AND WARRANTY

All service or repairs must be carried out by an authorized Electrolux service centre.

This warranty does not cover reduction in battery runtime due to battery age or use, as the life of the battery depends upon the amount and nature of use.

To protect the motor, battery and electronics the product should not be stored or operated in:

• An ambient temperature below 5 °C or exceeding 35 °C. If the product is stored in a temperature below 5 °C or exceeding 35 °C, let the product cool down or warm up and dry for a few hours before usage.
• A humidity level below 20% or exceeding 80% (non-condensing).

If the product is stored for an extended time period (without usage or continuous charging), we recommend to store the product in normal room temperature with the batteries charged at 50% capacity or more. This will maintain the performance of the product.

Attention! Dew condensation may form inside the product if the unit is moved from a cold to a warm environment or after heating up the storage room. Wait a few hours for the internal components to warm up and dry before usage.

INDICATION LAMPS

CHARGING	WHAT DOES IT MEAN?	DURING USAGE	WHAT DOES IT MEAN?
	Blink slowly = 100 % fully charged		75 - 100 % capacity
	50 – 95 % charged		50- 75 % capacity remaining
	0 – 50 % charged		25 – 50 % capacity remaining
			ERGORAPIDO® needs to be recharged.

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy Accessories and Consumables for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

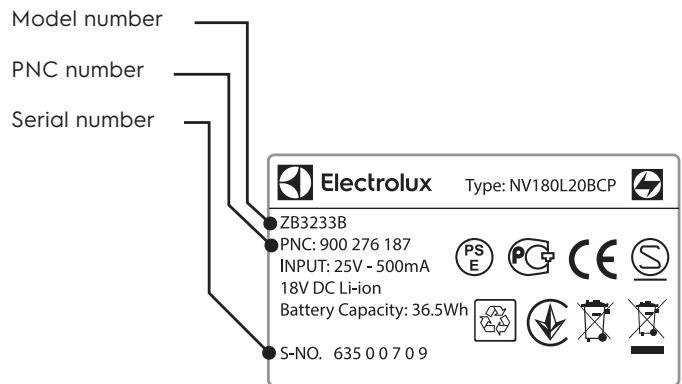

When contacting the Electrolux service center, ensure that you have following data available:

• Model number,
• PNC number
• Serial number

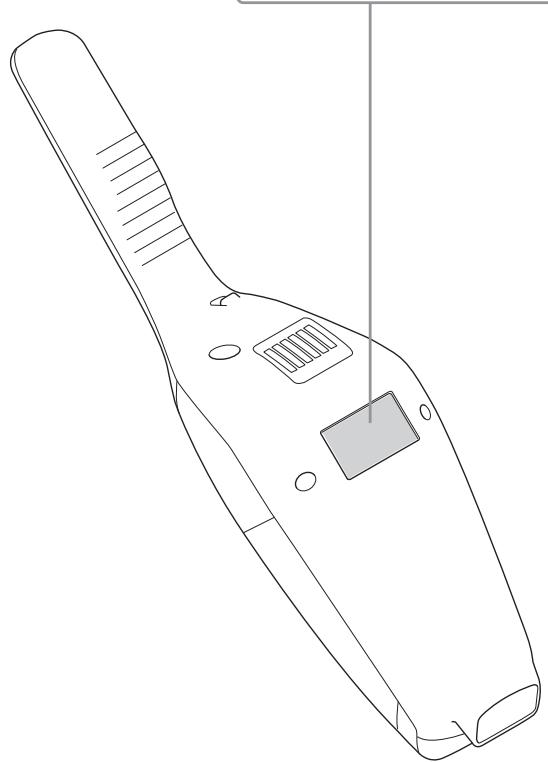

The information can be found on the rating plate.

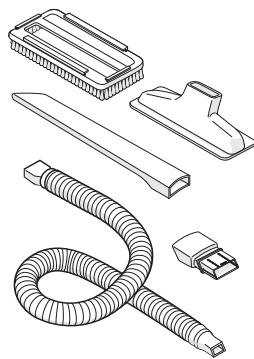

CONSUMABLES & ACCESSORIES

www.electrolux.com/shop

Filter

Ref: EF150

PNC: 900 168 3748

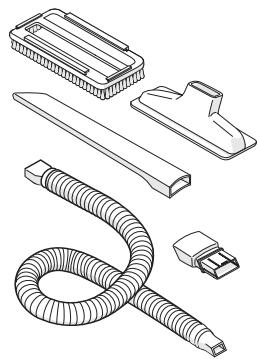

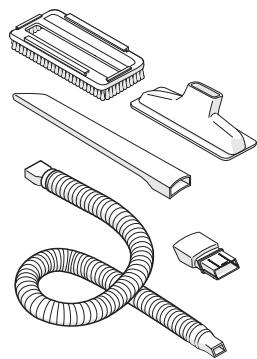

Car Kit

Ref: KIT10B

PNC: 900 167 9803

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

RUNNING TIMES FOR ERGORAPIDO®

Modell	Volt	Long runtime mode
45xx	18V HD	45 min
35xx	18V	35 min
30xx	14,4V	30 min

The battery should be removed from the product before disposal. Dispose of or recycle the battery in accordance with local regulations. The symbol

on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

FRENCH

CONSUMABLES AND ACCESSORIES

www.electrolux.com/shop

Filter

Ref: EF150

PNC: 900 168 3748

Auto Kit

Ref: KIT10B

PNC: 900 167 9803

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

BATTERY LIFE FOR ERGORAPIDO®

Modčle	Volt	Mode" longue durée"
45xx	18V HD	45 min
35xx	18V	35 min
30xx	14,4V	30 min

BULGARIAN

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

SPARE PARTS FOR ERGORAPIDO®

CONSUMABLES AND ACCESSORIES

www.electrolux.com/shop

Filter

Ref: EF150

PNC: 900 168 3748

Car kit

Ref: KIT10B

PNC: 900 167 9803

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

OPERATING TIME OF ERGORAPIDO® VACUUM

BedPro™ MINI

Ref.: ZE125

EMPTYING THE DUST CONTAINER

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

OPERATING TIMES FOR ERGORAPIDO®

Model	Volt	Lang driftstidstilstand
45xx	18V HD	45 min
35xx	18V	35 min
30xx	14,4V	30 min

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

ERGORAPIDO® OPERATING TIMES

Mudel	Volt	Pika tööaja rețiim
45xx	18V HD	45 min
35xx	18V	35 min
30xx	14,4V	30 min

CONSUMABLES AND ACCESSORIES

www.electrolux.com/shop

Filter

Ref: EF150

Product number (PNC): 900 168 3748

Car kit

Ref: KIT10B

Product number (PNC): 900 167 9803

BedPro™ MINI

Ref: ZE125

CONSUMABLES AND ACCESSORIES

www.electrolux.com/shop

Filter

Ref: EF150

PNC: 900 168 3748

Car kit

Ref: KIT10B

PNC: 900 167 9803

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

ERGORAPIDO®-PÖLYNIMURIN KÄYTTÖAJAT

BedPro™ MINI Avap: ZE125 PNC: 900 168 0819

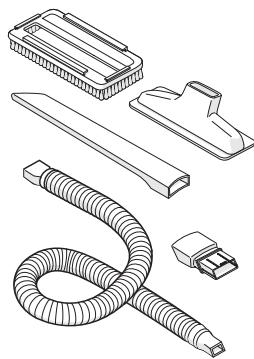

POTROŠNI MATERIJAL I PRIBOR

www.electrolux.com/shop

Filtar Ref: EF150 PNC: 900 168 3748

Komplet za automobil Ref: KIT10B PNC: 900 167 9803

BedPro™ MINI Ref: ZE125 PNC: 900 168 0819

TRAJANJA ZA ERGORAPIDO®

Model	Volt	Način duljeg vremena rada
45xx	18V HD	45 min
35xx	18V	35 min
30xx	14,4V	30 min

BedPro™ MINI

Ref: ZE125

(SOLO PER ALCUNI MODELLI)

BedPro™ MINI Rif: ZE125 PNC: 900 168 0819

TEMPI DI UTILIZZO PER ERGORAPIDO®

Modello	Volt	modalitř tempo di utilizzo prolungato
45xx	18V HD	45 min
35xx	18V	35 min
30xx	14,4V	30 min

PALİGMATERIÄLI UN PIEDERUMI

www.electrolux.com/shop

Filters Reference: EF150 PNC: 900 168 3748

BedPro™ MINI Reference: ZE125 PNC: 900 168 0819

ERGORAPIDO® FILLING TIMES

Modelis	Volt	Ilgi runtime režimā
45xx	18V HD	45 min
35xx	18V	35 min
30xx	14,4V	30 min

IMPORTANT – CLEANING THE FILTERS!

ACCESSORIES AND SPARE PARTS

www.electrolux.com/shop

Filter

Ref. EF150

Factory number

(PNC) 900 168 3748

Car kit

Ref. KIT10B

Factory number

(PNC) 900 167 9803

BedPro™ MINI

No. ZE125

Serial number

(PNC) 900 168 0819

ERGORAPIDO® CONTINUOUS OPERATION TIME

Modelis	Itampa	Ilgo nepertraukiamo veikimo režimas
45xx	18V HD	45 min
35xx	18V	35 min
30xx	14,4V	30 min

BEFORE YOU START

CONSUMABLES & ACCESSORIES

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

OPERATING TIMES FOR ERGORAPIDO®

Model	Volt	Lange werkingstijd modus
45xx	18V HD	45 min
35xx	18V	35 min
30xx	14,4V	30 min

CONSUMABLES AND ACCESSORIES

reservedeler.electrolux.no

Filter

Ref: EF150

PNC: 900 168 3748

Bilsett

Ref: KIT10B

PNC: 900 167 9803

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

GANGTIDER FOR ERGORAPIDO®

Modell	Volt	Laneffektmodus
45xx	18V HD	45 min
35xx	18V	35 min
30xx	14,4V	30 min

WELCOME TO OUR WEBSITE TO:

ACCESSORIES AND CONSUMABLES

www.electrolux.com/shop

Filter

Type: EF150

Product number: 900 168 3748

Car kit

Type: KIT10B

Product no.: 900 167 9803

BedPro™ MINI

Type: ZE125

Product no.: 900 168 0819

WORKING TIME ERGORAPIDO®

ASSISTANCE AND WARRANTY

CONSUMABLES AND ACCESSORIES

www.aeg.com/shop

Filters Ref.: EF150 PNC: 900 168 3748

BedPro™ MINI Ref.: ZE125 PNC: 900 168 0819

CONSUMABLES AND ACCESSORIES

www.electrolux.com/shop

Filter

Ref: EF150

PNC: 900 168 3748

Set for the car

Ref: KIT10B

PNC: 900 167 9803

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

OPERATING TIMES FOR ERGORAPIDO®

BedPro™ MINI

CONSUMABLES AND ACCESSORIES

www.electrolux.com/shop

Filter

Ref: EF150

PNC: 900 168 3748

For the car

Ref: KIT10B

PNC: 900 167 9803

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

OPERATING TIMES FOR ERGORAPIDO®

Modell	Volt	Långt körtidsläge
45xx	18V HD	45 min
35xx	18V	35 min
30xx	14,4V	30 min

CONSUMABLES AND ACCESSORIES

www.electrolux.com/shop

Filter

Code: EF150

ANC No.: 900 168 3748

Car Kit

Code: KIT10B

ANC No.: 900 167 9803

BedPro™ MINI

Code: ZE125

ANC No.: 900 168 0819

OPERATING TIME FOR ERGORAPIDO®

Model	Volt	Dlhá doba použitia
45xx	18V HD	45 min
35xx	18V	35 min
30xx	14,4V	30 min

CONSUMABLES AND ACCESSORIES

www.electrolux.com/shop

Filter

Ref: EF150

PNC: 900 168 3748

Car kit

Ref: KIT10B

PNC: 900 167 9803

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

OPERATING TIME FOR ERGORAPIDO®

Model	Volt	Način za dolgo delovanje
45xx	18V HD	45 min
35xx	18V	35 min
30xx	14,4V	30 min

CONSUMABLE MATERIAL AND ADDITIONAL ACCESSORIES

www.electrolux.com/shop

Filter

Ref: EF150

BedPro™ MINI

Ref: ZE125

PNC (article number):

900 168 0819

EXECUTION TIME FOR ERGORAPIDO®

VACUUMING FURNITURE, CAR SEATS, ETC.

CONSUMABLES AND ACCESSORIES

www.electrolux.com/shop

Filter

Ref: EF150

PNC: 900 168 3748

Vehicle Kit

Ref: KIT10B

PNC: 900 167 9803

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

WORKING TIMES FOR ERGORAPIDO®

BedPro™ MINI

Reference: ZE125
