Thank you for choosing this VALBERG product.
Chosen, tested and recommended by ELECTRO DEPOT,
the products of the VALBERG brand are easy to use,
reliable and of an impeccable standard.
Thanks to this appliance, you can be sure that each
use will bring you satisfaction.

Welcome to ELECTRO DEPOT.

Preview of the appliance

Description of the appliance

Using the appliance

Installation

Preparing the laundry

Using the tumble dryer

Useful information

Cleaning and care

Troubleshooting

Automatic fault warnings and what to do

Environmental protection and packaging

information

Energy Efficiency

Description of the appliance

1 Upper tray
Control panel
3 Loading door
Plinth opening slot
5 Plinth
6 Adjustable feet

Installation

• Before contacting the local Authorised Service Provider for the installation of the dryer, check the information in the user manual to make sure that the electrical installation and water outlet is suitable. If they are not, call a qualified electrician and a plumber to have the necessary adjustments made.
• It is the customer's responsibility to prepare the dryer's installation place, as well as the electricity and waste water installation. Before installation, check the dryer for damage. If damaged, do not have it installed. Damaged products may endanger your health.
• Install the dryer on a stable and flat surface.
• Run the dryer in a dust-free environment where the air ventilation is good.
• The clearance between the dryer and the floor should not be reduced with objects such as carpets, wood or tape.
• Do not block the ventilation grills found on the plinth of the tumble dryer.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side of the tumble dryer, in such a way that blocks the full opening of the tumble dryer door.
• Once the dryer has been installed, the connections must remain stable. When installing the dryer, make sure that the rear surface is not leaning on anything (e.g. tap, socket).
• The operating temperature of the dryer is +5^ to +35^ . If operated out of this temperature range, the performance of the dryer will be affected negatively and the product will be damaged.
• Be careful when carrying the product since it is heavy. Always wear safety gloves.
• Always install the product should be placed against a wall.
• The rear surface of the product should be placed against the wall.
• When the product is placed on a stable surface, use a water level to check if it is fully stable. If not, adjust the feet until it becomes steady. Repeat this process every time you relocate the product.
• Do not place the dryer onto the power cable.

Connection to Water Outlet (with optional drain hose)

In products with a condenser unit, water accumulates in the water tank during the drying process. You must empty the accumulated water after each drying process. Instead of periodically emptying the water tank, you can also use the water drain hose provided with the product to directly drain the water outside.

Connecting the Water Discharge Hose

1 Pull and take out the end of the hose at the back of the dryer. Do not use any tools to take out the hose.
Fit one end of the water discharge hose, which is provided with the product, to the slot from which you have removed the hose.
Fix the other end of the water discharge hose directly to the water outlet or sink.

ATTENTION:

The hose must be connected in a manner that it cannot be displaced. If the hose comes out during water discharge, there might be flooding in your house.

IMPORTANT:

• The water discharge house must be installed at a height of 80 ~cm maximum.
• The water discharge hose must not be bent between the outlet and the product, folded or stepped over.

Adjusting the Feet

• For the dryer to work with less noise and vibration, it must be stable and balanced on its feet. Adjust the feed to ensure that the product is balanced.
• Rotate the feet to the right and to the left until the dryer is even and stable.

IMPORTANT:

Never remove the adjustable feet.

Electrical Connection

ATTENTION:

There is risk of fire and electric shock.

• Your dryer is set to 220 - 240 V and 50 Hz .
• The mains cable of the dryer is equipped with a special plug. This plug must be connected to an earthed socket protected by a fuse of 16 Amperes as indicated on the type plate. The fuse current rating of the power line where the outlet is connected must also be 16 amperes. Consult a qualified electrician if you do not have such an outlet or fuse.
• Our company cannot be held responsible for damages resulting from usage without proper earthing.

IMPORTANT:

Operating your machine at low voltage values will shorten the service life and decrease the performance of your machine.

Under Counter Installation

• Leave at least 3cm of space between the side and rear walls of the product and the underside of the worktop when installing your product under a counter.
  Assembly / disassembly under the counter if neccessary must be done by authorized service.

Preparing the laundry

Sorting the Laundry to be Dried

Follow the instructions on the labels of the laundry to be dried. Only dry items that have a statement/symbol that indicates «they can be dried in a dryer».

• Do not operate the product with load amounts and laundry types other than those given in Load Capacity.

Suitable for drying in a dryer

Does not need ironing

Sensitive/Delicate drying

Not suitable for drying in a dryer

No drying

Do not dry-clean

At any temperature

At high temperatures

At medium temperatures

At low temperatures

Heatless

Hang to dry

Spread to dry

Hang wet to dry

Spread in shadow to dry

Suitable for dry cleaning

• Do not dry thin, multi-layer or thick-layer fabrics together as they dry at different levels. For this reason, dry clothes together that have the same structure and fabric type. This way, you can get an even drying result. If you think that the laundry is still wet, you can select a time programme for additional drying.
• Please dry your big (like duvets) and small sizes of laundries separately in order to not to have a damp laundries.

IMPORTANT:

Delicate fabrics, embroidered fabrics, woolen/silk fabrics, clothes made of delicate and expensive fabrics, airtight clothes and tulle curtains are not suitable for drying in the dryer.

Preparing the Laundry to be Dried

ATTENTION:

• Risk of explosion and fire!
  Remove all objects from pockets such as lighters and matches.
• The drum of the dryer and the fabrics may get damaged.
• The clothes may have become entangled during the washing process. Separate them from each other before placing them in the dryer.
• Remove all objects in the pockets of the clothes and apply the following:
• Tie fabric belts, apron laces etc. to each other or use a laundry bag.
• Lock the zips, clasps and fasteners, do up the buttons of covers.
• To get the best drying result, sort the laundry according to the textile type and drying programme.
• Remove clips and similar metal parts from the clothes.
• Woven goods such as t-shirts and knit clothes generally shrink in the first drying. Use a protective programme.
• Do not over-dry synthetics. This will cause creases.
• When washing the laundry to be dried, adjust the amount of softener according to the data from the manufacturer of the washing machine.

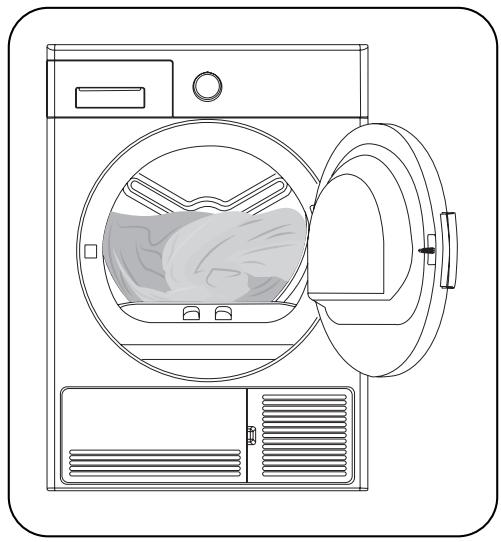

Load Capacity

Follow the instructions in the «Programme selection and consumption table». (See Programme selection and consumption table). Do not load the product with more laundry than the capacity values specified in the table.

IMPORTANT:

It is not recommended to load the dryer with more laundry than the amount shown in the figure. When overloaded, the drying performance of the dryer will decrease and the dryer and laundry might be damaged.

Laundry	Dry load weight (gr)
Bedsheet (double)	725
pillowcase	240
Bath Towel	700
Hand Towel	225
Shirt	190
Cotton Shirt	200
Jean	650
Fabric - Gabardine Trousers	400
T-shirt	120

Using the tumble dryer

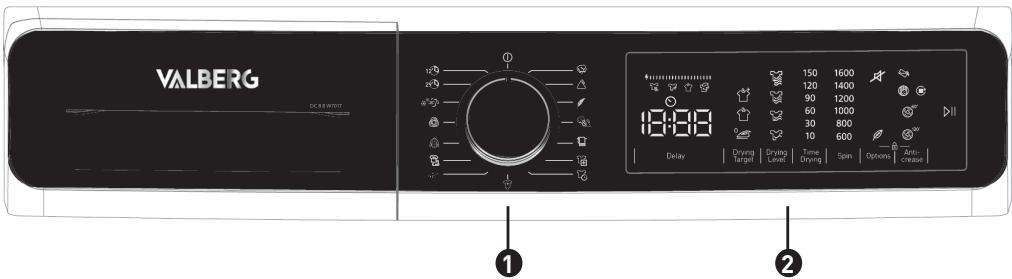

Control Panel

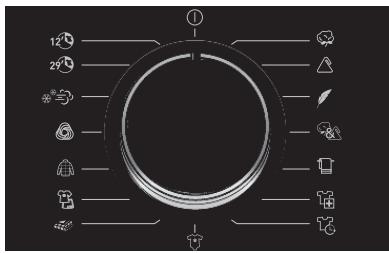

1 Programme Selection Knob
Electronic indicator and additional functions

Programme Selection Knob

Use the programme selection knob to select the desired drying programme

Electronic Indicator and Additional Functions

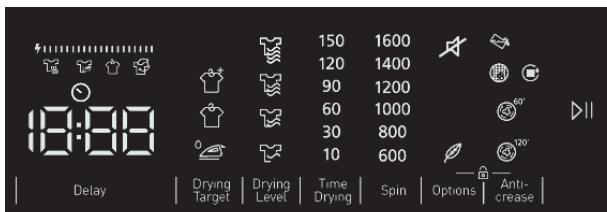

Display symbols

Water tank warning indicator

Lint filter cleaning warning indicator

Heat exchanger cleaning warning indicator

Extra Dry

Cupboard Dry

Iron Dry

Drying level 1

Drying level 2

Drying level 3

Drying level 4

Delay Timer

Anti-crease 60

Anti-crease 120^

Delicate

Buzzer Cancel

Start and pause

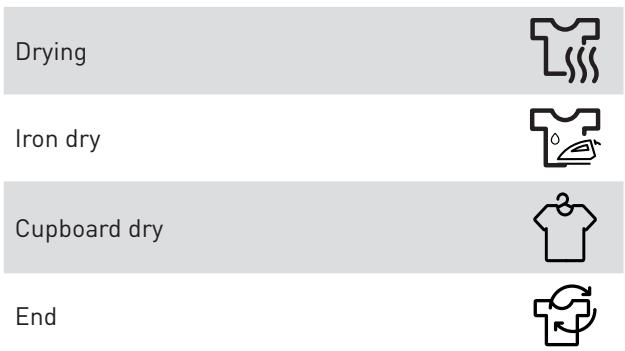

Drying Step Display

The electronic display shows the drying steps throughout the program. Every time a program step starts, the relevant drying step light turns on. Once the drying step is complete, the relevant drying step light turns off.

Energy Consumption Display

The energy consumption display shows the energy consumption of the selected program. The bigger the display, the more the energy consumption. The energy consumption level increases or decreases depending on the fabric type, duration of the selected program, the drying level and the spinning speed.

Programme Selection and Consumption Table

Press the Start/Pause button to start the programme. The Start/Pause LED that indicates that the programme has started and the Drying LED will come on.

Programme	Load (kg)	Washing machine spin speed	Approximate amount of remaining humidity	Duration (minutes)
Cottons + Cupboard Dry	8	1000	60%	134
Synthetics + Cupboard Dry	4	800	40%	50
Delicate	2	600	50%	37
Mix	4	1000	60%	75
Towels	3	1000	60%	67
Hygiene	3	1000	60%	59
Drying Time	-	-	-	-
Baby Care	3	1000	60%	62
Duvet	2,5	800	60%	148
Sport	4	800	40%	54

Energy consumption values

Programme	Load (kg)	Washing machine spin speed	Approximate amount of remaining humidity	Duration (minutes)
Outdoor	2	800	40%	42
Wool Refresh	-	-	-	5
Refresh	-	-	-	10
Express 29'	2	1200	50%	29
Shirts 12'	0,5	1200	50%	12

Programme	Load (kg)	Washing machine spin speed	Approximate amount of remaining humidity	Energy consumption values (kWh)
Cottons + Cupboard Dry	8	1000	60%	4,68
Cottons + Iron Dry	8	1000	60%	4,1
Synthetics + Cupboard Dry	4	800	40%	1,67
Power consumption in the «off mode» P0(W)				0,5
Power consumption in the «on mode» PL(W)				1

The Cotton Cupboard Dry programme is the standard drying programme that can be run with a full or half load and for which the information is given on the label and product receipt. This programme is the most energy efficient programme to dry normal wet cotton clothes.

*Energy labelling standard programme (UAE.S5010-2:2019)

All values in the table were determined in accordance with the EN 61121:2013 standard. Consumption values may vary from the values in the table depending on the fabric type, spin speed, environment conditions and voltage values.

Auxiliary Functions

The table that summarises the options that can be selected in programmes is given below.

Option	Description
Drying Target	Select the drying target suitable for your laundry to be dried. Select Extra Dry for thick and multilayer laundry that takes time to dry. Select Closet Dry for regular, single-layer laundry. Select Iron Dry for laundry that you wish to leave damp, ready for ironing.
Drying Level	The dampness level obtained after drying can be increased by another 3 levels in addition to the standard setting. This way, it is ensured that the laundry is drier. Levels that can be selected apart from the standard setting (Level 1) 2 (low), 3 (medium), 4 (high). After selection, light of the relevant drying level turns on.
Delicate Drying*	Delicate fabrics are dried in a longer time at low temperatures.
Delayed Start	You can delay the start of the program by selecting a time between 1 and 23 hours. You can press Start/Pause to activate the desired delay time. When this time is up, the selected program will start automatically. During the delay time, options compatible with the program can be activated/deactivated. If you long press the Delayed Start button, the delay time will change continuously.
Cancel Audible Warning	The drying machine will give an audio warning when the buttons are pressed, when the program selection knob is turned and when the program ends. To cancel audio warnings, press and hold the “Anti-Create Option” for 3 seconds. When you press this button, you will hear an audible warning that indicates that the option has been activated and the audible warnings stated will be cancelled.
Drying Time	If the program knob is turned to Time Drying, you can press the Time Drying option button to select it and press Start/Pause to start the program.
Child Lock	There is a child lock option to avoid changes in the programme flow when keys are pressed during the programme. To activate child lock feature user should press “Options” and “Anticreate” buttons simultaneously for 3 sec. When the child lock activated, all keys will be deactivated. Child lock is not automatically deactivated at the end of the program. To deactivate child lock at end of the programme, set the programme selection knob to “Off” position. Then programme selection knob to first position. Child lock is still active. To deactivate the child lock , user should press “Options” and “Anticreate” buttons simultaneously for 3 sec. When activating/deactivating the child lock, “CL” will visualize on display for 2 sec and then becomes off; and an audible warning will be heard. Warning: When the product is running or the child lock is active, if you turn the programme selection knob, you will hear an audible warning and “CL” will visualize on display for 2 sec and then becomes off. If you turn the programme selection knob, you will hear an audible warning. Even if you set the programme knob to another programme, the previous programme will continue running. To select a new programme, you need to deactivate the child lock and then set the programme selection knob.
Anti-crease*	If you do not open the door of the machine at the end of the program, the anti-crease option will be active for 60 minutes. When the anti-crease option is selected, anti-crease will be active for 120 minutes.
Spin Speed Selection	For the laundry to be dried, set the spin speed on the washing machine where you washed the laundry. This way, it is ensured that the estimated drying time is more accurately displayed.

*Options vary depending on model.

Starting the Programme

The Start/Pause LED will flash during programme selection. Press the Start/Pause button to start the programme. The Start/Pause LED that indicates that the programme has started and the drying LED will come on.

Option	Description
Cottons + Cupboard Dry	This programme dries cotton laundry including bedsheets, pillowcases, pyjamas, underwear, tablecloths etc.
Synthetics + Cupboard Dry	This programme dries synthetics, such as shirts, t-shirts, blouses, at a lower temperature compared to the cottons programme.
Delicate	This programme dries thin clothes like shirts, blouses and silk garments at a low temperature to make them ready to wear.
Mix	This programme dries cotton-synthetic mixed garments that do not discolour to make them ready to wear.
Towels	This programme dries thick cotton laundry such as towels, bathrobe, etc.
Hygiene	This programme is suitable for the fabrics which need hygiene requirements.
Drying Time	To reach the required drying level at a low temperature, you can use the time programmes of 10 min. to 150 min. Regardless of the drying level, the programme stops at the desired time.
Baby Care	This programme provides hygienic drying for delicate infant clothes at a low temperature.
Duvet	This programme is used to dry duvet.
Sport	Sport program is used for synthetic sport laundries like shorts, t-shirts at low temperature.
Outdoor	This programme is suitable for outdoor clothing, waterproof jackets, jackets with inner insulation, etc.
Wool Refresh	Wool refresh helps wool textiles to remove excess water after washing by applying low temperature and gentle movements of drum.
Refresh	Time drying option is selected from 10 minutes to 150 minutes without providing hot air, refresh is done and bad odors can be eliminated.
29'Express 29'	2 kg of cotton shirts spun at a high speed in the washing machine are dried in 29 minutes.
12'Shirts 12'	2 to 3 shirts are ready for to be ironed in 12 minutes.

IMPORTANT:

Do not open the loading door while the programme is running. If you have to open the door, do not keep it open for a long time.

Selection Stand By

After 15 minutes without user action in selection mode, machine goes to energysaving mode due to decrease energy consumption. In this model, "---" must blink with 0,5 sec ON, 3 sec OFF during energy-saving mode. At the energy saving mode, "---" led luminosity is reduced. To restart the machine it will be necessary to move selector to OFF and select again the program.

During the Programme

• If you open the door when the programme is running, the product will switch to standby mode. Once the door has been closed, press the Start/Pause key to resume the programme.
• Do not open the loading door when the programme is running. If you have to open the door, do not keep it open for a long time.

Programme End

Once the programme is over, the warning LEDs for Start/Pause, water tank level, filter cleaning and condenser cleaning will turn on. Additionally, an audible warning will be given at the end of the programme. You can remove the laundry to make the machine ready for a new load.

IMPORTANT:

• Clean the lint filter after every programme. Empty the water tank after every programme.
• If you do not take out the laundry after the programme has ended, the 1-hour Anti Crease phase will automatically be activated. This programme rotates the drum at regular intervals to prevent creases.

Drum Light Information

The included light source is not intended for use in other applications.
Light source in this product can only be replaced by qualified professionals.
- Please contact after-sales service if the light source fails.
- The light source shall be removed at the end of the product's useful life, with sorting and recycling done separately.

PROGRAMMES	OPTIONS
	Drying Target	Delay Start	Buzzer Cancel	Child Lock	Delicate	Time Drying	Drying Level	Anticcrease	Spin
Cottons + Cupboard Dry	✓	✓	✓	✓	✓	x	✓	✓	✓
Synthetics + Cupboard Dry	✓	✓	✓	✓	✓	x	✓	✓	✓
Delicate	✓	✓	✓	✓	✓	x	x	✓	✓
Mix	✓	✓	✓	✓	✓	x	✓	✓	✓
Drying Target	Delay Start	Buzzer Cancel	Child Lock	Delicate	Time Drying	Drying Level	Anticrease	Spin
Towels	✓	✓	✓	✓	✓	x	✓	✓	✓
Hygiene	✓	✓	✓	✓	✓	x	✓	✓	✓
Drying Time	x	✓	✓	✓	x	✓	x	✓	x
Baby Care	✓	✓	✓	✓	✓	x	✓	✓	✓
Duvet	✓	✓	✓	✓	✓	x	x	✓	✓
Sport	✓	✓	✓	✓	✓	x	✓	✓	✓
Outdoor	✓	✓	✓	✓	✓	x	✓	✓	✓
Wool Refresh	✓	✓	✓	✓	✓	x	x	✓	x
Refresh	x	✓	✓	✓	✓	x	x	✓	x
Express 29'	x	✓	✓	✓	✓	x	x	✓	x
12'Shirts 12'	✓	✓	✓	✓	✓	x	x	✓	x

Cleaning and care

IMPORTANT:

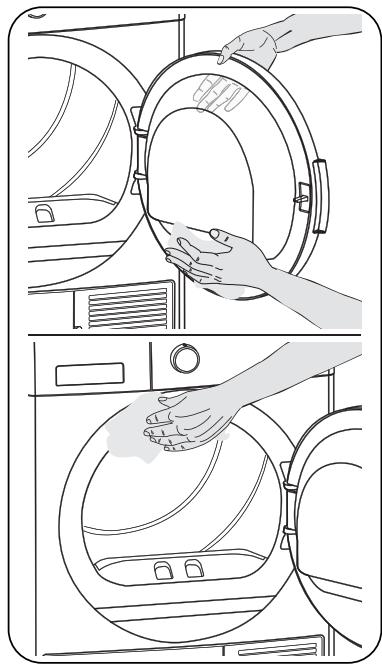

Do not use industrial chemicals to clean your dryer. Do not use a dryer that has been cleaned with industrial chemicals.

Cleaning the Lint Filter

IMPORTANT:

Do not forget to clean the lint filter after each use.

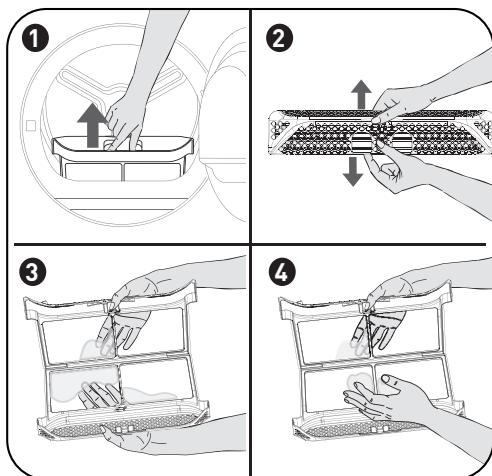

To clean the lint filter:

Open the loading door.
2 Pull up the lint filter to remove it.
Use your hands or a soft cloth to clean the lint.
Close and refit the lint filter.

• After the dryer has been used for a certain period of time, if you encounter a layer that will cause obstruction on the filter surface, wash the filter with warm water to clean the layer. Dry the filter thoroughly before reinstalling it again.

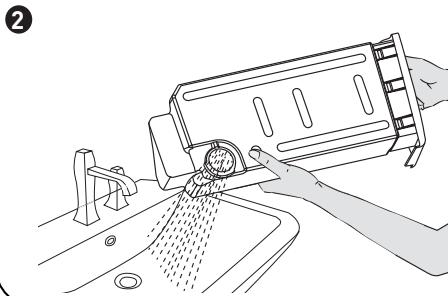

Emptying the Water Tank

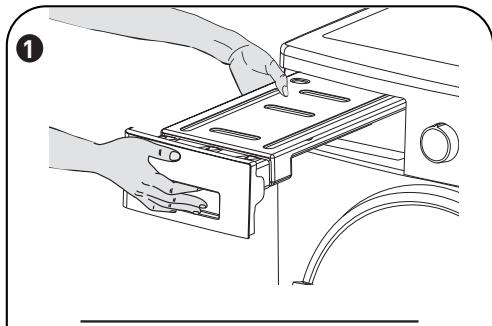

Pull the drawer cover and carefully take out the tank.
Empty the water in the tank.
If there is lint accumulated on the discharge cap in the tank, clean it with water.
Refit the water tank.

IMPORTANT:

• Never remove the water tank when the programme is running. The water condensed in the water tank is not suitable for human consumption.
• Do not forget to empty the water tank after each use.

Cleaning the Condenser

IMPORTANT:

• Clean the condenser when you see the warning "Condenser Cleaning".
• Even if the "condenser cleaning warning led" is not on: clean the condenser after every 30 drying processes or once a month.

If the drying process is completed, open the loading door and wait for it to cool down.

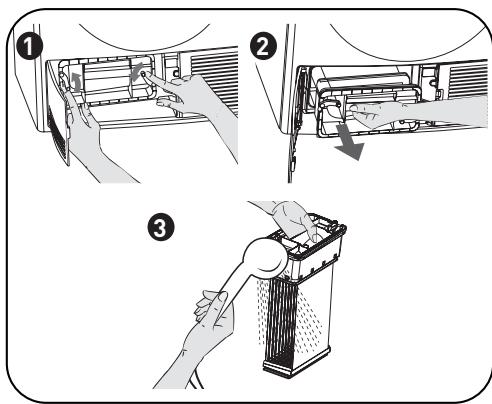

1 Open the plinth and release the 2 cover locks of the condenser.
Hold the condenser by the plastic part and pull it out.

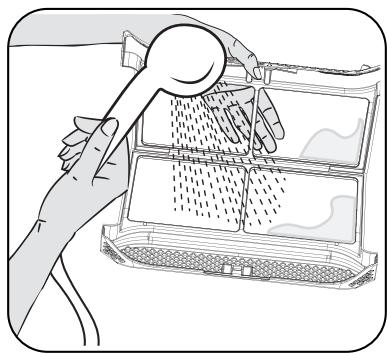

Clean it with a showerhead and wait for the water to drain off.
1 Fully insert the condenser into its seat and lock the 2 locks.
⑤ Close the plinth cover

Cleaning the Humidity Sensor

• Inside the machine, there are humidity sensors that detect whether the laundry is dry or not.

To clean the sensors:

1 Open the loading door of the machine.
If the machine is still hot due to the drying process, wait for it to cool down.

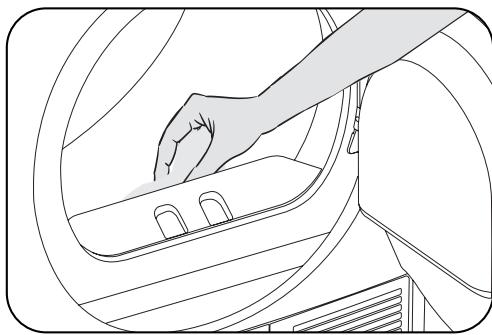

Using a soft cloth soaked in vinegar, wipe the metal surfaces of the sensor and dry them.

IMPORTANT:

• Clean the metal surfaces of the sensor 4 times a year.
• Do not use metal tools to clean the metal surfaces of the sensor.

ATTENTION:

Due to the risk or fire and explosion, do not use solution agents, cleaning agents or similar products when cleaning the sensors.

Cleaning the Inner Surface of the Loading Door

IMPORTANT:

Do not forget to clean the inner surface of the loading door after each drying process.

Open the loading door of the dryer and clean all of the inner surfaces and the gasket with a soft, damp cloth.

Troubleshooting

Your dryer is fitted with systems that continuously perform checks during the drying process to take the necessary measures and warn you in case of any malfunction.

WARNING:

If the problem persists even if you have applied the steps in this section, please contact the your dealer or an Authorised Service Provider. Never try to repair a nonfunctional product.

Problem	Reason	Solution
The drying process takes a long time.	The surface of the lint filter might be clogged.	Wash the filter with lukewarm water.
	The condenser might be clogged.	Clean the condenser.
	The ventilation grills in front of the machine might be closed.	Open the doors/windows to prevent the room temperature from rising too much.
	There might be a layer of limescale on the humidity sensor.	Clean the humidity sensor.
	The dryer might be overloaded with laundry.	Do not overload the dryer.
	The laundry might be insufficiently spun.	Select a higher spin speed on your washing machine.
Laundry comes out damp at the end of the drying process.	WARNING: The laundry that comes out hot at the end of the drying process generally feels more humid.
	The programme used might not be suitable for the type of laundry.	Check the care labels on the laundry items, select a suitable programme for the type of laundry and additionally, use the time programmes.
	The surface of the lint filter might be clogged.	Wash the filter with lukewarm water.
	The condenser might be clogged.	Clean the condenser.
	The dryer might be overloaded with laundry.	Do not overload the dryer.
	The laundry might be insufficiently spun.	Select a higher spin speed on your washing machine.
The dryer cannot be opened or the programme cannot be started. The dryer does not get activated when adjusted.	The dryer might not be plugged in.	Make sure that the plug is fitted in the socket.
	The loading door might be open.	Make sure that the loading door is properly closed.
	You might not have set a programme or pressed the Start/Pause key.	Make sure that the programme has been set and the dryer is not in the Standby (Pause) mode.
	Child lock might be active.	Deactivate the child lock.
The programme has been interrupted for no reason.	The loading door might not be closed properly.	Make sure that the loading door is properly closed.
	There might have been a power failure.	Press the Start/Pause key to start the programme.
	The water tank might be full.	Empty the water tank.
Clothes have shrunk, felted or deteriorated.	The programme used might not be suitable for the type of laundry.	Check the care labels on the laundry items, select a suitable programme for the type of laundry.
Water leaking from the loading door.	There might be lint accumulated on the inner surfaces of the loading door and on the surfaces of the gasket of the loading door.	Clean the inner surfaces of the loading door and the surfaces of the gasket of the loading door.
The loading door opens on its own.	The loading door might not be closed properly.	Push the loading door until you hear the closing sound.
The water tank warning symbol is on/flashing.	The water tank might be full.	Empty the water tank.
	The water discharge hose might be bent.	If the product is connected directly to the water outlet, check the water discharge hose.
The condenser cleaning warning symbol is on.	The condenser might be unclean.	Clean the condenser.
The filter cleaning warning symbol is on.	The lint filter might be unclean.	Clean the filter.
	The filter seat might be clogged by lint.	Clean the filter seat.
	There might be a layer that causes obstruction on the surface of the lint filter.	Wash the filter with lukewarm water.
The program can not be started and the filter warning led is blinking	The filter seat might be clogged by lint.	Clean the filter seat.
	There might be a layer that causes obstruction on the surface of the lint filter.	Wash the filter with lukewarm water.
	The condenser may not be placed.	Replace the condenser.
The program can not be started and both condenser and filter warning leds are blinking	The condenser and filter may not be placed.	Replace the filter and condenser.
	The filter and condenser warning leds are blinking even though the filter and condenser are placed.	Call technical service.

Automatic fault warnings and what to do

Your tumble dryer is equipped with a built-in fault detection system, indicated by a combination of flashing operation lights. The most common failure codes are shown below.

ERROR CODE	SOLUTION
E00	Contact the nearest authorised service agent.
E03 /	Empty the water tank, if problem does not solved, contact the nearest authorised service agent.
E04	Contact the nearest authorised service agent.
E05	Contact the nearest authorised service agent.
E06	Contact the nearest authorised service agent.
E08	There may be voltage fluctuation in mains. Wait until voltage is appropriate for working range.

Environmental protection and packaging information

Packaging Information

The packaging of this product is made of recyclable materials. Do not dispose of the packaging, waste together with household or other waste. Instead, take it to a packaging collection point defined by your local authority.

Energy Efficiency

• You should operate the dryer to full capacity, but make sure that it is not overloaded.
• When the laundry is being washed, the spin speed should be at the highest level possible. This will shorten the drying time and reduce energy consumption.
• Make sure that the same kinds of laundry are dried together.
• Please follow the recommendations in the user manual for programme selection.
• For air circulation, leave an appropriate clearance on the front and back sides of the dryer. Do not cover the grills on the front side of the machine.
• Unless necessary, do not open the door of the machine when drying. If you have to open it, do not keep it open for a long time.
• Do not add new (wet) laundry during the drying process.
• Hairs and lint that detach from the laundry and merge in the air are collected by the «Lint Filters». Please make sure that the filters are cleaned before and after each use.
• For models with a heat pump, make sure that the heat exchanger is cleaned at least once a month or after each 30 uses.
• During the drying process, the environment where the dryer is installed must be well ventilated.

Merci!

Sechage parasuspension

Sechage par etendu

Sechage parasuspension humide
