CURSOR AND OK KEYS

Press ▲,▼ or ◄,► to navigate the TV menu. Press OK to confirm selection.

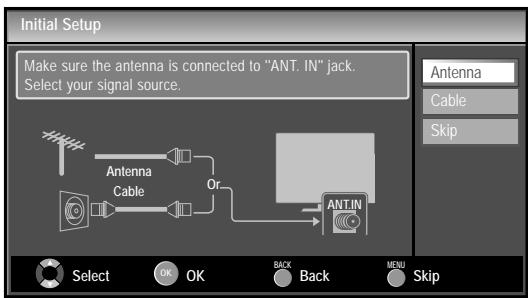

First time setup Initial Setup Select your menu language. English Select “Retail” or “Home” for your location. Retail Select

MENU Select Skip Home

LC8(LCD)̲master draft̲QG̲EN̲v1.indd 8 2010/02/05 13:35:48 22MF330B 19MF330B LCD TV English Français 1-866-341-3738 MODEL NUMBER Piles (AAA, 1,5V x 2) AAA

➠ p.15 ➠ p.17 ➠ p.16 ➠ p.16 (marche) 2 SAP 3 SOURCE

câble coaxial RF câble coaxial RF

COMPONENT VIDEO OUT

COMPONENT VIDEO OUT

Pb/Cb Pr/Cr DIGITAL AUDIO COAXIAL IN câble VGA Antenne Câble Saut

BACK MENU Retour Saut Image Son Configuration Options S o, you yo u must m u s t be b e Philip. P h i l i p. H ii!! I’m pleased to meet yo you. Bord (Couleur bord et Type bord) C.Verrou qualif. US TV TV-MA TV-14 TV-PG TV-G Vision / Barré

Image Son Configuration Options plus basse Langue Position Horizontale Position H. 0 Ajuster Déplacer

Position Verticale Position V.

Configuration Options Image

Configuration Options Foire aux Questions (FAQ) Question Réponse

HDMI (High-definition Multimedia Interface) Consommation (maximale) 67 W Consommation (maximale) 51 W FUNAI CORPORATION, Inc. 19900 Van Ness Avenue, Torrance, CA 90501 Return your Product Registration Card or register online at www.magnavox.com/support today to get the very most from your purchase. Registering your model with MAGNAVOX makes you eligible g for all of the valuable benefits listed below, so don’t miss out. Complete and return your Product Registration Card at once, or register online at www.magnavox.com/supportt to ensure: *Proof of Purchase *Product Safety Notification *Additional Benefits Returning the enclosed card guarantees that your date of purchase will be on file, so no additional paperwork will be required from you to obtain warranty service. By registering your product, you’ll receive notification directly from the manufacturer - in the rare case of a product recall or safety defect. Registering your product guarantees that you’ll receive all of the privileges to which you’re entitled, including special money-saving offers. Know these safety symbols Congratulations on your purchase, and welcome to the “family!” Dear MAGNAVOX product owner: Thank you for your confidence in MAGNAVOX. You’ve selected one of the best-built, best-backed products available today. We’ll do everything in our power to keep you happy with your purchase for many years to come. As a member of the MAGNAVOX “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network. Most importantly, you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome - and thanks for investing in a MAGNAVOX product. P.S.To get the most from your MAGNAVOX purchase, be sure to complete and return your Product Registration Card at once or register online at: www.magnavox.com/support This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The “exclamation point” calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

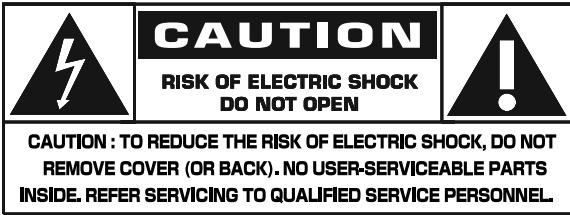

WARNING : To reduce the risk of fire or

electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus. CAUTION : To prevent electric shock, match wide blade of plug to wide slot, fully insert. ATTENTION : Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond. For Customer Use Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference. Model No. Serial No. Visit our World Wide Web Site at www.magnavox.com/support

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Damage Requiring Service - The appliance should be serviced by qualified service personnel when: A. The power supply cord or the plug has been damaged; B. Objects have fallen, or liquid has been spilled into the appliance; C. The appliance has been exposed to rain D. The appliance does not appear to operate normally or exhibits a marked change in performance; E. The appliance has been dropped, or the enclosure damaged.

16. Tilt/Stability - All televisions must comply with recommended

international global safety standards for tilt and stability properties of its cabinet design.

• Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.
• Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

17. Wall or Ceiling Mounting - The appliance should be

mounted to a wall or ceiling only as recommended by the manufacturer.

18. Power Lines - An outdoor antenna should be located

away from power lines.

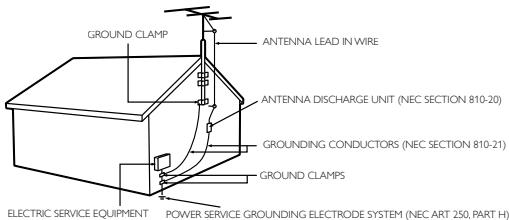

19. Outdoor Antenna Grounding - If an outside antenna

is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA

No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure below.

20. Object and Liquid Entry - Care should be taken so

that objects do not fall and liquids are not spilled into the enclosure through openings.

21. Battery Usage CAUTION - To prevent battery

leakage that may result in bodily injury, property damage, or damage to the unit:

• Install all batteries correctly, with + and - aligned as marked on the unit.
• Do not mix batteries (old and new or carbon and alkaline, etc.).
• Remove batteries when the unit is not used for a long time. Note to the CATV system installer : This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. Example of Antenna Grounding as per NEC - National Electric Code GROUND CLAMP

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made. This apparatus has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This apparatus generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this apparatus does cause harmful interference to radio or television reception, which can be determined by turning the apparatus off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the apparatus and receiver.

3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

DECLARATION OF CONFORMITY

Trade Name: MAGNAVOX Model: 22MF330B / 19MF330B Responsible Party: FUNAI CORPORATION, Inc. Address: 19900 Van Ness Avenue, Torrance, CA 90501 U.S.A. Telephone Number: 1-866-341-3738 This Class B digital apparatus complies with Canadian ICES-003. Standard Television Receiving Apparatus, Canada BETS-7 / NTMR-7 CAUTION : Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING : Batteries (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable. This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 2.8 inches (7cm) or more around this apparatus.

WARNING: To prevent injury, this apparatus must be securely attached to the wall in accordance with the instructions.

Like all LCD products, this set contains a lamp with Mercury, please dispose of according to all Local, State and Federal laws. For the disposal or recycling information, contact: www.mygreenelectronics.com or www.eiae.org Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

NOTE ABOUT RECYCLING

• This unit’s packaging materials are recyclable and

can be reused. Please dispose of any materials in accordance with your local recycling regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes. Trademark Information

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

ENERGY STAR R® is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices. Consumer Notice: This TV has been set to maximize energy efficiency while delivering the best possible picture using the factory installed home mode settings. Changing or enabling other features in this TV (e.g. brightened backlighting) will possibly increase energy consumption beyond the original ENERGY STAR R® qualified limits.

The American Academy of Pediatrics discourages television viewing for children younger than two years of age.

TO AVOID THE HAZARDS OF ELECTRICAL

SHOCK AND FIRE

• Do not handle the AC power cord with wet hands.
• Do not pull on the AC power cord when disconnecting it from an

AC outlet. Grasp it by the plug. Do not put your fingers or objects into the unit.

LOCATION AND HANDLING

• Do not install the unit in direct sunlight, near strong magnetic

fields, or in a place subject to dust or strong vibration. Avoid a place with drastic temperature changes. Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit. Depending on your external devices, noise or disturbance of the picture and / or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit. Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction. Be sure to unplug the AC power cord from the AC outlet before carrying the unit.

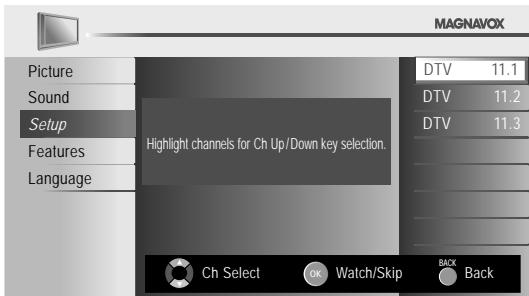

Main Menu Autoprogram Channel List Add Channels Antenna Confirmation Language Selection Picture Adjustment Sound Adjustment Closed Caption Child Lock PC Settings Fun-Link Energy Saving Mode Location Current Software Info TROUBLESHOOTING Sleep Timer Switching Each Input Mode Freeze Mode Channel Selection TV Screen Display Mode Sound Functions TV Screen Information Reducing the Brightness Fun-Link Options OPTIONAL SETTING Antenna Connection Connection to Cable Receiver or Satellite Box External Device Connection Plug In the AC Power Cord Initial Setup WATCHING TV Features Supplied Accessories Symbols Used in this Manual Attaching the Base Fixing the Unit on Your Furniture Control Panel Terminals Remote Control Function Installing the Batteries PREPARATION Important Safety Instructions Trademark Information

• DTV /TV / CATV You can use your remote control to select channels which are broadcast in digital format and conventional analog format. Also, cable subscribers can access their cable TV channels.

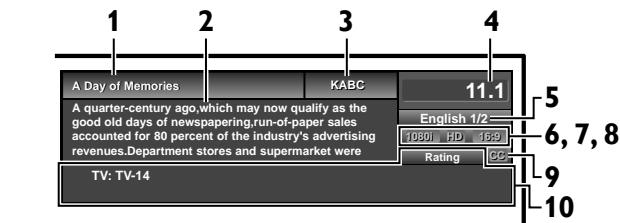

• Information Display (ATSC only) You can display the title, contents and other information of the current DTV program on the TV screen.
• Autoprogram This unit automatically scans and memorizes channels available in your area, eliminating difficult setup procedures.

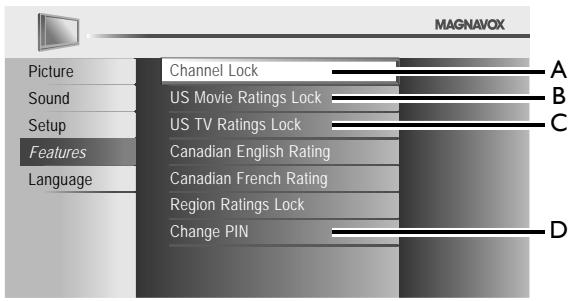

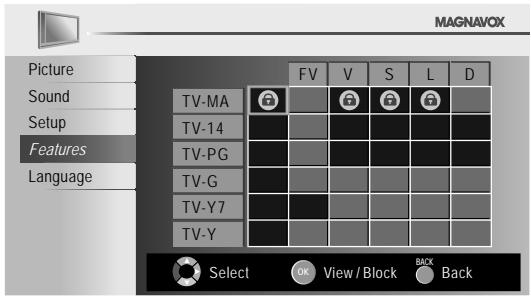

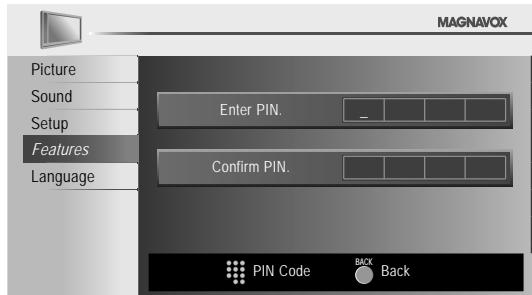

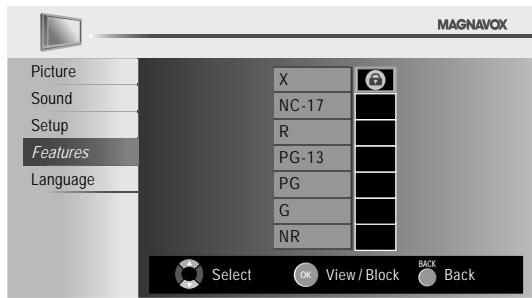

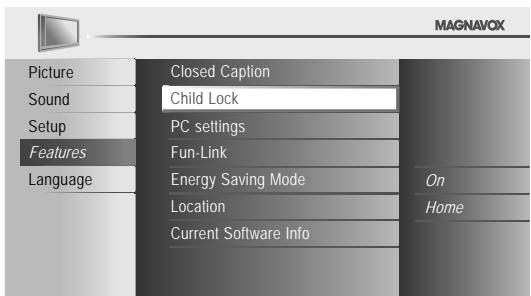

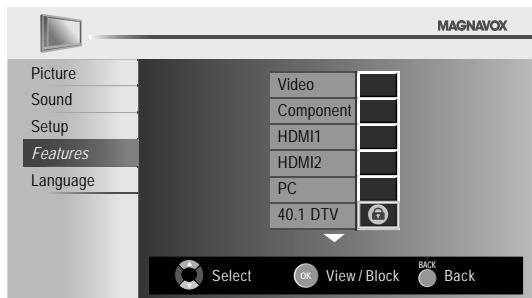

• Child Lock This feature allows you to block children’s access to inappropriate programs.

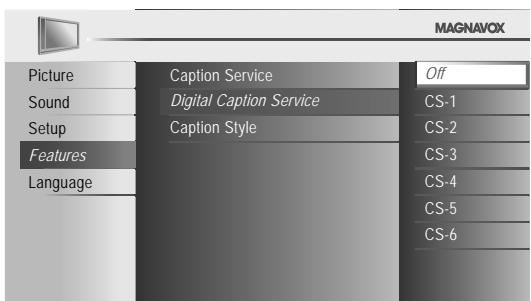

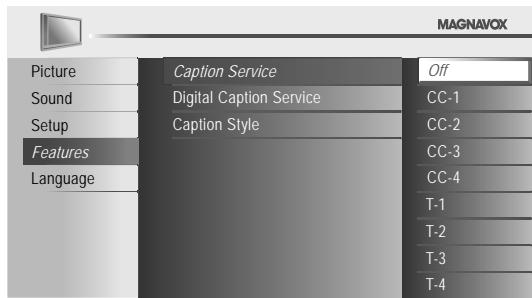

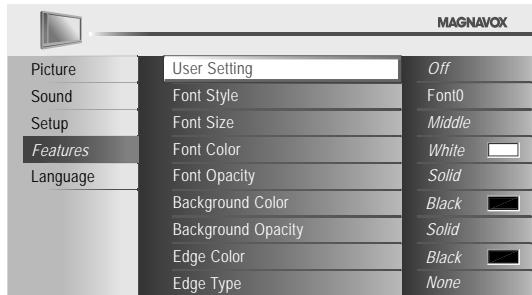

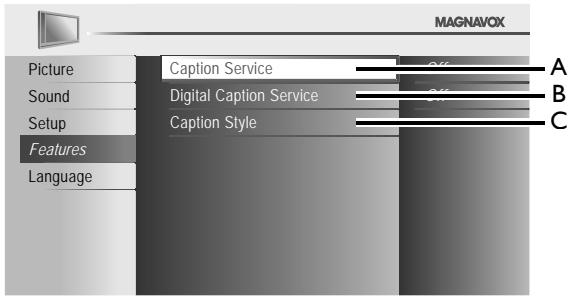

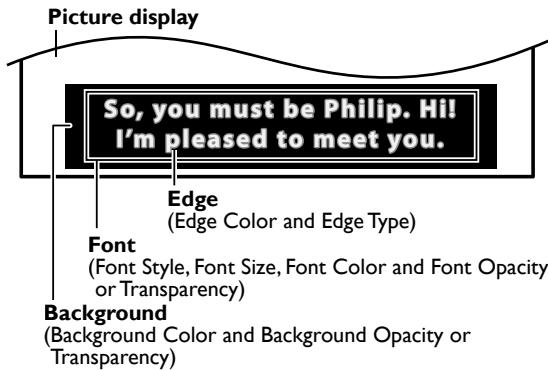

• Closed Caption Decoder Built-in closed caption decoder displays text for closed caption supported programs.

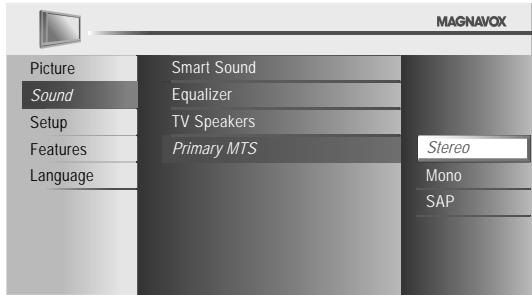

• MTS / SAP Tuner Audio can be selected from the remote control.
• Auto Shut Off Function If there is no input signal and no operation for 15 minutes, the unit will turn off automatically.
• Sleep Timer This feature will automatically turn off the power of the unit at a specific time.
• Choices for On-screen Language Select your on-screen language: English, Spanish or French.
• Stereo Sound Function
• PLL Frequency Synthesized Tuning Provides free and easy channel selection and lets you tune directly to any channel using the number and decimal point "•" buttons on the remote control.

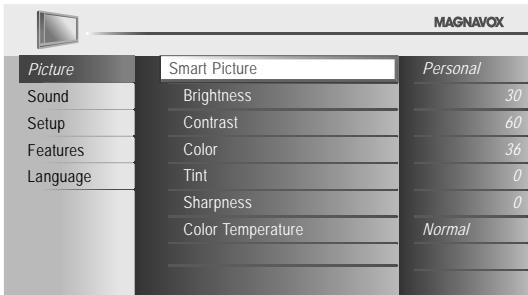

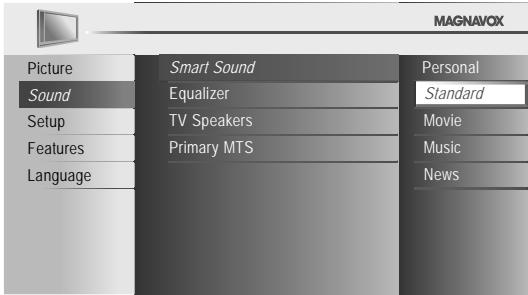

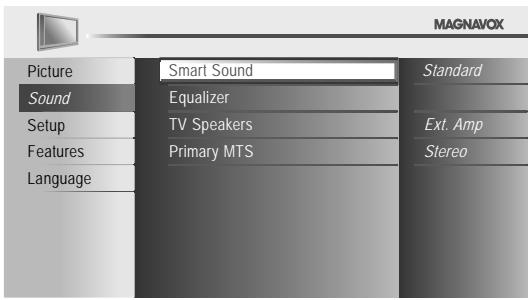

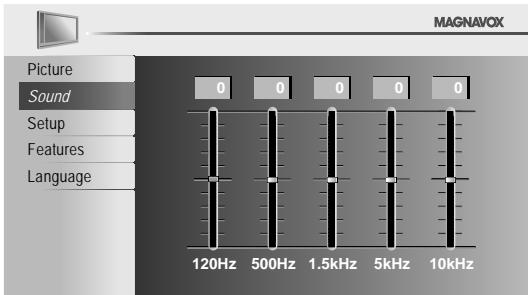

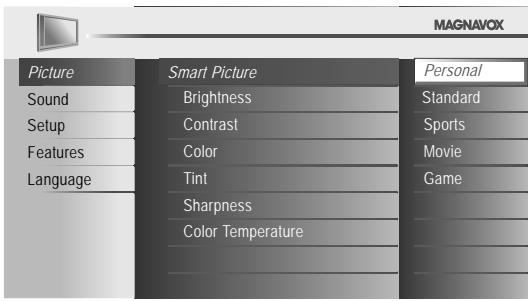

• Various Adjustment for Picture and Sound Customizes image quality suitable for your room and sets your sound preference.

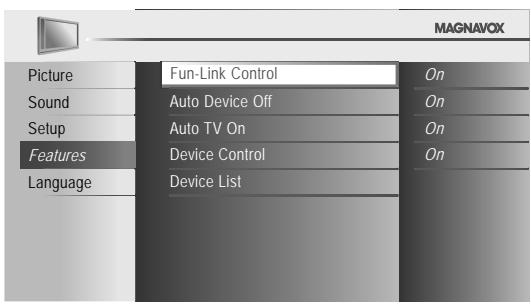

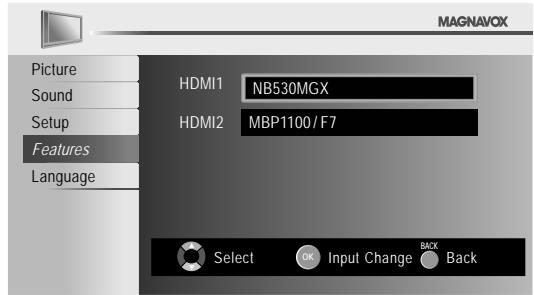

• Fun-Link via HDMI Link (HDMI Cable not Included) Fun-Link allows your other HDMI link devices (such as Magnavox DVD) to be controlled by the HDMI cable connected to your TV.
• Component Video Input

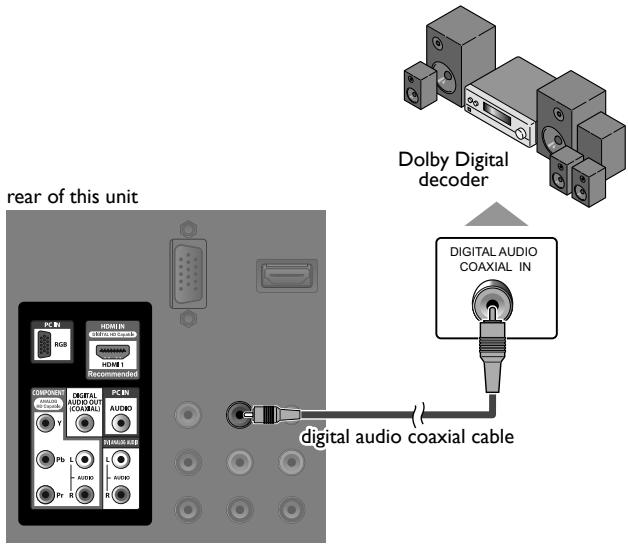

• Digital Audio Output
• Headphone Audio Output INTRODUCTION INTRODUCTION INFORMATION Glossary Maintenance General Specifications Electrical Specification Other Specifications Limited Warranty

© 2010 Funai Electric Co., Ltd. All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes. with the design is a registered trademark of Funai Electric Co., Ltd. and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

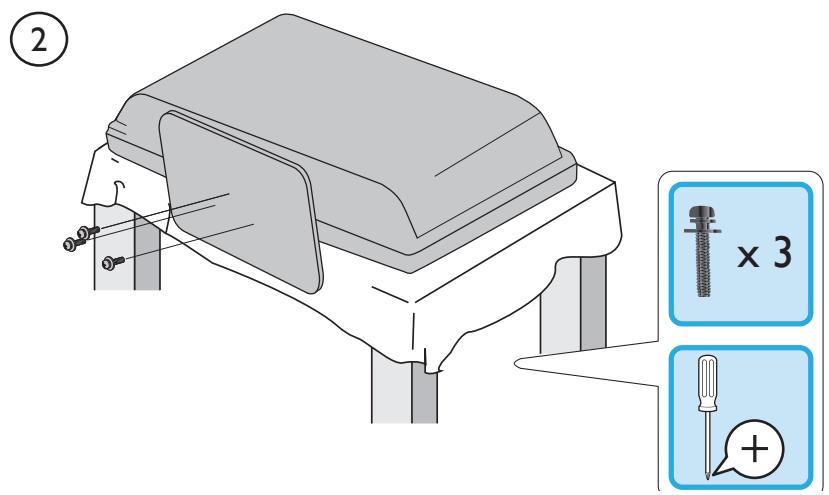

Supplied Accessories Owner’s manual (1EMN26263) Attaching the Base You must attach the base to the unit to have it as a table top unit. Be sure the front and rear of the base match the proper direction. Quick Start (1EMN26264)

Remote control (NF804UD) Batteries (AAA, 1.5V x 2) AAA

Screw kit for attaching the base (1ESA19876)

If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free customer support line found on the cover of this manual. local store.

To remove the base from this unit

• Unscrew the Phillips pan screws on step 3. After the screws are removed, move the base in the opposite direction as shown by arrow ➁ on step 2, then pull the base up toward the rearr of the unit. Be careful not to drop the base when you remove it. Note
• If you lose the screws, please purchase M4×12 Phillips head screws at your Spread a thick and soft cloth over a table as shown. Place the main unit face down onto it. Make sure not to damage the screen. Insert 2 hooks under the bottom of the main unit into base holes. (shown by ➁ arrow ➀), then move the base in the direction as shown by arrow ➁ until it stops and the 3 mounting holes are aligned. Make sure not to put the AC power cord between the base and the unit. Drive Phillips pan screws into the 3 threaded holes at the bottom of the base until they are tight. Note
• When attaching the base, ensure that all screws are tightly fastened. If the Symbols Used in this Manual The following is the description for the symbols used in this manual. Description refers to:

ATSC : Digital TV operation NTSC : Analog / Cable TV operation If neither symbol appears, the operation is applicable to both.

base is not properly attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit. Make sure to use a table which can support the weight of this unit and is larger than this unit. Make sure the table is in a stable location. When attaching the base, ensure that FRONT ↑ written on the base is upward. If it's not upward, the 2 hooks don't fit in the base. Fixing the Unit on Your Furniture Screw this unit on your furniture tightly using wood screws (not supplied) in the 2 holes at the back of the base as shown.

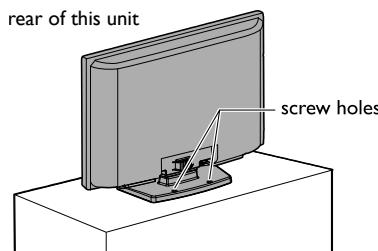

• Recommended screw dimension : 5.1 x 20 mm rear of this unit Note
• When you remove this unit make sure to unscrew the wood screws from your Wood Stand, Furniture and other wood item.

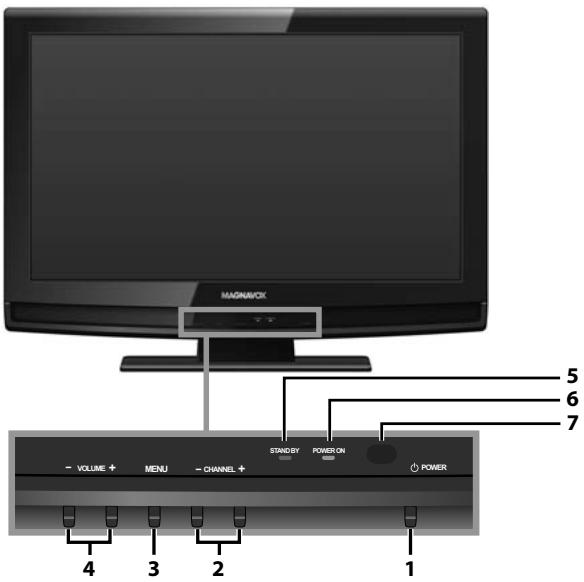

Press to select channels or move up (+) / down (–) through the main menu items. 3 MENU 4 VOLUME +/- Press to adjust the volume or move right (+) / left (–) through the main menu items. WATCHING TV Lights up red when power is off. 6 POWER ON indicator Lights up green when power is on. 7 Infrared sensor window

OPTIONAL SETTING Receives infrared rays transmitted from the remote control.

TROUBLESHOOTING INFORMATION

Side Panel 8 HDMI 2 Input jack ➠ p.10, 11 9 S-Video / Composite Video / Audio (L/R) Input jacks for VIDEO ➠ p.12 10 Headphone Audio Output jack Headphone connection for personal listening.

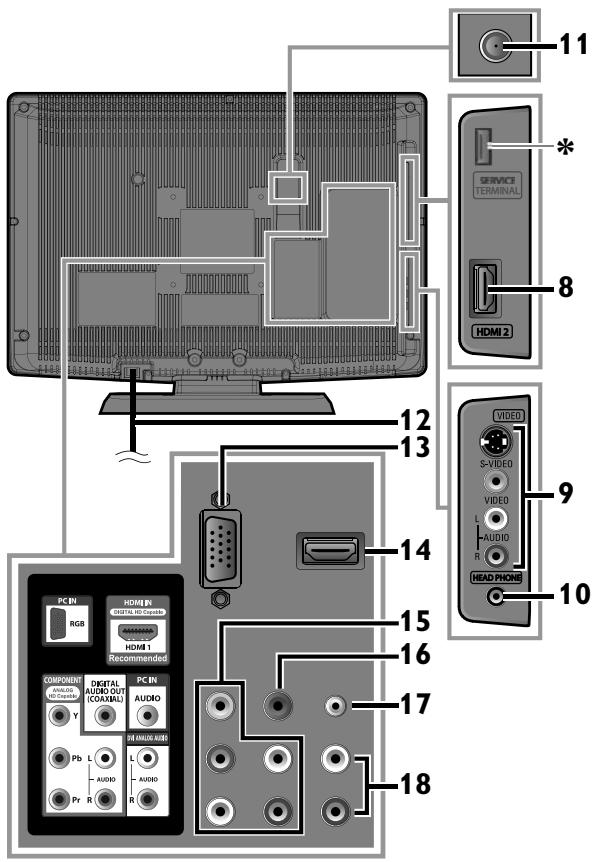

Rear Panel 11 Antenna Input jack ➠ p.10 12 AC power cord ➠ p.14 13 PC (VGA) Input jack ➠ p.13 14 HDMI 1 Input jack ➠ p.10, 11 15 Component Video and Audio (L/R) Input jacks ➠ p.10, 12 16 Digital Audio Output jack ➠ p.13 17 Audio Input jack for PC connection ➠ p.13 Mini-plug audio cable connection from your PC. 18 Audio (L/R) Input jacks for HDMI 1 ➠ p.11 Audio cable connection from your DVI device. (For HDMI 1 Input jack only) Note for service terminal

• service terminal (service use only)

• Use this terminal only when a software update is necessary.
• User should not connect any devices to the terminal such as digital camera, keyboard, mouse, etc. (because these will not work).

• The software update is, in most cases, handled by an authorized service person or in some circumstances the user may be asked to do the software update themselves.

7 BACK Press to return to the previous menu operation. ➠ p.17 ➠ p.16 ➠ p.17 10 SLEEP

17 CH +/− 18 ECO Press to reduce the brightness. ➠ p.16 ➠ p.18 INFORMATION

15 REV E / FWD D

➠ p.30 Press to search backward or forward through the disc. PLAY B ➠ p.30 Press to begin the disc playback.

SKIP H / SKIP G

➠ p.30 Press to skip backward or forward chapters, titles or tracks of the disc. PAUSE F ➠ p.30 Press to pause the disc playback. STOP C ➠ p.30 Press to stop p the disc playback. p y 16 MUTE ➠ p.17 TROUBLESHOOTING

11 FORMAT Press to select aspect ratio available for the TV screen.

12 RED / GREEN / BLUE / YELLOW

➠ p.30 Functionallyy useful for Fun-Link. 13 MENU ➠ p.19 OPTIONAL SETTING

WATCHING TV 9 PREV CH ➠ p.16 Press to return to previously viewed channel.

➠ p.15 ➠ p.15 ➠ p.18 5 OK 8 VOL +/−

4 FREEZE Press to freeze screen image. ➠ p.15 ➠ p.17 ➠ p.16 ➠ p.16 PREPARATION

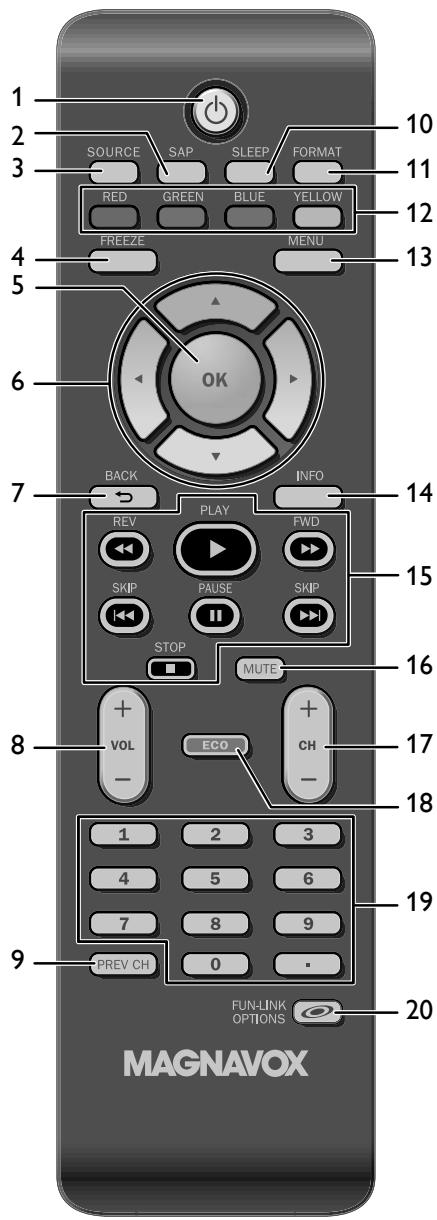

INTRODUCTION Remote Control Function 19 Number buttons ➠ p.16 (dot) Press to shift the subchannel from the main channel. When using a universal remote control to operate this unit.

• Make sure the component code on your universal remote control is set

to our brand. Refer to the manual accompanying your remote control for more details. We do not guarantee 100% interoperability with all universal remote controls. Note

• Buttons in gray background (

) are not available unless you are connected to devices that are compatible with Fun-Link function. We do not guarantee 100% interoperability with other brands of HDMI link compliant devices. Battery Precautions:

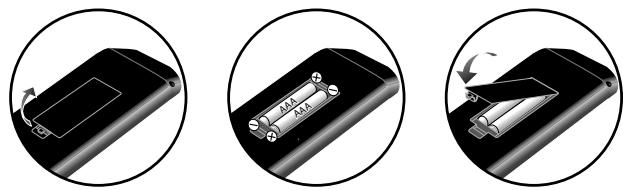

• Be sure to follow the correct polarity as indicated in the battery 20 FUN-LINK OPTIONS ➠ p.18, 30 Press to call up various menu from your Fun-link device connected through an HDMI cable. Installing the Batteries Install the batteries (AAA, 1.5V x 2) matching the polarity indicated inside battery compartment of the remote control.

AA AAA compartment. Reversed batteries may cause damage to the device.

• Do not mix different types of batteries together (e.g. Alkaline and

Carbon-Zinc, or rechargeable batteries like ni-cad, ni-mh, etc) or old batteries with fresh ones. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage. Do not try to recharge batteries; they can overheat and rupture.

PREPARATION No supplied cables are used with these connections: Please purchase the necessary cables at your local store. High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility. Before you connect: Be sure your antenna or other device is connected properly before plugging in the AC power cord. Connection to Cable Receiver or Satellite Box Use an HDMI or component video cables to connect the HDMI or the Component Video Input jacks of the unit to the HDMI or the component video output jacks of the cable receiver / satellite box. If you connect to the unit’s Component Video Input jacks, connect audio cables to the Audio L/R Input jacks right beside the Component Video connector. e.g.) satellite dish Antenna Connection

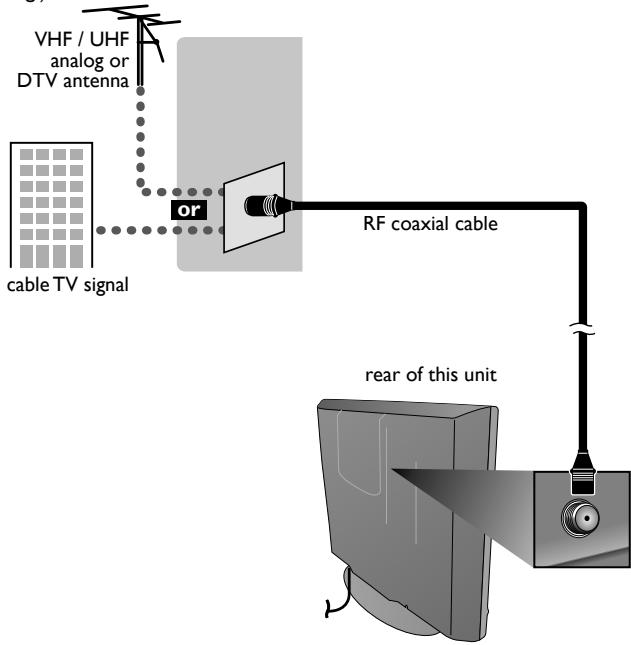

RF coaxial cable Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit. ANT IN e.g.) cable TV signal including PPV cable receiver / satellite box STEREO PCM AUDIO OUT

COMPONENT VIDEO OUT

(red) r d RF coaxial cable cable TV signal component e video id cables ((red/blue/green (red/blue/green) red/blue/green) d/bl / ) and d audio d ca cables

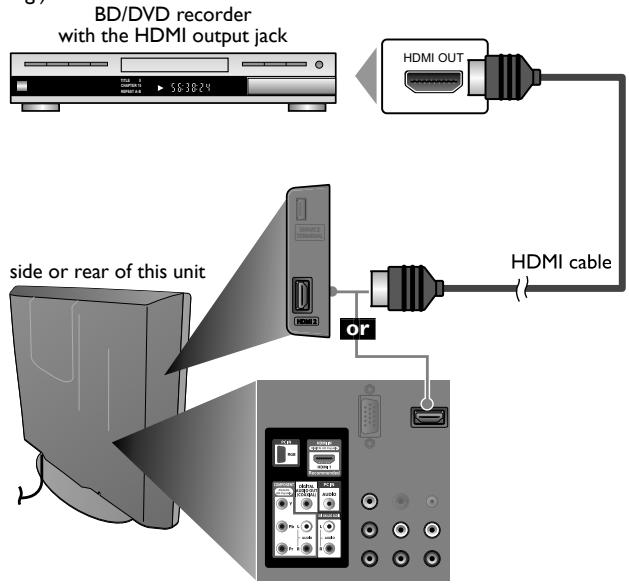

HDMI cable rear of this unit SERVICE TERMINAL HDMI 2 Once connections are completed, turn on the unit and begin initial setup. Channel scanning is necessary for the unit to memorize all available channels in your area. [Initial Setup] ➠ p.15 Note

• If you have any question about the DTV’s antenna, visit www.antennaweb.

org for further information. Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters). Contact your local electronics store for these items. For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna input jack before moving the unit. If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than a set top or inside antenna. To switch your reception source easily between antenna and cable, install an antenna selector. If you are not receiving a signal from your cable service, contact the Cable provider.

(green) (blue) (red) red

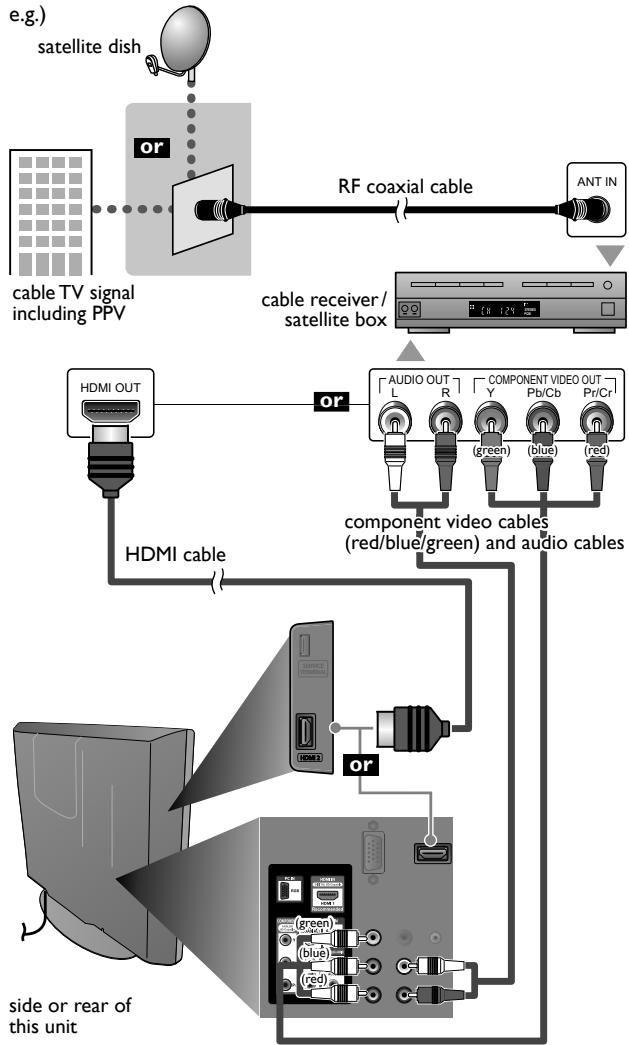

side or rear of this unit You can also connect this unit to the cable receiver or satellite box other than the HDMI or the component video output jacks because they might have different output jacks. Required cables and connecting methods of the cable receiver / satellite box, or the availability channel for the clear QAM may differ depending on the cable / satellite provider. For more information, please contact your cable / satellite provider.

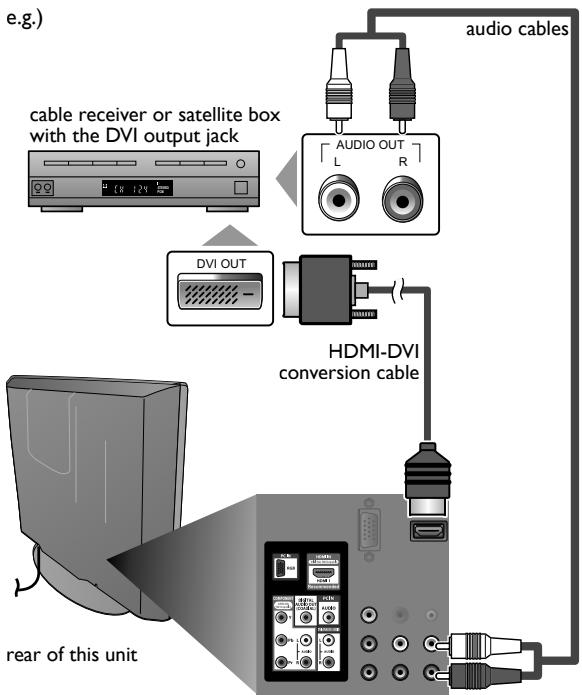

English Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack. HDMI Connection e.g.) BD/DVD recorder with the HDMI output jack audio cables cable receiver or satellite box with the DVI output jack PREPARATION HDMI connection offers the highest picture quality. HDMI (High-Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a single cable. e.g.) External Device Connection side or rear of this unit HDMI 2

OPTIONAL SETTING rear of this unit For HDMI connection

• The unit accepts 480i, 480p, 720p 1080i of video signals, and 32kHz, 44.1kHz and 48kHz of audio signals.

• This unit accepts only 2 channel audio signal (LPCM).
• You need to select "PCM" for the digital audio of the device you connected or check the HDMI audio setting. There may be no audio output if you select "Bitstream", etc. This unit accepts only signals in compliance with EIA861. audio signals are converted from digital to analog.

• DVI does not display 480i image which is not in compliance with EIA/ CEA-861/861B. INFORMATION

For HDMI-DVI connection

• The unit accepts 480i, 480p, 720p 1080i video signals.
• HDMI-DVI connection requires separate audio connections as well and the TROUBLESHOOTING Note

No supplied cables are used with these connections: Please purchase the necessary cables at your local store. Component Video Connection S-Video Connection S-Video connection offers good picture quality for video devices connected to the unit. If you connect to the unit’s S-Video Input jack, connect audio cables to the Audio L/R Input jacks right beside the Composite Video connector. e.g.) BD/DVD recorder, camcorder and VCR with the S-Video output jack Component Video connection offers better picture quality for video devices connected to the unit. If you connect to the unit’s Component Video Input jacks, connect audio cables to the Audio L/R Input jacks right beside the Component Video connector. BD/DVD recorder with the component video output jack AUDIO OUT

COMPONENT VIDEO OUT

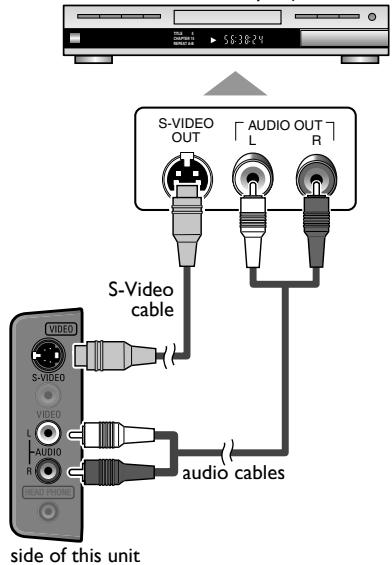

Pb/Cb Pr/Cr (blue) blue lue S-Video cable (red) red

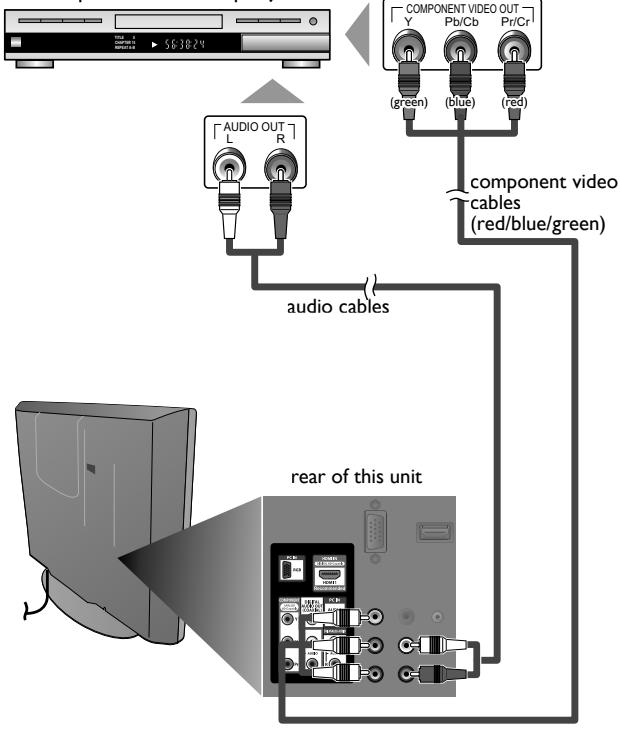

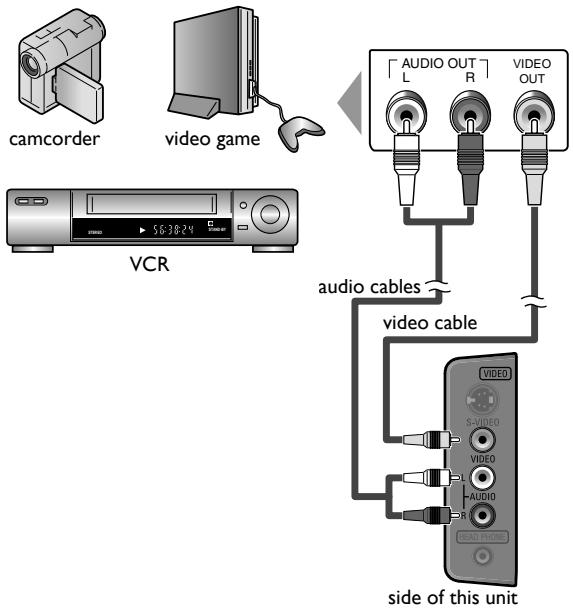

component video cables (red/blue/green) audio cables HEAD PHONE audio cables side of this unit Composite Video Connection rear of this unit Composite Video connection offers standard picture quality for video devices connected to the unit. If you connect to the unit’s Composite Video Input jack, connect audio cables to the Audio L/R Input jacks right beside the Composite Video connector. When the audio jack of the video device is monaural, connect an audio cable to the Audio L Input jack. e.g.) AUDIO OUT

• The unit accepts 480i / 480p / 720p and 1080i of video signals for this camcorder video game connection. STAND-BY STEREO VCR side of this unit Note
• If you connect to the S-Video Input jack and the Composite Video Input jack at the same time, the S-Video connection will have priority.

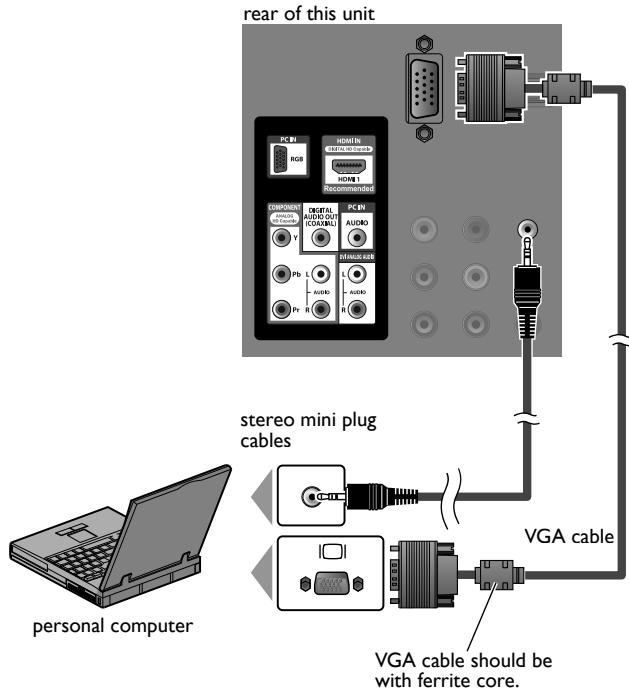

English PC Connection (for digital broadcasting only) If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound. Use a digital audio coaxial cable to connect the unit to external digital audio devices. This unit is equipped with a PC input jack. If you connect this unit to your PC, you can use this unit as a PC monitor. Use an VGA cable for this connection and it requires stereo mini plug audio cable as well. e.g.) PREPARATION rear of this unit e.g.) rear of this unit INTRODUCTION Digital Audio Output Connection DIGITAL AUDIO COAXIAL IN VGA cable should be with ferrite core. The following video signals can be displayed: WXGA Resolution 640 x 480 800 x 600 1,024 x 768 1,280 x 768 1,360 x 768 Refresh rate 60Hz Other formats or non-standard signals will not be displayed correctly. INFORMATION Format VGA SVGA XGA TROUBLESHOOTING personal computer OPTIONAL SETTING Note

• Please purchase the VGA cable that has a ferrite core.
• The following operations may reduce noise. - Attach a ferrite core to the AC power cord of your PC. - Unplug the AC power cord and use the built-in battery of your PC.

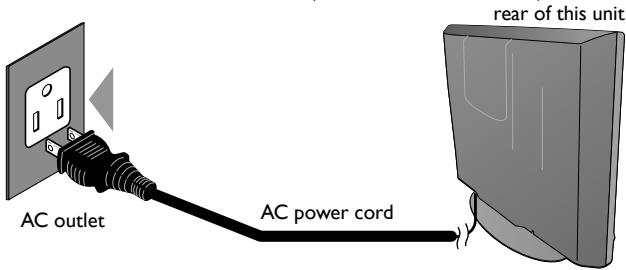

Plug In the AC Power Cord Make sure that the AC power cord must be plugged to an AC outlet after all the necessary connections are completed. rear of this unit Caution:

• Do not connect the AC power cord to a power supply outside the indicated voltage of this unit (AC 120V). Connecting the AC power cord to a power supply outside of this range may result in fire or electrical shocks. Note
• Each time you plug in the AC power cord, no operations will be performed for a few seconds. This is not a malfunction.

Use ◄/► to select the desired location setting, then press OK. Initial Setup Select “Retail” or “Home” for your location. Initial Setup Select Make sure the unit is connected to antenna or cable. After making all the necessary connections, press to turn on the unit. Use ▲/▼ to select [Antenna] for TV channels or [Cable] for CATV channels, then press OK. Make sure the antenna is connected to ''ANT. IN'' jack. Select your signal source. Antenna Cable Skip provider.

• If you press or MENU during autoprogram, this setting will be canceled.

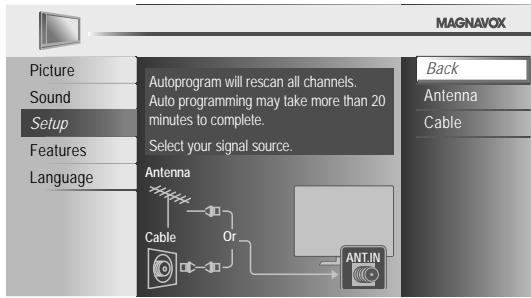

• The initial autoprogram function can be executed for either [Antenna] or

[Cable] only once. When you change the connection (Antenna / Cable), set [Autoprogram] again. ➠ p.19 If there is no signal input from the antenna terminal and no operation for several seconds after you turn on the unit, [Helpful Hints] appears. Follow the instructions listed on the TV screen. Initial Setup Antenna Cable

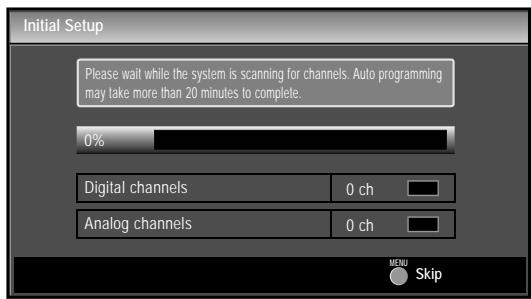

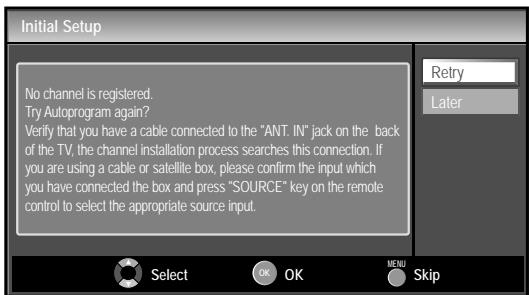

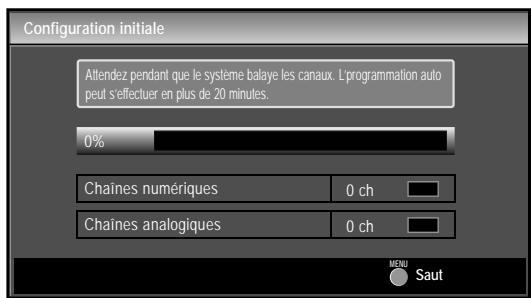

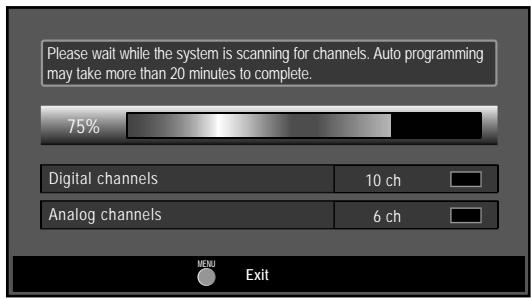

BACK MENU Back Skip [Autoprogram] will begin. Initial Setup No channel is registered. Try Autoprogram again? Verify that you have a cable connected to the "ANT. IN" jack on the back of the TV, the channel installation process searches this connection. If you are using a cable or satellite box, please confirm the input which you have connected the box and press "SOURCE" key on the remote control to select the appropriate source input. Select Please wait while the system is scanning for channels. Auto programming may take more than 20 minutes to complete.

Digital channels 0 ch Analog channels 0 ch

MENU Later INFORMATION Select

• If you are not receiving a signal from your cable service, contact the Cable TROUBLESHOOTING Initial Setup Note OPTIONAL SETTING

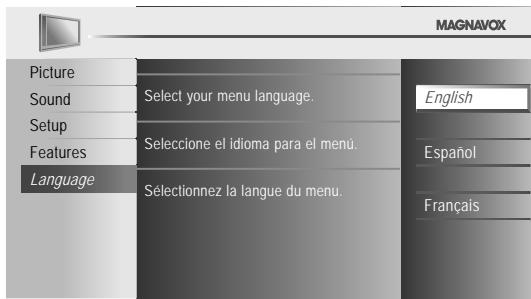

Use ▲/▼ to select the on-screen language from the choices (English / Español / Français) on the right side of the TV screen.

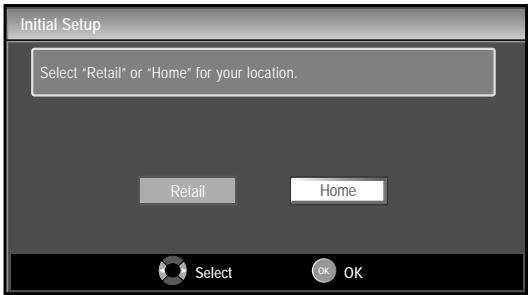

Select [Retail] store, the unit will be set up with predefined setting for retail displays. In this setting, the power consumption may possibly exceed the limited requirement of the ENERGY STAR R® qualification.

• Select [Home], the unit is set to maximize the energy efficiency for home setting and it can be adjusted through a choice of picture and sound quality according to your preference.
• When the initial setup is completed, the lowest memorized channel with the confirmation message of the location setting will be displayed on the TV screen.

• It may take a few moments to turn on the unit for the first time.
• [Initial Setup] menu appears automatically after the unit is turned on.

Home Retail Before you begin: PREPARATION This section will guide you through the unit’s initial setting which includes selecting a language for your on-screen menu and autoprogram, which automatically scans and memorizes viewable channels. INTRODUCTION These operations are accessible by remote control. Some may also be accessible by controls on the main unit. Skip

• You must set [Home] in step 4. Otherwise, the settings of picture and sound quality you adjusted will not be memorized after you turn off the unit. After an initial setup is completed... MENU Skip

• If you want to scan the channels automatically again. [Autoprogram] ➠ p.19

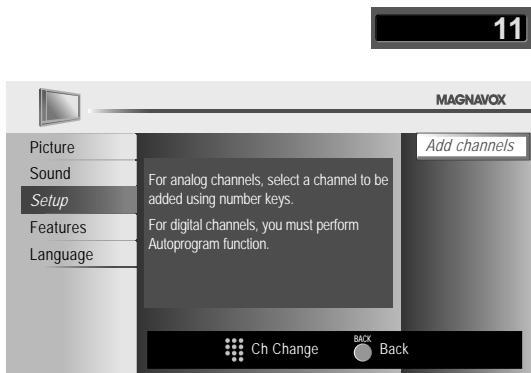

• You can add the desired cable and analog channels unmemorized by autoprogram. [Add Channels] ➠ p.20
• If you want to change to another language. [Language Selection] ➠ p.21

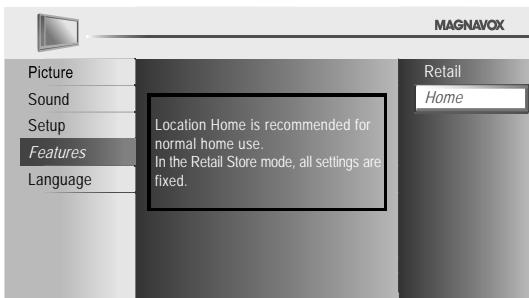

• If you want to change the location setting. [Location] ➠ p.31

WATCHING TV Sleepp Timer can be set to automatically turn off the unit after an incremental period of time. Press SLEEP repeatedly to change the amount of time (increases the time by 30 minutes up to 120 minutes) until shut off. Sleep 120min. Press SLEEP P once to call up the display for checking the remaining time.

• To cancel sleep timer, press SLEEP repeatedly until [Sleep Off] is displayed. Switching Each Input Mode can easily switch with the remote control between TV (ATSC or NTSC) and external devices when they are connected to the unit. Press SOURCE or CH + repeatedly to cycle through the input modes. Source e.g.)

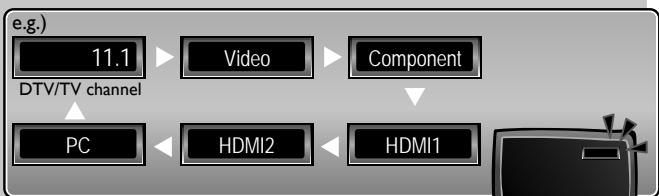

• Pressing CH − reverses the direction of the input modes. Freeze Mode can freeze the image shown on the TV screen for 5 minutes. Press FREEZE to freeze the image. Freeze

• The sound output will not be paused.
• To cancel freeze mode, press any buttons except . Channel Selection Select channels by using CH +/− or the Number buttons.
• To select the memorized channels, use CH +/− or the Number buttons.
• To select the non-memorized channels, use the Number buttons.

- When selecting digital channel 11.1 Be sure to press before entering the subchannel number. NTSC - When selecting cable or analog channel 11 Press PREV CH to return to the previously viewed channel. Note

• [No Signal] will appear on the TV screen after the subchannel broadcast is over.
• [Audio only program] message will appear on the TV screen, when you receive only sound signal.

5 types of display modes can be selected when the broadcasting station is sending 16:9 or 4:3 video signal. And 3 types of display modes can be selected for PC input signal. Press FORMAT repeatedly to switch the TV aspect ratio. For 16:9 video signal Normal displays a 16:9 picture at its original size. 4:3 displays a 16:9 picture at a 4:3 size; the picture Normal 4:3 Movie Expand Movie Expand displays a 16:9 picture that is vertically stretched to fill the screen. This only crops out the top of the picture. Zoom displays a 16:9 picture at its maximum size PREPARATION is shortened horizontally. Sidebars appear on both edges of the screen. without changing its horizontal and vertical ratio. Wide displays a horizontally stretched picture. This crops out the left and right sides of the picture. Zoom Normal displays a 4:3 picture at its original size. For 4:3 video signal Sidebars appear on both edges of the screen. 16:9 displays a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the screen. the picture is stretched more vertically at the top of the screen. This crops out the top of the picture. Zoom displays a 4:3 picture at a 16:9 size; at its maximum size that is more vertically stretched to fill the screen. This crops out the top and bottom of the picture. Wide Zoom Wide displays the picture with its center at the For PC input signal Full displays a picture that is stretched out of proportion horizontally to fill the screen. Normal Full Dot By Dot displays a picture in its original size. Dot By Dot TROUBLESHOOTING original size and the edges stretched horizontally to fill the screen. Normal displays a proportionately stretched picture. Sidebars appear on both edges of the screen. OPTIONAL SETTING Normal WATCHING TV Wide INFORMATION Sound Functions describe how to change the audio or the audio language as well as the volume. Volume Adjustment Use VOL +/− to adjust the volume. Silence Mode Volume

seconds when adjusting the volume. will be displayed for a few Press MUTE to turn off the sound temporarily. hi! will be displayed for a few seconds.

• Press MUTE again or VOL +/− to recover the original volume. Mute salut! hola

Switching Audio Mode ATSC NTSC Press SAP P repeatedly to cycle through the available audio languages.

• Available languages differ depending on the broadcast.
• [Other] is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French.

English 1/3 Press SAP P to display the currently selected audio mode. While receiving an MTS broadcast, press repeatedly to cycle through the available audio channel.

SAP / STEREO e.g.) When all audio are available SAP / STEREO SAP / MONO SAP / STEREO Reducing the Brightness You can display the currently selected channel or other information such as the audio mode on the TV screen. In the digital mode, the detailed broadcasting information for the current channel such as program title, program guides are displayed. Backlight brightness can be reduced which may save on power consumption more than you just set [On] in [Energy Saving Mode]. ➠ p.31 Press INFO. Press ECO once to reduce the brightness. Press ECO again to increase the brightness. Note

• Even if this function is in effect, the brightness will be increased when you ATSC

KABC A Day of Memories A quarter-century ago,which may now qualify as the good old days of newspapering,run-of-paper sales accounted for 80 percent of the industry's advertising revenues.Department stores and supermarket were

English 1/2 1080i 1080i

NTSC 1 program title 2 program guide (The program guide added to broadcasting information is displayed to a maximum of 4 lines.) 3 broadcast station 4 channel number 5 audio language (ATSC) / audio mode (NTSC) [Switching Audio Mode] ➠ p.17 6 effective scanning lines and scan mode 7 TV format 8 program aspect ratio 9 CC (not available if closed caption is set to [Off]) 10 child lock rating change [Energy Saving Mode] on or off due to the energy saving mode has priority. You must set [Home] in [Location]. ➠ p.31 Otherwise, the settings you adjusted will not be memorized after you turn off the unit. Fun-Link Options If you have our brand products such as BD player or DVD recorder that are compatible with Fun-Link functions, connect them to this unit via an HDMI cable so you can simply operate various items from this unit's remote control. Before you begin: You must set [On] in [Device Control] and [Fun-Link Control]. ➠ p.30 Otherwise, FUN-LINK OPTIONS does not work even if you connected our brand devices to this unit. To enjoy Fun-Link, verified and recommended devices are as follows; MAGNAVOX SYLVANIA NB530MGX NB530SLX NB500MG1F NB500SL1 MBP1100 / F7

Device-menu Device-contents

• To clear the display, press INFO again. You can also press BACK . Device-favorite Note
• When the program guide consists of more than 4 lines, use ▲/▼ to scroll.
• [No description provided.] is displayed when the program guide is not Device-menu

• While the program guide is displayed, the closed caption function is Device-contents

Device-favorite provided. interrupted. In external input mode, the following screen is displayed; e.g.) When an external device is connected to Video Input jack. Video 480i 480i

• The information display will automatically disappear in 1 minute. to display

This function allows you to control the menu of your connected Fun-Link device. This function allows you to control the top menu of your DVD or Blu-ray discs. This function allows you to control the pop-up menu of your Blu-ray discs. Use ▲/▼/◄/► / OK on this unit's remote control to operate the desired functions for your devices. Note

• Some of Fun-Link functions may not be available depending on your Fun-Link devices or discs.

• We do not guarantee 100% interoperability with other brands of HDMI link compliant devices.

Before you begin: Make sure the unit is connected to antenna or cable.

Select your signal source. Language Antenna Cable

• When connected to VHF / UHF antenna, select [Antenna].
• When connected to CATV, select [Cable].
• [Autoprogram] will begin. Please wait while the system is scanning for channels. Auto programming may take more than 20 minutes to complete. Digital channels 10 ch Analog channels 6 ch MENU INFORMATION 75% [PC Settings] ➠ p. 29
• You can adjust the position, stability and clarity of the PC screen. [Fun-Link] ➠ p.30
• You can set Fun-Link options. [Energy Saving Mode] ➠ p.31 [Location] ➠ p.31
• Switch setting from [Retail] to [Home] to allow the desired [Picture] and [Sound] mode to be kept in memory. [Current Software Info] ➠ p.31 Language [Language Selection] ➠ p.21
• Change the Main Menu language. Setup Back Antenna

OPTIONAL SETTING TROUBLESHOOTING

[Picture Adjustment] ➠ p.22 [Sound Adjustment] ➠ p.23 [Autoprogram] ➠ p.19

• You can automatically scan the viewable channels. [Channel List] ➠ p.20
• The Channels that were autoprogrammed are in this Channel list, use CH +/− to access them. [Add Channels] ➠ p.20
• You can add TV channels that were not found by the autoprogram scan. Features [Closed Caption] ➠ p.24
• You can change the display closed caption format which displays the dialogue of a TV program or other text information across the TV screen. [Child Lock] ➠ p.27
• You can set viewing limitations. Autoprogram will rescan all channels. Auto programming may take more than 20 minutes to complete. Sound WATCHING TV Features If you switch wires (e.g. between antenna and CATV) or if you move the unit to a different area after the initial setting, or if you restore the DTV channels you deleted, it is recommended to use Autoprogram to perform a new channel search. PREPARATION This section describes the overview of the main menu displayed when you press MENU. The main menu consists of the function setting items below. Autoprogram INTRODUCTION OPTIONAL SETTING Exit

• When the scanning and memorizing are completed, the lowest memorized channel will be displayed. Note
• After setting [Autoprogram], using CH +/− on the remote control skips unavailable programs automatically.

• If you are not receiving a signal from your cable service, contact the Cable provider.

• If you press or MENU during autoprogram, the setting will be canceled.
• Even if [Autoprogram] is completed, the channel setting will be lost if the AC power cord is unplugged before turning off the unit by pressing

• The PIN code will be required once you set a PIN code in the [Child Lock]. ➠ p.27

• If you want to change your PIN code, follow the instruction of [Change PIN]. ➠ p. 28

The channels selected here can be skipped when selecting the channels using CH + / – . Those channels can still be selected with the Number buttons. This function lets you add the channels that were not added by the autoprogram due to reception conditions at the initial setting.

Press MENU to display the main menu. Use ▲/▼ to select [Setup], then press OK. Use ▲/▼ to select [Channel List], then press OK. Use ▲/▼ to select the channel you want to remove, then press OK. Press MENU to display the main menu. Use ▲/▼ to select [Setup], then press OK. Use ▲/▼ to select [Add Channels], then press OK. Use the Number buttons to enter the number of the channel you want to add, then press OK.

Picture DTV Sound DTV

Highlight channels for Ch Up / Down key selection. Sound Setup Features Ch Select

Watch/Skip BACK Language Press MENU to exit. Note For analog channels, select a channel to be added using number keys. For digital channels, you must perform Autoprogram function. Back

• The channel display for the removed channel darkens. You will not be able to select the channel again using CH + / – .
• To reactivate a removed channel, use ▲/▼ and press OK. The registered channels are highlighted.
• When you remove a main channel, its subchannels are removed as well.

Add channels Picture Language Ch Change

BACK Back Press MENU to exit. Note

• If setup completes successfully, [Added to the channel list] is displayed.
• If external input is used, it is not possible to register the channel and [Unavailable] will be displayed on the TV screen.

• By using CH + / – , you can select the memorized channels only.

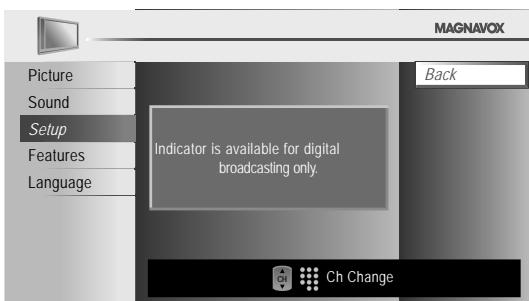

• The channel with the [DTV] indicated on the display is ATSC. Otherwise the channel is NTSC.

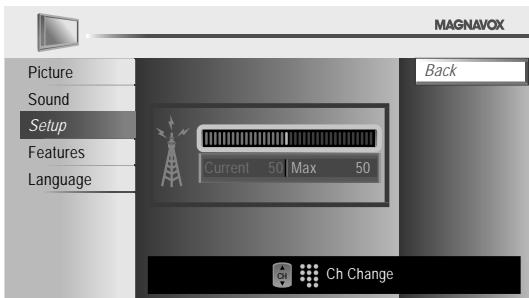

This function lets you check the digital signal strength of each channel.

Use the Number buttons or CH + / – to select the channel for which you want to check the digital signal strength. Picture Setup Features Language Press MENU to exit. Note

• If you need the English menus instead of the Spanish or French menus, press Ch Change

• If the channel is set to analog (cable) channel or external input, you cannot confirm the antenna condition. Video Sound Setup Features Language Indicator is available for digital broadcasting only.

INFORMATION Back Picture

OPTIONAL SETTING TROUBLESHOOTING

Sound Features PREPARATION

You can choose English, Spanish, or French as your on-screen language. INTRODUCTION Antenna Confirmation Ch Change Press MENU to exit.

Brightness, Contrast, Color, Tint, Sharpness, Color Temperature You can adjust picture mode, or customize the picture quality as your preference. You can only adjust the following options when you set to [Personal] in [Smart Picture]. Use ▲/▼ to select the desired setting, then use ◄/► to adjust. Before you begin: You must set [Home] in [Location]. ➠ p.31 Otherwise, the settings you adjusted will not be memorized after you turn off the unit.

to decrease brightness Press ► to increase brightness

Press ◄ to decrease contrast Press ► to increase contrast Press ◄ to decrease color intensity Press ► to increase color intensity

to add red Press ► to add green Press ◄ to soften Press ► to sharpen

to add warm colors Press ► to add cool colors

Contrast Contrast Use ▲/▼ to select [Picture], then press OK.

Adjust Use ▲/▼ to select the item you want to adjust, then press OK. Move

Tint Picture Smart Picture Sound Brightness

Color Temperature Personal Tint Normal

Adjust Sharpness Sharpness

Adjust Color Temperature Color Temp. Normal

Adjust Adjust the following items. Smart Picture Use ▲/▼ to select the desired setting, then press OK. ([Personal], [Standard], [Sports], [Movie], and [Game]) Picture Smart Picture Personal Sound Brightness Standard Setup Contrast Sports Features Color Movie Language Tint Game

Press MENU to exit. Sharpness Color Temperature

English TV Speakers Before you begin: You must set [Home] in [Location]. ➠ p.31 Otherwise, the settings you adjusted will not be memorized after you turn off the unit. Press MENU to display the main menu. Picture Use ▲/▼ to select [Sound], then press OK. Sound Use ▲/▼ to select the item you want to adjust, then press OK. Features Setup Smart Sound Sound Equalizer Setup TV Speakers Ext. Amp Features Primary MTS Stereo Ext. Amp The sound will be output from the unit’s speakers. The sound will not be output from the unit’s speakers. You can control audio output from your connected HDMI link devices by using this unit's remote control. Adjust the following items.

• We do not guarantee 100% interoperability with other brands of HDMI link compliant devices. Smart Sound Use ▲/▼ to select the desired setting, then press OK. ([Personal], [Standard], [Movie], [Music], and [News]) Smart Sound Sound Equalizer Standard Setup TV Speakers Movie Features Primary MTS Music Primary MTS You can set the output mode as a default for the sound mode (NTSC only). This setting is not interlocked when you change the output mode by pressing SAP. [Sound Functions] ➠ p.17 Use ▲/▼ to select the desired option, then press OK. Personal News Language Equalizer Picture Smart Sound Sound Equalizer Setup TV Speakers Features Primary MTS Adjust tonal quality for each frequencies. Use ◄/► to select the specific frequency and use ▲/▼ to adjust the level, then press OK. SAP Picture

Features Language 120Hz 500Hz 1.5kHz 5kHz Stereo Mono Language

INFORMATION Picture Sound Off Standard Language

OPTIONAL SETTING TROUBLESHOOTING

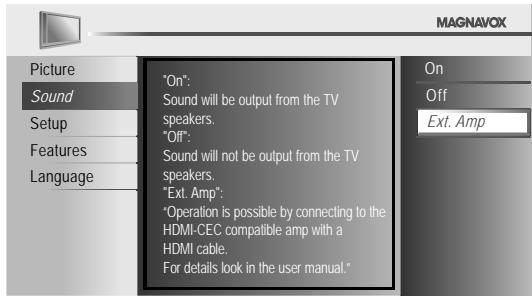

Picture Language "On": Sound will be output from the TV speakers. "Off": Sound will not be output from the TV speakers. "Ext. Amp": “Operation is possible by connecting to the HDMI-CEC compatible amp with a HDMI cable. For details look in the user manual.” WATCHING TV

Use ▲/▼ to select the desired option, then press OK. PREPARATION Select the audio output from the unit’s speakers, or not. If your amplifier is HDMI link function compatible and connected by an HDMI cable to this unit, some sound operations such as volume up can be changed by using this unit’s remote control. Make sure [Fun-Link Control] is set to [On]. ➠ p.30 You can adjust the sound mode, equalizer and some other sound functions. INTRODUCTION Sound Adjustment Stereo Outputs second audio program. Press MENU to exit. 10kHz

A. Caption Service You can view closed captioning (CC) for TV programs, movies and news. Closed caption refers to text of dialogue or descriptions displayed on-screen.

Use ▲/▼ to select [Caption Service], then press OK. Use ▲/▼ to select the desired closed caption, then press OK. Press MENU to display the main menu. Use ▲/▼ to select [Features], then press OK. Use ▲/▼ to select [Closed Caption], then press OK. Picture Caption Service Off Sound See the following description for setting each item. CC-4 Language T-1 Picture Caption Service Off Sound CC-2, CC-4, T-2 and T-4 The primary caption and text services. The captioning or text is displayed in the same language as the program’s dialogue (up to 4 lines of script on the TV screen, where it does not obstruct relevant parts of the picture). Serve as the preferred data channels. The captioning or text is often a secondary language. Rarely available and broadcasters use them only in special conditions, such as when [CC-1] and [CC-3] or [T-1] and [T-3] are not available.

• There are 3 display modes according to programs: Paint-on mode Pop-on mode Roll-up mode

Displays input characters on the TV screen immediately. Once characters are stored in memory, they are displayed all at once. Displays the characters continuously by scrolling (max. 4 lines). Press MENU to exit.

You can change the caption style such as font, color or size, etc.

Use ▲/▼ to select [Caption Style], then press OK.

Use ▲/▼ to select [User Setting], then press OK.

Use ▲/▼ to select the desired digital caption service, then press OK. Picture User Setting Off Sound Font Style Font0 Picture Caption Service Off Setup Font Size Middle Sound Select if you do not want digital caption service. CS-1 to CS-6 Select one of these before changing any other item in [Closed Caption] menu. Choose [CS-1] under normal circumstances. Press MENU to exit. Note

• [Digital Caption Service] that you can switch differs depending on the broadcast description.

Use ▲/▼ to select [On], then press OK. Use ▲/▼ to select an item, then press OK. Then use ▲/▼ to select the desired setting and press OK. Picture display

• The setting description for each item is shown on the next page.
• Review your setting choice made on the next page by looking in the upper right corner of the displayed setting box (not all selections show the differences selected). INFORMATION Font (Font Style, Font Size, Font Color and Font Opacity or Transparency) Background (Background Color and Background Opacity or Transparency)

OPTIONAL SETTING TROUBLESHOOTING

Features WATCHING TV

In addition to the basic closed caption, DTV has its own closed caption called digital caption service. Use this menu to change the settings for digital caption service. INTRODUCTION B. Digital Caption Service

Closed Captioning font style can be changed as illustrated. Closed Caption Background opacity of the displayed caption can be switched as illustrated. Font Size Font size of the displayed caption can be switched as illustrated. Edge Color Closed Caption Edge color of the displayed caption can be switched as illustrated. Large Closed Caption White Black Middle Red Small Green Blue Yellow Magenta Cyan Font Color Font color of the displayed caption can be switched as illustrated. Font Opacity Black Red None Green Raised Blue Depressed Yellow Uniform Magenta L. Shadow Cyan R.Shadow Closed Caption

Press MENU to exit. Note

• Closed caption will not be displayed when you are using an HDMI Solid Flash Translucent Transparent Background color of the displayed caption can be switched as illustrated. Closed Caption Edge type of the displayed caption can be switched as illustrated. White Font opacity of the displayed caption can be switched as illustrated. Background Color Edge Type Closed Caption Closed Caption connection.

• To show the closed caption on your TV screen, broadcast signal must contain the closed caption data.

• Not all TV programs and commercials have the closed caption or all types of the closed caption.

• Captions and texts may not exactly match the TV voice.
• Changing channels may delay the closed caption for a few seconds.
• Adjusting or muting the volume may delay the closed caption for a few seconds.

• Abbreviations, symbols and other grammatical shortcuts may be used in White Black Red order to keep pace with the on-screen action. This is not a malfunction.

• The caption or text characters will not be displayed while the main menu or functions display is shown.

• If a black box appears on the TV screen, this means that the closed caption Green Blue Yellow

is set to the text mode. To clear the box, select [CC-1], [CC-2], [CC-3], [CC-4] or [Off]. If the unit receives poor quality television signals, the captions may contain errors, or there might be no captions at all. Some possible causes of poor quality signals are: - Automobile ignition noise - Electric motor noise - Weak signal reception - Multiplex signal reception (ghosts or screen flutter) - Data dropout and Pixelation (for DTV only) The unit retains the closed caption setting if the power fails. When the unit receives special effects playback signal (e.g. Search, Slow and Still) from a VCR’s video output channel (ch3 or ch4), the unit may not display the correct caption or text.

A. Channel Lock Child lock reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programs inappropriate for children and any channels or external input modes can be invisible. Press MENU to display the main menu.

Use ▲/▼ to select [Features], then press OK. Use ▲/▼ to select [Channel Lock] k , then press OK. Use ▲/▼ to select the desired rating, then press OK repeatedly to switch between [View] and [Block]

Sound Closed Caption Features Sound Child Lock Language Setup PC settings Features Fun-Link Language Energy Saving Mode

Location Home US Movie Ratings Lock Setup US TV Ratings Lock Features Canadian English Rating Language Canadian French Rating US Movie ratings lock is the rating system created by MPAA.

Use ▲/▼ to select [US Movie Ratings Lock], then press OK. Use ▲/▼ to select the desired rating, then press OK repeatedly to switch between [View] and [Block]

Features PG-13 Language

• When you select a rating and set it to [Block], the higher ratings will be

INFORMATION Picture Change PIN

Back Press MENU to exit. Region Ratings Lock

BACK B. Setting US Movie ratings

• When you have not set up your PIN code, enter 0, 0, 0, 0.
• When the PIN code is correct, [Child Lock] menu is displayed. See the following description for setting each item.

View / Block Use the Number buttons to enter the 4-digit numbers for your PIN code. Features

OPTIONAL SETTING TROUBLESHOOTING

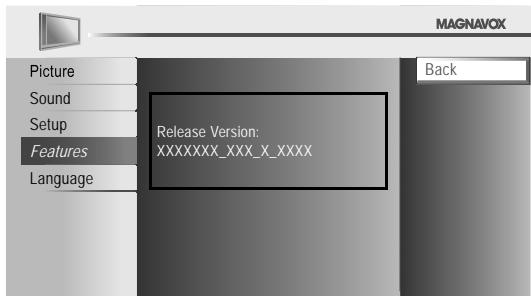

Current Software Info

WATCHING TV Component Setup Picture PREPARATION

Particular channels or external input modes can be invisible in this function. INTRODUCTION Child Lock Select blocked automatically. The lower ratings will be available for viewing. When you set the highest rating to [View], all ratings turn to [View] automatically. To block any inappropriate programs, set your limits in [US Movie Ratings Lock], [US TV Ratings Lock] and [Region Ratings Lock]. The child lock setting will be retained after a power failure (except the PIN code reverts to 0000). If the rating is blocked, will appear. [Region Ratings Lock] will be available when the unit receives a digital broadcast using the new rating system. For the United States, the unit may download the Region Ratings Lock Table, if required. The Canadian rating systems on this unit are based on CEA-766-A and CRTC policy. Rating

View / Block BACK Back Category

Mature audience only NC-17 No one under 17 admitted

Restricted; under 17 requires accompanying parent or adult guardian PG-13 Unsuitable for children under 13

Parental guidance suggested

No rating Press MENU to exit.

C. Setting TV ratings

D. Change PIN Use ▲/▼ to select [US TV Ratings Lock] k , then press OK. Use ▲/▼ / ◄/► to select the desired rating, then press K repeatedly to switch between [View] and [Block]

Sound TV-MA Setup TV-14 Features TV-PG Language TV-G

Although the default PIN code (0000) is supplied with the unit, you can set your own PIN code.

Use ▲/▼ to select [Change PIN], then press OK. Press the Number buttons to enter the new 4-digit PIN code.

• Enter PIN code again in [Confirm PIN.] entry field. Picture TV-Y7 Sound TV-Y Select Rating

BACK View / Block Setup Back Features Language Category TV-MA Mature audience only TV-14 Unsuitable for children under 14 TV-PG Parental guidance suggested TV-G General audience

TV-Y7 Appropriate for all children 7 and older Note TV-Y Appropriate for all children Enter PIN.

Confirm PIN. higher PIN Code lower BACK Back Press MENU to exit.

• Make sure new PIN code and confirm PIN code must be exactly the same. If they are different, the space is cleared for reentering.

• Your PIN code will be erased and return to the default (0000) when a Press MENU to exit. To set the sub ratings As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further set the sub ratings to block specific elements of programming. To set the sub ratings, follow the step below. power failure occurs. If you forget the PIN code, unplug the AC power cord while turning the unit on, wait for 10 seconds to plug the AC power cord again. The unit will restore the PIN code to 0000 as the factory default. Use ▲/▼ / ◄/► to select the desired rating, then press OK repeatedly to switch between [View] and [Block]. Picture

Sound TV-MA Setup TV-14 Features TV-PG Language TV-G

TV-Y7 TV-Y Select Sub Rating

Category View / Block BACK Back Rating

Fantasy Violence TV-Y7

Coarse Language TV-MA TV-14 TV-PG

Suggestive Dialogue TV-14, TV-PG Note

• Blocked sub rating will appear beside the main rating category in [US TV Ratings Lock] menu.

• You cannot block a sub rating (D, L, S or V) if the main rating is set to [View].

• Changing the category to [Block] or [View] automatically changes all its sub ratings to the same ([Block] or [View]).

English Clock, Phase Use ◄/► to adjust [Clock] setting to stabilize the PC screen and [Phase] setting to improve the clarity of the PC screen. This function lets you adjust the PC screen position, clock and phase during PC input. Press MENU to display the main menu. Cursor s Use ▲/▼ to select [Features], then press OK. Use ▲/▼ to select [PC Settings], then press OK. Clock Use ▲/▼ to select the setting you want to adjust, then press OK.

Adjust Horizontal Position

Features Vertical Position

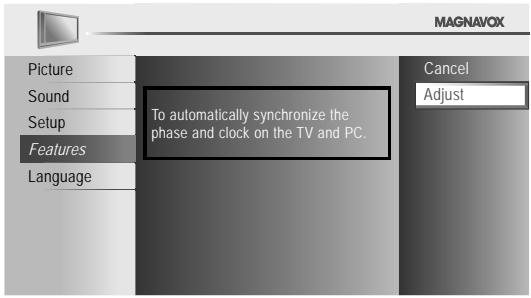

Adjust the setting. Auto Adjustment Use ▲/▼ to select [Adjust], then press OK. Picture Cancel Sound Adjust To automatically synchronize the phase and clock on the TV and PC. Setup Features Language

to increase setting value Press MENU to exit. Note

• You may not obtain an appropriate screen with [Auto Adjustment] for some signals. In this case, adjust the settings manually.

• Adjust [Phase] setting after [Clock] setting has been properly adjusted. INFORMATION

• The horizontal/vertical position, clock and phase of the PC screen are automatically adjusted. Move to decrease setting value

OPTIONAL SETTING TROUBLESHOOTING

Adjust Sound Move Phase Phase Picture Cursor B Clock PREPARATION

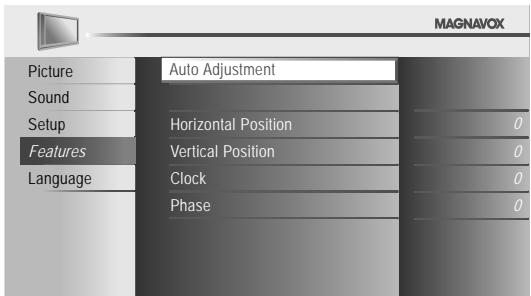

INTRODUCTION PC Settings Horizontal Position,Vertical Position Use ◄/► to adjust. Cursorr ◄ Horizontal Position H. Position

to move PC screen left to move PC screen right

to move PC screen down to move PC screen up Vertical Position

V. Position

Adjust 0 Move Cursorr ►

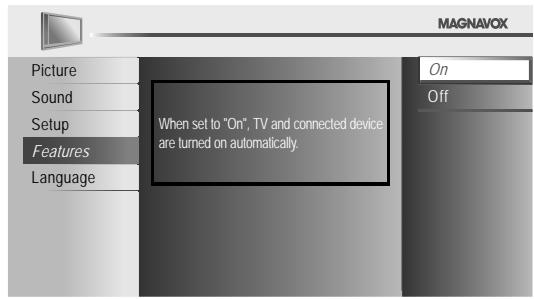

Auto TV On This unit will turn on detected when the power on signal is sent from your connected Fun-Link device. Use ▲/▼ to select the desired setting, then press OK. This function allows you to operate the linked functions between our brand devices with a Fun-Link feature and this unit connecting through an HDMI cable.

Use ▲/▼ to select [Features], then press OK. Sound Off Use ▲/▼ to select [Fun-Link], then press OK. Features Picture Fun-Link Control

Sound Auto Device Off

Features Device Control

Language Device List Setup When set to "On", TV and connected device are turned on automatically. Language

Off This unit turns on automatically when you turn on your connected Fun-Link device. This unit stays off even if you turn on your connected Fun-Link device. Device Control

You can operate some functions such as disc playback or call up the menu of the connected devices, by using this unit’s remote control. Use ▲/▼ to select the desired setting, then press OK. Use ▲/▼ to select the desired setting, then press OK. Adjust the following items. Fun-Link Control Set the Fun-Link [On] or [Off]. The following additional settings will be in gray when you set to [Off]. Use ▲/▼ to select the desired setting, then press OK. Picture

Sound Off Setup When set to "On", the connected device is controlled using the remote control. Features Language Picture

Sound Off Setup When set to "On", Fun-Link functions are enabled. Features Language

Off Off Selects if you have connected an external device that is compatible with the Fun-Link function. Disables all Fun-Link. Device List This function lets you see the product model number or name of connected devices. Auto Device Off You can set your device to turn off by interlocking from this unit’s power. Use ▲/▼ to select the desired setting, then press OK. Use ▲/▼ to select the desired HDMI device listed on the TV screen, then press OK. Picture

Picture Sound When set to "On" and TV is turned off, connected devices are turned off automatically. Setup Features PLAY B/ STOP C/ FWD D/ REV E / SKIP G /

SKIP H/ PAUSE F/ FUN-LINK OPTIONS

▲/▼/◄/► / OK / BACK / the Number buttons / RED/ GREEN/ BLUE/ YELLOW can be used to control your connected Fun-Link devices by this unit's remote control. Disables the device control. Sound Off Setup HDMI1 NB530MGX HDMI2 MBP1100 / F7 Features Language Language Select

Off Your connected Fun-Link device turns off automatically when you turn off the unit. Your connected Fun-Link device stays on even if you turn off the unit.

Input Change BACK Back Press MENU to exit.

Current Software Info You can set whether the power consumption is saved or not. This function shows what version of the software currently used. Press MENU to display the main menu. Use ▲/▼ to select [Features], then press OK. Use ▲/▼ to select [Energy Saving Mode], then press OK. Use ▲/▼ to select the desired mode, then press OK.

Sound Off Setup Features Use ▲/▼ to select [Features], then press OK. Use ▲/▼ to select [Current Software Info], then press OK. Confirm the version of the software currently used. Back When set to “On”, power consumption is reduced by decreasing backlight brightness. Sound Language Setup Features Reduces the power consumption. The power consumption may possibly exceed the limited requirement of the ENERGY STAR R® qualification. Press MENU to exit. Location

Press MENU to exit. INFORMATION When you select [Retail] store, the power consumption may possibly exceed the limited requirement of the ENERGY STAR R® qualification.

OPTIONAL SETTING TROUBLESHOOTING

WATCHING TV Picture Energy Saving Mode Use ▲/▼ to select [Features], then press OK. Use ▲/▼ to select [Location], then press OK. Use ▲/▼ to select the desired location, then press OK. Retail Home Sound Setup Features Language

Location Home is recommended for normal home use. In the Retail Store mode, all settings are fixed. Press MENU to exit.

TROUBLESHOOTING Troubleshooting Guide If the unit does not perform properly when operated as instructed in this manual, check the followingg chart and all connections once before callingg for service. Symptom No power Control button does not work. Power is ON but no screen image. Remedy

Make sure the AC power cord is plugged in. Make sure that the AC outlet supplies the proper voltage, plug another electrical appliance into the AC outlet to ensure that AC outlet operates normally. If a power failure occurs, unplug the AC power cord for 1 minute to allow the unit to reset itself. Press only one button at a time. Do NOT press more than one button at the same time. Ensure that no buttons on the remote are depressed and move freely. Check whether the connection of the antenna, cable receiver or satellite box is connected correctly. Check whether all the cables to the unit are connected to the correct output jack of your device like BD / DVD recorder. Make sure that the selected input mode is connected to the working input jack. Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode. Tap any key on the keyboard to wake up your computer. Check if the power is on. Check if the right input mode is selected. Check whether all the cables to the unit are connected to the correct output jack of your device like BD / DVD recorder. View other TV channels. The problem might be limited to the broadcasting station or weak signal strength. Turn off the unit and wait for about 1 minute, then turn on the unit again. Check whether the connection of the antenna, cable receiver or satellite box is connected correctly. Make sure that the selected input mode is connected to the working input jack. Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode. Tap any key on the keyboard to wake up your computer. Make sure that the sound is not muted. Press MUTE so that the volume bar and current volume level will appear on the TV screen. Make sure that the volume is NOT set to [0] or [Mute]. If so, use VOL +/–– to adjust the desired volume. View other TV channels. The problem might be limited to the broadcasting station. Adjust [Color] in the main menu. No color

Adjusted [Picture] or [Sound] settings are not effective every time the unit is turned on.

You must set [Home] in [Location]. ➠ p.31 Otherwise, the settings you adjusted will not be memorized after you turn off the unit.

Electrical interference from nearby appliances may affect picture quality. Adjust [Contrast] and [Brightness] in the main menu. View other TV channels. The problem might be limited to the broadcasting station or weak signal strength. For the best picture quality, watch "High Definition" wide screen programs. If the HD content is not available, watch "Standard Definition" programs instead. View other TV channels. The problem might be limited to the broadcasting station or weak signal strength. Check if the audio cable is connected in correctly. You may be getting interference from electrical appliances, automobiles, motorcycles or fluorescent lights. Try moving the unit to another location to see if this is the cause of the problem.

Electrical interference from nearby appliances may affect picture quality. View other TV channels. The problem might be limited to the broadcasting station. Sound OK, picture poor

Picture OK, sound poor You see a distorted picture or hear an unusual sound. Ghosts, lines or streaks in picture

View other TV channels. The problem might be limited to the broadcasting station, missing data or pixelation.

This unit will memorize the volume level from the last time you adjusted it. If the volume of the sound from another device is higher or lower, then the loudness will change.

This unit will memorize the viewing mode from the last time you used the particular input modes.

The display image does not cover the entire screen.

If you are using the unit as a PC monitor, make sure that [Horizontal Position] and [Vertical Position] in [PC Settings] are set correctly. If you are watching TV or using the Composite Video, S-Video, Component Video or T repeatedly to switch various screen modes. HDMI with 480i Input, press FORMAT Different color marks on the TV screen You switch to a different input and the volume changes. You switch to a different input and the screen size changes. Interference from buildings or weather conditions may cause captioning to be incomplete. Broadcasting station may shorten the program to insert advertisement. The closed caption decoder cannot read the information of the shortened program. Black box is displayed on the TV screen. The text mode is selected for caption. Select [CC-1], [CC-2], [CC-3], [CC-4] or [Off].

Note TROUBLESHOOTING Captions are displayed as a white box. No caption is displayed in the Closed Caption-supported program. OPTIONAL SETTING When the capabilities of the unit exceed the capabilities of the digital broadcasting, the signal will be increased to match the capabilities of the display of the unit. This may cause noise or trash. WATCHING TV

You see "noise" or "trash" on the screen. PREPARATION Symptom

• The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a fixed point of blue, green or red. INFORMATION This is not to be considered a defect in the LCD screen.

• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this manual for more details on correct operations.

My remote control does not work. What should I do?

How come the Initial setup appears every time I turn on this unit? Why I cannot watch some RF signal TV programs.

Connect the RF coaxial cable to the unit directly and run the initial setup. Make sure to complete the channel scan before turning off the unit.

Make sure [Autoprogram] has been completed. ➠ p.19 Autoprogram must be completed when you set up the unit for the first time or move it to a location where previously unavailable channels are broadcast. The selected channel may not be broadcasting. When [Autoprogram] is interrupted and not completed, some channels will not be received. Make sure to complete. ➠ p.19 The selected channel cannot be viewed by the [Child Lock] setting. ➠ p.27 The unit requires some kind of antenna input. An indoor antenna (VHF /UHF), an external antenna (VHF /UHF) or an RF coaxial cable from your wall cable/satellite box needs to be plugged into the unit.

How come there is no image from the connected external devices? Check the antenna or cable connection to the main unit. Check the batteries of the remote control. Check if there is an obstacle between the infrared sensor window and the remote control. Test the signal output. If OK, then possible infrared sensor trouble. [IR Signal Check] ➠ p.35 Aim the remote control directly at the infrared sensor window on the front of the unit. Reduce the distance to the unit. Re-insert the batteries with their polarities (+/– signs) as indicated. When there is an infrared-equipped device such as PC near this unit, it may interrupt the remote control signal of this unit. Move the infrared-equipped device away from this unit, change the angle of the infrared sensor or turn off the infrared communication function.

Check if the right input mode is selected by pressing SOURCE or using CH +/– . [Switching Each Input Mode] ➠ p.16 Check the antenna or cable connection to the unit. When using the Component Video Connection check that the Green (Y), Blue (Pb/Cb) and Red (Pr/Cr) connectors are connected to their corresponding colored jacks on the unit.

Many digital channels have alternate channel numbers. The unit changes the numbers automatically to the ones signifying the broadcasting station channel number. These basic numbers used for previous analog broadcasts. (e.g., input ch#30 auto change to ch#6.1) Why are captions not displayed entirely? Or, captions are delayed behind the dialogue.

Captions that are delayed a few seconds behind the actual dialogue are common for live broadcasts. Most captioning production companies can display a dialogue to maximum of 220 words per minute. If a dialogue exceeds that rate, selective editing is used to insure that the captions remain up-to date with the current TV screen dialogue. How can I set the clock ?

There is no clock function on this unit. Whenever I entered channel number, it changes automatically.

Aspect Ratio The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as its height). This is a video signal format that conveys each of 3 principal colors of light (red, blue and green) through different signal lines. This allows the viewers to experience picture colors as original as it is. There are several signal formats, including Y / Pb / Pr and Y / Cb / Cr. Dolby Digital HDMI (High-Definition Multimedia Interface) Interface that supports all uncompressed, digital audio / video formats including set-top box, BD / DVD recorder or digital television, over a single cable. HDTV (High Definition TV) NTSC Acronym that stands for National Television Systems Committee and the name of analog broadcasting standards. Off the air NTSC signals are no longer being sent by major broadcasting stations in the USA. PIN code SAP (Secondary Audio Program) Second-audio channel delivered separately from main-audio channel. This audio channel is used as an alternate in bilingual broadcasting. SDTV (Standard Definition TV) Standard digital format that is similar to the NTSC picture quality. S-Video Offers higher quality images by delivering each signal, color (c) and luminance (y) independently of each other through a single cable. Should your unit become inoperative, do not try to correct the problem yourself. There are no user serviceable parts inside. Turn off the unit, unplug the AC power cord and call our toll free customer support line found on the cover of this manual to locate an authorized service center. IR Signal Check If the remote control is not working properly, you can use a digital camera (including a cellular phone with built-in camera) to see if it is sending out an infrared signal. With a digital camera (including built-in cell phone cameras): Point the Digital Camera towards the remote control infrared diode at the front of the remote control. Press any button on the remote control and look through the camera display. If the infrared pulsating light appears through the camera, the remote control is sending out an IR signal. INFORMATION A stored 4-digit number that allows access to parental control features. Servicing TROUBLESHOOTING Ultimate digital format that produces high resolution and high picture quality. Panel Cleaning Wipe the panel of the unit with a soft cloth. Before cleaning the panel, disconnect the AC power cord. OPTIONAL SETTING The system developed by Dolby Laboratories to compress digital sound. It offers stereo sound (2ch) or multi-channel audio.

Wipe the front panel and other exterior surfaces of the unit with a soft cloth immersed in lukewarm water and wrung dry. Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces. WATCHING TV Component Video Cabinet Cleaning

PREPARATION Acronym that stands for Advanced Television Systems Committee and the name of the digital broadcasting standards.

TV format ATSC / NTSC-M TV standard Closed caption system §15.122 / FCC (digital CC) §15.119 / FCC (analog CC) Channel coverage (ATSC / NTSC) Terrestrial DTV (ATSC) VHF 2~13 UHF 14~51 each channel has e.g.) 2.1~2.9, 3.1~3.9, etc. Terrestrial Analog (NTSC) VHF 2~13 UHF 14~69 CATV 2~13, A~W, W+1~W+94 (analog W+1~W+84), A-5~A-1, 5A Tuning system Channel frequency synthesized tuning system Channel access Direct access keyboard, Programmable scan, and up / down 75 Ω unbalanced (F-type) 500mV rms 1V p-p (75 Ω) 1V p-p (75 Ω) 286 mV p-p (75 Ω) 1V p-p (75 Ω) Pb/Cb 700 mV p-p (75Ω) Pr/Crr 700 mV p-p (75Ω) HDMI 19 pin x 2 D-Sub 15 pin x 1(RGB) Mini jack ø3.5mm x 1(Audio) Coaxial Digital Audio Output RCA jack x 1 500 mV p-p (75 Ω) 1/8 inches x 1(3.5mm) Headphone: Remote control Electrical Specification Audio Output 3W, 8 Ω x 2 Digital encoded infrared light system For 22MF330B 22 inches (21.6 inches measured diagonally) Power consumption (maximum) 67 W For 19MF330B 19 inches (18.5 inches measured diagonally) Power consumption (maximum) 51 W Designs and specifications are subject to change without notice and without our legal obligation. If there is a discrepancy between languages, the default language will be English.

NINETY (90) DAY LABOR / ONE (1) YEAR PARTS

Replacement product can only be sent if all warranty requirements are met. Failure to follow all requirements can result in delay. to any hardware product or any software, even if packaged or sold with the product, as manufacturers, suppliers, or publishers may provide a separate warranty for their own products packaged with the bundled product. The company is not liable for any damage to or loss of any programs, data, or other information stored on any media contained within the product, or other additional product or part not covered by this warranty. Recovery or reinstallation of programs, data or other information is not covered under this Limited Warranty.

• A product used for commercial or institutional purposes (including but not limited to rental purposes). can be provided.
• Failure to operate per Owner’s Manual.

TO OBTAIN ASSISTANCE…

Contact the Customer Care Center at: 1-866-341-3738 REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER, WITH THE ISSUING COMPANY NOT LIABLE FOR

ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR

BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. INFORMATION WHAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS: This Limited Warranty applies only to new company manufac- it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or TROUBLESHOOTING Note: Any product sold and identified as refurbished or renewed carries a ninety (90) day limited warranty. tent for extended periods, product cosmetic appearance items due to normal wear and tear, unauthorized repair or other cause not within the control of the company.

• Damage or claims for products not being available for use, or for lost data or lost software.
• Damage from mishandled shipments or transit accidents when returning product. OPTIONAL SETTING WHAT IS COVERED: This warranty covers new products if a defect in material or workmanship occurs and a valid claim is received within the Warranty Period. At its option, the company will either (1) repair the product at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new, or serviceable used parts and is at least functionally equivalent or most comparable to the original product in current inventory, or (3) refund the original purchase price of the product. Replacement products or parts provided under this warranty are covered against defects in materials and workmanship from the date of the replacement or repair for ninety (90) days or for the remaining portion of the original product’s warranty, whichever provides longer coverage for you. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes company property. When a refund is given, your product becomes company property. This Limited Warranty does not cover:
• Shipping charges to return defective product.
• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna/signal source systems outside of the product.
• Product repair and/or part replacement because of improper installation or maintenance, connections to improper voltage supply, power line surge, lightning damage, retained images or WATCHING TV WHO IS COVERED: This product warranty is issued to the original purchaser or the person receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase (“Warranty Period”) from an Authorized Dealer. The original sales receipt showing the product name and the purchase date from an authorized retailer is considered such proof. mission, or (d) if any serial number has been removed or defaced, or (e) product, accessories or consumables sold “AS IS” without warranty of any kind by including refurbished product sold “AS IS” by some retailers. PREPARATION WARRANTY COVERAGE: This warranty obligation is limited to the terms as set forth below. Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty does not apply (a) to damage caused by accident, abuse, misuse, neglect, misapplication, or non-supplied product, (b) to damage caused by service performed by anyone other than company approved Authorized Service Location, (c) to a product FUNAI CORPORATION, Inc. 19900 Van Ness Avenue, Torrance, CA 90501 Printed in China

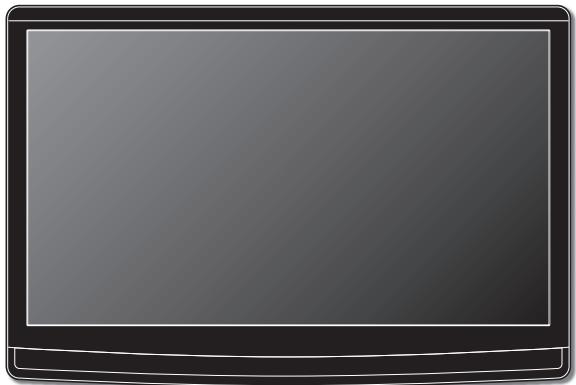

22MF330B 19MF330B LCD TV English Français 1-866-341-3738 MODEL NUMBER ➠ p.15 ➠ p.17 ➠ p.16 ➠ p.16 (energía)

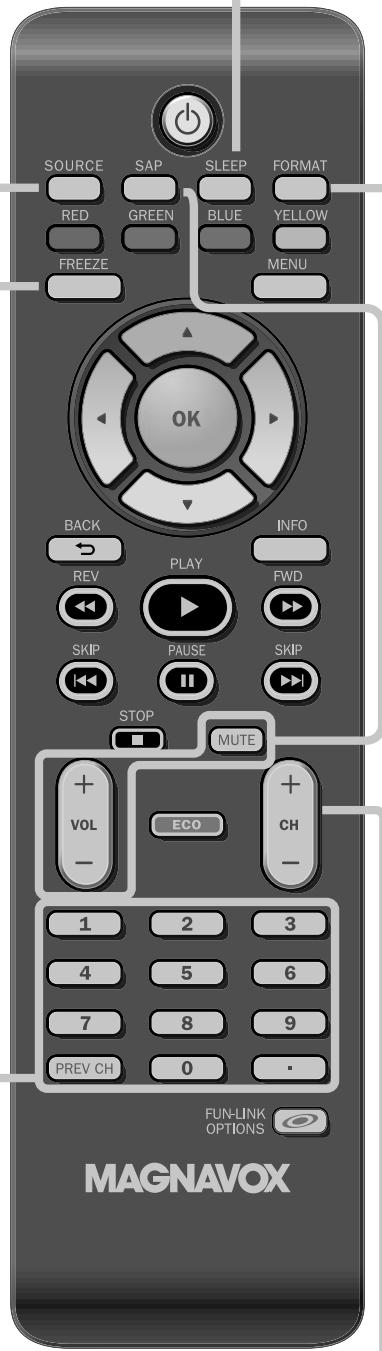

➠ p.15 ➠ p.15 ➠ p.18 ➠ p.17 8 VOL +/− ➠ p.16 ➠ p.17 10 SLEEP

9 PREV CH ➠ p.16 Press to return to previously viewed channel.

INTRODUCCIÓN cable coaxial RF cable coaxial RF STEREO PCM

COMPONENT VIDEO OUT

COMPONENT VIDEO OUT

Pb/Cb Pr/Cr DIGITAL AUDIO COAXIAL IN cable cab ble coaxial de audio digital VGA cable AJUSTE OPCIONAL Antena Cable Saltar Antena Cable ANT.IN

BACK Atrás Antena Cable

ANT.IN Select your menu language. S o, yo u must m u s t be b e Ph P h ilip. i l i p. H ii!! I’m pleased ple ased to meet yo u. HDMI (High-Definition Multimedia Interface)

1V p-p (75 Ω) Pb/Cb 700 mV p-p (75Ω) Pr/Cr 700 mV p-p (75Ω) FUNAI CORPORATION, Inc. 19900 Van Ness Avenue, Torrance, CA 90501 A0170UH / A01N0UH 1EMN26263 2010/02/05 23:18:20
