USER MANUAL VC3 PREMIUM KARCHER

Technical line drawing of a mechanical power tool with visible gears and housing (no text or symbols)

Deutsch	5
English	15
Français	25
Italiano	36
Nederlands	46
Español	56
Português	67
Dansk	78
Norsk	87
Svenska	96
Suomi	105
Ελληνικά	115
Türkçe	126
Русский	136
Magyar	148
Čeština	158
Slovenščina	168
Polski	178
Româneşte	189
Slovenčina	199
Hrvatski	209
Srpski	219
Български	229
Eesti	240
Latviešu	249
Lietuviškai	259
Українська	269
Қазақша	281

Technical diagram of a water purifier with numbered parts and component labels

A CLICK 1. 2.

B "CLICK" 1. 2. 3.

Technical line drawing of a mechanical assembly with a downward arrow indicating a component (no text or symbols present)

D 1. 2. 2.

E 1.

2. 3.

F 1. 2. 3. "CLICK" 4. 5. 5. 6. 7.

Technical line drawing of a mechanical assembly with a bolt and connector (no text or symbols)

1 2. 1.

J 1. 2.

Illustration of a person assembling a mechanical device with a downward arrow indicating assembly (no text or symbols present)

Mechanical component diagram showing a rotating shaft and gear assembly (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with a tool and arrow indicating a component (no text or symbols present)

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

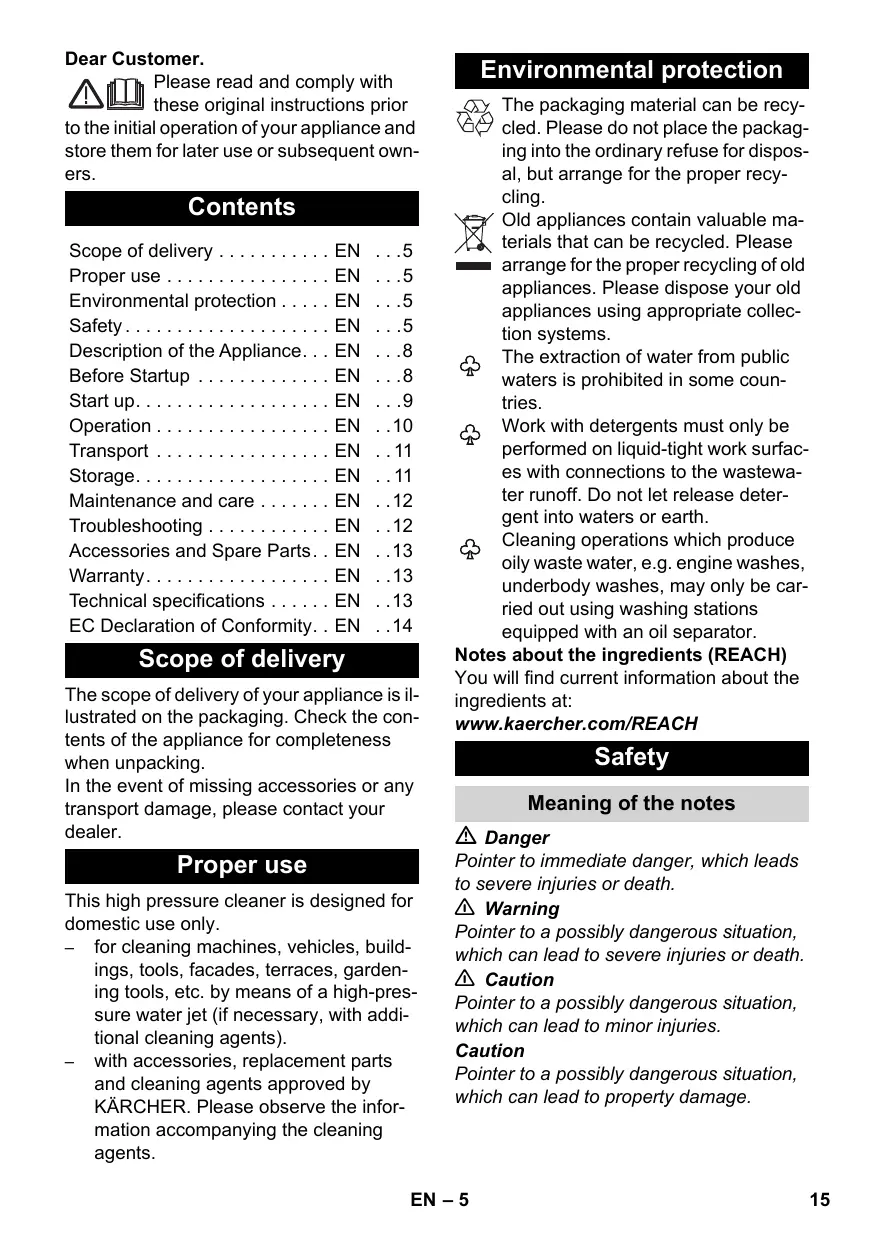

Dear Customer.

Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent owners.

Contents

Scope of delivery ..... EN ...5
Proper use .... EN ...5
Environmental protection ..... EN ...5
Safety....EN...5
Description of the Appliance...EN ...8
Before Startup ..... EN ...8
Start up.....EN ...9
Operation....EN ..10
Transport ..... EN ..11
Storage.....EN ..11
Maintenance and care ..... EN ..12
Troubleshooting ..... EN ..12
Accessories and Spare Parts..EN ..13
Warranty.....EN ..13
Technical specifications ..... EN ..13
EC Declaration of Conformity.. EN ..14

Scope of delivery

The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking.

In the event of missing accessories or any transport damage, please contact your dealer.

Proper use

This high pressure cleaner is designed for domestic use only.

• for cleaning machines, vehicles, buildings, tools, facades, terraces, gardening tools, etc. by means of a high-pressure water jet (if necessary, with additional cleaning agents).
• with accessories, replacement parts and cleaning agents approved by KÄRCHER. Please observe the information accompanying the cleaning agents.

Environmental protection

The packaging material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.

The extraction of water from public waters is prohibited in some countries.

Work with detergents must only be performed on liquid-tight work surfaces with connections to the wastewater runoff. Do not let release detergent into waters or earth.

Cleaning operations which produce oily waste water, e.g. engine washes, underbody washes, may only be carried out using washing stations equipped with an oil separator.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Safety

Meaning of the notes

⚠️ Danger

Pointer to immediate danger, which leads to severe injuries or death.

⚠ Warning

Pointer to a possibly dangerous situation, which can lead to severe injuries or death.

Caution

Pointer to a possibly dangerous situation, which can lead to minor injuries.

Caution

Pointer to a possibly dangerous situation, which can lead to property damage.

Symbols on the machine

The high pressure jet may not be directed at persons, animals, live electrical equipment or at the appliance itself.

Protect the appliance against frost.

The appliance must not be directly connected to the public drinking water network.

Electric components

⚠️ Danger

■ Never touch the mains plug and the socket with wet hands.
■ Check the power cord with mains plug for damage prior to every use. Immediately have damaged power cord replaced by an authorised customer service / electrician. Do not operate an appliance if the power cord is damaged.
■ All current-conducting parts in the working area must be protected against jet water.
The mains plug and the coupling of an extension cable must be watertight and must never lie in water. Moreover, the coupling may never lie on the ground. The use of cable reels that ensure that the sockets are at least 60 mm above the ground is recommended.
■ Make sure that the power cord or extension cable is not damaged by running over, pinching, dragging or the like. Protect the power cords from heat, oil, and sharp edges.

⚠ Warning

■ The appliance may only be connected to alternating current. The voltage must correspond with the type plate of the appliance.
■ The appliance may only be connected to an electric supply that has been installed by an electrician in accordance with IEC 60364.
■ Unsuitable electrical extension cables can be hazardous. Only use electrical extension cables outdoors which have

been approved and labelled for this purpose and have an adequate cable cross-section: 1 - 10 m: 1.5 mm ^2 ; 10 - 30 m: 2.5 mm ^2 :

■ Always fully unreel the extension cable from the cable drum.
■ For safety reasons, we recommend that you operate the appliance only via a residual current device (max. 30 mA).

Safe handling

⚠️ Danger

• Check important components, such as high-pressure hose, hand spray gun and safety installations, for damage prior to every operation. Immediately replace damaged components. Do not operate appliance with damaged components.
  ■ The high-pressure jet must not be directed at other persons or the user him-/herself to clean clothing or footwear.
  ■ Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).
  ■ Vehicle tyres/tyre valves are susceptible to damage from the high-pressure jet and may burst. The first indication for this is a discolouration of the tyre. Damaged vehicle tyres/tyre valves are perilous. Keep a minimum jet distance of 30 cm during cleaning!
• Keep packaging films away from children, there is a risk of suffocation!

⚠ Warning

■ The appliance must not be operated by children or persons who have not been instructed accordingly.
This appliance is not intended for use by persons with limited physical, sensory or mental capacities or lacking experience and/or skills, unless such persons are accompanied and supervised by a person in charge of their safety or they have received precise instructions on the use of this appliance and have understood the resulting risks.
■ Children must not play with this appliance.

■ Supervise children to prevent them from playing with the appliance.
■ The user must use the appliance as intended. The person must consider the local conditions and must pay attention to other persons in the vicinity when working with the appliance.
■ High-pressure hoses, fixtures and couplings are important for the safety of the appliance. Only use high-pressure hoses, fixtures and couplings recommended by the manufacturer.
■ Do not use the appliance when there are other persons around unless they are also wearing protective clothing.
This appliance was designed to be used with detergents which are supplied or recommended by the manufacturer. The use of other detergents or chemicals may compromise the safety of the appliance.

Caution

In case of extended breaks, switch the appliance off at the main switch / appliance switch or pull the mains plug.
- Keep a distance of at least 30 cm when using the jet for cleaning painted surfaces to avoid damage.
■ Never leave the appliance unattended as long as it is in operation.
■ Do not operate the appliance at temperatures below 0 °C.

Other risks

⚠️ Danger

■ Do not spray flammable liquids.
■ Never draw in fluids containing solvents or undiluted acids and solvents! This includes petrol, paint thinner and heating oil. The spray mist is highly inflammable, explosive and poisonous. Do not use acetone, undiluted acids and solvents, as they corrode the materials used on the appliance.
■ The appliance may not be operated in explosive atmospheres.
If the appliance is used in hazardous areas (e.g. filling stations) the corresponding safety regulations must be observed.

Personal protective equipment

Wear protective clothing and safety goggles to protect against splash back containing water or dirt.

Stability

Caution

Create stability for the appliance prior to any work on or with the appliance to prevent accidents or damage.

→ The stability of the appliance is warranted when it is placed onto an even surface.

Safety Devices

Caution

Safety installations serve the protection of the user and may not be modified or bypassed.

Appliance switch

The appliance switch prevents unintentional operation of the appliance.

Lock trigger gun

This lock locks the lever of the trigger gun and prevents the inadvertent start of the appliance.

Overflow valve with pressure switch

The overflow valve prevents the permissible working pressure from being exceeded. If the lever on the trigger gun is released the pressure switch turns off the pump, the high pressure jet is stopped. If the lever is pulled the pump is turned on again.

Description of the Appliance

These operating instructions describe the maximum equipment. Depending on the model, there are differences in the scopes of delivery (see packaging).

Illustrations on fold-out page!

1 Coupling element for water connection

2 Storage for trigger gun

3 Water connection with integrated sieve

4 Appliance switch "0/OFF"/ „I/ON“

5 High pressure hose

6 Dosage regulator for detergent

7 Storage for trigger gun

8 High-pressure hose drum

9 Transport handle

10 Hand crank for hose drum

11 Storage of Plug 'n' Clean detergent bottle with detergent connection

12 Storage for spray lance

13 Storage hook for mains connection cable

14 Mains cable with mains plug

15 Plug 'n' Clean detergent bottle with locking lid

16 Bearing wheel

17 Trigger gun

18 Lock trigger gun

19 Key to detach the high pressure hose from the trigger gun

20 Spray lance with pressure regulation (Vario Power)

Carrying out the most common cleaning tasks. The work pressure can be stagelessly regulated between "Min" and "Max". You can add detergent when "Mix" is selected.

In order to adjust the working pressure, release the lever of the hand spray gun and turn the spray lance to the desired position.

21 Spray lance with Dirtblaster For strong contaminations

* Optional accessories

22 Washing brush Suitable for use with detergents.

23 Rotary washing brush

Suitable for use with detergents.

Especially suitable for cleaning cars.

24 Foam nozzle with detergent container With powerful foam for effortless cleaning.

\*\* Not included in the delivery

25 Water supply hose

Use a fabric reinforced water hose with a commercially available coupling. Minimum diameter 13 mm (1/2 inch); minimum length 7.5 m.

Before Startup

Attaching the Accessories

Illustrations on fold-out page!

Mount loose parts delivered with appliance prior to start-up.

Install wheels

Illustration A

→ Push the wheels into the intake.
→ Secure the wheels using the included plug. Align the plug properly!

Install the storage for trigger gun

Illustration B

→ Place the bottom holder into the recesses and push forward until it audibly locks in.
→ Insert the top holder and push down all the way.

Install the storage hook for the mains connection cable

Illustration C

→ Press in the storage hook and lock it into the top position.

Install the transport handle

You will need the 2 included screws as well as a Phillips screwdriver PH 2.

Illustration D

→ Slide the transport handle into the guide and secure it with 2 screws.

Install the dosage regulator for detergent

You will need the 2 included screws as well as a Phillips screwdriver PH 2.

Illustration E

→ Insert both detergent hoses onto the hose fittings.
→ Install the dosage regulator and connect using 2 screws.
Note: During installation you must make sure that the tongues of the dosage regulator match up with the intended recesses in the casing.

Install the high pressure hose drum

Illustration F

→ Slide the free end of the coiled high pressure hose through the recesses on the dosage regulator.
→ Insert the hose drum into the intakes on the transport handle.
→ Insert the axle of the hand crank into the guides.
→ Install the fixating plate and secure it using 2 screws.
→ Press the connecting fitting from the short high pressure hose into the brass intake, secure with clamps.

Note: Make sure the connection nipple is aligned correctly.

Connect the high pressure hose to the trigger gun

Illustration G

→ Push the high pressure hose into the trigger gun until it locks audibly.
Note: Make sure the connection nipple is aligned correctly.
Check the secure connection by pulling on the high pressure hose.

Water supply

Caution

Impurities in the water can damage the high-pressure pump and the accessories. For protection, the use of the KÄRCHER water filter (optional accessory, order no. 4.730-059) is recommended.

For connection values, see type plate/technical data.

Observe regulations of water supplier.

Water supply from mains

⚠ Warning

According to applicable regulations, the appliance must never be used on the drinking water net without a system separator. A suitable system separator by KÄRCHER or alternatively a system separator according to EN 12729 type BA must be used.

Water that has flown through a system separator is no longer classified as drinking water.

Caution

Always connect the system separator to the water supply, never directly to the appliance!

Illustration H

→ Screw the coupling element to the water connection on the appliance.

Drawing in water from open reservoirs

This high-pressure cleaner is suited to work with the KÄRCHER suction hose with backflow valve (Optional accessory, order no. 4.440-238) to draw in surface water, e.g. from water butts or ponds (see specifications for max. suction height).

→ Fill the suction hose with water.
→ Screw the suction hose into the water connection of the appliance and insert it into the water source (e.g. rainwater drum).

Start up

Caution

Dry running of more than 2 minutes leads to damage of the high-pressure pump. If the appliance does not build up pressure within 2 minutes, switch the appliance off and proceed in accordance with the instructions in Chapter "Troubleshooting".

Illustration

→ Unwind the high pressure hose completely from the hose drum. Hold on to the transport handle during this procedure.
Note: If the hand crank is in its secured position, fold it up first.
→ Attach the water supply hose to the coupling on the water connection.

Note: The supply hose is not included.

→ Connect the water supply hose to the water supply.
→ Completely open the water tap.
→ Insert the mains plug into the socket.
→ Turn on the appliance "I/ON".
→ Unlock the lever on the trigger gun.
→ Pull on the lever of the trigger gun; the device will switch on.
Switch the appliance on for a (max. of 2 minutes) and wait until the water exits at the hand spray gun without bubbles.
→ Release the lever on the trigger gun.
Note: Release the lever of the trigger gun; the device will switch off again.
High pressure remains in the system.
→ Lock the lever on the trigger gun.

Operation

Danger

The water jet that is emitted from the high-pressure nozzle results in a repulsion power acting on the hand spray gun. Make sure that you have a firm footing and are also holding the hand spray gun and spray lance firmly.

Danger

High-pressure jets can be dangerous if improperly used. The jet may not be directed at persons, animals, live electrical equipment or at the appliance itself.

Caution

Car tyres, paint or sensitive surfaces such as wood should not be cleaned with the dirt blaster, as there is a risk of damage.

Caution

Risk of damage to the paintwork When working with the washing brush, it must be free of dirt or other particles.

Illustration J

→ Push the spray lance into the trigger gun and fasten it by turning it through 90°.
→ Unlock the lever on the trigger gun.
→ Pull on the lever of the trigger gun; the device will switch on.

Working with detergent

⚠️ Danger

The use of wrong detergents or chemicals can compromise the safety of the appliance.

Please use exclusively KÄRCHER detergents and care products to carry out the respective cleaning task, as these were specifically developed for your appliance. The use of other detergents and care products may lead to premature wear and can invalidate your warranty claims. Please obtain information at your local dealer or request information directly from KÄRCHER.

⚠️ Danger

The improper use of detergents can cause severe injuries or toxication.

When using detergents, the material data safety sheet issued by the detergent manufacturer must be adhered to, especially the instructions regarding personal protective equipment.

Notes regarding the detergent: The most commonly used KÄRCHER detergents can be purchased ready to use in their Plug 'n' Clean detergent bottles with locking lids.

This will make the pesky refilling and filling processes redundant.

Illustration K

→ Remove the lid from the Plug 'n' Clean detergent bottle and press the detergent bottle into the detergent connection with the opening facing down.

Illustration L

→ Adjust the suction volume of the detergent solution by means of the dosage regulator for detergents.

→ Use spray lance with pressure regulation (Vario Power).

→ Turn the spray lance to "Mix" position.

Note: This will mix the detergent with the water stream.

Optional

→ Fill the detergent solution in the detergent tank of the foam nozzle (observe dosage instructions on the packaging of the detergent).

Recommended cleaning method

→ Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.
→ Spray off loosened dirt with the high pressure jet.

Interrupting operation

→ Release the lever on the trigger gun.
→ Lock the lever on the trigger gun.
→ Insert the trigger gun in its holder.
→ During longer breaks (more than 5 minutes), also turn the appliance off using the "0/OFF" switch.

Finish operation

Caution

Only separate the high-pressure hose from the hand spray gun or the appliance when there is no pressure in the system.

Caution

When disconnecting the supply or high pressure hose, warm water may leak from the connections after operation.

→ Remove the Plug 'n' Clean detergent bottle from the intake and close it with the lid. To store, place into the intake rotated by 180°.
→ Release the lever on the trigger gun.
→ Turn off the appliance "0/OFF".
→ Turn off tap.
→ Press the lever on the trigger gun to release any remaining pressure in the system.
→ Lock the lever on the trigger gun.
→ Disconnect the mains plug from the socket.
→ Detach the appliance from the water supply.

Transport

Caution

In order to prevent accidents or injuries, mind the weight of the appliance during transport (see technical data).

When transporting by hand

→ Pull the appliance by its transport handle.

When transporting in vehicles

→ Prior to horizontal transport: Remove the Plug 'n' Clean detergent bottle from the intake and close it with the lid.
→ Secure the appliance against shifting and tipping over.

Storage

Caution

In order to prevent accidents or injuries, mind the weight of the appliance when choosing the storage location (see technical data).

Storing the Appliance

Prior to extended storage periods, as during the winter, also observe the instructions in the Care section.

→ Park the machine on an even surface.
→ Press the disconnect on the trigger gun and remove the high pressure hose from the trigger gun.
→ Insert the trigger gun in its holder.
→ Engage the spray lance in its compartment.

Illustration M

→ Roll the high pressure hose on to the hose drum: Pull out the hose drum handle, turn it clockwise then retract the handle.
→ Stow the power cord and the remaining accessories on the appliance.

Frost protection

Caution

Appliances and accessories that are not completely drained can be destroyed by frost. Completely drain appliance and accessories and protect them against frost. To avoid damage:

→ Detach the appliance from the water supply.
→ Detach spray lance from the trigger gun.

→ Switch the appliance on ("I/ON"), press the trigger gun lever until no further water is discharged (approx. 1 min).
→ Turn off the appliance.
→ Store the appliance and the entire accessories in a frost free room.

Maintenance and care

⚠️ Danger

Risk of electric shock. Turn off the appliance and remove the mains plug prior to performing any care and maintenance work.

Care

Prior to longer periods of storage, e.g. in the winter:

Illustration N

→ Pull out the sieve in the water connection using flat-nose pliers and clean under running water.

Maintenance

The appliance is maintenance free.

Troubleshooting

⚠️ Danger

Risk of electric shock. Turn off the appliance and remove the mains plug prior to performing any care and maintenance work.

Repair work and work on the electrical components may only be performed by an authorised customer service.

You can rectify minor faults yourself with the help of the following overview.

If in doubt, please consult the authorized customer service.

Appliance is not running

→ Pull on the lever of the trigger gun; the device will switch on.
→ Check whether the voltage indicated on the type plate corresponds to the voltage of the mains supply.
→ Check the mains connection cable for damages.

Appliance does not start, motor hums

Voltage reduction due to weak mains supply or when using an extension cable.

→ When switching on, first pull the lever of the trigger gun and then switch the appliance switch to "I/ON".

Pressure does not build up in the appliance

→ Check setting at the spray lance.
→ Check water supply for adequate delivery rate.
→ Pull out the sieve in the water connection using flat-nose pliers and clean under running water.
→ Remove air from appliance before operation.
Switch on the appliance without connection the HP hose (max. 2 minutes) and run it until the water discharging from the HP outlet is free of bubbles. Switch off appliance and reconnect HP hose.

Strong pressure fluctuations

→ Clean high-pressure nozzle: Remove dirt and debris from the nozzle bore, using a needle and rinse through with water from the front.
→ Check water flow quantity.

Appliance is leaking

→ Slight leakage from the appliance pump is normal. If the leakage increases contact the authorized customer service.

No detergent infeed

→ Use spray lance with pressure regulation (Vario Power). Turn the spray lance to "Mix" position.
→ Check the settings at the dosage regulator for detergent.
→ Check whether the Plug 'n' Clean detergent bottle is placed into the detergent connection facing down.

Accessories and Spare Parts

Special accessories

Special accessories expand the possibilities of using your appliance. Please contact your KÄRCHER dealer for further information.

Spare parts

Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. Addresses can be found under: www.kaercher.com/dealersearch

Technical specifications

Electrical connection
Voltage	230 V1~50 Hz
Connected load	1,8 kW
Protection class	IP X5
Protective class	I
Mains fuse (slow-blow)	10 A
Water connection
Max. feed pressure	0,8 MPa
Max. feed temperature	40 °C
Min. feed volume	9 l/min
Max. Suction height	0,5 m
Performance data
Working pressure	11 MPa
Max. permissible pressure	13 MPa
Water flow rate	6,3 l/min
Max. feed volume	7,0 l/min
Detergent flow rate	0-0,3 l/min
Recoil force of trigger gun	16 N
Dimensions and weights
Length	349 mm
Width	426 mm
Height	878 mm
Weight, ready to operate with accessories	15,3 kg
Values determined as per EN 60335-2-79
Hand-arm vibration value	<2,5 m/s2
Uncertainty K	0,3 m/s2
Sound pressure level LpA	75 dB(A)
Uncertainty KpA	3 dB(A)
Sound power level LWA + Uncertainty KWA	92 dB(A)

Subject to technical changes.

EC Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: High pressure cleaner

Type: 1.180-xxx

Relevant EU Directives

2000/14/EC

2004/108/EC

2006/42/EC (+2009/127/EC)

2011/65/EU

Applied harmonized standards

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2008

EN 62233: 2008

Applied conformity evaluation method

2000/14/EC: Appendix V

Sound power level dB(A)

Measured: 89

Guaranteed: 92

The undersigned act on behalf and under the power of attorney of the company management.

H. Jenner

CEO

S. Reiser

Head of Approbation

Authorised Documentation Representative S. Reiser

71364 Winnenden (Germany)

Phone: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Cher client,

www.kaercher.com/REACH

Sécurité

2006/42/CE (+2009/127/CE)

2011/65/UE

S. Reiser Head of Approbation

Responsable de la documentation:

S. Reiser

71364 Winnenden (Germany)

Winnenden, 2013/09/01

Gentile cliente,

www.kaercher.com/REACH

Sicurezza

www.kaercher.com/dealersearch

Dati tecnici

2006/42/CE (+2009/127/CE)

2011/65/UE

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Geachte klant

www.kaercher.com/REACH

Veiligheid

www.kaercher.com/dealersearch

Technische gegevens

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Estimado cliente:

www.kaercher.com/REACH

Seguridad

www.kaercher.com/dealersearch

Datos técnicos

2006/42/CE (+2009/127/CE)

2011/65/UE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tele.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Estimado cliente

www.kaercher.com/REACH

Segurança

2006/42/CE (+2009/127/CE)

2011/65/UE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Kære kunde.

www.kaercher.com/REACH

Sikkerhed

www.kaercher.com/dealersearch

Tekniske data

El-tilslutning

2006/42/EF (+2009/127/EF)

2011/65/EU

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Kjære kunde.

www.kaercher.com/REACH

Sikkerhet

www.kaercher.com/dealersearch

Tekniske data

Elektrisk tilkobling

2006/42/EF (+2009/127/EF)

2011/65/EU

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

Målt: 89

Garantert: 92

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tlf: [phone]

Winnenden, 2013/09/01

Bäste kund,

www.kaercher.com/REACH

Säkerhet

www.kaercher.com/dealersearch

Tekniska data

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Arvoisa asiakas

www.kaercher.com/REACH

Turvallisuus

www.kaercher.com/dealersearch

Tekniset tiedot

71364 Winnenden (Germany)

Puh.: [phone]

Winnenden, 2013/09/01

Αξιότιμε πελάτη.

www.kaercher.com/REACH

Ασφάλεια

www.kaercher.com/dealersearch

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2013/09/01

Sayın müşterimiz,

www.kaercher.com/REACH

Güvenlik

Uyarıların anlamı

⚠ Tehlike

www.kaercher.com/dealersearch

Teknik Bilgiler

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2013/09/01

www.kaercher.com/REACH

Безопасность

Значение указаний:

⚠️ Опасность

www.kaercher.com/dealersearch

Технические данные

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2013/09/01

Tisztelt Ügyfelünk!

www.kaercher.com/REACH

Biztonság

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Vážený zákazníku,

www.kaercher.com/REACH

Bezpečnost

Význam upozornění

⚠️ Nebezpečí!

Adresy najdete zde: www.kaercher.com/dealersearch

Technické údaje

2006/42/ES (+2009/127/ES)

2011/65/EU

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Spoštovani kupec.

www.kaercher.com/dealersearch

Tehnični podatki

2006/42/ES (+2009/127/ES)

2011/65/EU

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2013/09/01

Szanowni Klienci!

www.kaercher.com/REACH

Bezpieczeństwo

Znaczenie wskazówek

⚠ Niebezpieczeństwo

www.kaercher.com/dealersearch

Dane techniczne

2006/42/WE (+2009/127/WE)

2011/65/UE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

tel.: [phone]

faks: [phone]

Winnenden, 2013/09/01

Mult stimate client,

www.kaercher.com/REACH

Siguranța

Directive EG respectate:

2000/14/CE

2004/108/CE

2006/42/CE (+2009/127/CE)

2011/65/UE

Norme armonizate utilize:

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2008

EN 62233: 2008

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Vážený zákazník.

Transport .... SK ..11

Uskladnenie .... SK ..12

www.kaercher.com/dealersearch

Technické údaje

2006/42/ES (+2009/127/ES)

2011/65/EÚ

Uplatňované harmonizované normy:

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2008

EN 62233: 2008

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Poštovani kupče,

Prije prve uporabe Vašeg uređaja pročitajte ove originalne radne upute, postupajte prema njima i sačuvajte ih za kasniju uporabu ili za sljedećeg vlasnika.

Pregled sadržaja

Opseg isporuke .... HR ...5
Namjensko korištenje.... HR ...5
Zaštita okoliša .... HR ...5
Sigurnost .... HR ...5
Opis uređaja.... HR ...8
Prije prve uporabe .... HR ...8
Stavljanje u pogon .... HR ...9
U radu .... HR ..10
Transport .... HR ..11
Skladištenje .... HR ..11
Njega i održavanje ..... HR ..12
Otklanjanje smetnji.... HR ..12
Pribor i pričuvni dijelovi ..... HR ..13
Jamstvo .... HR ..13
Tehnički podaci.... HR ..13
EZ izjava o usklađenosti ..... HR ..14

Opseg isporuke

www.kaercher.com/REACH

Sigurnost

Značenje napomena

⚠️ Opasnost

www.kaercher.com/dealersearch

Tehnički podaci

Električni priključak
Napon	230 V1~50 Hz
Priključna snaga	1,8 kW
Stupanj zaštite	IP X5
Klasa zaštite	I
Strujna zaštita (inertna)	10 A
Priključak za vodu
Dovodni tlak (maks.)	0,8 MPa
Dovodna temperatura (maks.)	40 °C
Dovodni protok (min.)	9 l/min
Maks. usisna visina	0,5 m
Podaci o snazi
Radni tlak	11 MPa
Maks. dozvoljeni tlak	13 MPa
Protok vode	6,3 l/min
Maksimalni protok	7,0 l/min
Protok sredstva za čišćenje	0-0,3 l/min
Povratna udarna sila ručnog pištolja za prskanje	16 N
Dimenzije i težine
Duljina	349 mm
Širina	426 mm
Visina	878 mm
Težina u stanju pripravnosti za rad, s priborom	15,3 kg
Utvrdene vrijednosti prema EN 60335-2-79
Vrijednost vibracije na ruci	<2,5 m/s2
Nepouzdanost K	0,3 m/s2
Razina zvučnog tlaka LpA	75 dB(A)
Nepouzdanost KpA	3 dB(A)
Razina zvučne snage LWA+ nepouzdanost KWA	92 dB(A)

2006/42/EZ (+2009/127/EZ)

2011/65/EU

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2013/09/01

Poštovani kupče,

Pre prve upotrebe Vašeg uređaja pročitajte ove originalno

www.kaercher.com/REACH

Sigurnost

Značenje napomena

⚠️ Opasnost

Napomena koja ukazuje na neposredno preteću opasnost koja dovodi do teških telesnih povreda ili smrti.

⚠ Upozorenje

Napomena koja ukazuje na eventualno opasnu situaciju koja može dovesti do teških telesnih povreda ili smrti.

⚠️ Oprez

Napomena koja ukazuje na eventualno opasnu situaciju, koja može izazvati lakše telesne povrede.

Pažnja

Napomena koja ukazuje na eventualno opasnu situaciju koja može izazvati materijalne štete.

Simboli na uređaju

www.kaercher.com/dealersearch

Tehnički podaci

Električni priključak
Napon	230 V1~50 Hz
Priključna snaga	1,8 kW
Stepen zaštite	IP X5
Klasa zaštite	I
Mrežni osigurač (inertan)	10 A
Priključak za vodu
Dovodni pritisak (maks.)	0,8 MPa
Dovodna temperatura (maks.)	40 °C
Dovodni protok (min.)	9 l/min
Maks. usisna visina	0,5 m
Podaci o snazi
Radni pritisak	11 MPa
Maks. dozvoljeni pritisak	13 MPa
Protok vode	6,3 l/min
Maksimalni protok	7,0 l/min
Protok sredstva za čišćenje	0-0,3 l/min
Povratna udarna sila ručnog pištolja za prskanje	16 N
Dimenzije i težine
Dužina	349 mm
Širina	426 mm
Visina	878 mm
Težina u stanju spremnom za rad, sa priborom	15,3 kg
Izračunate vrednosti premaEN 60335-2-79
Vrednost vibracije na ruci	<2,5 m/s ^2
Nepouzdanost K	0,3 m/s ^2
Nivo zvučnog pritiska L _pA	75 dB(A)
Nepouzdanost K _pA	3 dB(A)
Nivo zvučne snage L _WA + nepouzdanost K _WA	92 dB(A)

Pridržano pravo na tehničke promene.

Izjava o usklađenosti sa propisima EZ

Ovim izjavljujemo da ovde opisana mašina po svojoj koncepciji i načinu izrade, sa svim njenim modelima koje smo izneli na tržište, odgovara osnovnim zahtevima dole navedenih propisa Evropske Zajednice o sigurnosti i zdravstvenoj zaštiti. Ova izjava prestaje da važi ako se bez naše saglasnosti na mašini izvedu bilo kakve promene.

Proizvod: Uređaj za čišćenje pod visokim pritiskom

Tip: 1.180-xxx

2006/42/EZ (+2009/127/EZ)

2011/65/EU

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2013/09/01

Уважаеми клиенти.

www.kaercher.com/REACH

Сигурност

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2013/09/01

www.kaercher.com/REACH

Ohutus

Märkuste tähendused

⚠️ Oht

www.kaercher.com/dealersearch

Tehnilised andmed

Elektriühendus

Toode: Körgsurvepesur

Tüüp: 1.180-xxx

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2013/09/01

Godājamais klient!

www.kaercher.com/REACH

Drošība

Norāžu nozīme

⚠ Bīstami

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tālr.: [phone]

Fakss: [phone]

Winnenden, 2013/09/01

Gerbiamas kliente.

www.kaercher.com/REACH

Sauga

www.kaercher.com/dealersearch

Techniniai duomenys

Elektros iranga

71364 Winnenden (Germany)

Tel.: [phone]

Faksas: [phone]

Winnenden, 2013/09/01

www.kaercher.com/REACH

Безпека

Значення вказівок

⚠️ Обережно!

www.kaercher.com/dealersearch

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2013/09/01

Курметті тутынушы,

www.kaercher.com/REACH

Қауіпсіздік

Winnenden, 2013/09/01

2.642-172.0 5.332-464.0 6.391-794.0 6.363-410.0 2.640-729.0 4.760-534.0 2.640-729.0 9.012-483.0 9.037-618.0 2.640-729.0 2.643-150.0 2.640-729.0 2.640-907.0 9.037-619.0 6.465-031.0 5.966-326.0 12/13 9.084-290.0 CH 9.084-139.0 EU

Icon of a gear and wrench inside a square frame (no text or symbols)
