Product Type	Electric shaver with trimmer
Power Supply	Rechargeable lithium-ion battery, 100-240 V power adapter
Charging Time	Approximately 1 hour
Usage	Cordless, waterproof (usable in the shower)
Shaving Functions	Dry shaving or wet shaving with foam/gel
Trimming Functions	Sideburn and mustache trimmer, beard attachment with adjustable comb 1-5 mm
Cleaning Brush	Rotating brush for facial cleansing (accessory included depending on model)
Cleaning System	Optional SmartClean system (automatic cleaning and charging)
Manual Cleaning	Washable under running water, rinse shaving head and accessories
Safety	Travel lock (activate by holding 3 seconds), reminder "Unplug before use"
Display	Charge indicator (1 or 3 lights), cleaning alarm, replacement reminder
Main Spare Parts	Philips SH70 shaving heads, RQ111 beard attachment, SH575 cleaning brush, SmartClean cartridges JC301-305
Replacement Frequency of Heads	Every 2 years recommended
Maximum Noise Level	69 dB(A)
Warranty	International warranty (shaving heads not covered)

Frequently Asked Questions - QG3381/15 PHILIPS

How to clean the shaver after use?

Rinse the shaving head with warm water. Remove the head support, rinse it for 30 seconds, shake and let dry. For a thorough cleaning, disassemble the heads (blade + screen) and rinse them separately. Never dry with a towel.

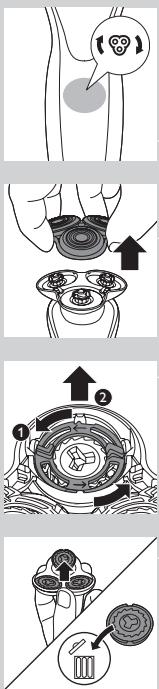

How to replace the shaving heads?

Purchase Philips SH70 shaving heads. Remove the support, turn the rings counterclockwise, replace the heads, refasten the rings (click). Reset the replacement reminder by holding the on/off button for 7 seconds.

How to activate the travel lock?

Press and hold the on/off button for 3 seconds. The lock symbol lights up then flashes. To deactivate, press and hold again for 3 seconds.

What to do if the shaver does not turn on?

Make sure the shaver is unplugged (cordless use only). If the battery is empty, recharge for about 1 hour. If the lock is activated, deactivate it. If the head is blocked, clean or replace the heads.

How to use the beard attachment with comb?

Attach the beard accessory, then slide the comb onto the grooves. Use the selector to adjust the cutting height from 1 to 5 mm. Turn on and move the accessory upward in contact with the skin.

How to use the cleaning brush?

Moisten the brush and your face. Apply a cleanser. Place the brush on your cheek, turn on, move gently from nose to ear (20 seconds per area). Do not clean around the eyes.

How to charge the shaver?

Insert the small plug into the shaver and the adapter into the socket. Charging takes about 1 hour. The lower light flashes slowly during charging; all lights come on when the battery is full.

What does the replacement reminder on the display mean?

The shaving unit symbol lights up continuously to indicate that the shaving heads need to be replaced (recommended every 2 years). Replace them with Philips SH70 heads.

How to reset the replacement reminder after changing the heads?

After installing the new heads, press and hold the on/off button for about 7 seconds until the symbol goes out.

How to clean the trimmer (trimmer accessory)?

After use, turn on the device and rinse the trimmer with warm water. Turn off, shake, and let dry. For optimal performance, apply a drop of sewing machine oil every 6 months.

USER MANUAL QG3381/15 PHILIPS

Always here to help you

Register your product and get support at www.philips.com/welcome

S7000 series

Question? Contact Philips

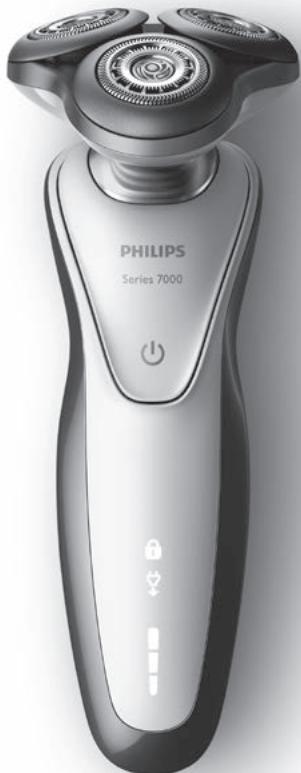

PHILIPS Series 7000 electric shaver with three buttons and power button (no text or symbols on body)

PHILIPS

ENGLISH 4
DANSK 36
DEUTSCH 67
ΕΛΛΗΝΙΚΑ 101
ESPAÑOL 139
SUOMI 173
FRANÇAIS 205
ITALIANO 238
NEDERLANDS 272
NORSK 306
PORTUGUÊS 338
SVENSKA 372
TÜRKÇE 404

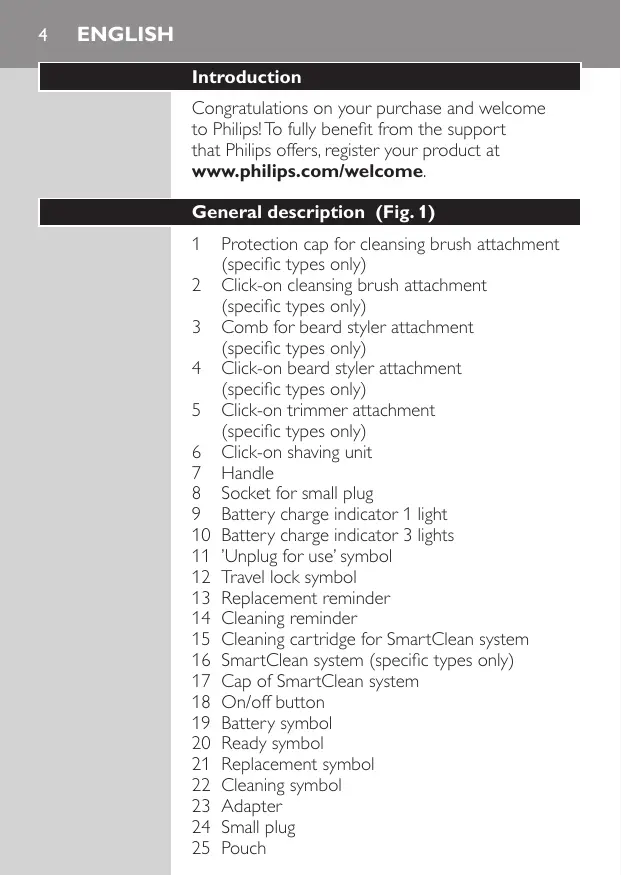

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

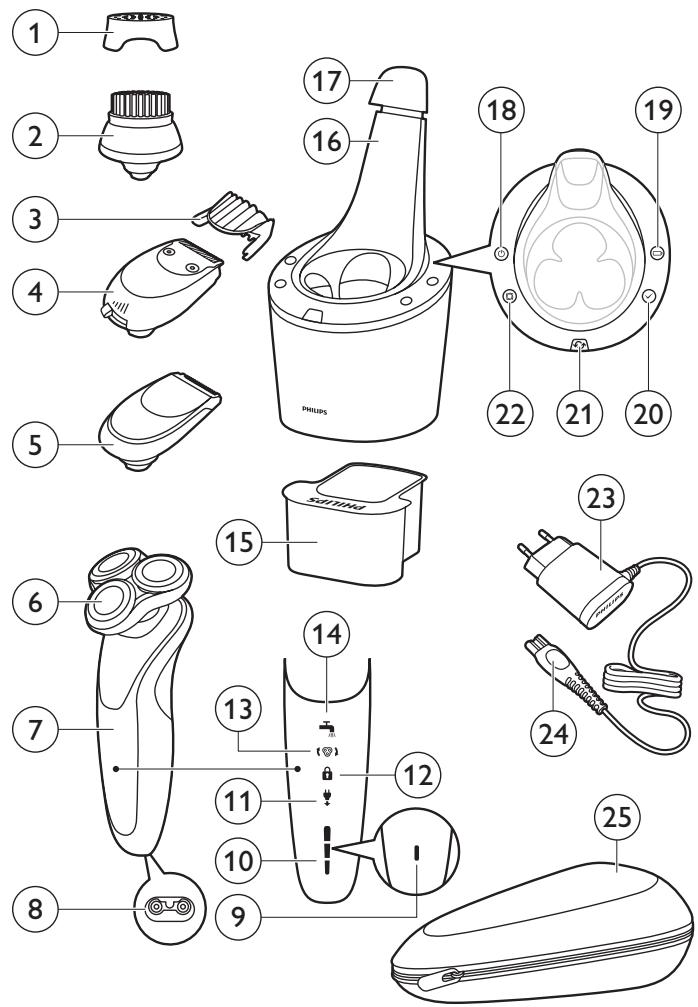

General description (Fig. 1)

1 Protection cap for cleansing brush attachment (specific types only)
2 Click-on cleansing brush attachment (specific types only)
3 Comb for beard styler attachment (specific types only)
4 Click-on beard stylister attachment (specific types only)
5 Click-on trimmer attachment (specific types only)
6 Click-on shaving unit
7 Handle
8 Socket for small plug
9 Battery charge indicator 1 light
10 Battery charge indicator 3 lights
11 'Unplug for use' symbol
12 Travel lock symbol
13 Replacement reminder
14 Cleaning reminder
15 Cleaning cartridge for SmartClean system
16 SmartClean system (specific types only)
17 Cap of SmartClean system
18 On/off button
19 Battery symbol
20 Ready symbol
21 Replacement symbol
22 Cleaning symbol
23 Adapter
24 Small plug
25 Pouch

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

- Keep the adapter dry.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Always unplug the shaver before you clean it under the tap.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

Prohibition sign of a faucet without any text or symbols

Prohibition sign of a faucet with diagonal line indicating no leakage or anti-leaching (no text present)

Caution

• Never immerse the cleaning system or the charging stand in water and do not rinse it under the tap.
• Never use water hotter than 80^ C to rinse the shaver.
• Only use this appliance for its intended purpose as shown in the user manual.
• For hygienic reasons, the appliance should only be used by one person.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
• If your shaver comes with a cleaning system, always use the original Philips cleaning fluid (cartridge or bottle, depending on the type of cleaning system).
• Always place the cleaning system on a stable, level and horizontal surface to prevent leakage.
• If your cleaning system uses a cleaning cartridge, always make sure that the cartridge compartment is closed before you use the cleaning system to clean or charge the shaver.
• When the cleaning system is ready for use, do not move it to prevent leakage of cleaning fluid.
• Do not use the adapter in or near wall sockets that contain or have contained an electric air freshener to prevent irreparable damage to the adapter:
• Water may drip from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Electromagnetic fields (EMF)

- This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used without cord.
• The appliance is suitable for mains voltages ranging from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.
• Maximum noise level: Lc = 69dB(A)

The display

Charging

Battery charge indicator with 3 lights

• Charging takes approx. 1 hour.
• Quick charge: When the appliance is connected to the mains, the lights of the battery charge indicator light up one after the other continuously. When the appliance contains enough energy for one shave, the bottom light of the battery charge indicator starts flashing slowly.
• If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, first the bottom light flashes and then lights up continuously. Then the second light flashes and then lights up continuously, and so on until the appliance is fully charged.

Diagram of a medical procedure showing a catheter inserted into a tube with an arrow pointing to the catheter tip (no text or labels present)

Diagram of a biological or medical structure with a highlighted region and an arrow pointing to a small feature (no text or symbols present)

Battery charge indicator with 1 light

• Charging takes approx. 1 hour.
• Quick charge: When the appliance does not contain enough energy for one shave, the battery charge indicator flashes fast. When the battery charge indicator starts to flash slowly, the appliance contains enough energy for one shave.
• If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, the battery charge indicator flashes slowly.

Battery fully charged

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Note: This appliance can only be used without a cord.

Note: When the battery is full, the display switches off automatically after 30 minutes. If you press the on/off button during charging, the ‘unplug for use’ symbol flashes white to remind you that you have to disconnect the appliance from the mains.

When the battery is fully charged, all lights of the battery charge indicator light up continuously.

• Battery charge indicator with 3 lights
• Battery charge indicator with 1 light

Diagram showing a droplet inside a container with an arrow pointing to a labeled point, possibly indicating a measurement or solution.

Battery low

Diagram of a biological or medical structure with a magnified inset showing a rod-like structure (no text or symbols present)

When the battery is almost empty, the bottom light flashes orange.

- Battery charge indicator with 3 lights

Diagram showing a droplet inside a tube with an arrow pointing to a labeled point '0' and a starburst symbol.

- Battery charge indicator with 1 light

Remaining battery capacity

Diagram of a medical or anatomical structure with a highlighted section and arrow, no visible text or symbols

Battery charge indicator with 3 lights

- The remaining battery capacity is indicated by the lights of the battery charge indicator that light up continuously.

'Unplug for use' reminder

Diagram showing a plug symbol with a speech bubble and starburst shape, likely indicating a medical or safety warning.

- The appliance is equipped with an 'unplug for use' reminder. The 'unplug for use' starts to flash to remind you that you have to disconnect the appliance from the adapter before you can switch it on.

Cleaning reminder

Illustration of a human torso with a faucet symbol and a starburst on the lower abdomen (no text or labels)

For optimal shaving performance, we advise you to clean the shaver after every use.

- When you switch off the shaver, the cleaning reminder flashes to remind you to clean the shaver.

Travel lock

3 sec.

You can lock the shaver when you are going to travel. The travel lock prevents the shaver from being switched on by accident.

Activating the travel lock

Diagram showing a human torso with a power button and a lock icon, indicating a location or safety symbol.

1 Press the on/off button for 3 seconds to enter the travel lock mode.

- While you activate the travel lock, the travel lock symbol lights up continuously. When the travel lock is activated, the travel lock symbol flashes.

Deactivating the travel lock

Diagram showing a person's body with a power button and a lock icon, indicating a medical or health context.

1 Press the on/off button for 3 seconds.

- The travel lock symbol flashes and then lights up continuously.

The shaver is now ready for use again.

Replacing shaving heads

Diagram showing a human body with a circular icon containing a skull and directional arrows, possibly indicating movement or interaction.

For maximum shaving performance, we advise you to replace the shaving heads every two years.

- The appliance is equipped with a replacement reminder which reminds you to replace the shaving heads. The replacement reminder lights up continuously.

Note: After replacing the shaving heads, you need to reset the replacement reminder by pressing the on/off button for 7 seconds.

Charging

Charging takes approx. 1 hour.

Note: This appliance can only be used without cord. Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty.

Charging with the adapter

Diagram showing a plug inserted into a socket connected to a device with labeled parts ① and ②

1 Insert the small plug into the appliance and put the adapter in the wall socket.

Charging in the SmartClean system (specific types only)

1 Put the small plug in the SmartClean system.
2 Put the adapter in the wall socket.

Illustration of a hand cleaning a surface with arrows indicating direction (no text or symbols)

3 Press down the top cap to be able to place the shaver in the holder ('click').

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

4 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

Diagram showing two-step shoe cleaning process with directional arrows and motion indicators

5 Place the shaver in the holder, tilt the shaver backwards and press down the top cap to connect the shaver ('click').

- The battery symbol flashes slowly to indicate the shaver is charging.

Using the shaver

Switching the appliance on and off

Diagram showing a hand holding a button labeled 'Power' with an icon, likely illustrating a power switch or electrical function.

1 To switch on the appliance, press the on/off button once.

2 To switch off the appliance, press the on/off button once.

- Battery charge indicator with 3 lights: The display lights up for a few seconds to show the remaining battery status.

Shaving

Skin adaptation period

Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system.

We advise you to shave regularly (at least 3 times a week) with this shaver for a period of 3 weeks to allow your skin to adapt to the new shaver.

Note: This appliance can only be used without cord.

Illustration of a person applying facial hair to the ear with a circular tool (no text or symbols)

1 Switch on the appliance.

2 Move the shaving heads over your skin in circular movements.

Note: Do not make straight movements.

3 Clean the shaver after use (see chapter ‘Cleaning and maintenance’).

Wet shaving

You can also use this shaver in the shower or on a wet face with shaving foam or shaving gel.

To shave with shaving foam or shaving gel, follow the steps below:

Line drawing of a person's head and neck with hand near ear area (no text or symbols)

1 Apply some water to your skin.

2 Apply shaving foam or shaving gel to your skin.

Illustration of a person applying makeup to the ear (no text or symbols)

3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.

4 Switch on the appliance.

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a person applying facial massage to their ear with a brush (no text or symbols)

5 Move the shaving heads over your skin in circular movements.

Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin.

6 Dry your face and thoroughly clean the shaver after use (see chapter ‘Cleaning and maintenance’).

Note: Make sure you rinse all foam or shaving gel off the shaver.

Using the click-on attachments

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Removing or attaching the click-on attachments

Diagram showing a spacecraft above a curved surface with an upward arrow and a cross symbol (no text or labels)

1 Make sure that the appliance is switched off.
2 Pull the attachment straight off the appliance.

Note: Do not twist the attachment while you pull it off the appliance.

Diagram showing a device emitting heat or vibration from a surface, with an inset close-up of the device's tip (no text or symbols present)

3 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Diagram showing a spray gun interacting with a surface, with an inset close-up of the spray (no text or symbols present)

Illustration of a person applying a hair product to their ear (no text or symbols present)

Diagram showing a spray gun on a surface with an inset close-up of its tip (no text or symbols)

Line drawing of a hair cutter cutting a surface with a hand (no text or symbols)

Using the trimmer attachment

You can use the trimmer attachment to groom your sideburns and moustache.

1 Make sure the appliance is switched off.
2 Insert the lug of the trimmer attachment into the slot in the top of the appliance. Then press down the trimmer attachment to attach it to the appliance ('click').
3 Switch on the appliance.
4 You can now start trimming.
5 Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

Using the beard styler attachment

1 Make sure the appliance is switched off.
2 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Using the beard styler attachment with comb

You can use the beard styler attachment with the comb attached to style your beard at one fixed setting, but also at different length settings. You can use it also to pre-trim any long hairs before shaving to have a more comfortable shave.

The hair length settings on the beard styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm.

1 Slide the comb straight into the guiding grooves on both sides of the attachment ('click').

Diagram showing a hand holding a curved object with numbered annotations indicating motion or movement steps.

Illustration of a man's face with a pointing arrow, no text or symbols present

Illustration of two hand tools with arrows indicating movement or force (no text or symbols)

Illustration of a person applying a hair accessory to their ear (no text or symbols present)

2 Press the length selector and then push it to the left or right to select the desired hair length setting.
3 Switch on the appliance.
4 You can now start styling your beard by moving the attachment upwards with gentle pressure making sure the front of the comb is in full contact with the skin.
5 Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

Using the beard styler attachment without comb

You can use the beard styler attachment without the comb to contour your beard, moustache, sideburns or neckline to a length of 0.5mm.

1 Pull the comb off the attachment.

Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb.

2 Switch on the appliance.

3 You can now start contouring your beard, moustache, sideburns or neckline by moving the stylist downwards with gentle pressure while holding it perpendicular to the skin.

4 Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

Diagram showing a mechanical component being inserted into a base, with an inset magnified view of the component (no text or symbols present)

Illustration of a spray nozzle dispensing liquid into a container (no text or symbols)

Illustration of a person applying facial care to their face with a hand near the eye (no text or symbols)

20 sec.

20 sec.

Using the cleansing brush attachment

Use the rotating cleansing brush attachment with your daily cleansing cream. The cleansing brush attachment removes oil and dirt, contributing to a healthy and oil-free skin.

1 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

2 Moisten the attachment with water. Do not use the appliance with a dry brush head, as this can irritate the skin.

Tip: Use the attachment before shaving for easier shaving and a more hygienic shaving result.

3 Moisten your face with water and apply a cleanser to your face.

4 Place the attachment on your right cheek.

5 Switch on the appliance.

6 Gently move the attachment across your skin from the nose towards the ear. Do not push the attachment too hard onto the skin to make sure the treatment remains comfortable.

7 After approx. 20 seconds you can move the appliance to your left cheek and start cleansing this part of your face.

Caution: Do not clean the sensitive area around your eyes.

20 sec.

8 After approx. 20 seconds you can move the attachment to your forehead and start cleansing this part of your face. Gently move the brush head from left to right.

Note: We advise you to not overdo the cleansing and to not cleanse any zone longer than 20 seconds.

Illustration showing facial massage technique with magnified detail of the object on the cheek

9 After the treatment, rinse and dry your face. Your face is now ready for the next step of your daily skincare routine.
10 Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

Cleaning and maintenance

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Cleaning the shaver in the SmartClean system (specific types only)

Simple line drawing of a paintbrush with a cross mark and droplets, no text or symbols present

Do not tilt the SmartClean system to prevent leakage.

Note: Hold the SmartClean system while you prepare it for use.

Note: If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months.

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force

Preparing the SmartClean system for use

1 Put the small plug in the back of the SmartClean system.
2 Put the adapter in the wall socket.
3 Press the button on the side of the SmartClean system and lift the top part of the SmartClean system.
4 Pull the seal off the cleaning cartridge.

Simple line drawing of a container with an upward arrow and label 'MILK' (no text or symbols on the diagram itself)

Diagram of a blender with an arrow pointing to its base, showing no text or symbols.

5 Place the cleaning cartridge in the SmartClean system.

Mechanical component diagram showing a lever mechanism with a downward arrow (no text or symbols)

6 Push the top part of the SmartClean system back down ('click').

Illustration of a Bunsen burner with a downward arrow and a prohibition symbol (no text or labels)

Using the SmartClean system

Always make sure to shake excess water off the shaver before you place it in the SmartClean system.

Diagram showing a hand cleaning a surface with arrows indicating direction of movement (no text or symbols)

1 Press down the top cap to be able to place the shaver in the holder ('click').

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

2 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

Diagram illustrating foot movement and foot lift technique with numbered labels and directional arrows

3 Place the shaver in the holder, tilt the shaver backwards and press down the top cap to connect the shaver ('click').

Line drawing of a hand inserting a power button into a device (no text or symbols)

- The battery symbol flashes slowly to indicate that the shaver is charging.

4 Press the on/off button on the SmartClean system to start the cleaning program.

- During the cleaning program (which takes approx. 10 minutes), the cleaning symbol flashes.

Diagram showing battery charging mechanism with checkmark and battery symbol

- When the cleaning program has been completed, the ready symbol lights up continuously.

- The battery symbol lights up continuously to indicate that the shaver is fully charged. This takes approx. 1 hour.

Note: If you press the on/off button of the SmartClean system during the cleaning program, the program aborts. In this case, the cleaning symbol stops flashing.

Technical diagram showing mechanical assembly steps with numbered components and a magnified view of a component labeled '110'

Note: If you remove the adapter from the wall socket during the cleaning program, the program aborts.

Note: 30 minutes after the cleaning program and charging have been completed, the SmartClean switches off automatically.

5 To let the shaver dry, you can leave it in the SmartClean system until your next shave. You can also remove the shaver from the SmartClean system, shake off excess water, open the shaving unit and let the shaver air dry.

Replacing the cartridge of the SmartClean System

Replace the cleaning cartridge when the replacement symbol flashes orange or when you are no longer satisfied with the cleaning result. If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months.

1 Press the button on the side of the SmartClean system and lift the top part of the SmartClean system.
2 Take the empty cleaning cartridge from the SmartClean system and pour any remaining cleaning fluid out of the cleaning cartridge. You can simply pour the cleaning fluid down the sink.
3 Throw away the empty cleaning cartridge.
4 Unpack the new cleaning cartridge and pull the seal off the cartridge.

Diagram of a blender with an arrow pointing to its base, showing no text or symbols.

5 Place the new cleaning cartridge in the SmartClean system.

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

6 Push the top part of the SmartClean system back down ('click').

Cleaning the shaver under the tap

Clean the shaver after every shave for optimal shaving performance.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.

Illustration of a hand holding a small object with motion lines indicating movement or vibration (no text or symbols)

1 Rinse the shaving unit under a warm tap for some time.

Illustration of a hand holding a circular object with an arrow pointing to a mechanical component (no text or symbols present)

2 Pull the shaving head holder off the bottom part of the shaving unit.

Illustration of a hand using a pipette to lift a small object into a container (no text or symbols visible)

3 Rinse the shaving head holder under a warm tap for 30 seconds.

4 Carefully shake off excess water and let the shaving head holder dry.

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

5 Reattach the shaving head holder to the bottom part of the shaving unit ('click').

Thorough cleaning method

Illustration of a hand holding a circular component with an arrow pointing to a separate view of a mechanical component (no text or symbols present)

Make sure the appliance is switched off.

1 Pull the shaving head holder off the bottom part of the shaving unit.

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

2 Turn the retaining rings anticlockwise and remove them.

Diagram showing a hand holding three circular components with arrows indicating rotation or movement, separated by a diagonal line (no text or symbols)

3 Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

Diagram showing fluid flow between two vessels with visible spray and liquid droplets (no text or labels)

4 Clean the cutter and guard under the tap.

Mechanical gear assembly diagram showing a central shaft and surrounding gears (no text or labels)

5 After cleaning, place the cutter back into the guard.

6 Put the shaving heads back into the shaving head holder.

Mechanical component diagram showing a circular component being inserted into a ring, with no visible text or symbols.

Note: Make sure the notches on both sides of the shaving heads fit exactly onto the projections in the shaving-head holder.

Technical diagram showing a mechanical assembly with labeled components and directional arrows

7 Place the retaining rings back onto the shaving head holder and turn them clockwise.

Diagram showing mechanical components with arrows indicating motion or transformation (no text or symbols)

Diagram illustrating a hand holding circular objects with a magnified view showing a cross symbol and a downward arrow.

- Each retaining ring has two recesses that fit exactly in the projections of the shaving head holder. Turn the ring clockwise until your hear 'click' and the ring is fixed.

Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

8 Reattach the shaving head holder to the bottom part of the shaving unit.

Cleaning the click-on attachments

Never dry the trimmer or beard styler attachments with a towel or tissue, as this may damage the trimming teeth.

Cleaning the beard styler attachment

Clean the beard styler attachment every time you have used it.

Illustration of two hands holding a wristwatch with arrows indicating movement or force direction (no text or symbols)

Illustration of two hands using a tool to lift or lift water, showing liquid droplets and a pair of boots (no text or symbols)

1 Pull the comb off the beard styler attachment.
Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb.
2 Switch on the appliance.
3 Rinse the beard styler attachment and the comb separately under a hot tap for some time.
4 After cleaning, switch off the appliance.

Illustration of two hand tools cutting down a diagonal line, no text or symbols present

Line drawing of a foot stepping on a shoe with a rope and cloth (no text or symbols)

Illustration of a hand pouring liquid from a container with an 'X' symbol, no text or labels present

Diagram of a mechanical component with a gear-like top and a base, showing an upward arrow (no text or symbols)

Two identical diagrams showing a container being lifted by a string, with no text or symbols present.

5 Carefully shake off excess water and let the beard styler attachment and comb dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the trimmer attachment

Clean the trimmer attachment every time you have used it.

1 Switch on the appliance with the trimmer attachment attached.
2 Rinse the trimmer attachment under a hot tap for some time.
3 After cleaning, switch off the appliance.
4 Carefully shake off excess water and let the trimmer attachment dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the cleansing brush attachment

Clean the cleansing brush attachment every time you have used it.

1 Make sure the appliance is switched off.
2 Detach the brush head from the brush base.
3 Clean both parts thoroughly with warm water and mild soap.

Illustration of mechanical components including a brush, screw, and washer (no text or symbols)

4 Dry the cleansing brush attachment with a towel.

Storage

Illustration of a handheld device with a downward arrow indicating action (no text or symbols)

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Note: We advise you to let the appliance and its attachments dry before you put the protection caps on the attachments and store the shaver in the pouch.

- Store the shaver in the pouch supplied.

Diagram of a mechanical component with a cylindrical shaft and top handle, no text or symbols present

- Put the protection cap on the cleansing brush attachment to protect it from dirt accumulation.

Replacement

Replacing the cleansing brush head

Diagram of a mechanical component with a top view showing a cylindrical part and a base with a flanged tip, no text or symbols present.

- The cleansing brush head attachment should be replaced every 3 months or earlier if the filaments are deformed or damaged.

Replacing the shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years.

Replacement reminder

The shaving unit symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads immediately. Only replace the shaving heads with original Philips shaving heads as specified in chapter 'Ordering accessories'.

1 The shaving unit symbol lights up continuously when you switch off the shaver to indicate that the shaving heads need to be replaced.
2 Pull the shaving head holder off the bottom part of the shaving unit.

3 Turn the retaining rings anticlockwise and remove them.

4 Remove the shaving heads from the shaving head holder and throw them away.

5 Place new shaving heads in the holder.

Mechanical component diagram showing a circular component being lifted by a black arrow (no text or symbols)

Note: Make sure the notches on both sides of the shaving heads fit exactly onto the projections in the shaving-head holder.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

6 Place the retaining rings back onto the shaving heads and turn them clockwise.

Diagram showing two mechanical components with arrows indicating motion, one above and one below, both without any text or symbols.

- The retaining ring has two recesses that fit exactly in the projections of the shaving head holder. Turn the ring clockwise until you hear 'click' and the ring is fixed.

Diagram showing a hand holding three stacks of coins with a magnified inset highlighting a pile of coins and a 'X' symbol.

Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

Illustration of a hand holding a circular object with a downward arrow indicating rotation or adjustment (no text or symbols)

7 Reattach the shaving head holder to the bottom part of the shaving unit.

7 sec. (1) (2)

8 To reset the replacement reminder, press and hold the on/off button for approx. 7 seconds.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details). The following parts are available:

• HQ8505 adapter
• SH70 Philips shaving heads
• HQ110 Philips Shaving Head Cleaning Spray
• RQ111 Philips beard styler attachment
• SH575 Philips cleansing brush attachment
• SH560 Philips cleansing brush replacement head
• JC301, JC302, JC303, JC304, JC305 cleaning cartridge

Note: Availability of the accessories may differ per country.

Shaving heads

2yrs

- We advise you to replace your shaving heads every two year. Always replace the shaving heads with original SH70 Philips shaving heads.

Recycling

Symbol of a trash bin crossed with no text or symbols, representing waste sorting or disposal (no text present)

- This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

- This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). We strongly advise you to take your product to an official collection point or a Philips service centre to have a professional remove the rechargeable battery. - Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Make sure the battery is completely empty when you remove it.

Be careful, the battery strips are sharp.

Illustration of three hands operating a tool, showing different states of tool positioning (no text or symbols present)

1 Remove the screw in the back panel with a screwdriver. Then remove the back panel.

Illustration of two snowboarders with directional arrows indicating motion (no text or symbols)

2 Bend the hooks aside and remove the power unit.

Two views of a shoe component with an arrow indicating upward motion (no text or symbols)

3 Break the snap hooks and remove the front panel of the power unit.

Diagram of a robotic arm with a handle and lever mechanism, showing no text or symbols

4 Take out the battery holder and cut the battery tags with a pair of cutting pliers.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem	Possible cause	Solution
The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see chapter ‘Replacement’).
	Hairs or dirt obstruct the shaving heads.	Clean the shaving heads by following the steps of the thorough cleaning method (see chapter ‘Cleaning and maintenance’).
The shaver does not work when I press the on/off button.	The shaver is still attached to the mains. For safety reasons, the shaver can only be used without cord.	Disconnect the shaver from the mains and press the on/off button to switch on the shaver (see section ‘Unplug for use reminder’).
	The rechargeable battery is empty.	Recharge the battery (see chapter ‘Charging’).
	The travel lock is activated.	Press the on/off button for 3 seconds to deactivate the travel lock.
	The shaving unit is soiled or damaged to such an extent that the motor cannot run.	Clean the shaving heads or replace them (see chapters ‘Cleaning and maintenance’ and ‘Replacement’).
The shaver is not entirely clean after I clean it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly, so there is no electrical connection between the SmartClean system and the shaver.	Press down the top cap ('click') to ensure a proper connection between the shaver and the SmartClean system.
	The cleaning cartridge is empty. The replacement symbol flashes to indicate you have to replace the cleaning cartridge.	Place a new cleaning cartridge in the SmartClean system (see chapter 'Cleaning and maintenance').
	You have used another cleaning fluid than the original Philips cleaning cartridge.	Only use the original Philips cleaning cartridges.
Water is leaking from the bottom of the shaver.	During cleaning, water may collect between the inner body and the outer shell of the shaver.	This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.
The SmartClean system does not work when I press the on/off button.	The SmartClean system is not connected to the mains.	Put the small plug in SmartClean system and put the adapter in the wall socket.
The shaver is not fully charged after I charge it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly.	Make sure you press the shaver in the SmartClean system until it locks into place.
I replaced the shaving heads, but the replacement reminder symbol is still showing.	You have not reset the shaver.	Reset the shaver by pressing the on/off button for approx. 7 seconds (see chapter ‘Replacement’).
A shaving head symbol has suddenly appeared on the display.	This symbol is a replacement reminder.	Replace the shaving heads (see chapter ‘Replacement’).

Introduktion

Prohibition sign of a faucet without any text or symbols

Prohibition sign of a faucet without any text or symbols

Forsigtig

Simple line drawing of a showerhead spraying water into a container (no text or symbols)

Elektromagnetiske felter (EMF)

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a star-shaped object, with an inset magnified view (no text or symbols)

Diagram of a medical or laboratory procedure showing a pointed tube inserted into a container with an inset magnified view (no text or labels)

Diagram of a biological or mechanical structure with a highlighted region and an arrow pointing to a feature (no text or symbols present)

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram of a biological structure with a labeled region and an arrow pointing to a specific area (no text or symbols present)

Lavt batteriniveau

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a star-shaped object (no text or symbols present)

Diagram of a biological or medical structure with a highlighted region and a starburst symbol (no text or labels)

Diagram of a medical or anatomical structure with a magnified inset showing a device (no text or labels)

Diagram showing a plug plug icon with a speech bubble and starburst shape, likely indicating a medical or health concept.

Diagram showing a surgical procedure with a faucet symbol and a star-shaped area, likely indicating a surgical or diagnostic procedure.

Diagram showing a human leg with a power button and a lock icon, indicating a location or safety symbol.

Diagram showing a person's torso with a power button and a lock icon, indicating a medical or health context.

Udskiftning af skær

Diagram showing a human body with a circular icon containing a skull and directional arrows, possibly indicating movement or interaction.

Diagram showing a plug inserted into a socket connected to a cable, with labeled parts 1 and 2 indicating different electrical connections.

Illustration of a hand cleaning a surface with arrows indicating direction (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing two different foot positions with arrows indicating movement or force, labeled ① and ②.

5 Sæt shaveren i holderen, vip shaveren bagud, og tryk ned på den øverste hætte for at tilslutte shaveren ("klik").

- Batterisymbolet blinker langsomt for at indikere, at shaveren oplades.

Brug af shaveren

Diagram showing a hand holding a button labeled 'Power' with an icon, likely illustrating a power switch or electrical function.

Illustration of a person applying facial massage to the ear with a brush (no text or symbols)

Line drawing of a person applying facial massage to the ear (no text or symbols)

Illustration of a person applying makeup to the ear (no text or symbols)

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Diagram showing a device with a sensor and antenna interacting with a curved surface (no text or symbols)

Diagram showing a device interacting with a curved surface, with an inset close-up of the device (no text or symbols present)

Diagram of a spray gun with an inset showing the spray gun impact (no text or symbols present)

Illustration of a person using a hairdryer (no text or symbols present)

Diagram showing a spray gun interacting with a surface, with an inset close-up of the spray (no text or symbols)

Line drawing of a hairbrush cutting into a surface with an arrow indicating motion (no text or symbols)

Diagram illustrating hand motion with numbered steps and directional arrows indicating movement

Illustration of a man eating with a spoon (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person's head and neck with a hairpin (no text or symbols)

Diagram of a mechanical component with an arrow indicating downward motion, showing a close-up inset of a circular feature (no text or symbols present)

Illustration of a pipe with water splashing out, showing fluid flow (no text or symbols)

Illustration of a person applying facial care to their face with a hand near the eye (no text or symbols)

Illustration showing facial massage technique with magnified detail of the object on the cheek

Simple line drawing of a paintbrush with a 'X' mark and motion lines, no text or symbols present.

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force

Simple line drawing of a container with an upward arrow and label 'SALAD' (no text or symbols on the diagram itself)

5 Placer rengøringspatronen i SmartClean-systemet.

Diagram of a blender with an arrow indicating the process (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Illustration of a lit fuse with a stopper and a no-smoking symbol (no text or labels)

Diagram showing a hand emitting powder with arrows indicating direction, and a magnified inset showing a cross-section of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing foot positioning and impact technique with numbered arrows indicating movement direction

Illustration of a hand inserting a power button into a device (no text or symbols visible)

Diagram showing battery charging process with battery, switch, and power rating indicators

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Medical diagram showing a hand holding a pressure monitor with an arrow indicating force application, labeled 'Ito' in the corner.

Diagram of a blender with a plug inserted into a battery (no text or symbols visible)

Diagram of a mechanical device with a downward arrow indicating rotation or movement (no text or symbols present)

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to a mechanical component (no text or symbols present)

Illustration of a hand using a pipette to lift a small object into a container (no text or symbols visible)

Illustration of a hand holding a circular object with a downward arrow, next to a mechanical component (no text or symbols)

Illustration of a hand holding a circular component with an arrow pointing to a mechanical part (no text or symbols present)

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram showing a hand holding three gears with an arrow indicating rotation or movement (no text or symbols present)

Diagram showing fluid dynamics around a mechanical component, with no visible text or symbols

Mechanical gear assembly diagram showing a rotating shaft and housing (no text or symbols)

Mechanical component diagram showing a circular component being lifted by a black arrow (no text or symbols)

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing mechanical components with arrows indicating motion or flow, no text or symbols present

Diagram illustrating a mechanical or electrical hazard symbol with a magnified view showing a cross symbol and a gear mechanism.

Illustration of a hand holding a small object with directional arrows indicating movement or force (no text or symbols present)

Illustration of two hands performing a manual tool on a diagonal line, with no text or symbols present.

Illustration of two fish dropping seeds from a diagonal line, one falling and the other with water droplets (no text or symbols)

Line drawing of a foot stepping on a pedal with a foot and ankle (no text or symbols)

Illustration of a whale spraying water with a warning symbol (no text or labels)

Diagram of a mechanical component with a top view showing a threaded part and an upward arrow (no text or symbols)

Diagram showing two mechanical components with liquid flowing from them, separated by a diagonal line (no text or symbols)

Illustration of kitchen utensils and a cloth on a diagonal line (no text or symbols)

Illustration of a handheld device with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram of a hairbrush with a handle and spout, showing internal structure (no text or symbols)

Diagram of a mechanical component with a cylindrical top and a flanged base, showing an upward arrow (no text or symbols)

Diagram showing a human body with a circular icon containing a skull and directional arrows, possibly indicating movement or perception.

Illustration of a hand holding a circular component with an arrow pointing to it, alongside a close-up of a mechanical component (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram showing a hand holding three circular objects with arrows indicating direction, alongside a magnified view of a cylindrical object with internal structure.

Mechanical component diagram showing a circular component being lifted by a black arrow (no text or symbols)

Diagram of a mechanical or electrical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram showing a hand holding three circular objects with a magnified circle containing three circular objects, one marked with a 'X' and an arrow pointing to it.

Illustration of a hand holding a circular object with a downward arrow, alongside a close-up of a mechanical component (no text or symbols)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Illustration of a hand using a screwdriver to adjust a small object on a flat surface (no text or symbols present)

Illustration of two speed skis under a diagonal guide, showing motion direction (no text or symbols)

Two types of athletic shoes with different front and back views, one showing a weight gain (no text or symbols)

Diagram of robotic arms and joints with a directional arrow indicating movement (no text or labels)

Prohibition sign showing a faucet without spraying water, enclosed in a circle (no text or symbols)

Prohibition sign of a faucet without any text or symbols

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a curved structure, with an inset magnified view (no text or symbols)

Diagram of a biological or medical structure with a highlighted region and a starburst symbol (no text or labels)

Diagram illustrating two stages of a medical procedure with labeled steps and annotations

Diagram illustrating a medical procedure with labeled steps and magnified views of the procedure.

Diagram of a medical or anatomical structure with a magnified inset showing a droplet (no text or labels)

Diagram showing a plug plug icon with a starburst symbol and a speech bubble indicating the plug's direction.

Diagram showing a surgical procedure with a faucet symbol and a star-shaped area, likely indicating a surgical or diagnostic procedure.

Diagram showing a human leg with a power button and a lock icon, indicating a medical or health context.

Diagram showing a person's body with a power button and a lock icon, indicating a medical or health context.

Simple line drawing of a human torso with a circular icon containing a skull and eye symbol (no text or labels)

Diagram showing a plug inserted into a socket connected to a device with labeled parts 1 and 2

Illustration of a hand spraying water with arrows indicating flow direction (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating a force or direction (no text or symbols visible)

Diagram illustrating foot movement and impact on a shoe, labeled with arrows and numbered parts

Diagram showing a hand pressing a button labeled 'Power' with an icon, likely illustrating a power switch or electrical function.

Illustration of a person applying facial massage to their ear with a brush (no text or symbols)

Line drawing of a person's face with a hand near the ear, showing facial features (no text or symbols)

Line drawing of a person applying makeup to the ear (no text or symbols)

Illustration of a hand using a pipette to lift a small object (no text or symbols present)

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Diagram of a robotic arm with a sensor and directional arrows indicating motion (no text or symbols)

Diagram of a robotic arm with a spray gun and a close-up inset showing the motion (no text or symbols)

Diagram of a robotic arm with motion capture effect, showing impact and motion sequence (no text or symbols)

Illustration of a person applying makeup to their ear (no text or symbols present)

Diagram of a spray gun emitting light onto a surface, with an inset showing the same gun's tip and base (no text or symbols present)

Line drawing of a hairbrush cutting into a circular cutter (no text or symbols)

Diagram illustrating hand motion with numbered arrows and labeled parts, likely illustrating a physical or mechanical concept.

Illustration of a man's face with a beard and a curved object above his mouth (no text or symbols)

Illustration of two hand tools with arrows indicating movement or force (no text or symbols)

Line drawing of a person's head and neck with a hairpin (no text or symbols)

Diagram of a mechanical device with a downward arrow and an inset showing a close-up of a component (no text or symbols)

Illustration of a spray nozzle dispensing liquid into a container with droplets (no text or symbols)

Illustration of a person applying facial care to their face with a tool, no text or symbols present

20 sec.

20 sec.

Illustration showing facial skincare procedure with magnified view of product being used

Simple line drawing of a paintbrush with a cross mark and droplet, no text or symbols present

Diagram showing a hand cleaning a surface with arrows indicating direction of movement (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and foot lift technique with numbered labels and directional arrows

Line drawing of a hand inserting a power button into a device (no text or symbols)

Diagram showing battery charging mechanism with checkmark and battery symbol

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or force

Diagram showing a hand holding a device with a magnified inset highlighting internal components, labeled 'Ilo' and 'IIa'.

Two-step diagram showing a device being inserted into a container, with no visible text or symbols.

Illustration of a hand using a pipette to lift a small object, with an arrow indicating the process (no text or symbols present)

Illustration of a hand using a pipette to lift a small object into a container (no text or symbols visible)

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a circular component with an arrow pointing to a separate view of a mechanical component (no text or symbols present)

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing a mechanical component with three circular parts and an arrow indicating upward motion, intersected by a diagonal line (no text or symbols)

Diagram showing fluid flow between two mechanical components (no text or symbols)

Mechanical gear assembly diagram showing a central shaft and surrounding gears (no text or labels)

Mechanical component diagram showing a circular component being inserted into a ring, with no visible text or symbols.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing mechanical components with arrows indicating motion or transformation (no text or symbols)

Diagram illustrating a hand holding circular objects with a magnified view showing a cross symbol and a downward arrow.

Illustration of two hand positions with arrows indicating movement or force direction (no text or symbols)

Illustration of two mechanical components with water droplets, connected by a diagonal line (no text or symbols)

Two hand-drawn illustrations of water droplets falling off a diagonal line, one on the left and one on the right (no text or symbols)

Line drawing of a foot and ankle joint with a connecting rod (no text or symbols)

Illustration of a hand pouring liquid from a container into a funnel (no text or symbols)

Illustration of a handheld device with a downward arrow indicating motion (no text or symbols)

Diagram of a hairdryer with a handle and screw base (no text or symbols)

Diagram of a mechanical component with a cylindrical top and a base, showing an upward arrow (no text or symbols)

Diagram showing a human body with a circular icon containing a skull and directional arrows, possibly indicating movement or rotation.

Illustration of a hand holding a circular object with an arrow pointing to a separate mechanical component (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or flow.

Diagram showing a hand holding three circular objects with an arrow pointing to a magnified view of a battery cell.

Diagram of a mechanical component with a circular top and a curved base, showing a downward force or compression process (no text or symbols)

Diagram of a mechanical assembly with labeled parts and directional arrows indicating motion or flow.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram illustrating a process with labeled components and a magnified view showing a cross symbol.

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

Symbol of a waste bin with no text or labels, crossed by two crossed lines and a solid rectangle below (no readable text or symbols)

Illustration of a hand holding a tool, with another hand holding a small object below (no text or symbols present)

Illustration of a scooter being pulled down, showing motion arrows and a gear shift (no text or symbols)

Illustration of two brake skis with a directional arrow indicating motion (no text or symbols)

Diagram of a robotic arm joint with a directional arrow indicating movement (no text or symbols present)

Prohibition sign of a faucet without any text or symbols

Κίνδυνος

Prohibition sign of a faucet without any text or symbols

Simple line drawing of a showerhead spraying over a water-filled container (no text or symbols)

Diagram of a medical or laboratory procedure showing a pointed tube inserted into a vessel with an inset magnified view (no text or labels)

Diagram of a medical or laboratory procedure showing a tube inserted into a vial with an arrow pointing to a star-shaped object (no text or labels present)

Diagram of a biological or medical procedure with a magnified inset showing a star-shaped object (no text or symbols present)

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram showing a droplet inside a container with an arrow pointing to a labeled point, marked with the number 0.

Χαμηλή μπατ.

Diagram showing a droplet inside a tube with a magnified inset highlighting the tip (no text or symbols)

Diagram of a biological or medical structure with a highlighted region and a starburst symbol (no text or labels)

Diagram of a medical or anatomical structure with a magnified inset showing a device (no text or labels)

Diagram showing a plug plug icon with a starburst symbol and a speech bubble, likely indicating a medical or health context.

Diagram showing a surgical procedure with a faucet symbol and a star-shaped area, likely indicating a surgical or diagnostic procedure.

Diagram showing a human torso with a power button and a lock icon, indicating a location or safety symbol.

Diagram showing a person's torso with a power button and a lock icon, indicating a medical or health context.

Diagram showing a human body with a circular icon containing a skull and directional arrows, possibly indicating movement or rotation.

Diagram showing a plug inserted into a socket connected to a device with labeled parts 1 and 2

Illustration of a hand spraying water with arrows indicating flow direction, no text or symbols present

Close-up of a mechanical component with a downward arrow indicating a force or direction (no text or symbols visible)

Diagram illustrating foot movement and shading technique with numbered arrows indicating direction of movement

Diagram showing a hand pressing a button labeled 'Power' with an icon, likely illustrating a power switch or electrical function.

Illustration of a person applying facial massage to their ear with a brush (no text or symbols)

Line drawing of a person applying a nasal or oral injection to the ear (no text or symbols present)

Illustration of a person applying a cotton pad to their ear (no text or symbols)

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a person applying facial massage to their ear with a brush (no text or symbols)

Diagram showing a spacecraft with a cross symbol and an upward arrow, no text or labels present

Diagram of a robotic arm with a spray gun and a close-up inset showing the motion (no text or symbols)

Diagram of a spray gun emitting powder onto a surface, with an inset showing the same gun (no text or symbols present)

Illustration of a person applying makeup to their ear (no text or symbols present)

Diagram showing a spray gun on a surface with an inset close-up of its tip (no text or symbols)

Χρήση του τρίμερ

Illustration of two hands holding a device with directional arrows indicating movement (no text or symbols)

Line drawing of a person's head and neck with a hairpin (no text or symbols)

Diagram showing a mechanical component with a downward arrow and an inset close-up of a circular component (no text or symbols)

Illustration of a tool tip emitting steam or spray from a mechanical component (no text or symbols)

Illustration of a person applying facial care to their face with a tool, no text or symbols present

20 sec.

20 sec.

Illustration showing facial massage technique with magnified inset of a tool on the nose and mouth

Simple line drawing of a paint can with a cross mark and droplet, no text or symbols present

Illustration of a dropper tip with a stopper and a prohibition symbol (no text or labels)

Diagram showing a hand spraying water with arrows indicating flow direction, and an inset magnified view of a mechanical component (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing foot positioning and impact technique with numbered arrows indicating movement direction

Line drawing of a hand inserting a power button into a device (no text or symbols)

Diagram showing battery charging setup with battery, switch, and power rating indicators

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force

Diagram showing a hand holding a syringe with liquid, annotated with a magnified view of liquid level and 'IIa' label.

Diagram of a blender with an arrow pointing to its base (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, above a mechanical component (no text or symbols)

Illustration of a hand using a pipette to lift a small object into a dark container (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow, alongside a separate view of a mechanical component (no text or symbols)

Illustration of a hand holding a circular component with an arrow pointing to it, alongside a close-up of a mechanical component (no text or symbols)

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing two mechanical components with directional arrows, no text or symbols present

Diagram showing fluid flow between two vessels with visible cracks and turbulent flow (no text or labels)

Mechanical gear assembly diagram showing a central shaft and surrounding gears (no text or labels)

Mechanical component diagram showing a circular component being lifted by a black arrow (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or flow.

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Diagram showing a hand holding rolled documents with a magnified view of a masked object marked with a cross and a black arrow pointing to it.

Illustration of a hand holding a curved object with directional arrows indicating movement or force (no text or symbols present)

Illustration of two hands performing a manual tool on a diagonal line, with no text or symbols present.

Illustration of two water droplets falling off a diagonal line, one above and one below, with no text or symbols present.

Line drawing of a foot stepping on a pedal with a foot highlighted in the motion (no text or symbols)

Illustration of a funnel pouring liquid into a container with a hand holding a bag and a cross symbol (no text or labels)

Diagram of a mechanical component with a gear-like top and a base, showing an upward arrow (no text or symbols)

Two identical diagrams showing a hand holding a spray bottle above a base, separated by a diagonal line (no text or symbols)

Illustration of cleaning tools including a brush, cloth, and washer (no text or symbols)

Illustration of a handheld device with a downward arrow indicating motion (no text or symbols)

Diagram of a hairbrush with a handle and spout, showing mechanical components (no text or symbols)

Diagram of a mechanical component with a gear-like top and a base, showing an upward arrow (no text or symbols)

Diagram showing a human body with a circular icon containing a skull and directional arrows, possibly indicating movement or interaction.

Illustration of a hand holding a circular component with an arrow pointing to a mechanical component (no text or symbols present)

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram showing a device with three circular components and a magnified view of a battery (no text or symbols)

Mechanical component diagram showing a circular component being lifted by a black arrow (no text or symbols)

Diagram of a mechanical gear or cam mechanism with labeled components and directional arrows indicating motion or flow.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram showing a hand holding three circular objects with a magnified inset highlighting a cross symbol, likely illustrating a mechanical or electrical hazard.

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Simple line drawing of a trash bin with no text or symbols

Illustration of a hand holding a tool and a foot, with no visible text or symbols

Illustration of two different types of speed skis with directional arrows indicating motion (no text or symbols)

Two views of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Diagram of a robotic arm gripping a device, with no visible text or symbols

Prohibition sign of a faucet with diagonal line and raindrops (no text)

Prohibition sign of a faucet without any text or symbols

Precaución

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a curved tube, with an inset magnified view highlighting the tip (no text or symbols present)

Diagram of a biological structure with a magnified inset showing a star-shaped region (no text or symbols)

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram of a biological structure with a highlighted region and an arrow pointing to a specific area (no text or symbols present)

Diagram showing a droplet inside a tube with an arrow pointing to a star-shaped feature, and a magnified inset of the droplet (no text or symbols)

Diagram of a biological or medical structure with a highlighted region and a starburst symbol (no text or labels)

Diagram of a medical or anatomical structure with a magnified inset showing a tool interacting with a central point (no text or labels)

Diagram showing a person's torso with a plug and a starburst symbol, indicating electrical hazard or safety warning.

Diagram showing a surgical procedure with a faucet symbol and a star-shaped area indicating a specific area.

Diagram showing a hand pressing a button on a device with a power button and a 3-second timer, likely indicating a medical or diagnostic step.

Diagram showing a human torso with a power button and a lock icon, indicating a location or safety symbol.

Diagram showing a person's leg with a power button and a lock icon, indicating a medical or health context.

Diagram showing a human body with a circular icon containing a skull and arrows, possibly indicating a medical or health concept.

Bloqueo para viajes

Diagram showing a plug inserted into a socket connected to a handheld device, labeled with parts 1 and 2.

Illustration of a hand spraying water with arrows indicating flow direction, and an inset magnified view showing a hand holding a tool (no text or symbols present)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating two-step cleaning or dust removal process with labeled components and directional arrows

Diagram showing a hand holding a button labeled 'Power' with an icon, likely illustrating a power switch or control mechanism.

Illustration of a person applying facial massage to their ear with a brush (no text or symbols)

Line drawing of a person's face with a hand near the ear, showing facial features (no text or symbols)

1 Humedézcase la piel.

Line drawing of a person applying makeup to the ear (no text or symbols)

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Diagram showing a device interacting with a surface, with an arrow indicating upward motion (no text or symbols present)

Diagram of a robotic arm with a spray gun and a close-up inset showing the motion (no text or symbols)

Diagram of a robotic arm with motion capture effect, showing hand and foot movement (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

Diagram of a spray gun on a curved surface with an inset showing its impact (no text or symbols)

Line drawing of a hairbrush cutting into a pair of scissors (no text or symbols)

Diagram illustrating hand motion with numbered arrows indicating movement direction

Illustration of a man eating with a spoon (no text or symbols)

Illustration of two hand tools with arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Diagram of a mechanical device with a downward arrow and an inset showing a close-up of a component (no text or symbols)

Illustration of a tool tip emitting water from a nozzle (no text or symbols)

Illustration of a person applying facial care to their face with a medical device (no text or symbols present)

20 sec.

20 sec.

Illustration showing facial massage technique with magnified inset of a device and hand gesture

Simple line drawing of a paintbrush with a cross mark and droplet, no text or symbols present

Diagram showing a hand spraying water with arrows indicating flow direction, and an inset magnified view of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and impact on athletic shoes, labeled with numbered steps and directional arrows

Line drawing of a hand inserting a power button into a device (no text or symbols)

Diagram showing battery charging setup with labeled indicators for voltage and charge

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or force

Medical diagram showing a hand holding a pressure monitor with an arrow indicating force application, and a magnified inset showing internal components.

Diagram of a blender with a plug inserted into a base (no text or symbols)

Diagram of a mechanical device with a handle and arrow indicating direction (no text or symbols)

Illustration of a hand using a pipette to lift a small object (no text or symbols present)

Illustration of a hand holding a circular object with a magnified view of a mechanical component (no text or symbols)

Illustration of a hand using a pipette to lift a small object into a container (no text or symbols visible)

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a circular component with an arrow pointing to a mechanical part (no text or symbols present)

Diagram of a mechanical or electrical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing a mechanical gear assembly with three rotating components and directional arrows (no text or labels)

Diagram showing fluid flow between two mechanical components (no text or symbols)

Mechanical gear assembly diagram showing a central shaft and surrounding gears (no text or labels)

Mechanical component diagram showing a circular component being inserted into a ring, with no visible text or symbols.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing mechanical components with arrows indicating motion or assembly (no text or symbols)

Diagram illustrating a hand holding circular objects with a magnified view showing a cross symbol and a downward arrow.

Illustration of two hand positions with arrows indicating movement or force direction (no text or symbols)

Illustration of two hands using a tool to lift water from a surface, separated by a diagonal line (no text or symbols)

Illustration of two cartoon fish separated by a diagonal line, one splashing and the other wading (no text or symbols)

Line drawing of a foot stepping on a pedal, showing foot and ankle (no text or symbols)

Illustration of a hand cleaning a surface with a magnified inset showing a hand holding a tool (no text or symbols)

Diagram of a mechanical component with a gear-like top and a base, showing an upward arrow (no text or symbols)

Two identical diagrams showing a container being lifted by a string, with no text or symbols present.

Illustration of mechanical components including a drum, screw, and cloth (no text or symbols)

Illustration of a handheld device with a downward arrow indicating motion (no text or symbols)

Diagram of a hairbrush with a handle and spout, showing internal structure (no text or symbols)

Diagram of a mechanical component with a cylindrical top and a flanged base, showing an upward arrow (no text or symbols)

Diagram showing a human body with a circular icon containing a skull and directional arrows, possibly indicating movement or interaction.

Illustration of a hand holding a circular object with an arrow pointing to a mechanical component (no text or symbols present)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram illustrating a hand holding three circular objects with an arrow indicating rotation, alongside a magnified view of a battery cell.

Diagram of a mechanical component with a circular top and a curved base, showing a downward force or assembly (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows

Diagram showing two circular components with a central spark and directional arrows, separated by a diagonal line (no text or symbols)

Diagram illustrating a food safety or packaging process with labeled items and a warning symbol

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

7 sec.

Symbol of a trash bin crossing over a surface, with no text or labels present.

Symbol of a trash bin with no text or labels

Illustration of a hand holding a screwdriver above a foot, with a small car nearby (no text or symbols)

Illustration of a snowboard being pulled by a pulley, showing motion direction (no text or symbols)

Two mechanical components with arrows indicating assembly or movement, no visible text or symbols

Diagram of robotic grippers with a directional arrow indicating movement (no text or labels)

Prohibition sign of a faucet without any text or symbols

Prohibition sign of a faucet without any text or symbols

Varoitus

Simple line drawing of a showerhead spraying over water (no text or symbols)

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a star-shaped object, with an inset magnified view (no text or symbols)

Diagram of a biological structure with a highlighted region and an arrow pointing to a small circular feature (no text or symbols present)

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram showing a droplet inside a container with an arrow pointing to a labeled point, marked with a small circle containing the letter '0'.

Illustration of a human torso with a faucet symbol and a starburst on the lower arm (no text or labels)

Diagram showing a hand pressing a button on a device with a power button and a 3-second time indicator.

Diagram showing a human leg with a power button and a lock icon, indicating a location or safety symbol.

Diagram showing a person's leg with a power button and a lock icon, indicating a medical or health context.

1 Paina virtapainiketta 3 sekuntia.

Diagram showing a human body with a circular icon containing a skull and eye symbol, likely indicating a medical or health concept.

Diagram showing a device with labeled parts, including a plug and cable connection with arrows indicating direction.

Diagram showing a hand cleaning a surface with arrows indicating direction of movement (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating a force or direction (no text or symbols visible)

Diagram showing two-step shoe cleaning process with directional arrows and motion indicators

Diagram showing a hand holding a button labeled 'Power' with an icon, likely illustrating a power switch or electrical contact.

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Line drawing of a person applying a nasal or oral pressure point on the ear (no text or symbols)

Illustration of a person applying a cotton pad to their ear (no text or symbols)

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a person applying facial hair to their ear with a circular brush (no text or symbols)

Diagram showing a spacecraft with a cross symbol and an upward arrow, no text or labels present

Diagram of a robotic arm with a sensor emitting light, showing two views of the arm (no text or symbols present)

Diagram showing a spray gun interacting with a surface, with an inset magnified view of the spray (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

Diagram showing a spray gun interacting with a surface, with an inset magnified view of the spray (no text or symbols)

Line drawing of a hair cutter cutting a tooth with motion lines indicating hair direction (no text or symbols)

Diagram illustrating hand motion with numbered arrows indicating movement direction

Illustration of a person eating with a spoon (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement or force (no text or symbols)

Illustration of a person applying a hair accessory to their neck (no text or symbols)

Diagram of a mechanical component with an arrow indicating downward motion, and an inset showing a close-up of a circular feature (no text or symbols)

Illustration of a mechanical component with fluid flow and spray (no text or symbols)

Illustration of a hand applying product to a person's face, showing facial features (no text or symbols)

20 sec.

20 sec.

20 sec.

Illustration showing facial massage technique with magnified inset of a bottle and eye area

Simple line drawing of a paintbrush with a 'X' mark and motion lines, no text or symbols present.

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Simple line drawing of a container with an upward arrow and label 'SOTING' (no other text or symbols)

Diagram of a blender with a black arrow indicating compression or insertion process (no text or symbols)

Mechanical component diagram showing a lever mechanism with a downward arrow (no text or symbols)

Illustration of a lit candle flame with a downward arrow and no visible text or symbols

Diagram showing a hand spraying water with arrows indicating flow direction, and an inset magnified view of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating a force or direction (no text or symbols visible)

Diagram illustrating foot movement and impact on a shoe, labeled with arrows and numbered parts

Illustration of a hand inserting a power button into a device (no text or symbols)

Diagram showing battery charging mechanism with checkmark and battery symbol

Illustration of a hand using a pipette to lift a small object, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to a mechanical component (no text or symbols present)

Illustration of a hand using a pipette to lift a small object into a container (no text or symbols visible)

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a circular component with an arrow pointing to a three-pin connector (no text or symbols)

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing two mechanical components with directional arrows, no text or symbols present

Diagram showing mechanical components with fluid flow, no text or symbols present

Mechanical gear assembly diagram showing a rotating shaft with teeth and central bore (no text or symbols)

Mechanical component diagram showing a circular component being lifted by a black arrow (no text or symbols)

Technical diagram of a mechanical component with labeled parts and directional arrows indicating motion or flow.

Mechanical gear assembly diagram showing two components with arrows indicating motion (no text or labels)

Diagram showing a hand holding three rollers with a magnified inset showing a cross symbol and a warning label.

Illustration of a hand holding a device with directional arrows indicating movement (no text or symbols)

Illustration of two hands performing a manual tool on a diagonal line, with no text or symbols present.

Illustration of two fish separated by a diagonal line, one emitting water droplets (no text or symbols)

Line drawing of a foot stepping on a pedal with a foot highlighted in the motion (no text or symbols)

Illustration of a hand pouring liquid from a bottle into a container, with a magnified inset showing a hand holding a food item (no text or symbols present)

Diagram of a mechanical component with a gear-like top and a base, showing an upward arrow (no text or symbols)

Diagram showing two mechanical components with hanging weights, connected by a diagonal line (no text or symbols)

Illustration of cleaning tools including a brush, cloth, and washer (no text or symbols)

Illustration of a handheld device with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a handle and threaded shaft (no text or symbols)

Diagram of a mechanical component with a gear-like top and a base, showing an upward arrow (no text or symbols)

Diagram showing a human body with a circular icon containing a skull and arrows indicating rotation or movement, possibly representing a medical or health concept.

Illustration of a hand holding a circular component with an arrow pointing to a three-pin connector (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram illustrating a hand holding three circular objects with an arrow pointing to a magnified view of a battery cell.

Symbol of a trash bin crossed with no text or symbols, representing waste sorting or recycling (no text present)

Illustration of a hand turning a small boat with a tool, alongside a separate view of the same boat's side view (no text or symbols present)

1 Irrota takapaneelin ruuvi ruuvitaltalla. Irrota sitten takapaneeli.

Illustration of two different athletic shoe movements, one moving and the other on a ramp (no text or symbols)

Two types of athletic shoes with different front and side views, one showing a weight or impact (no text or symbols)

Diagram of robotic arms and joints with a directional arrow indicating movement (no text or symbols)

Prohibition sign showing a faucet without spraying water, enclosed in a circle (no text)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Diagram showing a droplet inside a tube with an arrow pointing to a labeled component, possibly indicating a procedure or measurement.

Diagram showing a droplet inside a tube with an arrow pointing to a labeled point '0' and a starburst symbol in the corner.

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram of a biological structure with a highlighted region and an arrow pointing to a specific area (no text or labels present)

Diagram showing a droplet inside a tube with a magnified inset highlighting the droplet's tip (no text or labels)

Diagram of a biological or medical structure with a highlighted region and an arrow pointing to a small feature (no text or symbols present)

Diagram of a medical or anatomical structure with a magnified inset showing a tool interacting with a central point (no text or labels)

Diagram showing a person's torso with a plug and a starburst symbol, indicating electrical hazard or safety warning.

Diagram showing a surgical procedure with a faucet symbol and a star-shaped area indicating a specific area.

Diagram showing a human leg with a power button and a lock icon, indicating a location or safety symbol.

Diagram showing a person's leg with a power button and a lock icon, indicating a medical or health monitoring context.

Simple line drawing of a human body with a circular icon containing a skull and arrows, no text or symbols present.

Diagram showing a plug inserted into a device with labeled parts and directional arrows indicating connection.

Illustration of a hand cleaning a surface with arrows indicating direction (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing two foot positions with arrows indicating movement or force, possibly illustrating a physical or mechanical process.

Diagram showing a hand holding a button labeled with an 'Power' symbol, likely indicating a power switch or trigger.

Illustration of a person applying facial massage to their ear with a brush (no text or symbols)

Line drawing of a person's neck and shoulder with a finger pointing to the ear area (no text or symbols)

Illustration of a person applying a cotton pad to their ear (no text or symbols)

Illustration of a mechanical device with rotating components and motion lines (no text or symbols)

Illustration of a person applying facial massage to the ear with a cotton roller (no text or symbols)

Diagram showing a spacecraft with a flag and directional arrows, no text or symbols present

Diagram of a robotic arm with a sensor emitting a beam, showing motion and component placement (no text or symbols)

Diagram showing a spray gun interacting with a surface, with an inset magnified view of the spray (no text or symbols)

Diagram showing a spray gun interacting with a surface, with an inset close-up of the spray (no text or symbols)

Line drawing of a hairbrush cutting into a circular cutter (no text or symbols)

Diagram illustrating hand motion with numbered arrows indicating movement paths, labeled 1 and 2.

Illustration of a man eating with a spoon (no text or symbols)

Illustration of two hand tools with arrows indicating movement or force (no text or symbols)

Line drawing of a person's head and neck with a hairpin (no text or symbols)

Diagram of a mechanical component with an arrow indicating downward motion, and an inset showing a close-up of a component (no text or symbols present)

Illustration of a tool tip emitting steam or spray from a mechanical component (no text or symbols)

Illustration of a person applying facial care to their face, with no text or symbols present.

20 sec.

20 sec.

20 sec.

Illustration showing facial skincare procedure with magnified detail of product being applied

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force

Simple line drawing of a container with an upward arrow, no text or symbols present

Diagram of a blender with a black arrow pointing to its base (no text or symbols present)

Diagram of a mechanical device with a downward arrow indicating rotation or movement (no text or symbols present)

Diagram showing a droplet on a test tube with a prohibition symbol indicating water release or disinfection.

Illustration of a hand cleaning a surface with arrows indicating direction (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and impact on a shoe, labeled with numbered arrows and motion indicators

Line drawing of a hand inserting a power button into a device (no text or symbols)

Diagram showing battery charging process with checkmark and battery symbol

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force

Diagram showing a hand pouring liquid into a container with a magnified inset highlighting the liquid level.

Diagram of a blender with a plug inserted into a container (no text or symbols)

Mechanical component diagram showing a lever mechanism with a downward arrow (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or vibration (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to it, above a separate view of a mechanical component (no text or symbols present)

Illustration of a hand using a pipette to lift a small object into a container (no text or symbols visible)

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a circular component with an arrow pointing to a separate view of a mechanical component (no text or symbols present)

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing a hand holding three circular components with arrows indicating rotation or movement, separated by a diagonal line (no text or symbols)

Diagram showing fluid flow between two mechanical components (no text or symbols)

Mechanical gear assembly diagram showing a central shaft and surrounding gears (no text or labels)

Mechanical component diagram showing a circular component being inserted into a ring, with no visible text or symbols.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing mechanical components with arrows indicating motion or assembly (no text or symbols)

Diagram illustrating a mechanical or electrical hazard symbol with a magnified view showing a cross symbol and a gear mechanism.

Illustration of two hand tools with arrows indicating movement or force (no text or symbols)

Illustration of two hands performing a manual water droplet on a surface, separated by a diagonal line (no text or symbols)

Illustration of two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Line drawing of a foot stepping on a shoe with a rope and cloth (no text or symbols)

Illustration of a jet dropping with motion lines, accompanied by a magnified inset showing a hand holding a bird (no text or symbols)

Diagram of a mechanical component with a cylindrical top and a base, showing an upward arrow (no text or symbols)

Two identical diagrams showing a container being inverted on a stand, with no text or symbols present.

Illustration of mechanical components including a brush, screw, and washer (no text or symbols)

Illustration of a stylized object resembling a device with a curved handle and a downward arrow, no text or symbols present.

Diagram of a mechanical component with a threaded shaft and top handle, no text or symbols present

Diagram of a mechanical component with a gear-like top and a base, showing an upward arrow (no text or symbols)

Simple line drawing of a human body with a circular icon containing a skull and arrows, no text or symbols present.

Illustration of a hand holding a circular component with an arrow pointing to a mechanical component (no text or symbols present)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram showing a hand holding three circular objects with arrows pointing to a magnified view of a textured object, possibly indicating a process or inspection.

Mechanical component diagram showing a circular component being inserted into a ring (no text or symbols)

Diagram of a mechanical or electrical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram illustrating a process with labeled components and a warning sign, showing a hand holding three circular objects.

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Illustration of a hand holding a screwdriver and a small boat, both on a diagonal line (no text or symbols)

Illustration of two types of skate skis with directional arrows indicating movement (no text or symbols)

Diagram showing two mechanical components with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a robotic arm gripping a tool, with no visible text or symbols

Prohibition sign of a faucet with diagonal line and raindrops (no text)

Prohibition sign of a faucet without any text or symbols

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a star-shaped object, with an inset magnified view (no text or symbols)

Diagram of a biological or anatomical structure with a highlighted region and a starburst symbol (no text or labels)

Diagram of a biological structure with a highlighted inset showing a chromosome (no text or labels)

Diagram of a biological structure with a highlighted region and an arrow pointing to a specific area (no text or labels present)

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a star-shaped object, with an inset magnified view (no text or symbols)

Diagram of a biological structure with a star-shaped annotation and arrow pointing to a small region (no text or symbols present)

Diagram of a medical or anatomical structure with a magnified inset showing a droplet (no text or labels)

Diagram showing a plug plug icon pointing to a star-shaped object with a lightning bolt symbol, likely indicating a medical or health concept.

Diagram showing a surgical procedure with a faucet symbol and a star-shaped area indicating a specific area.

Diagram showing a hand pressing a button on a device with a power button and a 3-second time indicator.

Diagram showing a human leg with a power button and a lock icon, indicating a location or safety warning.

Diagram showing a person's body with a power button and a lock icon, indicating a medical or health context.

Diagram showing a human body with a circular icon containing a skull and directional arrows, possibly indicating movement or rotation.

Diagram showing a plug inserted into a socket connected to a handheld device, labeled with parts 1 and 2.

Illustration of a hand cleaning a surface with arrows indicating direction (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating two-step cleaning or dust removal process with labeled components and directional arrows

Diagram showing a hand holding a button labeled with an 'Power' symbol, likely indicating a power switch or trigger.

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Line drawing of a person applying facial massage to the neck area (no text or symbols)

Line drawing of a person applying face-to-face care to the ear (no text or symbols)

Illustration of a hand using a pipette to lift a small object (no text or symbols visible)

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Diagram showing a spacecraft with a flag and directional arrows, no text or symbols present

Diagram of a robotic arm with a sensor emitting a beam, showing motion and component placement (no text or symbols)

Diagram showing a spray gun interacting with a surface, with an inset magnified view of the spray (no text or symbols)

Illustration of a person using a handheld device to apply facial hair (no text or symbols present)

Diagram showing a spray gun interacting with a surface, with an inset close-up of the spray (no text or symbols)

Line drawing of a hairbrush cutting a toothed edge, showing blade and crown (no text or symbols)

Diagram showing hand positioning with numbered arrows indicating movement or force direction

Illustration of a man's face with a beard and a curved line, no text or symbols present

Illustration of two hand tools with arrows indicating movement or force (no text or symbols)

Line drawing of a person's head and neck with a hairpin (no text or symbols)

Diagram of a mechanical component with an arrow indicating downward motion, showing a close-up inset (no text or symbols)

Illustration of a pipe pouring liquid into a container with splashes (no text or symbols)

Illustration of a person applying facial care to their face with a hand near the head (no text or symbols)

20 sec.

20 sec.

20 sec.

Illustration showing facial massage technique with magnified inset of a nail polish on the cheek

Simple line drawing of a paintbrush with a 'X' mark and motion lines indicating spray (no text or symbols)

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or assembly.

Diagram of a blender with a plug inserted into a container (no text or symbols)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Illustration of a lit candle flame with a droplet symbol and no warning sign (no text or labels)

Diagram showing a hand spraying water with arrows indicating flow direction, and an inset magnified view of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating a force or direction (no text or symbols visible)

Diagram illustrating two-step cleaning or dust removal process with labeled steps and directional arrows

Illustration of a hand inserting a power button into a device (no text or symbols visible)

Diagram showing battery charging setup with labeled components and checkmark indicators

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a hand holding a circular component with an arrow pointing to it, alongside a close-up of a mechanical component (no text or symbols)

Illustration of a hand using a pipette to lift a mechanical component (no text or symbols visible)

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to a mechanical component (no text or symbols present)

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing a hand holding three gears with an arrow indicating rotation, separated by a diagonal line (no text or symbols)

Diagram showing fluid flow between two mechanical components (no text or symbols)

Mechanical gear assembly diagram showing a central shaft and surrounding gears (no text or labels)

Mechanical component diagram showing a circular component being lifted by a black arrow (no text or symbols)

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing a hand holding three stacked coins with a magnified inset highlighting a circular object containing a cross symbol.

Illustration of two hand tools with arrows indicating movement or force direction (no text or symbols)

Illustration of two hands using a tool to lift or lift water from a surface, with no text or symbols present.

Illustration of two fish separated by a diagonal line, one splashing water and the other wading with waves (no text or symbols)

Line drawing of a foot stepping on a pedal with a foot and ankle (no text or symbols)

Illustration of a hand holding a tool with a magnified inset showing a hand reaching out (no text or symbols)

Diagram of a mechanical component with a gear-like top and a base, showing an upward arrow (no text or symbols)

Two identical diagrams showing a container with liquid being inverted, connected by a diagonal line (no text or symbols)

Illustration of kitchen utensils and a cloth on a diagonal line (no text or symbols)

Illustration of a handheld device with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a handle and threaded shaft (no text or symbols)

Diagram of a mechanical component with a top and base, showing an upward arrow indicating motion (no text or symbols present)

Diagram showing a human body with a circular icon containing a skull and directional arrows, possibly indicating movement or rotation.

Illustration of a hand holding a circular component with an arrow pointing to a three-pin connector (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram showing a hand holding three circular objects with arrows indicating direction, alongside a magnified view of a cylindrical object with internal structure.

Mechanical component diagram showing a circular component being lowered into a ring (no text or symbols)

Diagram of a mechanical or electrical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing two circular components with a central spark and directional arrows, separated by a diagonal line (no text or symbols)

Diagram showing a device with a magnified view of circular components and a cross symbol, likely indicating a warning or hazard.

Illustration of a hand holding a circular object with a downward arrow, partially cut into a mechanical component (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Illustration of a hand holding a tool, with no visible text or symbols

Diagram showing two mechanical components with directional arrows indicating motion, no text or symbols present

Diagram showing two views of a mechanical component with an upward arrow indicating motion (no text or symbols)

Diagram of robotic hand positioning with a tool and mechanical components (no text or symbols)

Prohibition sign showing a faucet without spraying water, enclosed in a circle (no text or symbols)

Prohibition sign of a faucet with diagonal line and raindrops (no text)

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a star-shaped object, with an inset magnified view (no text or symbols)

Diagram of a biological structure with a highlighted region and a starburst symbol (no text or labels)

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Simple line drawing of a biological structure with a labeled point (no text or symbols present)

Diagram showing a biological or chemical structure with a magnified inset highlighting a specific region, possibly indicating a reaction or interaction.

Diagram of a biological or medical structure with a labeled point '0' and an arrow pointing to a feature (no text or symbols beyond the label)

Diagram of a medical or anatomical structure with a magnified inset showing a droplet (no text or labels)

Diagram showing a plug plug icon pointing to a star-shaped object with a lightning bolt symbol, likely indicating electrical hazard or safety warning.

Diagram of a human torso with a faucet symbol and a starburst pattern, no text or labels present

Diagram showing a human leg with a power button and a lock icon, indicating a location or safety warning.

Diagram showing a person's body with a power button and a lock icon, indicating a medical or health monitoring context.

De reisvergrendeling deactiveren

Diagram showing a human body with a circular icon containing a skull and directional arrows, possibly indicating movement or control.

Diagram showing a plug inserted into a socket connected to a handheld device, labeled with parts 1 and 2.

Illustration of a hand cleaning a surface with arrows indicating direction (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and shading technique with numbered arrows indicating motion direction

Diagram showing a hand holding a button labeled 'Power' with an icon, likely illustrating a power switch or electrical function.

Illustration of a person applying facial massage to their ear (no text or symbols present)

Line drawing of a person's head and neck with hands near the ear area (no text or symbols)

Illustration of a person applying a cotton or cotton pad to their ear (no text or symbols)

Illustration of a medical procedure with surgical instrument and mechanical components (no text or symbols)

Illustration of a person applying facial contour to the ear with a tool (no text or symbols)

Diagram showing a device interacting with a surface, with an arrow indicating upward motion (no text or symbols present)

Diagram of a robotic arm with a spray gun and a close-up inset showing the motion (no text or symbols)

Diagram showing a spray gun interacting with a surface, with an inset close-up of the spray (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

Diagram showing a spray gun interacting with a surface, with an inset close-up of the spray (no text or symbols)

Line drawing of a hairbrush cutting into a toothbrush (no text or symbols)

Diagram showing two labeled hands with directional arrows indicating movement or force, numbered 1 and 2.

Illustration of a man eating a spoon with a small upward arrow (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Diagram of a mechanical component with an arrow indicating downward motion, accompanied by a magnified inset showing a close-up of a component (no text or symbols present)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face with a hand near the eye (no text or symbols)

20 sec.

20 sec.

20 sec.

Illustration showing facial massage technique with magnified inset of hand holding a nail polish

Simple line drawing of a paintbrush with a 'X' mark and motion lines indicating spray (no text or symbols)

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force

Simple line drawing of a container with an upward arrow and label 'SALAD' (no text or symbols on the diagram itself)

Diagram of a blender with a plug inserted into a container (no text or symbols)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Illustration of a lit candle flame with a droplet symbol and no warning sign (no text or labels)

Diagram showing a hand spraying water with arrows indicating flow direction, and an inset magnified view of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating a force or direction (no text or symbols visible)

Diagram showing two cleaning steps with arrows indicating direction of motion or damage, labeled ① and ②.

Illustration of a hand inserting a power button into a device (no text or symbols visible)

Diagram showing battery charging setup with labeled components and checkmark indicators

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force

Diagram showing a hand holding a cleaning brush with a magnified inset indicating a drop in the brush's tip.

Diagram of a blender with an arrow pointing to its base, showing no text or symbols.

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a hand holding a circular component with an arrow pointing to it, alongside a separate view of a mechanical component (no text or symbols present)

Illustration of a hand using a pipette to lift a small object into a container (no text or symbols visible)

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a circular component with an arrow pointing to it, alongside a close-up of a mechanical component (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram showing two mechanical components with directional arrows, no text or symbols present

Diagram showing mechanical components and fluid flow, no text or symbols present

Mechanical gear assembly diagram showing a rotating shaft and housing (no text or symbols)

Mechanical component diagram showing a circular component being lifted by a black arrow (no text or symbols)

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing a hand holding three stacked coins with a magnified inset highlighting a circular object containing a cross symbol.

Illustration of two hand tools with arrows indicating movement or force (no text or symbols)

Illustration of two hands performing a manual manual manipulation or cleaning operation (no text or symbols present)

Illustration of two fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Line drawing of a foot stepping on a pedal with a foot highlighted in the motion (no text or symbols)

Illustration of a hand pouring liquid into a container with a magnified inset showing a hand holding a small object (no text or symbols present)

Diagram of a mechanical component with a cylindrical top and a flanged base, showing an upward arrow (no text or symbols)

Illustration of cleaning tools including spray gun, cleaning cloth, and cloth (no text or symbols)

Opbergen

Illustration of a handheld device with a downward arrow indicating motion (no text or symbols)

Diagram of a hairbrush with a handle and spout, showing mechanical components (no text or symbols)

Diagram of a mechanical component with a cylindrical top and a flanged base, showing an upward arrow (no text or symbols)

Diagram showing a human body with a circular icon containing a skull and arrows, possibly indicating a medical or anatomical feature.

Illustration of a hand holding a circular component with an arrow pointing to a mechanical part (no text or symbols present)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram illustrating a hand holding three circular objects with arrows pointing to a magnified view of a cylindrical object, possibly indicating a mechanical or electrical component.

Mechanical component diagram showing a circular component being lifted by a black arrow (no text or symbols)

Diagram of a mechanical gear or cam mechanism with labeled components and directional arrows indicating motion or flow.

Diagram showing two mechanical components with a checkmark indicating alignment or inspection (no text or symbols present)

Diagram illustrating a food safety concept with a magnified view showing incorrect food items and a warning symbol.

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Illustration of a hand holding a tool, with another hand operating a small boat (no text or symbols present)

Diagram showing two mechanical components with directional arrows indicating motion (no text or symbols)

Two views of a mechanical component with an arrow indicating upward motion (no text or symbols)

Diagram of robotic hand positioning with a directional arrow indicating movement (no text or symbols present)

Prohibition sign of a faucet without any text or symbols

Prohibition sign of a faucet without any text or symbols

Forsiktig

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a curved structure, with an inset magnified view (no text or symbols)

Diagram of a biological or medical structure with a highlighted region and an arrow pointing to a small spot (no text or symbols present)

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram of a biological or anatomical structure with a highlighted region and an arrow pointing to a specific area (no text or symbols present)

Diagram showing a droplet inside a tube with an arrow pointing to a spike, labeled with a magnified inset.

Når batteriet er nesten tomt, blinker den nederste lampen oransje.

Diagram of a biological structure with a labeled arrow pointing to a star-shaped feature (no text or symbols present)

Diagram of a medical or anatomical structure with a magnified inset showing internal components (no text or labels)

Diagram showing a plug symbol with a speech bubble and starburst shape, likely indicating a medical or safety warning.

Medical diagram showing a surgical procedure with a faucet icon and a shaded area indicating a specific area.

Diagram showing a hand pressing a button on a device with a power button and 3-second time indicator.

Du kan låse barbermaskinen när du skal ut å reise. Transportläsen forhindrer at barbermaskinen slås på ved et uhell.

Diagram showing a human leg with a power button and a lock icon, indicating a location or safety symbol.

Diagram showing a person's torso with a power button and a lock icon, indicating a medical or health context.

Bytte skjærehoder

Diagram showing a human body with a circular icon containing a skull and eye symbol, likely indicating a medical or health monitoring device.

Ladingen tar ca. én time.

Diagram showing a plug inserted into a socket connected to a device with labeled parts 1 and 2

Illustration of a hand holding a small object with arrows indicating motion or force, and an inset showing a magnified view of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

4 Hold barbermaskinen opp ned over holderen. Kontroller at forsiden av barbermaskinen vender mot SmartClean-systemet.

Diagram showing two-step shoe cleaning process with directional arrows and motion indicators

Diagram showing a hand holding a button labeled with an 'Power' symbol, likely indicating a power switch or trigger.

Illustration of a person applying facial massage to the ear with a circular motion indicator (no text or symbols)

Illustration of a person's face with hand near ear area, showing facial features (no text or symbols)

2 Smør huden med barberskum eller barbergel.

Line drawing of a person applying makeup to their ear (no text or symbols)

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a person applying facial hair to the ear (no text or symbols present)

Diagram showing a spacecraft above a landmass with an upward arrow, no text or symbols present

Diagram of a robotic arm with a head-mounted sensor and a close-up inset showing the sensor tip (no text or symbols)

Diagram showing a spray gun interacting with a surface, with an inset close-up of the spray (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

Diagram of a hairdryer with an inset showing the tip and base (no text or symbols)

Line drawing of a hairbrush cutting with a triangular blade above it (no text or symbols)

Diagram showing hand positioning with numbered arrows indicating movement or force direction

Illustration of a person eating from a spoon with an upward arrow (no text or symbols)

Illustration of two hand tools with arrows indicating movement or force (no text or symbols)

Line drawing of a person's head and neck with a hairpin (no text or symbols)

Diagram of a mechanical component with an arrow indicating downward motion, showing a close-up inset of a cylindrical component (no text or symbols present)

Illustration of a tool tip interacting with a mechanical component (no text or symbols)

Illustration of a person applying facial care to their face, with no text or symbols present.

Illustration showing facial massage technique with 20 seconds time marker and directional arrow icon

Illustration showing facial massage technique with magnified detail of the eye and hand gesture

Simple line drawing of a paintbrush with a 'X' mark and motion lines, no text or symbols present.

Ikke vipp SmartClean-systemet. På den måten unngår du lekkasje.

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force

1 Koble den lille kontakten til baksiden av SmartClean-systemet.

2 Sett adapteren i stikkontakten.

Simple line drawing of a container with an upward arrow and label 'SALAD' (no text or symbols on the diagram itself)

Diagram of a handwashing machine with a bag attachment (no text or symbols)

Illustration of a mechanical device with a downward arrow indicating motion (no text or symbols)

6 Skyv den øvre delen av SmartClean-systemet tilbake ned (du skal høre et klikk).

Illustration of a lit alcohol lamp with a droplet symbol and no visible text or labels

Bruke SmartClean-systemet

Diagram showing a hand emitting powder with arrows indicating direction, and a magnified inset showing a cross-section of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

2 Hold barbermaskinen opp ned over holderen. Kontroller at forsiden av barbermaskinen vender mot SmartClean-systemet.

Diagram illustrating two different foot positions (① and ②) of a shoe with motion arrows indicating movement direction.

Illustration of a hand inserting a power button into a device (no text or symbols)

Diagram showing battery charging setup with battery, switch, and power rating indicators

Diagram of a mechanical component with numbered parts and directional arrows indicating assembly or flow.

Diagram showing a hand holding a cleaning brush with liquid, labeled 'Ilo' and a circular diagram containing three figures.

Diagram of a blender with a black arrow indicating the blade (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Skifte ut patronen i SmartClean-systemet

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a hand holding a circular component with an arrow pointing to a mechanical part (no text or symbols present)

Illustration of a hand using a pipette to lift a small object into a container (no text or symbols visible)

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

Rengjøre barbermaskinen under springen

Illustration of a hand holding a circular component with an arrow pointing to a multi-pin connector (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram showing two mechanical components with directional arrows, no text or symbols present

Diagram showing fluid flow around a mechanical component, with no visible text or symbols

Mechanical gear assembly diagram showing a central shaft and surrounding gears (no text or symbols)

Mechanical component diagram showing a circular component being lifted by a black arrow (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows

Diagram showing a mechanical or electrical component with arrows indicating direction, no text or symbols present

Diagram showing a hand holding three circular objects with a magnified inset highlighting a cross symbol, likely illustrating a safety or hazard detection scenario.

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Tørk aldri trimmeren eller skjeggstylertilbehøret med et håndkle eller tørkepapir. Det kan skade tennene på trimmeren.

Illustration of a foot stepping on a pedal with a medical device attached (no text or symbols)

Illustration of a funnel pouring liquid into a container with a hand holding a bag above it (no text or symbols)

Diagram of a mechanical component with a gear-like top and a base, showing an upward arrow (no text or symbols)

Two identical diagrams showing a container being lifted by a tool, separated by a diagonal line (no text or symbols)

Illustration of cleaning tools including a brush, cloth, and washer (no text or symbols)

2 Skyll trimmerenheten under varmt rennende vann en liten stund.

Illustration of a handheld device with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a cylindrical shaft and top handle, no text or symbols present

Diagram of a mechanical component with a cylindrical top and a base, showing an upward arrow (no text or symbols)

Diagram showing a human body with a circular icon containing a skull and arrows, possibly indicating a medical or health concept.

Illustration of a hand holding a circular component with an arrow pointing to a mechanical part (no text or symbols present)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram illustrating a hand holding three circular objects with arrows indicating movement, alongside a magnified view of a battery cell.

Mechanical component diagram showing a circular component being lifted by a black arrow (no text or symbols)

Diagram of a mechanical or electrical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing two circular components with a central spark and a checkmark, no text or symbols present

Diagram showing a hand holding three rollers with a magnified inset showing a crossed-out circle containing a cross symbol.

Illustration of a hand holding a circular object with a downward arrow, partially cut into a mechanical component (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Illustration of three mechanical components: a tool, a handle, and a boat (no text or symbols)

Diagram showing two mechanical components with directional arrows indicating motion (no text or symbols)

Diagram showing two views of a mechanical component with an upward arrow indicating motion (no text or symbols present)

Diagram of robotic hand positioning with a tool and mechanical components (no text or symbols)

4 Ta ut batteriholderen, og klipp over batteriflikene med en avbitertang.

Garanti og støtte

Hvis du trenger kundestøtte eller informasjon, kan du gå til www.philips.com/support eller lese i garantiheftet.

Begrensninger i garantien

Prohibition sign of a faucet with diagonal line and raindrops (no text)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Diagram of a medical or laboratory procedure showing a pointed tool interacting with a star-shaped object, with an inset magnified view (no text or symbols)

Diagram of a biological or medical structure with a magnified inset showing a star-shaped feature (no text or symbols)

Indicador de carga da bateria com 3 luzes

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

- Indicador de carga da bateria com 3 luzes

Diagram of a biological structure with a highlighted region and an arrow pointing to a specific area (no text or labels present)

- Indicador de carga da bateria com 1 luz

Bateria fraca

Diagram showing a droplet inside a tube with a magnified inset highlighting the tip (no text or symbols)

Diagram of a biological or anatomical structure with a highlighted region and a starburst symbol (no text or labels)

- Indicador de carga da bateria com 1 luz

Diagram of a medical or anatomical structure with a magnified inset showing a droplet (no text or labels)

Indicador de carga da bateria com 3 luzes

Diagram showing a plug plug icon with a speech bubble and starburst shape, likely indicating a medical or health concept.

Simple line drawing of a human torso with a faucet icon and a starburst symbol (no text or labels)

Diagram showing a human leg with a power button and a lock icon, indicating a location or safety symbol.

Diagram showing a human leg with a power button and a lock icon, indicating a medical or health monitoring interface.

Diagram showing a human body with a circular icon containing a skull and directional arrows, possibly indicating movement or rotation.

Diagram showing a device with labeled parts and directional arrows indicating connection or movement

1 Introduza a ficha pequena no aparelho e coloque o adaptador na tomada eléctrica.

Carregamento no sistema SmartClean (apenas modelos específicos)

Illustration of a hand spraying water with arrows indicating flow direction (no text or symbols)

1 Introduza a ficha pequena no sistema SmartClean.

2 Ligue o adaptador à tomada eléctrica.

Close-up of a mechanical component with a downward arrow indicating a force or direction (no text or symbols visible)

Diagram showing two shoe foot positions with directional arrows indicating movement or force, labeled ① and ②.

Diagram showing a hand holding a button labeled with an 'Power' icon, likely indicating a power switch or trigger.

Illustration of a person applying facial hair to the ear with a circular tool (no text or symbols)

Line drawing of a person's head and neck with a finger pointing to the ear area (no text or symbols)

Illustration of a person applying a cotton pad to their ear (no text or symbols)

Illustration of a mechanical device with rotating components and motion lines (no text or symbols)

Illustration of a person applying facial massage to the ear with a cotton roller (no text or symbols)

Barbear a pele húmida

Illustration of a hand holding a device with a sensor or probe inserted, showing no text or symbols.

Diagram of a hand holding a device with an inset showing a magnified view of the device (no text or symbols present)

Diagram showing a robotic arm with motion lines and a magnified inset of the handle (no text or symbols)

Illustration of a person using a handheld device to apply facial hair (no text or symbols present)

Diagram showing a spray gun interacting with a surface, with an inset close-up of the spray (no text or symbols)

Line drawing of a hairbrush cutting with a hand, showing motion and shading (no text or symbols)

Diagram showing hand positioning with numbered arrows indicating movement or force direction

Illustration of a person eating with a spoon (no text or symbols)

Diagram showing hand positioning with checkmark and cross symbols indicating correct and incorrect positions

Illustration of a person applying a hair accessory to their ear (no text or symbols present)

Diagram of a mechanical device with a downward arrow and an inset showing a close-up of a component (no text or symbols present)

Illustration of a tool tip emitting water from a nozzle (no text or symbols)

Illustration of a person applying facial care to their face, with no text or symbols present.

20 sec.

20 sec.

20 sec.

Illustration showing facial skincare procedure with magnified detail of product being applied

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force

Simple line drawing of a container with an upward arrow and label 'LPG' (no text or symbols on the diagram itself)

4 Retire o selo da recarga de limpeza.

Diagram of a blender with an arrow pointing to its base (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Diagram showing a droplet on a test tube with a prohibition symbol indicating water release or disinfection.

Utilizar o sistema SmartClean

Illustration of a hand cleaning a surface with arrows indicating direction (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and foot lift technique with numbered labels and directional arrows

Line drawing of a hand inserting a power button into a device (no text or symbols)

Diagram of a vehicle battery with two circular indicators (one checked, one not checked) and a checkmark inside, no text or symbols present.

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or force

Diagram showing a hand holding a device with liquid, labeled 'Ilo' and a circular diagram containing three numbered items.

Diagram of a blender with a plug inserted into a container (no text or symbols)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Limpeza da máquina de barbear à torneira

Illustration of a hand using a pipette to lift a small object (no text or symbols visible)

Illustration of a hand holding a circular object with an upward arrow, alongside a close-up of a mechanical component (no text or symbols)

Illustration of a hand using a pipette to lift a small object into a container (no text or symbols visible)

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a circular component with an arrow pointing to a three-pin connector (no text or symbols present)

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing a hand holding three circular components with arrows indicating rotation or movement, separated by a diagonal line (no text or symbols)

Diagram showing fluid flow between two mechanical components (no text or symbols)

Mechanical gear assembly diagram showing a central shaft and surrounding gears (no text or labels)

Mechanical component diagram showing a circular component being inserted into a ring, with no visible text or symbols.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing two circular components with a central spark and directional arrows, separated by a diagonal line (no text or symbols)

Diagram illustrating a hand holding circular objects with a magnified view showing a cross symbol and a warning label.

Illustration of two hand tools with arrows indicating movement or force (no text or symbols)

Illustration of two hands performing a manual push-up technique on a diagonal line (no text or symbols)

Illustration of two hand tools cutting down a diagonal line, no text or symbols present

Line drawing of a foot stepping on a shoe with a rope and cloth (no text or symbols)

Illustration of a hand pouring liquid from a container with an 'X' symbol, no text or labels present

Diagram of a mechanical component with a top and base, showing an upward arrow (no text or symbols)

Two identical diagrams showing a container being lifted by a tool, separated by a diagonal line (no text or symbols)

Illustration of mechanical components including a brush, screw, and washer (no text or symbols)

Illustration of a stylized object resembling a device with a downward arrow, no text or symbols present

Diagram of a mechanical component with a threaded shaft and top handle, no text or symbols present

- Guarde a máquina de barbear na bolsa fornecida.

Diagram of a mechanical component with a cylindrical top and a flanged base, showing an upward arrow (no text or symbols)

Diagram showing a human body with a circular icon containing a skull and directional arrows, possibly indicating movement or rotation.

Illustration of a hand holding a circular component with an arrow pointing to a separate view of a mechanical component (no text or symbols present)

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Diagram illustrating a mechanical or electrical component with directional arrows and a magnified inset showing internal components.

Diagram of a mechanical component with a circular top and a curved base, showing internal concentric rings (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows

Diagram showing two mechanical components with a checkmark indicating alignment or inspection (no text or symbols present)

Diagram illustrating a process with three circular components and a magnified view showing a cross symbol, likely indicating a decision or action.

Illustration of a hand holding a circular object with a downward arrow indicating rotation or adjustment (no text or symbols)

Encomendar acessórios

Pure electrical circuit lines without any symbols

Simple line drawing of a trash bin with no text or symbols

Illustration of a hand tool interacting with a small boat, showing mechanical components (no text or symbols)

Illustration of two speed skis with directional arrows indicating motion (no text or symbols)

Illustration of two brake skis with a directional arrow indicating motion (no text or symbols)

Diagram of a robotic arm with a hand operating the gear (no text or symbols present)

Prohibition sign of a faucet without any text or symbols

Prohibition sign of a faucet without any text or symbols

Försiktighet

Diagram of a medical procedure showing a catheter inserted into a tube with an arrow pointing to the catheter tip (no text or labels present)

Diagram of a biological or medical structure with a highlighted region and a starburst symbol (no text or labels)

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram of a biological structure with a highlighted region and an arrow pointing to a specific area (no text or symbols present)

Låg batterinivå

Diagram showing a droplet inside a tube with an arrow pointing to a spike, labeled with a magnified inset.

Diagram of a biological or anatomical structure with a labeled point 'O' and an arrow pointing to a feature (no text or symbols beyond the label)

Diagram of a medical or anatomical structure with a highlighted section and arrow, no visible text or symbols

Diagram showing a plug symbol with a starburst effect, indicating a defect or damage point.

Simple line drawing of a human torso with a faucet icon and a starburst symbol (no text or labels)

Diagram showing a hand pressing a button on a device with a power button and a 3-second time indicator.

Diagram showing a human leg with a power button and a lock icon, indicating left-hand rule or safety instructions.

Diagram showing a person's leg with a power button and a lock icon, indicating a medical or health context.

Byte av rakhuvuden

Diagram showing a human body with a circular icon containing a skull and eye symbol, likely indicating a medical or health monitoring device.

Diagram showing two connected electrical components with labeled parts 1 and 2, indicating connection or installation.

Illustration of a hand cleaning a surface with arrows indicating direction (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and motion of a shoe, labeled with numbered arrows and motion indicators.

Diagram showing a hand pressing a button labeled 'Power' with an icon, likely illustrating a power switch or electrical function.

Illustration of a person applying facial massage to the ear with a circular motion device (no text or symbols)

Line drawing of a person's neck and ear with hands near the ear area (no text or symbols)

Illustration of a person applying a product to their neck area (no text or symbols)

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a person applying facial massage to the ear with a circular motion indicator (no text or symbols)

Diagram showing a spacecraft with an antenna and a cross symbol, no text or labels present

Diagram of a robotic arm with a spray gun and a close-up inset showing the motion (no text or symbols)

Diagram showing a robotic arm with motion lines and a close-up inset of the handle (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

Diagram showing a spray gun interacting with a surface, with an inset close-up of the spray (no text or symbols)

Line drawing of a hairbrush cutting into a pair of teeth (no text or symbols)

Diagram showing hand massage technique with labeled steps 1 and 2

Illustration of a man's face with a beard and a pointing arrow, holding a small object (no text or symbols)

Illustration of two hands holding a wristwatch with directional arrows indicating movement (no text or symbols)

Line drawing of a person applying a hair accessory to their lower face (no text or symbols)

Diagram of a mechanical component with an arrow indicating downward motion, showing a close-up inset of a cylindrical component (no text or symbols present)

Illustration of a mechanical component with motion lines indicating flow or movement (no text or symbols)

Illustration of a person applying makeup to their face with a hand holding a pen (no text or symbols)

20 sec.

20 sec.

Illustration showing facial massage technique with magnified inset of facial massage technique

Simple line drawing of a paintbrush with a cross mark and droplet, no text or symbols present

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force

Simple line drawing of a container with an upward arrow and label 'SWEET' (no text or symbols on the diagram itself)

Diagram of a blender with a plug inserted into a container (no text or symbols visible)

Diagram of a mechanical device with a downward arrow indicating rotation or movement (no text or symbols present)

Illustration of a lit candle flame with a downward arrow and no visible text or symbols

Diagram showing a hand spraying liquid with arrows indicating flow direction, and an inset magnified view of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating a feature (no text or symbols visible)

Diagram illustrating foot movement and foot lift technique with numbered labels and directional arrows

Line drawing of a hand inserting a power button into a device (no text or symbols)

Diagram showing battery charging process with checkmark and battery symbol indicators

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or force

Diagram showing a hand holding a pressure monitor with liquid, annotated with 'Ito' and a magnified inset of liquid level indicator.

Diagram of a blender with a plug inserted into a base (no text or symbols)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a hand holding a circular object with an upward arrow, alongside a close-up of a mechanical component (no text or symbols)

Illustration of a hand using a pipette to lift a small object into a container (no text or symbols visible)

Illustration of a hand holding a circular object with a downward arrow, alongside a close-up of a mechanical component (no text or symbols)

Illustration of a hand holding a circular component with an arrow pointing to a separate view of a mechanical component (no text or symbols present)

Diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing a mechanical component with three circular parts and an arrow indicating upward motion, intersected by a diagonal line (no text or symbols)

Diagram showing fluid flow between two mechanical components (no text or symbols)

Mechanical gear assembly diagram showing a rotating shaft with teeth and central hub (no text or symbols)

Mechanical component diagram showing a circular component being lifted by a black arrow (no text or symbols)

Technical diagram of a mechanical gear assembly with labeled components and directional arrows

Diagram showing mechanical components with arrows indicating motion or transformation (no text or symbols)

Diagram illustrating a hand holding circular objects with a magnified view showing a cross symbol and a downward arrow.

Illustration of two hand tools with arrows indicating movement or force (no text or symbols)

Illustration of two hands using a tool to lift or lift water from a surface, with no text or symbols present.

Illustration of two cartoon fish separated by a diagonal line, one falling and the other wading (no text or symbols)

Line drawing of a foot stepping on a pedal with a foot highlighted in the ankle (no text or symbols)

Illustration of a hand cleaning a surface with a magnified circular inset showing a hand holding a heart-shaped object (no text or symbols)

Diagram of a mechanical component with a gear-like top and a base, showing an upward arrow (no text or symbols)

Two identical diagrams showing a container being lifted by a string, with no text or symbols present.

Illustration of mechanical components including a brush, screw, and washer (no text or symbols)

Illustration of a handheld device with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a handle and threaded shaft (no text or symbols)

Diagram of a mechanical component with a cylindrical top and a base, showing an upward arrow (no text or symbols)

Simple line drawing of a human body with a speech bubble containing a skull icon and directional arrows (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to a mechanical component (no text or symbols present)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram showing a device with three circular components and a magnified view of a battery (no text or symbols)

Mechanical component diagram showing a circular component being lifted by a black arrow (no text or symbols)

Diagram of a mechanical or electrical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Diagram showing a hand holding three circular objects with a magnified circle containing three circular objects, one marked with a black arrow and a cross symbol.

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a hand operating a tool with a tool tip, alongside a small car on a side panel (no text or symbols)

Illustration of two different athletic shoe movements, one showing a curved arm and the other a single foot (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion or assembly (no text or symbols)

Diagram of a robotic hand with mechanical components and a directional arrow (no text or symbols)

Prohibition sign of a faucet without any text or symbols

Prohibition sign of a faucet without any text or symbols

Dikkat

Diagram of a medical or laboratory procedure showing a pointed tube inserted into a tubular structure with an inset magnified view (no text or labels)

Diagram of a biological structure with a highlighted region and a star-shaped annotation (no text or symbols)

Diagram of a biological structure with a highlighted region and arrow, no text or symbols present

Diagram of a biological structure with a highlighted region and an arrow pointing to a specific area (no text or labels present)

Düşük pil

Diagram showing a droplet inside a tube with an arrow pointing to a star-shaped object, and a magnified inset of the droplet (no text or symbols)

Diagram of a biological or medical structure with a highlighted region and an arrow pointing to a small circular symbol (no text or labels present)

Diagram of a medical or anatomical structure with a magnified inset showing internal components (no text or labels)

Diagram showing a plug symbol with a speech bubble and starburst shape, likely indicating a medical or safety warning.

Diagram showing a surgical procedure with a faucet symbol and a shaded area indicating the area of interest.

Diagram showing a hand pressing a button on a device with a power button and a 3-second time indicator.

Diagram showing a human leg with a power button and a lock icon, indicating a location or safety symbol.

Diagram showing a person's torso with a power button and a lock icon, indicating a medical or health context.

Diagram showing a human body with a circular icon containing a skull and eye symbol, likely indicating a medical or health context.

Diagram showing a device with labeled parts, including a plug and cable connection with arrows indicating direction.

Diagram showing a hand emitting powder from a nozzle into a container, with an inset magnified view of the funnel (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing two-step shoe cleaning process with directional arrows and spray pattern

Diagram showing a hand holding a button labeled 'Power' with an icon, likely illustrating a power switch or electrical function.

Illustration of a person applying facial hair to their ear with a brush (no text or symbols)

Line drawing of a person's face with hand near ear area, no text or symbols present

Illustration of a person applying a cotton pad to their ear (no text or symbols)

Illustration of a hand using a pipette to lift a small object, no text or symbols present

Illustration of a person applying facial hair to their ear with a circular tool (no text or symbols)

Diagram showing a flying saucer with a cross symbol and an upward arrow, no text or labels present

Diagram of a robotic arm with a head-mounted sensor and a close-up inset showing the joint detail (no text or symbols)

Diagram showing a spray gun interacting with a surface, with an inset magnified view of the spray (no text or symbols)

Illustration of a person using a hairdryer (no text or symbols present)

Diagram showing a spray gun interacting with a surface, with an inset magnified view of the spray (no text or symbols)

Line drawing of a hairdryer with a brush applying powder to the jaw (no text or symbols)

Diagram showing hand positioning with numbered arrows indicating movement or force direction

Illustration of a person eating with a spoon (no text or symbols)

Illustration of two hand tools with arrows indicating movement or change (no text or symbols)

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Diagram of a mechanical component with an arrow indicating downward motion, and an inset showing a close-up of a circular component (no text or symbols present)

Illustration of a pipe jet dropping water onto a mechanical component (no text or symbols)

Illustration of a person applying facial care to their face with a hand holding a pen (no text or symbols present)

Illustration showing facial massage technique with magnified inset of facial massage technique

Simple line drawing of a paintbrush with a black 'X' symbol and motion lines, no text or symbols present.

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force

Simple line drawing of a container with an upward arrow and the word 'SATING' at the bottom (no other text or symbols)

Diagram of a blender with a black arrow indicating the process (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Illustration of a lit alcohol lamp with a droplet symbol and no visible text or labels

SmartClean sistemini kullanma

Illustration of a hand cleaning a surface with arrows indicating direction (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram illustrating foot movement and foot lift technique with numbered labels and directional arrows

Line drawing of a hand inserting a power button into a device (no text or symbols)

Diagram showing battery charging mechanism with checkmark and battery symbol labels

Diagram of a mechanical device with labeled parts and directional arrows indicating movement or force

Diagram showing a mechanical device with a magnified inset highlighting a component labeled 'Ito'

Diagram of a blender with a plug inserted into a container (no text or symbols)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to a mechanical component (no text or symbols present)

Illustration of a hand using a pipette to lift a small object into a container (no text or symbols visible)

Illustration of a hand holding a circular component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a circular component with an arrow pointing to a three-pin connector (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram showing gear meshing with directional arrows, no text or symbols present

Diagram showing fluid flow between two mechanical components (no text or symbols)

Mechanical gear assembly diagram showing a rotating shaft and housing (no text or symbols)

Mechanical component diagram showing a circular component being lifted by a black arrow (no text or symbols)

Diagram of a mechanical or electrical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing mechanical components with arrows indicating motion or force direction (no text or symbols)

Diagram showing a device with three circular components and a magnified view of circular objects with a 'X' symbol, possibly indicating a warning or error.

Illustration of two hand tools with checkmarks and arrows indicating movement (no text or symbols)

Illustration of two mechanical components with springs and levers, no text or symbols present

Illustration of two fish separated by a diagonal line, one falling and the other wading (no text or symbols)

Illustration of a foot stepping on a pedal with a medical device attached (no text or symbols)

Illustration of a hand cleaning a surface with water droplets, accompanied by a magnified inset showing a hand holding a food item (no text or symbols present)

Diagram of a mechanical component with a gear and a base, showing an upward arrow (no text or symbols)

Two identical diagrams showing a container being inverted over a wall, with no text or symbols present.

Illustration of cleaning tools including a brush, cloth, and washer (no text or symbols)

Illustration of a handheld device with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a handle and threaded shaft (no text or symbols)

Diagram of a mechanical component with a gear-like top and a base, showing an upward arrow (no text or symbols)

Diagram showing a human body with a circular icon containing a skull and directional arrows, likely indicating a medical or anatomical concept.

Illustration of a hand holding a circular component with an arrow pointing to it, alongside a close-up of a mechanical component (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram showing a hand holding a device with a magnified view of its internal components, possibly illustrating a mechanical or electrical process.

Mechanical component diagram showing a circular component being lifted by a downward arrow, mounted on a ring (no text or symbols)

Diagram of a mechanical or electrical component with labeled parts and directional arrows indicating motion or flow.

Diagram showing a mechanical or electrical component with arrows indicating direction, no text or symbols present

Diagram illustrating a process with a magnified view of a device and a warning symbol, possibly indicating a hazard or failure.

Illustration of a hand holding a circular object with a downward arrow, next to a mechanical component (no text or symbols)

7 sec. (1) (2)

Symbol of a trash bin crossed with no visible text or labels

Illustration of a hand turning a tool with a knife, alongside a small mechanical component (no text or symbols)

Illustration of a scooter being pulled down with motion arrows indicating speed (no text or symbols)

Two views of a shoe component with an arrow indicating upward motion (no text or symbols)

Diagram of a robotic arm with a hand operating the steering wheel (no text or symbols present)
