USER MANUAL FRESH EXPRESS MAX 5EN1 DJ812510 MOULINEX

Pruneaux, abricots secs

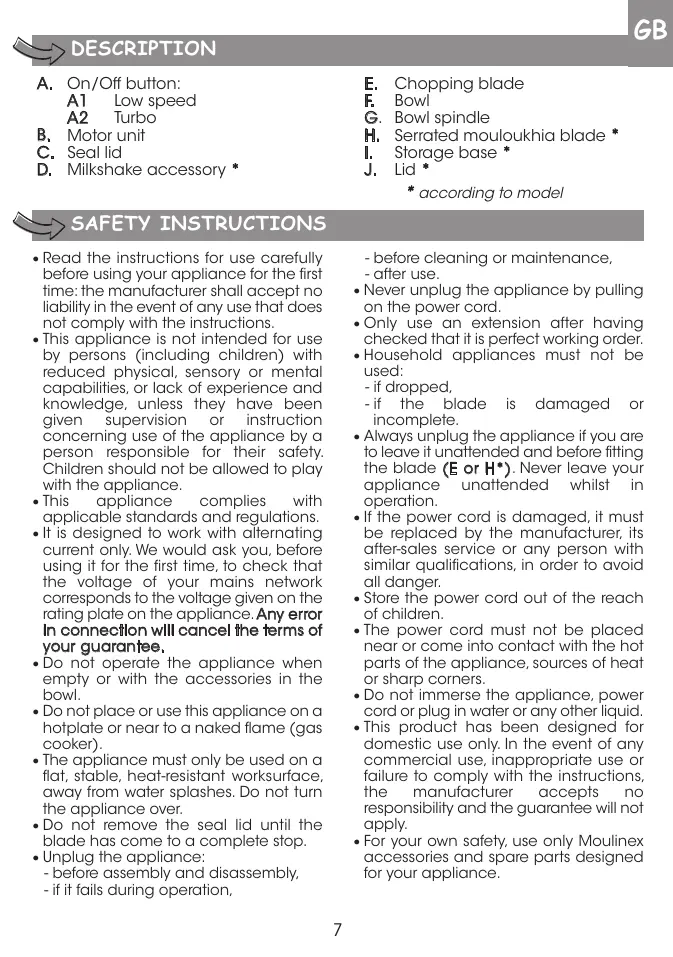

DESCRIPTION A. On/Off button:

A1 Low speed A2 Turbo B. Motor unit C. Seal lid D. Milkshake accessory *

Bowl Bowl spindle Serrated mouloukhia blade * Storage base * Lid * * according to model

- before cleaning or maintenance, - after use. • Never unplug the appliance by pulling on the power cord. • Only use an extension after having checked that it is perfect working order. • Household appliances must not be used: - if dropped, - if the blade is damaged or incomplete. • Always unplug the appliance if you are to leave it unattended and before fitting the blade (E or H*) . Never leave your appliance unattended whilst in operation. • If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or any person with similar qualifications, in order to avoid all danger. • Store the power cord out of the reach of children. • The power cord must not be placed near or come into contact with the hot parts of the appliance, sources of heat or sharp corners. • Do not immerse the appliance, power cord or plug in water or any other liquid. • This product has been designed for domestic use only. In the event of any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. • For your own safety, use only Moulinex accessories and spare parts designed for your appliance.

• Read the instructions for use carefully before using your appliance for the first time: the manufacturer shall accept no liability in the event of any use that does not comply with the instructions.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should not be allowed to play with the appliance. • This appliance complies with applicable standards and regulations. • It is designed to work with alternating current only. We would ask you, before using it for the first time, to check that the voltage of your mains network corresponds to the voltage given on the rating plate on the appliance. Any error in connection will cancel the terms of your guarantee. • Do not operate the appliance when empty or with the accessories in the bowl. • Do not place or use this appliance on a hotplate or near to a naked flame (gas cooker). • The appliance must only be used on a flat, stable, heat-resistant worksurface, away from water splashes. Do not turn the appliance over. • Do not remove the seal lid until the blade has come to a complete stop. • Unplug the appliance: - before assembly and disassembly, - if it fails during operation,

BEFORE USING FOR THE FIRST TIME

• Place the motor unit (B) on the top by turning slightly to correctly position it on the bowl (F) (fig. 2). • Plug in the appliance and press the On/Off button (A), while holding onto the motor unit (A) . You may select either a low speed (A1) or a higher speed (A2 Turbo). • At the end of preparation, release the On/Off button (A1 or A2 Turbo), unplug the appliance and wait until the blade has come to a complete stop (E) . • Remove the motor unit (B), seal lid (C) and blade (E) to empty the mixture.

• Before using for the first time, wash the accessories (C, D*, E, F & H*) in soapy water. Rinse and dry carefully. Warning: the blades are very sharp, handle cutting accessories (E & H*) with caution when using or cleaning your appliance.

Chopping and Blending (blade E)

• Place the blade (E) on the bowl spindle (G) (fig. 1). Pour the ingredients without exceeding the maximum level. Put the seal lid on (C) (fig. 1).

Recommendations for use :

Starting up recommended

Almonds, nuts, hazelnuts

Remove bones and cartilage

Light pastry or soup

Useful tips for best results:

Pulsing produces better results. Remove any food stuck to the sides of the bowl (ham, onions etc.) using the spatula. Spread around the bowl and pulse again 2 or three times.

The bowl measuring scale takes into account volumes measured with the blade in place, and is provided for information purposes only.

• Plug in the appliance and press the

On/Off button (A), while holding onto the motor unit (A) . You may select either a low speed (A1) or a higher speed (A2 Turbo). • At the end of preparation, release the On/Off button (A1 or A2 Turbo), unplug the appliance and wait until the blade has come to a complete stop (D + E). • Remove the motor unit (B), seal lid (C) and blade (D + E) to empty the mixture. • Remember to remove the milkshake accessory (D) to chop and blend.

(* according to model)

• Place the blade (H) on the bowl spindle (G) (fig. 1), add the mouloukhia or parsley leaves without exceeding the maximum level and put the seal lid on (C) (fig. 1).

• Follow the instructions given for the chopper/blender blade (E) up to switching the appliance on.

Milkshake accessory D

(* according to model)

Your appliance has a dual safety system: the appliance will not operate if the seal lid is not in place (C). Check that the bowl (F) and the motor unit (B) are placed correctly, otherwise your appliance will not operate.

• Take the milkshake accessory (D) and lock it onto the blade spindle (E) (fig. 3).

• Place the blade (E) and milkshake accessory (D) on the bowl spindle (G) (fig. 4), pour in the ingredients without exceeding the maximum level and put on the seal lid (C) (fig. 4). • Place the motor unit (B) on the top by turning slightly to correctly position it on the bowl (F) (fig. 5).

For liquid preparations, do not exceed the maximum level (0.5L) indicated on the bowl (F).

RECIPES Chopping blade (E)

milk, 1 tbsp oil and a pinch of salt to the bowl (F) fitted with the chopping blade

(E or H*). Blend for approximately 15 to 20 seconds to obtain a smooth paste.

2 egg yolks - 1 tbsp mustard - 2 tbsps water - 1 tbsp vinegar - 200 ml oil - salt, pepper. Speed Turbo (A2) It is important for all the ingredients to be at the same temperature before starting preparation. Add all ingredients and 2 tbsps oil only to the bowl (F) fitted with the blade (E or H*). Pre-mix by pressing for 15 seconds. Add the oil in three phases while pressing for 10 seconds each time. Recipe idea: Mayonnaise without mustard. Follow the steps above by replacing the mustard and the water with 2 tbsps lemon juice.

(makes up to 0.5 L for 15 waffles):

Mix 5 g baker's yeast with a little warm water. Pour into the bowl (F) fitted with the chopping blade (E or H*) : 130 g plain flour, 2 eggs, 200 ml milk, 60 g softened butter and 1 tbsp vanilla sugar. Mix for approximately 15 to 20 seconds to obtain a smooth paste. Leave to rest 1 hour.

Basil pesto (serves 4):

20 g pine nuts 2 garlic cloves 1 sprig of basil (50 g) 1 tbsp hazelnut powder 75 g olive oil 40 g parmesan (ground), Salt.

Pancake mix (makes up to 0.5 L):

Add 100 g plain flour, 2 eggs, 1/4 litre of

Grill the pine nuts in a pan without oil and set aside. Finely chop the basil leaves on slow speed (A1), while pulsing.

Remove any food stuck on the sides of the bowl and mix again. Add the pine nuts, hazelnut powder, the garlic cut in half, salt and oil into the chopper. Chop for 20 seconds on Turbo (A2) speed. Finally, add the ground parmesan and mix for a further 10 seconds on Turbo (A2) speed to obtain a fine texture.

100 g chives, parsley, chervil, tarragon, watercress in equal portions.

Chop the herbs. Add the soft butter cut into cubes. Blend to obtain a smooth mixture. Variants: Anchovy butter: 100 g butter, 100 g anchovy fillets in oil, 1 tbsp lemon juice. Roquefort butter or butter with other blue cheeses: 100 g roquefort and 100 g butter.

1 cucumber 2 garlic cloves Fresh mint 100 ml olive oil 1 yoghurt Salt and pepper. Cut the cucumber in two lengthways. Remove the seeds and dice the cucumber. Salt the cucumber cubes and leave to drain for 15 minutes. Chop the garlic and mint. Add the yoghurt and olive oil. Mix to obtain a thick texture. Season with salt and pepper. In a bowl, add the pieces of cucumber to the mixture. Refrigerate and serve cold.

Mouloukhia blade (H*)

See recipe booklet provided.

Milkshake accessory (D*)

In the bowl (F) fitted with the blade (E) and the milkshake accessory (D), pour

20 cl UHT single cream (30 % fat minimum), 20 g caster sugar or 20 g icing sugar and 1 sachet vanilla sugar. Mix continuously for approximately 30 seconds.

(chick pea puree with sesame, serves 4)

100 g dried chick peas 1 small tsp salt 50 ml tahini 50 ml lemon juice 50ml chick pea cooking liquid 1 garlic clove. To decorate the plate: Trickle of olive oil, fresh parsley, paprika or Cayenne pepper Soak the chick peas in water in a cool place for around 12 hours. Rinse then place in a pan and cover with water. Bring to the boil and ook on a low heat for 1 hour. Add the salt and continue to cook for approximately 30 minutes, until tender. Drain. Set aside a small amount of cooking liquid. Remove the skin from the chick peas. Mix the chick peas with the other ingredients to obtain a thick cream. Adjust seasoning and consistency where required. Chop the parsley for the decoration.

Tips for excellent whipped cream with firm tips

- Use cold single cream straight out of the fridge. - Do not mix for more than 40 seconds to avoid it turning into butter.

Milkshake with ice cream:

100 g ice cream (flavours: vanilla, strawberry, pistachio etc.), 200 ml milk. Mix the ice cream while pulsing then add the milk and mix again for 20 seconds.

200 milk, 100 g bananas, 4 small ice cubes. Mix the ice with the banana then add the milk and mix again for 40 seconds. Variants: you may also use apples, pears, strawberries or raspberries etc.

50 ml strawberry cordial, 150 ml milk, 4 small ice cubes. Mix the ice by pulsing, then add the milk and cordial. Mix again for 20 seconds.

3 tsps instant coffee, 5 tsps caster sugar, 4 small ice cubes, 150 ml milk.

Mix the ice by pulsing, then add the instant coffee, sugar and milk. Mix again for 30 seconds.

Variants: you may also use mint, grenadine, passion fruit cordial etc.

CLEANING with a cloth impregnated with cooking oil; then clean as usual.

• The bowl (F), seal lid (C) and other accessories (D*, E and H*) are dishwasher safe and can be washed on the top shelf on the “ECONOMY” or “QUICK WASH” programme.

• Always unplug the appliance before cleaning the motor unit (B).

• Never immerse or rinse the motor unit (B), in water. Clean the motor unit with a damp cloth and dry carefully. • Handle the blades (E or H*) with care as they are very sharp. • Do not leave the blade (E or H*) to soak with the dishes in the sink. • For easy cleaning of the bowl (F) after use, pour 1 glass of water and a few drops of washing up liquid into the bowl, switch the mixer on for 5 to 10 seconds, with the blade in place (E or H*) then rinse under the tap. • Should any of the plastic parts become stained from food such as carrots, rub

Power cord storage: Wrap the cord around the appliance and place it under the notch to block it (fig. 6).

Blade storage (E or H*): Store the blades (E & H) in the appropriate place in the storage base (I). Put the lid back on (J).

END OF LIFE ELECTRICAL AND ELECTRONIC PRODUCTS Your appliance is expected to last for many years.

However, when the time comes to replace it, do not throw it in the bin or in a dump, but take it to the recycling centre in your town (or to a waste reception centre where applicable).

Environmental protection first!

Your appliance contains a lot of recoverable or recyclable material Leave it at a local civic waste collection point so that it can be recycled. If you have any queries please contact our customer relations team first for expert help and advice:

0845 602 1454 – UK (01) 677 4003 – ROI Or consult our website – www.moulinex.co.uk

Accessorio milk-shake (D*)
