GTA 38261 G - Tumble drier GRUNDIG - Free user manual and instructions

Product Type	Condenser Dryer
Brand	GRUNDIG
Model	GTA 38261 G
Height (min. / max.)	84.6 cm / 86.6 cm (adjustable feet)
Width	59.5 cm
Depth	59.8 cm
Maximum Capacity	8 kg (dry weight before washing)
Net Weight (plastic)	50.5 kg
Net Weight (glass)	52.5 kg
Power Supply	See rating plate
Main Programs	Baumwolle (Cotton), Pflegeleicht (Synthetics), Hemden (Shirts), Jeans, Bettdecken (Duvets), Sportbekleidung (Sportswear), Wool Protect (Wool), Mini (100 min), Schonprogramm (Delicate), Auffrischen (Freshen Up), Timed Programs
Special Functions	Knitterschutz (Anti-crease, 2 h), Kindersicherung (Child Lock), Endzeiteinstellung (Delay start up to 24 h), Adjustable audible signal
Drying Levels	Extratrocken (Extra Dry), Schranktrocken (Cupboard Dry), Schranktrocken plus (Cupboard Dry +), Bügeltrocken (Iron Dry)
Maintenance and Cleaning	Lint filter (clean every cycle), Filter drawer (periodic cleaning), Moisture sensor (clean with vinegar), Water container (empty after each cycle)
Condensation Type	Condenser (clean fins)
Drain Connection	Possible via drain hose
Placement on Washing Machine	Yes (requires stacking kit)
Ambient Temperature	5°C to 35°C
Expected Lifespan	10 years (spare parts available)

Frequently Asked Questions - GTA 38261 G GRUNDIG

What is the drying capacity of the Grundig GTA 38261 G?

The maximum capacity is 8 kg of dry laundry before washing. Do not exceed this load for optimal drying.

How to install the dryer on top of a washing machine?

Use a stacking kit provided by an authorized service. The total weight (washing machine + dryer) can reach 180 kg. Ensure the floor is solid.

What to do if drying takes too long?

Check that the lint filter is not clogged (wash it with warm water), the filter drawer is clean, the ventilation grilles are not blocked, and the room is well ventilated. Spin the laundry at high speed.

How to clean the moisture sensor?

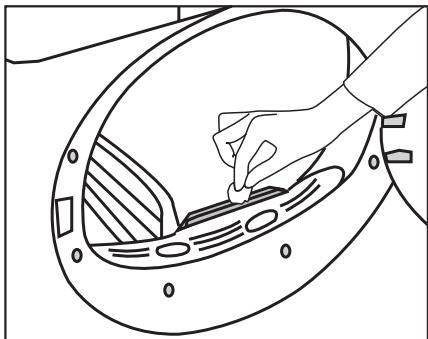

Open the door, let it cool, then wipe the metal surfaces of the sensor with a soft cloth soaked in vinegar. Dry thoroughly. Do not use metal tools.

Does the water container need to be emptied after each cycle?

Yes, empty the water container after each drying cycle. If the container is full, the symbol flashes and the machine stops. You can also connect a direct drain hose.

Can I dry wool items with this dryer?

Yes, use the Wool Protect program (approved by The Woolmark Company). Remove laundry immediately after the program ends. Pay attention to care labels.

How to activate the child lock?

Press the Audible Signal and Child Lock buttons simultaneously for 3 seconds. A lock symbol appears. To deactivate, repeat the operation.

What to do if the door does not open at the end of the cycle?

Wait for the anti-crease program to finish (2 hours) or turn off the machine. If the problem persists, check that the door is not blocked by furniture.

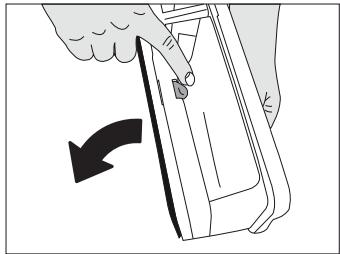

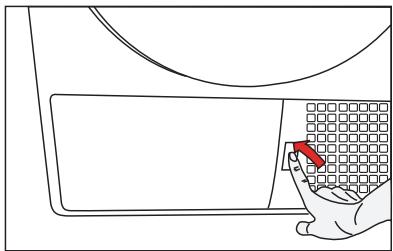

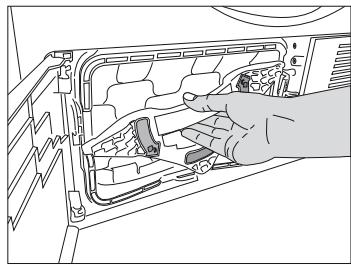

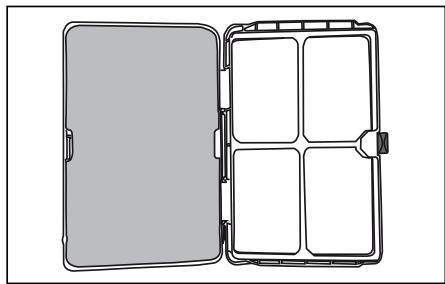

How to clean the filter drawer?

Open the front flap, remove the filter drawer cover, take out the drawer, press the red button to open it, remove the sponge, wash it by hand, wring it out and put it back. Close the drawer.

What is the most energy-efficient program?

The Baumwolle Schranktrocken (cotton cupboard dry) program is the standard program for the energy label. It consumes approximately 1.42 kWh for 8 kg at 1000 rpm.

USER MANUAL GTA 38261 G GRUNDIG

Line drawing of a hand inserting a component into a circular device (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Mechanical assembly diagram showing a hand operating a threaded component within a frame (no text or symbols visible)

3

Technical diagram of a mechanical assembly with coiled tubing and mounting brackets (no text or symbols)

Illustration of a hand holding a screw with a curved arrow indicating rotation (no text or symbols)

Line drawing of a rectangular device with a circular lens and a rectangular base, no text or symbols present.

Technical line drawing of a mechanical device showing internal components and a circular component (no text or symbols)

Diagram of a washing machine with internal components and ventilation duct (no text or labels)

Diagram illustrating four steps of cleaning a refrigerator interior, showing hand positioning and cleaning process with red arrows indicating rotation.

Line drawing of a hand using a tool to clean or wash material inside a device (no text or symbols)

Line drawing of hands cleaning a circular mechanical component (no text or symbols)

Line drawing of a hand cleaning a circular mechanical component with no visible text or symbols

7.2 Sensor reinigen

Line drawing of a hand inserting a component into a circular device (no text or symbols)

Line drawing of hands installing or adjusting a device component on a machine (no text or symbols visible)

Line drawing of a mechanical device with a hand operating the shaft (no text or symbols)

Line drawing of a hand holding a small object next to a grid-patterned panel inside a microwave oven (no text or symbols)

Line drawing of a hand inserting a component into a vehicle's door panel (no text or symbols)

Line drawing of a hand inserting or adjusting a device into a computer case (no text or symbols visible)

Illustration of a hand using a tool to lift a car seatbelt, with a black arrow indicating clockwise motion (no text or symbols)

Diagram showing a folded device with arrows indicating movement or assembly (no text or symbols present)

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Diagram of an open cylindrical device with six compartments, no text or symbols present

Illustration of a hand holding a device with an arrow indicating direction (no text or symbols)

Line drawing of a hand inserting a component into a vehicle's door panel (no text or symbols)

Line drawing of a hand pressing down on a computer monitor with a red scroll wheel (no text or symbols)

Diagram of a hand opening a device with a black X mark symbol (no text or labels present)

Wenn Sie

1 Please read this user manual first 44

2 Important instructions for safety and environment 45

2.1 General safety 45
2.1.1 Electrical safety......46
2.1.2 Product safety ...... 47
2.2 Mounting over a washing machine 49
2.3 Intended use....50
2.4 Child safety 50
2.5 Compliance with the WEEE regulation and disposing of the waste product: 51
2.6 Compliance with RoHS Directive information .... 51
2.7 Package information......51
2.8 Technical Specifications.... 52

3 Your Dryer 53

3.1 Package Contents ...... 53
3.2 Package Contents ...... 54

4 Installation 55

4.1 Appropriate installation location....55
4.2 Removing the transportation safety assembly 55
4.3 Under counter installation 56
4.4 Connecting to the drain.....56
4.5 Adjusting the feet 57
4.7 Transportation of the dryer 57

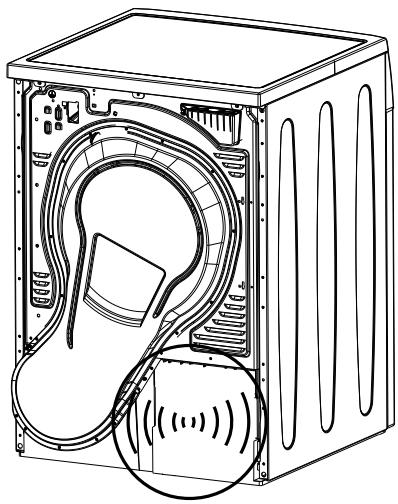

4.8Warnings about sounds .... 57
4.9 Changing the illumination lamp 57

5 Preparation 55

5.1 Laundry suitable for drying in the dryer....58

5.2 Laundry not suitable for drying in the dryer 58
5.4 Things to be done for energy saving 58
5.5 Correct load capacity ..... 59

6 Operating the product 55

6.1 Control panel....60
6.2 Display Symbols......60
6.3 Preparing the machine ..... 61
6.4 Programme selection ..... 61
6.5 Main programmes......61
6.6 Additional programmes ... 61
6.8 Auxiliary functions ...... 65
6.9 Warning symbols...... 65
6.10 Starting the programme . 66
6.11 Child Lock....66
6.12 Changing the programme after it has started .... 67
6.13 Cancelling the programme 68
6.14 End of programme ...... 68

7 Maintenance and cleaning 69

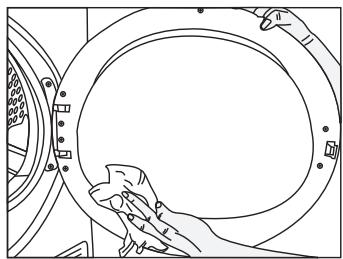

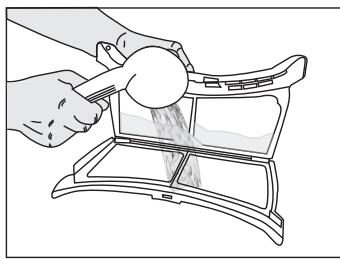

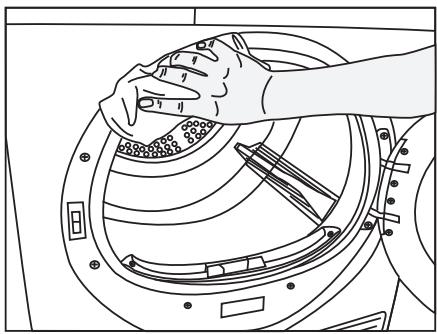

7.1 Cleaning Lint Filter / Loading Door Inner Surface ...... 69
7.2 Cleaning the sensor ..... 70

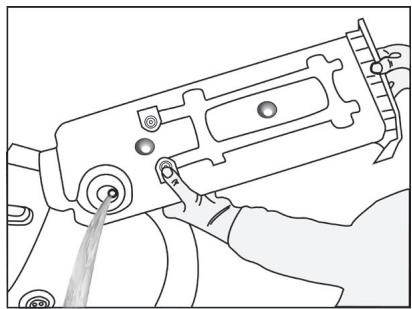

7.3 Draining the water tank .... 70

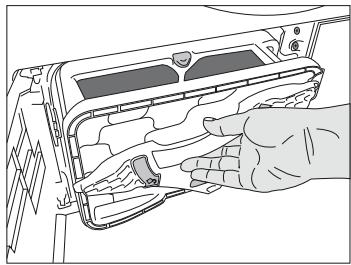

7.4 Cleaning the filter drawer 71

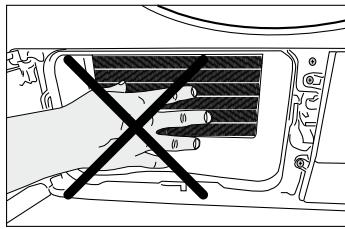

7.5 Cleaning the evaporator.... 72

8 Troubleshooting 73

1. Please read this user manual first!

Dear Customer,

Thank you for preferring a Grundig product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. If you transfer the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and follow the instructions given therein.

Use this user manual for the model indicated on the cover page.

Explanation of symbols

Throughout this user manual the following symbols are used:

	Important information or useful hints about usage.
	Warning for hazardous situations with regard to life and property.
	Warning against electric shock.
	Warning against hot surfaces.
	Warning against fire hazard.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated collection points designated by the local authorities.

2 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

2.1 General safety

• The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children should not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone.
• Children of less than 3 years should be kept away unless continuously supervised.
• Adjustable feet should not be removed. (See 2.1 Overview) The gap between the dryer and the floor should not be reduced with materials such as carpet, wood and tape. This will cause problems with the dryer.
• Always have the installation and repairing procedures carried out by the Authorized Service. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
• Never wash the dryer by spraying or pouring water onto it! There is the risk of electric shock!

2.1.1 Electrical safety

Electrical safety instructions should be followed while electrical connection is made during the installation.

• Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. Have the grounding installation performed by a qualified electrician. Our company shall not be liable for any damages that will arise when the dryer is used without grounding in accordance with the local regulations.
• The voltage and allowed fuse protection is stated on the type label plate.
• The voltage specified on the type label must be equal to your mains voltage.
• Unplug the dryer when it is not in use.
• Unplug the dryer from the mains during installation, maintenance, cleaning and repair works.
• Do not touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.
• Do not use extension cords, multi-plugs or adaptors to connect the dryer to power supply in order to decrease the risk of fire and electric shock.
• Power cable plug must be easily accessible after installation.

Damaged mains cable should be changed notifying the Authorized Service.

If the dryer is faulty, it must not be operated unless it is repaired by an authorized service agent! There is the risk of electric shock!

2.1.2 Product safety

	Points to be taken into consideration for fire hazard:Below specified laundry or items must not be dried in the dryer considering fire hazard.Unwashed laundry itemsItems soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.For this reason especially the items containing the above specifiedstains must be washed very well, to do this use adequate detergent and choose a high washing temperature.
	Below specified laundry or items must not be dried in the dryer due to the fire hazard:Garments or pillows bolstered with rubber foam (latex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads.Clothing cleaned with industrial chemicals.Items such as lighter, match, coins, metal parts, needle etc. may damage the drum set or may lead to functional problems. Therefore check all the laundry that you will load into your dryer.Never stop your dryer before the programme completes. If you must do this, remove all laundryquickly and lay them out to dissipate the heat.
	Clothes that are washed inadequately may ignite on their own and even may ignite after drying ends.

- You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.

	Underwear that contains metal reinforcements should not be driedin the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying.
	Use softeners and similar products in accordance with the instructions of their manufacturers.
	Always clean the lint filter before or after each loading.Never operate the dryer without the lint filter installed.

• Never attempt to repair the dryer by yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. Otherwise, you will be putting your life and others' lives in danger.
• There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
• Install your dryer at places suitable for home use. (Bathroom, closed balcony, garage etc.)
• Make sure that pets do not enter the dryer. Check the inside of the dryer before operating it.
• Do not lean on the loading door of your dryer when it is open, otherwise it may fall over.
• The lint must not be allowed to accumulate around the tumble dryer

2.2 Mounting over a washing machine

• A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent.
• Total weight of the washing machine and the dryer -with full load-when they are placed on top of each other reaches to approx. 180 kilograms. Place the products on a solid floor that has sufficient load carrying capacity!

Washing machine cannot be placed on the dryer. Pay attention to the above warnings during the installation on your washing machine.

Installation Table for Washing Machine and Dryer
Dryer Depth	Washing Machine Depth
	62cm	60 cm	54 cm	50 cm	49 cm	45 cm	40 cm
54 cm	Can be installed	Can be installed	Can be installed	Can be installed	Can be installed	Can be installed	Cannot be installed
60 cm	Can be installed	Can be installed	Can be installed	Can be installed	Can be installed	Cannot be installed	Cannot be installed

2.3 Intended use

• Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• Use the dryer only for drying laundry that are marked accordingly.
• The manufacturer waives any responsibility arisen from incorrect usage or transportation.
• The service life of the dryer that you purchased is 10 years. During this period, original spare parts will be available to operate the dryer properly.

2.4 Child safety

• Packaging materials are dangerous for the children. Keep packaging materials away from children.
• Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let them tamper with the dryer. Use the child-proof lock in order to prevent the children to tamper with the dryer.

Child-proof lock is on the control panel. (See Child lock)

- Keep loading door closed even when the dryer is not in use.

2.5 Compliance with the WEEE regulation and disposing of the waste product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal

domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

2.6 Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2.7 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Please visit the following website to get more information on the product.

http://www.grundig.com

2.8 Technical Specifications

EN

Height (Min. / Max.)	84,6 cm / 86,6 cm*
Width	59,5 cm
Depth	59,8 cm
Capacity (max.)	8 kg**
Net weight (plastic front door usage)	50,5 kg
Net weight (glass front door usage)	52,5 kg
Voltage	See type label***
Rated power input
Model code

* Min. height: Height with adjustable feet are closed. Max. height: Height with adjustable feet are opened maximum.
** Dry laundry weight before washing.
*** For the location of the type label on the dryer.

	Technical specifications of the dryer are subject to specification without notice to improve the quality of the product.
	Figures in this manual are schematic and may not match the product exactly.
	Values stated on markers on the dryer or in the other published documentation accompanying with the dryer are obtained in laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the dryer, these values may vary.

3 Your Dryer

3.1 Package Contents

1 2 3

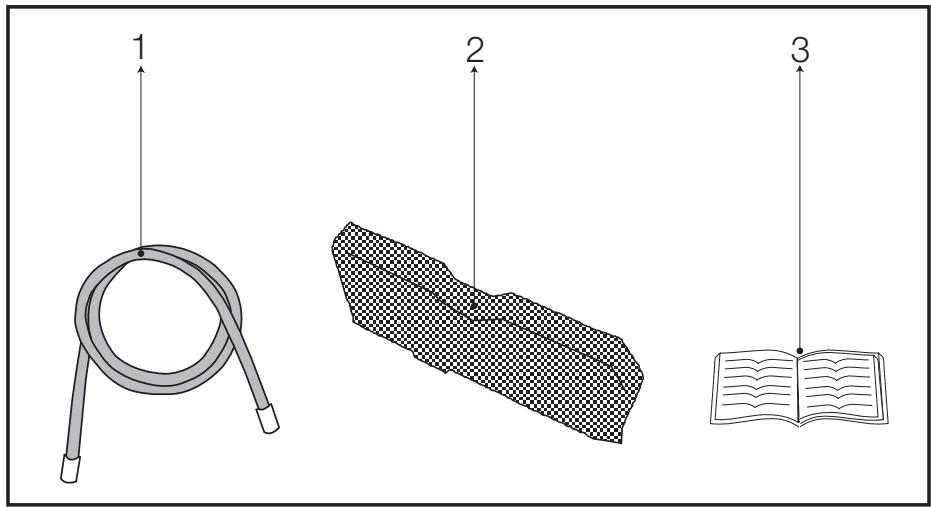

1. Water drain hose
2. Filter drawer spare sponge
3. User Manual

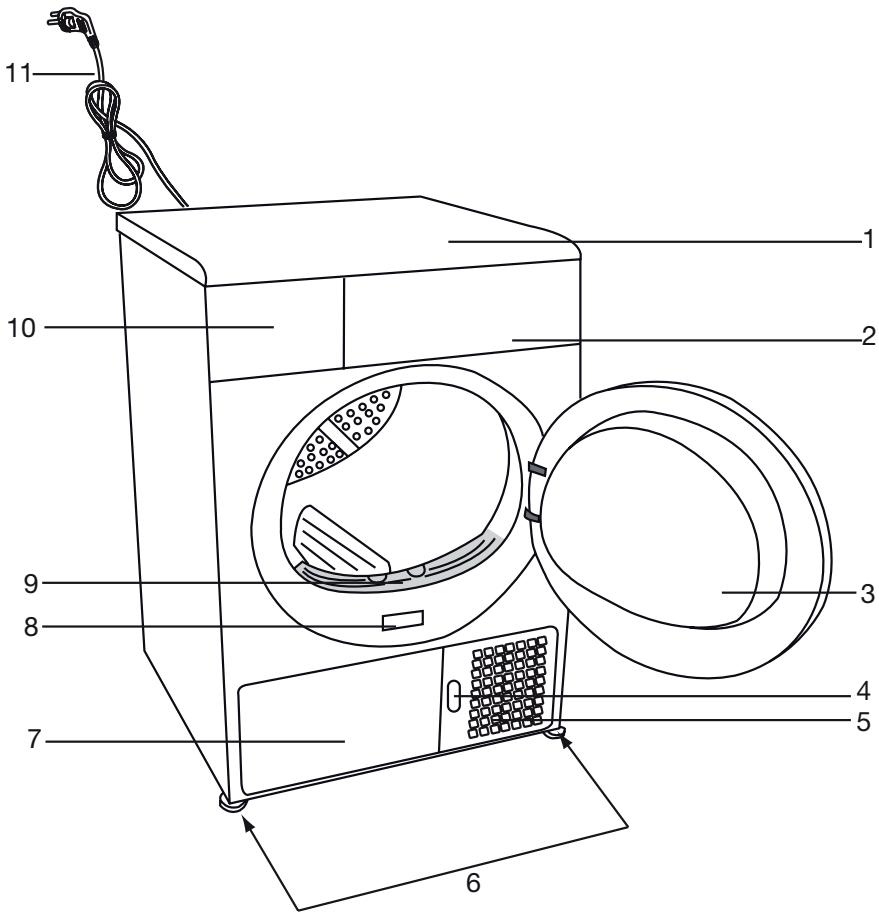

3.2 Package Contents

11 10 1 2 3 4 5 6 7 8 9

1. Top panel
2. Control panel
3. Loading door
4. Kick plate opening button
5. Ventilation grids
6. Adjustable legs
7. Kick plate
8. Type label
9. Lint filter
10. Water tank drawer
11. Power cord

4 Installation

Before the calling the nearest Authorized Service for the installation of the dryer, ensure that electrical installation and water drain is appropriate referring to the user's manual.(See 4.4 Connecting to the drain and 4.6 Electrical connection) If they are not suitable, contact a qualified electrician and technician to make necessary arrangements.

	Preparation of the dryer's location as well as the electrical and waste water installations is under customer's responsibility.
	Prior to installation, visually check if the dryer has any defects on it. If the drier is damaged, do not have it installed. Damaged products cause risks for your safety.
	Let your dryer wait for 12 hours before starting to use it.

4.1 Appropriate installation location

Install the dryer on a stable and level surface.

Dryer is heavy. Do not move it by yourself.

Operate your dryer in a well ventilated, dust-free environment. The gap between the dryer and the surface should not be reduced by the materials such as carpet, wood and tape.

Do not cover the ventilation grills of the dryer.

There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.

Once the dryer is installed, it should

stay at the same place where its connections have been made. When installing the dryer, make sure that its rear wall does not touch anywhere (tap, socket, etc.).

Place the dryer at least 1 cm away from the edges of other furniture. Your dryer can be operated at temperatures between +5°C and +35°C. If the operating conditions fall outside of this range, operation of the dryer will be adversely affected and it can get damaged.

Do not place the dryer on the power cable.

4.2 Removing the transportation safety assembly

Remove the transportation safety assembly before using the dryer for the first time.

Open the loading door.

There is a nylon bag inside the drum that contains a piece of styrofoam. Hold it from its section marked with XX XX.

Pull the nylon towards yourself and remove the transportation safety assembly.

Line drawing of a hand cleaning a circular mechanical component with a lid open (no text or symbols)

Check that no part of the transportation safety assembly remains inside the drum.

4.3 Under counter installation

This product can be installed under a counter if the height of the counter is sufficient.

While using undercounter dryer, it should never be operated without undercounter installation part. For the appropriate undercounter installation part contact the Authorized Service.

Dryer Depth	60 cm	54 cm
Stock number of under-bench installation part	2979700200	2973600200

Leave at least 1 cm of space around the sides and the rear wall of the dryer when installing it under a counter.

If installed under a countertop, drying durations can extend.

4.4 Connecting to the drain

In products equipped with condenser unit, water accumulates in the water tank during the drying cycle. You should drain accumulated water after each drying cycle.

You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the water collected in the water tank.

Connecting the water drain hose

1-2 Pull hose at the behind of the dryer by hand in order to disconnect it from where it is connected. Do not use any tools to remove the hose. 3 Connect one end of the drain hose supplied with the dryer to the connection point from where you removed the hose of the product in previous step.

4 Connect the other end of the drain hose directly to the wastewater drain or to the washbasin.

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand holding a coiled spring inside a mechanical housing (no text or symbols)

3

4

Hose connection should be made in a safe manner. Your drain house will be flooded if the hose comes out of its housing during water discharge.

Water drain hose should be attached to a height of maximum 80 cm.

Make sure that the water drain hose is not stepped on and it is not folded between the drain and the machine.

4.5 Adjusting the feet

In order to ensure that the dryer operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Turn the feet to left or right until the dryer stands level and firmly.

Illustration of a hand holding a mechanical component with rotational arrows indicating motion (no text or symbols)

Never unscrew the adjustable feet from their housings.

4.6 Electrical connection

For specific instructions for electrical connection required during installation (see 2.1.1 Electrical Safety)

4.7 Transportation of the dryer

Unplug the dryer before transporting it.

Drain all water that has remained in the dryer.

If direct water drain connection is made, then remove the hose connections.

We recommend carrying the dryer in upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from the front.

4.8 Warnings about sounds

It is normal to hear a metallic noise from the compressor sometimes during operation.

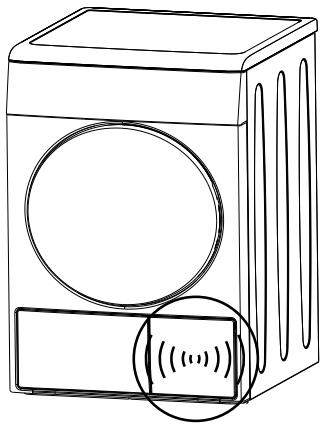

Line drawing of a washing machine casing with a circular vent and a rectangular base, no text or symbols present

Water collected during operation is pumped to water tank. It is normal to hear pumping noise during this process.

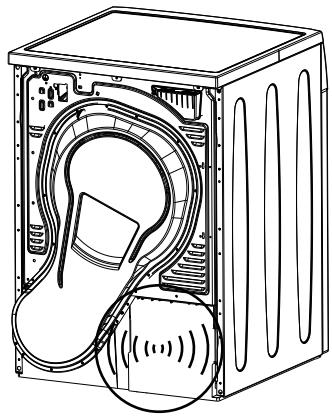

Technical line drawing of a mechanical housing with internal components and ventilation system (no text or symbols)

4.9 Changing the illumination lamp

In case an illumination lamp is used in your laundry dryer

To change the Bulb/LED used for illumination of your tumble dryer, call your Authorized Service.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place laundry in the tumble dryer in a comfortable way.

5 Preparation

5.1 Laundry suitable for drying in the dryer

Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme.

LAUNDRY DRYING SYMBOLS
	Drying Symbols	Suitable for dryer	No Iron	Sensitive / Delicate dry	Do not dry with dryer	Do not dry	Do not dry-clean

	Drying Settings
		At any temperature	At high temperature	At medium temperature	At low temperature	Without heating
							Hang to dry	Lay to dry	Hang wet to dry	Lay in shadow to dry

IRON	Iron -
	Dry or Steam	Iron at high temperature	Iron at medium temperature	Iron at low temperature	Do not iron	Iron without steam
	Maximum temperature	200 °C	150 °C	110 °C

5.2 Laundry not suitable for drying in the dryer

i

Delicate embroidered fabrics, woolen, silk garments, delicate and valuable fabrics, airtight items and tulle curtains are not suitable for machine drying.

5.3 Preparing laundry for drying

• Laundry may be tangled with each other after washing.
  Separate the laundry items before placing them into the dryer.
• Dry garments having metal accessories such as zippers, inside out.
• Fasten the zippers, hooks and buckles and button sheets.

5.4 Things to be done for energy saving

Following information will help you use the dryer in an ecological and energy-efficient manner.

• Spin your laundry at the highest speed possible when washing them. Thus, the drying time is shortened and energy consumption is reduced.
• Sort out the laundry depending on their type and thickness. Dry the same type of laundry together. For example thin kitchen towels and table clothes dries earlier than thick bathroom towels.

• Follow the instructions in the user manual for programme selection.

• Do not open the loading door of the machine during drying unless necessary. If you must certainly open the loading door, do not to keep it open for a long time.

• Do not add wet laundry while the dryer is in operation
• Clean the lint filter before or after each drying cycle. (See 7 Maintenance and cleaning)
• Clean the filter drawer once filter drawer cleaning warning symbol is on. (See 7 Maintenance and cleaning)
• Ventilate the room, where the dryer is located, well during drying.

5.5 Correct load capacity

Follow the instructions in the "Programme selection and consumption table". Do not load more than the capacity values stated in the table.

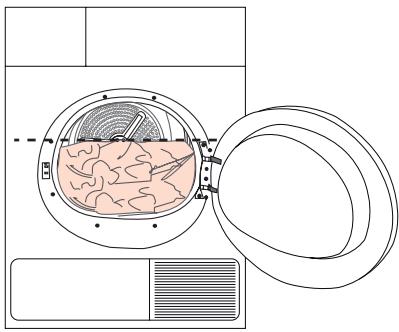

Diagram of a washing machine with internal components and ventilation duct (no text or labels)

It is not recommended to load the dryer with laundry exceeding the level indicated in the figure. Drying performance will degrade when the machine is overloaded. Furthermore, dryer and the laundry can get damaged.

Following weights are given as examples.

Laundry	Approximate weights (g)*
Cotton quit covers (double)	1500
Cotton quit covers (single)	1000
Bed sheets (double)	500
Bed sheets (single)	350
Large tablecloths	700
Small tablecloths	250
Tea napkins	100
Bath towels	700
Hand towels	350
Blouses	150
Cotton shirts	300
Shirts	200
Cotton dresses	500
Dresses	350
Jeans	700
Handkerchiefs (10 pieces)	100
T-Shirts	125

* Dry laundry weight before washing.

6 Operating the product

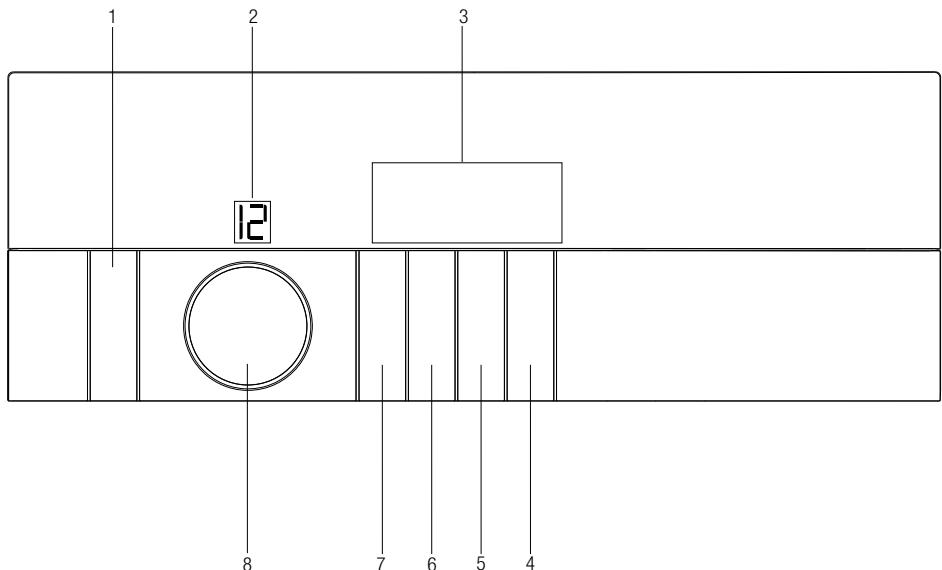

6.1 Control panel

1 2 3 12 8 7 6 5 4

1. On/Off/Cancel button
2. Programme number indicator
3. Display
4. Start / Pause button
5. End time setting selection button
6. Audio warning level / Child lock button
7. Timer programmes selection button
8. Programme selection knob

6.2 Display Symbols

2:25

Remaining time indicator*

Filter Drawer Cleaning warning symbol

Filter cleaning warning symbol

Audio warning Symbol

Child Lock warning symbol

Water Tank warning symbol

End Time Symbol

Start / Pause symbol

Programme progress bar

*Time that appears on display indicates the remaining time until the end of the programme and changes according to the dampness level of the laundry and model of the dryer.

6.3 Preparing the machine

1. Plug in the machine.
2. Place the laundry in the machine.
3. Press the On/off/cancel button for 1 second (long).
4. When your machine is operated for the first time, it starts with the default programme (wardrobe dryness for cottons).

Pressing the On/Off/ Cancel button does not necessarily mean the programme has started. Press Start/Pause button to start the programme.

6.4 Programme selection

1. Decide the appropriate programme from the table below which includes drying levels.
2. Select the desired programme with the Programme Selection knob.

Extra Dry	Only the cotton laundry is dried at normal temperature. Thick and multi layered laundry (towels, linens, jeans and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.
Cupboard Dry	Normal laundry (tablecloths, underwear and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.

Cupboard Dry Plus	Normal laundry (E.g.: tablecloths, underwear) are dried in a way that they do not require ironing before placing in the drawers, but more than those in the ready to wear option.
Iron Dry	Normal laundry (shirts, dresses and etc.) are dried ready to be ironed.

For further programme details, see, "Programme selection and consumption table".

6.5 Main programmes

Depending on the fabric type, the following main programmes are available:

- Cottons

Dry durable laundry with this programme. Dries at normal temperature. It is recommended to use for your cotton items (bed sheets, quilt covers, towels, bathrobes, etc.).

- Synthetics

Dry less durable laundry with this programme. Recommended for synthetics.

6.6 Additional programmes

For special cases, following additional programmes are available in the machine.

Additional programmes may differ according to the features of your machine.

- Bedding

Dry fiber quilts with ‘machine-dryable’ label only. Make sure you are loading the quilt in the correct way to avoid damages on the machine and the quilt. Take out the quilt cover before loading the quilt in the machine. Fold the quilt in two before loading.

• Do not load more than 1 double-size fiber quilt (200x200 cm). Do not dry items containing cotton such as quilts, pillows and etc.
• Do not dry items other than quilts such as carpets, rugs or mats.
  Permanent damage may arise in your machine.

To obtain better results from your dryer, your laundry must be washed with suitable programmes and spun at the recommended spin speeds in the washing machine.

- Shirts

This programme dries the shirts more sensitively and creases them less and thus, helps to iron them more easily.

There may be a little moisture on the shirts at the end of the programme. We recommend you not to leave the shirts in the dryer.

- Jeans

Use this programme to dry your jeans that are spun at high speeds in the washing machine.

- Sport

Use this programme to dry together the synthetic and cotton laundry items and the laundry items made of mixed fabrics.

- Wool Protect

Use this programme to dry woolen garments such as jumpers that are washed according to the instructions. It is recommended that garments would be removed at the end of the programme.

The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of machine washable wool products provided that the products are washed and dried according to the instructions on the garment label and those issued by the manufacturer of this machine.(M14113). In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

- Daily

This programme is used to dry cottons and synthetics daily, and lasts for 100 minutes.

- Delicates

You can dry your highly delicate laundry (silk blouses, fine underwear, etc.) that are suitable for drying or laundry which is advised to be hand-washed at a lower temperature.

It is recommended to use a cloth bag to avoid certain delicate garments and laundry from getting creased or damaged. Take your laundry immediately out of the dryer and hang them after the programme ends in order to prevent them being creased.

- Refresh

Only ventilation is performed for 10 minutes without blowing hot air. You can air the clothes that have been kept in closed environments for a long time and deodorize unpleasant odours thanks to this programme.

- Timer programmes

You can select one of the 10 min., 20 min., 30 min., 40 min., 50 min., 60 min., 80 min., 100 min., 120 min., 140 min. and 160 min. timer programmes to achieve the desired final drying level at low temperatures.

With this programme, the machine dries for the time selected regardless of the dryness level.

6.7 Programme selection and consumption table

EN

Programs		Capacity (kg)	Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Drying time (minutes)
Cottons / Coloreds
	Extra dry	8	1000	% 60	165
[20KA]	Cupboard dry	8	1000	% 60	152
[4XAS]	Iron dry	8	1000	% 60	124
Shirts		1,5	1200	% 50	50
Jeans		4	1200	% 50	117
Bedding		2,5	1000	% 40	120
Sport		4	1000	% 60	105
Daily		1,5	600	% 100	100
Delicates		1	800	% 40	50
Wool Protect		1,5	600	% 50	146
Synthetics
[KOWR]	Cupboard dry	4	800	% 40	65
Energy consumption values
Programs		Capacity (kg)	Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cupboard dry for cottons*		8	1000	% 60	1,42
Iron dry for cottons		8	1000	% 60	1,05
Cupboard dry for synthetics		8	800	% 40	0,51
Power consumption of the off-mode for the standart cotton programme at full load, PO (W)					0,5
Power consumption of the left-on mode for the standart cotton programme at full load, PL (W)					1,0
Contains fluorinated greenhouse gases covered by the Kyoto Protocol. Hermetically sealed. R134a / 0,520kg

„Cotton cupboard dry programme“ used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton.

* : Energy Label standard programme (EN 61121:2012). All the filters must be cleaned prior to test series. All values given in the table have been fixed according to EN 61121:2012 Standard. These values may deviate from the values in the table according to the laundry type, laundry spin speed, environmental conditions and voltage fluctuations.

6.8 Auxiliary functions Audio Warning

The machine will give an audio warning when the programme comes to an end. Use the Audio Warning Level button to adjust the sound level.

You can change the sound level either before the programme starts or while the programme is in progress.

2:25

Anti-creasing

A 2-hour anti creasing programme to prevent laundry from creasing will be activated if you do not take the laundry out after the programme has come to an end. This programme rotates the laundry in 10-minute intervals without heat to prevent creasing.

6.9 Warning symbols

Warning symbols may differ according to the model of your machine.

Lint filter cleaning

When the programme is completed, a warning symbol will appear to remind that the filter needs to be cleaned.

If the Filter Cleaning symbol in continuously, refer to "Troubleshooting" section.

Water tank

When the programme is completed, a warning symbol will appear to remind that the water tank needs to be drained.

If the water tank becomes full while the programme is running, the warning symbol will start to flash and machine will pause. Drain the water in the water tank and press Start / Pause button to resume the programme. The warning symbol turns off and the programme resumes operating.

Cleaning the filter drawer

Warning symbol flashes with certain intervals to remind that the filter drawer needs to be cleaned.

End Time Setting

End Time Setting function allows you to delay the ending time of the programme up to 24 hours.

1. Open the loading door and put the laundry in.

2. Select the drying programme, spin speed and, if required, the auxiliary functions.

3. Press End Time Setting selection button to set the desired End Time Setting symbol lights up on the display.(When the button is pressed and hold, End Time proceeds uninterruptedly).

4. Press Start/Pause button. End Time Setting starts to count down. The ":" in the middle of the displayed End Time Setting will start to flash.

Additional laundry may be loaded / taken out during the End Time period. At the end of the End Time countdown process, End Time symbol disappears, drying process starts and the programme duration is displayed. The time on the display is the total of normal drying time and End Time.

Changing the End Time

If you want to change the time during countdown:

1. Press On/Off/Cancel button for 3 seconds to cancel the programme. Restart the machine and repeat the End Time procedure for the desired time.
2. When your machine is operated for the first time, it starts with the default programme (wardrobe dryness for cottons).

Cancelling End Time function

If you want to cancel the End Time countdown and start the programme immediately:

1. Press On/Off/Cancel button for 3 seconds to cancel the programme.
2. Press On/Off/Cancel button to start the programme you have previously selected.

6.10 Starting the programme Press Start/Pause button to start the programme.

Start ▶ symbol will light up to indicate that the programme has started and “:” symbol in the middle of the remaining time will keep flashing.

6.11 Child Lock

Machine is equipped with a Child Lock which prevents interfering with the current programme flow by pressing any button. All buttons except the On/Off/Cancel button on the control panel are deactivated when the Child Lock is active. In order to activate the Child Lock, press Audio Warning, Child Lock button for 3 seconds.

To start a new programme after the current programme is over or to interrupt the current programme, the Child Lock should be deactivated. Press the same button for 3 seconds again to deactivate the Child Lock.

Lock symbol will appear on the display when the Child Lock is activated.

2:25

Child Lock is deactivated when the machine is switched off and on with On/Off/Cancel button.

When the Child Lock is activated:

Display symbols will not change even if the position of Programme Selection knob is changed while the machine is running or in halt. If the Child Lock is deactivated after changing the position of the Programme Selection knob while the machine is running, the machine stops and new programme information is displayed.

6.12 Changing the programme after it has started

After the machine starts, you can change the selected programme and dry your laundry in a different programme.

1. If you want to select Extra Dry programme instead of Iron Dry programme, for instance, press the Start / Pause button for 1 second to stop the programme.
2. Select Extra Dry programme by turning the Programme Selection knob.
3. Press the Start/Pause button to start the programme.

Adding / removing laundry in Pause mode

In order to add or take out laundry after the drying programme has started:

1. Press Start/Pause button to switch the machine to Pause mode. Drying process will stop.
2. While in Pause mode, open the loading door, add or take out laundry and close the loading door.
3. Press the Start/Pause button to start the programme.

Any laundry added after the drying process has started may cause the clothes that are already dried in the machine intermingle with wet clothes and the result will be wet laundry after the drying process is over.

You may repeat laundry adding or removing process as many times as you desire during drying. However, this process will increase the programme time and energy consumption since the drying process will be interrupted repeatedly. Therefore, it is recommended to add laundry before the drying programme has started.

If you select a new programme by turning the Programme Selection knob while your machine is in Pause mode, then the current programme is aborted and new programme information is displayed.

CAUTION: Do not touch the inner surface of the drum when adding or taking out laundry while a programme is running. Surfaces of the drum are hot.

6.13 Cancelling the programme

If you want to stop drying and cancel the programme for any reason after the machine has started to run, press and hold the On/Off/Cancel button for 3 seconds.

CAUTION: As the inside of the machine will be excessively hot when you cancel the programme while the machine is running, activate the ventilation programme to cool it down.

6.14 End of programme

Lint Filter Cleaning and Water Tank warning symbols light up in the programme follow-up indicator when the programme comes to an end. The loading door can be opened and the machine becomes ready for a second cycle.

Press On/Off/Cancel button to switch off the machine.

	2-hour Anti-creasing programme will be activated if the laundry is not taken out after the programme has come to an end.
	Clean the lint filter after each drying. (See "Lint Filter and Loading Door Inner Surface")
	Drain the water tank after each drying cycle. (See "Draining the water tank")

7 Maintenance and cleaning

Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals.

7.1 Cleaning Lint Filter / Loading Door Inner Surface

Lint and fiber released from the laundry to the air during the drying cycle are collected in the Lint Filter.

	Such fiber and lint are generally formed during wearing and washing.
	Always clean the lint filter and the inner surfaces of the loading door after each drying process.
	You can clean the lint filter housing with a vacuum cleaner.

To clean the lint filter:

• Open the loading door.
• Remove the lint filter by pulling it up and open the lint filter.
• Clean lint, fiber, and cotton raveling by hand or with a soft piece of cloth.
• Close the lint filter and place it back into its housing.

Diagram of a mechanical device interior showing internal components and a red arrow indicating a specific part (no text or symbols present)

Illustration of hands holding a wire mesh device with red arrows indicating rotation or movement (no text or symbols)

Line drawing of a hand holding a small object above a multi-tiered container (no text or symbols)

Line drawing of a hand pressing down on a car air conditioner cover (no text or symbols)

- A layer can build up on the filter pores that can cause clogging of the filter after using the dryer for a while. Wash the lint filter with warm water to remove the layer that builds up on the lint filter surface. Dry the lint filter completely before reinstalling it.

Illustration of a hand using a tool to clean or prepare food items in a tray (no text or symbols visible)

- Clean the entire inner surface of the loading door and loading door gasket with a soft damp cloth.

Line drawing of a cleaning or cleaning process with a hand holding a cloth, no text or symbols present

Line drawing of a hand adjusting a circular component with tools, no text or symbols present

7.2 Cleaning the sensor

There are dampness sensors in the dryer that detect whether the laundry is dry or not.

To clean the sensors:

• Open the loading door of the dryer.
• Allow the machine to cool down if it is still hot due to the drying process.
• Wipe the metal surfaces of the sensor with a soft cloth, dampened with vinegar and dry them.

	Clean metal surfaces of the sensors 4 times a year.
	Do not use metal tools when cleaning metal surfaces of the sensors.
	Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion!

Line drawing of a hand inserting a small component into a circular device (no text or symbols)

7.3 Draining the water tank

Dampness of the laundry is removed and condensed during drying process and the water that arise accumulates in the water tank. Drain the water tank after each drying cycle.

	Condensed water is not drinkable!
	Never remove the water tank when the program is running!

If you forget to drain the water tank, the machine will stop during the subsequent drying cycles when the water tank is full and the Water Tank warning symbol will flash. If this is the case, drain the water tank and press Start / Pause button to resume the drying cycle.

To drain the water tank: Pull the drawer and remove the water tank carefully.

Line drawing of hands installing or adjusting a mechanical component with circular holes (no text or symbols)

- Drain the water in the tank.

Line drawing of a mechanical device with a hand operating the shaft (no text or symbols)

• If there is lint accumulation in the funnel of the water tank, clean it under running water.
• Place the water tank into its seat.

If the direct water draining is used as an option, there is no need to empty the water tank.

7.4 Cleaning the filter drawer

Lint and fiber that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. Clean the filter drawer once filter drawer cleaning warning symbol is on.

There is an one stage filter. This one stage filter is from sponge To clean the filter drawer:

- Press the kick plate button to open the kick plate.

Illustration of a hand holding a microwave oven with a grid-patterned panel inside (no text or symbols)

- Remove the filter drawer cover by turning it in the direction of arrow.

Line drawing of a hand inserting or adjusting internal components into a device casing (no text or symbols visible)

• Pull out the filter drawer.

Line drawing of a hand inserting a component into a device panel (no text or symbols)

- Open the filter drawer by pressing the red button.

Illustration of a hand holding a bag with a finger pointing to it, showing a curved arrow (no text or symbols)

• Take out the filter drawer sponge.

Diagram of a door handle assembly with arrows indicating movement or force (no text or symbols)

- Wash the filter drawer sponge by hand to remove the fiber and lint on the surface. After washing the sponge, squeeze it by hand and remove the excess water. Replace the sponge.

It is not necessary to clean the sponge if lint and fiber accumulation on it is not significant.

- Place the sponge back into its place.

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Please place the sponge carefully inside the frame of the filter cassette shown by arrows in order to avoid squeezing when filter drawer closed".:

Diagram of an open cylindrical device with six compartments, no text or symbols present

- Close the filter drawer as to lock the red button.

Illustration of a hand adjusting a car seatbelt with an arrow indicating rotation (no text or symbols)

- Place the filter drawer back into its place, turn the filter drawer cover in the arrow direction and close it securely.

Hand inserting a component into a device casing (no text or symbols visible)

- Close the kick plate cover.

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

	Drying without the filter drawer sponge in place will damage the machine!
	A dirty lint filter and filter drawer will cause longer drying periods and higher energy consumption.
	The sponge filter must not be replaced dripping wet as this can cause a fault.

7.5 Cleaning the evaporator

Clean the lint accumulated on the fins of the evaporator located behind the filter drawer with a vacuum cleaner.

Diagram of a hand opening a device with a black X mark indicating a crossed-out or nolear symbol (no text or labels present)

You can also clean by hand provided that you wear protective gloves. Do not attempt to clean with bare hands. Evaporator fins can harm your hand.

8 Troubleshooting

Drying process takes too much time.

• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
• Filter drawer is clogged. >>> Wash the sponge in the filter drawer.
• Ventilation grids on the front side of the machine are blocked. >>> Remove the objects (if any) that block ventilation in front of the ventilation grids.
• Ventilation is not sufficient since the room where the machine is installed is very small. >>> Open the door and window of the room to avoid the room temperature increase too much.
• Lime deposit has built up on the dampness sensor. >>> Clean the dampness sensor.
• Excessive laundry is loaded. >>> Do not load the dryer in excess.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Laundry comes out wet at the end of drying.

After drying, the hot clothes feel damper than their actual dampness level.

• It is likely that the selected programme did not suit the laundry type.>>>Checking the care labels on clothes, select appropriate programme for the laundry type or use timer programmes in addition.
• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
• Filter drawer is clogged. >>>Wash the sponge in the filter drawer.
• Excessive laundry is loaded. >>> Do not load the dryer in excess.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Dryer does not switch on or the programme does not start. Dryer does not start when it is set.

• It is not plugged in. >>> Make sure that the machine is plugged in.
• The loading door is ajar. >>> Make sure that the loading door is closed securely.
• Programme is not selected or the Start / Pause / Cancel button is not pressed. >>> Make sure that the programme is selected and the machine is not in Pause mode.
• Childproof Lock is activated. >>> Deactivate the Childproof Lock.

Programme is interrupted without any cause.

• Loading door is ajar. >>> Make sure that the loading door is closed securely.
• There was a power failure. >>> Press Start / Pause / Cancel button to start the programme.
  • Water tank is full. >>> Drain the water tank.

Laundry has shrunk, become felted or deteriorated.

A programme suitable for the laundry type is not used. >>> Check the garment tag and select a programme suitable for the fabric type.

Drum lighting does not turn on. (On models with lamp)

Dryer is not switched on with the On / Off button. >>> Make sure that the dryer is switched on.Lamp is defective. >>> Call Authorized Service Agent to have the lamp replaced.

End/Anti-creasing symbol is on.

Anti-creasing programme is activated in order to prevent laundry that has remained in the machine from creasing. >>> Turn off the dryer and take out the laundry.

End symbol is on.

Programme is over. Turn off the dryer and take out the laundry.

Lint Filter Cleaning symbol is on.

Lint filter is not cleaned. >>> Clean the lint filter.

Lint Filter Cleaning symbol is flashing.

Filter housing is clogged with lints. >>> Clean the lint filter housing.A deposit has built up on the lint filter pores that may cause clogging.>>> Wash the lint filter with warm water.Filter drawer is clogged. >>> Wash the sponge in the filter drawer.

Water leaks from the loading door

Lint has accumulated on the inner surfaces of the loading door and on the surfaces of the loading door gasket. >>> Clean the inner surfaces of the loading door and the surfaces of the loading door gasket.

Loading door opens spontaneously.

Loading door is ajar. >>> Push the loading door to close until you hear a locking sound.

Water Tank warning symbol is on/flashing.

Water tank is full. >>> Drain the water tank.Water draining hose is bent. >>> If the product is connected directly to a wastewater drain, check the water drain hose.

Filter Drawer Cleaning warning symbol is flashing.

Filter drawer is not cleaned. >>> Wash the sponge in the filter drawer.

If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.
