USER MANUAL DT1350-CIN DISNEY

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

NOTE:

Please keep all packaging material for at least 90 days in case you need to return this product to your place of purchase or Memorex.

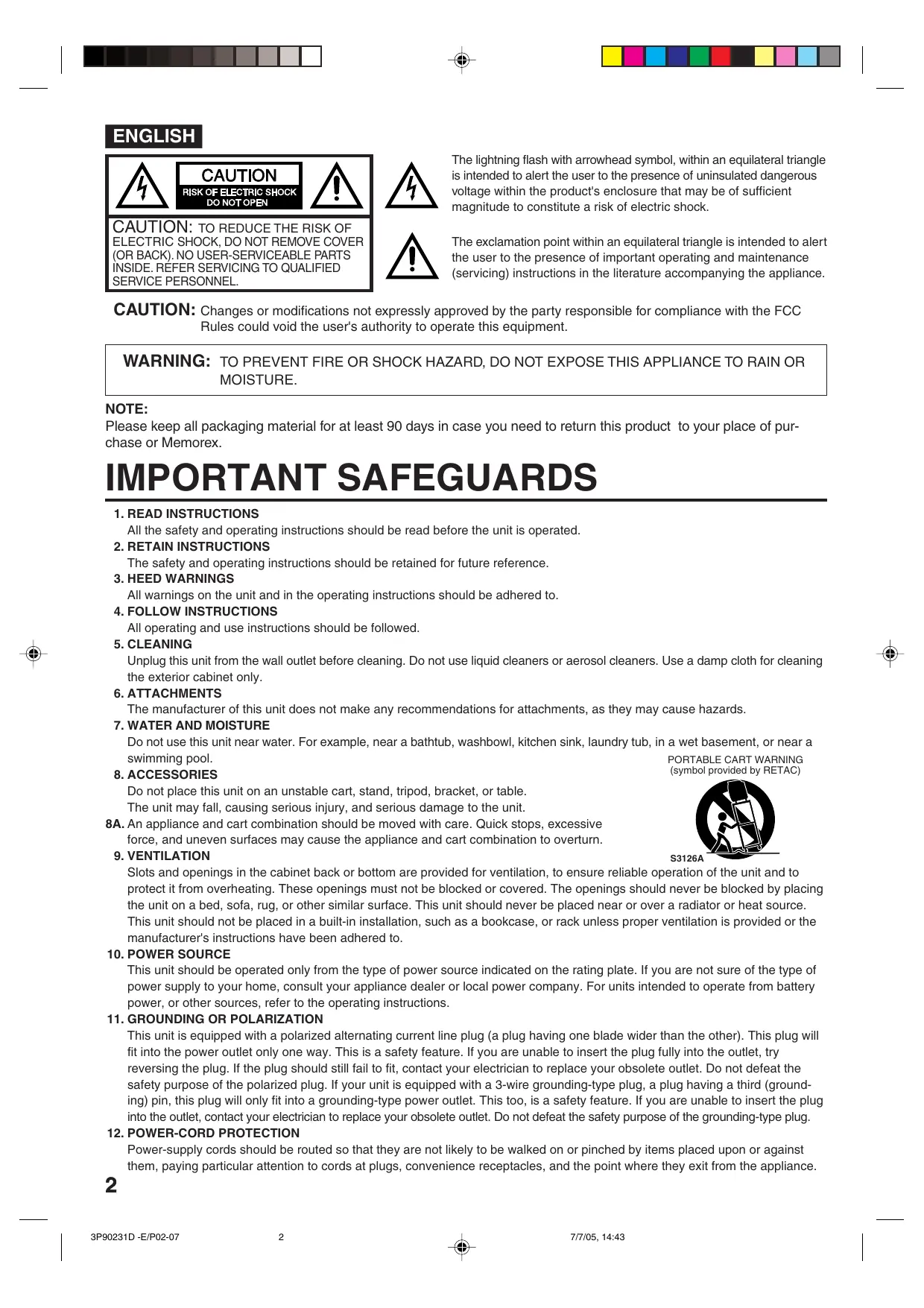

IMPORTANT SAFEGUARDS

1. READ INSTRUCTIONS

All the safety and operating instructions should be read before the unit is operated.

1. RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

1. HEED WARNINGS

All warnings on the unit and in the operating instructions should be adhered to.

1. FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

1. CLEANING

Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning the exterior cabinet only.

1. ATTACHMENTS

The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards.

1. WATER AND MOISTURE

Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

1. ACCESSORIES

Do not place this unit on an unstable cart, stand, tripod, bracket, or table.

The unit may fall, causing serious injury, and serious damage to the unit.

8A. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

1. VENTILATION

PORTABLE CART WARNING (symbol provided by RETAC)

S3126A

Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the unit and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation, such as a bookcase, or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

1. POWER SOURCE

This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions.

1. GROUNDING OR POLARIZATION

This unit is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. If your unit is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin, this plug will only fit into a grounding-type power outlet. This too, is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

1. POWER-CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13. LIGHTNING

To protect your unit during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line surges.

14. POWER LINES

An outside antenna system should not be located in the vicinity of overhead power lines, other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

15. OVERLOADING

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

16. OBJECT AND LIQUID ENTRY

Do not push objects through any openings in this unit as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.

17. OUTDOOR ANTENNA GROUNDING

If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

18. SERVICING

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. DAMAGE REQUIRING SERVICE

Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the unit.
c. If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to its normal operation.
e. If the unit has been dropped or the cabinet has been damaged.
f. When the unit exhibits a distinct change in performance, this indicates a need for service.

20. REPLACEMENT PARTS

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock or other hazards.

21. SAFETY CHECK

Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

22. WALL OR CEILING MOUNTING

If mounting this unit to a wall or ceiling follow the installation recommended by the manufacturer of a mounting bracket specifically designed for this type of product. Use only a mounting device that can handle the weight and size of your unit. Should your bracket require drilling holes into this unit, this would void the manufacturers warranty.

23. HEAT

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

24. NOTE TO CABLE TV SYSTEM INSTALLER

This reminder is provided to call the CABLE TV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

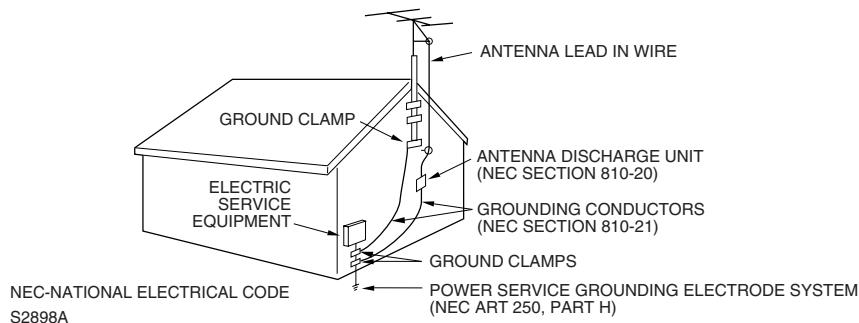

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE

• 181 Channel Tuner - The tuning system is capable of receiving all 68 UHF/VHF standard broadcast channels that are available in your area. When operating on a cable system, it can tune to the standard VHF channel frequencies plus up to 113 cable channel frequencies. The actual number of channels received depends upon channel reception in your area or your cable system.
• On-Screen 3 Language Display - This TV can display the on screen language in English, Spanish or French.
• Sleep Timer - Operable from the remote control, this TV can be programmed up to 120 minutes to turn off automatically.
• Memory Back Up - This system prevents loss of memorized channel selections in case a power interruption to the TV should occur.

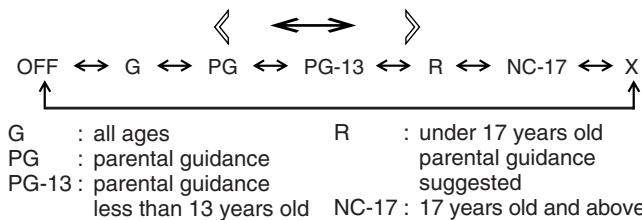

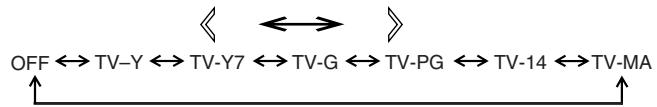

• V-Chip - The V-Chip function can read the rating of a TV program or movie content if the program is encoded with this information. V-Chip will allow you to set a restriction level.
• Picture Control Adjustments - The On-Screen display allows precise remote control adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.

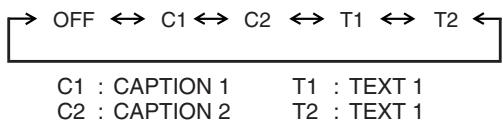

• Closed Captioned Decoder - Displays text captions or 1/2 of full screen text on the screen for hearing impaired viewers.

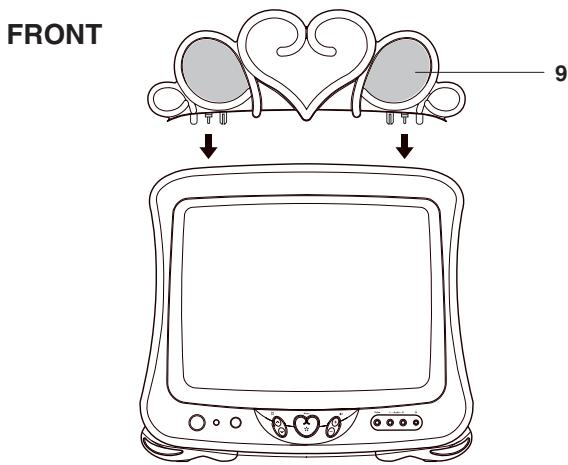

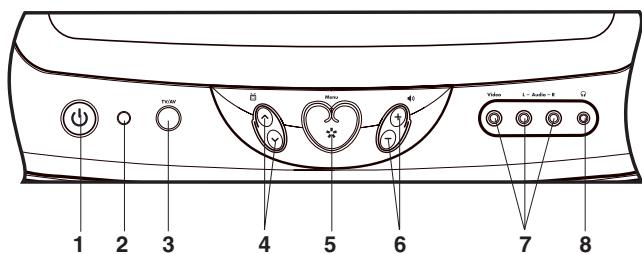

LOCATION OF CONTROLS

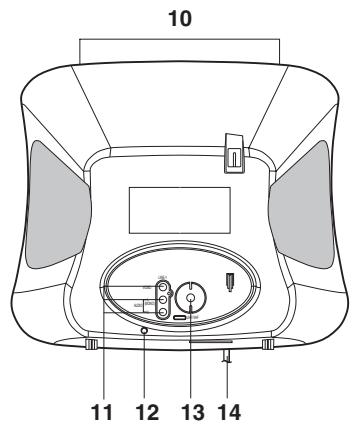

BACK

1. (POWER) Button - Press to turn the TV on or off.
2. Remote Sensor - Signals from the Remote Control unit are received here.
3. TV/AV Button - Switches between TV and external inputs.
4. (CHANNEL) / Buttons - Press to select a higher or lower numbered channel set into memory. Press to select the desired setting during On-Screen operations.
5. MENU Button - Press to display the On-Screen menu functions.
6. (VOLUME) + / - Buttons - Press to raise or lower the level of the sound. Press to select the desired setting during On-Screen operations.

7. AUDIO (L / R) /VIDEO IN Jacks (VIDEO 2) - Audio and video signal cables from an external source can be connected here.

8. (PHONES) Jack - Plug an earphone or stereo headphones with an 1/8" miniplug into this jack for private listening.

9. External speakers - Insert into the jacks on the top of the unit.
10. Jacks for External speakers - Connect the External speakers here.
11. AUDIO (L / R) /VIDEO IN Jacks (VIDEO 1) - Audio and video signal cables from an external source can be connected here.

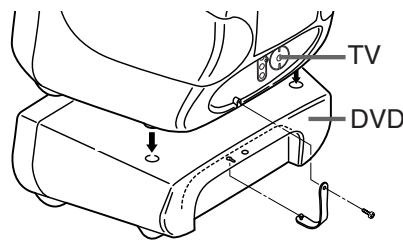

12. Post for the safety strap - Use this strap as a safety precaution when stacking with a Disney DVD player (sold separately).
13. UHF/VHF IN Jack - Connect a UHF/VHF antenna or CATV cable to this jack.
14. AC Power Cord - Plug into an outlet having 120V, 60 Hz AC power only.

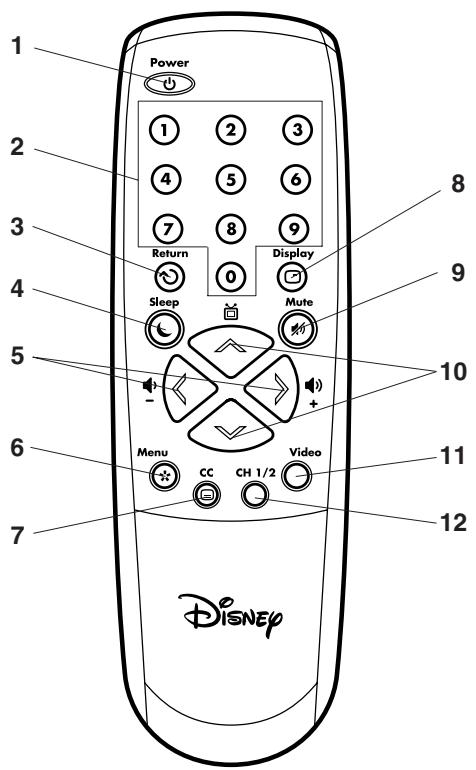

1. POWER Button - Press to turn the TV on. Press again to turn the TV off.
2. Direct Channel Selection Buttons (0-9) - Allows direct access to any channel.

3. RETURN Button - This button allows you to go back to the previous channel selected by just pressing the RETURN button. Press this button again to return to the channel you were watching.

4. SLEEP Button - To set the TV to turn off after a preset amount of time, press the SLEEP button. The clock will count up 10 minutes each time the button is pressed in the order of 0, 10, 20, 30, …… 110, 120, 0. After the sleep time is programmed, the display will disappear then reappear momentarily every ten minutes to remind you the sleep timer function is operating. To confirm the sleep time setting, press the SLEEP button once and the remaining time will be momentarily displayed. To cancel sleep time, press the SLEEP button repeatedly until the display turns to 0.

5. +/ - (VOLUME) Buttons - Press the + button to increase, or the - button to decrease the volume level. Press to select the desired setting during On-Screen operations.
6. MENU Button - Press to display the On-Screen menu function.
7. CC Button - Press this button to switch between normal TV and the two Closed Caption modes (captions and 1/2 of full screen text). Closed Captioning will display text on screen for hearing impaired viewers.
8. DISPLAY Button - When you press this button, the channel number will appear in the upper right corner of the screen. Press the button again to remove display from the screen.
9. MUTE Button - To turn off the sound, press this button once. The TV will be silenced and the symbol "MUTE" will appear on the screen. The muting feature can be released by pressing the MUTE button again or one of the + or - button.
10. (CHANNEL) / Buttons - Press the button to change to a higher numbered channel set into memory. Press the button to change to a lower numbered channel set into memory. Press to select the desired setting during On-Screen operations.
11. VIDEO Button - Switches between TV and external inputs.
12. CH 1/2 Button - Switches between Channel 1 and Channel 2 in the Closed Caption mode.

Before using the remote control, batteries must first be installed.

HOW TO INSTALL BATTERIES

1. Open the battery compartment cover.

1. Install two "AAA" batteries (not supplied).

1. Replace the battery compartment cover.

Use two "AAA" size batteries. The batteries may last approximately one year depending on how much the remote control is used. For best performance, it is recommended that batteries should be replaced on a yearly basis, or when the remote operation becomes erratic. Do not mix old and new batteries or different types.

BATTERY PRECAUTIONS

These precautions should be followed when using batteries in this device:

• Use only the size and type of batteries specified.
• Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.
• Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.
• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
• Do not try to recharge batteries not intended to be re-charged; they can overheat and rupture (Follow battery manufacturer's directions).

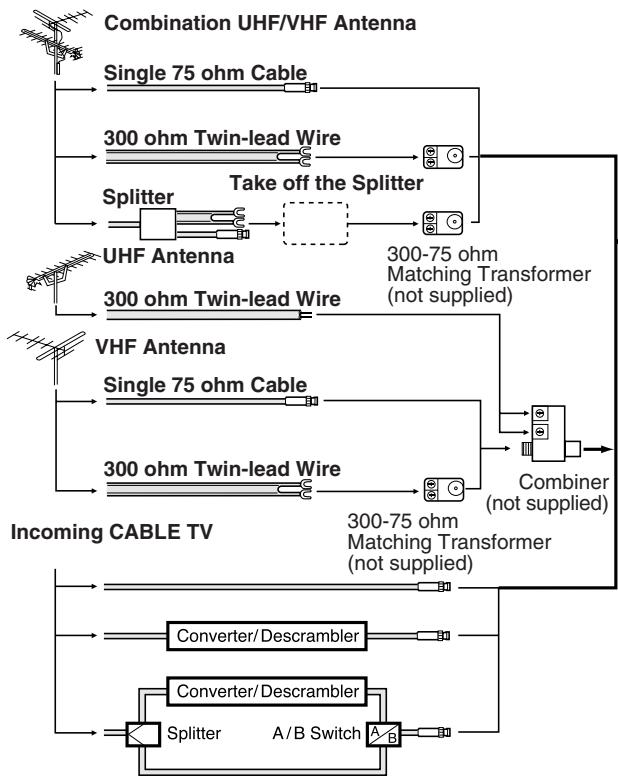

Combination UHF/VHF Antenna (Single 75 ohm Cable or 300 ohm Twin-lead Wire)

Connect the 75 ohm cable from a combination UHF/VHF antenna to the Antenna Jack. If your combination antenna has a 300 ohm Twinlead Wire, use the 300-75 ohm Matching Transformer (not supplied).

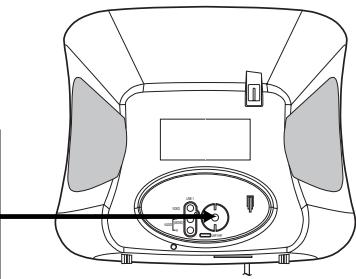

Combination UHF/VHF Antenna (Separate VHF and UHF 300 ohm Twin-leads)

Connect the UHF Twin-lead Wire to a Combiner (not supplied). Connect the VHF Twin-lead to the 300-75 ohm Matching Transformer (not supplied). Attach the Transformer to the Combiner. Attach the Combiner to the Antenna Jack.

This television has an extended tuning range and can tune most cable channels without using a cable company supplied converter box. Some cable companies offer "premium pay channels" in which the signal is scrambled. Desrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable company.

Separate UHF/VHF Antennas

Connect the 75 ohm Cable from the VHF antenna and the UHF antenna Twin-lead to a combiner (not supplied). Attach the Combiner to the Antenna Jack.

NOTE: If your VHF antenna has a Twin-lead Wire, use the 300-75 ohm Matching Transformer (not supplied), then connect the Transformer to the Combiner.

For Subscribers to Basic Cable TV Service

For basic cable service not requiring a Converter/Descrambler box, connect the CABLE TV 75 ohm Coaxial Cable directly to the Antenna Jack on the back of the television.

For Subscribers to Scrambled Cable TV Service

If you subscribe to a cable service which requires the use of a Converter/Descrambler box, connect the incoming cable to the Converter/Descrambler box and connect the output of the box to the Antenna Jack on the back of the television. Follow the connections shown left. Set the television to the output of the Converter/ Descrambler box (usually channel 3 or 4) and use the Converter/ Descrambler box to select channels.

For Subscribers to Unscrambled Basic Cable with Scrambled Premium Channels

If you subscribe to a cable service in which basic cable channels are unscrambled and premium channels require the use of a Converter/Descrambler box, you may wish to use a two-set signal splitter (sometimes called a "two-set coupler") and an A/B Switch box from the cable installer or an electronics supply store. Follow the connections shown left. With the switch in the "B" position, you can directly tune any nonscrambled channels on your TV. With the switch in the "A" position, tune your TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the box to tune scrambled channels.

AUDIO/VIDEO JACK CONNECTIONS

The exact arrangement you use to interconnect various video and audio components to the TV is dependent on the model and features of each component. Check the Owner's Manual provided with each component for the location of video and audio inputs and outputs.

The connection diagrams below are offered as suggestions. You may need to modify them to accommodate your particular assortment of components. The diagrams are intended to show component video and audio interconnections only.

Press the VIDEO button or TV/AV button on the unit to select the AV mode to use the TV as a monitor.

This TV is designed to output stereo sound (audio signal from AUDIO L/R) ONLY when using the AUDIO IN Jacks on either the front or the back of the unit.

TV/AV SELECTION

If you connect the TV to a VCR or DVD for playback, or if you connect a camcorder or Video Game System, you can make your selection by pressing the VIDEO (or TV/AV) button.

Press the VIDEO (or TV/AV) button repeatedly to select the desired mode.

"VIDEO 1" or "VIDEO 2" will display on the screen for 4 seconds.

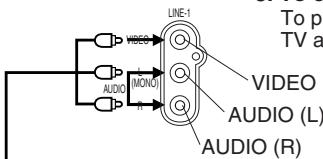

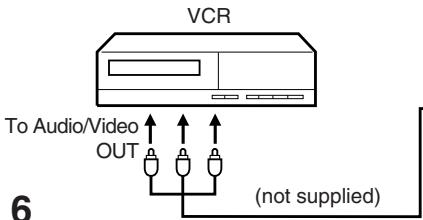

1. To connect the TV to a VCR

Rear of TV

2. To connect the TV to a Video Game System

The TV can also be used as a display device for many video games. However, due to the wide variety of different types of signal generated by these devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual for additional information.

To Audio/Video OUT
Front of TV

(not supplied)

3. To connect the TV to the Camcorder

To playback from the camcorder, connect the camcorder to the TV as shown.

To AV OUT jack

Front of TV
(not supplied)

This TV can display the on-screen language in English, Spanish or French.

Select the language you prefer first, then proceed with the other menu options.

Press the MENU button.
Press the 口 or 口 button to select "LANGUAGE", then press the 口 button.

Press the 一 or 一 button to select the desired language: English (ENGLISH), Spanish (ESPANOL) or French (FRANCAIS).
4 Press the MENU button to return to normal TV viewing.
ENGLISH
ESPANOL
FRANCAIS

LANGUAGE /IDIOMA/LANGUE

NOTE:

If Spanish or French is chosen, the Closed Caption indicators will be in the selected language, but the Closed Caption text will not be affected by the language selection.

TV OPERATION

1 To turn on the TV, press the POWER button.
The VOLUME can be adjusted to a desired level by pressing the (VOLUME) + or - button.

The sound level will be indicated on the TV screen by the character.

3 Set the TV/CABLE menu option to the appropriate position. When shipped from the factory, this menu option is in the CABLE setting. See "TO MEMORIZE CHANNELS".

TV - VHF/UHF channels

CABLE - CABLE TV channels

4 (CHANNEL) 公 and buttons

Press and release the (CHANNEL) or button. The channel automatically stops at the next channel set into memory. Press and hold the button down to change channels more quickly.

For proper operation, before selecting channels, they should be set into the TV's memory. See "TO MEMORIZE CHANNELS".

Direct Channel Selection buttons (0-9)

Press these buttons to select a channel. The channel number will appear on the upper right corner of the TV screen. If an invalid channel number is selected, the display will revert to the original channel.

TV Mode Direct Channel Selection

When the TV/CABLE menu option is in the TV position, all channels can be instantly selected by using two buttons. (For example, to select channel 2, press "0", then "2". If you press only "2", channel selection will be delayed for a few seconds). For channels 10 and above, press the 2 digits in order.

CABLE TV Mode Direct Channel Selection

When the TV/CABLE menu option is in the CABLE position, channels can be selected as follows:

CH. 1-9 Press "0" twice, then 1-9 as needed. Example, to select channel 2, press "002".
CH. 10-12 Press "0", then remaining 2 digits. Example, to select channel 12, press "012".
CH. 13-99 Press the 2 digits in order. Example, to select channel 36, press "36".
CH. 100-125 Press the 3 digits in order. Example, to select channel 120, press "120".

NOTE: If the station being viewed stops broadcasting, the TV will automatically shut off after 15 minutes.

This TV is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the TV's memory. In addition to normal VHF and UHF channels, this TV can receive up to 113 Cable TV channels. To use this TV with an antenna, set the TV/CABLE menu option to the TV setting. When shipped from the factory, this menu option is in the CABLE setting.

TV/CABLE SELECTION

1 Press the MENU button.
Press the or button to select "CH SETUP", then press the button.
Press the 口 or 心 button to select "TV/CABLE".

Press the button to select "TV" or "CABLE" mode. The arrow indicates the selected mode.
Press the MENU button to return to normal TV viewing.

The chart below is typical of many cable system channel allocations.

CABLE TV CHART

Number on this TV Corresponding CABLE TV channel									14	15	16	17	18	19	20	21	22
									A	B	C	D	E	F	G	H	I
23	24	25	26	27	28	29	30	31	32	33	34	35	36	37	38	39	40
J	K	L	M	N	O	P	Q	R	S	T	U	V	W	AA	BB	CC	DD
41	42	43	44	45	46	47	48	49	50	51	52	53	54	55	56	57	58
EE	FF	GG	HH	II	JJ	KK	LL	MM	NN	OO	PP	QQ	RR	SS	TT	UU	VV
59	60	61	62	63	64	65	66	67	68	69	70	71	72	73	74	75	76
WW	AAA	BBB	CCC	DDD	EEE	FFF	GGG	HHH	III	JJJ	KKK	LLL	MM	NNN	OOO	PPP	QQQ
77	78	79	80	81	82	83	84	85	86	87	88	89	90	91	92	93	94
RRR	SSS	TTT	UUU	VVV	VWW	XXX	YYY	ZZZ	86	87	88	89	90	91	92	93	94
95	96	97	98	99	100	101	102	103	104	105	106	107	108	109	110	111	112
A-5	A-4	A-3	A-2	A-1	100	101	102	103	104	105	106	107	108	109	110	111	112
113	114	115	116	117	118	119	120	121	122	123	124	125	01
113	114	115	116	117	118	119	120	121	122	123	124	125	5A

NOTE: Contact your cable company to determine the type of cable system used in your area.

AUTOMATIC CHANNEL MEMORY

Press the MENU button.
Press the 一 or to select "CH SETUP", then press the button.

念 PICTURE
CHSETUP
LANGUAGE
LANGUAGE
V-CHIP SET
CAPTION(OFF)

Press the or button to select "AUTO CH MEMORY", then press the button. The TV will begin memorizing all the channels available in your area.

4 Press the MENU button to return to normal TV viewing.

TO ADD/DELETE CHANNELS

Press the MENU button.
Press the 公 or button to select "CH SETUP", then press the button.
3 Press the 念 or button to select "ADD/DELETE", then press the button.

GUSBTED
CHSETUP
LANGUAGE
V-CHIPSET
CARTION(OFF)

TV▶CABLE

AUTO CH MEMORY

ADD/DELETE

4 Select the desired channels to be added or deleted using the Direct Channel Selection buttons (10 keys, 0-9) or the 品 or 串 button.
5 Press the or button to select ADD or DELETE. If an unmemorized channel was selected (step 4), the channel indication will be blue. Press the button if you wish to ADD the unmemorized channel. The channel indicator will change from blue to pink when a channel is added and the channel will be memorized. If a memorized channel was selected (step 4), the channel indication will be pink.

Press the « or » button if you wish to DELETE the channel from memory. The channel indicator will change from pink to blue when a channel is deleted.

Repeat Steps 4 and 5 for each channel to be added or deleted.

6 Press the MENU button after adding or deleting all of the desired channels, to return to normal TV viewing.

This TV is fitted with a V-CHIP controller which provides you with channel viewing access controls and restrictions when viewing broadcast programs and movies. This function is to prevent your children from watching violence or sexual scenes that you may choose to exclude.

Press the MENU button and press the 品 or button to select "V-CHIP SET", then press the button.
2 Enter your password (4 digits) using the Direct channel selection buttons (0-9). In the event of entering incorrect password press the button. Enter your correct number. Then press the button.
3 Enter the same password for confirmation, then press the button.
4 Press the 口 or 口 button to select "V-CHIP". Press the 口 button to select "ON".
Press the 口 or 心 button to select "TV RATING" or "MOVIE RATING".
Press the « or » button to select the desired rating for the applicable video or TV channel.
7 Press the MENU button until the MENU screen is cleared.

TV RATING

TV-Y : all children TV-PG : parental guidance TV-Y7 : 7 years old and above TV-14 : 14 years old and above TV-G : childrens program TV-MA : 17 years old and above

When you select TV-Y7, TV-PG, TV-14 or TV-MA, press the DISPLAY button to explain the rating. Press the 口 or button to select the desired rating you want. Press the button to select the setting "ON" or "OFF".

MOVIE RATING

MOVIE RATING (for broadcast movies only).

X : adult only

NOTES:

• For viewing restrictions when using a DVD player or VCR, please consult the respective user guide.

• If you lose the password, you can cancel the existing password by the following procedure:

• Keep pressing (Volume) - button of the main unit and press "0" key of remote control simultaneously for a few seconds.

• If you want to change password, follow steps 1-3 and select "CHANGE PASSWORD" then enter your new password.

• The V-Chip function is activated only on programs and tapes that have the rating signal.
• Once you block a program using the V-Chip function, the blocked program cannot be watched based on the content of the show. When the program starts, the "IF YOU CANCEL PROTECT, INPUT PASSWORD." will appear on the screen. When you want to release the V-Chip temporarily, enter the password.

If you change the channel or turn off the TV while the V-Chip function was temporarily released, the original setting will be resumed. If you return to the channel you were watching you must re-enter your password to temporarily release your V-Chip function again.

• If you are changing channels using a VCR or a cable box, while the TV remains on channel 3 or 4, the V-Chip operates differently. When you enter your password to temporarily release the block on any channel, you have completely disabled the V-Chip function for all stations. To reset the V-Chip turn your TV off and back on.
• Some cable boxes are built with a delay feature, in some cases it can take up to 10 seconds for a program to appear after the password has been input.

WHAT IS CLOSED CAPTIONING?

This television has the capability to decode and display Closed Captioned television programs. Closed Captioning will display text on the screen for hearing impaired viewers or it will translate and display text in another language.

TO SELECT CAPTION MODE

1 Press the MENU button.
2 Press the 口 or button to select "CAPTION".
Press the button to select the desired mode.

4 Press the MENU button to return to normal TV viewing.

TO VIEW CLOSED CAPTIONS

Press the CC button on the remote control to switch between normal TV and the two Closed Caption Modes (Captions and 1/2 of Full Screen Text).

Captions: This Closed Caption Mode will display text on the screen in English or another language (depending on the setting of the Closed Captions CH 1/2 button). Generally, Closed Captions in English are transmitted on Captions Channel 1 and Closed Captions in other languages are transmitted on Captions Channel 2.

Text: The Text Closed Caption Mode will usually fill 1/2 of full screen with a programming schedule or other information. After selecting a Closed Caption Mode, it will stay in effect until it is changed, even if the channel is changed. If the Captions signal is lost due to a commercial or a break in the signal, the Captions will reappear when the signal is received again. If the channels are changed, the Captions will be delayed approximately 10 seconds.

The Captions will appear in places on the screen where they will least interfere with the picture, usually on the bottom of the screen. News programs will usually show three-line Closed Captions which scroll onto the screen. Most other shows provide two or three lined Captions placed near the character who is speaking so the viewer can follow the dialogue. Words in italics or underlined describe titles, words in foreign languages or words requiring emphasis. Words that are sung usually appear enclosed by musical notes. For television programs broadcasting with Closed Captions, look in your TV guide for the Closed Captions symbol (CC).

• When activating the Closed Captioned Decoder, there will be a short delay before the Closed Captioned text appears on the screen.
• Closed Captioned text is only displayed in locations where it is available.
• If no caption signal is received, no captions will appear, but the television will remain in the Caption Mode.
• Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with Closed Captioning, especially with live programs. This is because during live programs, captions are also entered live. These transmissions do not allow time for editing.
• When Captions are being displayed, on-screen displays, such as volume and mute may not be seen or may interfere with Closed Captions.
• Some cable systems and copy protection systems may interfere with the Closed Captioned signal.
• If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder may not appear or may appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or use an outdoor antenna.

ADJUSTING PICTURE

You can adjust the settings for brightness, contrast, color, tint and sharpness.

1 Press the MENU button.
Press the 品 or button to select "PICTURE", then press the button.
Press the 口 or 口 button repeatedly to select the item you want to adjust.

Press the « or » button to adjust the setting.

	+	-
BRIGHTNESS	increase brightness	decrease brightness
CONTRAST	increase contrast	decrease contrast
COLOR	enhances color definition	decreases color definition
TINT	add greenish tint	add reddish tint
SHARPNESS	makes picture clearer	makes picture softer

TO RETURN TO INITIAL SETTING

Select "RESET" in step 3, then press the button.

Before requesting service, please refer to the following chart for the symptom and possible solution.

SYMPTOMS	POSSIBLE SOLUTIONS
TV does not operate.	·Make sure the power cord is plugged in. ·Try another AC outlet. ·Power is off, check fuse or circuit breaker. ·Unplug unit for an hour, then plug it back in.
Poor sound or no sound.	·Check the external speakers connections. ·Station or CABLE TV experiencing problems, tune to another station. ·Check sound adjustments (VOLUME and MUTE). ·Check for sources of possible interference.
Poor picture or no picture.	·Station or CABLE TV experiencing problems, tune to another station. ·Make sure channels are set into memory. ·Check antenna or CABLE TV connections, adjust antenna. ·Check for sources of possible interference. ·Check picture control adjustments.
Poor reception on some channels.	·Station or CABLE TV experiencing problems, tune to another station. ·Make sure channels are set into memory. ·Station is weak, adjust antenna to receive desired station. ·Check for sources of possible interference.
Poor color or no color.	·Station or CABLE TV experiencing problems, tune to another station. ·Make sure channels are set into memory. ·Check picture control adjustments. ·Check antenna or CABLE TV connections, adjust antenna. ·Check for sources of possible interference.
Picture wobbles or drifts.	·Station or CABLE TV experiencing problems, tune to another station. ·Make sure channels are set into memory. ·CABLE TV company is scrambling signal. ·Adjust antenna.

SYMPTOMS	POSSIBLE SOLUTIONS
No CABLE TV reception.	·Check all CABLE TV connections. ·Set TV/CABLE menu option to the CABLE mode. ·Station or CABLE TV system problems, try another station.
Horizontal or diagonal bars on screen.	·Check antenna connections, adjust or re-direct antenna. ·Check for sources of possible interference.
No reception above channel 13.	·Make sure TV/CABLE menu option is in the appropriate mode. ·If using antenna, check UHF antenna connections.
No Remote operation.	·Batteries are weak, dead or inserted incorrectly. ·Remote is out of range, move closer to TV (within 15 feet). ·Make sure Remote is aimed at sensor. ·Confirm there are no obstructions between the Remote and the TV.
TV shuts off.	·Make sure the power cord is plugged in. ·No broadcast on station tuned. ·Sleep Timer is set. ·Power interrupted.
No reception.	·Reset your password.
Closed - Caption is not activated.	·Check CAPTION menu option. ·TV station experiencing problems or program tuned is not closed captioned. Try another channel. ·Check CABLE TV connection or UHF/VHF antenna, reposition or rotate antenna. ·Press CC button to turn on the closed caption decoder.
Display is not shown in your language.	·Select proper language in the menu options.

SPECIFICATIONS

AC Power Input:	120V, 60Hz
AC Power Consumption:	54 Watts
Chassis Construction:	IC Solid state
Picture Tube:	13" (measured diagonally)
Audio Power Output Rating:	0.5 + 0.5 Watts
Speaker:	3" Full Range, 8 ohm x 2
Tuner Type:	181 Channel, Quartz PLL Frequency Synthesized
Remote Control:	Infrared, Direct Access, 2 x AAA batteries (not supplied)

ACCESSIONS

Remote Control

External speakers

Safety strap

Receiving Channels:
VHF	2-13
UHF	14-69
CABLE TV	01-97 (5A)-(A-3)
	98-99 (A-2)-(A-1)
	14-22 (A)-(I)
	23-36 (J)-(W)
	37-65 (AA)-(FFF)
	66-125 (GGG)-(125)
Input:
Video:	In (RCA) 1.0Vp-p/75 ohm
Audio:	In (RCA) -8dBm/50K ohm
Antenna:	UHF/VHF IN 75 ohm coaxial
Dimensions:	15-13/16" (W) x 14-5/8" (D) x 18-5/16" (H)
Weight:	24.3 lbs

Designs and specifications are subject to change without notice.

Memorex®

For additional set-up or operating assistance, please visit our WEBSITE at www.disneyelectronics.com or contact CUSTOMER SERVICE at [phone].

Please keep all packaging material for at least 90 days in case you need to return this product to your place of purchase or Memorex.

FOR PARTS AND ACCESSORIES, CONTACT FOX INTERNATIONAL AT 1-800-321-6993

PRECAUCION

RIESGO DESDESCARGA ELECTRICA NO ABRIIR

AVISO: PARA REDUCIR EL RIESGO DE DESCARGA ELECTRICA, NO RETIRE LA CUBIERTA (O POS TERIOR). EN EL INTERIOR DEL APARATO NO HAY COMPONENTES QUE REQUIERAN SERVICIO DE MANTENIMIENTO POR EL USUARIO. SOLICITE CUALQUIER OPEROSION DE MANTENIMIENTO A PERSONAL DE SERVICIO CALIFICADO.

CH SETUP
LANGUAGE
V-CHIP SET
CAPTION(OFF)

• PICTURE
• CHUSHUP
• LANGUAGE
• VCHIP SET
• CAPTION(OFF)

For additional set-up or operating assistance, please visit our website at www.disneyelectronics.com or contact customer service at [phone].

Please keep all packaging material for at least 90 days in case you need to return this product to your place of purchase or Memcorp.

For parts and accessories, contact Fox International at 1-800-321-6993.

Distributed by Memcorp Inc., Weston Fl Disney Elements © Disney 2004.
