Product type	Built-in dishwasher
Brand	CANDY
Model	CDIM3DS62D
Width (cm)	59.8
Height (cm)	81.8 - 89.8
Depth (cm)	55
Depth with door open (cm)	117
Number of place settings (EN 50242)	13
Capacity with pots and plates	8 people
Water pressure (MPa)	0.08 - 0.8
Wash programs	Hygienic, Universal, Daily, Eco, Delicate, Rapid 59', Rapid 24', Night, Rinse, Dishwasher cleaning
Options	Express (time/energy saving), All in 1 (combined products), Delayed start (1-23h)
Display	Digital with duration and error codes
Audible signal	Can be deactivated for program end
Energy consumption (standby/off)	0.45 W / 0.45 W
Water softener setting	8 levels (d0 to d7), factory d4
Safety systems	Anti-overflow, AquaProtect (protective hose)
Maintenance	Regular cleaning of filters, refilling salt and rinse aid
Machine cleaning	Special program P4 + Express (cleaning product)
Power supply	See rating plate (voltage, frequency, power)

Frequently Asked Questions - CDIM3DS62D CANDY

How to start a wash program?

Press the ON/OFF button for 2 seconds, select a program with the PROGRAMS button (the indicator lights up), then press START. Close the door after the beep.

What to do in case of error code E2?

E2 indicates a lack of water. Check that the water supply tap is open. Turn off the dishwasher, open the tap, then reset the cycle.

How to use the All In 1 option?

Press the ALL IN 1 button before starting. This option optimizes the use of combined detergents (3 in 1, 4 in 1, etc.) and disables the salt alert. It remains active for subsequent programs until deactivated.

How to adjust the water softener?

Procedure: turn off the appliance, hold the PROGRAMS button and turn on with ON/OFF, wait 5 seconds then release. The current level (d0-d7) is displayed. Press to change, then turn off to confirm.

Why is the dishes white or stained?

This may be due to a lack of salt in the softener or an incorrect hardness setting. Check the SL indicator and refill the salt reservoir if necessary. Also adjust the softener level.

Can we interrupt a running cycle?

Open the door (the cycle stops); to cancel, hold RESET for 3 seconds until '00' is displayed. You can then choose a new program.

How to enable the last program memory?

Turn off the appliance, hold PROGRAMS and turn on, wait 30 seconds then release after the 3rd beep. Press again to switch from A0 (disabled) to A1 (enabled), then turn off to confirm.

What does the 'SL' indicator on the display mean?

The SL indicator means that the regenerating salt in the softener is depleted. You need to fill the salt reservoir (located under the lower basket) to avoid white marks.

How to disable the end-of-program audible signal?

Turn off the appliance, hold PROGRAMS and turn on, wait 15 seconds then release after the 2nd beep. The display shows 'b1' (active) or 'b0' (inactive). Press to toggle, then turn off.

What are the available programs and their durations?

List of programs: Hygienic (75°C, 130 min), Universal (60°C, 120 min), Daily (55°C, 80 min), Eco (45°C, 190 min), Delicate (45°C, 85 min), Rapid 59' (65°C, 59 min), Rapid 24' (50°C, 24 min), Night (55°C, 240 min), Rinse (5 min), Cleaning (P4+Express, 45 min).

USER MANUAL CDIM3DS62D CANDY

Thank you for choosing a Candy appliance; quality dishwashers which guarantee high performance and reliability.

Candy manufacture a vast range of domestic appliances: washing machines, washer/dryers, cookers, microwave ovens, ovens and hobs, refrigerators and freezers.

Ask your dealer for the catalogue with the complete range of Candy products. Please read this booklet carefully as it provides important information regarding the safe installation, use, and maintenance of the machine, together with some useful advice on how to achieve the best results from your dishwasher.

For future reference please keep this instruction booklet in a safe place.

CUSTOMER SERVICE AND GUARANTEE

Your new appliance is fully guaranteed by the manufacturer for 12 months against electrical/mechanical breakdown excluding:

A. Any faults which occur due to bad installation or misuse of the machine.
B. Any faults which occur due to repair of, or interference with, the machine by any person not authorised by the manufacturer to carry out service.
C. Any faults which occur due to any parts which are fitted to the machine which are not the original manufacturers parts.
D. Any faults arising from non-domestic use or unusual or abnormal use of the machine.
E. Any faults arising from operation at incorrect voltage.
F. Any faults arising from incorrect operation of the machine. The guarantee applies to Gt Britain and Northern Ireland only, and is an addition to your statutory rights.

AFTER SALES SERVICE

For service and repairs call your local engineer on our national telephone number:

GIAS Service

Tel: [phone]

Support Service

(Eire 0818 200021)

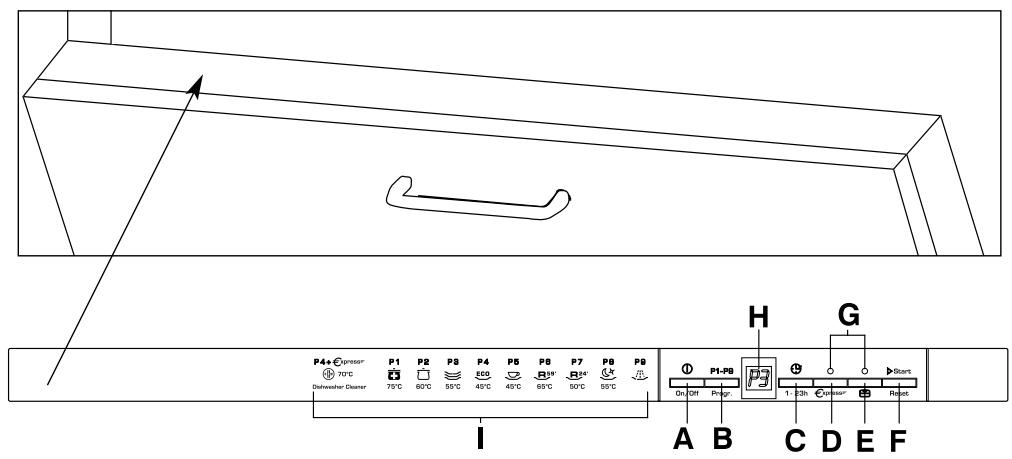

DESCRIPTION OF THE CONTROL PANEL

A "ON/OFF" button
B "PROGRAMME SELECTION" button
C "DELAY START" button
D "EXPRESS" option button
E "ALL IN 1" option button

F "START"/"RESET" button (start/cancelling programme)
G "OPTION SELECTION" lights
H DIGITAL DISPLAY
Programme guide

DIMENSIONS
Width x Height x Depth (cm)	59,8 x 81,8 ÷ 89,8 x 55
Depth with door open (cm)	117
TECHNICAL DATA
EN 50242 place load		13
Capacity with pans and dishes		8 persons
Water supply pressure (MPa)		Min. 0,08 - Max. 0,8
Fuse / Power input / Supply voltage		See rating plate
CONSUMPTION (main programmes)*
Programme	Energy (kWh)	Water (L)
HYGIENIC	2,00	19,5
UNIVERSAL	1,38	13,5
ECO	0,92	10
RAPID 24'	0,59	9
Power consumption of the off-mode and of the left-on mode: 0,45 W / 0,45 W
*Values are measured in a laboratory according to European Standard EN 50242 (consumption may vary according to conditions of usage).

PROGRAMME SELECTION AND SPECIAL FUNCTIONS

(Use in conjunction with programme guide)

Programme settings

• Open the door and place the dirty dishes inside the appliance.
  Press the "ON/OFF" button for about 2 seconds. The display will show two lines.
  Choose a programme by pressing the "PROGRAMME SELECTION" button.
  If you wish to select an option, press the corresponding button (the indicator light will turn on).

The option buttons can be selected or deselected WHITIN one minute of the programme commencing.

Press the "START" button.

The length of the program will be shown on the display alternating hours with minutes [I.e: 1 h1 hour / 2525 (25 minutes)].

• Close the door (after an audible signal has sounded, the programme will start automatically).

WITHIN one minute of the programme commencing, another programme can be selected, simply by pressing the "PROGRAMME SELECTION" button.

"IMPULSE" programmes

The "IMPULSE" programmes use an impurpose washing technology, which reduces consumption, noise and increases performances.

IMPORTANT

The "intermittent" working of the washing pump MUST NOT BE considered a malfunction, it is a characteristic of the impulse washing so must be considered a normal function of the programme.

Programme interruption

Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically and the display will flash the remaining time before the end of the cycle. Close the door, without pressing any buttons. The cycle will start from where it left off.

WARNING!

If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished.

Changing a running programme

Proceed as follows to change or cancel a running program:

Open the door.
Hold the "RESET" button down for at least 3 seconds. "00" will appear on the display and some audible signals will sound.
The running programme will be cancelled. The display will show two lines.
At this point a new programme can be set.

WARNING!

Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser.

If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

Programme end

A 5 second alarm will sound (if not muted) 3 times at 30 second intervals to signal that the programme has ended.

The dishwasher will automatically switch off.

Option buttons

"EXPRESS" button Express

This button provides an energy and time saving of 25% on average (according to the select cycle) reducing the wash water temperature and the drying time during the final rinse.

This programme is recommended for light soil washes, and for slightly wet dishes that are not fully dry, & improved drying results. We advise you to leave the door of the Dishwasher half-open at the end of the cycle, to allow for a natural circulation of air inside the dishwasher.

"ALL IN 1" button

This option optimises the use of "ALL in 1" ("3 in 1"/"4 in 1"/"5 in 1", ecc.) combined detergents.

By pressing this button, the selected washing programme is modified to get best performance from combined detergents (furthermore, the salt empty alert will be de-activated).

WARNING!

Once selected, this option keeps being on (light on) also for next washing cycles and it can be de-activate (light off) only by pressing the button once again.

IMPORTANT

This option is recommended when using the RAPID 24' program, the duration of which will be extended for about 15 minutes, allowing the detergent tablets to achieve a better performance.

Salt empty alert

If your dishwasher requires filling with salt, the display will show and flash "SL" when the dishwasher is switched on.

The appearance of white stains on dishes is generally a warning sign that the salt container needs filling.

"DELAY START" button

1-23h

Dishwasher start time can be set with this button, delaying start from 1 to 23 hours.

Proceed as follows to set a delayed start:

Press the "DELAY START" button ("00" will appear on the display).
Press the button again to increase the delay in hours (each time the button is pressed the delay is increased by 1 hour to a maximum of 23).
To start the countdown, press the "START" button.

At the end of the countdown, the programme will automatically start.

If you wish to see which programme has been selected, press the "PROGRAMME SELECTION" button.

Proceed as follows to cancel a delayed start:

Hold the "RESET" button down for at least 3 seconds. "00" will appear on the display and some audible signals will sound.
The delayed start and the selected programme will be cancelled. The display will show two lines.
At this point, a new programme and option buttons must be set to start a new programme as indicated in the "PROGRAMME SETTINGS" section.

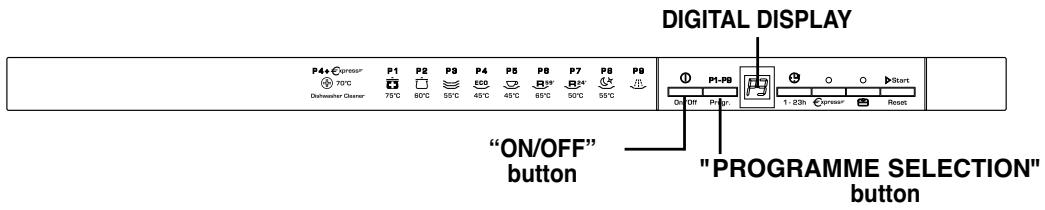

Alarm mute for the PROGRAMME END

The alarm for the programme end may be muted as follows:

IMPORTANT

The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 15 seconds (during this time 2 audible signals will sound).

3. Release the button when the second audible signal sounds ("b1" will appear on the display to indicate that the alarm is on).

4. Press the same button again ("b0" will appear on the display to indicate that the alarm is off).

5. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

To turn the alarm on again, follow the same procedure.

Memorization of the last programme used

The last programme used can be memorized by following the below:

IMPORTANT The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 30 seconds (during this time, 3 audible signals will sound).
3. Release the button when the THIRD audible signal sounds ("A0" will appear on the display to indicate that the memorization is off).

4. Press the same button again ("A1" will appear on the display to indicate that the memorization is on).

5. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

To disable the memorization, follow the same procedure.

IMPORTANT

This dishwasher is equipped with an anti-overflow safety device which will automatically discharge any excess water should a problem occur.

WARNING!

To ensure the correct operation of the anti-overflow safety device, we recommend that the dishwasher is not moved or tilted during operation. If however it is necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that there is no remaining water inside the dishwasher.

The dishwasher is able to signal a series of faults in the display.

AUTOMATIC FAULT SIGNALS

FAULTS	CAUSE	SOLUTION
E2 appears on the display and the alarm sounds.	No water (inlet hose closed).	Turn off the dishwasher, open the inlet hose and reset the cycle.
E3 appears on the display and the alarm sounds.	The machine cannot drain water.	Check if the drain tube is bent or if the siphon or filters are clogged. If the problem persists, contact Customer Service.
E4 appears on the display and the alarm sounds.	Water leak	Check if the drain tube is bent or if the siphon or filters are clogged. If the problem persists, contact Customer Service.
E5,E6,E7,Ef or EL appears on the display and the alarm sounds.	Electronic control fault.	Contact Customer Service.
E8 or Ei appear on the display and the alarm sounds.	The water heating element is not working correctly or the filter plate is clogged.	Clean the filter plate. If the problem persists, contact Customer Service.

PROGRAMME GUIDE

Wash with prewash

For wash programmes with prewash, it is advisable to add a second dose of detergent (max. 10g ) directly in the machine.

Programme

Description

P 1	\( \overleftarrow{\mathbb{O}} \)	Hygienic \( {75}^{ \circ }\mathrm{C} \)	An antibacterial cycle, intended for washing and sterilising dishes (even heavily stained ones) babies' bottles etc.
P 2	\( \overleftarrow{\mathbb{U}} \)	Universal \( {60}^{ \circ }\mathrm{C} \)	Once a day - for normal soiled pans and any other items that have been left all day for washing.
P 3	\( ≈ \)	Daily \( {55}^{ \circ }\mathrm{C} \)	Fast cycle, for "normally" dirty dishes - intended for frequent washes and normal loads.
P 4	\( \widetilde{\mathbf{{ECO}}} \)	Eco \( {45}^{ \circ }\mathrm{C} \)	Programme for normally soiled tableware (the most efficient in terms of its combined energy and water consumption for that type of tableware). Programme standardised to EN 50242.
P 5	\( \widetilde{\mathbf{D}} \)	Delicate \( {45}^{ \circ }\mathrm{C} \)	Suitable for delicate crockery and glassware. Also for less soiled items excluding pans.
P 6	\( \widetilde{\mathbf{B}}^{{59}} \)	Rapid 59' \( {65}^{ \circ }\mathrm{C} \)	Suitable for heavily soiled items that are to be washed straight after a meal (Max 8 place load).
P 7	\( \widetilde{\mathbf{B}}^{{24}} \)	Rapid 24' \( {50}^{ \circ }\mathrm{C} \)	Quick wash for dishes which are to be washed immediately after the meal. Wash load of 6 persons.
P 8	\( \widetilde{\mathbf{C}} \)	Night \( {55}^{ \circ }\mathrm{C} \)	Quietest washing cycle. Ideal for functioning by night and for taking advantage of reduced energy fares.
P 9	\( \widetilde{\mathbf{C}} \)	Refresh	Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load.
\( \widehat{\mathbf{70}}{}^{ \circ }\mathrm{C} \)		Dishwasher Cleaner \( P4 + E xpress= \)	This programme should be used periodically with specialist dishwasher cleaning products. For all cleaning operations the dishwasher must be empty.

■ = "IMPULSE" programmes
N/A = OPTION NOT AVAILABLE

Check list

Programme contents

Averagedurationin minutes

Special functionbuttonsavailable

Detergent for soaking(Prewash)

Detergent for washing

Clean filter

Check rinse aiddispenser

Check salt container

Hot pre-wash

Cold pre-wash

Main wash

First cold rinse

Second cold rinse

Hot rinse with rinse aid

With cold water (15°C)*-Tolerance ± 10%-

"DELAY START" button

"EXPRESS" button

"ALL IN 1" button

●

●

●

●

●

○

75°C

○

○

○

130

YES

YES

YES

●

●

●

●

○

60°C

○

○

120

YES

YES

YES

●

●

●

●

○

55°C

○

○

80

YES

YES

YES

●

●

●

●

●

○

45°C

○

190

YES

YES

YES

●

●

●

●

○

45°C

○

○

85

YES

YES

YES

●

●

●

●

●

○

65°C

○

59

YES

YES

YES

●

●

●

●

50°C

○

24

YES

N/A

YES

●

●

●

●

○

55°C

○

○

240

YES

YES

YES

●

○

5

YES

N/A

70°C

○

45

YES

• WITH HOT WATER THE TIME REMAINING UNTIL THE END OF THE PROGRAMME IS AUTOMATICALLY DISPLAYED WHILE THE PROGRAMME IS RUNNING.

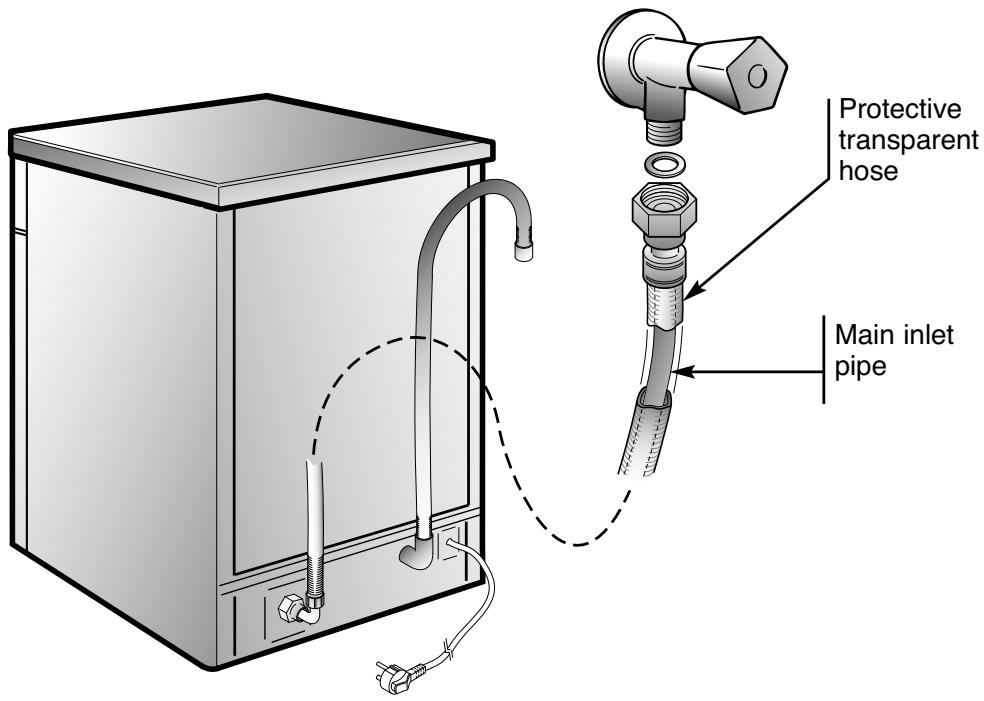

AQUAPROTECT - PROTECTED INCOMING WATER PIPE

The main inlet pipe is contained within a protective transparent hose. In the event of damage occurring to the main inlet pipe any water leakage is retained within the transparent hose.

If water has leaked from the main inlet pipe there will be a visible sign within the transparent hose.

You may continue to complete the programme cycle but for safety we recommend the immediate replacement of the complete hose assembly.

If the hose is not long enough for correct connection, it must be replaced with a longer one.

The hose can be obtained from a Service Centre.

WATER SOFTENER UNIT

Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company.

Regulating the water softener with electronic programmer

The water softener can treat water with a hardness level of up to 90^ (French grading) or 50^ (German grading) through 8 settings.

The settings are listed in the table below:

Level	Water hardness		Use of regenerating salt	Water softer setting
	°fH (French)	°dH (German)
0	0-5	0-3	NO	d0
1	6-10	4-6	YES	d1
2	11-20	7-11	YES	d2
3	21-30	12-16	YES	d3
*4	31-40	17-22	YES	d4
5	41-50	23-27	YES	d5
6	51-60	28-33	YES	d6
7	61-90	34-50	YES	d7

• The softener unit is set in the factory at level 4 (d4) as this satisfies the requirements of the majority of users.

Regulate the setting of your water softener unit according to the degree of hardness of your water as follows:

IMPORTANT

The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 5 seconds, UNTIL an audible signal sounds. The current water softener setting level will be shown on the display.
3. Press the same button again to select the required water softener level: each time the button is pressed, the setting will increase by one level. When you have reached "d7", the display will go back to "d0".
4. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

WARNING!

If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning (STEP 1).

Compliments,

Programmes "IMPULSE"
