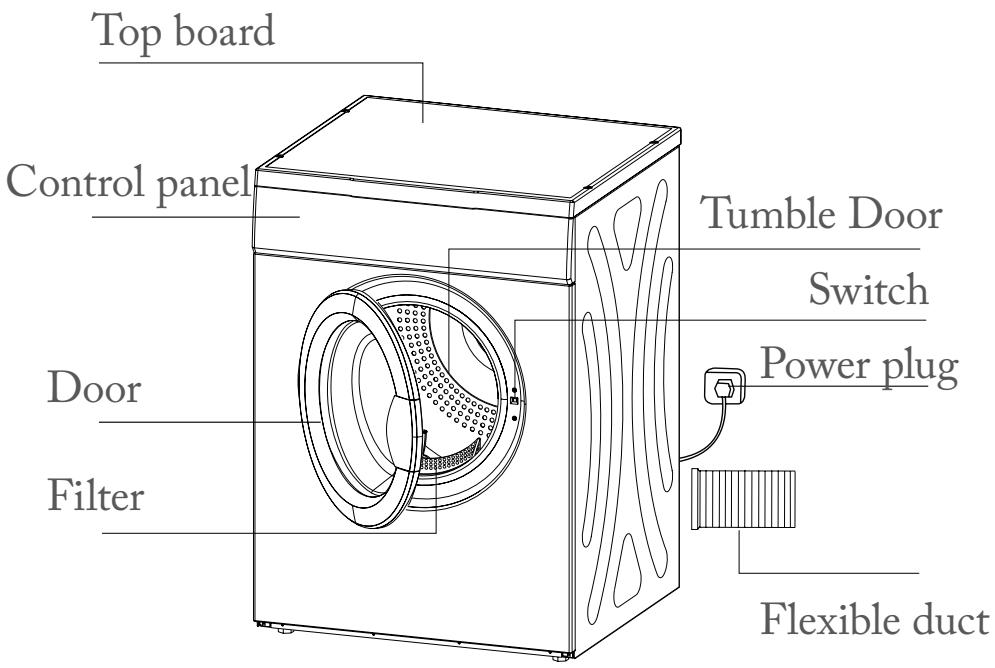

USER MANUAL SL7CDM19W FAR

Thank you to have chosen the FAR quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

DISPOSAL OF OLD ELECTRICAL APPLIANCESGB-26

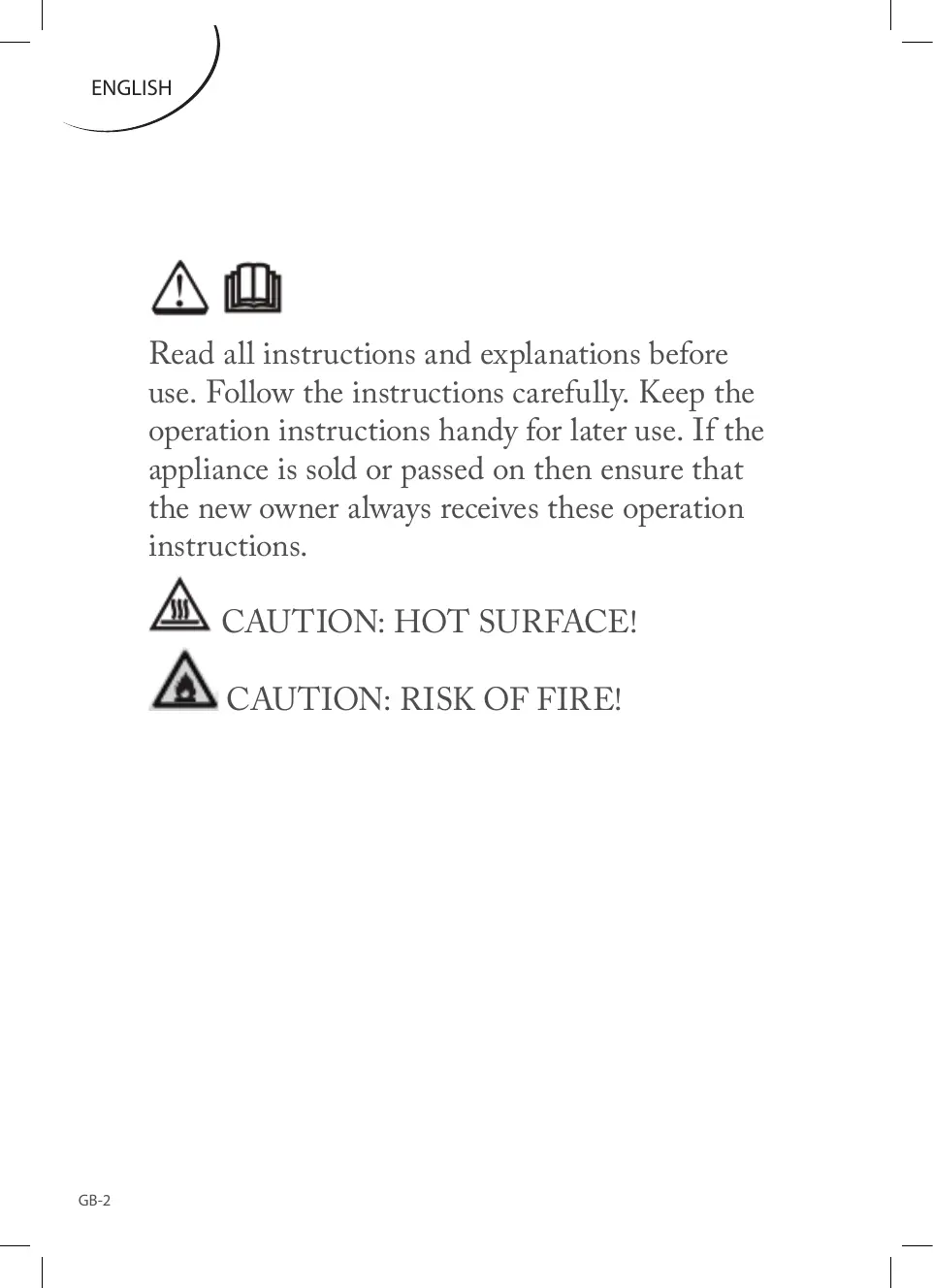

GB-1 ENGLISH Read all instructions and explanations before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the appliance is sold or passed on then ensure that the new owner always receives these operation instructions. CAUTION: HOT SURFACE! CAUTION: RISK OF FIRE! GB-2 ENGLISH SAFETY INSTRUCTIONS

• This appliance is intended to be used in household and similar applications such as: –– staff kitchen areas in shops, offices and other working environments; –– farm houses; –– by clients in hotels, motels and other residential type environments; –– bed and breakfast type environments.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• The lint trap has to be cleaned frequently.
• The lint must not to be allowed to accumulate around the tumble dryer. Adequate ventilation has to be provided to avoid the backflow of gases into the room from appliances burning other fuels, including open fires.
• The ventilation openings must not be obstructed by a carpet.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction GB-3 ENGLISH

GB-4 concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised. Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

WARNING: Never stop a tumble dryer

before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated. Do not dry unwashed items in the tumble dryer. Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot ENGLISH

water with an extra amount of detergent before being dried in the tumble dryer. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer. Fabric softeners, or similar products, should be used as specified by the fabric softener instructions. The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged. Remove all objects from pockets such as lighters and matches. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Regarding the instructions for installation and electric connection of the appliance, thanks to refer to the below paragraph of the manual Children of less than 3 years should be kept away unless continuously supervised. GB-5 ENGLISH

• Plug must be accessible after installation. Power supply and grounding
• The dryer employs alternative current with the rated voltage and frequency. When the voltage fluctuates between 6% of rated voltage, the dryer can work normally. A special power socket with a capacity 10A for the dryer had better be set beside the dryer for convenience and safety. The method of connection of the socket is as the figure below.
• To be safe, please make improvements as soon as possible according to the rules and suggestions mentioned above. Warning!
• The socket and the grounding wire must be installed by an electrician to prevent incorrect installation or use of the socket and to guarantee the safety of use of electricity. No connection of the grounding wire and the neutral wire, otherwise the cabinet will be charged, which is likely to cause the danger of electric shock. GB-6 ENGLISH Precautions Install or store where it will not be exposed to temperatures below freezing or exposed to water or weather, which could cause permanent damage and invalidate the warranty. Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust and dirt. An obstructed port might reduce the airflow. Thoroughly spin the laundry in washing machine. High spin speed can reduce the drying time and save energy consumption. Make sure combustible sprayer will not be close to dryer when it is working, and once the gas leaks, do not touch plug or start pause on it. GB-7 ENGLISH Do not wash or dry articles that have been cleaned in, washed in, soaked in or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.). Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled or has missing or broken parts, including a damaged cord or plug. Do not allow children on Please do not use the or in the appliance. Close machine when your foot supervision of children or hand with water. is necessary when the appliance is used near children. GB-8 ENGLISH Do not store plastic, paper or clothing that may burn or melt on top of the dryer during operation. The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliance burning gas or other fuels. Do not dry articles containing rubber, plastic or similar materials such as padded bras, tennis shoes, galoshes, bath mats, rugs, bibs, baby pants, raincoat plastic bags or pillows that may melt or burn. Some rubber materials, when heated, can under certain circumstances produce fire by spontaneous combustion. The door can be opened only after the programme of the drying machine is completed. Do not open the door before the programme finished to avoid the human skin from being scalded by hot steam or over heated drying machine. GB-9 ENGLISH INSTALLATION Product Description Top board Control panel Tumble Door Switch Door Power plug Filter Flexible duct GB-10 ENGLISH Installation Dryer should be placed in a ventilated area with not less than 10cm distance from the wall. It is suggested there are no obstacles within 1.5m in front of dryer and keep ventilated. Level Adjusting Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet with a tool. Note! If dryer could not be placed horizontally (the lean angle is no more than 2° the dryer will work unbalanced or stop working sometimes. Notice when installing:
• Do not install the dryer in the open air or place easily damaged by rain;
• Do not place the back of dryer near curtain or something in the wind;
• Do not place the dryer near gas or flammable area. GB-11 ENGLISH Flex tube fixing:

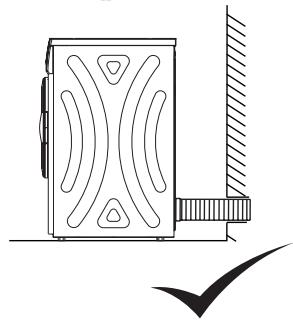

• Connect one end of flex tube with whorl to the back vent, then fix it easily till tight.

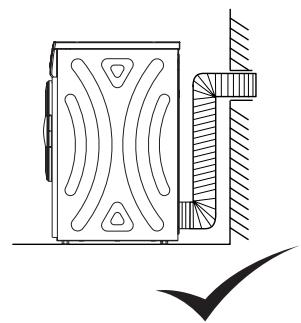

• The other end of flex tube will be extended to outdoor, please refer the right assemble way to the below pictures. OPERATIONS Quick Start Note! Before using, please make sure it's installed properly. plug in GB-12 load close ENGLISH Drying

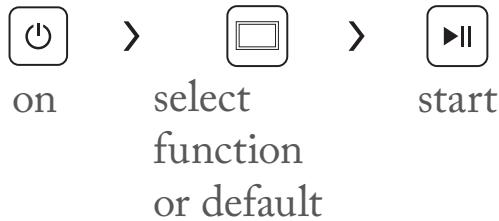

select function or default start After Drying Buzzer beep or «0:00»on display. unload clean filter unplug Before Each Drying

1. Before drying, thoroughly spin the laundry

in washing machine. High spin speed can reduce the drying time and save energy consumption.

2. For uniform drying result, sort the laundry

according to fabric type and drying programme.

3. Before drying, please close zips, hooks and

eyelets, button up, tie fabric belts, etc.

4. Do not over dry the clothes, because over

dried clothes can easily get creases. GB-13 ENGLISH

5. Do not dry the articles containing rubber or

similar elastic materials.

6. The door can be opened only after the

programme of the drying machine is human skin from being scalded by hot steam or over heated drying machine.

7. Clean the lint filter and empty container

after each use to avoid extension of drying time and energy consumption.

8. Do not dry these clothes after dry-clean

process. The reference weight of dry clothes (each) Mixed-fabric clothes (about 800g) Jacket (about 800g cotton) Single bedsheet (about 600g cotton) Work clothes (about 1120g Short sleeve shirt (about 180g cotton) Short pants (about 70g cotton) Jeans (about 800g) Towel quilt (about 900g cotton) Sleepwear (about 200g) Long sleeve shirt (about 300g cotton) Socks (about 50g mixed-weave) GB-14 ENGLISH Note!

• Not for textile with dropping water. The dryer could be damaged, even fire.
• Not suitable for silk or woolen textiles. Please pay attention to use the drying machine if the materials of your clothes can not be dried by it or contain the symbols as follows: Dry Normal Not tumble dry normal Do not dry Line dry/hang to dry Drip dry Dry flat In the shade Dry clean Do not dry clean Dry clean normal cycle with any solvent Dry clean normal cycle petroleum solvent only GB-15 ENGLISH Control Panel

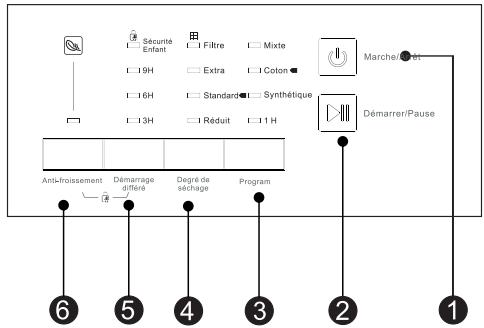

Product is switched on or off.

Press the button to start or pause the drying cycle.

Different Dryer cycle can be selected according to the user’s needs to make the clothes have more effective drying results.

• Press the [Anti-Crease] button to start AntiCrease function.
• Press the [Start/Pause] button.
• Press the [Delay] button to booking the drying process.
• If users need child lock function, pressing the [Anti-Crease] and [Delay] buttons simultaneously for over 3 seconds to start child lock function.

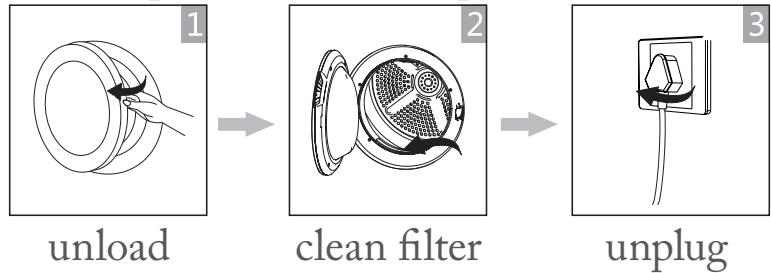

• The buzzer will prompt from the dryer when finishing the cycle. Press the [On/Off] button and pull out the power cable.
• Clean the filter, cabinet and inner tube.
• Clean the filter when the ‘Filter» light is flashing, after the dryer stop. This symbol means the energy efficiency test programme standard cotton programme», which is most suitable to dry normal cotton load at rated load capacity. GB-17 ENGLISH Drying Programmes Table Clothing Type Cotton Mix Synthetic Cotton Approximate amount of remaining humidity 70% 60% 70% 60% 50% 40%

Capacity Programs Dryness (KG) Level Note 7/3.5 7/3.5 7/3.5 7/3.5 7/3.5 3.5/1 3.5/1

Please accord to the Type and Capacity of the clothing to select the most suitable Program and Dryness Level. Cotton Cotton Cotton Mix Mix Synthetic Synthetic 1Hr Extra Standard Less Extra Standard Extra Standard

• Cold wind function means there is only cold wind for circulating before finishing heating 3 minutes.(Except 1hour program which runs 10 minutes cold wind.)
• If Anti-Crease option is selected, the anticrease process will enlarge to 2 hours, otherwise it keeps 30min without this option.
• The inside temperature and humidity will affect drying time. GB-18 ENGLISH

• Check the label attached on clothes and chooses the right temperature and time according to the explanation.
• There is no filter, the dryer cannot be started.
• Suggestion: When clothes are less than 0.5kg please select an hour dry and Extra for drying. MAINTENANCES Cleaning And Care Filter clean
• Clean the lint filter after each use. Remove by pulling straight up.
• Cleaning filter Use wiping cloth or your fingers.
• Install filter If the filter is cleaned by damp cloth or water, please install after the sun dry.
• There is no filter, the dryer cannot be started.
• This filter is loss of product and please replaces it regularly, which is just applicable to this model: MDS70 V032/A0431-EU18-P1-Y1. GB-19 ENGLISH Cleaning cabinet and inner tube
• Use soft damp cloth wipe when cleaning cabinet and inner tube.
• Not to rinse by water direct
• Not to use neutral scour wipe.
• Not to use gasolene and alcohol wipe.
• Make sure open the front door for aeration after cleaning die inner tube. GB-20 Safety reset

1. These dryers have a safety cut out switch

which is activated by temperature.

2. The safety reset button is on the backboard.

If your dryer not heating this button must be reset before the dryer can heat again. You may need to wait 10 minutes for cooling down.

3. The most common reason for die dryer if

overheat is a blocked filter.

4. Clean file line filter after each load to prevent

overheating of the dryer. The cut out switch may operate for the following reasons:

1. Lint filter is blocked.

2. Exhaust outlets blocked at the back of the

3. Poor ventilation in file laundry or room-open

4. Lightweight garment eg. handkerchief,

sucked over the filter. Safety Reset Button

• Use your finger or a pencil to press the button in until you feel it click. TROUBLESHOOTING Trouble Will not start Cause
• The power plug is not plugged tight.
• The temperature fuse is cut. Solution
• Wait for switching on electricity.
• Check the power socket make sure plug tight.
• The clothes in drier must be after spinning, and drying clothes cannot exceed 7kg.
• Please career man restore the temperature fuse. GB-21 ENGLISH External hot or can smell hot Clothes too dry Clothes shrink Hairball on clothes GB-22

• The lint filter is dirty.
• The uptake or exhaust duct is dirty.
• The clothes in machine are too full.
• Not to take out the clothes in time when finish.
• The clothes don’t assort properly.
• The temperature is enacted too high.

• It is right for synthetic fiber and permanent press fiber causing hairballs. This is because the tight rub causing.

• Make sure clean the lint filter in time.
• Make sure the clothes are not too full.
• Take out the clothes immediately when finish. See page 7.
• Observe the maintenance label on clothes.
• Observe the maintenance label on clothes. If easy to shrink, should examine the clothes when dry. Take out the clothes when tiny damp for too dry. Then hang the clothes until full dry.
• Use fabric softener lubricate fiber, please spray settled guile on cuff and neckline when iron clothes. Tum the sarcenet out for reducing rub. ENGLISH

• The sound of dryer when runs can cause Due to heavy wet clothes’ turning and humping, and this will cause noise accordingly.
• Air bumping: When drying, machine will generate steam which will come out from pipe and this will cost bumping with the bottom of inner tub. Error code E3-E4 Description Criteria Action after fault denounced Temperature Temperature Stop the Sensor error Sensor is program and open or PCB go to fault fault state Failure indication Led 3H and 6H flashing TECHNICAL SPECIFICATIONS Model Parameter Dimension(L’W'H) Rated input power Rated voltage Rated frequency Weight of product Rated capacity Ambient temperature

555*595*840(mm) 2000W 220-240V~ 50Hz 33kg 7.0kg +5°c~+35°c GB-23 ENGLISH Note! The rated capacity is the maximum capacity, make sure that the dry clothes which are loaded to the appliance do not exceed the rated capacity each time. Do not install the tumble dryer in a room which the temperature around freezing point, and will have a risk of frost occurring, the tumble dryer may not be able to operate well. PRODUCT FICHE Model Rated Capacity Dryer Type Energy efficiency class Weighted annual energy consumption (AE) (1) Automatic or non-automatic EU Ecolabel Energy consumption of the standard cotton programme Energy consumption of the standard cotton programme at full load GB-24

7kg Air-Vented 519.7Wh/year Automatic N/A 4.44kWh ENGLISH Energy consumption of the standard cotton programme at partial load Power consumption of the offmode (Po) Power consumption of the lefton mode (PI) Duration of the left-on mode Programme time of the Standard Cotton programme Weighted programme time of the standard cotton programme at full and partial load Programme time of the standard cotton programme at full load Programme time of the standard cotton programme at partial load 2.31kWh

10 min 105min 145min 75min Remarks: Energy consumption per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used. GB-25 ENGLISH
