Product type	Range hood
Brand	AEG-Electrolux
Model	DPB2621S
Installation type	External suction and extraction or internal filtration and recirculation
Power supply	220-240 V, according to the rating plate
Lighting	LED lamp 3W (E14, max 3W)
Suction power levels	3 speeds: low, medium, high
Minimum installation distance	50 cm (electric cooker) / 65 cm (gas or mixed cooker)
Grease filter	Metal, washable monthly (by hand or dishwasher)
Activated carbon filter	Washable, replace at most every 4 months
Exterior cleaning	Damp cloth with neutral liquid detergent, no abrasives or alcohol
Safety instructions	Disconnect before maintenance; never use without grid; avoid open flames
Control panel	ON/OFF lights, OFF motor, speed selection
After-sales service	Original spare parts; contact with model, PNC and serial number

Frequently Asked Questions - DPB2621S AEG-ELECTROLUX

How to install the hood correctly?

Respect the minimum distances: 50 cm for an electric cooker, 65 cm for a gas or mixed cooker. Connect only after complete installation. Use the supplied screws and a standardized circuit breaker if necessary.

How often to clean the grease filter?

The metal grease filter should be cleaned at least once a month, by hand with a non-aggressive detergent or in the dishwasher at low temperature and quick cycle.

When to replace the activated carbon filter?

The activated carbon filter must be changed at most every 4 months. It cannot be cleaned or regenerated.

How to replace the LED bulb?

Disconnect the appliance and ensure the lamps are cold. Replace only with a LED bulb of type 3W-E14 (max). Consult the manual for the ILCOS D code.

Can I use the hood without filters?

No, never use the hood without the grid and filters properly mounted. This poses a risk of fire and electric shock.

How to clean the exterior of the hood?

Use a damp cloth with a neutral liquid detergent. Do not use abrasive products or alcohol. Clean at least once a month.

What to do if the hood does not work?

Check the power supply, that the plug is properly connected and that the filters are not clogged. If the problem persists, contact after-sales service with the model, PNC and serial number.

Can the hood be used with a gas cooker?

Yes, but respect a minimum distance of 65 cm between the hood and the cooking surface. Ensure the room is well ventilated if the hood is used with other combustion appliances.

How to adjust the suction power?

Use the control panel: button 3 for low power, 4 for medium, 5 for high. Turn on the hood 5 minutes before cooking and leave it on for 15 minutes after.

Where to find the serial number and PNC?

This information is on the rating plate inside the hood. Note them before contacting after-sales service.

USER MANUAL DPB2621S AEG-ELECTROLUX

Simple line drawing of a kitchen chimney with three dots on the base (no text or symbols)

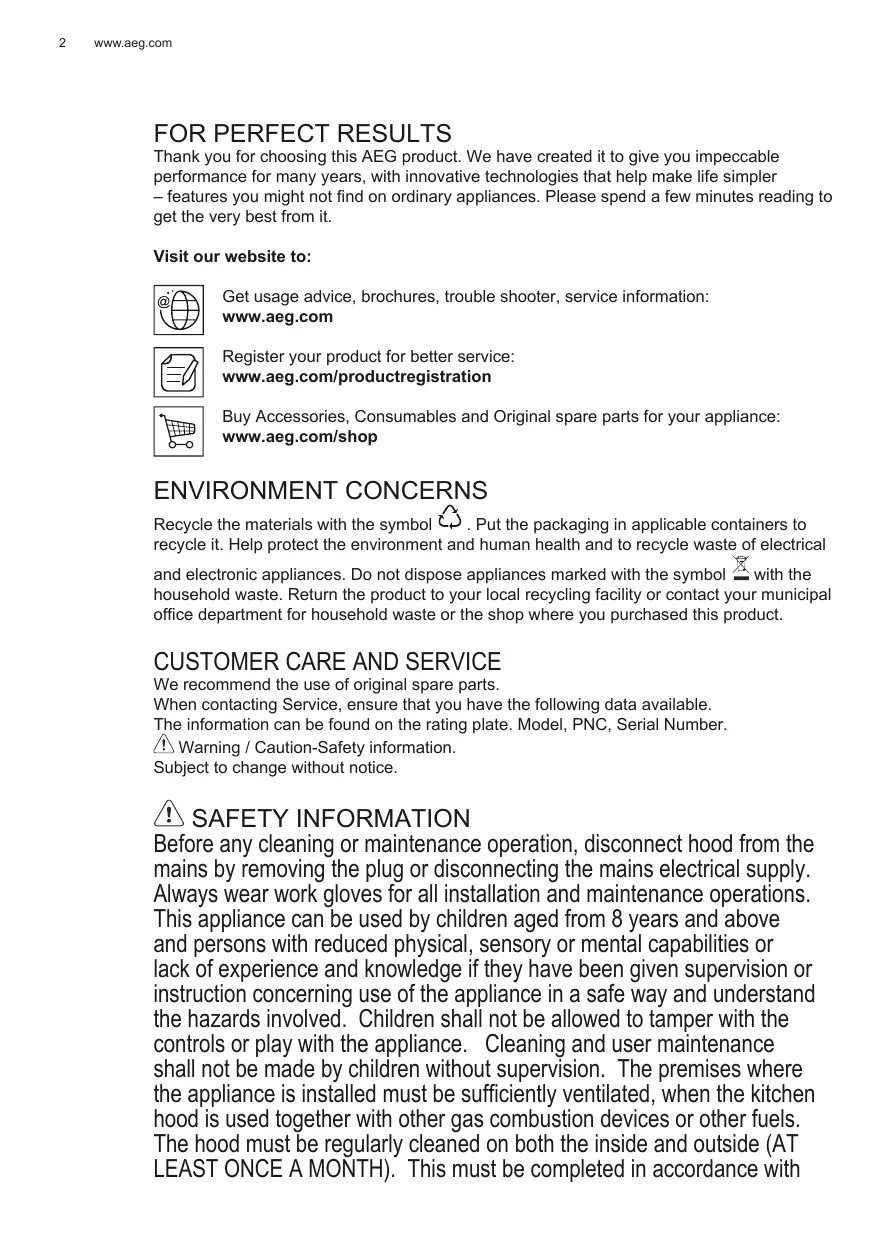

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com

Register your product for better service:

www.aeg.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol 📋. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol 📋 with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

⚠ Warning / Caution-Safety information.

Subject to change without notice.

SAFETY INFORMATION

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply. Always wear work gloves for all installation and maintenance operations. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not be allowed to tamper with the controls or play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accordance with

the maintenance instructions provided in this manual. Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

When connecting the hood to the electrical network, only certified electrical adaptors are allowed and not power strips.

1.SAFETY INSTRUCTIONS

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

Never use the hood without effectively mounted grids.

The hood must NEVER be used as a support surface unless specifically indicated.

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

2.USE

The hood serves to aspirate the fumes and vapors resulting from cooking.

The attached installation manual indicates the version to be used depending on the model you have, the suction version with

external evacuation or filtering with internal recirculation.

3. INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

⚠ Warning! Power cable replacement must be undertaken by the authorised service assistance centre or similar qualified person.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

4. MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

4.1 Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

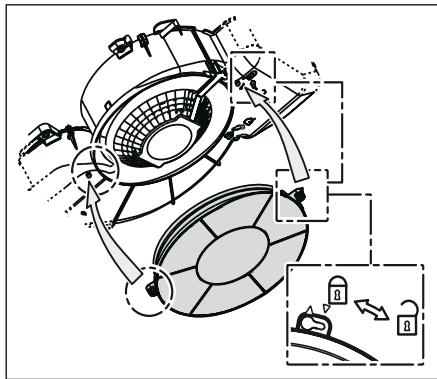

4.2 Charcoal filter - Washable activated charcoal filter - The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four mounths. The charcoal filter may NOT be washed or regenerated.

5. CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

1 2 3 4 5 0 1 2 3

1 ON/OFF lights
2 OFF motors
3 Minimum suction power
4 Medium suction power
5 Maximum suction power

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

6. LIGHTING

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace the damaged lamp.

Use E14 3W max LED lamps only. For more details, check enclosed leaflet "ILCOS D" (alfanumeric position "1d").

www.aeg.com/productregistration

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or flow.

5. BEDIENELEMENTE

www.aeg.com/productregistration

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram illustrating mechanical assembly with labeled components and directional arrows, including a magnified inset showing lock symbols.

5. COMMANDES

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or labels)

5. BEDIENINGSELEMENTEN

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

www.aeg.com/productregistration

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

www.aeg.com/productregistration

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

5. KOMMANDON

www.aeg.com/productregistration

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

www.aeg.com/productregistration

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

www.aeg.com/productregistration

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical component with internal parts and directional arrows, no visible text or symbols

www.aeg.com/productregistration

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

5. JUHIKUD

www.aeg.com/productregistration

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

5. VADĪBAS ELEMENTI

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

4.2 - Plaunamas aktyviosios anglies

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

5. VALDYMAS

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical assembly with no visible text or symbols

5. OVLÁDAČE

www.aeg.com/productregistration

Use the correct length for the screws which are identified in the Installation Guide.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

4.2 - Filtru cu carbon activ lavabil

www.aeg.com/productregistration

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram illustrating a mechanical or fluidic system with labeled components and directional arrows, including a zoomed-in inset showing internal structure.

5. STEROWANIE

www.aeg.com/productregistration

Kupovinu dodatne opreme, potrošnog materijala i originalnih rezervnih dijelova za vaš uređaj:

www.aeg.com/shop

BRIGA ZA OKOLIŠ

Reciklirajte materijale sa simbolom 📋. Ambalažu za recikliranje odložite u prikladne spremnike.

Pomozite u zaštiti okoliša i ljudskog zdravlja, kao i u recikliranju otpada od električnih i elektroničkih uređaja. Uređaje označene simbolom ne bacajte zajedno s kućnim otpadom. Proizvod odnesite na lokalno reciklažno mjesto ili kontaktiraje nadležnu službu.

BRIGA O KUPCIMA I SERVIS

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

4.2 - Aktivni karbonski filtar koji se može oprati - Zasićenje karbonskog filtra se pojavljuje poslije manje-više produljene uporabe s obzirom na tip kuhinje i na urednost u čišćenju filtera za uklanjanje masnoće. U svakom slučaju je potrebno zamijeniti kartušu barem svaka četiri mjeseca.

Technical diagram illustrating mechanical assembly with labeled components and directional arrows, including a zoomed-in inset showing lock mechanism.

5. NAREDBI

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

4.2 - Pralni filter z aktivnim ogljem

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

5. XEIPISTHPIA

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical assembly with no visible text or symbols

5. УПРАВЛЕНИЯ

www.aeg.com/productregistration

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical assembly with no visible text or symbols

www.aeg.com/productregistration

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

5. КОНТРОЛИ

www.aeg.com/productregistration

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or labels)

5. KOMANDIMET

Illustration of a hand using a tool to cut or adjust a mechanical part (no text or symbols visible)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

5. КОМАНДЕ

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

www.aeg.com/productregistration
