USER MANUAL MCF32410X BEKO

Microwave Oven User Manual

MGF 20210 X Please read this manual first!

Dear Customer, Thank you for purchasing a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual. Remember that this user manual is also applicable for several other models. Differences between the models are explicitly described in the manual.

Meanings of the symbols

Following symbols are used in the various section of this user manual:

C A Important information and useful hints about usage.

Warnings for dangerous situations concerning the safety of life and property. Warning for hot surfaces.

This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.

This appliance conforms to the WEEE regulation.

Downloaded from www.Manualslib.com manuals search engine

It does not contain PCB.

1 Important safety and environmental instructions

1.1 General safety 4

1.2 Intended use 8 1.3 Children’s safety 9 1.4 Compliance with the WEEE Directive and disposal of waste products 10 1.5 Package information 10

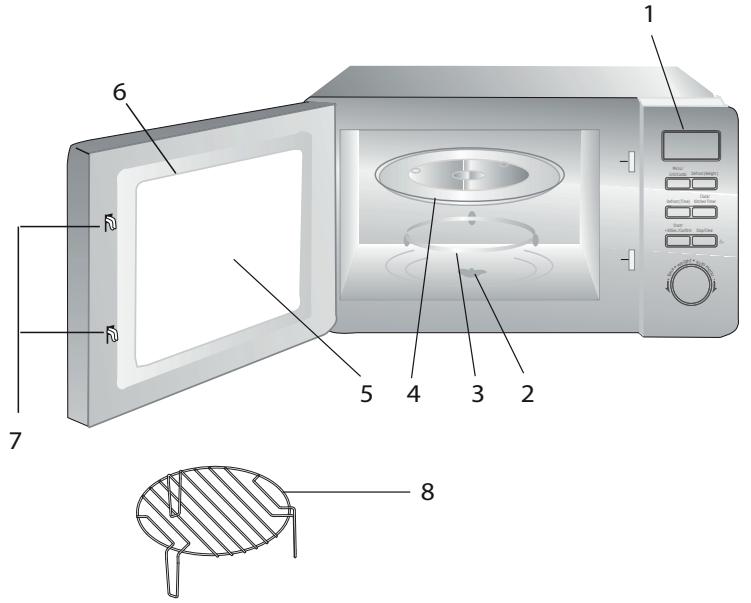

2 Your microwave oven

3 Installation and connection

3.1 Installation and connection 13

5 Cleaning and maintenance

Microwave Oven / User Manual

Downloaded from www.Manualslib.com manuals search engine

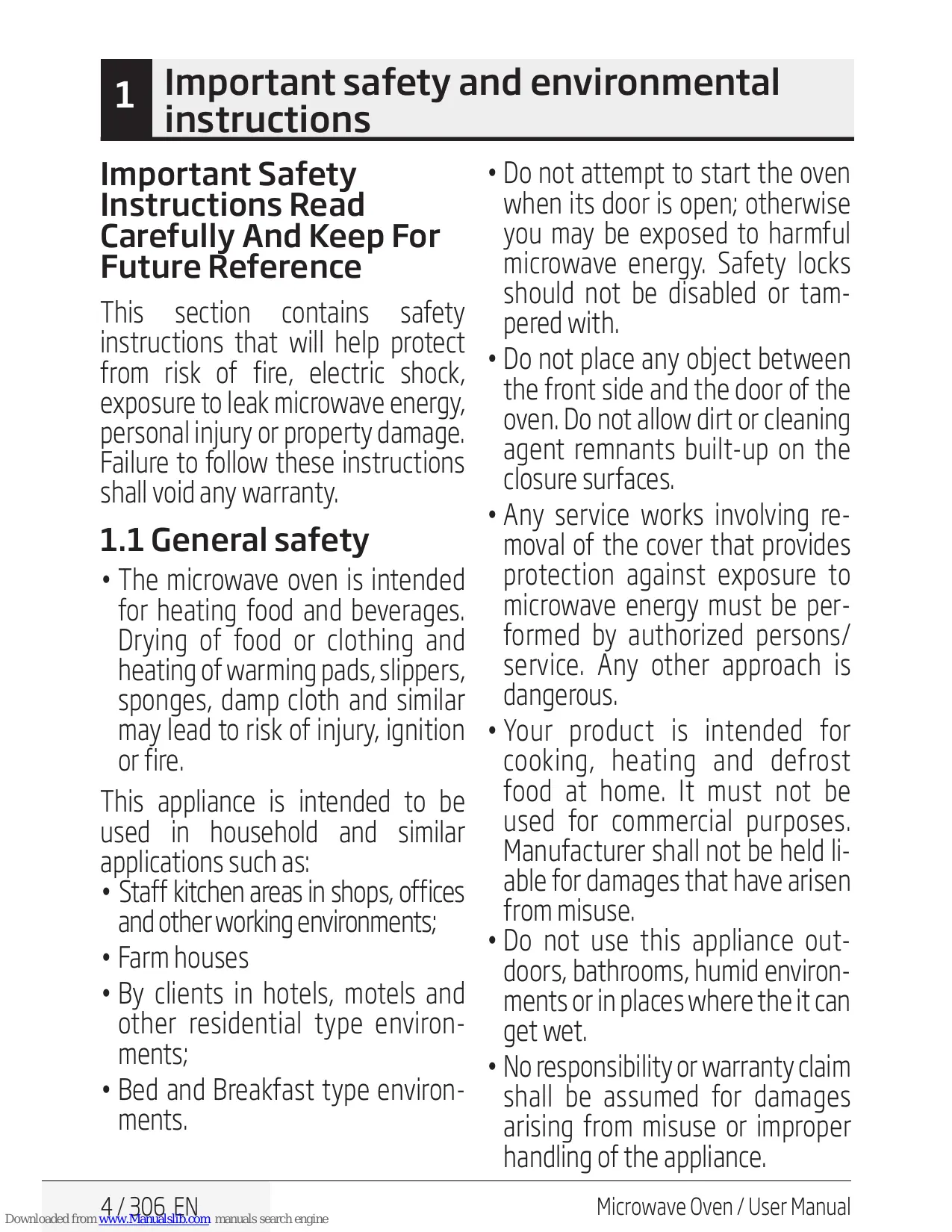

1 I mportant safety and environmental instructions

Important Safety Instructions Read Carefully And Keep For Future Reference This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

• The microwave oven is intended for heating food and beverages.

Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. This appliance is intended to be used in household and similar applications such as: • Staff kitchen areas in shops, offices and other working environments; • Farm houses • By clients in hotels, motels and other residential type environments; • Bed and Breakfast type environments.

4 / 306 EN Downloaded from www.Manualslib.com manuals search engine

• Do not attempt to start the oven when its door is open; otherwise you may be exposed to harmful microwave energy. Safety locks should not be disabled or tampered with.

• Do not place any object between the front side and the door of the oven. Do not allow dirt or cleaning agent remnants built-up on the closure surfaces. • Any service works involving removal of the cover that provides protection against exposure to microwave energy must be performed by authorized persons/ service. Any other approach is dangerous. • Your product is intended for cooking, heating and defrost food at home. It must not be used for commercial purposes. Manufacturer shall not be held liable for damages that have arisen from misuse. • Do not use this appliance outdoors, bathrooms, humid environments or in places where the it can get wet. • No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance. Microwave Oven / User Manual

1 I mportant safety and environmental instructions

• Never attempt to dismantle the appliance. No warranty claims are accepted for damage caused by improper handling. • Only use the original parts or parts recommended by the manufacturer. • Do not leave this appliance unattended while it is in use. • Always use the appliance on a stable, flat, clean dry, and non-slip surface. • The appliance should not be operated with an external clock timer or separate remote control system. • Before using the appliance for the first time, clean all parts. Please see the details given in the "Cleaning and Maintenance" section. • Operate the appliance for its intended purpose only as described in this manual. Do not use abrasive chemicals or steam on this appliance. This oven is particularly intended for heating and cooking the food. It is not intended for industrial or laboratory use. • Do not use your appliance to dry clothes or kitchen towels. Microwave Oven / User Manual

Downloaded from www.Manualslib.com manuals search engine

• Appliance becomes very hot while it is in use. Pay attention not to touch the hot parts inside the oven.

• Your oven is not designed to dry any living being. • Do not operate the oven empty. • Only use utensils that are suitable for use in microwave ovens. • Cooking utensil may get hot due to the heat transferred from the heated food to the utensil. You may need oven gloves to hold the utensil. • Utensils shall be checked to ensure that they are suitable for use in microwave ovens. • Do not place the oven on stoves or other heat generating appliances. Otherwise, it may be damaged and the warranty becomes void. • Microwave oven must not be placed in a cabinet that is not in compliance with the installation instructions. • Steam may come out while opening the covers or the foil after cooking the food. • Use gloves while taking any kind of heated food out.

1 I mportant safety and environmental instructions

• The appliance and its accessible • Use the appliance with a grounded surfaces may be very hot when outlet only. the appliance is in use. • Never use the appliance if the • Door and outer glass may be very power cable or the appliance itself hot when the appliance is in use. is damaged. • Do not use this appliance with an 1.1.1 Electrical safety extension cord. • If the supply cord is damaged, it • Never touch the appliance or its must be replaced by the manu- plug with damp or wet hands. facturer or its service agent or a • Place the appliance in a way so similarly qualified person in order that the plug is always accessible. to avoid a hazard. • Prevent damage to the power • Beko Microwave Ovens comply cable by not squeezing, bending, with the applicable safety stan- or rubbing it on sharp edges. Keep dards; therefore, in case of any the power cable away from hot damage on the appliance or power surfaces and naked flame. cable, it should be repaired or replaced by the dealer, service cen- • Make sure that there is no danger ter or a specialist and authorized that the power cable could be acservice alike to avoid any danger. cidentally pulled or that someone Faulty or unqualified repair work could trip over it when the applimay be dangerous and cause risk ance is in use. • Unplug the appliance before each to the user. cleaning and when the appliance • Make sure that your mains power is not in use. supply complies with the informa- • Do not pull the power cable of the tion supplied on the rating plate of appliance to disconnect it from its the appliance. power supply and never wrap its The only way to disconnect the power cable around the appliance. appliance from the power supply • Do not immerse the appliance, is to remove the power plug from power cable, or power plug in the power outlet. water or any other liquids. Do not hold it under running water.

6 / 306 EN Downloaded from www.Manualslib.com manuals search engine

Microwave Oven / User Manual

1 I mportant safety and environmental instructions

• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. • Remove the wire strings and/or metal handles of paper or plastic bags before placing bags suitable for use in microwave oven to the oven. • If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. • Do not use inside of the oven to store something. Do not leave paper items, cooking material or food inside the oven when it is not being used. • The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature shall be checked before consumption, in order to avoid burns. • This appliance is a Group 2 Class B ISM equipment. Group 2 contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. Microwave Oven / User Manual

Downloaded from www.Manualslib.com manuals search engine

• Class B equipment is suitable for use in domestic establishments and establishments directly connected to a low voltage power supply network.

• Door or outer surface of the appliance may become hot when it is in use.

1.1.2 Product safety

• Heating the beverages with microwave may cause them to boil by splashing around after they have been taken out of the oven; so be careful when you are holding the containers.

• Do not roast anything in the oven. Hot oil may damage the components and materials of the oven, and it may even cause skin burns. • Pierce food with thick crust such as potatoes, zucchinis, apples and chestnuts. • Appliance must be placed so that the rear side is facing the wall. • Before moving the appliance, please secure the turntable to prevent damage to it.

1 I mportant safety and environmental instructions

• Eggs in their shell and whole hard- • WARNING: It is hazardous for boiled eggs must not be heated in anyone other than a competent microwave ovens since they may person to carry out any service or explode, even after microwave repair operation which involves heating has ended. the removal of a cover which gives • Never remove the parts at the rear protection against exposure to miand sides of the appliance, which crowave energy. protect the minimum distances • WARNING: Liquids and other between the cabinet walls and the foods must not be heated in appliance in order to allow for the sealed containers since they are required air circulation. liable to explode. • The oven should be cleaned reg1.2 Intended use ularly and any food deposits re• Failure to maintain the oven in a moved. clean condition could lead to dete- • There should be min 30 cm free rioration of the surface that could space above the top surface of the adversely affect the life of the oven. appliance and possibly result in a • Do not use the appliance for anyhazardous situation. thing other than its intended use. • Cleaning the door seals and adjacent parts: Use hot soapy water. • Do not use the appliance as a heat Clean with a dish cloth, do not source. scour. Do not use a metal or glass • Microwave oven is intended to thaw, cook and stew food only. scraper for cleaning. • WARNING: If the door or door • Do not over-cook foods; otherseals are damaged, the oven must wise, you may cause a fire. not be operated until it has been • Do not use steam assisted cleaners to clean the appliance. repaired by a competent person.

8 / 306 EN Downloaded from www.Manualslib.com manuals search engine

Microwave Oven / User Manual

1 I mportant safety and environmental instructions

1.3 Children’s safety

• Extreme caution is advised when being used near children and persons who are restricted in their physical, sensory or mental abilities.

• This appliance can be used by the children who are at the age of 8 or over and by the people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, as long as they are supervised with regard to safe use of the product or they are instructed accordingly or understand the risks of using the product. Children should not play with the appliance. Cleaning and user maintenance procedures should not be performed by children unless they are controlled by their elders. • Danger of choking! Keep all the packaging materials away from children. • Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the microwave oven in a safe way and understands the hazards of improper use. Microwave Oven / User Manual

Downloaded from www.Manualslib.com manuals search engine

• Due to excessive heat that arises in grill and combination modes, children should only be allowed to use these modes under supervision of an adult.

• Keep the product and its power cable so that they are inaccessible by children under 8 years old. • The appliance and its accessible surfaces may be very hot when the appliance is in use. Keep children away. • The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervised or instruction concerning use of the appliance by a responsible person for their safely. • Young children should be supervised to ensure that they do not play with the appliance. • WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use. 9 / 306 EN

1 I mportant safety and environmental instructions

1.4 Compliance with the WEEE Directive and disposal of waste products This product does not include harmful and prohibited materials specified in the “Regulation for Supervision of the Waste Electric and Electronic Appliances” issued by the Ministry of Environment and Urban Planning. Complies with the WEEE Directive. This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Ask the local authority in your area for these collection points. Help protect the environment and natural resources by recycling used products.

1.5 Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

10 / 306 EN Downloaded from www.Manualslib.com manuals search engine

Microwave Oven / User Manual

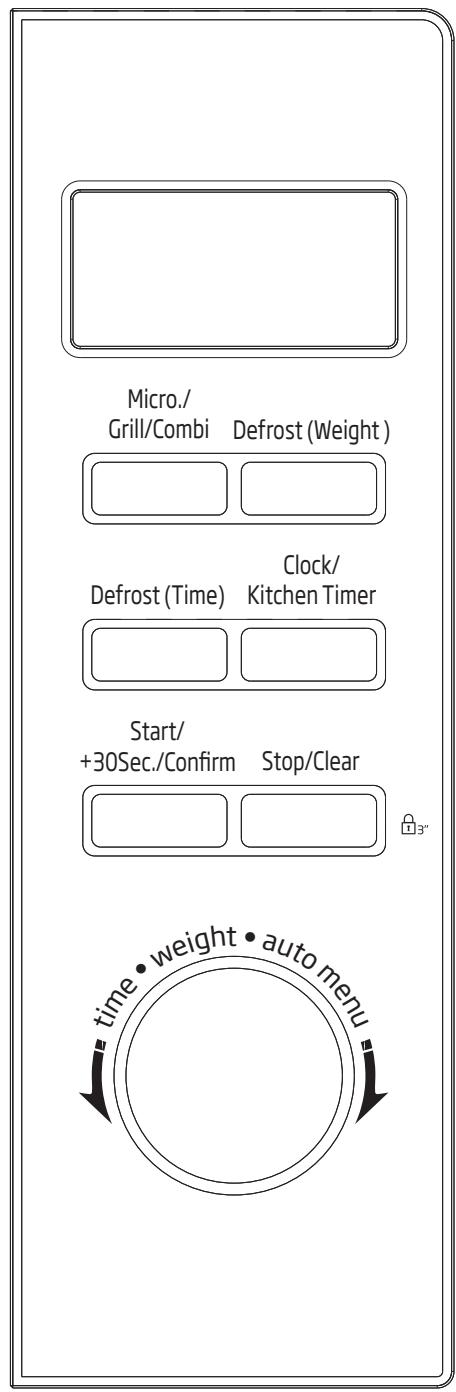

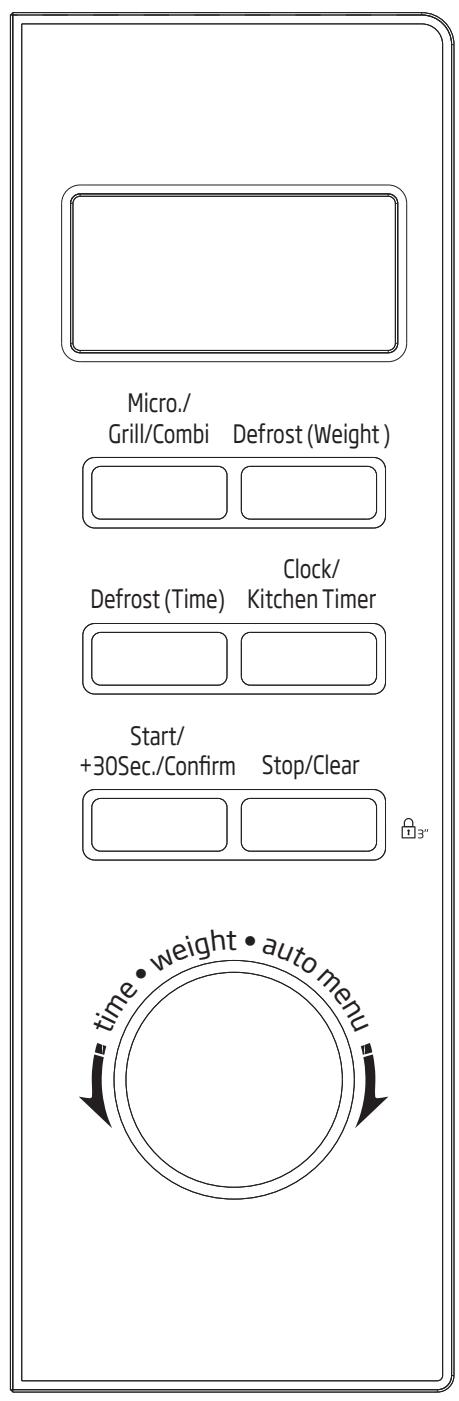

6 Micro./ Grill/Combi

Defrost (Time) Kitchen Timer

2.2 Technical data Turntable shaft Power con230 V~50 Hz, Turntable support 1270 W (Microwave) sumption Glass tray Output 800 W Oven window Operating 2450 MHz Door group frequency Ampere value 5 A Door safety interlock system 258.2 mm (H) / 439.5 mm Grill Rack( Only be used in grill function and be External dimensions (W) / 356 mm (D) placed on the glass tray ) (Microwave Oven) Internal dimensions of the oven Oven Capacity Net weight Net weight (Kit contents)

Markings on the product or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the appliance and ambient conditions. Power values are tested at 230V.

Microwave Oven / User Manual

Downloaded from www.Manualslib.com manuals search engine

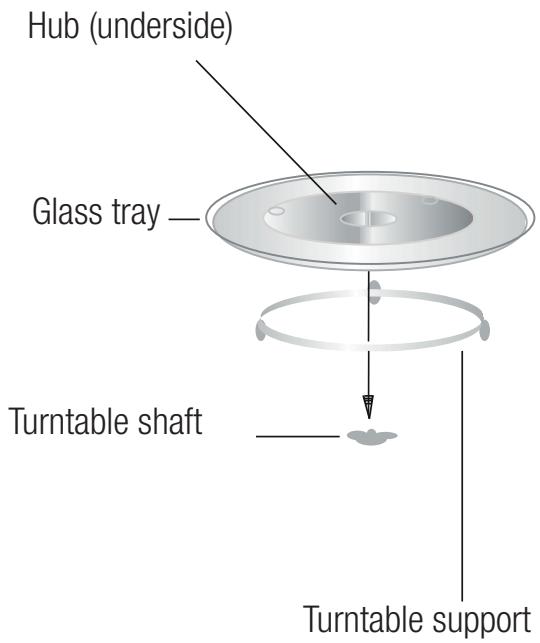

2.3 Installing the turntable

Hub(alt (underside) Göbek kısım)

Döner tabla desteği •• Never place the glass tray upside down. The glass tray should never be restricted. •• Both glass tray and turntable support must always be used during cooking. •• All food and containers of food must always place on the glass tray for cooking. •• If glass tray or turntable support crack or break, contact your nearest authorized service center.

12 / 306 EN Downloaded from www.Manualslib.com manuals search engine

Microwave Oven / User Manual

Installation and connection

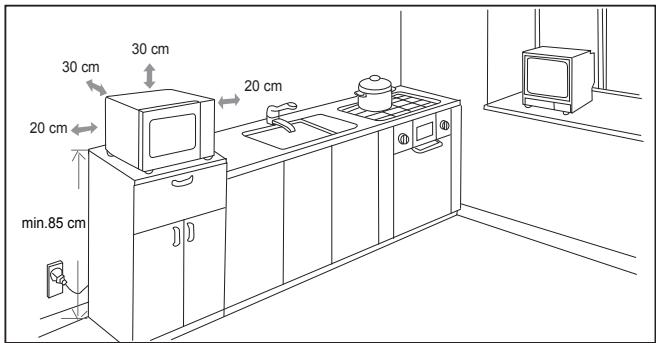

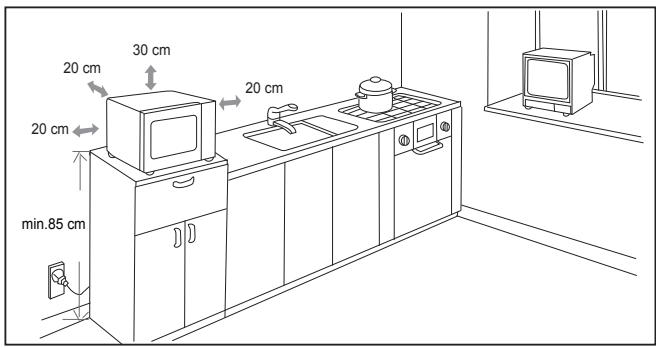

3.1 Installation and connection

•• Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. •• Remove any protective film found on the microwave oven cabinet surface. •• Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron. •• Select a flat surface that provides sufficient space for inlet and outlet ducts. 30 cm

A WARNING: Do not install oven over a range cooktop or other heatproducing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

•• Minimum installation height is 85 cm.

•• The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30 cm above the oven, a minimum clearance of 20 cm is required between the oven and any adjacent walls. •• Do not remove the legs from the bottom of the oven. •• Blocking the intake and / or outlet openings can damage the oven. •• Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception. 2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

Microwave Oven / User Manual

Downloaded from www.Manualslib.com manuals search engine

When the microwave oven is electrified,the oven will display “0:00”, buzzer will ring once. 1. Press “Clock/Kitchen Timer” once ,the hour figures will flash. 2. Turn to adjust the hour figures, the input time should be with i n 0--23.

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

3. Press ““Clock/Kitchen Timer” the minute figures will flash.

4. Turn to adjust the minute figures, the input time should be with in 0--59. 5. Press “Clock/Kitchen Timer” to finish clock setting. “ : ” will flash.

C C If the clock is not set, it would not function when powered.

During the process of clock setting, if you press “Stop/Clear” or no operation in one minute, the oven will exit the setting.

1. Press “Clock/Kitchen Timer” twice,the screen will display “00:00”. 2. Turn to enter the correct timer.(The maximum cooking time is 95 minutes,)

4.2 Operating instructions

3. Press “Start/+30Sec./Confirm” to confirm setting.

4. When the kitchen time is reached, clock indicator

This microwave oven uses modern electronic will go out. The buzzer will ring 5 times. If the control to adjust cooking parameters to meet your clock has been set (24-hour system), screen will needs better for cooking. display the current time.

14 / 306 EN Downloaded from www.Manualslib.com manuals search engine

Microwave Oven / User Manual

C The kitchen Time is different from

24-hour system. Kitchen Timer is a timer.

4.2.3 Microwave Cooking

1. Press the “Micro./Grill/Combi.“ key once, and “P100” display. 2. Press “Micro./Grill/Combi.“ for times or turn tto select the microwave power “P100”, “P80”, “P50”, “P30”, “P10” will display in order. 3. Press “Start/+30Sec./Confirm” to confirm. 4. Turn to adjust the cooking time. (The time setting should be 0:05- 95:00.) 5. Press “Start/+30Sec./Confirm” to start cooking.

C The step quantities for the adjustment time of the coding switch are as follow

Setting the duration

Microwave Power Chart

1. Press the “Micro./Grill/Combi.“ key once, and “P100” display.

Microwave Oven / User Manual

Downloaded from www.Manualslib.com manuals search engine

2. Press “Micro./Grill/Combi.“ for times or turn 4.2.6 Speedy Cooking “ “ to select the grill power . 1. In waiting state, press “Start/+30Sec./ 3. Press “Start/+30Sec./Confirm“ to confirm when Confirm“ key to cook with 100% power level the screen display “G”. for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking 4. Turn “ “ to adjust the grill time. (The time time is 95 minutes. setting should be 0:05- 95:00.) 5. Press “Start/+30Sec./Confirm“ to start cooking.

C If half the grill time passes, the oven sounds twice, and this is normal.

In order to have a better effect of grilling food, you should turn the food over, close the door, and then press “Start/+30Sec./Confirm“ to continue cooking. If no operation, it will continue working.

4.2.5 Combination Cooking

1. Press the “Micro./Grill/Combi.“ key once, and “P100” display.

2. During the microwave cooking and time defrost process, press “Start/+30Sec./Confirm“ to increase the cooking time.

3. In waiting states, turn “ “ left to choose the cooking time directly. After choosing the time, press “Start/+30Sec./Confirm“ to start cooking. The microwave power is 100%.

C Under the states of auto menu and weight defrost, cooking time cannot be increased by pressing

“Start/+30Sec./Confirm“

4.2.7 Defrost by weight

2. Press “Micro./Grill/Combi.“ for times or turn

“ “ to select the combination power 1. Press “Weight Defrost“ once, the screen will display “dEF1”. “C-1(55%microwave+45%grill)” and “C-2(36%microwave+64%grill)” will display in 2. Turn to select the food weight. The range of order. weight is 100-2000g. 3. Press “Start/+30Sec./Confirm“ to confirm.

3. Press “Start/+30Sec./Confirm“ key to start defrosting.

4. Turn “ “ to adjust the cooking time. (The time setting should be 0:05- 95:00.) 4.2.8 Defrost by time 5. Press “Start/+30Sec./Confirm“ to start cooking.

1. Press “Time Defrost“ once, the screen will display “dEF2”.

to select the cooking time.

3. Press “Start/+30Sec./Confirm“ key to start defrosting.

16 / 306 EN Downloaded from www.Manualslib.com manuals search engine

Microwave Oven / User Manual

to choose the food weight;

1. In waiting states, turn “ “ right to choose the 4. Press “Start/+30Sec./Confirm“ to start cooking; menu from “A-1” to “A-8”;

5. After cooking finish, the buzzer sounds five 2. Press “Start/+30Sec./Confirm“ to confirm the times. menu you choose;

50 g (with 450 ml cold water)

100 g (with 800 ml cold water)

Vegetable A-3 Fish A-4 Meat A-5 Pasta A-6 Potato A-7 Pizza A-8 Soup

Microwave Oven / User Manual

Downloaded from www.Manualslib.com manuals search engine

4.2.11 Multi-step cooking

Two stages can be maximumly set. If one stages 1. Lock: In waiting state, press “Stop/Clear“ for is defrosting, it should be put in the first stage

3 seconds, there will be a long “beep” denoting automactically. The buzzer will ring once after entering the children-lock state . each stage and the next stage will begin. 2. Lock quitting: In locked state, press “Stop/ Auto menu cannot be set as one of Clear“ for 3 seconds, there will be a long “beep” the multi-stage. denoting that the lock is released.

C C Example: If you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

4.2.14 Specification

1. The buzzer will sound once when turning the knob at the beginning;

2. “Start/+30Sec./Confirm“ must be pressed to continue cooking if the door is opened during 1. Press “Time Defrost“ once, the screen will cooking; display “dEF2”. 3. Once the cooking programme has been set, 2. Turn to adjust the defrost time of 5 minutes; “Start/+30Sec./Confirm“ is not pressed in 1 3. Press “Micro./Grill/Combi.” once; minute. The current time will be displayed. The 4. Turn to choose 80% microwave power till setting will be cancelled. “P80” display; 4. The buzzer sounds once by efficient press, 5. Press “Start/+30Sec./Confirm“ to confirm;

inefficient press will be no responce.

to adjust the cooking time of 7 minutes; 5. The buzzer will sound five times to remind you when cooking is finished.

7. Press “Start/+30Sec./Confirm“ to start cooking.

4.2.12 Inquiring Function

1. In cooking states of microwave,grill and combination, press “Micro./Grill/Combi.”, the current power will be displayed for 3 seconds. 2. During cooking state, press “Clock/Kitchen Timer“ to check the current time. It will be displayed for 3 seconds.

18 / 306 EN Downloaded from www.Manualslib.com manuals search engine

Microwave Oven / User Manual

Cleaning and maintenance

A WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

A WARNING: Never immerse the appliance or its power cable in water or in any other liquid.

9. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. It would be sufficient to wipe the lower surface of the oven with a mild detergent. Roller ring may be washed in warm soapy water or in a dishwasher. When you remove the roller ring from oven internal floor for cleaning, ensure that you install it in the correct position while replacing it.

10. In order to remove bad odors in your oven, put a glass of water and juice and peel of a lemon to

1. Turn the appliance off and disconnect it from a deep bowl suitable for use in microwave and wall socket. operate the oven for 5 minutes in microwave 2. Wait for the appliance to completely cool down. mode. Wipe thoroughly and dry with a soft cloth. 3. Keep the inside of the oven clean. Wipe with a damp cloth when splashed food or spilled liquids 11. Please contact the authorized service when stick on the walls of the oven. A mild detergent the oven lamp needs to be replaced. may be used if the oven gets very dirty. Avoid using sprays and other harsh cleaning agents as 12. The oven should be cleaned regularly and any food deposits should be removed. If the they may cause stains, marks, and opaqueness oven is not kept clean, this may cause surface on the door surface. defects that would affect the lifecycle of the 4. Outer surfaces of the oven must be cleaned appliance negatively and that would possibly with a damp cloth. Do not allow water ingress cause risks. from ventilation openings to prevent damage to the operating parts in the oven. 13. Please do not dispose this appliance with household waste; old ovens shall be disposed 5. Wipe both sides of the door and the glass, door to special waste centers provided by the gaskets and parts near the gaskets frequently municipalities. with a damp cloth in order to remove the overflowing and splashing stains. Do not use 14. When the microwave oven is used in grill abrasive cleaning agents. function, a small amount of smoke and odor 6. Do not allow control panel to get wet. Clean with may occur which will disappear after a certain a soft damp cloth. Leave the door of the oven time of usage. open to prevent inadvertent operation while cleaning the control panel. 5.2 Storage 7. If steam accumulates inside or around the oven •• If you do not intend to use the appliance for a door, wipe with a soft cloth. This may occur long time, please store it carefully. when the microwave oven is operated under •• Please make sure that the appliance is high humidity conditions. It is normal. unplugged, cooled down and totally dry. 8. In some cases, you may need to remove the •• Store the appliance in a cool and dry place. glass tray for cleaning. Wash the tray in warm •• Keep the appliance out of the reach of children. soapy water or in a dishwasher.

Microwave Oven / User Manual

Downloaded from www.Manualslib.com manuals search engine

Normal Microwave oven interferes with TV reception

Radio and TV reception may be interfered when microwave oven is operating. It is similar to the interference caused by small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.

Oven light is dimmed

In low power microwave cooking, oven light may be dimmed. It is normal.

Steam accumulating on door, hot air coming out During cooking, steam may arise from the food. of vents

Most of this steam will get out from vents. But some may accumulate on a cool place like oven door. It is normal. Oven started accidentally with no food in it.

Oven cannot be started.

It is not allowed to run the appliance without any food inside. It is very dangerous.

1) Power cable is not plugged in properly.

Unplug. Then plug again after 10 seconds.

2) Fuse is blown or circuit breaker is activated.

Replace fuse or reset circuit breaker (repaired by professional personnel of our company).

3) Trouble with outlet.

Test the outlet with other electrical appliances.

4) Door is not closed properly.

Close the door properly.

Glass turntable makes noise when microwave oven operates

5) Turntable and bottom of the Refer to “Cleaning and oven is dirty.

Maintenance" section to clean dirty parts.

20 / 306 EN Downloaded from www.Manualslib.com manuals search engine

Microwave Oven / User Manual

Downloaded from www.Manualslib.com manuals search engine

27 / 306 DE Downloaded from www.Manualslib.com manuals search engine

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

33 / 306 DE Downloaded from www.Manualslib.com manuals search engine

C Downloaded from www.Manualslib.com manuals search engine

35 / 306 DE Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

39 / 306 DE Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

47 / 306 IT Downloaded from www.Manualslib.com manuals search engine

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

53 / 306 IT Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Patate A-7 Pizza A-8 Zuppa

56 / 306 IT Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

59 / 306 IT Downloaded from www.Manualslib.com manuals search engine

61 / 306 ES Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

63 / 306 ES Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

C Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

C Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

75 / 306 ES Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

91 / 306 PT Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

93 / 306 PT Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

97 / 306 PT Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

105 / 306 NL Downloaded from www.Manualslib.com manuals search engine

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

109 / 306 NL Micro./

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

111 / 306 NL Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

113 / 306 NL Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

117 / 306 NL De ovenverlichting is gedimd

Downloaded from www.Manualslib.com manuals search engine

125 / 306 PL Downloaded from www.Manualslib.com manuals search engine

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

Kuchenka mikrofalowa

Downloaded from www.Manualslib.com manuals search engine

129 / 306 PL Micro./

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

131 / 306 PL Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Vegetable (Warzywa) A-3 Fish (Ryby) A-4 Meat (Mięso) A-5 Pasta (Makaron) A-6 Potato (Ziemniaki) A-7 Pizza A-8 Soup (Zupa)

Downloaded from www.Manualslib.com manuals search engine

137 / 306 PL Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

4.2 Pokyny k obsluze

Downloaded from www.Manualslib.com manuals search engine

C Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

149 / 306 CZ Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

153 / 306 CZ Downloaded from www.Manualslib.com manuals search engine

155 / 306 HR Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

157 / 306 HR Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

159 / 306 HR Downloaded from www.Manualslib.com manuals search engine

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

163 / 306 HR Micro./

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

165 / 306 HR Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Povrće A-3 Riba A-4 Meso A-5 Tjestenina A-6 Krumpir A-7 Pizza A-8 Juha

168 / 306 HR Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

171 / 306 HR Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

173 / 306 SK Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

175 / 306 SK Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

177 / 306 SK Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

C Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

187 / 306 SK Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

201 / 306 LT Micro./

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

203 / 306 LT Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

206 / 306 LT Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

209 / 306 LT Downloaded from www.Manualslib.com manuals search engine

211 / 306 ET Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

213 / 306 ET Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

215 / 306 ET Downloaded from www.Manualslib.com manuals search engine

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

255 / 306 RO Downloaded from www.Manualslib.com manuals search engine

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

259 / 306 RO Micro./

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

261 / 306 RO Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

263 / 306 RO Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

267 / 306 RO Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

275 / 306 SL Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

C Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

283 / 306 SL Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

287 / 306 SL Downloaded from www.Manualslib.com manuals search engine

289 / 306 TR Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

291 / 306 TR Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

293 / 306 TR Downloaded from www.Manualslib.com manuals search engine

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

Mikrodalga fırınınız

Downloaded from www.Manualslib.com manuals search engine

297 / 306 TR Micro./

Grill/Combi Defrost (Weight )

Defrost (Time) Kitchen Timer

Downloaded from www.Manualslib.com manuals search engine

299 / 306 TR Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Sebze A-3 Balık A-4 Et A-5 Makarna A-6 Patates A-7 Pizza A-8 Çorba
