MD544IXHA - Built-in oven HOTPOINT - Free user manual and instructions

Product type	Built-in microwave oven
Brand	Hotpoint
Model	MD544IXHA
Rated voltage	230 V~50 Hz
Input power (microwave)	1250 W
Output power (microwave)	800 W
Input power (grill)	1000 W
Capacity	20 L
Turntable diameter	245 mm
External dimensions (W x H x D)	594 x 343,5 x 388 mm
Net weight	15,4 kg
Number of power levels	5 (microwave: 100%, 80%, 50%, 30%, 10%)
Main functions	Microwave cooking, grill, combined (C-1: 55% MW + 45% grill, C-2: 36% MW + 64% grill), defrost by weight (dEF1) or time (dEF2), timer, child lock, auto menu (10 programs)
Display type	Digital LED
Cavity material	Not specified (enameled steel likely)
Cleaning	Interior: damp cloth; accessories: soapy water; do not use steam cleaner or abrasives
Safety	Door lock, mandatory grounding, child lock (panel lock), automatic stop if door opened
Included accessories	Glass tray, turntable support, grill rack (for models with grill), user manual

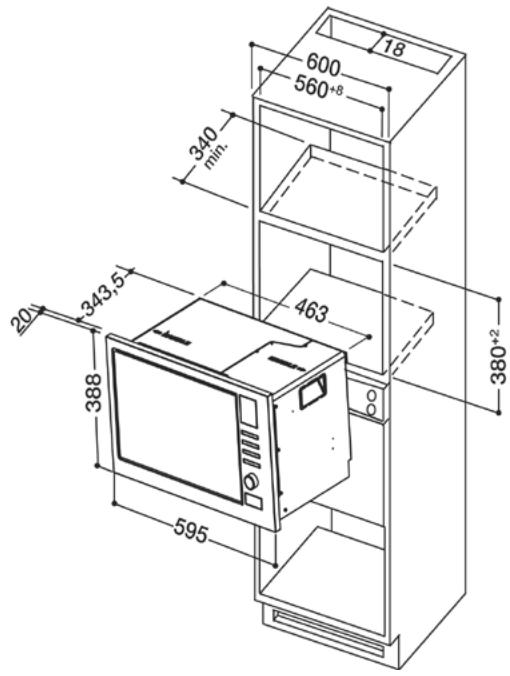

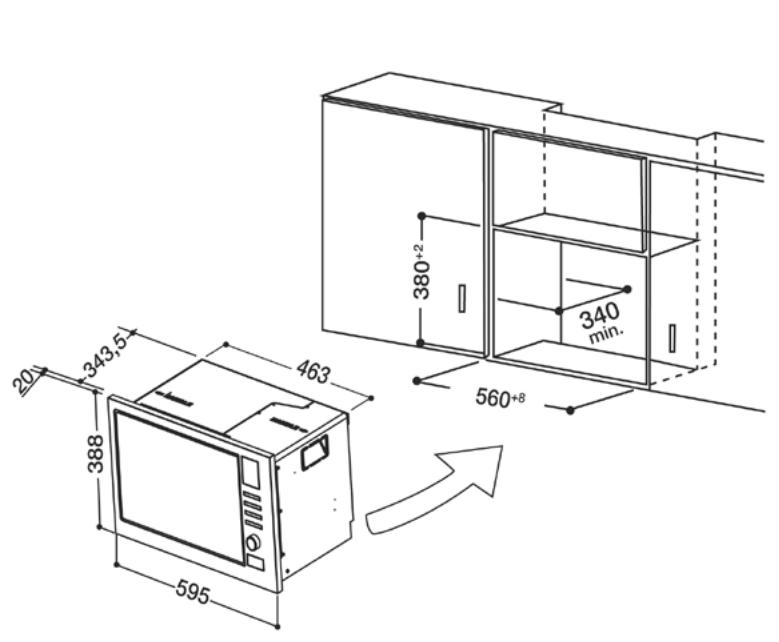

Installation	Built-in in cabinet 60 cm wide, depth ≥ 55 cm, height ≥ 85 cm from floor
Energy class	Not specified

Frequently Asked Questions - MD544IXHA HOTPOINT

How to set the oven clock?

Plug in the oven, press ‘ / ’ once. Turn the knob to set the hours (0-23), press ‘ / ’ again for minutes, then press ‘ / ’ to confirm. The clock is in 24-hour format.

Can I use metal utensils in this oven?

No, metal utensils or those with metal decorations can cause sparks. Only use microwave-safe containers (glass, ceramic, microwave-safe plastic).

What if the oven does not heat?

Check that the door is properly closed. Make sure the power cord is plugged in and the fuse/circuit breaker is working. If the problem persists, contact a qualified technician.

How to clean the inside of the oven?

Unplug the appliance. Clean the interior with a slightly damp cloth. For stubborn stains, use soapy water. Never use a steam cleaner or abrasive products.

How to use the defrost function?

For weight defrost (dEF1): press ‘ / ’ once, turn the knob to select weight (100-2000 g), then press START. For time defrost (dEF2): press ‘ / ’ twice, set time (max 95 min), then press START.

Is it dangerous to run the oven empty?

Yes, it is very dangerous. Never operate the oven without food or liquids inside, as this could damage the appliance or cause a fire.

How to lock the oven for child safety?

In standby mode, press PAUSE STOP for 3 seconds. A beep sounds and the display shows [ ] or the time. To unlock, press STOP again for 3 seconds.

What types of dishes can I use in the microwave?

Use heat-resistant glass, ceramic without metal decoration, microwave-safe plastic, parchment paper, etc. Avoid metal, aluminum, paper bags, and plastic foam.

Why does steam accumulate on the door?

This is normal. During cooking, food releases steam. Some may condense on the cooler door. Wipe it off after use.

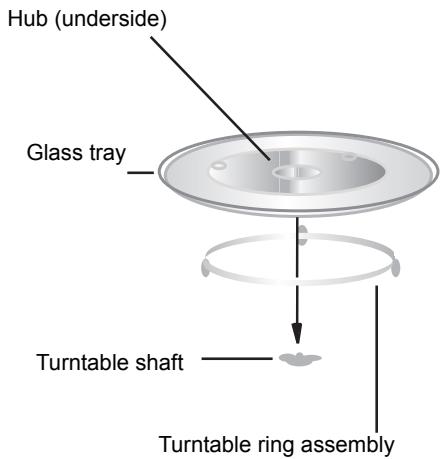

How to install the turntable?

Place the turntable support on the central shaft, then put the glass tray on top. Make sure it rotates freely. Always use the tray and its support during cooking.

USER MANUAL MD544IXHA HOTPOINT

10. Multi-section cooking

IMPORTANT SAFETY INSTRUCTIONS

WARNINGS

To avoid fire, electric shock, injury to persons, or exposure to excessive microwave energy when using this appliance, follow the basic safety precautions, including the following:

1. Warning: Do not heat liquids and other foods in sealed containers, as this may cause an explosion. 2. Warning: Any servicing or repair of the appliance that requires removal of the cover protecting against microwave energy must be performed only by a qualified technician.
2. Warning: Do not allow children to use the oven without first instructing them on the safety rules and the dangers of improper use. 4. Warning: When using the oven in combination mode, adult supervision is required due to high temperatures. (Only for series with grill).
3. History of the microwave oven.
4. Regularly clean the oven and remove any food residue.
5. The manufacturer declares: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
6. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
7. If smoke is observed, turn off the oven and unplug it from the power outlet. Do not open the oven door to avoid possible flames.
8. Do not overcook food.
9. Do not use the oven for storage purposes. Do not store bread, cookies, or similar items inside the oven. 12. Remove wire twist-ties and metal handles from paper or plastic containers before placing them in the oven.
10. Use the appliance only for the purposes described in these instructions.
11. Do not heat raw or undercooked food in the microwave in a closed container, as it may explode even after microwave heating has finished. 15. Use the appliance only for the purposes described in these instructions. Do not use corrosive chemicals or vapors to clean the appliance. This oven is specifically designed for heating. It must not be used for industrial or laboratory purposes.
12. If the power cord is damaged, have it replaced by the manufacturer, a service agent, or a qualified electrician to avoid hazards.
13. Do not store or use the appliance outdoors.
14. Do not use this appliance near water, on a wet surface, or next to a bathtub.
15. When using the oven, its surfaces may become very hot. When using the oven, its surfaces usually become very hot. Keep the power cord of the appliance away from hot surfaces and do not cover any part of the oven.
16. The power cord of the appliance must not hang over the edge of a table or countertop.
17. Failure to follow the care instructions for the oven may lead to damage to the surface and reduce the service life of the appliance, and may also lead to dangerous situations.
18. The contents of baby bottles and baby food jars must be stirred or shaken and the temperature checked before consumption to avoid burns.
19. When heating baby food with microwave radiation, it may boil up unexpectedly, so remove them from the oven carefully.
20. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
21. Do not let children play with the appliance.
22. The microwave oven must not be installed in a cabinet unless it is designed for built-in installation.
23. The appliance does not work with an external timer or separate remote control systems.
24. WARNING: Make sure the appliance is turned off before replacing the lamp to avoid electric shock.
25. Accessible parts may become hot during use. Do not allow small children to approach the appliance.
26. The use of steam cleaners for cleaning the appliance is prohibited.
27. The surface of the storage compartment may become hot.
28. Do not use harsh abrasive pads or metal scrapers to clean the glass oven door, as they can scratch the surface, which may lead to cracks in the glass.
29. The appliance heats up during operation. Be careful to avoid touching hot elements inside the oven.
30. Use a meat thermometer or insert it into the oven (for ovens that have the ability to use a meat thermometer).
31. When the oven is first switched on, a specific smell may be noticed, caused by the oil applied at the factory to protect some components. This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
32. Keep the appliance and its cord out of reach of children under 8 years.
33. This appliance is intended for household use and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - farm houses.
34. WARNING: During operation, the appliance and its accessible parts become hot. Do not touch the heating elements. Do not let children under 8 years of age near the appliance unless they are under constant supervision.

Read carefully and keep for future reference.

To avoid accidents, grounding installation.

This appliance must be grounded. To avoid short circuits, grounding reduces the risk of electric shock by providing a wire for the electric current. This appliance is equipped with a cord that includes a grounding wire with a grounding plug. The plug must be connected to a properly installed and grounded outlet.

Consult a qualified electrician or service personnel if the grounding instructions are not completely understood, or if you have doubts about the correct grounding of the appliance. If it is necessary to use an extension cord, use only a 3-wire cord.

1. A short power cord reduces the risk of tripping or entanglement.
2. In case of a long power cord or extension cord: 1) The marked electrical rating of the cord or extension cord must be at least as great as the electrical rating of the appliance. 2) The extension cord must be a 3-wire grounding type. 3) The cord must be arranged so that it does not drape over the countertop or tabletop where it can be pulled by children or tripped over.

DANGER

Danger of electric shock

Touching some internal components may cause serious injury or death. Do not disassemble the appliance.

WARNING

Danger of electric shock

Improper grounding can lead to electric shock. Do not connect the device to a power outlet if it is not installed properly and grounded.

Care

1) If the clock is not set, it will not work when the power is turned on. 2) If you press the button

"PAUSE STOP" during the

clock setting process, it will automatically return to the previous mode.

Continue defrosting until "5:00" appears on the display.

3) Press the button " once. The display shows 100. 4) Press the button " again and turn the regulator " h" to select 80% microwave power. 5) Press the " START" button to confirm. The display shows "P 80". 6) Turn the regulator " to set the cooking time until "07:00" appears on the display. 7) Press the " START" button to start cooking.

One beep sounds at the first stage, and the countdown of defrosting time begins. Another beep sounds at the start of the second stage. At the end of cooking, three beeps sound.

11. Child lock function

1. Insert the plug into the socket.

- Make sure the rear part is not blocked. - The power cord should not be twisted or bent.

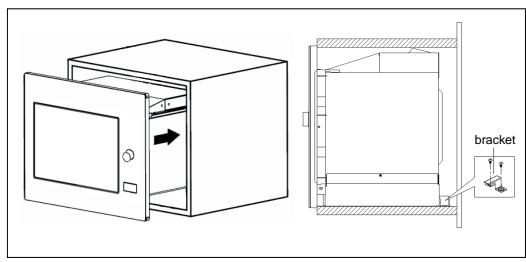

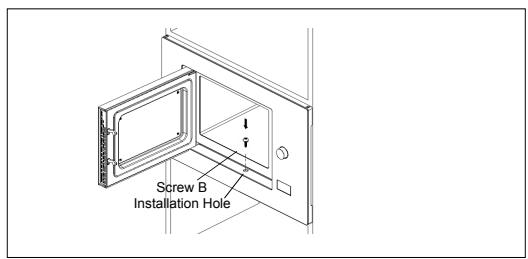

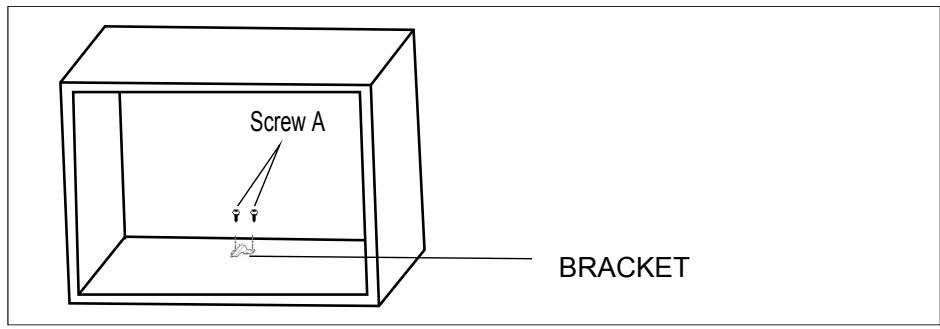

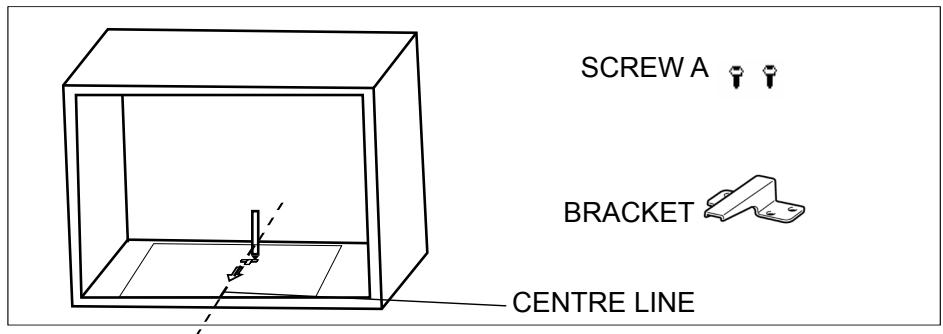

1. Open the door; attach the hook to the hole with the screw in accordance with the mounting hole.

Spanish

Portuguese

Dutch

German

Russian

Polish

English

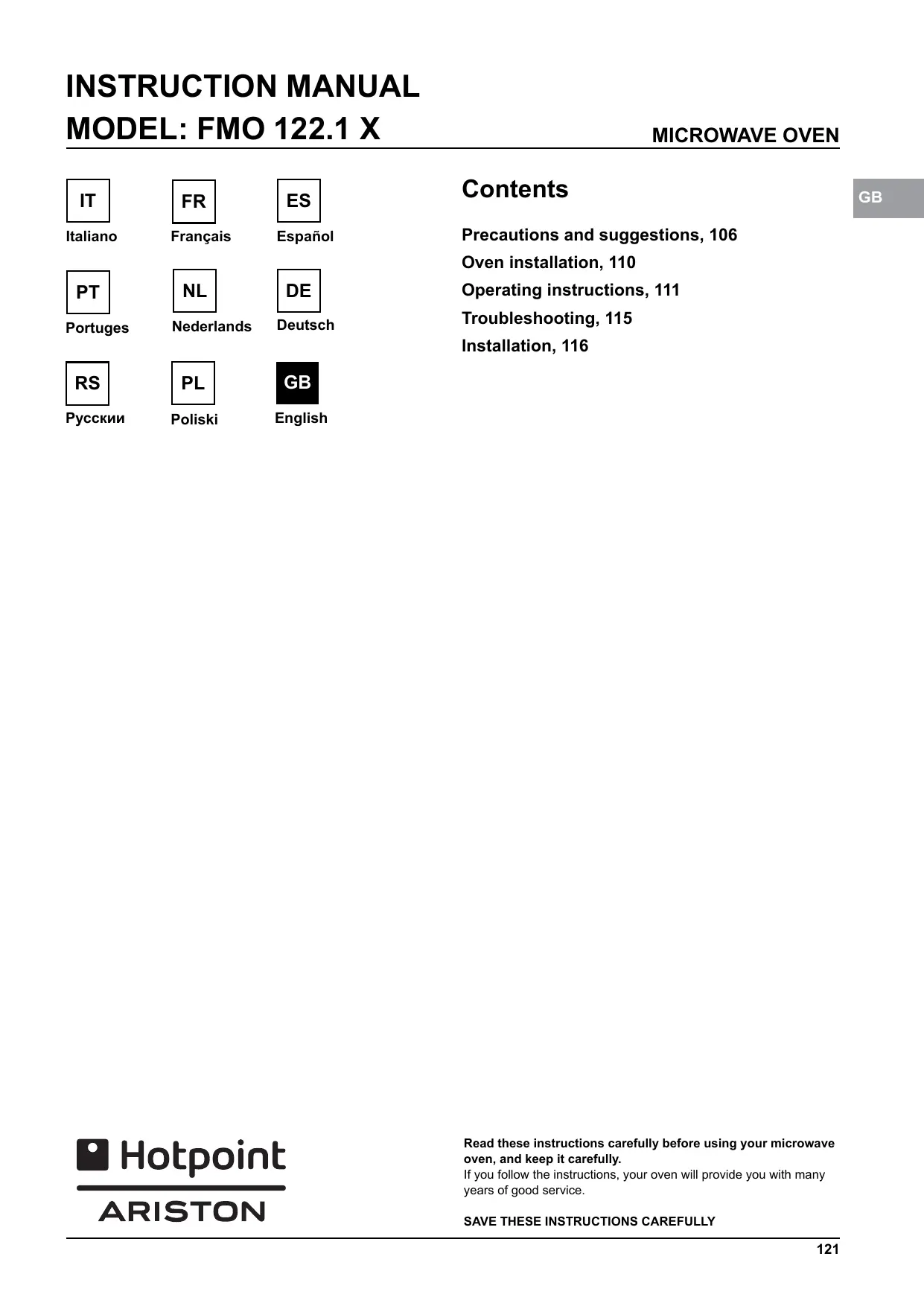

Table of contents

Recommendations and safety precautions, 93

Precautions and suggestions, 106

Oven installation, 110

Operating instructions, 111

Troubleshooting, 115

Installation, 116

Hotpoint

ARISTON

Read these instructions carefully before using your microwave oven, and keep them carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

GB

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	FMO 122.1 X
Rated Voltage:	230V~50Hz
Rated Input Power (Microwave):	1250W
Rated Output Power (Microwave):	800W
Rated Input Power (Grill):	1000W
Oven Capacity:	20 L
Turntable Diameter:	Ø 245mm
External Dimensions:	594x343.5x388mm
Net Weight:	Approx. 15.4Kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series).
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13. Install or locate this oven only in accordance with the installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
15. Use this appliance only for its intended uses as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed for heating. It is not designed for industrial or laboratory use.
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement, or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep the cord away from heated surfaces, and do not cover any vents on the oven.
20. Do not let the cord hang over the edge of a table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
24. The appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25. Children should be supervised to ensure that they do not play with the appliance.
26. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
27. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
28. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
29. Accessible parts may become hot during use. Young children should be kept away.
30. Steam cleaner is not to be used.
31. Surface of a storage drawer can get hot.
32. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
33. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
34. Only use the temperature probe recommended for this oven. (For ovens provided with a facility to use a temperature-sensing probe.)
35. During the first use there is a particular smell due to production oils to protect some components.
36. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
37. Keep the appliance and its cord out of reach of children less than 8 years.
38. This appliance is intended to be used in household and similar applications such as:
39. staff kitchen areas in shops, offices and other working environments;
40. by clients in hotels, motels and other residential type environments;
41. farm houses;

bed and breakfast type environments.

1. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used: 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2) The extension cord must be a grounding type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighboring parts must be cleaned carefully with a damp cloth when they are dirty.

Two-round-pin plug

UTENSILS

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

GB

Materials you can use in microwave oven Utensils Remarks

Aluminum foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven coking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short–term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled “Microwave Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metaltrimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

Grill Rack (Only for Grill series)

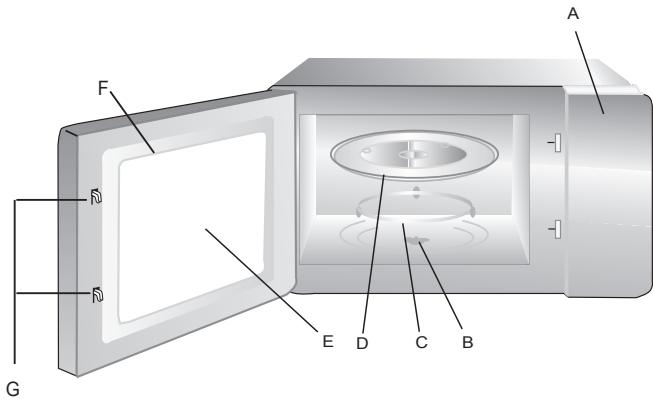

A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard (at least 55cm deep and 85cm off the floor).
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press " / " once. "00:00" displays. 2) Turn "..." to adjust the hour figures, the input time should be within 0--23 (24-hour). 3) Press " / ", the minute figures will flash. 4) Turn "..." to adjust the minute figures, the input time should be within 0--59. 5) Press " Q /" to finish clock setting. ":" will flash.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press "PAUSE", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press " 三 " the LED will display

"P100". Press " 三 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3

turn "" to choose the power you want, and "P100", "P80" "P50", "P30" or "P10" will display for each added press. Then press "~~ ~ ~ " to confirm, and turn "~" to set cooking time from 0:05 to 95:00.

Press " START" again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press "START" once, the screen display "P100". 2) Press "~~" once again or turn "h" to choose 80% microwave power. 3) Press "START" to confirm, and the screen displays "P 80". 4) Turn "h" to adjust the cooking time until the oven displays "20:00". 5) Press " " to start cooking.

3. Grill or Combi. Cooking

Press " ≈ " the LED will display

"G", and press the same button for times or turn the

"..." to choose the power you want, and "G", "C-1" or

"C-2" will display for each added press. Then press

" (START) " to confirm, and turn " h " to set

cooking time from 0:05 to 95:00. Press “ ” again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press " 三 三 三 三 三 三 三 三 三 三 三 三 三 三 三 ” once, the screen display "P100". 2) Press " ≈ ” for timers or turn “” to

choose combi. 1 mode.

3) Press "C-1". 4) Turn "h" to adjust the cooking time until the oven displays "10:00". 5) Press "START" to start cooking.

Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over close the door, and then press

"START" to continue cooking. If no operation, the oven will continue working.

4. Quick Start

1) In waiting state, Press “ ( \ ) ” to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes. 2) In microwave cooking or time defrost state, each press of “ ( START \ STOP ) ” can increase 30 seconds of cooking time. 3) In waiting state, turn “ ” left to set cooking time with 100% microwave power, then press “ TART” to start cooking.

5. Defrost By Weight

1) Press “ / ” once, and the oven will display “dEF1”. 2) Turn "..." to select the weight of food from 100 to 2000 g. 3) Press "START" to start defrosting.

”Pad instructions

Order	Display	Microwave Power	Grill Power
1	P100	100%
2	P80	80%
3	P50	50%
4	P30	30%
5	P10	10%
6	G	0%	100%
7	C-1	55%	45%
8	C-2	36%	64%

6. Defrost By Time

1) Press " / " twice, and the oven will display "dEF2". 2) Turn "..." to select the defrost time. The MAX time is 95 minutes. 3) Press " START" to start defrosting.

The defrost power is P30, and it will not be changed.

7. Kitchen Timer

(1) Press " / " twice, LED will display 00:00, timer indicator will light. (2) Turn "h" to enter the correct time. (The maximum cooking time is 95 minutes.) (3) Press "START" to confirm setting, timer indicator will be lighted. (4) When the kitchen time is reached, timer indicator will go out. The buzzer will ring 5 times. If the clock be set (24-hour system), LED will display the current time.

Note: The kitchen Time is differ from 24-hour system. Kitchen Timer is a timer.

8. Inquiring Function

(1) In states of microwave, grill and combination cooking, press " ≈ ", the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state; (2) In cooking state, press " / " to inquire the time and the time will display for 3 seconds.

9.Auto Menu

1) Turn "O" right to choose the menu, and "A-1" to "A-10" will display. 2) Press " START" to confirm. 3) Turn "h" to choose the default weight as the menu chart. 4) Press "START" to start cooking. Example: If you want to use "Auto Menu" to cook fish for 350g. 1) Turn " " clockwise till "A-4" display. 2) Press " START" to confirm. 3) Turn "to select the weight of fish till "350" display. 4) Press " " to start cooking.

10. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press " Ⓞ/® ✦" twice, and the oven will display "dEF2". 2) Turn "h" to select the defrost time till "5:00" display. 3) Press " P100". 4) Press "~~" once again or turn "~" to choose 80% microwave power.

5) Pres "P 80".

” to confirm, and the screen displays

6) Turn "b" to adjust the cooking time until the oven displays "7:00". 7) Press "START" to start cooking, and the buzzer will sound once for the first section, defrosting time counts down; the buzzer will sound once again entering the second cooking. When cooking finishes, the buzzer sounds five times.

11. Lock-out Function for Children

Lock: In waiting state, press "PAUSE" for 3 seconds, there will be a long beep denoting entering the children-lock state and current time will display if the time has been set, otherwise, the LED will display "C--J". Lock quitting: In locked state, press "PAUSE" for 3 seconds, there will be a long "beep" denoting that the lock is released.

The menu chart:

Menu	Weight (g)	Display
A1 PIZZA	200 g	200
	400 g	400
A2 Potato	200 g	200
	400 g	400
	600 g	600
A3 Meat	250 g	250
	350 g	350
	450 g	450
A4 Fish	250 g	250
	350 g	350
	450 g	450
A5 Vegetable	200 g	200
	300 g	300
	400 g	400
A6 Beverage	1 cup (120 ml)	1
	2 cups (240 ml)	2
	3 cups (360ml)	3
A7 Pasta	50g(with 450 ml cold water)	50
	100g(with 800 ml cold water)	100
A8 Popcorn	50 g	50
	100 g	100
A9 Chicken	400	400
	800	800
	1200	1200
A-10 Reheat	200	200
	400	400
	600	600
Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may can out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven cannot be started	(1) Power cord not plugged in tightly	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuits breaker works.	Replace fuse or reset circuits breaker (repaired by professional personnel of your company)
	(3) Trouble with outlet	Test outlet with other electrical appliances.
Oven does not head	(4) Door not closed well	Close door well
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom	Refer to “Maintenance of Microwave” to clean dirty parts.

According to the Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in the future you need to dispose of this product, please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Please Read the Manual Carefully Before Installation

Please Note

Electrical connection

The oven is fitted with a plug and must only be connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician.

If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3mm.

The fitted cabinet must not have a back wall behind the appliance.

Minimum installation ventilation slots and suction holes.

Note:

Do not trap or bend the power cable.

A. Built-in furniture

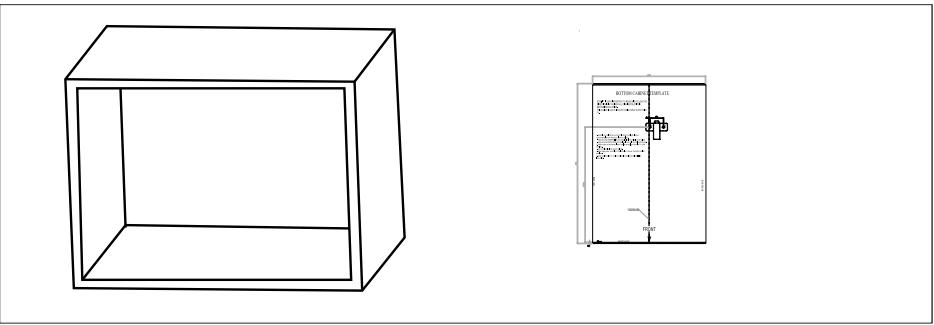

B. Prepare the cabinet

1. Read the instructions on the BOTTOM CABINET TEMPLATE, place the template on the bottom plane of the cabinet.

1. Make marks on the bottom plane of the cabinet according to the "a" marks on the template.

1. Remove the bottom cabinet template and fix the bracket with screw A.

C. Install the oven

1. Install the oven into the cabinet.
2. Ensure the back of the oven is locked by the bracket.
3. Do not trap or kink the power cord.
4. Open the door, fix the oven to the cabinet with screw B at the installation hole.
