VLF311 - Wall TV mount SANUS - Free user manual and instructions

Brand	SANUS
Model	VLF311
Product type	Wall mount for TV
Load capacity	54.5 kg (120 lbs)
Swivel	±33°
Tilt	-10°
Materials	Steel
VESA compatibility	Up to 600x400 mm (estimated)
Compatible wall types	Wood studs, poured concrete, or concrete blocks
Main functions	Swivel, tilt, integrated cable management
Cable management	Removable cover system for cable routing
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	The wall must support five times the total weight of the TV and mount. Follow the installation instructions strictly.
Spare parts and repairability	Contact SANUS customer service for any missing or damaged parts.
General information	Installation requires two people. Use the supplied hardware appropriate for the wall type.

Frequently Asked Questions - VLF311 SANUS

What is the maximum weight supported by the VLF311 mount?

The VLF311 mount can support up to 54.5 kg (120 lbs).

How to install the mount on a concrete wall?

Use the supplied expansion anchors [34]. Drill pilot holes 10 mm in diameter, 75 mm deep, then insert the anchors and tighten the lag bolts [36].

Can I use this mount on a drywall wall?

No, the mount is designed for wood stud walls or concrete. Do not use on drywall walls without reinforcement.

How to adjust the tilt of the TV?

Adjust the tilt tension up/down by hand or using the supplied hex key [28].

What to do if a part is missing or damaged?

Contact SANUS customer service. Do not return damaged parts to your retailer and never use damaged parts.

How to route cables behind the TV?

Use the cable management system: remove the three covers [09], route the cables, then replace the covers.

Can the mount swivel?

Yes, the mount allows a swivel of ±33° to orient the TV.

What types of TVs are compatible?

The mount is compatible with most flat-screen TVs complying with VESA standards, up to 54.5 kg. Check the mounting hole pattern on the back of the TV.

Do I need to drill pilot holes for installation?

Yes, for wood stud walls: pilot holes 5.5 mm in diameter, 75 mm deep. For concrete: pilot holes 10 mm in diameter, 75 mm deep.

Can I install the mount alone?

It is strongly recommended to have two people to attach the TV to the wall plate due to weight and safety.

USER MANUAL VLF311 SANUS

Europe, Middle East, and Africa: + 31 40 2324700 • [e-mail]

Asia Pacific: 86 755 8996 9226 · [e-mail]

sanus.com

English Wood stud walls	Concrete/Concrete Block Walls	Choose an Option	Do Not	Alternate View
Français Structure de murs en bois	Murs en béton coula ou en blocs de béton	Sélectionnez une option	Interdit	Autre vue
Deutsch Holzbalkenwände	Beton-/Betonsteinwände	Wählen Sie eine Option	Tun Sie Folgendes nicht	Alternative Ansicht
Espanol Paredes con montantes de madera	Paredes de Hormigón o de bloques de hormigón	Elija una opcción	Prohibido	Vista ampliada
Portugues Paredes de pinto de madeira	Paredes de concreto/Paredes de bloco de concreto	Escolha uma opção	Não	Exibação alternada
Nederlands Muren met houten balkenconstructie	Muren van beton/betonblokken	Kies een optie	Niet	Alternatieve weergave
Italiano Pareti con montanti in legno	Pareti in calcestruzzo/blocchi di calcestruzzo	Scegliere un'opzione	Divieto	Visualizzazione alternativa
Étalienuá Toíxoi με ξύlvους óρθοστάτες	Toíxoi anó ακυρόδεμa/ταίεντόλθους	Επιλέβειτε μα επιλούγή	Mην	Εναλακτική προβολή
Norsk Vegger med trestendere	Betongvegger/vegger av betongblokker	Velg et alternatively	Forbudt	Alternativ visning
Dansk Vægge med trædyveler	Beton / betonblokvaegge	Vælg en mulighed	Advarel	Shift visning
Svenska Väggar med tråreglar	Betong/Betongvägg	Välj ett alternatively	Gör inte	Annan vinkel
Руsskön Стень с дреевскы Карkasom	Стеньи зз bèтона/betоньх блөков	Выбөрптө вариante	Заразецяется	АльператIVES вд
polski Drewniane sciany szkieletowe	Ściany z betonu lub pustaków betonowych	Wybrać opcję	Nie naleź:	Widok z innej strony
Česky Zdi s dřevěnými výztuhami	Zdi z betonu/panelü	Vyberte Jednu možnost	Nedélat	Alternativní zobrazení
Türkce Ahsap Profill Duvarlar	Beton/Beton Blok Duvarlar	Seçeneklerden Birini Belirleyin	Yapilmaması Gerekenler	Diğer Görünüm
日本語 木製sstad壁	CONKLERA-1/CONKLERA- 10-10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000	才不	禁止事項	別の角度からの国
中文 木壻柱墻壁	混凝土/混凝土砌块墙	选择一个选项	请勿	不同角度的视图

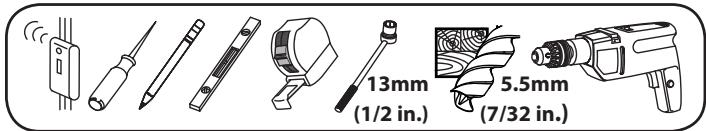

English Tools required	WARNING: This product contains small items that could be a choking hazard.	CAUTION / WARNING	Repeat Step	Heavy! Assistance Required.
Francais Outils nécessaires	Ce produit contient de petites pieces qui peuvent représentier un risque d'étouffement.	ATTENTION/ AVENTISSEMENT!	Répétez l'étape	TRÉS LOURD! Cette étape requiert deux personnes.
Deutsch Benöttigte Werkzeuge	Dieses Produkt enthalt kleine Teile, die zum Erstickungstod führen können.	VORSICHT / WARNING	Wiederholen Sie den Schritt	VORSICHT, SCHWER! Bei diesen Schritt werden Sie Hilfe benötigen.
Espanol Herramrientas necessities	Este producto contiene piezas pequeñas que, si fuesen tragadas, podrián producir asficia.	PRECAUCION / IADVERTENCIA!	Repita este paso	jPESADO! Necessitará ayuda para realizar esta operación.
Portugues Ferramentas necessities	Este produit contém它们很小, quenos que podem ofecrer risco de sufocamento.	ATENÇÃO / AVISO!	Repita a etapa	PESADO! Necessitará de ajuda esta etapa.
Nederlands Benodigd gereedschap	Dit product bevatkleine onderden die stikkingsgevaar{kunnen opleveren.	VOORZICTIG/ WAARSCHUUNG	Herhaal stap	ZWAAR! Voor het uitvoeren van deze stap is assistentie vereist.
Italiano Strumenti richiesti	Questo prodotto comprende elementi di piccole dimensioni che potrebbero causare il soffocamento.	PRECAUZIONE/ AVVERTENZA	Ripetere l'operazione	PESANTE! Per esta operazione, si avrà bisogno di aiuto.
БлужÍká Алaitóúmeva εργαλίea	To prooióu autó περιλαβάνει μκρá αντικέμενα που μμορείνα αποτέλεσου κινδύνο πυγμό.	ПОSOOXH/ ПОЕΙΔΟΝΙΗΞH	Επανλάβετο θήμα	BAPY! Θα χρειαστείτε βοήθεια σ'autó to θήμα.
Norsk Nødvendig verktøy	Dette produktin ineholder små elementer som kan utgjore kvelefare.	FORSIKTIG/ ADVARSEL	Gjenta trinn	TUNGT! Du vil trenge hjelp til cette opersjonen.
Dansk Redskaber, der skal bruges	Dette produkt ineholder små delie, som kan foråsage kvænlning, hvis de bliver slugt.	FORSIGTIG/ ADVSEL	Gentag trin	TUNGT! Du skal bruge hjælp, nrà du udforer dette trin.
Svenska Verktyg som behövs	Den här produktin inehäller små delar som kan utgóra kväningsrisk.	FORSIKTIGHT/ VARNING	Upprepa steg	TUNGT! Dukommen att behöva hjäpl under det här steget.
Russký Heobxodimbyle Инструменты	Виздени捶ь мелкées detaliennes, Которные могут ссть пчунов, Чебецяпри п的对象们 в дíхательные руtn.	ПЕДУПЕХДECHUE/ ПЕДУПЕХДECHUE	Повtorпь лесостvene	БOLЛБЮЙ BECΙПри велиносяданный оерацима поадобится поочь.
polski Wymagane naręźdia	Produkt zawiera male elementy, które moga grozić zakrzuszeniem.	UWAGA / OSTRZEŽENIE	Powtórzychć krok	CIEŽKIE! W tej czynnosci potrzebna besteht pocom drugiej osoby.
Česky Požadované nástroje	Tento vyrobek obsahuje malé součastky, které hroži rizikem zadušeni.	POZOR / VAROVÁNI	Opakovat krok	ТěŽKÉ! K tomuto krokub budete potřebovat pomocnilka.
Türkce Gereken Aletler	Bu üruṇ, boğulma tehlikesine neden olabilecek küçük parçalar icemektedir.	DİKKAT / UYARI	Adimi Tekrarlayin	AÜR MALZEME! Bu aşamada yardima ihtıacıniz vardir.
日本語 必要的スカム	本製品のはは小さい部品が付属ており、窒息の危険性お願いいたします。	注意/警告	手順の操り返し	重量のは! 这的操作は2人で行てくださいます。
中文 需要的工具	此产品包含可能带来窒息危险的小组件。	小心/警告	重复步骤	重物! 移动时需要协助。

English	This End Up
Troubleshooting and Maintenance
Français	Ce côte vers le haut
Dépannage et maintenance
Deutsch	Dieses Ende nach oben
Fehlerbehebung und Wartung
Espanol	Este extremo hacía arriba
Resolución de problemas y mantenimiento
Portugués	Esta extremidad para cima
Solução de problemas e manutenção
Nederlands	Deze zijde boven
Probleemoplossing en onderhoud
Italiano	Alto
Risoluzione dei problemi e manutenzione
Еλλυκία	Με autó to ἀκρο προς τα επάνω
Аντιμετώπηροβλημάτων και Συντήρηση
Norsk	Denne siden opp
Feilsøking og vedlighold
Dansk	Denneende skal være opad
Fejlfinding og Vedligeholdelse
Svenska	Denna sida upp
Felsökning och unterhalb
Руss�kin	Этим концем в两年前
Устанения несяпавrostей и обочи вanimate
polski	Tym końcem do góry
Česky	Tímto koncem vzhūru
Čurçce	Bu Uç Yukari
Sorun Giderme ve Bakim
日本語	这个词を上にいたします
トラ布鲁ドローデイングとメntonス
中文	此端向上
故障排除与维护

English

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS - PLEASE READ ENTIRE MANUAL BEFORE USING THIS PRODUCT

For best results, reference both the text and illustrations when using this manual. Cut along the dashed lines to match your language with the illustrations.

English Text Pages 6

Français

INFORMATIONS IMPORTANTES CONCERNANT LA SECURITE - CONSERVEZ CES INSTRUCTIONS - VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL AVANT D'UTILISER CE PRODUIT

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL BEFORE USING THIS PRODUCT

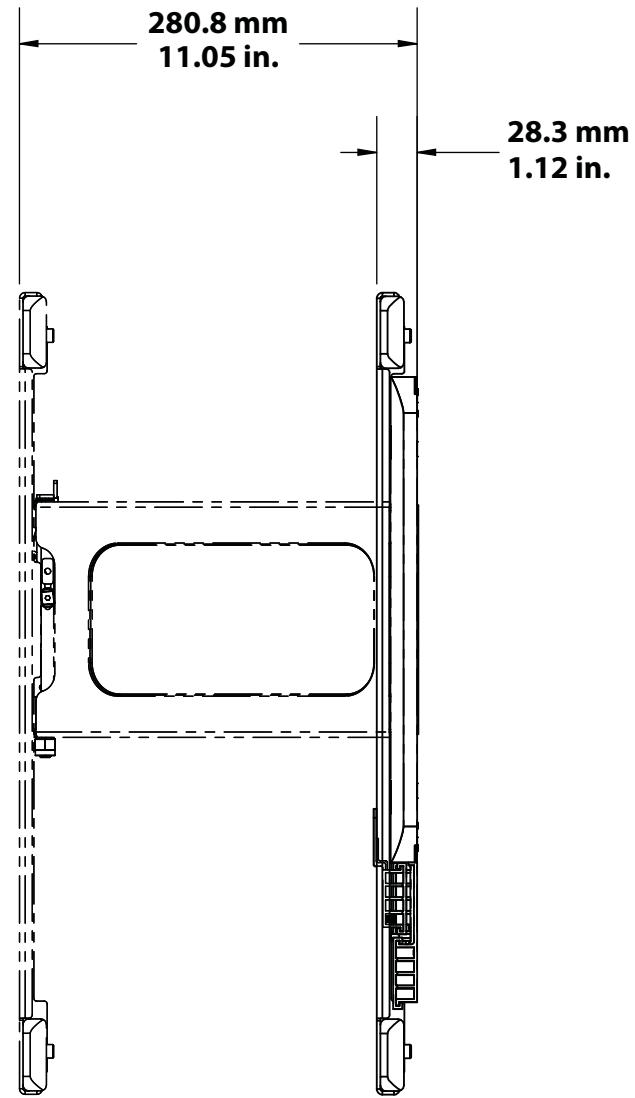

Specifications

Weight capacity: 54.4kg (120 lbs) includes TV, mount, and any accessories

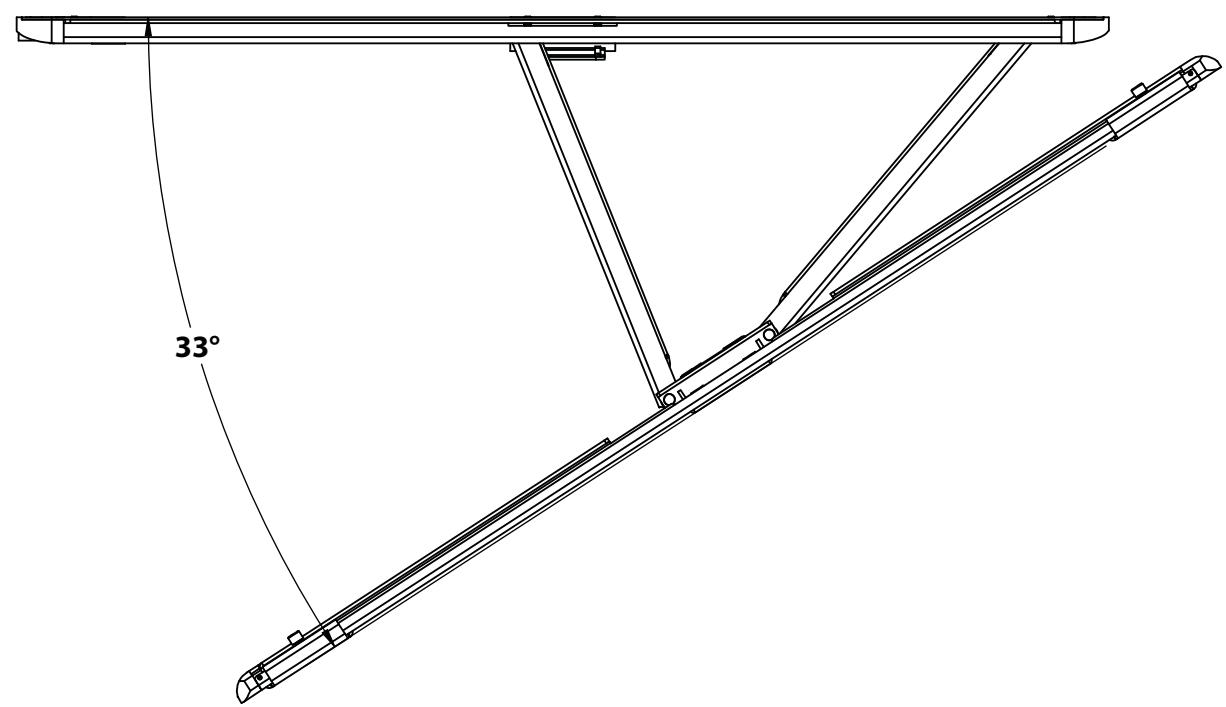

Swivel: ± 33^

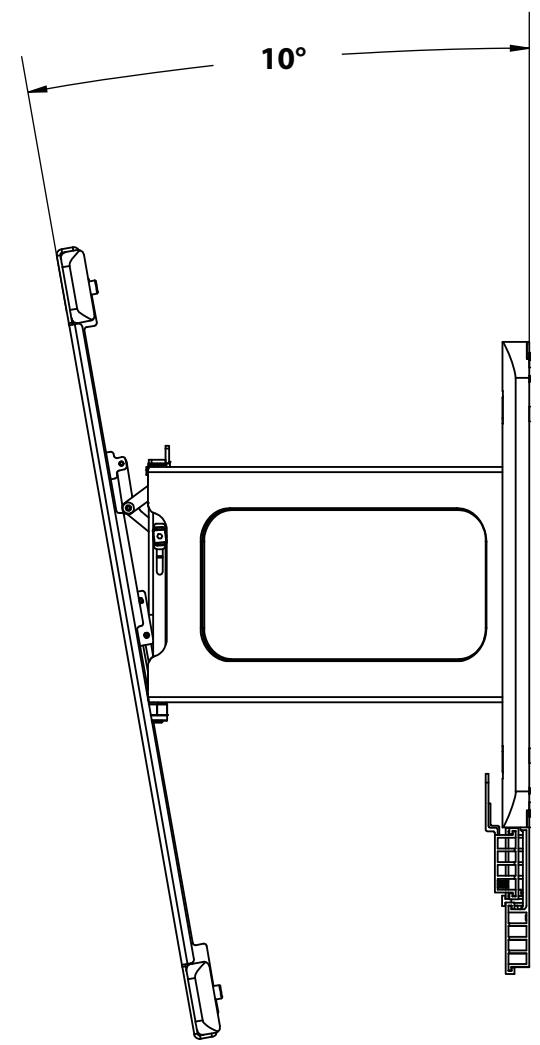

Tilt: -10^

CAUTION: Avoid potential personal injuries and property damage!

Do not use this product for any purpose not explicitly specified by manufacturer.
The wall must be capable of supporting five times the weight of the monitor and mount combined.
This product is not designed for use in metal stud walls!
If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact manufacturer Customer Service or call a qualified contractor.
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

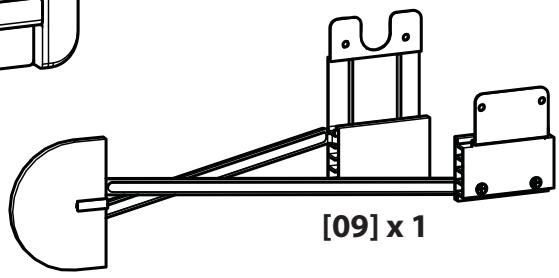

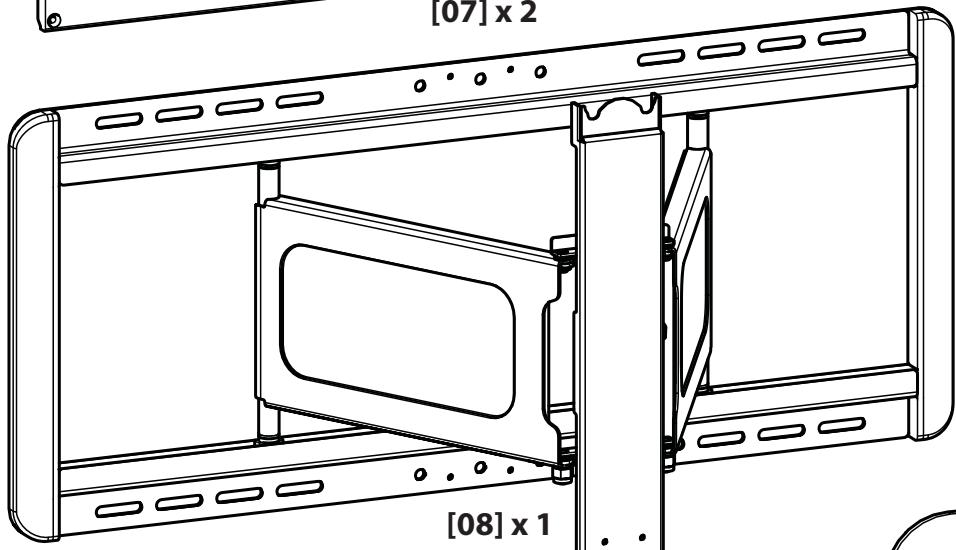

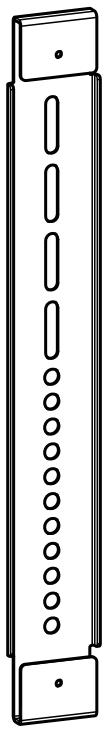

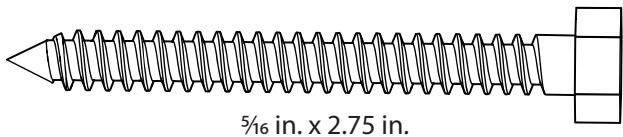

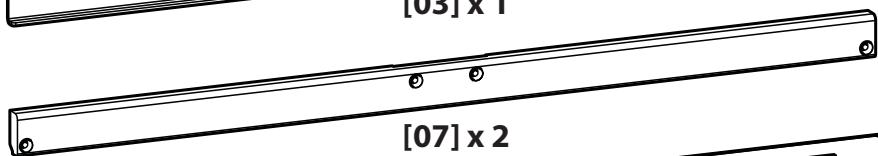

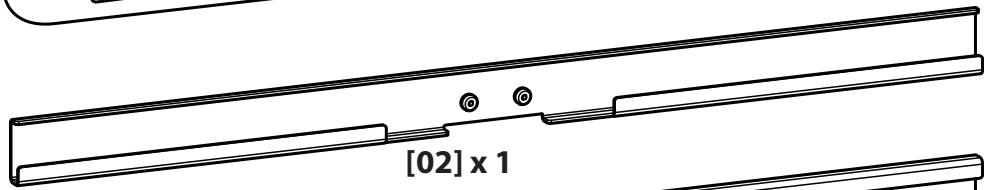

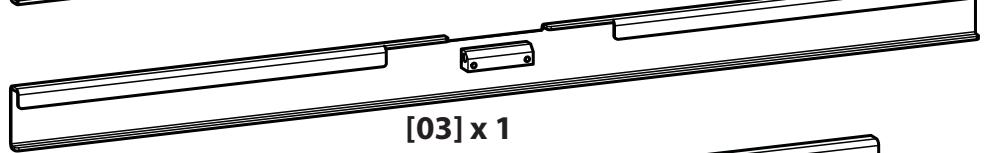

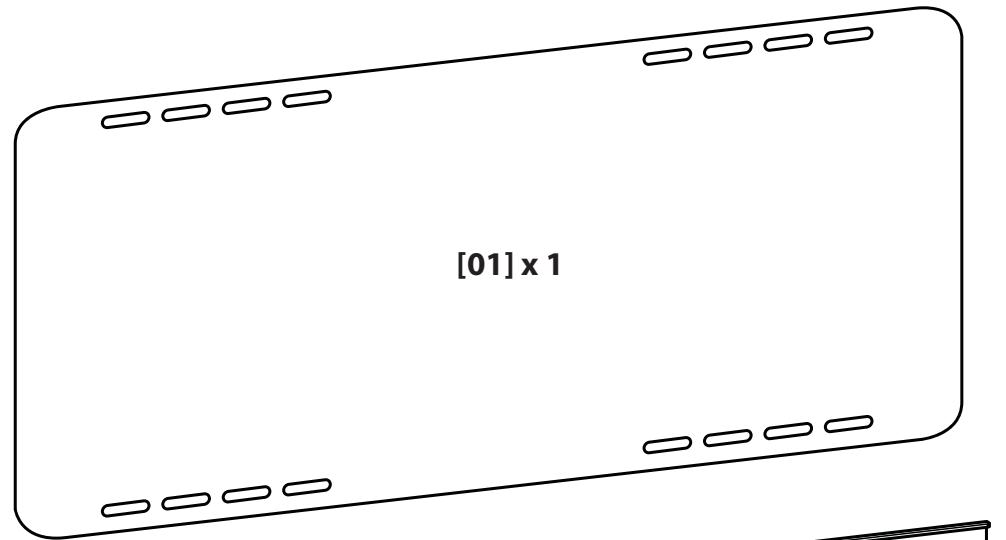

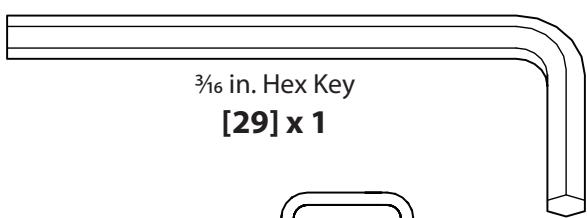

Supplied Parts and Hardware.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

[06] x 2

M4×12mm

[10] x 4

M4×30mm

[11] x 4

M4×40mm

[12] x 4

M5×12mm

[13] x 4

M5×30mm

[14] x 4

M5 x 40mm

[15] x 4

M6 x 14mm

[16] x 4

M6 x 25mm

[17] x 4

M6 x 40mm

[18] x 4

M8 x 16mm

[19] x 4

M8 x 25mm

[20] x 4

M8 x 45mm

[21] x 4

14mm

[22] x 4

24mm

[23] x 4

M4/M5

[24] x 4

M6/M8

[25] x 4

[26] x 4

[30] x 2

[31] x 8

[32] x 6

[33] x 1

[34] x 4

[35] x 4

[36] x 4

CAUTION:

Install brackets to TVs with irregular or obstructed backs

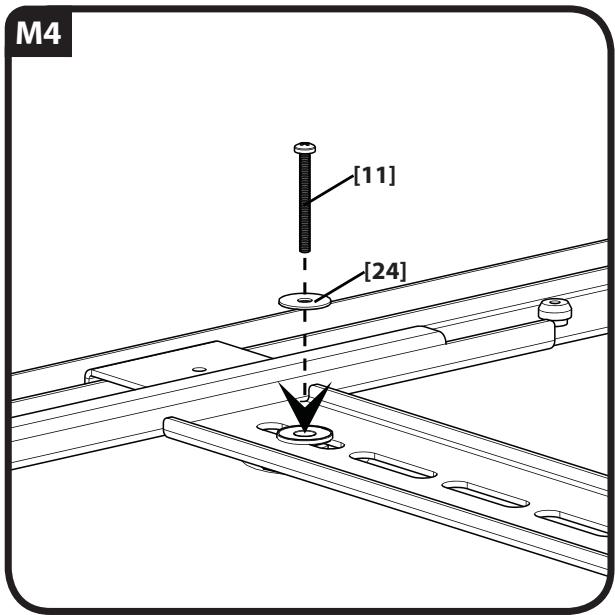

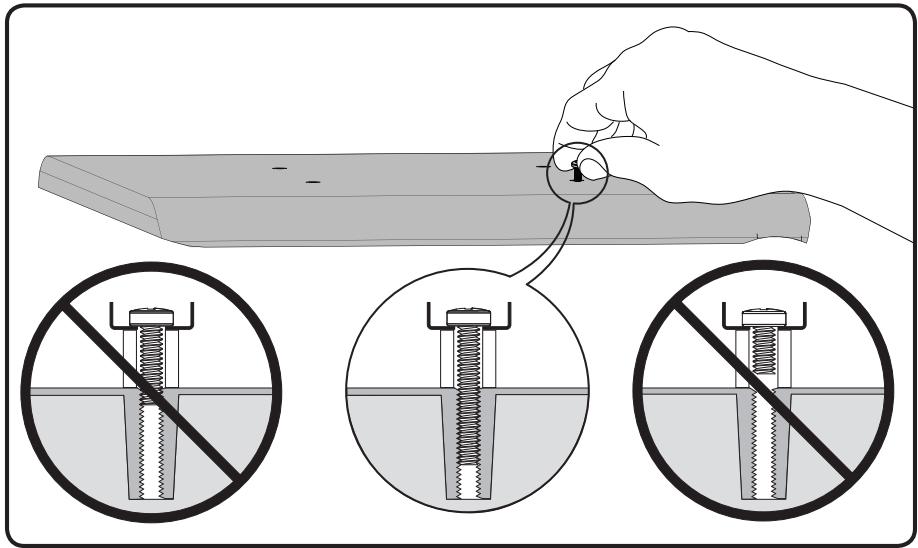

Before you begin, hand thread screws into the threaded inserts on the back of your TV to determine the correct screw diameter (M4, M5, M6, or M8). Verify that there are adequate threads to secure the brackets to the monitor. If you encounter resistance, stop immediately and contact customer service.

CAUTION: Avoid potential personal injuries and property damage! Use the shortest screw and spacer combination to accommodate your needs. Using hardware that is too long may damage your monitor's internal components.

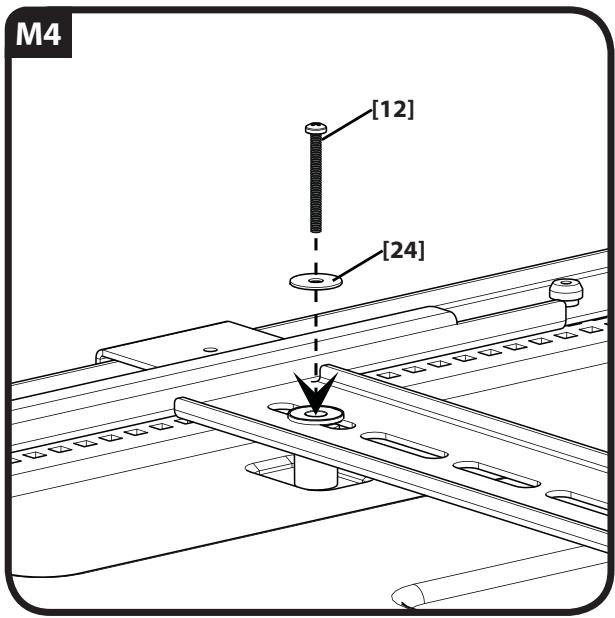

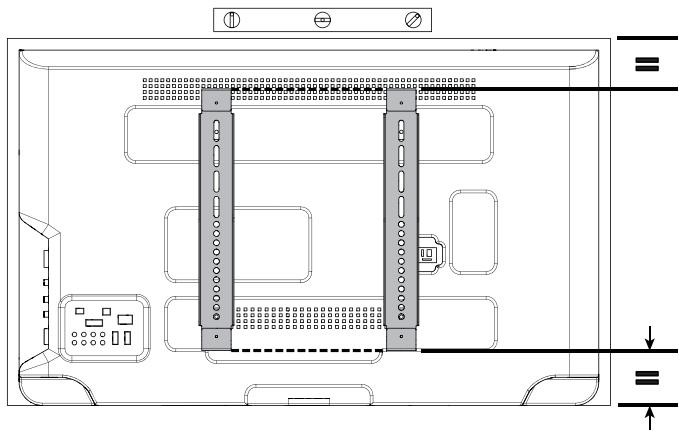

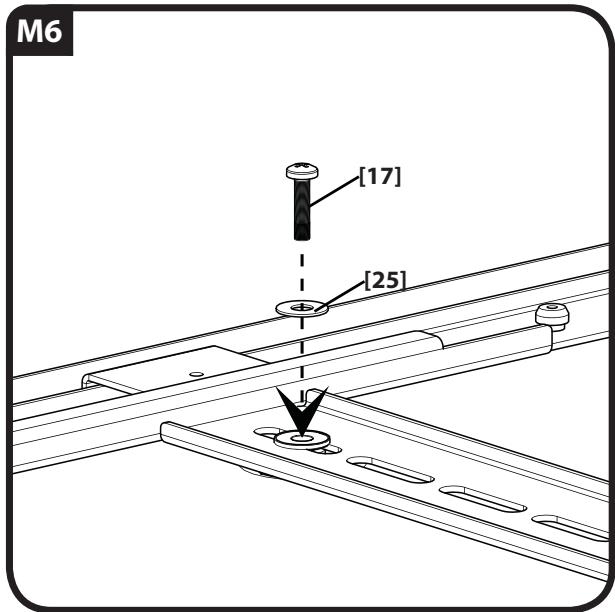

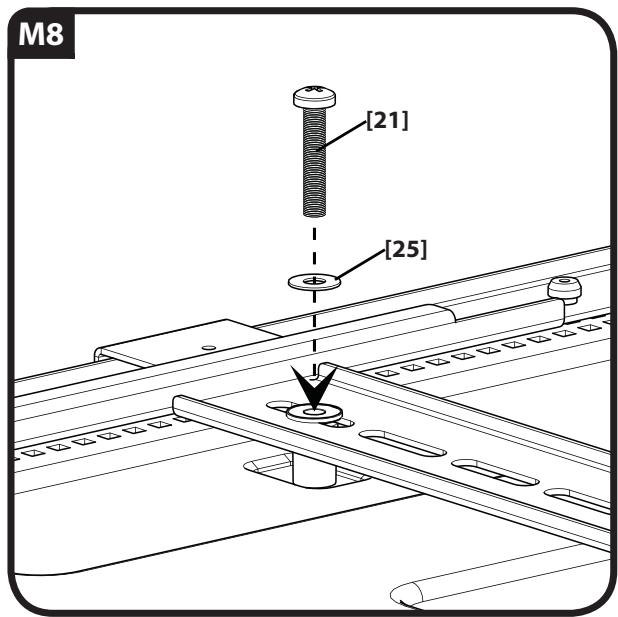

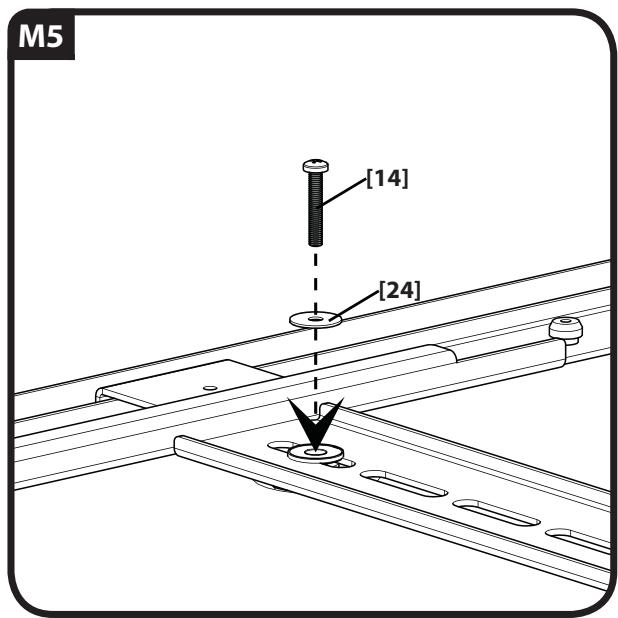

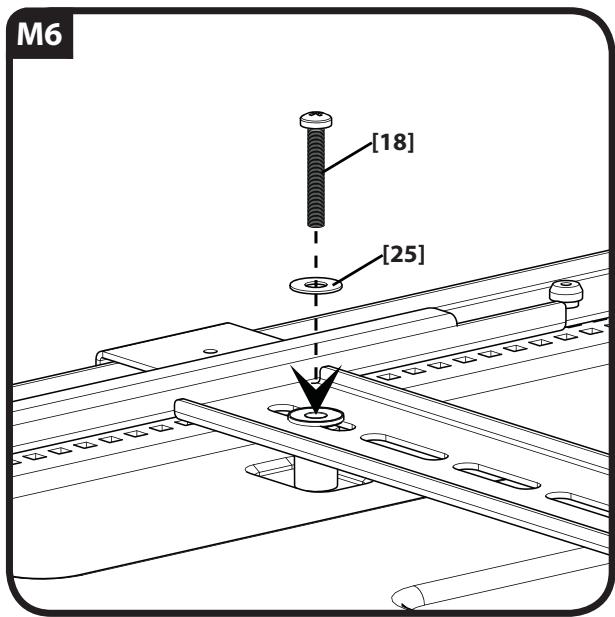

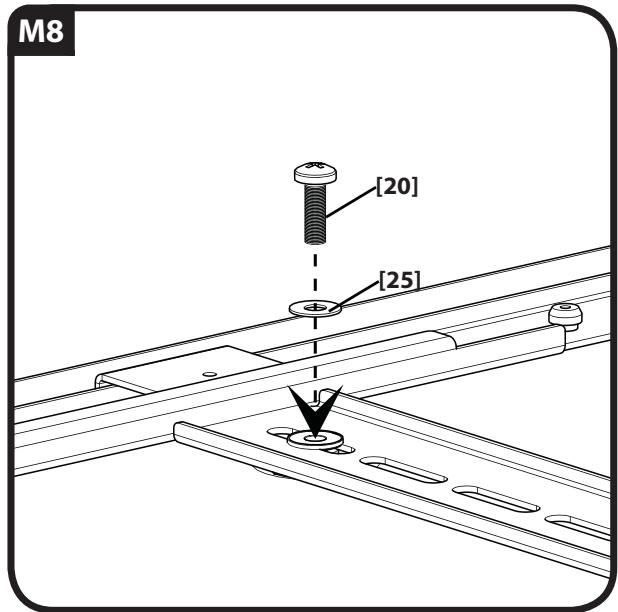

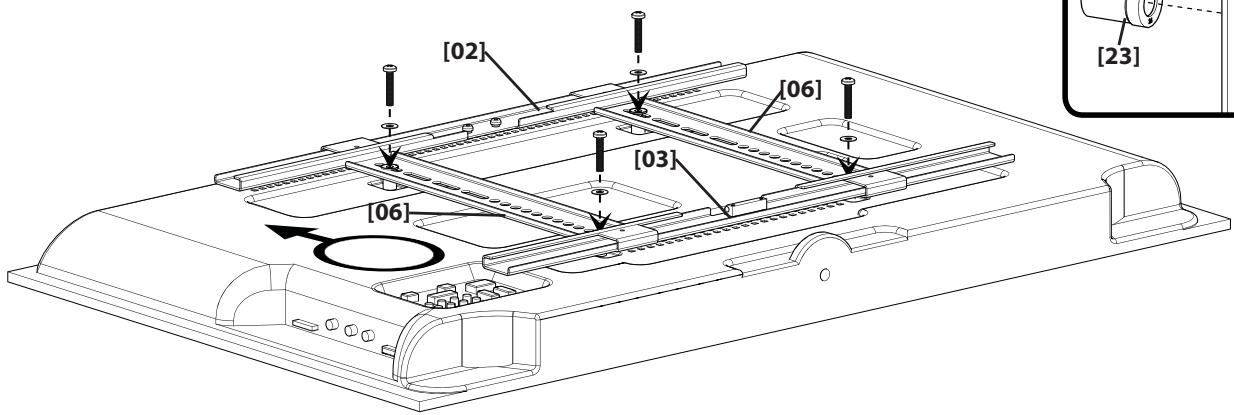

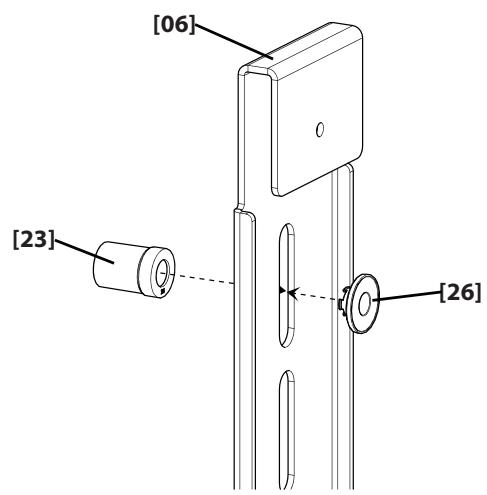

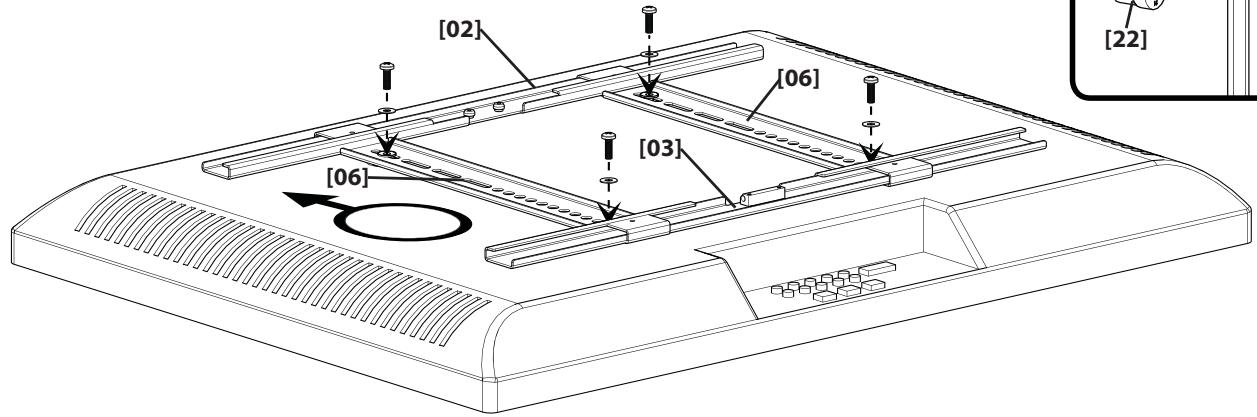

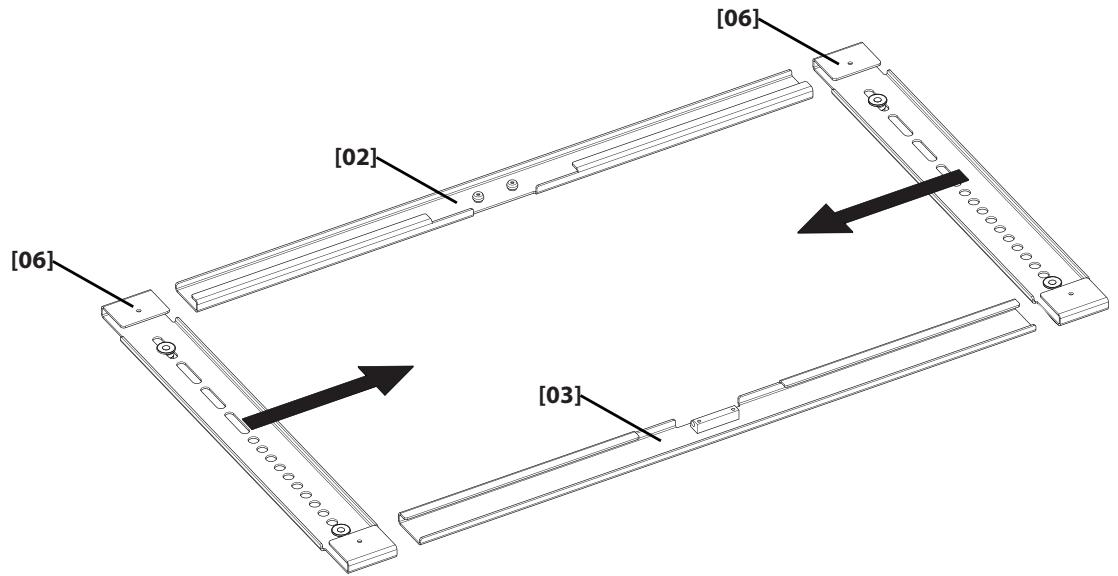

Assembling TV Brackets for TV's with irregular or obstructed backs

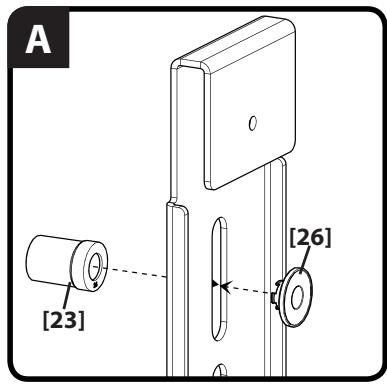

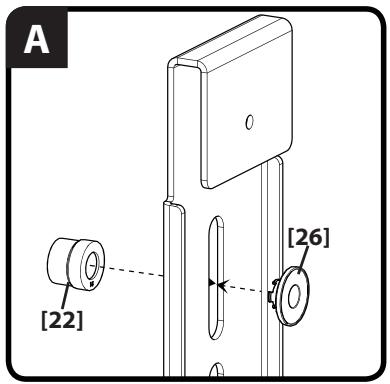

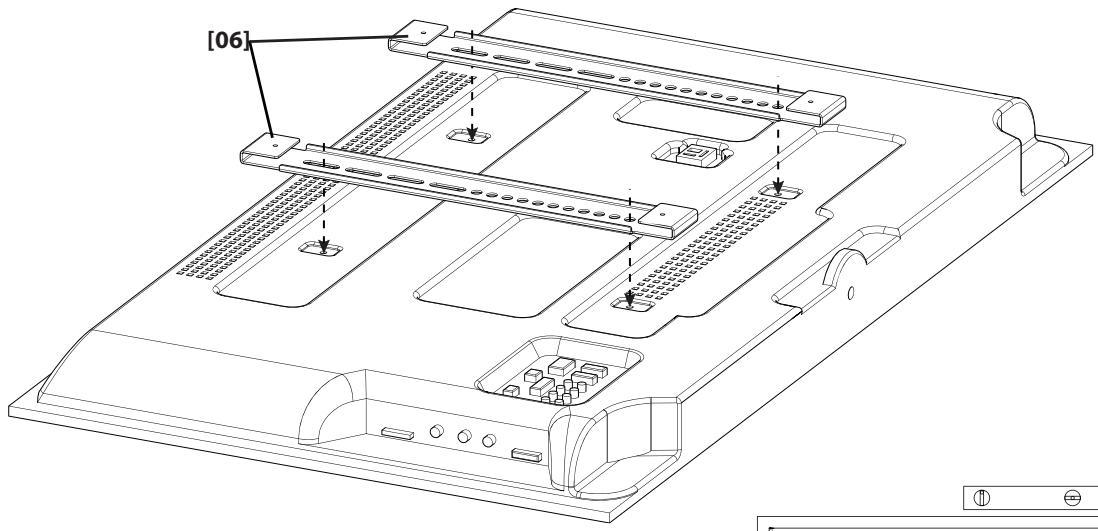

A. Place vertical brackets [06] over the TV to determine which holes and slots will be used. Make sure vertical brackets [06] will be equally spaced top to bottom on the TV and that they will be level.

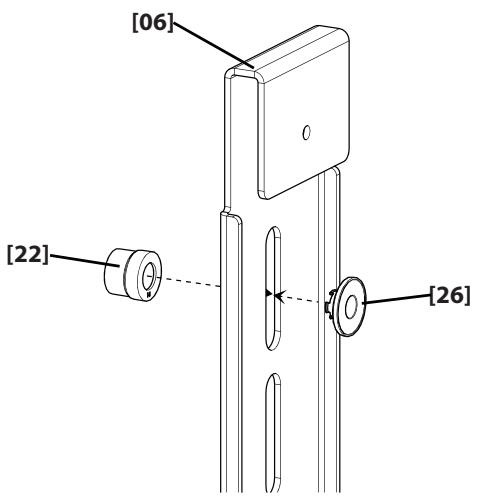

B. If you require spacers, determine if you will need the short [22] or the long spacers [23]. Fit the shoulder washer [26] into the slots and holes of the front side of the vertical brackets [06] and snap the appropriate length spacer onto the shoulder washer [26] from the back (TV) side.

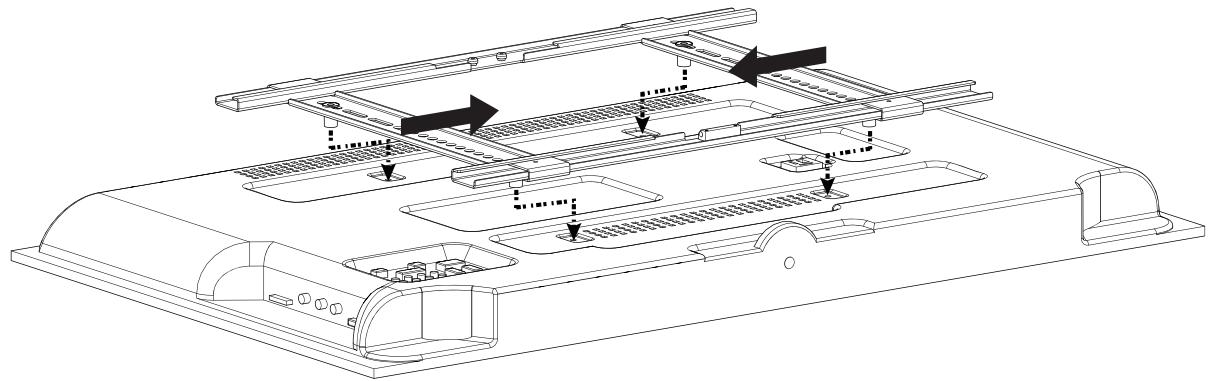

C. Slide the vertical brackets [06] onto the horizontal brackets [02] and [03].

D. Position the assembly over the TV and slide the vertical brackets [06] left or right until they are over the mounting holes in the back of the TV.

For TVs with an irregular/obstructed back. Ensure that the bracket is level on the back of the TV. Standard configurations are shown. For special applications, or if you are uncertain about your hardware selection, contact Customer Service.

1-1

For TVs with an irregular/obstructed back. Ensure that the bracket is level on the back of the TV. Standard configurations are shown. For special applications, or if you are uncertain about your hardware selection, contact Customer Service.

1-2

CAUTION:

Install TV Bracket for TV's with flat backs

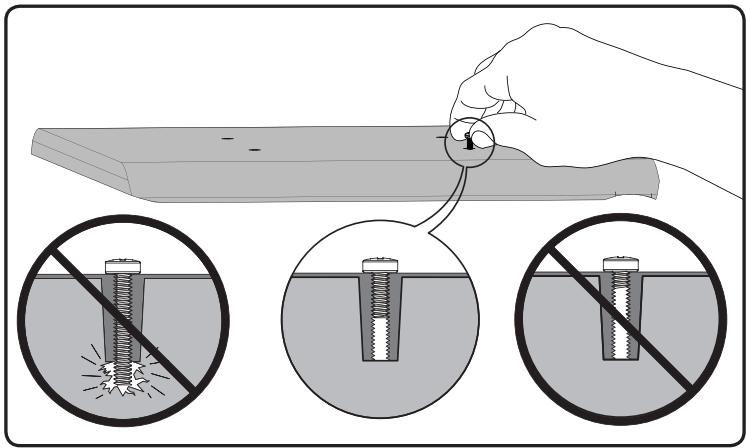

Before you begin, hand thread screws into the threaded inserts on the back of your TV to determine the correct screw diameter (M4, M5, M6, or M8). Verify that there are adequate threads to secure the brackets to the monitor. If you encounter resistance, stop immediately and contact customer service.

CAUTION: Avoid potential personal injuries and property damage! Use the shortest screw and spacer combination to accommodate your needs. Using hardware that is too long may damage your monitor's internal components.

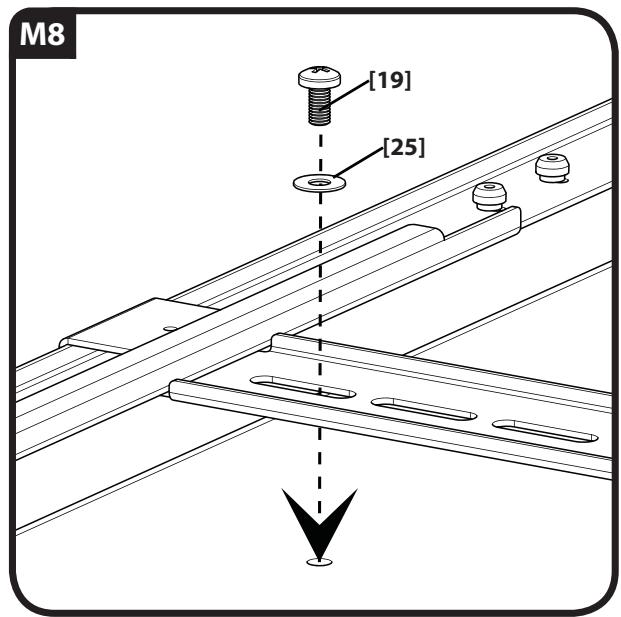

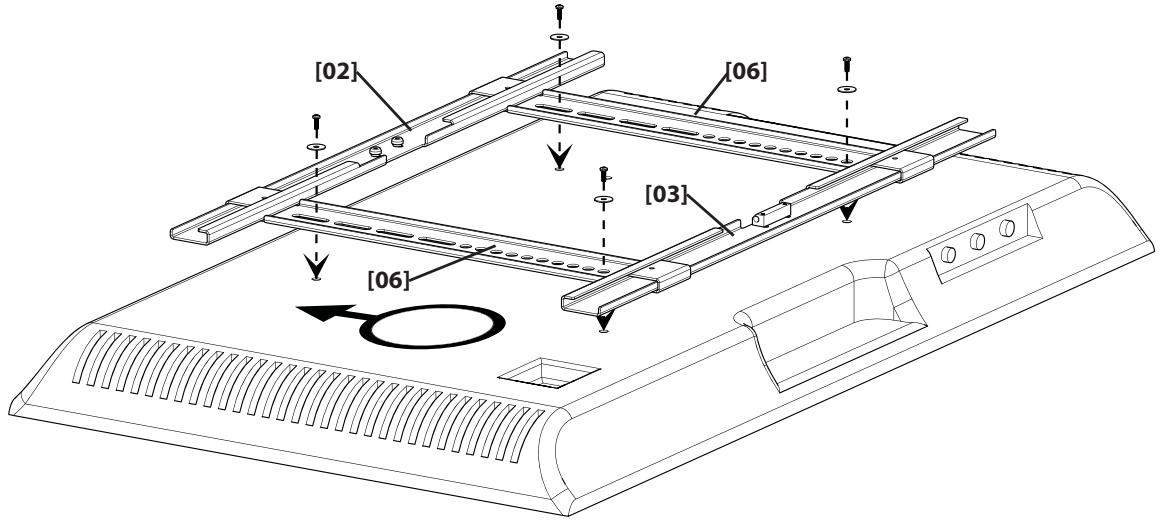

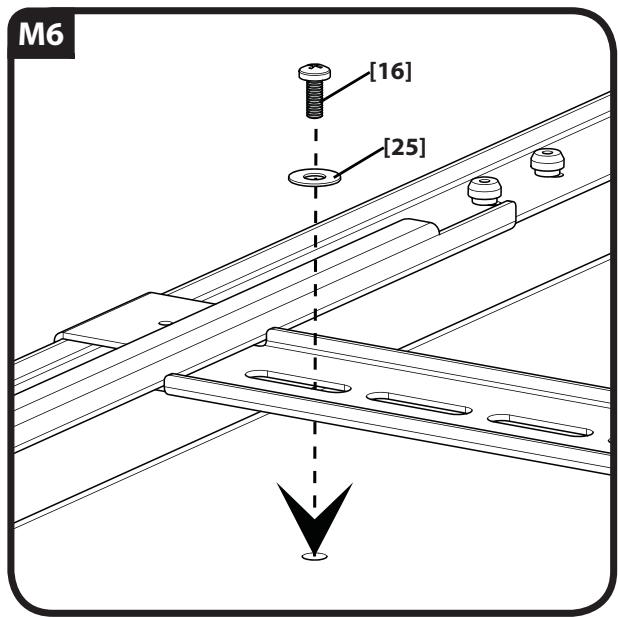

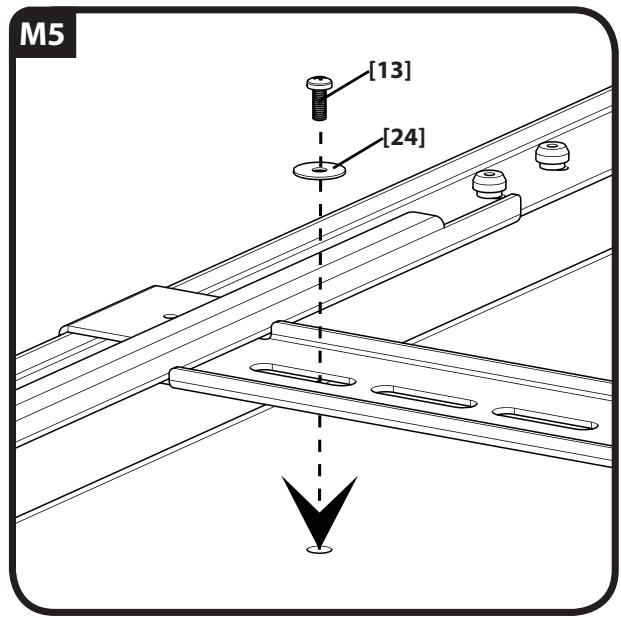

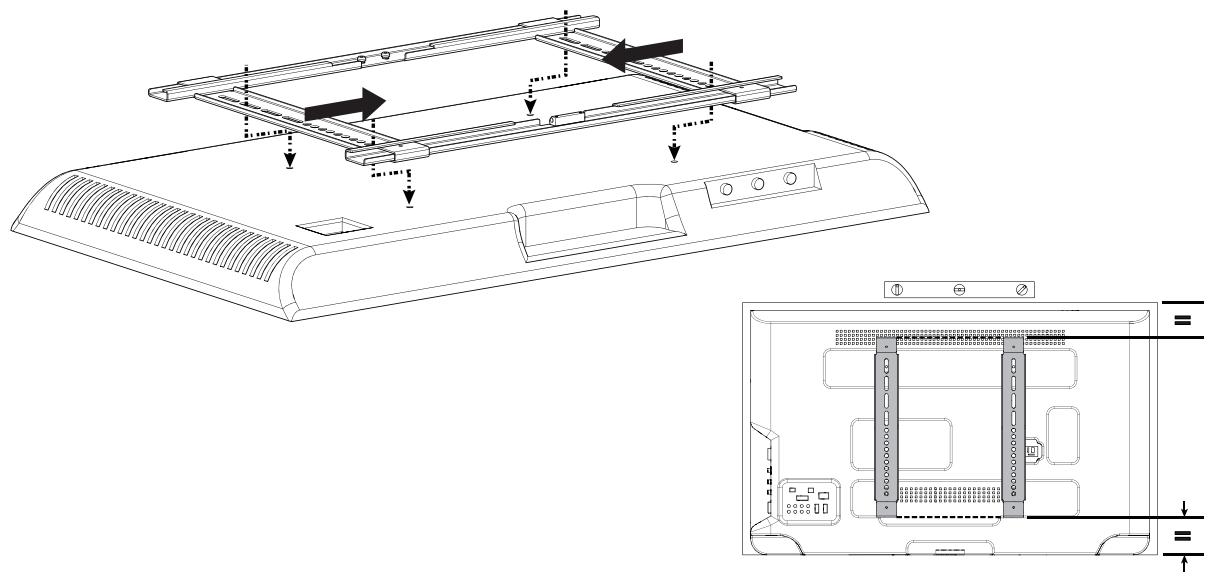

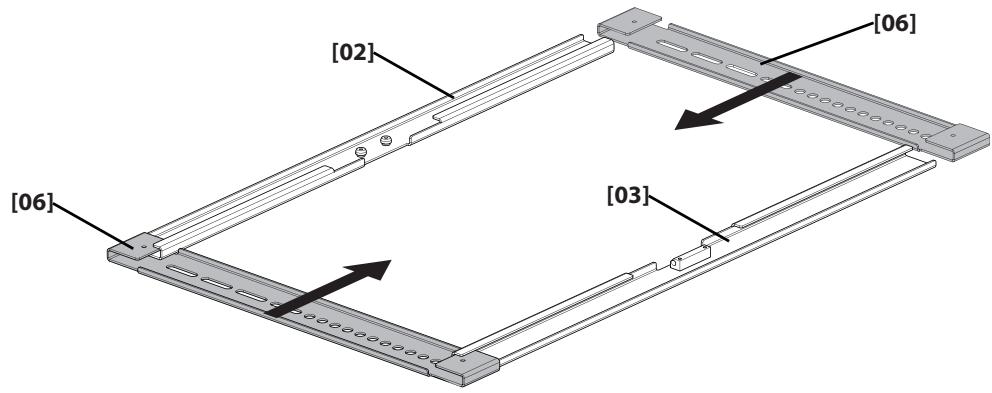

Assembling TV Brackets for TV's with flat backs

A. Slide the vertical brackets [06] onto the horizontal brackets [02] and [03].

B. Position the assembly over the TV and slide the vertical brackets left or right until they are over the mounting holes in the back of the TV. Make sure vertical brackets [06] will be equally spaced top to bottom on the TV and that the assembly will be level.

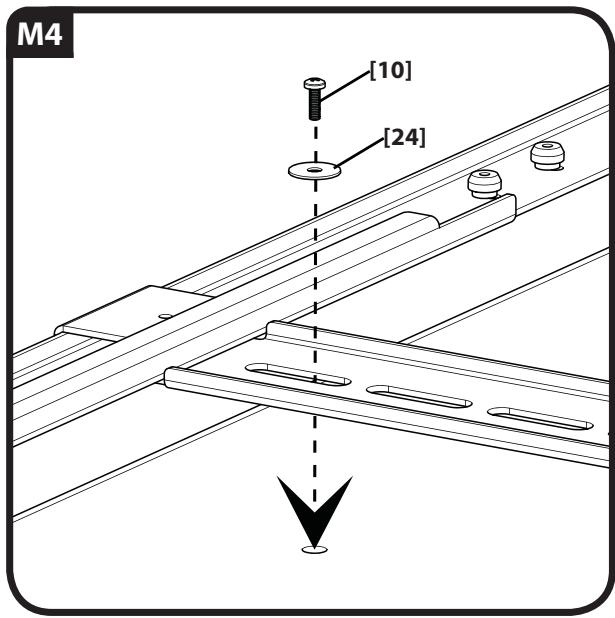

2-1

For TVs with a flat back. Ensure that the bracket is level on the back of the TV. Standard configurations are shown. If you need extra space to accommodate cables, recesses, or protrusions, see an installation option (1-1 or 1-2) that uses spacers. For special applications, or if you are uncertain about your hardware selection, contact Customer Service.

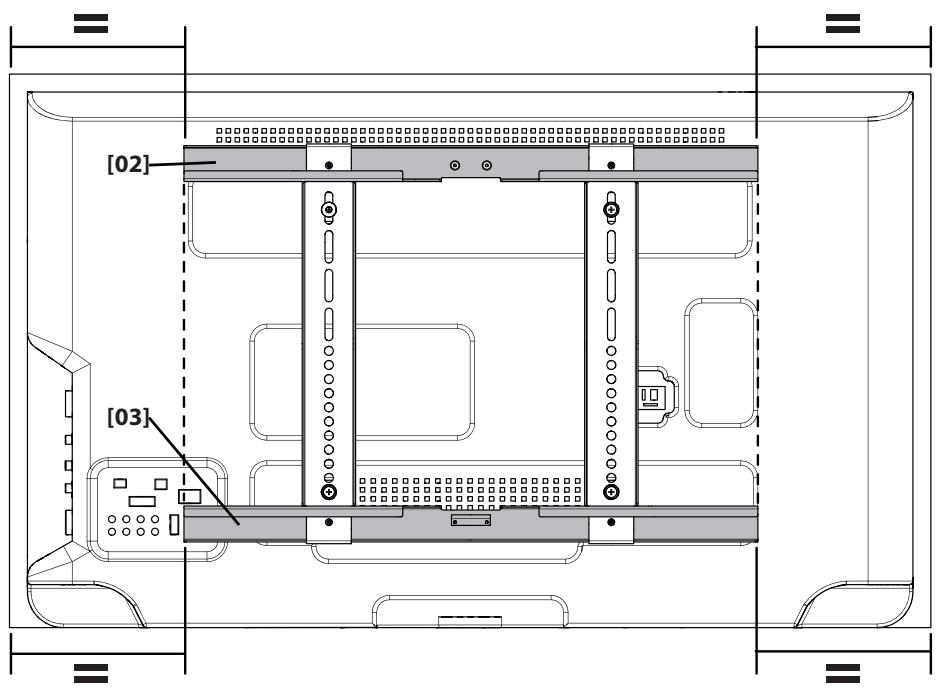

Center the horizontal brackets [02] and [03].

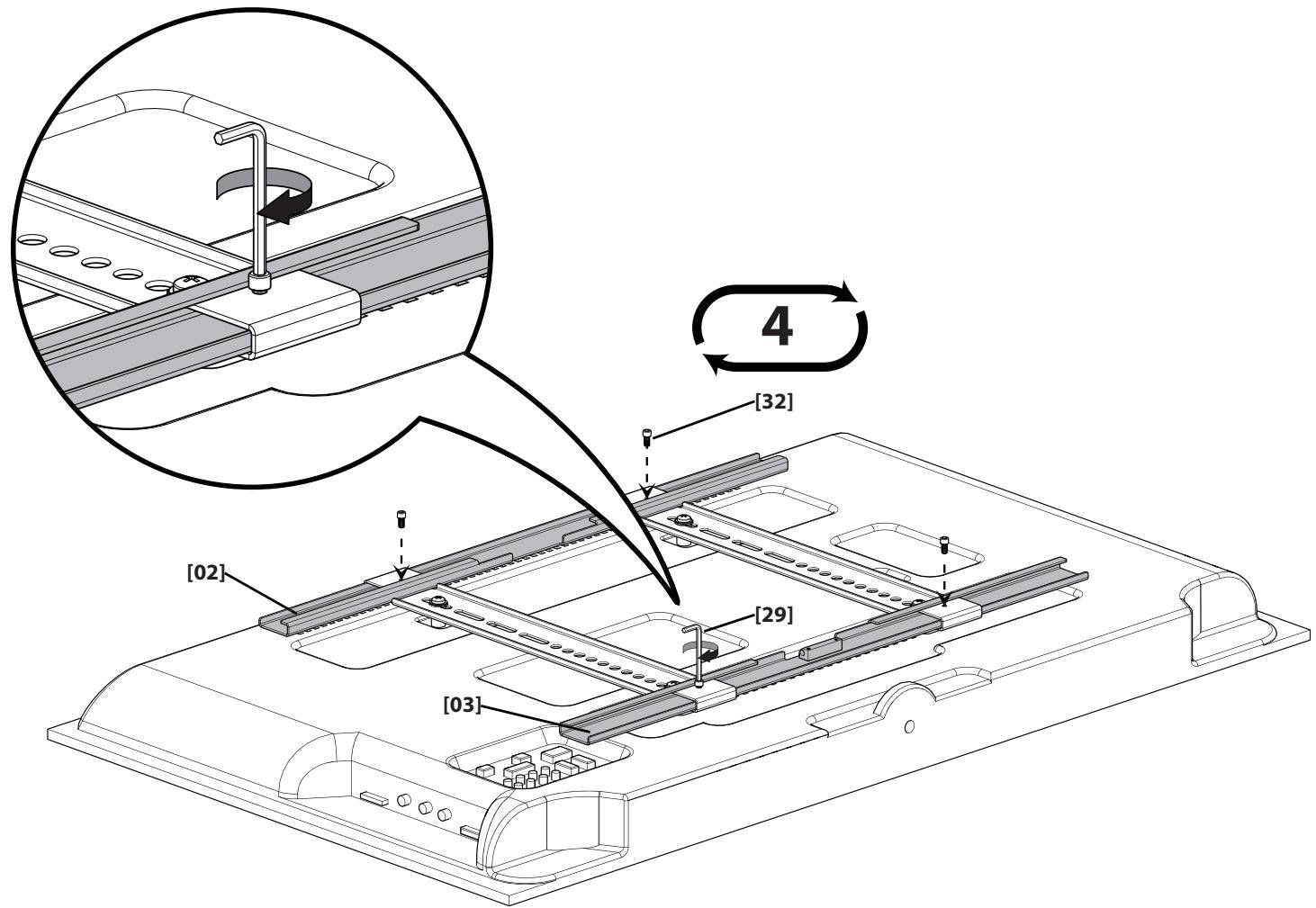

Lock the horizontal brackets [02] and [03] in place with 4 screws [32] using the 316 " hex key [29].

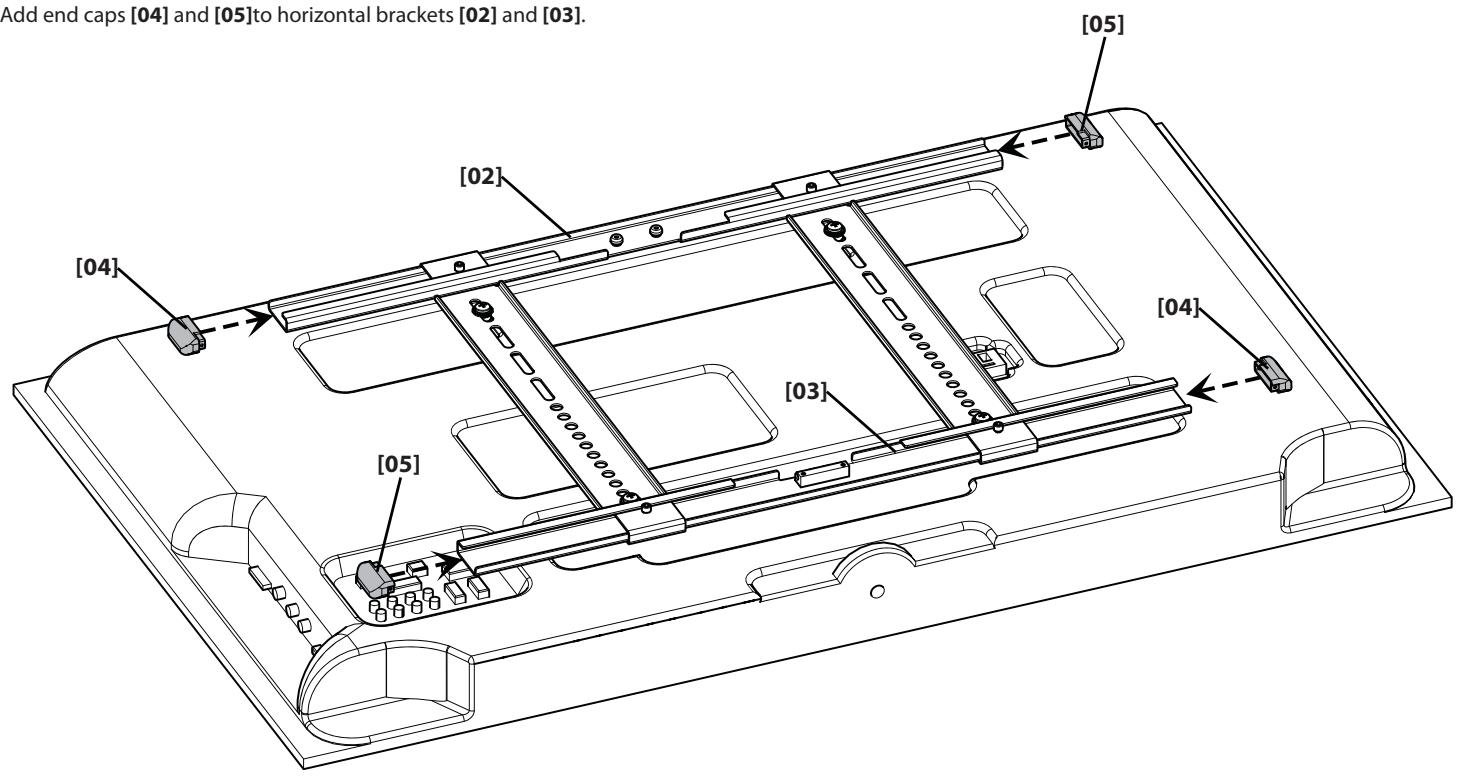

Add end caps [04] and [05] to horizontal brackets [02] and [03].

CAUTION:

Wall Mounting

For assistance in determining wall plate location, see Height Finder at sanus.com.

5-1: Wood Stud Mounting

CAUTION: Improper use could reduce the holding power of the lag bolt. To avoid potential injuries or property damage:

Pilot holes MUST be drilled to a depth of 75mm (3 in.), using a 5.5mm (7/32 in.) diameter drill bit.
Do not over-tighten the lag bolts [36].
Any material covering the wall must not exceed 16mm (5/8 in.).

5-2: Solid Concrete and Concrete Block Mounting

CAUTION: Improper use could reduce the holding power of the lag bolt. To avoid potential injuries or property damage:

Pilot holes MUST be drilled to a depth of 75mm (3 in.), using a 10mm (3/8 in.) diameter drill bit.
- Be sure the anchors [34] seat flush with the concrete surface.
Mount wall plate directly onto the concrete surface.

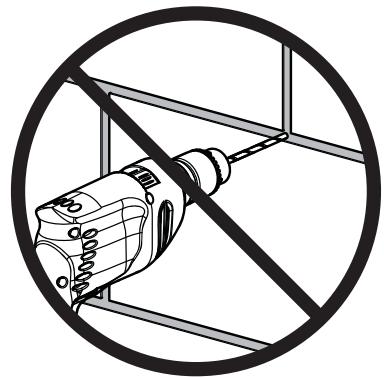

- Never drill into the mortar between blocks.
Do not over-tighten the lag bolts [36].

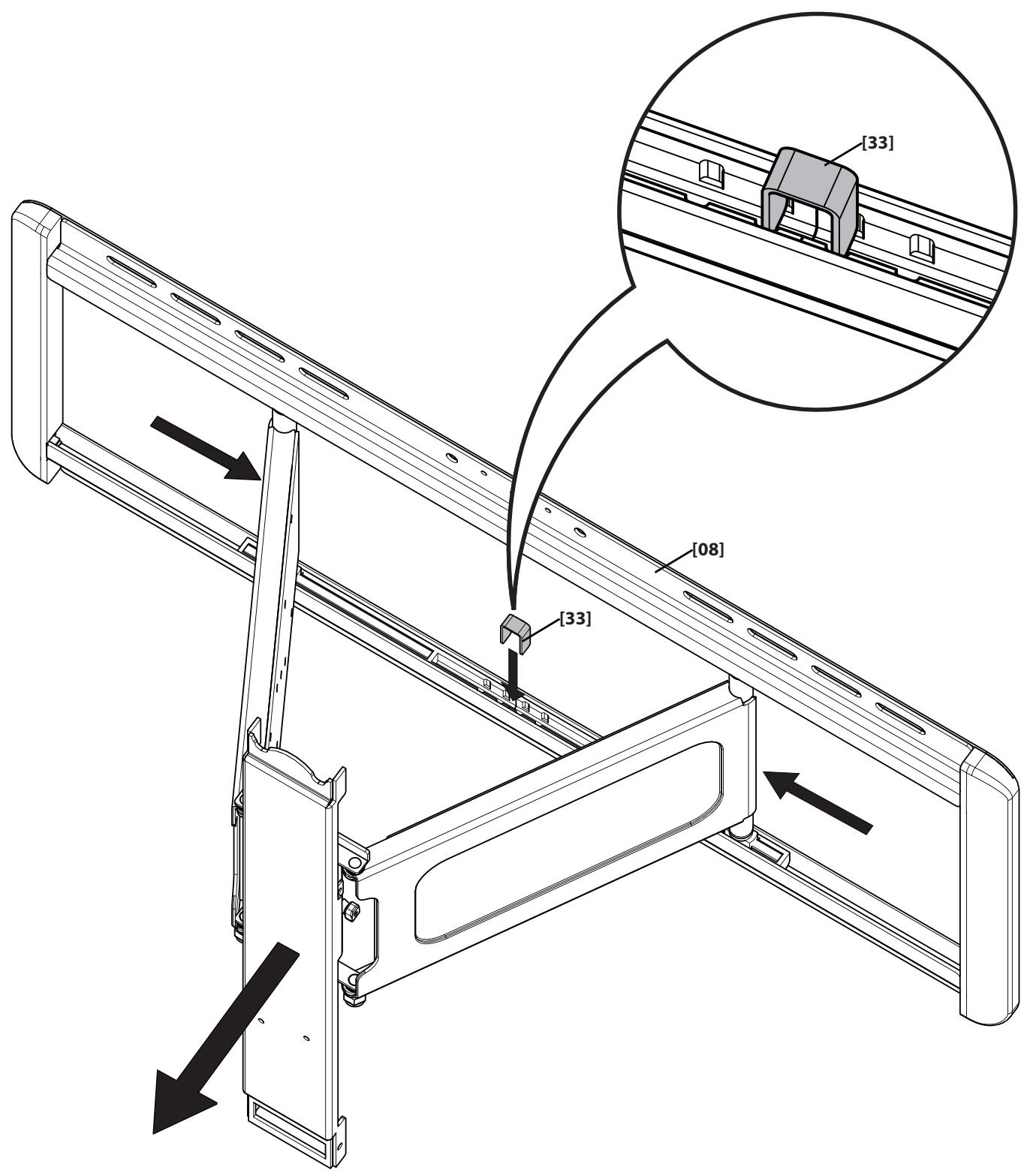

To prepare the wall plate for mounting:

Slide the arms of the wall plate [08] together and insert the slide lock [33] into place. This will lock the arms into full extension making the wall plate mounting and TV attachment easier.

5-1

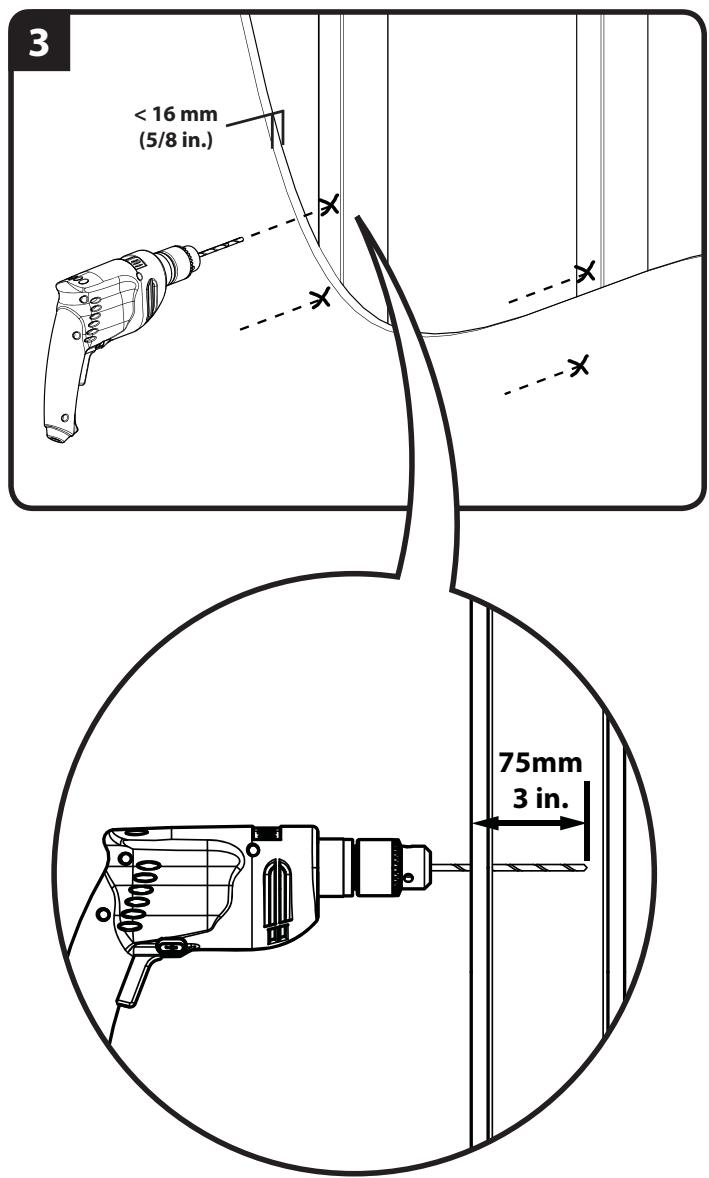

Wood Stud Wall Mounting - See Cautions in Step 5.

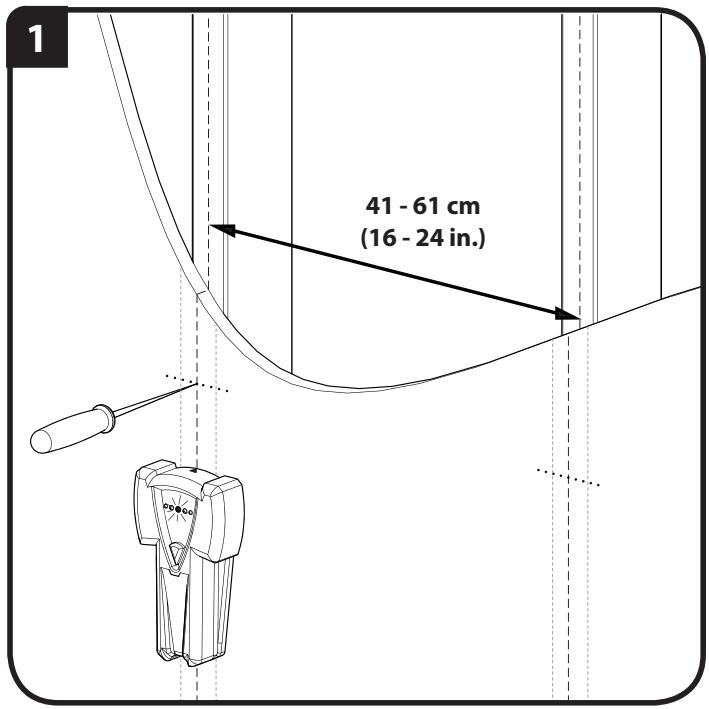

1. Locate studs. Verify the center of the stud with an awl or thin nail or use an edge to edge stud finder.

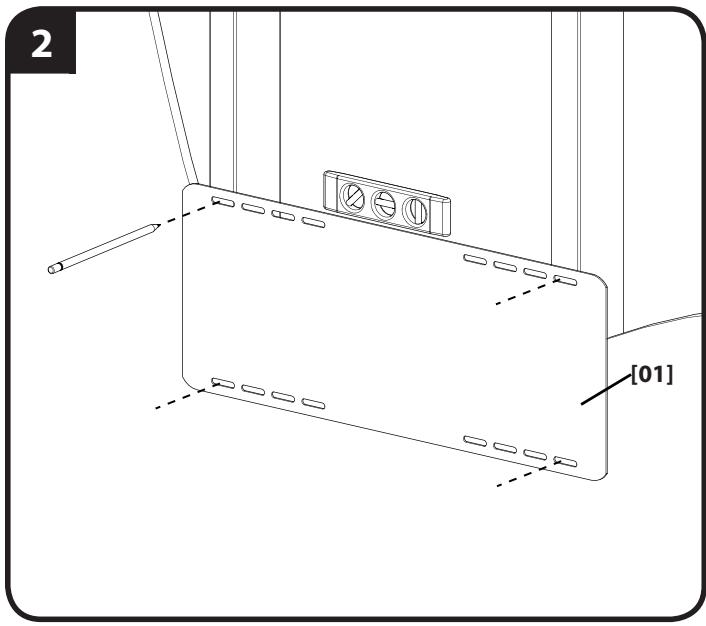

2. Using the wall plate template [01], Level the template [01] and mark the hole locations.
3. Drill pilot holes as illustrated.

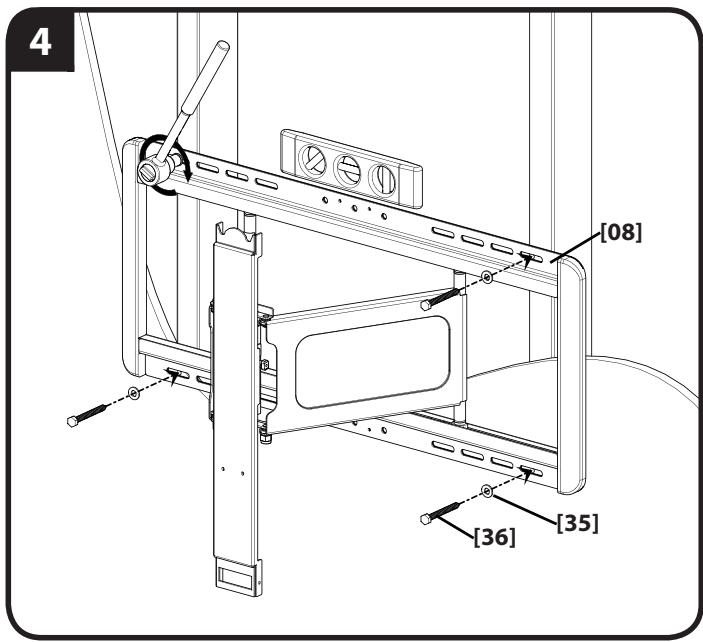

4. Place the wall plate against the wall. Tighten the lag bolts [36] only until the washers [35] are pulled firmly against the wall plate [08].

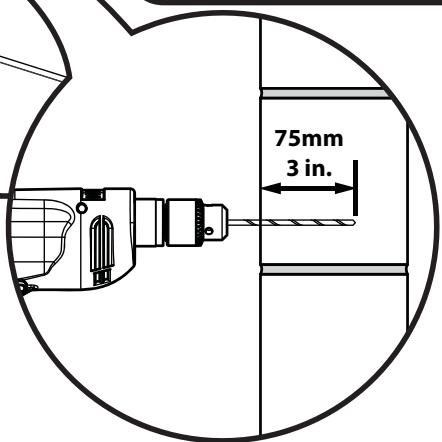

Solid Concrete and Concrete Block Mounting - See Cautions in Step 5.

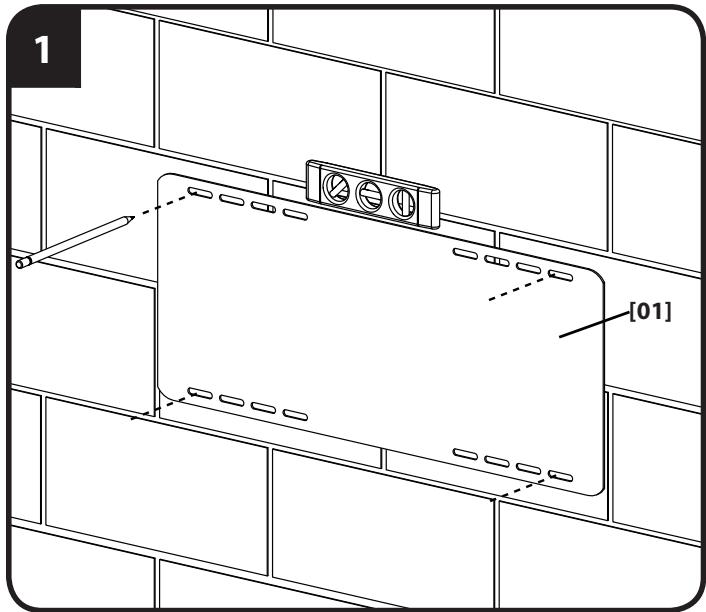

1. Using the wall plate template[01], Level the template [01] and mark the hole locations.

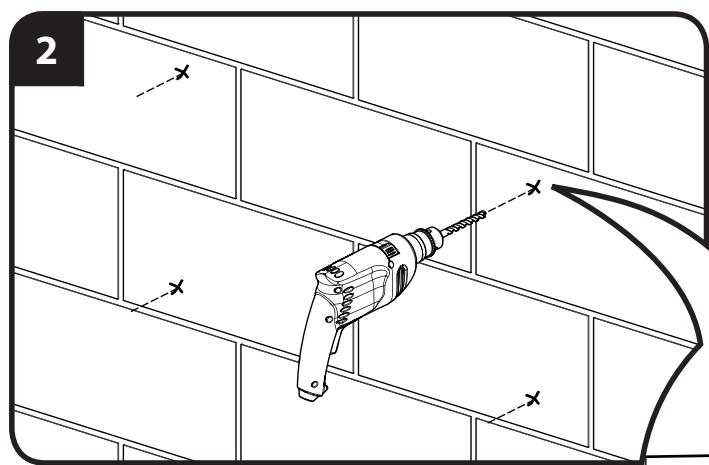

2. Drill pilot holes as illustrated.

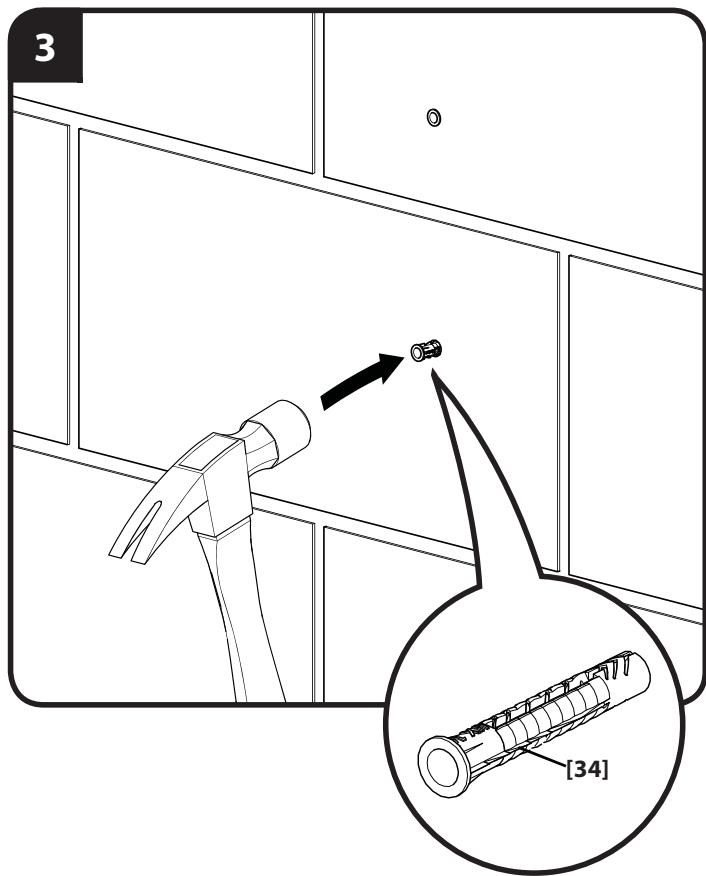

3. Insert lag bolt anchors [34].

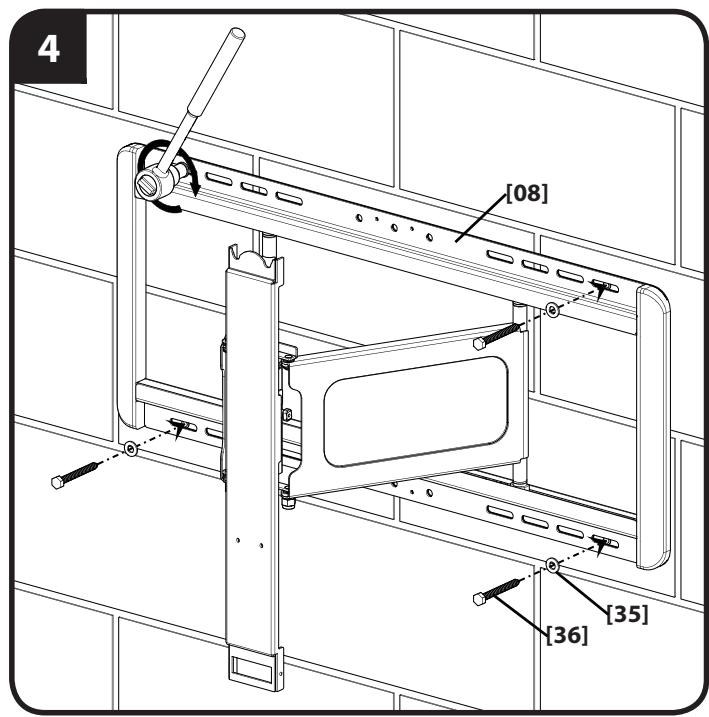

4. Place the wall plate against the wall. Tighten the lag bolts [36] only until the washers [35] are pulled firmly against the wall plate [08].

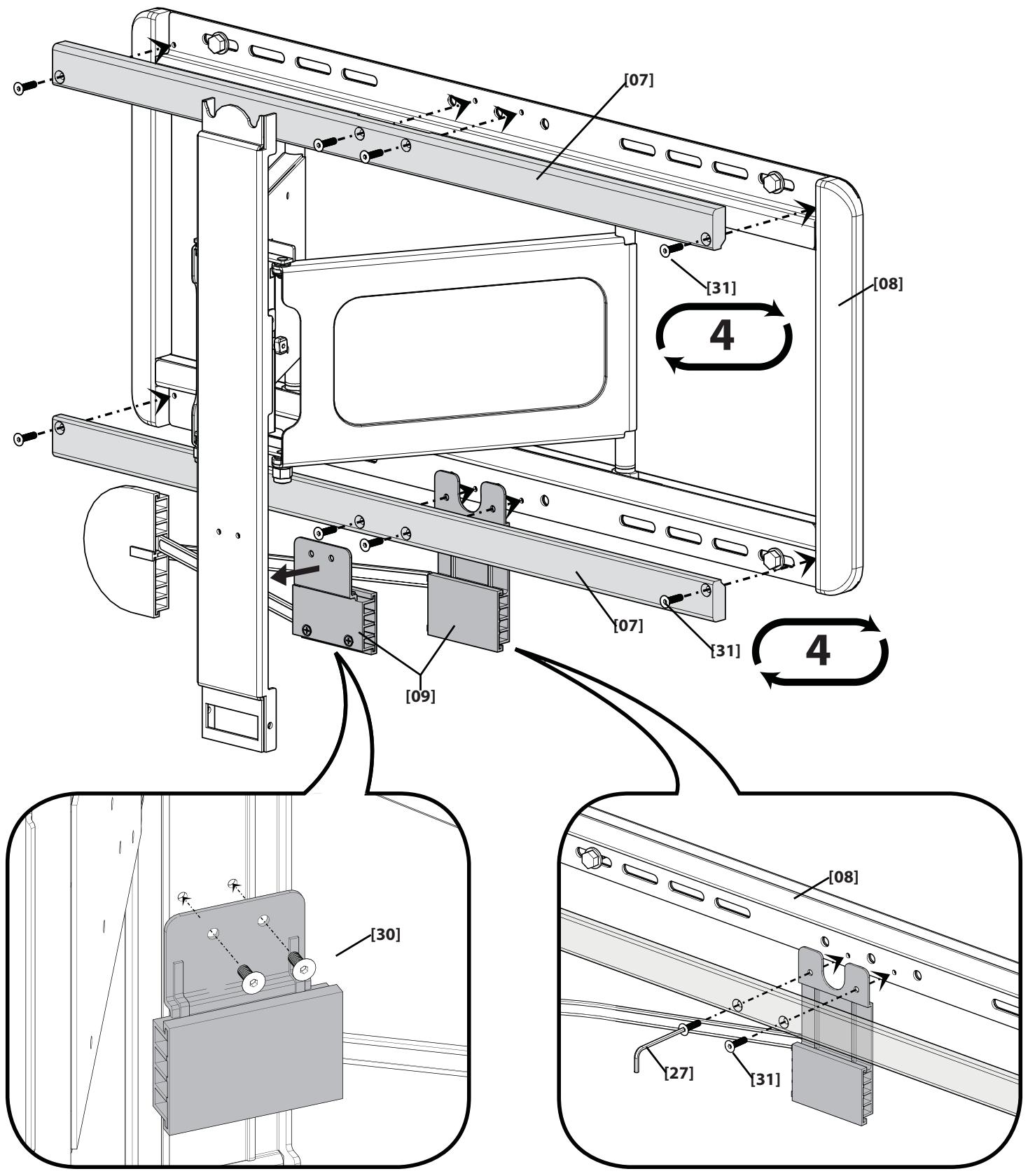

Install the wire management assembly and wall plate covers onto the wall plate.

Mount the upper cover [07] using the 18 in. hex key [27] to install four screws [31].

Mount the lower cover [07] using the 12 in. hex key [27] to install four screws [31] while fitting the rear mount of the wire management assembly [09] between the cover [07] and the lower horizontal of the wall plate [08].

Install the front mount of the wire management system to the back side of the face plate of the wall plate [08] using two screws [31].

1

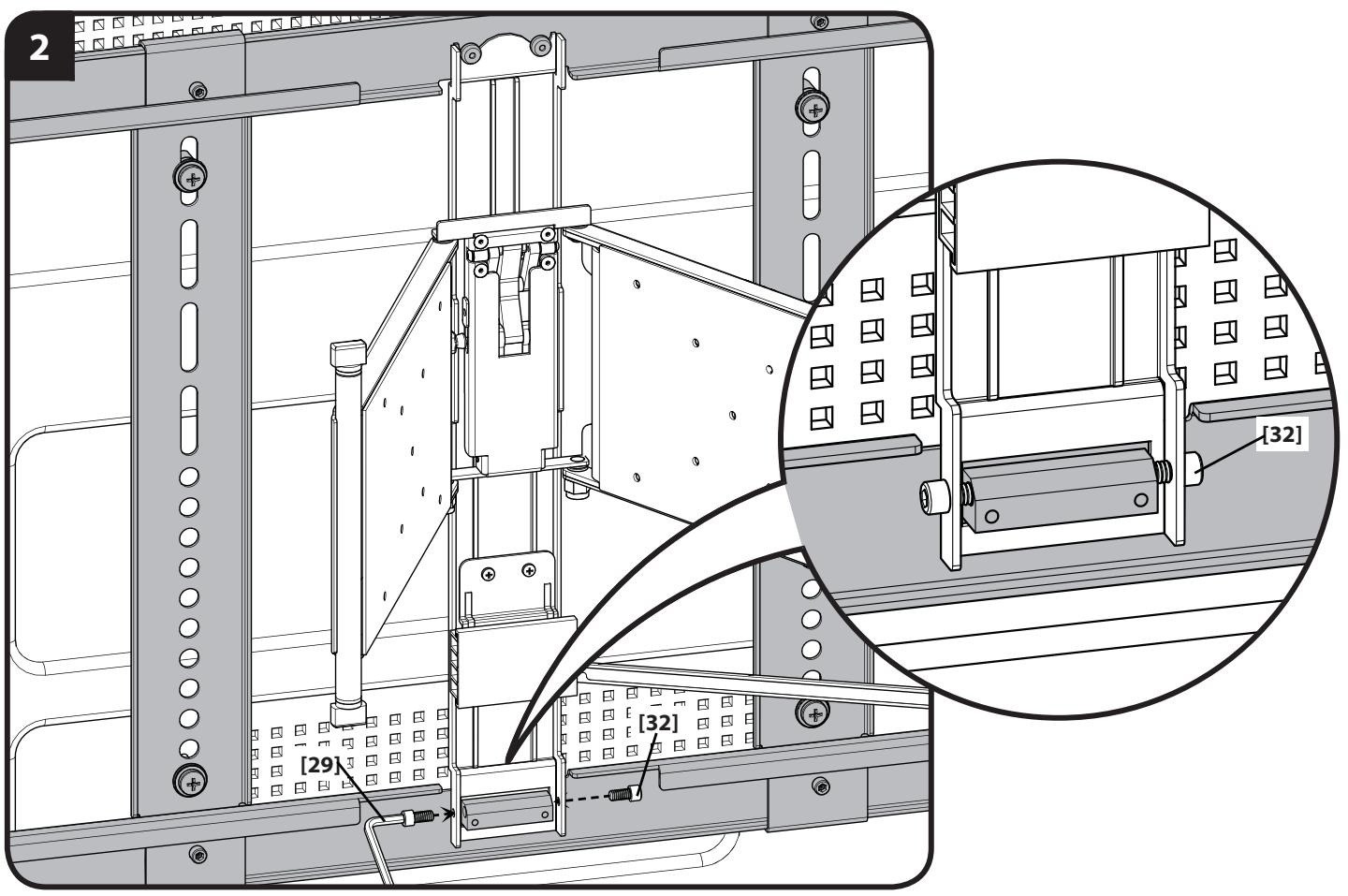

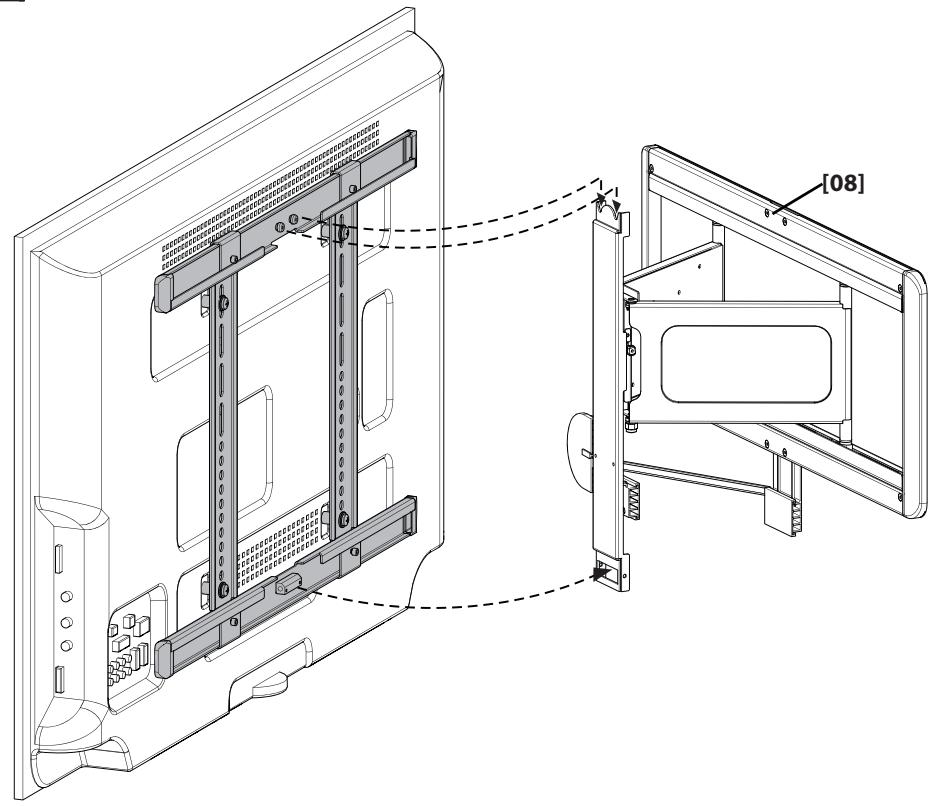

Attach TV to Wall Plate

HEAVY! You will need assistance with this step.

1. Hang the TV with mounting bracket assembly onto the face plate of the wall plate [08]. The upper knobs of the mounting bracket assembly will drop into the top slots of the face plate of the wall plate [08].
2. Secure the TV to the face plate of the wall plate [08] by installing the locking screws [32] with the 316 in. hex key [29].

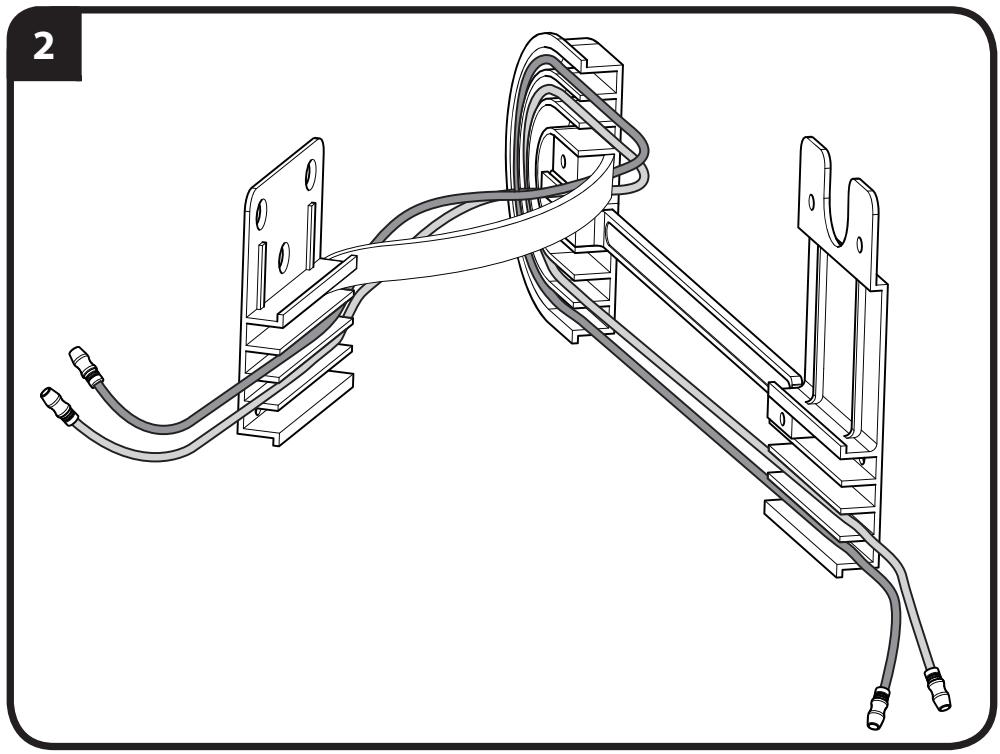

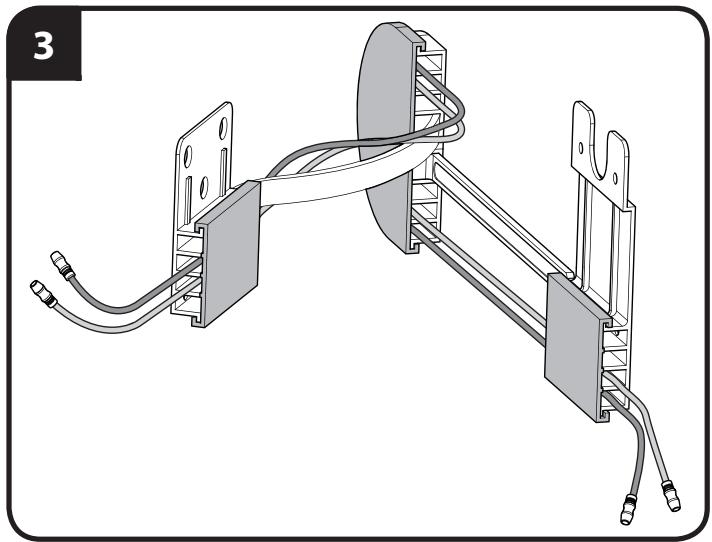

Wire Management

Plug the required wires and/or cables into the TV.

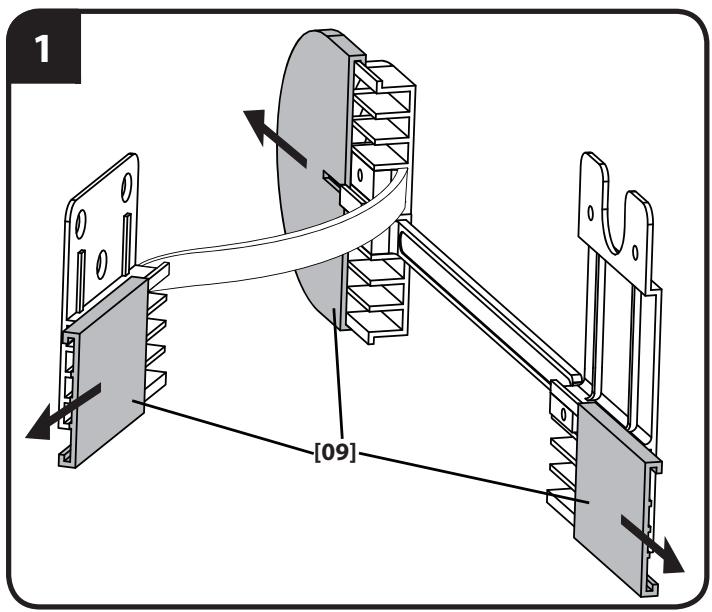

1. Slide the three covers of the wire management assembly [09] off the front (face plate mount), rear (wall plate mount), and center (floating).
2. Route the wires and/or cables through the three sections.
3. Replace the covers.

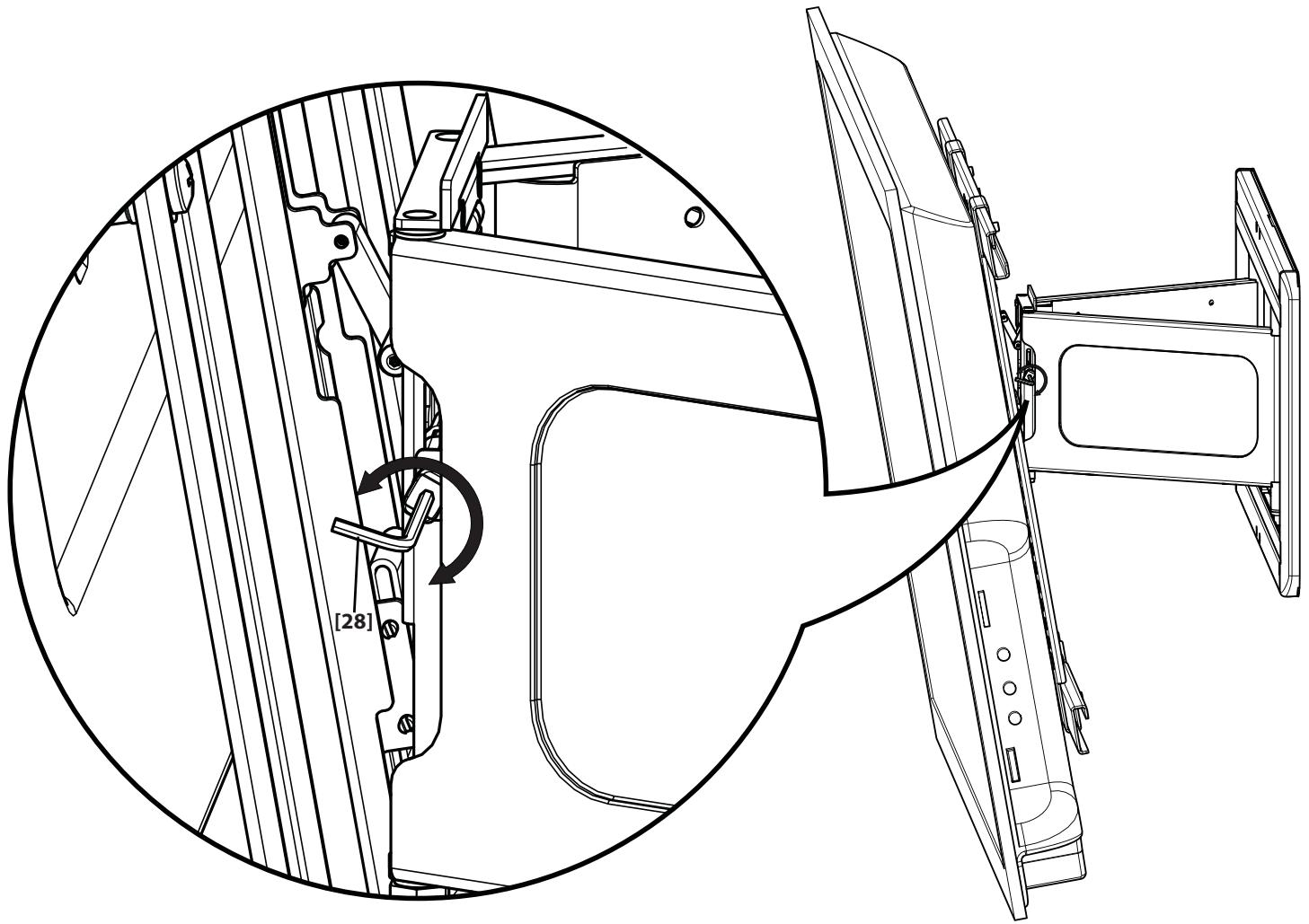

Adjustments

Adjust up/down tilt tension by hand or using the M3 hex key [28].

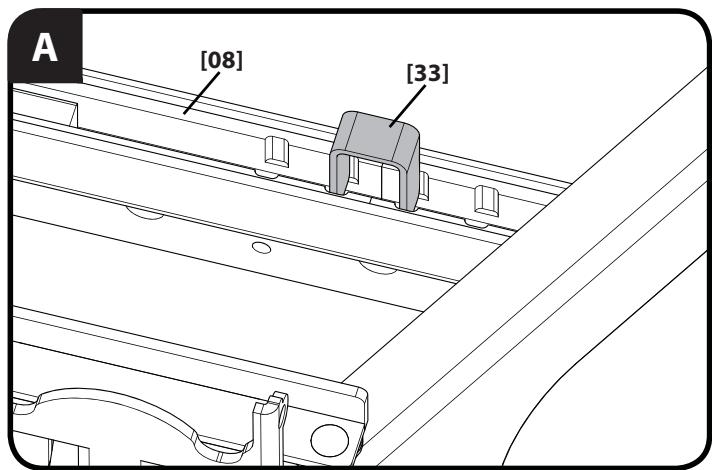

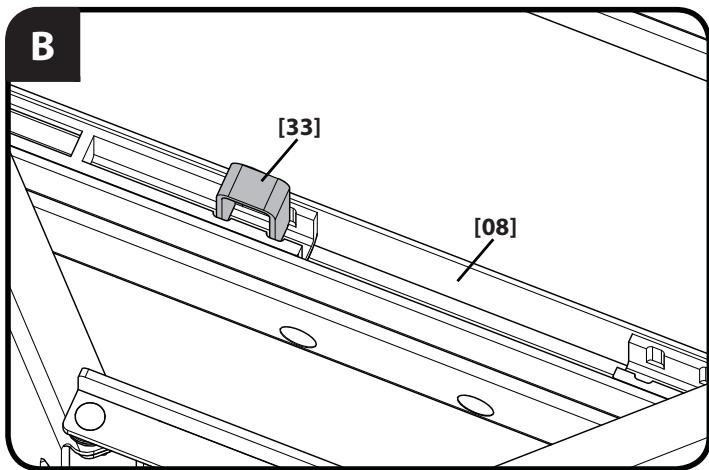

Storage

After setup is complete, remove slide lock from the locking position A and fit it into the grooves of one of the slides for storage B.

6901-002067<03>

ATTENTION:

INFORMATIONS IMPORTANTES CONCERNANT LA SECURITE - CONSERVEZ CES INSTRUCTIONS - VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL AVANT D'UTILISER CE PRODUIT

Specifications

YctahOBKa KpoHtTeHOB Ia TeJeBn3OpOB, 3aHra NOBepXHOCTb KOToPbIX HEOBHAA INI IMeET BbICTynbl

Peped naHApOM yCTaHOBkN BCTaBtBe BVHTbB O TBpEcTnHa 3aJHeN NaHEJI TneBn3Opa dIg ONpeJeNEHn COOTBcTByIOUeO IaAMetpa BVHTa (M4, M5, M6 nII M8). POpBepBte, DoCTaTOHNo IIN DInHb Pe3b6b, UTO6bI pRnKPePNb KPOHsTeHb KMOHToP. EcIn BVHTb 3aTgBaHOTc pIIOxo, HemeJeHNO npKpATNeY cTbAOHKy uOBpATNEcb

BOTDeI TexHnuecKo NODepKKn.

A PPEOCTEPEXHE. Co6IouaIte npabunla 6eOnacHocTn, UTO6bl ppeoTbpaTtB BO3MOxHbIe TpaBMbI NOBpeXHeHne IMUyecTa! IcNoIb3yIe COeTuAHBe HnHTu HnPKoJaKn HnMaHbSeI NOxHOJauIe DInHbI. IcNpONb3OBAHMe CNIuKOM DInHHoro KpeHexa MoKeT PrINBecTI KIOPEXDEHnIO BHYTVpeHHIX KOMNOEHOTBO MOHITOpA.

A. ПиножITE Вертукалыгь Кронштейнbl [06] K TeLEBn3opy,Чтобу OnpeDeJntb, KaKne MOnTaXHbIe OTBepctna 6by Ny nCToNb3ObaTbcra. Y6eInTeCb,чTO BepTuKaklbHbIe KPOHSTeyHbl [06] BbIPOBHeHbI N HaxOJaTcHа OdINHaKOBOM pacCTOaHmДpyr OT dpyra BBePxy u BHn3y TeNeBu3Opa.
B. Ecnnoa0bTcB TykN, HxKHO onpeJeHtB, HxKbI N KopoTKe [22] nnn nnHHbIe [23] BTyKn. BCTabTe ynpHyo 6ay6y [26] B npopezni OTBepCTnHa nepeHne CTOpOHe BepTKKaJIbHbIX KPOHHTeHOB [06] a 3aTeM uCTaHOBITE B wai6bI [26] BTykn COOTBETCTByuuee nnHbIc 3aHdNei CTOpOHi (TB).
C. HadeHbTe BepTnKaIbHbIe KPOHHTeHbI [06] Ha rOpN3OHTaJIbHbIe KPOHHTeHbI [02] n [03].
D. PacnoIoxnTe nolyeHHbI y3eHnad TeLEBn3OpOM n DInraTte BepTuKaJIbHbIe KPOHTeHbI [06] BLeBO nIN BnpaBO, nOKa OHn He OKaJyTcHnAD MOHTaXHBIM NTBPCTnMn Ha 3aDHeN IOBepxHOCTn TELEBn3Opa.

1-1-cm. yepTeJx Ha ctp. 12

IJIaTeBn3OpOB C HEPBOH/ C BbIcTyPnAmi 3aIHeN paHEnbIy. Y6eIITecb B TOM, cTo KPOHUIteHbI Ha 3aIHeN paHEnn MOHtopa yCTaHOBLeHb I NO ypOBNHO. H pCynHKe NpOka3AbH bTaHdTbIbe KOHpyRaoun. IJIa NpOUYeHN IHΦOpMaun O HeCTaHdAtpTHbIX KOHΦrypaunx yTOUHeHN BbIbOp npICnOc6BneHm oBpaITeScB bOTen TeXnueckOn PndepkKn.

1-2-cm. yepTeJx Ha ctp. 13

IJIe TeneBn3OpOB C HepOBHoi/C BbIcTynamm 3aJHeN PAnHeIbIy. Y6eIITecB B TOM, UTo KPOHHTeHbI Ha 3aJHeN PAnHeI MOnHITopa yCTaHOBJIe IIO npOBoHIO.Ha
PrcyHKe poka3aHbI cTaHdapTHbIe KOHfNguraqnn. IJIra nOlyeHn IHHoPmauIN O HeCTaHdapTHbIX KOHfNguraqnaX IN yTOUHeHn Bbl6oparnpncno6bnHn
O6paTInTeCb B OTdE TLexHnuecko NpOdePjKn.

2

UctahOBka KPOHsTeHOB dIeTeBUN3OpOB c POBHO 3aHHe IOBepxHOCTbIO - CM. YepTeK Ha Ctp. 14

Peped naHApOM yCTaHOBkN BCTaBtBe BVHTbB O TBpEcTnHa 3aJHeN NaHEJI TneBn3Opa dIg ONpeJeNEHn COOTBcTByIOUeO IaAMetpa BVHTa (M4, M5, M6 nII M8). POpBepBte, DoCTaTOHNo IIN DInHb Pe3b6b, UTO6bI pRnKPePNb KPOHsTeHb KMOHToP. EcNI BVHTb 3aTARnBaHOTc pIIOxo, HemeJeHNO npKpATNeY cTbAOHKy uOBpatNTe yCTaHOBky I O6PaTntec6b

BOTDeI TexHnuecko NpOdepKKn.

A PDEOCTEPEXHE. Co6nlaTe npabina 6e0anacHcTn, UTo6bl ppeoTbpaNTb BO3MOxHbIe TpaBmI INOBpeXHe NMyuecTa! NcNoJIb3yIte coetahne BHTa HnAeNIOHbIe NpOKnadKnIOaMHeBSe IpoXoJaIe DInHbI. NcPONb3OaHMe CINKOM DInHHoro KpeHexa MoKeT PrINBeCTN KIOBpeXDeHnIO BVHTpeHHIX KCMNOEHTOB MOHITOPA.

A. HadeHbTe BepTnKaIbHbIe KPOHtEiHbI [06] Ha TropN3OHTaJIbHbIe KPOHtTeiHbI [02] n [03].
B. PacnoIooJIte nOJyuHbHy y3e Hnad TeneBUN3OpOM nDnBaTne BepTnKaJIbHbIe KPOHHTeHbI BnEBO NIN BnPaBO, NOKA OH He OKaKyTcHa ND MoNTaXHBIMN OTBepCTnMn Ha 3aDHe NOBepxHOCTn TeneBUN3Opa. Y6eINTecb, YTO BepTnKaJIbHbIe KPOHHTeHbI [06] BblpOBHeHbI n HaxoJrTcHa OINHaKOBom pacCToAHm Dpyr OT dpyra BBepyu INBn3y TeneBUN3Opa.

2-1

Дя TelebeN3OporВС пLOCKoI/6e3 BbICTyNoB 3aHNeпаHEnbIy. Y6eIITecbВ TOM,чTO KPOHHTeHbI Ha 3aHNe пaHEn MoHITopa yCTaHOBJIbI NOуPBOHIO IOTerpyINpOBAHbI NO BepTnKaJI. EcIn Tpe6yeTcI dONONHtENbHOe pOcTaPcHCTBO, YTO6bl yLOXmTB Ka6eJIb, PIOORHaTb yTOIpHeHHbIe NII IN BbIpyKlbIe IOBepxHOCTn, CM.ОdINиЗВарnaHTOB yCTaHOBKn (1-1 Ил 1-2)сИСПОЛБ3OBAHnEM BTVJOK.

3 - cM.Черпж наст. 16

OTcHrTpnpuYTe rOpn3oHTaIbHbIe KpOHTeHbI [02] n [03].

3aKpeHnTe rOpuOHTaIbHbIe KpOnUHeiHbI [02] n [03] Ha MeCTe C nOMoUbIO uecTIRpaHHOrO KInOua Ha 3/16 dIOMa [29] n 4 BnHTOB [32].

5

HacteHHoe KpenIeHne

Для onpe dendene pacnoLOXeHЯ CTeHOB OI nactInb BOcNoJb3yTeCb npINOxKeHem Height Finder ha sanus.com.

5-1: KpenenneK depeBHHoCTOKe

PNEIOCTEPEXHEHNE. HenpaBnIbHOe IcNoJIb3OBAHHe MOKeT UMeHbUInT b npOuHcT coeINHeHn 6oNTa. Bo n36ExAHne BO3MOKhbIX TpABM nII

NoBpeJxHnO6OpyDobHaN:

He npuiarai Te ue3MeHbIe ycIIa Iy 3aTgUbaHn6oNTOB [36].
ToIuHa MaTePnAJa, NOKpbIbAIOUe RoCTeHy, He IOnJxHa IpeBbIaTb 16 MM (5/8 IIOIma).
C nomoBIO cBePnA dAmEToPM 5,5 MM (7/32 IIOHMa) DONKHbI 6bIT bnpocBepneHb HappaJIIOUe OTBepCTN rIy6HHOJ 75 MM (3 IIOHMa).

5-2: YctahOBka Ha CTehy n3 6eToHa/6eToHHbIX 6JIOKOB

A I P E O D O C T E P E X E H N E. HenpaBnIbHoe nCIOJIb3OBAHnE MOKeT yMeHbIITn pOuHocTb coeINHeHn6oNTa. Bo n36exHaHne BO3MOXhBIX TpABM nII

noBpeKdHnO6OpyDobAHn:

Y6eHntecb, YTO HIO6eN [34] yCTaHOBHeHb 3aNoDInuO c 6eToHHo NOBepxHOCTbIO.
YCTAHOBNTe CTeHOByIO pIaNactINHy HEnOcpeDCTBeHHo HA 6eTOHHyIO NOBepXHOCTb.
HnB Koem Cnyuae He CBePInTe OTBepCTnB Wbax MekJy 6Jokamn.
He npilaraTe Upe3MepHbIe ycIIa IJIa 3aTgUbaHn6 BoITOB [36].
C nomoBIO CBepNa DnAmetpOM 10 MM (3/8 dioMa) DOJXHbI 6bTb npocBepne HappaBnaOuie OTBepCTra 75 MM (3 dioMa).

TopaOK noJrotOBKn cTeHOBn pIaCTnHb K yCTaHOBKe:

CBeINTe 5tAHnCTeHOBNIaCTHbI [08] BmecTe, BCTaBbTe ΦIKCaTOp [33]. 3TO 3aKpeINIT 5tAHn B NOLHOCTbIO pa3dBHyTOM PNOJOKeHN, I O6JIerHTM OMTaX CteHOBOI PIACTHbI N 3aKpePENHe Na Hei TeLEBnOpa.

5-1-cm. yepTeJx Ha ctp.20

Kpenenne K depebHHoC tOKe - CM. Oco6ble B ware 5.

1. Hainite uipamu. Y6eintecb B cHTpe Stud uinom nItonKIM rBO3em nIIN nCNOJb3OBAHne kpa d o Kpa Stud Finder.
2. Испльзоване Шаблona стений [01]. Вьюнайшаблон [01] и OTметъраснолжень OTверсти.
   3.ДрелбаOTbEPTN,КaK NOKa3aHO.
3. 3aTgUBaIe 60ntbIC KBAIpaTHbIMr TOnOBkAMn [36] TOJIbKO Do TEX nOp, NOKA IaIb6bl [35] He 6yDytNIOITRAHyTBK HAcTeHHOMy KpeIJIeHHIO [08].

5-2-CM. Yeptex Ha ctp. 21

YctahOBka Ha CTHe N3 6eToHa/6eToHHbIX 6IOKOB -CM. IpeIOCTepExHnA 5.

1.ИспользованешаблonaСтенOBОПЛЯСТINь[01].БырOBнITEшабLOн[01]иOTмTe pacnoIOnOKeHneOTBepCTM.
2. Порсевпгел Нарравл Any, Кам поka3aHo Ha pncyHke.
3. YctaHOBInTe IIO6eIN [34].
4. 3aTnBaTe 6oTbI [36] ToIbKO Do Tex nop, noka IaIbI [35] He 6yUT KpeNko NpOITaHytI K CTeHOBO IIaCTHe [08]

6

UctahOBtHe h CTeHOByIO nlaCTHy ee KpbIshKu I y3e I pa3BODKn Ka6eNe - cm. YepTeJx Ha cTp. 22

C nOMOuI uecTnIpaHNO KIOUHa Ha 1/8 IIOMa [27] uYeTbIpeX BInTOB [31] yCTaHOBITE BepxHIO KpbIiKy.

Pn nmoiueTngpahHOro KIOUa Ha 1/8 dIyMa [27] uYeTBpeX BnHTOB [31] yCTaHOBtne HIXHIOKpbIbky, pni 3OM IOMeCTNTe TblbHyIO CTOky y3la pa3BOKn Ka6eJe [09] MeJx dy KpbIshKoi [07] n HIXHHe TOpN3OHTaJIbIO CTeHOBoI PnactHbI [08].

UcTaHOBnTe nepeHIOIO CTOky CInCTeMbI nPoKnaIKn Ka6eNa Ha 3aDIOIO CTOpOHy IINCeBOI NaHeJI NCTeHOBI nTActHbI [08], INCNoJIb3yI DBA BVHTa [31].

7

PpNkpennne Hne TeneBn3opa K cTeHOBo NnactHe - cm. YepTeX Ha Ctp. 23

BOLbIOW BEC! PnB BvIOnJIHeHn DaHHoN OTepaun Bam NOpaIo6nTc nOmoCb.

1. KpenJIeHne TeJIeBn3Opa C MOHTaXHbIM KPOHtTeHnAMN K IINcEOB II NaCTInHe CTeHOBOI IIaCTInHbI [08]. PeryIaTOpbl B BepxHeJ YactIn MOHTaXHbIX KPOHtTeHOB NOnaDyT B BepXHHe MOHTaXHbIe OTBepCTnA IIcEOB II NaCTInHbI CTeHOBOI IIaCTInHbI [08].

2. 3aKpeHnTe TB-naHeIb Ha IInCeBOI pIacTHHe CteHOBoI pIacTHbI, 3aTgINBaI 6IoKpUOuIe BnHTbI [32] c NOMoIbIO IeCTnIRpaHHOrO KJIouHa Ha 3/16 JIOIma [29].

8

PpoklaJaKa Ka6eIe - cm. YepTeJx Ha cTp. 24

IopKJIIOUHTe K TeJeBn3Opy Heo6xOaIMbIe npOBoa n Ka6eIi.

1. Chmnte Tprk pblknc cnctembl pa3bodkn ka6enei [09] - cpeepn (ctoka nucboon nlaactnhbl), c3aun (ctoka cteHOBOI nlaCTNHbl) n no ceHTpy (noDbNkna CToKa)
2. IpnoloxnTe npoOda n/nn Ka6eenn No 3Tm TpeM cekzmaM.
3. HaneHbTe KpbIuKn.

9 - cM. YepTeK Ha cTp. 25

Perynipobkn

ÖtperynnpyTe ycnIne 3aTJkKn pIu NaKIOHe BBepx/BHn3 BByUHyIO nIe c NOMOJIbU oSectrpaHNO rKnIOa M3 [28].

Xpanenme

Iocne 3aBepseHn yctahOBKn, n3BnKeNte oHKcaTOp [33] n3 oKcnpyouei no3uin A n BCTaBbTe B na3 oNDH n3 3aDbNkek dny xpaHeHn B.

▲ PRZESTROGA:

WAZNE INSTRUKCJE DOTYCZACE BEZPIECZENSTWA — NIE WYRZUCAÇ – PRZED UZYTKIEM NALEZY ZAPOZNAĆ SIE Z TRESCIÁ CAŁEJ INSTRUKCJI

Opistecniczny

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Français
