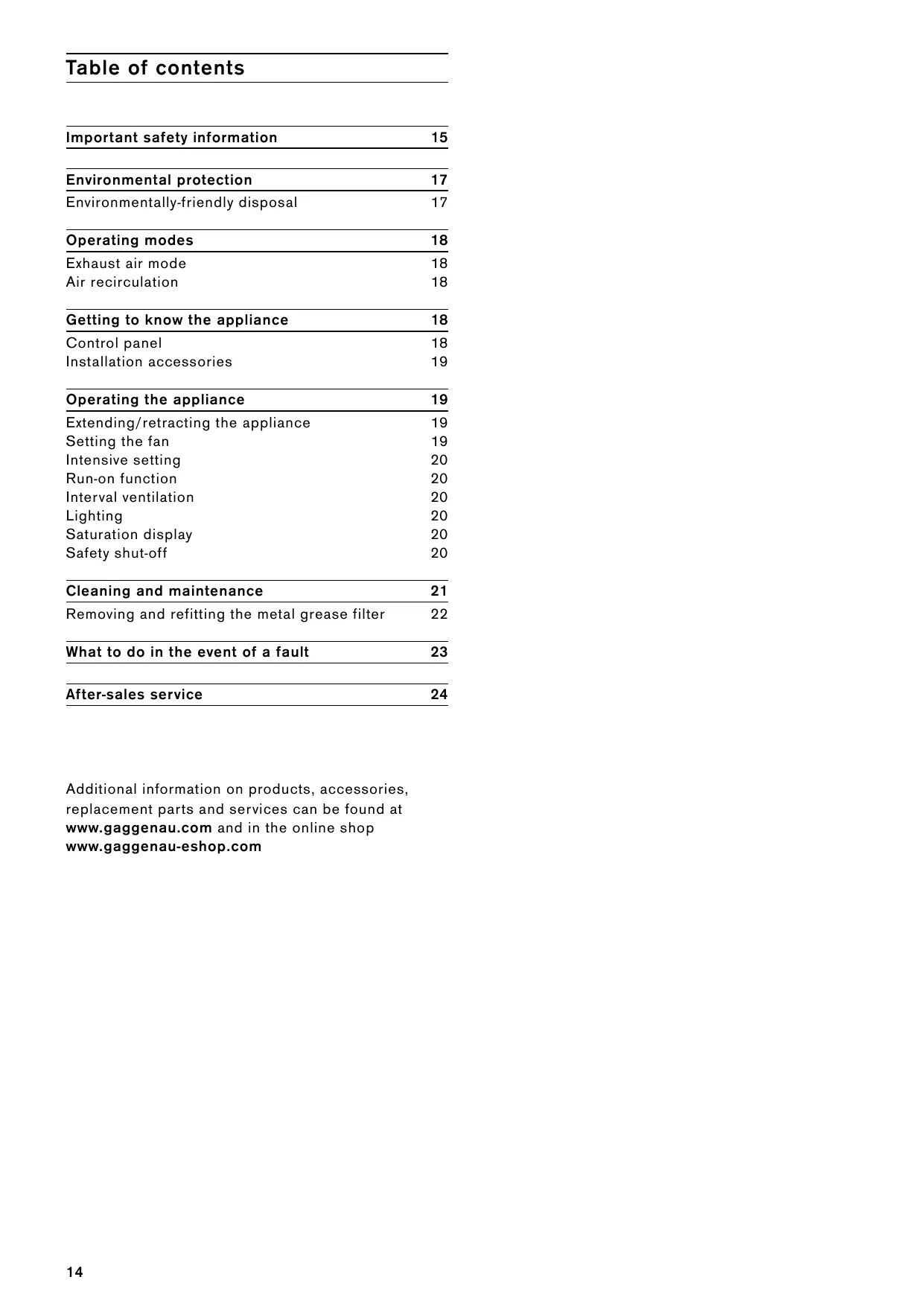

Table of contents omunircstIal Important safety information

Environmental protection Environmentally-friendly disposal

Operating modes Exhaust air mode Air recirculation

Getting to know the appliance Control panel Installation accessories

Operating the appliance Extending/retracting the appliance Setting the fan Intensive setting Run-on function Interval ventilation Lighting Saturation display Safety shut-off

Cleaning and maintenance Removing and refitting the metal grease filter

What to do in the event of a fault

: Additional information on products, accessories, replacement parts and services can be found at www.gaggenau.com and in the online shop www.gaggenau-eshop.com

m Important safety information Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners. The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location. This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improper use or incorrect operation. This appliance is intended for use up to a maximum height of 2000 metres above sea level. This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards. Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised. Keep children below the age of 8 years old at a safe distance from the appliance and power cable. Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport. This appliance is not intended for operation with an external clock timer or a remote control. Danger of death! Risk of poisoning from flue gases that are drawn back in. Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated. Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coaloperated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air through an exhaust gas system (e.g. a chimney). In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked back into the living space. ▯ Adequate incoming air must therefore always be ensured. ▯ An incoming/exhaust air wall box alone will not ensure compliance with the limit. Safe operation is possible only when the partial vacuum in the place where the heatproducing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/ exhaust air wall boxes or by other technical means. Danger of suffocation! Packaging material is dangerous to children. Never allow children to play with packaging material.

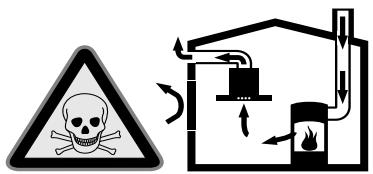

In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you. Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode. Risk of fire!

Grease deposits in the grease filter may catch fire. Clean the grease filter at least every 2 months. Never operate the appliance without the grease filter. Grease deposits in the grease filter may catch fire. Never work with naked flames close to the appliance (e.g. flambéing). Do not install the appliance near a heatproducing appliance for solid fuel (e.g. wood or coal) unless a closed, nonremovable cover is available. There must be no flying sparks. Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar. When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Only operate the gas burners with cookware on them. Operating several gas burners at the same time gives rise to a great deal of heat. The ventilation appliance may become damaged or catch fire. The ventilation appliance must only be combined with gas burners that do not exceed the maximum total output of 18 kW. If the total output exceeds 12 kW, the local regulations regarding room ventilation, room size and the combination of ventilation appliances with recirculation or circulated air mode must be observed. Risk of burns! The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance. Risk of injury! Risk of injury!

Components inside the appliance may have sharp edges. Wear protective gloves. Items placed on the appliance may fall down. Do not place any objects on the appliance. The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds. Risk of jamming when retracting and extending the appliance. Never reach into the moving area of the appliance while it is being retracted or extended. Keep children at a safe distance. Cookware set down within the movement area of the appliance can fall over. Hot liquids that pour out can cause injury. Do not set down any cookware within the movement area of the appliance. Cookware and cooktops become very hot. Never reach across the hot cooktop or take hold of hot cookware. Risk of electric shock! A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. ▯ Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. ▯ Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.

Risk of electric shock! Risk of electric shock! Causes of damage Environmental protection Caution! Risk of damage due to corrosion. Always switch on the appliance while cooking to avoid condensation. Condensate can produce corrosion damage. Unpack the appliance and dispose of the packaging in an environmentally-responsible manner. Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth. Environmentally-friendly disposal Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls. Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents. Items placed on the appliance may damage the appliance or adjacent cooktops when the appliance is extended or retracted. Do not place any objects on the moving parts of the appliance. Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Operating modes Getting to know the appliance This appliance can be used in exhaust-air mode or circulating-air mode. Here, you can get to know your appliance and receive information about the accessories.

The air which is drawn in is cleaned by the grease filters and conveyed to the exterior by a pipe system.

Note: The exhaust air must not be conveyed into a functioning smoke or exhaust gas flue or into a shaft which is used to ventilate installation rooms which contain heating appliances.

Before conveying the exhaust air into a nonfunctioning smoke or exhaust gas flue, obtain the consent of the heating engineer responsible.

If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used. Air recirculation The air which is drawn in is cleaned by the grease filters and an activated carbon filter, and is conveyed back into the kitchen. Note: To bind odours in air recirculation mode, you must install an activated carbon filter. The different options for operating the appliance in air recirculation mode can be found in the brochure. Alternatively, ask your dealer. The required accessories are available from specialist retailers, from customer service or from the Online Shop.

Switch for retracting/extending

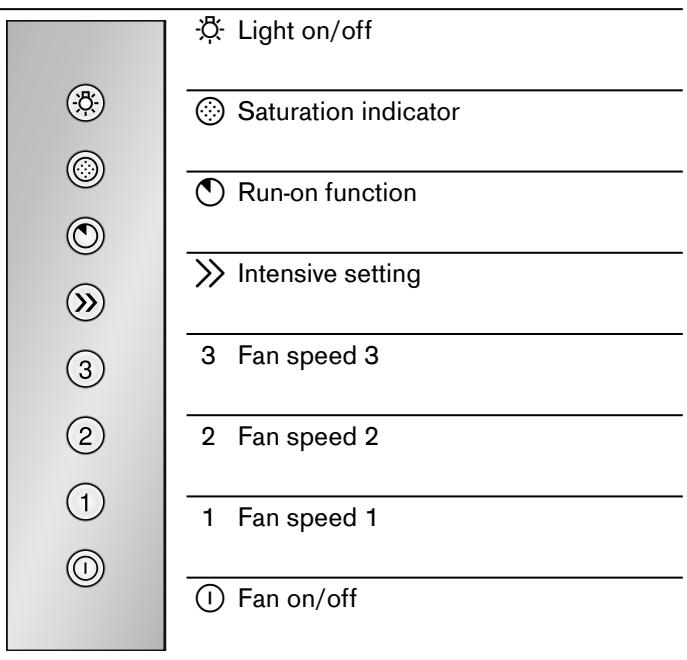

Filter cover Control panel All function selection buttons are lit when they are active. The "saturation indicator" control light flashes. @ Light on/off œ Saturation indicator ž Run-on function Ž Intensive setting 3 Fan speed 3 2 Fan speed 2 1 Fan speed 1 ÿ Fan on/off

Installation accessories AA 010 410 Air exhaust grille, circulated air, 90 mm AD 754 045 Connecting piece for aluminium flexible tube 2 x NW 150 mm, round AD 854 043 Connecting piece for flat duct system with guidance fins 1 x NW 150 mm, flat AD 854 045 Connecting piece for flat duct system with guidance fins 2 x 2NW 150 mm, flat Operating the appliance This appliance only works when it is completely extended. Extending the appliance

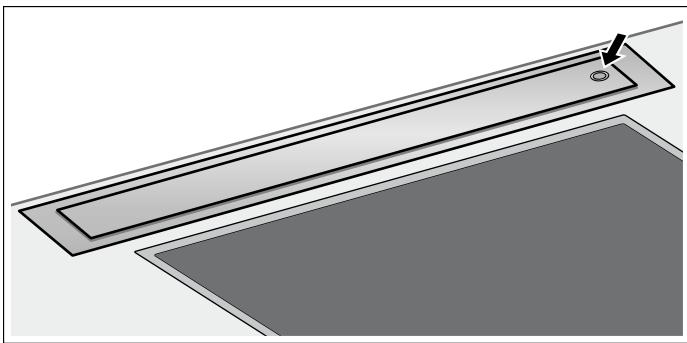

Remove any objects from the area of movement of the appliance.

Press the button on the top of the appliance. The appliance extends fully. Retracting the appliance The filter cover must be closed completely.

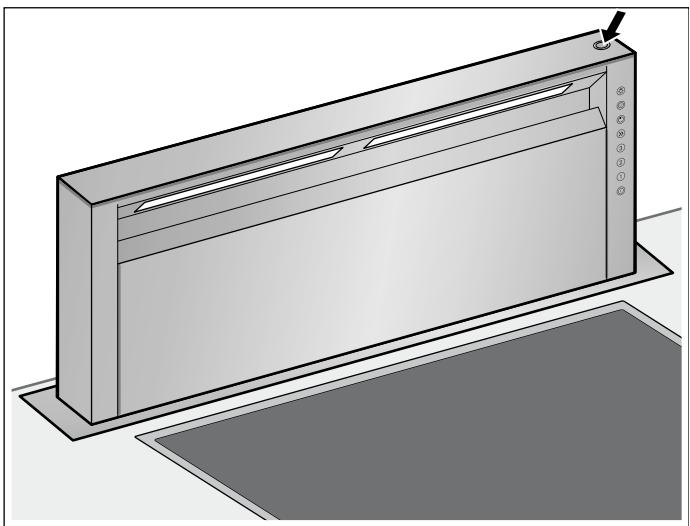

Remove any objects from the area of movement of the appliance.

Press the button on the top of the appliance. The appliance retracts fully. The light and the fan are automatically switched off. Note: Switch on the extractor hood when you start cooking and switch it off again several minutes after you have finished cooking. This is the most effective way of removing the kitchen fumes. Extending/retracting the appliance

Risk of injury! Risk of jamming when retracting and extending the appliance. Never reach into the moving area of the appliance while it is being retracted or extended. Keep children at a safe distance.

Risk of injury! Cookware set down within the movement area of the appliance can fall over. Hot liquids that pour out can cause injury. Do not set down any cookware within the movement area of the appliance. Note: Noises may be generated when pulling out and pushing in the appliance. This is due to the design of the appliance. These noises do not affect how the appliance works. Setting the fan Switching on Three ventilation settings and an intensive setting are available for extraction.

Press the ÿ button to switch on the appliance. The fan starts at setting 2.

Use buttons 1, 2, 3 or Ž the ventilation setting to adapt the setting to the cooking situation. Switching off Press the ÿ button to switch off the appliance.

Intensive setting Lighting You can use the intensive setting if there is a large build-up of odours and fumes/vapours. The lighting can be switched on and off independently of the ventilation.

Press the # button. The fan starts at level 2.

Press the Ž button. The intensive setting is activated. Note: The running time of the intensive setting is 6 minutes. Once this time has elapsed, the appliance switches back to the previously selected fan setting.

Press the # button or the button for another fan speed. The intensive setting is deactivated. Press the @ button. Setting the brightness Press and hold the @ button until the desired brightness is reached. Saturation display After an operating time of 30 hours, the saturation indicator œ for the grease filter flashes.

When this happens, do not delay cleaning the metal grease filters. For instructions on how to clean the metal grease filters, please refer to the section Cleaning and maintenance.

While the saturation indicator is flashing, you can reset the œ button. Run-on function Switching on The run-on function can be activated for any fan setting.

Select fan setting 1, 2, 3 or Ž . Safety shut-off

Press the ž button. The run-on time for all fan settings is six minutes. Once this time has elapsed, ventilation switches off automatically. If the lighting is switched on, it remains on once the run-on time has elapsed. For your safety, the appliance has a safety shut-off function. The lighting switches off after 12 hours and the fan after 4 hours if the appliance is not operated during this time. Switching off Press the ž button or the button for another fan setting. The run-on function stops before the remaining run-on time elapses. Interval ventilation Switching on With interval ventilation, the ventilation switches on automatically for six minutes every hour.

Press the ž button twice. The ž button and the button for the fan setting selected flash alternately. The interval ventilation is switched on. Switching off Press the # button. The interval ventilation is switched off.

Cleaning and maintenance

Risk of electric shock! Penetrating moisture may result in an electric shock. Clean the appliance using a damp cloth only. Before cleaning, pull out the mains plug or switch off the circuit breaker in the fuse box.

Glass Glass cleaner: Clean with a soft cloth. Do not use a glass scraper. Operating controls Hot soapy water: Clean using a damp dish cloth and dry with a soft cloth. Risk of damage to the electronics from penetrating moisture. Never clean operator controls with a wet cloth. Do not use any stainless steel cleaners. Risk of electric shock! Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.

Cleaning agents Risk of burns! The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.

Area Risk of injury! Components inside the appliance may have sharp edges. Wear protective gloves. Cleaning agents Observe the information in the table to ensure that the different surfaces are not damaged by using the wrong type of cleaning agent. Do not use Cleaning the metal mesh grease filters These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.

Risk of fire! Grease deposits in the grease filter may catch fire. Clean the grease filter at least every 2 months. Never operate the appliance without the grease filter. Notes

harsh or abrasive cleaning agents,

cleaning agents with a high concentration of alcohol, Do not use any aggressive, acidic or alkaline cleaning agents.

hard scouring pads or sponges, When cleaning the metal mesh grease filters, also clean the holder for the metal mesh grease filters in the appliance using a damp cloth.

high-pressure cleaners or steam cleaners.

The metal mesh grease filters can be cleaned in the dishwasher or by hand. Wash new sponge cloths thoroughly before use. Follow all instructions and warnings included with the cleaning agents. In the dishwasher: Area Cleaning agents Stainless steel Hot soapy water: Clean with a dish cloth and dry with a soft cloth. Clean stainless steel surfaces in the direction of the grain only. Special stainless steel cleaning products are available from our after-sales service or from specialist retailers. Apply a very thin layer of the cleaning product with a soft cloth. Note: If the metal mesh grease filters are cleaned in the dishwasher, slight discolouration may occur. This has no effect on the function of the metal mesh grease filters. Painted surfaces Aluminium and plastic

Do not clean heavily soiled metal mesh grease filters together with utensils.

Place the metal mesh grease filters loosely in the dishwasher. The metal mesh grease filters must not be wedged in. By hand: Hot soapy water: Clean using a damp dish cloth and dry with a soft cloth/towel. Do not use any stainless steel cleaners. Note: You can use a special grease solvent for stubborn dirt. It can be ordered via the Online Shop.

Soak the metal mesh grease filters in a hot soapy solution. Glass cleaner: Clean with a soft cloth.

Clean the filters with a brush and then rinse them thoroughly.

Leave the metal mesh grease filters to drain.

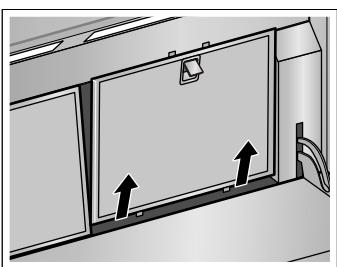

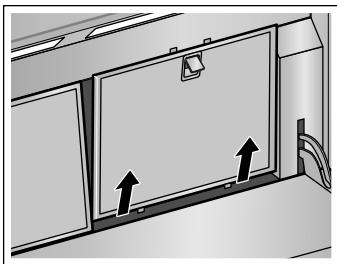

Removing and refitting the metal grease filter Opening the filter cover

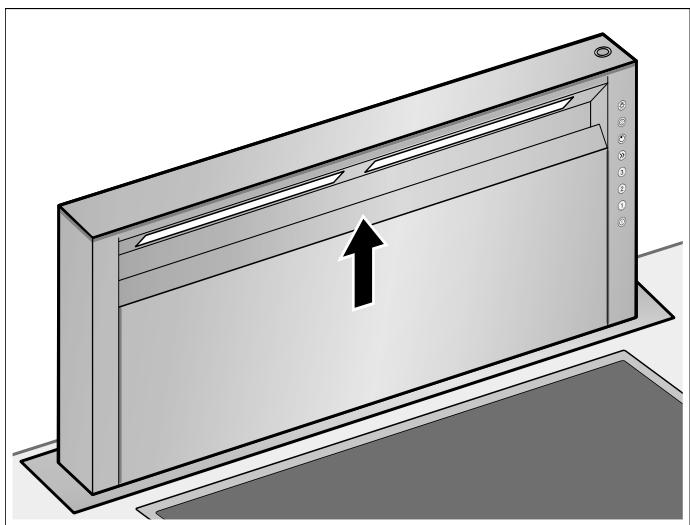

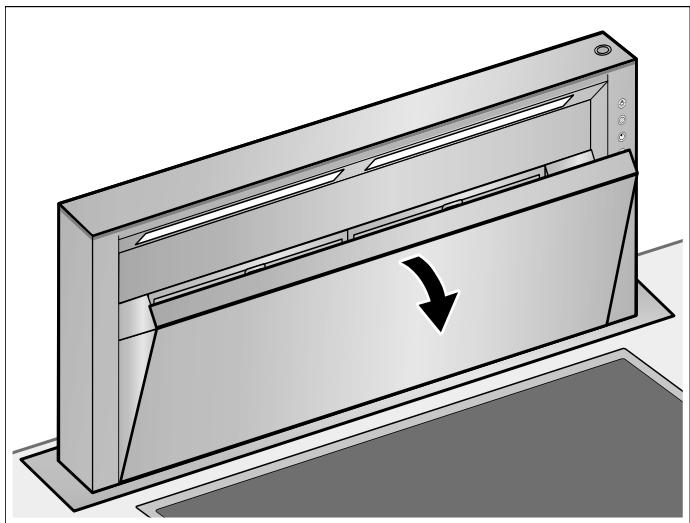

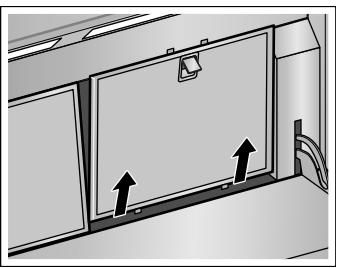

Take hold of the filter cover and pull it upwards. Cleaning the grease drain channels To facilitate cleaning, you can remove the grease drain channels. You can clean the grease drain channels in the dishwasher.

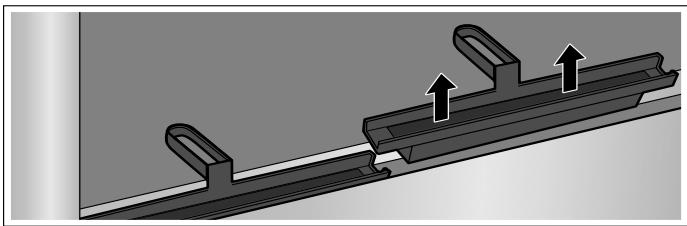

Remove the grease drain channels.

Clean the grease drain channels.

Re-insert the grease drain channels. Installing the metal mesh grease filter

Fold the filter cover forwards.

Insert the metal grease filter.

Fold the metal grease filter to the rear, locking it in place.

Reset the saturation indicators by pressing the œ button. The saturation indicator œ goes out. Closing the filter cover Take hold of the filter cover and fold it closed. The filter cover snaps into place. Cleaning the filter cover To facilitate cleaning, you can remove the filter cover.

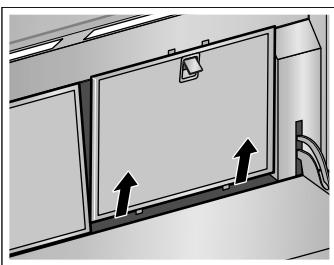

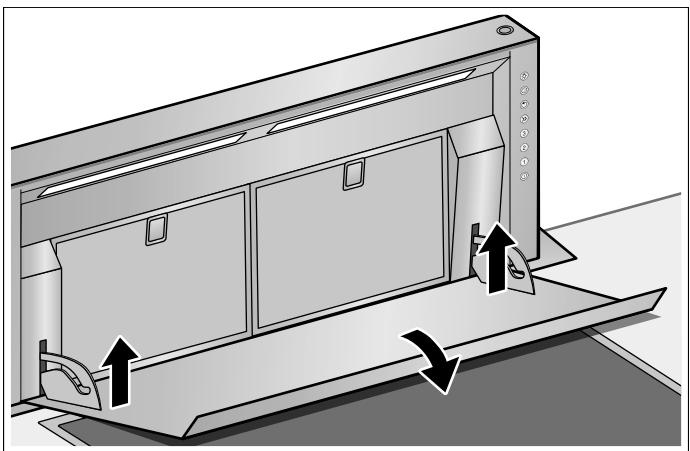

Open the filter cover.

Take hold of the side of the filter cover with both hands.

Lift the rear section as far as it will go and pull the filter cover forwards. Removing metal grease filter

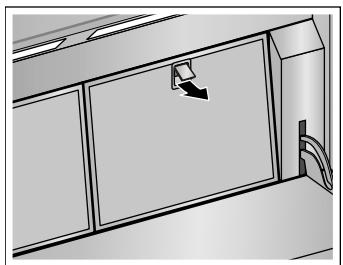

Open the lock and fold the metal grease filter forwards.

Take the metal grease filter out of the holder. Notes ‒ Grease can accumulate in the bottom of the metal grease filter. ‒ Hold the metal grease filter level, otherwise grease will drip out. The filter cover can be pulled over the bolts of the holder.

Clean the metal grease filter. Clean the filter cover. Attaching the filter cover

Take hold of the side of the filter cover with both hands.

Slide the filter cover onto the bolts of the holder and lift it forwards until it snaps into place. What to do in the event of a fault Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.

Risk of electric shock! Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. LED lights Defective LED lights must only be replaced by the manufacturer, their customer service department or a licensed technician (electrician).

Risk of injury! The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds. Possible cause Solution The appliance does not work The plug is not plugged in. Connect the appliance to the electricity supply Power cut Check whether other kitchen appliances are working Faulty fuse Check in the fuse box to make sure that the fuse for the appliance is OK Appliance does Filter cover not not switch on. closed. Close the filter cover fully. The button illumination does not work. The control unit Call the after­sales seris faulty. vice. The lighting does not work. The bulbs are faulty. Call the after­sales service. The filter is dirty. Clean the filter – see section Cleaning and maintenance. The appliance is not working, all the buttons are flashing The networkcable plug is not plugged into the mains Check that the network cables of all the appliances are connected The circuit Look in the fuse box and breaker is faulty check that the circuit breakers for all the appliances are in working order

One of the com- Call the after-sales ponents in the service appliance has broken

After-sales service Our after-sales service is there for you if your appliance needs to be repaired. We will always find the right solution in order to avoid unnecessary visits from a service technician. When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate containing these numbers is found on the underside of the front of the appliance. To access this, open the door of the cupboard in which the appliance is fitted. You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required. E no. FD no. After-sales serviceO Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period. Please find the contact data of all countries in the enclosed customer service list. To book an engineer visit and product advice

Calls charged at local or mobile rate.

0.03 € per minute at peak.

Off peak 0.0088 € per minute.

Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by trained service technicians using original spare parts for your domestic appliance.
