Product type	Decorative range hood
Brand	FALMEC
Model	MARILYN
Usage	Extraction of cooking fumes and vapors in domestic environment
Installation	Ceiling mounting (suspension bracket)
Power supply	220-240 V ~ 50/60 Hz
Lighting	High efficiency LED spots (low consumption)
Number of speeds	4 speeds + intensive mode (temporary speed 4)
Control type	Rotary selector or electronic touch (depending on version)
Remote control	Yes, radio control 433.92 MHz (max range 5 m)
Timer function	Programmable automatic shut-off after 15 minutes
Filter maintenance alarm	Light reminder after 30 hours of use
Metallic anti-grease filters	Dishwasher safe (max 55°C) or hand washable
Combined charcoal-zeolite filters	Regenerable in oven at 200°C for 2 hours (every 18 months); replacement every 3 years
Minimum distance above cooking surface	65 cm (25.6 in); can be reduced according to mounting instructions
Electrical safety	Mandatory grounding; do not use if cable is damaged
Exterior material	Brushed stainless steel
Weight	See mounting instructions (not specified here)
Included accessories	Mounting kit, remote control, "Magic Steel" cleaning cloths
Additional information	Manual available in multiple languages; original spare parts

Frequently Asked Questions - MARILYN FALMEC

How to clean the metallic anti-grease filters?

The metallic filters should be washed regularly (at least once a month). Soak them in boiling water with dishwashing liquid for about an hour, then rinse and dry thoroughly. You can also wash them in the dishwasher at low temperature (max 55°C). Do not use corrosive or abrasive detergents.

How to regenerate or replace the charcoal-zeolite filters?

The combined charcoal-zeolite filters must be regenerated every 18 months by placing them in a domestic oven at 200°C for about 2 hours. Allow to cool before reassembling. Replace them completely every 3 years.

How to pair the remote control with the hood?

To pair the remote control, turn off and then restore power. On the hood's control panel, press the LIGHT (or TIMER depending on model) button for 2 seconds until the red LED lights up. Then press any button on the remote control within 10 seconds. The procedure is confirmed by a flashing.

What to do if the hood does not turn on or does not work?

First check the power supply: make sure the plug is connected and the circuit breaker has not tripped. If the power cord is damaged, do not use the appliance and contact an authorized service center. If the problem persists, call a qualified professional.

What is the minimum installation distance above a cooktop?

The minimum distance between the highest part of the cooking appliance and the lowest part of the hood is generally 65 cm (25.6 inches). For gas cooktops, respect this distance or the one indicated in the cooktop instructions if it is greater. In some cases, it can be reduced according to the mounting instructions.

How to reset the filter maintenance alarm?

When the filter alarm lights up (after about 30 hours of use), press the TIMER button (or the corresponding button) for 3-4 seconds to reset the counter. The alarm will turn off.

Can I use the hood without the metallic filters?

No, you must never use the hood without the metallic anti-grease filters. Without them, grease and dirt would enter the appliance, compromising its operation and increasing the risk of fire.

How to replace the LED bulbs?

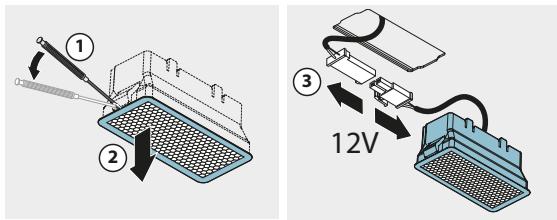

The hood is equipped with long-life LED spots. To replace them, proceed as indicated in the manual (figure). In case of failure, contact the dealer or an authorized service center for repair.

Can the hood be installed outdoors?

No, the hood must not be installed outdoors or exposed to atmospheric agents (rain, wind, etc.). It is designed only for indoor installation.

How to activate the Timer function?

Press the TIMER button (clock symbol) on the control panel or remote control. The hood will stop automatically after 15 minutes. The function is deactivated by pressing TIMER again or by turning off the motor.

USER MANUAL MARILYN FALMEC

EN - Support bracket.

A = Ceiling bracket fastening holes B = Support wire pass-through holes C = Closing cover fastening holes

Installation operations are to be carried out by skilled and qualified installers in accordance with the instructions in this booklet and in compliance with the regulations in force.

DO NOT use the hood if the power supply cable or other components are damaged: disconnect the hood from the electrical power supply and contact the Dealer or an authorised Servicing Dealer for repairs.

Do not modify the electrical, mechanical or functional structure of the equipment.

Do not personally try to carry out repairs or replacements. Interventions carried out by incompetent and unauthorised persons can cause serious damage to the unit or physical and personal harm, not covered by the Manufacturer's warranty.

WARNING FOR THE INSTALLER

TECHNICAL SAFETY

Before installing the hood, check the integrity and function of each part. Should anomalies be noted, do not proceed with installation and contact the Dealer.

Do NOT install the hood if an aesthetic (or cosmetic) defect has been detected. Put it back into its original package and contact the dealer.

No claim can be made for aesthetic (or cosmetic) defects once it has been installed.

During installation, always use personal protective equipment (e.g.: Safety shoes) and adopt prudent and proper conduct.

The installation kit (screws and plugs) supplied with the hood is only to be used on masonry walls: in case of installation on walls of a different material, assess other installation options keeping in mind the type of wall surface and the weight of the hood (indicated on page 2).

Keep in mind that installations with different types of fastening systems from those supplied, or which are not compliant, can cause electrical and mechanical seal danger.

Do not install the hood outdoors and do not expose it to atmospheric elements (rain, wind, etc.).

ELECTRICAL SAFETY

The electrical system to which the hood is to be connected must be in accordance with local standards and supplied with earthed connection in compliance with safety regulations in the country of use. It must also comply with European standards regarding radio antistatic properties.

Before installing the hood, check that the electrical mains power supply corresponds with what is reported on the identification plate located inside the hood.

The socket used to connect the installed equipment to the electrical power supply must be within reach: otherwise, install a mains switch to disconnect the hood when required.

Any changes to the electrical system must be carried out by a qualified electrician.

The maximum length of the flue fastening screws (supplied by the manufacturer) must be 13 mm. Use of non-compliant screws with these instructions can lead to danger of an electrical nature.

Do not try to solve the problem yourself in the event of equipment malfunction, but contact the Dealer or an authorised Servicing Department for repairs.

When installing the hood, disconnect the equipment by removing the plug or switching off the main switch.

FUMES DISCHARGE SAFETY

Do not connect the equipment to discharge pipes of fumes produced from combustion (for example boilers, fireplaces, etc.).

Before installing the hood, ensure that all standards in force regarding discharge of air out of the room have been complied with.

USER WARNINGS

These warnings have been drawn up for your personal safety and those of others. You are therefore kindly asked to read the booklet carefully in its entirety before using or cleaning the equipment.

The Manufacturer declines all responsibility for any damage caused directly, or indirectly, to persons, things and pets as a consequence of failing to comply with the safety warnings indicated in this booklet.

It is imperative that this instructions booklet is kept together with the equipment for any future consultation.

If the equipment is sold or transferred to another person, make sure that the booklet is also supplied so that the new user can be made aware of the hood's operation and relative warnings.

After the stainless steel hood has been installed, it will need to be cleaned to remove any residues remaining from the protection adhesive as well as any grease and oil stains which, if not removed, can cause irreversible damage to the hood surface. To properly clean the unit, the manufacturer recommends using the supplied moist wipes, which are also available sold separately.

Insist on original spare parts.

INTENDED USE

The equipment is solely intended to be used to extract fumes generated from cooking food in non-professional domestic kitchens: any other use is improper. Improper use can cause damage to persons, things, pets and exempts the Manufacturer from any liability.

The equipment can be used by children over the age of 8 and by persons with reduced physical, sensory and mental abilities, or with no experience or knowledge, as long as they do so under supervision or after having received relative instructions regarding safe use of the equipment and understanding of the dangers connected to it.

Children are not to play with the equipment. Cleaning and maintenance by the user must not be carried out by children without supervision.

USE AND CLEANING WARNINGS

Before cleaning or carrying out maintenance operations, disconnect the equipment by removing the plug or switching off the main switch.

Do not use the hood with wet hands or bare feet.

Always check that all electrical parts (lights, extractor fan) are off when the equipment is not being used.

The maximum overall weight of any objects placed or hung (if applicable) on the hood must not exceed 1.5 kg.

Always supervise the cooking process during the use of deep-fryers: Overheated oil can catch fire.

Do not leave open, unattended flames under the hood.

Do not prepare food over an open flame under the hood.

Never use the hood without the metal anti-grease filters: in this case, grease and dirt will deposit in the equipment and compromise its operation.

Accessible parts of the hood can be hot when used at the same time as the cooking appliances.

Do not carry out any cleaning operations when parts of the hood are still hot.

There can be a risk of fire if cleaning is not carried out according to the instructions and products indicated in this booklet.

Disconnect the main switch when the equipment is not used for long periods of time.

If other appliances that use gas or other fuels are being used at the same time (boiler, stove, fireplaces, etc.), make sure the room where the fumes are discharged is well-ventilated, in compliance with the local regulations.

INSTALLATION

only intended for qualified personnel

Before installing the hood, carefully read the chapter 'SAFETY INSTRUCTIONS AND WARNINGS'.

TECHNICAL FEATURES

The technical specifications are exhibited on the labels located inside the hood.

POSITIONING

The minimum distance between the highest part of the cooking equipment and the lowest part of the hood is indicated in the installation instructions.

Generally, when the hood is placed over gas cookers, the distance must be at least 65 cm (25.6"). However, according to an interpretation of standard EN60335-2-31 dated 11-07-2002 of TC61 (sub-clause 7.12.1 meeting 15 agenda item 10.11), the minimum distance between the cooker and lower part of the hood can be reduced to the quota reported in the installation instructions.

Should the instructions for the gas cooker specify a greater distance, this must be taken into consideration.

Do not install the hood outdoors and do not expose it to outdoor environment (rain, wind, etc.).

Disconnect the equipment from electrical mains power supply before carrying out any operations on the hood.

Ensure that the wires inside the hood are not disconnected or cut: in the event of damage, contact your nearest Servicing Department.

Refer to qualified personnel for electrical connections.

Connection must be carried out in compliance with the provisions of law in force.

Before connecting the hood to the electrical mains power supply, check that:

• voltage supply corresponds with what is reported on the data plate located inside the hood;
• the electrical system is compliant and can withstand the load (see the technical specifications located inside the hood);
• the power supply plug and cable do not come into contact with temperatures exceeding 70°C;
• the power supply system is effectively and properly connected to earth in compliance with regulations in force; the socket used to connect the hood is within reach.

In case of:

• devices fitted with cables without a plug: the type of plug to use is a "standardised" one. The wires must be connected as follows: yellow-green for earthing, blue for neutral and brown for the phase. The plug must be connected to an adequate safety socket.
• fixed equipment not provided with a power supply cable and plug, or any other device that ensures disconnection from the electrical mains, with an opening gap of the contacts that enables total disconnection in overvoltage category III conditions. Said disconnection devices must be provided in the mains power supply in compliance with installation regulations.

The yellow/green earth cable must not be cut off by the switch.

The Manufacturer declines all responsibility for failure to comply with the safety regulations.

FUMES DISCHARGE

HOOD WITH INTERNAL RECIRCULATION (FILTERING)

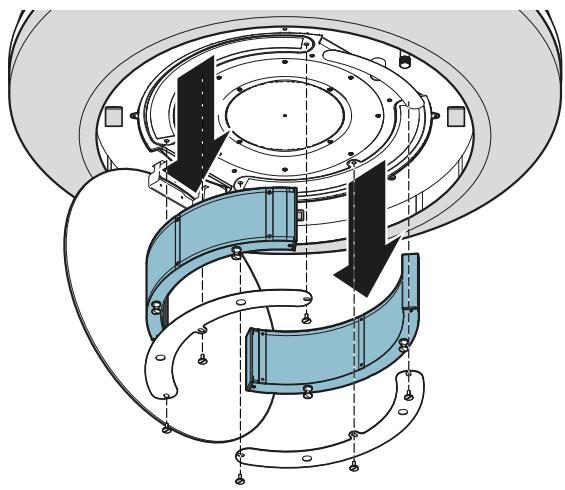

In this version, air passes through zeolite-carbon filters to be purified and recycled in the environment. Make sure the zeolite-carbon filters are installed in the hood, otherwise, install them as indicated in the assembly instructions.

ASSEMBLY INSTRUCTIONS

Only intended for qualified personnel.

The hood can be installed in various configurations.

The generic assembly steps apply to all installations; for each case, follow the specific steps provided for the required installation.

OPERATION

WHEN TO TURN ON THE HOOD?

Switch on the hood at least one minute before starting to cook to direct fumes and vapours towards the suction surface.

After cooking, leave the hood operating until complete extraction of all vapours and odours. By means of the Timer function, it is possible to set auto switch-off function which will allow the hood to turn off automatically after 15 minutes of operation.

WHICH SPEED IS TO BE SELECTED?

1st speed: maintains the circulation of clean air with low electricity consumption. 2nd speed: normal conditions of use. 3rd speed: presence of strong odours and vapours. 4th speed: rapid disposal of odours and vapours.

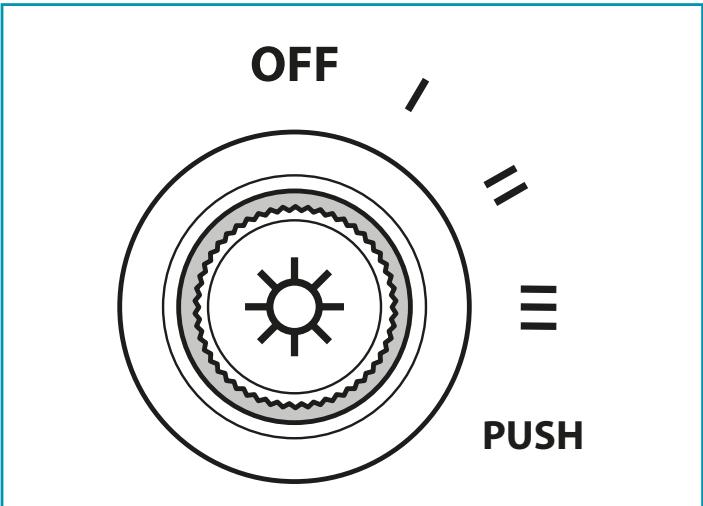

WHEN SHOULD THE FILTERS BE WASHED OR REPLACED?

The metal filters must be cleaned every 30 hours of operation.

The zeolite-carbon filters must be reactivated every 18 months and replaced every 3 years.

For further details see the "MAINTENANCE" chapter.

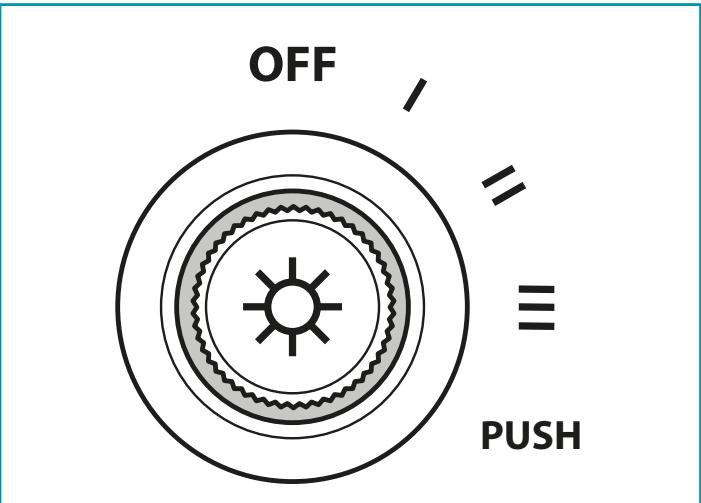

OFF	Motor OFF
I	speed 1 (green light)
II	speed 2 (blu light)
III	speed 3 (violet light)
PUSH	speed 4 (red light). It is activated by pressing the button for 2 seconds. After a few minutes it comes back ti speed 3.
	Pressing for a second: On / off light
	TIMER (can only be activated by remote control) (flashing) Auto switch-off after 15 min. The function deactivates (red LED off) if: The TIMER key is pressed again or motor OFF. FILTER ALARM (motor OFF) Anti-grease filter maintenance after approximately 30 hours of operation. Press for 4 seconds to reset.

ELECTRONIC PUSHBUTTON PANEL

(MATERIALIA - VETRA)

Motor ON/OFF Upon start-up, the speed is that stored at the previous operation.
Increase speed from 1 to 4 Speed 4 is only active for a few min-utes, then speed 3 activates.	The speeds are indicated by the LEDs on the keys: + + - Speed 1 + + - Speed 2 + + - Speed 3 + + - Speed 4 ("+" LED flashing)
Reduce speed from 4 to 1
Light on/off
TIMER (red LED flashing) Auto switch-off after 15 min. The function deactivates (red LED off) if: - The TIMER key (▲) is pressed again. - The ON/OFF key (▲) is pressed.
FILTER ALARM (red LED steady on with (▲) off) Anti-grease filter maintenance after approximately 30 hours of operation. Press (▲) the meter for 3 seconds to reset.

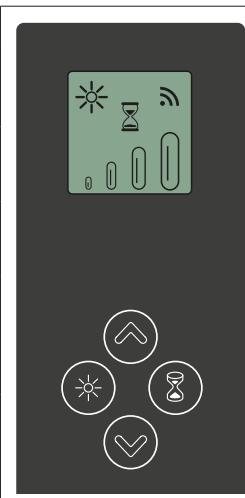

USING THE RADIO CONTROL

WARNING:

Place the hood away from sources of electromagnetic waves (e.g. microwave ovens), which could interfere with the radio control and with the hood

electronics.

The maximum operating distance is 5 metres, that may vary according to the presence of electromagnetic interferences.

Radio control operated at 433.92MHz.

The radio control consists of two parts:

• the receiver built into the hood;
• the transmitter shown here in the figure.

DESCRIPTION OF TRANSMITTING COMMANDS

UP Motor switch-on and speed increase from 1 to 4. Speed 4 is only active for a few minutes.

DOWN Speed decrease and motor switch-off.

Light ON-OFF

TIMER ON: The motor automatically switches off after 15 min.

The function is automatically disabled if the motor is switched off (key)

Command transmission active

ACTIVATION PROCEDURE (only for Vetra Wall)

Before using the radio control, follow the procedure below on the hood pushbutton panel.

Press LIGHT ( ) and TIMER ( ) simultaneously until all LEDs start flashing. - Release the two keys and press LIGHT ( ) again until all LEDs are lit up. - Release LIGHT: now the receiver is active.

This procedure is also used to deactivate the receiver.

RADIO CONTROL CODE CHANGE

With only one radio control, go directly to point 2.

With several radio controls in the same room, a new code can be created by following the procedure below.

Disconnect the power to the hood before starting the procedure.

1) - CREATE A NEW CODE

The procedure is to be carried out on the radio control.

Press LIGHT and TIMER simultaneously until the display starts flashing.

• Press DOWN on the radio control: saving is confirmed by three brief flashes of the display. The new code cancels and replaces the previous default code.

Reconnect the hood to the electrical power supply, making sure that the lights and motor are off.

2B) - ASSOCIATING THE RADIO CONTROL WITH THE HOOD USING THE ROTARY CONTROL

Press LIGHT on the hood pushbutton panel for 2 seconds: the red LED lights up. Press any key on the radio control within 10 seconds.

2A) - ASSOCIATING THE RADIO CONTROL WITH THE HOOD USING THE ELECTRONIC PUSHBUTTON PANEL

Press TIMER on the hood pushbutton panel for 2 seconds: the red LED lights up. Press any key on the radio control within 10 seconds.

RESTORING DEFAULT CODE

The procedure is to be carried out if the hood is disposed of, sold or transferred.

Disconnect the power to the hood before starting the procedure.

• Press UP and DOWN simultaneously on the radio control for more than 5 seconds: reset is confirmed by three brief flashes of the display.
• Reconnect the hood to the electrical power supply.
• Proceed with associating the hood and the radio control, as described in point 2.

MAINTENANCE

Before cleaning or carrying out maintenance operations, disconnect the equipment by removing the plug or switching off the main switch.

Do not use detergents containing abrasive, acidic or corrosive substances or abrasive cloths.

Regular maintenance guarantees proper operation and performance over time.

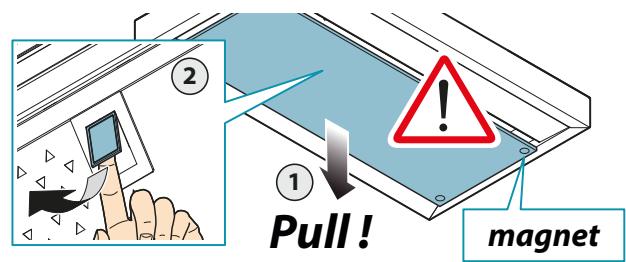

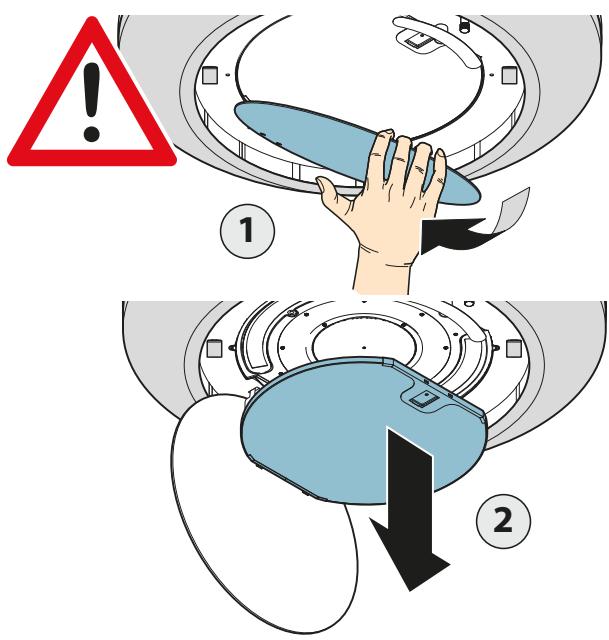

Special attention is to be paid to the metal anti-grease filters: frequent cleaning of the filters and their supports ensures that no flammable grease is accumulated.

CLEANING OF EXTERNAL SURFACES

You are advised to clean the external surfaces of the hood at least once every 15 days to prevent oily substances and grease from sticking to them.

Alternatively, and for all the other types of surfaces, it can be cleaned using a damp cloth, slightly moistened with mild, liquid detergent or denatured alcohol.

Finish off cleaning by rinsing well and drying with soft cloths.

Do not use too much water next to the push button control panel and lighting devices in order to prevent humidity from reaching electronic parts.

The glass panels can only be cleaned with specific, non-corrosive or non-abrasive detergents using a soft cloth.

The Manufacturer declines all responsibility for failure to comply with these instructions.

CLEANING OF INTERNAL SURFACES

It is forbidden to clean electrical parts, or parts related to the motor inside the hood, with liquids or solvents.

For the internal metal parts, see the previous paragraph.

METAL ANTI-GREASE FILTERS

It is advised to frequently wash the metal filters (at least once a month) leaving them to soak in boiling water and washing up liquid for 1 hour, taking care not to bend them.

Do not use corrosive, acid or alkaline detergents.

Rinse them well and wait for them to be completely dry before reassembling them. They are dishwasher safe.

To extract and insert the metal anti-grease filters see the picture.

ZEOLITE-CARBON FILTERS

Before performing maintenance on zeolite-carbon filters (FCZ), remove the lower dust filter (F) and vacuum any deposited dust with a vacuum cleaner.

In normal use conditions, we recommend regenerating the zeolite-carbon filter every 18 months and replacing it after 3 years. Simply place it in a domestic oven at

a temperature of 200°C for approximately 2 hours to regenerate it.

Wait until the filter cools before reassembling it.

LIGHTING (DAMA - LOOP - SOFFIO - SOPHIE - MATERIAL)

The range hood is equipped with high efficiency, low consumption LED spotlights with extremely long duration under normal use conditions.

Should the LED spotlight need to be replaced, proceed as shown in the figure.

LIGHTING (VETRA)

The range hood is equipped with high efficiency, low consumption LED lighting with extremely long duration under normal use conditions.

In case of failure, contact the Dealer or an authorised Servicing Department for repairs.

DISPOSAL AFTER END OF USEFUL LIFE

The crossed-out wheeled bin symbol on the appliance means that the product is WEEE, i.e. "Waste electrical and electronic equipment", accordingly it must not be disposed of with unsorted waste (i.e. with "mixed household waste"), but it must be disposed of separately so that it can undergo specific operations.

but it must be disposed of separately so that it can undergo specific operations for its re-use, or a specific treatment, to remove and safely dispose of any sub

stances that may be harmful to the environment and remove the raw materials that can be recycled. Proper disposal of these products contributes to saving valuable resources and avoid potential negative effects on personal health and the environment, which may be caused by inappropriate disposal of waste.

You are kindly asked to contact your local authorities for further information regarding the designated waste collection points nearest to you. Penalties for improper disposal of such waste can be applied in compliance with national regulations.

INFORMATION ON DISPOSAL IN EUROPEAN UNION COUNTRIES

The EU WEEE Directive was implemented differently in each country, accordingly, if you wish to dispose of this appliance we suggest contacting your local authorities or dealer to find out what the correct method of disposal is.

INFORMATION ON DISPOSAL IN NON-EUROPEAN UNION COUNTRIES

The crossed-out wheeled bin symbol is only valid in the European Union: if you wish to dispose of this appliance in other countries, we suggest contacting your local authorities or dealer to find out what the correct method of disposal is.

WARNING!

The Manufacturer reserves the right to make changes to the equipment at any time and without prior notice. Printing, translation and reproduction, even partial, of this manual are bound by the Manufacturer's authorisation.

Technical information, graphic representations and specifications in this manual are for information purposes and cannot be divulged.

This manual is written in Italian. The Manufacturer is not responsible for any transcription or translation errors.

SAFETY TECHNICS AND PRECAUTIONS

INSTALLATION MUST BE CARRIED OUT BY QUALIFIED AND EXPERIENCED INSTALLERS IN ACCORDANCE WITH THE INSTRUCTIONS IN THIS MANUAL AND APPLICABLE REGULATIONS.

IF THE POWER CORD IS DAMAGED, DO NOT USE THE APPLIANCE: DISCONNECT THE POWER CORD AND CONTACT THE MANUFACTURER OR ITS AUTHORIZED TECHNICAL SERVICE FOR REPAIR.

Do not make any electrical, mechanical, or functional changes to the device.

Do not attempt to replace parts or repair the device yourself. Work performed by unqualified or unauthorized personnel may cause damage, including serious injury or property damage, and may void the manufacturer's warranty.

SAFETY PRECAUTIONS FOR THE INSTALLER

SAFETY INSTRUCTIONS

Before starting the installation of the hood, it is necessary to verify the integrity and serviceability of all its parts. If any defects are found, do not proceed with the installation, but contact the distributor.

If external defects are found, do not install the hood; pack it in its original packaging and contact the distributor.

After installation is complete, no claims regarding external defects will be accepted.

During installation, always use personal protective equipment (e.g., protective footwear) and exercise caution and care.

The kit of fastening elements (screws, plugs) supplied with the hood can be used, except on glass surfaces. In case of installation on other materials, it is necessary to take into account other fastening systems, considering the type of wall and not using the plugs (see Fig. 2).

It should be noted that installation using fastening systems different from those supplied or not suitable for the intended purpose may lead to danger of an electrical or mechanical nature.

Do not install the hood outdoors or in places where it would be exposed to atmospheric agents (rain, wind, etc.).

ELECTRICAL SAFETY

The electrical system to which the hood is connected must comply with current standards and must be grounded in accordance with the requirements of the standards in force in the country of use; it must also comply with European standards for low-voltage devices.

Make sure that the voltage in the electrical network corresponds to that indicated on the rating plate located inside the hood.

The socket used for connection to the electrical power supply must be accessible after installation of the equipment. Otherwise, it is necessary to provide a disconnecting device in the electrical installation to allow disconnection of the hood in case of need.

Changes to the electrical system must only be made by a qualified electrician.

The maximum screw length for mounting (supplied with the device) is 13 mm. Using screws that do not comply with the instructions may lead to a dangerous electric shock.

In case of malfunction, do not attempt to repair it yourself. Contact the distributor or an authorized service center for technical support and repair.

During installation of the hood, disconnect the device from the power outlet or use the main switch.

SAFETY OF EXHAUST GASES

Do not connect the appliance to exhaust ducts for gases produced by combustion (from boilers, fireplaces, etc.).

Before installing the hood, ensure that all requirements of the applicable standards for air exhaust outside the room are met.

PRECAUTIONS FOR THE USER

These precautions are provided for your safety and for the safety of others. Please read them carefully.

The manufacturer assumes no responsibility for direct or indirect damage to persons, property, or pets caused by failure to follow the instructions in this manual.

It is important that this manual with instructions is kept with the equipment for future reference.

In case of sale or transfer of the appliance, make sure that the manual is also handed over so that the new user can familiarize themselves with the operation of the hood and the relevant precautions.

After installing the hood, it is necessary to remove any residues of adhesive or protective film from possible surfaces. If they are not removed, they may permanently damage the surface of the hood. For cleaning, it is recommended to use a soft cloth and mild detergent, which are also available in the store.

Use only original spare parts.

INTENDED USE

This appliance is intended exclusively for extracting fumes and vapors generated during cooking in domestic conditions, in a domestic environment. Any other use, different from this, is considered improper and may cause harm to people, property, and domestic animals. The manufacturer declines all responsibility for improper use.

The appliance may be used by children aged 8 years and above, and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, provided they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.

SAFETY PRECAUTIONS FOR USE AND MAINTENANCE

Before performing any operation on the appliance for cleaning or maintenance, disconnect it from the electrical power supply by unplugging it or switching off the circuit breaker.

Do not touch the hood with wet hands and do not use it without the filter.

When the appliance is not in use, always check that all electrical components (light, motor) are switched off.

The total weight of items placed on or hung from the hood (where provided) must not exceed 1.5 kg.

Watch the filters during use: hot oil may catch fire.

Do not leave open flames under the hood.

Do not cook food over an open flame under the hood.

Never use the hood without metallic anti-grease filters; in that case, grease deposits will accumulate in the appliance, negatively affecting its operation.

The accessible parts of the hood may become hot when used with cooking appliances.

Do not touch the hood when its parts are still hot.

If cleaning is not carried out according to the methods and with the products indicated in these instructions, there is a risk of fire.

If the appliance is not used for an extended period of time, it is necessary to turn off the main switch.

In the case of simultaneous use of other devices (boilers, stoves, fireplaces, etc.) operating on gas or other fuel, provide appropriate ventilation of the room where the removal of smoke is carried out, in accordance with applicable regulatory requirements.

INSTALLATION

section intended only for qualified personnel

Before proceeding with the installation of the hood, carefully read the section "SAFETY TECHNIQUES AND PRECAUTIONARY MEASURES".

TECHNICAL CHARACTERISTICS

The technical data of the appliance are given on the labels located inside the hood.

POSITIONING

The minimum distance between the highest part of the appliance and the cooking surface must be as indicated in the installation instructions.

Usually, when the kitchen hood is installed above a gas cooking surface, this distance must be at least 65 cm (25.6") unless, based on the interpretation of standard EN60335-2-3011-07-2002 by TC61 (paragraph 7.12.1, note 15, table 10.11), the minimum distance between the cooking surface and the lower part of the hood can be reduced to the mark indicated in the installation instructions.

If the gas appliance manual specifies a greater distance, this must be taken into account. Do not install the hood outdoors or in places where it is exposed to atmospheric agents (rain, wind, etc.).

ELECTRICAL CONNECTION

(section intended only for qualified personnel)

Before performing any operations on the hood, disconnect the appliance from the electrical supply.

Check that inside the hood there are no detached or torn wires:

In any case, contact the technical support service.

The electrical connection must be carried out by qualified personnel.

The connection must be carried out in compliance with the requirements of current legislation.

Before connecting the hood to the electrical network, check that:

The voltage in the electrical network corresponds to that indicated on the factory plate, which is located inside the hood; the electrical system complies with current standards and can withstand the load (see technical characteristics inside the hood); the plug and cable of the electrical supply must not come into contact with temperatures above 70°C; the electrical system is equipped with proper grounding in accordance with current standards; the socket used for connection is accessible after installation of the hood.

In case:

The plug with cable must be of the "normalized" type without using adapters. The wires must be connected in the following way: phase-phase, neutral-neutral, and ground-ground. The plug must be connected to a suitable socket. The fixed connection of the hood cable and the device must be made with a device that ensures disconnection from the network with a contact opening of at least 3 mm in all poles.

These disconnection devices must be provided in the electrical system in accordance with installation standards.

The yellow-green ground wire must not be interrupted by the switch.

The manufacturer is not responsible in case of non-compliance with safety rules.

Exhaust outlet

Hood with internal recirculation (filtering)

In this version, the air passes through charcoal filters and is returned to the room. Check that the charcoal filters are installed in the hood, otherwise install them as indicated in the installation instructions.

Installation instructions

This section is intended only for qualified personnel.

It can be installed in various configurations.

General installation instructions are valid for all types of installations; it is also necessary to follow the separately indicated stages corresponding to each type of installation.

FUNCTIONING

WHEN TO TURN ON THE EXTRACTOR?

Turn on the extractor 5 minutes before starting to cook or to treat the air flow for directing fumes and vapors away from the cooking surface. After finishing cooking, leave the extractor running until all vapors and odors are removed. Using the timer function, you can set the automatic shutdown of the extractor after 15 minutes of operation.

WHICH SPEED TO CHOOSE?

Speed 1: maintains clean air with low energy consumption. Speed 2: normal working conditions. Speed 3: strong odors or large amounts of vapors. Speed 4: rapid removal of odors and vapors.

WHEN TO WASH OR REPLACE THE FILTERS?

Metal filters must be washed every 30 hours of operation.

Charcoal filters must be regenerated every 18 months and replaced every 3 years.

Additional information is provided in "MAINTENANCE".

SELECTOR ROTATIONS - COMMANDS

(DAMA - LOOP - SOFFIO - SOPHIE)

LIGHTING ON/OFF

TIMER ACTIVATION: the motor auto-

The device turns off after 15 minutes

The function deactivates automatically

Turning off the engine (key)

ACTIVE STATE OF THE SIGNAL TRANSMISSION SYSTEM

SIGNALS

ACTIVATION PROCEDURE (only for VETRA Wall)

Before using the remote control, perform the following operations on the control panel of the extractor:

• Simultaneously press the LIGHT ( ) and TIMER ( ) keys until all the LEDs start flashing.
• Release both keys, then press the LIGHT ( ) key again until all the LEDs turn off. Release the LIGHT ( ) key. The activation signal is now sent. A similar procedure is performed to deactivate the signal reception.

INSTRUCTIONS FOR CHANGING THE REMOTE CONTROL CODE

If there is only one remote control, go to point 2.

If there are multiple remote controls in the same room, follow the instructions below to generate an additional code.

Before performing the procedure, disconnect the power supply to the extractor.

1) - GENERATING A NEW CODE

All operations are performed using the remote control.

• Press the OCEUHEINE (lighting) and TAYMEP (timer) buttons simultaneously for no more than 1 second, until the display starts blinking.

Press the STREKA VNIZ (down arrow) button on the remote control: to save the new code in memory, the display confirms with a quick 3-time blinking. The new code cancels and replaces the factory code.

Reconnect the extractor to the electrical supply, making sure that the lighting and motor are switched off.

2) - CONNECTION OF THE REMOTE CONTROL BOARD WITH THE EXTRACTOR

SWIVEL DRIVE

Press the OCEUHEINE (lighting) button on the extractor control panel for 2 seconds: the red LED lights up.

Within 10 seconds, press any button on the remote control.

2A) - CONNECTION OF THE REMOTE CONTROL UNIT WITH THE EXTRACTOR WITH ELECTRONIC CONTROL PANEL

Press the TAYMER (timer) button on the extractor panel for 2 seconds: the red LED lights up.

Within 10 seconds, press any button on the remote control.

RESTORING THE FACTORY CODE

This procedure must be performed in case of transferring the extractor to another owner.

Before performing the procedure, disconnect the electrical supply to the extractor.

Simultaneously press the UP and DOWN arrow buttons on the remote control for 5 seconds. The restoration of the factory code is confirmed by a rapid intermittent blinking of the display. - RECONNECT the extractor to the electrical supply. Then perform the procedure for establishing the connection between the remote control unit and the extractor, described in point 2.

MAINTENANCE

Before performing any operation on the cooker hood, disconnect it from the power supply by unplugging it or using the main switch.

Do not use cleaning agents containing abrasive, acidic, or corrosive substances, nor cloths with rough surfaces.

Regular maintenance ensures proper functioning and efficiency.

Special attention should be paid to the metal grease filters.

Because regular cleaning of the filters guarantees the absence of easily flammable grease deposits.

Cleaning of external surfaces

It is recommended to clean the external surface of the hood at least every 15 days to avoid damage from greasy or oily substances. For cleaning the hood or stainless steel parts, it is recommended to use the "Magic Steel" spray.

As an alternative, and for all other surfaces of the hood, a damp cloth moistened with neutral liquid detergent or denatured alcohol can be used.

Finish the cleaning with a careful dry wipe using a soft cloth.

Do not use too much water near the electronic controls and lighting to avoid moisture getting into the electrical parts.

Cleaning of glass panels is carried out only with special non-corrosive or non-abrasive cleaning agents and a soft cloth.

The manufacturer is not responsible for failure to follow these instructions.

Cleaning of internal surfaces

It is forbidden to clean electrical components or parts of the motor inside the hood with liquids or solvents.

Cleaning of internal metal parts is described in the previous paragraph.

METAL MESH FILTERS

It is recommended to wash metal mesh filters frequently (at least once a month) by soaking them in hot water with a mild detergent for about 1 hour, being careful not to bend the filters.

Do not use corrosive, acidic, or alkaline cleaning agents.

Rinse thoroughly and let them dry completely before reinstalling them.

It is also possible to wash the filters in a dishwasher, but this may cause the filter material to darken. To reduce this effect, use gentle programs with low temperature (maximum 55°C).

Removal and installation of metal mesh filters are described in the installation instructions.

CHARCOAL FILTERS

Under normal operating conditions, it is recommended to regenerate the charcoal filter every 3 months. For regeneration, place it in a conventional oven at 200°C for about 2 hours.

Before installing the filter, make sure it is cool.

LIGHTING

(DAMA-LOOP-SOFFFIO-SOPHIE-MATERIALIA)

The hood is equipped with high-efficiency, low-energy LED lighting with a long service life under normal operating conditions.

If it is necessary to replace the light bulb, proceed as shown in the figure.

LIGHTING (VETRA)

The hood is equipped with LED lighting with high efficiency, low energy consumption, and a long service life under normal operating conditions.

Before performing any maintenance, it is necessary to contact an authorized service center.

DISPOSAL OF END OF SERVICE LIFE

The crossed-out wheeled bin symbol on the product means that the product belongs to the category of electrical and electronic equipment, and therefore it must not be disposed of together with

unsorted household waste (i.e., together with "household waste"),

but must be handed in separately, so that the necessary recycling or special treatment can be carried out in safe conditions for the disposal of possible hazardous materials for the environment and health, which can be reused. Correct disposal of this product will help save natural resources and prevent potential negative effects on human health and the environment, which may result from incorrect disposal.

For more detailed information on the collection and disposal of this product, please contact your local waste disposal service or the shop where you purchased the product. Penalties may be applied in case of incorrect disposal of this waste, in accordance with national legislation.

DISPOSAL INFORMATION IN THE COUNTRIES OF THE EUROPEAN UNION.

EXHAUST DUCTING SAFETY

SAFETY INSTRUCTIONS AND WARNINGS

2) - REMOTE CONTROL ASSOCIATION TO THE HOOD

WITH ROTARY CONTROL

Press the TIMER key on the hood control panel for 2 seconds:

2A) REMOTE CONTROL ASSOCIATION TO THE HOOD

WITH TOUCH CONTROL

of the hood control panel for 2 seconds:

HOOD WITH INTERNAL RECIRCULATION (FILTERING)

TECHNICAL SPECIFICATIONS
