USER MANUAL T252-S AUDIO DESIGN

CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

PRACTICE SAFE SOUND™

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound.

CARTON CONTENTS

(1) Set T2 Series Speakers with Tweeters and 2-Way Crossover or (1) Set T2 Series Tweeters with HP Crossover
(1) Set of grilles/trim rings
(2) Sets of tweeteter trim rings:

(1 set of polished aluminum)

(1 set of brushed aluminum)

• Tweeter Mounting Hardware with Surface, Angle, and Flush Mounts
  (1) Set Adapter Plates: T252-S (5"×7"/'6"×9"), T2652-S (5"×7"/'6"×9")

INSTALLATION CONSIDERATIONS

Before beginning any installation, follow these simple rules:

I. Be sure to carefully read and understand the instructions before attempting to install these speakers.
2. For safety, disconnect the negative lead from the battery prior to beginning the installation.
3. For easier assembly, we suggest you run all wires prior to mounting your speakers in place.
4. Use high quality connectors for a reliable installation and to minimize signal or power loss.
5. Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle. If installation in a boat, take care not to cut or drill through the main hull.
6. Never run wires underneath the vehicle. Running the wires inside the vehicle or hull area provides the best protection.
7. Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect any wires routed through metal, especially the firewall.

MOUNTING

1. Determine where the speakers will be mounted. Ensure an area large enough for the speaker to mount evenly. Be sure that the mounting location is deep enough for the speaker to fit; if mounting in a door, operate all functions (windows, locks, etc.) through their entire operating range to ensure there is no obstruction.
2. Refer to the specification chart to determine the proper diameter hole to cut for your speaker model. The template provided also gives the proper cutout size.
3. Mark the locations for the mounting screws. Drill the holes with a 1/8 bit.
4. Feed the speaker wires through the cutout and connect to the speaker terminals. Be sure to observe proper polarity when connecting the wires. The speaker's positive terminal is indicated with a "+"

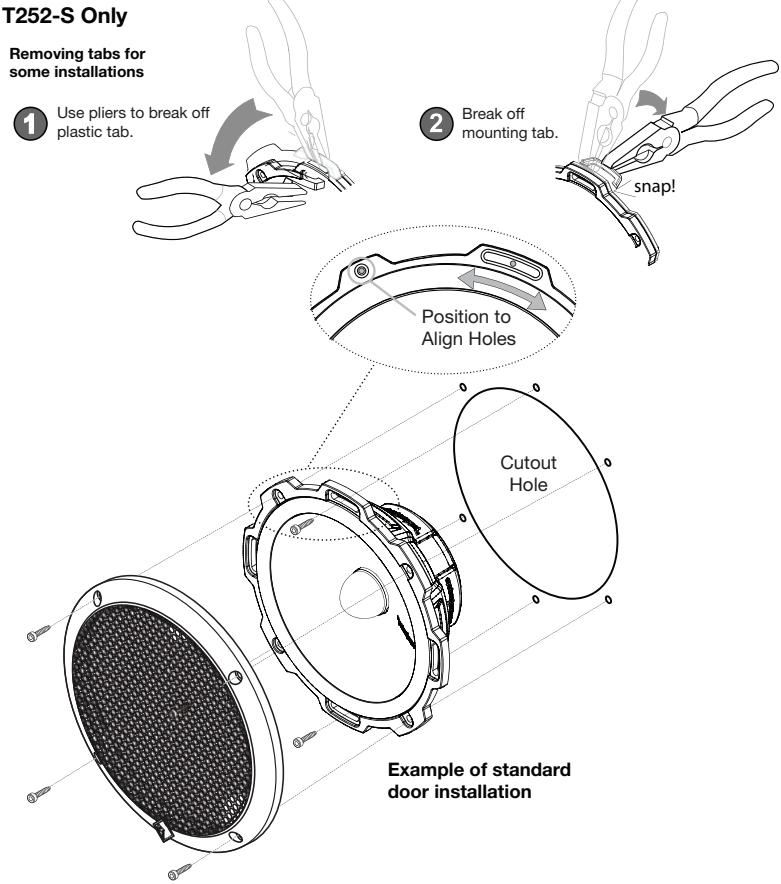

5. On models with slotted holes, fit the speaker into the cutout and install the screws in the slots at the top and bottom. This will allow you to rotate the speaker to match the remaining mounting holes. When aligned, tighten the screws.
6. Tighten the screws until the speaker is snug in place to prevent rattling. Do not over tighten the screws.

NOTE: If needed, use the adapter plate provided to mount the speaker. See Adapter Plate Templates at the end of this manual.

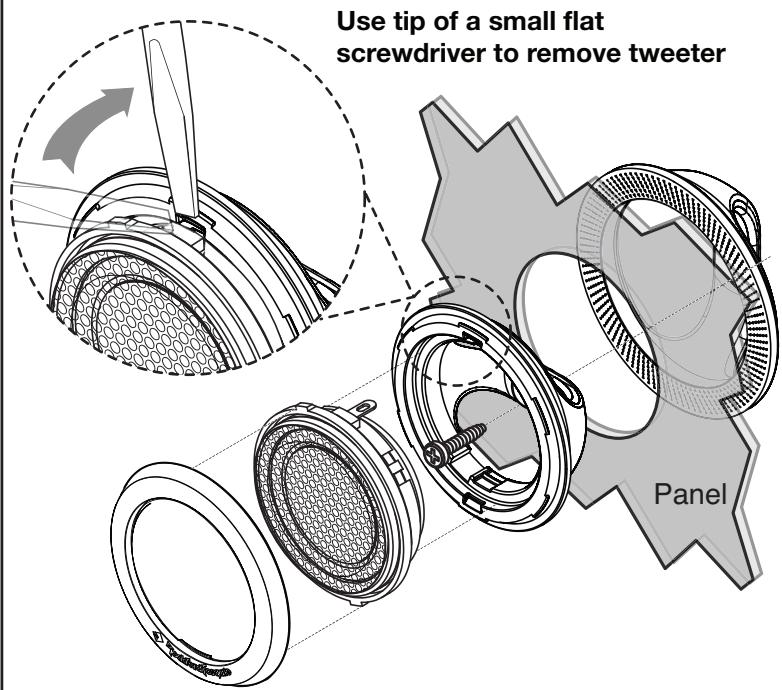

Example of Discreet Dual Clamp (DDC™) Tweeter Mounting (Flush Mount)

FEATURES

Discreet Dual Clamp (DDC™) Tweeter Mount

Every aspect of the new Tweeter design has been completely re-engineered to allow for maximum ease of installation and fitment. This optimized patent pending design provides concentric clamping pressure around the perimeter of the mounting hole.

The "mounting cups" are in fact not "cups" at all, but rather unobtrusive "clamps" that quickly and easily mount in a standard 1.75 inch (45mm) hole saw opening with a single center screw securing with balanced pressure to both faces of the mounting surface. From there, the tweeter simply snaps into place and is secured by a snap-on trim ring. Removal is easy if needed. The protective grille on the tweeter is non-removable and an integral part of the design.

WIRING

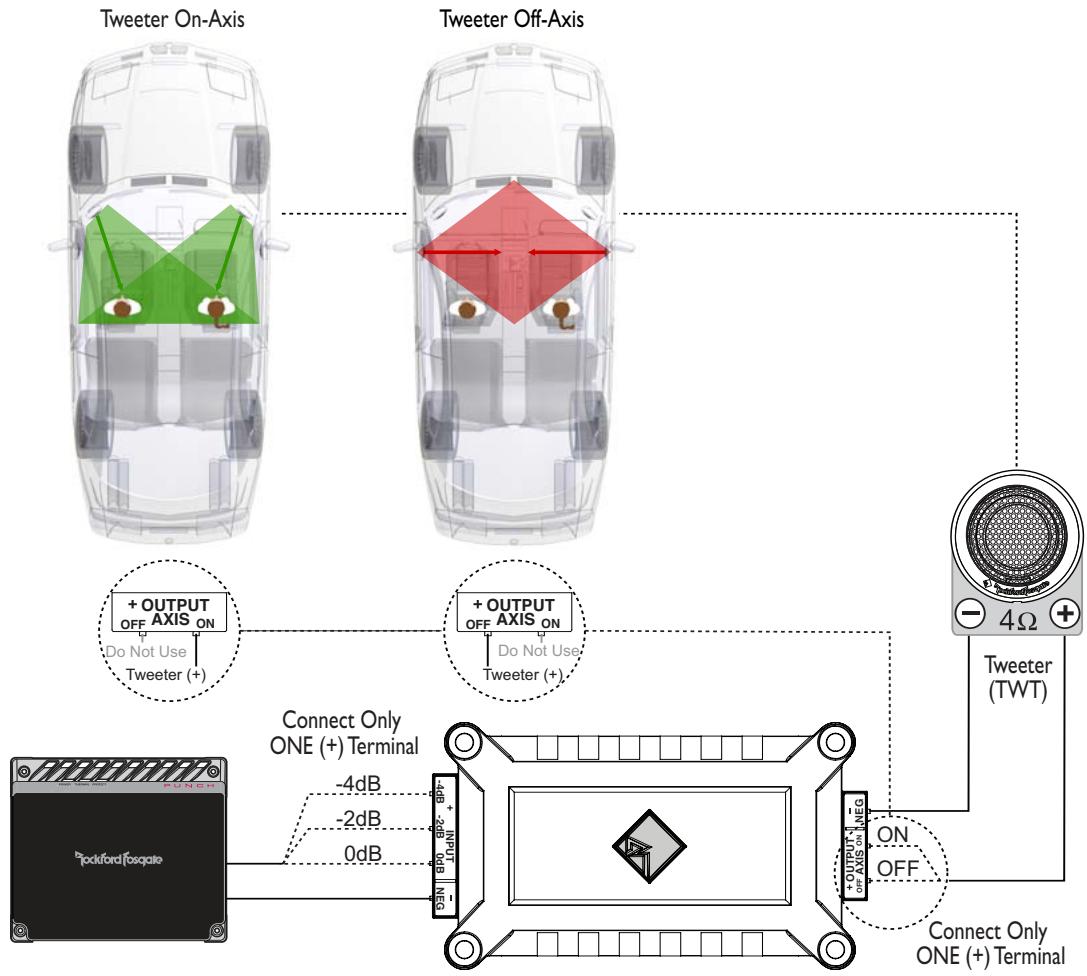

T2T-S Crossover Wiring

I. Use illustration for proper connection.
2. Be sure to maintain speaker polarity.
3. Connecting the positive wire to 0dB matches the amplitude of the tweeter to the mid-range (woofer).
4. Connecting positive wire to -2dB or -4dB to reduce the amplitude of the tweeter -2dB or -4dB lower than the mid-range, (ideal for tweeters located high in door panels and mid-range low in the kick panel).

SPECIFICATIONS

T2 Components	T252-S	T2652-S	T2T-S
Nominal Diameter - inch (mm)	5.25 (133)	6.5 (165)	1.0 (25.4)
Description	Component System	Component System	Tweeter System
Nominal Impedance (ohms)	4Ω	4Ω	4Ω
Frequency Response (Hz)	65Hz - 20kHz	55Hz - 22kHz	3kHz - 22kHz
Crossover Frequency (Hz)	3.5kHz	3kHz	3kHz
High-Pass Butterworth Crossover	18dB/octave	18dB/octave	18dB/octave
Low Pass Butterworth Crossover	12dB/octave	12dB/octave	-
Voice Coil Diameter - inch (mm)	1.1 (28)	1.2 (31)	1.0 (25.4)
Fs - Free Air Resonance (Hz)	65	55	1.8kHz
Qts	0.60	0.50	-
Vas - cu. ft. (Liter)	0.34 (9.6)	0.56 (16)	-
Xmax - inch (mm)	0.16 (4.0)	0.24 (6.0)	-
SPL (dB @ 1w/1m)	87 dB	89 dB	90 dB
Power Handling-Watts (RMS / Peak)	75 / 150	100 / 200	75 / 150
Rec. Amp Power-Watts (RMS)	22.5W ~ 75W	30W ~ 100W	22.5W ~ 75W

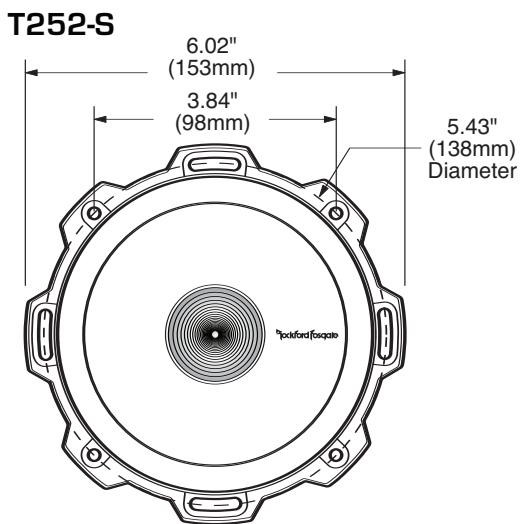

Mounting Diameter-inch (mm)	4.80 (122)	5.59 (142)	1.75 (45) (Flush Mount)

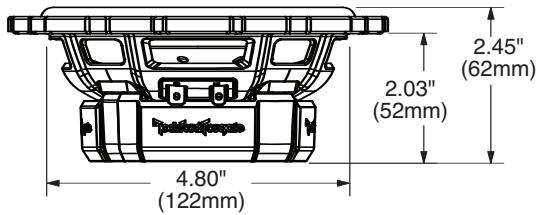

Mounting Depth-inch (mm)	2.03 (52)	2.51 (64)	0.95 (24) (Flush Mount)
Includes Grille/Trim Ring	YES	YES	YES

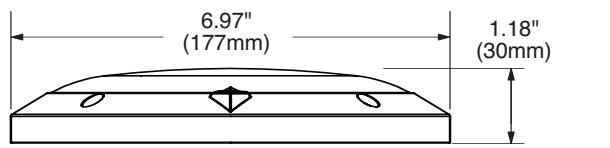

Trim Ring Diameter-inch (mm)	6.22 (158)	6.949 (177)	2.13 (54)

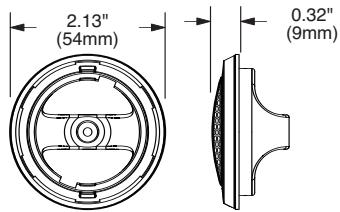

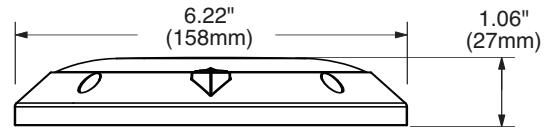

Trim Ring Height-inch (mm)	1.06 (27)	1.18 (30)	0.31 (8)
Includes Adapter Plate	5"x7"/6"x9"	5"x7"/6"x9"	NO

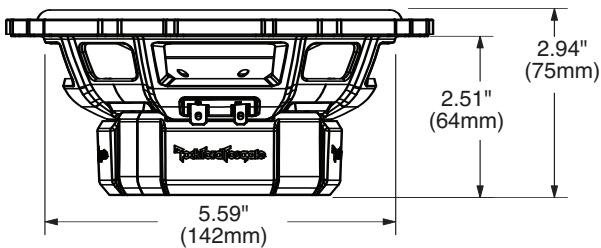

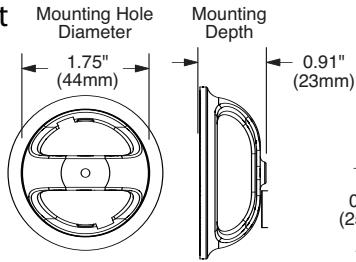

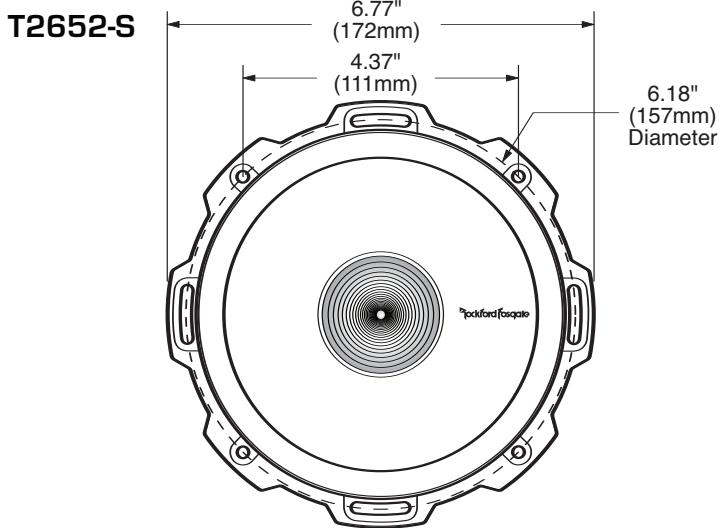

See figures on following pages.
Specifications subject to change without notice.

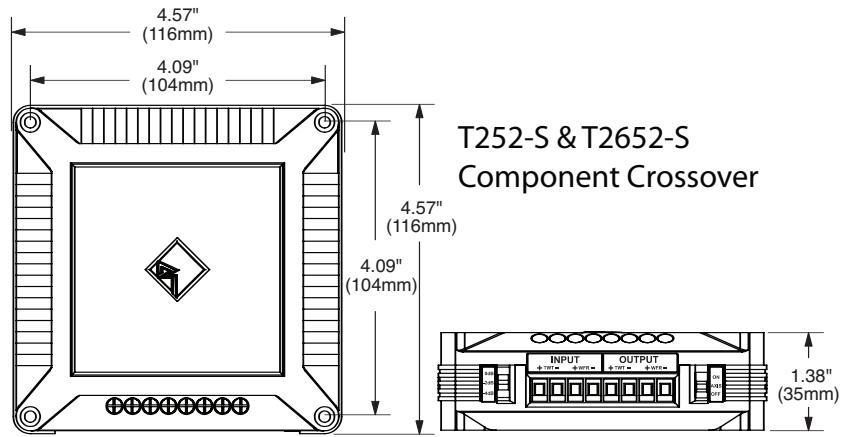

T252-S & T2652-S Component Wiring

I. Use illustration for proper connection.
2. Be sure to maintain speaker polarity.

Axis ON-OFF Switch

I. Set to ON or OFF to match position of tweeter relative to listener. Default OFF position satisfies most installations.

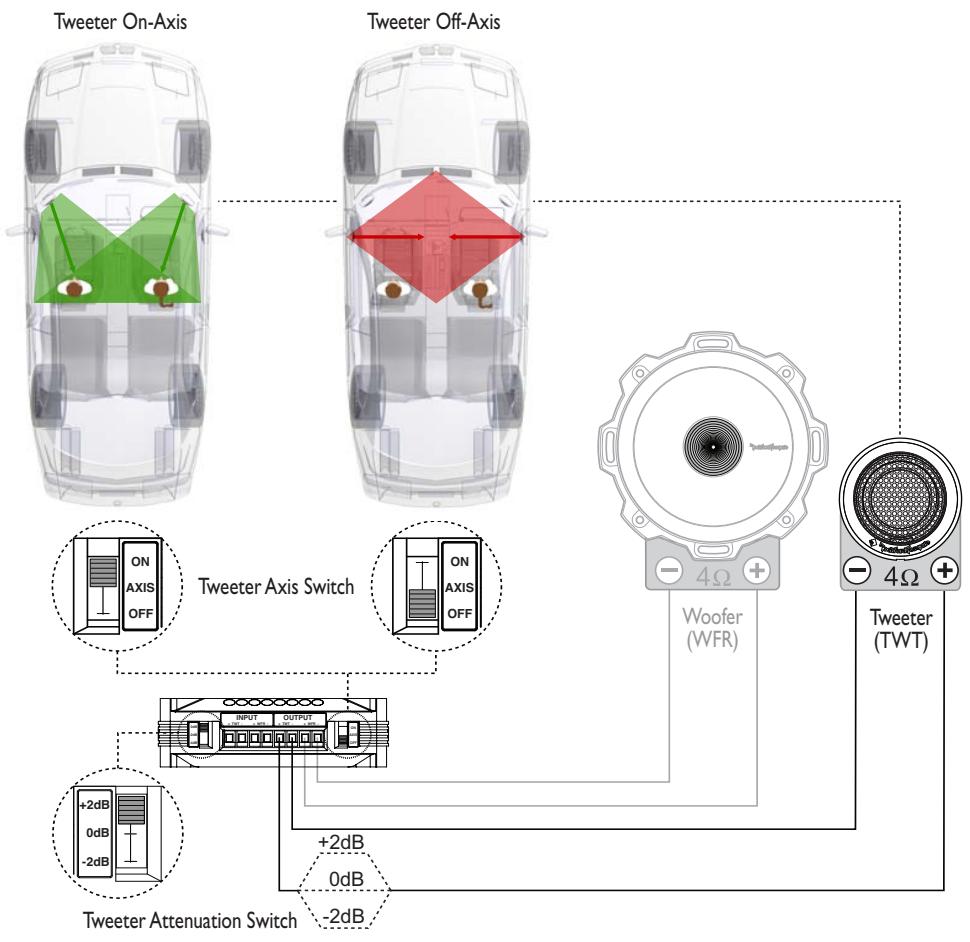

dB Switch

I. 0dB matches the amplitude (no increase/no attenuation) of the tweeter to the same level as the mid-range (woofer).
2. +2dB increases and -2dB reduces the amplitude of tweeter in relation to the mid-range, (ideal when matching offset installation like tweeters located high in door panels and midranges low in kick panels).

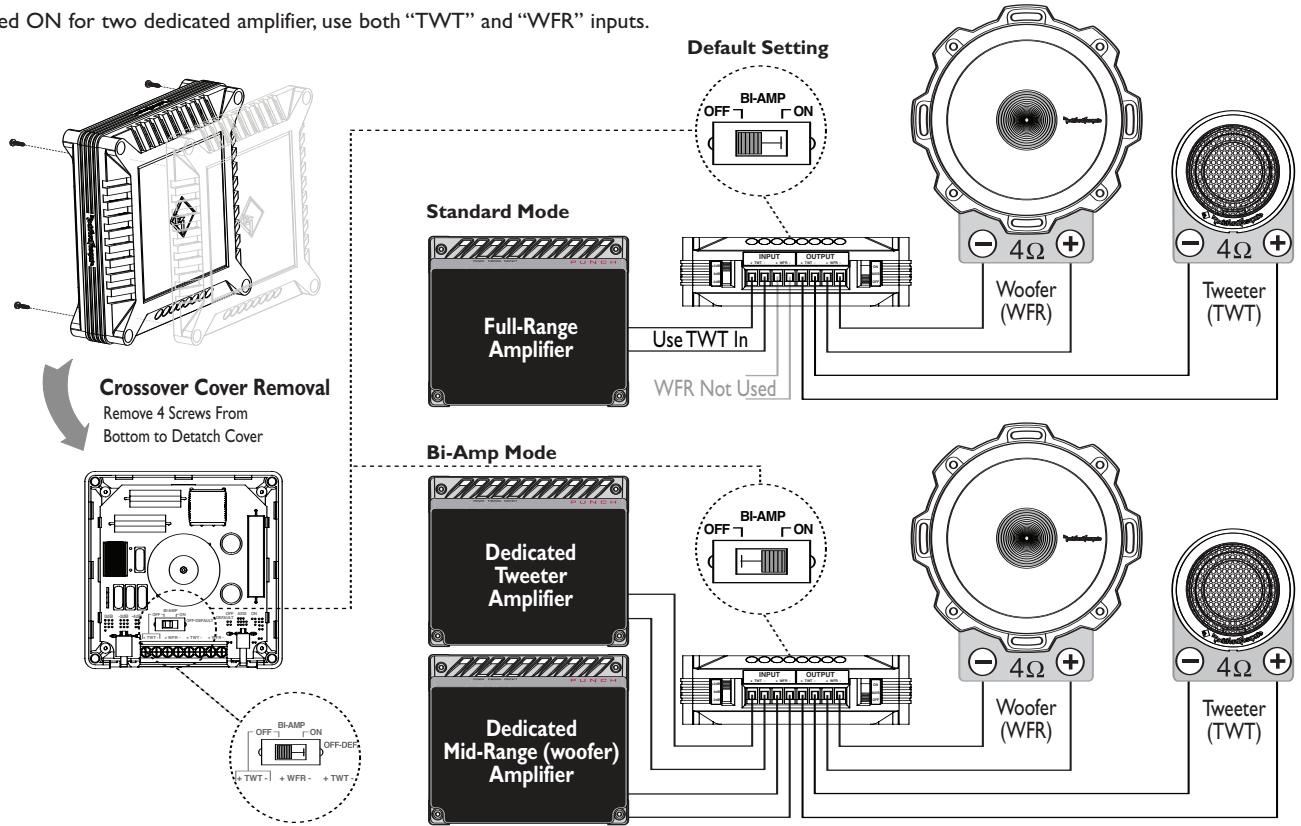

T252-S & T2652-S Bi-Amp Cosover Wiring

I. Use illustration for proper connection and be sure to maintain speaker polarity.
2. Remove 4 screws from crossover bottom to detatch cover.
3. When BI-AMP switched OFF for one amplifier, use only "TWT" input.
4. When Bl-AMP switched ON for two dedicated amplifier, use both "TWT" and "WFR" inputs.

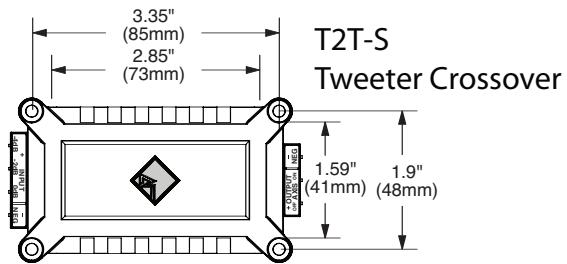

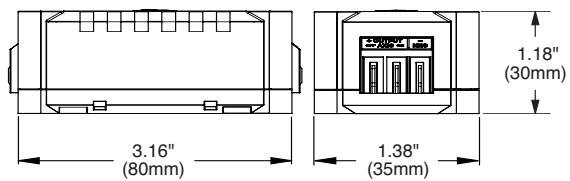

SPECIFICATIONS

Tweeter

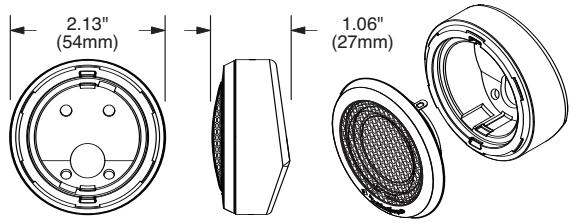

Surface Mount

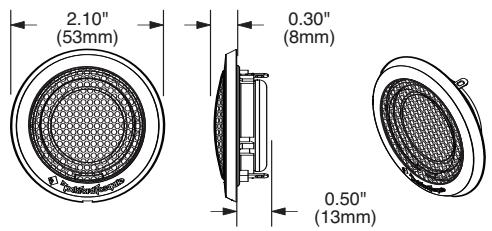

Flush Mount

Français

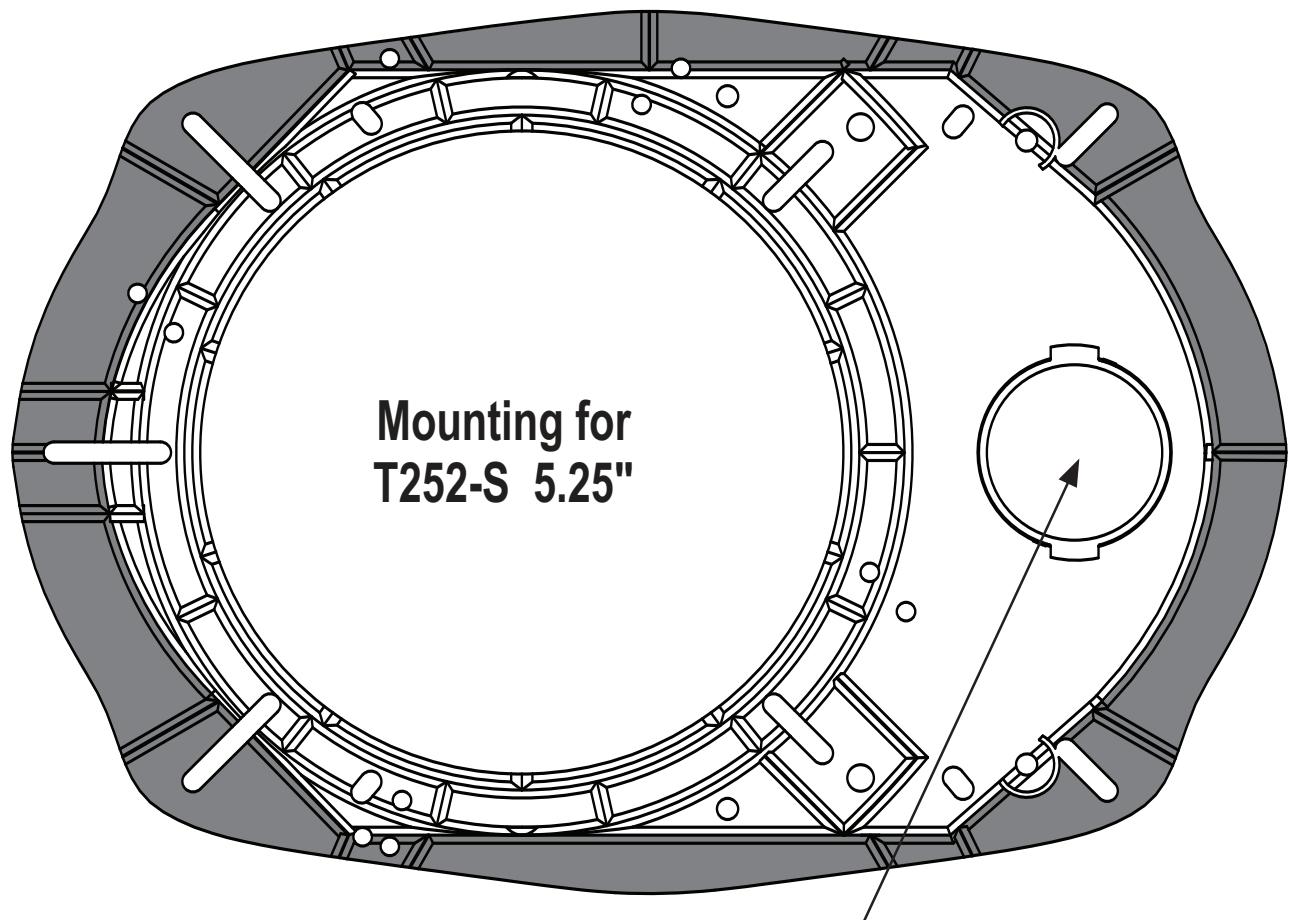

For 5"x7" Hole Mounting - Remove Dark Shaded Areas

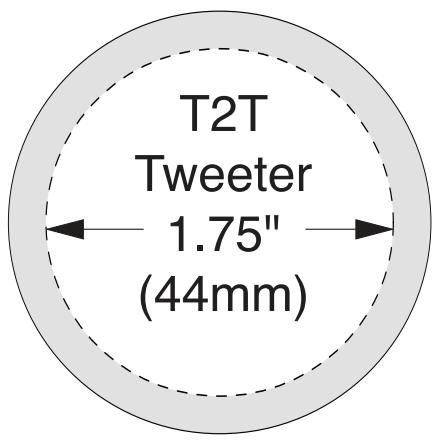

Remove For Tweeter

T252-S

Component System

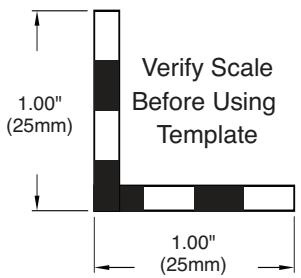

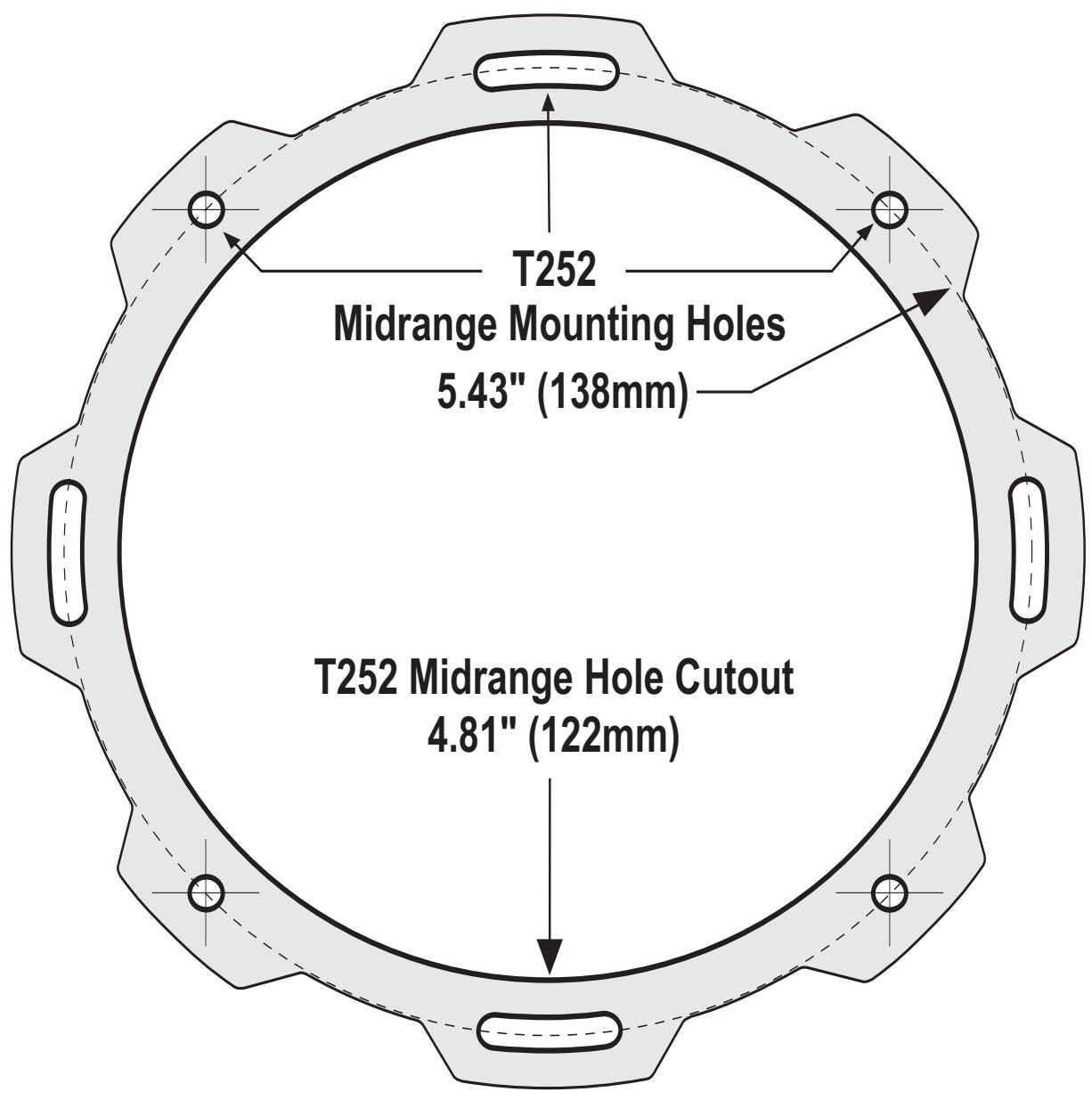

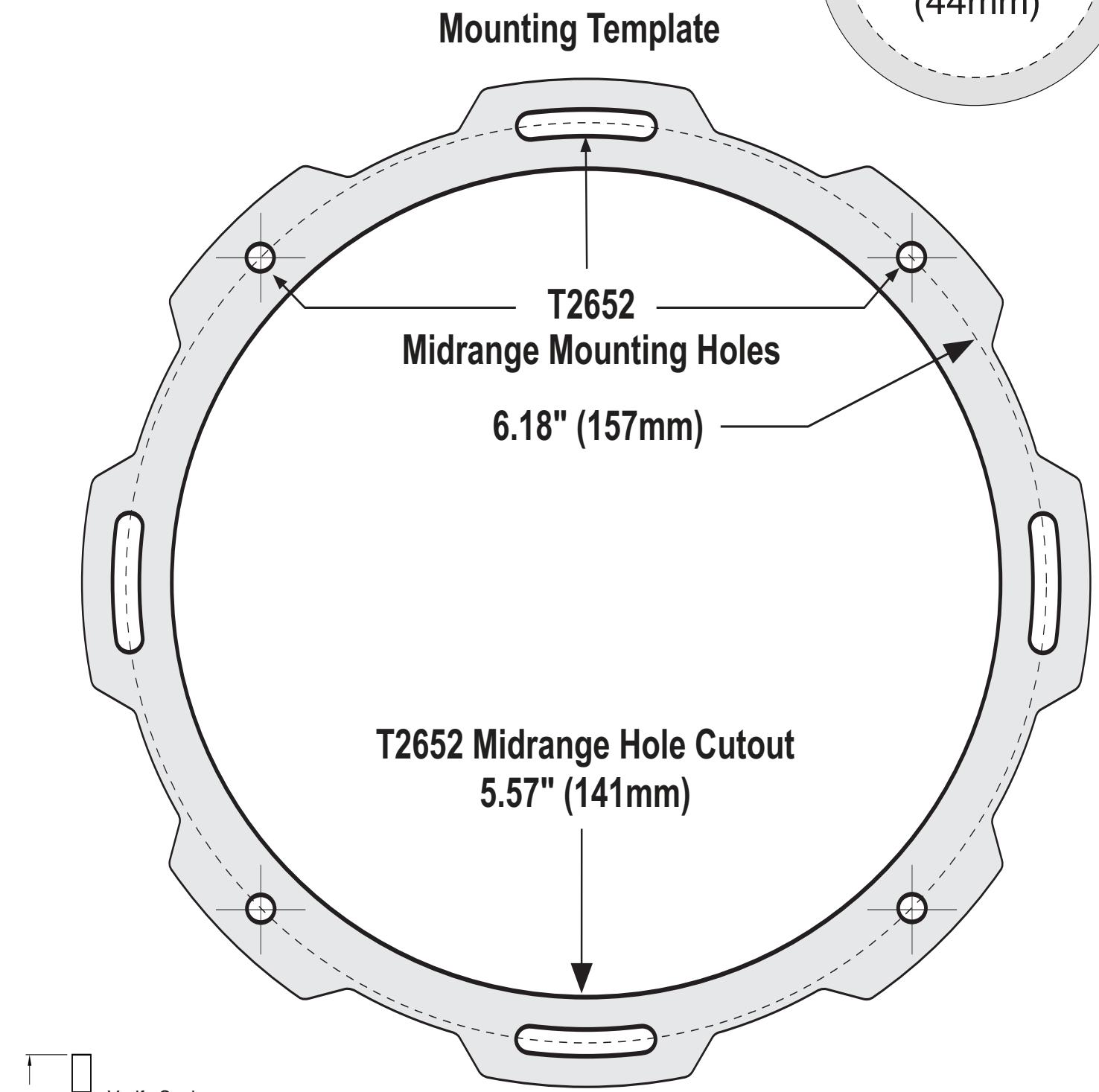

Mounting Template

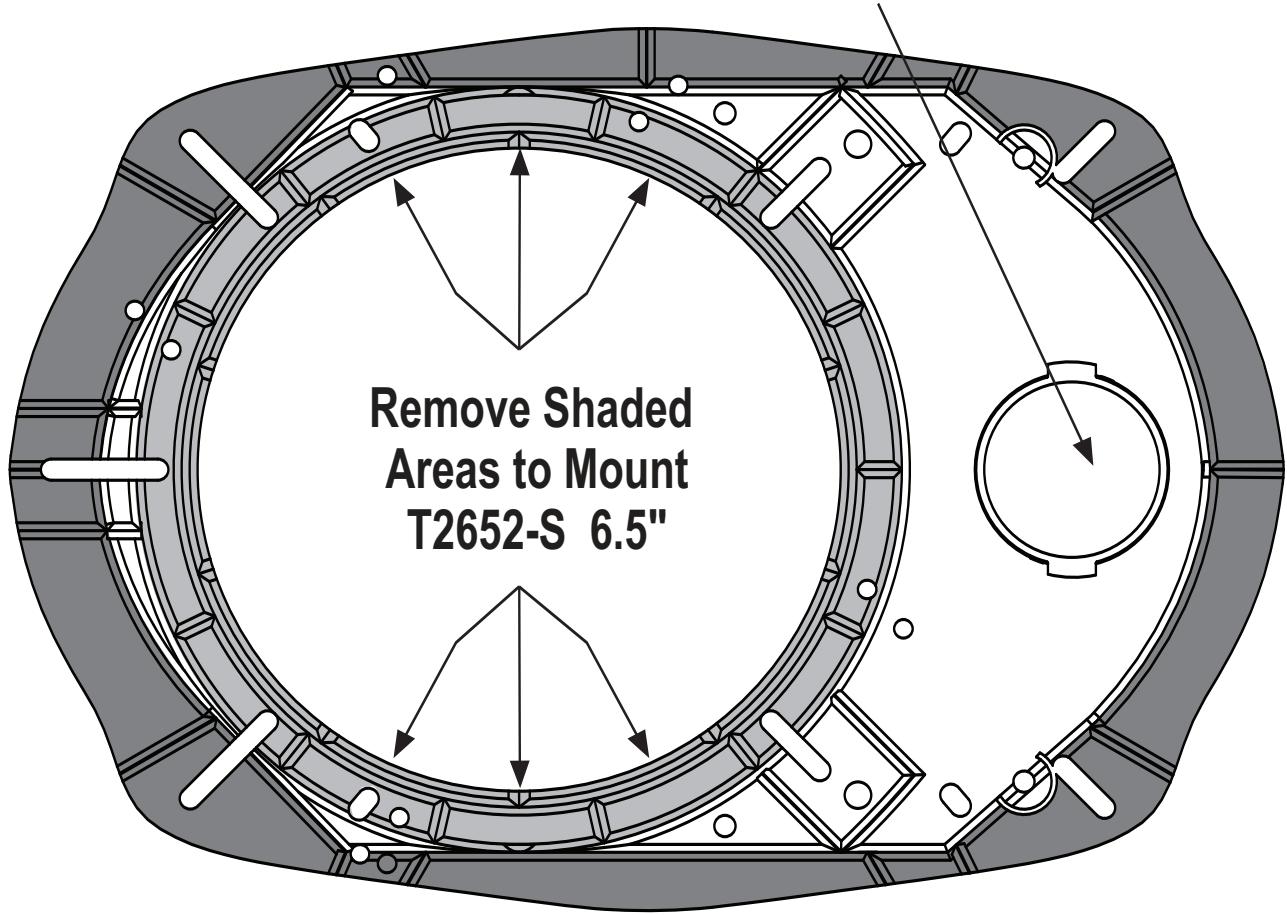

T2652-S

Component System
