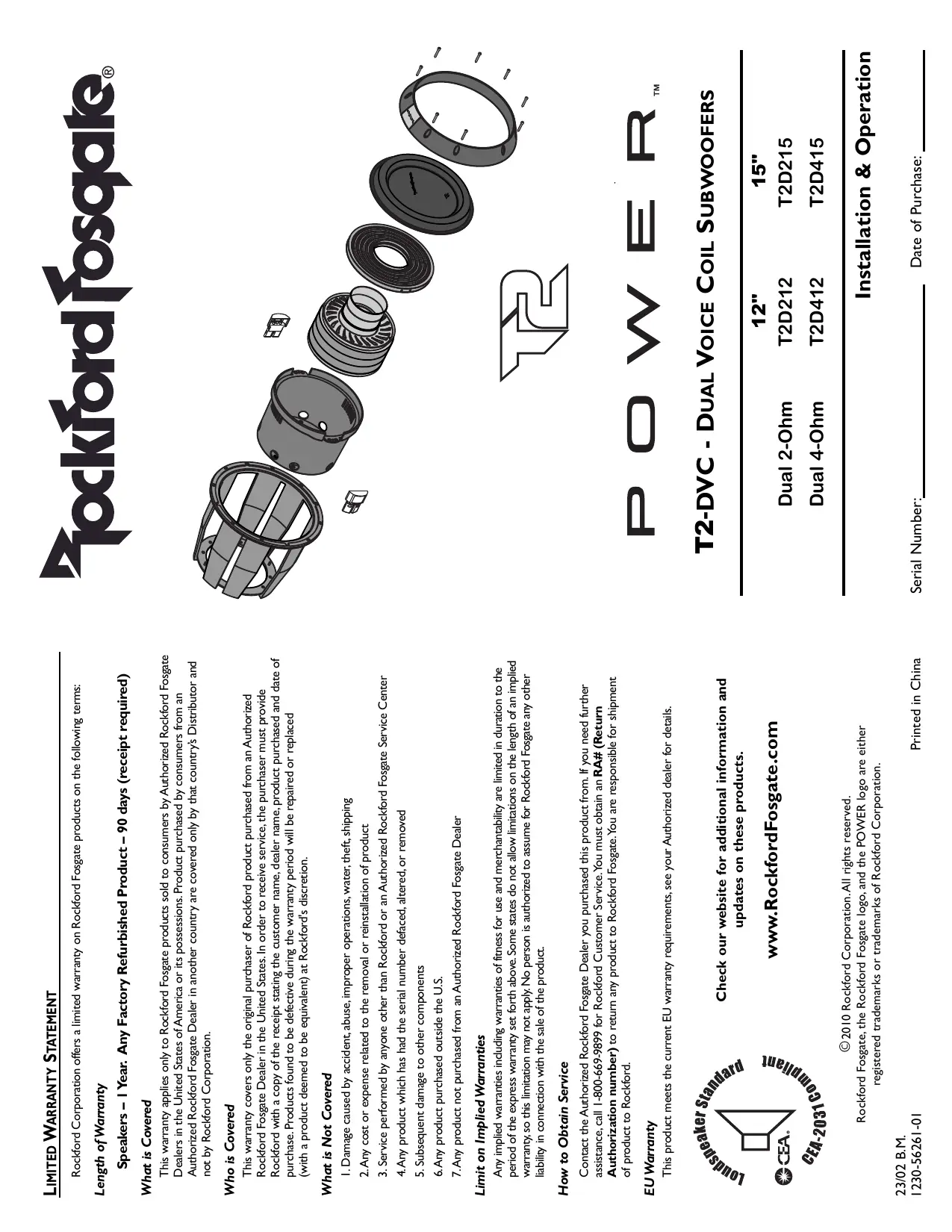

USER MANUAL T2 AUDIO DESIGN

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:

Length of Warranty

Speakers - I Year. Any Factory Refurbished Product - 90 days (receipt required)

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation. Who is Covered This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Cov

I. Damage caused by accident, abuse, improper operations, water, theft, shipping

2.Any cost or expense related to the removal or reinstallation of product

1. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center

4.Any product which has had the serial number defaced, altered, or removed

1. Subsequent damage to other components

6.Any product purchased outside the U.S.

7.Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the

period of the express warranty set forth above. Some states do not allow limitations on the length of an impliedpremature, this limitation means that only No person is authorized to assume for Realford Forest or other

Liability in connection with the sale of the product.

How to Obtain Service

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further

assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# ( Return

Authorization Number of product to Rockford.

ELW@menty.

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Check our website for additional information and

updates on these products.

www.RockfordFosgate.com

© 2010 Rockford Corporation. All rights reserved.

Rockford Fosgate, the Rockford Fosgate logo, and the POWER logo are either

registered trademarks or trademarks of Rockford Corporation.

	12"	15"
Dual 2-Ohm	T2D212	T2D215
Dual 4-Ohm	T2D412	T2D415

WARNING

This symbol with "WARNING" is intended to alert the user to the presence of important instructions. Failure to heed the instructions will result in severe injury or death.

CAUTION

This symbol with "CAUTION" is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage.

CAUTION

To prevent injury and damage to the unit, please read and follow the instructions in this manual. We want you to enjoy this system, not get a headache.

CAUTION

If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician.

CAUTION

Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire adn/or possible injury.

PRACTICE SAFE SOUND™

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound.

DESIGN FEATURES

These woofers were designed for use primarily in small ported enclosures. By utilizing the latest materials and construction techniques, we are able to offer a speaker with high output at low frequencies while requiring a minimum of operating space.

CARTON CONTENTS

(1) Power DVC Subwoofer
(1) Trim ring
(4) Socket head trim ring screws
(8) Socket head wood screws
(1) Socket head driver bit
(1) Installation & operation manual

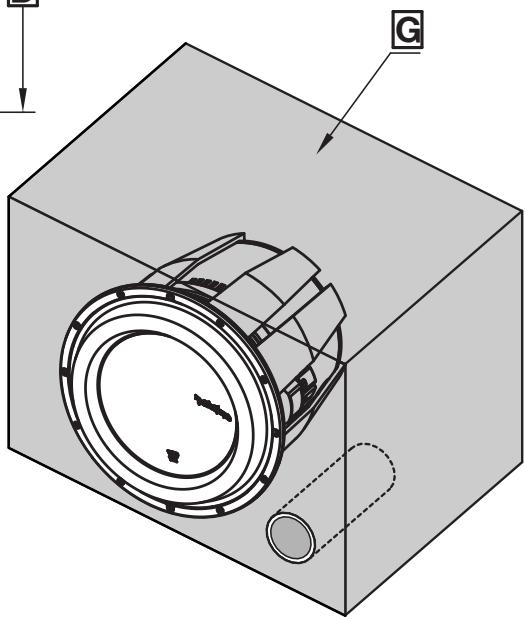

VENTED ENCLOSURES

Vented enclosures vary only from the sealed enclosure in that a vent or port is added to "tune" the enclosure. The enclosures recommended are designed for great overall performance. Larger boxes tend to be easy to tune to lower frequencies while medium and small boxes are easier to tune to higher frequencies. The vented design is less linear in response than the sealed box but with noticeably more output at the tuning frequency.

Advantages of vented enclosures:

Higher average output than sealed
- Tuning frequency can be easily adjusted by changing port length
- Deep bass response with lower power requirements
- Great for high output with limited power

BUILDING AN ENCLOSURE

To work properly, the walls of the enclosure must be rigid and not flex when subjected to the high pressures generated by the speaker's operation. For optimum performance, we recommend using 3/4'' MDF (Medium Density Fiberboard) and internal bracing. The enclosure should be glued together and secured with nails or screws.

CALCULATING VOLUME

Calculating volume is merely a matter of measuring the dimensions in inches and using the formula: H × W × D divided by 1728 (cubic feet). See block below.

Box Volume Height" x Width" x Depth"
Divided by (cubic feet) 1728

If two facing sides are of uneven length, add them together and divide by two to take the average. Using this number will give you the volume without the necessity of calculating the box in sections and adding the sections together. The thickness of the baffle material reduces the internal volume so this must be subtracted from the outside dimensions to determine the internal volume. The speaker itself also reduces the internal volume. The amount of air displaced by each model is listed on the specification sheet and should also be subtracted from the gross volume calculation.

NOTE: Vb is the gross volume, which is the TOTAL internal volume, before any speaker and/or port displacement. All external dimensions were based on the use of 3/4'' (1.90cm) materials.
NOTE: When using enclosures other than recommended, call Technical Support for correct application.

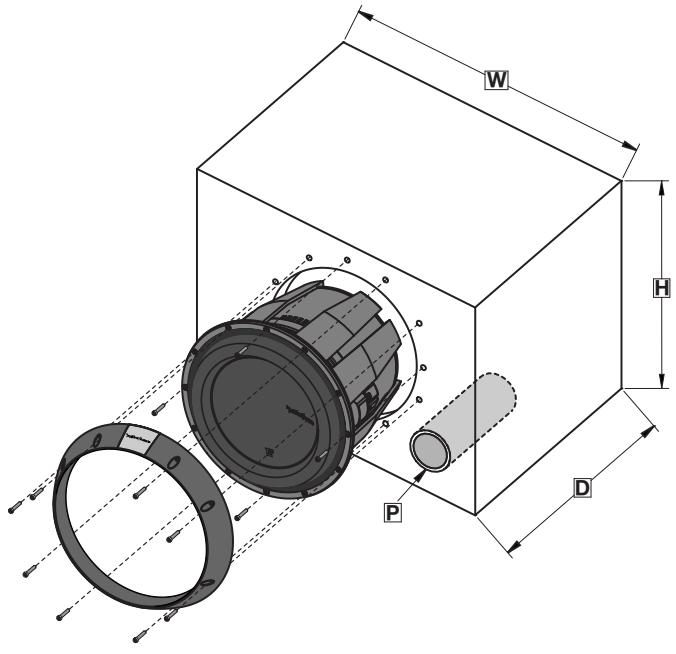

Optimum Enclosure Sizes

VENTED ENCLOSURES	12" T2D212 / T2D412	15" T2D215 / T2D415
Vb- Internal Area cu. ft.	2.0	2.75
(Liter)	(56.63)	(77.87)
Fb- Tuning Frequency (Hz)	40.0	36.0
F3- -3dB Point (Hz)	32.0	29.0
H - Height-inch	16.5	17.5
(cm)	(41.91)	(44.45)
W - Width-inch	25.5	27.5
(cm)	(64.77)	(69.85)
D - Depth-inch	12.5	15.25
(cm)	(31.75)	(38.74)
P - Port Diameter and Length-inch	(3) 3 x 14	(1) 6 x 17
(cm)	(3) (7.62 x 35.56)	(1) (15.24 x 43.18)
SEATED ENCLOSURES	12" T2D212 / T2D412	15" T2D215 / T2D415
Vb- Internal Area cu. ft.	1.0	2.0
(Liter)	(28.32)	(56.63)

Number of ports noted in ()
Specifications subject to change without notice
NOTE: The port shown can be placed on any face of the enclosure as long as the port ends are not obstructed.
NOTE: When using vented enclosures, for maximum reliability and power handling ensure that a subsonic or "infrasonic" filter is used so that only usable low frequency signal is sent to the subwoofer.

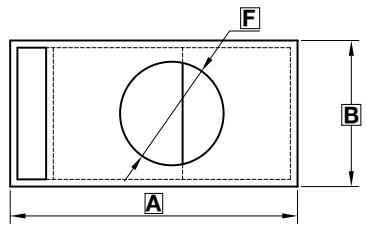

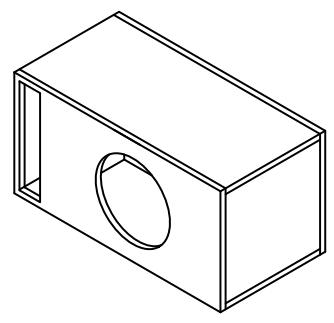

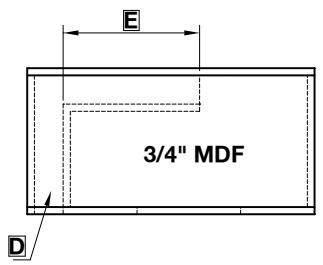

" HIGH OUTPUT " SLOT LOADED ENCLOSURES

VENTED ENCLOSURES		12" T2D212 / T2D412	15" T2D215 / T2D415
Vb- Box Volume Net / Gross - cu. ft. (Liter)		2.25 / 3.12 (63.71 / 88.35)	3.25 / 4.22 (92.03 / 119.50)
Fb- Tuning Frequency (Hz)		40.0	38.0
A - Width-inch (cm)		30.0 (76.20)	30.0 (76.20)
B - Height-inch (cm)		15.25 (38.74)	18.0 (45.72)
C - Depth-inch (cm)		15.25 (38.74)	17.0 (43.18)
D - Port area and Length-inch (cm)		(1) 3 x 13.75 x 25.75 (1) (7.62 x 34.93 x 65.41)	(1) 3 x 16.5 x 22.5 (1) (7.62 x 41.91 x 57.15)
E - Length-inch (cm)		14.25 (36.20)	9.25 (23.50)
F - Mounting Diameter-inch (cm)		10-13/16 (27.46)	13-13/16 (35.08)
Cut List
Baffle / Back-inch (cm)		30 x 15.25 (76.20 x 38.74)	30 x 18 (76.20 x 45.72)
Top / Bottom-inch (cm)		30 x 13.75 (76.20 x 34.93)	30 x 15.5 (76.20 x 39.37)
Ends -inch (cm)		13.75 x13.75 (34.93 x 34.93)	15.5 x 16.5 (39.37 x 41.91)
Port -inch (cm)		13.75 x 13.5 - 13.75 x10.75 (34.93 x 34.29 - 34.93 x 27.31)	8.5 x 16.5 - 12.5 x 16.5 (21.59 x 41.91 - 31.75 x 41.91)

Number of ports noted in ()
Specifications subject to change without notice

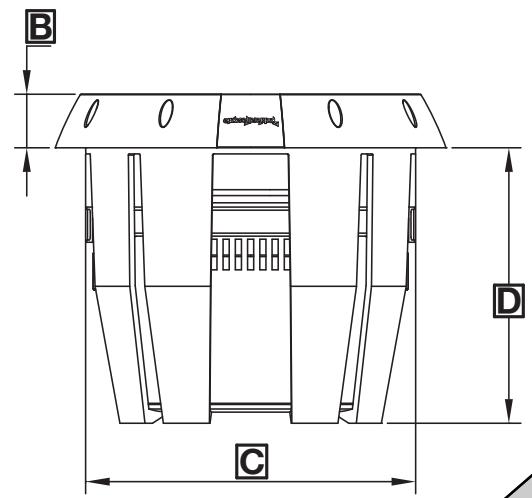

POWER T2-DVC	12" T2D212 / T2D412	15" T2D215 / T2D415

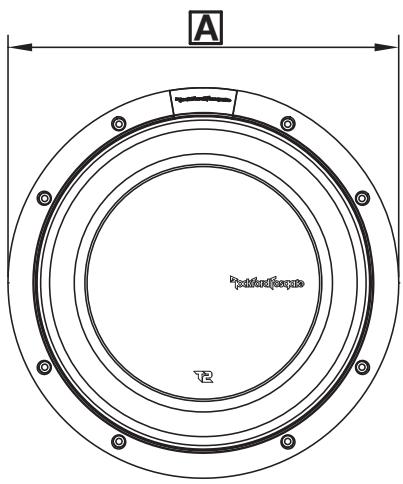

A - Trim Ring Diameter-inch (cm)	12.76 (32.42)	15.74 (39.98)
B - Trim Ring Height-inch (cm)	1.75 (4.44)	1.85 (4.70)
C - Mounting Diameter-inch (cm)	10-13/16 (27.46)	13-13/16 (35.08)
D - Mounting Depth-inch (cm)	9 (22.86)	10 (25.40)

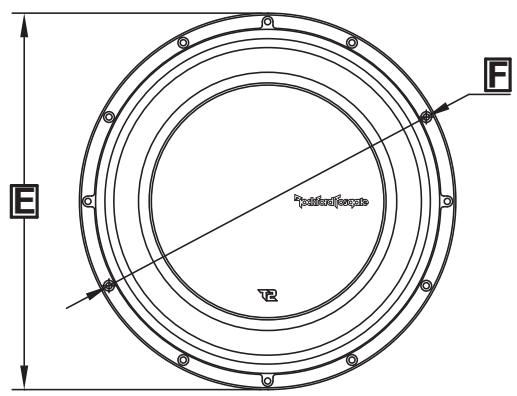

E - Overall Diameter-inch (cm)	12.30 (31.24)	15.28 (38.80)
F - Screw Hole Diameter-inch (cm)	11.74 (29.82)	14.72 (37.38)
G - Speaker Displacement - cu. ft. (Liter)	0.151 (4.28)	0.176 (4.98)

Specifications subject to change without notice

WIRING CONFIGURATIONS

By varying the wiring configuration of your speakers you can create an impedance load to match your system. Altering the wiring configurations gives a range of options for impedance loads. Series, Parallel, or Series-Parallel wiring configurations are different techniques for wiring speakers that provide different loads. Series configuration is a string method where speakers are wired end to end. Parallel configuration uses two or more speakers wired across common terminals. Series-Parallel configuration combines both techniques. Choose the wiring diagram that corresponds to the number of woofers and the impedance of your amplifier.

SUBWOOFER CROSSOVERS

There are two operational types of crossovers, passive and active. Passive crossovers (coils or inductors) are placed on the speaker leads between the amplifier and speaker. An active crossover is an electronic filter that separates the audio signal fed to different amplifiers. For optimum subwoofer performance, we recommend using an active 80-100Hz low-pass crossover at 12dB/octave.

(1) 4 ohm DVC Speaker = 2 ohm Load

(1) 2 ohm DVC Speaker = 4 ohm Load

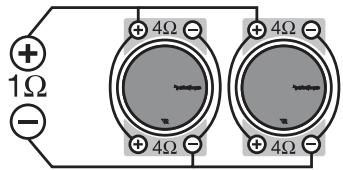

(2) 4 ohm DVC Speaker = 1 ohm Load

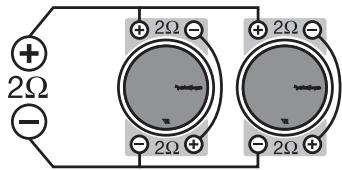

(2) 2 ohm DVC Speaker = 2 ohm Load

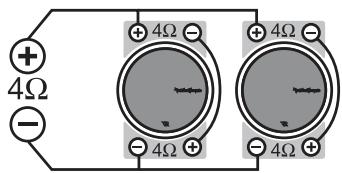

(2) 4 ohm DVC Speaker = 4 ohm Load

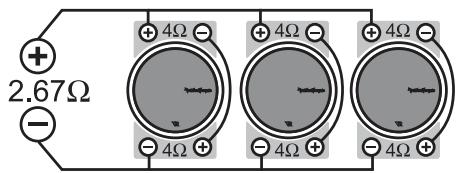

(3) 4 ohm DVC Speaker = 2.67 ohm Load

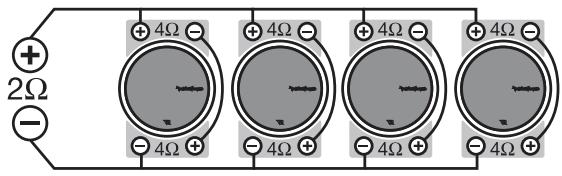

(4) 4 ohm DVC Speaker = 2 ohm Load

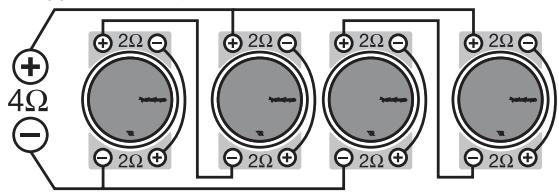

(4) 2 ohm DVC Speaker = 4 ohm Load

SPECIFICATIONS

Model - Power DVC	T2D212	T2D412	T2D215	T2D415
Nominal Impedance (ohms)	2Ω (2)	4Ω (2)	2Ω (2)	4Ω (2)
Voice Coil Diameter-inch (mm)	4 (101.6)	4 (101.6)	4 (101.6)	4 (101.6)
FS (Hz)	39	40	31	31
QTS	0.49	0.59	0.52	0.62
VAS-cu.ft. (liter)	0.48 (13.6)	0.48 (13.6)	1.71 (48.4)	1.82 (51.6)
Xmax-inch (mm)	0.75 (19)	0.75 (19)	0.75 (19)	0.75 (19)
SPL (dB @ 1w/lm)	83.5	83.1	86.0	85.4
Power Handling (RMS)	1200	1200	1200	1200
Power Handling (Max)	2400	2400	2400	2400
Mounting Dia.-inch (mm)	10-13/16 (274.64)	10-13/16 (274.64)	13-13/16 (350.84)	13-13/16 (350.84)
Mounting Depth-inch (mm)	9 (228.60)	9 (228.60)	10 (254.00)	10 (254.00)
Speaker Dis.-cu. ft. (liter)	0.151 (4.28)	0.151 (4.28)	0.176 (4.98)	0.176 (4.98)
Sealed Box Vol.-cu. ft. (liter)	1.0 (28.32)	1.0 (28.32)	2.0 (56.63)	2.0 (56.63)
Vented Box Vol.-cu. ft. (liter)	2.0 (56.63)	2.0 (56.63)	2.75 (77.75)	2.75 (77.75)
Port Diameter & Length (in.)	(3) 3 × 14	(3) 3 × 14	(1) 6 × 17	(1) 6 × 17
Port Diameter & Length (cm)	(3) 7.62 × 35.56	(3) 7.62 × 35.56	(1) 15.24 × 43.18	(1) 15.24 × 43.18

Français

• Hard anodized aluminum dust cap.
• Hard anodized aluminum cone.
• Tear & fatigue resistant poly-cotton spider.
  High density Santoprene surround.
• Ultra-High temp aluminum voice coil with spun-laced Nomex™ insulating reinforcement collar.
• Optimized motor magnetics with extended vented pole and bumped backplate.
• Triple stack ferrite magnet structure.
• Fatigue resistant and reduced strain "stitched on" flexible lead wire design.
• Multi-point high-temp/high-strength neck joint bonding technique.
• Rigid die-cast aluminum frame.
  Die-cast motor case / heat sink.
• Custom insulated/isolated compression input terminal assembly.
• Proprietary spider venting/cooling technique.
• IDHS™ Inductive Damping Heat Sink.
• Removable and reversible screw concealing ring.
