Product type	Microwave combined with grill and hot air
Brand	DOMO
Models	DO2330CG, DO2336G, DO2342CG, DO2431, DO2923
External dimensions (WxDxH)	520 x 497.5 x 325.7 mm
Net weight	18.5 kg
Power supply	230 V ~ 50 Hz
Microwave power	900 W (input 1450 W)
Grill power	1100 W
Hot air power	2500 W
Capacity	30 liters
Turntable diameter	31.5 cm
Microwave-safe materials	Glass, microwave-safe plastic, aluminum foil (distance >2.5 cm from walls), metal-free ceramic
Main functions	Microwave (10 levels), grill, hot air (140-230°C), grill+microwave combination, defrosting by weight or time, auto menu (10 programs), quick cooking 30s, 2-step cooking
Child lock	Yes (long press STOP/CLEAR for 3 seconds)
Kitchen timer	Up to 95 minutes
Warranty	2 years (non-durable spare parts excluded)
Maintenance and cleaning	Unplug before cleaning; interior with damp cloth; turntable, grill rack and accessories in warm soapy water
Spare parts and accessories	Available at Domo webshop (webshop.domo-elektro.be) or at point of sale
Safety	Safety lock, automatic shut-off if door open, do not use if door damaged

Frequently Asked Questions - DO2330CG - DO2336G - DO2342CG - DO2431 - DO2923 DOMO

Can I use metal containers in the microwave?

No, metal containers or those with metal parts can cause sparks and damage the appliance. Use only microwave-safe utensils.

How to set the microwave clock?

Press CLOCK/KITCHEN TIMER, set hours with the rotary knob, press again, set minutes, then confirm. Press STOP/CLEAR to cancel.

How to defrost food by weight?

Press TIME DEFROST once (display d-1), turn the knob to enter weight (100-2000 g), then press START/+30SEC./CONFIRM. You can cancel with STOP/CLEAR.

What to do if smoke comes out of the microwave?

Unplug the appliance immediately and keep the door closed to smother flames. Do not open the door. Contact a professional if necessary.

How to activate the child lock?

Press STOP/CLEAR for 3 seconds until you hear a beep and see the key icon. To deactivate, repeat.

Can I use plastic wrap in the microwave?

Yes, provided it is microwave-safe. Ensure it does not touch the food and poke a few holes to let steam escape.

How to clean the inside of the microwave?

Unplug the appliance. Wipe the interior with a damp cloth. For tough residues, use a solution of water and vinegar. Never use a steam cleaner.

Why is there condensation on the door?

This is normal, especially when cooking moist food. Condensation forms due to steam. Wipe the door after use.

How to preheat the oven for convection cooking?

Press CONVECTION, set the temperature (140-230°C), confirm, then press START to start preheating. A beep sounds when temperature is reached; then place food and set the duration.

What to do if the turntable does not turn?

Check that the turntable support is correctly placed in the center and that the turntable is properly engaged. Make sure no food blocks rotation. If the problem persists, contact after-sales service.

USER MANUAL DO2330CG - DO2336G - DO2342CG - DO2431 - DO2923 DOMO

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

INFORMACION DE RECICLaje

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

• Enkel in Belgie, Nederland, Luxemburg, Frankrijk en Duitsland.
• Seulement dans la Belgique, le Pays-Bas, le Luxembourg, la France et l'Allemagne.
• Nur in Belgien, die Niederlande, Luxemburg, Frankreich und Deutschland.
• Only in Belgium, the Netherlands, Luxemburg, France and Germany.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Display	Microgolf	Grill	Convectie
C-1	●		●
C-2	●	●
C-3		●	●
C-4	●	●	●

SNEL KOKEN MET MICROGOLF

INSTALLATION DU FOUR

Affichage	Micro-ondes	Grill	Convection
C-1	●		●
C-2	●	●
C-3		●	●
C-4	●	●	●

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
  Farms
• Hotel or motel rooms and other surroundings with a residential character
  Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

PRECAUTIONS TO PREVENT EXPOSURE TO MICROWAVE ENERGY

Do not attempt to operate the oven with the door open as this can result in harmful exposure to microwave energy. Do not damage or tamper with the safety latch.

Do not place objects between the door and the oven.

Ensure dirt and cleaning materials do not accumulate between the door and the oven.

WARNING: if the door or the latch is damaged, the oven may not be used until it has been properly repaired by a qualified technician.

Failure to sufficiently and properly maintain the oven can lead to damage, cause malfunction or result in hazardous situations.

IMPORTANT SAFETY PRECAUTIONS

To reduce the risk of fire, electrocution, injury or exposure to microwave energy, the following safety measures must be taken:

• Liquids or other foods should not be heated in closed containers due to the risk of explosion.

• Components intended to protect against microwave energy should not be removed except by a qualified technician.

• Only use cooking utensils that are safe for microwave ovens.
• Clean the oven regularly and remove any leftover food residue.
• When heating food in plastic containers, keep an eye on the oven as the container could ignite.
• If smoke is noticed in the microwave oven, immediately remove the plug from the socket and leave the door closed to extinguish any flames.

CAUTION

• Do not overcook food.
• Do not store items in the oven. Do not store bread, cookies, etc. in the oven.
• Do not use the oven when it is empty. This is hazardous.
• Remove metal closures and handles from food packaging before placing the food in the oven.
• Always install the oven according to the installation instructions.
• Eggs in their shells, or whole hard-cooked eggs, may not be heated in the microwave oven. These may explode even after microwave cooking has ended.
• Use the appliance only as described in the manual. Do not use harmful chemicals or vapours in this appliance. This oven is only intended for heating

purposes. It is not suitable for industrial or laboratory use.

• Do not use or store this appliance outdoors or near water, in a damp area or near a swimming pool.
• The oven may become hot during use. Keep the electrical cord away from hot components and do not cover the oven.
• Do not allow the cord to hang over the edge of a table.
• The contents of baby bottles and baby food should always be shaken or stirred after heating and before use. To prevent burns, the temperature of the food should be checked before use.
• Heating liquids in the oven can result in a delayed cooking reaction. Therefore always be careful when removing the container from the oven.
• This unit may not be placed in a cabinet.
• Do not use a steam cleaner to clean your oven.
• Do not use abrasive cleaners or sharp objects to clean the glass on the door. This can damage the glass and cause it to break.
• The door of the unit may become warm during use.
• Do not try to disassemble the appliance.
  Always connect the appliance to an earthed socket.

TO REDUCE THE RISK OF INJURY, KEEP THESE SAFETY WARNINGS FOR FUTURE REFERENCE

Your unit is equipped with a short electric cord to prevent tripping or becoming entangled in the cord. When an

extension cord is used, the capacity of the cord must be equal to or greater than the oven power. The extension cord must be placed in such a way that no one can trip over it or become entangled in it.

SPECIFICATIONS

Model:	DO2330CG
Voltage:	230V~50Hz
Input power - Microwave:	1450W
Output power - Microwave:	900W
Input power - Grill:	1100W
Input power - Convection Oven:	2500W
Oven capacity:	30L
Turntable diameter:	31.5cm
External dimensions:	520 x 497.5 x 325.7 mm
Net. Weight:	18.5 kg

CLEANING

Always remove the plug from the socket before cleaning the oven.
Use a damp cloth to clean the inside of the oven after every use.
- Clean components such as the grill, glass turntable, etc. in warm water using a mild detergent.
The door, latch and control panel can be cleaned using a damp cloth.

SUITABLE MATERIALS FOR THE MICROWAVE OVEN

Below is a list of items that can or cannot be used in the oven. If the object you wish to use is not included in this list, you can determine if the item is suitable for use in the microwave oven as follows:

Fill a microwave-safe container with 250~ml cold water. Place this in the microwave oven together with the object to be tested. Switch the microwave oven on at maximum power for 1 minute. Carefully touch the object. If it is warm, it is not suitable for use in the microwave oven.

ATTENTION: never heat the object in the microwave oven for more than 1 minute.

SUITABLE MATERIALS

Aluminium foil: Only for covering food. Small pieces of foil can be placed over food to prevent it from overcooking. Sparking can occur if the foil is too close to the oven wall. The foil must therefore be at least 2.5cm from the oven wall.
- Grill rack: in accordance with the instructions in this manual. Improper use may cause the glass turntable to break.

Tableware: Only microwave-safe dishes. Do not use cracked or flaking dishes.
- Glass jars: always remove lid. May only be used to warm slightly. Most glass jars are not heat-resistant and may crack.
Glassware: heat-resistant oven glassware may be used. Ensure the glass does not contain any metal ornamentation or parts. Do not use cracked or damaged glass.
- Oven cooking bags: in accordance with the instructions from the manufacturer. Do not use a metal clasp to close the bag. Make holes in the bag to allow the steam to escape.
- Plastic: only plastic suitable for use in microwave ovens. Follow the manufacturer's instructions. The plastic must be indicated as "microwave-safe". Some plastic containers become soft when the food inside is heated. Cooking bags and sealed bags must be pierced to allow the steam to escape.
- Plastic packaging: Only plastic that is allowed to be used in the microwave oven. May be used to cover the food to prevent the food from drying out. Always ensure the plastic does not come in contact with the food.
- Thermometer: only microwave-safe thermometers.

UNSUITABLE MATERIALS

Aluminium dishes: May cause sparks. Place the food in a microwave-safe dish.
- Food containers with metal handles: may cause sparks. Place the food in a microwave-safe dish.
- Metal kitchen utensils or with metal decoration: Metal shields the food from microwave energy. Metal decoration on the material may lead to sparking.
Metal twist-ties or closures: may lead to sparking and can cause a fire in the oven.
- Paper bags: may cause a fire in the oven
Styrofoam: can melt or contaminate the food contained in the styrofoam.
- Wood: wood dries out in the microwave oven and may crack or split.

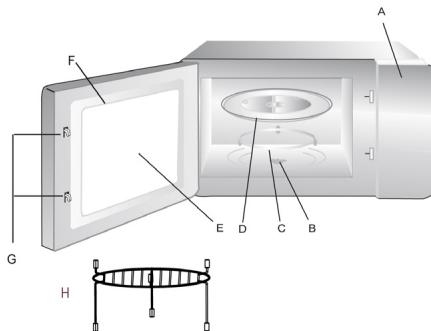

COMPONENTS

Remove all packaging materials in and around your oven. The following accessories are included with your oven: Glass turntable, turntable ring, grill rack and manual.

A. Control panel
B. Turntable drive
C. Turntable ring
D. Glass turntable
E. Viewing window
F. Door
G. Safety lock
H. Grill rack (only for grill and convection, to be placed onto the glass turntable)

INSTALLING THE TURNTABLE

1. The turntable and ring should always be used during cooking. Place the turntable ring in the centre of the microwave oven.
2. Place the turntable on the ring ensuring that the centre of the turntable fits properly into the turntable drive.
3. Never install the turntable upside down. Always ensure the turntable can turn freely.
4. Food and containers should always be placed on the glass turntable for cooking.
5. If the glass turntable or the ring is cracked, contact your service centre.

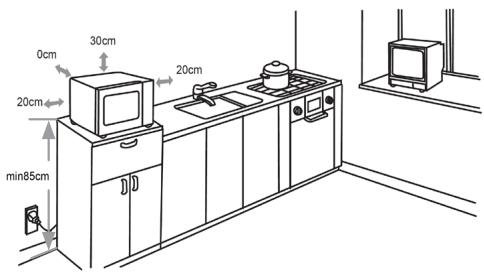

INSTALLING THE OVEN

Remove all packaging materials and accessories. Check the oven for any damage such as dents and ensure the door closes properly. Do not use the oven if any damage is found. Remove the plastic film surrounding the appliance. This film prevents scratches during manufacture and transport. However, do not remove the light brown mica

protection on the inside of your oven.

1. Choose a location to install your microwave oven where there is plenty of open space to allow air movement to and from the appliance. The minimum height for installing the oven is 85cm . Place the back of the oven against the wall. A minimum space of 30cm above the appliance should be left open. Between the oven

and other walls, a minimum space of 20cm should be left open.

1. Never remove the feet on the bottom of the microwave oven.
2. A blocked air inlet or outlet may result in damage to the oven.
3. Place the oven as far away from radio and TV as possible, to avoid interference.
4. Insert the microwave oven plug into the socket. Ensure the voltage in your home corresponds to the voltage indicated on your oven.
5. Warning: Do not install the oven above a stove or other heat-producing device.
6. The accessible portion of the oven may become warm during use.

SETTING THE CLOCK

When you plug the oven into the socket, the display shows 0:00 and one beep is heard.

• Press the CLOCK/KITCHEN TIMER button. The display shows 00:00 and the hour indicator flashes.
• Turn the knob to adjust the hour.
• Press the CLOCK/KITCHEN TIMER button again and the minute indicator flashes.
• Turn the knob to adjust the minutes.
• Confirm the set time by pressing the CLOCK/KITCHEN TIMER button again.

Pressing the STOP/CLEAR button will cancel the setting of the time.

MICROWAVE

Press the MICROWAVE button once and the display indicates: P100.
- You can adjust the power incrementally by pressing MICROWAVE or turning the knob. You can select between P100, P80, P50, P30 or P10. The numbers are the percentages of the total power.
To confirm, press the START/+30SEC./CONFIRM button.
- Turn the knob to adjust the cooking time from between 5 sec. and 95 min .
- Press the START/+30SEC./CONFIRM button to start cooking.

Power summary

Press/turn	Once	Twice	Three times	Four times	Five times
Power	100%	80%	50%	30%	10%

The time intervals for setting the cooking time are as follows:

Between: Interval:

0-1 min. 5 sec.

1-5 min. 10 sec.

5-10 min. 30 sec.

10-30 min. 1 min.

30-95 min. 5 min.

GRILL

Press the GRILL/COMBI button once and G-1 appears on the display.
To confirm, press the START/+30SEC./CONFIRM button.
- Turn the knob to adjust the cooking time from between 5 sec. and 95 min .
- Press the START/+30SEC./CONFIRM button to start grilling.

When half of the grilling time has expired, the oven will beep twice to indicate the food should be turned over. You can ignore this signal and continue grilling. It is better to turn the food over, close the door again and press the START/+30SEC./CONFIRM to continue.

COMBINATION

Press the GRILL/COMBI button once and G-1 appears on the display.
- Press GRILL/COMBI or turn the knob to change the selection. For combination cooking you can choose between: C-1, C-2, C-3 or C-4.

DESIRED COMBINATION FUNCTION SELECTIONS:

Display	Microwave	Grill	Convection
C-1	●		●
C-2	●	●
C-3		●	●
C-4	●	●	●

To confirm, press the START/+30SEC./CONFIRM button.
- Turn the knob to adjust the cooking/grilling time from between 5 sec. and 95 min .
- Press the START/+30SEC./CONFIRM button to start cooking/grilling.

CONVECTION / WARM AIR WITH PRE-HEATING

Convection cooking allows you to use your oven as a traditional oven without microwave energy. It is recommended to pre-heat the oven to the desired temperature before placing the food in the oven.

1. Press the CONVECTION button once and the display will flash 140^ .
2. Press CONVECTION or turn the knob to set the desired temperature. The temperature can be adjusted from 140^ to 230^ in intervals of 10^ .
3. Press the START/+30SEC./CONFIRM button to confirm the temperature.
4. Press the START/+30SEC./CONFIRM button to start pre-heating. When the desired temperature has been reached, two beeps will sound to remind you to place the food in the oven. The pre-heated temperature will flash on the display.
5. Place the food in the oven and close the door. Turn the knob to adjust the cooking time from between 5 sec. and 95min . Press the START/+30SEC./CONFIRM button to start cooking. You can not adjust the cooking time until the specified pre-heating temperature has been reached. When the desired pre-heating temperature has been reached, the door must be opened to enter the cooking time. If this does not occur within 5 minutes, the oven will beep five times and stop preheating and go into stand-by mode.

CONVECTION / WARM AIR WITHOUT PRE-HEATING

1. Press the CONVECTION button once and the display will flash 140^ .
2. Press CONVECTION or turn the knob to set the desired temperature. The temperature can be adjusted from 140^ to 230^ in intervals of 10^ .
3. Press the START/+30SEC./CONFIRM button to confirm the temperature.
4. Turn the knob to adjust the cooking time from between 5 sec. and 95min
5. Press the START/+30SEC./CONFIRM button to start convection cooking.

KITCHEN TIMER

• Press the CLOCK/KITCHEN TIMER button twice and the display indicates: 00:00.
• Turn the knob to set the timer to a maximum of 95 minutes.

• Press the START/+30SEC./CONFIRM button to confirm the setting.

• When the time has expired, the clock display will switch off and the oven will beep five times. The display will then show the current time.

The kitchen timer will continue to count down even if you open the door.

You can not, however, enter any other program when the kitchen timer is operating.

DEFROST BY WEIGHT

Press the TIME DEFROST button once and d-1 will be shown on the display.
- Turn the knob to set the desired weight of the food to be defrosted. You can select from 100 till 2000 grams.
- Press the START/+30SEC./CONFIRM button to start defrosting. You can pause defrosting at any time by pressing the STOP/CLEAR button. To continue defrosting, simply press the START/+30SEC./CONFIRM button. If, however, you press the STOP/CLEAR button twice, the oven will go into stand-by mode.

DEFROST BY TIME

• Pressing the TIME DEFROST button twice causes d-2 to appear on the display.
• Turn the knob to adjust the desired defrosting time.
• Press the START/+30SEC./CONFIRM button to start defrosting. You can pause defrosting at any time by pressing the STOP/CLEAR button. To continue defrosting, simply press the START/+30SEC./CONFIRM button. If, however, you press the STOP/CLEAR button twice, the oven will go into stand-by mode.

AUTO MENU

• Before pressing any menu button, turn the knob to the right. This selects the auto menu options. You can select from 10 pre-set function (A-1 to A-10). The display

indicates the type of food corresponding to each function (see photo).

• Press the START/+30SEC./CONFIRM button to confirm your selection.
• Turn the knob to enter the weight (g).
• Press the START/+30SEC./CONFIRM button to start the oven.

e.g. Cake (A-9). When Cake is selected from the automatic menu, the oven will first pre-heat to 160^ . When the oven has reached t

correct temperature, it will beep two times to remind you to place the cake in the oven. Press the START/+30SEC./CONFIRM button to start baking.

TABLE

Menu	Weight (g)	Display	Power
Pizza (A-1)	200	200	C-4
	300	300
	400	400
Potatoes (A-2)	1 (+/- 230g)	1	100% microwave
	2 (+/- 460g)	2
	3 (+/- 690g)	3
Meat (A-3)	150	150	100% microwave
	300	300
	450	450
	650	650
Fish (A-4)	150	150	80% microwave
	250	250
	350	350
	450	450
	600	600
Vegetables (A-5)	150	150	100% microwave
	350	350
	500	500
Beverages (A-6)	1 (240 ml)	1	100% microwave
	2 (480 ml)	2
	3 (720 ml)	3
Pasta (A-7)	50 (with 450 ml water)	50	80% microwave
	100 (with 800 ml water)	100
	150 (with 1200 ml water)	150
Popcorn (A-8)	50	50	100% microwave
	100	100
Cake (A-9)	475	475	Preheat at 160°C
Chicken (A-10)	500	500	100% microwave
	750	750
	1000	1000
	1200	1200

QUICK COOKING

Press the START/+30SEC./CONFIRM button before pressing any other button to use your microwave oven for 30 seconds at 100% power. Repeatedly pressing the button will increase cooking each time by 30 seconds, up to a maximum of 95 minutes. Pressing the START/+30SEC./CONFIRM button when grill, convection or combination is selected will also increase the cooking time at full power by 30 seconds. This button has no effect only when defrosting or when the auto menu has been selected.

Turn the knob left to immediately set the cooking time and press the START/+30SEC./CONFIRM button to cook at 100% microwave power.

COOKING IN STAGES

You can set your oven so that it cooks in 2 stages. If you want to defrost and then cook, of course you have to set the defrost function first. You will hear a signal when the first stage has finished and the next stage begins. Only auto programs and preheating can not be set as a stage.

For example: If you want to defrost food for 5 minutes and then cook at 80% microwave power for 7 minutes, then follow these steps:

Press TIME DEFROST once. The display will say d-2.

Turn the knob to set the time to 5 minutes.

Press MICROWAVE once. Turn the knob to set the power to 80% (P80).

Press START/+30SEC./CONFIRM to confirm.

Turn the knob to set 7 minutes.

Press START/+30SEC./CONFIRM to start cooking.

LOCKING/CHILD LOCK

Press and hold the STOP/CLEAR button for 3 seconds. A long beep is heard and the display shows a key. To unlock the oven, press and hold the STOP/CLEAR button again for 3 seconds.

You again hear a long beep and the key symbol disappears from the display.

NOTES

• When the oven operates at low power, the oven light will illuminate less brightly.
  It is normal that condensation can accumulate on the oven door.
• Press CLOCK/KITCHEN TIMER during cooking to display the time for 2-3 seconds.
• Press MICROWAVE, GRILL/COMBI or CONVECTION during cooking to display the set power for 2-3 seconds.
• Press START/+30SEC./CONFIRM to continue cooking after the door has been opened.
  After setting a program for cooking, press START/+30SEC./CONFIRM within a minute. Otherwise the time will be displayed and the setting will be cancelled.

PRECAUCIONES IMPORTANTES

Out of dust bags? Need an anti-scale cartridge?

You can now also order our accessories and parts in the

Domo Webshop

Webshop Domo

Domo-Webshop

Domo Webshop

Surfhaar:

Rendez-vous sur:

Einfach unter:

Surf to:

webshop.domo-elektro.be

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:
