SPORT URBAN - Stroller SAFETY 1ST - Free user manual and instructions

Product type	Stroller
Brand	SAFETY 1ST
Model	SPORT URBAN
Usage	From birth up to 15 kg
Dimensions (approx.)	100 x 60 x 100 cm
Weight (approx.)	10 kg
Frame material	Aluminum or steel
Recline adjustment	Multiple positions, maximum recline for newborns
Restraint system	5-point harness
Brake	Parking brake
Compatible carrycot / car seat	Yes, depending on accessories (always facing adult)
Basket capacity	2 kg maximum
Tray/pockets capacity	Tray 2 kg, pockets 1 kg
Included accessories	Rain cover, canopy
Folding	Compact fold (specific mechanism)
Frame maintenance	Clean with clear water, do not use grease
Textile maintenance	Hand wash with mild soap, follow label
Safety standards	EN 1888:2012, decree n°91-1292
Warranty	24 months (excluding normal wear)
Country of manufacture	Not specified

Frequently Asked Questions - SPORT URBAN SAFETY 1ST

How to fold and unfold the SPORT URBAN stroller?

Folding is generally done by pulling the handles on the frame. Refer to the manual for precise steps. Keep the child away during folding/unfolding.

What is the maximum weight supported by the stroller?

The stroller is designed for children up to 15 kg. Never exceed this limit.

From what age can the stroller be used?

It is suitable from birth, in the most reclined position. For newborns, always use the backrest in the reclined position.

How to clean the stroller?

Clean the frame with a clean cloth and clear water. The textile can be hand washed with mild soap. Do not use harsh detergents.

Can I use the stroller for jogging?

No, this stroller is not suitable for jogging, rollerblading, or any sports activity. Risk of tipping or loss of control.

How to install a car seat or carrycot?

If your stroller is compatible, always place the carrycot or car seat facing you. Make sure the attachments are properly engaged.

Is it safe to leave my child unattended in the stroller?

No, never leave a child unattended. Always use the harness and parking brake.

What to do if the stroller folds poorly?

Check that no object is blocking the mechanism, clean the moving parts. If the problem persists, contact your retailer. Do not force.

How to use the rain cover?

The rain cover should be used only with the canopy and in rainy weather. Do not use it in full sun to avoid excessive heat. Monitor the child.

What accessories can I buy for this stroller?

Use only accessories approved by Safety 1st. Maximum loads: tray 2 kg, pockets 1 kg, basket 2 kg. Do not overload.

USER MANUAL SPORT URBAN SAFETY 1ST

Illustration of a baby stroller with adjustable arms and wheels (no text or symbols)

FR • IMPORTANT - CONSERVER CES INSTRUCTIONS POUR CONSULTATION ULTÉRIEURE.

EN • IMPORTANT - KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

NL • BELANGRIJK - BEWAAR DE GEBRUIKSAANWIJZING ALS REFERENTIE VOOR EEN LATER GEBRUIK.

PT • IMPORTANTE - GUARDAR ESTE MANUAL PARA CONSULTA POSTERIOR.

ES • IMPORTANTE - CONSERVAR PARA FUTURAS CONSULTAS.

IT • IMPORTANTE - CONSERVARE PER CONSULTAZIONE FUTURA.

EN • Congratulations on your purchase.

To ensure maximum protection and optimum comfort for your child, it is essential that you read through the entire manual carefully and follow all instructions.

Illustration of a person using a lever device to avoid a trash bin, with warning symbols and no text present.

Diagram of two identical wheeled vehicles with wheels and a connecting cable (no text or symbols)

Illustration of two identical mechanical foot holders with no text or symbols

Line drawing of a folded paper or plastic sheet with no text or symbols

1

Diagram of a hand using a tool to adjust or install a component, with an orange arrow indicating rotation (no text or symbols present)

2

Diagram of a mechanical linkage or support system with an orange arrow indicating direction (no text or symbols present)

Illustration of a person using a bag to lift a person's leg, with no visible text or symbols

Illustration of a person using a walking exercise machine to lift a seatbelt (no text or symbols present)

3

CLICK!

4

Illustration of a vehicle chassis with wheels and overhead control arrows (no text or symbols)

Top-down view of a toy car chassis with wheels and a 'CLICK!' button label (no other text or symbols)

OK NO

1

Illustration of a baby stroller with labeled parts and directional arrows indicating motion or movement.

2

Line drawing of a person using a stroller to adjust the seatbelt (no text or symbols present)

Illustration of a person wearing a bicycle seatbelt with a yellow belt (no text or symbols)

5

CLICK!

CLICK!

③ CLICK!

Illustration of a baby stroller with adjustable seat and front-mounted legs (no text or symbols)

Simple white house icon on dark gray background (no text or symbols)

X2

Simple circular arrow icon on dark background, no text or symbols present

X2

Illustration of a two-wheeled cart with wheels and front panels (no text or symbols)

Diagram of a stroller with numbered parts labeled from 1 to 5, showing body structure and component positioning.

Simple diagram of a pendulum with two legs and a curved arrow indicating motion (no text or symbols)

Illustration of hands using a tool to adjust or install a car seat (no text or symbols visible)

Simple diagram of a pendulum with two masses and a curved arrow indicating motion (no text or symbols)

PUSH

PUSH

Diagram of two car seats connected to a central orange square component (no text or symbols)

Diagram of two arms fastening a yellow object into a central component (no text or symbols)

CLICK!

! CLICK! OK PUSH NO

Diagram of a mechanical or electrical component with four arms and directional arrows (no text or symbols)

a b b b b maxi 2 kg a X2 X2

Illustration of a stroller with orange safety belt and yellow outline (no text or symbols)

Simple line drawing of a cloud with raindrops falling (no text or symbols)

Selon version - Depending of item - Gemäß Modell - Volgens versie - Secondo il modello - Según versión - Segundo versão

OK a b CLICK! CLICK!

Diagram of mechanical components with no visible text or symbols

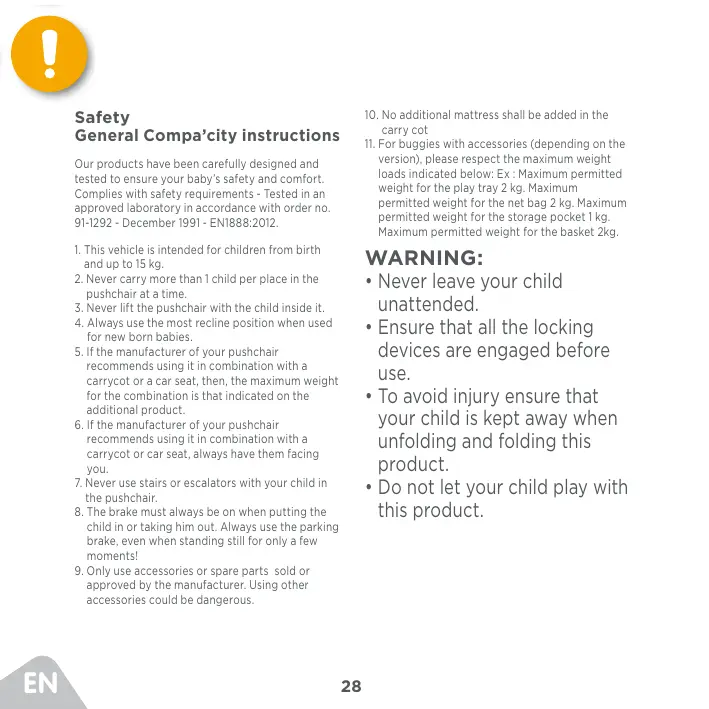

General Compa'city instructions

Our products have been carefully designed and tested to ensure your baby's safety and comfort. Complies with safety requirements - Tested in an approved laboratory in accordance with order no. 91-1292 - December 1991 - EN1888:2012.

1. This vehicle is intended for children from birth and up to 15 kg.
2. Never carry more than 1 child per place in the pushchair at a time.
3. Never lift the pushchair with the child inside it.
4. Always use the most recline position when used for new born babies.
5. If the manufacturer of your pushchair recommends using it in combination with a carrycot or a car seat, then, the maximum weight for the combination is that indicated on the additional product.
6. If the manufacturer of your pushchair recommends using it in combination with a carrycot or car seat, always have them facing you.
7. Never use stairs or escalators with your child in the pushchair.

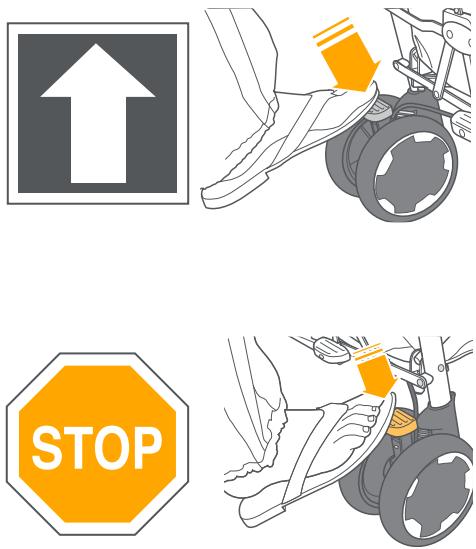

8. The brake must always be on when putting the child in or taking him out. Always use the parking brake, even when standing still for only a few moments!

9. Only use accessories or spare parts sold or approved by the manufacturer. Using other accessories could be dangerous.

10. No additional mattress shall be added in the carry cot

11. For buggies with accessories (depending on the version), please respect the maximum weight loads indicated below: Ex : Maximum permitted weight for the play tray 2 kg. Maximum permitted weight for the net bag 2 kg. Maximum permitted weight for the storage pocket 1 kg. Maximum permitted weight for the basket 2kg.

WARNING:

• Never leave your child unattended.
• Ensure that all the locking devices are engaged before use.
  • To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not let your child play with this product.

WARNING:

• Always use the restraint system. Rings for attaching an extra harness are on each side, beside the seat belt.

Illustration of two hands holding a small object, possibly a vehicle or mechanical component (no text or symbols visible)

• This product is not suitable for running or skating or any other sport activities.
• Not suitable for over night sleeping, your child may be at risk of serious harm or injury.
• Any load attached to the handle, backrest or sides affects the stability of the pram/pushchair.
  • To avoid the risk of suffocation, keep all plastic

bags and packaging out of reach of babies and young children.

• Raincover uses: do not use in sunny weather because of excessive heat. Do not use the raincover without the hood. Use only under adult supervision.
  • Always check that the brake is fully engaged before letting go of your stroller.
• Never let your child climb into or out of the stroller alone.
• Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

Chassis care advice

1. he product must be maintained regularly to provide full satisfaction. We advise you to check and if necessary clean mechanical parts every fortnight.
2. Wipe the frame with a clean cloth. Clean and dry thoroughly the chassis, every time you've been in muddy or sandy areas, to avoid rust.
3. Do not use grease or oil.
4. Your pushchair may not work properly if it is not maintained regularly.
5. Do not force it if it becomes difficult to fold it up or unfold it. Clean the product.
6. If difficulties persist, contact your supplier.
7. Caring : Use a sponge and mild soap. Do not use detergent.
8. For washing the garment, please consult the instruction label.

Environment

Keep plastic covering away from children to avoid suffocation.

For environmental reasons, when you have stopped using this product, we ask that you dispose of the product in the proper waste facilities in accordance with local legislation.

Questions

Please contact your local Safety 1st distributor or visit our website, www.safety1st.com.

When doing so please have the following information to hand:

• Serial number
• Age (height) and weight of your child.»

Warranty

We guarantee that this product has been manufactured in accordance with European safety standards and quality requirements in force at the present time and that, at the time of its purchase by the retailer, this product was exempt from any defect of composition and manufacture. During its production process, this product was also subjected to various quality controls. If, in spite of all our efforts, a material and/or manufacturing defect should occur during the warranty period of 24 months (used normally and in accordance with the instructions), we undertake to respect the warranty conditions. Please contact your retailer. For more detailed information concerning the applicability of the warranty conditions, please contact your retailer or go to: www.safetylst.com.

The warranty does not apply in the following cases :

• When the product has been used for a purpose other than that provided for in the instructions for use.
• When the product has been repaired by a non-approved supplier.
• When the product is not returned to the manufacturer with the original till receipt (issued by the retailer and/or importer).
• When repairs have been carried out by a third party or a non-approved retailer.
• When the defect was caused by incorrect or insufficient use or maintenance, neglect or impacts at the level of the textile and/or chassis.

- When it is a case of normal wear of the parts, such as can be expected from daily use (wheels, rotating and mobile elements, etc.)

When does the warranty come into effect?

The warranty period starts on the purchase date of the product.

For how long?

For a period of 24 consecutive months.

The warranty is only valid for the first owner and is not transferrable.

What should you do?

When buying the product, please keep the original till receipt safely. The purchase date must be clearly visible. In the event of problems or defects, please refer to the retailer. No exchange or refund can be demanded. Repairs do not entail the extension of the warranty period. The products which are not returned directly to the manufacturer are not covered by the warranty. This warranty clause is in conformity with the European directive 99/44/CE of May 25th 1999.

Diagram of a mechanical assembly with three arms and a central component (no text or symbols)

Illustration of two hands holding a small object, possibly a device or tool, with no visible text or symbols.

Illustration of two hands holding a circular object, possibly a device or mechanical component (no text or symbols visible)

Illustration of a medical procedure with three hands performing a procedure (no text or symbols present)

Illustration of two vertical bars with orange rings, no text or symbols present
