Product Type	Mirrorless Digital Camera
Brand	Fujifilm
Model	X-A3
Sensor	APS-C CMOS 24.2 Megapixels
Lens	Fujifilm X Mount (lens sold separately)
Image Processor	EXR Processor II
Stabilization	None (lens stabilization if available)
Viewfinder	None (LCD screen only)
Screen	3-inch touchscreen LCD, tiltable 180°
Video Resolution	Full HD 1920x1080 up to 60 fps
Video Format	H.264, MOV
ISO Range	200-6400 (expandable to 100-25600)
Shutter	Mechanical 30 s - 1/4000 s, electronic up to 1/32000 s
Continuous Shooting	6 fps
Storage	1 slot for SD/SDHC/SDXC card (UHS-I)
Connectivity	Wi-Fi 802.11 b/g/n, micro USB 2.0, micro HDMI
Power	Rechargeable battery NP-W126S (7.2 V, 1260 mAh)
Battery Life	Approximately 410 photos (CIPA standard)
Dimensions (W x H x D)	116.9 x 66.9 x 40.4 mm
Weight	339 g (with battery and memory card)
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 80% (non-condensing)

Frequently Asked Questions - X-A3 FUJIFILM

How to charge the battery of the Fujifilm X-A3?

Use the provided charger (BC-W126) or connect the camera to a computer via the micro USB cable. Full charge takes about 2 hours.

How to transfer photos to a smartphone?

Install the Fujifilm Camera Remote app on your smartphone, enable Wi-Fi on the camera (menu > connectivity > Wi-Fi) and follow the on-screen instructions.

Which memory card to use?

Use an SD, SDHC or SDXC card of class 10 or UHS-I for optimal video and burst performance.

How to set white balance?

Press the Q button, select the white balance icon, then choose a preset (sunny, cloudy, etc.) or a custom color temperature.

Is the touchscreen tiltable?

Yes, the 3-inch LCD screen tilts upward 180° for selfies and downward 90° for high-angle shots.

How to update the firmware?

Download the latest firmware from the Fujifilm website, copy it to a formatted memory card in the camera, then insert the card and follow the instructions in the setup menu.

What is the battery life?

Approximately 410 shots per charge according to CIPA standard. Use economy mode to extend battery life.

How to clean the sensor?

Use the built-in ultrasonic cleaning function (menu > setup > sensor cleaning). For manual cleaning, use a blower and a suitable cleaning kit.

Is the camera compatible with Fujifilm XF lenses?

Yes, the X-A3 uses the X mount, compatible with all Fujifilm XF and XC lenses. Check the compatibility list for accessories.

How to reset to factory settings?

Go to the setup menu, select 'Reset' then 'Full reset'. Confirm with the OK button.

USER MANUAL X-A3 FUJIFILM

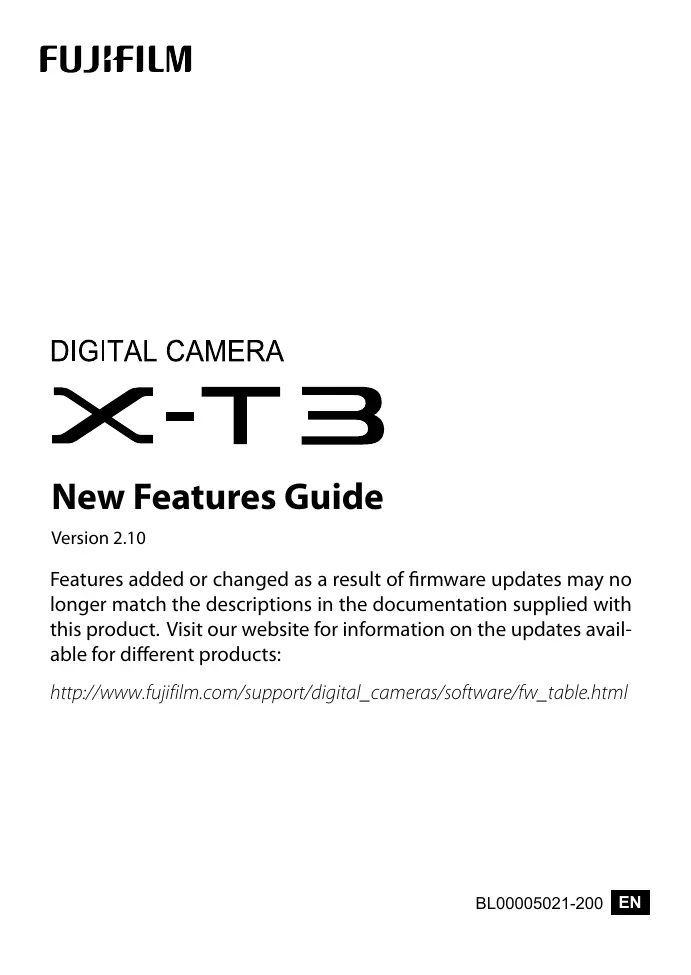

Features added or changed as a result of firmware updates may no longer match the descriptions in the documentation supplied with this product. Visit our website for information on the updates available for different products:

http://www.fujifilm.com/support/digital_cameras/software/fw_table.html

Contents

X-T3 firmware version 2.10 adds or updates the features listed below. For information on earlier versions, visit the following website.

http://fujifilm-dsc.com/en/manual/

No.	Description	X-T3	See	Ver.
1	The chosen value is now displayed when a color temperature is selected for white balance.	10, 12	1, 2	2.00
2	The camera now displays a “charging” icon when powered via USB or by the AC-9VS AC adapter supplied with the VG-XT3 vertical battery grip.	10, 12	1, 2	2.00
3	The MOVIE SETTING > F-Log RECORDING item in the shooting menu has been renamed F-Log/HLG RECORDING.	149	3	2.00
4	Movies over 4 GB in size are now recorded to a single file.	176, 261, 295	4	2.10

Changes and Additions

Changes and additions are as follows.

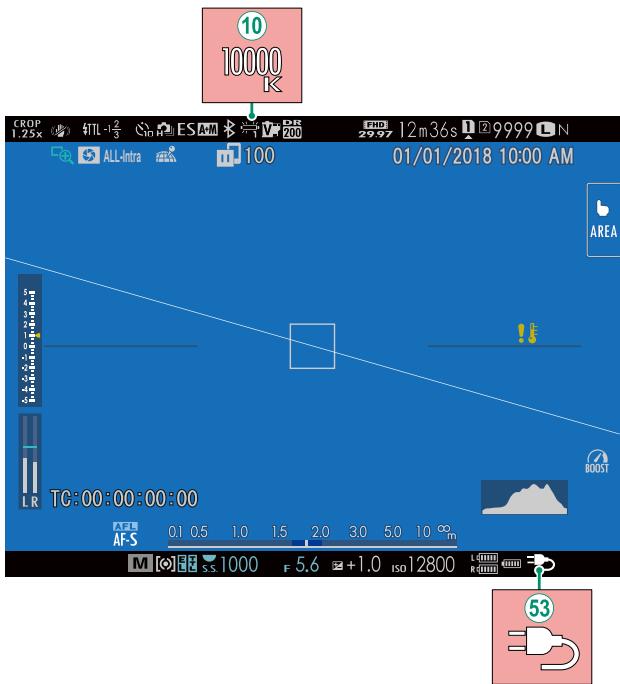

X-T3 Owner's Manual: 10 The Electronic Viewfinder

Ver. 2.00

⑩ When a color temperature is selected for white balance (X-T3 Owner's Manual 108), the chosen value now appears in the display.
⑤3 The camera now displays a "charging" icon when powered via USB or by the AC-9VS AC adapter supplied with the VG-XT3 vertical battery grip.

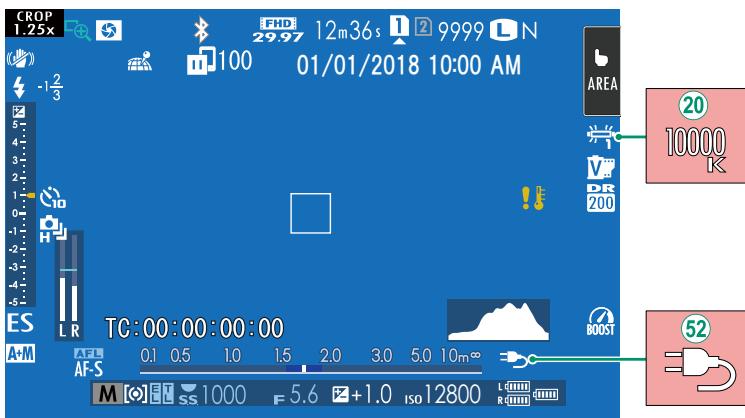

X-T3 Owner's Manual: 12 The LCD Monitor

Ver. 2.00

⑳ When a color temperature is selected for white balance (X-T3 Owner's Manual 108), the chosen value now appears in the display.
⑤2 The camera now displays a "charging" icon when powered via USB or by the AC-9VS AC adapter supplied with the VG-XT3 vertical battery grip.

Choose the destination for F-Log and HLG (Hybrid Log-Gamma) movies shot while the camera is connected to an HDMI device.

Option	Description
	The footage is processed using film simulation and both saved to the memory card and output to the HDMI device.
	The footage is recorded to the memory card and output to the HDMI device in F-Log format.
	The footage is output to the HDMI device in F-Log format but saved to the memory card with film simulation applied.
	The footage is recorded to the memory card in F-Log format but output to the HDMI device with film simulation applied.
	The footage is recorded to the memory card and output to the HDMI device in HLG format.

• F-Log offers a gentle gamma curve with a wide gamut suitable for further processing post-production. Sensitivity is restricted to values between ISO 640 and ISO 12800.
• The HLG (Hybrid Log-Gamma) recording format conforms to the international ITU-R BT2100 standard. When viewed on HLG-compatible displays, high-quality HLG footage faithfully captures high-contrast scenes and vivid colors. Sensitivity is restricted to values between ISO 1000 and ISO 12800. HLG recording is available when H.265 (HEVC) is selected for MOVIE SETTING > H.265 (HEVC)/H.264 in the shooting menu.
• Film simulation (☐) footage is recorded using the option selected for ☐ MOVIE SETTING > ☐ FILM SIMULATION in the shooting menu.

• Footage shot with SD 📄 HDMI F-Log or SD F-Log 📄️ cannot be recorded to the memory card and output to the HDMI at different frame sizes (4K, Full HD). In addition, the following 🧑️ MOVIE SETTING options are unavailable:

• MOVIE MODE frame rate options of 59.94P and 50P

• FULL HD HIGH SPEED REC
• 4K INTERFRAME NR
• HDMI OUTPUT INFO DISPLAY

X-T3 Owner's Manual: 176 COPY

Ver. 2.10

• Copying ends when the destination is full.
• If you attempt to copy a file over 4 GB in size to a memory card with a capacity of 32 GB or less, copying will end and the file will not be copied.

X-T3 Owner's Manual: 261 Mac OS X/macOS

Ver. 2.10

Pictures can be copied to your computer using Image Capture (supplied with your computer) or other software.

Use a card reader to copy files over 4 GB in size.

X-T3 Owner's Manual: 295 Memory Card Capacity

Ver. 2.10

If the memory card has a capacity of over 32 GB, movies will be recorded in single files, regardless of size. If the card has a capacity of 32 GB or less, movies over 4 GB in size will be recorded uninterrupted across multiple files.
