USER MANUAL SR-JN105 PANASONIC

Operating Instructions Electric Rice Cooker

SR-ZX105 / SR-ZG105 目錄

Thank you for purchasing this Panasonic product.

• This product is intended for household use only. • Please read these instructions carefully and follow safety precautions when using this product. • Before using this product please give your special attention to “Safety Precautions” (Page 3-4).

39-40 41 41 41 41 42

Specifications Warranty

7-8 9-14 Functions • White Rice, Jasmine, Multi Grain, Quick Cook, Brown 9 Rice or Sticky Rice 10 • Quinoa 11 • Porridge 12 • Steam 13 • Cake / Bread 14 • Soup / Slow Cook 15 Using the Timer 16 Cleaning and maintenance How to use adjustable steam basket / When the display shows 17 as follows

IMPORTANT SAFEGUARDS 2

3-4 Safety Precautions 5 Parts Identification 5 • Display 5 • Parts Identification 5 • Accessories 6 Time setup / Lithium battery

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 1

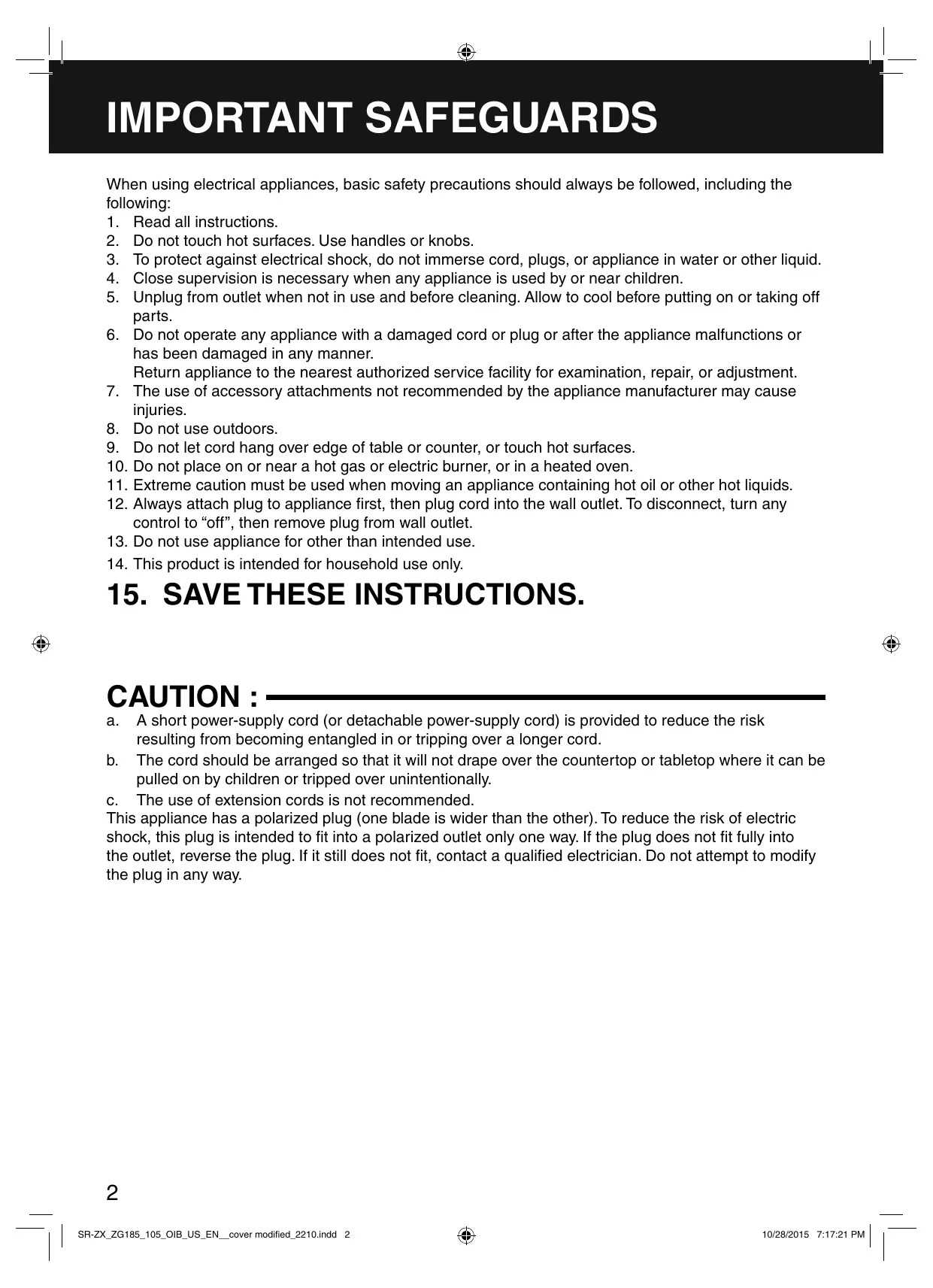

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electrical shock, do not immerse cord, plugs, or appliance in water or other liquid. 4. Close supervision is necessary when any appliance is used by or near children. 5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts. 6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment. 7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries. 8. Do not use outdoors. 9. Do not let cord hang over edge of table or counter, or touch hot surfaces. 10. Do not place on or near a hot gas or electric burner, or in a heated oven. 11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. 12. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet. 13. Do not use appliance for other than intended use. 14. This product is intended for household use only.

A short power-supply cord (or detachable power-supply cord) is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. b. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally. c. The use of extension cords is not recommended.

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 2

10/28/2015 7:17:21 PM Safety Precautions

In order to prevent accidents or injuries to the users, other people and damage to property, please follow the instructions below.

The following charts indicate the degree of damage caused by wrong operation.

WARNING Indicates serious injury or death.

CAUTION Indicates risk of injury or property damage.

The symbols are classified and explained as follows.

These symbols indicate prohibition.

This symbol indicates requirement that must be followed.

WARNING Do not use the appliance if the power cord or power plug is damaged or the power plug is loosely connected to the power outlet.

(It may cause an electric shock or fire caused by short circuit).

Do not insert any objects in the steam vent or gap.

Especially metal objects such as pins or wires. (It may cause an electric shock or malfunction).

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. (It may cause burn or injury).

• Unplug the power plug, and wipe with a dry cloth.

Do not plug or unplug the power plug with wet hands.

Following actions are strictly prohibited.

(It may cause an electric shock).

Modifying, placing near heating elements, bending, twisting, pulling, putting heavy objects on top, and bundling the cord. (It may cause an electric shock or fire caused by short circuit).

• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

Do not get your face close to the steam vent or touch it with your hand. Keep the steam vent out of reach of small children.

(It may cause a burn).

Do not immerse the appliance in water or splash it with water.

(It may cause a fire caused by short circuit or electric shock). • Please enquire with an authorized dealer if water gets inside the appliance.

Use only a power outlet rated at a minimum of 10 amperes and alternating electric voltage at 120 volts.

(Plugging other devices into the same outlet may cause electric overheating, which may cause a fire). • Use only an extended cord rated at 10 amperes minimum.

Clean the power plug regularly.

(A soiled power plug may cause insufficient insulation due to the moisture, and may cause a fire).

Do not damage the power cord or power plug.

Do not modify, disassemble, or repair this appliance.

(It may cause a fire, electric shock or injury). • Please make enquiries at the store or the repair department of an authorized dealer.

Insert the instrument plug and the power plug firmly.

(Otherwise it may cause an electric shock and fire caused by the heat that may generate around the instrument plug or the power plug). • Do not use a broken power plug or a loose power outlet.

Discontinue using the appliance immediately and unplug the power cord in cases of abnormal situations and breaking down.

(It may cause smoking, a fire or electric shock). • The power plug and the power cord become abnormally hot. • The power cord is damaged or power failure occurs when (e.g. for touched. • The main body is deformed or abnormally hot. abnormal • The unit gives out smoke or scorching smell. situations or breaking down) • There are cracks, looseness or wobbles of the appliance. • The cast heater is warped or the inner pan is deformed. → Please make enquiries at a Panasonic authorized service center for immediate inspection and repair.

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 3

10/28/2015 7:17:21 PM Safety Precautions

CAUTION Do not use the appliance in the following places.

• In an area where it may be splashed with water or near a heat source. (It may cause a fire caused by short circuit or electric shock). • An unstable surface or carpet, electric carpet, table cloths (ethylene plastic) or other object that cannot resist high temperature. (It may cause an injury, burn or fire). • Near a wall or furniture. (It may cause a discoloration or deformation).

Do not expose the power plug to steam and do not let water spill on the connector of the power plug.

• Do not expose the power plug to steam when it is plugged in. (It may cause a fire caused by short circuit). When using a cabinet with sliding table, use the appliance where the power plug cannot be exposed to steam.

Be sure to hold the instrument plug or the power plug when unplugging. Do not pull the power cord.

(Otherwise it may cause an electric shock or fire caused by short circuit).

Unplug the power plug from the power outlet when the appliance is not in use.

(Otherwise it may cause an electric shock and fire caused by short circuit due to the insulation deterioration).

Do not use the cord set (for instrument plug and power plug) that is not specified for use with this appliance. Also do not transfer them.

(It may cause an electric shock, leakage, and fire).

Heating element is subjected to residual heat after use. Please allow the appliance to cool down before cleaning it.

(Touching hot elements may cause a burn).

Do not touch heating elements while the appliance is in use or after cooking.

Especially the cast heater. (It may cause a burn).

Do not touch the hook button while moving the appliance.

(It may cause the outer lid to open, resulting in a burn).

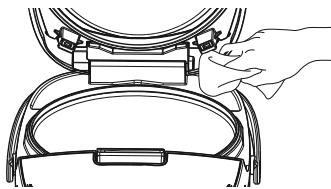

Be careful hot surface of stainless steel rim of upper frame.

(SR-ZX185 / SR-ZX105) (It may cause a burn).

Do not use other pans than the one specified.

(It may cause a burn and injury due to overheat or malfunction).

Please put in correct amount of rice and water and select functions correctly according to the operating instructions.

Do not put ingredients to be cooked directly into the appliance in which no inner pan is placed.

Do not cook without inner pan.

(So as to avoid overflow of rice water, half-cooked rice or scorched rice).

(So as to prevent any impurities from causing failure).

Do not let water spill on the power plug of the power cord set.

Before using the appliance, the anti-tarnish paper between the inner pan and the cast heater should be removed.

Do not cover the outer lid with cloth or other objects when the appliance is in use.

Do not scoop out rice with any metal object.

(So as to avoid poor cooking or fire).

(So as to avoid deformation, color change of the outer lid or failure).

Please always clean the foreign matters such as rice on the inner pan, cast heater and temperature sensor.

Foreign matters Cast heater

• Do not tilt or overturn the appliance.

• Before cleaning, turn off the power switch and pull out the power plug.

Avoid using the appliance under direct sunlight.

(So as to avoid color change).

(This may result in electric shock).

(So as to avoid scratching the inner pan coating and causing peeling of the coating).

When there is any overflow of rice water from the steam vent, pull out the power plug immediately to disconnect the power supply. Do not resume the use until the rice water on the power plug and the instrument plug is cleaned with a dry cloth.

The appliance is for household use only. Do not use it for any commercial or industrial purposes or any purposes other than cooking.

When power failure occurs during the operation of the appliance, the cooking result may be affected.

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 4

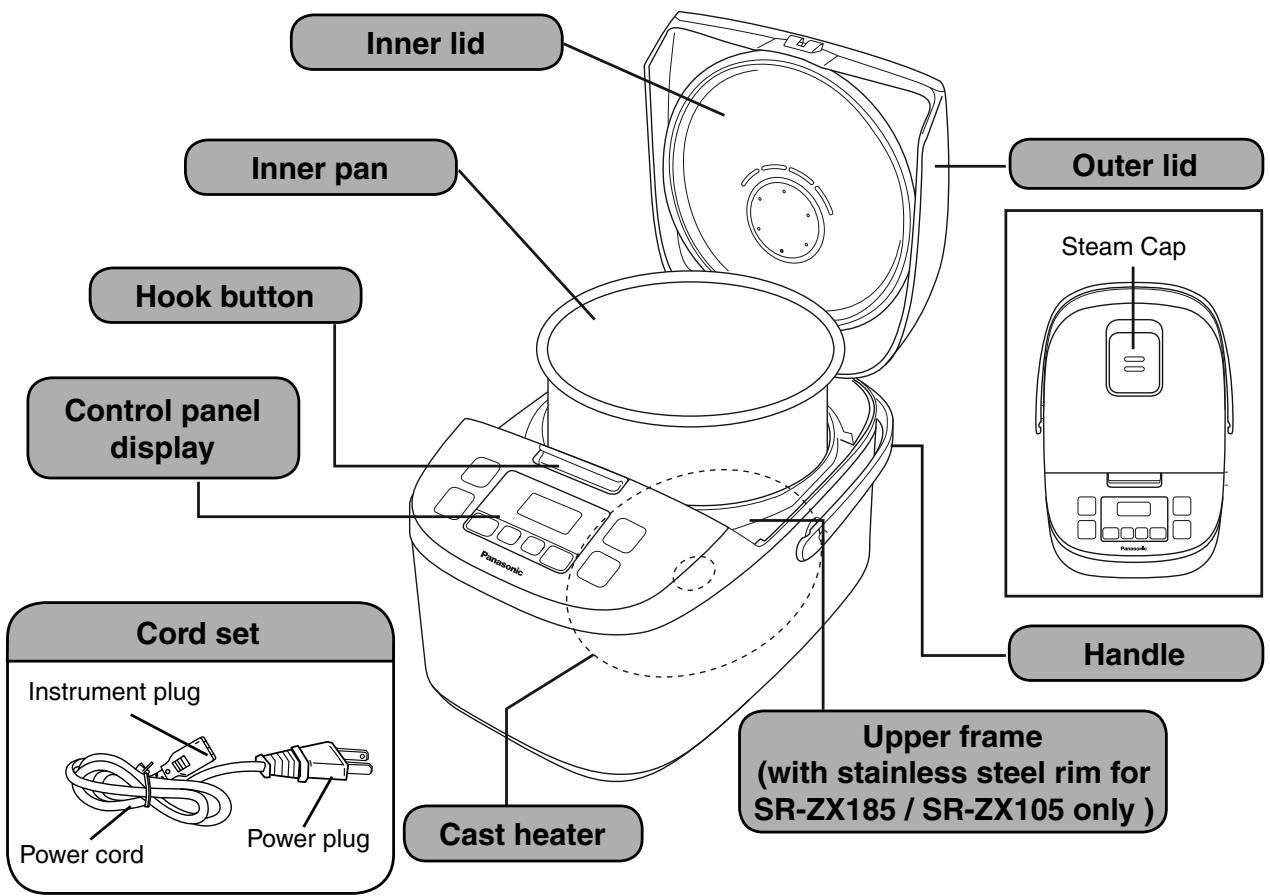

10/28/2015 7:17:38 PM Parts Identification

Press this button to: 1.

Select a cooking function.

Enter Keep Warm mode. Preset timer. Set clock or cooking timer. Start setting cooking timer. Cancel the operation. Start cooking.

(with stainless steel rim for SR-ZX185 / SR-ZX105 only )

Adjustable steam basket

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 5

10/28/2015 7:17:43 PM Time setup / Lithium battery

Connect the power plug. Press or button for more than one second, then release the button after a beep sound. The time shows in the LCD starts to blink.

or button to set the time (1 minute increment).

Press Keeping the button pressed will make setting faster. • 24:00 is replaced by 0:00. • Error may occur in the Timer function if the current time has not been set properly. • The time cannot be setup during operating state.

The time will be automatically set after leaving about 5 seconds. (LCD stops blinking).

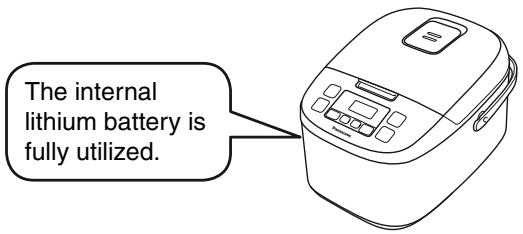

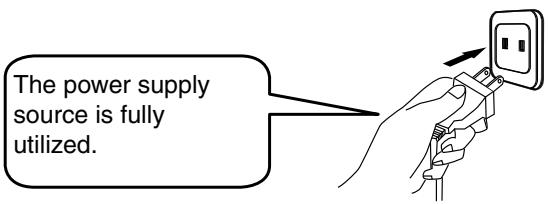

Power source for the clock When unplugged Battery Replacement The internal lithium battery is fully utilized.

The power supply source is fully utilized.

If lithium battery is fully utilized, please contact authorized service center for replacement.

The life time of battery is around 5 years (At 20°C room temperature and plugged in 12 hours each day). When the battery is consumed, the following phenomenon will happen: • The clock becomes vague or disappears. • Memory of preset time is lost. • The clock can be used again when power plug is connected. (The clock resetting is required). Note: Do not put the lithium battery into the fire, do not recharge, disassemble or heat the battery, etc. This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 6

10/28/2015 7:17:48 PM Preparations

Measure rice with the measuring cup provided.

• The volume of the measuring cup is about 180 mL. • For the maximum quantity of rice to be cooked at once, refer to specifications in Page 19. Correct

The cooking result may be affected

Wash the rice till the water turns relatively clear.

1 Wash the rice quickly with plenty of water and stirring the rice lightly to wash it

while changing water.

2 Repeat it for several times (wash the rice → pour out water), till the water turns

ATTENTION • In order to avoid scratching the non-stick coating on the inner pan surface, do not wash rice in the inner pan. • Wash the rice thoroughly. Otherwise, rice crust may appear and the residual rice bran may affect the taste of the rice.

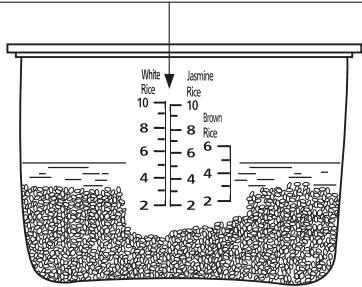

Add the washed rice or other ingredients into the inner pan.

• Use water line on the inner pan to measure cooking quantity as follows : Function

• In the Soup / Slow Cook function, the total amount of ingredients and water shall not exceed the maximum water line for “White Rice”.

• Dry the outside surface of the inner pan. If it is wet, it may cause noise while cooking. Any foreign matters between the inner pan and the cast heater may damage the unit. • Please make sure that the inner pan is on leveled surface. • Please measure water by aligning water line left side and right side. • If rice is too hard or too soft, please adjust water amount according to your personal taste.

When the rice quantity is 5 measuring cups, wash the rice and put into the inner pan, then add water into the inner pan till the water surface reaches scale “5” at water line of “White Rice”.

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 7

10/28/2015 7:17:54 PM Preparations

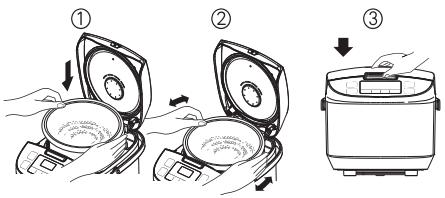

Put the inner pan into the body and close the outer lid.

1 In order to closely attach the bottom of inner pan to the

cast heater, please rotate the inner pan along the direction indicated by the arrow 2 or 3 times.

2 Please check whether the inner lid and steam cap are properly set. (Refer to Page 16) 3 Close the outer lid until it clicks.

1 Please insert the instrument plug into the body first.

2 Connect the power plug. Make sure that both plugs

are tightly connected.

* The table on the right shows the maximum allowable amount of white rice that can be cooked while steaming food in the adjustable steam basket. * Reasonable time interval is recommended between subsequent cooking to ensure cooking result is normal. * There is possibility of starch, spill over through steam vent if cooking is done using hard water (ie: untreated water).

The maximum amount of rice (in measuring cups)

Height of the adjustable steam basket

Maximum amount of white rice

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 8

10/28/2015 7:18:16 PM Functions

White Rice, Jasmine, Multi Grain, Quick Cook,

Brown Rice or Sticky Rice Important Information • The amount of rice is specified in specifications. (Page 19) • In the Quick Cook function, the rice may be harder or there may be rice crust (Quick Cook function can be used for white rice). → For better performance, please add some more water. → For better performance, please stir and loosen the rice immediately and keep the rice warm for a few minutes after the beep sound. *For brown rice, it takes about 2 hours to complete cooking.

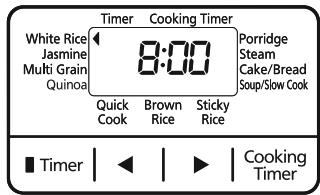

Press button to point to White Rice, Jasmine, Multi Grain, Quick Cook,

Brown Rice or Sticky Rice function. • The

(Cooking with the White Rice, Jasmine, Multi Grain,

Quick Cook, Brown Rice or Sticky Rice function).

• The indicator lights up and the cooking starts.

• Before cooking is completed, the LCD display will show the remaining time in 1 minute decrement.

• lf you want to preset the timer for White Rice, Jasmine, Multi Grain, Brown Rice or Sticky Rice, please refer to

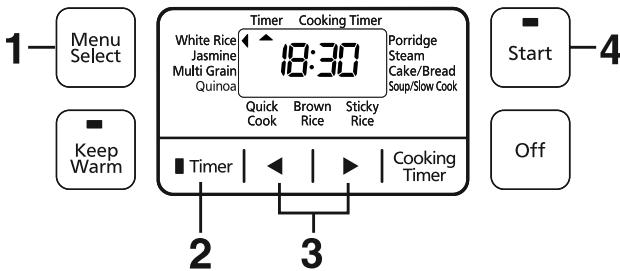

“Using the Timer” (Page 15).

Stir and loosen the rice. • When cooking is over, the electric rice cooker beeps and automatically switches to the Keep Warm function (The

indicator turns off and the

indicator lights up automatically).

• When the cooking is over, all functions will turn to Keep Warm function automatically. But some functions are not recommended to use with Keep Warm function. button to exit Keep Warm function. Please press • You can keep the rice warm for up to 12 hours, so as not to affect the taste or cause unpleasant smell. • When in Keep Warm function, there may be some droplets at the edge of the inner pan. • The rice taste may be affected if rice scoop is left in the electric rice cooker during Keep Warm function.

Affects the taste or causes a strange smell.

Flavor can be adversely affected.

It may become too thick.

The result after kept warm

Affects the taste or causes a strange smell.

× : Not recommend for use

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 9

10/28/2015 7:18:44 PM Functions

Important Information • The amount of quinoa is specified in specifications. (Page 19) • The amount of water for cooking is indicated below: Quinoa (Measuring cup)

Water (Measuring cup)

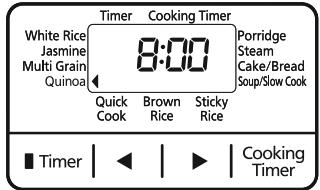

(Cooking with the Quinoa function).

• The indicator lights up and cooking starts.

• Before cooking is completed, the LCD display will show the remaining time in 1 minute decrement.

• When cooking is over, the electric rice cooker beeps and automatically switches to the Keep Warm function indicator turns off and the indicator lights up automatically). However, we do not recommend

(The using the Keep Warm function as it may affect the taste. Press the button to exit the Keep Warm function and unplug the power plug.

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 10

10/28/2015 7:18:54 PM Functions

Important Information • The amount of rice is specified in specifications. (Page 19) • If using too much water, it may cause spill over through steam vent. • In order to have thicker porridge you may reduce the water amount according to your personal taste. • When the outer lid is opened during cooking, the amount of moisture condensation may be increased. • Take off and clean the steam cap after every use to prevent any odours.

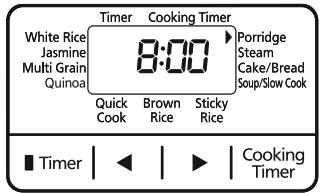

(Cooking with the Porridge function).

to Porridge function.

• The indicator lights up and cooking starts.

• Before cooking is completed, the LCD display will show the remaining time in 1 minute decrement.

• lf you want to preset the timer for Porridge, please refer to “Using the Timer” (Page 15).

• When cooking is over, the electric rice cooker beeps and automatically switches to the Keep Warm function indicator turns off and the indicator lights up automatically). However, we do not recommend

(The using the Keep Warm function as it may become too thick. Press the button to exit the Keep Warm function and unplug the power plug.

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 11

10/28/2015 7:18:58 PM Functions

Important Information • After boiling and complete evaporation of water, the electric rice cooker automatically switches off. • If you want to abort steaming during cooking, press button. • When steaming food while cooking rice, it’s recommended to use Jasmine, Multi Grain or White Rice function with maximum quantity as described on Page 8. → Do not open the outer lid while cooking. (Cooking result may not be satisfactory). • Please do not block the hole of the inner lid with food.

• Add the required amount of water. • Place the adjustable steam basket into the inner pan as shown. • Place foods to be steamed into the adjustable steam basket. • Close the outer lid.

Correspondence between the amount of water and time of steaming

Amount of water Cooking time

Adjustable steam basket

Less than 10 minutes

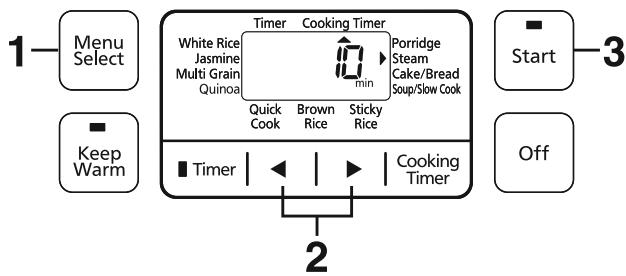

(Cooking with the Steam function).

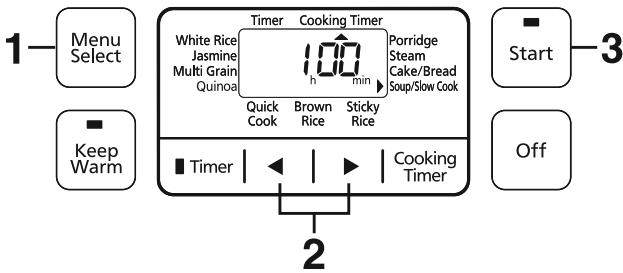

button to point indicator and

blink (as the default cooking time for Steam function).

button to set the cooking time as your desire.

• You can set the cooking time from 1 to 60 minutes (1 minute increment).

• Keeping the button pressed will make setting faster.

• The indicator lights up and cooking starts.

• After water is boiled, the LCD display will show remaining time in 1 minute decrement.

• When cooking is over, the electric rice cooker beeps and automatically switches to the Keep Warm function indicator turns off and the indicator lights up automatically). However, we do not recommend

(The using the Keep Warm function as it may affect the taste. Press the button to exit the Keep Warm function and unplug the power plug.

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 12

10/28/2015 7:19:02 PM Functions

Important Information • The maximum allowable weight (total weight of the ingredients) for Cake / Bread is 500 g. If the maximum allowable weight is exceeded, baking will not get baked thoroughly. • Bread function performs only bake function. Please make a leavened dough with reference to recipe book.

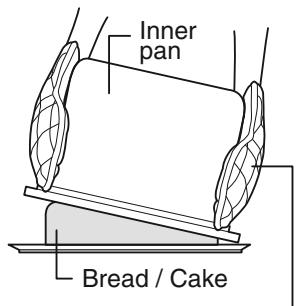

• Prepare Cake / Bread mix. • For cake : Beat all the mixture as instructed in the recipe book. For bread : Knead all the mixture as instructed in the recipe book. • Coat the inner surface area (bottom and sides) of the inner pan with butter (or cooking oil), place the prepared ingredients there and close the outer lid.

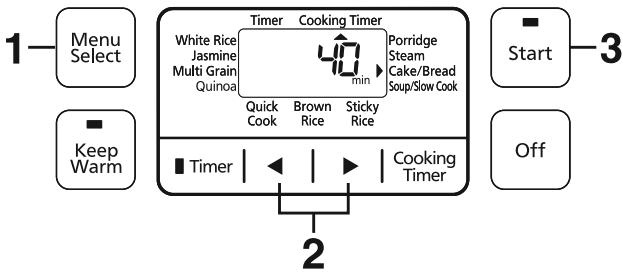

(Cooking with the Cake / Bread function).

button to point indicator and

to Cake / Bread function.

blink (as the default cooking time for Cake / Bread function).

button to set the cooking time as your desire.

• You can set the cooking time from 20 to 65 minutes (5 minutes increment).

• Keeping the button pressed will make setting faster.

• The indicator lights up and cooking starts.

• The LCD display will show remaining time in 1 minute decrement.

• When cooking is over, the electric rice cooker beeps and automatically indicator turns off and the switches to the Keep Warm function. (The indicator lights up automatically). However, we do not recommend using the Keep Warm function as it may affect the taste. Press the button to exit the Keep Warm function and unplug the power plug.

• Bring out the inner pan and leave it cool for 2-3 minutes. Then put the inner pan upside down onto a tray or grill. • Decorate the cake surface as your desire.

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 13

10/28/2015 7:19:13 PM Functions

Important Information • The maximum amount of ingredients and liquid for Soup / Slow Cook cannot exceed the maximum water line for “White Rice”.

• Place all ingredients into the inner pan. • Close the outer lid.

(Cooking with the Soup / Slow Cook function).

button to point indicator and

to Soup / Slow Cook function.

blink (as the default cooking time for Soup / Slow Cook function).

button to set the cooking time as your desire.

• You can set the cooking time from 1 to 12 hours (30 minutes increment).

• Keeping the button pressed will make setting faster.

• The indicator lights up and cooking starts.

• The LCD display will show remaining time in 1 minute decrement.

• When cooking is over, the electric rice cooker beeps and automatically switches to the Keep Warm function indicator turns off and the indicator lights up automatically). However, we do not recommend

(The using the Keep Warm function as it may affect the taste. Press the button to exit the Keep Warm function and unplug the power plug.

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 14

10/28/2015 7:19:21 PM Using the Timer

The presetting time is desired time for eating. • Time can be preset 24 hours in advance. Example If the timer is set for 18:30, cooking will be completed at 18:30. * When the preset timing is less than the required timing for cooking, the electric rice cooker will start cooking as soon as ※

Memory of preset time will be lost if battery power is fully utilized. Please contact authorized service center for replacement.

button to select function.

• Applicable functions for timer setting:

button to select the timer setting.

button is pressed, the previous timer setting will be displayed. The time and the

button to set desired time.

• The timer will advance 10 minutes each time.

• Keeping the button pressed will make setting faster.

button. indicator turns off and the

indicator lights up.

indicator turns off and the

• When cooking starts, the • Timer setting can’t be used in the following functions :

indicator lights up.

Quinoa Quick Cook Steam Cake / Bread Soup / Slow Cook

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 15

10/28/2015 7:19:28 PM Cleaning and maintenance

• Be sure to unplug and carry out these operations when the appliance is cooled down.

• Parts need to be cleaned after every use. • Do not use cleaning objects such as benzine, thinners, cleansing powder or metal scrubbers.

Removing the steam cap

2 Turn and pull it out.

Rubber seals (Do not remove)

Remove the inner lid

Hold the two tabs, then pull them towards you. Attach the inner lid 1 Insert the protruding part into the locker on the outer lid in a tilted way. 2 Press the tabs (both sides) inwards the outer lid side until the click sound is heard.

Attaching the steam cap the positions of

1 Match and . it clockwise 2 Turn until it locks.

3 Faced upward, fix it into the hole of outer lid. (Make sure the steam cap fit securely to the outer lid).

Load and unload tabs of inner lid

• Wash with a diluted dishwashing detergent and sponge.

Important Information

Wash with a diluted dishwashing detergent and sponge and wipe off the external surface of the pan. Do not use scouring pad.

Wipe with damp cloth.

Temperature sensor / Cast heater

If an object has become stuck to the temperature sensor / cast heater, slightly polish it off using fine sandpaper (of about # 600). Then wipe with a damp cloth.

• Residue that may remain in the steam cap could cause malfunctions. Please keep the area clean.

• Setting the steam cap incorrectly does not prevent the rice cooker from cooking rice, but may result in the rice being unevenly cooked due to steam leakage.

Wipe with a damp cloth. • Do not use a dishwashing detergent.

Adjustable steam basket

• Wash with a diluted dishwashing detergent and sponge.

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 16

10/28/2015 7:19:34 PM How to use adjustable steam basket /

When the display shows as follows How to use adjustable steam basket Height adjustment Put your thumb on the ring on the inner wall of the rotating part, lift and slightly turn it counterclockwise, and then release your finger. The height of the adjustable steam basket will increase. To restore the previous size, hold the bottom of the rotating part with your palm, slightly turn it clockwise, and lift it up to clip. Fixed part Rotating part

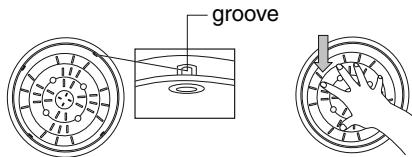

Firstly, restore the adjustable steam basket to the initial state (shallow), turn it over on the table, and then press down firmly on the rotating part up to clip. Fixed part and rotating part will detach.

Direct the protrusion on the edge of the rotating part towards the groove on the inner wall of the fixed part, and then press with force on the bottom of the rotating part up to clip. groove

When the display shows as follows

Problems and troubleshooting

Following continuous 96 hours Keep Warm function, the power supply will automatically cut off.

button to resolve the error.

Contact the authorized service center for repair.

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 17

10/28/2015 7:19:51 PM Troubleshooting

Please check the following items

Inadequate washing of rice.

Foreign matters between inner pan and cast heater.

Cooking with a lot of oil.

The rice has been warmed more than 12 hours.

The outer lid is not securely closed.

The inner pan is not adequately washed.

The power cord is not connected to the socket securely.

Sound occurs because of water that has stuck to inner pan.

Pull out plug and check the socket.

Burnt rice at bottom of inner pan

Wrong rice and water proportion.

Strange sound occurs

Outer lid not close while cooking.

Foreign matters between inner pan and cast heater.

Not enough butter or cooking oil applied to the bottom of the inner pan.

Cake / Bread left in the inner pan too long.

Inadequate mixing or mixed too long.

Wrong ingredient quantity.

Sound occurs because of water that has stuck to inner pan.

Pull out plug and check the socket.

Used with cake mix that contains too much chocolate, sugar or fruit ingredients.

Used with incompatible cake mix.

Not enough mixing before baking.

Bottom of the Cake /

The Cake / Bread sticks to the base of inner pan

Strange sound occurs

Baking Cake / Bread problems

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 18

10/28/2015 7:20:01 PM Specifications

In the Cooking Function

775 W In the Keep Warm Function

Dimensions (Width x Length x Height) (approx.) Weight (approx.) Keep Warm

• For power cord replacement and product repair, please contact Panasonic authorized service center.

• The design and specifications are subjected to change without prior notice. Function

Cooking time (approximate) *1

*1 Cooking time may vary depending on supply voltage, room temperature, kind of rice, cooking quantity, water quantity and water temperature.

*2 Rice cooked (white rice at minumum cooking quantity) within 15 minutes. (Under Panasonic test method)

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 19

10/28/2015 7:20:01 PM

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 20

10/28/2015 8:12:18 PM

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 21

10/28/2015 8:12:21 PM

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 22

10/28/2015 8:12:38 PM

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 23

10/28/2015 8:13:17 PM

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 24

10/28/2015 8:13:21 PM Préparatifs

White Rice (Riz blanc)

Multi Grain (Multigrain)

Brown Rice (Riz brun)

Sticky Rice (Riz gluant)

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 25

10/28/2015 8:13:30 PM Préparatifs

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 26

10/28/2015 8:14:01 PM Fonctions

White Rice (Riz blanc)

Multi Grain (Multigrain)

Brown Rice (Riz brun)

Sticky Rice (Riz gluant)

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 27

10/28/2015 8:14:36 PM Fonctions

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 28

10/28/2015 8:14:54 PM Fonctions

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 29

10/28/2015 8:14:56 PM Fonctions

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 30

10/28/2015 8:15:05 PM Fonctions

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 31

10/28/2015 8:15:32 PM Fonctions

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 32

10/28/2015 8:16:07 PM White Rice (Riz blanc)

Brown Rice (Riz brun)

Sticky Rice (Riz gluant)

Multi Grain (Multigrain)

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 33

10/28/2015 8:16:37 PM

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 34

10/28/2015 8:16:59 PM

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 35

10/28/2015 8:17:27 PM Dépannage

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 36

10/28/2015 8:17:44 PM White Rice (Riz blanc)

2 - 10 verres mesureur

Multi Grain (Multigrain)

2 - 8 verres mesureur

1 - 4 verres mesureur

1 - 2 verres mesureur

Brown Rice (Riz brun)

2 - 6 verres mesureur

1 - 3 verres mesureur

Sticky Rice (Riz gluant)

3 - 6 verres mesureur

1 - 3 verres mesureur

White Rice (Riz blanc)

Multi Grain (Multigrain)

Quick Cook (Cuisson rapide)*2

Brown Rice (Riz brun)

Sticky Rice (Riz gluant)

SR-ZX_ZG185_105_OIB_FR_EN__cover modified_2810.indd 37

10/28/2015 8:17:44 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 38

10/28/2015 9:42:16 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 39

10/28/2015 9:42:16 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 40

10/28/2015 9:42:42 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 41

10/28/2015 9:42:58 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 42

10/28/2015 9:43:09 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 43

10/28/2015 9:43:29 PM

為了讓內鍋底部緊密貼合鑄封加熱器，請將內鍋沿箭頭方

請檢查內蓋及蒸氣蓋的裝置是否正確。（參照第 52 頁）

然後連接電源插頭。確保兩個插頭連接緊固。

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 44

10/28/2015 9:43:49 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 45

10/28/2015 9:44:32 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 46

10/28/2015 9:45:03 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 47

10/28/2015 9:45:30 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 48

10/28/2015 9:45:53 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 49

10/28/2015 9:46:37 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 50

10/28/2015 9:47:18 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 51

10/28/2015 9:47:59 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 52

10/28/2015 9:48:24 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 53

10/28/2015 9:49:09 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 54

10/28/2015 9:49:30 PM

SR-ZX_ZG185_105_OIB_US_CT_2810.indd 55

10/28/2015 9:49:32 PM

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 56

10/28/2015 9:53:24 PM

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 57

10/28/2015 9:53:24 PM

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 58

10/28/2015 9:53:47 PM

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 59

10/28/2015 9:53:55 PM

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 60

10/28/2015 9:54:01 PM Preparaciones

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 61

10/28/2015 9:54:15 PM Preparaciones

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 62

10/28/2015 9:54:27 PM

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 63

10/28/2015 9:54:41 PM Funciones

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 64

10/28/2015 9:55:46 PM Funciones

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 65

10/28/2015 9:56:21 PM Funciones

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 66

10/28/2015 9:56:28 PM Funciones

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 67

10/28/2015 9:56:47 PM Funciones

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 68

10/28/2015 9:57:23 PM

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 69

10/28/2015 9:57:44 PM Tapa interior

Junta de goma (No Eliminar)

Información importante

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 70

10/28/2015 9:57:57 PM

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 71

10/28/2015 9:58:32 PM

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 72

10/28/2015 9:58:49 PM

SR-ZX_ZG185_105_OIB_ES_EN__cover modified_2810.indd 73

10/28/2015 9:58:49 PM Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

EXCHANGE PROGRAM Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or

(c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Electric Rice Cooker

Automatic Bread Maker

One (1) year One (1) year One (1) year One (1) year

Toaster Oven Breakfast series (Coffee maker, Toaster, Kettle) Hand Blender

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED LIMITATIONS AND EXCLUSIONS This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory. CONTACT INFORMATION For product information and operation assistance, please visit our Support page: www.panasonic.ca/english/support For defective product exchange within the warranty period, please contact the original dealer.

SR-ZX_ZG185_105_OIB_US_EN__back-cover modified_2110.indd 74

10/21/2015 3:51:13 PM Panasonic Canada Inc.

5770, Ambler Drive, Mississauga (Ontario) L4W 2T3

SR-ZX_ZG185_105_OIB_US_EN__back-cover modified_2110.indd 75

10/21/2015 3:51:15 PM Limited Warranty (ONLY FOR U.S.A.)

Panasonic Products Limited Warranty Limited Warranty Coverage (For USA Only) If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor.

Product or Part Name

Large Capacity Rice Cookers (SR-42 series)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to: Consumer Affairs Department Panasonic Corporation of North America 661 Independence Pkwy Chesapeake, VA 23320

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED During the “Labor” warranty period there will be no charge for labor. During

WARRANTY, ARE YOUR RESPONSIBILITY. the “Parts” warranty period, there will be no charge for parts. This warranty only applies to products purchased and serviced in the United States. This warranty is extended only to the original purchaser of a new product which was not sold “as is”.

Mail-In Service – Online or Telephone Repair Request

Online Repair Request To submit a new repair request, and for quick repair status visit our Web Site at: http://shop.panasonic.com/support When shipping the unit, carefully pack and send it prepaid in the original (or supplied) carton. Include a letter detailing the complaint along with the bill of sales and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty. When shipping Lithium Ion batteries please visit our web site at http://shop.panasonic.com/support as Panasonic is committed to providing the most up to date information. IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER glass, plastic parts, temperature probes (if included) and normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up adjustments, maladjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a factory service center or other authorized servicer, or damage that is attributable to acts of God. THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.)

SR-ZX_ZG185_105_OIB_US_EN__back-cover modified_2110.indd 76
