USER MANUAL LN01A TRIANGLE

MANUFACTURE ELECTROACQUSTIQUE

ELARA

ACTIVE SERIES

Mode d'emploi & Garantie Owner's manual & Warranty

INSTRUCTIONS DE SÉCURITÉ

WARNING : Read carefully all the safety instructions before using the device.

• Keep these safety instructions for future references.
  Do not use this apparatus near water or liquid.
  Only clean with a dry and soft cloth.
  Do not block any aperture (vents) of the device.
• Do not install near any heat sources such as radiators, stoves, or any other apparatus (including amplifiers) that produce heat.
• Only use accessories specified by the manufacturer.
  Be sure that the stand/table/furniture is strong enough to support the apparatus.
• Protect the power cord from being walked on or pinched particularly at the plugs and also protect the connector where it exit from the apparatus.
  Unplug the apparatus during lightning storms or when it's unused for long periods of time.
• The plug of the apparatus must fit with the outlet. Never modify the plug in any way. Apparatus should be connected to a mains socket outlet with protective earthing connection.
  Refer to your authorized TRIANGLE dealer or qualified service personnel if the apparatus is damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen on the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

www.trianglehifi.com

support.trianglehifi.com

SUPPORT & FAQ

facebook.com/triangle.electroacoustique

twitter.com/trianglehifi

SOMMAIRE / SUMMARY

GARANTIE/WARRANTY 4

MODE D'EMPLOI - FRANÇAIS 7

Unpacking 20
Assembly of the LN05A pedestal 21
Installation precautions 22
Powering 23
Speaker description 24
Remote description 25
Connecting sources 26
Bass and treble adjustment / Auto standby feature 29

INFORMATIONS TECHNIQUES / TECHNICAL INFORMATIONs 30

GARANTIE / WARRANTY

Thanks for buying a TRIANGLE product.

We want you to enjoy your purchase to the fullest. The first step is an easy registration of your products. By doing this, you will benefit from helpful tips, products support, special offers and 2 years warranty.

1- Online registration

Register your product easily online at the following address : http://register.trianglehifi.com/

2-Warranty card

You can also register your product and validate your warranty by filling the warranty card and sending it to :

TRIANGLE DISTRIBUTION FRANCE

44 rue Barreyre - CS 40099

33300 Bordeaux Cedex FRANCE

Note on the warranty

Your TRIANGLE loudspeakers are warranted for 2 years. This warranty takes effect from the date of purchase and covers any manufacturing defect or damage your loudspeakers could suffer as a result of these same defects. This warranty is granted solely to the first owner of the product, and is not transmittable in the case of resale. To validate your warranty, you will need to register online or mail the warranty coupon to TRIANGLE. Please note, this warranty is voided if any fault arises from ill-treatment or careless handling of the product.

The following are not guaranteed :

A burned voice-coil caused by overloading the driver
Any fault occurring from professional usage (public sound systems, PA systems, etc.)
Any fault resulting from storage in areas of high humidity
A pierced or torn membrane
A torn suspension
Any fault resulting from a mechanical shock (ex if dropped or handled roughly)
Any fault arising from servicing by anyone other than an authorized TRIANGLE service technician
Damaged cabinets due to mishandling

Open the box, and take out the speakers and accessories. If you notice any defects in one of the elements as you unpack, please get in touch with your reseller.

Before disposing of the packaging, make sure there is nothing left inside.

For LN01A :

1 x active speaker LN01A ELARA
1 x passive speaker LN01A ELARA
1xremote(pull out the plastic tab from the battery compartment before use)
2x protection grids
8 x adhesive anti-slip feet to place below the speakers
1xACpowercord
1 x 3-meter speaker cable to link the speakers
1x registration form
1xusermanual

For LN05A :

1 x active Elara LN05A speaker
1 x passive Elara LN05A speaker
1xremote(Pull out the plastic tab from the battery compartment before use.)
2x protection grids
8 x adhesive anti-slip feet to place below the speakers
8x decoupling spikes
2xpedestals
8x screws
1xACpowercord
1 x 5-meter speaker cable to link the speakers
1x registration form
1xusermanual

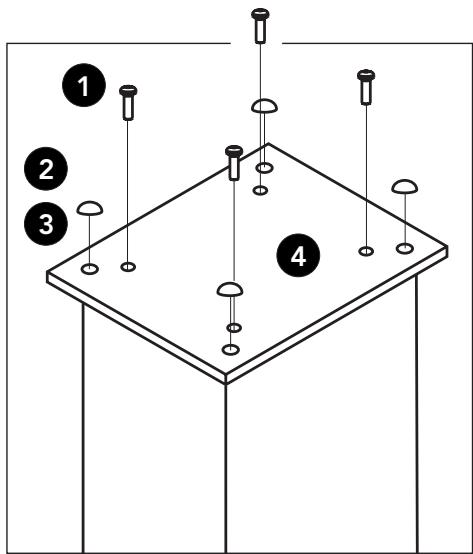

ASSEMBLY OF THE LN05A PEDESTAL

1

2

3

4

Inner holes : for attaching the stand

Outer holes : inserts for mounting spikes

X4

x4

x4

×1

Stand the speaker on the top on a non-abrasive surface.

Secure the pedestal by using the screws supplied.

On a rigid surface (wood, floor):

Stick the rubber pads 2 at the 4 corners of the pedestal.

On a soft ground (carpet, rug):

Screw the spikes 3 in the inserts of the pedestal.

INSTALLATION PRECAUTIONS

Before the installation

Before making any connections, turn off the devices. Be sure to always set the active speaker switch to OFF before removing or plugging connection cables. Do not plug in the power cord before all connections are made.

Moving the device

Always remove the power cord and disconnect the cables between all components when moving the device. This will prevent a short-circuit or the damage to the plugs or connection cables.

Before turning on the device

Check one last time if all the connections are correct.

Location to avoid

Install your speakers in a temperate place and avoid humid locations or direct sunlight.

Recycling

Protection of the environment: Your products contain valuable materials which can be recovered or recycled. Take them to the appropriate collection points.

POWERING

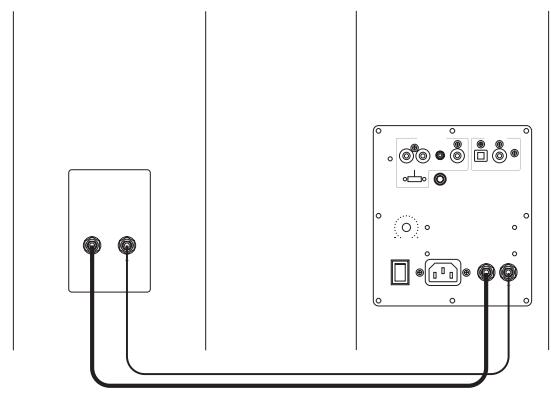

Connecting the speakers

The ELARA active speakers must be interconnected with the provided cable. (Black cable mentioning: "High performance OFC cable").

Make sure that the speaker connection polarity is correct. The red and black terminals on the passive and active speakers must be connected respectively to one another. To help with the setup, the connection cable bears the mention 'TRIANGLE High performance OFC cable" and must be connected to the red terminal (+).

Powering on

Once you have checked the amplifier on the active speaker is set to the "OFF" position, plug the power cord into the designated input and into an AC power outlet. The speakers are then ready for use and can be turned on.

POWER

POWER

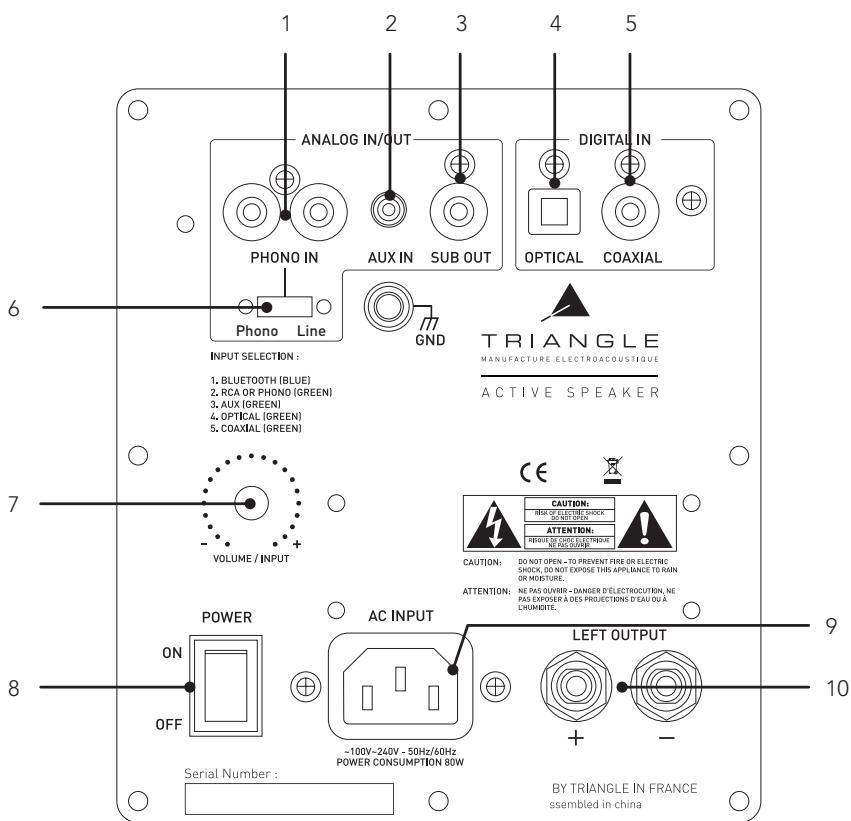

DESCRIPTION OF THE SPEAKER

1. RCA input (line/phono)
2. 3.5mm Jack auxiliary input
3. Subwoofer output
4. Optical input
5. Coaxial input
6. RCA switch (line/phono)
7. Turn: Volume control

Press : Source selection :

1. Bluetooth
2. Line ou Phono (RCA)
3. Auxiliaire
4. Optique

5. Coaxial

6. Power switch

7. AC outlet
8. Terminal of the passive speaker

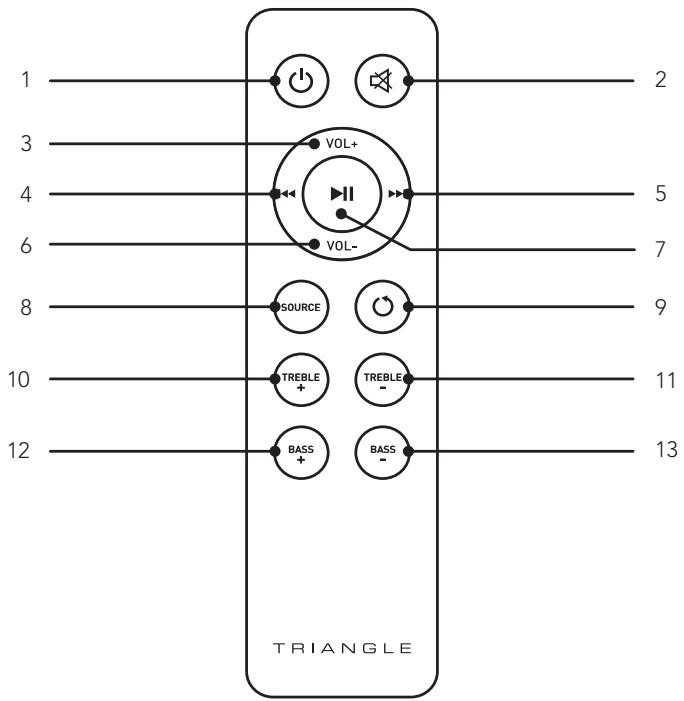

DESCRIPTION OF THE REMOTE CONTROL

1. Standby / Power On
2. Mute
3. Increasing volume
4. Skip backward (Bluetooth mode only)
5. Skip forward (Bluetooth mode only)
6. Reducing volume

7. Play / Pause a track (Bluetooth mode only)

8. Sources

9. Resetting bass, treble and volume adjustments
10. Increasing treble
11. Reducing treble
12. Increasing bass
13. Reducing bass

When using the remote, always direct it towards the receiver on the front of the main speaker. The LED on the front panel blinks when the remote is being used.

CONNECTING SOURCES

The ELARA active speakers can be paired with a variety of sources. Here are the various options :

Connection via Bluetooth

Bluetooth

This enables you to stream music wirelessly thanks to latest generation 4.0 A2DP aptX Bluetooth technology. AptX is a coding system which enables you to stream music to your Elara speakers via Bluetooth, delivering sound approaching CD-quality. The range is of about 10 meters, depending on the surroundings and obstacles within the path.

Elara active speakers lets you play music from any Bluetooth-enabled sources: smartphone, tablet, computer, etc. To do so:

Slide the power switch on the back to the ON position to activate your Elara speakers.
- Select the "Bluetooth" input using the "INPUT" button on the back of the speaker or on the remote. The blue LED indicates that the source is connected via Bluetooth.
Press the "Bluetooth" button on your remote. The blue LED blinks, indicating that the system is seeking to connect to a Bluetooth-enabled device (smartphone, tablet...).
- When you search on your Bluetooth device (refer to the user guide if needed), the speakers should appear under the name "LN01A" or "LN05A", you can then connect to this. Your speakers are now linked to your device and will reproduce the sound from the device. The connection will be made automatically next time you switch on your speakers if Bluetooth is selected and enabled on your device.
- If you wish to connect another device while the previous one is still connected, disable the Bluetooth connection from your formerly paired device or disconnect it directly from the Bluetooth menu. The LED will blink again, and the seeking mode will be activated.
- Elara active's Bluetooth process allows you to change track, play and pause directly from your remote, without using the connected device.
- Your Bluetooth device now controls your speakers and you can change the volume directly from this device.

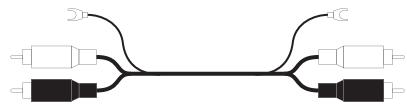

Connection via an RCA cable

line

or

phono

The RCA input enables you to connect your Elara active speakers to your TV, CD player, turntable or any other device. To do so:

Plug the red and white connectors into "RCA INPUT" on the back of the speaker, minding the colours, and do the same on the source.
- Select the "RCA" input using the remote or the "INPUT" button (volume button) on the back of the active speaker. (Source selecting order is indicated above the "INPUT" button.) The green LED indicates that the source is actually connected to the "RCA" input. Make sure the selector is switched to "LINE". Your system is ready to operate.

Connecting a turntable:

To plug a vinyl player, push the "PHONO IN" switch to the left for the signal to pass through the phono chain. Connect the ground wire to the dedicated screw terminal on the back of your amplified speaker and to your turntable.

Connection via a 1/8-inch (3.5mm) jack cable

The jack input - for a 3.5mm jack cable - (AUX IN) enables you to connect your speakers to many devices: smartphone, audio player, tablet, computer, television, etc. To do so:

Plug one end of the jack connector into the "AUX INPUT" terminal and the opposite end into your device.
- Select the "3.5" input using the remote or the "INPUT" button (volume button) on the back of the amplified speaker. (The source selecting order is indicated above the "INPUT" button.) The green LED indicates that the source is actually connected to the "AUX" input. Your system is ready to operate.

Connection via an optical cable:

The optical input enables you to connect your ELARA speakers to any audio device with an optical output: audio player, DVD player, television, etc. To do so:

Plug one end of the optical cable into the back of the active speaker in the "OPTICAL" input and the opposite end into your device.
- Select the "OPTICAL" input using the remote or the "INPUT" button (volume button) on the back of the active speaker. (The source selection order is indicated above the "INPUT" button.) The green LED indicates that the source is actually connected to the "OPTICAL" input. Your system is ready to operate.

Connection via a coaxial cable:

The coaxial input enables you to connect your ELARA speakers to any audio device with a coaxial output: CD player, DVD/Blu-ray player, television, etc. To do so:

Plug one end of the coaxial cable into the back of the active speaker in the "COAXIAL" input and the opposite end into your device.
- Select the "COAXIAL" input using the remote or the "INPUT" button (volume button) on the back of the active speaker. (The source selection order is indicated above the "INPUT" button.) The green LED indicates that the source is actually connected to the "COAXIAL" input. Your system is ready to operate.

Connecting a subwoofer:

The ELARA speakers feature a subwoofer output.

To plug in your subwoofer, use the proper RCA cable. Settings must be made directly from your subwoofer. (A 60-70 Hz cut-off frequency is recommended.) Check your subwoofer's user guide for the various setting instructions.

BASS AND TREBLE ADJUSTMENT

Your ELARA speakers have a band equalizer that enables you to adjust the low and high frequencies as you like.

Adjusting the amount of bass:

6 positions available in 2dB steps over a range between 30 and 400Hz

(-6dB, -4dB, -2dB, 0dB, +2dB, +4dB, +6dB).

The factory setting defaults to 0dB.

The low-frequency output will increase or decrease each time the remote control is pressed.

Adjusting the amount of treble:

6 positions available in 2dB steps over a range between 2 and 30kHz

(-6dB, -4dB, -2dB, 0dB, +2dB, +4dB, +6dB).

The factory setting defaults to 0dB.

The high-frequency output will increase or decrease each time the remote control is pressed.

When the speaker goes on standby, the settings will be stored for the next use.

To restore the factory presets, you just need to press the "RESET" button on the remote.

AUTO STANDBY FEATURE

If no signal is received for 30 minutes, the speakers will automatically switch to standby. To exit the standby mode, simply switch the speakers back on with the remote (see page 21).

CAUTION

To avoid the risk of electric shock, do not open the speaker.

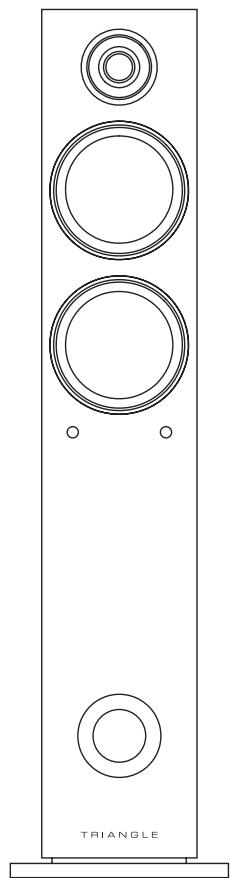

ENCEINTES ELARA / ELARA SPEAKERS

Spécifications techniques Technical specifications	ELARA LN01A	ELARA LN05A
Type	Enceintes actives bass-reflex Active speakers	Enceintes actives bass-reflex Active speakers
Diamètre haut-parleurs Driver diameters	13 cm 5"	2 x 13cm 2x5"
Sensibilité enceintes Sensitivity	89 dB/m	90 dB/m
Bande passante Bandwidth (+/- 3dB)	56 Hz - 22 KHz	47 Hz - 22 KHz
Puisance Power handling	2 x 50W	2 x 80W
Entrées Inputs	RCA, AUX, Optical, Phono, Bluetooth 4.0 A2DP aptX	RCA, AUX, Optical, Phono, Bluetooth 4.0 A2DP aptX
Sortie Output	Caisson de grave Subwoofer	Caisson de grave Subwoofer
Dimensions	165 x 235 x 291 mm 6.49 x 9.25 x 11.46 inches	165 x 263 x 900 mm 6.49 x 10.35 x 35.43 inches
Dimensions avec socle Dimensions with pedestal	-	230 x 290 x 921 mm 9.05 x 11.41 x 36.25 inches
Poids des enceintes Net weight	9,5 kg 19.84 lbs	27,3 kg 60.18 lbs
Poids avec packaging Gross weight (pair)	11,2 kg 24.25 lbs	31,3 kg 68.34 lbs

ELARA LN01A

ELARA LN05A
