USER MANUAL VINTAGE SCHNEIDER

Please read these instructions carefully before using this appliance. Please keep these instructions for future reference.

This product conforms to the requirements of directives 2014/35/UE

(repealing directive 73/23/CEE amended by directive 93/68/CEE)

and 2014/30/UE (repealing directive 89/336/CEE).

IMPORTANT SAFETY INSTRUCTIONS

When using an electric (convection) oven, always follow a number of basic safety precautions, including:

1. This device can be used by children over 8 years of age and by persons whose physical, sensory or mental abilities are reduced, or persons without experience or knowledge, if they have benefited, by the intermediary of a person responsible for their safety, surveillance or prior instructions concerning the use of the device. Never let a child play with the device. Cleaning and maintenance operations should not be performed by children unless they are older than 8 years of age and remain under supervision.
2. Keep the appliance and cord away from children under 8 years of age.
3. If the power cable is damaged, it must

be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid any danger.

1. The devices are not intended to be operated by means of an external timer or by a separate remote-control system
2. Do not touch hot surfaces. Always use the handles or knobs.
3. Close supervision is necessary when the appliance is used by or near children.
4. To protect against electric shock, do not immerse cord, plug, or any part of the oven in water or other liquids.
5. Do not leave the power cord near the edge of a table or countertop or touch hot surfaces.
6. Do not use the appliance if it has a damaged cord or plug, if the appliance has malfunctioned, or if it has been damaged in any manner.

Return the unit to the nearest authorized service centre for inspection, repair or adjustment.

1. The use of attachments not recommended by the appliance manufacturer may cause hazards and injuries.
2. Do not place the appliance on or near an electric cooktop or operating gas cooktop.
3. To ensure proper air circulation, make sure there is at least a 10 ~cm gap around the oven during use.
4. Unplug from outlet when not in use and before cleaning. Allow the unit to cool before putting on or taking off parts and before cleaning.
5. To turn the power off, turn the time switch to "OFF" and unplug the power plug. Always grasp the plug to unplug it, never pull the power cord.
6. Be extremely careful when moving the broiler pan containing hot oil or

other hot liquid.

1. Do not cover any part of the oven with aluminium foil. This can cause the device to overheat.
2. Use extreme caution when removing the broiler pan or grates, and when disposing of hot grease or other hot liquids.
3. Do not clean the inside of the oven with metal scouring pads as they may come loose, touch electrical parts, and create a risk of electric shock.
4. Do not put metal or oversized food in an electric oven, as this may result in a fire and risk of electric shock.
5. A fire may occur if the oven is covered or if it is in contact with a flammable material when it is in use (for example: curtains, draperies, walls or anything similar). Do not place any object on the top of the device while it is in operation.
6. Use extreme caution when using

cookware made of materials other than metal or heat-resistant glass.

1. Make sure nothing is touching the upper and lower heating elements of the oven.
2. Do not place any of the following materials in the oven: cardboard, plastic, paper, or any similar material.
3. Do not store anything other than the accessories recommended by the manufacturer in this oven when you are not using it.
4. Always wear insulating and protective inserts when inserting or removing food / utensils from the hot oven.
5. This appliance is equipped with a tempered safety glass door. This type of glass is stronger and breaks more easily than ordinary glass.

Nevertheless, tempered glass can break near its edges. Be careful not to scratch the surface of the door and not chip the edges.

1. This unit is OFF when the time button is in the "OFF" position.
2. Do not use the appliance outdoors.
3. Do not use the appliance for other than intended use.
4. Surfaces can become very hot during use.
5. The door and outer surfaces can become very hot while the unit is in operation.
6. This device is intended for use in domestic applications only.
7. This device must not be powered by an external power on / off device, such as a timer.
8. The back side should be close to the wall.
9. For cleaning and maintenance instructions, refer to cleaning and care section on page 13.

Suitable for food

CAUTION: very hot surface

SAVE THESE OPERATING INSTRUCTIONS

Domestic use only

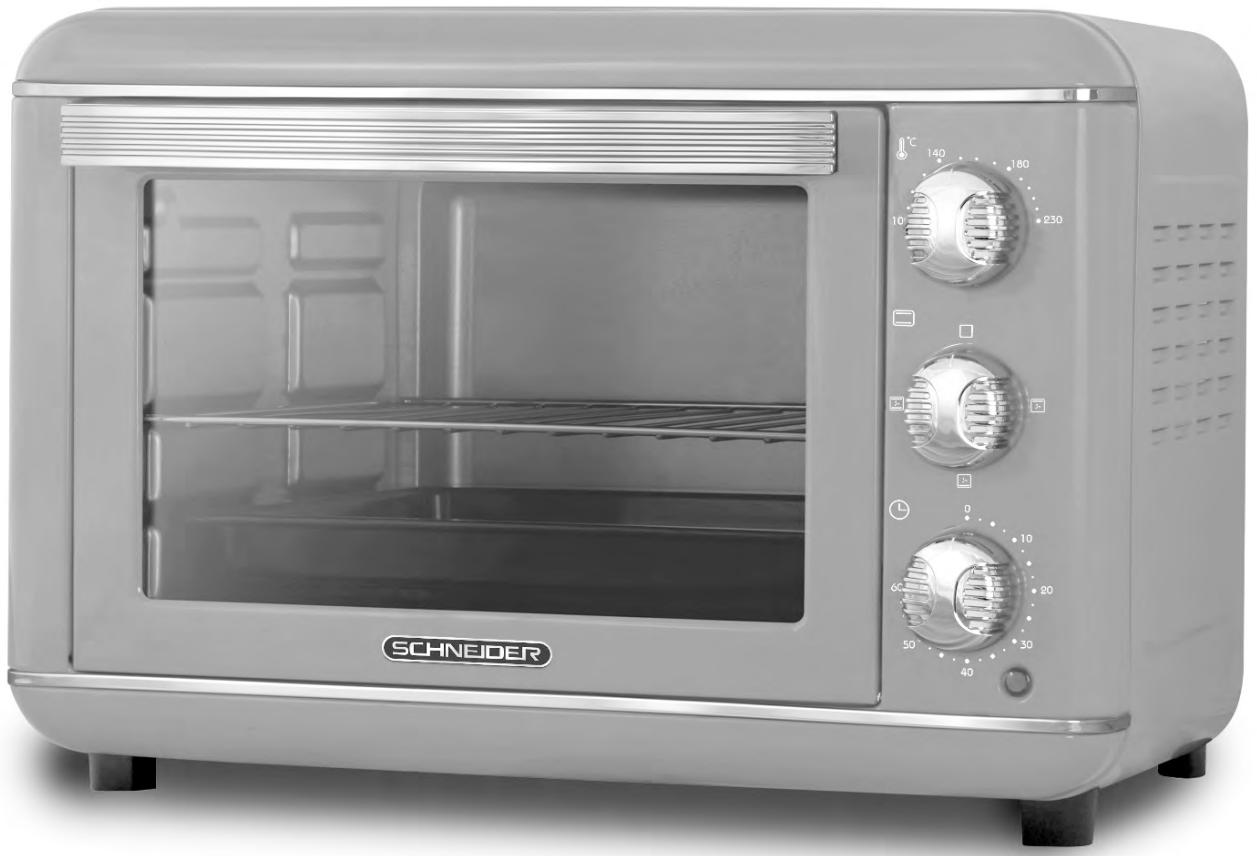

Description of your rotating heat oven

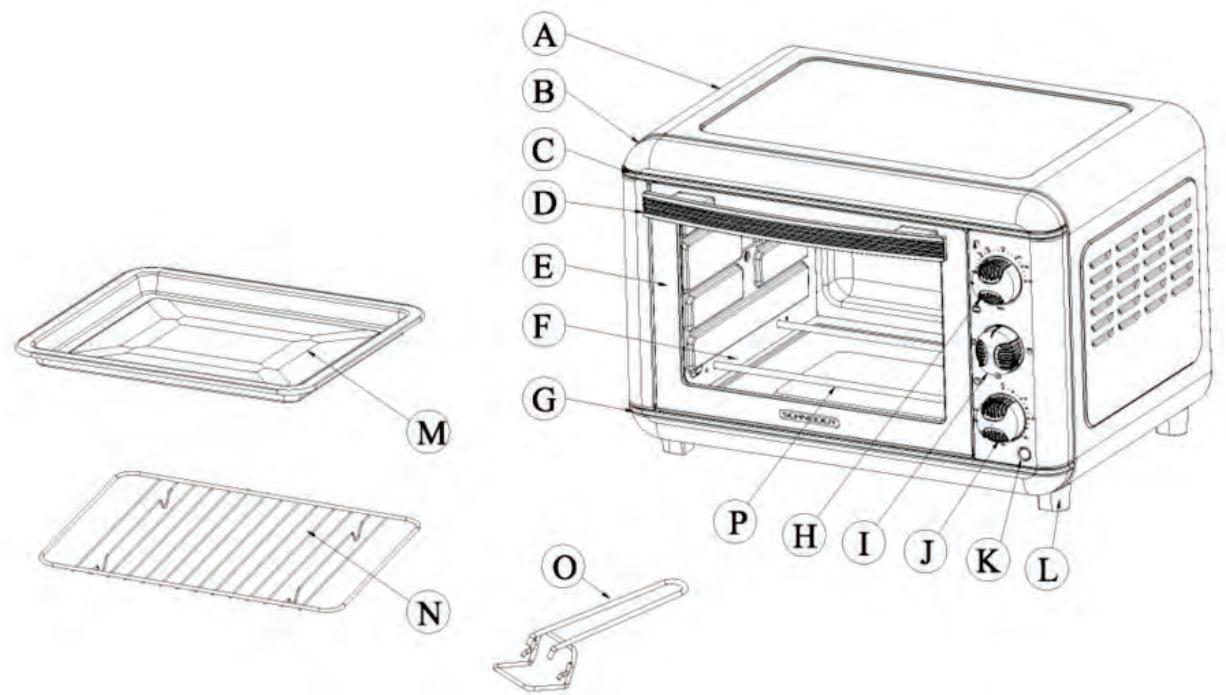

MAIN COMPONENTS:

A. Housing
B. Front plate
C. Upper decorative strip
D. Door handle
E. Door frame
F. Glass door
G. Lower decorative strip
H. Temperature knob

I. Mode knob
J. Time knob
K. Indicator light cap
L. Foot
M. Drip pan
N. Cooking grill
O. Drip pan handle
P. Heating element

Read all the chapters of this manual and follow all instructions carefully.

Before using your convection oven

Before using your electric convection oven for the first time, be sure to:

1. Read all the instructions contained in this manual.
2. Check that the oven is disconnected from the electrical outlet and that its time knob is in the "OFF" position.
3. Wash all accessories in hot soapy water or in a dishwasher.
4. Dry all the accessories thoroughly and reassemble them in the oven, plug the oven into an electrical outlet. Your new electric oven is now ready for use.
5. After reassembling your oven, we recommend that you operate it at the highest temperature

setting (230^) using the Grill mode for about 15 minutes to remove any packaging residues that may remain after shipping. This also eliminates all traces of odour that were originally present.

Note: When first used, the appliance may emit some smoke and a slight odour (for about 15 minutes). This is normal and harmless. This is due to the combustion of the protective substance applied to the heating elements in the factory.

Using your convection oven

About rotating heat cooking

Rotating heat cooking combines hot air movements generated by a fan with conventional functions (grill , brown , cook ). Rotating heat usually allows faster cooking than conventional electric radiant heat ovens. The fan gently propels air into the food areas, allowing them to be cooked and browned quickly, preserving their moisture and flavour. The air movements make the temperature around the food uniform, making cooking more homogeneous compared to conventional ovens where some areas are warmer and others colder. The rotating heat allows you to cook at lower temperatures, saving energy and helping to keep the kitchen cooler. With rotating heat, very hot air circulates around the food, which significantly speeds up their cooking compared to conventional ovens.

Using your rotating heat oven

Familiarise yourself with the functions, controls and accessories of the oven before first use:

• Temperature knob (H): Set the temperature between 100^ and 230^ for browning, cooking or grilling.
  Mode knob (I): This oven is equipped with four modes for different types of cooking.
• Four-position cooking mode selector:
• Stop /Brown /Cook /Grill /Stop.

Browning: For gratinating fish, steaks, poultry, pork chops, etc. (upper heating elements)

Cook: For baking cakes, pies and biscuits, and cooking poultry, beef, pork, etc. (lower heating elements)

Grill: For baking bread, muffins, frozen waffles, pizza, etc. (upper and lower heating elements)

• Time knob (J): Turn it to the right (clockwise) to cook/bake or use it as a timer. This knob also includes a bell that goes off when the set time has elapsed.
• Fan: The fan works automatically in all modes. Once the temperature and mode are selected, set the timer to the desired time. The convection fan turns ON.
• Power indicator light: It lights up when the oven is ON.

• Drip pan (M): For cooking and roasting meats, poultry, fish and many other foods. It can also be used with a rotisserie to collect juices.

• Cooking grill (O): For grilling, baking and cooking supp standard dishes and casseroles.

WARNING: TO AVOID THE RISK OF INJURY OR BURNS, DO NOT TOUCH THE HOT SURFACES WHILE USING THE OVEN. ALWAYS USE POT HOLDERS.

CAUTION: Take extreme care when removing the drip pan, grill, and any hot containers from a hot oven. Always use the drip pan handle or pot holders to remove hot items from the oven.

Roasting in your oven

Roast your favourite piece of meat to perfection. You can cook chickens and turkeys of about 4kg and roasts of about 3kg with this oven. A guide is provided to help you determine the cooking times. However, we suggest that you regularly check the progress of cooking with a meat thermometer. For best results, we recommend preheating the oven for 15 minutes at 230^ . We do not recommend the use of oven roasting bags or glass containers in the oven. Never use cardboard, plastic, paper, or any similar material in the oven.

Use

• Place the grill in the lowest position in the oven.
• Place the food to be cooked in a roasting pan. If you want to use the drip pan (juice/cooking plate), you do not need to insert the grill, as the drip pan supports itself on the side brackets of the oven.
• Set the temperature knob to the desired temperature.
• Turn the time knob to the ON position.
• To control or stop cooking, use the supplied drip pan handle to slide food more easily into and out of the oven.
• When cooking is completed, turn the time knob to the OFF position.

Roasting guide

Cooking results may vary. Set the time according to your personal preferences.

MEAT	OVEN TEMPERATURE	COOKING TIME
ROAST BEEF	230°C	30-35 minutes
ROAST PORK	230°C	40-45 minutes
HAM	230°C	35-40 minutes
CHICKEN	230°C	25-35 minutes
TURKEY	230°C	25-30 minutes

Note: All cooking times shown correspond to pieces of meat at the temperature of a refrigerator. Frozen meats may require much longer periods of time. This is why it is highly recommended to use a meat thermometer.

BROWNING

For best results, it is recommended to preheat the grill oven for 15 minutes at 230^ .

Use

Preheating

• Set the thermostat knob to 230^ C .
• Turn the mode knob to "Browning" and preheat the oven.
• Place the grill on the drip pan.

Cooking

• Set the temperature knob to the desired temperature.
• Place the food on the grill and insert them into the upper side brackets.
• The food should be placed as close as possible to the upper heating elements without touching them.
• Apply sauces and oils on the food with a brush according to your preferences.
• Turn the time knob to the on position.
  It is advisable to leave the door slightly ajar.
• Turn the food when half the prescribed cooking time has elapsed.
• When cooking is completed, turn the time knob to OFF.

Browning guide

Cooking results may vary. Set the time according to your personal preferences. Also check the cooking at regular intervals to avoid overcooking the food.

MEAT	OVEN TEMPERATURE	COOKING TIME
RIB STEAK	230°C	25-30 minutes
SIRLOIN	230°C	25-30 minutes
HAMBURGER	230°C	25-28 minutes
PORK CHOPS	230°C	40-45 minutes
LAMB CHOPS	230°C	30-40 minutes
CHICKEN DRUMSTICKS	230°C	30-35 minutes
FISH FILLETS	200°C	20-25 minutes
SALMON FILLETS	200°C	20-25 minutes

Note: All cooking times shown correspond to pieces of meat at the temperature of a refrigerator. Frozen meats may require much longer periods of time. This is why it is highly recommended to use a meat thermometer.

Grilling

The GRILL mode uses all heating elements. This appliance allows you to toast 4 to 6 slices of bread, 6 muffins, waffles or frozen pancakes. When grilling only 1 or 2 items, place them on the drip pan in the centre of the oven.

Use

Preheating

• Set the temperature knob to 230^ C .
• Turn the time knob to the on position.
• Set the mode knob to "Grill".

Cooking

• Set the temperature knob to the desired temperature.
• Place the food to be grilled on the cooking grill.
• Set the temperature knob to the appropriate temperature.
  The bell goes off to indicate the end of the cooking time.

Note: The grill should be positioned in the middle of the oven with the recesses pointing downwards.

Cooking

The COOK mode uses only the lower heating elements. For best results, it is recommended to preheat the oven for 15 minutes at 230^ .

Use

Preheating

• Set the temperature knob to 230^ C .
• Turn the mode knob to "Cook *".
• Place the cooking grill on the middle or lower side brackets.

Cooking

• Set the temperature knob to the desired temperature.
• Place the food on the grill and insert them into the side brackets.
• The food should be placed as close as possible to the lower heating elements without touching them.
• Apply sauces and oils on the food with a brush according to your preferences.
• Turn the time knob to the ON position.
  It is advisable to leave the door slightly ajar.
• Turn the food when half the prescribed cooking time has elapsed.
• When cooking is completed, turn the time knob to OFF.

Positioning the cooking grills

Cookies - Use the lower and middle side brackets.

Layer cakes – Use only the lower side brackets (bake the layers one after the other).

Pies - Use the lower and middle side brackets.

CAUTION: Take extreme care when removing the drip pan, grill, and any hot containers from the oven. Always use the drip pan handle or pot holders to remove hot items from the oven.

Maintenance and cleaning

Warning: Always unplug the oven and let it cool down before cleaning.

Your oven is equipped with a continuous cleaning coating that automatically cleans itself during normal use. Any spraying that occurs while cooking and comes into contact with this coating is oxidised during operation of the oven. If necessary, wipe the sides of the oven with a nylon scouring pad, a damp cloth or sponge and a mild detergent. DO NOT USE STEEL WOOL SCOURING PADS OR ABRASIVE CLEANERS AND DO NOT SCRAPE THE SIDES

OF THE OVEN WITH METAL UTENSILS, AS ALL OF THESE METHODS MAY DAMAGE THE CONTINUOUS CLEANING COATING.

All accessories must be washed in hot soapy water and can be cleaned in a dishwasher. Wipe the glass door with a damp sponge and dry it with paper towels or a rag. Clean the outside of the oven with a damp sponge. DO NOT USE ABRASIVE CLEANERS, AS THESE MAY DAMAGE THE EXTERNAL FINISH COATING.

DO NOT USE ABRASIVE CLEANERS OR STEEL WOOL SCOURING PADS TO CLEAN THE DRIP PAN, AS THIS MAY DAMAGE THE ENAMEL.

ALLOW ALL PARTS AND SURFACES TO DRY COMPLETELY BEFORE PLugging IN AND USING THE OVEN.

• This logo affixed to the product means that it is an appliance whose processing as waste falls within the scope of the 2012/19/EU Directive on Waste Electrical and Electronic Equipment (WEEE).

• The presence of hazardous substances in electrical and electronic equipment may have potential effects on the environment and human health in the reprocessing cycle of this product.

• Thus, at the end of the service life of this appliance, it must not be disposed of with unsorted municipal waste.

• As a final consumer, your role is paramount in the cycle of reuse, recycling and other forms of upgrading of this electrical and electronic equipment. Recovery and collection systems are made available to you by local authorities (waste disposal centres) and distributors.
• You have the obligation to use the selective collection systems available to you.

The warranty does not cover the wear parts of the product or any problems or damage resulting from:

(1) superficial deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact of the product with liquids and due to corrosion caused by rust;
(3) any incident, abuse, misuse, or unauthorised modification, disassembly or repair;
(4) any improper maintenance operation, use of the product that is not in accordance with the instructions, or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.

The warranty will be void if the nameplate and/or serial number of the product are removed.

Technical characteristics

Capacity: 23L

Voltage: 220-240V~50-60 Hz

Power: 1500 W

SCHNEIDER

SCHNEIDER

Elektrischer Ofen

SCEO23B / SCEO23S / SCEO23R / SCEO23P / SCEO23BL
