Product Type	Monochrome multifunction printer (B&W)
Print Speed (B&W)	22 ppm (model 226) / 20 ppm (model 206)
First Copy Output Time (FCOT)	6.5 seconds
Warm-up Time (WUT)	15 seconds
Functions	Copy, print, scan, fax (optional)
Maximum Paper Size	A3 (not specified, standard estimation)
Automatic Duplex	Optional with AD-509 duplex unit
Automatic Document Feeder	Optional, DF-625 duplex feeder
Color Scanning	Yes, up to 20 ppm (150 dpi) with DF-625
Scan Formats	TIFF, PDF, JPEG
ID Copy	Yes, for documents up to A5 size
Multi-page Copy (N-up)	2 in 1, 4 in 1
Booklet Printing	Yes (requires AD-509 duplex unit)
Linux Compatibility	Yes (Red Hat, SUSE)
SMTP Authentication	Yes, with SSL support
Watermark	Yes, customizable
Secure Printing	Yes, password-protected
Toners	Simitri biomass-based toner, waste-free (toner loop)
Environmental Compliance	Energy Star, RoHS, WEEE
Power Supply	Standard mains (voltage not specified)
Weight	Approx. 45 kg (estimate for similar model)
Maintenance	Regular cleaning of the glass platen and rollers; replace toner and maintenance units as prompted
Safety	Use only a suitable power outlet and correct voltage; do not connect the ground wire to an inappropriate location (explosion risk)
Available Spare Parts	AD-509 duplex unit, DF-625 feeder, NC-504 network card, PCL IC-209 kit, MK-749 panel

Frequently Asked Questions - BIZHUB C203,MV KONICA MINOLTA

How to load paper in the printer?

Open the paper tray, adjust the guides to the paper size, and insert the stack of paper with the print side facing up. Close the tray until it clicks.

How to make a duplex copy?

Ensure the AD-509 duplex unit is installed. Select the 'Duplex' option in the copy menu. The original document can be loaded in the automatic feeder or on the platen.

How to scan a document to a USB drive?

Insert the USB drive into the dedicated port. Place the document on the platen or in the feeder. Press 'Scan', select 'USB', choose the format (TIFF, PDF, JPEG) and confirm.

What to do in case of a paper jam?

Open the front and rear covers. Gently remove the jammed paper following the diagrams on the screen. Close the covers and press 'OK' to resume.

How to replace the toner?

Open the front cover. Remove the empty toner cartridge by pulling it toward you. Unpack the new cartridge, insert it until it clicks, then close the cover. The message clears automatically.

How to set up network printing?

Connect the printer to the network via the Ethernet cable. Access the 'Network Settings' menu, configure the IP address (automatic or manual). Install the print driver on your computer.

How to use the ID Copy function to copy an ID card?

Place the front of the card on the platen. Press 'ID Copy', scan the front, then turn the card and scan the back. Both sides will be printed on the same sheet.

How to print in booklet format?

In the print driver, select 'Layout', then 'Booklet'. The AD-509 duplex unit must be installed. The printer automatically arranges the pages into a booklet.

How to reduce power consumption?

Use the automatic standby mode accessible from the 'Power Saving' menu. The Simitri toner fuses at low temperature, reducing consumption during printing.

How to clean the scanner glass?

Turn off the printer. Open the scanner cover. Use a soft, lint-free cloth slightly dampened (water or glass cleaner) to wipe the glass. Dry with a dry cloth.

USER MANUAL BIZHUB C203,MV KONICA MINOLTA

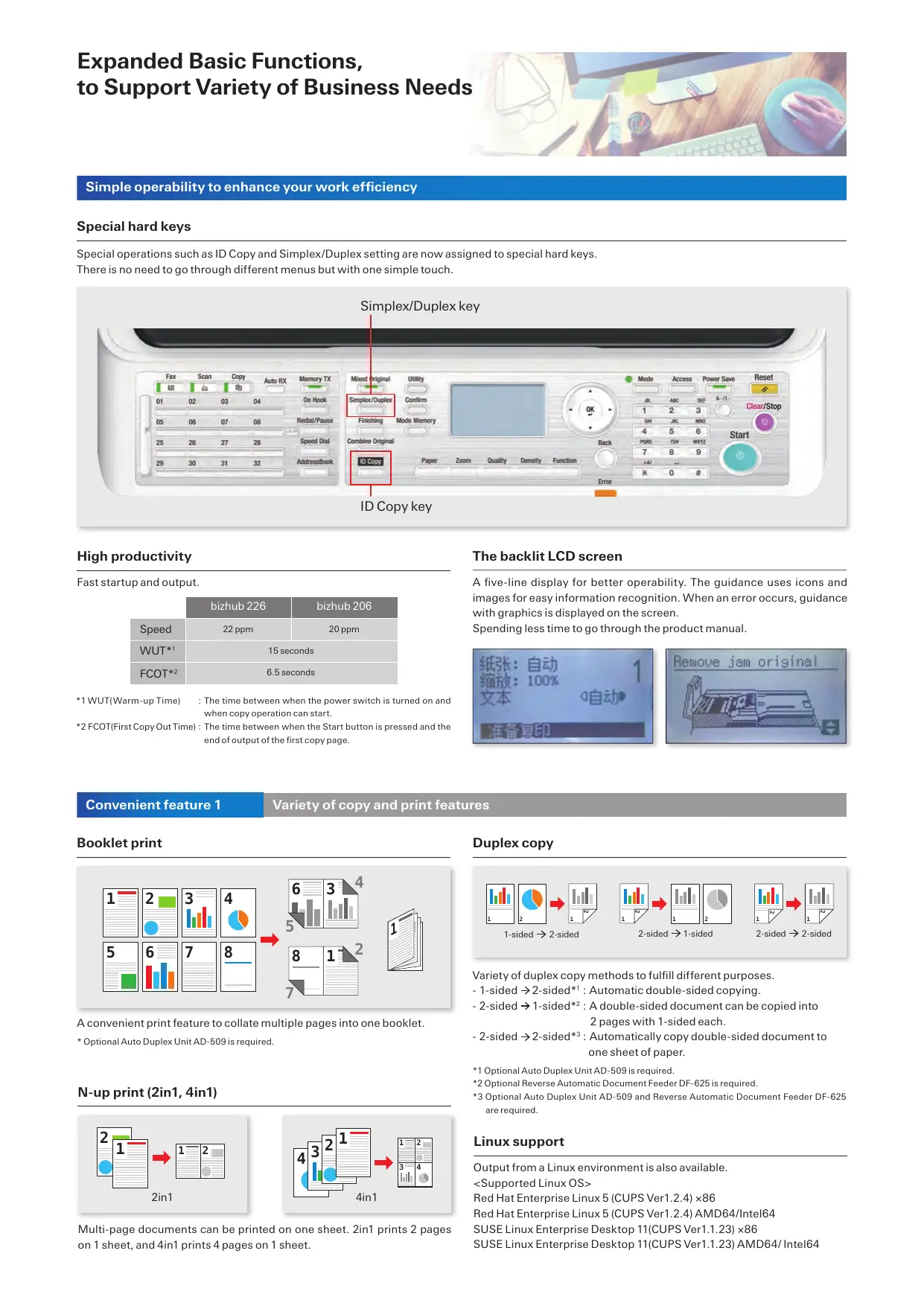

Expanded Basic Functions, to Support Variety of Business Needs

Simple operability to enhance your work efficiency

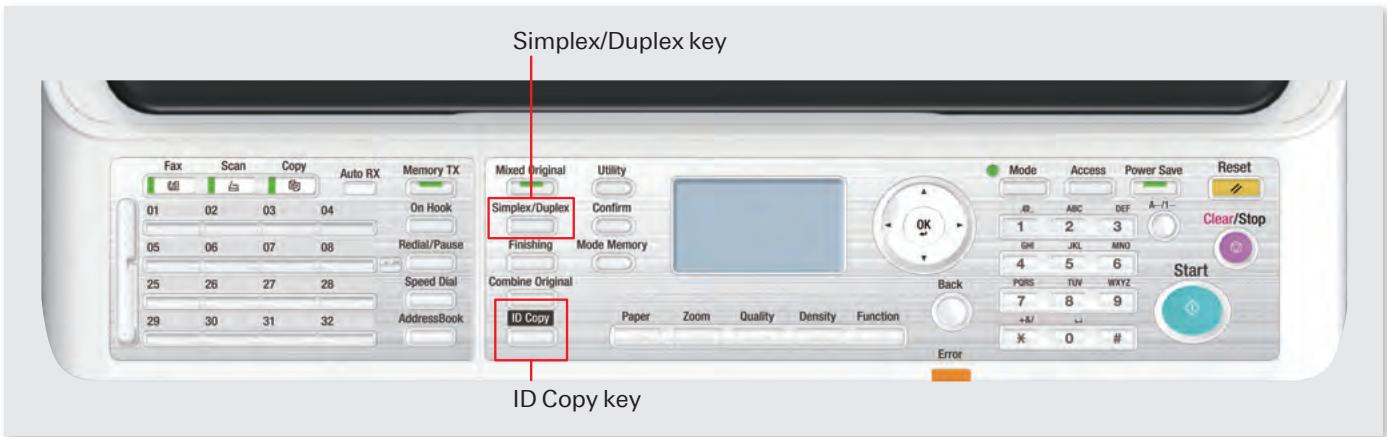

Special hard keys

Special operations such as ID Copy and Simplex/Duplex setting are now assigned to special hard keys. There is no need to go through different menus but with one simple touch.

High productivity

Fast startup and output.

	bizhub 226	bizhub 206
Speed	22 ppm	20 ppm
WUT*1	15 seconds
FCOT*2	6.5 seconds

*1 WUT(Warm-up Time)

The time between when the power switch is turned on and when copy operation can start.

*2 FCOT(First Copy Out Time)

The time between when the Start button is pressed and the end of output of the first copy page.

The backlit LCD screen

A five-line display for better operability. The guidance uses icons and images for easy information recognition. When an error occurs, guidance with graphics is displayed on the screen.

Spending less time to go through the product manual.

Convenient feature 1

Variety of copy and print features

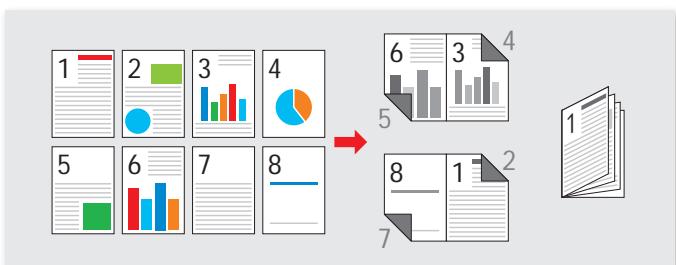

Booklet print

A convenient print feature to collate multiple pages into one booklet.

• Optional Auto Duplex Unit AD-509 is required.

N-up print (2in1, 4in1)

Multi-page documents can be printed on one sheet. 2in1 prints 2 pages on 1 sheet, and 4in1 prints 4 pages on 1 sheet.

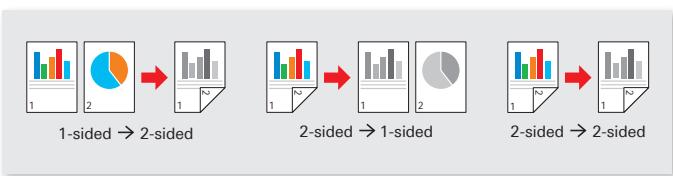

Duplex copy

Variety of duplex copy methods to fulfill different purposes.

• 1-sided 2-sided*1: Automatic double-sided copying.
• 2-sided 1-sided*2: A double-sided document can be copied into 2 pages with 1-sided each.
• 2-sided 2-sided ^3 : Automatically copy double-sided document to one sheet of paper.
  1 Optional Auto Duplex Unit AD-509 is required.
  2 Optional Reverse Automatic Document Feeder DF-625 is required.
  3 Optional Auto Duplex Unit AD-509 and Reverse Automatic Document Feeder DF-625 are required.

Linux support

Output from a Linux environment is also available.

Red Hat Enterprise Linux 5 (CUPS Ver1.2.4) × 86

Red Hat Enterprise Linux 5 (CUPS Ver1.2.4) AMD64/Intel64

SUSE Linux Enterprise Desktop 11(CUPS Ver1.1.23) ×86

SUSE Linux Enterprise Desktop 11(CUPS Ver1.1.23) AMD64/ Intel64

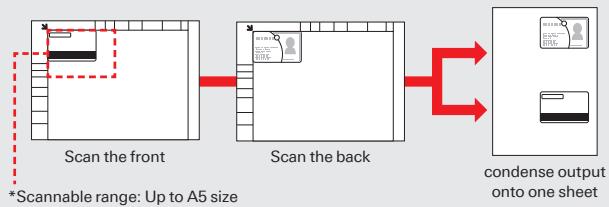

ID copy

Any small documents such as employee ID or driver license, its front and back side can be output into one sheet of paper. The readable range is up to A5 size ^*1 . Press the ID Copy button on the operation panel to access this feature directly.

*1 More than one card can be placed (up to A5), as long as the originals are placed within the glass platen.

Convenient feature 3

Multiple convenience colour scan features

Colour scan

Colour documents can be digitised into colour files. Fast colour scan at 20ppm (150dpi)* ^1 , never slows work down. The supported scan file formats are TIFF, PDF, and JPEG.

*1 This is the speed when equipped with the Reverse Automatic Document feeder DF-625.

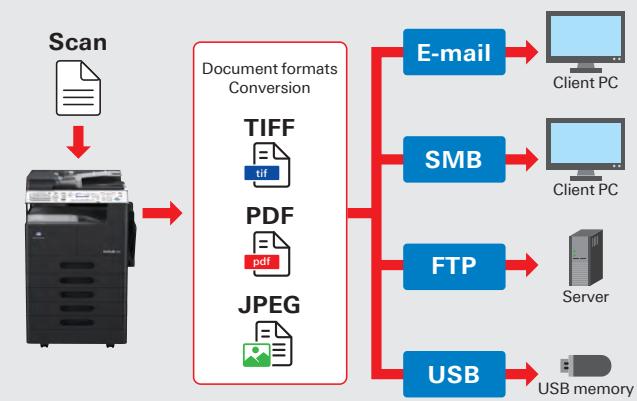

Select the destination for the scanned data

The scanned files can be saved directly to USB memory, or sent to different destination such as E-mail*1, SMB*1 or FTP*1. The supported scan formats are TIFF, PDF and JPEG.

*1 Optional Network Interface Card NC-504 or PCL controller with NIC IC-209 and Option Panel MK-749 are required.

Cost and environmental friendliness are always the first priority

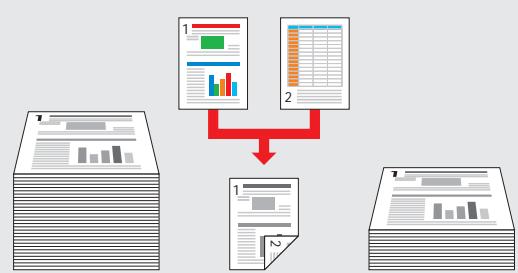

Double-sided print and double-sided scan

2-sided document can be output by the Auto Duplex Unit AD-509 (optional) to reduce paper amount.

Any multiple 2-sided documents can be scanned automatically all at once with the Reverse Automatic Document Feeder DF-625 (Optional).

Scan performance (1-sided per minute)

	Black/white binary	Grayscale	Full colour
150dpi	46ppm	38ppm	20ppm
300dpi	46ppm	16ppm	8ppm
600dpi	23ppm	-	-

• When equipped with the Reverse Automatic Document feeder DF-625.

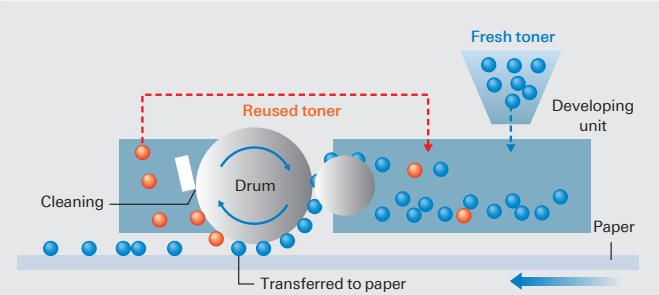

Toner loop mechanism

With the Kona Minolta's own Toner Loop Mechanism technology, there will be no more waste toner.

Simitri toner with biomas

Konica Minolta's own Polymerized Toner technology achieves high image quality. The toner fuses at low temperature to bring the overall reduction of power consumption and CO2 emission, and saving TCO. CO2 emission in the production process can also be also greatly reduced, compared to pulverised toner.

Comparison of CO_2 emissions during the production of Simitri toner and pulverised toner

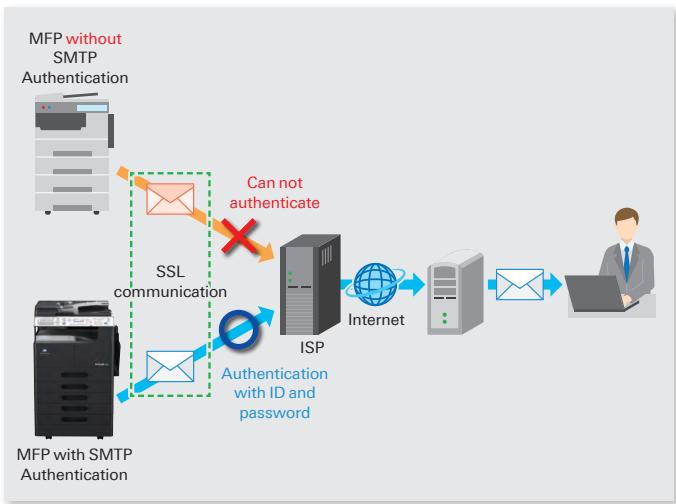

SMTP authentication

To support SMTP authentication which permits sending e-mail to users authenticated by the SMTP server. E-mail servers and ISPs (Internet Service Providers) etc. which are set for SMTP authentication can be used.

Connection to an SMTP server allows SSL communication, so E-mail can be sent in a security-conscious state. This is suitable for small offices and other situations without a private E-mail server.

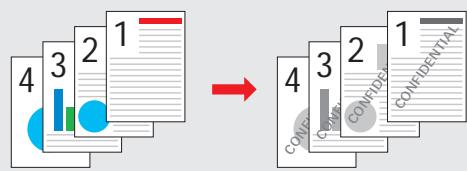

Watermark

Different types of Watermarks can be added on the documents based on the purpose or importance level of documents.

Account track

The MFP can be set to request a 3-digit account number to use the Copy feature. To restrict users who are not authorized to use the MFP. Also, numbers of copies made under each account can be tracked.

ACCOUNT NO.:---

Input=10Key

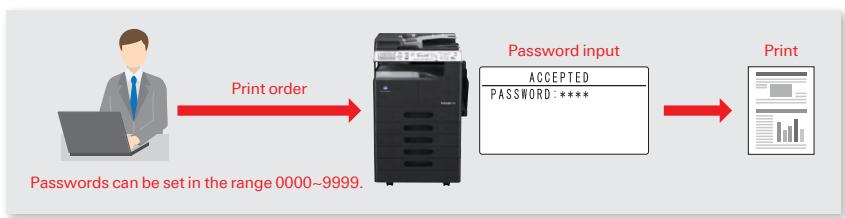

Security print

The MFP will not perform any outputs until user enters the same password as it has been set in the printer driver.

To prevent highly confidentiality documents being left on the MFP or taken by unauthorized user.

Model shown is 226 with options.

bizhub 226/206

226
B&W
22

ppm

206

B&W
20
20

B91
BAC
A:

BAI
10
46

=
1
m

B

2
一

DE
-1
opr

1

ork
ace
cd.
a
￥1

F
Con
wt
W
m = 311 ;

For more information please visit the bizhub website at

http://www.biz.konicaminolta.com/bw/226_206/index.html

Product appearance, configuration and/or specifications are subject to change without notice. This product is not available for some countries or regions.

The KONICA MINOLTA logo, symbol mark, "Giving Shape to Ideas", bizhub, Simitri and their respective logos are registered trademarks or trademarks of KONICA MINOLTA, INC.
Linux is a registered trademark of Linus Torvalds in the United States and other countries.
Red Hat is a registered trademark of Red Hat, Inc. in the United States and other countries.
SUSE is a registered trademark of Novell, Inc. in the United States and other countries.
All other brands and product names are registered trademarks or trademarks of their respective companies or organisations.

KONICA MINOLTA, INC.

2-7-2 Marunouchi Chiyoda-ku, Tokyo, Japan

http://www.biz.konicaminolta.com

Ecology & Environment

KONICA MINOLTA products are designed with the environment in mind.

Energy Star
RoHS Compliance
WEEE Compliance
- Eco-friendly Toners
- Production at ISO Certified Factories

Requirements for safe use

• Please read and follow the instruction manual to ensure safe operation.
• Only operate using appropriate power supply and voltage.
• Connecting the earth wire to an inappropriate place may cause explosion or electric shock.

Please connect accordingly (Taiwan and the Philippines only)
