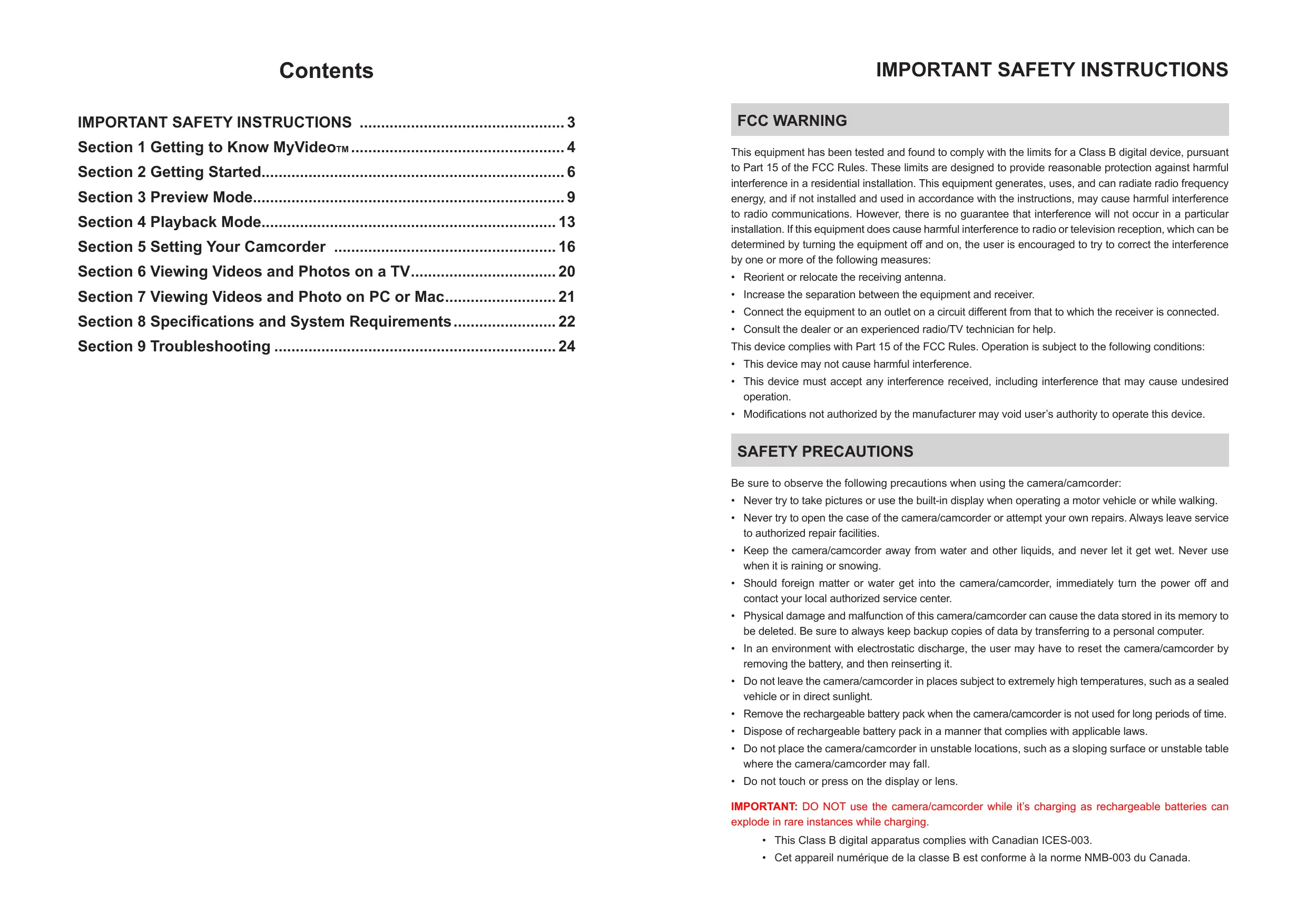

IMPORTANT SAFETY INSTRUCTIONS 3

Section 1 Getting to Know MyVideoTM 4

Section 2 Getting Started. 6

Section 3 Preview Mode. 9

Section 4Playback Mode. 13

Section 5 Setting Your Camcorder 16

Section 6 Viewing Videos and Photos on a TV. 20

Section 7 Viewing Videos and Photo on PC or Mac. 21

Section 8 Specifications and System Requirements 22

Section 9 Troubleshooting 24

IMPORTANT SAFETY INSTRUCTIONS

FCC WARNING

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.
• Modifications not authorized by the manufacturer may void user's authority to operate this device.

SAFETY PRECAUTIONS

Be sure to observe the following precautions when using the camera/camcorder:

• Never try to take pictures or use the built-in display when operating a motor vehicle or while walking.
• Never try to open the case of the camera/camcorder or attempt your own repairs. Always leave service to authorized repair facilities.
• Keep the camera/camcorder away from water and other liquids, and never let it get wet. Never use when it is raining or snowing.
• Should foreign matter or water get into the camera/camcorder, immediately turn the power off and contact your local authorized service center.
• Physical damage and malfunction of this camera/camcorder can cause the data stored in its memory to be deleted. Be sure to always keep backup copies of data by transferring to a personal computer.
• In an environment with electrostatic discharge, the user may have to reset the camera/camcorder by removing the battery, and then reinserting it.
• Do not leave the camera/camcorder in places subject to extremely high temperatures, such as a sealed vehicle or in direct sunlight.
• Remove the rechargeable battery pack when the camera/camcorder is not used for long periods of time.
• Dispose of rechargeable battery pack in a manner that complies with applicable laws.
• Do not place the camera/camcorder in unstable locations, such as a sloping surface or unstable table where the camera/camcorder may fall.
• Do not touch or press on the display or lens.

IMPORTANT: DO NOT use the camera/camcorder while it's charging as rechargeable batteries can explode in rare instances while charging.

Getting to Know My VideoTM

Standard Accessories

Unpack the package and make sure all standard accessories listed below are included:

MyVideoTM Camcorder
AV Cable (PART NO.0950A7356L-A03L)
- Lithium-ion Rechargeable Battery (PART NO.084-07042L-020)
Quick Start Guide
- Software Installation Insert
Warranty card
- Strap (PART NO.221-04350L-B01)
- Pouch (PART NO.2560A7355L-A02)

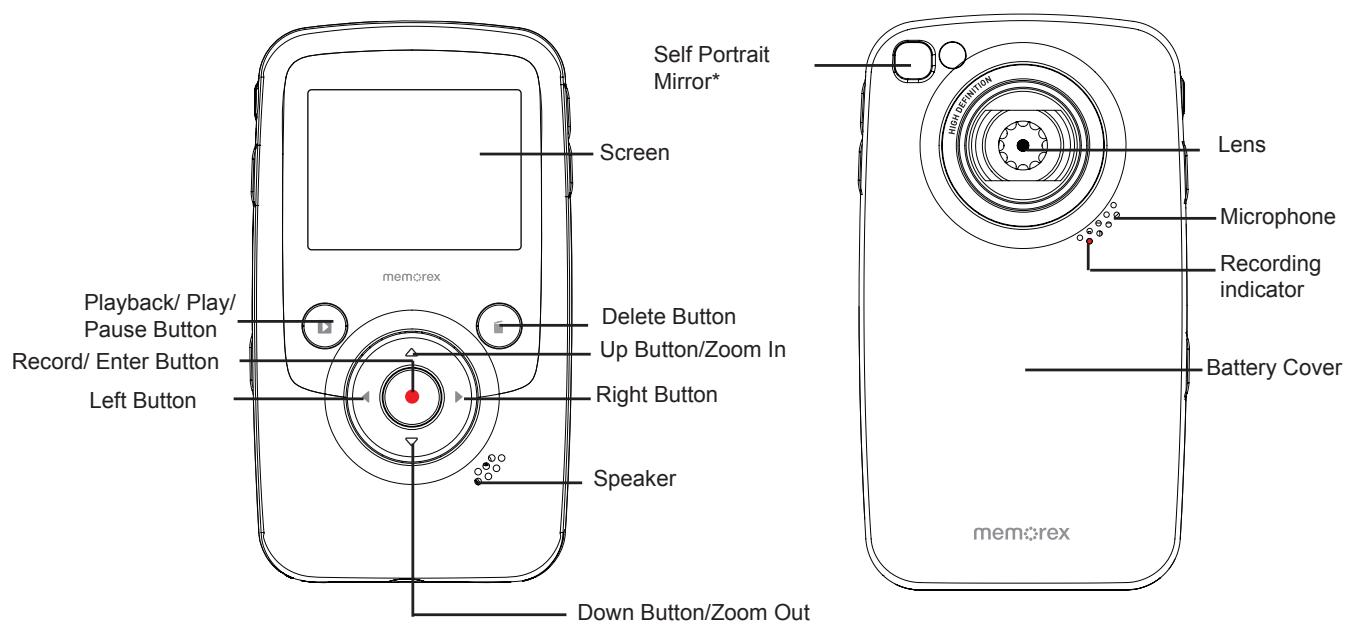

Front & Rear View

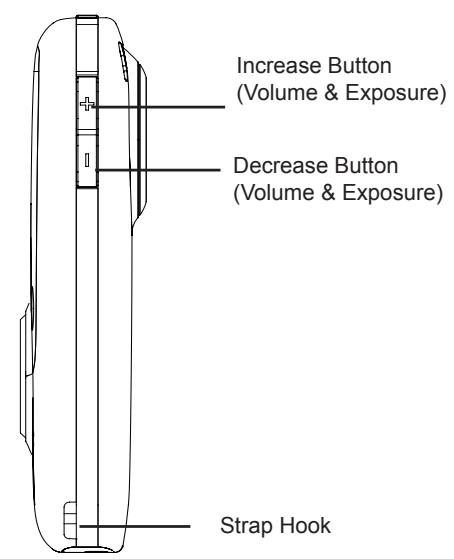

Side View

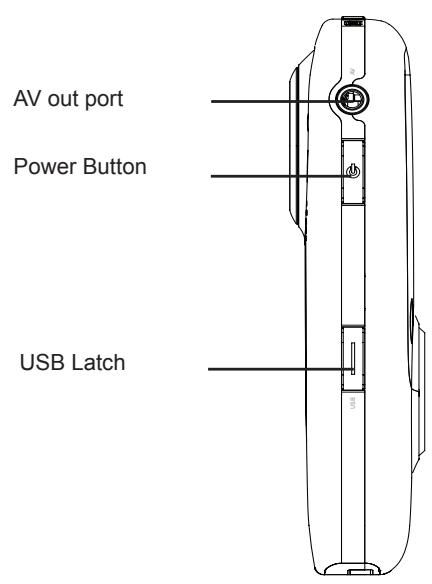

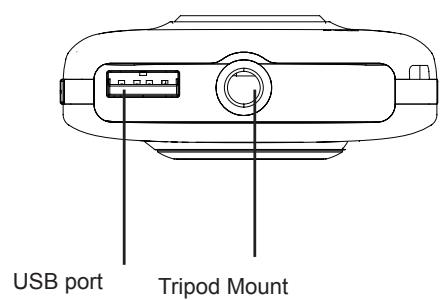

Top View and Bottom View

Mirror*: Frame your reflection to photograph or record yourself

BATTERY COVER PART NO.6086A9932L-A02*

*Consumer Replaceable Part

(See page 23 to order.)

Section 2 Getting Started

Loading the Battery

Before using the MyVideoTM, you must load Lithium-ion rechargeable battery

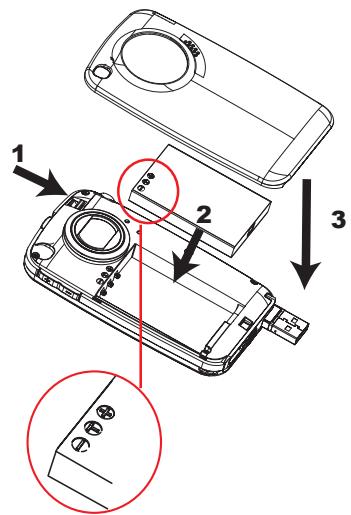

1. Push battery latch to remove cover.
2. Insert the battery following to the correct polarity marks (+or - )
3. Close the battery cover firmly.

Note

• When the battery is absent or low, the date and time will be reset. See page 17 to set date/time.

Charging your battery

Fully charge the supplied battery before using the MyVideoTM for the first time.

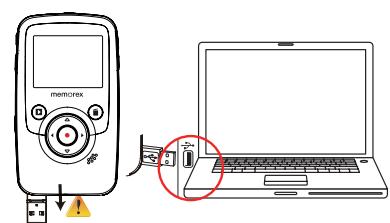

Extend the USB port: Press the USB latch and the USB arm pops out automatically.

Connect MyVideoTM to the open USB port on your PC or Mac.

Retract the USB port: Press and release the USB latch and push the USB arm backward until it locked.

Two charging modes are available:

1. Normal Charging Mode: When MyVideoTM is plugged to a computer, it is in normal charging mode.

Note: LCD will be turned off after 5 seconds. Press any button [except Record/ Enter button (●)] to turn on the LCD again. (Normal charging time is approximately 12 hours.)

TRANSFERRING	CHARGED
Normal Charging & Data Transferring Mode	Battery charging completed

Note

• Product is not intended for children. Use caution when extending USB port to avoid injury.

• Express charging Mode: In normal charging mode, press Record/Enter Button (●) to switch to express charging mode. Press again to return to Normal Charging Mode (Express charging time is approximately 4.5 hours to fully charge the battery)

CHARGING

Express charging mode

Important

• Fully charge your new battery for the first time using the Normal Charge Mode.

NOTE: During Express Charging Mode, camcorder will not able to transfer files to computer.

Safely Remove from Computer (PC)

Note

• To avoid damage to the unit or data loss, always follow the procedure listed below before disconnecting the unit from the USB port on your computer.

• While in Normal Charging Mode, using your mouse, double-click Safely Remove Hardware icon ( ) on the tasktray.

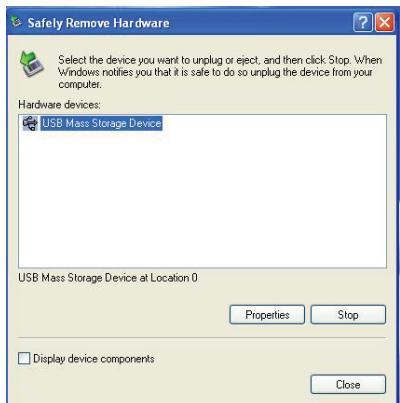

1. From the "Safely Remove Hardware" window (shown lower right), select "USB Mass Storage Device" and click the "Stop" button. The "Stop a Hardware Device" window will pop up. Click "OK". When the "Safe to Remove Hardware" window is displayed, you may remove the unit from the USB

cable or remove the USB cable from the computer.

Note

If the "Safely Remove Hardware" icon is not displayed on the tasktray, please double click on [My Computer]. Right click on [Memorex] and left click on [Eject]. Then it is safe to remove unit from the computer.

To retract the USB: Press and release the USB latch and push the USB arm backward.

Hand Strap and Tripod Usage

• To use hand strap: Attach the strap to the strap hook. Place your hand through the strap loop to prevent the camcorder from damage by being dropped.
• To use tripod (Optional): Place the camcorder on a tripod to support and stabilize the camera and allow stabilized recording of videos and photos.

Turning the Camcorder On/Off and Getting Started

• To turn on the camcorder: Press the Power Button to turn it on.

• To turn off the camcorder: Press and hold the Power Button for one second.

• To record video: In Preview Mode, press Left/Right Buttons (▲ / ▲) repeatedly until the Video Recording icon (▲) is displayed on the screen. Then, press Record/ Enter Button (◎) to take videos. Press Record/ Enter Button (◎) again to stop.

• To take a photo : In Preview Mode, press Left/Right Buttons (▲ / ▲) repeatedly until the Photo Recording icon (▲) is displayed on the screen. Then, press Record/ Enter Button (○) to capture image.
• To view stored videos and photos, press Playback Button (▶) to switch to Playback Mode. Press Left/Right Buttons (▲/▲) to view the previous/next video/photo. Press Playback Button (▶) to play/pause recorded video. Press Record/Enter Button (▶) to return to Preview Mode.

Note

• To conserve battery power, the camcorder will turn itself off automatically after idle for two minutes.

Button Function

	Direction Button Right Button/Left Button: While in Preview mode, switch between Video Record Mode, Photo Capture Mode, and Menu Mode. Up Button: Zoom In. Down Button: Zoom Out. Record/ Enter Button: 1. Press to start/stop video recording or to capture photo. 2. In Playback Mode, press to return to Preview Mode. 3. In Menu Mode, press to enter setting option screen. 4. Validate the setting then return the menu mode.
	Increase Button : 1. In Preview Mode: press increase exposure value. 2. In Playback Mode, press to increase volume. Decrease Button : 1. In Preview Mode: press decrease exposure value. 2. In Playback Mode, press to decrease volume.
	Power Button: Press to turn on the camcorder. Press and hold for one second to turn off the camcorder.
	Playback Button: 1. In Preview Mode, press to switch toPlayback Mode. 2. Press to play/pause recorded video.
	Delete Button: 1. Press to enter to delete screen.

LCD Monitor Information

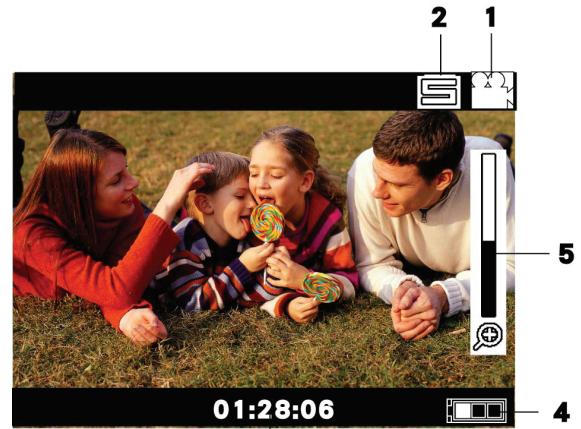

The indicator shown below may display on LCD when videos and pictures are recorded:

3

(1)	Video Resolution
		VGA (640 x 480, 30fps)
	Photo Resolution
		640 x 480 (VGA)
(2)		Stabilization
(3)	1350	Number of photos that can still be taken.
	01:28:06	Recording time of video that can still be taken at current resolution
	00:00:12	Recording time of video during video recording
(4)		Battery: full power
		Battery: medium power
		Battery: low power
		Battery: power empty
(5)		Zoom meter: 1X~2X (2X Digital zoom)
		Exposure compensation value

Video Recording

• Press Left/Right Buttons ( / ) repeatedly until the Video Recording icon ( ) is displayed on the screen. The icon will appear in the center of LCD around 2 seconds then move to the right-top corner.
• Press Record/ Enter Button (⊙) to take videos. When a video is recording, a time indicator will on LCD monitor. Press Record/ Enter Button (⊙) again to stop.
• Press Playback Button (□) to switch to Playback Mode. Press Left/Right Buttons (▲/▲) to view the previous/next video/photo. Press Playback Button (□) to play/pause recorded video.

Photo Recording

• Press Left/Right Buttons ( / ) repeatedly until the Photo Recording icon ( ) is displayed in the center of LCD around 2 seconds then move to the right-top corner.
• Press Record/ Enter Button (⊙) to capture image.
• Press Playback Button (☑) to switch to Playback Mode. Press Left/Right Buttons (▲/▲) to view the previous/next video/photo.

Using Exposure Function

• Adjust the exposure value to change the amount of light that the camcorder will receive when taking videos/photos or while in Preview Mode.

• To adjust the exposure value:

• Use Increase/Decrease Buttons ( ) to adjust preferred EV (Exposure Value). The exposure bar will automatically disappear after 2 seconds.

• Press Record/ Enter Button (O) to take videos/photos.

Using Zoom Function

• The zoom magnifies images while in Preview Mode, recording videos or taking photos.

• To zoom in/out, press the Up/Down Button (/) . It can be set from 1X to 2X (2X Digital zoom).

• Press Record/ Enter Button (O) to take videos/photos.

Using Delete Function

• Delete function works in both Preview and Playback modes.
• In Preview or Record Mode, press Delete Button (■) to delete the current/ latest video or photo.
• In Playback mode, press Left/Right Buttons (▲/▲) to switch to the previous/next video/photo. Then press Delete Button (▶) to delete the video or photo.

Operation	Display Screen
1. Press Delete Button (▶) to enter the delete screen. 2. Move between [Yes], [No], and [All] by using Left/Right Buttons (▲/▲). 3. Press Record/ Enter Button (●) to confirm [Yes], [No], or [All]. Or Press Delete Button (◇) to cancel the operation.	Delete Video? < Yes No All >OK Cancel

Section 4

Playback Mode

Button Function

The Buttons have the following functions in Video and Photo Playback Modes.

	Direction Button Right Button: 1. Go to the next video/photo. 2. While the video is playing, press to stop playing and switch to the next video. Left Button: 1. Go to the previous video/photo. 2. While the video is playing, press to stop playing and switch to the previous video. Record/ Enter Button: Press to return to Preview Mode.
	Increase Button: Press to increase volume. Decrease Button: Press to decrease volume.
	Playback Button: Press to play/pause recorded video.
	Delete Button: 1. Press to enter to delete screen.

LCD Monitor Information

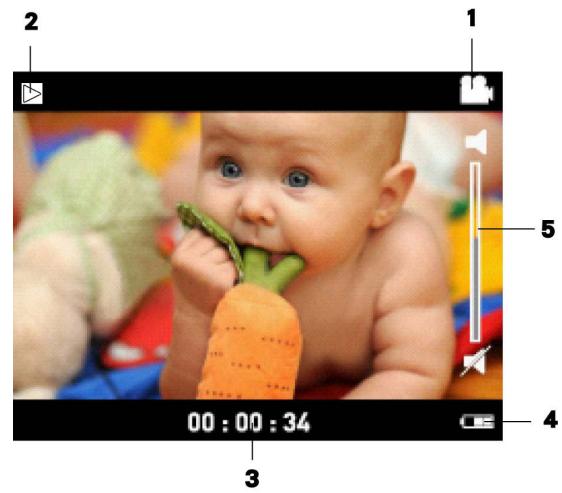

Indicators on the LCD screen while in Playback Mode:

(1)	Video Resolution
		VGA (640 x 480, 30fps)
	Photo Resolution
		640 x 480 (VGA)
(2)		Play
		Pause
		Stop
(3)	50/99	Current Number of photo/ Total number of photos.
	01:28:06	Video playback time
(4)		Fully Charged
		Partially Charge
		Low power
		Empty - Charge Need
(5)		Volume

Operations forPlayback Mode

• Press Playback Button (□) to switch to Playback Mode.

• Press Left/Right Buttons

) to view the previous/next video/photo.

Press Record/ Enter But

to return to Preview Mode.

• Press Delete Button (

tete the current video or photo.

VideoPlayback

• When in Playback Mode, press Left/Right Buttons (▲/▲) to select the desired video that you want to view.
• Press Playback Button (O) to play/pause recorded video.
• While the video is playing, press Left/Right Buttons (▲/▲) to stop playing and switch to the previous/next video.
• Use Increase/Decrease Buttons ( ) to adjust volume.

Photo Review

• When in Playback Mode, Press Left/Right Buttons (▲ / ▲) to view the photo.

Section 5

Setting Your Camcorder

Operations for Menu Mode

Operation	Display Screen
1. Press Left/Right Buttons (▲/▼) repeatedly until the SETTINGS screen appears. 2. Press Record/Enter Button (◎) to enter Menu main screen.	SETTINGS Press ⊙ to enter
3. Use Direction Button to move between options. 4. Press Record/Enter Button (◎) to enter submenu of each option. 5. Press Right/Left Buttons (▲/▼) to select the setting options, then press Record/Enter Button (◎) to validate and return to Menu Mode main screen. 6. In Menu Mode main screen, select option Exit to back to Preview Mode.	TIME / DATE LANGUAGE TV SYSTEM SOUND EFFECTS STABILIZATION EXIT

SETTINGS menu options

Operation	Display Screen
1. In Menu Mode main screen, use Direction Button to select [TIME/DATE]. 2. Press Record/ Enter Button (●) to enter the submenu. 3. Move between date or time items by using Left/Right Buttons (▲ / ▲). Adjust the number of date or time by using Up/Down Buttons (△ / ▼). 4. Press Record/ Enter Button (●) to accept your changes and return to Menu Mode main screen.	TIME / DATE SOUND EFFECTS LANGUAGE STABILIZATION TV SYSTEM EXIT
	TIME / DATE YYYY MM DD 2008 / 10 / 12 12/24 HR MN AM/PM 12 10 : 24 AM

Note

If the 24 hour mode changes to 12 hour mode, be sure to check the AM or PM indicators to make sure you have set the hour correctly.

Language

Use this option to select your preferred of user interface language.

Operation	Display Screen
1. In Menu Mode main screen, use Direction Button to select [LANGUAGE]. 2. Press Record/ Enter Button (●) to enter the submenu. 3. Use Direction Button to choose the language options. 4. Press Record/ Enter Button (●) to confirm and return to Menu Mode main screen. Available languages: English (Default) French Spanish	TIME / DATE LANGUAGE TV SYSTEM LINUX SYMBOL LANGUAGE ENGLISH ESPHANOL FRANCAIS

TV System

Make sure the appropriate TV standard of your area is selected - either NTSC or PAL.

The wrong TV system setting may cause image to flicker.

NTSC standard: USA, Canada, Japan, South Korea and Taiwan etc.

PAL standard: UK, Europe, China, Australia, Singapore and Hong Kong etc.

Operation	Display Screen
1. In Menu Mode main screen, use Direction Button to select [TV-SYSTEM]. 2. Press Record/ Enter Button (▶) to enter the submenu. 3. Use Left/Right Buttons (▲/▼) to choose NTSC (60Hz) or PAL(50Hz). 4. Press Record/ Enter Button (▶) to validate and return to Menu Mode main screen.	TIME / DATE LANGUAGE TV SYSTEM TV SYSTEM NTSC PAL

Sound Effects

Enable or disable operation sound.

Operation	Display Screen
1. In Menu Mode main screen, use Direction Button to select [SOUND EFFECTS]. 2. Press Record/ Enter Button (●) to enter the submenu. 3. Use Left/Right Buttons (▲/▼) to choose On or Off. 4. Press Record/ Enter Button (●) to validate and return to Menu Mode main screen.	TIME / DATE SOUND EFFECTS LANGUAGE STABILIZATION TV SYSTEM EXIT
	SOUND EFFECTS ON OFF

Stabilization

Select stabilization to shoot smooth video.

Operation	Display Screen
1. In Menu Mode main screen, use Direction Button to select [STABILIZATION]. 2. Press Record/ Enter Button (●) to enter the submenu. 3. Use Left/Right Buttons (▲/▼) to choose On or Off. 4. Press Record/ Enter Button (●) to confirm and return to Menu Mode main screen.	TIME / DATE SOUND EFFECTS LANGUAGE STABILIZATION TV SYSTEM EXIT
	STABILIZATION ON OFF

Section 6

Viewing Videos and Photos on a TV

Connecting to a TV

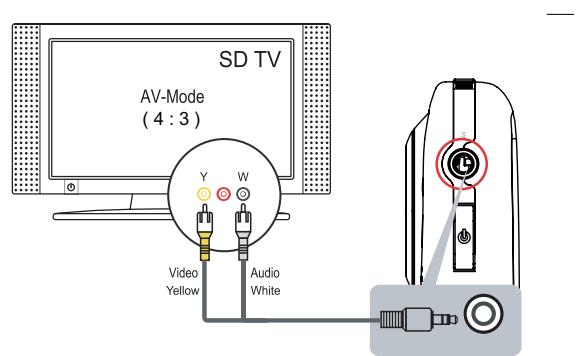

1. Connect one end of the AV cable to your camcorder's AV Out port.
2. Connect the other end of the cable to a television.

Video In (Yellow) and Audio In (White) marked "mono" or "L".

1. The steps for viewing stored pictures and video on a TV are exactly the same as for viewing them on camcorder's LCD monitor.

Note

The LCD Panel on the camcorder does not display when connected to a TV. Make sure to select the correct TV System setting as page 18.

Section 7

Viewing Videos and Photo on PC or Mac

Video and Photo Editing Software

ArcSoft™ Medialmpression2 editing software is embedded in the internal memory of MyVideoTM. To transfer images to computer and view the User Guide, the software must be installed upon first use when connecting MyVideoTM to your PC or Mac through USB port.

• ArcSoft™ Medialmpression2 is a user-friendly application that helps you manage your media, burn your video to CD/DVD, and upload your videos/photos easily to YouTube™ or FaceBook™.

Note

• More detailed Instructions and Help menu for the editing software can be found within the program once installation is complete. Click on the "Extra" button on the title bar and select "Help" to open the ArcSoft™ instruction manual.
• To download Photo or Video files from camcorder: You can also open the drive labelled "Memorex" and simply drag and drop the files inside the folder "DCIM\100MEDIA".

For more information about the ArcSoft™ Medialmpression2 software. Please visit the web site http://mediaimpression.arcsoft.com for more information.

All other trademarks are the property of their respective owners.

Section 8

Specifications and System Requirements

Specification

Image sensor	VGA CMOS sensor
Operation modes	Video record, Photo capture
Lens	f=3.89mm; F2.4
Focus range	Full Range
Zoom	1X~2X (2X Digital)
Shutter	Electronic
LCD monitor	2.0”LCD (Measured diagonally)
Storage media	Built-in 2GB memory (200MB of memory is used for system software) Record up to 2 hours of video or capture up to 20,000 photos.
Image resolution	640 x 480 (VGA)
Video resolution	VGA 640X480(30fps)
Power Source	USB Power
Battery Recording Time	5 hours
Exposure	+1EV~ -1EV
File format	Picture: JPG (Baseline) Video: MOV
Image play	Single Image
Speaker	1 x 8 ohm
PC interface	USB 2.0 Port
TV out	NTSC/PAL Selectable
Battery	Lithium-ion Rechargeable Battery (NP-60, 3.7V 1050mAh)
Dimension	4.19(H) x 2.36(W) x 0.71(D) inches
Weight	0.16 lb (without battery)

Minimum System Requirement

Windows:

Microsoft Windows XP/Vista
- Pentium IV 3.0 GHz or equivalent AMD Athlon
Intel ® Core™ 2 Duo CPU E6300 processor (or higher recommended), AMD Athlon 64 X2 3800+ or higher for HD Video
- 512 MB RAM (1GB recommended)
- 300 MB available hard disk space
- NVIDIA FX5200 or ATI 9200 (or higher)
1024 x 768 pixels, 32-bit color monitor

Macintosh:

Mac OS 10.3, 10.4, 10.5
PowerPC G4 800 MHz processor or Intel processor
- 512 MB RAM
150 MB available hard disk space
- 800 × 600 pixels,16-bit color monitor

Note

The LCD screen is manufactured using extremely high-precision technology so over 99.99% of the pixels are operational for effective use. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the LCD screen. These dots are a normal result of the manufacturing process, and do not affect the recording quality.

Reset the Camcorder

If the camcorder acts erratically, reset it by removing the battery. Then reload the battery and turn on the camcorder again.

Formatting the Camcorder

WARNING!

The contained video/photo editing software may lost by formatting the camcorder. Do not format this camcorder unless it stops working and you are instructed to do so by technical support personnel.

To format the camcorder:

1. Press the USB latch down and the USB arm pops out automatically.
2. Connect the camcorder to the computer.
3. Double click on [My Computer], then right click [Memorex] and left click on [Format].

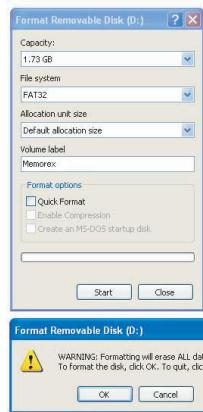

4. At the "Format" window, click [OK] to confirm and the camcorder will start to format (see figure below). When finished, click [OK] to close the Format window.

Format window for "Memorex"

Note

Make sure you have selected "FAT 32" at the file system pull-down menu; otherwise, after formatting, the camera will not work properly. Then, click [OK] to confirm and the camcorder will start to format. When finished, click [Close] to close the Format window.

For Firmware Upgrade

Please visit our Web site at www.memorex.com to check if there is new firmware available.

IMPORTANT NOTE: Before upgrading the firmware, please back-up all of your media files on your computer. After upgrading, format the unit to complete the upgrade procedure.

FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE VISIT OUR WEBSITE AT: WWW.MEMOREX.COM

FOR CONSUMER REPLACEABLE PART(S), SEE PART NUMBER(S) ON PAGE 4, AND THEN CONTACT OUR PARTS FULFILMENT CENTER, FOX INTERNATIONAL AT: 1-800-321-6993.

Section 9 Troubleshooting

Troubleshooting

Symptom	Possible Cause	Solution
Camcorder will not turn on.	Power is off.	Press the Power button for one second to turn on. (see page 8)
	Battery pack is weak or dead.	Recharge the battery pack. (see page 6-7)
Images or photos are poor quality.	Poor lighting.	Take picture in better lighting and/or adjust the EV setting. (see page 11)
	Lens is dirty.	Clean lens with a soft cloth.
	Subject or camcorder moved as picture was taken.	Hold the camcorder steady until picture is taken.
Can't take video/photo.	Memory is full.	Delete some photos/videos. (see page 12)
	Power is off.	Press the Power button for one second to turn on. (see page 8)
Why do some of my indoor pictures look blurry and dark?	Camcorder extends pictures exposure time under low light/ indoor condition.	Keep camera (and photographed subject)steadyforseveral seconds when taking pictures.
How do I charge battery?		When camcorder is plugged to a computer, it is in normal charging mode as well as the USB storage device, then LCD will be turned off after 5 seconds. In normal charging mode, press Record/ Enter Button (●) to switch to express charging mode. (see page 6-7)

Contidente

Express charging mode

Importante

PAL standard: UK, Europe, China, Australia, Singapore and Hong Kong etc.

Enable or disable operation sound.
