USER MANUAL 039 465 LAGRANGE

GAUFRES AU CHOCOLAT

GAUFRES AUX AMANDES OU AUX NOISETTES

GAUFRES AU JAMBON

CONDITIONS DE GARANTIE

BESCHRIJVING VAN HET APPARAAT

VEILIGHEIDSVOORSCHRIFTEN Deksels in bakeliet

WAFELS ZONDER ZOET

WAFELS MET SLAGROOM

GOFRES CON NATA

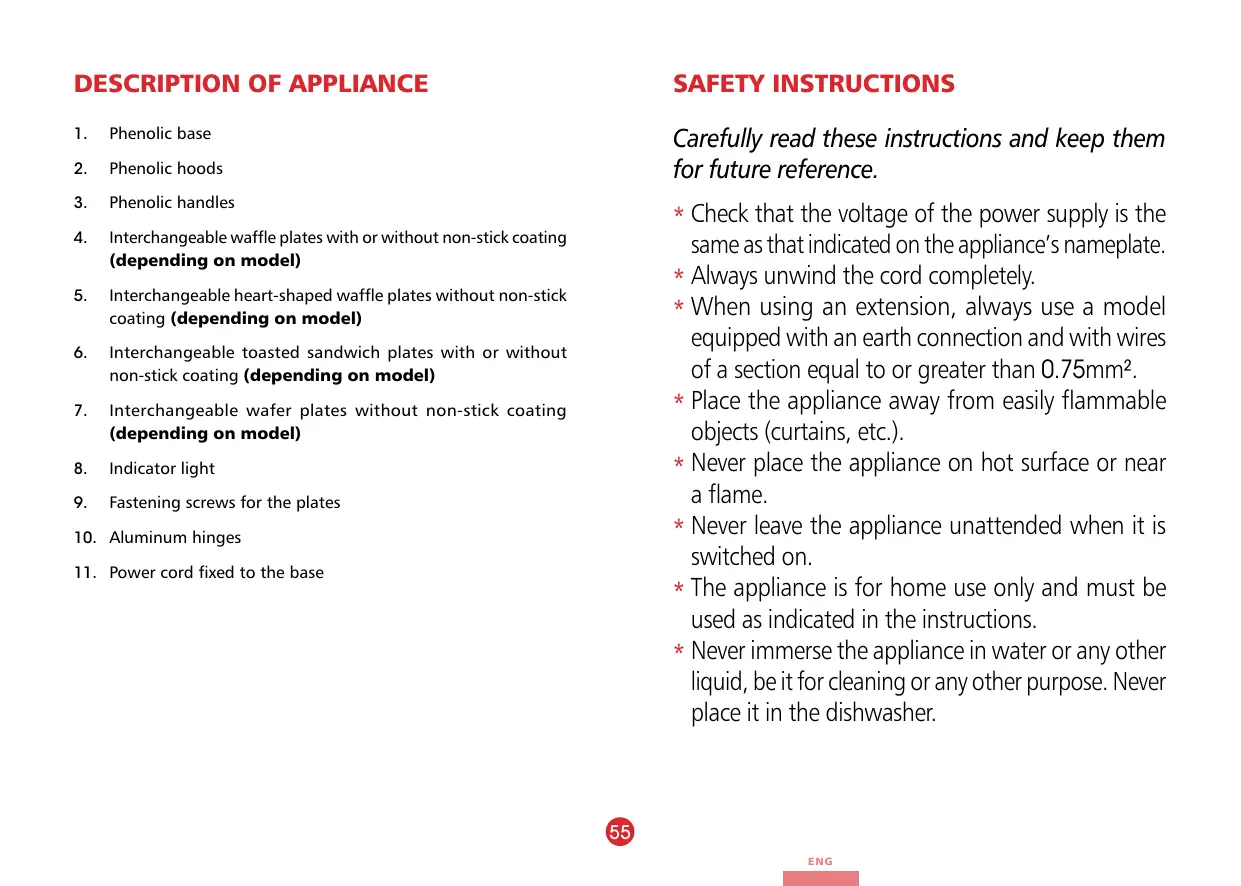

DESCRIPTION OF APPLIANCE

Interchangeable waffle plates with or without non-stick coating (depending on model)

Interchangeable heart-shaped waffle plates without non-stick coating (depending on model)

Interchangeable toasted sandwich plates with or without non‑stick coating (depending on model)

Interchangeable wafer plates without non-stick coating (depending on model)

Fastening screws for the plates SAFETY INSTRUCTIONS Carefully read these instructions and keep them for future reference. **Check that the voltage of the power supply is the same as that indicated on the appliance’s nameplate. **Always unwind the cord completely. **When using an extension, always use a model equipped with an earth connection and with wires of a section equal to or greater than 0.75mm². **Place the appliance away from easily flammable objects (curtains, etc.). **Never place the appliance on hot surface or near a flame. **Never leave the appliance unattended when it is switched on. **The appliance is for home use only and must be used as indicated in the instructions. **Never immerse the appliance in water or any other liquid, be it for cleaning or any other purpose. Never place it in the dishwasher.

10. Aluminum hinges

11. Power cord fixed to the base

ENG **Keep the unit and the power cord out of reach of children under the age of 8 years. **These appliances are not designed to be activated using an external timer or a separate remote control system. **Do not use or store the appliance outside, and keep it in a dry place. **Never move the appliance by pulling the power cord. Ensure that the power cord cannot be caught accidentally, to prevent any risk of the appliance falling. Do not wind the cord around the appliance, or bend it, and do not allow it to come into contact with the cooking plates. **Do not touch the appliance’s metallic parts when it is switched on, as these are hot. **This unit is not intended for people, including children of at least 8 years of age, whose physical, sensorial or mental capacities are reduced, or who do not have the necessary knowledge or experience, unless they are trained in and supervised for the safe use of this unit and are aware of the risks involved. Do not let children play with the unit. Only children over the age of 8 may, with adult supervision, clean and maintain the unit. NEVER SWITCH ON THE APPLIANCE WHEN THE PLATES ARE NOT IN PLACE.

CHARACTERISTICS CORD **Safety thermostat and indicator light **Waffle iron that is reversible on its base **Multifunction with interchangeable plates sold separately **Screw on each side to fasten the plates **Solid cast aluminum plates with or without non-stick coating on the plates (depending on model) **Bakelite, hoods handles and base **230 Volts - 50Hz - 1000 Watts Examine the power cord carefully before using it. If it is damaged, you must not use the unit. The cord should only be replaced by , its after-sale service department or a qualified person approved by in order to avoid danger for the user. The cord used is a H05RR-F 3G 0.75mm². These units are in compliance with directives 2006/95/CE, 2004/108/ CE, DEEE 2002/96/CE, RoHs 2002/95/CE and the CE food contact regulation 1935/2004. SET OF PLATES SOLD SEPARATELY: **Plates for 2 155 x 100mm waffles without non-stick coating (REF 030 121) **Plates for 2 155 x 100mm waffles with non-stick coating (REF 030 122) **Plates for 4 100 x 77mm wafers without non-stick coating (REF 030 221) **Plates for 4 120 x 95mm toasted sandwiches without non-stick coating (REF 030 421) **Plates for 4 120 x 95mm toasted sandwiches with non-stick coating (REF 030 422) **Plates for 6 heart-shaped waffles without non-stick coating (REF 030 521)

ENG ENVIRONMENT Protection of the environment – DIRECTIVE 2002/96/CE In order to protect our environment and our health, electrical units at the end of their working lives must be disposed of according to very specific rules requiring the involvement of everyone, both suppliers and users. That is why your unit, as indicated by the symbol on its nameplate, must not be put into a public or private garbage can intended for household wastes. At the time of its disposal, it is your responsibility to bring your unit to a public collection center designated for the recycling of electrical and electronic equipment. If you need information about centers for the collection and recycling of discarded units, please contact the local authorities in your region, the household waste collection services or the store where you bought your unit. FIRST USE A new appliance may emit smoke or odors when used for the first time. To limit these inconveniences, once you have installed the cooking plates, allow the unit to heat up in the open position for 10 minutes and then let it cool for 30 minutes. OPERATION

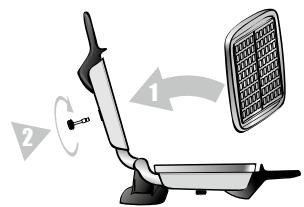

**Choose your plates from among the models available and position them in the appliance (see image). **Plug in the appliance and allow it to preheat until the light turns off. **Once the appliance is preheated, lightly grease the plates over their entire surface using a brush or paper towels (WARNING: Never grease during preheating). **Pour the batter to fill all of the squares. **Close the appliance and keep the handles firmly squeezed together for a few moments. **Turn the unit over on its base for better distribution of the batter and more even cooking.

RECIPES **Turn the machine over again after one minute to bring it back to its original position. **To check whether the waffles are ready, carefully open the unit during the cooking and close it again if it is not sufficiently cooking.

WARNING: Don’t try to open the unit too soon (risk of cutting

the waffles in half). **Remove the waffles with a knife, inserting it horizontally into the thickness of the waffles.

**Grease again but more lightly for the 2 and 3 batches (you probably won’t have to add more grease after that). To begin, here is some advice on the ingredients to use, according to your preferences… **For soft waffles, use milk and cream. These waffles must be eaten as soon as they are removed from the mould. **For light, crunchy waffles use water and beer. **Be they soft or crunchy, it is important to use yeast. (Use 10g of yeast per 500g of flour – leave the batter to stand for 30 to 60 minutes). Using baker’s yeast gives better quality waffles but requires the batter to stand for around 2 hours.

WARNING: during cooking, the fact that the indicator light

is on or off does not mean that the waffles are ready but simply relates to the thermostat’s regulation.

WARNING: when standing, batter made with baker’s yeast can

expand to several times its initial volume… So make sure you use a big enough container! UPKEEP **Warning: make sure that the appliance is unplugged and has cooled down completely before cleaning it. **Never immerse the appliance in water and do not put it in the dishwasher. **Wash the body of the appliance with a moist sponge. **Important: never put the plates in the dishwasher. **After cooling, remove the plates and let them soak in hot water. Add some dishwashing liquid if necessary. Scrub with a dishwashing brush. **Dry the plates thoroughly before assembling the unit.

WARNING: do not use metallic sponges or scouring powder.

WAFFLES WITH HAM

500g of flour – 200g of finely chopped ham – a pinch of salt – 3 or 4 eggs – 1 sachet of baking powder – 125g of butter – ¾ L of liquid (water, milk and, if you wish, a glass of dry white wine). WAFFLES LYONNAISE 500g of flour – 1 sachet of baking powder – ¾ L of liquid (water, beer or milk, its your choice!) – a pinch of salt – 125g of butter – 30g of sugar – 2 sachets of vanilla sugar – vanilla essence, kirsch or rum – 3 or 4 eggs. Pour the flour into a terrine dish. Add the salt and egg yokes. Beat with a whisk together with the water (having dissolved the baking powder in the water) and white wine. Add the melted butter. Beat once more. Add the finely chopped ham. Then fold in the egg whites, having beaten them stiff. Leave to stand for ½ and hour. Eat the waffles immediately after cooking. Melt the butter and allow to cool slightly. Pour the flour into a mixing bowl. Add the salt, sugar and eggs. Beat with a whisk. In a bowl, dissolve the baking powder in the liquid. Pour this mixture into the mixing bowl together with the melted butter. Flavour according to taste. Beat until the batter is completely uniform. Leave to stand for 30 minutes. Eat the waffles when still warm, sprinkled with icing sugar or with jam, honey, chestnut purée, chocolate, Chantilly cream, maple syrup, ice cream, fresh fruit, etc. WAFERS (or bricelets or dry waffles) The results are always better when using ordinary flour rather than cake flour.

WAFFLES WITH CREME FRAICHE

4 eggs – 200g of sugar – 250g of melted butter – the zest from 2 lemons – 250g of flour – a pinch of salt. 500g of flour – 150g of butter – 10g of baking powder – ¼ L of water – ¼ L of crème fraîche – 4 eggs – a pinch of salt. Beat the eggs, then add the sugar, melted butter, lemon zests, salt and sifted flour. The batter will be runny. Leave to stand for 24 hours in a cool place. Place a quantity of batter the size of a walnut on the plate. Pour the flour, salt and egg yokes into a mixing bowl. In a bowl, dissolve the baking powder in the liquid. Pour this mixture into the mixing bowl and beat with a whisk until you obtain a uniform batter. Add the melted butter, cream, and egg whites, having beaten them stiff. Leave to stand for ½ an hour at room temperature. Eat the waffles when still warm, sprinkled with icing sugar.

TOASTED SANDWICHES Always put a pat of butter at the exterior of each slice of bread.

TOASTED CHEESE CANAPES

Gruyere, Chester or any other type of cheese you can grate. Beat the following in a saucepan: 30g of butter – 30g of flour – ¼ litre of milk – 2 egg yokes. Mix and gradually add 50g of grated cheese. Add seasoning and spread the batter on slices of French bread or white loaf (1cm thick). CROQUE-MONSIEUR Garnish a slice of bread with grated gruyere. Place a slice of ham on top of the gruyere. Cover with more gruyere and place the second slice of bread on top. CROQUE "COCOTTE" Make a hollow in the first slice of bread with the back of a spoon, break an egg into it and add seasoning (salt and pepper). With the spoon, make a similar hollow in the other slice of bread and place it on top of the egg.

ENG GUARANTEE TERMS *Special guarantee terms for plates that don’t have a non‑stick coating. The cooking plates are guaranteed for 10 years. Guarantees for household appliances. Your unit is guaranteed for 2 years. There is a 10-year* guarantee for the aluminum plates without a non-stick coating. In order to receive an additional year of guarantee free of charge, register on the web site (www.lagrange.fr).The guarantee includes parts and labor and covers manufacturing defects. The guarantee does not cover deterioration due to poor use or nonobservance of the instructions for use or breakage due to falling. This warranty covers all manufacturing defects and material failures, in particular all risks of deformation. It does not cover: **Damage caused by the use of oven cleaner, cleaning in a dishwasher or by any product not recommended for use on aluminium. **Breakage caused by falls or impacts. **Changes in the colour of the plates (indeed, it is normal for the plates to darken once they have been used several times, as they are made from aluminium. This has no effect on cooking). **Batter sticking to the plates: this fault is never caused by the plates but by poor use (insufficient greasing or batter containing too much sugar). THIS GUARANTEE APPLIES TO HOUSEHOLD USES. IT CANNOT APPLY TO PROFESSIONAL OR SEMI-PROFESSIONAL USES. The legal guarantee due from the seller does not in any way exclude the legal guarantee due from the Manufacturer for manufacturing flaws or defects according to articles 1641 to 1649 of the Civil Code. In the event of a breakdown or malfunction, contact your retailer. In the event of technical defects observed within one week of purchase, the units will be exchanged. Beyond this period, they will be repaired by the after-sale service. To benefit from this guarantee, the user must present a copy of the invoice specifying the date of purchase of the unit. Duration of availability of spare parts In accordance with article L 111-2 of the consumer code, the availability of spare parts that we provide for a repairable product is 5 years as of its date of manufacturing. However, this availability is only guaranteed in the country where the product was purchased.

Shipping costs for returns After the first year which benefits from the dealer’s guarantee, you will only have to pay the costs for returning the product to the factory. We will ship it back to you at our expense as quickly as possible. If you have any other questions about our products, you can contact us at the following address:
