039 261 - Waffle Maker LAGRANGE - Free user manual and instructions

Brand	LAGRANGE
Model	039 261
Product type	Waffle iron
Power supply	230 V, 50 Hz, 1000 W
Power cord	HO5VV-F 3G 0.75 mm², fixed on base
Body materials	Bakelite (base, covers, handles)
Plate material	Solid cast aluminum, with or without non-stick coating depending on model
Main functions	Reversible waffle iron on base, interchangeable plates, safety thermostat, control light
Included plates	2 waffles 155x100 mm (ref. 030 121 without non-stick, 030 122 with)
Compatible plates (sold separately)	Waffle cookies (4 pieces, ref. 030 221), Croque monsieur (4 pieces, ref. 030 421/422), Heart waffles (6 pieces, ref. 030 521)
Control light	Indicates thermostat regulation (does not mean the waffles are ready)
Plate fixing	Screws on each side
Hinges	Aluminum
Maintenance and cleaning	Do not immerse, do not put in dishwasher. Clean with a damp sponge. Plates: soak in warm soapy water, scrub, dry
Safety instructions	Unwind the cord fully, do not use on hot surface, do not leave unattended, keep out of reach of children under 8 years old, do not touch hot metal parts
Warranty	2 years parts and labor (extendable to 3 years upon registration). Plates without non-stick coating: 10 years
After-sales service	LAGRANGE, 17 chemin de la Plaine, ZA Les Plattes, CS30228, 69390 VOURLES, France. Email: [e-mail]
Standards and compliance	Directives 2006/95/EC, 2004/108/EC, WEEE 2002/96/EC, RoHS 2002/95/EC, EC Regulation 1935/2004

Frequently Asked Questions - 039 261 LAGRANGE

How to use the waffle iron for the first time?

Before first use, after placing the plates, heat the appliance open for 10 minutes, then let it cool for about 30 minutes. This prevents possible smoke or odors.

How to clean the cooking plates?

After complete cooling and unplugging, remove the plates and let them soak in hot water with a little dish soap. Scrub with a dish brush, dry well before reassembling. Never use steel wool or abrasive powder. Do not put in the dishwasher.

Can I use other plates than those provided?

Yes, the appliance is multifunctional and accepts interchangeable plates sold separately by LAGRANGE: plates for waffle cookies (ref. 030 221), croque monsieur (ref. 030 421/422) and heart waffles (ref. 030 521).

How long does it take to cook waffles?

Cooking time varies by recipe and thickness. Gently open the appliance during cooking to check. Do not open too early (risk of breaking the waffles). The light turns on and off to regulate the thermostat; it does not indicate when the waffles are done.

Why does my waffle iron smoke when first used?

This is normal. A new appliance may emit some smoke or odor. To minimize this, heat the appliance open for 10 minutes before first use, then let cool.

Can children use the appliance?

This appliance can be used by children aged 8 years and above under adult supervision and if they have received safety instructions. Cleaning and maintenance should only be performed by children over 8 years under supervision. Keep the appliance and cord out of reach of children under 8.

What to do if the power cord is damaged?

Do not use the appliance. The cord must only be replaced by LAGRANGE, its after-sales service, or an authorized qualified person. Use only a cord of type HO5VV-F 3G 0.75 mm².

What is the warranty period?

Your appliance is guaranteed for 2 years parts and labor. Register at www.lagrange.fr to get an additional free year. Aluminum plates without non-stick coating have a 10-year warranty (special conditions apply).

Can I wash the plates in the dishwasher?

No, never put the plates in the dishwasher. Wash them by hand with warm soapy water and a brush. Do not use steel wool or abrasive powder.

What to do if waffles stick to the plates?

Make sure to lightly grease the plates before each batch (except during preheating). Use a brush or paper towel. Non-stick plates require less grease. If the batter is too sweet, it may stick more.

USER MANUAL 039 261 LAGRANGE

Super 2 Gaufres
Type 039

DESCRIPTION DE L'APPAREIL

GAUFRES AUX AMANDES OU AUX NOISETTES

CONDITIONS DE GARANTIE

Super 2 Gaufres
Type 039

BESCHRIJVING VAN HET APPARAAT

Super 2 Gaufres
Type 039

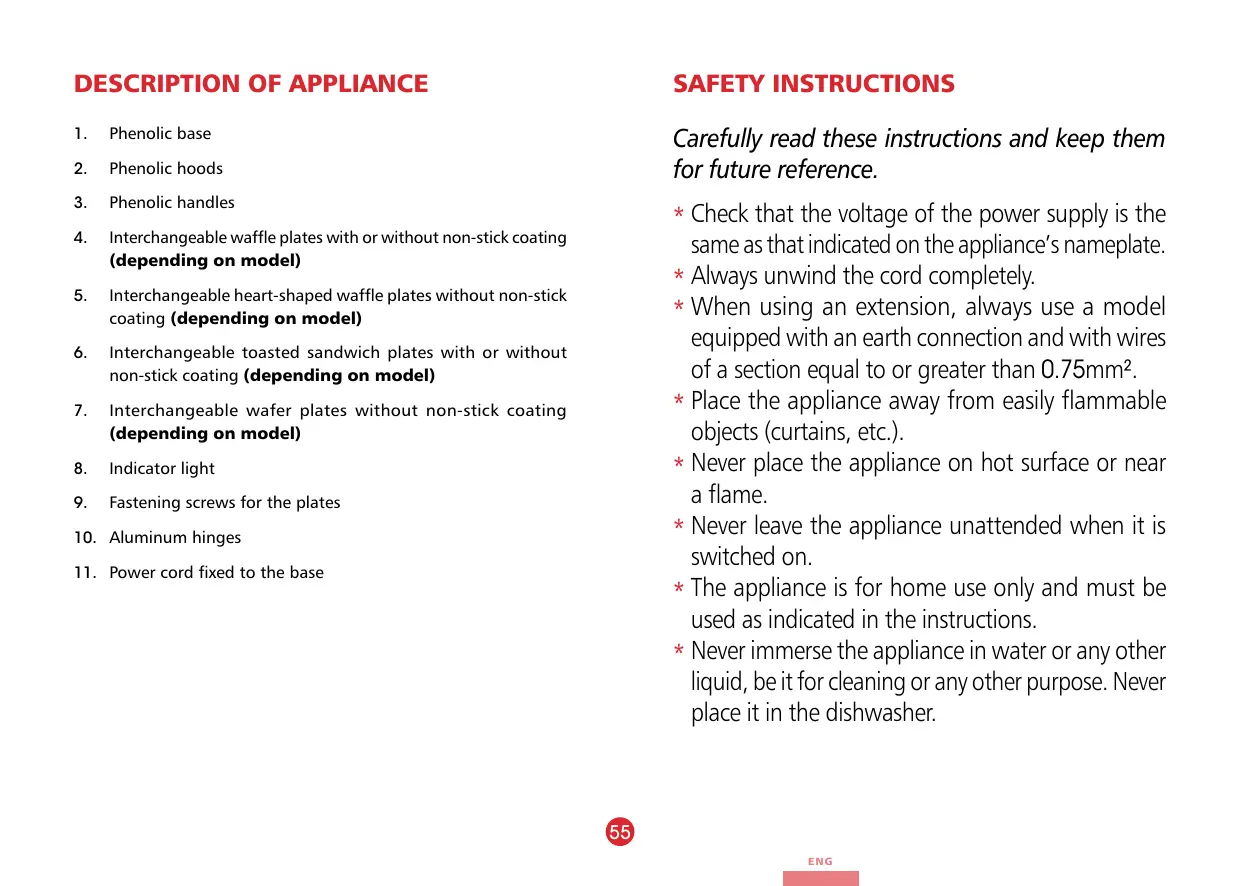

DESCRIPTION OF APPLIANCE

1. Phenolic base
2. Phenolic hoods
3. Phenolic handles
4. Interchangeable waffle plates with or without non-stick coating (depending on model)

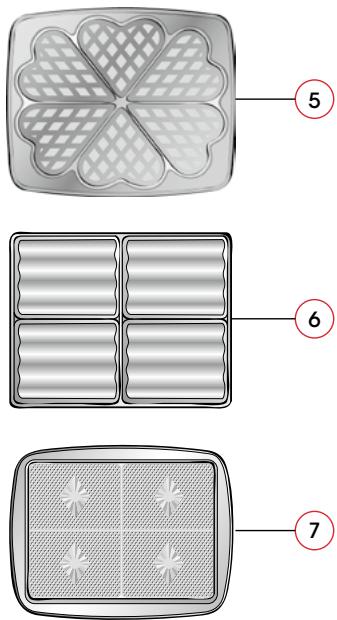

5. Interchangeable heart-shaped waffle plates without non-stick coating (depending on model)
6. Interchangeable toasted sandwich plates with or without non-stick coating (depending on model)
7. Interchangeable wafer plates without non-stick coating (depending on model)
8. Indicator light
9. Fastening screws for the plates
10. Aluminum hinges
11. Power cord fixed to the base

SAFETY INSTRUCTIONS

Carefully read these instructions and keep them for future reference.

* Check that the voltage of the power supply is the same as that indicated on the appliance's nameplate.
* Always unwind the cord completely.
* When using an extension, always use a model equipped with an earth connection and with wires of a section equal to or greater than 0.75mm ² .
* Place the appliance away from easily flammable objects (curtains, etc.).
* Never place the appliance on hot surface or near a flame.
* Never leave the appliance unattended when it is switched on.
* The appliance is for home use only and must be used as indicated in the instructions.
* Never immerse the appliance in water or any other liquid, be it for cleaning or any other purpose. Never place it in the dishwasher.

* Do not use or store the appliance outside, and keep it in a dry place.
* Never move the appliance by pulling the power cord. Ensure that the power cord cannot be caught accidentally, to prevent any risk of the appliance falling. Do not wind the cord around the appliance, or bend it, and do not allow it to come into contact with the cooking plates.
* Do not touch the appliance's metallic parts when it is switched on, as these are hot.
* This unit is not intended for people, including children of at least 8 years of age, whose physical, sensorial or mental capacities are reduced, or who do not have the necessary knowledge or experience, unless they are trained in and supervised for the safe use of this unit and are aware of the risks involved. Do not let children play with the unit. Only children over the age of 8 may, with adult supervision, clean and maintain the unit.

* Keep the unit and the power cord out of reach of children under the age of 8 years.
* These appliances are not designed to be activated using an external timer or a separate remote control system.

NEVER SWITCH ON THE APPLIANCE WHEN THE PLATES ARE NOT IN PLACE.

CHARACTERISTICS

* Safety thermostat and indicator light
* Waffle iron that is reversible on its base
* Multifunction with interchangeable plates sold separately by LAGRANGE®
* Screw on each side to fasten the plates
* Solid cast aluminum plates with or without non-stick coating on the plates (depending on model)
* Bakelite, hoods handles and base
* 230 Volts - 50Hz - 1000 Watts

SET OF PLATES SOLD SEPARATELY:

* Plates for 2 155 x 100mm waffles without non-stick coating (REF 030 121)
* Plates for 2 155 x 100mm waffles with non-stick coating (REF 030 122)
* Plates for 4 100 x 77mm wafers without non-stick coating (REF 030 221)
* Plates for 4 120 x 95mm toasted sandwiches without non-stick coating (REF 030 421)
* Plates for 4 120 x 95mm toasted sandwiches with non-stick coating (REF 030 422)
* Plates for 6 heart-shaped waffles without non-stick coating (REF 030 521)

CORD

Examine the power cord carefully before using it. If it is damaged, you must not use the unit. The cord should only be replaced by LAGRANGE, its after-sale service department or a qualified person approved by LAGRANGE in order to avoid danger for the user. The cord used is a H05RR-F 3G 0.75mm ⁴ .

These units are in compliance with directives 2006/95/CE, 2004/108/CE, DEEE 2002/96/CE, RoHs 2002/95/CE and the CE food contact regulation 1935/2004.

ENVIRONMENT

Protection of the environment – DIRECTIVE 2002/96/CE

In order to protect our environment and our health, electrical units at the end of their working lives must be disposed of according to very specific rules requiring the involvement of everyone, both suppliers and users.

That is why your unit, as indicated by the symbol on its nameplate, must not be put into a public or private garbage can intended for household wastes.

At the time of its disposal, it is your responsibility to bring your unit to a public collection center designated for the recycling of electrical and electronic equipment. If you need information about centers for the collection and recycling of discarded units, please contact the local authorities in your region, the household waste collection services or the store where you bought your unit.

STARTING AND USE

FIRST USE

A new appliance may emit smoke or odors when used for the first time. To limit these inconveniences, once you have installed the cooking plates, allow the unit to heat up in the open position for 10 minutes and then let it cool for 30 minutes.

OPERATION

* Choose your plates from among the models available and position them in the appliance (see image).
* Plug in the appliance and allow it to preheat until the light turns off.
* Once the appliance is preheated, lightly grease the plates over their entire surface using a brush or paper towels (WARNING: Never grease during preheating).
* Pour the batter to fill all of the squares.
* Close the appliance and keep the handles firmly squeezed together for a few moments.
* Turn the unit over on its base for better distribution of the batter and more even cooking.

* Turn the machine over again after one minute to bring it back to its original position.
* To check whether the waffles are ready, carefully open the unit during the cooking and close it again if it is not sufficiently cooking. WARNING: Don't try to open the unit too soon (risk of cutting the waffles in half).
* Remove the waffles with a knife, inserting it horizontally into the thickness of the waffles.
* Grease again but more lightly for the 2^nd and 3^rd batches (you probably won't have to add more grease after that).

WARNING: during cooking, the fact that the indicator light is on or off does not mean that the waffles are ready but simply relates to the thermostat's regulation.

UPKEEP

* Warning: make sure that the appliance is unplugged and has cooled down completely before cleaning it.
* Never immerse the appliance in water and do not put it in the dishwasher.
* Wash the body of the appliance with a moist sponge.
* Important: never put the plates in the dishwasher.
* After cooling, remove the plates and let them soak in hot water. Add some dishwashing liquid if necessary. Scrub with a dishwashing brush.
* Dry the plates thoroughly before assembling the unit.

WARNING: do not use metallic sponges or scouring powder.

RECIPES

To begin, here is some advice on the ingredients to use, according to your preferences...

* For soft waffles, use milk and cream. These waffles must be eaten as soon as they are removed from the mould.
* For light, crunchy waffles use water and beer.
* Be they soft or crunchy, it is important to use yeast.

(Use 10g of yeast per 500g of flour – leave the batter to stand for 30 to 60 minutes).

Using baker's yeast gives better quality waffles but requires the batter to stand for around 2 hours.

WARNING: when standing, batter made with baker's yeast can expand to several times its initial volume... So make sure you use a big enough container!

WAFFLES

SWEET WAFFLES

(For 10 to 15 waffles)

WAFFLES LYONNAISE

500g of flour – 1 sachet of baking powder – 3/4 L of liquid (water, beer or milk, its your choice!) – a pinch of salt – 125g of butter – 30g of sugar – 2 sachets of vanilla sugar – vanilla essence, kirsch or rum – 3 or 4 eggs.

Melt the butter and allow to cool slightly. Pour the flour into a mixing bowl. Add the salt, sugar and eggs. Beat with a whisk.

In a bowl, dissolve the baking powder in the liquid. Pour this mixture into the mixing bowl together with the melted butter. Flavour according to taste. Beat until the batter is completely uniform. Leave to stand for 30 minutes.

Eat the waffles when still warm, sprinkled with icing sugar or with jam, honey, chestnut purée, chocolate, Chantilly cream, maple syrup, ice cream, fresh fruit, etc.

WAFFLES WITH CREME FRAICHE

500g of flour – 150g of butter – 10g of baking powder – 1/4 L of water – 1/4 L of crème fraîche – 4 eggs – a pinch of salt.

Pour the flour, salt and egg yokes into a mixing bowl. In a bowl, dissolve the baking powder in the liquid. Pour this mixture into the mixing bowl and beat with a whisk until you obtain a uniform batter. Add the melted butter, cream, and egg whites, having beaten them stiff.

Leave to stand for 1/2 an hour at room temperature. Eat the waffles when still warm, sprinkled with icing sugar.

SAVOURY

WAFFLES WITH HAM

500g of flour – 200g of finely chopped ham – a pinch of salt – 3 or 4 eggs – 1 sachet of baking powder – 125g of butter – 3/4 L of liquid (water, milk and, if you wish, a glass of dry white wine).

Pour the flour into a terrine dish. Add the salt and egg yokes. Beat with a whisk together with the water (having dissolved the baking powder in the water) and white wine. Add the melted butter. Beat once more. Add the finely chopped ham. Then fold in the egg whites, having beaten them stiff. Leave to stand for 1/2 and hour. Eat the waffles immediately after cooking.

WAFERS

(or bricelets or dry waffles)

The results are always better when using ordinary flour rather than cake flour.

BRICELETS DE DIVONNE

4 eggs – 200g of sugar – 250g of melted butter – the zest from 2 lemons – 250g of flour – a pinch of salt.

Beat the eggs, then add the sugar, melted butter, lemon zests, salt and sifted flour. The batter will be runny. Leave to stand for 24 hours in a cool place. Place a quantity of batter the size of a walnut on the plate.

TOASTED SANDWICHES

Always put a pat of butter at the exterior of each slice of bread.

TOASTED CHEESE CANAPES

Gruyere, Chester or any other type of cheese you can grate. Beat the following in a saucepan:

30g of butter - 30g of flour - 1/4 litre of milk - 2 egg yokes.

Mix and gradually add 50g of grated cheese. Add seasoning and spread the batter on slices of French bread or white loaf (1cm thick).

CROQUE-MONSIEUR

Garnish a slice of bread with grated gruyere. Place a slice of ham on top of the gruyere. Cover with more gruyere and place the second slice of bread on top.

CROQUE "COCOTTE"

Make a hollow in the first slice of bread with the back of a spoon, break an egg into it and add seasoning (salt and pepper). With the spoon, make a similar hollow in the other slice of bread and place it on top of the egg.

GUARANTEE TERMS

Guarantees for LAGRANGE household appliances.

Your unit is guaranteed for 2 years.

There is a 10-year* guarantee for the aluminum plates without a non-stick coating.

In order to receive an additional year of guarantee free of charge, register on the LAGRANGE web site (www.lagrange.fr). The guarantee includes parts and labor and covers manufacturing defects. The guarantee does not cover deterioration due to poor use or non-observance of the instructions for use or breakage due to falling.

THIS GUARANTEE APPLIES TO HOUSEHOLD USES. IT CANNOT APPLY TO PROFESSIONAL OR SEMI-PROFESSIONAL USES.

The legal guarantee due from the seller does not in any way exclude the legal guarantee due from the Manufacturer for manufacturing flaws or defects according to articles 1641 to 1649 of the Civil Code. In the event of a breakdown or malfunction, contact your retailer. In the event of technical defects observed within one week of purchase, the units will be exchanged.

Beyond this period, they will be repaired by the LAGRANGE after-sale service.

To benefit from this guarantee, the user must present a copy of the invoice specifying the date of purchase of the unit.

*Special guarantee terms for plates that don't have a non-stick coating.

The cooking plates are guaranteed for 10 years.

This warranty covers all manufacturing defects and material failures, in particular all risks of deformation.

It does not cover:

* Damage caused by the use of oven cleaner, cleaning in a dishwasher or by any product not recommended for use on aluminium.
* Breakage caused by falls or impacts.
* Changes in the colour of the plates (indeed, it is normal for the plates to darken once they have been used several times, as they are made from aluminium. This has no effect on cooking).
* Batter sticking to the plates: this fault is never caused by the plates but by poor use (insufficient greasing or batter containing too much sugar).

Duration of availability of spare parts

In accordance with article L 111-2 of the consumer code, the availability of spare parts that we provide for a repairable product is 5 years as of its date of manufacturing.

However, this availability is only guaranteed in the country where the product was purchased.

Shipping costs for returns

After the first year which benefits from the dealer's guarantee, you will only have to pay the costs for returning the product to the factory. We will ship it back to you at our expense as quickly as possible.

If you have any other questions about our products, you can contact us at the following address:
