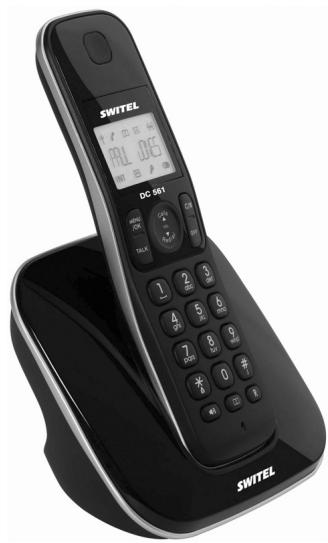

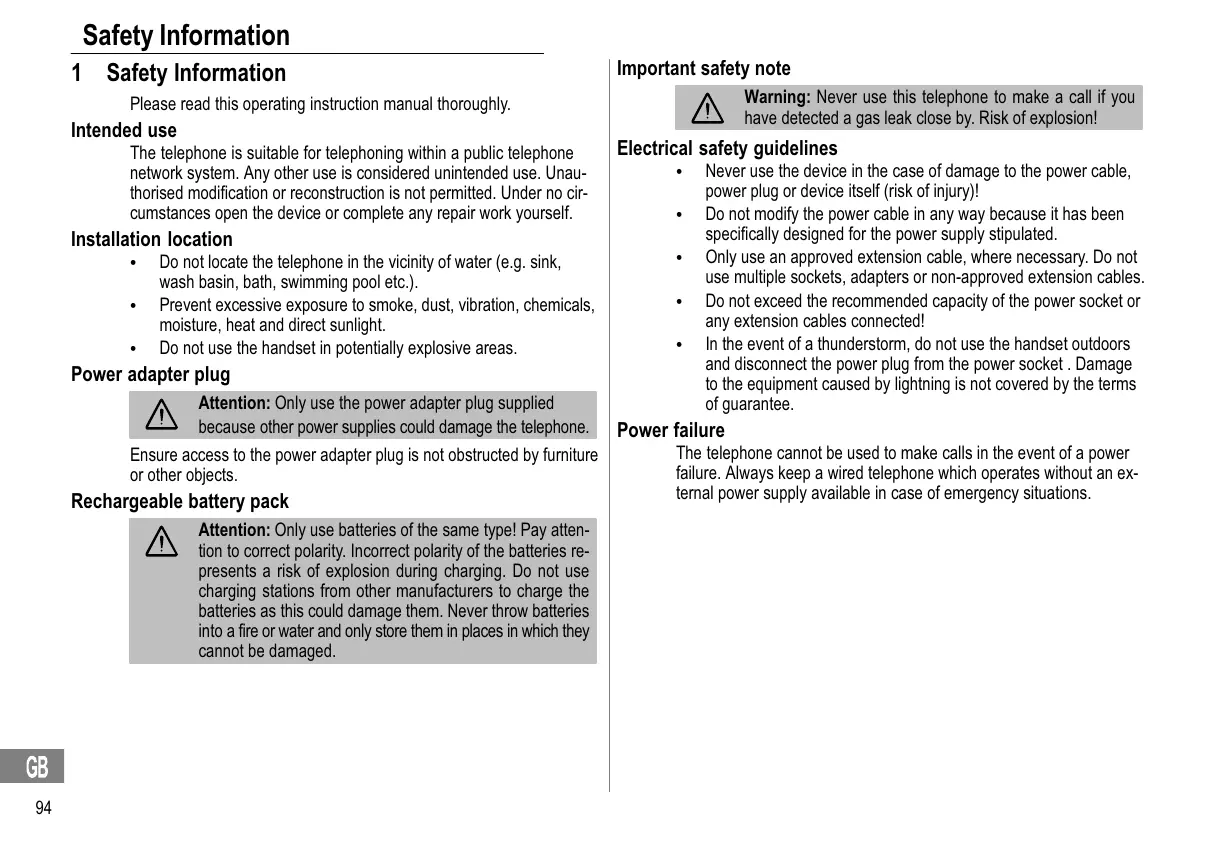

Please read this operating instruction manual thoroughly.

Intended use

The telephone is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorized modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

Installation location

• Do not locate the telephone in the vicinity of water (e.g. sink, wash basin, bath, swimming pool etc.).
• Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.
• Do not use the handset in potentially explosive areas.

Power adapter plug

Attention: Only use the power adapter plug supplied because other power supplies could damage the telephone.

Ensure access to the power adapter plug is not obstructed by furniture or other objects.

Rechargeable battery pack

Attention: Only use batteries of the same type! Pay attention to correct polarity. Incorrect polarity of the batteries represents a risk of explosion during charging. Do not use charging stations from other manufacturers to charge the batteries as this could damage them. Never throw batteries into a fire or water and only store them in places in which they cannot be damaged.

Important safety note

Warning: Never use this telephone to make a call if you have detected a gas leak close by. Risk of explosion!

Electrical safety guidelines

• Never use the device in the case of damage to the power cable, power plug or device itself (risk of injury)!
• Do not modify the power cable in any way because it has been specifically designed for the power supply stipulated.
• Only use an approved extension cable, where necessary. Do not use multiple sockets, adapters or non-approved extension cables.
• Do not exceed the recommended capacity of the power socket or any extension cables connected!
• In the event of a thunderstorm, do not use the handset outdoors and disconnect the power plug from the power socket. Damage to the equipment caused by lightning is not covered by the terms of guarantee.

Power failure

The telephone cannot be used to make calls in the event of a power failure. Always keep a wired telephone which operates without an external power supply available in case of emergency situations.

Medical equipment

Attention: Never use the telephone in the vicinity of medical equipment. Effects on such equipment cannot be fully ruled out.

DECT¹ telephones can cause an unpleasant humming sound in hearing aids.

1 DECT: Digital Enhanced Cordless Telecommunication = Standard for cordless telephones.

Disposal

Old equipment

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The adjacent symbol indicates that the device must not be disposed of in normal domestic waste!

Batteries

Risks to health and the environment from batteries!

Never open, damage or swallow batteries or allow them to pollute the environment. They could contain toxic and ecologically harmful heavy metals. You are legally obliged to dispose of power packs and batteries at the point of sale or in the corresponding containers provided at collection points by local public waste authorities. Disposal is free of charge. The above symbols indicate that the batteries must not be disposed of in domestic waste and that they must be disposed of at an authorised collection point.

Packing materials

Packing materials must be disposed of according to local regulations.

Preparing the Telephone

2 Preparing the Telephone

Safety information

Attention: It is essential to read the Safety Information in Chapter 1 before starting up.

Checking the package contents

The package contains:

Content	DC 56X model
	DC 561	DC 5621	DC 5631	DC 5641
Base station with power adapter plug	1	1	1	1
Charging station with power adapter plug	-	1	2	3
Handset	1	2	3	4
Telephone connection line	1	1	1	1
Power pack	1	2	3	4
Operating instructions	1	1	1	1

Connecting the base station

Attention: Position the base station at least 1 m away from other electronic devices, otherwise there is a risk of mutual disturbance.

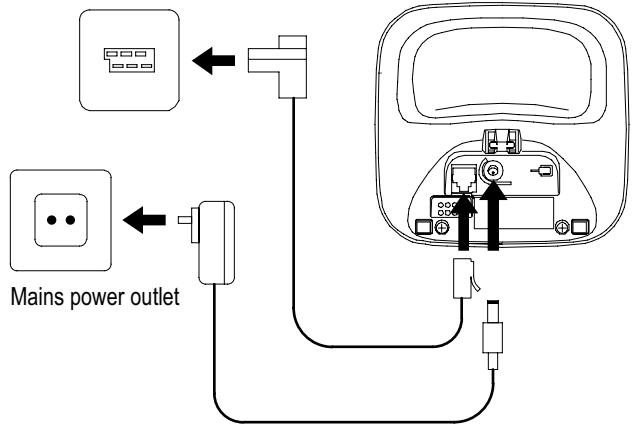

Connect the base station as illustrated in the diagram. For reasons of safety, only use the power adapter plug and telephone connection line supplied.

Telephone line socket

1 Visit www.switel.com to find out whether the telephone set is already available.

Important information

The telephone base station is equipped with an energy-efficient switching power supply (Input 100~240 VAC, Output 6 VDC, 300 mA).

The zero load is approx. 0.15 W. The average efficiency is approx.

65.9%. The base station has the following power consumption levels:

• in operation (standby/call): Approx. 0.5 W / 0.8 W
• while charging the handset: Approx. 1 W

The charging station(s) supplied with a telephone set is (are) equipped with an energy-efficient switching power supply (Input

100~240 VAC, Output 6 VDC, 450 mA).

The zero load is approx. 0.15 W.

The average efficiency is approx. 65.9% .

The charging station has the following power consumption levels:

• without a handset: Approx. 0.15 W
• while charging the handset: Approx. 0.6 W

Range

To use the telephone, the base station and handset may be maximally 300m apart outdoors and 50m apart indoors. These range values can be reduced if large, metallic objects are located between the base station and handset, e.g. refrigerators, mirrors, doors, filing cabinets, etc. Other solid objects, such as walls, also cause a reduction in the range as do sources of electrical interference.

Inserting the battery pack

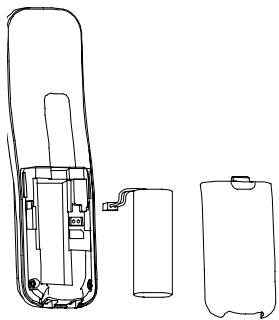

Slide the battery compartment cover downwards and then remove it. Connect the plug on the battery pack in the socket in the battery compartment. Insert the battery pack in the battery compartment. Only use the battery pack supplied. Pay attention that the cable is not jammed. Replace the cover back on the battery compartment and slide it upwards until it snaps into place.

Charging the battery pack

Before the handset is used for the first time, insert it in the base station/charging station for at least 16 hours.

When the handset is properly inserted in the base station / charging station, the charge control lamp lights up. The handset warms up during the charging process. This is normal and does not represent a risk. Do not charge the handset with charging units from other manufacturers. The current battery charge status is indicated in the display:

Full

Empty

Preparing the Telephone

Setting the display language

There are 13 languages available for selection.

Select the language required

"Menu Structure", Page 113:

In the default setting (German):

MENU /OK >MT-EINSTEL.>SPRACHE>...

In another language (e.g. English):

HS SETTINGS LANGUAGE

Setting the time and date on the handset

The time and date are set via the menu.

"Menu Structure", Page 113

Automatic answering

If this function is activated, an incoming call is taken when the handset is removed from the base station. The automatic answering function is activated and deactivated using the menu; "Menu Structure", Page 113

Private branch exchanges

The information on Page 116 explains how to install your telephone in a private branch exchange.

Low-radiation operation (ECO mode)

Both in Call mode as well as in Standby mode, the radiation is reduced considerably when ECO mode is activated as compared to standard, cordless DECT telephones.

3 Operating Elements

The buttons in this operating manual are subsequently depicted with a uniform contour. Therefore, slight deviations in the appearance of the symbols on the telephone buttons compared to those depicted here are possible.

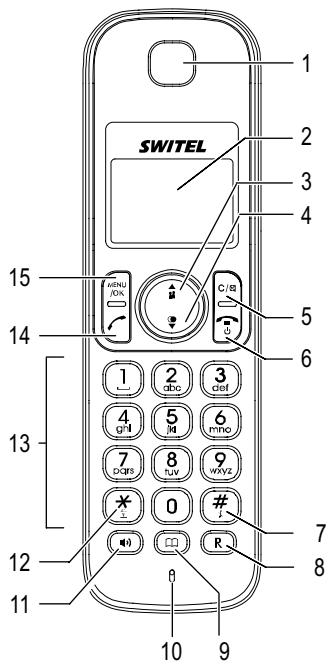

Handset

1 Loudspeaker
2 Display
3 Scroll up / Increase volume / Call list
4 Scroll down / Reduce volume / Redialling
5 Right-hand softkey: Back/Delete/Muting/ Internal call C/8
6 On-hook/Back/ Switch on/off
7 Hash button #
8 R-button R
9 Phone book
10 Microphone
11 Handsfree
12 Star button
13 Digit keys
14 Call button
15 Left-hand softkey: Menu/OK button /Access to phone book, redalling list, call list and internal calls

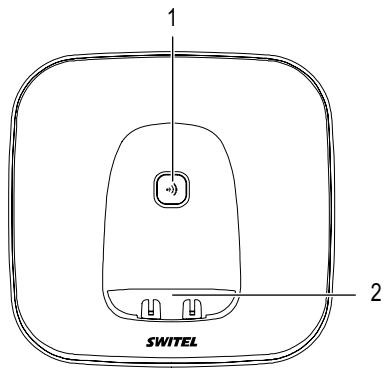

Base station

1 Locate handset (paging)
2 Charge contacts

Preliminary Information

4 Preliminary Information

This chapter provides basic information on using the operating instruction manual and the telephone.

Description of operating sequences in the manual

Display	Description
	Displays the contour of buttons
	Press the button depicted briefly
3 sec.	Press the button depicted for 3 seconds
Hold R	Press and hold the button depicted
Release R	Release the button depicted
	Enter digits or letters
	Handset rings
	Base station rings
	Remove the handset from the base station
	Place the handset in the base station
REGISTER	Texts which appear in the display
	Icons which appear in the display
x	Denotes numbers which could differ, e.g. for the model identification of the device, numbering of the ring tones or numbering of the handsets.

Icons and texts in the handset display Top bar of icons

The icons at the top of the display indicate function status.

Icon	Description
Y	Continuously on: Handset within range of the base station. Flashing: Handset out of range of the base station.
=	Continuously on: An internal call is in progress. Flashing: An internal call has been received. Or: An internal handset has been dialled.
C	A call is in progress.
|	The handsfree facility is activated; |Page 105.
×	Continuously on: The alarm has been set. Flashing: The alarm is ringing.
@	Key lock activated; @Page 106.
$	The ringing tone of the handset is deactivated; $Page 106.
[ ]	Indicates the battery capacity (full, empty).

Bottom bar of icons

The icons at the bottom of the display to the right and left serve to label the softkeys. The icons in the centre serve for navigation purposes and information.

Icon	Description
▲▲ ▲▲	Further digits/characters to the left or right.
◎	Left-hand softkey: Open the main menu.
OK	Left-hand softkey: Confirm the selection.
★	Star icon New entry in the call list; ⊥ Page 108. Only appears when the call list is open.
▲	Further options are available by scrolling up and down.
→	Right-hand softkey: Move one level back in the menu structure.
C	Right-hand softkey: Digits/Characters are deleted, an alarm is stopped or the microphone is switched off or on during a call.
DD/MM	Displays the date; ⊥ Page 113.
hh:mm	Displays the time; ⊥ Page 113.

Standby mode

All descriptions in this operating manual assume that the handset is in Standby mode. Press the button, several times if necessary, to activate Standby mode.

Energy-saving mode

When the handset has been in Standby mode for some time, it automatically switches to energy-saving mode. The buttons and display no longer light up.

Preliminary Information

Navigating in the menu

All the functions can be accessed via the various menus.

Refer to Menu Structure, Page 112, for information on how to access each respective function.

MENU /OK		Open the main menu
	or	Select the required submenu
MENU /OK		Open the submenu
	or	Select the required function
MENU /OK		Open the function
	or	Select the required setting
		Use the digit keys to enter numbers or letters
MENU /OK		Confirm the input
C/8		Move one level back
		Interrupt the programming and saving processes and return to Standby mode

Every process is automatically cancelled if there is no input within 30 seconds.

Creating phone book entries - example

The way in which to navigate through the menus and select settings is explained by means of the example Creating phone book entries. Proceed as in this example for all the settings.

MENU /OK	Open the main menu
/	PHONEBOOK,	Select Phonebook and confirm it
/OK
All the phone book entries are listed.
MENU /OK	Open the submenu
/	ADD,	Select the submenu and confirm it
/MENU /OK
NAME	/MENU /OK	Enter the name (max. 12 characters) and save it
NUMBER	/MENU /OK	Enter the phone number (max. 20 digits) and confirm it
ALARM TONE x	/	Select a melody and confirm it
/MENU /OK

5 Telephoning

Taking a call

Take the call

If the handset is in the base station and automatic answer (AUTO ANSWER) is activated, you only need to take the handset from the base station to take the call.

Ending a call

End the call

or Place the handset back in the base station.

Call indicator

If the caller permits the display of his phone number (CLIR ^1 ) and you have activated your caller number display (CLIP ^2 ), the number of the caller appears in the display.

The caller number display (CLIP2) is an optional service provided by your network operator. If this service is not available, the caller's number is not displayed when a call is received. Contact your network provider for further information.

If the caller's number is stored in the phone book, Page 110, the number and associated name of the caller flash alternately in the handset display. In addition, the ringing tone assigned to the respective number in the phone book rings.

If no caller number display is available or a caller has suppressed his caller number display, "CALL" appears in the display. Such calls are not recorded in the call list.

1 CLR: Calling Line Identification Restriction = Caller number suppression
2 CLIP: Calling Line Identification Presentation = Caller number display

Making a call

Enter the phone number (max. 20 digits)

Delete the last digit if incorrect

Dial the phone number

It is also possible to press the Call button first to obtain the dialling tone for an outside line. The digits then entered are dialled immediately. It is not possible to correct wrong digits individually using this dialling procedure.

Dialling numbers from the redalling list

The telephone stores the last 10 numbers dialled in a redalling list; Page 107.

Open the redalling list

Select the entry required and dial it

Dialling numbers in the call list

The telephone stores the numbers of the last 20 calls received in a call list; Page 108.

Open the call list

Select the entry required and dial it

Telephoning

Dialling numbers from the phone book

Phone numbers must have been stored in the phone book for this function.

Pages 102 and 110.

Open the phone book

Select the entry required and dial it

In order to move directly to the first letter of the phone book entry required, press the key to enter the corresponding letter.

Internal calls

You must have registered at least two handsets (HS1, HS2, ...) on the base station in order to make internal calls between them free of charge; "Checking the contents of the package", Page 96 and "Registering handsets", Page 115.

Making internal calls

HS1: / a and e.g. 2

Dial the internal call number of the handset required, e.g. HS2

If only two handsets are registered on the base station, simply press the / s button to call the other handset.

After pressing the / 8 button, all the handsets registered on the base station are listed in the display. "9" also appears in the list. If you select the "9", all the handsets registered on the base station are called.

HS2:

Take the internal call on the other handset

If the handset dialled does not take the call within 60 seconds, it stops ringing and the handset making the call switches to Standby mode.

If an internal call is in progress and you receive an external call, you will hear an information tone. The call is indicated in the display; "Call indicator". End the internal call before taking the external call.

HS1/HS2:

End the internal call

Forwarding external calls internally

When an external call is in progress:

HS1:	/	/	SELECT the submenu and confirm it
HS1:	/	/	Select the submenu and confirm it
HS1:	/	e.g.	Dial the number of the handset required
HS2:	/	/	Take the internal call on the other handset

If the handset called does not answer, take the external call back by pressing the button.

Forward the call

Alternatively to pressing the button, you can replace the handset in the base station.

Holding a call / brokering

While a call is in progress, it is possible to dial another handset in order to consult with someone. The external caller is put on hold while you converse with the second, internal person called. You can repeat this procedure as often as required.

HS1:	MENU /OK, e.g.	2	Dial the internal handset number while making the external call
HS2:			Take the internal call on the other handset
HS2:			Switch between the callers

Making conference calls

An external call can be transferred to include another internal handset for a conference call.

When an external call is in progress:

HS1:	MENU /OK	Open the main menu
HS1:	/	SELECT the submenu and confirm it
HS1:	e.g.	Dial the number of the handset required
HS2:		Take the internal call on the other handset
HS1:	Hold down	Start the conference
HS1/HS2:		End the conference

If the conference is ended by just one handset, the other handset remains connected to the external caller.

Displaying the duration of a call

Approximately 15 seconds after a telephone conversation starts, the duration of the call appears in the display in hours, minutes and seconds. When the call is ended, the call time remains in the display for 5 seconds.

Setting the receiver volume

The volume can be adjusted to one of 5 levels during a call.

or	Select the required volume level

Handsfree

This function is used to listen to the caller via the loudspeaker.

Enable handsfree talking

Disable handsfree talking

Use the arrow up and down buttons to set the handsfree volume to one of five levels; “Setting the receiver volume”.

Muting the microphone in the handset

The microphone in the handset can be activated and deactivated during a telephone conversation. The caller can no longer hear you when you consult with someone.

C/8	Deactivate the microphone (muting function on)
C/8	Activate the microphone

Telephoning

Switching the loudspeaker in the handset off

The handset's ringing tone can be switched off. Activate Standby mode and proceed as follows:

Hold down #

Switch the loudspeaker off

An incoming call is then only indicated in the display; "Call indicator".

Hold down #

Switch the loudspeaker on

Searching for the handset (Paging)

If you have mislaid your handset, you can locate it again with the aid of a search (paging) tone.

（）

Activate the paging tone

or

Deactivate the paging tone

The paging tone continues to ring for 60 seconds if not stopped manually beforehand.

If a call is received while paging, the paging tone is stopped and the phone rings normally.

Key lock

The key lock feature prevents functions assigned to buttons being activated accidentally.

Hold down

Activate the key lock

Hold down

Deactivate the key lock

Switching the handset off and on

You can switch the handset off to save the battery pack.

5 sec.

Switch the handset off

5 sec.

Switch the handset on

6 Redalling List

The telephone stores the last 10 numbers dialled in a redalling list.

The last number dialled appears at the top of the redalling list.

If a telephone number is stored in the phone book, the name assigned to the number appears in the redalling list. To view the phone number, press the # button.

Dialling numbers from the redalling list

Open the redalling list

Select the entry required and dial it

Saving a number in the redalling list in the phone book

Open the redalling list
Select the required entry
MENU /OK	ADD TO PB, MENU /OK	Open the submenu

To continue, refer to Chapter "Creating phone book entries",

Pages 102 and 110.

Deleting numbers from the redalling list

Deleting individual numbers from the redalling list

		Open the redialling list
	/	Select the required entry
		Open the submenu
	/	DELETE,	Select the submenu and confirm it

Deleting all the numbers from the redialling list

	Open the redialling list
MENU/OK		Open the submenu
	DELETE ALL,	Select the submenu and confirm it
MENU/OK
CONFIRM?	,	Confirm the prompt

7 Call List

The telephone stores the numbers of the last 20 calls received in a call list.

The calls are saved with the date and time of receipt. The last call received appears at the top of the list. When the call list is full and a new call is received, the oldest entry in the call list is deleted.

If a phone number received is stored in the phone book, the name assigned to the number appears in the call list.

When new entries are recorded in the call list, the number of new calls appears in the handset display when Standby mode is active (x NEW CALLS). This information remains in the display until all the new call list entries have been viewed. New entries in the call list which have not yet been viewed are indicated by a star.

The caller number display (CLIP^1) is a supplementary service offered by your telephone network provider. The caller's number appears in the display if the service is offered by your telephone network provider. Please contact your network operator for further information; "Call indicator", Page 103.

If callers suppress the display of their phone number, only "CALL" appears in the display. Such calls are not recorded in the call list.

1 CLIP: Calling Line Identification Presentation = Caller number display

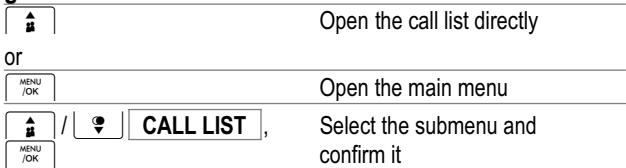

Opening the call list

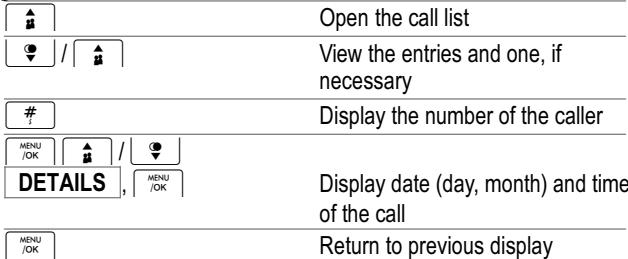

Viewing the calls list

Dialling numbers in the calls list

The telephone stores the numbers of the last 20 calls received in a call list; Page 108.

Storing numbers from calls list in the phone book

To continue, refer to Chapter "Creating phone book entries", Pages 102 and 110.

Deleting numbers from the call list

Deleting individual numbers from the call list

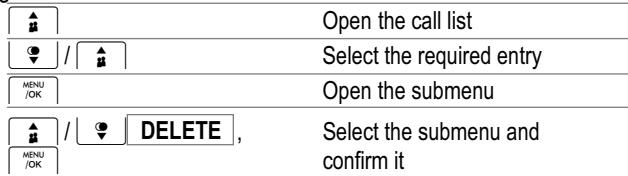

Deleting all the numbers from the call list

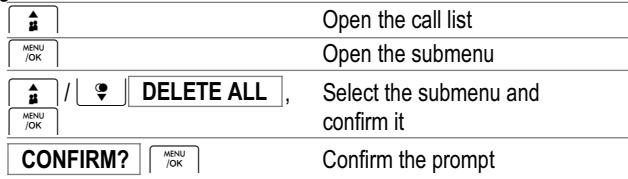

Phone Book

8 Phone Book

You can use the phone book to store up to 50 phone numbers together with the associated names. Each phone number can be assigned a specific ringing tone.

Opening the phone book

Open the phone book directly or
MENU /OK	Open the main menu
/PHONEBOOK, Select Phonebook and confirm it

The phone book entries are arranged alphabetically.

Creating a phone book entry

Open the phone book
Menu /OK	Open the submenu
Add,	Select the submenu and confirm it
NAME	MENU /OK
Enter the name (max. 12 characters) and confirm it
NUMBER	MENU /OK
Enter the phone number (max. 20 digits) and confirm it
ALARM TONE x	Select a melody and confirm it
Menu /OK

Entering names

Letters are also imprinted on the digit keys. Letters, digits and special characters are entered by pressing the relevant key the respective number of times.

1	Enter a space
or	Move cursor to the left or right
C/8	Delete the character
Hold down	Delete entire text
*2 and #1	Enter special characters

To enter the same letter twice, press the button to enter the letter. Wait until the cursor skips one position forwards. Enter the letter again.

Selecting a phone book entry

In order to move directly to the first letter of the phone book entry required, open the phone book and press the key to enter the corresponding letter. Then use the and buttons to navigate to the required phone book entry.

Viewing a phone book entry

Select a phone book entry. Then:

MENU /OK	Open the phone book menu
/	VIEW,	Select the submenu and confirm it
/	/	View the details assigned to the phone book entry (name, phone number, ringing tone)
The display can accommodate 12 characters. If a phone number has more than 12 digits, press the MENU /OK and C/88 buttons to view the other digits in the number.

Editing a phone book entry

Select a phone book entry. Then:

MENU /OK	Open the phone book menu
/ ↓ ↓ EDIT,	Select the submenu and confirm it
MENU /OK
Hold down C/α ↓ ↓ ↓ MENU /OK	Delete the old name, enter a new one (max. 12 characters) and save it
Hold down C/α ↓ ↓ ↓ MENU /OK	Delete the old phone number, enter a new one (max. 20 digits) and save it

Press the C/8 once to delete individual letters and digits. Before doing so, use the ↑ and ↓ buttons to move the cursor to the character you want to delete.

/ ALARM TONE x, Change the ringing tone and confirm it

Deleting a phone book entry

Select a phone book entry. Then:

MENUL /OK		Open the phone book menu
	/ ∑	DELETE,	Select the submenu and confirm it
MENU /OK

Deleting all phone book entries

	Open the phone book
MENU /OK	Open the phone book menu
/ DELETE ALL,	Select the submenu and confirm it
MENU /OK
CONFIRM?	MENU /OK Confirm the prompt

Requesting the phone book status

You can call in details as to how many phone book entries are stored in the respective handset.

Open the phone book
Menu /OK	Open the phone book menu
/ PB STATUS, Select the submenu and confirm it

Example: If < 20/50> appears in the display, it indicates that 20 phone book entries are stored. A maximum of 50 phone book entries are possible.

9 Menu Structure

Main menu

Press the button to open the main menu. Navigation through the menus and how to enter data is explained on Page 102.

The current settings are indicated by a star icon in the menu structure.

CALL LIST	ADD TO PB	NAME é	NUMBER é	ALARM TONE1 / ... / ALARM TONE10
PHONEBOOK	DELETE
	DELETE ALL	CONFIRM?
	DETAILS
	ADD	NAME é	NUMBER é	ALARM TONE 1 / ... / ALARM TONE10
BS SETTINGS	VIEW
	EDIT	NAME é	NUMBER é	ALARM TONE 1 / ... / ALARM TONE10
	DELETE
	DELETE ALL	CONFIRM?
	PB STATUS	xx/50 USED
	BS RINGER	ALARM TONE
	RING VOLUME	VOLUME 1 / ... / VOLUME 5 / VOLUME OFF
	DELETE HS	PIN?1 PINE	HANDSET X
	DIAL MODE	TONE/PULSE
	FLASH TIME	SHORT/MEDIUM/LONG
	CHANGE PIN	PIN?1 PINE	NEW PIN? PINE	CONFIRM? PINE

HS SETTINGS	ALARM	ON	Wake-up time	SNOOZE	ON/OFF
	RING SETUP	OFF
		INT. RING	ALARM TONE 1 / ... / ALARM TONE10
	TONE SETUP	EXT. RING	ALARM TONE 1 / ... / ALARM TONE10
		RING VOLUME	VOLUME 1 / ... / VOLUME 5 / VOLUME OFF
		KEY TONE	ON/OFF
	LANGUAGE	BATTERY TONE	ON/OFF
		OUT OF RANGE	ON/OFF
		13 languages1
	RENAME HS	Delete old HS name2	New HS name
	HS DISPLAY	HANDSET NAME
	AUTO ANSWER	TIME3
		ON/OFF
	DATE & TIME	DATE FORMAT	DD-MM-YY/MM-DD-YY
		TIME FORMAT	12 HR/24 HR
		SET TIME	Time
		SET DATE	Date
REGISTRATION	PIN?4	CONFIRM?
DEFAULT	PIN?4

1 English, German, French, Italian, Turkish, Spanish, Greek, Swedish, Danish/Norwegian, Dutch, Finnish, Polish.
2 The number of the handset cannot be deleted, it can only be altered by addind a text to precede the number.
3 The number of the handset remains visible even when displaying the time.
4 The default PIN code is "0000".

Alarm Function

10 Alarm Function

You can set an alarm time in the telephone, e.g. to remind you of an appointment or to wake you up.

When the alarm time set is reached, the alarm icon in the handset display flashes, as does the "ALARM ON" message, and an acoustic signal is issued for 45 seconds. The volume of the acoustic alarm signal corresponds to that of the set ringing volume.

The acoustic alarm is also issued when a phone call is in progress. You hear a different acoustic signal from the handset. The alarm clock icon and "ALARM ON" message flash in the display.

The acoustic alarm clock signal is not issued when the phone is already ringing or the Paging function has been activated to locate handsets; Page 106.

Activating/Deactivating the alarm function

When the alarm function is activated, the alarm clock icon appears in the display.

/ /	Open the main menu
/ /	Select the submenu and confirm it
/ /	ALARM, Select the submenu and confirm it
/ /	ON Select On or Off
or OFF,	/ / Menu /OK and confirm
/ /	Menu Structure, Page 113

Setting the alarm time

Menu Structure, Page 113

Enter the alarm time according to the 24-hour clock.

Activate/Deactivate the snooze function

If the Snooze function is activated, the acoustic alarm signal is repeated 7 minutes after it has been switched off.

F Menu Structure, Page 113

Switching off the alarm

The alarm can be switched off as described here even when an internal or external call is in progress.

Switch alarm off permanently when Snooze is not active

Press any button to switch the alarm off permanently

Switch alarm off permanently when Snooze is active

Hold down

Press the button down until the alarm clock icon disappears from the display; alarm/snooze function is deactivated

Switch alarm off briefly when Snooze is active

The acoustic alarm signal is switched off for 7 minutes after pressing any button.

Press any button to switch the alarm off briefly

The alarm can be switched off briefly in the way described here even when the key lock function is activated.

11 Extending the Telephone System

The internationally approved GAP^1 standard regulates the compatibility of handsets and base stations from different manufacturers. As a result, it is possible to integrate SWITEL devices and devices from other manufacturers together in one telephone system. It is possible, however, that some functions are not available.

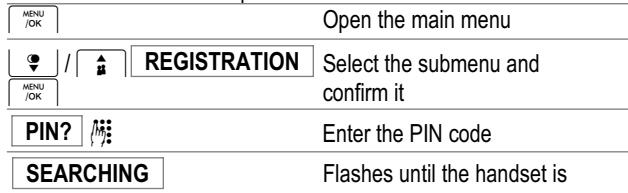

Registering handsets

Up to 5 handsets can be registered on the base station. All handsets contained within the scope of delivery of this telephone set are already registered with the base station.

To complete the registration process, you need the current 4-digit PIN code²; Page 113.

Before starting to register a handset, switch the base station to Registration mode.

5 sec.

Wait for an acoustic signal: Start Registration mode

The base station is then in Registration mode for approx. 1 minute. Continue with the handset. The registration process must be completed within this one minute period:

When the registration process is completed successfully, you will hear a confirmation signal, the antenna icon lights up permanently and the handset is assigned an internal call number which appears in the display in Standby mode.

1 GAP: Generic Access Profile = Standard for the interoperation of handsets and base stations from different manufacturers.
2 The 4-digit PIN code is set to 0000 by default.

Each handset can only be registered on one base station.

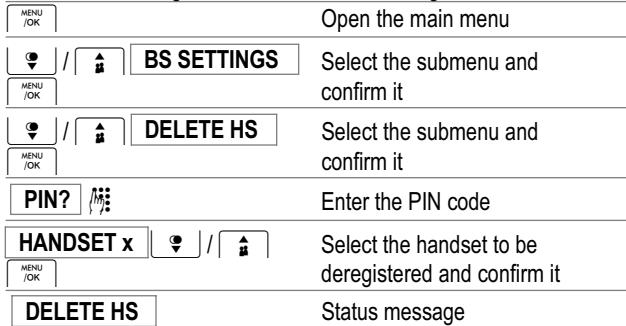

Deregistering handsets

To complete the deregistration process, you need the current 4-digit PIN code; Page 113.

You cannot complete the deregistration process from the handset you want to deregister!

Handsets are deregistered via the menu; Page 113.

The antenna icon flashes in the display of the deregistered handset. The REGISTRATION message also appears.

12 PBX / Supplementary Services

R function in private branch exchanges

If the telephone is connected to a private branch exchange, functions such as transferring calls and automatic call back can be used via the R button. Refer to the operating manual provided with your private branch exchange as to which Flash time must be set in order to use these functions. The sales outlet where you purchased the exchange can provide information as to whether the telephone will work properly with the exchange. The Flash time is set using the menu. Refer to Page 112 for the sequence of menu option selections.

R function (Flash) and supplementary services

Your telephone supports supplementary services provided by your telephone network provider, such as brokering, call waiting and conference facilities. These supplementary services can be used by implementing the R button. Please contact your telephone network provider regarding which Flash time must be set to use the supplementary services. Also contact your telephone network provider with regard to enabling supplementary services. The Flash time is set using the menu. Refer to Page 112 for the sequence of menu option selections.

Caller number display (CLIP)

The caller number display (CLIP) is a supplementary service offered by your telephone network provider. Contact your network provider for further information.

If this function is available with your telephone line, the number of the caller appears in the display when the phone rings. If the caller has suppressed transmission of his phone number, the corresponding message appears in the display. The phone number is not displayed and, as a result, is not stored in the call list.

1 CLIP: Calling Line Identification Presentation = Displays the caller's phone number.

Dialling pause

When using private branch exchanges, it is necessary to dial an access code to obtain the dialling tone for an outside line. When using some older private branch exchanges, it takes a little time before the dialling tone becomes audible. In the case of such private branch exchanges, a dialling pause can be inserted after the number for an outside line in order to continue dialling directly without having to wait for the dialling tone.

2 sec. R

Insert a dialling pause

The actual phone number is dialled a certain time after the number for an outside line.

The dialling pause can also be entered with the phone numbers in the phone book.

13 In Case of Problems

Service Hotline

Should problems arise with the telephone, please refer to the following information first. In the case of technical problems, you can contact our hotline service, Tel. [phone] within Switzerland (Swisscom fees at time of going to print: CHF 2.60/min). In the case of claims under the terms of guarantee, please contact your sales outlet. There is a 2 year period of guarantee.

Problems and solutions

Problems	Corrective measures
No connection to base station possible	- Check that the handset has been registered on the base station with the correct PIN code; ☑ Page 112.
Connection is disturbed or cut off	- The handset is too far from the base station. - The base station is in an unsuitable location.
No display	- Charge the battery pack; ☑ Page 97.
The battery pack is empty in a short time	- The rechargeable battery pack is empty or defect. - Place the handset in the base station properly. Clean the contact surfaces on the handset and base station with a soft, dry cloth. - Place the handset in the base station for 16 hours.

No telephone calls possible	- A call is already in progress from another handset. - The handset is too far from the base station. - The rechargeable battery pack is empty or defect. - The telephone is not connected properly or is defective. Only use the telephone connection cable supplied. Check that all cables are correctly connected; disconnect the cable, if necessary, and then plug it in again. - The power adaptor plug is not plugged in or there is a complete power failure. - Test whether the telephone connection is in order by using another telephone. - The dialling mode selected is incorrect; Page 112.
The system no longer responds	- Disconnect the power adapter plug brie-fly from the power socket. - Return all the functions to their default status using the “DEFAULT” function; Page 113.
The caller number display (CLIP) does not function	- The CLIP feature is a supplementary service provided by your network operator; “Call indicator”, Page 103. Contact your network provider for further information. - The caller has suppressed the transmission of their phone number.

Technical Properties

14 Technical Properties

Technical data

Feature	Value
Standard	DECT1
Standby time	Up to 100 h
Max. talk time	Up to 10 h
Range	Outdoors: Approx. 300 m Indoors: Approx. 50 m
Languages, handset	13 languages; Page 113
Phone book	Max. 50 entries
Call list	Max. 20 entries
Redialling list	Max. 10 entries
Dialling mode	Tone dialling, pulse dialling
Flash	100 ms, 300 ms, 600 ms
Power supply (base station)	Input: 100-240 V, 50/60 Hz Output: 6 V, 450 mA
Power supply (charging station)	Input: 100-240 V, 50/60 Hz Output: 6 V, 300 mA
Rechargeable battery pack	NiMH 2.4 V 400 mAh
Operating temperature	0 °C to 40 °C
Storage temperature	-20 °C to 60 °C

1 DECT: Digital Enhanced Cordless Telecommunication = Standard for cordless telephones.

Default settings

The default settings are restored using the menu; ^一 Page 113, DEFAULT menu option.

Handset

Language	German
Internal ringing tone	5
External ringing tone	6
Alarm signal	1
Volume, internal ringing tone	5
Volume, external ringing tone	5
Receiver volume	3
Handsfree mode volume	4
Key tone	On
Confirmation signal	On
Confirmation tone: Battery charge low	On
Confirmation tone: Handset at maximum range	On
Auto answer	Off

Base station

Ring melody	3
Volume, ringing tone	4
Dialling mode	Tone
Flash (Recall)	100
PIN	0000
ECO mode	On

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directive:

1999/5/EC directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. Conformity with the above mentioned directive is confirmed by the CE mark on the device. To view the complete Declaration of Conformity, please refer to the free download available on our web site www.switel.com.

15 Maintenance / Guarantee

Maintenance

Attention: Disconnect the power plug from the power socket before starting any cleaning work.

• Clean the housing surfaces with a soft, slightly damp, fluff-free cloth.
• Do not use any cleaning agents or solvents.

Guarantee

SWITEL equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies related to material or manufacturing errors within the period of guarantee will be redressed free of charge. Rights to claims under the terms of guarantee are annulled following tampering by the purchaser or third parties. Damage caused as the result of improper handling or operation, normal wear and tear, incorrect positioning or storage, improper connection or installation or Acts of God and other external influences are excluded from the terms of guarantee. In the case of complaints, we reserve the right to repair defective parts, replace them or replace the entire device. Replaced parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your device does show signs of a defect within the period of guarantee, please contact the sales outlet where you purchased the SWITEL device, producing the purchase receipt as evidence. All claims under the terms of guarantee in accordance with this agreement can only be asserted at the sales outlet. No claims under the terms of guarantee can be asserted after a period of two years from the date of purchase and hand-over of the product.

16 Index

A

Activate/Deactivate the snooze function, 114

Activating/Deactivating the alarm function, 114

Alarm function, 114

B

Base station, 96, 99

Battery charge status, 97

Brokering, 105

C

Callindicator,103

Call list, 108

Caller number display, 116

Charging, 97

CLIP, 116

Conference calls, 105

Creating a phone book entry, 110

D

Date, 98

Declaration of Conformity, 119

Default settings, 118

Deleting a phone book entry, 111

Deleting all phone book entries, 111

Deleting numbers from the call list, 109

Deleting numbers from the redalling list, 107

Deregisteringhandsets,115

Dialling, 104

Dialling numbers from the redialling list, 103, 107

Dialling numbers in the calls list, 103, 108

Dialling pause, 116

Display, 100

Display icons, 100

Display language, 98

E

ECO mode, 98

Editing a phone book entry, 111

Ending a call, 103

Energy save mode, 101

Entering names, 110

Entering text, 110

Extending, 115

F

Forwarding calls, 104

G

Guarantee, 120

H

Handsfree, 105

Holding a call, 105

1

Icons, 100

Inserting the battery pack, 97

Internal calls, 104

K

Key lock, 106

L

Low-radiation, 98

M

Main menu, 112

Maintenance,120

Making a call, 103

Menu structure, 112

Muting, 105, 106

Muting button, 105

N

Notation, 100

0

Opening the call list, 108

Opening the phone book, 110

Operating elements, 99

Operation, 100

P

Package contents, 96

Paging, 106

PBX systems, 116

Phonebook,104,110

Phone book entries, 102

Problems, 117

R

R function, 116

Receiver volume, 105

Redialling list, 107

Registeringhandsets,115

Replace receiver, 103

s

Safety information, 94

Save, 102

Saving a number in the redialling list in the phone book, 107

Searching for the handset, 106

Selecting a phone book entry, 110

Service-Hotline, 117

Setting the alarm time, 114

Snoopze, 114

Standby mode, 101

Starting up, 96

Storing number from calls list in phone book, 109

Supplementary services, 116

Switching off, 106

Switching off the alarm, 114

Switching on, 106

Switching the loudspeaker off, 106

T

Taking a call, 98, 103

Talk time, 105

Technical data, 118

Telephoning, 103

Time, 98

Transferring calls, 104

Troubleshooting, 117

V

Viewing a phone book entry, 111

Viewing the calls list, 108

SWITEL

Declaration of Conformity

This equipment complies with the European R&TTE directive.

To view the complete Declaration of Conformity, please refer to the free download available at our web site: www.switel.com.

Service Hotline

In the event of technical problems, you can contact our hotline service, Tel. [phone] within Switzerland (cost via Swisscom at time of going to print: CHF 2.60/min).
