USER MANUAL AV45XDZI AVINTAGE

In column wine temperature conditioning cellar

24

Before you use your wine cellar for the first time, please read this user manual carefully. Store it carefully so that you can refer to it in future, if necessary.

Generally speaking, your appliance must be maintained by a qualified professional.

This appliance is intended exclusively for domestic use and controlling the temperature of wine, or other drinks, if you so choose. Under no circumstances is it intended for the storage of food.

Make sure that your electrical installation's voltage corresponds to that on the appliance's nameplate; the appliance must be connected to an approved earthed system. Incorrect repairs or connections can cause safety hazards. Have your electrical installation checked by a professional, if you are in any doubt.

This unit must be correctly connected to an earthed socket for your protection. Do not cut off or remove the earth wire on the mains cable supplied.

For safety reasons, do not use an electrical extension cable.

If your appliance is damaged (e.g. a major impact) or suffers damage (power surge due to lightning, flood, fire), it may be dangerous to use it. Disconnect the mains plug and have the device checked by an approved professional repairer.

To prevent any danger, do not replace a damaged mains cable yourself. Contact your retailer, an approved service centre or professional repairer.

This appliance must be positioned such that the mains socket is accessible. Do not move the appliance once it is full: you might distort its body beyond repair. The electrical parts must not be directly accessible.

• Keep children away from the appliance.
• Do not use this appliance outdoors.

If liquid is accidentally spilled (broken bottle or similar) on electrical parts (motor or similar), unplug the appliance immediately.

To prevent any risk of fire, electrocution or injury, do not immerse the mains cable, plug or the appliance itself in water or any other liquid. Do not handle the appliance with wet hands.

Keep the appliance away from any source of heat and out of direct sunlight.

Do not allow the mains cable to hang from a table or be in contact with sharp edges or hot surfaces.

Do not pull on the mains cable - take hold of the plug to disconnect the appliance.

Ensure that the area where your appliance is positioned can support its weight when loaded (a 75 cl bottle weighs approximately 1.3kg ).

Your cellar must be placed on a flat surface. If you have to position it on a rug or carpet, position a support underneath.

The appliance is not intended for use by people (particularly children) with diminished physical, sensory or mental capacities, or by people lacking experience or knowledge of such appliances, unless they are supervised by or have received instruction regarding the use of the appliance from a person who is responsible for their safety.

Do not allow children to play with the appliance. Abandoned appliances are always dangerous.

Disconnect the device before performing any servicing or cleaning operation (disconnect the mains plug or trip the corresponding circuit breaker, depending on the model).

Never clean the appliance with inflammable products.

Do not store or spray any gas or inflammable liquid close to the appliance.

Before disposing of your wine cellar at a special recycling centre, remove the door but leave the shelves in place in such a way as to make it difficult for children to climb inside.

Climadiff disclaims any liability for damage resulting from failure to comply with connection or use instructions.

R600a

Safety regulation

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Warning: Keep ventilation openings in the appliance enclosure or in the structure clear of obstruction.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Do not damage the refrigerant circuit.

Refrigerating units operating on Isobutane (R600a) may not be placed in an area with sources of ignition (e.g. unsealed electrical contacts) or where the refrigerant could gather in the event of a leak. The type of refrigerant is indicated on the cabinet's type plate.

Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

The appliance meets the requirements of the following European Directives:

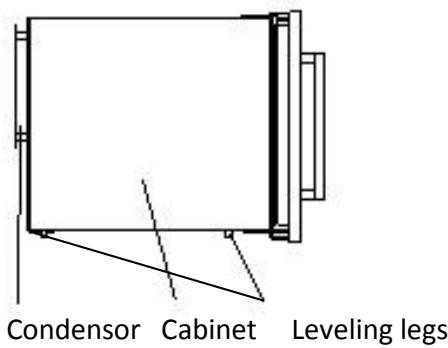

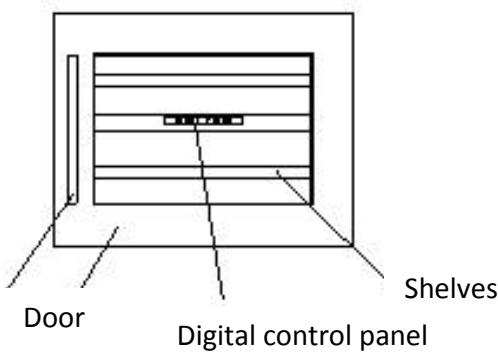

MODEL 45 cm 1 ZONE
Handle

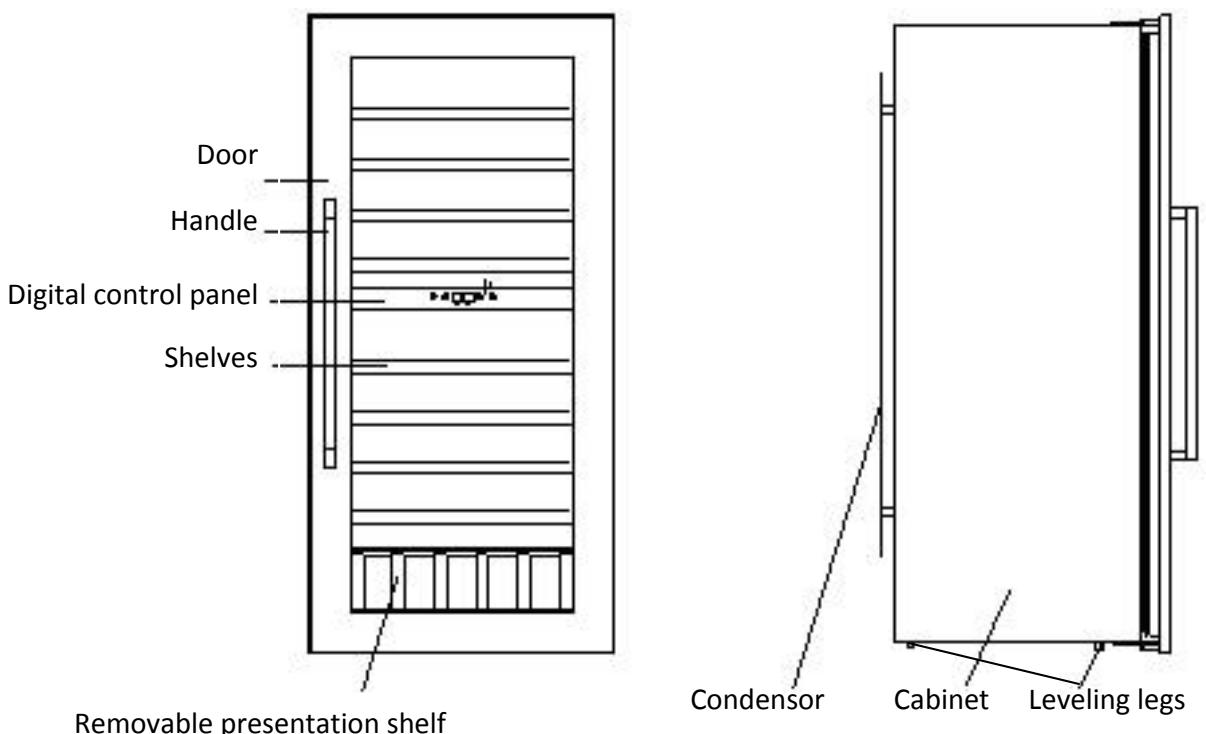

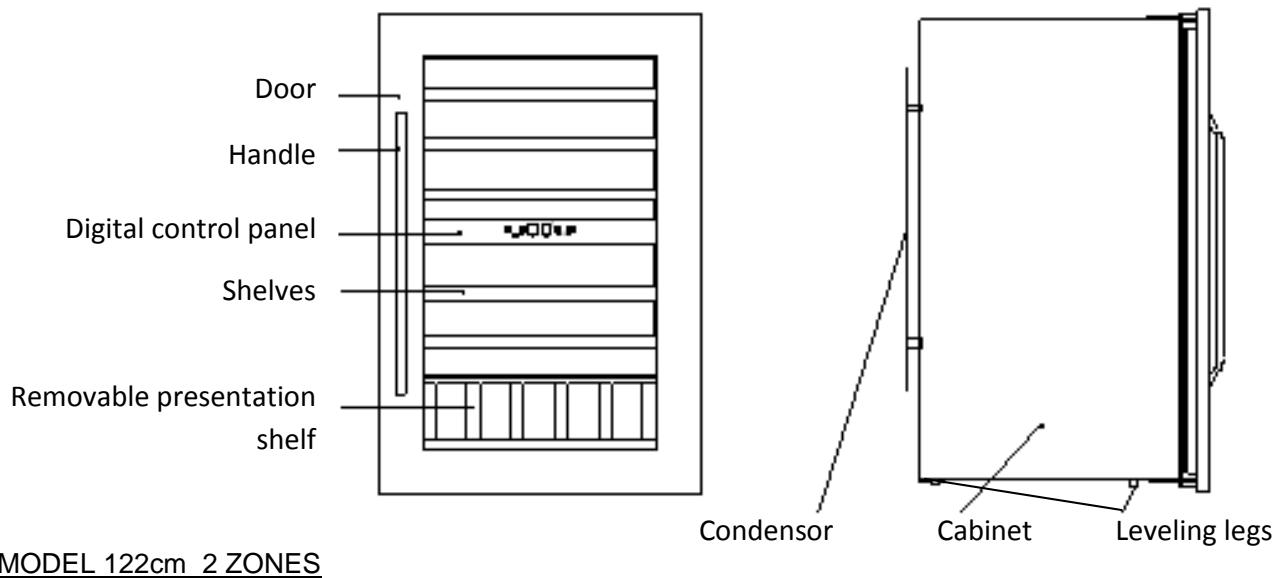

MODEL 88 cm 2 ZONES

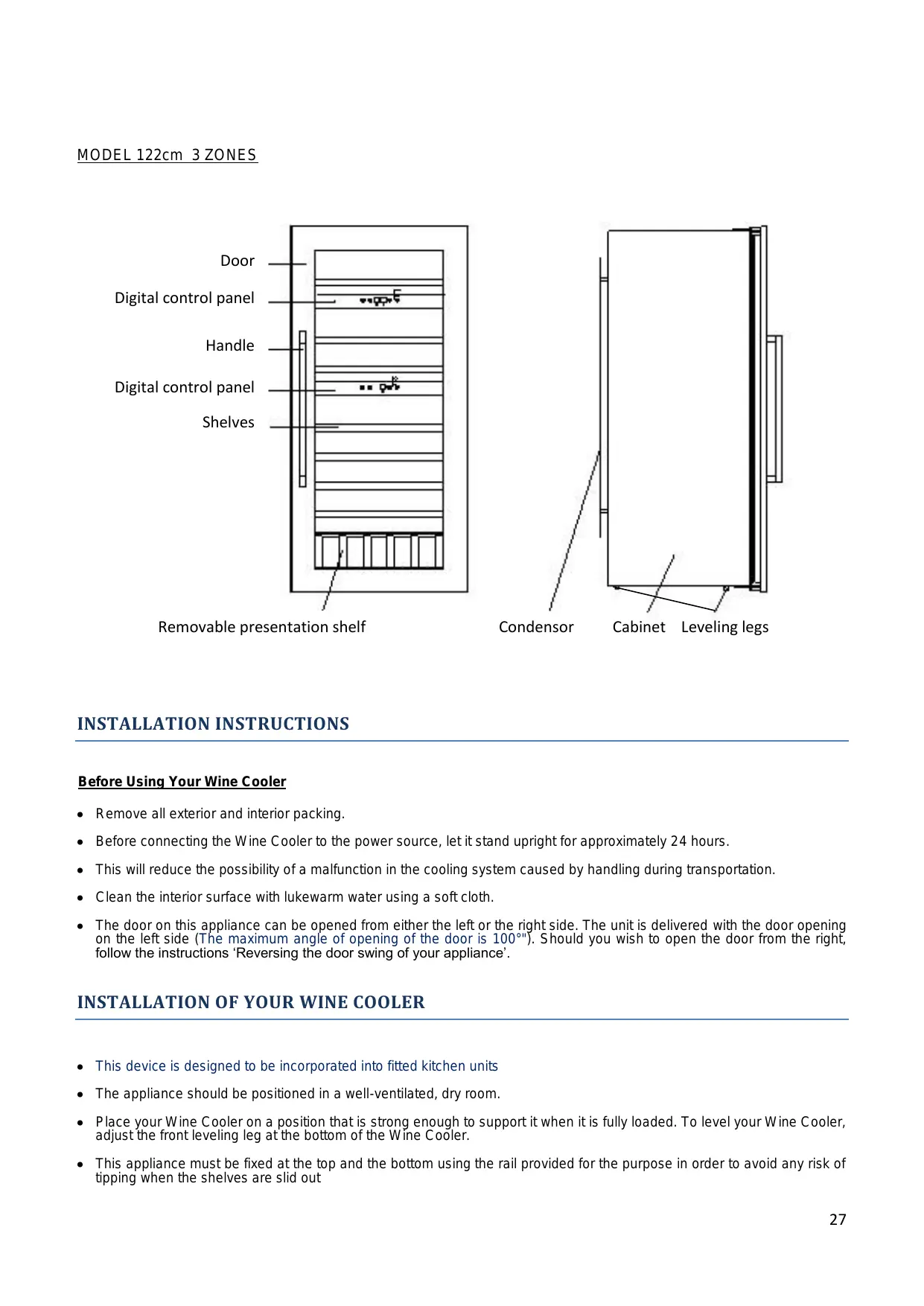

INSTALLATION INSTRUCTIONS

Before Using Your Wine Cooler

• Remove all exterior and interior packing.
• Before connecting the Wine Cooler to the power source, let it stand upright for approximately 24 hours.
• This will reduce the possibility of a malfunction in the cooling system caused by handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
• The door on this appliance can be opened from either the left or the right side. The unit is delivered with the door opening on the left side (The maximum angle of opening of the door is 100^ ). Should you wish to open the door from the right, follow the instructions 'Reversing the door swing of your appliance'.

INSTALLATION OF YOUR WINE COOLER

• This device is designed to be incorporated into fitted kitchen units
• The appliance should be positioned in a well-ventilated, dry room.
• Place your Wine cooler on a position that is strong enough to support it when it is fully loaded. To level your Wine cooler, adjust the front leveling leg at the bottom of the Wine cooler.

• This appliance must be fixed at the top and the bottom using the rail provided for the purpose in order to avoid any risk of tipping when the shelves are slid out

• Locate the Wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.

• Plug the Wine cooler into an exclusive, easily accessible plug socket. Any questions concerning power and/or earthing should be directed towards a qualified electrician or an authorized products service centre.
• To prevent the appliance from heating up, ensure that an adequate ventilation gap is retained and install a suitable thermal insulation panel. An adequate flow of air to and from the cooling system must be ensured.
• The appliance must be installed to all electrical, plumbing, water and drain connections in accordance with state and local codes.
• The required room temperature to allow proper operation of the device must be between 16^ and 38^ .

NOTE: Make sure that the socket and ON/OFF switch are easily accessible after the appliance has been installed.

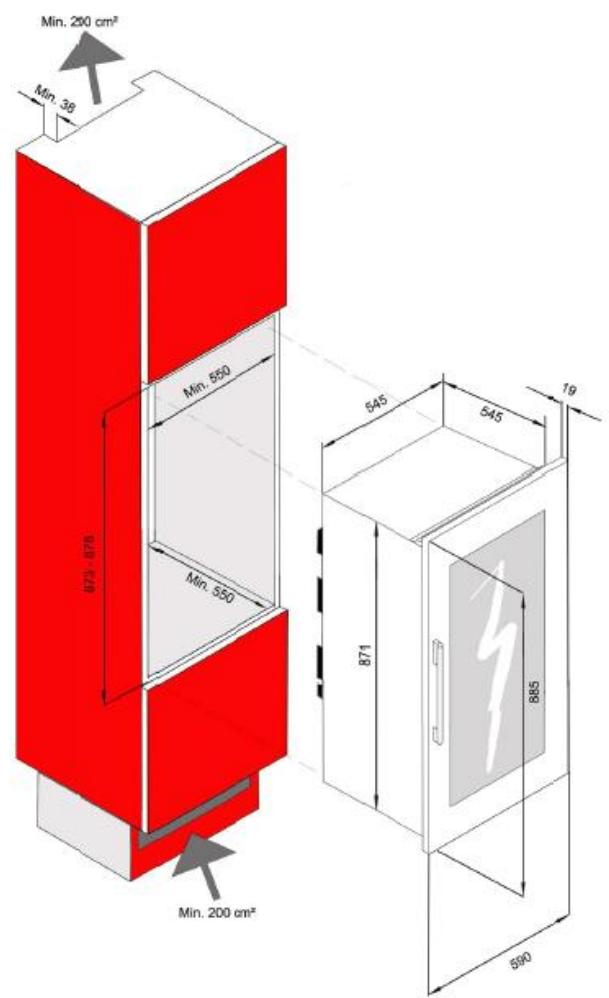

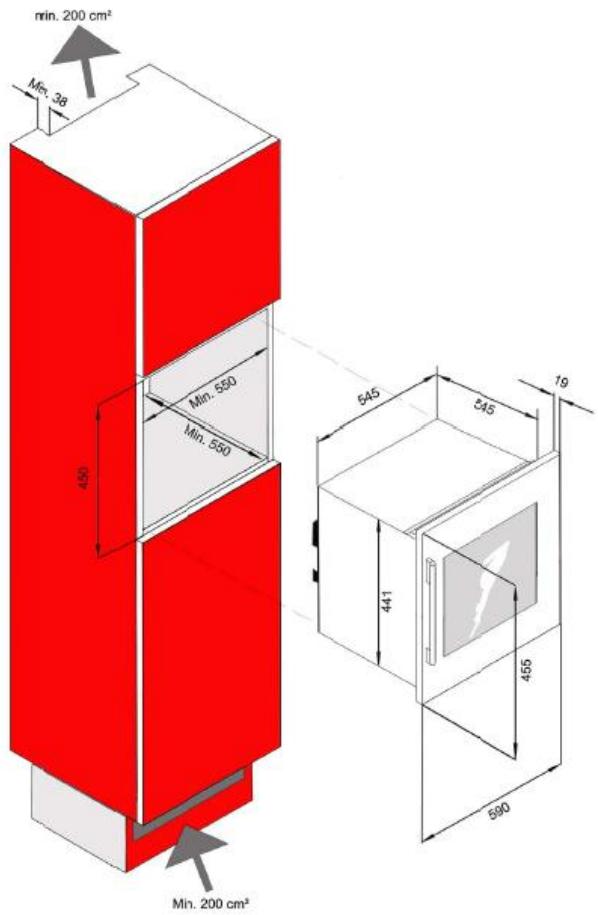

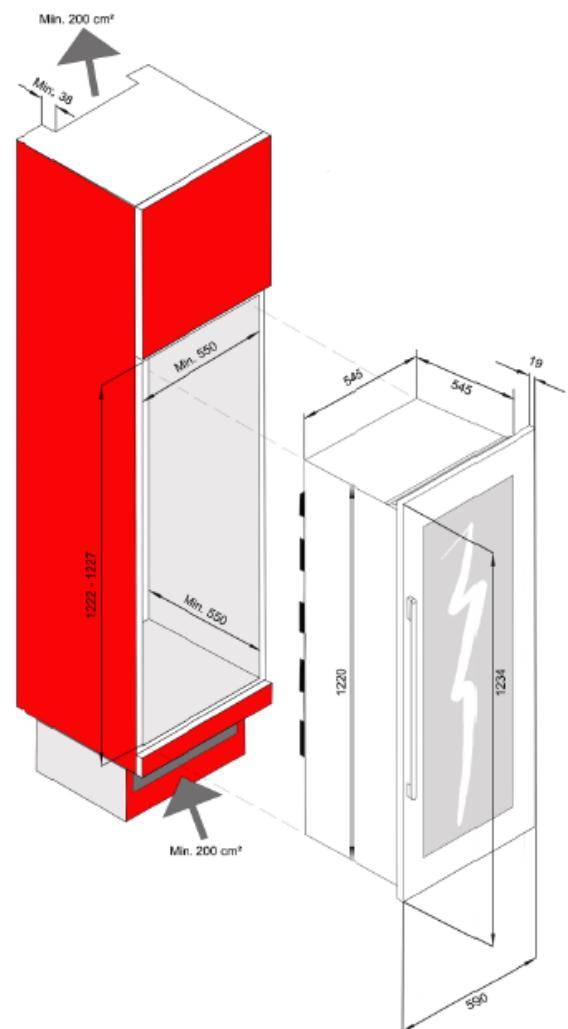

BUILT-IN CABINET INSTRUCTIONS

The wine cooler door seals the installed unit almost completely, so an air vent must provided in the base of the housing. Warmed air must flow from the front of the device to the back and then expelled upwards. The ventilation channels should measure at least 200 square centimeters in cross-section.

WARNING: To ensure the proper functioning of the appliance, air vents should never be blocked or covered.

Model 88 cm

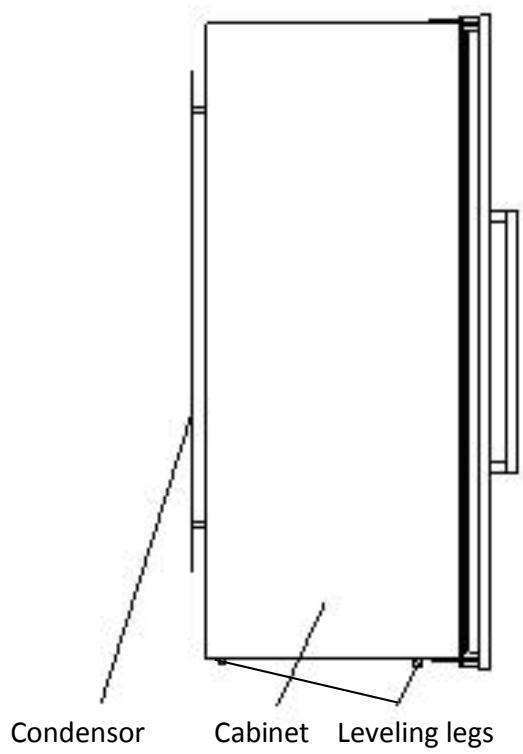

Model 122 cm

Model 45 cm

Attention

• Store wine in sealed bottles.
• Do not overload the cabinet.
• Do not open the door unless necessary.
• Do not cover shelves with aluminum foil or any other shelf material which may prevent air circulation.

Should the wine cooler be left empty for long periods it is suggested that the appliance is unplugged, and after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible condensation, mold or odors forming.

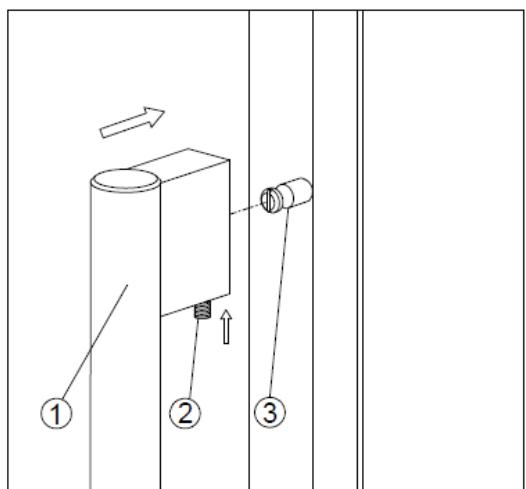

INSTALLING THE HANDLE

IMPORTANT : Do not overtighten the screws

Locate the handle (1) over the pins (3) of the door and tighten the handle by screwing the allen key grab screws.

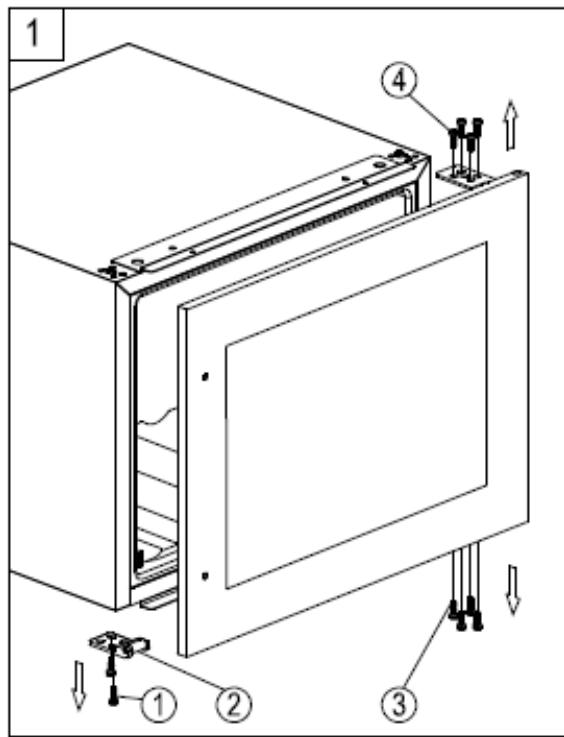

Should you desire to reverse the opening direction, please follow the instructions below.

Note: All parts removed must be saved to do the reinstallation of door.

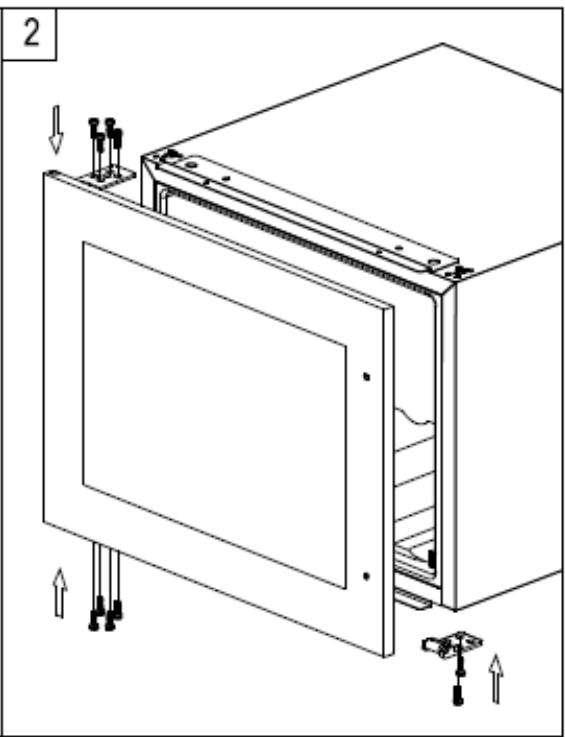

Remove the glass door by unscrewing the eight lock screws 3 and 4. Be careful to hold the glass door firmly after removing the screws and place it on a padded surface to avoid the risk of damage.

Unscrew and transfer the door supporter 2 to the opposite side.

Rotate the glass door 180^ and refit the glass door to the opposite side. Then screw and tighten it after the door is leveled.

The Wine cooler should be placed in a position where the ambient temperature is between 16 - 38^ / 60 100^ . If the ambient temperature is above or below this range, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 5 - 22^ / 40 - 72^ may not be reached.

Note:

When you use the Wine Cooler for the first time or restart the Wine Cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the Wine Cooler is running for a few hours everything will be back to normal.

If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine cooler will not start.

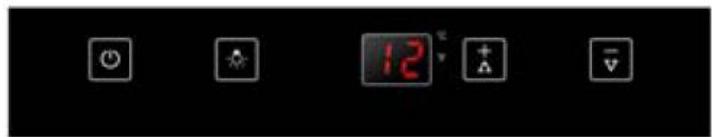

MODEL 1 ZONE

Power

To turn this appliance on/off, press the bottom the audible alarm when the alarm is on.

and hold for 5 seconds. Pressing the

key once can switch off

LIGHT

To control the inner light turn on/off.

《UP》

Used to increase (warm) the set temperature by 1^ / 1^ .

《DOWN》

Used to decrease (cool) the set temperature by 1^ / 1^ .

SELECTOR ^ C / ^ F

Select the temperature display setting in Fahrenheit or Celsius degree. To change the temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press the button for 5 seconds

SETTING THE TEMPERATURE CONTROL

• You can set the temperature as required by pressing the « UP » or « DOWN » button. When you press the two buttons for the fist time, the LED readout will show the original temperature set previously (the temperature preset at the factory is 12^ / 54^ ).
• The temperature will increase 1^ C / 1^ F if you press the button « UP » once. The temperature will decrease 1^ C / 1^ F if you press the button « DOWN » once.
• To view the « set » temperature at any time, press the « UP » or « DOWN » button, the “set” temperature will temporarily “flash” in the LED display for 5 seconds.
• The internal storage temperature will appear in the temperature display window.

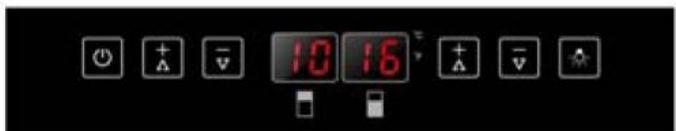

MODEL 2 ZONES

Power

To turn this appliance on/off, press the bottom the audible alarm when the alarm is on.

and hold for 5 seconds. Pressing the

key once can switch off

LIGHT

To control the inner light turn on/off.

《UP》

Used to increase (warm) the set temperature by 1^ / 1^ .

《DOWN》

Used to decrease (cool) the set temperature by 1^ / 1^ .

SELECTOR

Select the temperature display setting in Fahrenheit or Celsius degree. To change the temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press the button for 5 seconds

SETTING THE TEMPERATURE CONTROL

The wine cooler has two temperature zones. The temperature settings of LOWER ZONE and UPPER ZONE are adjustable with the range 5^ - 22^ C/40 ^ -72 ^ F. It is recommended to set the LOWER ZONE to 12^ - 22^ C / 55-72 ^ F which is ideal for storing white and red wines and the UPPER ZONE to 5-12^ C / 40-55 ^ F which is ideal for storing sparkling and white wines.

NOTE: The temperature set for the LOWER ZONE must always be the same or higher than that in the UPPER ZONE. For optimal performance, the set temperature of the two zones should differ by at least 4^ .

• You can touch UP and DOWN mark to set the internal temperature for each zone. The degrees indicators will appear in the display window marked for UPPER ZONE and for LOWER ZONE.
• When the unit is plugged in for the first time, the LED readouts will show the original temperature sets previously (the preset temperature at the factory for UPPER ZONE is 10^ / 50^ and for LOWER ZONE is 16^ / 60^ ).
• Touch the UP and DOWN mark once of each compartment to set the desired temperature.
• The temperature will increase 1^ or 1^ if you touch the UP mark once, or the temperature will decrease 1^ or 1^ if you touch the DOWN mark once.
• To view the "set" temperature in either zone at any time, touch the UP or DOWN mark of each compartment, the "set" temperature will temporarily "flash" in the LED display for 5 seconds. Then the display shows the current inner temperature again.

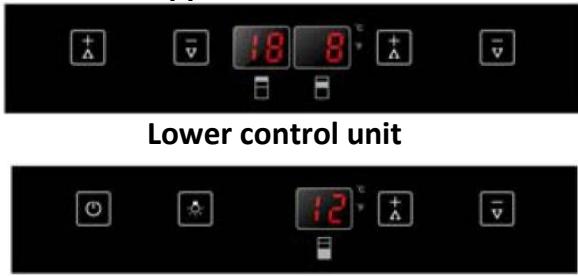

Upper control unit

Power

To turn this appliance on/off, press the bottom and hold for 5 seconds. Pressing the key once can switch off the audible alarm when the alarm is on.

LIGHT

To control the inner light turn on/off.

《UP》

Used to increase (warm) the set temperature by 1^ / 1^ .

《DOWN》

Used to decrease (cool) the set temperature by 1^ / 1^ .

SELECTOR

Select the temperature display setting in Fahrenheit or Celsius degree. To change the temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press the button for 5 seconds

SETTING THE TEMPERATURE CONTROL

The wine cooler has three temperature zones. The temperature of all zones can be set separately.

The temperature settings of UPPER ZONE are adjustable with the range +14^ et +22^ (+57^ et +72^) , the preset temperature at the factory is 18^ / 65^ .

The temperature settings of MIDDLE ZONE are adjustable with the range 5^ - 11^ / 40^ - 52^ . The preset temperature at the factory is 8^ / 46^ .

The temperature settings of LOWER ZONE are adjustable with the range 11^ - 13^ / 52^ - 56^ . The preset temperature at the factory is 12^ / 54^ .

Temperature control for upper and middle ZONE at upper control unit. Temperature control for lower ZONE at lower control unit.

• To view the "set" temperature in either zone at any time, touch the UP or DOWN mark, the "set" temperature will temporarily "flash" in the LED display for 5 seconds.

During normal operation, the temperature display on the control panel shows the temperature inside the appliance. The temperature display will flash if:

• A different temperature is being set,
• The temperature in the zone deviates by more than 5^ from the set temperature. The temperature display flashing ensures that the temperature can not rise or fall un-noticed and impair the wine.

TEMPERATURE ALARM

An alarm will sound if the temperature in one of the zones rises or falls outside the temperature range. The relevant temperature display will flash at the same time. The alarm will sound and the temperature display will flash:

• When you switch the appliance on, if the temperature inside the appliance is very different from the temperature set.
• When there has been a lengthy interruption to the power supply.
• When too many items have been put into the unit at one time.
• When the door is not been closed tightly.

DOOR ALARM

If the door has been left open for more than 60s, the alarm will sound.

Once the set temperature has been reached in the appliance, the alarm stops and the relevant temperature display stops flashing. However, if the noise disturbs you, you can switch the alarm off before this if you wish by pressing the POWER key one. The alarm will stop. The relevant temperature display continues to flash until the set temperature has been reached. The display then lights up constantly and the alarm system is fully active again.

INTERIOR LIGHT

The interior light makes it easy to view your wines labels and enhances the display of your collection. Touching the LIGHT mark toggles between two modes of operation for the internal lights:

• Functional mode (default): the light will turn on only when the door is open
• Showcase mode: the lights will be on whether or not the door is open.

SILENT MODE

This Dynamic Climate Mode enables the relative humidity inside the unit and the temperature to be distributed evenly around the interior so you can store your wine under exactly the same excellent conditions. If you would like to use the unit to store wine long term, the dynamic climate mode is a must. This create a continuous climate in the cabinet which imitates that of a wine cellar.

In the Dynamic Climate Mode, the interior fan circulates inside air evenly even the set temperature is reached. Dynamic Climate Mode is the factory preset mode, creating noise. To change to Silent mode, touch and hold the UP key for approximately 5 seconds. The wine cooler will beep 3 times to confirm silent mode is on. To change back to Dynamic Climate Mode, touch and hold the DOWN key 5 seconds The wine cooler will beep 5 times to confirm Dynamic Climate mode is on.

To initiate ECO mode, press the POWER and LIGHT keys at the same time for at least 5 seconds. The indicator light will flash four times and confirm the ECO mode is on. The ECO mode will automatically exit after 96 hours.

SHELVES

• To prevent damaging the door gasket, make sure the door is fully open when pulling shelves out of the rail compartment.
• For easy access to the bottles stored, pull the shelves out approximately 1/3. The shelves are designed with an emergency stop to prevent them being removed too far when loaded.

CARE AND MAINTENANCE

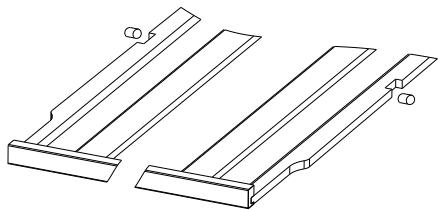

Removing Shelves

• To remove any of the shelves from the rail compartment, move the shelf to the position where the notch of wooden shelf is exactly under the plastic post and lift the wooden shelf. Please ensure these are replaced when the shelf is put back.

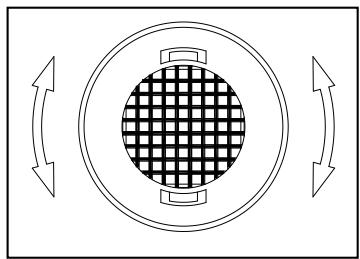

The wine cellar not equipped of charcoal filter have a manual system for maintaining a correct level of humidity. If humidity is too low, snap the small plastic reservoir on to top rack of wine cellar. Fill reservoir to 3/4 full. Check water level occasionally to refill.

When the wine cooler is equipped with charcoal filter it is preferable to change it once a year. Turn the filter 90^ clockwise or anti-clockwise. And then remove the filter.Insert the new filter with the handle in the vertical position. Turn the filter 90^ clockwise or anti-clockwise until they click into position.

Designed by specialists in oenology as written above, the wine cellar is allowed for a storage period of 2 months maximum. CLIMADIFF has taken care of the cork's sensibility to the humidity rate. That's why the plastic reservoir has to be put on the top shelf to ensure a minimum humidity. Be careful to control the water level if you store your wine cellar for a long period.

Make sure the water tank is well positioned to avoid any liquid falling.

The maximum amount of bottles able to be stored which is given, is only given as an indication, done in factory and is not contractual. This indication (as with the capacity in liters of a refrigerator) is to give a quick estimation of the size of the product. This indication corresponds to tests done with a standard bottle: the bottle type "Bordeaux tradition 75 cl" (the standardized classification contains for each bottle a geographic origin (Bordeaux, Bourgogne, Provence,...), and a type (traditional, heavy, light, flute,...) each with its own specific height and diameter.

In fact, one could store more bottles by stacking a single type of bottle and without shelves. But a "varied" cabinet is made up of a large variety of bottles and the "practical" side of the daily use of a cabinet limits the number of bottles stored. Most probably, a few less bottles will be stored than the indicated amount.

For example, if the cellar is filled only with bottles of burgundy, there will be approximately 30% fewer bottles than the initial quantity calculated for Bordeaux

Any added shelf will decrease the loading capacity.

EXAMPLES OF SERVING TEMPERATURES (TO BE COMPLIED WITH WHEN TASTING YOUR WINES!)

Opinions vary as does the ambient temperature but the general consensus is as follows:

Vintage Bordeaux - Reds	16 – 17°C
Vintage Burgundy - Reds	15 – 16°C
Vintage dry white wines	14 – 16°C
Light, fruity, young reds	11 – 12°C
Rosés de Provence, early wines	10 – 12°C
Dry whites and regional red wines	10 – 12°C
Regional white wines	8 – 10°C
Champagnes	7 – 8°C
Sweet wines	6°C

DEFROST - CONDENSATION

The cabinet is equipped with an automatic defrost cycle. When the cooling cycle is finished, the refrigerated parts of the cabinet are defrosted automatically. The water from the defrost is channelled into an evaporation tray which is located in the back of the cabinet close to the compressor. The heat from the compressor then evaporates the water from the tray.

UPKEEP

Before cleaning the cabinet (this must be done regularly), disconnect it either by unplugging it or by removing the fuse.

It is suggested that before first use and then regularly, the cabinet be cleaned both inside and out (front, sides and on top) with a mixture of warm water and gentle cleaning fluid. Rinse with water and let dry completely before reconnecting. Do not use solvents or abrasive products.

Clean the shelves with a gentle detergent then dry with a soft dry cloth.

At the moment of the first use, some odours can persist. In this case, make functioning the appliance at the coldest temperatures, empty, during a few hours. The cold will cancel all these possible odours.

Most power outages are resolved in a short time. An outage of 1 or 2 hours will not affect the temperatures in your cabinet. In order to protect the wines during the outage, open the door as little as possible. For outages that are very long, take necessary steps to protect the wine. In the event of a power interruption, the unit can remember the previous temperature settings, and when the power is recovery, the cabinet temperature will go back the same setting temperature as power off.

STORING THE CABINET

If the cabinet is going to be unused for a short period of time. Leave the control panel with the normal settings.

In case of prolonged un-use

• Remove the bottles from the cabinet
  Unplug the cabinet
• Clean both the inside and the outside of the cabinet
• Leave the door open to avoid condensation, odours and mold.

IF THE CABINET MUST BE MOVED

Remove all the bottles in the cabinet and securely fasten all moveable parts..To avoid damaging the levelling screws on the feet, screw them completely into their base.

• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.

ENERGY SAVING TIPS

• The Wine cooler should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
• Ensure that the unit is adequately ventilated. Never cover air vents.
• Only open the door for as long as necessary.

IN CASE OF BREAKDOWN

Despite the care we bring to our production, a breakdown can never be totally excluded. Before contacting the After-Sales department of your store, please check:

• the cabinet is properly plugged in
• there is not a power outage
• the fault does not have as an origin one of those described in the following table

WARNING ! Unplug the cabinet before cleaning or repairing the cabinet !

This product complies with EU WEEE Directive 2002/96/EC.

The crossed-out waste bin symbol on this appliance means that, at the end of its life, the appliance should be recycled separately from other domestic waste.

It should therefore be disposed of at a selective collection centre for electrical and/or electronic appliances or, if you are buying an equivalent product, by the retailer of the new product.

The user is responsible for taking the appliance to the appropriate collection centre at the end of its useful life. Selective and appropriate collection for the recycling of no-longer-used appliances and their disposal and destruction in an environmentally friendly manner helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product.

For more detailed information about available collection systems, contact your local waste collection organisation or the retail outlet where you bought the product.

WARNING

Since we make continuous improvements to our products, we reserve the right to modify technical characteristics without notice.

Warranties for CLIMADIFF brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary warranty.

CLIMADIFF cannot be held liable for errors or technical or editorial omissions in this document.

Non-binding document.

You can solve many common Wine Cooler problems easily, saving you the cost of a possible service call.

Try the suggestions below to see if you can solve the problem before calling customer service.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Wine cooler does not operate.	Not plugged in. The appliance is turned off. The circuit breaker tripped or a blown fuse.
Wine cooler is not cold enough.	Check the temperature control setting. External environment may require a higher setting. The door is opened too often. The door is not closed completely. The door gasket does not seal properly.
Turns on and off frequently.	The room temperature is hotter than normal. A large amount of contents has been added to the Wine cooler. The door is open too often. The door is not closed completely. The temperature control is not set correctly. The door gasket does not seal properly.
The light does not work.	Not plugged in. The circuit breaker tripped or a blown fuse. The light switch is “OFF”.
Vibrations.	Check to assure that the Wine cooler is level.
The Wine cooler seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal. As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine cooler. Contraction and expansion of the inside walls may cause popping and crackling noises. The Wine cooler is not level.
The door will not close properly.	The Wine cooler is not level. The door was reversed and not properly installed. The gasket is dirty. The shelves are out of position.
Display “E1” or “E2”.	The air temperature sensor is failed.

APPENDIX 1

Model	Brand: AVINTAGE Reference: AV24XI-1 Domestic refrigeration appliance category: 2
Supply	220-240 V, 50 Hz
Dimensions (L x D x H cm)	59X60.8X45.5
Weight (kg)	27
Energy efficiency class	B
Annual energy consumption (AEC)	Energy consumption 190 kWh per year calculated on the basis of results obtained over 24 hours in standardised test conditions. Actual energy consumption depends on conditions of use and the location of the appliance.
Usable volume of the compartments (litres)	65
Defrosting	Automatic
Climate class	Climate class: ST This appliance is designed to be used at an ambient temperature of between 16°C (lowest) and 38°C (highest).
Acoustic emissions in air in dB(A) re 1pW	44 dB
Installation type	Integrated

This appliance is intended exclusively for the storage of wine.

APPENDIX 2

Model	Brand: AVINTAGE Reference: AV45XDZI-1/AV46CDZI-1 Domestic refrigeration appliance category: 2
Supply	220-240 V, 50 Hz
Dimensions (L x D x H cm)	59X60.8X88.5
Weight (kg)	45
Energy efficiency class	B
Annual energy consumption (AEC)	Energy consumption 195 kWh per year calculated on the basis of results obtained over 24 hours in standardised test conditions. Actual energy consumption depends on conditions of use and the location of the appliance.
Usable volume of the compartments (litres)	146
Defrosting	Automatic
Climate class	Climate class: ST This appliance is designed to be used at an ambient temperature of between 16°C (lowest) and 38°C (highest).
Acoustic emissions in air in dB(A) re 1pW	44 dB
Installation type	Integrated

This appliance is intended exclusively for the storage of wine.

APPENDIX 3

Model	Brand: AVINTAGE Reference: AV79XDZI-1/AV80CDZI-1 Domestic refrigeration appliance category: 2
Supply	220-240 V, 50 Hz
Dimensions (L x D x H cm)	59X60.8X123.4
Weight (kg)	57
Energy efficiency class	C
Annual energy consumption (AEC)	Energy consumption 263 kWh per year calculated on the basis of results obtained over 24 hours in standardised test conditions. Actual energy consumption depends on conditions of use and the location of the appliance.
Usable volume of the compartments (litres)	215
Defrosting	Automatic
Climate class	Climate class: ST This appliance is designed to be used at an ambient temperature of between 16°C (lowest) and 38°C (highest).
Acoustic emissions in air in dB(A) re 1pW	44 dB
Installation type	Integrated

This appliance is intended exclusively for the storage of wine.

APPENDIX 4

Model	Brand: AVINTAGE Reference: AV93X3ZI-1 Domestic refrigeration appliance category: 2
Supply	220-240 V, 50 Hz
Dimensions (L x D x H cm)	59X60.8X123.4
Weight (kg)	60
Energy efficiency class	E
Annual energy consumption (AEC)	Energy consumption 347 kWh per year calculated on the basis of results obtained over 24 hours in standardised test conditions. Actual energy consumption depends on conditions of use and the location of the appliance.
Usable volume of the compartments (litres)	206
Defrosting	Automatic
Climate class	Climate class: ST This appliance is designed to be used at an ambient temperature of between 16°C (lowest) and 38°C (highest).
Acoustic emissions in air in dB(A) re 1pW	44 dB
Installation type	Integrated

This appliance is intended exclusively for the storage of wine.
